Scalable Precursor-Assisted Synthesis of a High Voltage LiNi_yCo_1−yPO₄ Cathode for Li-Ion Batteries

Abstract

A solid-solution cathode of LiCoPO₄-LiNiPO₄ was investigated as a potential candidate for use with the Li₄Ti₅O₁₂ (LTO) anode in Li-ion batteries. A pre-synthesized nickel–cobalt hydroxide precursor is mixed with lithium and phosphate sources by wet ball milling, which results in the final product, LiNi_yCo_1−yPO₄ (LNCP) by subsequent heat treatment. Crystal structure and morphology of the product were analyzed by X-ray powder diffraction (XRD), X-ray photoelectron spectroscopy (XPS), and scanning electron microscopy (SEM). Its XRD patterns show that LNCP is primarily a single-phase compound and has olivine-type XRD patterns similar to its parent compounds, LiCoPO₄ and LiNiPO₄. Synchrotron X-ray absorption spectroscopy (XAS) analysis, however, indicates that Ni doping in LiCoPO₄ is unfavorable because Ni²⁺ is not actively involved in the electrochemical reaction. Consequently, it reduces the charge storage capability of the LNCP cathode. Additionally, ex situ XRD analysis of cycled electrodes confirms the formation of the electrochemically inactive rock salt-type NiO phase. The discharge capacity of the LNCP cathode is entirely associated with the Co³⁺/Co²⁺ redox couple. The electrochemical evaluation demonstrated that the LNCP cathode paired with the LTO anode produced a 3.12 V battery with an energy density of 184 Wh kg⁻¹ based on the cathode mass.

1. Introduction

Demand for lithium-ion batteries (LIBs) has been increasing rapidly in portable electronics, electric vehicles, and other industries [1,2,3]. The rapid progression of LIB technology spurred an immediate demand for novel high-energy-density systems. A great deal of work is being put into exploring novel materials that can be used as the cathode for high-voltage LIBs. The first commercialized cathode LiCoO₂ has a high operating voltage (~3.9 V) [4]. However, LiCoO₂ has been gradually replaced by other commercialized cathode materials, such as spinel LiMn₂O₄, olivine LiFePO₄, and layered-type LiNi_1/3Mn_1/3Co_1/3O₂ (NCM111) during the continuous development of LIBs owing to the high cost of Co resources [1,5]. Introducing redox couples with high redox potentials, such as Co²⁺/Co³⁺, Ni²⁺/Ni⁴⁺ or V³⁺/V⁴⁺/V⁵⁺, can further boost the voltage and energy density [6]. For example, LiNi_0.5Mn_1.5O₄ demonstrates dramatically increased redox potential from 4.0 to 4.7 V by a partial replacement of Mn with Ni in spinel LiMn₂O₄ lattice [5]. In the case of layered LiNi_xMn_yCo_zO₂ chemistry, where x:y:z = 5:3:2 (NMC532), 6:2:2 (NMC622), 8:1:1 (NMC811), the higher Ni fraction translates into the increased energy density, boosting research attention on Ni-rich layered oxides [7,8]. Alternatively, the olivine family LiMPO₄ (M = Fe, Mn, Co) cathodes have become the subject of intensive research thanks to their remarkable thermal stability attributed to the strong covalent P–O bond within the polyanionic structure. Typically, oxide atoms are packed in a slightly distorted hexagonal close packing (HCP) in an olivine structure where half of the octahedral sites contain Li⁺ and M²⁺ cations, while 1/8 of the tetrahedral sites contain P⁵⁺ cations, which is a hexagonal analogue of spinel. The MO₆ octahedrons share four corners in the bc plane and are cross-linked by PO₄ groups along the ‘a’ axis. The Li ions reside inside rows of edge-shared LiO₆ octahedra aligned along the ‘a’ axis. Li⁺ ions are occupied by the three-dimensional network of perpendicular channels along the [010]– and [001]– direction. Having this network plays a crucial role in lithium-ion mobility, which makes olivine a viable cathode material [9]. Among them, LiFePO₄ is the pioneer, reported in 1997 by Goodenough and co-workers [10]. It has been extensively investigated and successfully commercialized due to its favorable electrochemical properties, exceptional safety, abundance of Fe resources, and environmental friendliness. In addition, LiCoPO₄ and LiNiPO₄ also emerged as promising cathode materials on the pathway to future high-voltage (5 V) batteries due to their high operating voltage ~4.8 V and ~5.1 V, respectively, which translate to theoretical energy densities of 801 and 862 Wh kg⁻¹ [5]. Nevertheless, the sluggish kinetics of the electronic and lithium-ion transport for these cathodes pose a major constraint to their development. Numerous modifications have been adapted to improve the Li extraction/insertion kinetics and electronic conductivity, including morphology control [11,12], metal ion doping [13], metal oxide coating [14,15,16], and carbon coating [17,18]. Manickam Minakshi et al. have conducted several studies on olivine cathodes [19,20,21,22,23]. A LiCoPO₄/C nanocomposite with controlled morphology was synthesized using solid-state fusion by introducing a second phase (Co₂P) in an inert atmosphere and utilizing Super P for amorphous carbon coating [19]. A LiCo_1/3Mn_1/3Ni_1/3PO₄ cathode, synthesized by sol-gel (SG) and solid-state methods, demonstrated superior performance in aqueous batteries with even microparticle distribution aided by PVP in the SG process [20]. Beyond these approaches, the overall electrochemical performance of any olivine-type materials can be enhanced via solid solutions. Basically, among all the cationic redox couples, Ni^+2/+3/+4 is the most significant contributor to boosting the energy density of cathode materials, as demonstrated in the Ni-rich layered oxides [8]. However, it is difficult to synthesize pure phase LiNiPO₄ due to the segregation of the Li₄P₂O₇ and Ni₃P impurity phases [23]. Alternatively, Ni doping is often widely adopted to influence the structural modification and electrochemical activity of other phospho-olivine cathodes, LiMnPO₄ (M = Fe, Mn, and Co). Y. Ge et al. [24] have attributed the Ni doping to reducing the particle size of LiFePO₄. Y. Liu et al. [25] stated that doped Ni can enhance the crystallinity of LiFePO₄, as evidenced by XRD analysis. Y. Lu et al. [26] stated that doping nickel in LiFePO₄/C composites strengthens the P–O bond, makes the structure more stable, and lowers the cathode particles and charge transfer resistance. The theoretical calculation predicted that Ni doping in LiMnPO₄ could enhance the insertion potential of Li and reduce activation barriers that inhibit Li diffusion [27]. M. Minakshi and S. Kandhasamy [28] demonstrated improved voltage and capacity in LiMnPO₄ with Ni substitutions. D. Shanmukaraj et al. reported that substitution of Ni in LiCoPO₄ strengthens the P–O and M–O bonds [29]. Therefore, LiNiPO₄–LiCoPO₄ solid solutions were also investigated computationally [30] and experimentally [31,32,33,34] as potential cathodes for use in Li-ion batteries. S. T. Rommel et al. [34] have reported the synthesis of the LiNi_1−yCo_yPO₄ (y = 0.25, 0.33, 0.66, 1.0) and observed a stabilization effect of cycle life at an optimum Ni content of 33%.

Various methods have been developed to synthesize those olivine-type LIB cathodes, including co-precipitation [29], sol-gel [32], hydrothermal [35], microwave [36], solid-state [16], supercritical fluid [11,37], polyol [38], and spray pyrolysis [33]. Since many of the available Co and Ni precursors are susceptible to form impurities, such as Co metal, CoO, Ni₃P, and Li₃PO₄, most of the synthesis routes reported cannot be scaled up or require complicated heat-treatment steps to achieve pure stoichiometric LiMPO₄ (M = Ni, Co) [16,39]. For example, NH₄CoPO₄ nanoplates can be used for LiCoPO₄ preparation [40]. However, multiple heat treatments in both an air and an inert atmosphere were needed to make sure that the LiCoPO₄ was stoichiometric because there is a possibility of cobalt metal impurities being formed by the decomposition of NH₄CoPO₄. In general, for synthesizing Ni-containing layered cathode materials that are successfully commercialized, the routine procedure entails two steps: precursors are synthesized through co-precipitation reactions, followed by their lithiation through solid-state reactions at high temperatures [41]. In the battery industry, co-precipitation is advantageous because it can incorporate various raw materials, such as chlorides, sulfates, nitrate salts, and organic anions. Carbonate and hydroxide co-precipitations are the most popular methods to prepare the precursors for the layered-type cathodes. Nevertheless, the precursor-assisted synthesis received much less attention for preparing olivine-type LiMPO₄ (M = Ni, Co) cathodes [42]. In addition, a post-mortem study of the cycled electrodes is essential to reveal the charge storage mechanism of electrode materials. By analyzing dQ/dV (differential capacity) vs. voltage curves, only one study attempted to unravel the electrochemical behavior of LiNiPO₄–LiCoPO₄ solid-solution cathodes [34]. X-ray absorption spectroscopy (XAS) is considered one of the best tools in the scientific community for studying the electrochemical processes in battery materials. Its main important characteristics include (i) its element specificity, enabling a particular element to be studied by concentrating on its K (or, in some cases, L) absorption edge; (ii) the flexibility to customize it to different sites (such as Co and P in LiCoPO₄), providing complementary information on the same compound. The XAS technique can track changes in oxidation states and local environmental conditions of metal atoms in battery materials. When X-rays are exposed to the target sample, a 1s photoelectron is excited into low-lying unoccupied states of the central atom at the K-edge, resulting in a normalized absorbance at specific energy [43].

On the anode side, a safety concern associated with Li dendrite formation in conventional graphitic anodes has sparked researchers to look at alternatives, such as Li₄Ti₅O₁₂ (LTO). Lithium dendrite growth risk and solid electrolyte interface (SEI) formation can ultimately be elevated in LTO due to its lower-lying energy states of Ti^3+/4+ redox couple than the LUMO (lowest unoccupied molecular orbital) level of electrolytes, leading to improved safety [44]. However, the redox potential (1.55 V vs. Li/Li⁺) of LTO reduces the overall working voltage in practical cell configurations. LiFePO₄/LTO and Li(Ni_1/3Co_1/3Mn_1/3)O₂ (NCM111)/LTO full-cell batteries, for example, have offered cell voltages of only 1.85 and 2.2 V, respectively [45,46]. For the LTO anode, therefore, it may be appropriate to use “5 V-class cathodes”—Li₂CoPO₄F, LiCoPO₄, LiNiPO₄, and a LiCoPO₄-LiNiPO₄ solid solution—to secure a high output potential.

In this paper, LiNi_yCo_1−yPO₄ (y = 0.33) has been synthesized by a low-energy ball mill using a pre-synthesized nickel–cobalt hydroxide precursor. The precursor was prepared by a hydroxide co-precipitation method. In addition to offering the advantages of mass production, the proposed synthesis strategy provided better homogeneity in the product. Moreover, the charge compensation mechanism of LiNi_yCo_1−yPO₄ (y = 0.33) solid solution is revealed using synchrotron X-ray absorption spectroscopy (XAS). To date, no publication has reported the precursor-based synthesis of the LiCoPO₄-LiNiPO₄ solid-solution cathode, including the electrochemical performance test in a full-cell configuration in combination with the charge compensation mechanism revelation in a LiPF₆-containing electrolyte. Our study reveals that incorporation of Ni into the LiCoPO₄ olivine system is not worthy, as the Ni²⁺/Ni³⁺ redox couple was not activated during electrochemical cycling, which adversely affected the cathode-specific capacity.

2. Experimental Section

2.1. Synthesis

The precursor, [Ni_0.33Co_0.67](OH)₂, was synthesized by co-precipitation method. The starting materials, NiSO₄∙6H₂O (Kanto Co., Tokyo, Japan) and CoSO₄∙6H₂O (Kanto Co., Tokyo, Japan) aqueous solutions, were pumped into a continuously stirred tank reactor (CSTR, 4 L) under a N₂ atmosphere. The reactor was also simultaneously filled with NaOH solution (aq) in addition to the desired amount of NH₄OH solution (aq) to act as a chelate. We carefully controlled the pH (11–12), temperature (60 °C), and stirring speed (1000 rpm) of the mixture in the reactor. After washing and filtering with distilled water, the resultant precursor powders were dried in a vacuum oven overnight. Finally, the obtained pink precursor powders were ball milled (at 150 rpm) with the ZrO₂ media in ethanol for 12 h with Li₂CO₃, and NH₄H₂PO₄. After the slurry was collected, it was dried in an oven at 80 °C for 12 h. The mixture was transferred to a vacuum-controlled box furnace equipped with flowing inert gas and calcined at over 700 °C at a heating rate of 2 °C min⁻¹ for 8 h in a reductive (Ar 96% + H₂ 4%) atmosphere to yield LiNi_0.33Co_0.67PO₄, the final product. A solid-state approach was used to prepare the LTO anode. To achieve a uniform mixture, stoichiometric amounts of Li₂CO₃ (Sigma-Aldrich, Burlington, MA, USA, 99%) and TiO₂ (Junsei Chemical, Tokyo, Japan, 98.5%) were mixed in a mortar with a pestle. We added 5% extra Li₂CO₃ (wt.%) to the mixture to compensate for the possibility of Li vaporization during the calcination process. For homogeneous mixing, the mixture was ground repeatedly and then pressed into pellets at 300 bars by using a hydraulic press (Daehatech, Busan, Republic of Korea, HP-1B). As-prepared pellets were placed in a box furnace (MTI corporation, Richmond, CA, USA) and calcined at two stages with different temperatures, 850 and 950 °C, for 12 h each in air with an intermediate grinding step. The crystal structure and phase purity of the as-synthesized LTO anode were confirmed by X-ray diffraction analysis. The morphology of the LTO sample (inspected by Field emission-scanning electron microscopy, Fe-SEM) was micrometer-sized particles with an average diameter (primary particle) of 1.81 μm, as published in our previous research [47,48].

2.2. Electrochemical Measurements

We made the slurry of LNCP cathode containing the synthesized active material, carbon black (Super P), and polyvinylidene fluoride (PVDF) binder (Sigma-Aldrich, Burlington, MA, USA) with a weight ratio of 8:1:1 in N-methyl-2-pyrrolidone (NMP). The mixed slurry was cast onto an Al foil current collector. The active material loading of cathode used for this study was 2.8 mg cm⁻². Before the electrode was used, it was dried in a vacuum oven at 80 °C for 12 h. The prepared working electrode was assembled into coin-type half cells (CR2032) in combination with a Li counter electrode, a polypropylene separator, and an electrolyte composed of 1 M LiPF₆ in ethylene carbonate and ethyl methyl carbonate (3:7 volume ratio).

More details about structural characterization, LTO slurry making, full-cell assembly, electrochemical testing, ex situ sample preparation, and XAS measurement are described in Supplementary Materials.

3. Results and Discussion

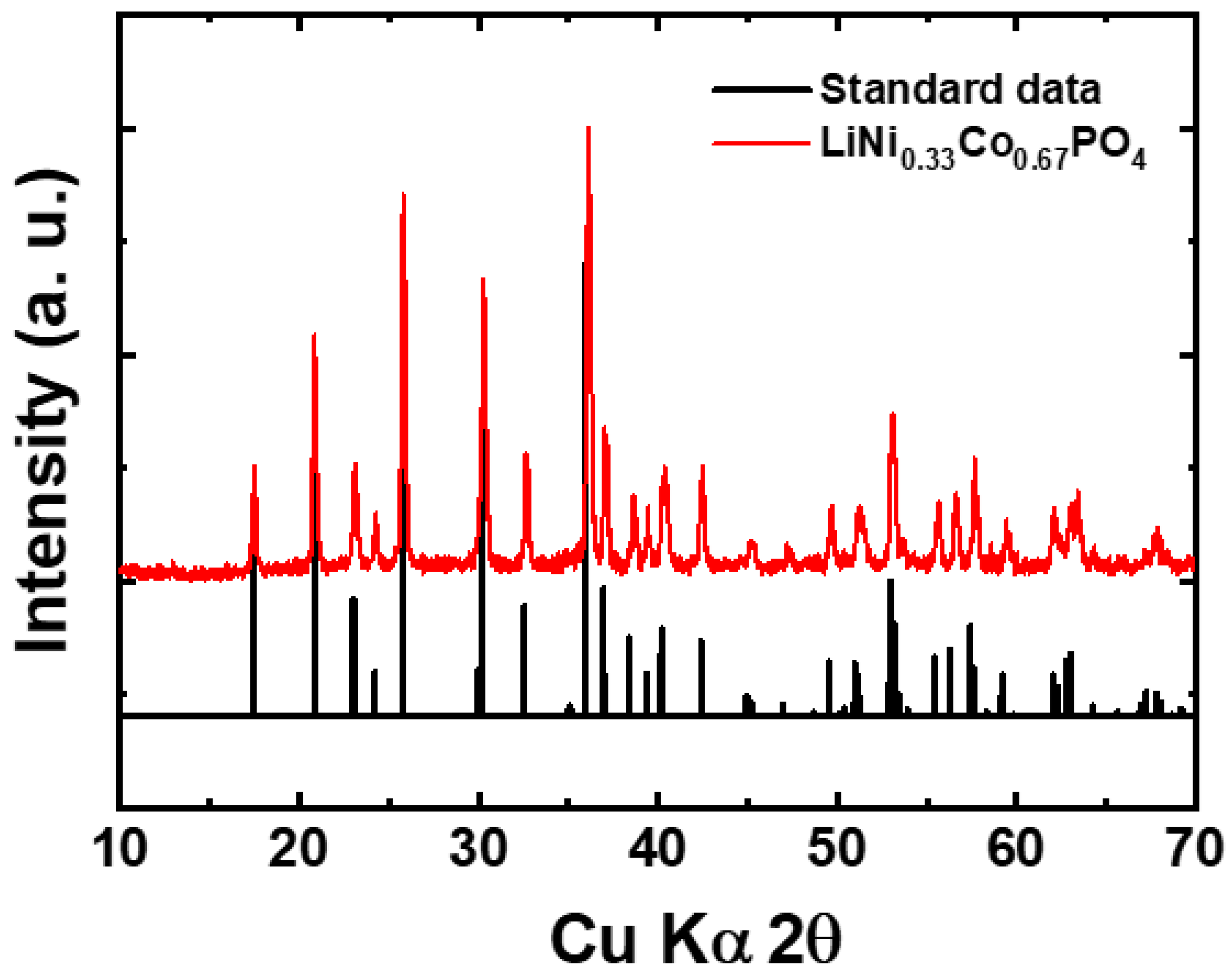

The XRD result of LiNi_0.33Co_0.67PO₄ (LNCP) material in Figure 1 exhibits well-defined diffraction peaks, matching with the standard data (ICSDS 00-000-1809) having the orthorhombic olivine structure with a Pnma space group. The sharp peaks reveal the high crystallinity of the material. A previous study observed lithium phosphate (Li₃PO₄) impurity phase formation when Mn is doped at the Co site [14]. Unlike this, no impurity peak was observed after the incorporation of the Ni at the Co site in the LiCoPO₄ structure. The Ni₃P is readily formed as a side phase during the synthesis of the LiNiPO₄ material [32]. Herein, by maintaining a reductive atmosphere during heat treatment, Ni²⁺ and Co²⁺ are prevented from oxidizing into Ni³⁺ and Co³⁺, respectively, assuring that samples are impurity-free. Therefore, the XRD pattern signifies the formation of single-phase material.

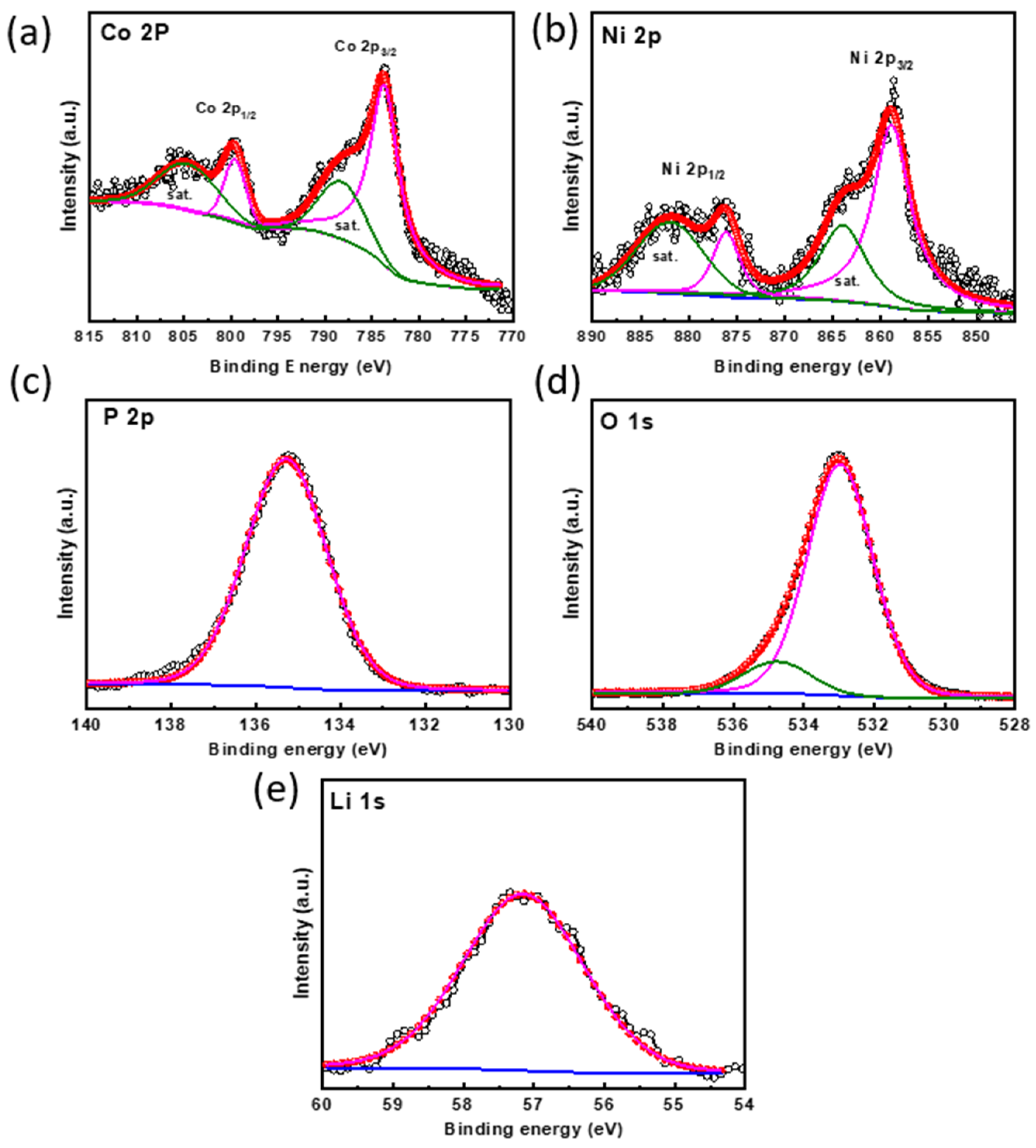

The surface composition and valence state of the elements in the LNCP cathode were examined by X-ray photoelectron spectrometry (XPS). In Figure 2a, the Co 2p spectrum displays a typical spin-orbital split (2p_3/2 and 2p_1/2) with two shake-up satellite peaks at ~787.62 and 805.41 eV; the main peaks at 783.1 and 797.5 eV are attributed to Co²⁺ [49,50]. The Ni 2p region in Figure 2b exhibits two shake-up satellite peaks; the fitting peaks are located at the binding energies of 859 and 876.5 eV, indicating the oxidation states of Ni²⁺ [51]. The XPS spectrum for P 2p (Figure 2c) displays that the single binding energies peaked at 135.5 eV, which is assigned to the pentavalent P⁵⁺; this corresponds to the presence of the PO₄³⁻ anion of LNCP [19]. Two peaks in the O 1s spectrum (Figure 2d) at ~530.13 and ~531.26 eV could be associated with metal phosphate and oxygen in chemically or physically adsorbed water molecules. The XPS spectrum of the Li 1s peak with binding energy 55.97 eV is shown in Figure 2e, confirming the presence of Li⁺ in LNCP.

The sample morphology was observed by FE-SEM, showing randomly distributed microparticles. The particles are loosely agglomerated without noticeable variation in their shape (Figure 3a). However, a closer inspection (Figure 3b) reveals two size distributions: small particles with a diameter range of about 200–400 nm appear on the surface of larger particles with an average size of 1–1.2 µm. It is evident that well-crystallized particles with a noticeable grain boundary and smooth surfaces are formed after calcination. During the electrochemical reaction, the loosely agglomerated particles allow the electrolyte to infiltrate into interparticle voids, ensuring proper utilization of the active material. Energy-dispersive X-ray spectroscopy (EDS) coupled with SEM was conducted to check the elemental distribution of the as-prepared LNCP cathode. In Figure 3c, SEM-EDS mapping results show that all elements, including Ni and Co, are homogeneously distributed within the sample. It is found that the atomic ratio of Ni and Co is 1:2 (Table S1).

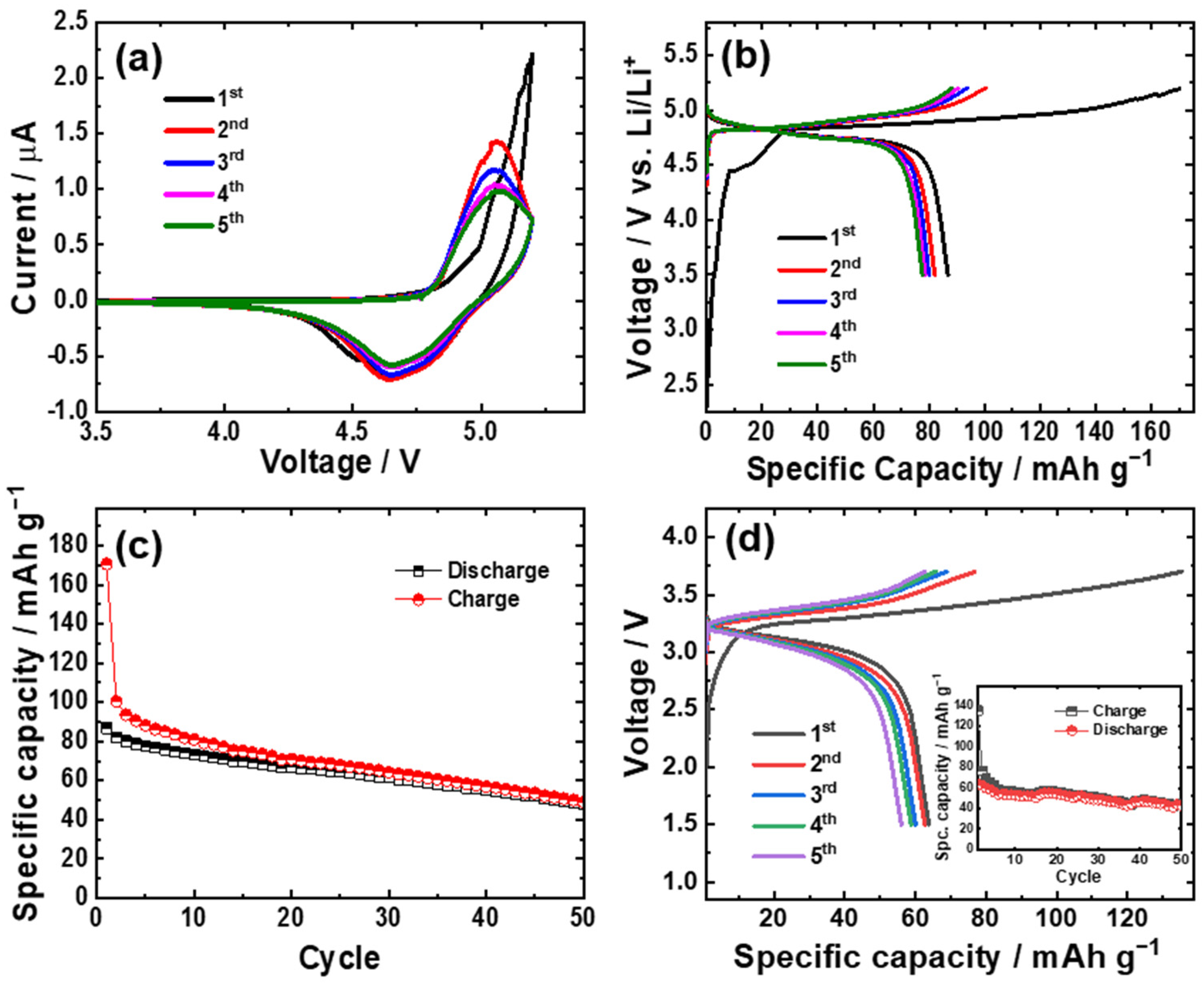

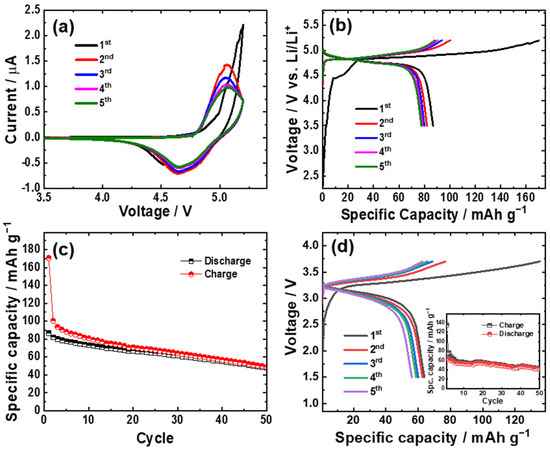

Figure 4a shows the electrochemical response of the LNCP cathode in the cyclic voltammetry (CV) test at a scan rate of 0.1 mV s⁻¹ with a lithium foil counter electrode. The first anodic and cathodic sweep demonstrates the oxidation peaks at 5.19 V and 5.14 V and the reduction peaks at 4.66 V and 4.53 V, which were moved and merged on successive cycles at 5.05 V and 4.65 V, respectively. From the second cycle, the CV curve features almost the shape of the pure LiCoPO₄ sample, as observed in a previous report [15,31]. Otherwise, the oxidation and reduction peaks of Co²⁺/Co³⁺ and Ni²⁺/Ni³⁺ might be so close to each other such that only single oxidation and reduction peaks appear in the following cycles. The respective charge and discharge curves of the LNCP cathode (Figure 4b) between 5.2 to 3.5 V over the first five cycles are coherent with the CV curves. As expected, divergent voltage plateaus emerged at variable cell potentials during the first and subsequent cycles. For lithium extraction, LiCoPO₄ follows a two-phase mechanism for both aqueous [21] and non-aqueous [52] electrolytes. Our previous study demonstrated two distinguishable flat plateaus during the galvanostatic charge of LiCoPO₄ indicative of a two-phase mechanism [53]. It is difficult to distinguish such plateaus from the second charge curve of the LNCP cathode here. Nevertheless, two anodic peaks in the dQ/dV plot (Figure S1) of the second cycle support a two-phase lithium extraction mechanism (Note: The extensive decomposition of the electrolyte associated with SEI layer formation on the electrode surface makes it difficult to discern anodic peaks on first cycle dQ/dV plot). The second-cycle charging and discharging capacities of the LCNP at 0.1 C (1 C = 167 mAh g⁻¹) are 100.4 and 82 mAh g⁻¹, respectively. The electrolyte decomposition and SEI layer formation at high voltages likely result in a substantial irreversible capacity loss and low (~51%) coulombic efficiency (CE) in the first cycle. However, there is a significant improvement in CE (i.e., 81.7, 83.1, 86.9, 88%) from the second to fifth cycles. After an initial activation period lasting ≈ 20 cycles, the CE reached over 95%, and the reversibility of the electrode is excellent for at least 50 cycles, highlighting that the target material can sustain a stable lifespan (Figure 4c). After 50 cycles, the discharge capacity values maintain ~48 mAh g⁻¹. The electrolyte composition likely plays a significant role in LCNP capacity fading, which remains for further investigations. The oxidative decomposition of LiPF₆-containing electrolytes was reported for the LiCoPO₄ and other high-voltage materials [54,55]. Applying a sulfone-based electrolyte [56] or incorporating HF scavenger separators [57] into this high-voltage cathode would be favorable from the electrochemical performance standpoint. Generally, a LiNiPO₄ cathode exhibits a flat plateau at approximately 5 V, corresponding to the Ni³⁺/Ni²⁺ redox couple [58]. The LNCP cathode shows a discharge voltage plateau at about 4.8 V, which is slightly lower considering the expected Ni³⁺/Ni²⁺ redox couple but is in good agreement with previous publications for the Co³⁺/Co²⁺ redox couple in LiCoPO₄ [11,13]. When an LNCP cathode is combined with an LTO anode, this full cell displays a discharge plateau at 3.12 V in the voltage profile during the galvanostatic cycling test (Figure 4d). For the full cell, the described potential is not vs. Li/Li⁺; it is instead the potential difference between an LNCP cathode and an LTO anode. The practical capacity of as-synthesized LTO anode was 136 mAh g⁻¹ at 0.1 C (1 C = 175 mAh g⁻¹) in a half cell [48]. By considering the anode-to-cathode capacity ratio, the active mass of the assembled full-cell electrodes was regulated to ensure that the cathode material was fully utilized. The full cell shows a maximum specific discharge capacity of 64 mAh g⁻¹ at 0.1 C (16.7 mA g⁻¹), which corresponds to a specific energy of 184 Wh kg⁻¹. These values are based on the weight of the cathodic active material rather than the entire device; the purpose is to highlight the material performance of LNCP. The energy density is determined from the integrals of the second discharge curve. The full cell retains a specific capacity value of 43 mAh g⁻¹ after 50 cycles, as shown in Figure 4d (inset). It is important to note that the capacity retention of LNCP in a full cell is shown to be better than that of a half cell.

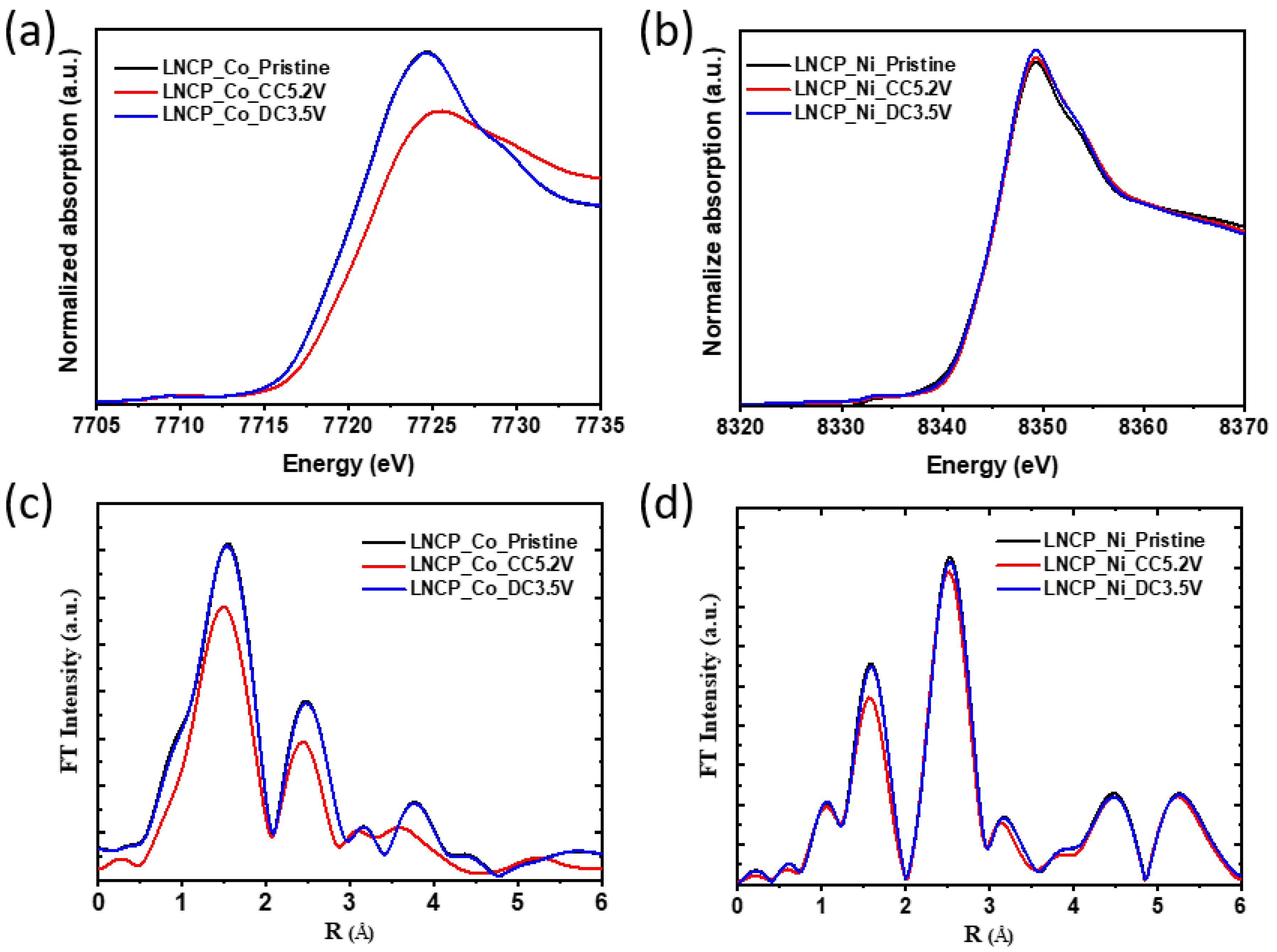

Despite the high working potential of the presented cathodic material, its low specific capacity results in relatively low specific energy compared to the cathodic materials (LiCoPO₄) used in pairing with LTO [59,60]. To understand the causes of the low specific capacity, the charge compensation mechanism of the LNCP cathode was investigated using ex situ X-ray absorption spectroscopy (XAS). We examined the changes in the oxidation state of nickel and cobalt atoms throughout the electrochemical reactions using XANES. The ATHENA software package (version 0.9.26) was used to handle and process the XAS data [61]. There is an absorption edge that results from a dipole-allowed 1s → 4p transition, which is commonly called the white line, and the oxidation state change of the absorbing atom is described by its relative energy position shift. Figure 5a,b illustrates X-ray absorption near edge structure (XANES) spectra at the Co and Ni K-edges during charging to 5.2 V (full CC) and discharging to 3.5 V (full DCh). Delithiation (charge) leads to the entire edge shift of the Co K-edge toward higher energy, suggesting that Co²⁺ is being oxidized to Co³⁺. During lithiation (discharge), the Co K-edge XANES spectrum shows reversible edge shifts back to its pristine state, suggesting quite reversible Co^2+/3+ redox reaction in the LNCP during charging and discharging. As opposed to this, the position of the Ni K-edge (Figure 5b) remains unchanged during charging and discharging. In light of this finding, it can be assured that the capacity contribution to the LNCP cathode is due to cobalt oxidation and reduction. The inactivity of the Ni redox couple explains the lower specific capacity of the target material. Figure 5c,d presents Fourier-transformed intensity of extended X-ray absorption fine structure (FT-EXAFS) spectra of LNCP showing interatomic distance changing behavior at the Co and Ni K edges. Typically, an FT peak represents the bond distance between the absorbing and backscattering atoms. At R = 1.5 Å, the first peak is attributed to the scattering of the nearest oxygen atom in the first coordination shell of the TM-O₆ octahedron. At R = 2.45 Å, the second peak is associated with the scattering of the second nearest TM cation in the second coordination shell of the Co/Ni-TM₆ hexagon. For the EXAFS process, the k-range was 3.0~11 Å⁻¹ with a k-weight factor of 3. After complete charge to 5.2 V, the interatomic Co–O, and Co–TM distances decreased. Upon subsequent discharge, cobalt interatomic distances and peak intensities were completely restored to their original pristine (OCV) state, indicating the highly reversible local structural changes of cobalt in LNCP. Conversely, the Ni K-edge EXAFS spectra conform well to the NiO rock salt structure [62]. The Ni–O and Ni–TM interatomic distances remain unchanged, indicating that the inactive NiO rock salt phase adversely affects the charge storage capability in the LNCP cathode. Thus, as determined by XANES, the Ni²⁺ ions do not participate in electrochemical reactions, which is consistent with the interpretation of the FT-EXAFS results.

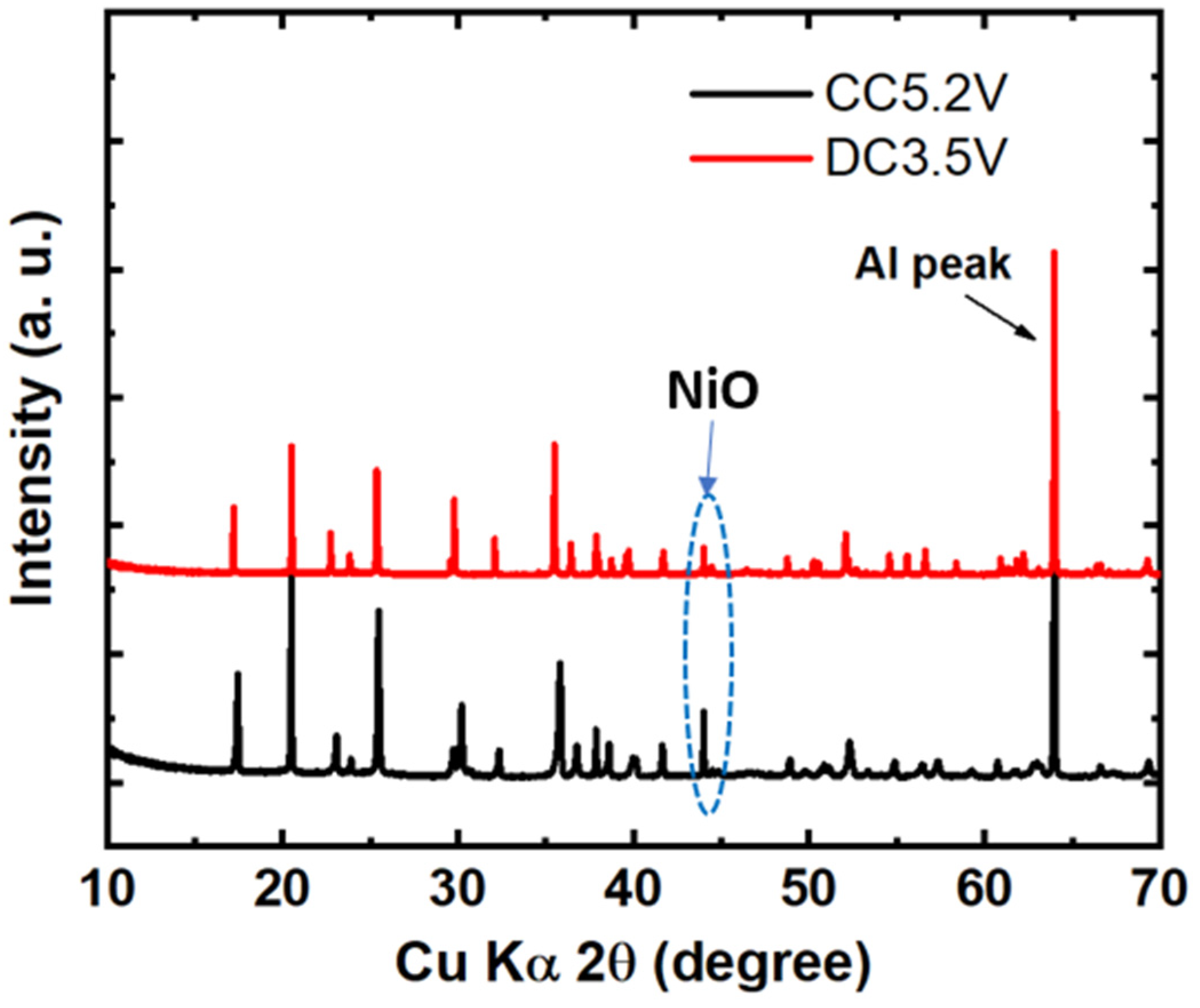

After the charge/discharge cycle, ex situ X-ray diffraction (XRD) data were collected to obtain clues about the structural changes in the LNCP cathode as presented in Figure 6. It shows that all the main reflection peaks are maintained during charge–discharge cycles. Intense peaks are seen, which indicates suppression of amorphization of the LNCP cathode [63]. However, there is an additional peak at 2θ = 43.8° related to the NiO phase formation besides those for the LNCP material. This result confirms the detrimental rock salt phase (NiO) formation in the LNCP cathode [64]. Notably, S. M. Rommel et al. [34] also reported the inactivity of a Ni²⁺/Ni³⁺ redox couple in a LiCoPO₄-LiNiPO₄ solid solution cathode. However, the cause of the Ni content inactivity has not yet been identified. The present study has utilized a combination of ex situ XRD and synchrotron XAS techniques to reveal the underlying cause of this phenomenon. There is no doubt that the common polyanionic materials (LiMPO₄) have structures that are generally stable with larger M cations (Fe²⁺, Co²⁺, Ni²⁺, and Mn²⁺, whose radii are 0.78, 0.72, 0.78, and 0.64 Å, respectively). The extremely small radius of the Ni³⁺ cation (0.56 Å) probably does not fit into the olivine structure’s octahedral environment or may cause strong structural distortion. Therefore, the electrochemical oxidation of the Ni²⁺ in LiNi_yCo_1−yPO₄ material is most likely extremely difficult, at least under the standard conditions applied in this study.

4. Conclusions

A LiCoPO₄-LiNiPO₄ solid-solution cathode was synthesized using a pre-synthesized metal hydroxide precursor followed by wet ball milling with lithium (Li₂CO₃) and phosphate (NH₄H₂PO₄) sources and subsequent heat treatment. The XRD result initially suggested that LiNi_yCo_1−yPO₄ (y = 0.33) solid solutions were formed. The XPS results confirmed that in the pristine sample, the oxidation states of Co and Ni are +2. However, the results of synchrotron X-ray absorption spectroscopy (XAS) analysis of cycled electrodes indicate that Ni was not entirely doped into the structure of LiCoPO₄. The cathode delivered low discharge capacity because the electrochemical activity of the Ni²⁺/Ni³⁺ redox couple was not activated due to the formation of electrochemically inactive rock salt-type NiO. Both cyclic voltammetry and discharge curves indicate that the LNCP cathode is driven by one redox couple, Co³⁺/Co²⁺, as confirmed by the XANES and EXAFS results. Therefore, substitution of Co²⁺ in LiCoPO₄ by Ni²⁺ ion, in fact, negatively affects the cathode performance.
