A Preparation Method of Nano-Pesticide Improves the Selective Toxicity toward Natural Enemies

by
Shuo Yan
1,
Na Gu
1,
Min Peng
2,
Qinhong Jiang
1,
Enliang Liu
3,
Zhiqiang Li
4,
Meizhen Yin
2,
Jie Shen
1,
Xiangge Du
1 and
Min Dong
1,*
1
Department of Plant Biosecurity and MARA Key Laboratory of Surveillance and Management for Plant Quarantine Pests, College of Plant Protection, China Agricultural University, Beijing 100193, China
2
State Key Laboratory of Chemical Resource Engineering, Beijing Lab of Biomedical Materials, Beijing University of Chemical Technology, Beijing 100029, China
3
Research Institute of Grain Crops, Xinjiang Academy of Agricultural Sciences, Urumqi 830091, China
4
Adsen Biotechnology Co., Ltd., Urumqi 830022, China
*
Author to whom correspondence should be addressed.
Nanomaterials 2022, 12(14), 2419; https://doi.org/10.3390/nano12142419
Submission received: 14 June 2022 / Revised: 11 July 2022 / Accepted: 13 July 2022 / Published: 14 July 2022
(This article belongs to the Section Environmental Nanoscience and Nanotechnology)
Browse Figures
Versions Notes

Abstract

:
Various nano-delivery systems have been designed to deliver synthetic/botanical pesticides for improved bioactivity. However, the enhanced toxicity of nanocarrier-loaded pesticides may injure the natural enemies, and their selective toxicity should be evaluated before the large-scale application. In this context, a star polymer (SPc)-based cyantraniliprole (CNAP) nano-delivery system was constructed, and its selective toxicity was evaluated using pest Frankliniella occidentalis (WFT) and predator Orius sauteri. The amide NH of CNAP could assemble with carbonyl groups or tertiary amines of SPc through hydrogen bonds to form CNAP/SPc complex spontaneously. The above self-assembly decreased the particle size of CNAP from 808 to 299 nm. With the help of SPc, the lethal concentration 50 (LC50) values of CNAP decreased from 99 to 54 mg/L and 230 to 173 mg/L toward WFTs and O. sauteri due to the enhancement of broad-spectrum bioactivity. Interestingly, the toxicity selective ratio (TSR) of CNAP increased from 2.33 to 3.23 with the help of SPc, revealing the higher selectivity of SPc-loaded CNAP. To our knowledge, it was the first successful exploration of the selective toxicity of nanocarrier-loaded pesticides, and the higher selective toxicity of SPc-loaded CNAP was beneficial for alleviating the negative impacts on predators.

1. Introduction

Nano-delivery systems have been widely studied as transport vehicles for various drugs due to their ability to increase the local accessibility to the target side and enhance bioactivity [1,2,3,4,5,6]. Nanocarriers are materials with at least one dimension in the nanoscale range, which give them unusual physical and chemical features such as quantum effect, high reactivity and high surface area [7]. Compared to the extensive application in medical field, nanocarrier for agrochemical delivery is a recently developed approach [8,9,10,11,12]. Nanocarriers can be successfully applied to deliver double-stranded RNA (dsRNA), Bt toxin and synthetic/botanical pesticides for combating various plant diseases and pests [13,14,15,16,17,18]. The majority of synthetic pesticides are consisted of hydrophobic active ingredients (AIs), thus various nano-delivery systems have been designed to deliver hydrophobic AIs for improved bioactivity, targeted-delivery, controlled-release and enhanced stability characteristics [19,20,21,22].
In recent years, a star polymer (SPc) has been designed and constructed as a gene/pesticide nanocarrier for efficient delivery [23]. The SPc-loaded cargo can be efficiently delivered across the plant/insect cell membrane by activating the clathrin-mediated endocytosis [24,25,26,27,28]. Based on the current publications, the SPc can assemble with several pesticides, such as matrine, osthole and thiamethoxam to form nano-sized pesticides for improved bioactivity, enhanced plant uptake and reduced pesticide residue [29,30,31,32,33]. Thus, the SPc-loaded pesticides have the potential to overcome agricultural, forestry and environmental challenges. Although the working concentration of SPc is relatively safe to predatory ladybirds, the safety and selective toxicity of SPc-loaded pesticides or other nano-pesticides toward predators remain unclear [34]. There are two important issues related to the selective toxicity of SPc-loaded pesticides: (1) whether the SPc increases the toxicity of pesticides against both target pests and non-target predators with the enhancement of broad-spectrum bioactivity, and (2) whether the application of SPc changes the selective toxicity of pesticides.
Western flower thrip (WFTs, Frankliniella occidentalis) is a serious insect pest that can cause huge problems in agriculture, horticulture and forestry through feeding, oviposition activity or transmission of plant viruses [35]. Chemical pesticide cyantraniliprole (CNAP) and predator Orius sauteri are usually employed to control thrips in actual production [36,37,38,39]. Cyantraniliprole is a second-generation anthranilic diamide insecticide with a broad spectrum registered for suppressing various sucking and chewing insect pests [40,41,42,43,44]. Cyantraniliprole acting on the ryanodine receptor, homotetrameric calcium channels located in the sarco-/endoplasmic reticulum of nerves, can cause the excess release of Ca2+ to result in muscle paralysis of insect pests [45,46,47,48]. For CNAP nanometerization, there is only one publication that reports a nanocarrier-loaded CNAP for strong adhesive property on rice leaves and long-term control efficacies against Cnaphalocrocis medinalis and Chilo suppressalis [49]. However, the selective toxicity of nanoscale CNAP or other nano-pesticides is still not clear.
Previous studies have focused on the enhanced bioactivity of SPc-loaded pesticides. However, the selective toxicity of SPc-loaded pesticides is totally unclear. To this context, a SPc-based CNAP nano-delivery system was constructed and taken as an example to evaluate the selective toxicity of nanopesticide. The characteristic and self-assembly mechanism of CNAP/SPc complex was investigated by determining the pesticide loading content of SPc, testing the interaction between SPc and CNAP and analyzing the particle size and morphology of CNAP/SPc complex. Then, the lethal concentration 50 (LC50) values of CNAP/SPc complex were determined toward WFTs and O. sauteri through insecticide-impregnated filter method. Finally, the selective toxicity of CNAP/SPc complex and CNAP alone was analyzed and compared by calculating the selective toxicity ratio (STR) and safety coefficient (SC). To our knowledge, it is the first attempt to analyze the selective toxicity of nanocarrier-loaded pesticides, which is beneficial for not only understanding the enhancement of broad-spectrum bioactivity of nano-pesticides, but also providing a theoretical basis for safe application of nano-pesticides.

2. Materials and Methods

2.1. Chemical Reagents

Pure CNAP (≥94%) was bought from FMC Corporation (Shanghai, China). For SPc synthesis, the N,N,N’,N’,N”-Pentamethyl diethylenetriamine (PMDETA, 98%) and CuBr (≥99%) were bought from Sigma-Aldrich (Saint Louis, MO, USA), the 2-bromo-2-methylpropionyl bromide and triethylamine were bought from Heowns BioChem Technologies (Tianjin, China), and the 2-(Dimethyl amino) ethyl methacrylate (DMAEMA, 99%) was bought from Energy Chemical (Shanghai, China). Other chemical agents were bought from Beijing Chemical Works (Beijing, China).

2.2. SPc Synthesis and Preparation of CNAP/SPc Complex

The SPc was synthesized through two steps according to the method described by Li et al. [23]. The CNAP and SPc were dissolved in methanol and ddH2O, respectively. The CNAP was mixed with SPc, and the mixture was incubated for 15 min at room temperature. The CNAP could spontaneously assemble with SPc to form CNAP/SPc complex.

2.3. Loading Capacity Measurement

The loading capacity of SPc toward CNAP was measured using the freeze-drying method according to the method described by Wang et al. [33]. The 100 mg of CNAP and SPc were dissolved in 25 mL of methanol and 75 mL of double-distilled water (ddH2O), respectively. Two solutions were mixed, and the mixture was dialyzed using the regenerated cellulose with a molecular weight cut off of 2000 Da (Shanghai Yuanye Bio-Technology Co., Shanghai, China) for 12 h to exclude the excess CNAP. The CNAP/SPc complex was freeze-dried using a lyophilizer (Beijing Songyuanhuaxing Technology Development Co., Beijing, China) and weighed. The pesticide loading content (PLC) was calculated as PLC (%) = weight of CNAP loaded in complex/weight of CNAP loaded complex × 100%. Each treatment was done in triplicate.

2.4. Isothermal Titration Calorimetry (ITC) Assay

The 1 mL of CNAP (0.0138 × 10−3 mol/L) was titrated with 250 µL SPc water solution (1 × 10−3 mol/L) in Nano ITC (TA Instruments Waters, Newcastle, DE, USA). The heats of interaction during each injection were calculated by integrating each titration peak using the Origin software v. 7.0 (OriginLab Co., Northampton, MA, USA). The test temperature was 25 °C, and ΔG was calculated using the formula of ΔG = ΔH − TΔS.

2.5. Particle Size Measurement and Complex Morphology Characterization

The CNAP was dissolved in ethanol, mixed with SPc at the mass ratio of 1:1 and 1:3.03 and diluted with ddH2O to prepare the CNAP/SPc complex (0.5 mg/mL). The particle sizes of CNAP and CNAP/SPc complex were measured using a Particle Sizer and Zeta Potential Analyzer (Brookhaven NanoBrook Omni, New York City, NY, USA) at 25 °C. Each treatment included 3 independent samples. The morphological characteristics of CNAP and CNAP/SPc complex at the mass ratio of 1:1 were further examined using a scanning electron microscope (SEM) (JSM-7500F, Tokyo, Japan). A few microliters of above samples were dropped on the surface of silica, dried naturally and coated with a thin layer of platinum for 30 s with ETD-800 sputter coater (Beijing Elaborate Technology Development, Ltd., Beijing, China) before observation.

2.6. Bioassay of SPc-Loaded CNAP toward WFTs

The western flower thrips (F. occidentalis) were collected from organic cucumbers in Beicaiyuan Agricultural Science and Technology Development Co. (Beijing, China), and fed on organic long beans in Organic Agricultural Technology Research Center (China Agricultural University) for nine years. The thrips were pesticide-sensitive strains and maintained at 25 ± 1 °C, 80 ± 10% relative humidity and a 14 L: 10 D photoperiod.
The 10 mg of CNAP was dissolved in detergent TritonX-100 (0.1%), and then mixed with SPc at the mass ratio of 1:1 to prepare the CNAP/SPc complex at the concentrations of 0.2, 0.5 and 2 mg/mL. The solution state of CNAP/SPc complex was compared with CNAP alone to illustrate whether the SPc could improve the solubility of CNAP. Meanwhile, the bioassay of SPc-loaded CNAP and CNAP alone was performed according to the national standard (Guideline for laboratory bioassay of pesticides part 8: insecticide-impregnated filter method). The 1 mL of CNAP/SPc complex (12.44, 24.88, 49.75, 99.5 and 199 mg/L) and CNAP (12.5, 25, 50, 100 and 200 mg/L) was dripped on the qualitative filter paper (9 cm diameter), and the filter paper was air-dried. SPc at a concentration of 199 mg/L and TritonX-100 were applied as controls. The 2nd instar nymphs of WFTs were released on the filter paper and removed to a clean dish at 1 h after the treatment. Thrips that did not move when pushed gently with a brush were scored as dead at 24 and 48 h after the treatment. Each treatment contained 10 thrips and was repeated 10 times.

2.7. Bioassy of SPc-Loaded CNAP toward Orius sauteri

The adults of O. sauteri were bought from Kuoye Biology Co. (Beijing, China) and fed on WFTs during the experiment. The bioassay of SPc-loaded CNAP and CNAP alone was performed toward O. sauteri adults according to insecticide-impregnated filter method similarly as above. The applied concentrations of CNAP/SPc complex and CNAP were same with above experiment. The SPc at the concentration of 199 mg/L and TritonX-100 was applied as controls. The mortality was recorded at 24 and 48 h after the treatment. Each treatment contained 10 O. sauteri adults, which was repeated 10 times.

2.8. Data Analysis

The statistical analysis was performed using the SPSS 19.0 software (SPSS Inc., New York, NY, USA). The descriptive statistics were shown as the mean value and standard errors of the mean. The Tukey HSD test was used to analyze the particle size at the p = 0.05 level of significance.
Concentration-mortality data were analyzed to obtain the lethal concentration 50 (LC50) using POLOPlus version 2.0 (LeOra Software, CA, USA, 2002) [50]. Efficiency ratio was given as the ratio of the CNAP LC50 to complex LC50.
The safety of CNAP/SPc complex was analyzed by calculating the selective toxicity ratio (STR) and safety coefficient (SC) [51,52,53]. STR was calculated as STR = predator’s LC50 ÷ pest’s LC50. The pesticide can be classified as selective pesticide when STR > 1. SC was calculated as SC = predator’s LC50 ÷ recommended concentration of pesticide for field application. The pesticide can be classified as medium risk when 0.5 < SC ≤ 5. The recommended concentration of CNAP is 111.33–133.33 mg/L for controlling thrips in actual production.

3. Results

3.1. SPc Synthesis and Its Loading Capacity

The synthesis route of SPc includes two reaction steps. As shown in Figure 1, the 2-bromo-2-methylpropionyl bromide was added into the pentaerythritol solution in dry tetrahydrofuran (THF) and triethylamine (TEA) to obtain the star initiator. The star initiator, DMAEMA and dry THF were added into a flask and degassed by nitrogen, and the CuBr and PMDETA were then added for polymerization. The crude polymer was purified by dialysis, and the white powder of SPc was finally obtained. Furthermore, the THF could be recycled to decrease the production cost of SPc. The 100 mg of CNAP and SPc were dissolved in 25 mL of methanol and 75 mL of double-distilled water (ddH2O), respectively. Two solutions were mixed, and the CNAP could spontaneously assemble with SPc to form the CNAP/SPc complex. The mixture was dialyzed to exclude the excess CNAP, and the obtained CNAP/SPc complex was then freeze-dried and weighed. As shown in Table 1, the pesticide loading content was calculated to be 24.79%.

3.2. Interaction of CNAP with SPc

The CNAP solution was titrated with SPc solution to detect the interaction force between CNAP and SPc. The high affinity constant Ka of 7.249 × 105 M−1 and low dissociation constant Kd of 1.380 × 10−6 M indicated an effective and strong interaction between CNAP and SPc, and this interaction was automatic due to the negative ΔG value (−33.449 kJ/mol) (Figure 2). The negative values of ΔH (−75.22 kJ/mol) and ΔS (−140.1 J/mol•K) suggested that the self-assembly of CNAP with SPc was through hydrogen bonding and Van der Waals forces. Based on the chemical structures of CNAP and SPc, the putative sites for hydrogen bonding might be the amide NH of CNAP with carbonyl groups or tertiary amines of SPc.

3.3. Characterization of CNAP/SPc Complex

The dynamic light scattering (DLS) was used to measure the particle size of CNAP/SPc complex (Table 2 and Figure 3A). The CNAP could aggregate into large particles with mean diameter of 808 nm, whereas the assembly of CNAP/SPc complex at the mass ratio of 1:1 disturbed the self-aggregated structure of CNAP, forming smaller particles (299 nm). Furthermore, the particle size of CNAP/SPc complex was not significantly changed at various mass ratios, revealing that only a small amount of SPc could reduce the particle size of CNAP to nanoscale. This conclusion was also supported by the results of scanning electron microscope (SEM) (Figure 3B). The particle sizes of both CNAP and CNAP/SPc complex varied greatly among different particles, and the CNAP/SPc complex self-aggregated into smaller particles with irregular shape compared to CNAP alone. The CNAP/SPc complex at the mass ratio of 1:1 was employed for the following experiments.

3.4. Toxicity of CNAP/SPc Complex against WFTs

The LogP of CNAP is 4.43, and its water solubility is less than 0.1 mg/mL, revealing the hydrophobic character of CNAP (Provided by ChemSrc). Thus, the CNAP was dissolved in detergent TritonX-100 (0.1%) to prepare the CNAP/SPc complex, and the solution state of CNAP/SPc complex was also observed and compared with CNAP alone. Our results revealed that the SPc could not improve the solubility of CNAP (Figure S1 from Supplementary Materials). Meanwhile, the LC50 values of CNAP/SPc complex and CNAP alone were determined toward the 2nd instar nymphs of WFTs through the insecticide-impregnated filter method. As expected, the SPc at the highest concentration showed no toxicity toward WFTs. With the help of SPc, the LC50 values of CNAP decreased from 98.695 to 53.714 mg/L at 24 h after the treatment (Table 3), and the mortality of thrips was increased by approximately 20% at 48 h after the treatment (Figure 4).

3.5. Selective Toxicity of CNAP/SPc Complex against O. sauteri

The potential negative effects of CNAP/SPc complex should be evaluated toward predators before the large scale field application. Thus, the LC50 values of CNAP and CNAP/SPc complex were determined toward O. sauteri using the similar bioassay method. The SPc also exhibited negligible toxicity toward O. sauteri. After the complexation with SPc, the LC50 values of CNAP decreased from 229.662 to 173.437 mg/L at 24 h after the treatment (Table 4), and the toxicity of SPc-loaded CNAP was slightly improved due to the enhancement of broad-spectrum bioactivity (Figure 5). The toxicity of SPc-loaded CNAP was improved against both target pests and non-target predators, but whether the selective toxicity of CNAP changed after the complexation with SPc was crucial. The toxicity-selective ratio (TSR) was firstly calculated to analyze the selective toxicity of SPc-loaded CNAP. The TSR of CNAP increased from 2.33 to 3.23 with the help of SPc at 24 h after the treatment, indicating the higher selectivity of SPc-loaded CNAP compared to CNAP alone. Furthermore, the recommended concentration of CNAP is 111.33–133.33 mg/L for field application, and the safety coefficient of SPc-loaded CNAP was 1.56–1.30 that was between 0.5 and 5. The CNAP/SPc complex can be classified as medium risk toward O. sauteri.

4. Discussion

As a gene/pesticide nanocarrier, the SPc can be complexed with various exogenous substances for enhanced delivery and bioactivity [24,25,29,30]. The current study illustrated that the pesticide loading content of SPc toward CNAP was 24.79%, which was higher than those of osthole (17.09%), thiamethoxam (20.63%), monosultap (19.3%), and dinotefuran (17.41%) [30,31,32,33]. The binding affinity of CNAP with SPc was then analyzed using a high-accuracy method ITC [54,55]. The interaction force was analyzed according to the previous interpretation of ITC data [56]. Our results revealed that there was a strong hydrogen bonding and Van der Waals forces between CNAP and SPc, and we deduced the amide NH of CNAP and carbonyl groups or tertiary amines of SPc played an important role in the self-assembly of CNAP/SPc complex. Consistent with previous studies, the SPc can assemble with dinotefuran, monosultap, avermectin and chitosan through hydrogen bond and Van der Waals forces [25,32,33,57]. Meanwhile, the SPc can also combine with thiocyclam, eugenol, thiamethoxam, matrine and osthole through different interaction forces, such as electrostatic interaction and hydrophobic association [25,29,30,31,33]. Different self-assembly mechanisms of pesticide/SPc complexes are beneficial for expanding the application area of SPc, indicating that the SPc may be a universal adjuvant for pesticide delivery.
Compared to CNAP alone, the complexation of CNAP with SPc formed smaller particles with irregular shape, and the morphology and particle size of SPc-loaded pesticides are not only related to the chemical structures of pesticide and SPc, but also the interaction between pesticide and SPc. Meanwhile, the nanometerization of SPc-loaded CNAP in aqueous solution was similar to our previous studies that the complexation with SPc could decrease the particle sizes of insecticides, such as avermectin, dinotefuran and matrine down to nanoscale [29,32,57]. For instance, the particle size of matrine can be reduced from 858 to 9 nm with the help of SPc, and self-assembly of thiamethoxam/SPc complex can decrease the particle size of thiamethoxam from 576 to 116 nm [29,31]. The nanometeriztion of SPc-loaded pesticide can not only increase the contact area of pesticides to target pests for enhanced contact toxicity, but also improve the plant uptake and systemic transmission in plants for enhanced stomach toxicity. Furthermore, the current study demonstrated that only a small amount of SPc could reduce the particle size of CNAP to nanoscale, and this property was beneficial for reducing the application amount of SPc, which revealed that the SPc was fit for the large scale application in field.
The toxicity of CNAP has been analyzed against the nymphs and adults of WFTs using the oral feeding method [38]. For nymphs, the LC50 values of field strains range from 33.4 to 109.2 mg/L with a low natural variability of 3.3 folds. For adults, the LC50 values of CNAP range from 536 to 2415 mg/L with a slight natural variability of 4.5 folds. The sublethal effects of CNAP have been observed, such as reduced fecundity, fertility, feeding, oviposition and mating. Furthermore, some antifeedant responses have also been also observed in electrical penetration graphing studies, and CNAP can reduce the probability of tomato spotted wilt virus infection in field-grown peppers [37]. In the current study, the toxicity of CNAP was significantly improved against WFTs with the help of SPc. Similar to previous studies, the LC50 values of osthole decrease from 49 to 34 mg/L toward green peach aphids and from 332 to 270 mg/L toward two-spotted spider mites with the help of SPc [30]. Furthermore, with the help of SPc, the LC50 value of pure thiocyclam decreases from 532 to 221 mg/L toward green peach aphids [33]. The potential mechanism of enhanced contact toxicity may be the CNAP nanometerization by the nano-delivery system, which leads to enlarged contact area to target pests and improved penetration across the insect cuticle. Previous studies have confirmed that the SPc-loaded dsRNA can penetrate the insect cuticle for efficient RNA interference [24,26,27].
The potential negative effects of pesticides should be evaluated toward predators, pollinators and environmental microbiota to guarantee their safety use. Xiao et al. [58] has tested the toxicity of three common insecticides against predatory enemies and parasitoids, and the predatory O. sauteri exhibits stronger tolerance than most tested insects with higher LC50 values. In addition, a highly virulent entomopathogenic fungus (Beauveria bassiana) toward WFTs is not insecticidal against O. sauteri [59]. In the current study, the bioactivity of SPc-loaded CNAP was also slightly enhanced toward O. sauteri, which is consistent with the previous study that the immersion of SPc-loaded dinotefuran leads to higher mortalities of both green peach aphids and predatory lady beetles [32]. Interestingly, the TSR was increased with the help of SPc, revealing the higher selectivity of CNAP/SPc complex. Furthermore, the CNAP/SPc complex can be classified as medium risk toward O. sauteri according to its safety coefficient. A recent publication has determined the selective toxicity of eight neonicotinoid insecticides toward WFTs and O. sauteri, and the LC50 values of most tested insecticides are higher toward WFTs than O. sauteri, suggesting the higher toxicity toward O. sauteri [39]. Thus, the CNAP/SPc complex or CNAP alone was relatively safer toward O. sauteri compared to neonicotinoid insecticides. The SPc-loaded matrine and predatory ladybirds have been co-applied to suppress the green peach aphids, which can overcome the slow-acting property of ladybirds [34]. The co-application of CNAP/SPc complex and O. sauteri may be suitable for efficient control of WFTs, which will be further tested for reducing the pesticide application.

5. Conclusions

In this work, F. occidentalis -O. sauteri was taken as an example to evaluate the selective toxicity of CNAP nano-delivery system. The amide NH of CNAP could interact with carbonyl groups or tertiary amines of SPc through hydrogen bond to form CNAP/SPc complex spontaneously. Above self-assembly could reduce the particle size of CNAP from 808 down to 299 nm. Compared to CNAP alone, the SPc-loaded CNAP exhibited stronger toxicity against both WFTs and O. sauteri due to the enhancement of broad-spectrum bioactivity, and the LC50 values of CNAP decreased from 99 to 54 mg/L and 230 to 173 mg/L toward WFTs and O. sauteri with the help of SPc at 24 h after the treatment, respectively. For selective toxicity analysis, the TSR of CNAP increased from 2.33 to 3.23 with the help of SPc at 24 h after the treatment, indicating the higher selectivity of SPc-loaded CNAP. Furthermore, the safety coefficient of SPc-loaded CNAP was 1.56–1.30, suggesting the medium risk toward O. sauteri. To our knowledge, it is the first case to analyze the selective toxicity of nanocarrier-loaded pesticides, and the higher selective toxicity of SPc-loaded CNAP was beneficial for alleviating the negative impacts on predators.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/nano12142419/s1, Figure S1: Solubility test of CNAP/SPc complex.

Author Contributions

Conceptualization, M.D.; methodology, J.S., M.Y., M.D., S.Y. and X.D.; investigation, N.G., S.Y.; M.P. and Q.J.; formal analysis, S.Y., N.G. and M.D.; resources, X.D., M.Y. and J.S.; writing—original draft preparation, S.Y.; writing—review and editing, S.Y., N.G., M.P., Q.J., E.L., Z.L., M.Y., J.S., X.D. and M.D.; supervision, M.D. and S.Y.; funding acquisition, M.D. and S.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Research and Application of Industrial Technology System for Organic Agriculture in Yunnan Plateau (202202AE090029) and National Key R&D Program of China (2021YFC2600401 and 2021YFC2600404).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data in this study will be available from the corresponding author upon reasonable request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kumari, P.; Ghosh, B.; Biswas, S. Nanocarriers for cancer-targeted drug delivery. J. Drug. Target. 2016, 24, 179–191. [Google Scholar] [CrossRef] [PubMed]
  2. Hoosen, Y.; Pradeep, P.; Kumar, P.; Du Toit, L.C.; Choonara, Y.E.; Pillay, V. Nanotechnology and glycosaminoglycans: Paving the way forward for ovarian cancer intervention. Int. J. Mol. Sci. 2018, 19, 731. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Ruiz-Gatón, L.; Espuelas, S.; Larrañeta, E.; Reviakine, I.; Yate, L.A.; Irache, J.M. Pegylated poly (anhydride) nanoparticles for oral delivery of docetaxel. Eur. J. Pharm. Sci. 2018, 118, 165–175. [Google Scholar] [CrossRef] [Green Version]
  4. Kang, E.J.; Baek, Y.M.; Hahm, E.; Lee, S.H.; Pham, X.H.; Noh, M.S.; Lim, D.E.; Jun, B.H. Functionalized β-cyclodextrin immobilized on Ag-embedded silica nanoparticles as a drug carrier. Int. J. Mol. Sci. 2019, 20, 315. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Bhatia, R.; Sharma, A.; Narang, R.K.; Rawal, R.K. Recent nanocarrier approaches for targeted drug delivery in cancer therapy. Curr. Mol. Pharmacol. 2021, 14, 350–366. [Google Scholar] [CrossRef]
  6. Prasad, S.R.; Kumar, T.S.S.; Jayakrishnan, A. Nanocarrier-based drug delivery systems for bone cancer therapy: A review. Biomed. Mater. 2021, 16, 044107. [Google Scholar]
  7. Barahuie, F.; Hussein, M.Z.; Fakurazi, S.; Zainal, Z. Development of drug delivery systems based on layered hydroxides for nanomedicine. Int. J. Mol. Sci. 2014, 15, 7750–7786. [Google Scholar] [CrossRef] [Green Version]
  8. Gogos, A.; Knauer, K.; Bucheli, T.D. Nanomaterials in plant protection and fertilization: Current state, foreseen applications, and research priorities. J. Agric. Food Chem. 2012, 60, 9781–9792. [Google Scholar] [CrossRef]
  9. De Oliveira, J.L.; Campos, E.V.R.; Bakshi, M.; Abhilash, P.C.; Fraceto, L.F. Application of nanotechnology for the encapsulation of botanical insecticides for sustainable agriculture: Prospects and promises. Biotechnol. Adv. 2014, 32, 1550–1561. [Google Scholar] [CrossRef]
  10. Hou, Q.; Zhang, H.; Bao, L.; Song, Z.; Liu, C.; Jiang, Z.; Zheng, Y. NCs-delivered pesticides: A promising candidate in smart agriculture. Int. J. Mol. Sci. 2021, 22, 13043. [Google Scholar] [CrossRef]
  11. Zhang, Y.; Fu, L.; Li, S.; Yan, J.; Sun, M.; Giraldo, J.P.; Matyjaszewski, K.; Tilton, R.D.; Lowry, G.V. Star polymer size, charge content, and hydrophobicity affect their leaf uptake and translocation in plants. Environ. Sci. Technol. 2021, 55, 10758–10768. [Google Scholar] [CrossRef] [PubMed]
  12. Stejskal, V.; Vendl, T.; Aulicky, R.; Athanassiou, C. Synthetic and natural insecticides: Gas, liquid, gel and solid formulations for stored-product and food-industry. Insects 2021, 12, 590. [Google Scholar] [CrossRef]
  13. Zheng, Y.; You, S.; Ji, C.; Yin, M.; Yang, W.; Shen, J. Development of an amino acid-functionalized fluorescent nanocarrier to deliver a toxin to kill insect pests. Adv. Mater. 2016, 28, 1375–1380. [Google Scholar] [CrossRef] [PubMed]
  14. Zheng, Y.; Hu, Y.; Yan, S.; Zhou, H.; Song, D.; Yin, M.; Shen, J. A polymer/detergent formulation improves dsRNA penetration through the body wall and RNAi-induced mortality in the soybean aphid Aphis glycines. Pest. Manag. Sci. 2019, 75, 1993–1999. [Google Scholar] [CrossRef] [PubMed]
  15. Zhao, X.; Cui, H.; Wang, Y.; Sun, C.; Cui, B.; Zeng, Z. Development strategies and prospects of nano-based smart pesticide formulation. J. Agric. Food Chem. 2017, 66, 6504–6512. [Google Scholar] [CrossRef]
  16. Cao, L.; Ma, D.; Zhou, Z.; Xu, C.; Cao, C.; Zhao, P.; Huang, Q. Efficient photocatalytic degradation of herbicide glyphosate in water by magnetically separable and recyclable BiOBr/Fe3O4 nanocomposites under visible light irradiation. Chem. Eng. J. 2019, 368, 212–222. [Google Scholar] [CrossRef]
  17. Yan, S.; Ren, B.; Zeng, B.; Shen, J. Improving RNAi efficiency for pest control in crop species. BioTechniques 2020, 68, 283–290. [Google Scholar] [CrossRef] [Green Version]
  18. Yan, S.; Ren, B.; Shen, J. Nanoparticle-mediated double-stranded RNA delivery system: A promising approach for sustainable pest management. Insect Sci. 2021, 28, 21–34. [Google Scholar] [CrossRef]
  19. Kumar, S.; Nehra, M.; Dilbaghi, N.; Marrazza, G.; Hassan, A.A.; Kim, K.H. Nano-based smart pesticide formulations: Emerging opportunities for agriculture. J. Control Release 2019, 294, 131–153. [Google Scholar] [CrossRef]
  20. Hao, L.; Gong, L.; Chen, L.; Guan, M.; Zhou, H.; Qiu, S.; Wen, H.; Chen, H.; Zhou, X.; Akbulut, M. Composite pesticide nanocarriers involving functionalized boron nitride nanoplatelets for pH-responsive release and enhanced UV stability. Chem. Eng. J. 2020, 396, 125233. [Google Scholar] [CrossRef]
  21. Xu, C.; Shan, Y.; Bilal, M.; Xu, B.; Cao, L.; Huang, Q. Copper ions chelated mesoporous silica nanoparticles via dopamine chemistry for controlled pesticide release regulated by coordination bonding. Chem. Eng. J. 2020, 395, 125093. [Google Scholar] [CrossRef]
  22. Chen, L.; Lin, Y.; Zhou, H.; Hao, L.; Chen, H.; Zhou, X. A stable polyamine-modified zein-based nanoformulation with high foliar affinity and lowered toxicity for sustained avermectin release. Pest. Manag. Sci. 2021, 77, 3300–3312. [Google Scholar] [CrossRef]
  23. Li, J.; Qian, J.; Xu, Y.; Yan, S.; Shen, J.; Yin, M. A facile-synthesized star polycation constructed as a highly efficient gene vector in pest management. ACS Sustain. Chem. Eng. 2019, 7, 6316–6322. [Google Scholar] [CrossRef]
  24. Yan, S.; Qian, J.; Cai, C.; Ma, Z.; Li, J.; Yin, M.; Ren, B.; Shen, J. Spray method application of transdermal dsRNA delivery system for efficient gene silencing and pest control on soybean aphid Aphis glycines. J. Pest. Sci. 2020, 93, 449–459. [Google Scholar] [CrossRef]
  25. Wang, X.; Zheng, K.; Cheng, W.; Li, J.; Liang, X.; Shen, J.; Dou, D.; Yin, M.; Yan, S. Field application of star polymer-delivered chitosan to amplify plant defense against potato late blight. Chem. Eng. J. 2021, 417, 129327. [Google Scholar] [CrossRef]
  26. Ma, Z.; Zheng, Y.; Chao, Z.; Chen, H.; Zhang, Y.; Yin, M.; Shen, J.; Yan, S. Visualization of the process of a nanocarrier-mediated gene delivery: Stabilization, endocytosis and endosomal escape of genes for intracellular spreading. J. Nanobiotechnol. 2022, 20, 124. [Google Scholar] [CrossRef]
  27. Ma, Z.; Zhang, Y.; Li, M.; Chao, Z.; Du, X.; Yan, S.; Shen, J. A first greenhouse application of bacteria-expressed and nanocarrier-delivered RNA pesticide for Myzus persicae control. J. Pest. Sci. 2022, 1–13. [Google Scholar] [CrossRef]
  28. Yang, J.; Yan, S.; Xie, S.; Yin, M.; Shen, J.; Li, Z.; Zhou, Y.; Duan, L. Construction and application of star polycation nanocarrier-based microRNA delivery system in Arabidopsis and maize. J. Nanobiotechnol. 2022, 20, 219. [Google Scholar] [CrossRef]
  29. Yan, S.; Hu, Q.; Li, J.; Cao, Z.; Cai, C.; Yin, M.; Du, X.; Shen, J. A star polycation acts a drug nanocarrier to improve the toxicity and persistence of botanical pesticides. ACS Sustain. Chem. Eng. 2019, 7, 17406–17413. [Google Scholar] [CrossRef]
  30. Yan, S.; Hu, Q.; Jiang, Q.; Chen, H.; Wei, J.; Yin, M.; Du, X.; Shen, J. Simple osthole/nanocarrier pesticide efficiently controls both pests and diseases fulfilling the need of green production of strawberry. ACS Appl. Mater. Inter. 2021, 13, 36350–36360. [Google Scholar] [CrossRef]
  31. Yan, S.; Cheng, W.Y.; Han, Z.H.; Wang, D.; Yin, M.Z.; Du, X.G.; Shen, J. Nanometerization of thiamethoxam by a cationic star polymer nanocarrier efficiently enhances the contact and plant-uptake dependent stomach toxicity against green peach aphids. Pest. Manag. Sci. 2021, 77, 1954–1962. [Google Scholar] [CrossRef] [PubMed]
  32. Jiang, Q.; Xie, Y.; Peng, M.; Wang, Z.; Li, T.; Yin, M.; Shen, J.; Yan, S. A nanocarrier pesticide delivery system with promising benefits in the case of dinotefuran: Strikingly enhanced bioactivity and reduced pesticide residue. Environ. Sci. Nano 2022, 9, 988–999. [Google Scholar] [CrossRef]
  33. Wang, Y.; Xie, Y.H.; Jiang, Q.H.; Chen, H.T.; Ma, R.H.; Wang, Z.J.; Yin, M.Z.; Shen, J.; Yan, S. Efficient polymer-mediated delivery system for thiocyclam: Nanometerization remarkably improves the bioactivity toward green peach aphids. Insect Sci. 2022. [Google Scholar] [CrossRef] [PubMed]
  34. Dong, M.; Chen, D.; Che, L.; Gu, N.; Yin, M.; Du, X.; Shen, J.; Yan, S. Biotoxicity evaluation of a cationic star polymer on a predatory ladybird and cooperative pest control by polymer-delivered pesticides and ladybird. ACS Appl. Mater. Inter. 2022, 14, 6083–6092. [Google Scholar] [CrossRef]
  35. Kirk, W.D.J.; de Kogel, W.J.; Koschier, E.H.; Teulon, D.A.J. Semiochemicals for thrips and their use in pest management. Annu. Rev. Entomol. 2021, 66, 101–119. [Google Scholar] [CrossRef]
  36. Xu, X.; Enkegaard, A. Prey preference of Orius sauteri between western flower thrips and spider mites. Entomol. Exp. Appl. 2009, 132, 93–98. [Google Scholar] [CrossRef]
  37. Jacobson, A.L.; Kennedy, G.G. Effect of cyantraniliprole on feeding behavior and virus transmission of Frankliniella fusca and Frankliniella occidentalis (Thysanoptera: Thripidae) on Capsicum annuum. Crop. Prot. 2013, 54, 251–258. [Google Scholar] [CrossRef]
  38. Bielza, P.; Guillén, J. Cyantraniliprole: A valuable tool for Frankliniella occidentalis (Pergande) management. Pest. Manag. Sci. 2015, 71, 1068–1074. [Google Scholar] [CrossRef]
  39. Lin, Q.C.; Chen, H.; Babendreier, D.; Zhang, J.P.; Zhang, F.; Dai, X.Y.; Sun, Z.W.; Shi, Z.P.; Dong, X.L.; Wu, G.A.; et al. Improved control of Frankliniella occidentalis on greenhouse pepper through the integration of Orius sauteri and neonicotinoid insecticides. J. Pest. Sci. 2021, 94, 101–109. [Google Scholar] [CrossRef]
  40. Zhang, R.; Jiang, E.B.; He, S.; Chen, J. Lethal and sublethal effects of cyantraniliprole on Bactrocera dorsalis (Hendel) (Diptera: Tephritidae). Pest. Manag. Sci. 2015, 71, 250–256. [Google Scholar] [CrossRef]
  41. Dong, J.; Wang, K.; Li, Y.; Wang, S. Lethal and sublethal effects of cyantraniliprole on Helicoverpa assulta (Lepidoptera: Noctuidae). Pestic. Biochem. Phys. 2017, 136, 58–63. [Google Scholar] [CrossRef] [PubMed]
  42. Moreno, I.; Belando, A.; Grávalos, C.; Bielza, P. Baseline susceptibility of Mediterranean strains of Trialeurodes vaporariorum (Westwood) to cyantraniliprole. Pest. Manag. Sci. 2018, 74, 1552–1557. [Google Scholar] [CrossRef] [PubMed]
  43. Qian, Z.; Zhang, F.; Yao, X.; Yu, H.; Sun, S.; Li, X.; Zhang, J.; Jiang, X. Growth, DNA damage and biochemical toxicity of cyantraniliprole in earthworms (Eisenia fetida). Chemosphere 2019, 236, 124328. [Google Scholar]
  44. Costa, N.C.R.; Picelli, E.C.M.; Silva, F.M.A.; Gonring, A.H.R.; Guedes, R.N.C.; Durigan, M.R.; Fernandes, F.L. Cyantraniliprole susceptibility baseline, resistance survey and control failure likelihood in the coffee berry borer Hypothenemus hampei. Ecotoxicol. Environ. Saf. 2020, 203, 110947. [Google Scholar] [CrossRef]
  45. Cordova, D.; Benner, E.A.; Sacher, M.D.; Rauh, J.J.; Sopa, J.S.; Lahm, G.P.; Selby, T.P.; Stevenson, T.M.; Flexner, L.; Gutteridge, S.; et al. Anthranilic diamides: A new class of insecticides with a novel mode of action, ryanodine receptor activation. Pestic. Biochem. Physiol. 2006, 84, 196–214. [Google Scholar] [CrossRef]
  46. Sattelle, D.B.; Cordova, D.; Cheek, T.R. Insect ryanodine receptors: Molecular targets for novel pest control chemicals. Invertebr. Neurosci. 2008, 8, 107–119. [Google Scholar] [CrossRef]
  47. Jeanguenat, A. The story of a new insecticidal chemistry class: The diamides. Pest. Manag. Sci. 2013, 69, 7–14. [Google Scholar] [CrossRef]
  48. Sparks, T.C.; Nauen, R. IRAC: Mode of action classification and insecticide resistance management. Pestic. Biochem. Physiol. 2015, 121, 122–128. [Google Scholar] [CrossRef] [Green Version]
  49. Gao, Y.; Li, D.; Li, D.; Xu, P.; Mao, K.; Zhang, Y.; Qin, X.; Tang, T.; Wan, H.; Li, J.; et al. Efficacy of an adhesive nanopesticide on insect pests of rice in field trials. J. Asia-Pac. Entomol. 2020, 23, 1222–1227. [Google Scholar]
  50. Li, X.; Shi, H.; Gao, X.; Liang, P. Characterization of UDP-Glucuronosyltransferase Genes and their Possible Roles in Multi-Insecticide Resistance in Plutella Xylostella (L.). Pest. Manag. Sci. 2018, 74, 695–704. [Google Scholar] [CrossRef]
  51. Li, Y.; Liu, Z.; Liu, H. Evaluation of the selective toxicity of six acaricides to Tetranychus cinnabarinus and Neoseiulus cucumeris. Plant. Prot. 2014, 40, 209–212. [Google Scholar]
  52. Shen, X.; Huang, C.; Yu, X.; Shang, S.; Wang, X.; Wang, X.; Liu, M.; Yang, M. Safety evaluation and toxicity determination of 5 biopesticides to Myzus persicae (Sulzer) and Aphidoletes aphidimyza (Rondani). Chin. Tob. Sci. 2020, 41, 56–61, 66. [Google Scholar]
  53. Zhou, F.; Zhang, X.; Pan, Y.; Wang, R.; Li, X.; Zhang, J.; Yang, X.; Lei, F. Safety assessment of five pesticides to thrips-predatory natural enemy mites. Guizhou Agric. Sci. 2020, 48, 69–72. [Google Scholar]
  54. Doyle, M.L. Characterization of binding interactions by isothermal titration calorimetry. Curr. Opin. Biotechnol. 1997, 8, 31–35. [Google Scholar] [CrossRef]
  55. Grolier, J.P.E.; Del Rio, J.M. Isothermal titration calorimetry: A thermodynamic interpretation of measurements. J. Chem. Thermodyn. 2012, 55, 193–202. [Google Scholar] [CrossRef]
  56. Ross, P.D.; Subramanian, S. Thermodynamics of protein association reactions: Forces contributing to stability. Biochemistry 1981, 20, 3096–3102. [Google Scholar] [CrossRef]
  57. Yang, Y.; Jiang, Q.; Peng, M.; Zhou, Z.; Du, X.; Yin, M.; Shen, J.; Yan, S. A star polyamine-based nanocarrier delivery system for enhanced avermectin contact and stomach toxicity against green peach aphids. Nanomaterials 2022, 12, 1445. [Google Scholar] [CrossRef]
  58. Xiao, D.; Guo, X.J.; Wang, S.; Zhang, J.M.; Zhang, F. The toxicity of three insecticides to natural enemy. J. Environ. Entomol. 2014, 36, 951–958. [Google Scholar]
  59. Gao, Y.; Reitz, S.R.; Wang, J.; Tamez-Guerra, P.; Wang, E.; Xu, X.; Lei, Z. Potential use of the fungus Beauveria bassiana against the western flower thrips Frankliniella occidentalis without reducing the effectiveness of its natural predator Orius sauteri (Hemiptera: Anthocoridae). Biocontrol Sci. Techn. 2012, 22, 803–812. [Google Scholar] [CrossRef]
Nanomaterials 12 02419 g001 550

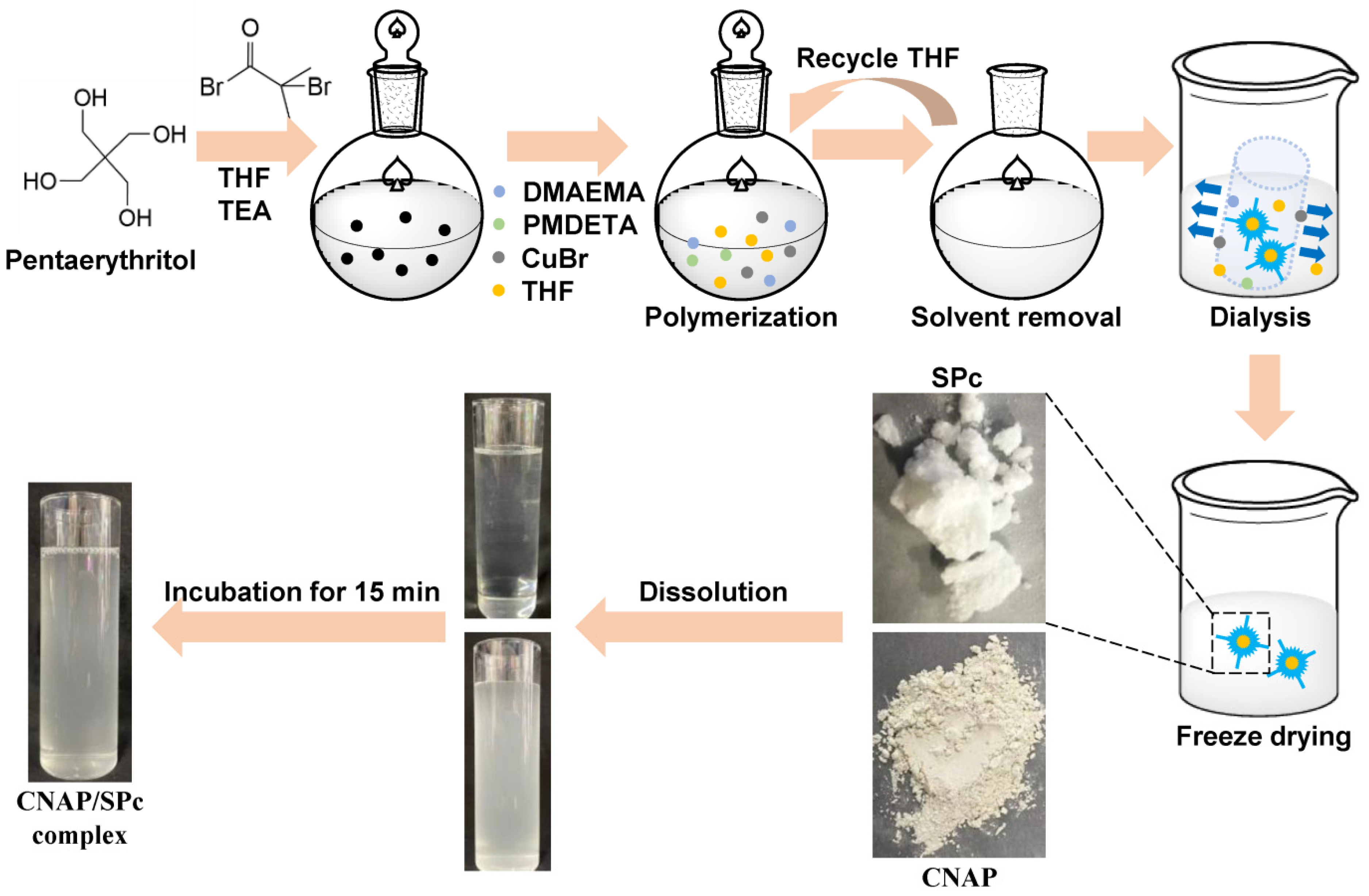

Figure 1. Synthesis route of SPc and preparation of CNAP/SPc complex.
Figure 1. Synthesis route of SPc and preparation of CNAP/SPc complex.
Nanomaterials 12 02419 g001
Nanomaterials 12 02419 g002 550

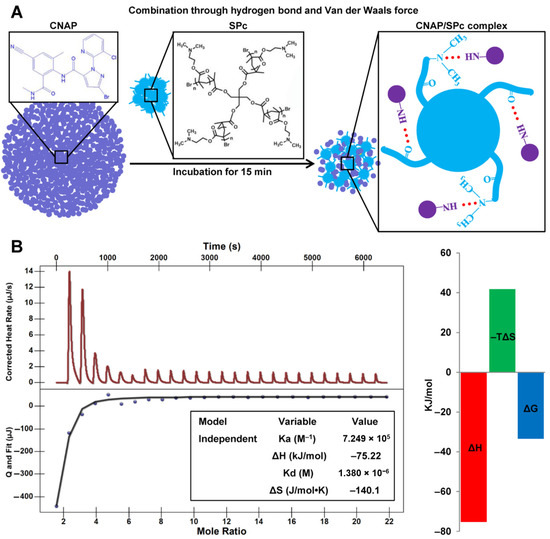

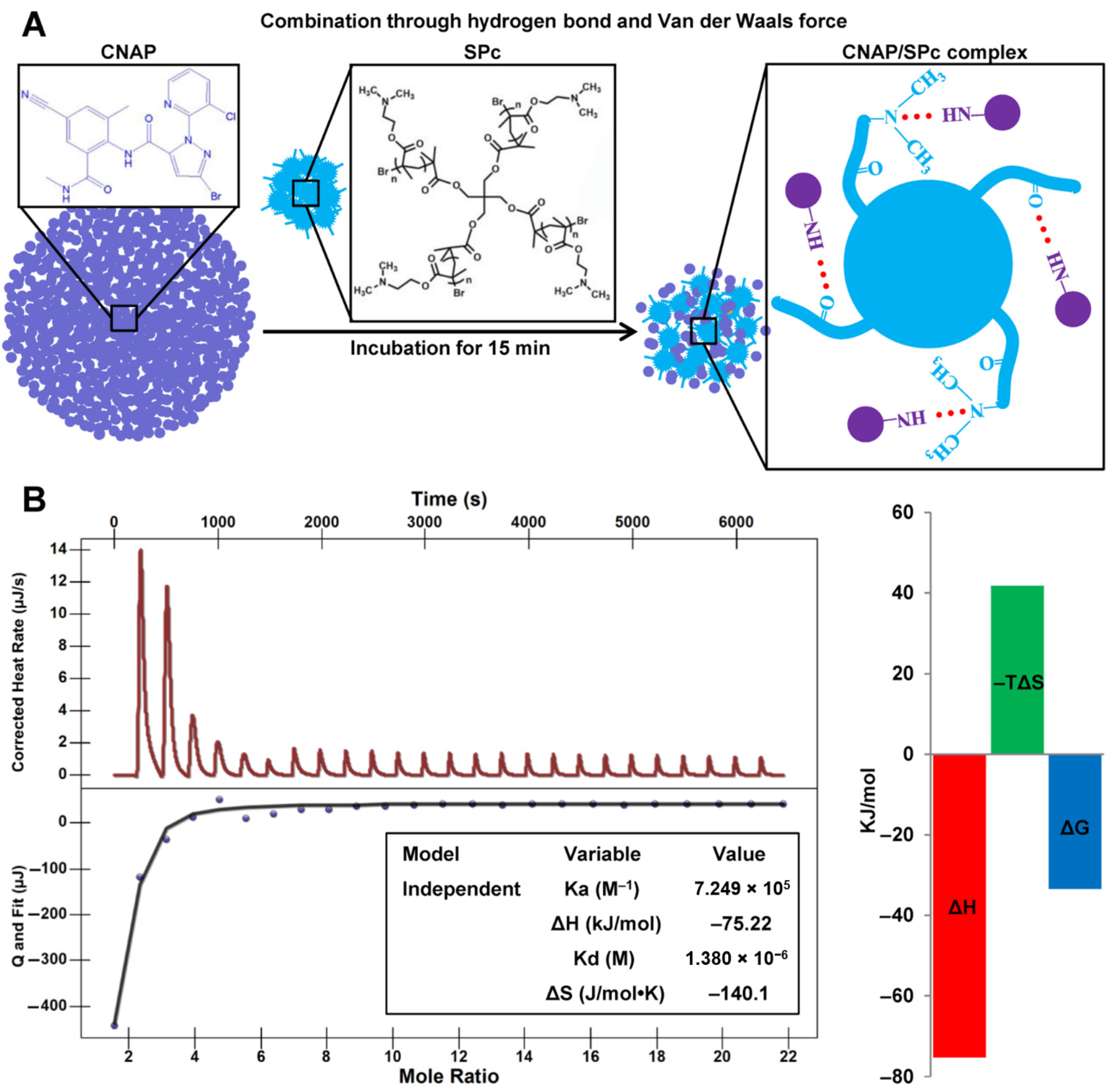

Figure 2. Schematic illustration of CNAP/SPc complex (A) and ITC titration of SPc (1 mM) into CNAP solution (0.0138 mM) (B).
Figure 2. Schematic illustration of CNAP/SPc complex (A) and ITC titration of SPc (1 mM) into CNAP solution (0.0138 mM) (B).
Nanomaterials 12 02419 g002
Nanomaterials 12 02419 g003 550

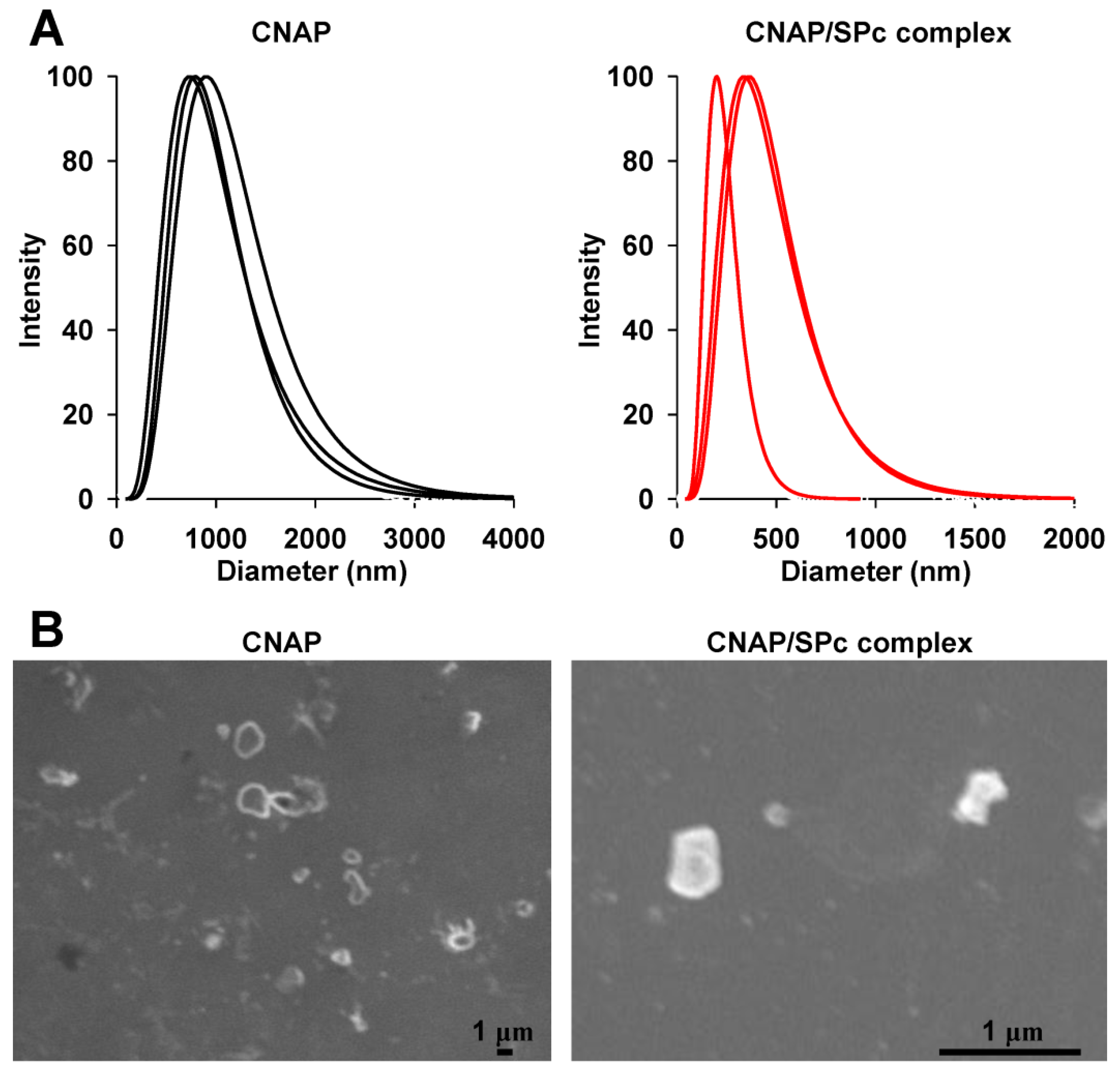

Figure 3. Particle size distributions (A) and SEM images (B) of CNAP and CNAP/SPc complex at the mass ratio of 1:1.
Figure 3. Particle size distributions (A) and SEM images (B) of CNAP and CNAP/SPc complex at the mass ratio of 1:1.
Nanomaterials 12 02419 g003
Nanomaterials 12 02419 g004 550

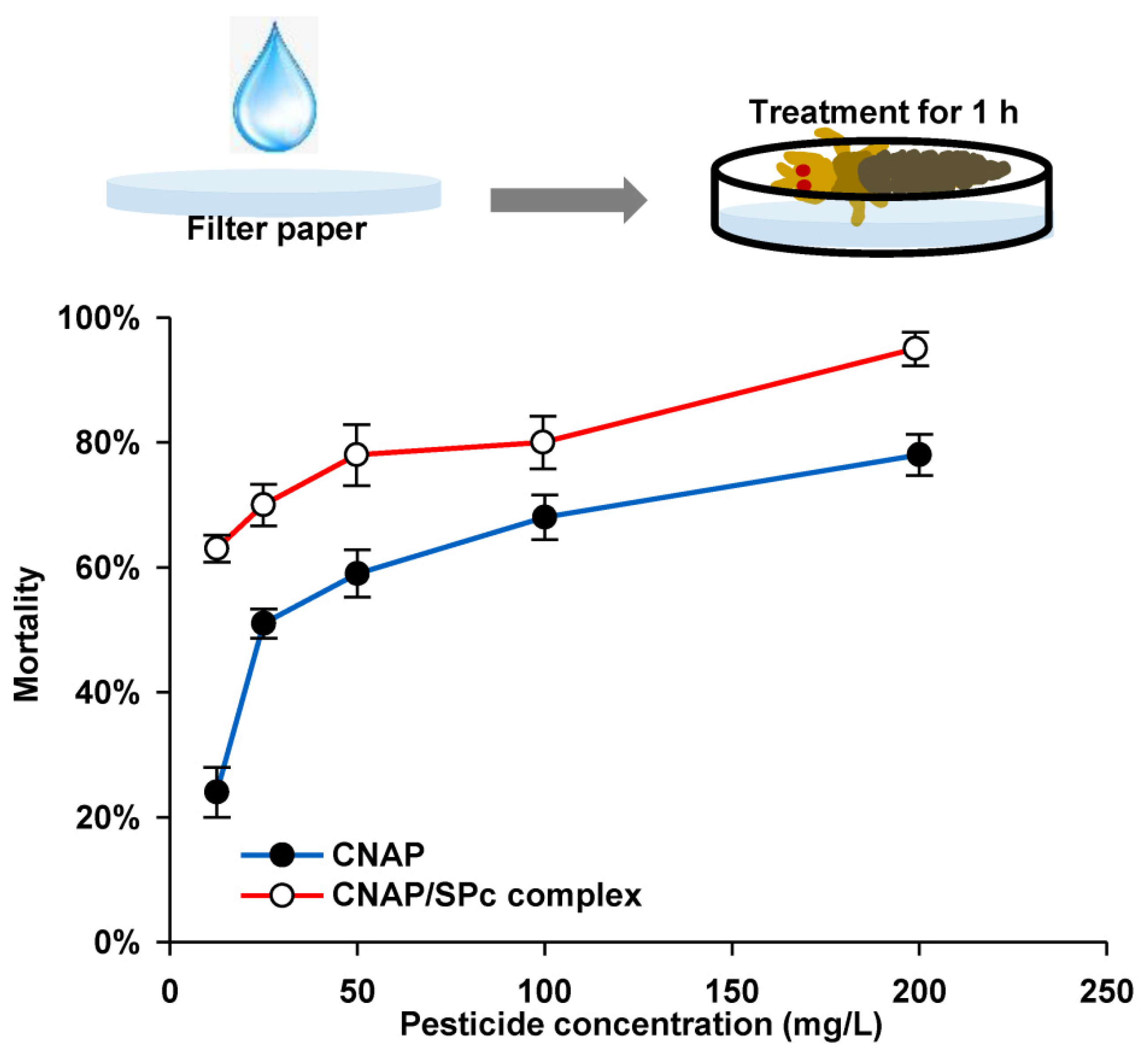

Figure 4. Toxicity of CNAP/SPc complex against 2nd instar nymphs of WFT at 48 h after the treatment. n = 10.
Figure 4. Toxicity of CNAP/SPc complex against 2nd instar nymphs of WFT at 48 h after the treatment. n = 10.
Nanomaterials 12 02419 g004
Nanomaterials 12 02419 g005 550

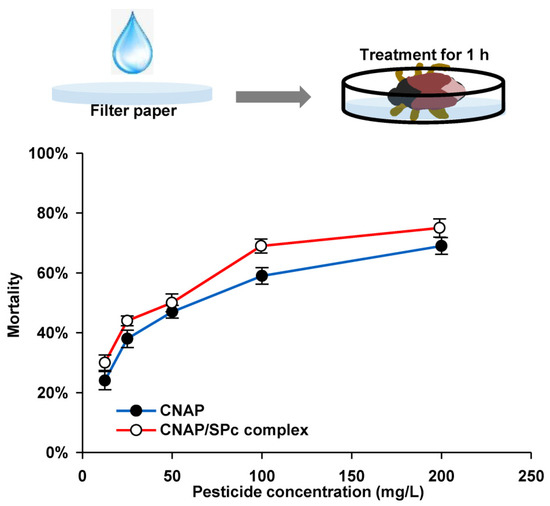

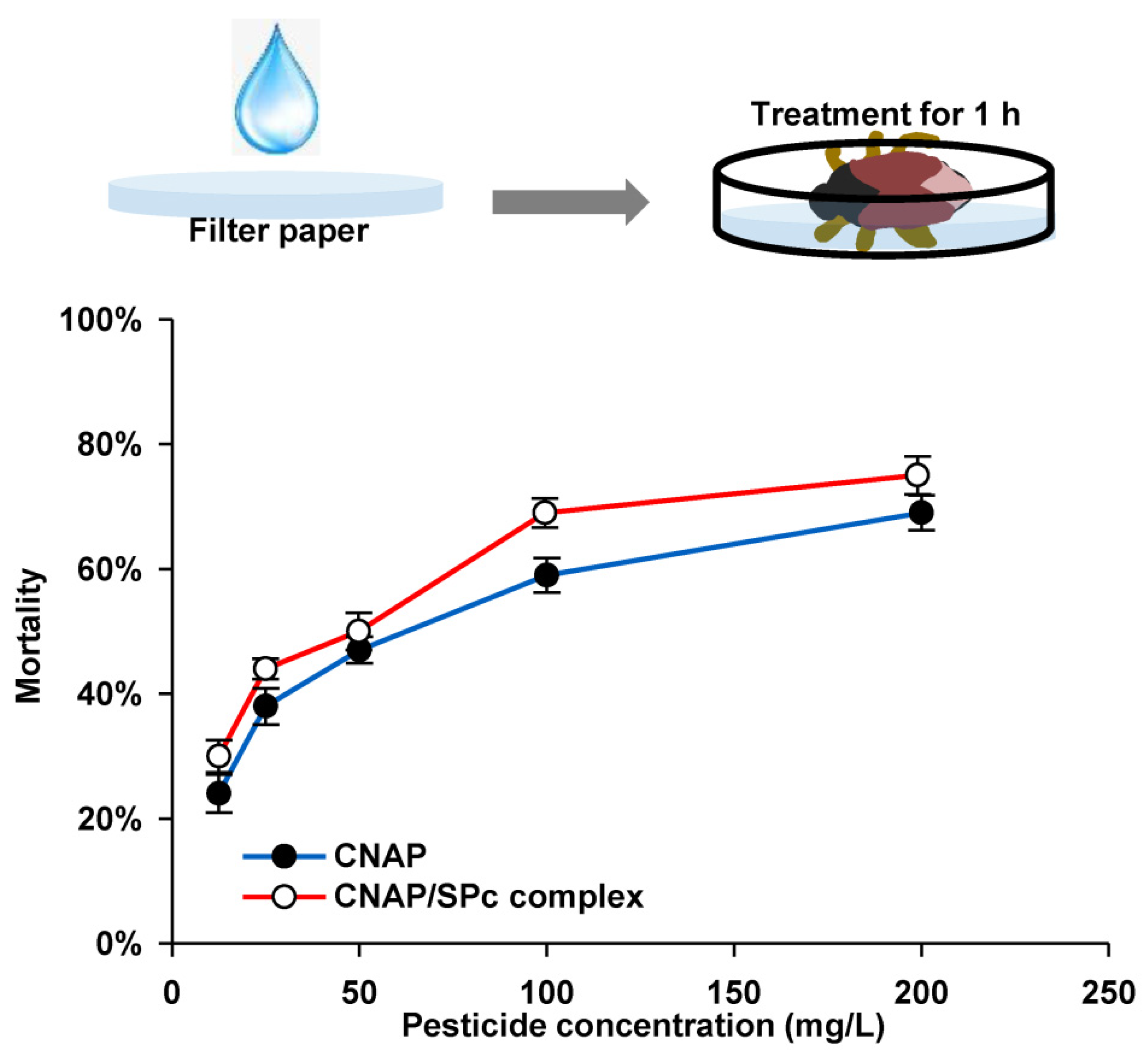

Figure 5. Toxicity of CNAP/SPc complex against the adults of Orius sauteri at 48 h after the treatment. n = 10.
Figure 5. Toxicity of CNAP/SPc complex against the adults of Orius sauteri at 48 h after the treatment. n = 10.
Nanomaterials 12 02419 g005
Table
Table 1. Loading capacity of SPc toward CNAP using freeze-drying method.
Table 1. Loading capacity of SPc toward CNAP using freeze-drying method.
Sample NumberWeight of Applied CNAP (mg)Weight of Applied SPc (mg)Weight of CNAP-Loaded Complex (mg)Weight of CNAP Loaded in Complex (mg)Pesticide Loading Content (%)Average Pesticide Loading Content (%)
110.010.013.53.525.9324.79 ± 0.87
210.010.013.03.023.08
310.010.013.43.425.37
Mean ± SE.
Table
Table 2. Reduced particle size of SPc-loaded CNAP.
Table 2. Reduced particle size of SPc-loaded CNAP.
FormulationSample NumberMass RatioPolydispersitySize (nm)Average Size (nm)
CNAP1-0.211789.71807.86 ± 49.34
20.230900.94
30.286732.94
CNAP/SPc complex11:10.290335.94298.92 ± 50.79
20.153198.49
30.238362.34
11:3.030.251251.45289.01 ± 24.40
20.242280.83
30.235334.76
F2,6 = 47,094, p < 0.001
The mean ± SE was analyzed by Tukey HSD test (p < 0.05).
Table
Table 3. Toxicity of CNAP and CNAP/SPc complex against 2nd instar nymphs of WFT at 24 h after the treatment.
Table 3. Toxicity of CNAP and CNAP/SPc complex against 2nd instar nymphs of WFT at 24 h after the treatment.
FormulationLC50 (mg/L) (95% Confidence Limits)Slope ± SEχ2(df) aEfficiency Ratio
CNAP98.695 (74.040–146.350)0.968 ± 0.14115.480 (48)1.837
CNAP/SPc complex53.714 (42.517–68.443)1.146 ± 0.14219.357 (48)
a Chi-square value and degrees of freedom (df) were calculated by PoloPlus.
Table
Table 4. Toxicity of CNAP and CNAP/SPc complex against adults of Orius sauteri at 24 h after the treatment.
Table 4. Toxicity of CNAP and CNAP/SPc complex against adults of Orius sauteri at 24 h after the treatment.
FormulationLC50 (mg/L) (95% Confidence Limits)Slope ± SEχ2(df) aEfficiency Ratio
CNAP229.662 (155.278–437.831)1.012 ± 0.15313.736 (48)1.324
CNAP/SPc complex173.437 (119.378–319.255)0.918 ± 0.14515.978 (48)
a Chi-squared value and degrees of freedom (df) were calculated by PoloPlus.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Yan, S.; Gu, N.; Peng, M.; Jiang, Q.; Liu, E.; Li, Z.; Yin, M.; Shen, J.; Du, X.; Dong, M. A Preparation Method of Nano-Pesticide Improves the Selective Toxicity toward Natural Enemies. Nanomaterials 2022, 12, 2419. https://doi.org/10.3390/nano12142419

AMA Style

Yan S, Gu N, Peng M, Jiang Q, Liu E, Li Z, Yin M, Shen J, Du X, Dong M. A Preparation Method of Nano-Pesticide Improves the Selective Toxicity toward Natural Enemies. Nanomaterials. 2022; 12(14):2419. https://doi.org/10.3390/nano12142419

Chicago/Turabian Style

Yan, Shuo, Na Gu, Min Peng, Qinhong Jiang, Enliang Liu, Zhiqiang Li, Meizhen Yin, Jie Shen, Xiangge Du, and Min Dong. 2022. "A Preparation Method of Nano-Pesticide Improves the Selective Toxicity toward Natural Enemies" Nanomaterials 12, no. 14: 2419. https://doi.org/10.3390/nano12142419

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
