Intelligent Structural Health Monitoring and Noncontact Measurement Method of Small Reservoir Dams Using UAV Photogrammetry and Anomaly Detection

,
,
,
,
and
1
College of Water Conservancy and Hydropower Engineering, Hohai University, Nanjing 210098, China
2
School of Hydraulic Engineering, Faculty of Infrastructure Engineering, Dalian University of Technology, Dalian 116024, China
3
School of Earth Sciences and Engineering, Hohai University, Nanjing 211100, China
4
Chongqing Surveying and Design Institute Co. Ltd. of Water Resources, Electric Power and Architecture, Chongqing 401120, China

Abstract

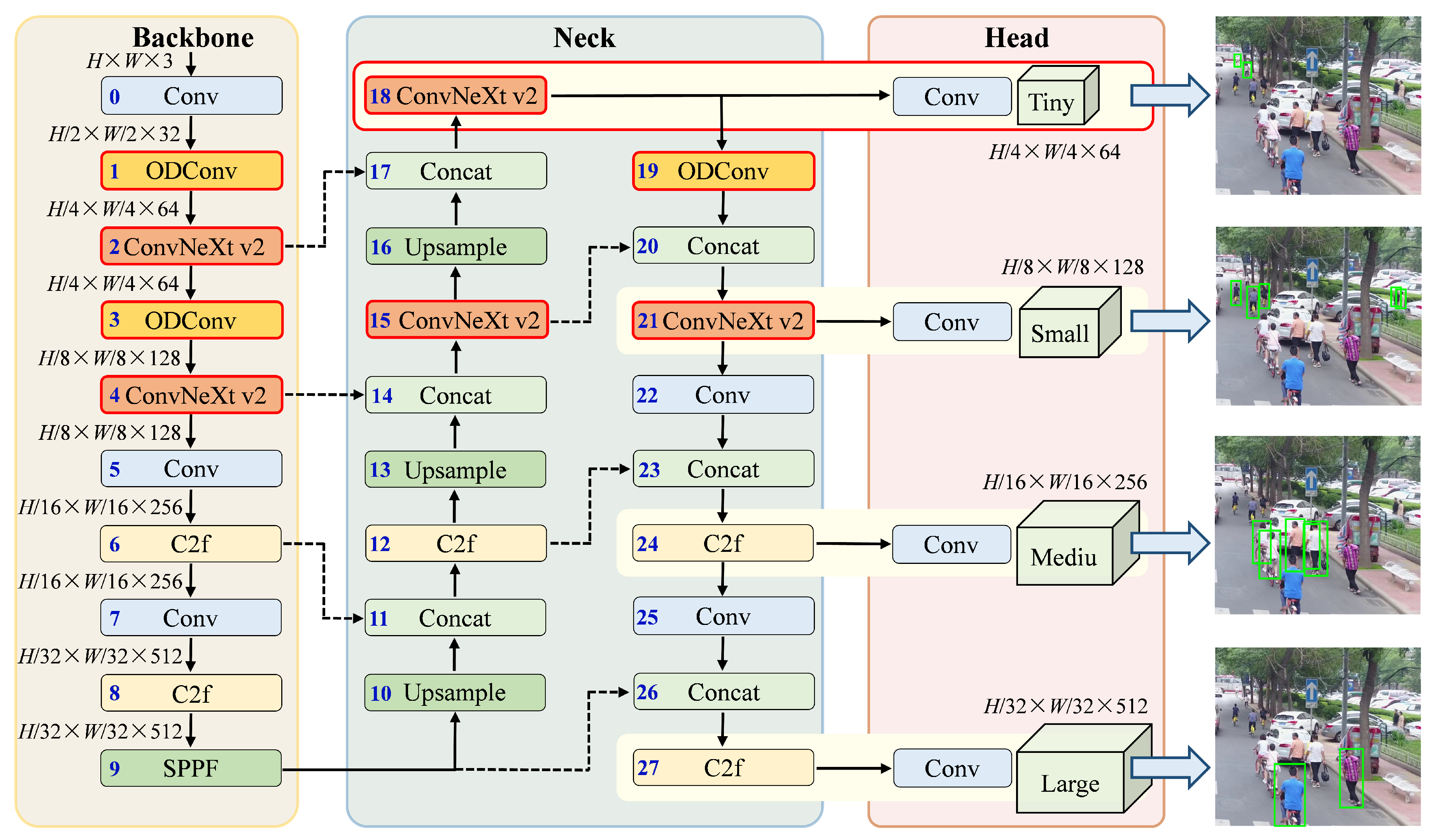

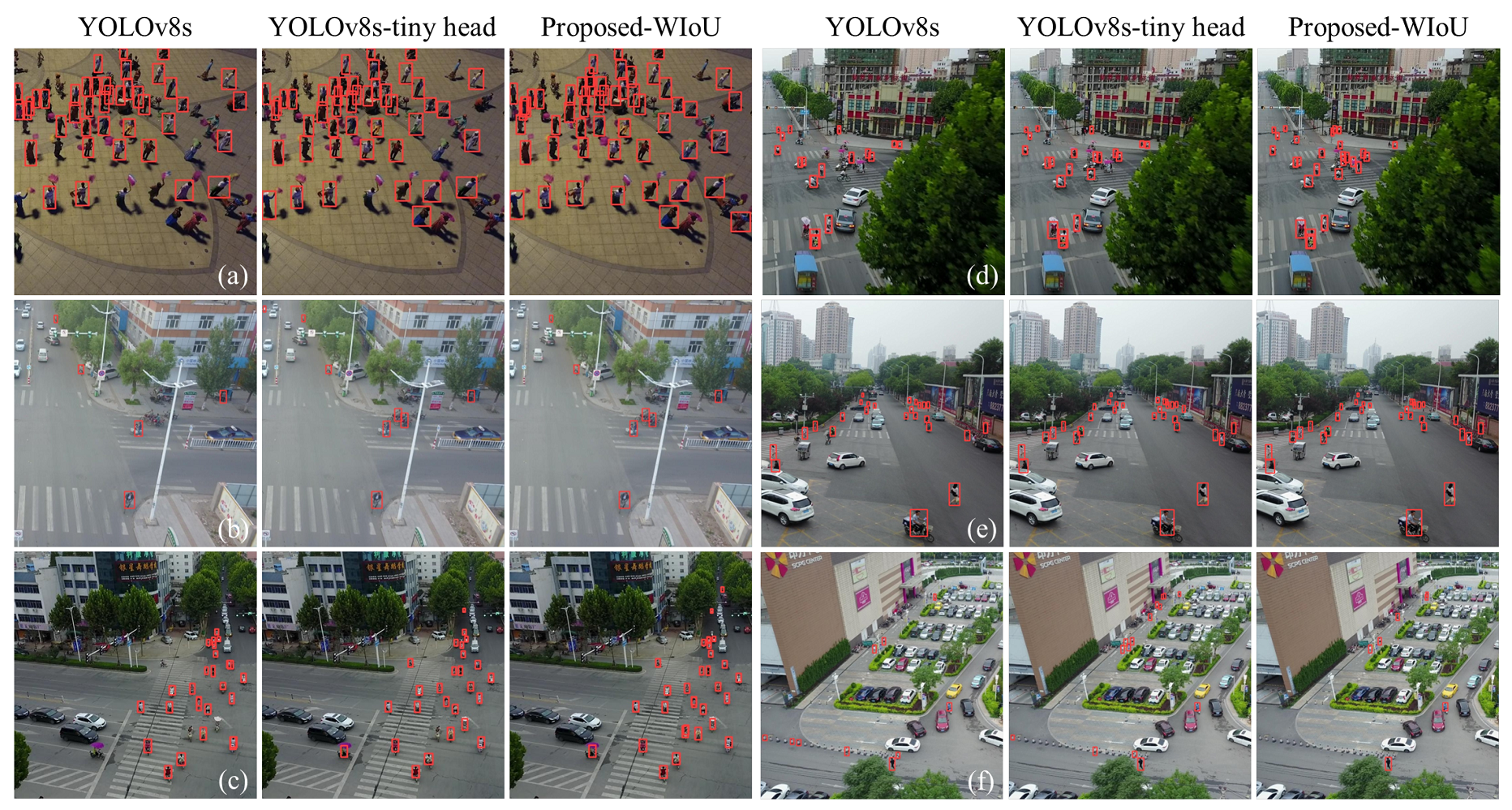

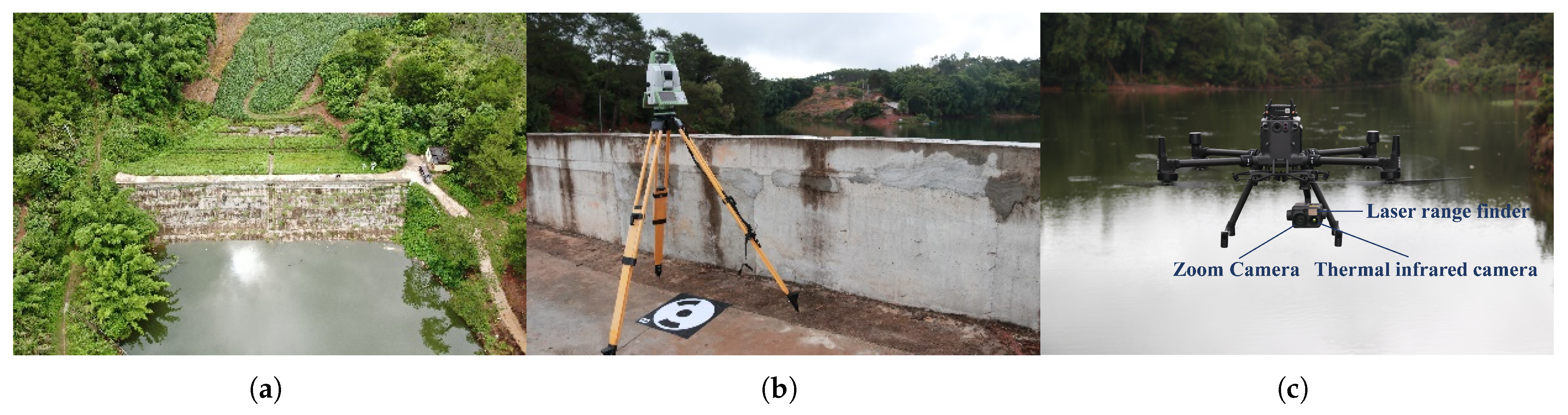

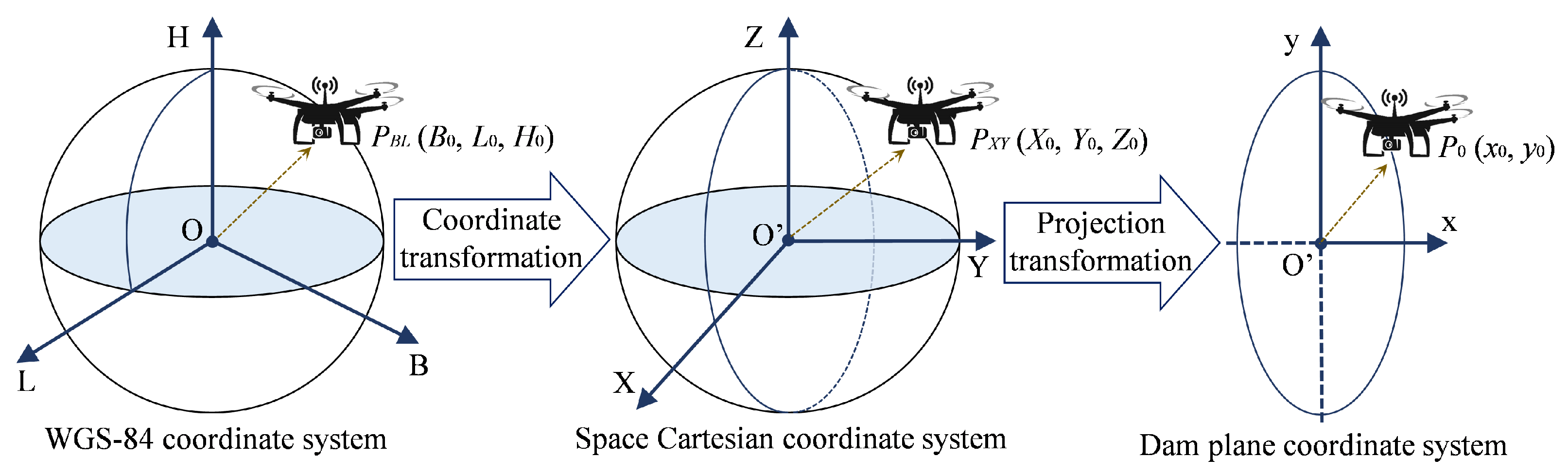

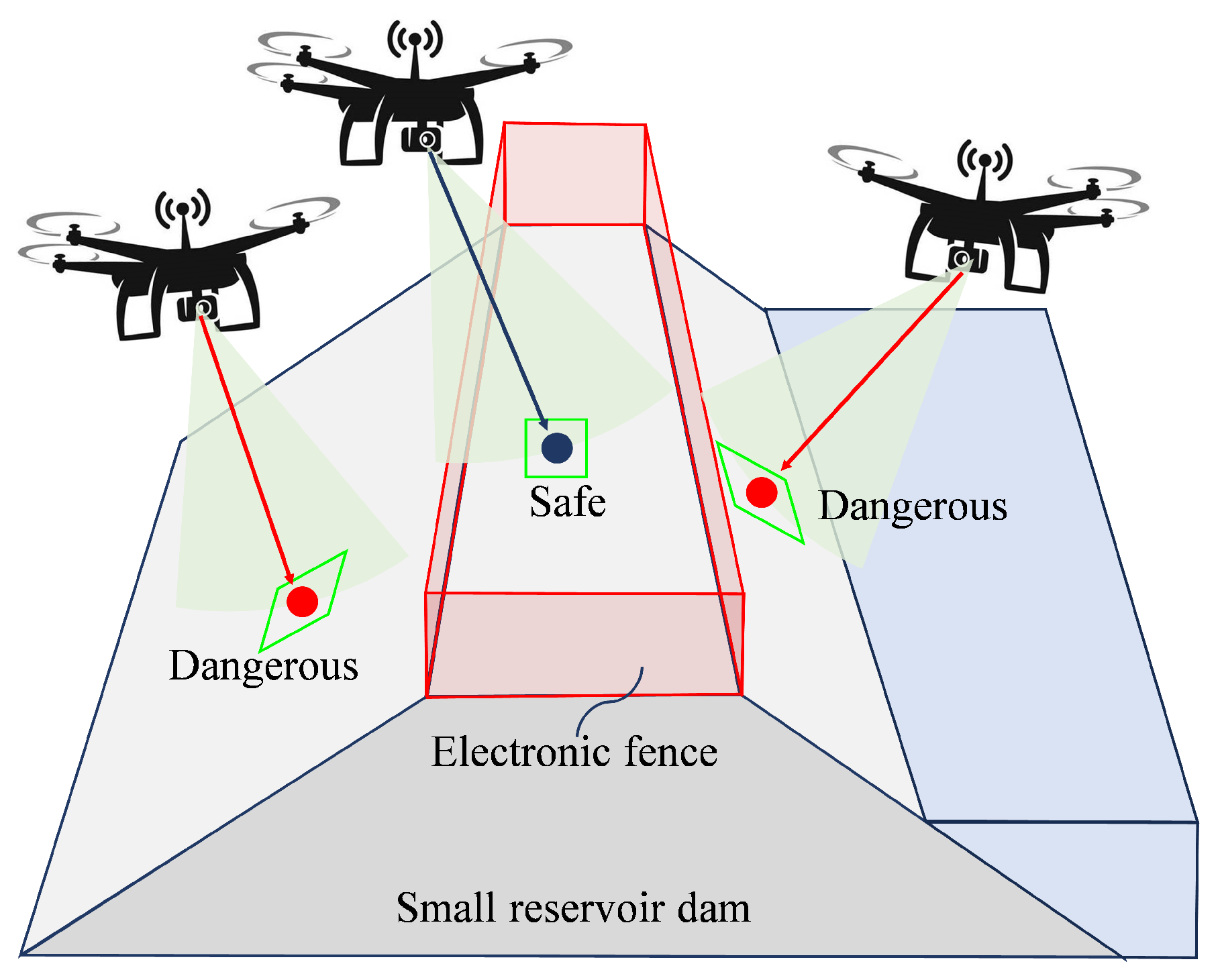

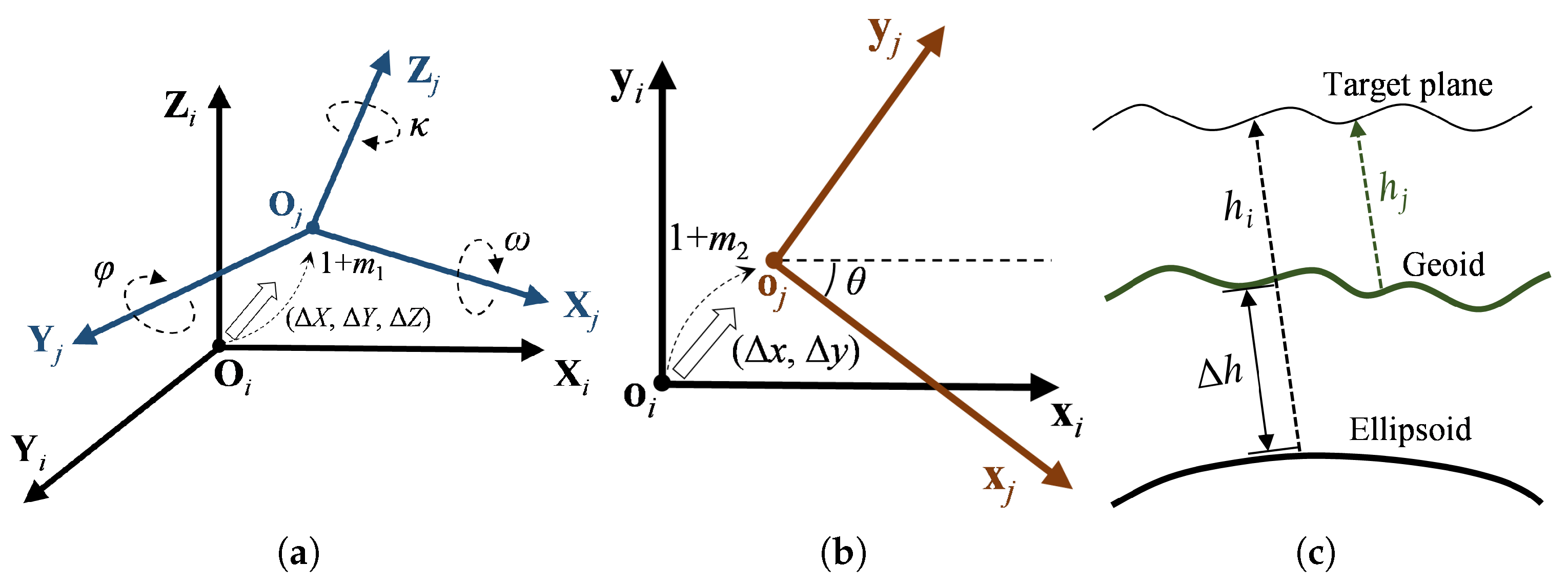

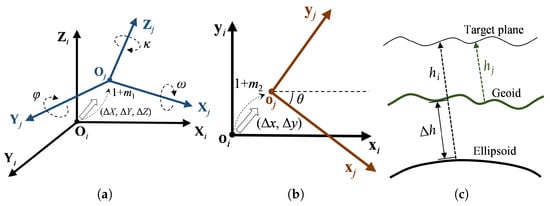

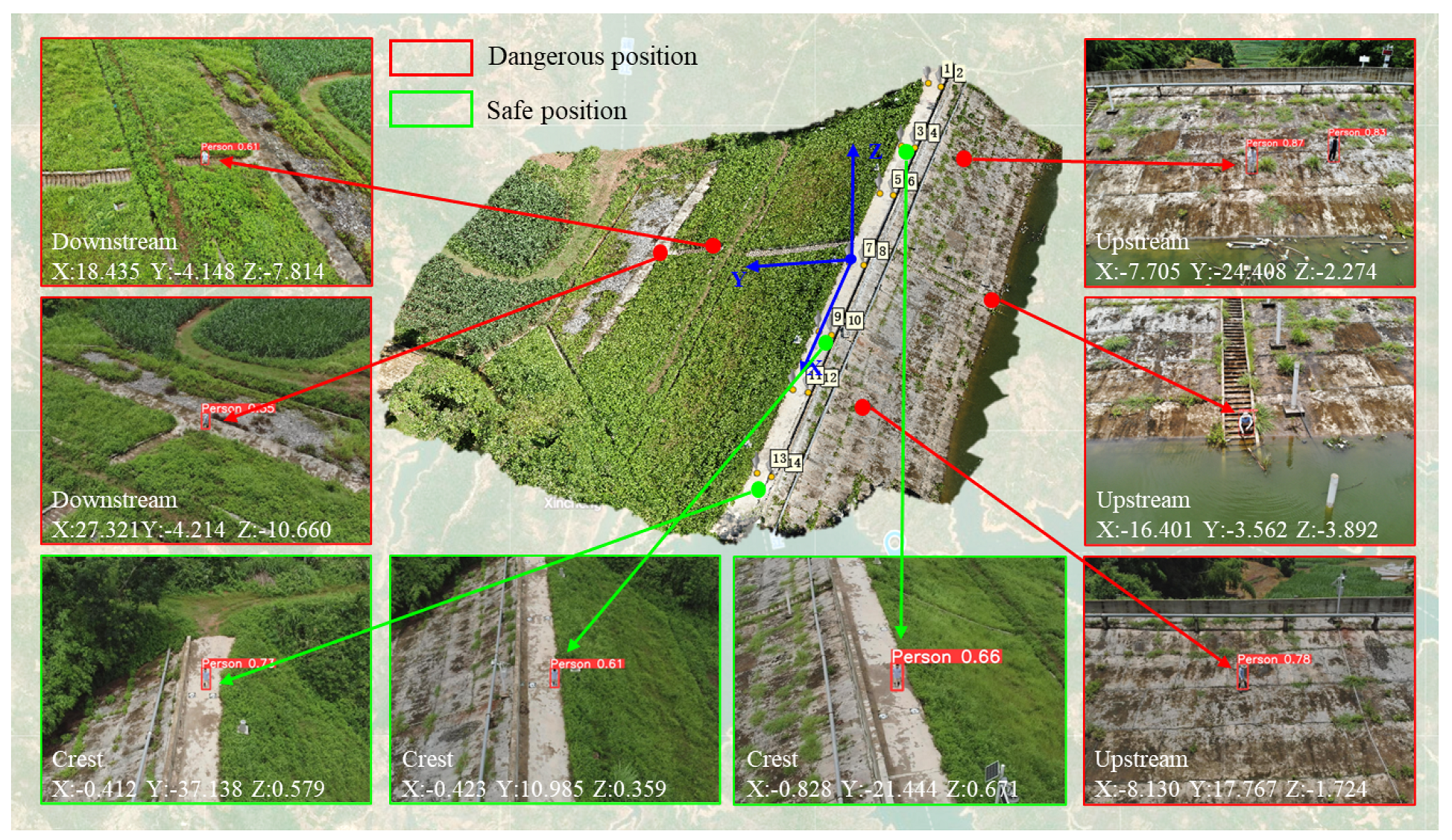

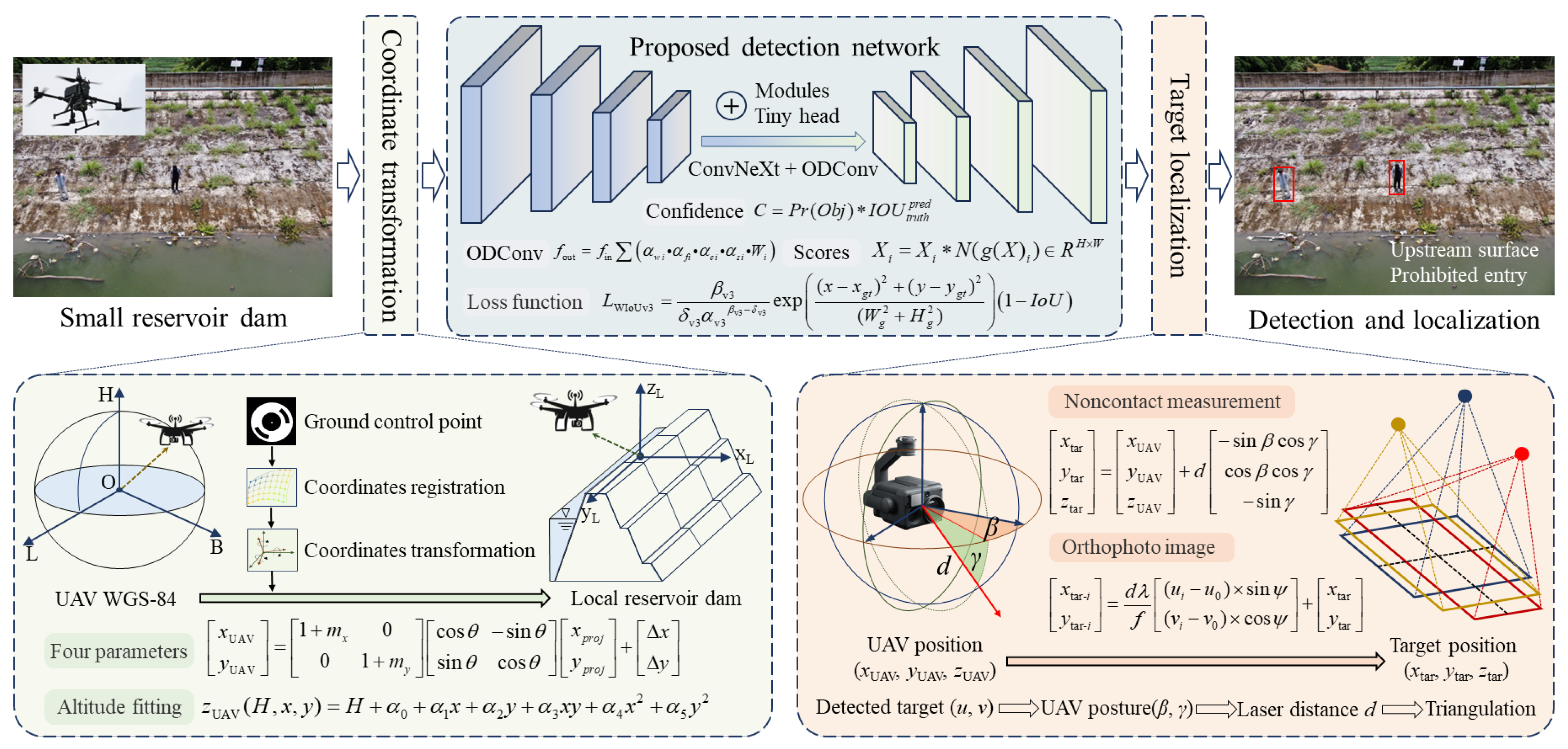

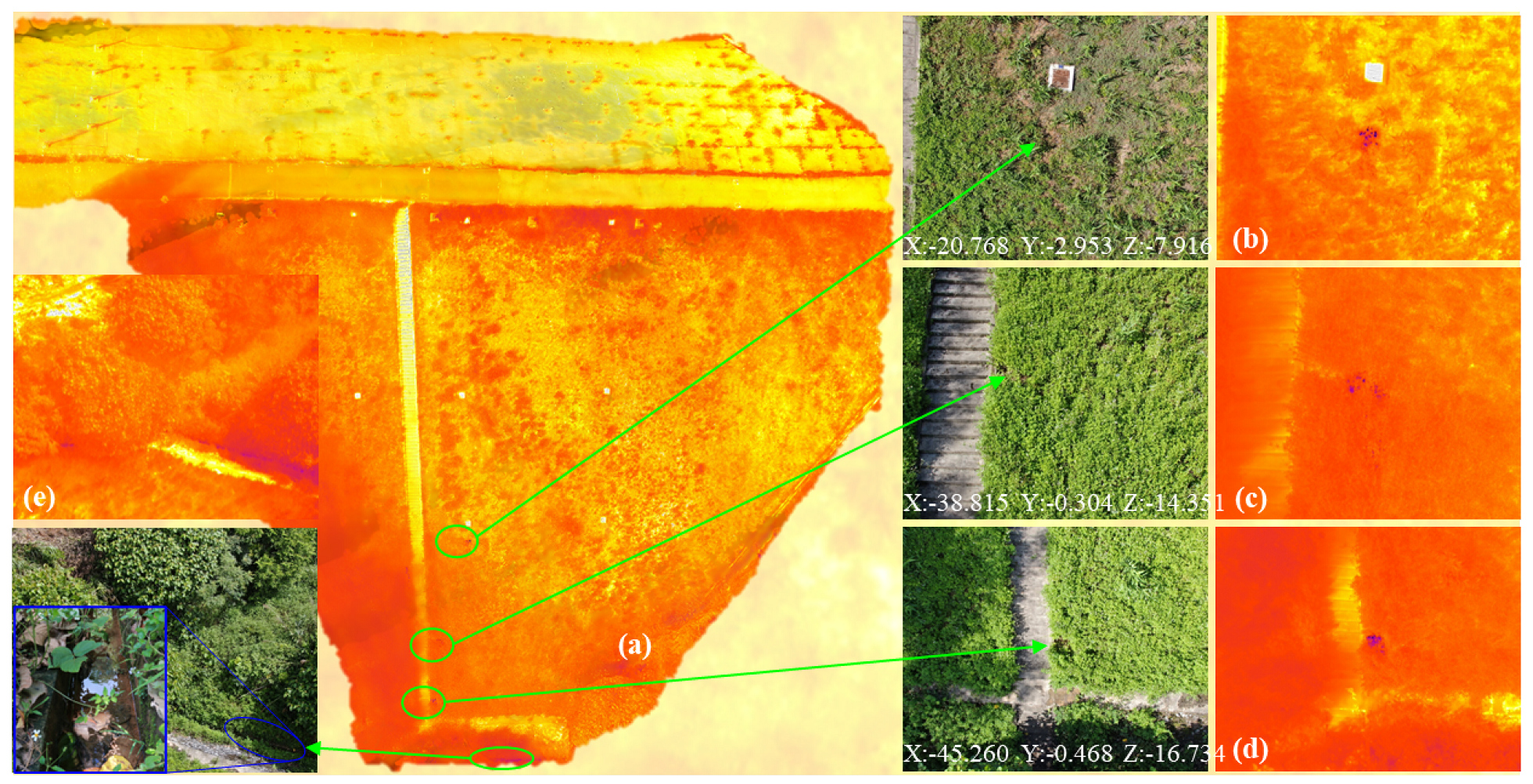

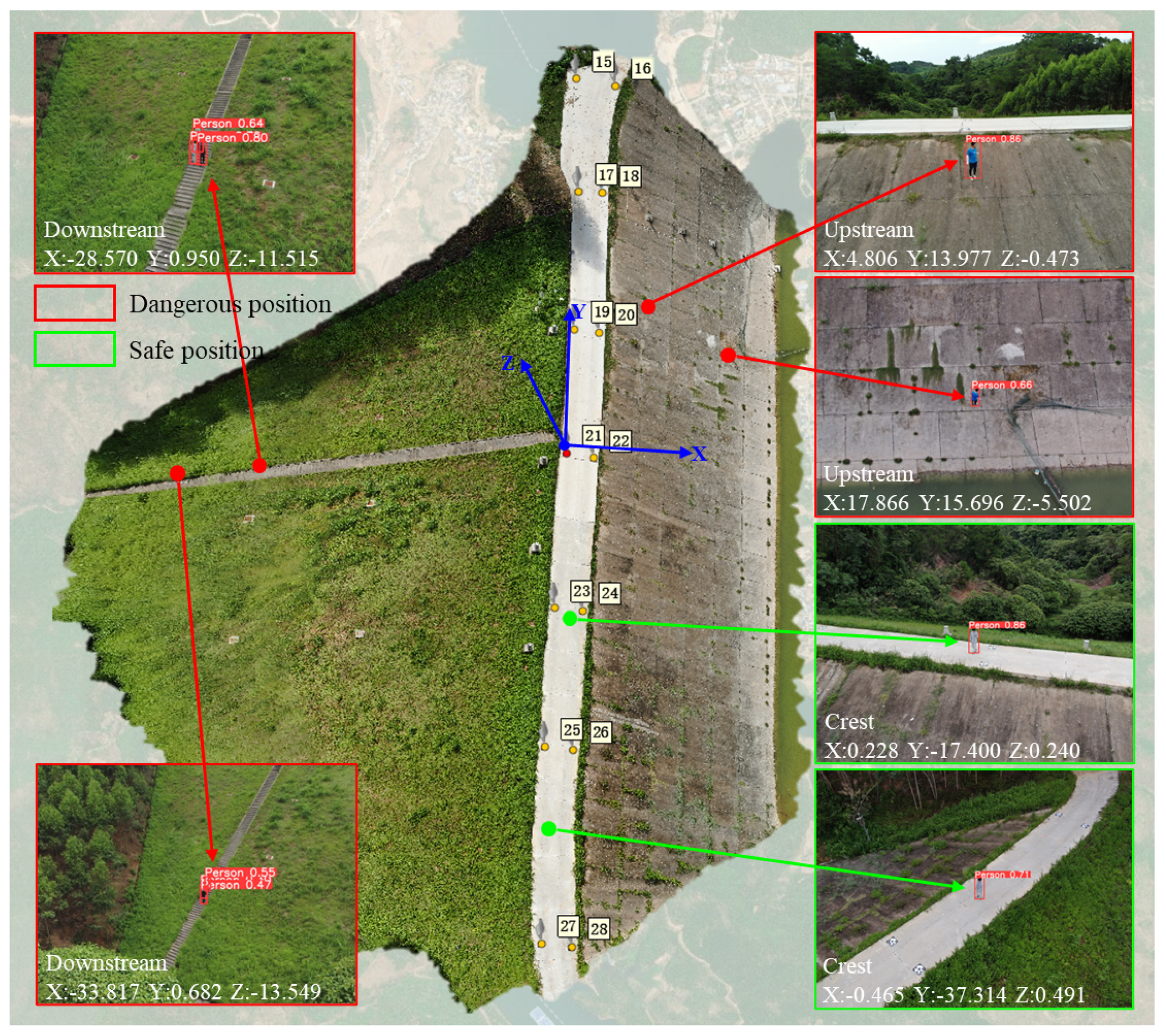

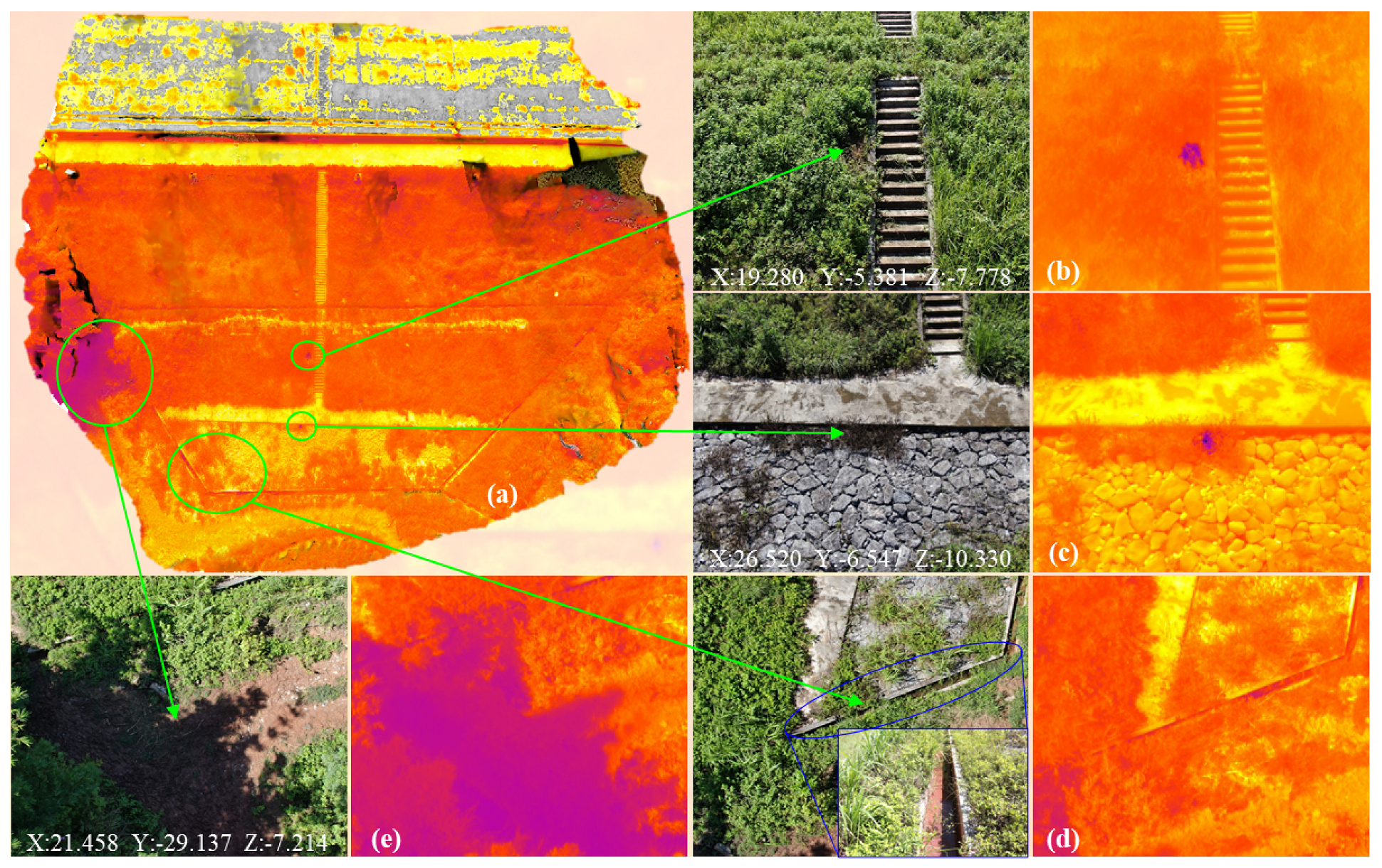

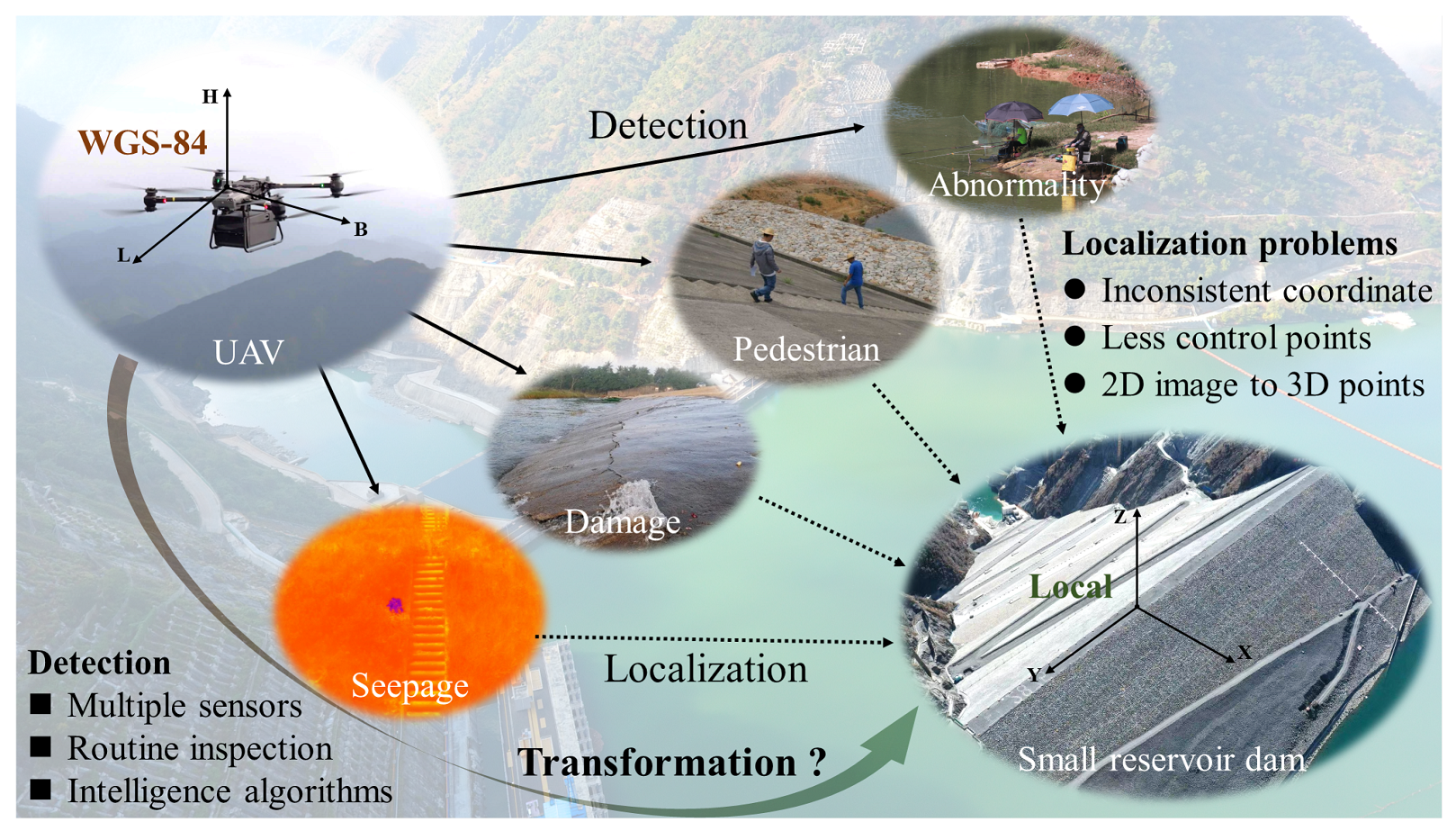

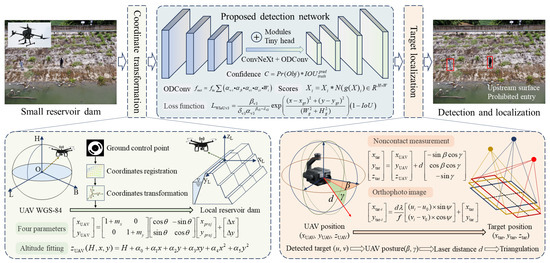

This study proposes a UAV-based remote measurement method for accurately locating pedestrians and other small targets within small reservoir dams. To address the imprecise coordinate information in reservoir areas after prolonged operations, a transformation method for converting UAV coordinates into the local coordinate system without relying on preset parameters is introduced, accomplished by integrating the Structure from Motion (SfM) algorithm to calculate the transformation parameters. An improved YOLOv8 network is introduced for the high-precision detection of small pedestrian targets, complemented by a laser rangefinder to facilitate accurate 3D locating of targets from varying postures and positions. Furthermore, the integration of a thermal infrared camera facilitates the detection and localization of potential seepage. The experimental validation and application across two real small reservoir dams confirm the accuracy and applicability of the proposed approach, demonstrating the efficiency of the proposed routine UAV surveillance strategy and proving its potential to establish electronic fences and enhance maintenance operations.
