When Visual Conservation Meets Auditory Homogenization: Multimodal Evidence from Ximen Street Historic District, Qujing, China
Abstract
1. Introduction
1.1. Realistic Dilemmas in the Conservation of Historic Districts and the Continuation of Local Identity
1.2. Insufficient Synergy in Visual–Auditory Perception Assessment for Historic District Conservation
1.3. Research Objectives
2. Study Area, Datasets, and Research Methods
2.1. Study Area
2.2. Datasets
2.2.1. Streetscape Data Collection
2.2.2. Sound Data Collection
2.3. Methods
2.3.1. Research Framework
2.3.2. Construction of Independent and Dependent Variables
2.3.3. LLM- and ALM-Assisted Scoring
2.3.4. Human Perception Validation and Agreement Assessment
2.3.5. Model Design
3. Results
3.1. Spatial Differentiation of Audio-Visual Indicators
3.1.1. Spatial Differentiation of Visual Homogenization Indicators
3.1.2. Spatial Differentiation of Auditory Homogenization Indicators
3.1.3. Distributional and Correlation Characteristics of Visual and Auditory Indicators
3.1.4. Spatial Autocorrelation of Visual and Auditory Homogenization Indices
3.1.5. Spatial Mismatch Between Visual and Auditory Homogenization Indicators
3.2. Identification of Multi-Sensory Homogeneity Types
3.3. Key Drivers and Nonlinear Effects Based on SHAP
3.3.1. Model Performance and Spatial Cross-Validation

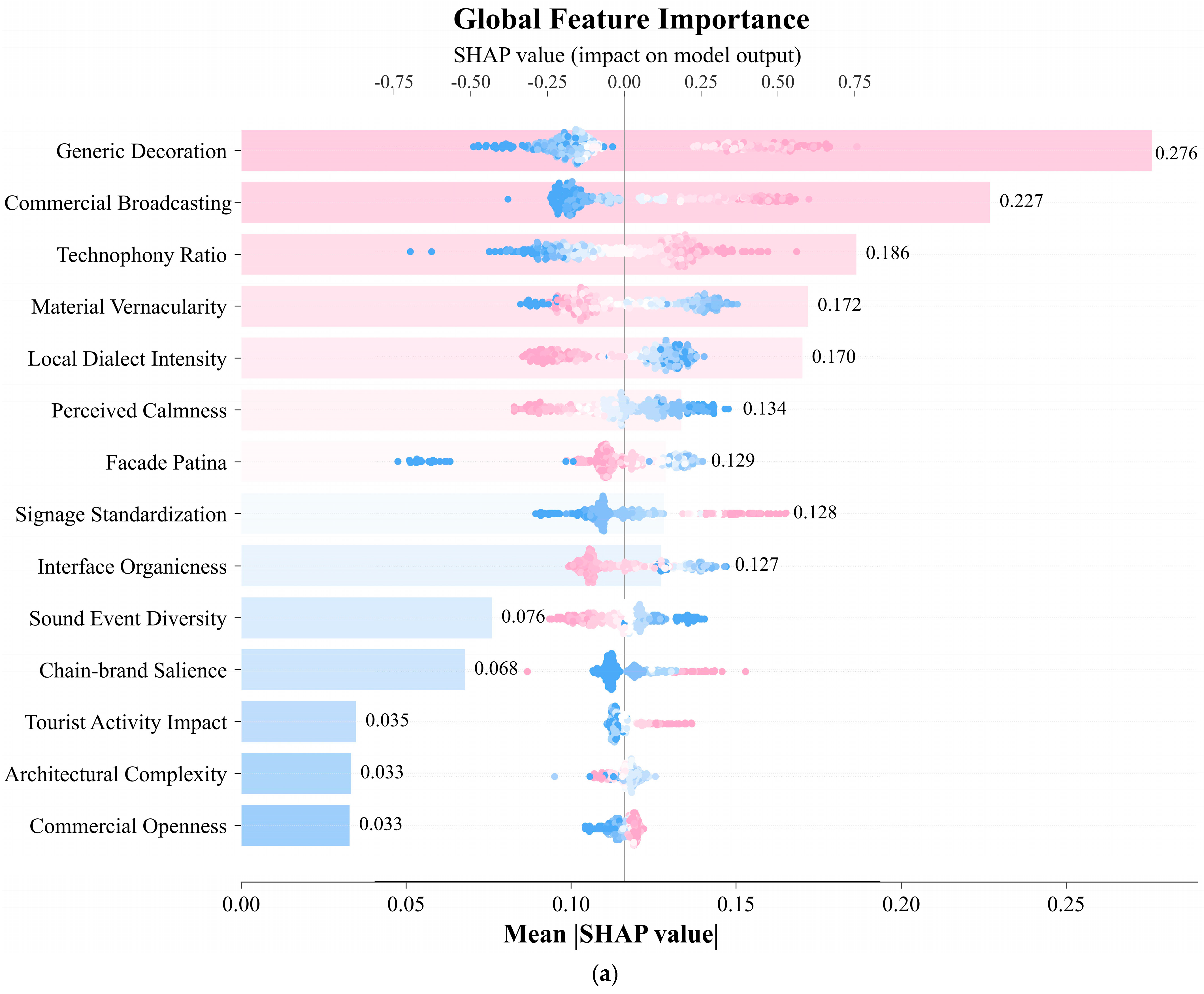

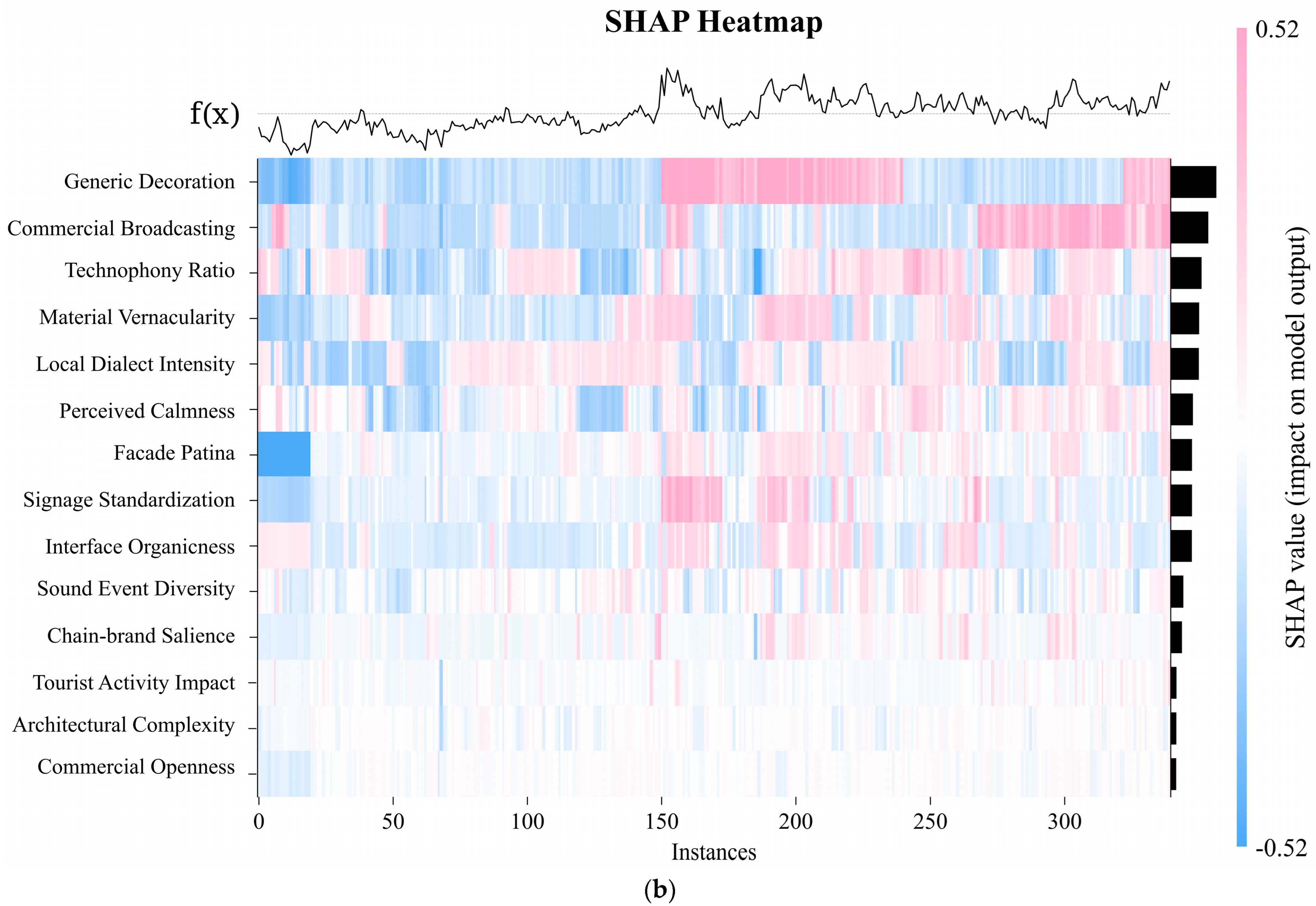

3.3.2. Global Importance of Visual and Audio Indicators
3.3.3. Main and Interaction Effects of Multisensory Factors
3.3.4. Nonlinear Effects and Threshold Responses
4. Discussion
4.1. Mismatch Between Visual Conservation and Soundscape Locality
4.2. Multi-Sensory Type Identification and Governance Implications
4.3. Composite Driving Mechanism of Visual and Auditory Homogeneity Perception
4.4. Limitations and Future Work
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
Appendix A
| Variable | Definition and Measurement Dimension | VLM Prompt Logic |
|---|---|---|
| Façade Patina | Measures the degree of historical weathering and age traces visible on building façades. In more homogenized streetscapes, façades are often excessively renovated and appear clean, polished, and newly finished. | “Rate the weathering and age traces on the building surfaces.” |
| Material Vernacularity | Assesses the proportion of traditional local materials (e.g., blue brick, timber, stone) relative to modern industrial materials (e.g., paint, ceramic tiles, aluminum composite panels). | “Identify the dominant building materials. Estimate the proportion of traditional local materials versus modern industrial materials.” |
| Architectural Complexity | Evaluates the richness of façade details, such as carvings, lattice windows, eaves, and decorative components. Homogenization often leads to simplified details or superficial symbolic replication. | “Analyze the visual complexity of architectural details.” |
| Interface Organic-ness | Measures whether the street interface is naturally developed and spatially varied, or instead aligned, standardized, and uniformly planned. | “Evaluate the rhythm of the street wall. Is it organic and varied or rigidly uniform and standardized ?” |
| Variable | Definition and Measurement Dimension | VLM Prompt Logic |
|---|---|---|
| Signage Standardization | Measures whether shop signs are standardized in font, color, size, material, placement, and template design. This is a typical visual feature of homogenization in Chinese historic streets. Higher scores indicate stronger standardization of commercial signage. | “Look at the shop signs in the image. Are they standardized in font, color, size, material, placement, or template design? “ |
| Chain Brand Salience | Measures the visibility and dominance of well-known chain brands, including global, national, or regional chain stores, within the street-view scene. Higher scores indicate stronger dominance of chain brand commercial landscapes and weaker presence of local independent businesses. | “Detect visible logos, storefronts, or signs of major chain brands. Estimate the dominance of global, national, or regional chain stores in the image.” |
| Generic Decoration | Evaluates whether the scene contains generic, replicable, or tourism-oriented decorative elements, such as lantern arrays, umbrella canopies, uniform planter boxes, flags, artificial retro-style props, themed photo spots, or Instagrammable installations. Higher scores indicate stronger use of generic tourist decorations and weaker local specificity. | “Identify decorative elements such as lanterns, umbrellas, flags, uniform planter boxes, artificial retro-style props, themed photo spots, or tourism-oriented installations. Are these decorations generic and replicable, or culturally specific to the local context? “ |
| Standardized Commercial Openness | Measures the extent to which the ground-floor street interface is occupied by open, consumption-oriented, and standardized commercial frontages, such as glass storefronts, product displays, outdoor seating, standardized shopfront layouts, and continuous commercial openings. Higher scores indicate stronger replacement of residential or life-oriented interfaces by standardized commercial spaces. | “Estimate the proportion of the ground-floor façade dedicated to commercial display, open storefronts, product display, outdoor seating, standardized shopfront layouts, or continuous commercial openings.” |
| Variable | Definition and Measurement Dimension | ALM Prompt Logic |
|---|---|---|
| Local Dialect Intensity | Measures the weakening of local dialects or local accents in the recording. Higher scores indicate that speech is dominated by standard Mandarin, non-local tourist accents, or foreign languages, while local dialects are weak or absent. | Use ASR to transcribe spoken content and identify language or accent features. The model can be prompted: “Analyze the spoken language and accent characteristics in the audio. Is the speech primarily local dialect, mixed speech, standard Mandarin, non-local accents, or foreign languages?” |
| Sound Event Diversity | Evaluates the reduction in diverse and place-specific sound events, such as local conversations, footsteps, cooking sounds, handcraft sounds, birdsong, water sounds, mahjong sounds, street vending sounds, and community activity sounds. Higher scores indicate fewer sound event types and a more simplified soundscape. | Count or estimate the number of distinct recognizable sound event categories. The model can be prompted: “Identify the recognizable sound event categories in the audio, such as birdsong, footsteps, cooking sounds, local conversations, handcraft sounds, mahjong sounds, traffic sounds, commercial broadcasting, or community activity sounds.” |
| Commercial Broadcasting Intensity | Measures the dominance of commercial sounds, including shop music, promotional broadcasting, looped advertisements, amplified sales calls, and commercial loudspeakers. Higher scores indicate stronger commercial occupation of the acoustic environment. | Detect repetitive, amplified, and promotional audio content. The model can be prompted: “Detect the presence and dominance of amplified sales pitches, looped advertisements, promotional broadcasting, shop music, or commercial loudspeakers.” |
| Tourist Activity Impact | Measures the intensity and intrusion of tourist-related sounds, including tour guide explanations, loudspeaker use, group chatter, crowd noise, photo-taking activities, tourism-oriented performances, and organized tour groups. Higher scores indicate stronger tourist occupation of the acoustic foreground. | Identify tourist-related speech, group noise, and loudspeaker characteristics. The model can detect keywords or expressions such as “everyone look here,” “follow me,” or amplified guide commentary, as well as the acoustic features of loudspeakers and tour groups. The model can be prompted: “Assess the intensity of tourist-related sounds in the audio.” |
| Technophony Ratio | Measures the proportion and dominance of mechanical, technological, or traffic-related sounds, such as motor vehicles, electric bikes, air-conditioning units, construction equipment, generators, loudspeakers, and other equipment noise. Higher scores indicate stronger intrusion of non-local mechanical sound sources. | Estimate the proportion of time dominated by mechanical, technological, construction, or traffic-related sounds. The model can be prompted: “Estimate the proportion of the audio duration dominated by mechanical, technological, construction, or traffic-related sounds, such as vehicles, electric bikes, air-conditioning units, construction equipment, generators, or equipment noise.” |
| Perceived Calmness | Evaluates whether the expected calmness and acoustic order of the historic street are masked by noisy background sounds. It reflects perceived tranquility, acoustic comfort, signal clarity, and overall soundscape order. Higher scores indicate stronger acoustic disturbance, lower tranquility, and poorer signal-to-noise quality. | Assess the perceived calmness, acoustic order, and signal-to-noise quality of the recording. The model can be prompted: “Evaluate the overall acoustic comfort, calmness, and disturbance level of the environment.” |
| Item | Visual Scoring | Auditory Scoring |
|---|---|---|
| Score scale | 0.00–10.00, two decimal places | 0.00–10.00, two decimal places |
| Temperature | 0.1 | 0.1 |
| Top-p | 0.8 | 0.8 |
| Top-k | 40 | 40 |
| Maximum output length | 3000 tokens | 3000 tokens |
| Request timeout | 90 s | 90 s |
| Maximum retries | 5 | 5 |
| Category | Item | n (%) |
|---|---|---|
| Gender | Male | 15 (50.0%) |
| Female | 15 (50.0%) | |
| Age | 18–29 years | 12 (40.0%) |
| 30–44 years | 10 (33.3%) | |
| 45 years and above | 8 (26.7%) | |
| Professional background | Architecture, urban planning, landscape architecture, heritage conservation, or acoustics-related fields | 10 (33.3%) |
| Other disciplines or non-related occupations | 20 (66.7%) | |
| Residence or life experience | Residents or street-front business operators in Ximen Street | 10 (33.3%) |
| Residents of other areas in Qujing | 10 (33.3%) | |
| Non-residents of Qujing | 10 (33.3%) | |
| Familiarity with Ximen Street | Never visited or visited only briefly | 6 (20.0%) |
| Occasional visitors | 8 (26.7%) | |
| Frequent visitors | 6 (20.0%) | |
| Long-term residents, workers, or business operators | 10 (33.3%) | |
| Exposure to the Qujing local dialect | Able to understand or use it proficiently | 10 (33.3%) |
| Able to understand it partially | 12 (40.0%) | |
| Unable to understand it | 8 (26.7%) | |
| Sensory conditions | Normal or corrected-to-normal vision | 30 (100.0%) |
| Self-reported normal hearing | 30 (100.0%) |
| ID | Type | Place Experience (Years) | Summary of Interview Content |
|---|---|---|---|
| R01 | Long-term resident and local worker | 40 | The participant first became familiar with the area around 1985 and began teaching at a local school around 1988. The former school, established in 1958, once contained relatively well-preserved and esthetically distinctive traditional buildings, which were later demolished. The participant expressed regret over their loss. In the participant’s view, the main section of Ximen Street has changed relatively little. Visiting the same long-established breakfast shops over several decades has become part of the participant’s daily routine. The participant also acknowledged the visible improvements resulting from recent renewal. |
| R02 | Long-term resident | 35 | The participant has lived in the area for several decades. In the participant’s view, recent policy support and renewal projects have improved both the physical environment and the vitality of the district. During holidays, students and visitors frequently come to the food street, creating a lively atmosphere resembling that of a small tourist attraction. |
| R03 | Street-front business operator | 2–3 | The participant reported that business was very good and that customers often had to queue during holidays. Many nearby shops had also opened only in recent years, making the area increasingly resemble a small tourist attraction. |
| R04 | Local worker | 36 | The participant considered Ximen Street to possess considerable historical and cultural significance and argued that its heritage should be further developed and presented on the basis of appropriate conservation. The old urban area was perceived as still being relatively disordered and insufficiently regulated, requiring a balance between modernization and the preservation of historic cultural characteristics. The participant positively evaluated the renovation of traditional urban courtyards and lanes, while also identifying aging electrical systems, unsafe buildings, potential safety hazards, and poor accessibility in some deep lanes. |
| R05 | Long-term resident and former local student | 25 | The participant observed frequent turnover among shop operators, with businesses repeatedly entering and leaving the district. The participant also retained memories of traditional daily and craft-related activities and sounds, particularly cotton fluffing. |
| R06 | Student or short-term district user | 3–4 | The participant noted that public activities are frequently organized during holidays. During some events, purchases are supported by government subsidies, creating an atmosphere similar to that of a lively traditional market. |
| R07 | Long-term resident and volunteer or sanitation worker | 35 | The participant has long been involved in, or has closely observed, cleaning and environmental maintenance in the district. The area was previously perceived as relatively dirty, with frequent littering. Following recent renewal and management measures, the district has become noticeably cleaner, and the burden of daily maintenance has been reduced. |
| R08 | Local worker | 20–30 | The participant retained strong memories of the former school entrance, the Qilin campus, and local foods such as erkuai. These school spaces and food-related activities constituted important components of the participant’s place identity and collective memory of the district. |
| R09 | Street-front business operator or long-term district user | 15 | The participant considered that Ximen Street had changed substantially in recent years, while its overall development was viewed positively. School life, class reunions, and long-established local food businesses serving chicken-soup rice, Dafugui specialties, and cold rice noodles constituted the participant’s most prominent memories of the district. |
| R10 | Long-term resident | 20 | The participant mentioned daily neighborhood and leisure activities such as mahjong playing. The participant also recalled that some buildings in the district had previously been of poor quality, including earth wall structures and unsafe houses, indicating the practical need for renewal and improvement of residential conditions. |
| R11 | Street-front business operator or long-term district user | 15 | The participant retained strong memories of long-established local businesses such as Sanmei Soy Milk, where customers often had to queue. Clear differences were perceived between Ximen Street and the historic towns of Dali and Huize. Dali and Huize were considered to have more complete historic architecture and stronger tourism-oriented development, whereas Ximen Street remained primarily characterized by the daily lives of long-term residents, including food markets, local snack shops, roasted chestnut vendors, and street cries. In auditory terms, school lessons, kindergarten and primary school activities, breakfast preparation, residential activities, and street vending were regarded as distinctive local sound cues. By contrast, sounds associated with bars, cafés, and clubs were perceived as more similar to the commercial soundscapes of tourism-oriented historic towns such as Dali. Overall, the participant positively evaluated the substantial improvements resulting from recent conservation and renewal. |
Appendix B
XGBoost Objective Function
Appendix C



| Variable | Breakpoint (0–10) | 95% Spatial-Block Bootstrap CI | CI Width | Slope Before | Slope After | Nonlinearity FDR q | Breakpoint FDR q | ΔAIC | Conclusion |
|---|---|---|---|---|---|---|---|---|---|
| Façade Patina (FP) | 2.25 | 2.25–2.75 | 0.50 | 0.871 | −0.047 | 0.0035 | 0.0035 | 219.64 | Supported case-specific breakpoint |
| Material Vernacularity (MV) | 1.75 | 1.75–1.75 | 0.00 | 1.211 | −0.086 | 0.0035 | 0.0035 | 210.39 | Supported case-specific breakpoint |
| Architectural Complexity (AC) | 2.25 | 2.25–2.25 | 0.00 | 0.739 | −0.106 | 0.0035 | 0.0035 | 142.61 | Supported case-specific breakpoint |
| Interface Organicness (IO) | 2.25 | 2.25–2.75 | 0.50 | 0.622 | −0.122 | 0.0035 | 0.0035 | 111.21 | Supported case-specific breakpoint |
| Signage Standardization (SS) | 1.25 | 0.75–3.75 | 3.00 | 0.515 | 0.113 | 0.0070 | 0.0084 | 19.78 | Supported, but relatively uncertain |
| Commercial Openness (CO) | 0.75 | 0.75–3.25 | 2.50 | 0.477 | 0.021 | 0.0070 | 0.0120 | 10.01 | Supported, but relatively uncertain |
| Chain brand Salience (CS) | 0.75 | 0.25–0.75 | 0.50 | 0.376 | 0.041 | 0.1960 | 0.0117 | 7.54 | Not formally supported; nonlinearity nonsignificant |
| Generic Decoration (GD) | 1.25 | 1.25–6.75 | 5.50 | 0.228 | 0.125 | 0.6944 | 0.7257 | −0.69 | Not supported |
| Local Dialect Intensity (LDI) | 1.25 | 1.25–8.25 | 7.00 | −0.046 | −0.085 | 0.9280 | 0.9640 | −1.71 | Not supported |
| Commercial Broadcasting (CB) | 0.75 | 0.10–7.25 | 7.15 | −0.038 | 0.091 | 0.7891 | 0.7165 | −0.40 | Not supported |
| Sound event Diversity (SED) | 2.25 | 2.25–5.25 | 3.00 | 0.042 | −0.082 | 0.9280 | 0.7485 | 0.01 | Not supported |
| Technophony Ratio (TR) | 3.75 | 1.75–7.90 | 6.15 | 0.056 | 0.135 | 0.4708 | 0.4433 | 1.98 | Not supported |
| Tourist activity Impact (TAI) | 0.40 | 0.15–1.75 | 1.60 | −0.161 | 0.103 | 0.6222 | 0.4095 | 0.38 | Not supported |
| Perceived Calmness (PC) | 6.25 | 2.25–6.25 | 4.00 | −0.090 | −0.017 | 0.9135 | 0.7165 | −0.50 | Not supported |
| Indicator Type | Variable | VIF | Tolerance | Most Related Variable | Pearson r | Spearman ρ |
|---|---|---|---|---|---|---|
| Visual | material_vernacularity | 4.396 | 0.227 | facade_patina | 0.755 | 0.756 |
| Visual | facade_patina | 3.532 | 0.283 | material_vernacularity | 0.755 | 0.756 |
| Visual | interface_organicness | 2.592 | 0.386 | facade_patina | 0.688 | 0.598 |
| Auditory | voice_perceived_calmness | 2.277 | 0.439 | voice_technophony_ratio | −0.641 | −0.635 |
| Visual | commercial_openness | 2.019 | 0.495 | chain_brand_salience | 0.423 | 0.633 |
| Visual | architectural_complexity | 2.000 | 0.500 | material_vernacularity | 0.537 | 0.526 |
| Visual | signage_standardization | 1.977 | 0.506 | generic_decoration | 0.606 | 0.610 |
| Auditory | voice_technophony_ratio | 1.930 | 0.518 | voice_perceived_calmness | −0.641 | −0.635 |
| Visual | generic_decoration | 1.910 | 0.524 | signage_standardization | 0.606 | 0.610 |
| Auditory | voice_sound_event_diversity | 1.723 | 0.580 | voice_local_dialect_intensity | 0.567 | 0.599 |
| Auditory | voice_local_dialect_intensity | 1.690 | 0.592 | voice_sound_event_diversity | 0.567 | 0.599 |
| Auditory | voice_commercial_broadcasting | 1.668 | 0.600 | voice_tourist_activity_impact | 0.475 | 0.605 |
| Visual | chain_brand_salience | 1.490 | 0.671 | commercial_openness | 0.423 | 0.633 |
| Auditory | voice_tourist_activity_impact | 1.434 | 0.697 | voice_commercial_broadcasting | 0.475 | 0.605 |

| Variable 1 | Variable 2 | Pearson r | Spearman ρ | Correlation Level |
|---|---|---|---|---|
| Facade patina | material_vernacularity | 0.755 | 0.756 | High |
| Voice Technophony ratio | voice_perceived_calmness | −0.641 | −0.635 | Moderate negative |
| Chain brand salience | commercial_openness | 0.423 | 0.633 | Moderate |
| Signage standardization | generic_decoration | 0.606 | 0.610 | Moderate |
| commercial broadcasting | voice_tourist_activity_impact | 0.475 | 0.605 | Moderate |
| local dialect intensity | voice_sound_event_diversity | 0.567 | 0.599 | Moderate |
| facade patina | interface_organicness | 0.688 | 0.598 | Moderate |
| material vernacularity | interface_organicness | 0.613 | 0.581 | Moderate |
| material vernacularity | architectural_complexity | 0.537 | 0.526 | Moderate |
| local dialect intensity | voice_tourist_activity_impact | 0.266 | 0.503 | Moderate in rank correlation |
