Next Article in Journal
Development and Application of SKSSIM Simulation Software for the Oxygen Bottom Blown Copper Smelting Process
Previous Article in Journal
The Effect of Deep Cryogenic Treatment on the Corrosion Behavior of Mg-7Y-1.5Nd Magnesium Alloy
Article Menu
Issue 10 (October) cover image

Export Article

Open AccessArticle

Microstructure and Mechanical Properties of Al-5Mg-0.8Mn Alloys with Various Contents of Fe and Si Cast under Near-Rapid Cooling

Liaoning Provincial Key Laboratory of Light Alloys and Processing Technology, School of Materials Science and Engineering, Shenyang Aerospace University, 37 Daoyi Avenue S., Shenyang 110136, China
*
Author to whom correspondence should be addressed.
Metals 2017, 7(10), 428; https://doi.org/10.3390/met7100428
Received: 13 September 2017 / Revised: 29 September 2017 / Accepted: 29 September 2017 / Published: 13 October 2017
  |
PDF [8138 KB, uploaded 13 October 2017]
  |

Abstract

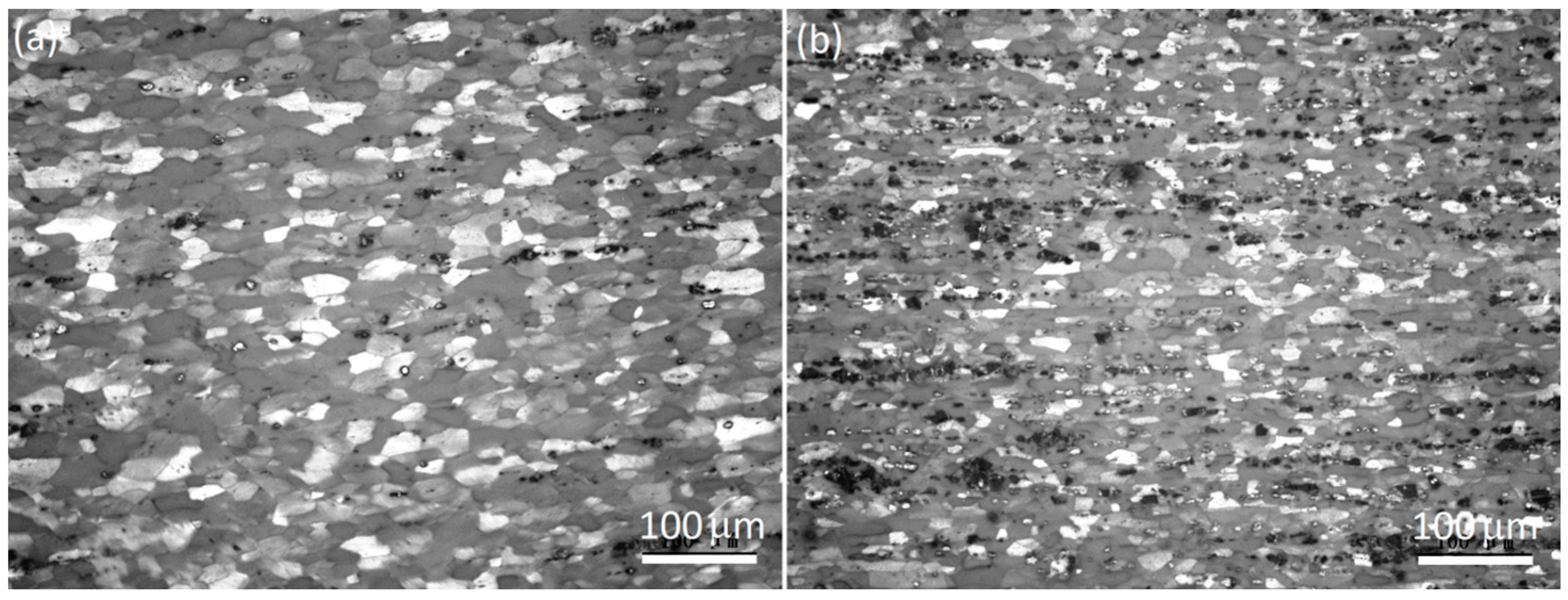

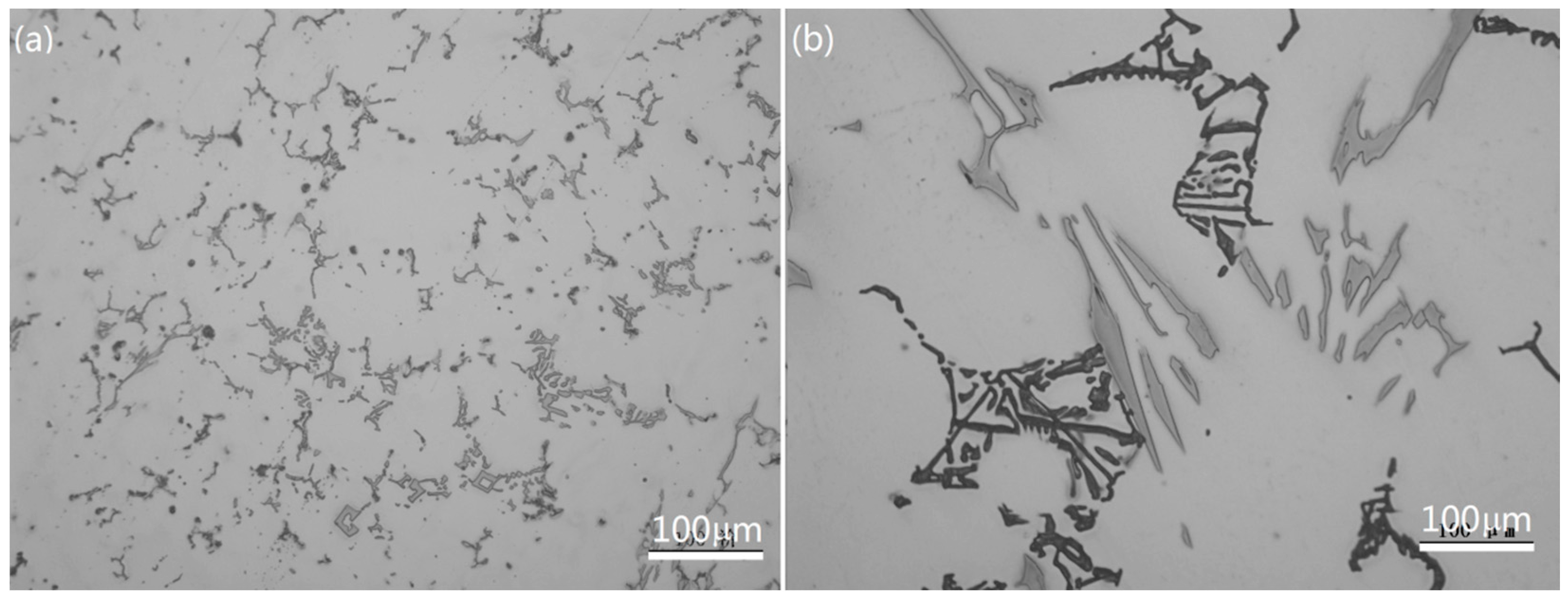

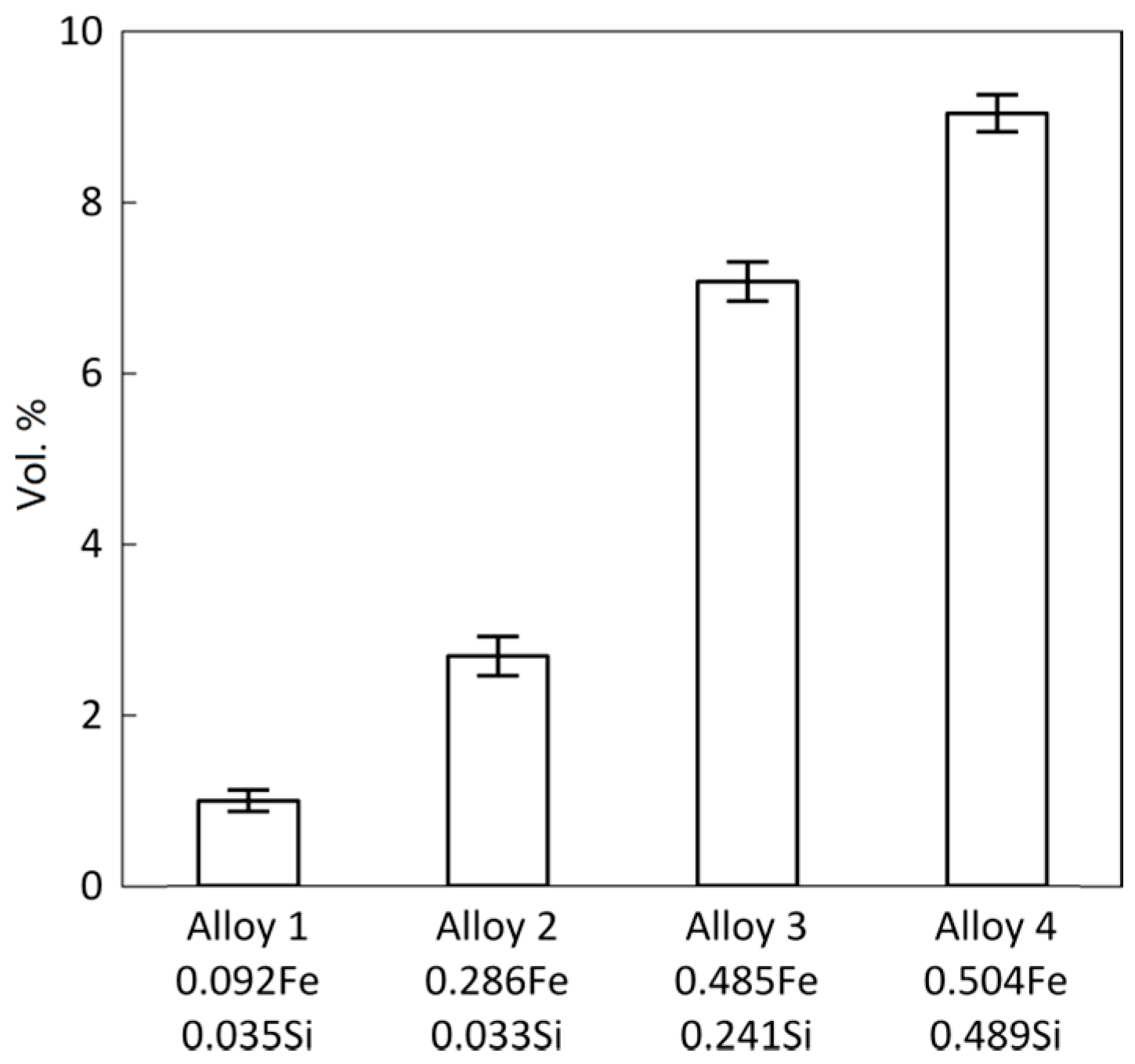

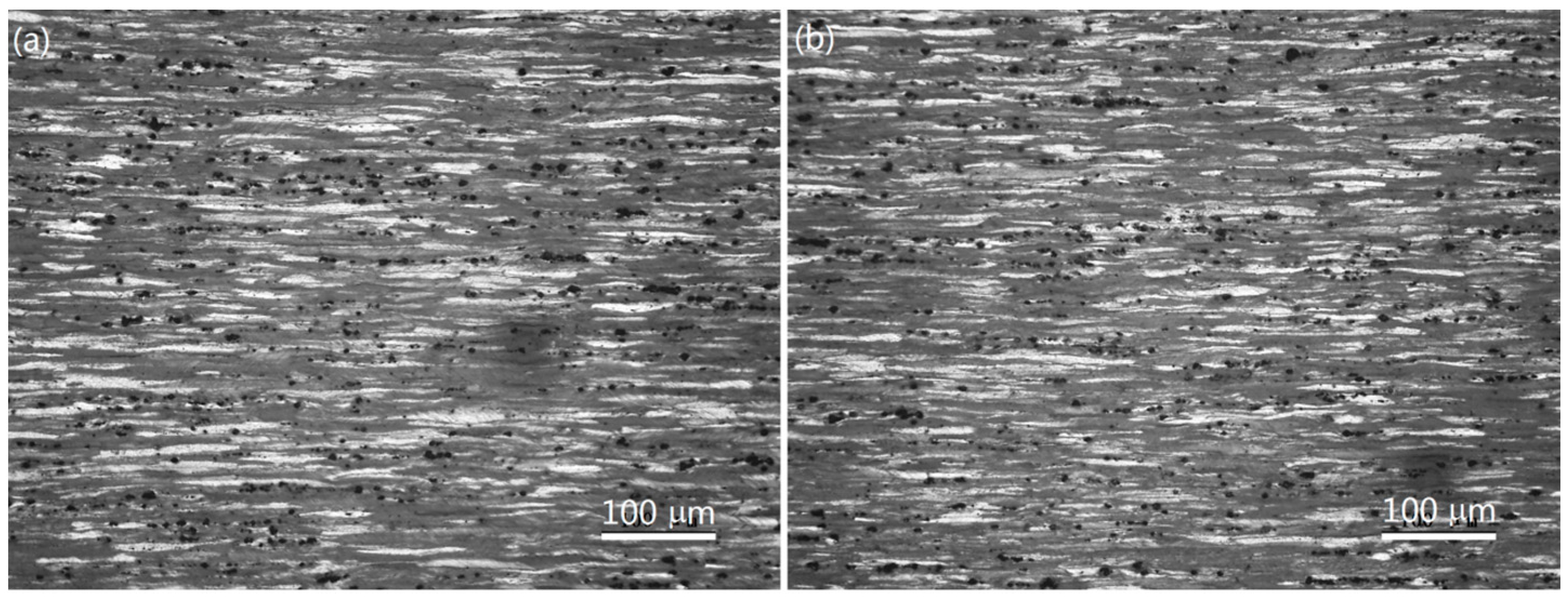

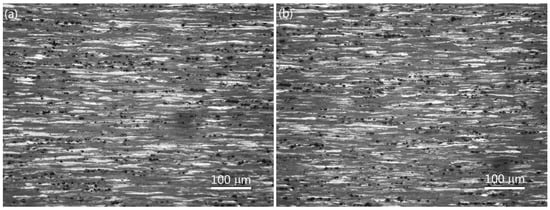

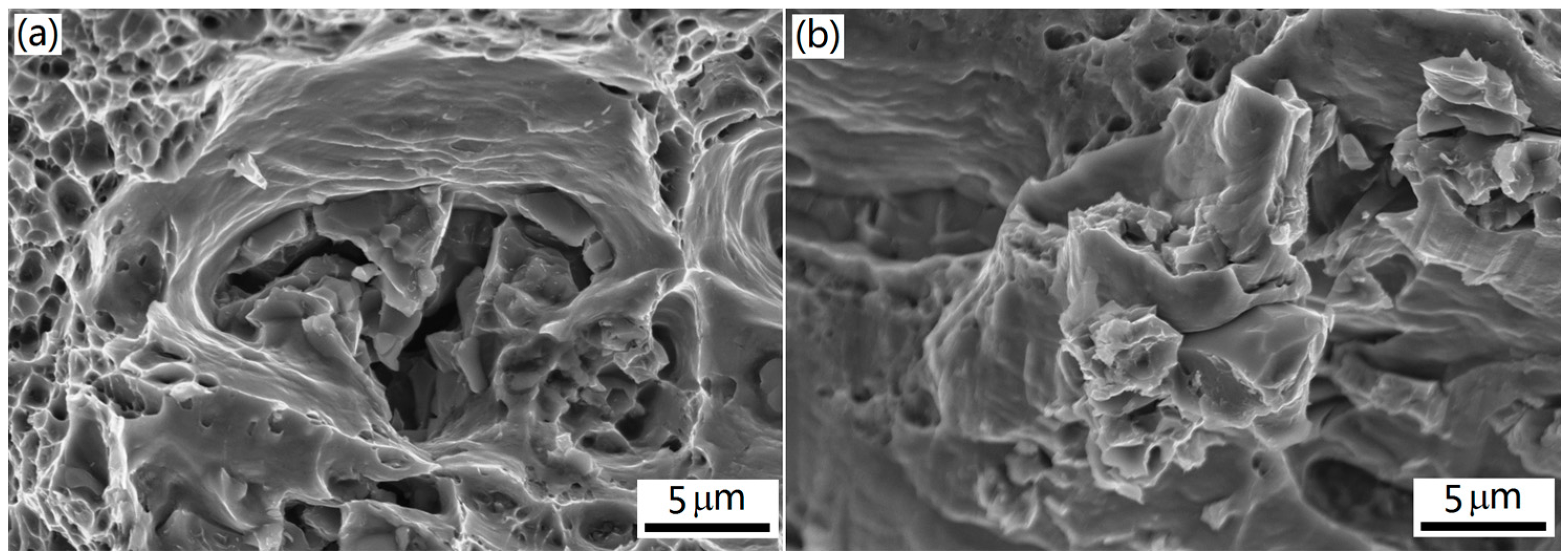

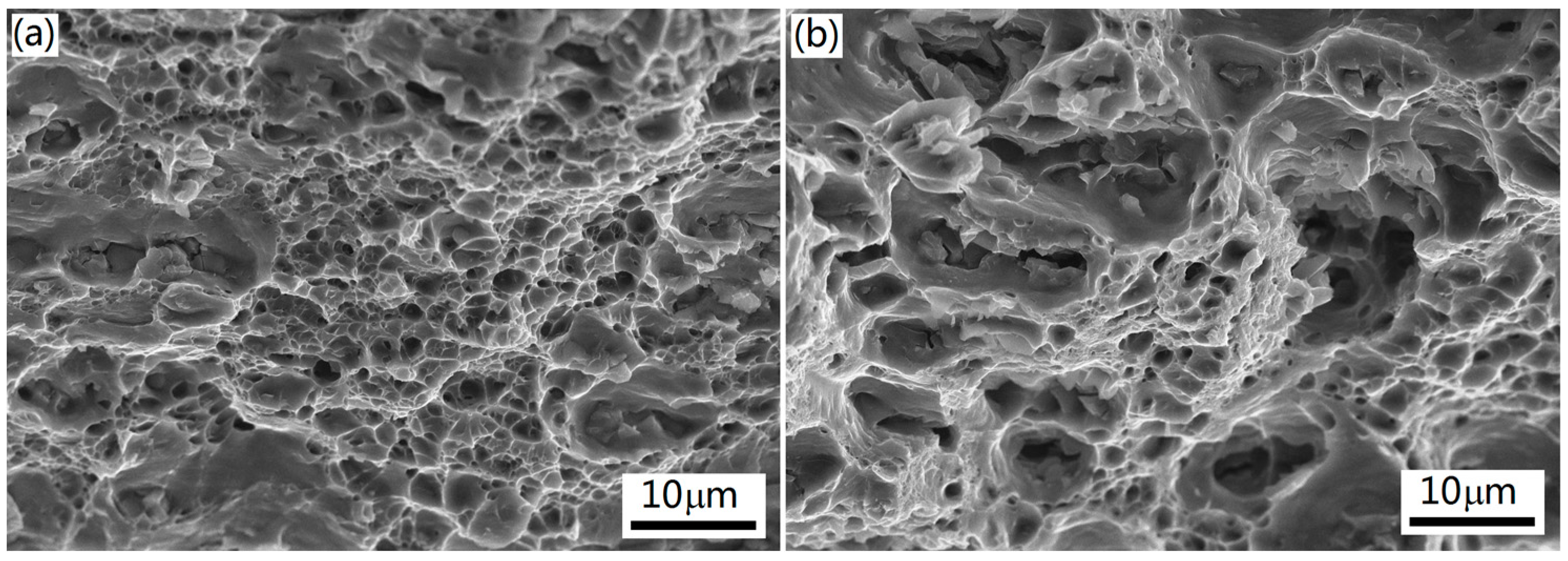

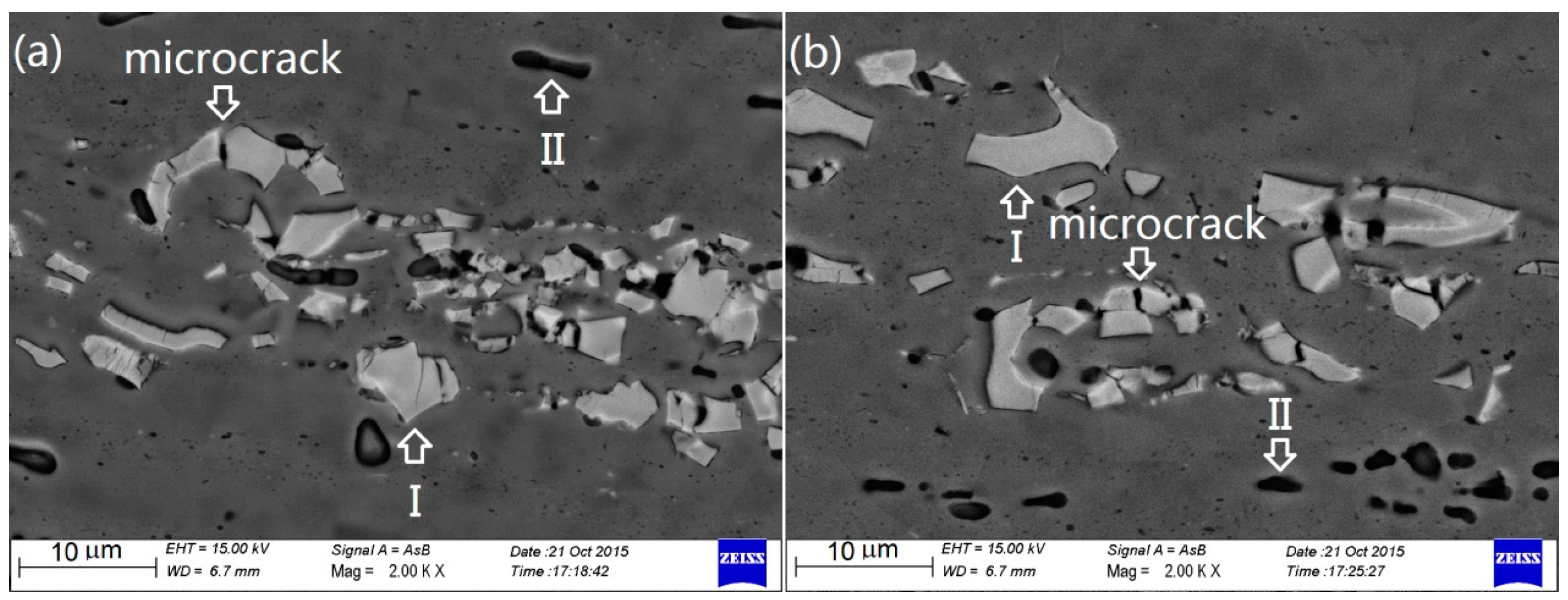

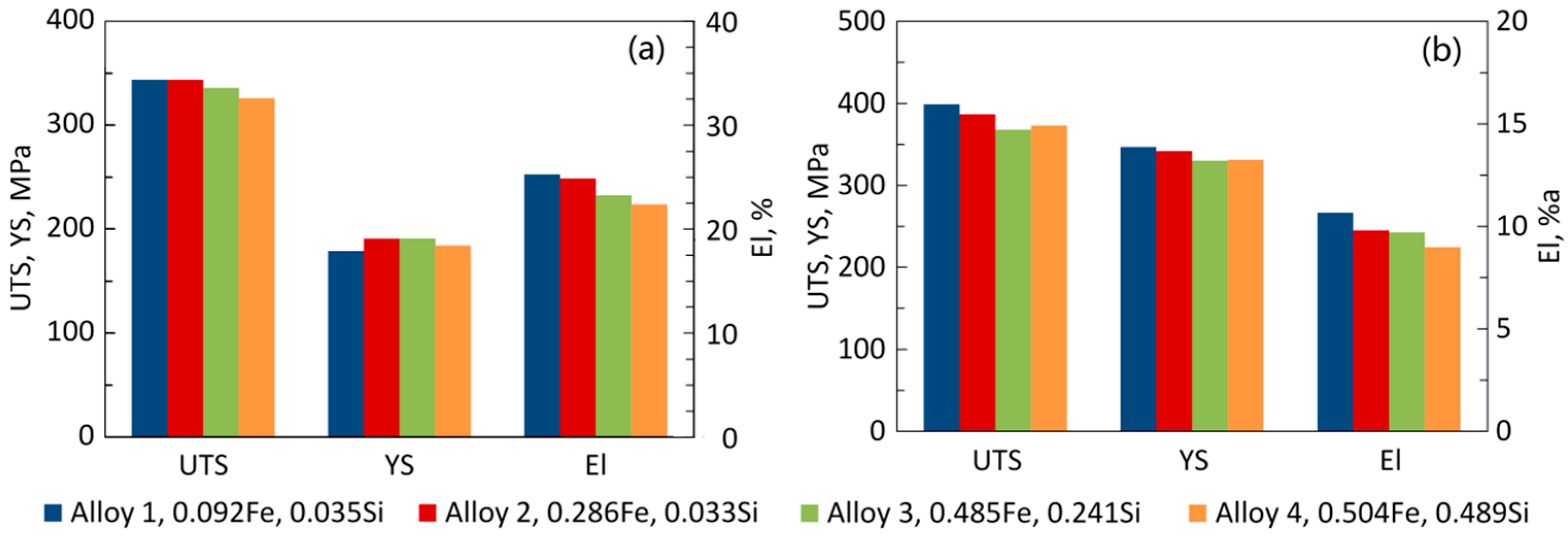

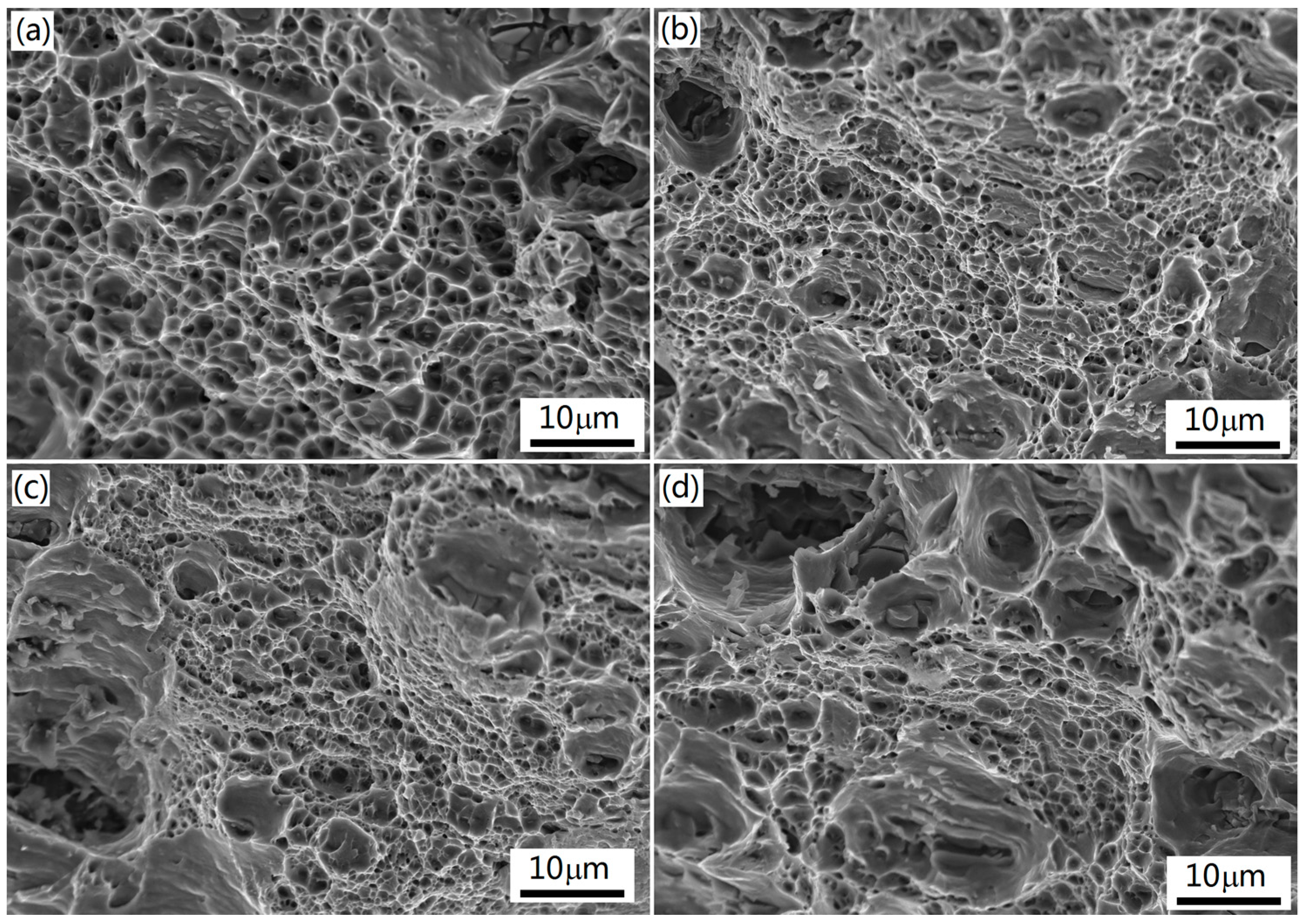

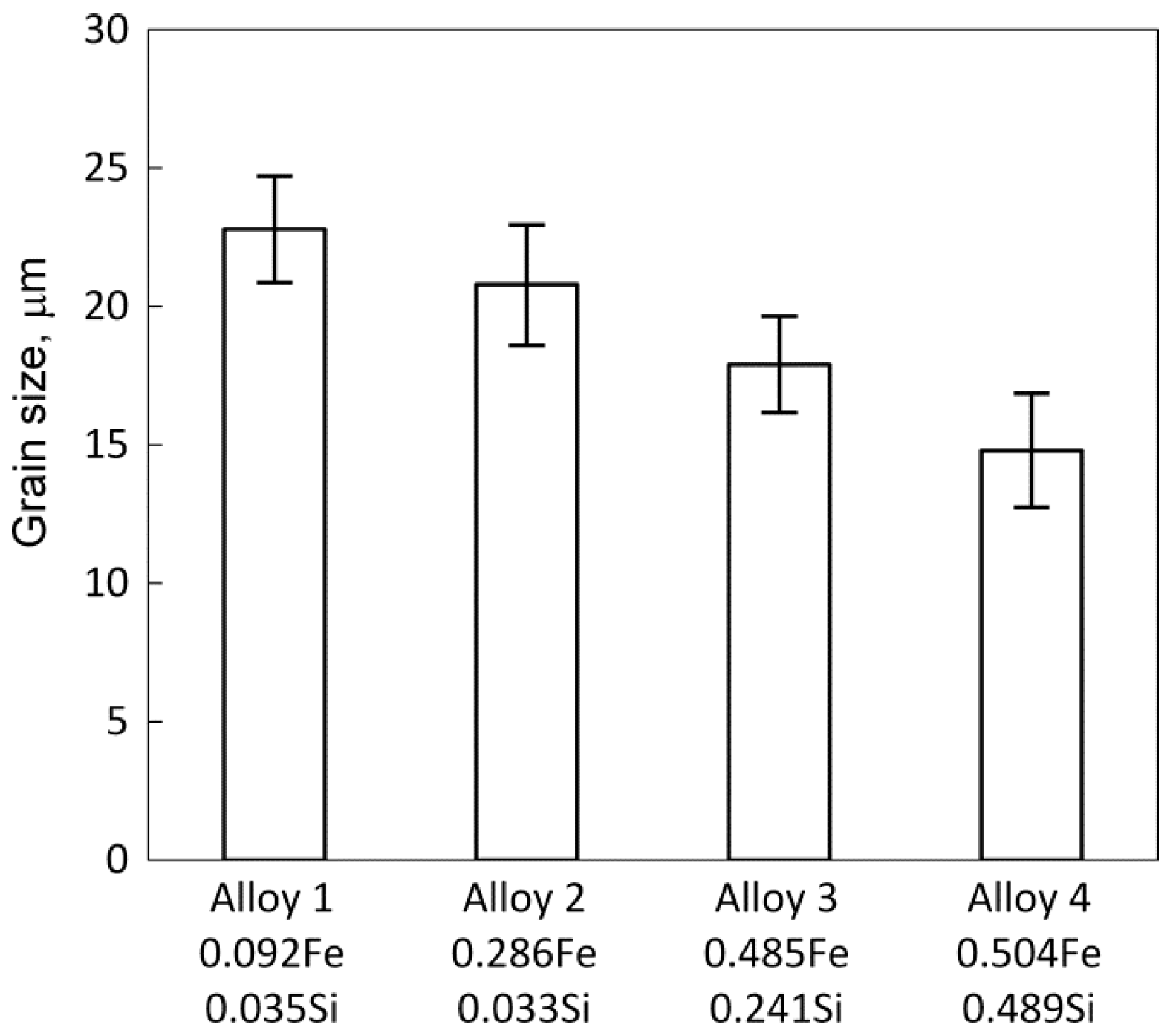

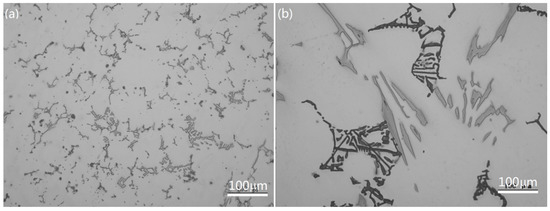

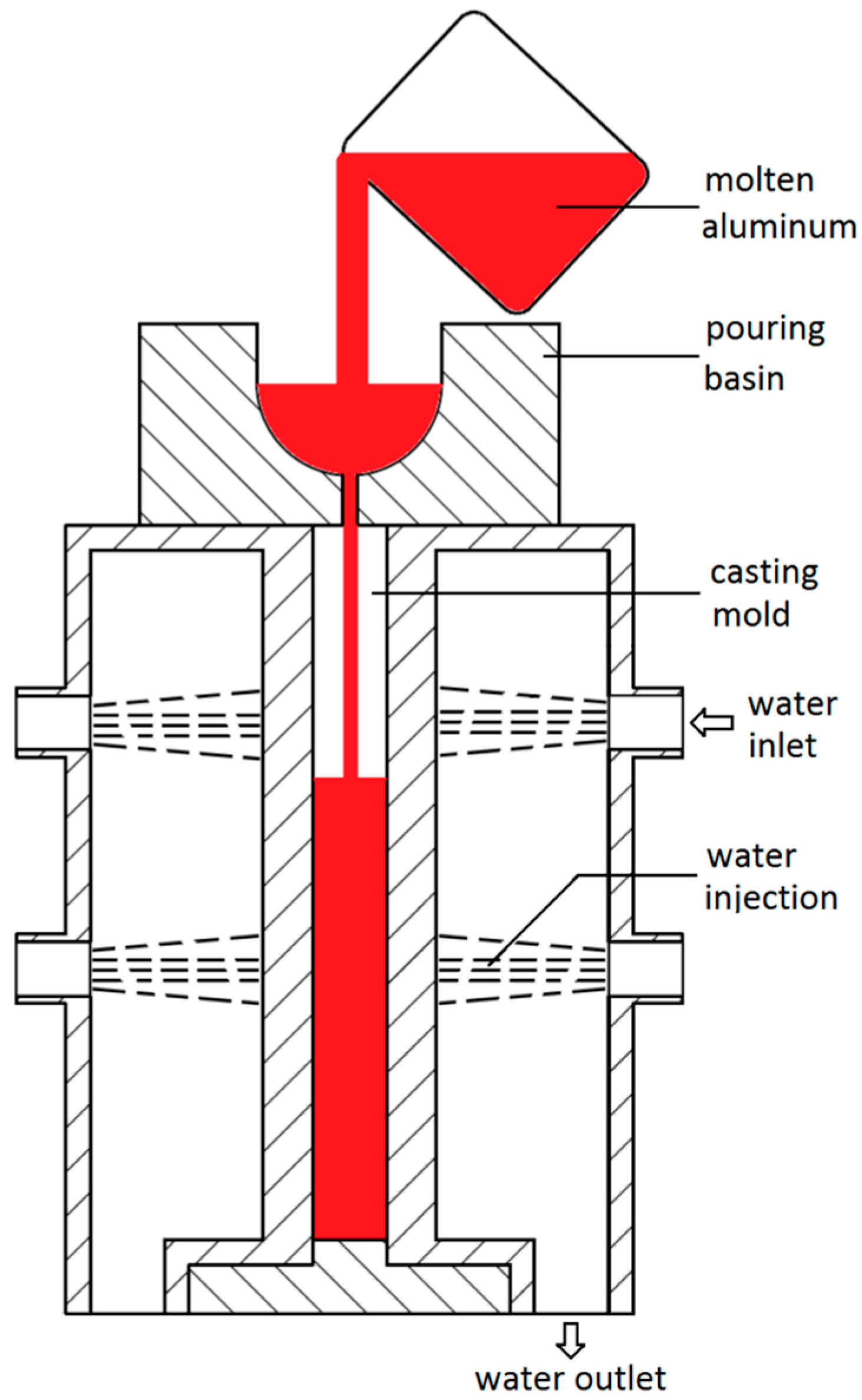

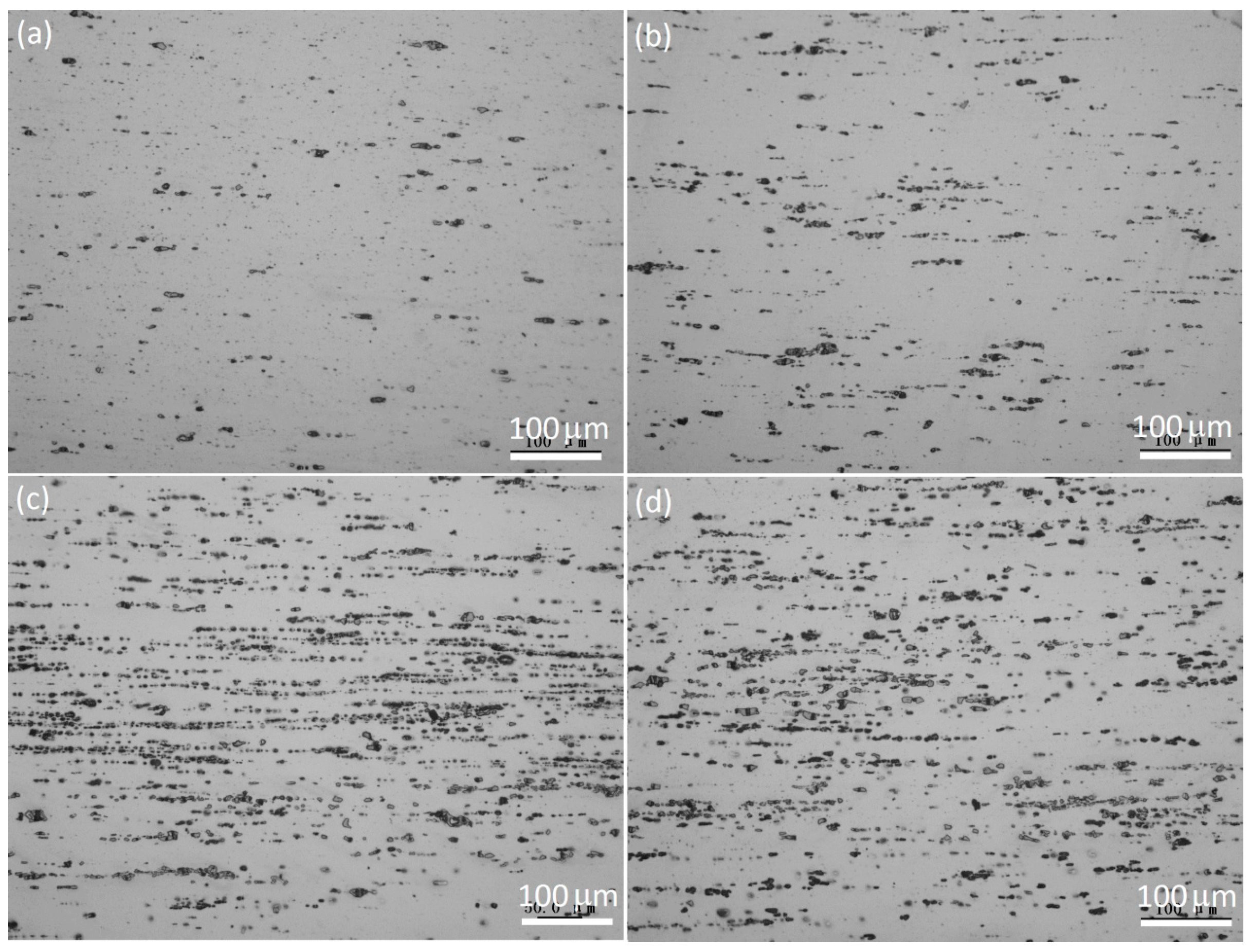

Al-5Mg-0.8Mn alloys (AA5083) with various iron and silicon contents were cast under near-rapid cooling and rolled into sheets. The aim was to study the feasibility of minimizing the deteriorating level of the harmful Fe-rich phases on the mechanical properties through refining the intermetallics by significantly increasing the casting rate. The results showed that the size and density of the intermetallic particles that remained in the hot bands and the cold rolled sheets increased as the contents of iron and silicon in the alloys were increased. However, the increment of the particle sizes was limited due to the significant refinement of the intermetallics formed during casting under near-rapid cooling. The mechanical properties of the alloys reduced as the contents of iron and silicon in the alloys increased. However, the decrement of tensile strengths and ductility was quite small. Therefore, higher contents of iron and silicon could be used in the Al-5Mg-0.8Mn alloy (AA5083 alloy) when the material is cast under near-rapid cooling, such as in the continuous strip casting process. View Full-Text
Keywords: aluminum alloy; AA5083 alloy; intermetallic; microstructure; mechanical properties; near-rapid solidification aluminum alloy; AA5083 alloy; intermetallic; microstructure; mechanical properties; near-rapid solidification
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Liu, Y.; Sun, Y.; Zhang, L.; Zhao, Y.; Wang, J.; Liu, C. Microstructure and Mechanical Properties of Al-5Mg-0.8Mn Alloys with Various Contents of Fe and Si Cast under Near-Rapid Cooling. Metals 2017, 7, 428.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
