Voltage Profile Enhancement and Loss Minimization Using Optimal Placement and Sizing of Distributed Generation in Reconfigured Network
Abstract
:1. Introduction
1.1. Background
1.2. Literature Review
2. Problem Formulation

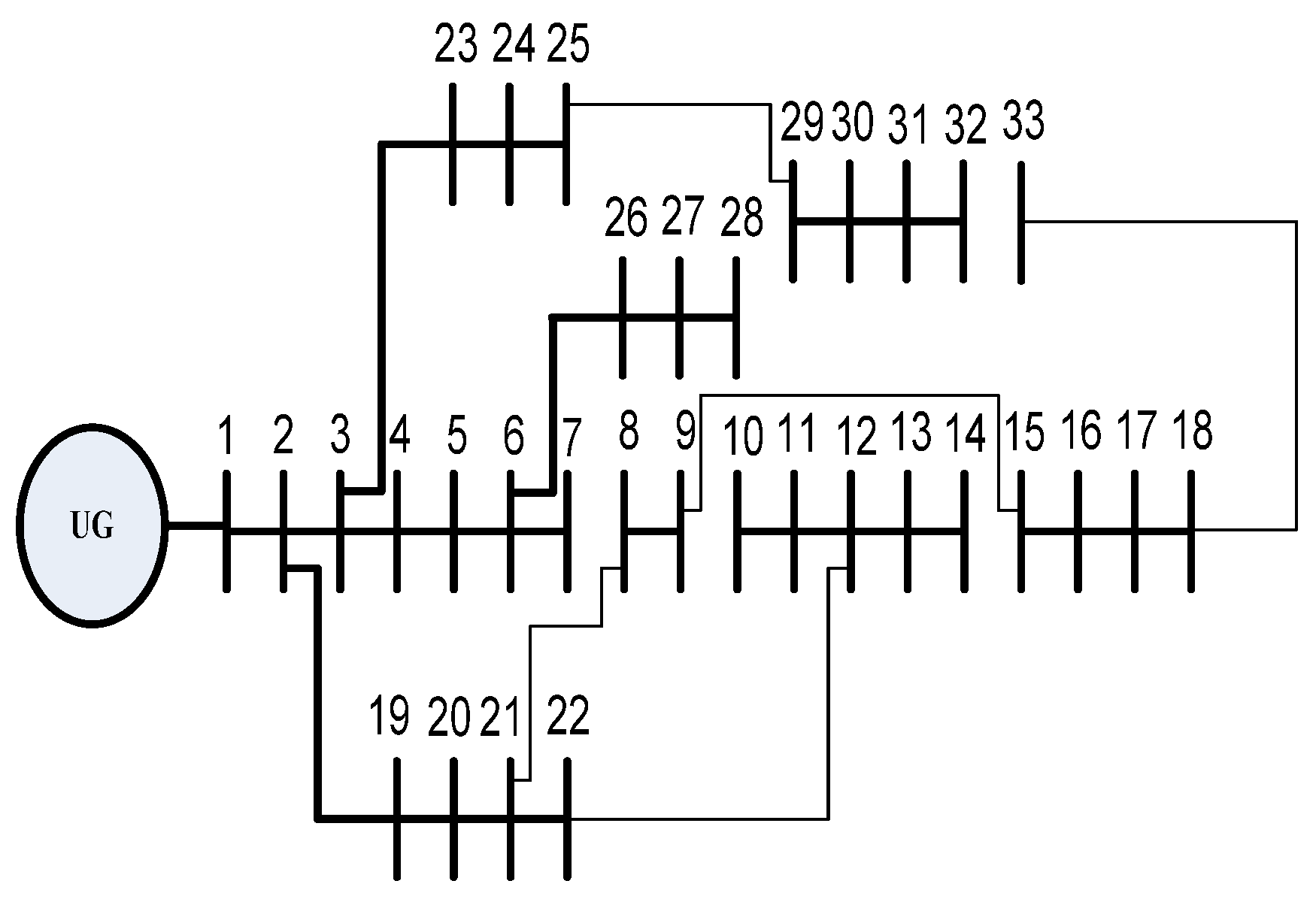

2.1. Reconfiguration of Distribution System
2.2. Percentage Loss Reduction
2.3. Voltage Deviation

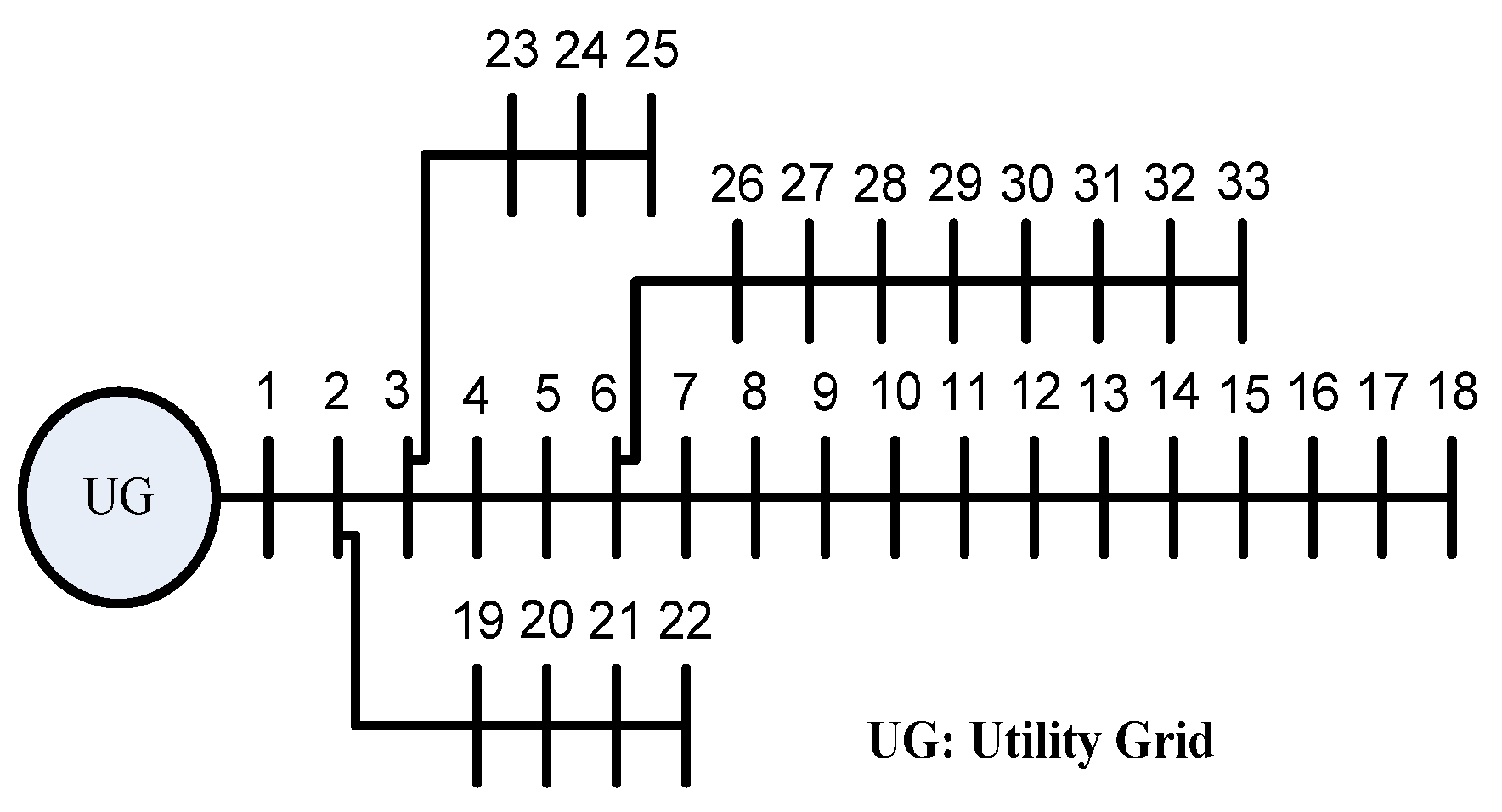

3. System Description

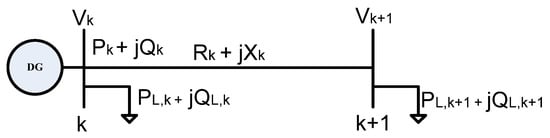

3.1. DG Units Placement

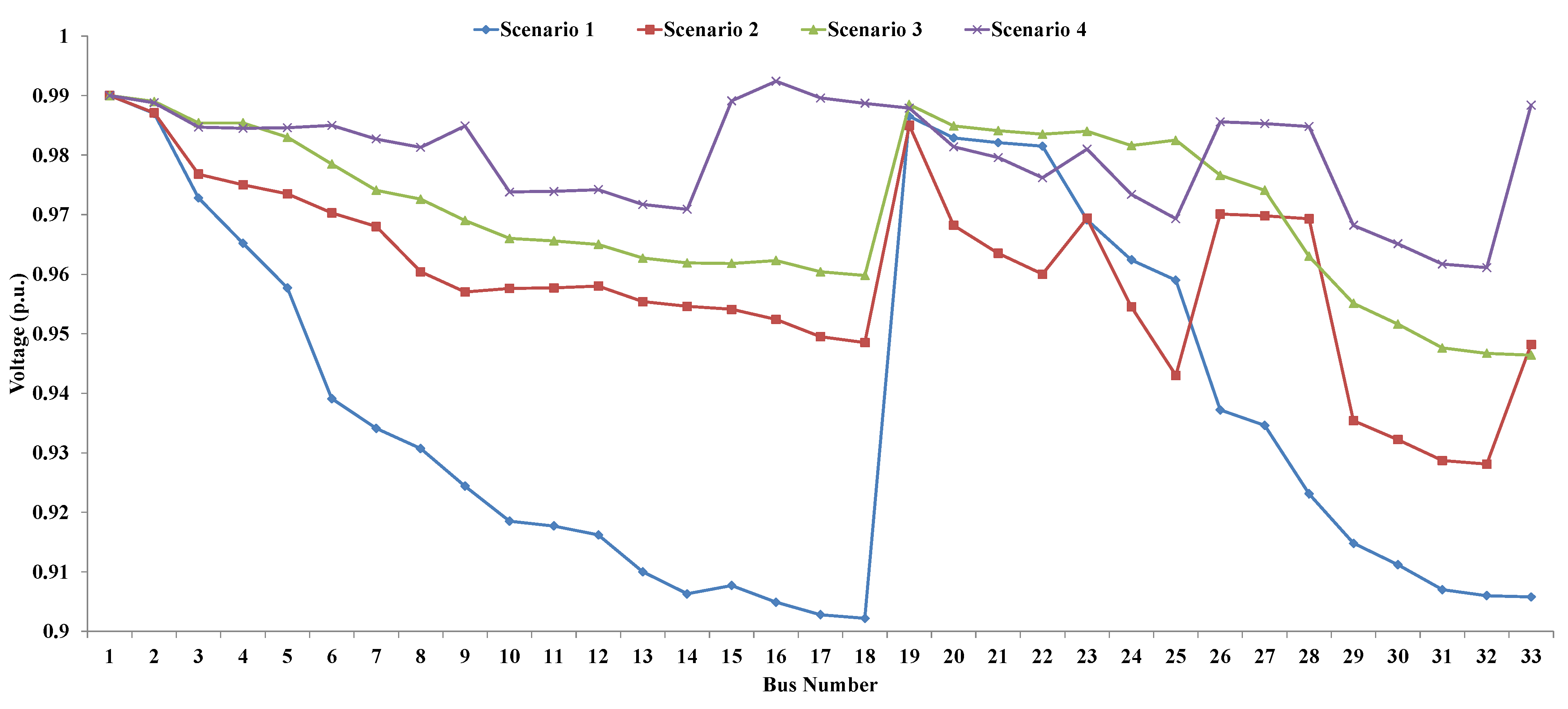

3.2. Voltage Profile Improvement
3.3. Power Loss Minimization

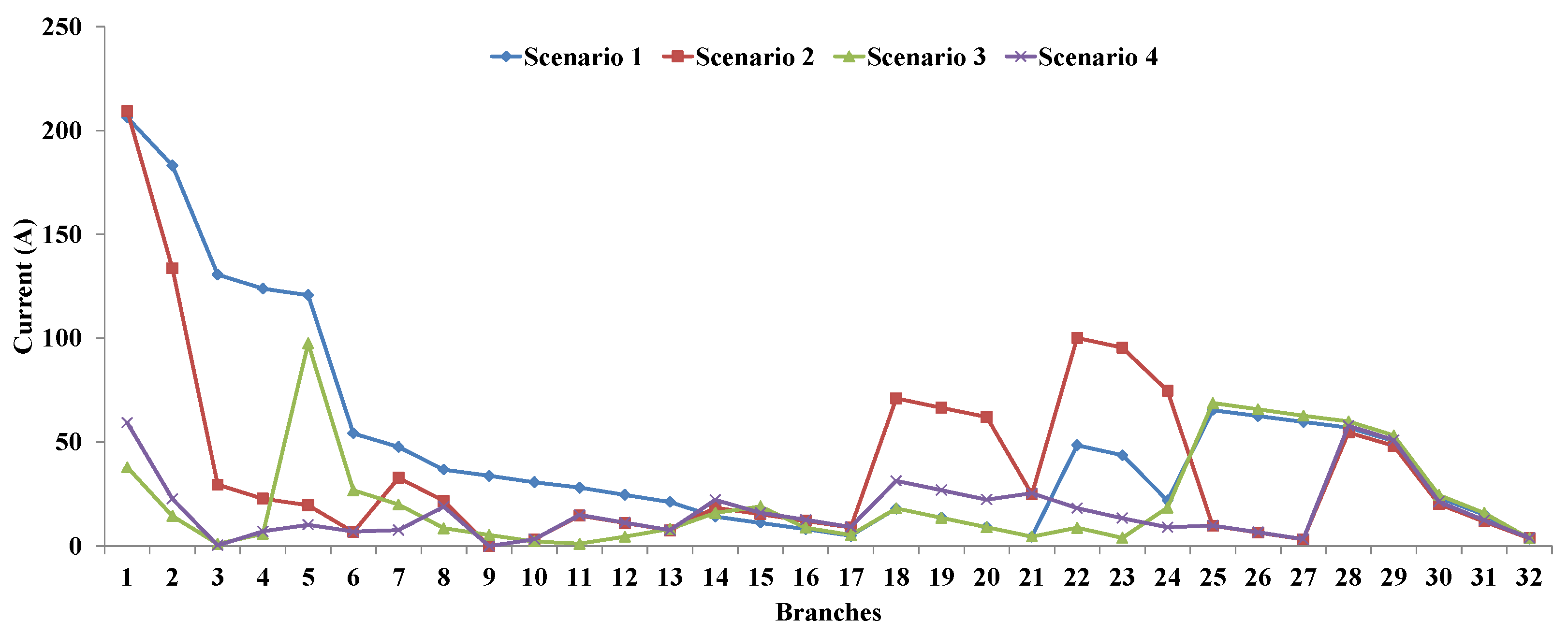

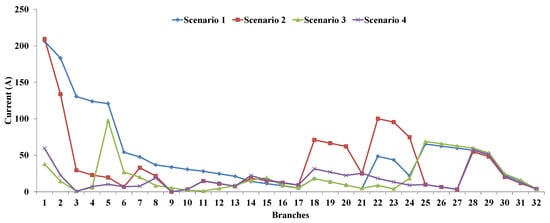

3.4. Line Current
3.5. Fitness Function

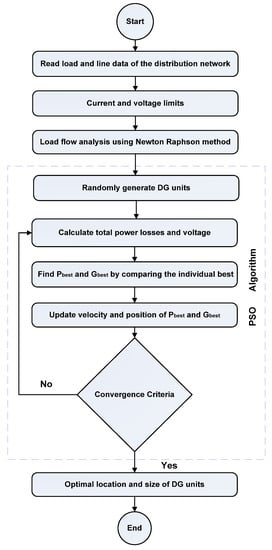

4. Particle Swarm Optimization
5. Results and Discussion
- Scenario 1: Base distribution system.
- Scenario 2: Reconfigured distribution system.
- Scenario 3: Base distribution system with DGs.
- Scenario 4: Reconfigured distribution system with DGs.

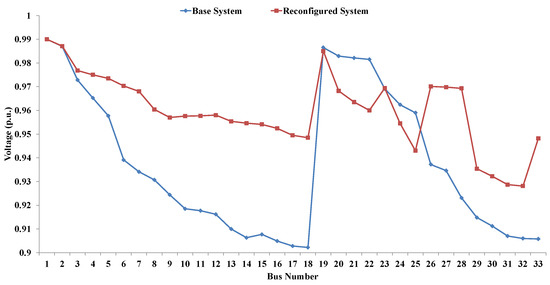

5.1. Base Configuration

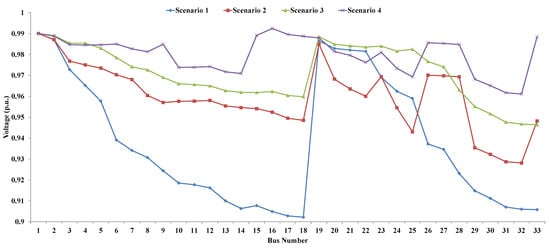

5.2. Reconfiguration with DGs
6. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
Future Work
References
- Singh, M.; Khadkikar, V.; Chandra, A.; Varma, R.K. Grid interconnection of renewable energy sources at the distribution level with power-quality improvement features. IEEE Trans. Power Del. 2010, 26, 307–315. [Google Scholar] [CrossRef]
- El-Khattam, W.; Salama, M.M. Impact of distributed generation on voltage profile in deregulated distribution system. In Proceedings of the Power Systems Conference, Impact of Distributed Generation, Clemson, SC, USA, 13 March 2002; pp. 13–15. [Google Scholar]
- Barker, P.P.; De Mello, R.W. Determining the impact of distributed generation on power systems. I. Radial distribution systems. In Proceedings of the Power Engineering Society Summer Meeting (Cat. No. 00CH37134), Seattle, WA, USA, 16–20 July 2000; pp. 1645–1656. [Google Scholar]
- Delfanti, M.; Falabretti, D.; Merlo, M. Dispersed generation impact on distribution network losses. Electr. Power Syst. Res. 2013, 1, 10–18. [Google Scholar] [CrossRef]
- Del Monaco, J.L. The role of distributed generation in the critical electric power infrastructure. In Proceedings of the IEEE Power Engineering Society Winter Meeting. Conference Proceedings (Cat. No. 01CH37194) 2001, Columbus, OH, USA, 28 January–1 February 2001; pp. 144–145. [Google Scholar]
- Ackermann, T.; Andersson, G.; Söder, L. Distributed generation: A definition. Electr. Power Syst. Res. 2001, 57, 195–204. [Google Scholar] [CrossRef]
- Podder, A.K.; Islam, S.; Kumar, N.M.; Chand, A.A.; Rao, P.N.; Prasad, K.A.; Logeswaran, T.; Mamun, K.A. Systematic categorization of optimization strategies for virtual power plants. Energies 2020, 13, 6251. [Google Scholar] [CrossRef]
- Hussain, A.; Shah, S.D.; Arif, S.M. Heuristic optimisation-based sizing and siting of DGs for enhancing resiliency of autonomous microgrid networks. IET Smart Grid. 2019, 2, 269–282. [Google Scholar] [CrossRef]
- Ismael, S.M.; Aleem, S.H.E.A.; Abdelaziz, A.Y.; Zobaa, A.F. Practical considerations for optimal conductor reinforcement and hosting capacity enhancement in radial distribution systems. IEEE Access 2018, 17, 27268–27277. [Google Scholar] [CrossRef]
- Ramamoorthy, A.; Ramachandran, R. Optimal siting and sizing of multiple DG units for the enhancement of voltage profile and loss minimization in transmission systems using nature inspired algorithms. Sci. World J. 2016, 2016, 1–16. [Google Scholar] [CrossRef] [Green Version]
- Moaidi, F.; Moaidi, M. Optimal Placement and Sizing of Distributed Generation in Microgrid for Power Loss Reduction and Voltage Profile Improvement. World Acad. Sci. Eng. Technol. Int. J. Energy Power Eng. 2019, 18, 13. [Google Scholar]
- Ang, S.; Leeton, U. Optimal placement and size of distributed generation in radial distribution system using whale optimization algorithm. Suranaree J. Sci. Technol. 2019, 1, 26. [Google Scholar]
- Prakash, D.B.; Lakshminarayana, C. Multiple DG placements in radial distribution system for multi objectives using whale optimization algorithm. Alex. Eng. J. 2018, 57, 2797–2806. [Google Scholar] [CrossRef]
- Jain, N.; Singh, S.N.; Srivastava, S.C. Particle swarm optimization based method for optimal siting and sizing of multiple distributed generators. In Proceedings of the 16th National Power Systems Conference, Texas, TX, USA, 5–17 December 2010; pp. 669–674. [Google Scholar]
- Gkaidatzis, P.A.; Bouhouras, A.S.; Sgouras, K.I.; Doukas, D.I.; Christoforidis, G.C.; Labridis, D.P. Efficient RES penetration under optimal distributed generation placement approach. Energies 2019, 12, 1250. [Google Scholar] [CrossRef] [Green Version]
- Tuzikova, V.; Tlusty, J.; Muller, Z. A novel power losses reduction method based on a particle swarm optimization algorithm using STATCOM. Energies 2018, 11, 2851. [Google Scholar] [CrossRef] [Green Version]
- Moradi, M.H.; Tousi, S.R.; Abedini, M. Multi-objective PFDE algorithm for solving the optimal siting and sizing problem of multiple DG sources. Int. J. Electr. Power Energy Syst. 2014, 56, 117–126. [Google Scholar] [CrossRef]
- Moradi, M.H.; Zeinalzadeh, A.; Mohammadi, Y.; Abedini, M. An efficient hybrid method for solving the optimal sitting and sizing problem of DG and shunt capacitor banks simultaneously based on imperialist competitive algorithm and genetic algorithm. Int. J. Electr. Power Energy Syst. 2014, 54, 101–111. [Google Scholar] [CrossRef]
- Jamali, A.A.; Nor, N.M.; Ibrahim, T.; Romlie, M.F. An analytical approach for the sizing and siting of battery-sourced inverters in distribution networks. In Proceedings of the 2016 6th International Conference on Intelligent and Advanced Systems (ICIAS), Kuala Lumpur, Malaysia, 15–17 August 2016; pp. 1–6. [Google Scholar]
- Sa’ed, J.A.; Amer, M.; Bodair, A.; Baransi, A.; Favuzza, S.; Zizzo, G. A Simplified Analytical Approach for Optimal Planning of Distributed Generation in Electrical Distribution Networks. Appl. Sci. 2019, 9, 5446. [Google Scholar] [CrossRef] [Green Version]
- Sambaiah, K.S.; Jayabarathi, T. Optimal allocation of renewable distributed generation and capacitor banks in distribution systems using Salp Swarm algorithm. Int. J. Renew. Energy Res. 2019, 9, 96–107. [Google Scholar]
- Essallah, S.; Bouallegue, A.; Khedher, A. Optimal sizing and placement of DG units in radial distribution system. Int. J. Renew. Energy Res. 2018, 8, 166–177. [Google Scholar]
- VC, V.R. Ant Lion optimization algorithm for optimal sizing of renewable energy resources for loss reduction in distribution systems. J. Electr. Power Syst. Inf. Technol. 2018, 5, 663–680. [Google Scholar]
- Mehta, P.; Bhatt, P.; Pandya, V. Optimal selection of distributed generating units and its placement for voltage stability enhancement and energy loss minimization. Ain Shams Eng. J. 2018, 9, 187–201. [Google Scholar] [CrossRef]
- Amin, A.; Kamel, S.; Selim, A.; Aly, M.M. An Efficient Analytical Technique for Optimal Sizing of Distributed Generations in Radial Distribution System Considering Load Variation. In Proceedings of the 2019 21st International Middle East Power Systems Conference (MEPCON), Cairo, Egypt, 17–19 December 2019; pp. 360–364. [Google Scholar]
- Mahmoud, K.; Lehtonen, M. Simultaneous allocation of multi-type distributed generations and capacitors using generic analytical expressions. IEEE Access 2019, 16, 182701–182710. [Google Scholar] [CrossRef]
- Hatata, A.Y.; Osman, G.; Aladl, M.M. An optimization method for sizing a solar/wind/battery hybrid power system based on the artificial immune system. Sustain. Energy Technol. Assess. 2018, 27, 83–93. [Google Scholar] [CrossRef]
- Varma, R.K.; Siavashi, E.M. PV-STATCOM: A new smart inverter for voltage control in distribution systems. IEEE Trans. Sustain. Energy 2018, 9, 1681–1691. [Google Scholar] [CrossRef]
- Kayal, P.; Chanda, C.K. Placement of wind and solar based DGs in distribution system for power loss minimization and voltage stability improvement. Int. J. Electr. Power Energy Syst. 2013, 53, 795–809. [Google Scholar] [CrossRef]
- National Electrical Manufacturers Association. American National Standards Institute (ANSI) C84, Voltage Ratings for Electric Power Systems and Equipment; National Electrical Manufacturers Association: Rosslyn, VA, USA, 2006. [Google Scholar]
- Thomson, M. Infield DG. Network power-flow analysis for a high penetration of distributed generation. IEEE Trans. Power Syst. 2007, 22, 1157–1162. [Google Scholar] [CrossRef] [Green Version]
- Martins, V.F.; Borges, C.L. Active distribution network integrated planning incorporating distributed generation and load response uncertainties. IEEE Trans. Power Syst. 2011, 26, 2164–2172. [Google Scholar] [CrossRef]
- Liu, Y.; Wang, Y.; Luo, X. Design and Operation Optimization of Distributed Solar Energy System Based on Dynamic Operation Strategy. Energies 2021, 14, 69. [Google Scholar] [CrossRef]
- Kouba, N.E.; Menaa, M.; Hasni, M.; Tehrani, K.; Boudour, M. A novel optimized fuzzy-PID controller in two-area power system with HVDC link connection. In Proceedings of the 2016 International Conference on Control, Decision and Information Technologies (CoDIT) 2016, Saint Julian, Malta, 6–8 April 2016; pp. 204–209. [Google Scholar]
- Dehghani, M.; Ghiasi, M.; Niknam, T.; Kavousi-Fard, A.; Shasadeghi, M.; Ghadimi, N.; Taghizadeh-Hesary, F. Blockchain-Based Securing of Data Exchange in a Power Transmission System Considering Congestion Management and Social Welfare. Sustainability 2021, 13, 90. [Google Scholar] [CrossRef]
- Tehrani, K.; Member, I.E. A Smart Cyber Physical Multi-Source Energy System for an Electric Vehicle Prototype. J. Syst. Architect. 2020, 4, 101804. [Google Scholar] [CrossRef]
- Mateev, V.; Marinova, I. Distributed Internet of Things System for Wireless Monitoring of Electrical Grids. In Proceedings of the 2018 20th International Symposium on Electrical Apparatus and Technologies, Bourgas, Bulgaria, 3–6 June 2018; pp. 1–3. [Google Scholar]
- Hsieh, S.C.; Lee, Y.D.; Chang, Y.R. Economic Evaluation of Smart PV Inverters with a Three-Operation-Phase Watt-Var Control Scheme for Enhancing PV Penetration in Distribution Systems in Taiwan. Appl. Sci. 2018, 8, 995. [Google Scholar] [CrossRef] [Green Version]
- Kirthiga, M.V.; Daniel, S.A.; Gurunathan, S. A methodology for transforming an existing distribution network into a sustainable autonomous micro-grid. IEEE Trans. Sustain. Energy 2012, 4, 31–41. [Google Scholar] [CrossRef]
- Rao, R.S.; Ravindra, K.; Satish, K.; Narasimham, S.V. Power loss minimization in distribution system using network reconfiguration in the presence of distributed generation. IEEE Trans. Power Syst. 2012, 28, 317–325. [Google Scholar] [CrossRef]
- Murty, V.V.; Kumar, A. Optimal, D.G integration and network reconfiguration in microgrid system with realistic time varying load model using hybrid optimisation. IET Smart Grid. 2019, 2, 192–202. [Google Scholar] [CrossRef]
- Heidari, M.A. Optimal network reconfiguration in distribution system for loss reduction and voltage-profile improvement using hybrid algorithm of PSO and ACO. CIRED-Open Access Proc. J. 2017, 2458–2461. [Google Scholar] [CrossRef] [Green Version]
- Al Samman, M.; Mokhlis, H.; Mansor, N.N.; Mohamad, H.; Suyono, H.; Sapari, N.M. Fast Optimal Network Reconfiguration With Guided Initialization Based on a Simplified Network Approach. IEEE Access 2020, 8, 11948–11963. [Google Scholar] [CrossRef]
- Badran, O.; Mokhlis, H.; Mekhilef, S.; Dahalan, W.; Jallad, J. Minimum switching losses for solving distribution NR problem with distributed generation. IET Gener. Transm. Distrib. 2017, 12, 1790–1801. [Google Scholar] [CrossRef] [Green Version]
- Zhu, J.Z. Optimal reconfiguration of electrical distribution network using the refined genetic algorithm. Electr. Power Syst. Res. 2002, 62, 37–42. [Google Scholar] [CrossRef]
- Zhang, D.; Fu, Z.; Zhang, L. An improved TS algorithm for loss-minimum reconfiguration in large-scale distribution systems. Electr. Power Syst. Res. 2007, 77, 685–694. [Google Scholar] [CrossRef]
- Rao, R.S.; Narasimham, S.V.; Raju, M.R.; Rao, A.S. Optimal network reconfiguration of large-scale distribution system using harmony search algorithm. IEEE Trans. Power Syst. 2010, 26, 1080–1088. [Google Scholar]
- Imran, A.M.; Kowsalya, M. A new power system reconfiguration scheme for power loss minimization and voltage profile enhancement using fireworks algorithm. Int. J. Electr. Power Energy Syst. 2014, 62, 312–322. [Google Scholar] [CrossRef]
- Baran, M.E.; Wu, F.F. Network reconfiguration in distribution systems for loss reduction and load balancing. IEEE Power Eng. Rev. 1989, 9, 101–102. [Google Scholar] [CrossRef]
- Zad, B.B.; Hasanvand, H.; Lobry, J.; Vallée, F. Optimal reactive power control of DGs for voltage regulation of MV distribution systems using sensitivity analysis method and PSO algorithm. Int. J. Electr. Power Energy Syst. 2015, 68, 52–60. [Google Scholar]
- Arif, S.M.; Hussain, A.; Shin, D.R. A survey on particle swarm optimization for use in distributed generation placement and sizing. In Proceedings of the MATEC Web of Conferences, Istanbul, Turkey, 25–27 May 2016; p. 10013. [Google Scholar]
- Shi, Y.; Eberhart, R. A modified particle swarm optimizer. In Proceedings of the IEEE International Conference on Evolutionary Computation Proceedings. IEEE World Congress on Computational Intelligence (Cat. No. 98TH8360), Anchorage, AK, USA, 4–9 May 1998; pp. 69–73. [Google Scholar]
- Shi, Y.; Eberhart, R.C. Empirical study of particle swarm optimization. In Proceedings of the Congress on Evolutionary Computation-CEC99 (Cat. No. 99TH8406) 1999, Washington, DC, USA, 6–9 July 1999; pp. 1945–1950. [Google Scholar]
- Tyagi, A.; Verma, A.; Bijwe, P.R. Reconfiguration for loadability limit enhancement of distribution systems. IET Gener. Transm. Distrib. 2018, 12, 88–93. [Google Scholar] [CrossRef]
- Imran, A.M.; Kowsalya, M.; Kothari, D.P. A novel integration technique for optimal network reconfiguration and distributed generation placement in power distribution networks. Int. J. Electr. Power Energy Syst. 2014, 63, 461–472. [Google Scholar] [CrossRef]
- Hong, H.; Hu, Z.; Guo, R.; Ma, J.; Tian, J. Directed graph-based distribution network reconfiguration for operation mode adjustment and service restoration considering distributed generation. J. Mod. Power Syst. Clean Energy 2017, 5, 142–149. [Google Scholar] [CrossRef] [Green Version]
Base System Configuration | ||||
---|---|---|---|---|
Base System | DG1 | DG1 and DG2 | DG1, DG2, and DG3 | |
Active power loss (kW) | 203.17 | 110.2 | 105.7 | 82.77 |
Reactive power loss (kVAr) | 135.17 | 79.43 | 74.81 | 58.39 |

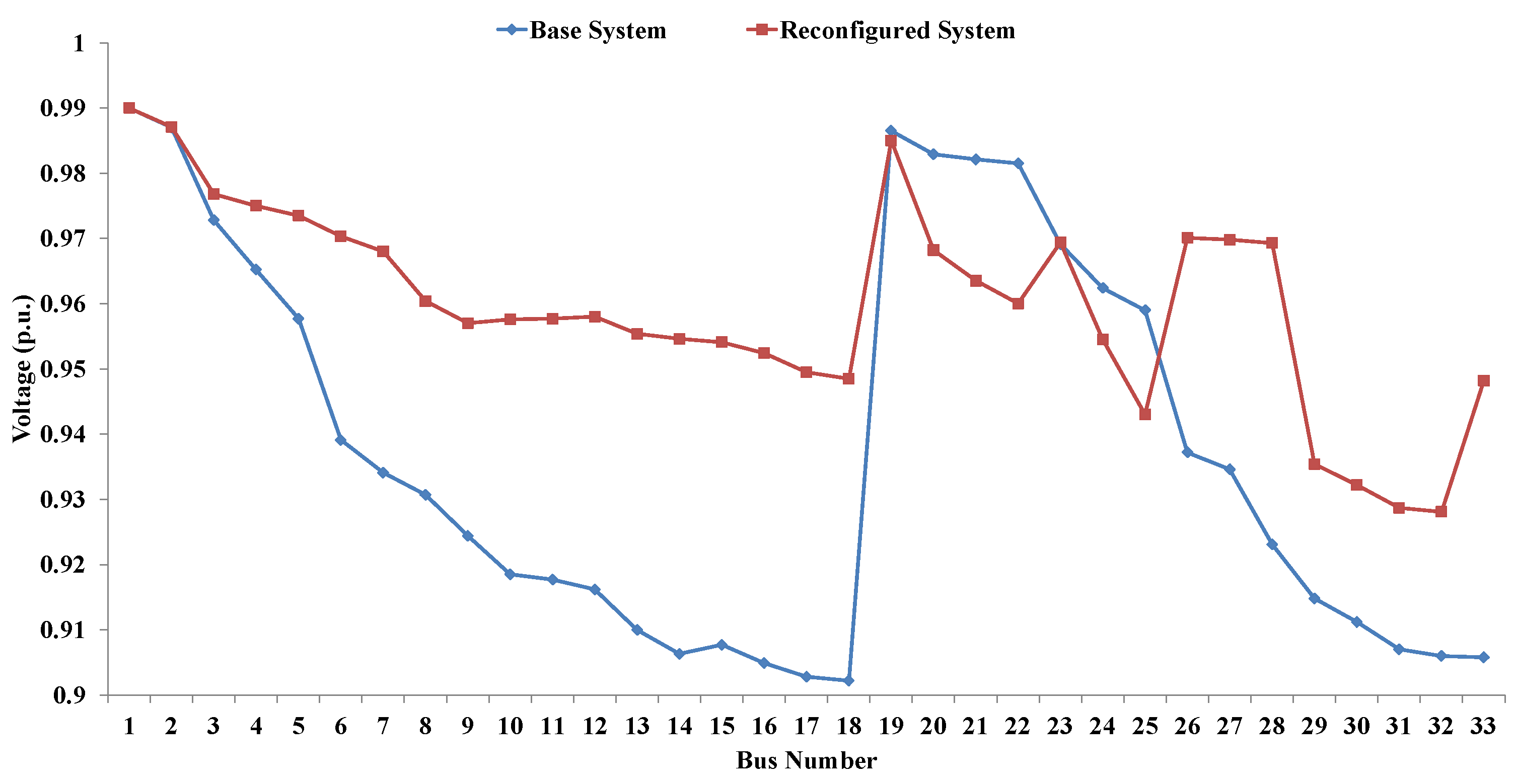

Min. voltage magnitude (p.u.) and location | 0.9022, 18 | 0.9484, 18 | 0.9573, 32 | 0.9464, 33 |
DGs size (MW) and location | 3.1335, 6 | 3.1335, 6 0.3651, 16 | 2.1642, 6 0.3651, 16 0.7386, 25 | |
After System Reconfiguration | ||||
Active power loss (kW) | 138.14 | 120.5 | 71.47 | 64.91 |
Reactive power loss (kVAr) | 99.85 | 83.66 | 50.68 | 47.03 |
Min. voltage magnitude (p.u.) and location | 0.9281, 32 | 0.9287, 32 | 0.9585, 32 | 0.9611, 32 |
DGs size (MW) and location | 1.0641, 16 | 1.0641, 16 1.2155, 29 | 1.0641, 16 1.2155, 29 0.6745, 26 |

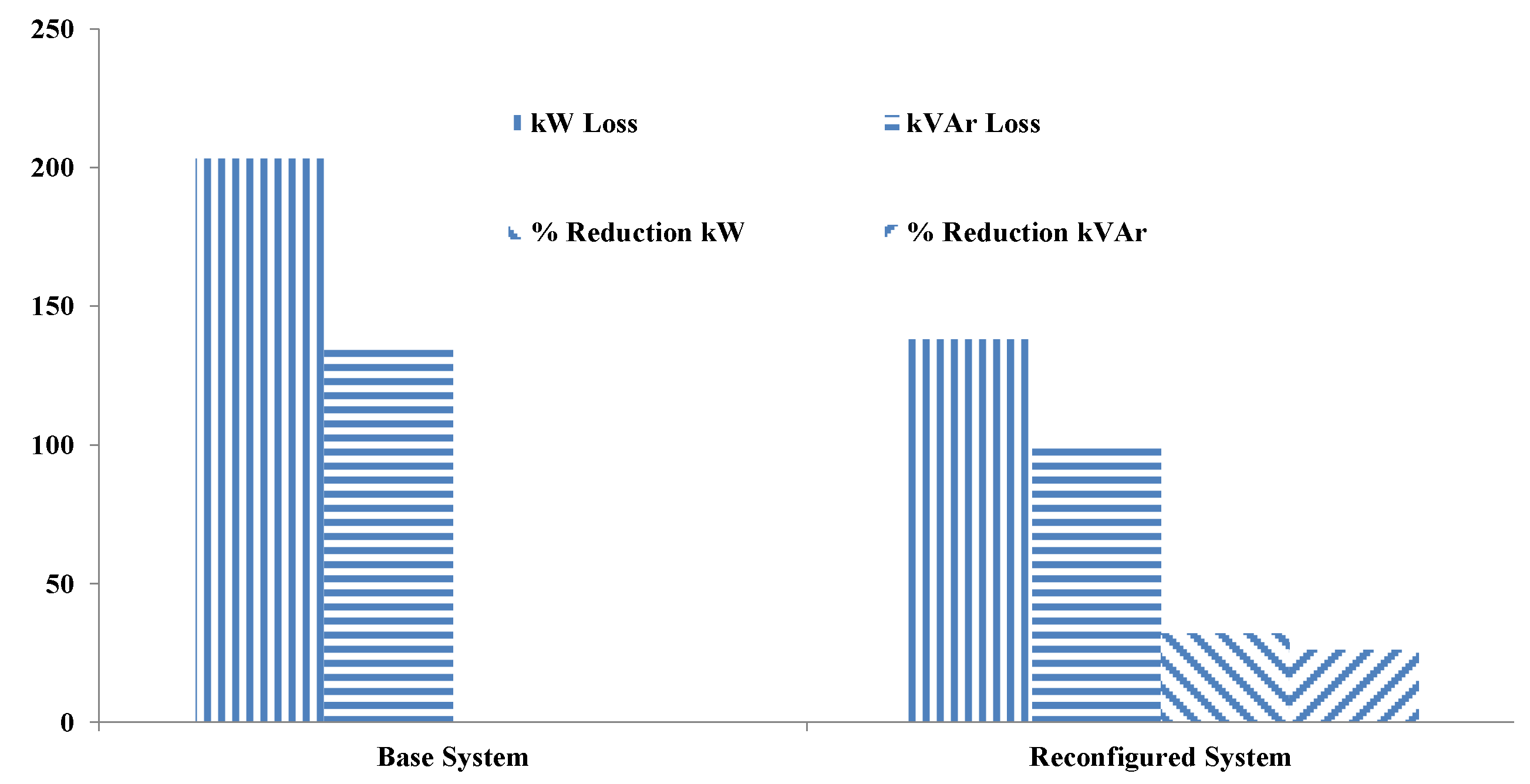

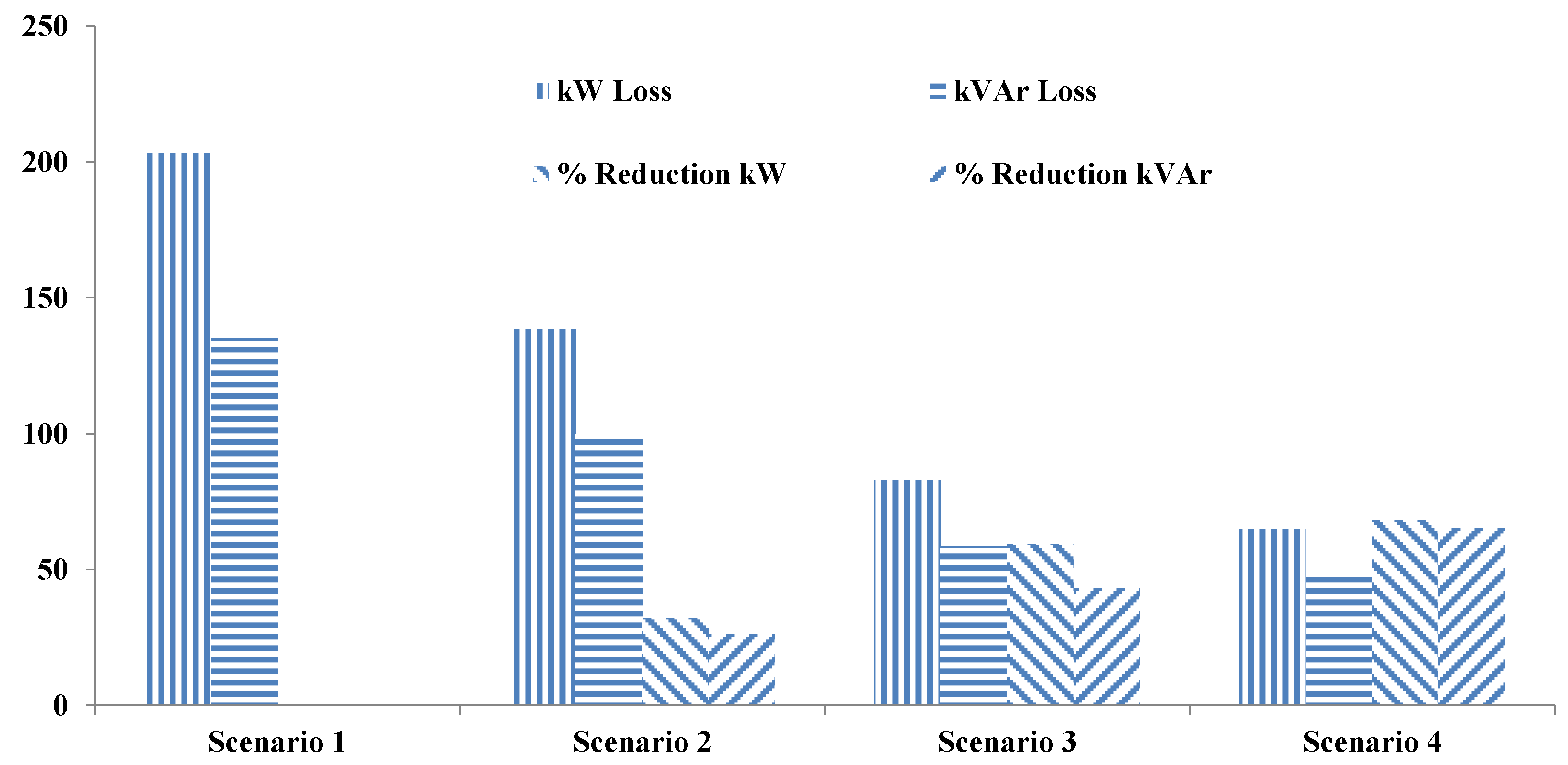

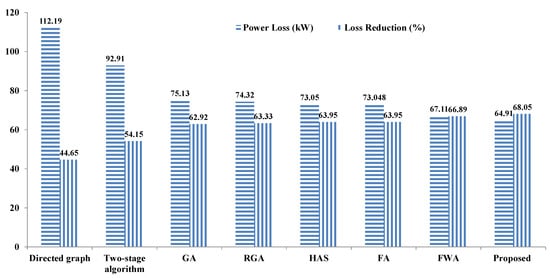

Methods | Base Network | Reconfigured Network | Base Network with DGs | Reconfigured Network with DGs |
---|---|---|---|---|
Active power loss (kW) | 203.17 | 138.14 | 82.77 | 64.91 |
Reactive power loss (kVAr) | 135.17 | 99.85 | 58.39 | 47.03 |
Min. voltage magnitude (p.u.) | 0.9022 | 0.9281 | 0.9464 | 0.9611 |
Active power loss reduction (%) | 32.00 | 59.26 | 68.05 | |
Reactive power loss reduction (%) | 26.13 | 56.80 | 65.20 | |
Voltage deviation (VD) | 0.0878 | 0.0619 | 0.0436 | 0.0289 |
Voltage enhancement (%) | 2.87 | 4.9 | 6.53 |
Methods | Active Power Loss (kW) | Min Voltage (p.u.) | Tie Switches | DGs (MW) | Buses |
---|---|---|---|---|---|
HSA [40] | 73.05 | 0.9700 | 7, 14, 10, 32, 28 | 1.6684 | |
GA [40] | 75.13 | 0.9766 | 7, 10, 28, 32, 34 | 1.9633 | |
RGA [40] | 74.32 | 0.9691 | 7, 9, 12, 27, 32 | 1.774 | |
FA [44] | 73.048 | 0.97352 | 8, 9, 28, 32, 33 | 0.8414 | 31 |
0.3408 | 32 | ||||
0.5916 | 33 | ||||
Two-stage algorithm [54] | 92.91 | 0.9541 | 7, 9, 14, 30, 37 | 0.250 | 16 |
0.250 | 17 | ||||
0.250 | 18 | ||||
FWA [55] | 67.11 | 0.9713 | 7, 14, 11, 32, 28 | 0.5367 | 32 |
0.6158 | 29 | ||||
0.5315 | 18 | ||||
Directed graph [56] | 112.19 | 0.9465 | 7, 9, 14, 25, 32 | ||
Proposed method | 64.91 | 0.9611 | 7, 9, 14, 28, 32 | 1.0641 | 16 |
1.2155 | 29 | ||||
0.6745 | 26 |
