Novel Approach to Modeling the Seismic Waves in the Areas with Complex Fractured Geological Structures
Abstract
:1. Introduction
2. Mathematical Model and Method

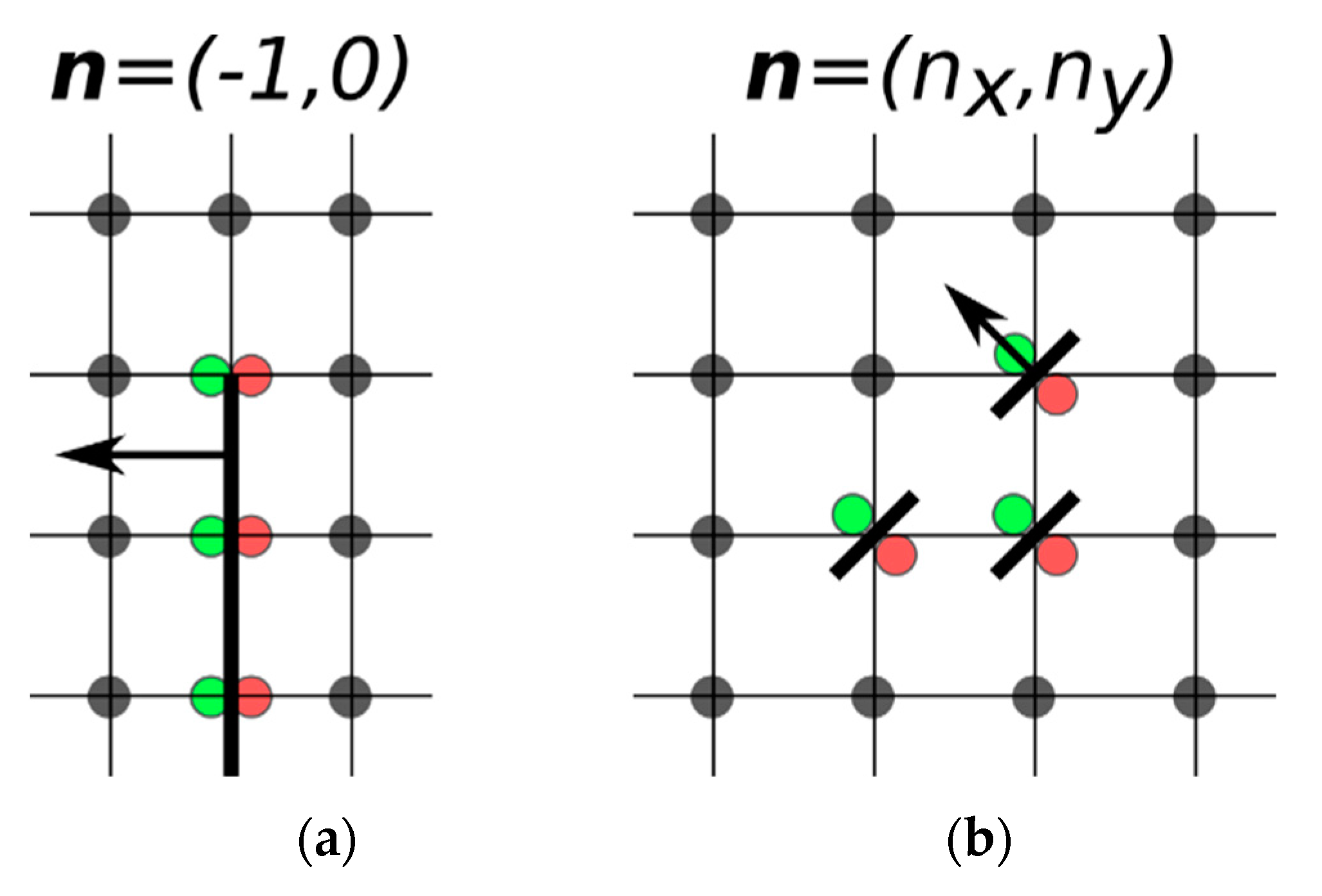

3. Boundary and Interface Conditions

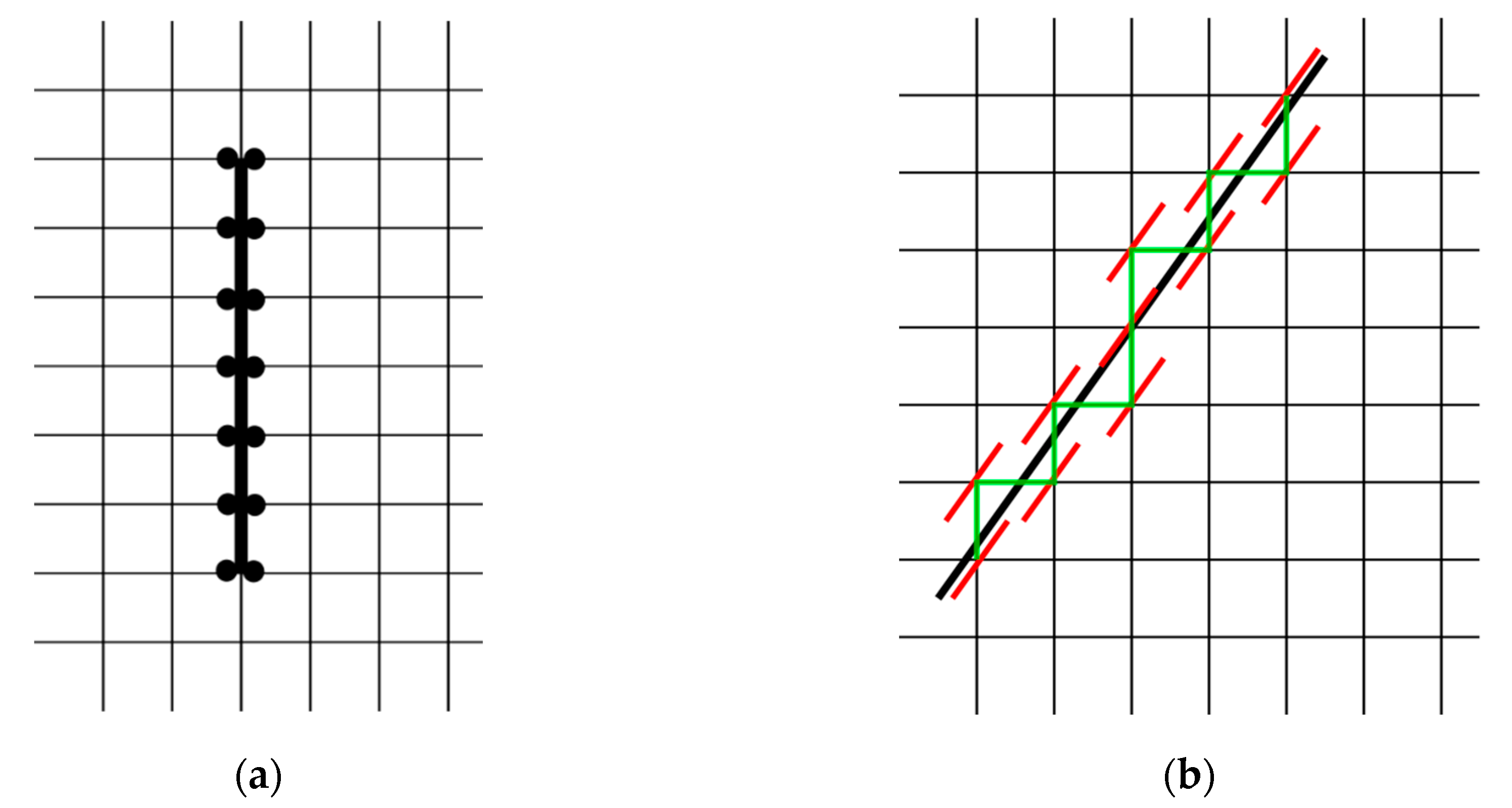

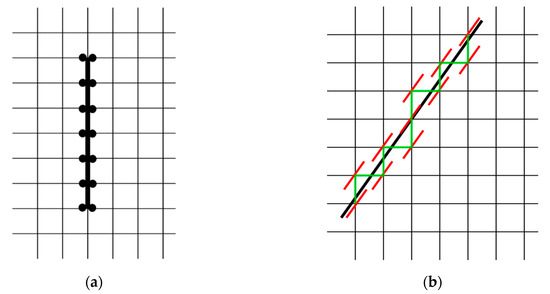

4. Model of a Fracture
5. Results

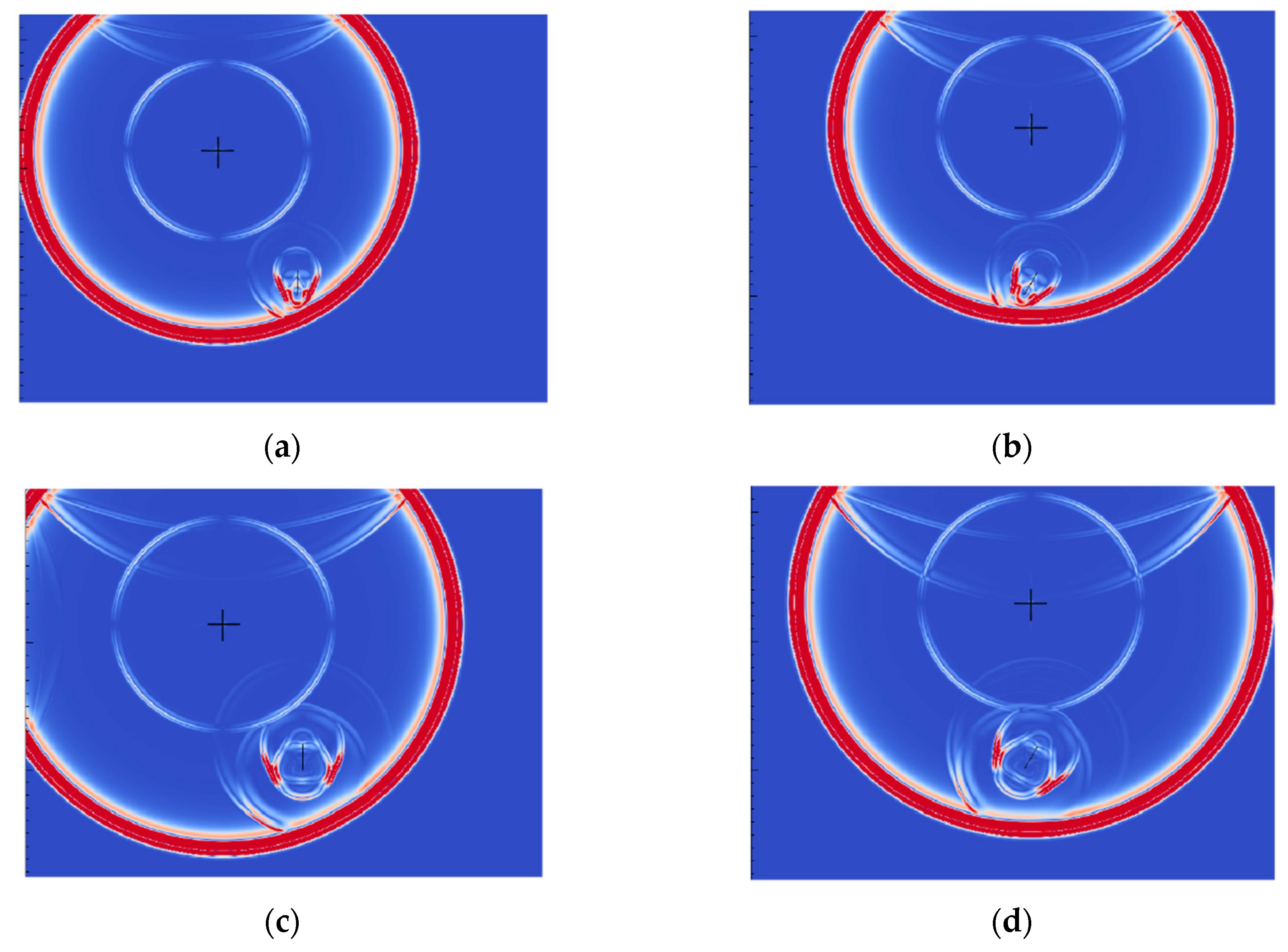

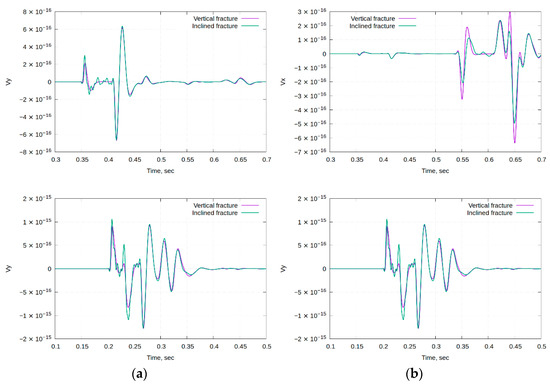

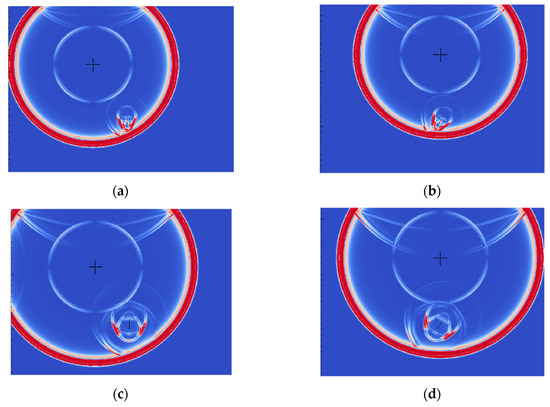

5.1. The Response from a Single Fracture: Fixed Fracture Position

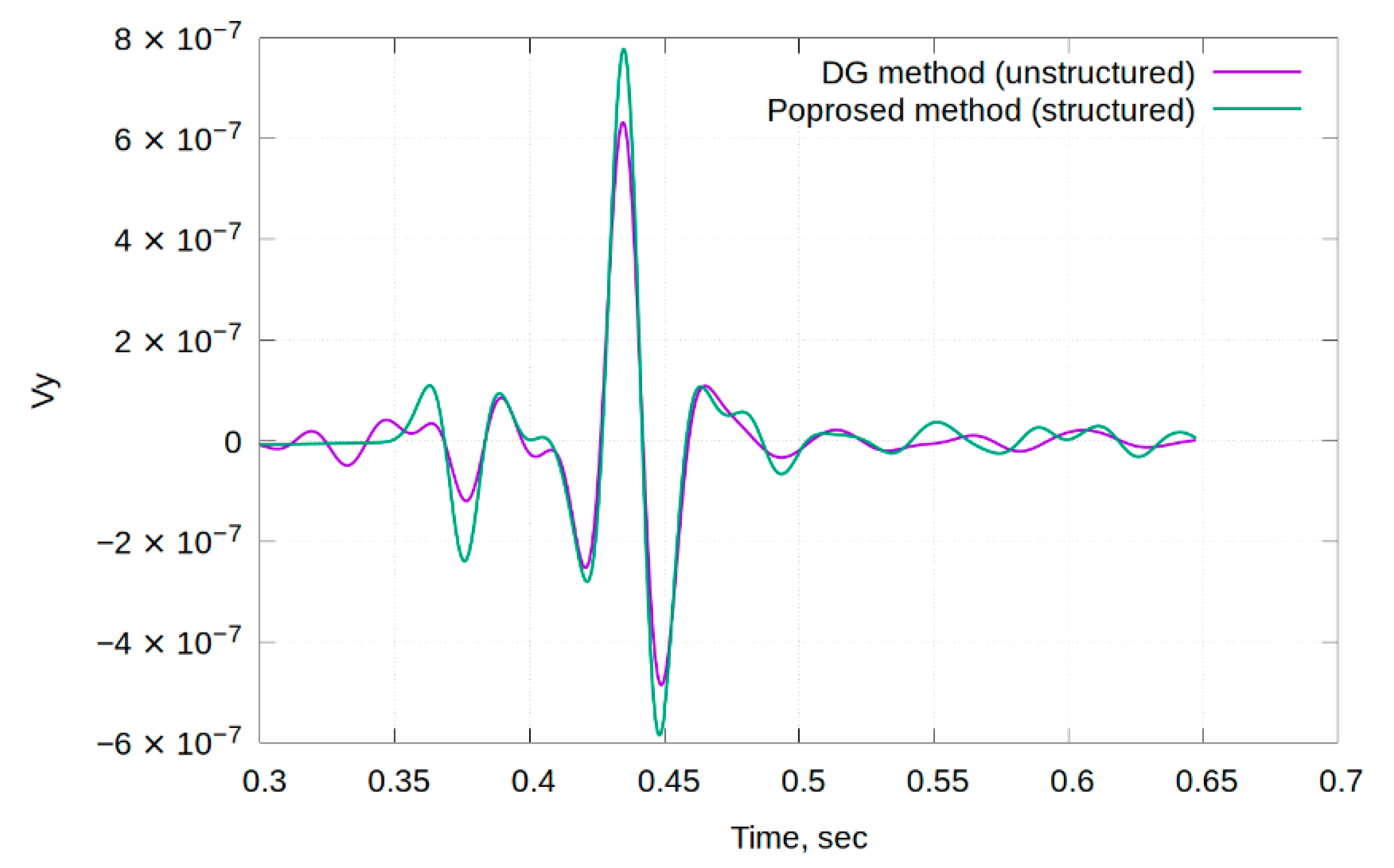

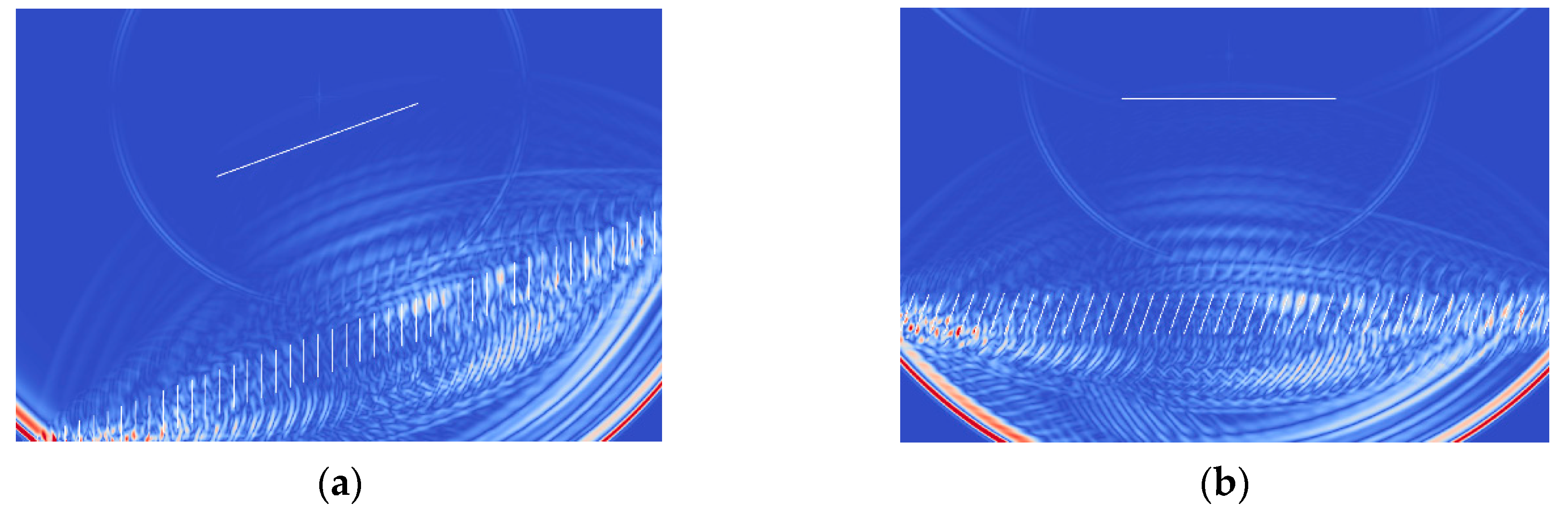

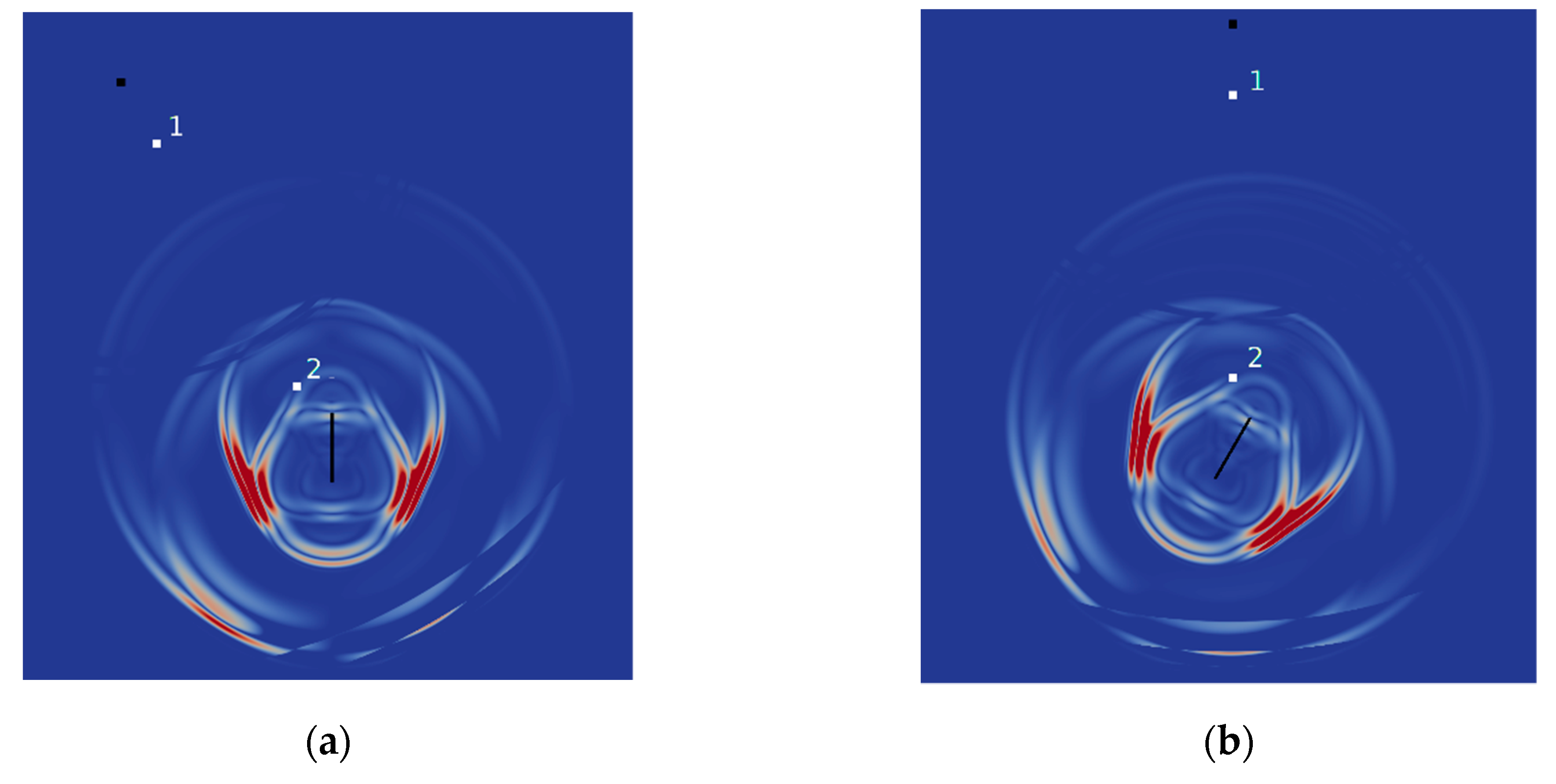

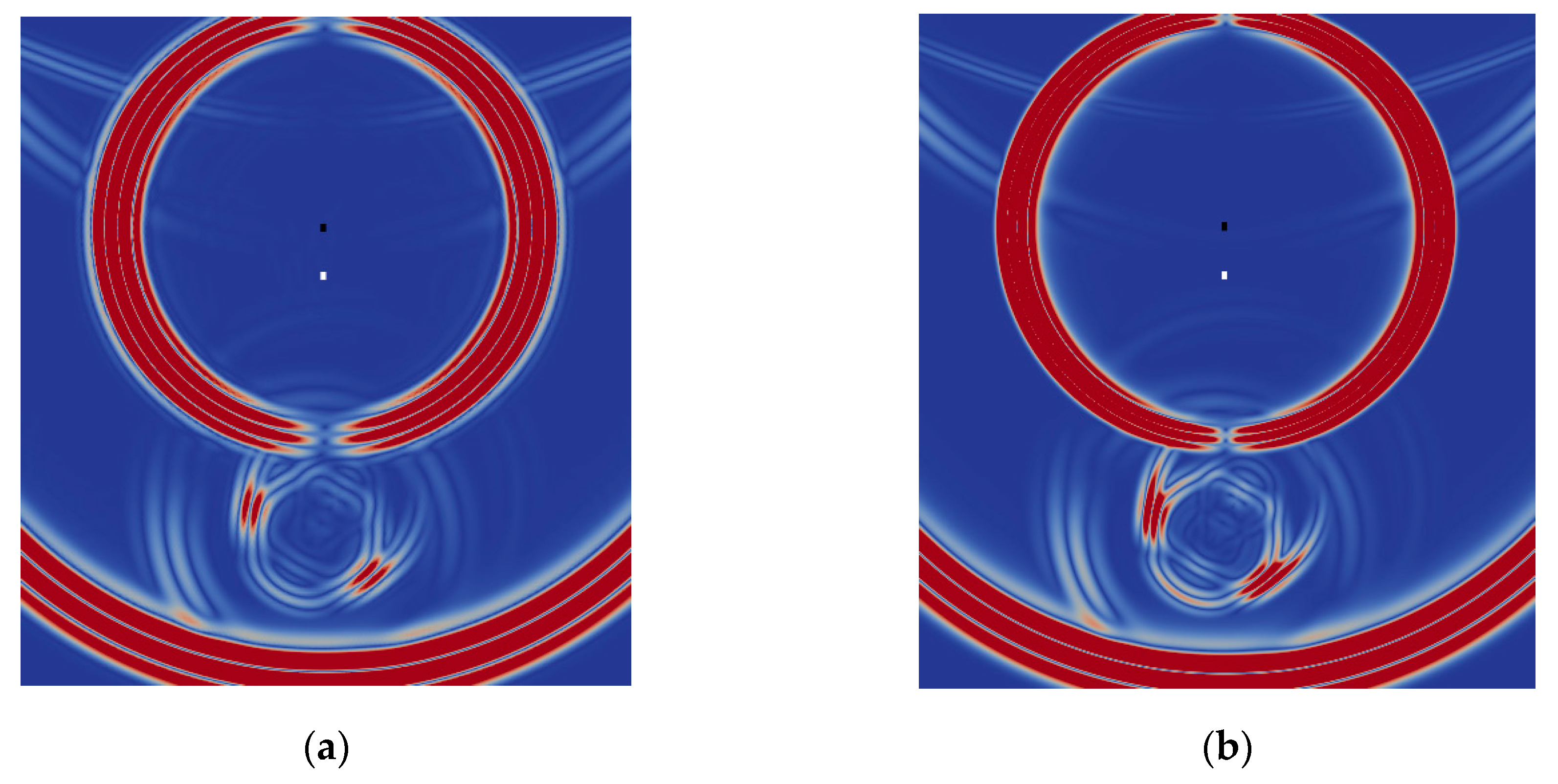

5.2. The Response from a Single Fracture: Comparison with Unstructured Mesh

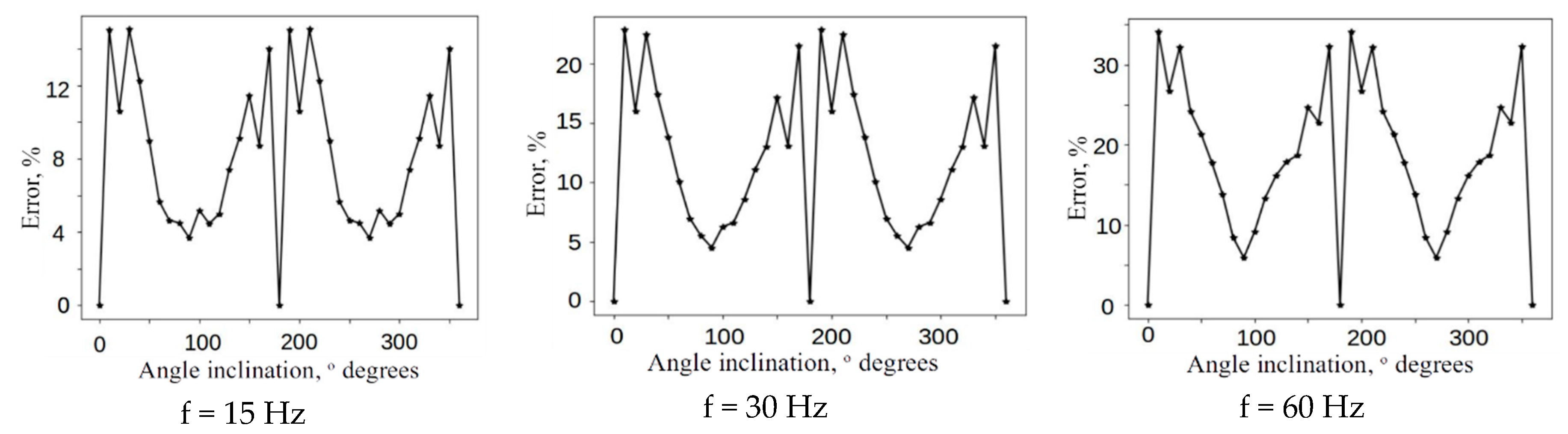

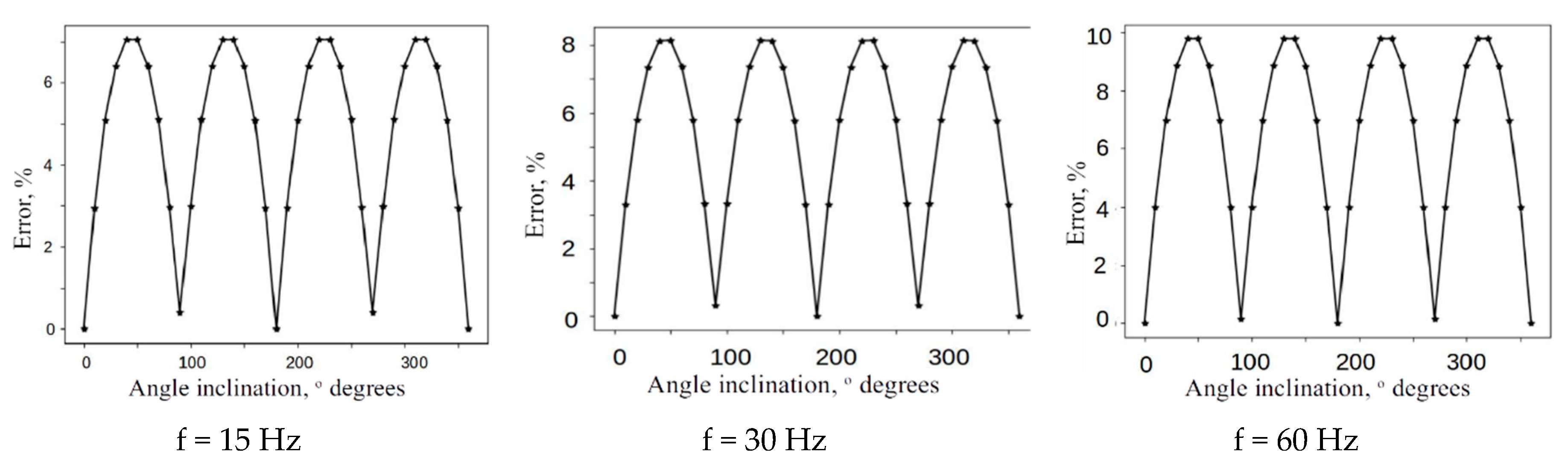

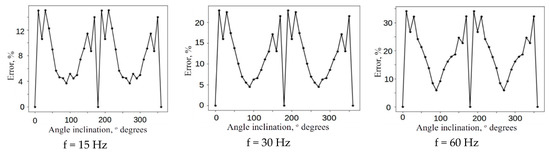

5.3. The Response from a Single Fracture: Calculation Errors Due to the Angle of Inclination

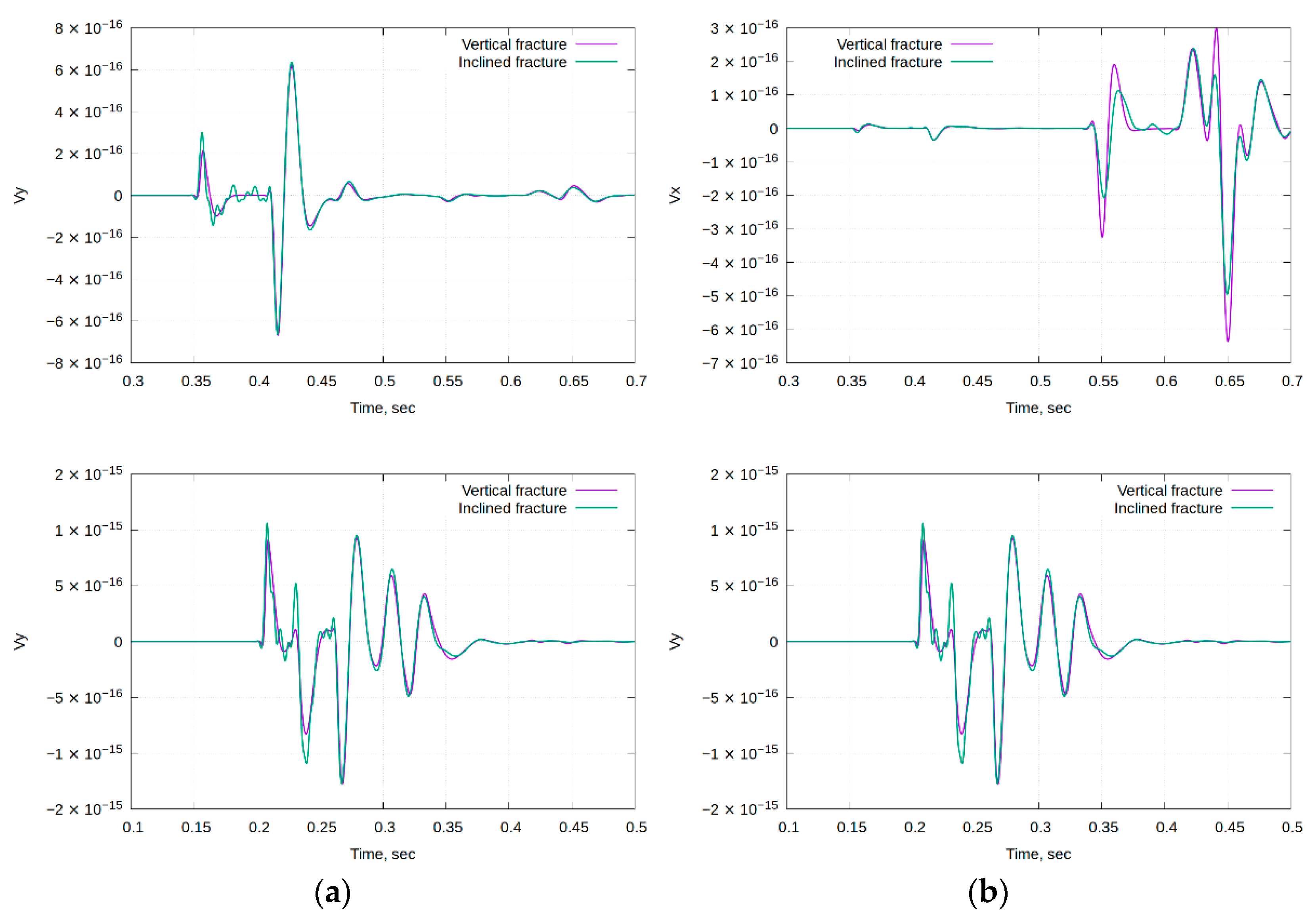

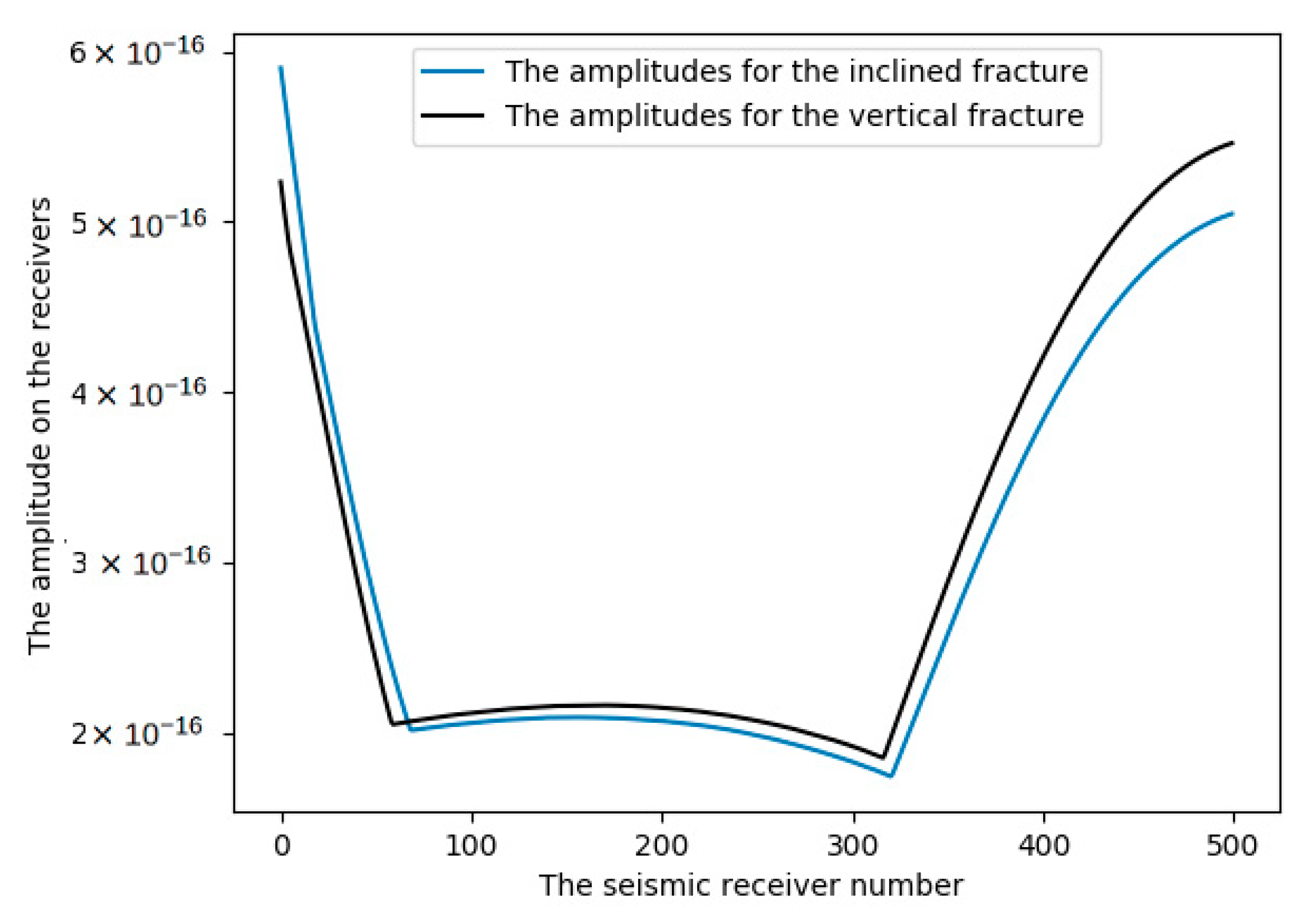

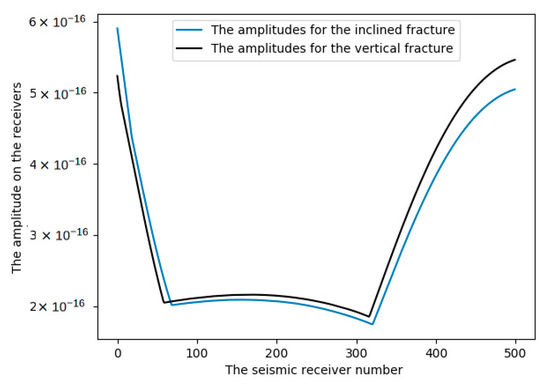

5.4. Single Fracture Response: Amplitude Study

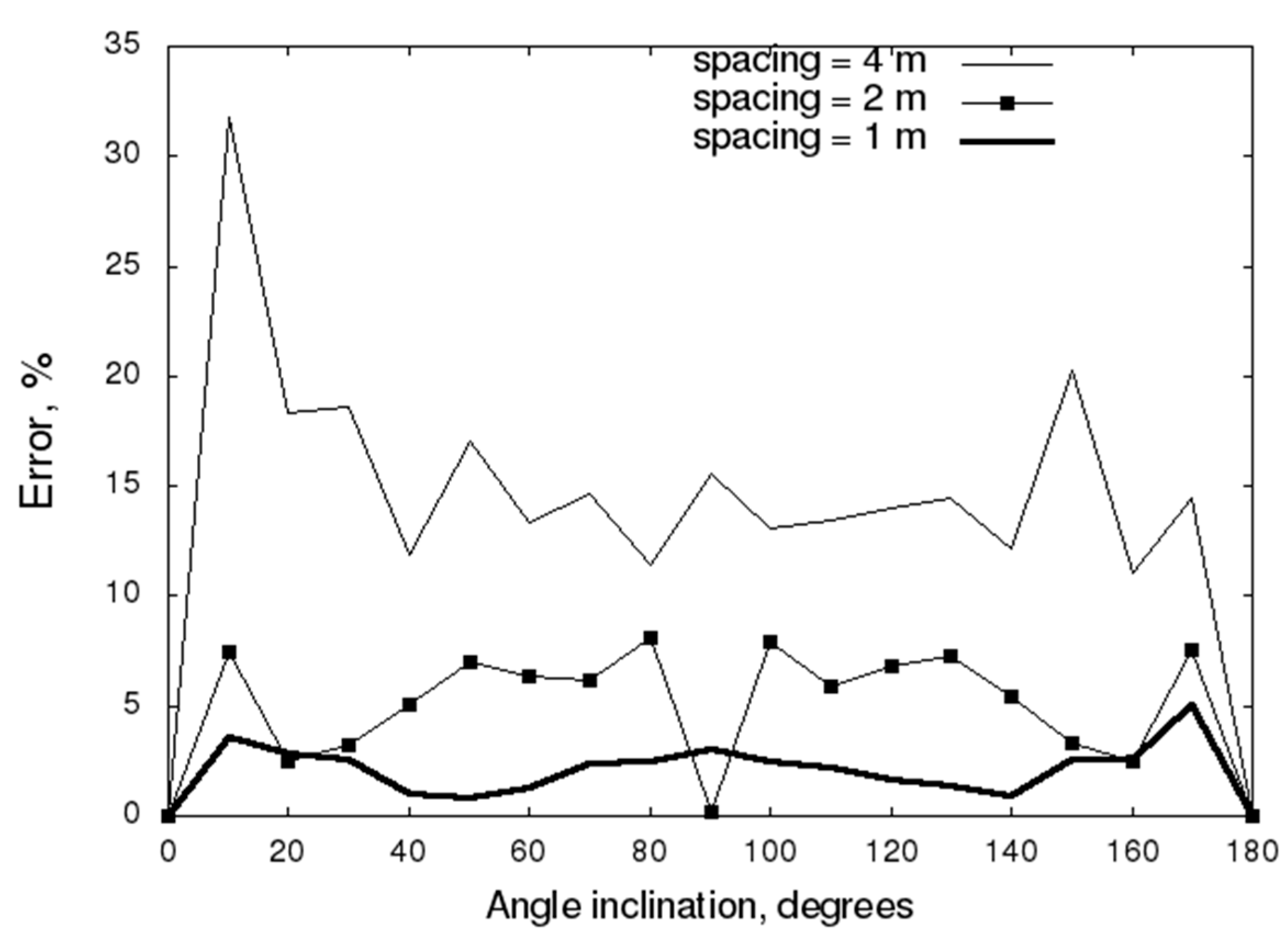

5.5. Single Fracture Response: Error Dependence on Grid Spacing

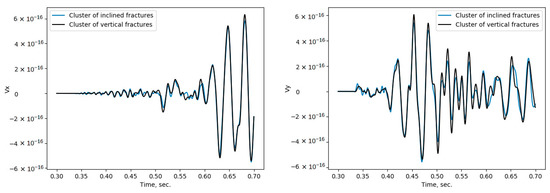

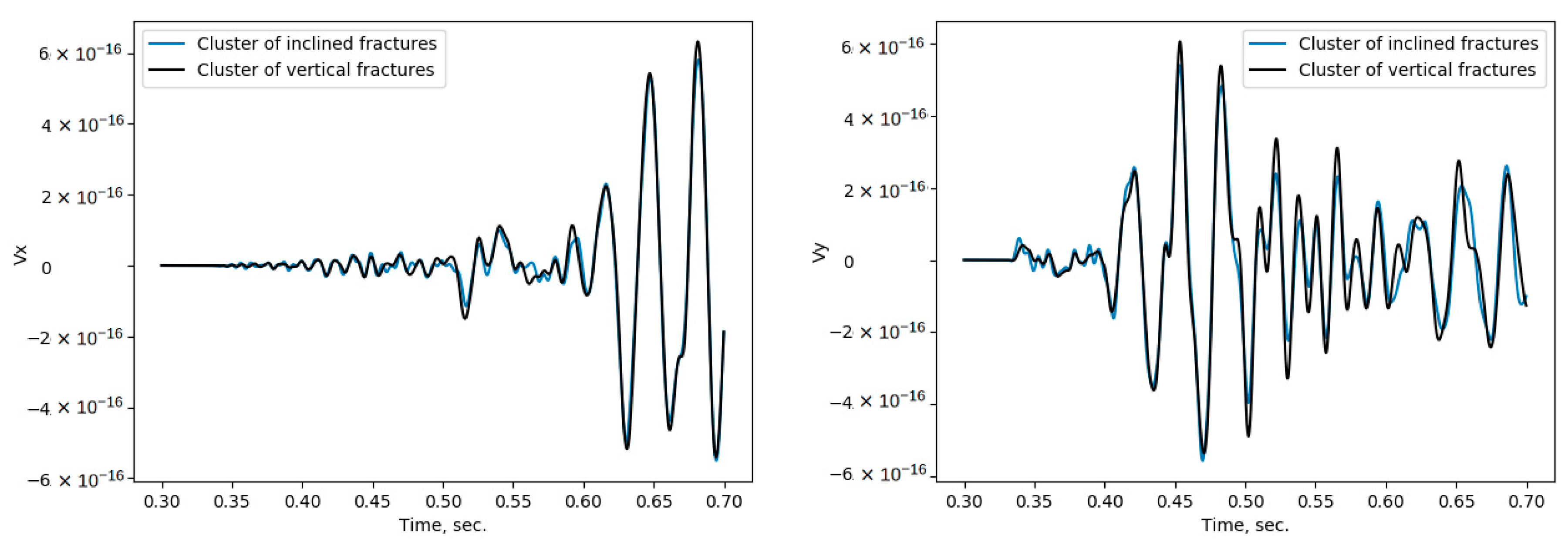

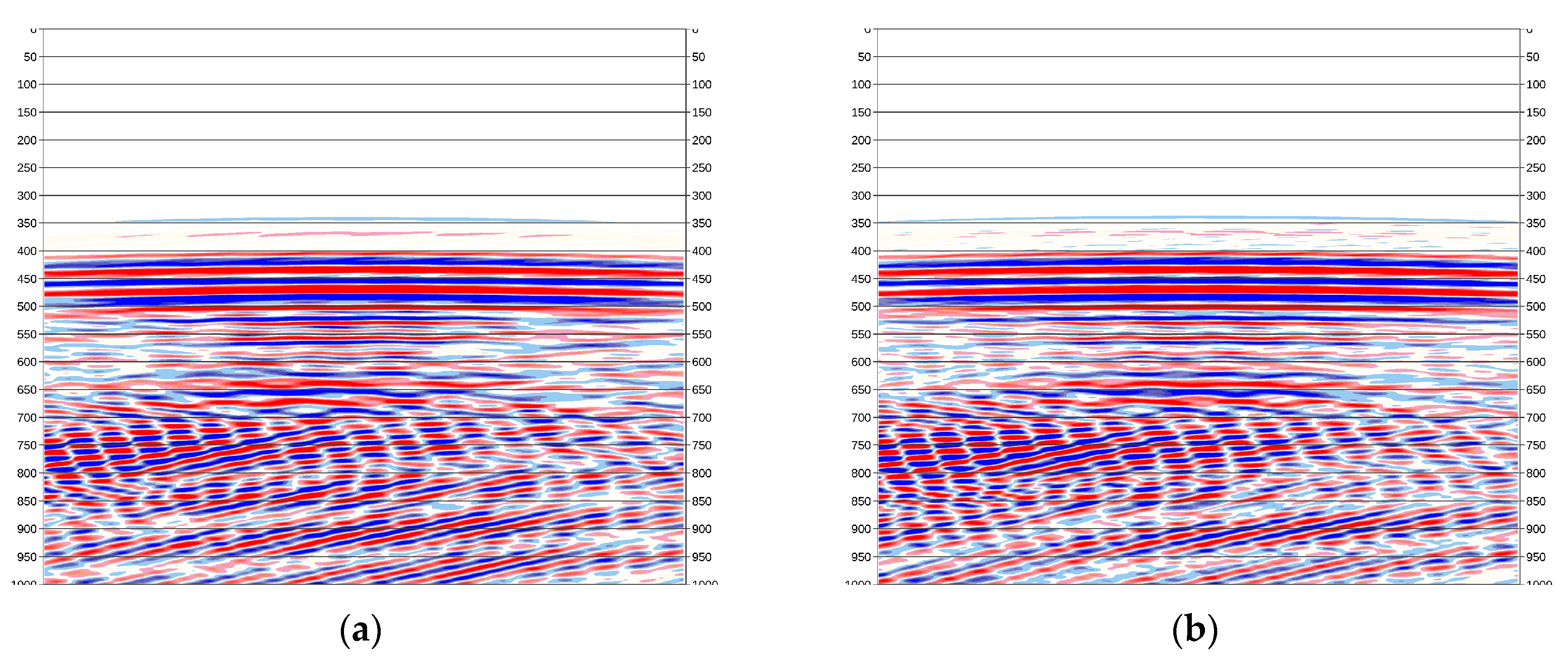

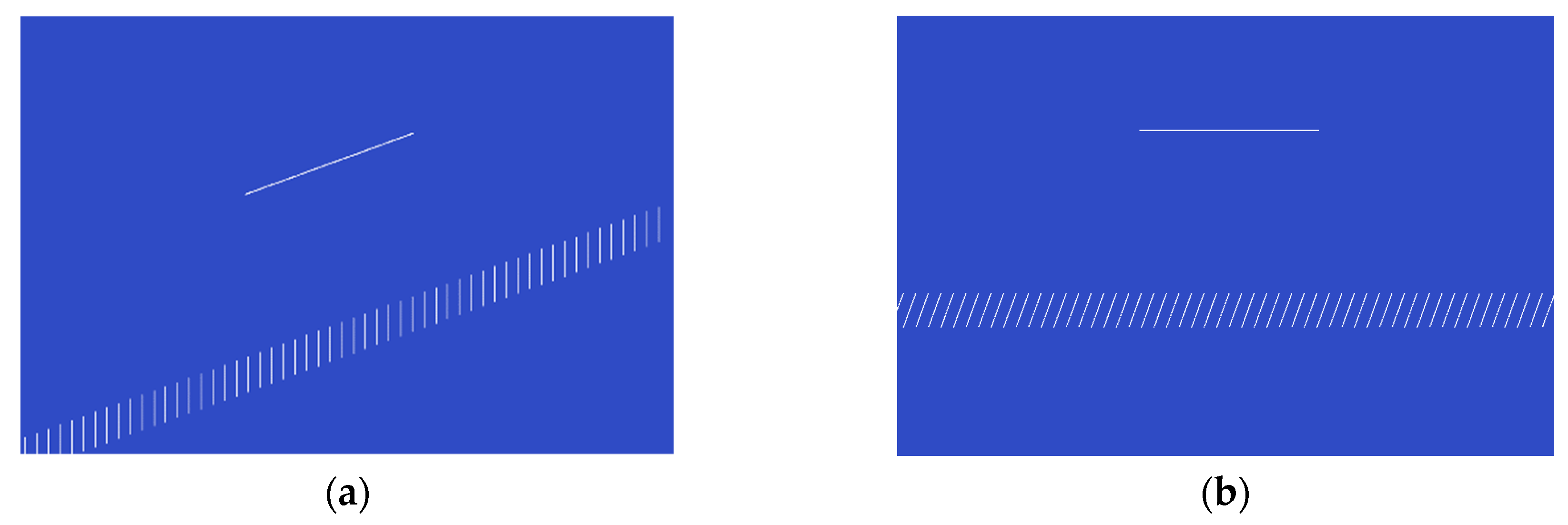

5.6. Response from a Cluster of Subvertical Fractures
6. Discussion and Conclusions
- Fairly quick calculation and simple implementation in a structural grid. The basic calculation algorithm does not change; the method is implemented as a “corrector” step.
- The ability to calculate inclined fractures on structural grids.
- The ability to build a fractured inhomogeneity of complex shape.
- The absence of the need to build an unstructured mesh, the binding of the grid to inhomogeneity.
- Fractures can be easily added at any place in the geological models.
- The disadvantages include:
- A rather large integral error.
- Substantial grid spacing reduction required to reduce error.
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
