Abstract

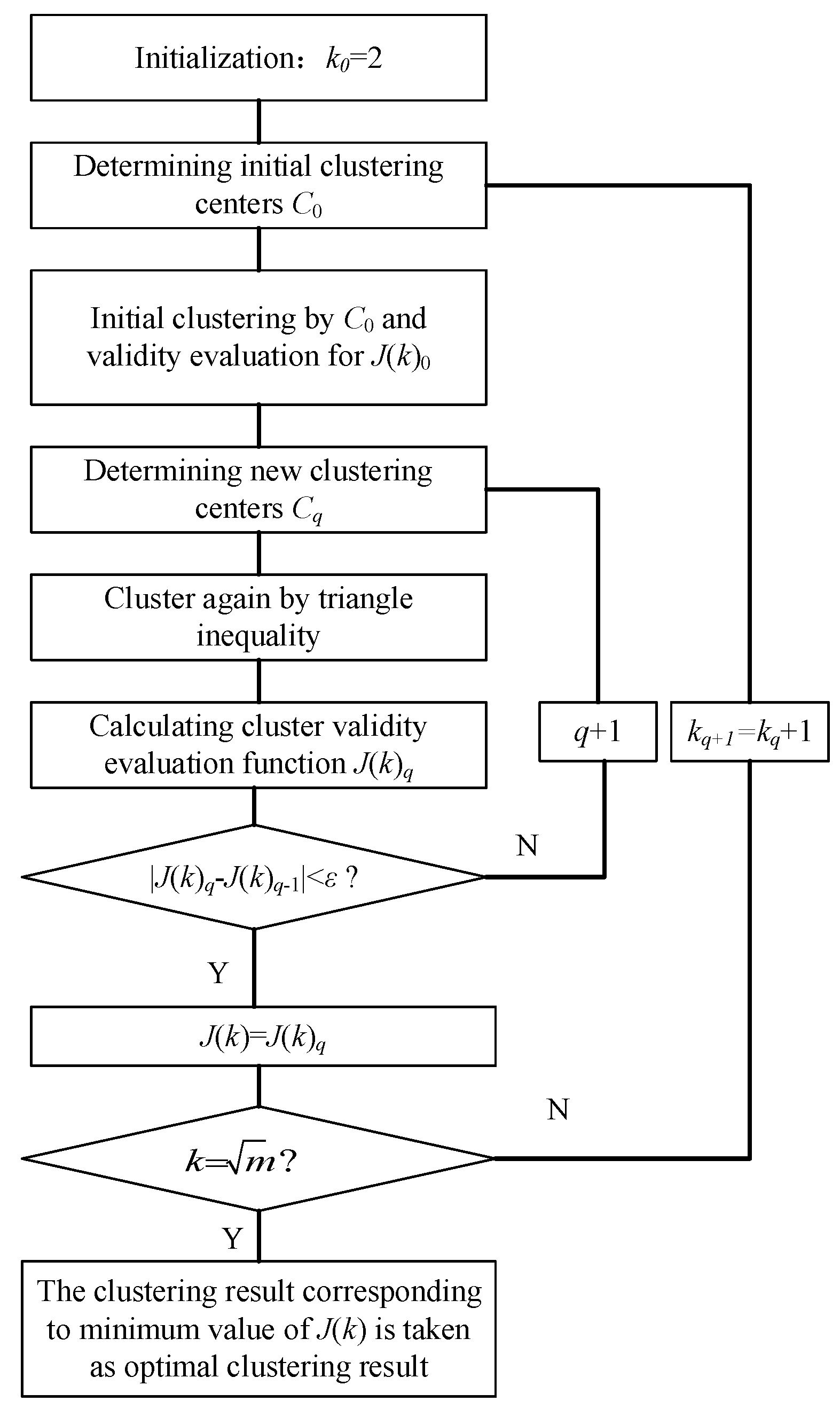

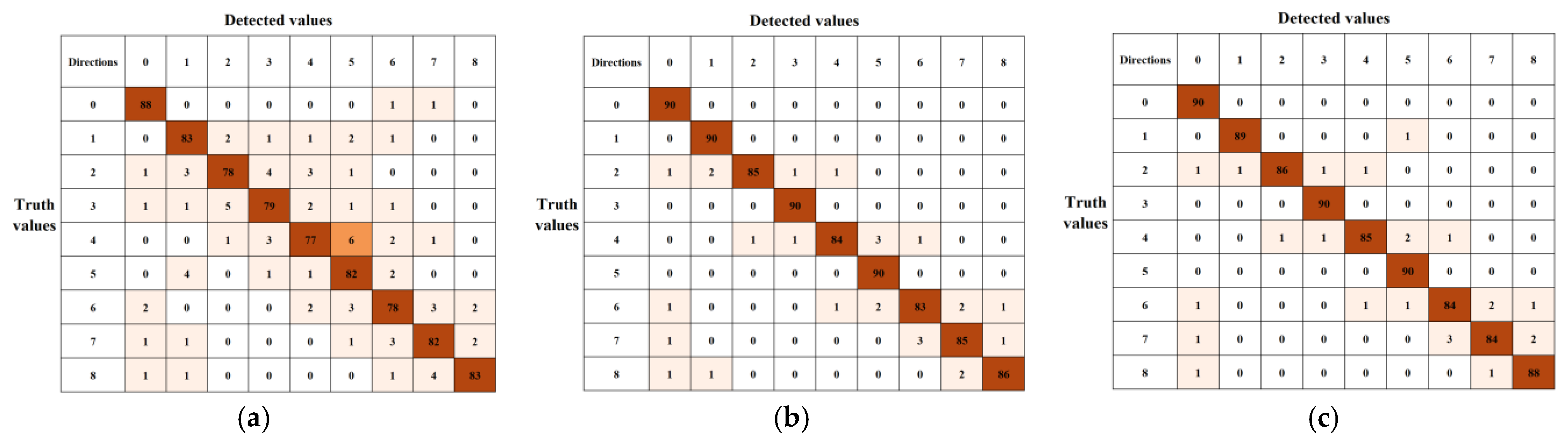

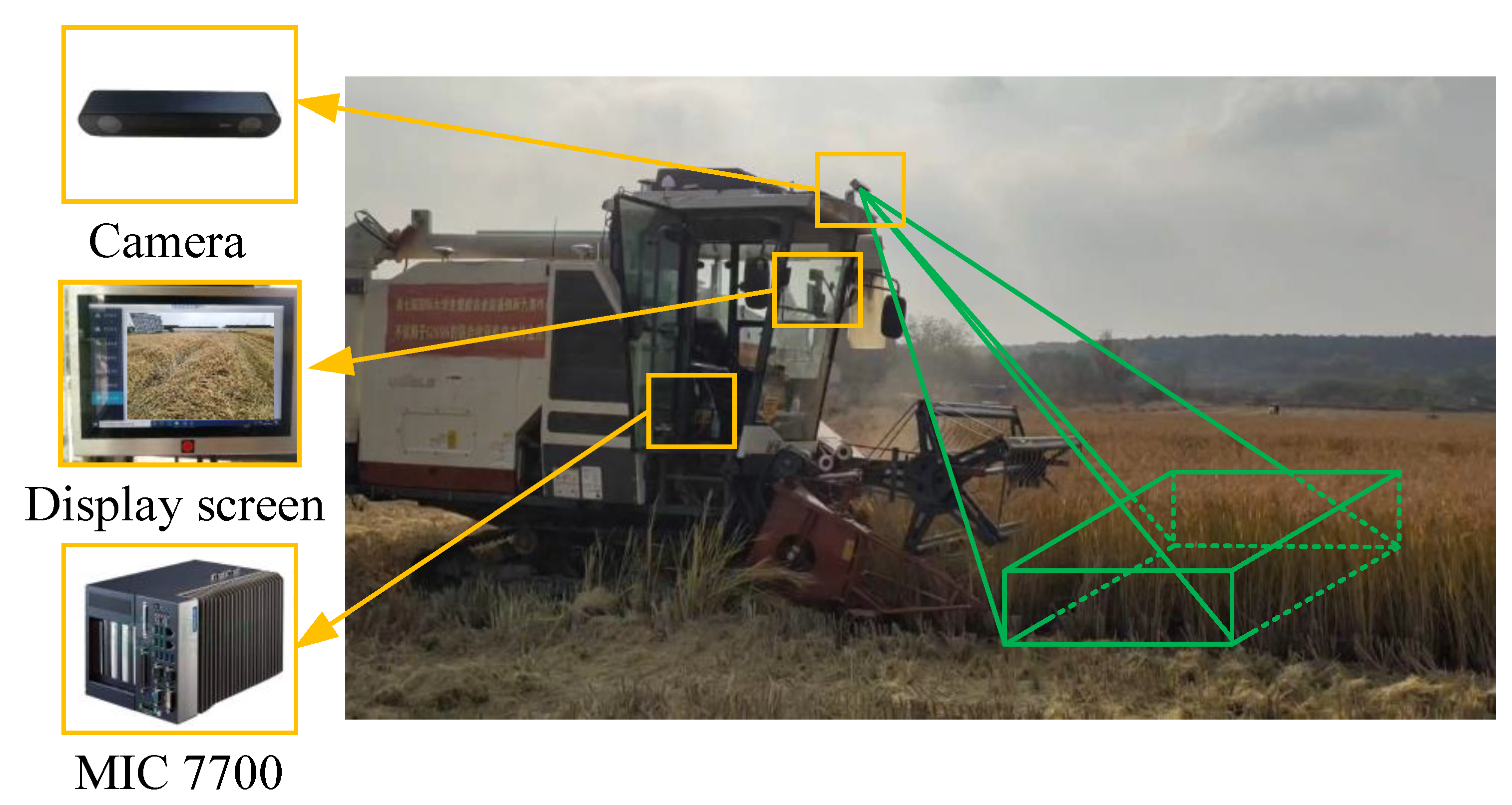

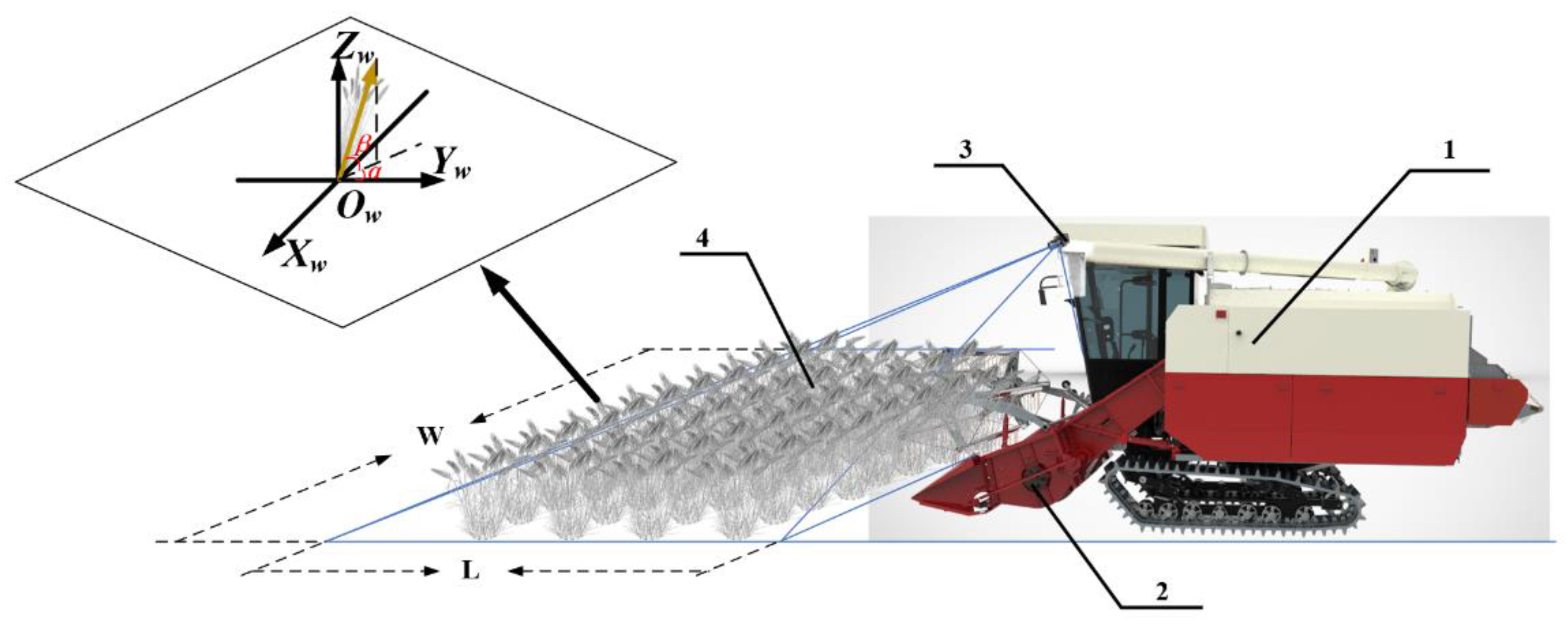

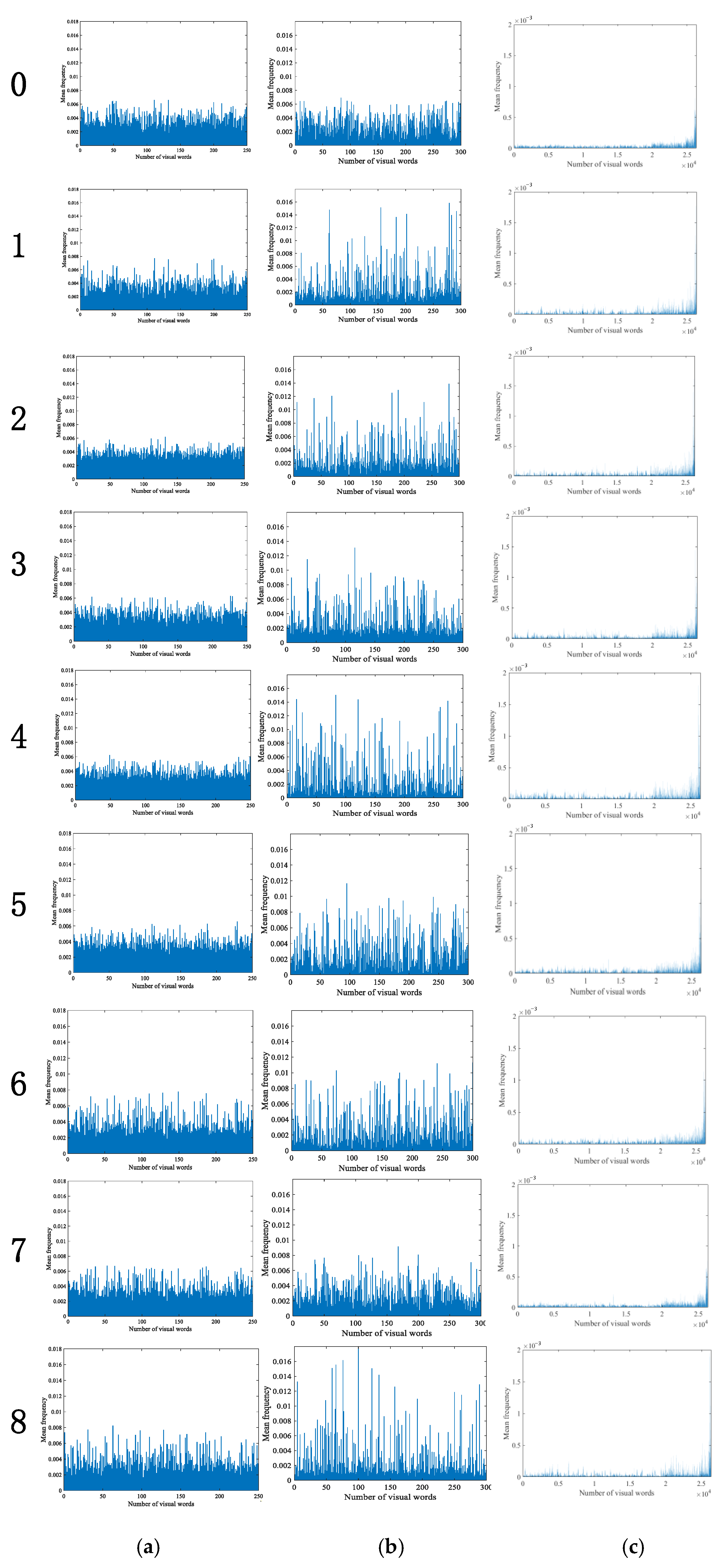

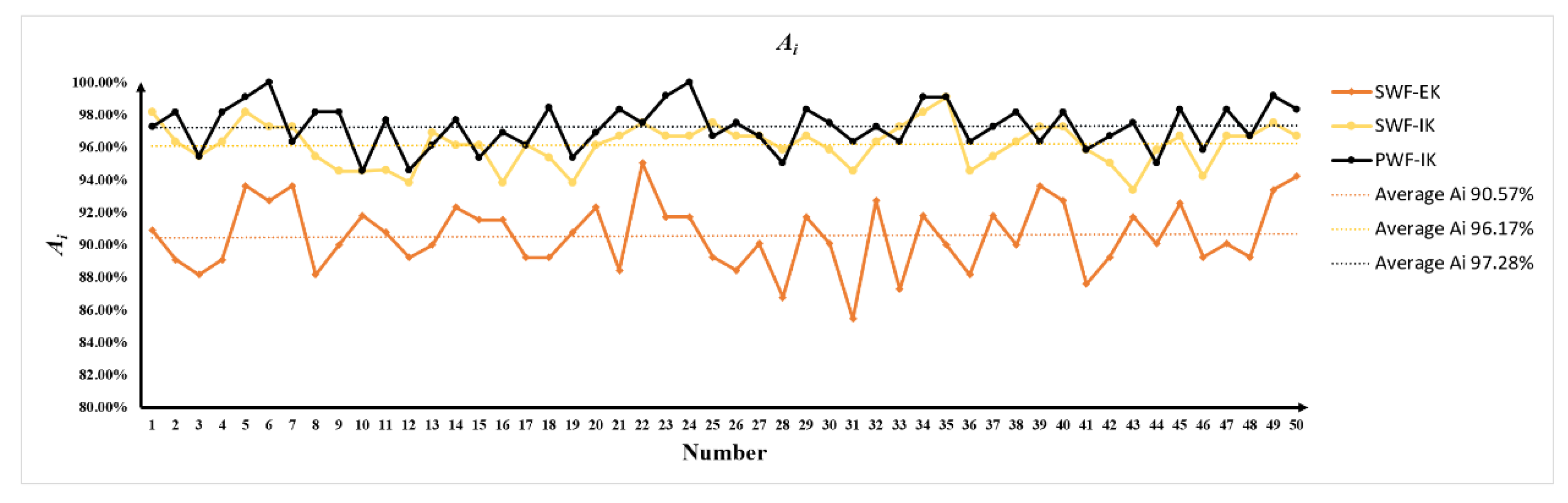

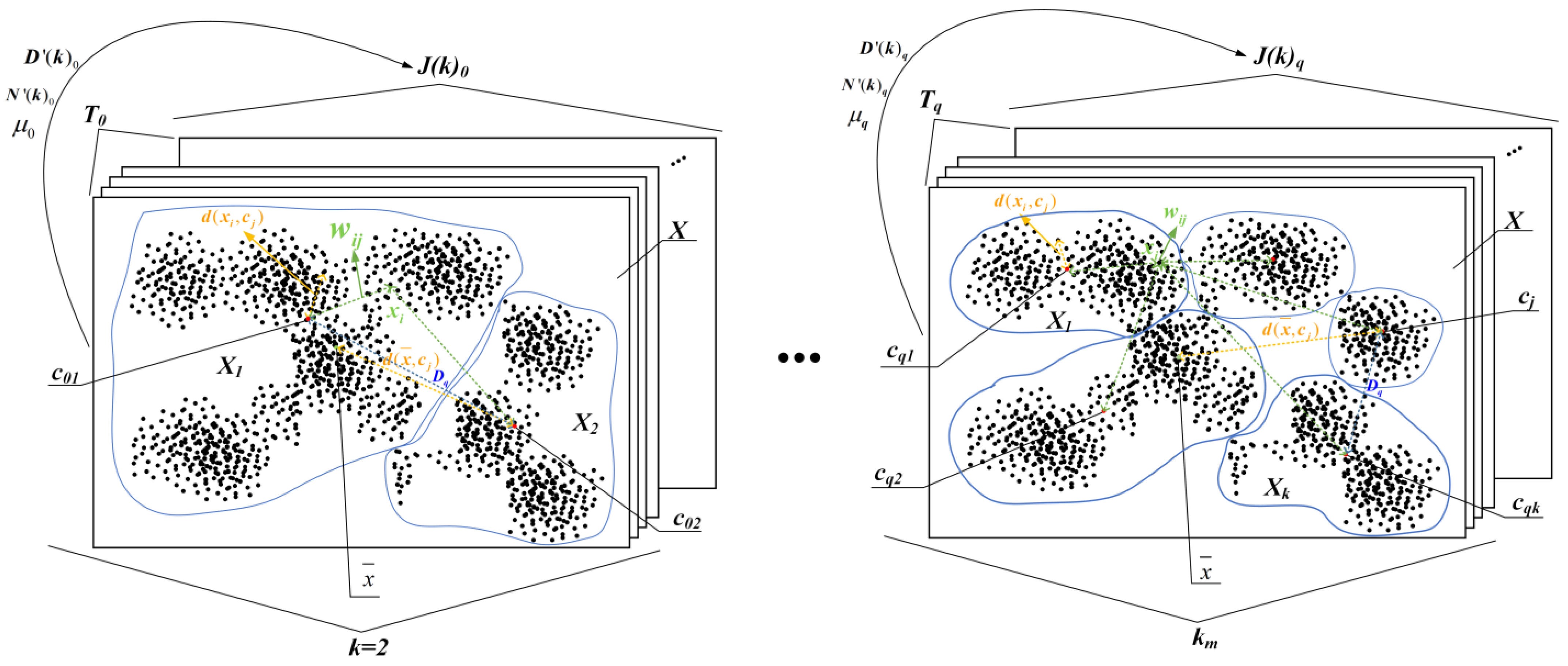

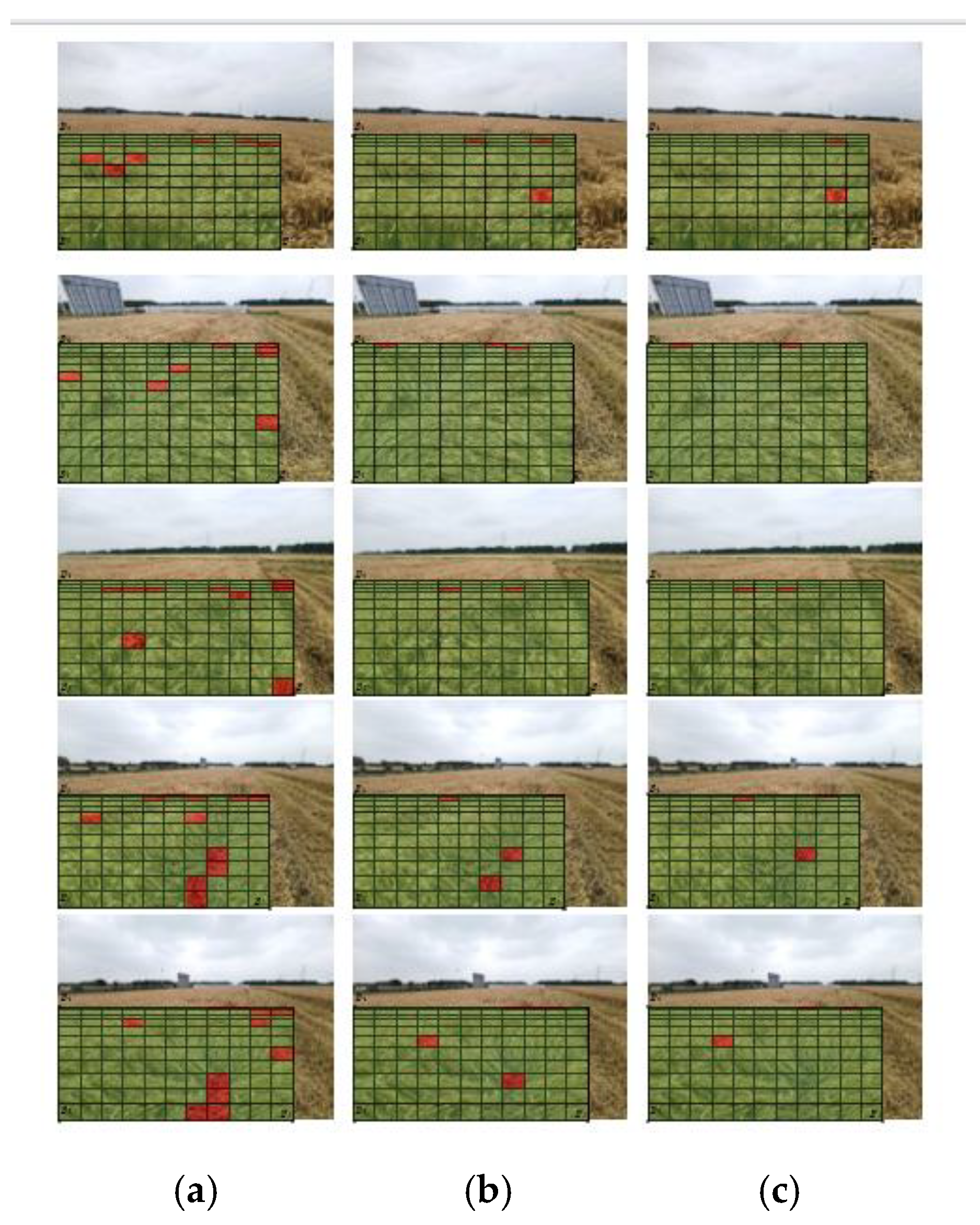

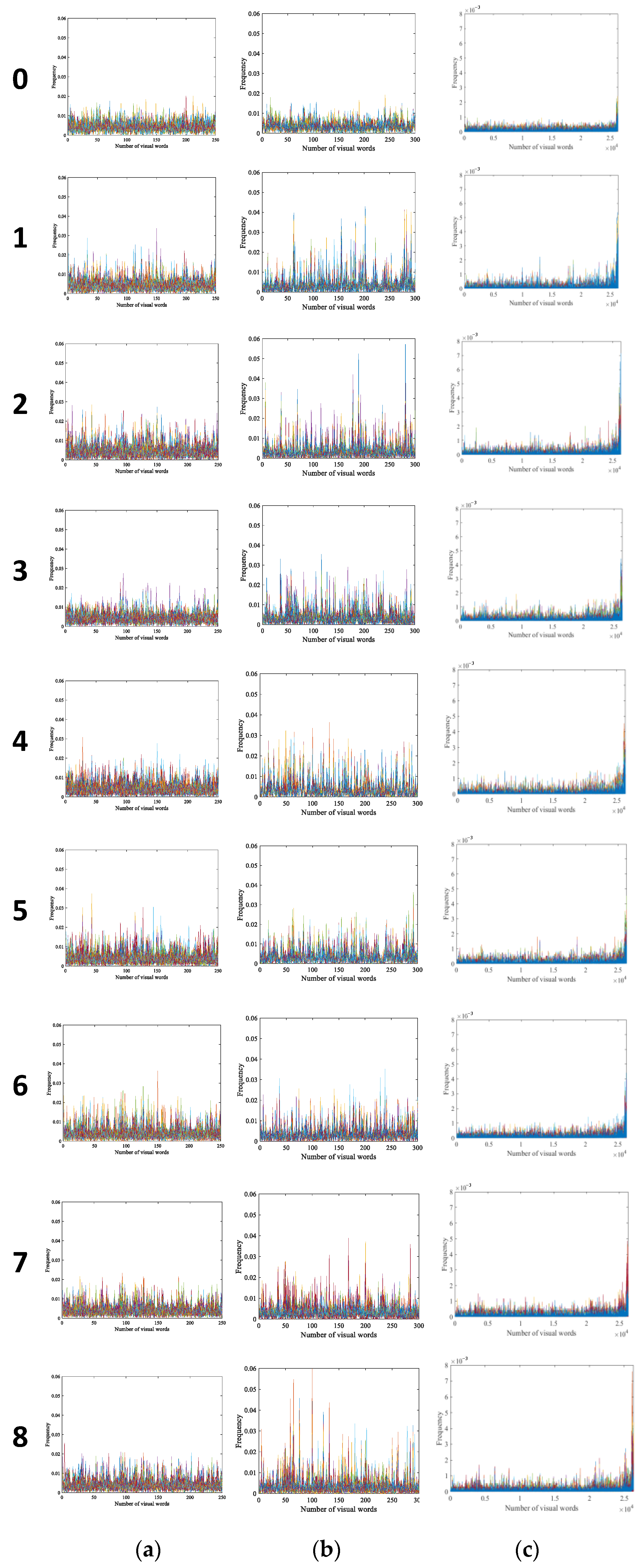

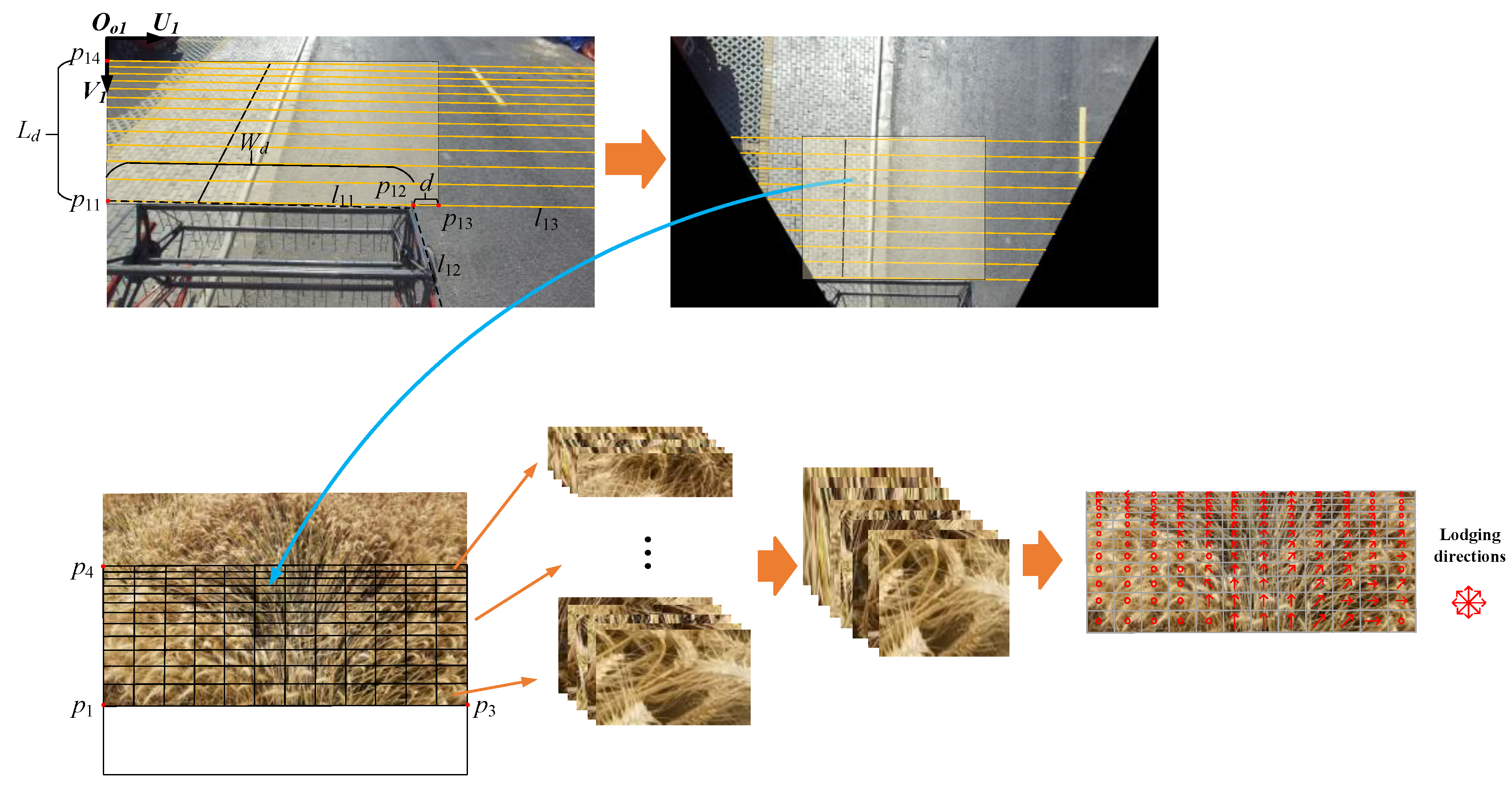

For the inconsistent lodging of wheat with dense growth and overlapped organs, it is difficult to detect lodging direction accurately and quickly using vehicle vision for harvesters. Therefore, in this paper, the k-means algorithm is improved by designing a validity evaluation function, selecting initial clustering centers by distance, constructing a multidimensional feature vector, and simplifying calculations using triangle inequality. An adaptive image grid division method based on perspective mapping and inverse perspective mapping with a corrected basic equation is proposed for constructing a dataset of wheat lodging directions. The improved k-means algorithm and direction dataset are used to construct a bag of visual words. Based on scale-invariant feature transform, pyramid word frequency, histogram intersection kernel, and support vector machine, the wheat lodging directions were detected in the grid. The proposed method was verified through experiments with images acquired on an intelligent combine harvester. Compared with single-level word frequencies with existing and improved k-means, the mean accuracy of wheat lodging direction detection by pyramid word frequencies with improved k-means increased by 6.71% and 1.11%, respectively. The average time of detection using the proposed method was 1.16 s. The proposed method can accurately and rapidly detect wheat lodging direction for combine harvesters and further realize closed-loop control of intelligent harvesting operations.
