Electrical Heaters for Anti/De-Icing of Polymer Structures

Center for Petroleum Science and Engineering, Skolkovo Institute of Science and Technology, Bolshoy Boulevard 30, bld. 1, Moscow 121205, Russia
Author to whom correspondence should be addressed.
Polymers 2023, 15(6), 1573;
Submission received: 16 February 2023 / Revised: 17 March 2023 / Accepted: 20 March 2023 / Published: 22 March 2023
(This article belongs to the Special Issue Polymer Based Electronic Devices and Sensors II)


The problem of icing for surfaces of engineering structures requires attention more and more every year. Active industrialization in permafrost zones is currently underway; marine transport in Arctic areas targets new goals; the requirements for aerodynamically critical surfaces of wind generators and aerospace products, serving at low temperatures, are increasing; and fiber-reinforced polymer composites find wide applicability in these structural applications demanding the problem of anti/de-icing to be addressed. The traditional manufacturing approaches are superimposed with the new technologies, such as 3D printers and robotics for laying heat wires or cheap and high-performance Thermal Sprayed methods for metallic cover manufacturing. Another next step in developing heaters for polymer structures is nano and micro additives to create electrically conductive heating networks within. In our study, we review and comparatively analyze the modern technologies of structure heating, based on resistive heating composites.

1. Introduction

Fiber-reinforced polymer composites (FRPC) have found wide demand in structural applications. Now, they are an integral part of many engineering solutions. In comparison with metals, polymer composites have superior mechanical performance, and reduced weight; they are less susceptible to fatigue and more corrosion resistant. The use of composites allows for manufacturing products with complex shapes, which reduces the number of parts, increases cost-effectiveness and reliability, and speeds up the assembly of products. As only one example, the implementation of FRPC technologies for blades of wind turbines has revolutionized the wind power industry, increasing the power output from the range of 2–3 MW to more than 12 MW due to the increase in blades’ size [1]. Another example is the high-end applications of the carbon/epoxy FRPC, the so-called “black aluminum”, in the aerospace industry [2]. Currently, the share of composite elements in the design of a modern aircraft reaches up to 50% [3,4,5]. The third example comes from marine vehicles where polymers find wide applicability [6]. The unique properties including thermal conductivity [7], electrical conductivity [8], and transparency to various types of radiation [9], are also highly demanded in various design applications.
Nowadays, new approaches in advanced structures and smart materials require material to conduct not only its primary mechanical or functional role, but to be multi-purpose, simultaneously addressing several demanded functionalities of the in-service support for a structure. One such task is to provide de/anti-icing of the working structural surfaces [10]. The formation of ice on hard surfaces can cause huge economic damage to society and poses a great danger [11]. The ice crust formation on the surface of an aircraft limits its performance [12], can significantly change the dynamic flight characteristics, and even lead to flight accidents [13,14]. Ice accumulation on ocean-going ships can change their balance and affect their safety [15]. The operation of wind turbines directly depends on the condition of the surface of the blades [16].
In general, ice formation can occur not only on FRPC, but on different surfaces, and cause a number of problems in everyday life, such as ice formation on roads and footpaths [17], on power line wires [18], and bridge cables [19], on systems of air recirculation [10] and roofs [20], etc. In all these cases, the formation of ice creates a negative impact on engineering structures or poses a danger to human life.
Thereby, it is important to develop effective heating methods that can protect working surfaces from ice formation. De/anti-icing functionality can be integrated into a composite part design. This problem is of special importance due to the necessity of operations in the Arctic and Antarctic regions.
A lot of anti/de-icing technologies are available on the modern market. Some of them can be widely used, whereas others are only for special applications. The most famous solutions are electrothermal [21], photothermal [22], ultrasonic [23], hydrophobic [24], and chemical [25]. Our research contains the review and comparative analysis of the modern de/anti-icing technological solutions targeting FRPC-based electrical heaters.

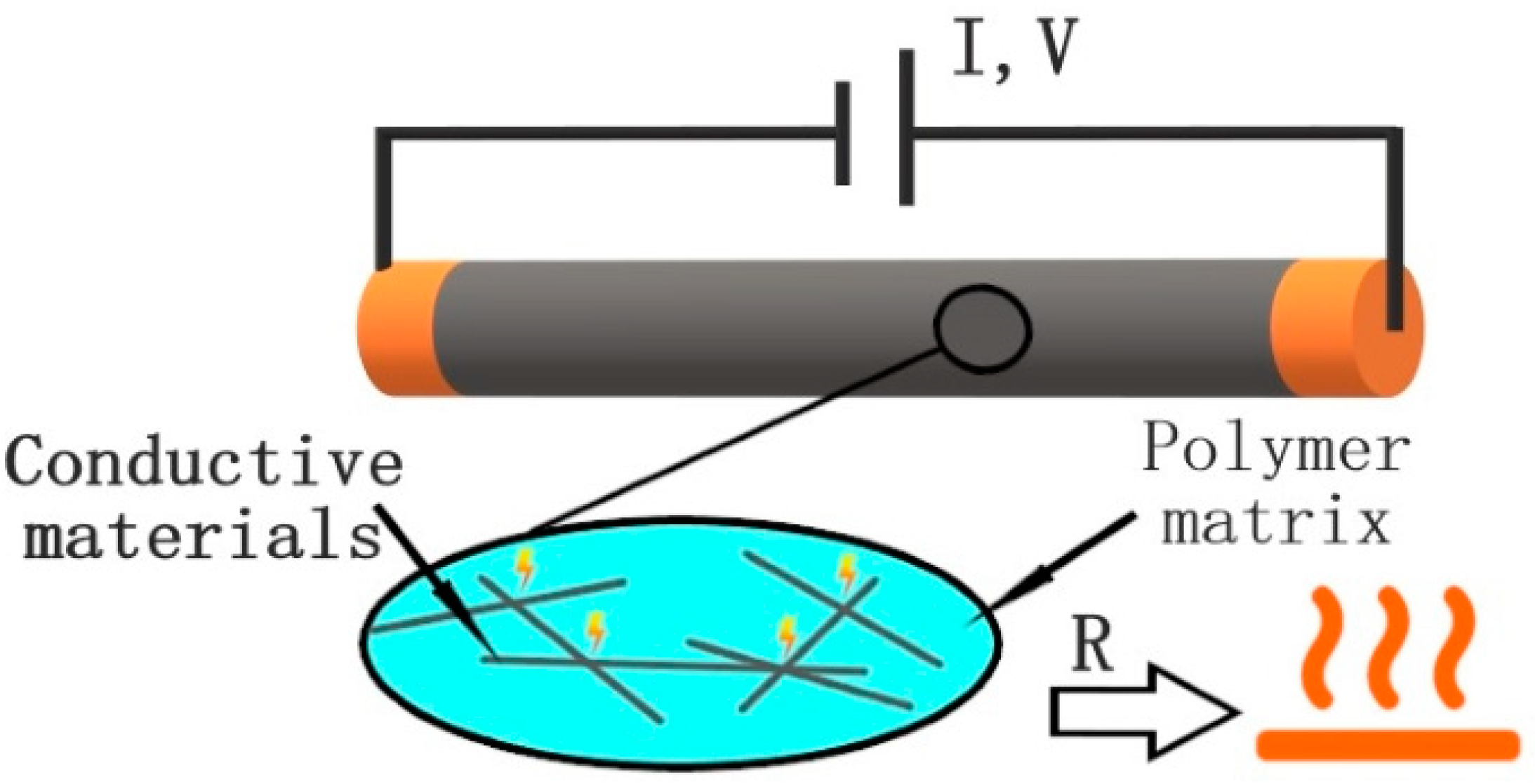

These electrical heaters work on the principle of Joule heating. It is also known as Ohmic or resistive heating as the heat generated during Joule heating depends on the resistance and is calculated by Ohm’s law of P = I2 R, where P is power, I is current, and R is resistance [26]. The phenomenon of Joule heating occurs when charge carriers, typically electrons, interact with the conductive materials body. An electric field is created by a voltage difference between two points in the conductor, which accelerates the charge carriers in the direction of the electric field and gives them kinetic energy, Figure 1. As these charged particles collide with the quasi-particles in the conductor, which are the ionic lattice oscillations in a crystal’s harmonic approximation, energy is transferred from the electrons to the lattice, creating further lattice oscillations. The radiation or thermal energy measured in an experiment originates from these ion oscillations. This process serves as the foundation for numerous practical uses of electric heating.

2. Foreign-Object Heaters for FRPC

2.1. Metal Foils and Grids as FRPC Surface Heaters

The first steps in the implementation of the resistive heating of an FRPC part surface to prevent ice formation were carried out by placing an electrothermal material (heater) on the surface, with the heater being a type of functional electrical resistor that can convert electrical energy into heat.
In one of the first industrial studies on anti/de-icing [27], several solutions were tested as a heater: etched metal foil grid, sprayed metal grid, knitted metal wire/glass fabric, a pierced expanded metal grid, and wires integrated into rubber. Different types of heaters were placed between the erosion shield material (Nickel alloy) and FRPC blade structure. Although this study demonstrated great future promise for the use of active ice removal systems, it also identified the common polymer burnout problem arising from excessive wire temperatures. Besides, the developed heaters, as external to the FRPC part, were likely to short-circuit against the conductive protective erosion shield material. From the current perspective, electrothermal anti/de-icing systems, which were used in the 70s in the form of thermal spacers, electrically heated foil, or electric heating elements made of metal or carbon fiber on the surface of FRPC products, were bulky, expensive, and often degraded the aerodynamic performance of the product.
The placement of a heater on a surface of an FRPC structure is possible either on the internal side or on the external side. In [21], it was demonstrated that implementing an electrical heating element on the internal side of a composite structure led to increased power consumption due to the high temperature differences between the heat application surface and de-icing surface, separated by the FRPC laminate, which made this approach unprofitable. The metal foil heaters showed the best results when they were placed on the external surface of an FRPC structure [28].

2.2. Metal Coatings as FRPC Surface Heaters

The early external heaters of FRPC structures were difficult to use and not effective. Later, engineers found ways to increase their capabilities. Nowadays, one of the top ways to create a cheap and repairable heating coating on an FRPC surface is by thermal spraying technology [29].
In [30], the authors applied a flame-sprayed nickel-chromium (NiCr) coating on the FRPC surface for use as a heating element. Application of the coating with high-temperature thermal technology was shown not to destroy the integrity and mechanical properties of the FRPC laminate due to the implementation of a protective sand-epoxy layer. The resulting coating was found to provide uniform heating. Testing showed that when cooled to −25 °C, the FRPC surface temperature maintained above 0 °C. The technology of thermal spraying of metal films also allows for the application of coatings to FRPC surfaces of complex geometries and the repair of damaged coatings [31]. The current system used on Boeing 787, requires a steady state temperature of 6 °C for effective anti-icing under −18 °C operational ambient conditions, expending 11.8 kW/m2, not taking into account the energy absorbed by the composite structure itself [32]. Moreover, the deposition of metal layers on the polymer can be conducted by other technologies including physical vapor deposition [33], chemical vapor deposition [34], and plasma-enhanced chemical vapor deposition [35]. These methods are relatively expensive and not suitable for manufacturing thick metal coatings (over 100 μm) at high deposition rates [36]. Nevertheless, they allow for obtaining layers from non-traditional materials, such as transparent and electroconductive indium tin oxide or extra-thin metal films. However, for transparent applications, it is more interesting to use systems based on thin layers of single-wall carbon nanotubes (CNT) [37].

2.3. Metal-Based Heaters Imbedded into FRPC

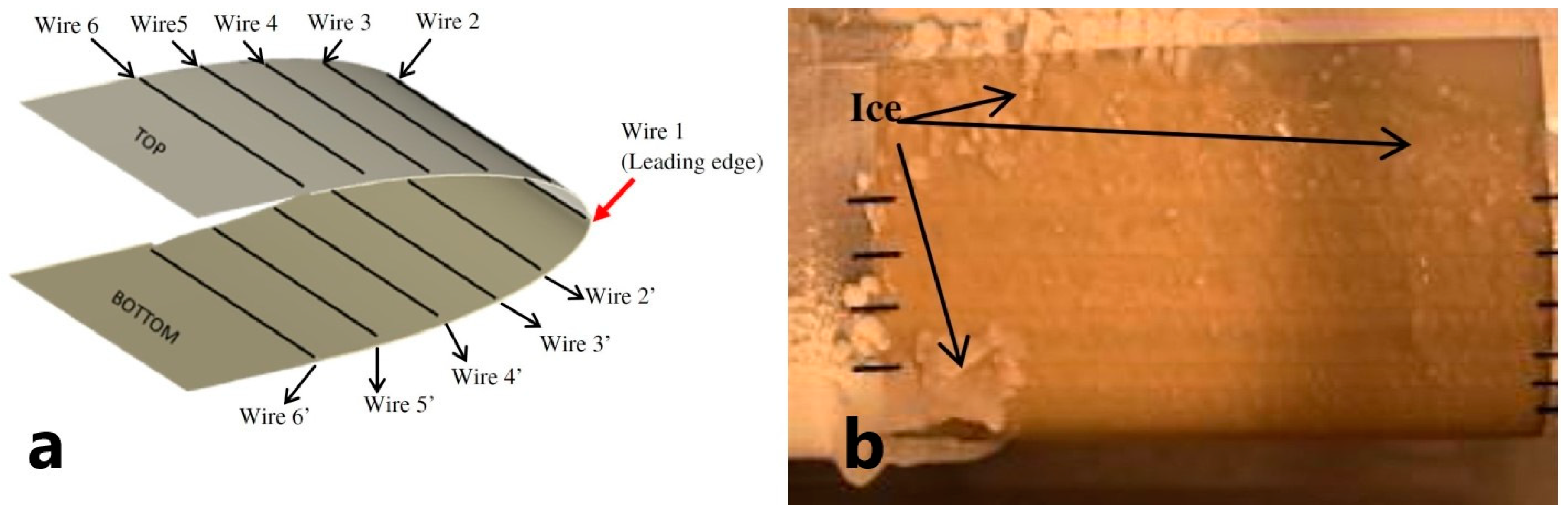

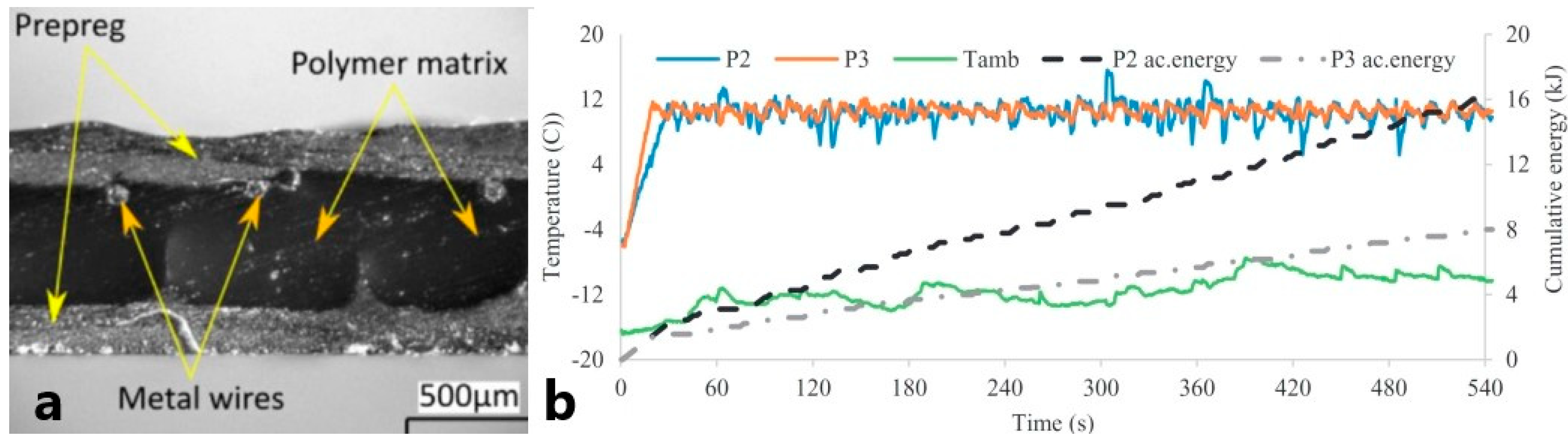

A large area of research in anti/de-icing was devoted to the placement of heating elements embedded into an FRPC product. However, heater implantation into an FRPC product may lead to the degradation of its functional or mechanical properties, especially interlaminar. In [38], the authors demonstrated that the implantation of a foil as a heater led to the development of delamination in the FRPC part under high loads. However, in [39] this drawback was not observed for perforated metal foils as contact pads supplying electrical current to other types of heating elements inside the FRPC. Authors in [40] presented a numerical and experimental development of the concept of a thermoelement based on NiCr wires to be embedded into FRPC profiles of wind turbine blades as an active anti-icing system, Figure 2a. It was experimentally shown that the edge region of the profile was the most susceptible to icing due to the maximal convective heat transfer over this region and the fluid load, Figure 2b. For anti-icing in cold and dry conditions, the temperature at the leading edge was kept at 60 ± 3 °C for low wind speed. The minimum surface temperature of the rest of the FRPC profile was maintained at 26 °C. The power consumption of the system was 8.3 kW/m2, which is lower than 9.2 kW/m2—the power consumption for a similar aluminum profile with outside heaters put to the same icing conditions.
Another interesting case is to combine embedded heating elements with electrically conductive fibers in a fiber metal laminate (FML) as an FRPC structure [41]. The FML systems are widely used, and their production technologies are well studied. The use of such a combined anti-icing system can lead to a decrease in product weight, especially for outdoor structures. In [42], heated glass laminate aluminum-reinforced epoxy composite structure (GLARE) was studied as one of the most widely utilized FMLs. Since in [38] it was shown that metal foil embedded into an FRPC can cause delamination, for the GLARE as a serial product it was necessary to demonstrate that an embedded heater does not worsen mechanical properties; in particular, the absence of linear viscoelastic creep. Authors of [42] showed that the metal layers and glass fibers in GLARE offset the effect of interlaminar creep in the heated state. Continuous physical aging slows down this process in long-term temperature and stress loading. The overall creep effect is thereby limited, which leads to applications of heated GLARE in FRPC structures [43,44].
In studies [40,41,42,43,44] discussed above, the process of embedding the heating elements into the FRPC structures was time- and effort-consuming. It can suffer from manufacturing inconsistencies and human errors. [45] proposed to introduce 3D printing to automate the manufacturing process. The authors used continuous NiCr wire and thermoplastic as 3D printing material to create a heater embedded into an FRPC plate. The NiCr-heaters in thermoplastic volume were printed by a meander pattern without a gap (i.e., as a continuous filament). A meander pattern was chosen as providing an evenly distributed heat flux on the surface of the FRPC plate. Then, heating plates were covered with a layer of Kapton film for electrical insulation. The assembled heater was placed between two sheets of carbon fiber prepregs and cured in a vacuum bag in an oven at 100 °C, Figure 3a. Obtained FRPC plates were field-tested onboard a marine vessel at subzero temperatures in the sea. The heater effectively kept the surface of the FRPC panel free of ice. Temperature distribution across the FRPC panel was uniform and stable in time: P2 and P3 curves in Figure 3b. Experimental studies at an ambient temperature of −20 °C showed anti-icing protection at the power consumption of this system of 10 kW/m2.
The application of metal-based heaters integrated into FRPC looks promising. Moreover, optimization of the manufacturing process, thanks to the possibility of 3D printing to lay the wire inside the product, allows for reducing the risks of malfunction. Nevertheless, embedded metal heaters have a big disadvantage—they are nearly impossible to be repaired.

2.4. Carbon-Based Heaters Imbedded into FRPC

As an alternative to embedding foreign materials as heating elements into FRPC, the possibility is often present to imbed FRPC-related materials, for example, FRPC reinforcing elements, as heat sources. Historically, this approach was developed in parallel with external heaters. One of the pioneering works in this area confirmed the possibility of using carbon fibers as heaters. In [39], the authors manufactured an FRPC heater based on industrial carbon fibers and resin; in this case, the mesh from nickel was used as electrical contact pads. However, the developed heater possessed low efficiency and high heterogeneity of the generated heat field on the surface of the FRPC. On a 10 cm segment, the temperature drop was 15 °C. Moreover, the authors had to overcome the difficulty of making electrical contacts with carbon fibers. Currently, these problems are solved by functionalizing the surface of carbon fibers using the electroconductive sizing of Ni, Cu, Zn, Pt, Ag, or their alloys [46,47,48,49,50]. A modern study of carbon fibers showed their excellent properties as heaters [51]. On samples from carbon fiber mats, heating up to 140 °C has been achieved, at an applied voltage of 6.5 kW/m2, d-curve in Figure 4a.

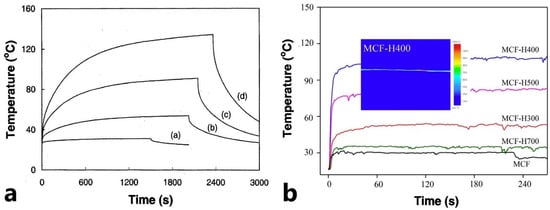

In [52], the researchers investigated the dependence of the electrical conductivity on the post-annealing temperature of metalized carbon fiber (MCF). The effect of the annealing temperature of MCF on the heating properties of FRPC is shown in Figure 4b. The existence of temperature dependence makes it possible to expand the field of application of carbon fibers as heaters and allows more precise tuning of the characteristics of the FRPC composite. Comparing the graphs in Figure 4, we can suggest that the heating systems based on pure carbon fibers are better for scenarios where the high heating temperature is more important than the heating rate, and the MCF system is better for scenarios with a high heating rate.
Some studies considered the possibility of using electrically conductive carbon textiles as a heating layer in FRPC [53,54,55,56]. In [55], a commercially available electro-conductive carbon-based textile (ECT) by “Gorix” was used for FRPC heater manufacturing. The aim of the work was to investigate how the low-velocity impact on the FRPC heater influences the anti/de-icing properties. The FRPC heater based on ECT material was damaged at two locations, Figure 5a, but it continued to function and demonstrated a good heating performance after impact, comparable to 90 % of heat flow from the non-damaged counterpart. In the anti-icing test at a chamber temperature of −20 °C, it showed low energy consumption, only 0.9 kW/m2 (Figure 5b), and the ice melting time at the same power in the de-icing test was 40 min.
Besides fibrous carbon materials, electrically conductive carbonaceous nanofillers in the form of a mat were also utilized for FRPC heaters. In [57], the authors proposed using a multi-walled carbon nanotube (MWCNT) mat as an active heat element of an FRPC heater. For mat manufacturing, MWCNTs were typed into a non-woven textile substrate by rotary screen-printing. CNTs in the mat did not possess an orderly structure and presented isotropic and homogeneous 3D mesh. MWCNT mat was embedded into an FRPC wind turbine blade manufactured by vacuum infusion technology. The FRPC wind turbine blade was tested for de-icing in the climatic chamber at −5 °C with a simulated wind speed of 7 m/s. For this case, the FRPC heating elements melted in 25 min a layer of ice with an energy consumption of 1.33 kW/m2; the process dynamics are shown in Figure 5c.
Thin carbon nanotube films with entanglement keeping CNTs in place are commercially available and are called carbon nanotube paper or buckypaper. Their utilization allows for solving the problem of CNTs dispersion during vacuum infusion [58]. Thanks to the use of buckypaper, CNTs as integrated heaters have become even more widespread today [58,59,60] as no additional complex operations, such as on-ply printing, are involved in manufacturing. Moreover, the absence of additional operations at CNTs allows for preserving their high physical and mechanical characteristics [61]. Additionally, the structure of the buckypaper is porous, and this is very convenient for impregnation with a polymer. The possibility to utilize buckypaper as a heated element of an FRPC heater was studied in [60], Figure 6a. The de-icing test showed the possibility of effectively using the FRPC structure at −22 °C and strong wind, up to 14 m/s. The ice melting time was 7 min at a power consumption of 11 kW/m2, Figure 6b,c.

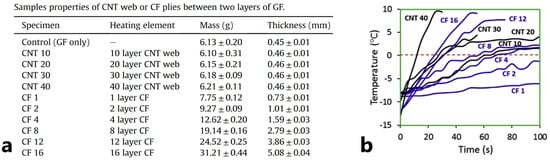

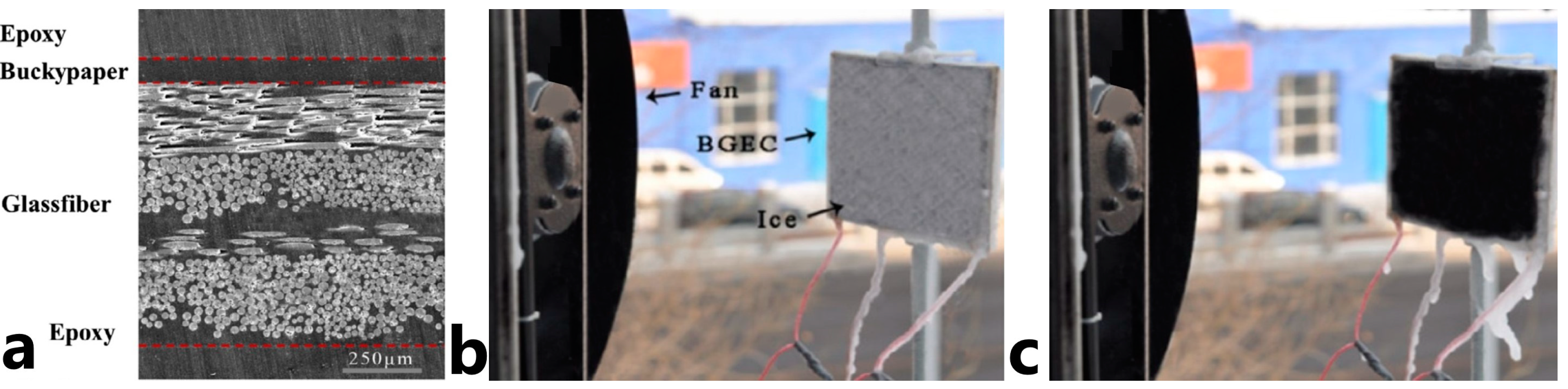

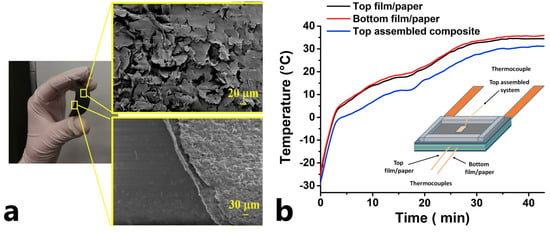

The efficiency of an FRPC heater based on buckypaper was compared with the efficiency of an FRPC heater based on carbon fibers at identical conditions [62]. The buckypaper was produced by pulling CNTs from a nano-forest (aligned array of MWCNTs), synthesized by the chemical vapor deposition process. The authors claimed that using buckypaper layers as heating sources made it possible to obtain up to four times lighter FRPC heaters than their carbon fiber analogs, Figure 7a. The experimental study showed that the heaters based on 40 buckypaper layers were capable of effective de-icing. In the test at an environmental temperature of −12 °C, the de-icing process took 15 s. with an FRPC heater power up to 4.9 kW/m2 vs. 25 s and 6.5 kW/m2 for 16 carbon fibers layers, Figure 7b.

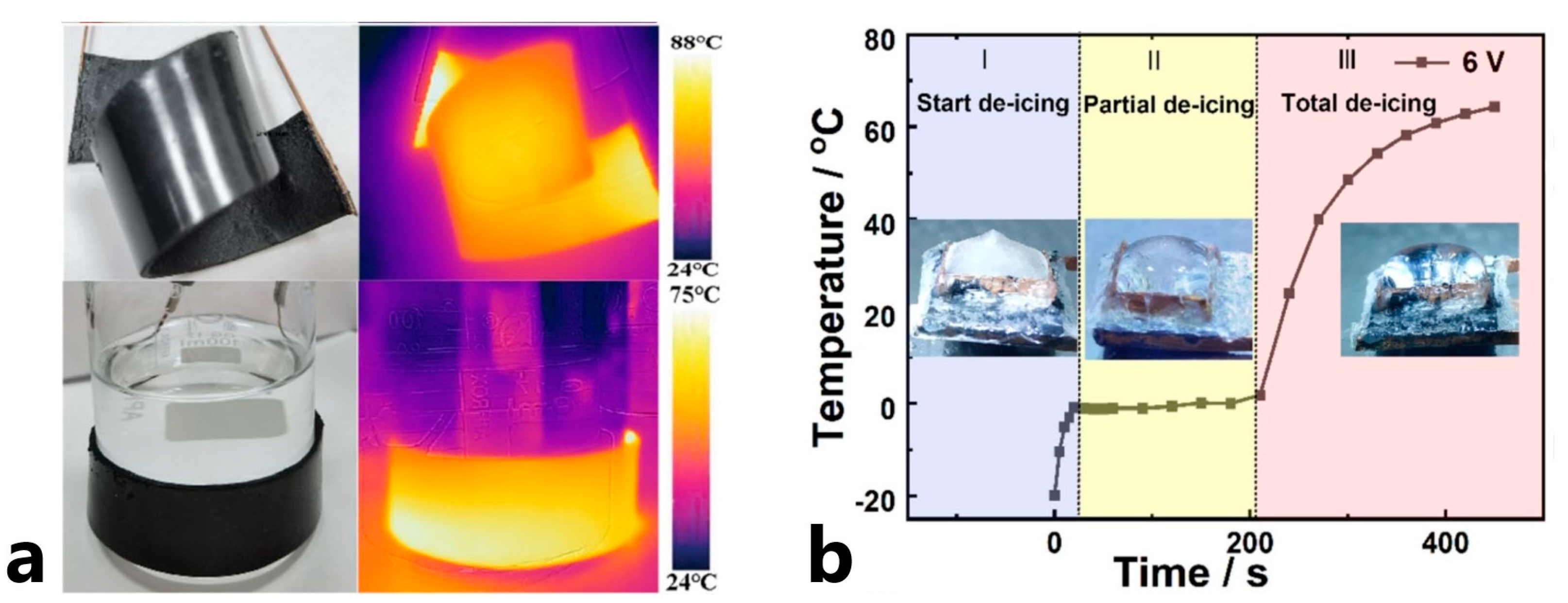

As a competitor to buckypaper, carbonaceous sheets based on graphene (graphene paper) and graphite (graphite paper) were also studied, Figure 8a. In [63], the FRPC heater was assembled on the base of a graphene paper, Figure 8b. It performed the de-icing task successfully and heated the surface from −32 to 0 °C in 4 min at power up to 1.6 kW/m2. This power allowed the FRPC surface to heat up to 37 °C during the next 40 min.
Authors in [64] developed a more complex design: they manufactured a flexible FRPC from several graphene nanosheet papers (CNSs) and styrene-butadiene rubber (SBR) layers, Figure 9a. The SBR polymer is flexible and possesses both high thermal conductivity and adhesive properties. The heating temperature of FRPC heaters based on CNSs@SBR reached 142.9 °C at a bias voltage of 6 V with low power of around 2.1 W and was stable after fatigue loading of 4000 folds. The de-icing tests proved that the flexible FRPC heater is efficient and competitive for de-icing applications when a high de-icing rate is required. At an ambient temperature of −20 °C, the ice melt time was 210 s, Figure 9b, and the power consumption was 3.6 kW/m2. The flexibility of the FRPC heater based on CNSs@SBR allows for its use on flexible as well as complex shape surfaces with huge areas for anti/de-icing tasks.

2.5. Comparative Analysis of the Foreign-Object Heater Technologies

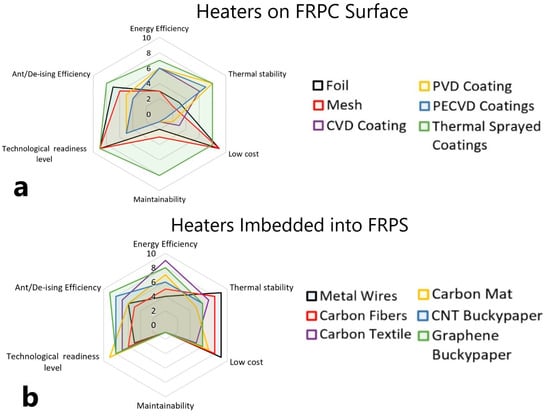

The comparison of different heaters technologies is presented in Figure 10 and in Table 1. The analysis of six main criteria shows that in the case of heaters on FRPC surfaces, Figure 10a, the thermal sprayed technology allows for obtaining the best solution. For the case of embedded heaters, Figure 10b shows that carbon textiles, CNT, and graphene buckypapers allow for obtaining heaters with the best properties and low cost. The carbonaceous nanofiller mat heaters have several advantages: high thermal- and electro-conductivities, sustainability, simplicity of implementation, and improved mechanical properties of FRPC. However, heaters based on these materials have low maintainability: the impossibility of easy repairs due to embedment.
From this point of view, nowadays thermal sprayed technology is considered the most applicable option for mass production since these heaters for FRPC have high maintainability due to accessible surface coating, are easily manufactured, and allow for obtaining good thermal characteristics at low cost.
The foreign-object heaters have been around for a while and come in various types. However, existing solutions became widely applied in FRPC heaters production only recently. Early solutions had low efficiency, were difficult to manufacture, and had a high cost. Modern technologies, efficient and commercially viable, to produce metal alloy surface heaters for FRPC have been developed with the help of advanced manufacturing technologies based on robotic systems. Currently, the main disadvantages of metal alloy surface heaters are that they create an additional load on the FRPC and are prone to the risk of electric shock. We expect that the next step in the development of heaters for FRPC surfaces will be based on the implementation of self-heating polymer compositions. Compared to metal coatings, the technologies for the application of polymer coatings on the FRPC are cheaper and easier. In some cases, polymer coatings improve the mechanical properties of FRPC and give additional functionality. Self-heating coatings are discussed in more detail in Section 4.
The main disadvantage of embedded heaters for FRPC, unlike surface ones, has always been the complexity or even impossibility of their repair. This fact greatly hindered their development. However, a large amount of research and development of technologies to produce nanoscale materials has opened new opportunities in this approach. The main advantage of using heating elements manufactured from nanoscale materials is the extremely high reliability, since even with significant damage they continue to remain operational. Moreover, embedded nanoscale heaters are integrated into FRPC and do not add extra weight or load, instead, they enhance the material’s mechanical properties, unlike metal alloy surface heaters. However, new technologies obtaining heating elements from nanoscale materials with given characteristics have just started developing. Manufacturing heaters based on nanoscale materials for large-area RFPC is expensive and not scalable so far. This area of research is actively developing and has great prospects, especially in improving the physical properties of heating elements from nanomaterials.
An important parameter of FRPC is the thermal conductivity of the matrix since the efficiency of heat depends on it. The increase in the thermal conductivity of the matrix can be achieved by adding nanosized materials to its FRPC composition. The influence of various additives on the thermal conductivity polymer matrix is discussed in more detail in the next chapter.

3. Thermally Conductive Polymers for FRPC Matrix

Improvement of the heat conductivity of polymers by nanofillers can also play an important role in enhancing heater performance. The matrix in composite materials ensures the solidity of the material, and the transmission and distribution of stress in the reinforcement determine the heat, moisture, fire, and chemical resistances [68]. The rate of transfer of thermal energy from the internal heater to the outer surface of the composite product directly depends on the thermal conductivity of the matrix material.
Standard polymers used in the manufacture of FRPC products have low thermal conductivity k, usually in the range from 0.18 to 0.44 W/mK [69,70]. The addition of high-k nanoparticles (boron nitride, CNT, graphene, etc.) to polymers improves the thermal conductivity of the matrix by several times [71,72]. However, electrically conductive nanoparticles, such as CNTs or graphene, cannot be used in combination with embedded heaters as they transform the whole composite into an electrical conductor and lead to a short circuit inside the structure. Thereby, only dielectric nanofillers are considered in this section. The electrically conductive additives will be reviewed in the following section.
The use of nanoparticles depends on the possibility of uniform dispersion and distribution of the filler on a submicron scale [73], which is an essential requirement for fiber-reinforced composites where typical fiber diameters and the gap in between them are in the range of microns. The limitations of nanoadditive utilization include agglomeration, bundling, anisotropic orientation distribution, entanglement, filtration on fibrous reinforcement [74], provoking stress concentrations, and degradation of target characteristics. The review of the results of experimental works on improving the thermal conductivity of a polymer by adding dielectric nanoparticles is presented in Figure 11. The nanofillers are divided into three groups: spherical particles (0D materials)—mainly oxides nanocrystals; materials with a high aspect ratio (1D materials)—structures such as nanowires; and nanoplates (2D materials).

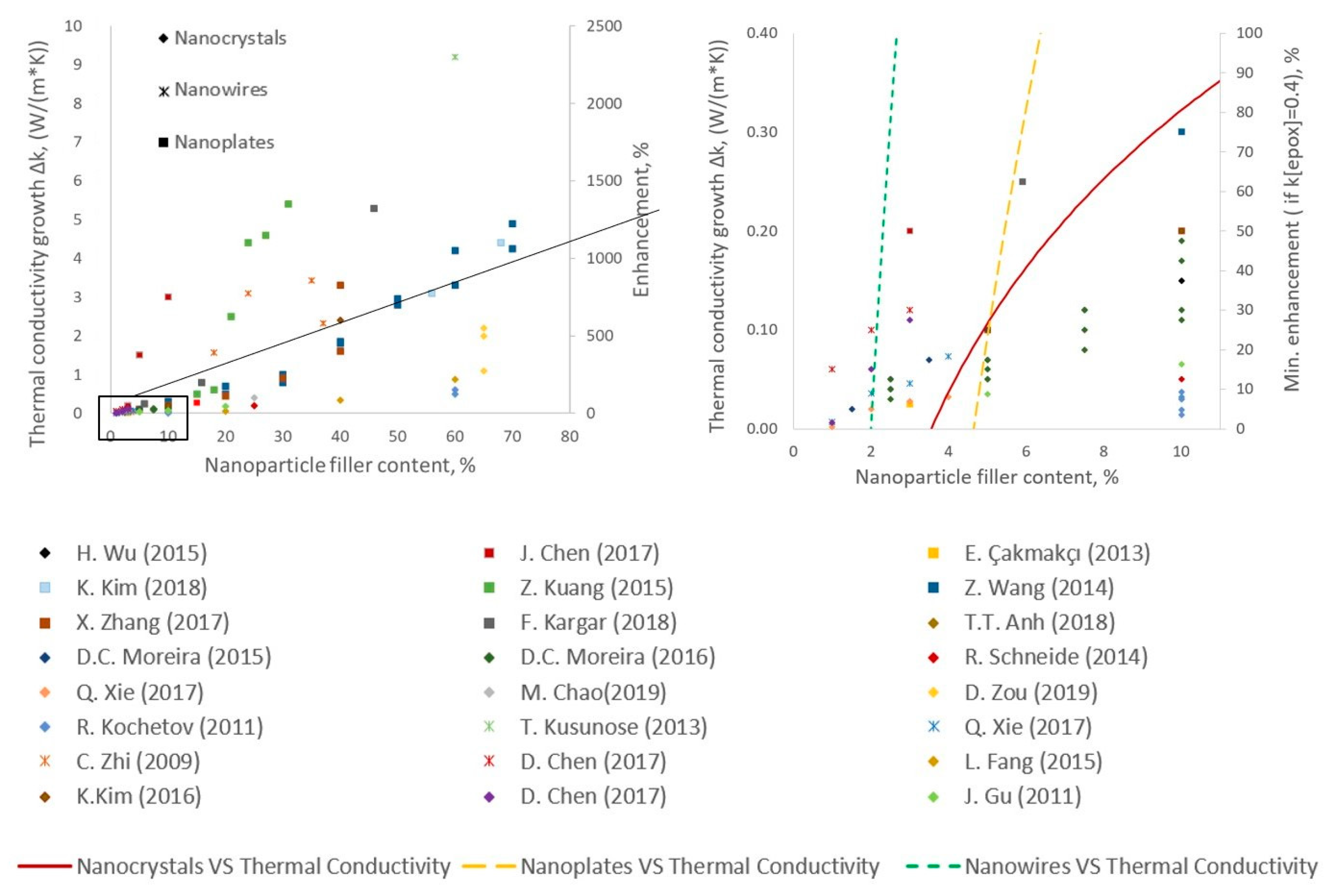

Figure 11 shows that the smallest increase in k is in general achieved by nanocrystals (rhombus markers), for which the maximal investigated Δk of the nanocomposite rarely exceeds 1 W/mK. This agrees with the low ability to form a percolation network for a particulate composite [75]. Nanowires are expected to be more prone to percolate than nanoplates. Trend lines plotted for each group (Figure 11) show that nanoplates (squares markers) have the same behavior of dependence thermal conductivity from filler, as nanowires (asterisk markers). However, in the case of nanowires, the thermal conductivity starts to increase earlier. According to Figure 11, nanowires and nanoplates are the best fillers for thermally conductive nanocomposites since their Δk ranges largely overlap. However, liquid composite molding technologies for the production of polymer composites with fibrous reinforcement impose restrictions on the use of 1D and 2D nanomaterials due to the filtration effect that occurs during the impregnation of reinforcing elements [76,77]. In [78,79,80] the use of more than 10 wt.% additives was shown to lead to entrained air, aggregation of nanoparticles, and poor interfacial contact between the polymer and particles, limiting the additional improvement in thermal conductivity. Moreover, this high wt.% of additives leads to significant changes in other material properties or causes their degradation.
Figure 11. Thermal conductivity properties of dielectric nanoparticles [50,78,81,82,83,84,85,86,87,88,89,90,91,92,93,94,95,96,97,98,99,100], full-scale comparison and close-up. Three trends compare influence of 0D, 2D, and 1D particles.
Figure 11. Thermal conductivity properties of dielectric nanoparticles [50,78,81,82,83,84,85,86,87,88,89,90,91,92,93,94,95,96,97,98,99,100], full-scale comparison and close-up. Three trends compare influence of 0D, 2D, and 1D particles.
Polymers 15 01573 g011
Taking into account the above factors, the use of nanoadditives for polymer matrix in FRPC is typically limited to 10 wt.% and excludes particles with high aspect ratios. As presented in the zoomed region in Figure 11, ceramic fillers such as alumina, aluminum nitride, silicon carbide, and boron nitride are most often used as fillers for making FRPC that possess both high electrically insulating properties and increased thermal conductivity. Further, we will discuss this class of materials in detail.
Alumina (Al2O3) is widely used in electrical engineering due to its excellent electrical insulation, ideal thermal conductivity of up to 25 W/mK, and low cost [101]. Authors in [93] showed that by adding 10 wt.% Al2O3 nanoparticles, the k value of the Al2O3/epoxy resin composite was increased from 0.2 to 0.39 W/mK (by 95%). Further, the addition of 70 vol.% of Al2O3 nanoparticles increased the value of k to 13.46 W/mK in [102].
Aluminum nitride (AlN) is widely used as an electronic ceramic substrate and thermally conductive sealing material because of its high thermal conductivity of up to 230 W/mK, excellent heat resistance, good electrical insulation, and high permittivity for ceramics [103]. At low concentrations, up to 10 wt.%, AlN showed weaker result than Al2O3, increasing k by nearly 10% on 0.02 W/mK [99]. In [104], the authors considered a hybrid nano-filler approach with the possibility of using AlN nanoparticles as bricks for building a 3D network from boron nitride (BN) nanorods, Figure 12a–c. A 3D network of BN allows for increasing the thermal conductivity of epoxy resins, delivering a maximum value of 8.0 W/mK with a 1:1 ratio and 80 vol.% (resin only 20 vol.%), due to the orientation of BN nanoplates perpendicular to each other (Figure 12b).
Silicon carbide (SiC) has a low price, high thermal conductivity of up to 200 W/mK, and high wear resistance [100]. The k value of the SiC/epoxy composite was increased to 0.33 W/mK due to the addition of 3.0 wt.% SiC, thereby increasing the thermal conductivity of the SiC/epoxy composite by 50% [95]. SiC/polystyrene composites were prepared by hot pressing [105] while increasing k by 300% from 0.182 to 0.566 W/mK by adding 32.8 vol.% SiC.
Boron nitride has a huge thermal conductivity of up to 2000 W/mK, resistance to high-temperature oxidation, and its permittivity value is the lowest among ceramic fillers [106]. In Figure 12d, BN provided the highest increase in k up to 1300% from 0.22 to 3.22 W/mK, achieved by highly oriented BN nanoplates [87] (black triangles in Figure 12d). For composites with a homogeneous distribution of BN nanoplates (black squares in Figure 13), the gain in k is several times lower, only 60%, from 0.22 to 0.35 W/mK. However, it is still a better result compared to other nanofillers, being at the level of the best Al2O3 samples. However, if we consider spherical BN nanoparticles [81], then the increase in thermal conductivity will be even lower, up to 55%, from 0.27 to 0.42 W/mK.

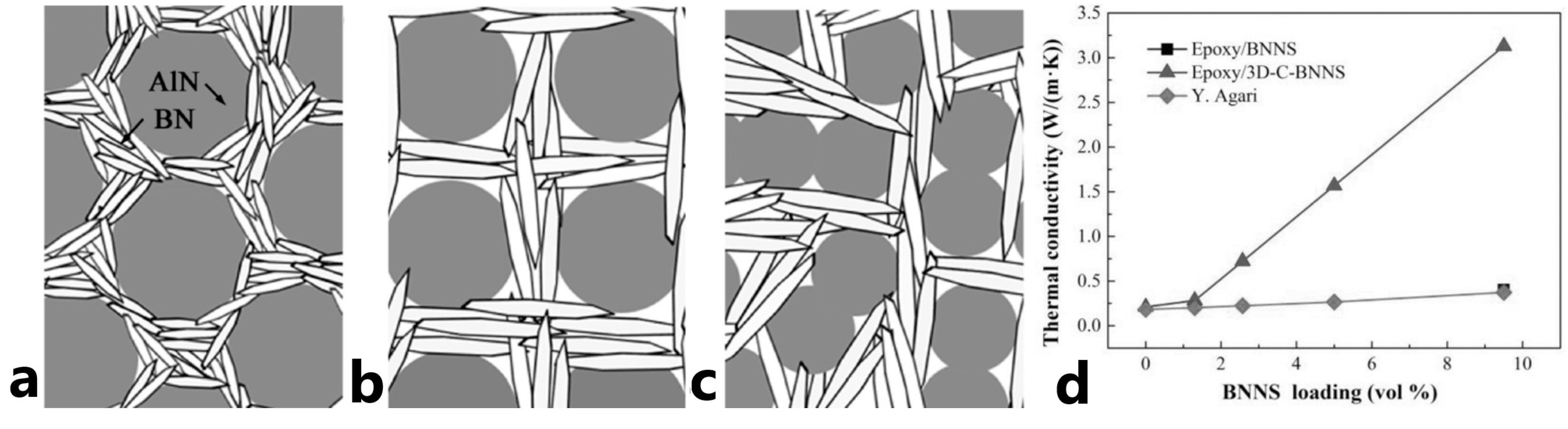

In [107], the effect on k was investigated for a mixture of fillers, BN, and MWCNTs. A synergistic improvement in thermal conductivity values for them was observed due to the creation of three-dimensional heat transfer paths between BN and MWCNT, and the maximum k value was increased from 0.22 to 1.74 W/mK. However, the presence of MWCNTs can cause a drop in electrical resistivity, with the material losing its dielectric properties. The using of BN additives in 3D structures such as polymer aerogels allows it to reach high thermal conductivity [108,109]. In [110], the authors showed excellent in-plane and out-of-plane thermal conductivities of 0.76 W/mK and 0.61 W/mK with a ratio of BN/PVA of (2:1) in comparison with 0.15 W/mK for the pure polyvinyl alcohol (PVA) matrix.
The functionalization or sizing of the surface of nanoparticles is of special importance when dielectric properties are considered [111]. The addition of an organic coating around Barium Titanate nanoparticles reduced agglomeration in polyvinylidene fluoride and caused a decrease in the dielectric constant in comparison with the untreated analog [112]. As another example, the functionalization of the alumina surface makes it electrically conductive [113].
To summarize, dielectric nanoadditives significantly increase the thermal conductivity of the FRPC matrix, leading to better heater performance, with the boron nitride providing the best results. However, the technology has restrictions in the process of FRPC manufacturing—one cannot use more than 10% of the filler caring not to degrade other properties. Bypassing this challenge is possible thanks to using hybrid additives from different fillers and creating 3D thermally conductive networks. The future perspective research should probably focus on hybrid nano additives and 3D network self-assembly and synthesis as applied to heaters for FRPC.

4. Self-Heating Polymers

In the previous section, we considered the increase in thermal conductivity of the polymer surrounding the heater, and, to avoid effects such as short-circuiting, electrically conductive nanoadditives were not discussed. However, an increase in the electrical conductivity of a polymer is not always undesirable since in this case the polymer itself can serve as a heating element, and composite products based on such nanoparticles present a separate class of self-heating polymer nanocomposites (PNC) for anti/de-icing.
Electrically conductive nano additives are expected to have high thermal conductivity as well, which is consistent with the Wiedemann–Franz law [114]. Therefore, we generally say that PNCs with electrically conductive nanoadditives shall also possess high thermal conductivity.
A distinctive feature of this type of PNC heater is the ability to apply them as a self-heating coating on the surface of the already manufactured and operating FRPC structure. Since the primary function is heating while the mechanical properties of the coating are assigned a secondary role, there is typically no restriction on the mass percentage of nano additives for PNCs with typical values being well above the percolation threshold.
In Table 2, we compare values of the percolation threshold, electrical conductivity, filler content, and thermal conductivity for the most common polymer nanocomposites with electrically conductive nanoparticles.
The dependence of the experimentally observed percolation thresholds, as of the point where the nanocomposite becomes electroconductive, on the filler type and the matrix material is presented in Table 2 (% value of percolation threshold is either wt. or vol. depending on the value position in the column to the left). The distribution of values agrees with the theoretical predictions by the type of particles and their aspect ratios [157]. According to Table 2, in the sense of increasing nanofiller fraction, the percolation threshold is observed first for 1D filler materials, then for 2D additives, and finally for 0D nanoparticles. However, aligned graphene being a 2D material shows an unrealistic percolation threshold value of 0.03 vol%. This effect is achieved due to the creation of a highly ordered graphene 3D structure using additional additives. In the 3D network graphene case, the percolation threshold is reached by extra-oriented graphene plates [143]. Some authors used electroconductive polymers, such as PDMS [126,130,146], as a matrix. In these cases, the highest value of electrical conductivity is shown, but these polymers are expensive, and it is unprofitable to use them for manufacturing large FRPC.
The dependence from the filler form was also observed for electro and thermal conductivity. Table 2 presents many examples with high and low electro and thermal conductivities, and dependence is the same as for percolation threshold: 1D materials in the first place, then 2D, and finally, 0D, corresponding to the theory described in [157]. This cannot be applied to a 3D network, since in these cases an ordered structure with oriented additives with anisotropic properties is often created. The best results were demonstrated by samples with hybrid fillers from several additive materials [153,155]. The synergy of properties achieves the fusion of multiple effects. The interaction of two or more components in PNC looks very relevant and has great perspectives.
Several PNC compositions are already applied for FRPC heating in practice. In [158] authors studied the application of a PNC heater, based on MWCNTs and acrylic resin, coated onto an FRPC fan blade. When an electrical current was applied, the PNC itself heated up to a heat flux density of 3500 W/m2, Figure 13a, and de-icing of the surface of the FRPC blade happened in 300 s working at a rotation of 100 rpm, Figure 13b.

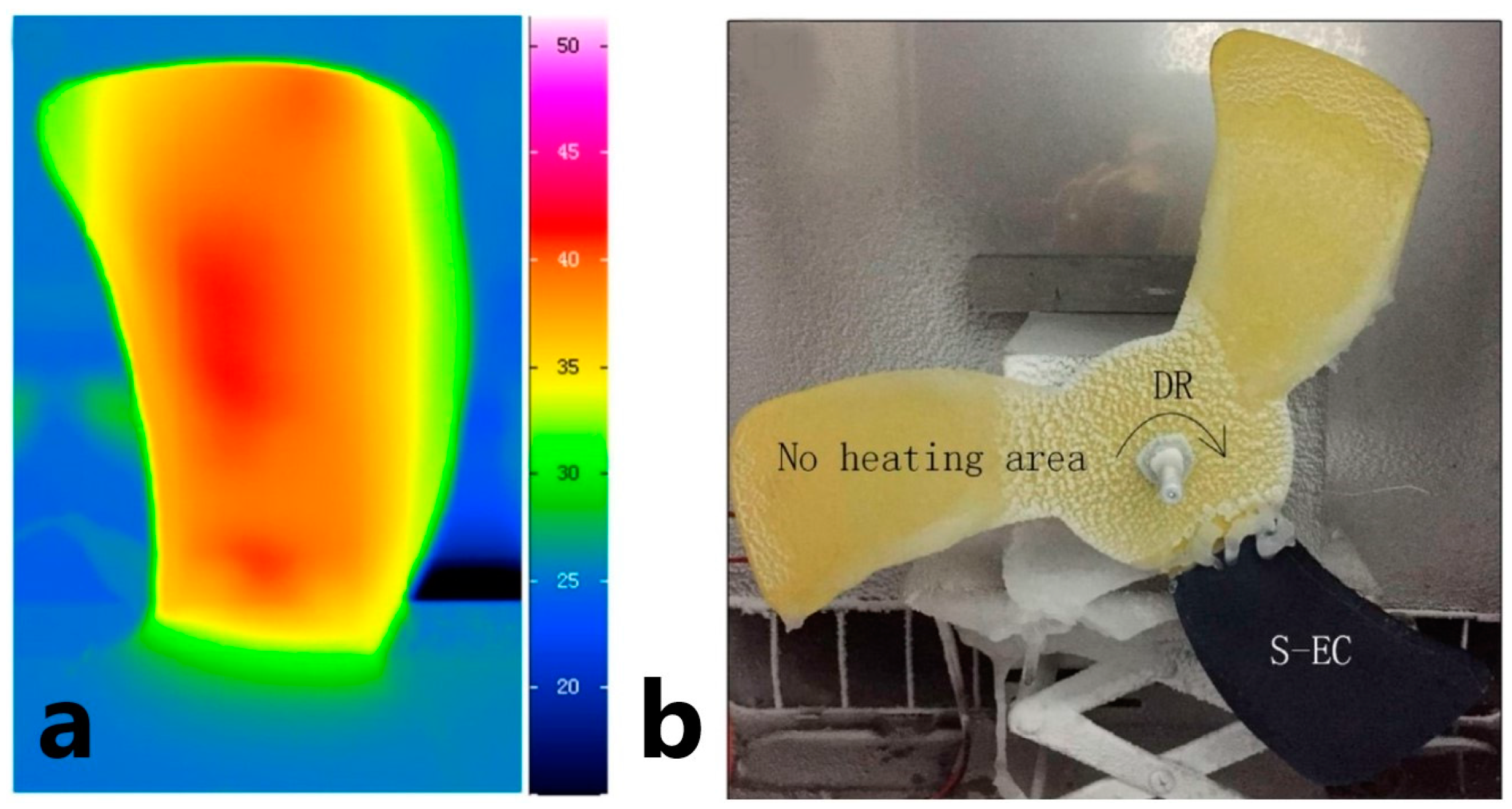

Figure 13. The application of the coating on rotating blade surface. (a) Infrared image of the blade coated with an electric heating coating (S-EC) supplied by direct current voltage. (b) The images after anti-icing test; DR represents the direction of rotation (Reprinted with permission from Elsevier, copyright 2018) [158].
Figure 13. The application of the coating on rotating blade surface. (a) Infrared image of the blade coated with an electric heating coating (S-EC) supplied by direct current voltage. (b) The images after anti-icing test; DR represents the direction of rotation (Reprinted with permission from Elsevier, copyright 2018) [158].
Polymers 15 01573 g013
The applicability of short carbon fibers as heaters was demonstrated in [159]. Carbon fibers, chopped at 6 mm, were annealed (graphitized). The change in the structure led to a significant increase in their thermal conductivity and electrical conductivity from 9.8 W/mK and 705.8 S/cm to 153.8 W/mK and 1314.9 S/cm, respectively. Then, PNC heaters were made from the annealed (CF2700) and parent fibers (CFs) with the same fiber content. These heaters were compared to a commercial NiCr heating source, Figure 14. At a voltage of 5 V, the CF2700 heater showed the most uniform heating, the same high temperature (105 °C), and the highest heating rate (400 deg/min).
One study [160] demonstrated the possibility of creating carbon nanotube buckypaper heaters (CNP) based on MWCNTs/epoxy nanocomposite. The samples were manufactured by resin impregnation technology in a vacuum (RV-CNP) and resin impregnation under pressure 0.4 MPa (RP-CNP). When tested for heating, the samples showed the maximal temperature of 110 °C and 130 °C, respectively, which corresponds to a thermal power of 2 kW/m2. Tests for de-icing showed high efficiency of RV-CNP, where de-icing took only 120 s.
Another study showed the possibility of manufacturing flexible self-heating tapes based on commercially available graphene-coated carbon fiber (G-CF35) in a polydimethylsiloxane (PDMS) matrix [161]. The G-CF35/PDMS heater was obtained by spray-coating the part, and tests showed stable results for both not deformed and twisted states with temperatures up to 190 °C and 197 °C, respectively, Figure 15. The maximal reached operating temperature was 297 °C, which corresponded to 11.1 kW/m2 of heat flux density.
The synergy of polymer and nanoparticles allows self-heating composites to be produced even in the form of foams. Thus, in [162] a PNC foam was obtained based on a multicomponent composite graphene/polydopamine/3-aminopropyltriethoxysilane/polydimethylsiloxane. The thermal conductivity was found to be highly anisotropic, with 28.77 W/mK in-plane and 1.62 W/mK out-of-plane at 11.62 wt.% graphene loading. The absence of heater degradation was also demonstrated during the cyclic operation of the composite at 40 °C for 200 heating-cooling cycles, Figure 16.
Summarizing, a number of combinations of polymers and electrically conductive nanoadditives have been considered. However, this is only the “tip of the iceberg” when we are considering nanoscale technologies, leaving tremendous potential for future research. The limitation factor here is again the mentioned above the limit of 10% maximum filler content in the matrix.
As we saw before, the optimal performance is provided on one side by coatings, and on another side by PNC solutions. Combining these two technologies into one, polymer nanocomposite coatings allow for the combined benefits of both. For PNC coating, there are no restrictions on filler mass content in comparison to additives in FRPC matrix, and due to the wide range of used materials, almost any functionality can be achieved. So, simultaneously with the heating function, such coatings can provide shielding, be coating condition sensors, have hydrophobic properties, self-healing, etc. This multifunctionality is impossible for metal coatings, even if they are used in conjunction with supporting solutions, presented in the next chapter. We assume that PNC coatings can replace metal coatings in the future. Currently, the factor limiting PNC mass production applications is the high price of most fillers and polymers, but with the development of manufacturing technologies, this problem can be solved in the future.

5. Passive Anti/De-Icing Support Solutions

The solutions presented in this chapter can be used both individually and in conjunction with most types of anti/de-icing systems. They were developed long before active systems but are still widely used today. Some of them allow for obtaining good results but unfortunately quickly lose their performance in time. Others have low efficiency but are durable and inexpensive.

5.1. Application of Hydrophobic Coatings

Hydrophobic liquids are widely used as materials for passive thin-film coatings for anti/de-icing on the FRPC surface [24,163,164]. Although hydrophobic coatings are convenient to apply and typically not expensive, it is generally not recommended to rely only on a hydrophobic coating alone for anti/de-icing [165]. Moreover, the hydrophobic coating can be destroyed by falling ice, snow, rain, etc. [166].
In [158,167] authors presented a combined multilayer anti/de-icing effect by applying a superhydrophobic thin-film coating over a PNC heater. Figure 17 compares the results of a de-icing test under identical environmental conditions for three surfaces: the PNC heater combined with a superhydrophobic coating (S-EC), the PNC heater without the superhydrophobic layer (EC), and a polyimide heating film (HF) as a traditional heater. As a result, the S-EC coating coped with the task at a lower energy cost than the EC and HF heaters: 0.41, 0.56, and 0.98 W/cm2, respectively.
Moreover, hydrophobic properties can be obtained from the surface, which mimics nature, where hydrophobic properties are often encountered, e.g., lotus leaves, rice, roses, etc. [168,169]. However, these coatings are also not perfect: they are very difficult to obtain in large areas, they have a high cost, and their hydrophobic properties disappear under harsh operating conditions [170].

5.2. Chemical Removal

Chemicals preventing water from freezing are used as a treatment in aircraft services. However, when using chemical substances, it is necessary to take into account the pollution of the environment [171] as well as the fact of corrosion. Thereby, for example, this method is not currently used in the operation of turbine blades of wind turbines [172].

5.3. Absorbing Sun Radiation

The application of black paint absorbs solar radiation and, thereby, increases the surface temperature, which negatively affects the formation of ice. Black paint is typically used in conjunction with a hydrophobic coating. Black paint heat absorption is not easy to control and can quickly overheat the surface resulting in premature decommissioning of FRPC [173].

6. Conclusions

Since the middle of the 20th century, a number of studies have been carried out, aimed at studying the processes of preventing and removing an ice crust from the surface of FRPC products. This area began to develop especially actively with the discovery of new nanosized additives and highly effective hydrophobic compounds. Our study provides an overview of a large number of heating solutions for anti/de-icing on the surface of FRPC products. They can be divided into two groups: external heating systems—located outside the composite product, and internal heating systems—located inside the composite product. However, this division is only formal; for example, the heater based on PNC, an internal heater, can be applied on an FRPC surface and this solution will be named an external heating system. For PNC systems, the percolation threshold is very important. The value of the percolation threshold depends on the aspect ratio of the filler particle [149], the particle’s size [144], the structure of the particles [157], the functionalization of the particle surface [154], and also on their ordering [119]. The FRPC and PNC heaters work more efficiently when accompanied by hydrophobic coatings. The synergistic effect always exceeds the impact of heating and hydrophobic separately [174,175,176].
In general, the effect of the interaction of two or more components in the process of obtaining effective solutions is very relevant. Based on the review, we can conclude that the solutions with the best technical indicators were obtained using multicomponent systems. Thus, the high thermal conductivity of an electrically conductive nanoparticle-polymer composite was obtained with the synergy of graphene and SiC nanowires, 2.13 W/mK at 9.5 wt.% [153]. As for the dielectric case, high-performance k was demonstrated by the cellulose nanofiber/NB/epoxy composite, 3 W/mK at 10 wt.%, whereas the thermal conductivity of graphene/epoxy, cellulose nanofiber/epoxy, and NB/epoxy is below 1 W/mK at 10 wt% [87,142]. Similar effects are shown for electrical conductivity and reaching the percolation threshold. In most cases, these phenomena are anisotropic.
To select a technical solution for anti/de-icing the surface of an FRPC product, there is no standard answer; each case requires an individual approach. It is necessary to take into account the characteristics of the used polymer, environment, and reinforcement. When using nano-sized additives, we need to consider their aspect ratio, size, structure, surface functionalization technologies, and peculiarities of interaction with other additives.

Author Contributions

Conceptualization, A.V.S. and S.G.A.; methodology, A.V.S.; validation, S.G.A. and B.M.; visualization, M.O.; writing—original draft preparation, A.V.S.; writing—review and editing, A.V.S. and S.G.A.; supervision, S.G.A. All authors have read and agreed to the published version of the manuscript.


This work was supported by the Skoltech NGP Program, the project “Multifunctional Fusion: Life-cycle enhancements via data-driven nanoengineering of advanced composite structures”.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.


0DZero dimensional
1DOne dimensional
2DTwo dimensional
3DThree dimensional
AlNAluminum nitride
BMIMBF41-n-Butyl-3-methylimidazolium tetrafluoroborate
BNBoron nitride
CMCCarboxymethyl cellulose
CNTCarbon nanotubes
CPEChlorinated polyethylene
DGEBABisphenol A
EMAEthylene methyl acrylate
ECTElectro-conductive carbon-based textile
FMLFiber metal laminate
FRPCFiber-reinforced polymer composites
GLAREGlass laminate aluminum reinforced epoxy composite structure
MCFMetalized carbon fiber
MWCNTMulti-wall carbon nanotubes
PEOPolyethylene glycol
PNCPolymer nanocomposites
PVAPolyvinyl alcohol
PVDFPolyvinylidene fluoride
SBRStyrene-butadiene rubber
SiCSilicon carbide
SDBSSodium dodecyl benzene sulfonate
TPUThermoplastic polyurethane


  1. World’s Most Powerful Offshore Wind Platform: Haliade-X|GE Renewable Energy. Available online: (accessed on 13 September 2021).
  2. McElhinney, D.; Kitchenside, A.; Rowland, K. The Use of Carbon Fibre Reinforced Plastics: A review of the progress made in the practical application of CFRP to conventional commercial aircraft structures. Aircr. Eng. Aerosp. Technol. 1969, 41, 22–25. [Google Scholar] [CrossRef]
  3. Boeing: 787 by Design. Available online: (accessed on 13 September 2021).
  4. Innovation-A380-Airbus. Available online: (accessed on 13 September 2021).
  5. Peredovie Technologii. Available online: (accessed on 13 September 2021).
  6. Rubino, F.; Nisticò, A.; Tucci, F.; Carlone, P. Marine Application of Fiber Reinforced Composites: A Review. J. Mar. Sci. Eng. 2020, 8, 26. [Google Scholar] [CrossRef] [Green Version]
  7. Kim, H.S.; Jang, J.-U.; Lee, H.; Kim, S.Y.; Kim, S.H.; Kim, J.; Jung, Y.C.; Yang, B.J. Thermal Management in Polymer Composites: A Review of Physical and Structural Parameters. Adv. Eng. Mater. 2018, 20, 1800204. [Google Scholar] [CrossRef]
  8. Jeddi, J.; Katbab, A.A. The electrical conductivity and EMI shielding properties of polyurethane foam/silicone rubber/carbon black/nanographite hybrid composites. Polym. Compos. 2018, 39, 3452–3460. [Google Scholar] [CrossRef]
  9. Kargar, F.; Barani, Z.; Balinskiy, M.; Magana, A.S.; Lewis, J.S.; Balandin, A.A. Dual-Functional Graphene Composites for Electromagnetic Shielding and Thermal Management. Adv. Electron. Mater. 2019, 5, 1800558. [Google Scholar] [CrossRef] [Green Version]
  10. Wu, X.; Chu, F.; Ma, Q.; Zhu, B. Frost formation and frost meltwater drainage characteristics on aluminum surfaces with grooved structures. Appl. Therm. Eng. 2017, 118, 448–454. [Google Scholar] [CrossRef]
  11. Shirazi, A.; Najafi, B.; Aminyavari, M.; Rinaldi, F.; Taylor, R.A. Thermal–economic–environmental analysis and multi-objective optimization of an ice thermal energy storage system for gas turbine cycle inlet air cooling. Energy 2014, 69, 212–226. [Google Scholar] [CrossRef]
  12. Dai, J.; Li, H.; Zhang, Y.; Chen, H. Optimization of multi-element airfoil settings considering ice accretion effect. Chin. J. Aeronaut. 2023, 36, 41–57. [Google Scholar] [CrossRef]
  13. Jones, S.; Reveley, M.; Evans, J.K.; Barrientos, F.A. Subsonic Aircraft Safety Icing Study. Technical Memorandum NASA, NASA/TM—2008–215107, 1 January 2008. [Google Scholar]
  14. Deiler, C.; Kilian, T. Dynamic aircraft simulation model covering local icing effects. CEAS Aeronaut. J. 2018, 9, 429–444. [Google Scholar] [CrossRef]
  15. Arctic Marine Shipping Assessment 2009 Report. 2009. Available online: (accessed on 15 September 2021).
  16. Shu, L.; Li, H.; Hu, Q.; Jiang, X.; Qiu, G.; McClure, G.; Yang, H. Study of ice accretion feature and power characteristics of wind turbines at natural icing environment. Cold Reg. Sci. Technol. 2018, 147, 45–54. [Google Scholar] [CrossRef]
  17. Kenzhebayeva, A.; Bakbolat, B.; Sultanov, F.; Daulbayev, C.; Mansurov, Z. A Mini-Review on Recent Developments in Anti-Icing Methods. Polymers 2021, 13, 4149. [Google Scholar] [CrossRef] [PubMed]
  18. Merrill, H.M.; Feltes, J.W. Transmission icing: A physical risk with a physical hedge. In Proceedings of the 2006 IEEE Power Engineering Society General Meeting, Montreal, QC, Canada, 18–22 June 2006; p. 7. [Google Scholar] [CrossRef]
  19. Matejicka, L.; Georgakis, C.T. A review of ice and snow risk mitigation and control measures for bridge cables. Cold Reg. Sci. Technol. 2022, 193, 103429. [Google Scholar] [CrossRef]
  20. Onal, M.; Onal, E. Use of Snow and Ice Melting Heating Cables on Roofs of Existing Buildings. Int. J. Sci. Technol. Res. 2017, 6, 145–147. Available online: (accessed on 21 January 2023).
  21. Parent, O.; Ilinca, A. Anti-icing and de-icing techniques for wind turbines: Critical review. Cold Reg. Sci. Technol. 2011, 65, 88–96. [Google Scholar] [CrossRef]
  22. Tan, S.; Han, X.; Cheng, S.; Guo, P.; Wang, X.; Che, P.; Jin, R.; Jiang, L.; Heng, L. Photothermal Solid Slippery Surfaces with Rapid Self-Healing, Improved Anti/De-Icing and Excellent Stability. Macromol. Rapid Commun. 2023, 44, 2200816. [Google Scholar] [CrossRef]
  23. Shi, Z.; Kang, Z.; Xie, Q.; Tian, Y.; Zhao, Y.; Zhang, J. Ultrasonic Deicing Efficiency Prediction and Validation for a Flat Deicing System. Appl. Sci. 2020, 10, 6640. [Google Scholar] [CrossRef]
  24. Saji, V.S. Wax-based artificial superhydrophobic surfaces and coatings. Colloids Surf. A Physicochem. Eng. Asp. 2020, 602, 125132. [Google Scholar] [CrossRef]
  25. Löfgren, S. The Chemical Effects of Deicing Salt on Soil and Stream Water of Five Catchments in Southeast Sweden. Water Air Soil Pollut. 2001, 130, 863–868. [Google Scholar] [CrossRef]
  26. This Month Physics History. Available online: (accessed on 29 August 2020).
  27. The Development of an Advanced Anti-Icing/Deicing Capability for U.S. Army Helicopters. Volume II. Ice Protection System Application to the UH-1H helicopter. Available online: (accessed on 15 September 2021).
  28. Dalili, N.; Edrisy, A.; Carriveau, R. A review of surface engineering issues critical to wind turbine performance. Renew. Sustain. Energy Rev. 2009, 13, 428–438. [Google Scholar] [CrossRef]
  29. Gonzalez, R.; Ashrafizadeh, H.; Lopera, A.; Mertiny, P.; McDonald, A. A Review of Thermal Spray Metallization of Polymer-Based Structures. J. Therm. Spray Technol. 2016, 25, 897–919. [Google Scholar] [CrossRef] [Green Version]
  30. Lopera-Valle, A.; McDonald, A. Application of Flame-Sprayed Coatings as Heating Elements for Polymer-Based Composite Structures. J. Therm. Spray Technol. 2015, 24, 1289–1301. [Google Scholar] [CrossRef]
  31. ASM Handbook, Volume 5A: Thermal Spray Technology—ASM International. Available online: (accessed on 15 September 2021).
  32. 787 Integrates New Composite Wing Deicing System|CompositesWorld. Available online: (accessed on 19 December 2021).
  33. McNaughton, T.G.; Horch, K.W. Metallized polymer fibers as leadwires and intrafascicular microelectrodes. J. Neurosci. Methods 1996, 70, 103–107. [Google Scholar] [CrossRef] [PubMed]
  34. Duguet, T.; Senocq, F.; Laffont, L.; Vahlas, C. Metallization of polymer composites by metalorganic chemical vapor deposition of Cu: Surface functionalization driven films characteristics. Surf. Coat. Technol. 2013, 230, 254–259. [Google Scholar] [CrossRef] [Green Version]
  35. Gritsenko, K.P. Metal-polymer optical storage media produced by PECVD. Thin Solid Films 1993, 227, 1–2. [Google Scholar] [CrossRef]
  36. Voyer, J.; Schulz, P.; Schreiber, M. Electrically Conductive Flame Sprayed Aluminum Coatings on Textile Substrates. J. Therm. Spray Technol. 2008, 17, 818–823. [Google Scholar] [CrossRef]
  37. Voronin, A.S.; Simunin, M.M.; Ivanchenko, F.S.; Shiverskii, A.V.; Fadeev, Y.V.; Tambasov, I.A.; Nemtsev, I.V.; Matsynin, A.A.; Khartov, S.V. Preparation and investigation of composite transparent electrodes of poly(3, 4-ethylenedioxythiophene) polystyrene sulfonate/single-wall carbon nanotubes. Tech. Phys. Lett. 2017, 43, 783–786. [Google Scholar] [CrossRef]
  38. Shibutani, Y.; Kitagawa, H.; Akagi, M.; Sakaguchi, M. Propagation Process of Delamination and Local Deformation on Metal-Polymer Laminated Materials. JSME Int. J. Ser. 1 Solid Mech. Strength Mater. 1991, 34, 207–213. [Google Scholar] [CrossRef] [Green Version]
  39. Hung, C.; Dillehay, M.; Stahl, M. A heater made from graphite composite material for potential deicingapplication. In Proceedings of the 25th AIAA Aerospace Sciences Meeting, Reno, NV, USA, 24–26 March 1987. [Google Scholar] [CrossRef] [Green Version]
  40. Mohseni, M.; Amirfazli, A. A novel electro-thermal anti-icing system for fiber-reinforced polymer composite airfoils. Cold Reg. Sci. Technol. 2013, 87, 47–58. [Google Scholar] [CrossRef]
  41. Vlot, A. Historical overview. Fibre Met. Laminates; Springer Science + Business Media B.V.: Berlin/Heidelberg, Germany, 2001; pp. 3–21. [Google Scholar] [CrossRef]
  42. Hagenbeek, M.; Dias, M.M.; Sinke, J.; Jansen, K. Creep behaviour of FM906 glass-fibre epoxy as used in heated fibre metal laminates. J. Compos. Mater. 2019, 53, 3829–3840. [Google Scholar] [CrossRef] [Green Version]
  43. Hagenbeek, M.; Müller, B.; Sinke, J. Effect of Thermal Cycling and Aging on Heated Fiber Metal Laminates and Glass-Fiber Epoxy Composites. Adv. Eng. Mater. 2019, 21, 1800084. [Google Scholar] [CrossRef]
  44. Hagenbeek, M.; Sinke, J. Effect of thermal cycling heated Fibre Metal Laminates under static load. Compos. Struct. 2019, 211, 540–545. [Google Scholar] [CrossRef]
  45. Ibrahim, Y.; Kempers, R.; Amirfazli, A. 3D printed electro-thermal anti- or de-icing system for composite panels. Cold Reg. Sci. Technol. 2019, 166, 102844. [Google Scholar] [CrossRef]
  46. Yim, Y.-J.; Rhee, K.Y.; Park, S.-J. Influence of electroless nickel-plating on fracture toughness of pitch-based carbon fibre reinforced composites. Compos. Part B Eng. 2015, 76, 286–291. [Google Scholar] [CrossRef]
  47. Jeong, Y.G.; Jeon, G.W. Microstructure and Performance of Multiwalled Carbon Nanotube/m-Aramid Composite Films as Electric Heating Elements. ACS Appl. Mater. Interfaces 2013, 5, 6527–6534. [Google Scholar] [CrossRef] [PubMed]
  48. Jang, J.; Ryu, S.K. Physical property and electrical conductivity of electroless Ag-plated carbon fiber-reinforced paper. J. Mater. Process. Technol. 2006, 180, 66–73. [Google Scholar] [CrossRef]
  49. Kong, K.; Deka, B.K.; Kim, M.; Oh, A.; Kim, H.; Park, Y.-B.; Park, H.W. Interlaminar resistive heating behavior of woven carbon fiber composite laminates modified with ZnO nanorods. Compos. Sci. Technol. 2014, 100, 83–91. [Google Scholar] [CrossRef]
  50. Çakmakçı, E.; Koçyiğit, Ç.; Çakır, S.; Durmus, A.; Kahraman, M.V. Preparation and characterization of thermally conductive thermoplastic polyurethane/h-BN nanocomposites. Polym. Compos. 2014, 35, 530–538. [Google Scholar] [CrossRef]
  51. Kim, T.; Chung, D. Carbon fiber mats as resistive heating elements. Carbon 2003, 41, 2436–2440. [Google Scholar] [CrossRef]
  52. Choi, B.-K.; Choi, W.-K.; Rhee, K.Y.; Park, S.-J.; Seo, M.-K. Influence of heat treatment temperature on structure and exothermic properties of electroless Ni P plating carbon fiber heating elements. Compos. Part B Eng. 2019, 167, 676–682. [Google Scholar] [CrossRef]
  53. Kim, H.; Lee, S.; Kim, H. Electrical Heating Performance of Electro-Conductive Para-aramid Knit Manufactured by Dip-Coating in a Graphene/Waterborne Polyurethane Composite. Sci. Rep. 2019, 9, 1511. [Google Scholar] [CrossRef] [Green Version]
  54. Kim, H.; Lee, S. Characteristics of Electrical Heating Elements Coated with Graphene Nanocomposite on Polyester Fabric: Effect of Different Graphene Contents and Annealing Temperatures. Fibers Polym. 2018, 19, 965–976. [Google Scholar] [CrossRef]
  55. Falzon, B.G.; Robinson, P.; Frenz, S.; Gilbert, B. Development and evaluation of a novel integrated anti-icing/de-icing technology for carbon fibre composite aerostructures using an electro-conductive textile. Compos. Part A Appl. Sci. Manuf. 2014, 68, 323–335. [Google Scholar] [CrossRef] [Green Version]
  56. Choi, H.; Jee, S.; Ko, J.; Kim, D.; Kim, S. Properties of Surface Heating Textile for Functional Warm Clothing Based on a Composite Heating Element with a Positive Temperature Coefficient. Nanomaterials 2021, 11, 904. [Google Scholar] [CrossRef] [PubMed]
  57. Fischer, T.; Rühling, J.; Wetzold, N.; Zillger, T.; Weissbach, T.; Göschel, T.; Würfel, M.; Hübler, A.; Kroll, L. Roll-to-roll printed carbon nanotubes on textile substrates as a heating layer in fiber-reinforced epoxy composites. J. Appl. Polym. Sci. 2018, 135, 45950. [Google Scholar] [CrossRef]
  58. Zhang, X.; Lu, W.; Zhou, G.; Li, Q. Understanding the Mechanical and Conductive Properties of Carbon Nanotube Fibers for Smart Electronics. Adv. Mater. 2019, 32, e1902028. [Google Scholar] [CrossRef] [PubMed]
  59. Tarfaoui, M.; El Moumen, A.; Boehle, M.; Shah, O.; Lafdi, K. Self-heating and deicing epoxy/glass fiber based carbon nanotubes buckypaper composite. J. Mater. Sci. 2018, 54, 1351–1362. [Google Scholar] [CrossRef]
  60. Chu, H.; Zhang, Z.; Liu, Y.; Leng, J. Self-heating fiber reinforced polymer composite using meso/macropore carbon nanotube paper and its application in deicing. Carbon 2014, 66, 154–163. [Google Scholar] [CrossRef]
  61. Iijima, S. Helical microtubules of graphitic carbon. Nature 1991, 354, 56–58. [Google Scholar] [CrossRef]
  62. Yao, X.; Hawkins, S.C.; Falzon, B.G. An advanced anti-icing/de-icing system utilizing highly aligned carbon nanotube webs. Carbon 2018, 136, 130–138. [Google Scholar] [CrossRef] [Green Version]
  63. Vertuccio, L.; De Santis, F.; Pantani, R.; Lafdi, K.; Guadagno, L. Effective de-icing skin using graphene-based flexible heater. Compos. Part B Eng. 2019, 162, 600–610. [Google Scholar] [CrossRef]
  64. Xu, X.; Wang, F.; Mao, J. The flexible pressure-sensitive adhesive graphene-based composite heater based on the laminating structure for de-icing applications. J. Mater. Sci. Mater. Electron. 2021, 32, 13994–14005. [Google Scholar] [CrossRef]
  65. Kim, D.; Lee, H.-C.; Woo, J.Y.; Han, C.-S. Thermal Behavior of Transparent Film Heaters Made of Single-Walled Carbon Nanotubes. J. Phys. Chem. C 2010, 114, 5817–5821. [Google Scholar] [CrossRef]
  66. Volman, V.; Zhu, Y.; Raji, A.-R.O.; Genorio, B.; Lu, W.; Xiang, C.; Kittrell, C.; Tour, J.M. Radio-Frequency-Transparent, Electrically Conductive Graphene Nanoribbon Thin Films as Deicing Heating Layers. ACS Appl. Mater. Interfaces 2013, 6, 298–304. [Google Scholar] [CrossRef] [PubMed]
  67. Sui, D.; Huang, Y.; Huang, L.; Liang, J.; Ma, Y.; Chen, Y. Flexible and Transparent Electrothermal Film Heaters Based on Graphene Materials. Small 2011, 7, 3186–3192. [Google Scholar] [CrossRef]
  68. Materials & Processes: Resin Matrices for Composites|CompositesWorld. Available online: (accessed on 20 September 2021).
  69. Li, X.-Y.; Zha, J.-W.; Wang, S.-J.; Zhong, S.-L.; Zhang, C.; Dang, Z.-M. Effect of high-thermal conductivity epoxy resin on heat dissipation performance of saturated reactor. IEEE Trans. Dielectr. Electr. Insul. 2017, 24, 3898–3905. [Google Scholar] [CrossRef]
  70. Yang, X.; Liang, C.; Ma, T.; Guo, Y.; Kong, J.; Gu, J.; Chen, M.; Zhu, J. A review on thermally conductive polymeric composites: Classification, measurement, model and equations, mechanism and fabrication methods. Adv. Compos. Hybrid Mater. 2018, 1, 207–230. [Google Scholar] [CrossRef]
  71. Shah, K.W.; Xiong, T. Multifunctional Metallic Nanowires in Advanced Building Applications. Materials 2019, 12, 1731. [Google Scholar] [CrossRef] [Green Version]
  72. Shah, K.W.; Lu, Y. Morphology, large scale synthesis and building applications of copper nanomaterials. Constr. Build. Mater. 2018, 180, 544–578. [Google Scholar] [CrossRef]
  73. Suter, M.; Ergeneman, O.; Zürcher, J.; Moitzi, C.; Pané, S.; Rudin, T.; Pratsinis, S.; Nelson, B.; Hierold, C. A photopatternable superparamagnetic nanocomposite: Material characterization and fabrication of microstructures. Sens. Actuators B Chem. 2011, 156, 433–443. [Google Scholar] [CrossRef] [Green Version]
  74. Machrafi, H.; Lebon, G.; Iorio, C. Effect of volume-fraction dependent agglomeration of nanoparticles on the thermal conductivity of nanocomposites: Applications to epoxy resins, filled by SiO2, AlN and MgO nanoparticles. Compos. Sci. Technol. 2016, 130, 78–87. [Google Scholar] [CrossRef] [Green Version]
  75. Rivière, L.; Lonjon, A.; Dantras, E.; Lacabanne, C.; Olivier, P.; Gleizes, N.R. Silver fillers aspect ratio influence on electrical and thermal conductivity in PEEK/Ag nanocomposites. Eur. Polym. J. 2016, 85, 115–125. [Google Scholar] [CrossRef] [Green Version]
  76. Khan, S.U.; Li, C.Y.; Siddiqui, N.A.; Kim, J.-K. Vibration damping characteristics of carbon fiber-reinforced composites containing multi-walled carbon nanotubes. Compos. Sci. Technol. 2011, 71, 1486–1494. [Google Scholar] [CrossRef]
  77. Forcellese, A.; Simoncini, M.; Vita, A.; Giovannelli, A.; Leonardi, L. Performance analysis of MWCNT/Epoxy composites produced by CRTM. J. Mater. Process. Technol. 2020, 286, 116839. [Google Scholar] [CrossRef]
  78. Moreira, D.C.; Braga, J.N.R.; A Sphaier, L.; Nunes, L.C. Size effect on the thermal intensification of alumina-filled nanocomposites. J. Compos. Mater. 2016, 50, 3699–3707. [Google Scholar] [CrossRef]
  79. Deshmukh, R.D.; Composto, R.J. Surface Segregation and Formation of Silver Nanoparticles Created In situ in Poly(methyl Methacrylate) Films. Chem. Mater. 2007, 19, 745–754. [Google Scholar] [CrossRef]
  80. Lizundia, E.; Pérez-Álvarez, L.; Sáenz-Pérez, M.; Patrocinio, D.; Vilas, J.L.; León, L.M. Physical aging and mechanical performance of poly(l-lactide)/ZnO nanocomposites. J. Appl. Polym. Sci. 2016, 133, 45. [Google Scholar] [CrossRef]
  81. Wu, H.; Kessler, M.R. Multifunctional Cyanate Ester Nanocomposites Reinforced by Hexagonal Boron Nitride after Noncovalent Biomimetic Functionalization. ACS Appl. Mater. Interfaces 2015, 7, 5915–5926. [Google Scholar] [CrossRef]
  82. Kuang, Z.; Chen, Y.; Lu, Y.; Liu, L.; Hu, S.; Wen, S.; Mao, Y.; Zhang, L. Fabrication of Highly Oriented Hexagonal Boron Nitride Nanosheet/Elastomer Nanocomposites with High Thermal Conductivity. Small 2015, 11, 1655–1659. [Google Scholar] [CrossRef]
  83. Anh, T.T.; Fréchette, M.; David, R.; Veillette, R.; Moraille, P. Effect of POSS-grafted titanium dioxide on the electrical and thermal properties of LDPE/TiO2 polymer nanocomposite. J. Appl. Polym. Sci. 2018, 135, 46095. [Google Scholar] [CrossRef]
  84. Xie, Q.; Cheng, Y.; Chen, S.; Wu, G.; Wang, Z.; Jia, Z. Dielectric and thermal properties of epoxy resins with TiO2 nanowires. J. Mater. Sci. Mater. Electron. 2017, 28, 17871–17880. [Google Scholar] [CrossRef]
  85. Kusunose, T.; Yagi, T.; Firoz, S.H.; Sekino, T. Fabrication of epoxy/silicon nitride nanowire composites and evaluation of their thermal conductivity. J. Mater. Chem. A 2013, 1, 3440–3445. [Google Scholar] [CrossRef]
  86. Fang, L.; Wu, W.; Huang, X.; He, J.; Jiang, P. Hydrangea-like zinc oxide superstructures for ferroelectric polymer composites with high thermal conductivity and high dielectric constant. Compos. Sci. Technol. 2015, 107, 67–74. [Google Scholar] [CrossRef]
  87. Chen, J.; Huang, X.; Zhu, Y.; Jiang, P. Cellulose Nanofiber Supported 3D Interconnected BN Nanosheets for Epoxy Nanocomposites with Ultrahigh Thermal Management Capability. Adv. Funct. Mater. 2017, 27, 1604754. [Google Scholar] [CrossRef]
  88. Wang, Z.; Fu, Y.; Meng, W.; Zhi, C. Solvent-free fabrication of thermally conductive insulating epoxy composites with boron nitride nanoplatelets as fillers. Nanoscale Res. Lett. 2014, 9, 643. [Google Scholar] [CrossRef] [Green Version]
  89. Moreira, D.C.; Junior, N.R.B.; Benevides, R.O.; Sphaier, L.A.; Nunes, L.C.S. Temperature-dependent thermal conductivity of silicone-Al2O3 nanocomposites. Appl. Phys. A 2015, 121, 1227–1234. [Google Scholar] [CrossRef]
  90. Chao, M.; Guo, C.; Feng, A.; Huang, Z.; Yang, Q.; Wu, G. Improved Thermal Conductivity and Mechanical Property of PTFE Reinforced with Al2O3. Nano 2019, 14, 1950064. [Google Scholar] [CrossRef]
  91. Kim, K.; Kim, J. Magnetic aligned AlN/epoxy composite for thermal conductivity enhancement at low filler content. Compos. Part B Eng. 2016, 93, 67–74. [Google Scholar] [CrossRef]
  92. Zhang, X.; Zhang, J.; Xia, L.; Li, C.; Wang, J.; Xu, F.; Zhang, X.; Wu, H.; Guo, S. Simple and Consecutive Melt Extrusion Method to Fabricate Thermally Conductive Composites with Highly Oriented Boron Nitrides. ACS Appl. Mater. Interfaces 2017, 9, 22977–22984. [Google Scholar] [CrossRef]
  93. Zou, D.; Huang, X.; Zhu, Y.; Chen, J.; Jiang, P. Boron nitride nanosheets endow the traditional dielectric polymer composites with advanced thermal management capability. Compos. Sci. Technol. 2019, 177, 88–95. [Google Scholar] [CrossRef]
  94. Zhi, C.; Bando, Y.; Terao, T.; Tang, C.; Kuwahara, H.; Golberg, D. Towards Thermoconductive, Electrically Insulating Polymeric Composites with Boron Nitride Nanotubes as Fillers. Adv. Funct. Mater. 2009, 19, 1857–1862. [Google Scholar] [CrossRef]
  95. Shen, D.; Zhan, Z.; Liu, Z.; Cao, Y.; Zhou, L.; Liu, Y.; Dai, W.; Nishimura, K.; Li, C.; Lin, C.-T.; et al. Enhanced thermal conductivity of epoxy composites filled with silicon carbide nanowires. Sci. Rep. 2017, 7, 2606. [Google Scholar] [CrossRef] [Green Version]
  96. Kim, K.; Kim, J. Exfoliated boron nitride nanosheet/MWCNT hybrid composite for thermal conductive material via epoxy wetting. Compos. Part B Eng. 2018, 140, 9–15. [Google Scholar] [CrossRef]
  97. Kargar, F.; Barani, Z.; Salgado, R.A.; Debnath, B.; Lewis, J.S.; Aytan, E.; Lake, R.K.; Balandin, A.A. Thermal Percolation Threshold and Thermal Properties of Composites with High Loading of Graphene and Boron Nitride Fillers. ACS Appl. Mater. Interfaces 2018, 10, 37555–37565. [Google Scholar] [CrossRef]
  98. Schneider, R.; Lüthi, S.R.; Albrecht, K.; Brülisauer, M.; Bernard, A.; Geiger, T. Transparent Silicone Calcium Fluoride Nanocomposite with Improved Thermal Conductivity. Macromol. Mater. Eng. 2015, 300, 80–85. [Google Scholar] [CrossRef]
  99. Kochetov, R.; Korobko, A.V.; Andritsch, T.; Morshuis, P.H.F.; Picken, S.J.; Smit, J.J. Modelling of the thermal conductivity in polymer nanocomposites and the impact of the interface between filler and matrix. J. Phys. D Appl. Phys. 2011, 44, 395401. [Google Scholar] [CrossRef] [Green Version]
  100. Gu, J.; Zhang, Q.; Dang, J.; Yin, C.; Chen, S. Preparation and properties of polystyrene/SiCw/SiCp thermal conductivity composites. J. Appl. Polym. Sci. 2012, 124, 132–137. [Google Scholar] [CrossRef]
  101. Guo, Y.; Xu, G.; Yang, X.; Ruan, K.; Ma, T.; Zhang, Q.; Gu, J.; Wu, Y.; Liu, H.; Guo, Z. Significantly enhanced and precisely modeled thermal conductivity in polyimide nanocomposites with chemically modified graphene via in situ polymerization and electrospinning-hot press technology. J. Mater. Chem. C 2018, 6, 3004–3015. [Google Scholar] [CrossRef]
  102. Chen, R.; Johnson, M.B.; Plucknett, K.; White, M.A. Thermal conductivity of tunable lamellar aluminum oxide/polymethyl methacrylate hybrid composites. J. Mater. Res. 2012, 27, 1869–1876. [Google Scholar] [CrossRef]
  103. Gu, J.; Zhang, Q.; Dang, J.; Zhang, J.; Yang, Z. Thermal conductivity and mechanical properties of aluminum nitride filled linear low-density polyethylene composites. Polym. Eng. Sci. 2009, 49, 1030–1034. [Google Scholar] [CrossRef]
  104. Hong, J.-P.; Yoon, S.-W.; Hwang, T.; Oh, J.-S.; Hong, S.-C.; Lee, Y.; Nam, J.-D. High thermal conductivity epoxy composites with bimodal distribution of aluminum nitride and boron nitride fillers. Thermochim. Acta 2012, 537, 70–75. [Google Scholar] [CrossRef]
  105. Gu, J.; Lv, Z.; Wu, Y.; Zhao, R.; Tian, L.; Zhang, Q. Enhanced thermal conductivity of SiCp/PS composites by electrospinning–hot press technique. Compos. Part A Appl. Sci. Manuf. 2015, 79, 8–13. [Google Scholar] [CrossRef]
  106. Gu, J.; Zhang, Q.; Dang, J.; Xie, C. Thermal conductivity epoxy resin composites filled with boron nitride. Polym. Adv. Technol. 2012, 23, 1025–1028. [Google Scholar] [CrossRef]
  107. Pak, S.Y.; Kim, H.M.; Kim, S.Y.; Youn, J.R. Synergistic improvement of thermal conductivity of thermoplastic composites with mixed boron nitride and multi-walled carbon nanotube fillers. Carbon 2012, 50, 4830–4838. [Google Scholar] [CrossRef]
  108. Owais, M.; Shiverskii, A.; Pal, A.K.; Mahato, B.; Abaimov, S.G. Recent Studies on Thermally Conductive 3D Aerogels/Foams with the Segregated Nanofiller Framework. Polymers 2022, 14, 4796. [Google Scholar] [CrossRef]
  109. Owais, M.; Javed, M.H.; Akram, M.Z.; Paxton, W.F.; Akhatov, I.S.; Abaimov, S.G. Review—Recent Advances in Thermally Conductive Paper-Like Films. ECS J. Solid State Sci. Technol. 2021, 10, 033001. [Google Scholar] [CrossRef]
  110. Owais, M.; Shiverskii, A.; Sulimov, A.; Ostrizhiniy, D.; Popov, Y.; Mahato, B.; Abaimov, S.G. Scalable Fabrication of Thermally Conductive Layered Nacre-like Self-Assembled 3D BN-Based PVA Aerogel Framework Nanocomposites. Polymers 2022, 14, 3316. [Google Scholar] [CrossRef]
  111. Wang, D.; Huang, M.; Zha, J.-W.; Zhao, J.; Dang, Z.-M.; Cheng, Z. Dielectric properties of polystyrene based composites filled with core-shell BaTiO3/polystyrene hybrid nanoparticles. IEEE Trans. Dielectr. Electr. Insul. 2014, 21, 1438–1445. [Google Scholar] [CrossRef]
  112. Niu, Y.; Bai, Y.; Yu, K.; Wang, Y.; Xiang, F.; Wang, H. Effect of the Modifier Structure on the Performance of Barium Titanate/Poly(vinylidene fluoride) Nanocomposites for Energy Storage Applications. ACS Appl. Mater. Interfaces 2015, 7, 24168–24176. [Google Scholar] [CrossRef]
  113. Lebedev, D.; Shiverskiy, A.V.; Simunin, M.M.; Solodovnichenko, V.S.; Parfenov, V.A.; Bykanova, V.V.; Khartov, S.V.; Ryzhkov, I.I. Preparation and ionic selectivity of carbon-coated alumina nanofiber membranes. Pet. Chem. 2017, 57, 306–317. [Google Scholar] [CrossRef]
  114. Franz, R.; Wiedemann, G. Ueber die Wärme-Leitungsfähigkeit der Metalle. Ann. Phys. 1853, 165, 497–531. [Google Scholar] [CrossRef] [Green Version]
  115. Bhawal, P.; Ganguly, S.; Das, T.K.; Mondal, S.; Das, N. Mechanically robust conductive carbon clusters confined ethylene methyl acrylate-based flexible composites for superior shielding effectiveness. Polym. Adv. Technol. 2017, 29, 95–110. [Google Scholar] [CrossRef]
  116. Stavropoulos, S.; Sanida, A.; Psarras, G.C. A comparative study on the electrical properties of different forms of carbon allotropes—epoxy nanocomposites. Express Polym. Lett. 2020, 14, 477–490. [Google Scholar] [CrossRef]
  117. Buketov, A.; Smetankin, S.; Lysenkov, E.; Yurenin, K.; Akimov, O.; Yakushchenko, S.; Lysenkova, I. Electrophysical Properties of Epoxy Composite Materials Filled with Carbon Black Nanopowder. Adv. Mater. Sci. Eng. 2020, 2020, 6361485. [Google Scholar] [CrossRef]
  118. Liu, H.; Bai, D.; Bai, H.; Zhang, Q.; Fu, Q. Manipulating the Filler Network Structure and Properties of Polylactide/Carbon Black Nanocomposites with the Aid of Stereocomplex Crystallites. J. Phys. Chem. C 2018, 122, 4232–4240. [Google Scholar] [CrossRef]
  119. Zhang, Q.; Wang, J.; Yu, J.; Guo, Z.-X. Improved electrical conductivity of TPU/carbon black composites by addition of COPA and selective localization of carbon black at the interface of sea-island structured polymer blends. Soft Matter 2017, 13, 3431–3439. [Google Scholar] [CrossRef]
  120. Ghislandi, M.; Tkalya, E.; Marinho, B.; Koning, C.E.; de With, G. Electrical conductivities of carbon powder nanofillers and their latex-based polymer composites. Compos. Part A Appl. Sci. Manuf. 2013, 53, 145–151. [Google Scholar] [CrossRef]
  121. Zhou, S.; Hrymak, A.; Kamal, M. Electrical and morphological properties of microinjection molded polypropylene/carbon nanocomposites. J. Appl. Polym. Sci. 2017, 134, 45462. [Google Scholar] [CrossRef]
  122. Choi, B.-K.; Lee, H.-J.; Choi, W.-K.; Lee, M.-K.; Park, J.-H.; Hwang, J.-Y.; Seo, M.-K. Effect of carbon fiber content on thermal and electrical conductivity, EMI shielding efficiency, and radiation energy of CMC/PVA composite papers with carbon fibers. Synth. Met. 2021, 273, 116708. [Google Scholar] [CrossRef]
  123. Kim, M.; Sung, D.H.; Kong, K.; Kim, N.; Kim, B.-J.; Park, H.W.; Park, Y.-B.; Jung, M.; Lee, S.H.; Kim, S.G. Characterization of resistive heating and thermoelectric behavior of discontinuous carbon fiber-epoxy composites. Compos. Part B Eng. 2016, 90, 37–44. [Google Scholar] [CrossRef]
  124. Tirumali, M.; Kandasubramanian, B.; Kumaraswamy, A.; Subramani, N.K.; Suresha, B. Fabrication, Physicochemical Characterizations and Electrical Conductivity Studies of Modified Carbon Nanofiber-Reinforced Epoxy Composites: Effect of 1-Butyl-3-Methylimidazolium Tetrafluoroborate Ionic Liquid. Polym. Technol. Eng. 2017, 57, 218–228. [Google Scholar] [CrossRef]
  125. Zeng, L.; Huang, X.; Li, X.; Li, R.; Li, Y.; Xiong, Y. A gelatin-treated carbon nanofiber/epoxy nanocomposite with significantly improved multifunctional properties. Mater. Today Commun. 2020, 24, 101006. [Google Scholar] [CrossRef]
  126. Mapkar, J.A.; Belashi, A.; Berhan, L.M.; Coleman, M.R. Formation of high loading flexible carbon nanofiber network composites. Compos. Sci. Technol. 2013, 75, 1–6. [Google Scholar] [CrossRef]
  127. Mondal, S.; Nayak, L.; Rahaman, M.; Aldalbahi, A.; Chaki, T.K.; Khastgir, D.; Das, N.C. An effective strategy to enhance mechanical, electrical, and electromagnetic shielding effectiveness of chlorinated polyethylene-carbon nanofiber nanocomposites. Compos. Part B Eng. 2017, 109, 155–169. [Google Scholar] [CrossRef]
  128. Li, Y.; Ji, J.; Wang, Y.; Li, R.; Zhong, W.-H. Soy protein-treated nanofillers creating adaptive interfaces in nanocomposites with effectively improved conductivity. J. Mater. Sci. 2018, 53, 8653–8665. [Google Scholar] [CrossRef]
  129. Wu, T.; Chen, B. Facile Fabrication of Porous Conductive Thermoplastic Polyurethane Nanocomposite Films via Solution Casting. Sci. Rep. 2017, 7, 17470. [Google Scholar] [CrossRef] [Green Version]
  130. Kwon, S.Y.; Kwon, I.M.; Kim, Y.-G.; Lee, S.; Seo, Y.-S. A large increase in the thermal conductivity of carbon nanotube/polymer composites produced by percolation phenomena. Carbon 2013, 55, 285–290. [Google Scholar] [CrossRef]
  131. Butt, H.A.; Lomov, S.V.; Akhatov, I.S.; Abaimov, S.G. Self-diagnostic carbon nanocomposites manufactured from industrial epoxy masterbatches. Compos. Struct. 2020, 259, 113244. [Google Scholar] [CrossRef]
  132. Li, Z.; Wang, Z.; Gan, X.; Fu, D.; Fei, G.; Xia, H. Selective Laser Sintering 3D Printing: A Way to Construct 3D Electrically Conductive Segregated Network in Polymer Matrix. Macromol. Mater. Eng. 2017, 302, 1700211. [Google Scholar] [CrossRef]
  133. Nadiv, R.; Shachar, G.; Peretz-Damari, S.; Varenik, M.; Levy, I.; Buzaglo, M.; Ruse, E.; Regev, O. Performance of nano-carbon loaded polymer composites: Dimensionality matters. Carbon 2018, 126, 410–418. [Google Scholar] [CrossRef]
  134. Jang, S.-H.; Li, L.-Y. Self-Sensing Carbon Nanotube Composites Exposed to Glass Transition Temperature. Materials 2020, 13, 259. [Google Scholar] [CrossRef] [Green Version]
  135. Butt, H.A.; Owais, M.; Sulimov, A.; Ostrizhiniy, D.; Lomov, S.V.; Akhatov, I.S.; Abaimov, S.G.; Popov, Y.A. CNT/Epoxy-Masterbatch Based Nanocomposites: Thermal and Electrical Properties. In Proceedings of the 2021 IEEE 21st International Conference on Nanotechnology (NANO), Montreal, QC, Canada, 28–30 July 2021; pp. 417–420. [Google Scholar] [CrossRef]
  136. Li, Y.; Sundararaj, U. Comparative study on electrical properties of copper nanowire/polypropylene and carbon nanotube/polypropylene composites. AICHE J. 2015, 61, 296–303. [Google Scholar] [CrossRef]
  137. Chen, J.; Gao, X.; Song, W. Epoxy matrix composites reinforced with purified carbon nanotubes for thermal management applications. Polym. Adv. Technol. 2019, 30, 2770–2780. [Google Scholar] [CrossRef]
  138. Malas, A.; Bharati, A.; Verkinderen, O.; Goderis, B.; Moldenaers, P.; Cardinaels, R. Effect of the GO Reduction Method on the Dielectric Properties, Electrical Conductivity and Crystalline Behavior of PEO/rGO Nanocomposites. Polymers 2017, 9, 613. [Google Scholar] [CrossRef] [Green Version]
  139. Gao, W.; Zhao, N.; Yu, T.; Xi, J.; Mao, A.; Yuan, M.; Bai, H.; Gao, C. High-efficiency electromagnetic interference shielding realized in nacre-mimetic graphene/polymer composite with extremely low graphene loading. Carbon 2020, 157, 570–577. [Google Scholar] [CrossRef]
  140. Naeem, M.; Kuan, H.-C.; Michelmore, A.; Meng, Q.; Qiu, A.; Aakyiir, M.; Losic, D.; Zhu, S.; Ma, J. A new method for preparation of functionalized graphene and its epoxy nanocomposites. Compos. Part B Eng. 2020, 196, 108096. [Google Scholar] [CrossRef]
  141. Fim, F.D.C.; Basso, N.R.S.; Graebin, A.P.; Azambuja, D.S.; Galland, G.B. Thermal, electrical, and mechanical properties of polyethylene-graphene nanocomposites obtained by in situ polymerization. J. Appl. Polym. Sci. 2013, 128, 2630–2637. [Google Scholar] [CrossRef]
  142. Han, S.; Meng, Q.; Xing, K.; Araby, S.; Yu, Y.; Mouritz, A.; Ma, J. Epoxy/graphene film for lifecycle self-sensing and multifunctional applications. Compos. Sci. Technol. 2020, 198, 108312. [Google Scholar] [CrossRef]
  143. Yoonessi, M.; Gaier, J.R.; Sahimi, M.; Daulton, T.L.; Kaner, R.B.; Meador, M.A. Fabrication of Graphene–Polyimide Nanocomposites with Superior Electrical Conductivity. ACS Appl. Mater. Interfaces 2017, 9, 43230–43238. [Google Scholar] [CrossRef]
  144. Zulkarnain, M.; Fadzil, M.A.; Mariatti, M.; Azid, I.A. Effects of Silver Microparticles and Nanoparticles on Thermal and Electrical Characteristics of Electrically Conductive Adhesives. J. Electron. Mater. 2017, 46, 6727–6735. [Google Scholar] [CrossRef]
  145. Song, B.; Wang, X.; Patel, S.; Wu, F.; Moon, K.-S.; Wong, C.-P. Flexible and electrically conductive composites based on 3D hierarchical silver dendrites. Soft Matter 2020, 16, 6765–6772. [Google Scholar] [CrossRef]
  146. Aramesh, S.; Doostmohammadi, A.; Rezai, P. Poly(dimethylsiloxane)/Cu/Ag nanocomposites: Electrical, thermal, and mechanical properties. Polym. Compos. 2019, 40, 4093–4101. [Google Scholar] [CrossRef]
  147. Audoit, J.; Laffont, L.; Lonjon, A.; Dantras, E.; Lacabanne, C. Percolative silver nanoplates/PVDF nanocomposites: Bulk and surface electrical conduction. Polymer 2015, 78, 104–110. [Google Scholar] [CrossRef] [Green Version]
  148. Liu, Y.; Yang, X.; Yue, L.; Li, W.; Gan, W.; Chen, K. Selective dispersion of silver nanowires in epoxy/polyetherimide binary composites with enhanced electrical conductivity: A study of curing kinetics and morphology. Polym. Compos. 2019, 40, 4390–4401. [Google Scholar] [CrossRef]
  149. Kim, J.M.; Jang, K.; Lee, S.J. Electrically conductive polystyrene nanocomposites incorporated with aspect ratio-controlled silver nanowires. J. Appl. Polym. Sci. 2019, 136, 47927. [Google Scholar] [CrossRef]
  150. Bedel, V.; Lonjon, A.; Dantras, É.; Bouquet, M. Influence of silver nanowires on thermal and electrical behaviors of a poly(epoxy) coating for aeronautical application. J. Appl. Polym. Sci. 2018, 135, 46829. [Google Scholar] [CrossRef] [Green Version]
  151. Sun, K.; Xin, J.; Li, Y.; Wang, Z.; Hou, Q.; Li, X.; Wu, X.; Fan, R.; Choy, K.L. Negative permittivity derived from inductive characteristic in the percolating Cu/EP metacomposites. J. Mater. Sci. Technol. 2019, 35, 2463–2469. [Google Scholar] [CrossRef]
  152. Al-Saleh, M.H.; Gelves, G.A.; Sundararaj, U. Copper nanowire/polystyrene nanocomposites: Lower percolation threshold and higher EMI shielding. Compos. Part A Appl. Sci. Manuf. 2011, 42, 92–97. [Google Scholar] [CrossRef]
  153. Liang, C.; Hamidinejad, M.; Ma, L.; Wang, Z.; Park, C.B. Lightweight and flexible graphene/SiC-nanowires/ poly(vinylidene fluoride) composites for electromagnetic interference shielding and thermal management. Carbon 2020, 156, 58–66. [Google Scholar] [CrossRef]
  154. Zhao, J.; Zhang, D. Epoxy-based adhesives filled with flakes ag-coated copper as conductive fillers. Polym. Compos. 2015, 38, 846–851. [Google Scholar] [CrossRef]
  155. Yang, X.; Fan, S.; Li, Y.; Guo, Y.; Li, Y.; Ruan, K.; Zhang, S.; Zhang, J.; Kong, J.; Gu, J. Synchronously improved electromagnetic interference shielding and thermal conductivity for epoxy nanocomposites by constructing 3D copper nanowires/thermally annealed graphene aerogel framework. Compos. Part A Appl. Sci. Manuf. 2019, 128, 105670. [Google Scholar] [CrossRef]
  156. Xia, Y.; Cai, P.; Liu, Y.; Zhu, J.; Guo, R.; Zhang, W.; Gan, Y.; Huang, H.; Zhang, J.; Liang, C.; et al. A Low-Cost and High-Efficiency Electrothermal Composite Film Composed of Hybrid Conductivity Fillers and Polymer Blends Matrix for High-Performance Plate Heater. J. Electron. Mater. 2021, 50, 3084–3094. [Google Scholar] [CrossRef]
  157. Balberg, I.; Binenbaum, N.; Wagner, N. Percolation Thresholds in the Three-Dimensional Sticks System. Phys. Rev. Lett. 1984, 52, 1465–1468. [Google Scholar] [CrossRef]
  158. Zhao, Z.; Chen, H.; Liu, X.; Liu, H.; Zhang, D. Development of high-efficient synthetic electric heating coating for anti-icing/de-icing. Surf. Coat. Technol. 2018, 349, 340–346. [Google Scholar] [CrossRef]
  159. Lee, S.; Jang, D.; Chung, Y.S.; Lee, S. Cost-effective and highly efficient surface heating elements using high thermal conductive carbon fibers. Compos. Part A Appl. Sci. Manuf. 2020, 137, 105992. [Google Scholar] [CrossRef]
  160. Zangrossi, F.; Xu, F.; Warrior, N.; Karapappas, P.; Hou, X. Electro-thermal and mechanical performance of multi-wall carbon nanotubes buckypapers embedded in fibre reinforced polymer composites for ice protection applications. J. Compos. Mater. 2020, 54, 3457–3469. [Google Scholar] [CrossRef]
  161. Zhang, X.; Li, D.; Liu, K.; Tong, J.; Yi, X. Flexible graphene-coated carbon fiber veil/polydimethylsiloxane mats as electrothermal materials with rapid responsiveness. Int. J. Lightweight Mater. Manuf. 2019, 2, 241–249. [Google Scholar] [CrossRef]
  162. Fang, H.; Zhao, Y.; Zhang, Y.; Ren, Y.; Bai, S.-L. Three-Dimensional Graphene Foam-Filled Elastomer Composites with High Thermal and Mechanical Properties. ACS Appl. Mater. Interfaces 2017, 9, 26447–26459. [Google Scholar] [CrossRef]
  163. Konar, M.; Roy, B.; Govindaraju, T. Molecular Architectonics-Guided Fabrication of Superhydrophobic and Self-Cleaning Materials. Adv. Mater. Interfaces 2020, 7, 2000246. [Google Scholar] [CrossRef]
  164. Zeng, D.; Li, Y.; Liu, H.; Yang, Y.; Peng, L.; Zhu, C.; Zhao, N. Superhydrophobic coating induced anti-icing and deicing characteristics of an airfoil. Colloids Surf. A Physicochem. Eng. Asp. 2023, 660, 130824. [Google Scholar] [CrossRef]
  165. Zeng, D.; Li, Y.; Huan, D.; Liu, H.; Luo, H.; Cui, Y.; Zhu, C.; Wang, J. Robust epoxy-modified superhydrophobic coating for aircraft anti-icing systems. Colloids Surf. A Physicochem. Eng. Asp. 2021, 628, 127377. [Google Scholar] [CrossRef]
  166. Lega, M.; Ferrara, C.; Persechino, G.; Bishop, P. Remote sensing in environmental police investigations: Aerial platforms and an innovative application of thermography to detect several illegal activities. Environ. Monit. Assess. 2014, 186, 8291–8301. [Google Scholar] [CrossRef]
  167. Wan, Y.; Liu, Y.; Liu, Y.; Sun, C.; Feng, K.; Wu, Y.; Zhou, F. Flexible Electrothermal Hydrophobic Self-Lubricating Tape for Controllable Anti-icing and De-icing. ACS Appl. Eng. Mater. 2023, 1, 669–678. [Google Scholar] [CrossRef]
  168. E, J.; Jin, Y.; Deng, Y.; Zuo, W.; Zhao, X.; Han, D.; Peng, Q.; Zhang, Z. Wetting Models and Working Mechanisms of Typical Surfaces Existing in Nature and Their Application on Superhydrophobic Surfaces: A Review. Adv. Mater. Interfaces 2018, 5, 1701052. [Google Scholar] [CrossRef]
  169. Xue, Y.; Wang, Y.; Wang, Y.; Liang, W.; Wang, F.; Zhu, D.; Zhao, H. Functionalized superhydrophobic MWCNT/PEI nanocomposite film with anti-icing and photo-/electrothermal deicing properties. Mater. Chem. Phys. 2023, 297, 127385. [Google Scholar] [CrossRef]
  170. Vercillo, V.; Tonnicchia, S.; Romano, J.; García-Girón, A.; Aguilar-Morales, A.I.; Alamri, S.; Dimov, S.S.; Kunze, T.; Lasagni, A.F.; Bonaccurso, E. Design Rules for Laser-Treated Icephobic Metallic Surfaces for Aeronautic Applications. Adv. Funct. Mater. 2020, 30, 1910268. [Google Scholar] [CrossRef] [Green Version]
  171. Wang, Z. Recent progress on ultrasonic de-icing technique used for wind power generation, high-voltage transmission line and aircraft. Energy Build. 2017, 140, 42–49. [Google Scholar] [CrossRef]
  172. Ramakrishna, D.M.; Viraraghavan, T. Environmental Impact of Chemical Deicers—A Review. Water Air Soil Pollut. 2005, 166, 49–63. [Google Scholar] [CrossRef]
  173. Weis, T.; Maissan, J. The effects of black blades on surface temperatures for wind turbines. In Proceedings of the Yukon International Wind Conference: Cold Climate Opportunities, Whitehorse, YT, Canada, 25–28 May 2003. [Google Scholar]
  174. Wei, K.; Yang, Y.; Zuo, H.; Zhong, D. A review on ice detection technology and ice elimination technology for wind turbine. Wind. Energy 2020, 23, 433–457. [Google Scholar] [CrossRef]
  175. Zhang, Y.; Wei, J.; Liu, C.; Hu, Y.; She, F. Reduced graphene oxide modified Ti/CFRP structure-function integrated laminates for surface Joule heating and deicing. Compos. Part A Appl. Sci. Manuf. 2023, 166, 107377. [Google Scholar] [CrossRef]
  176. Wang, Z.; Shen, Y.; Tao, J.; Liu, S.; Jiang, J.; Xu, Y.; Liu, W.; Li, H. An integrated superhydrophobic anti/de-icing film heater with low energy consumption: Interpenetration behavior of components based on wet-film spraying method. Appl. Therm. Eng. 2023, 223, 120028. [Google Scholar] [CrossRef]
Figure 1. Schematic of Joule heating process.
Figure 1. Schematic of Joule heating process.
Polymers 15 01573 g001
Figure 2. (a) Schematic of a composite with integrated thermal elements, (b) De-icing behavior of the composite in icing test. (Reprinted with permission from Elsevier, copyright 2013) [40].
Figure 2. (a) Schematic of a composite with integrated thermal elements, (b) De-icing behavior of the composite in icing test. (Reprinted with permission from Elsevier, copyright 2013) [40].
Polymers 15 01573 g002
Figure 3. (a) Cross-section microscopic image of the 3D printed heater, (b) average temperature of two panels and ambient temperature with the cumulative energy of both panels (Reprinted with permission from Elsevier, copyright 2019) [45].
Figure 3. (a) Cross-section microscopic image of the 3D printed heater, (b) average temperature of two panels and ambient temperature with the cumulative energy of both panels (Reprinted with permission from Elsevier, copyright 2019) [45].
Polymers 15 01573 g003
Figure 4. (a) Changes of Tmax for pure carbon fibers mat at (a) 4 V, (b) 8 V, (c) 12 V and (d) 17 V (Reprinted with permission from Elsevier, copyright 2003) [51], (b) changes of Tmax of the MCF as a function of heat treatment temperature, at 12 V (Reprinted with permission from Elsevier, copyright 2019) [52].
Figure 4. (a) Changes of Tmax for pure carbon fibers mat at (a) 4 V, (b) 8 V, (c) 12 V and (d) 17 V (Reprinted with permission from Elsevier, copyright 2003) [51], (b) changes of Tmax of the MCF as a function of heat treatment temperature, at 12 V (Reprinted with permission from Elsevier, copyright 2019) [52].
Polymers 15 01573 g004

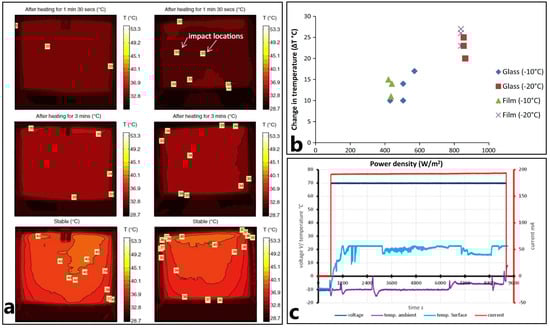

Figure 5. (a) Thermal imaging before and after impact on ECT panel, (b) change in temperature as a function of power density for anti-icing studies (reprinted with permission from Elsevier, copyright 2015) [55], and (c) de-icing test graph at −5 °C and wind speed of 7 m/s (Reprinted with permission from John Wiley and Sons, copyright 2017) [57].
Figure 5. (a) Thermal imaging before and after impact on ECT panel, (b) change in temperature as a function of power density for anti-icing studies (reprinted with permission from Elsevier, copyright 2015) [55], and (c) de-icing test graph at −5 °C and wind speed of 7 m/s (Reprinted with permission from John Wiley and Sons, copyright 2017) [57].
Polymers 15 01573 g005
Figure 6. (a) SEM image of the cross-section of the buckypaper-FRPC heater, and (b) image of buckypaper-FRPC heater before (c) and after de-icing at −22 °C and wind speed 14 m/s (Reprinted with permission from Elsevier, copyright 2014) [60].
Figure 6. (a) SEM image of the cross-section of the buckypaper-FRPC heater, and (b) image of buckypaper-FRPC heater before (c) and after de-icing at −22 °C and wind speed 14 m/s (Reprinted with permission from Elsevier, copyright 2014) [60].
Polymers 15 01573 g006
Figure 7. (a) Properties of samples with CNT and CF plies, (b) de-icing test graph at 16 V (Reprinted with permission from Elsevier, copyright 2018) [62].
Figure 7. (a) Properties of samples with CNT and CF plies, (b) de-icing test graph at 16 V (Reprinted with permission from Elsevier, copyright 2018) [62].
Polymers 15 01573 g007
Figure 8. (a) SEM images of the graphene paper, (b) the temperature profile during the de-icing process, at an environmental temperature of −32 °C (Reprinted from Elsevier, copyright 2019) [63].
Figure 8. (a) SEM images of the graphene paper, (b) the temperature profile during the de-icing process, at an environmental temperature of −32 °C (Reprinted from Elsevier, copyright 2019) [63].
Polymers 15 01573 g008
Figure 9. (a) Photography of flexible FRPC, (b) time-dependent temperature profiles of the FRPC at 6 V (Reprinted with permission from Springer Nature, copyright 2021) [64].
Figure 9. (a) Photography of flexible FRPC, (b) time-dependent temperature profiles of the FRPC at 6 V (Reprinted with permission from Springer Nature, copyright 2021) [64].
Polymers 15 01573 g009
Figure 10. Comparison of the efficiency of heaters (a) placed on FRPC surface, and (b) embedded into FRPC, fabricated by different technologies.
Figure 10. Comparison of the efficiency of heaters (a) placed on FRPC surface, and (b) embedded into FRPC, fabricated by different technologies.
Polymers 15 01573 g010
Figure 12. Schematic image of the BN@AlN systems in relation to (a) 2:1, (b) 1:1 (c) 1:2 (Reprinted with permission from Elsevier, copyright 2012) [104], and (d) thermal conductivity of composite based on BN nanosheet at room temperature (Reprinted with permission from John Wiley and Sons, copyright 2016) [87].
Figure 12. Schematic image of the BN@AlN systems in relation to (a) 2:1, (b) 1:1 (c) 1:2 (Reprinted with permission from Elsevier, copyright 2012) [104], and (d) thermal conductivity of composite based on BN nanosheet at room temperature (Reprinted with permission from John Wiley and Sons, copyright 2016) [87].
Polymers 15 01573 g012

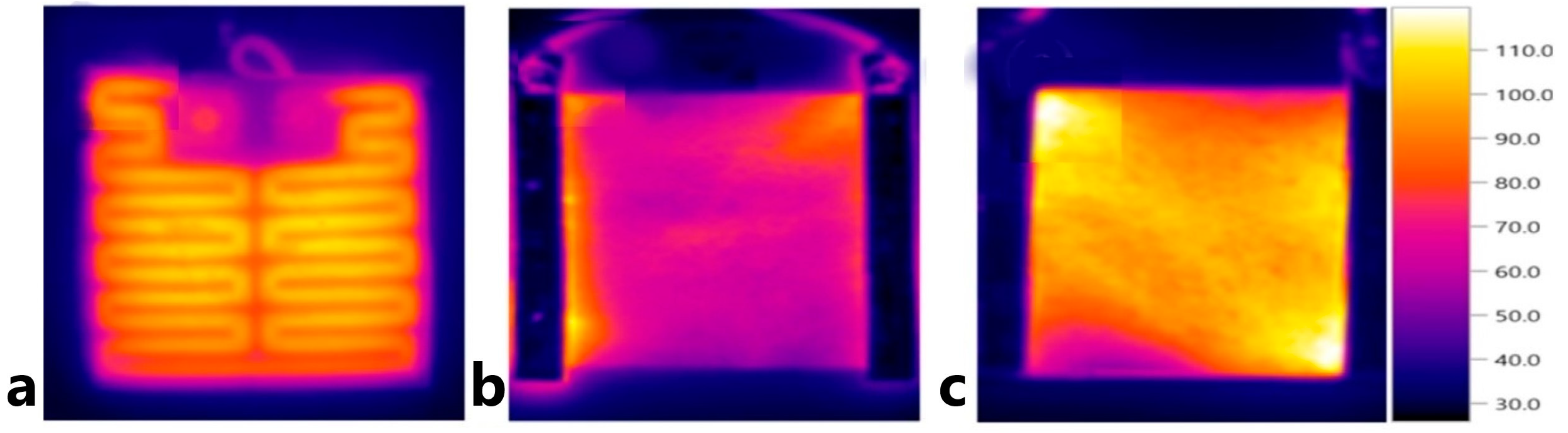

Figure 14. Infrared images of (a) NiCr, (b) CFs, and (c) CFP-2700 heating elements (Reprinted with permission from Elsevier, copyright 2020) [159].
Figure 14. Infrared images of (a) NiCr, (b) CFs, and (c) CFP-2700 heating elements (Reprinted with permission from Elsevier, copyright 2020) [159].
Polymers 15 01573 g014

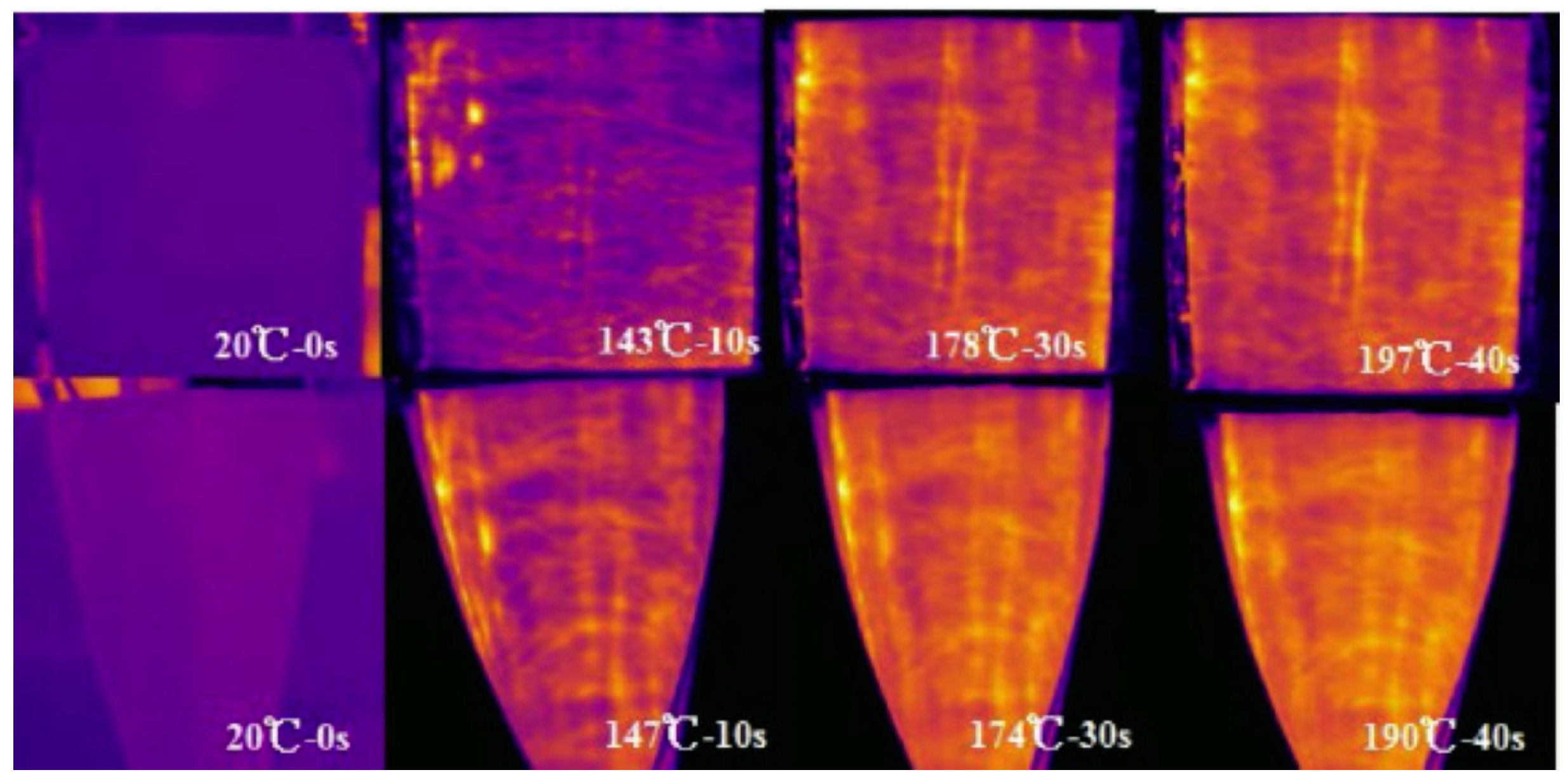

Figure 15. Temperature distribution of G-CF35/PDMS at different times at 35 V voltage not deformed and twisted states (Reprinted from Elsevier, copyright 2019) [161].
Figure 15. Temperature distribution of G-CF35/PDMS at different times at 35 V voltage not deformed and twisted states (Reprinted from Elsevier, copyright 2019) [161].
Polymers 15 01573 g015

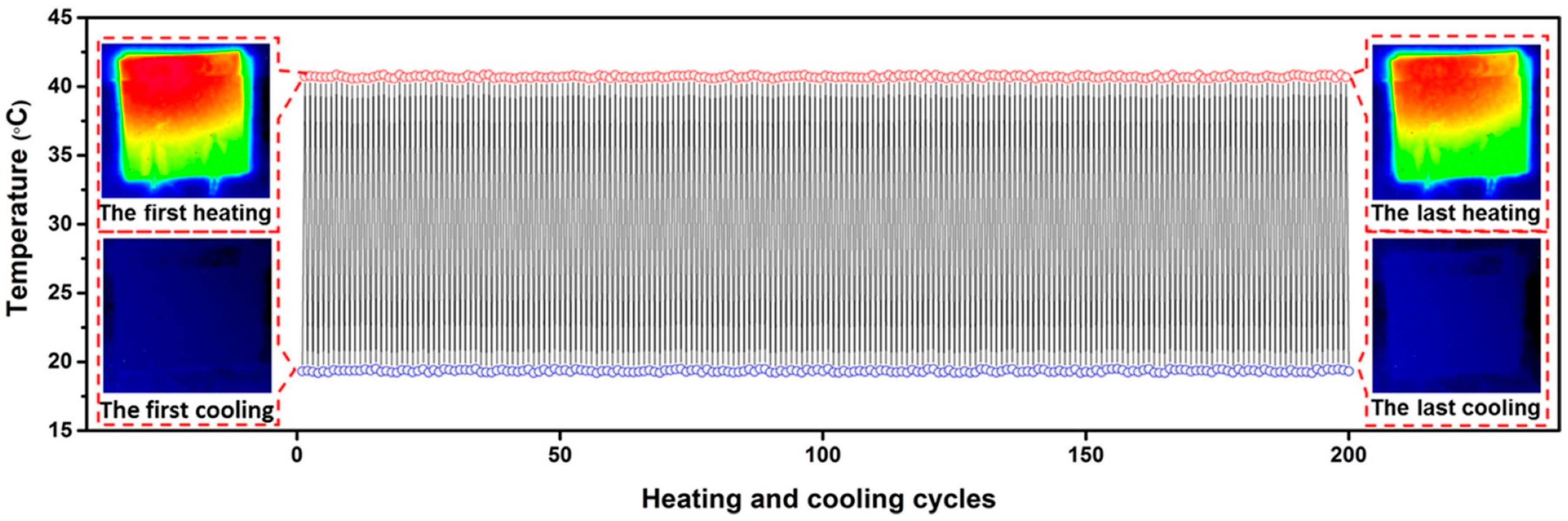

Figure 16. Temperature variation of ceramic heater during thermal cycling using compressed-GF/PDA/APTS/PDMS composite as a thermal interface material (Reprinted with permission from American Chemical Society, copyright 2017) [162].
Figure 16. Temperature variation of ceramic heater during thermal cycling using compressed-GF/PDA/APTS/PDMS composite as a thermal interface material (Reprinted with permission from American Chemical Society, copyright 2017) [162].
Polymers 15 01573 g016

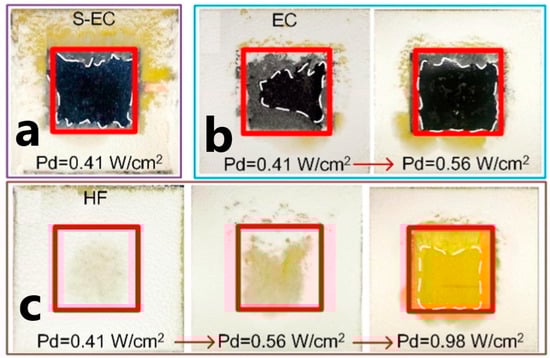

Figure 17. Anti-icing properties of coatings. (a) S-EC, (b) EC, and (c) HF. Areas indicated by red rectangles are heating areas, and white dotted lines are areas without ice (Reprinted with permission from Elsevier, copyright 2018) [158].
Figure 17. Anti-icing properties of coatings. (a) S-EC, (b) EC, and (c) HF. Areas indicated by red rectangles are heating areas, and white dotted lines are areas without ice (Reprinted with permission from Elsevier, copyright 2018) [158].
Polymers 15 01573 g017
Table 1. Properties of FRPC heaters.
Table 1. Properties of FRPC heaters.
TypeTechPositionMaterialPower Density, kW/m2De-Icing timeAnti -IcingTest ConditionCommentsRef.
Metal filmFlame-sprayingSurfaceNiCr11.8-yesT = −18 °CUsed on Boeing 787[32]
Metal WireHand layoutEmbedded
depth 0.7 mm
UD NiCr wires8.3-yesT = −17 °C, wind speed 27.7 m/s, water flow 0.2 kg/minMax applies power 118 W[40]
3D printingEmbedded
depth 0.6 mm
NiCr wires
square meander
105 minyesT = −20 °C
Field study at sea
Max applies power 78 W[45]
Metal tapeHand layoutEmbedded
depth 1 mm
Cu ribbon inside GLARE26--At roomShows interlayers
creep effect
Carbon textileHand layoutEmbedded
depth 0.15 mm
UD brominated graphite fibers46.5-yesAt roomtextile resistance 50 μΩ/cm2
Hand layoutEmbeddedNon-woven pure CFMat6.5-yesAt roomMax T = 134 °C after 38 min[51]
Hand layoutEmbeddedNon-woven CFMat with NiCuNi coating3.2-yesAt roomMax T = 79 °C after 37 min[51]
Hand layoutEmbeddedCFs with NiP coating16.8-yesAt room40 s to 100 C[52]
Hand layoutEmbedded
depth 0.15 mm
CF prepreg6.525 syesT = −12 °CStudy at 16 V[62]
Hand layoutEmbedded
depth 2 mm
ECT by “Gorix”0.854/
20 minyesT = −20°C
+ water fog
9.1 V anti/9.9 V de-icing[55]
Spray coatingSurfaceNon-woven SWCNT mat7.6-yesAt roomMax T = 160 °C after 18 h[65]
CNTRoll-to-roll printingSurfaceNon-woven MWCNT mat1.3325 minyesT = −20 °C and wind speed
7 m/s
Study at 70 V[57]
Buckypaper by filtrationEmbedded
depth 0.5 mm
Non-woven from SWCNT114 minyesT = −22 °C and wind speed
0–14 m/s
Study at 22 V[60]
Buckypaper by pullingEmbedded
depth 0.15 mm
UD from CNT forest4.915 syesT = −12 °CStudy at 16 V[62]
GrapheneBuckypaper by filtrationEmbedded
1.115 mm
Non-woven from exfoliated graphite1.64 minyesT = −32 °CStudy at 0.8 A[63]
Buckypaper by filtrationEmbeddedNon-woven from graphene3.6210 syesT = −20 °CTensile and elastic modulus are growing[64]
Spray coatingSurfaceMade using graphene nanoribbon3.883 minyesT = −20 °CStudy at 177 V[66]
Spin coatingSurfaceNon-woven from GO2030 syesT = −10 °CStudy at 60 V[67]
Table 2. Properties of polymers with electrically conductive nanofillers.
Table 2. Properties of polymers with electrically conductive nanofillers.
Filler TypeMatrixρ at Max %, S/cmFiller Content,
Max %
Experimental Percolation Threshold %k at Max VF, W/mKRef.
Carbon black
Epoxol 200410−910-5.26-[116]
ED-20 Epoxy10−729-8-[117]
Carbon black
PLLA + PDLA0.15-2.7-[118]
TPU0.5-1010.2 wt./6.93 vol-[119]
TPU + COPA0.3-205.5 wt./3.68 vol-[119]
Latex + PP + SDBS0.00710-4.5-[120]
Isotactic PP0.00315-2-[121]
Carbon fiberCMC0.01410-4-[122]
YDF-170 Epoxy0.025---[123]
Carbon NanofiberEpoxy LY 15641.9 × 0−55---[124]
Epoxy LY 1564 + BMIMBF41.74 × 10−53---[124]
DGEBA5.5 × 10−41.5-0.33-[125]
DGEBA + Gelatin2 × 10−51.5-0.21-[125]
MWCNTEpoxol 200410−410-4.71-[116]
Latex + PP + SDBS0.0151-0.3-[120]
IROGRAN PS 455-2032. 98 × 10−240-0.2-[129]
PDMS1-40.0450.5 at 1.4%[130]
EPOLAM 203110−42---[131]
EPON 828-25-0.06-[133]
IN2 Epoxy5.2 × 10−42.5-0.25-[134]
Isotactic PP8 × 10−315---[121]
EPOLAM 20315 × 10−42--0.22[135]
SWCNTsEPOLAM 20310.52---[131]
Araldite LY 1564 SP10310-0.080.8[137]
EPOLAM 20310.82--0.5[135]
GraphiteLatex + PP + SDBS1.2 × 10−310-7-[120]
EPON 828-25-12-[133]
PEO2 × 10−62---[138]
Graphite nanoplatesEpoxol 200410−1310---[116]
Graphene oxidePVA + PDMS0.41-0.42-[139]
PEO3 × 10−62---[138]
N2 doped grapheneEPOLAM 20316 × 10−122---[131]
Reduced graphene oxideLatex + PP + SDBS9.2 × 10−33.5-1.2-[120]
EPOLAM 20318 × 10−122---[131]
PEO7 × 10−52---[138]
Graphene nanosheetsEPON 82810−625-3.37-[133]
Isotactic PP2 × 10−515-7-[121]
Araldite F CI4.63 × 10−5-2.80.8-[140]
Polyethylene1.3 × 10−420.98.98.4 wt/3.8 vol-[141]
E51 epoxy6 × 10−6-20.632.17 at 6%[142]
Graphene nanosheetsPolyimide (3Dnetwork)0.94-50.03-[143]
Ag particlesEPON 82810.012-850.5082 at 8%[144]
Ag flakesPolyurethane2.9 × 10−580309-[145]
Ag dendritesPolyurethane1.8 × 10−470203-[145]
Ag nanoparticlesEPON 82810.3-860.366 at 8%[144]
PDMS0.6-24101.61 at 24%[146]
Ag nanowiresEP/PEI-3-30.3[148]
Cu nanoparticlesPDMS0.3-24101.34 at 24%[146]
Cu micro sheetsE51 Epoxy6 × 10−380-20-[151]
Cu nanowiresPolystyrene (3Dnetwork)80-2.80.24-[152]
Graphene and SiC nanowiresPVDF (3Dnetwork)0.029.5-1.52.13 at 9.5%[153]
Ag & Cu particlesPDMS1.8-24101.68 at 14%[146]
Ag @ Cu flakesDGEBF60070-40-[154]
Cu nanowires @GO, 3D networkEpon 8621.26--0.5 at 6% Cu and 1.2% Go[155]
Graphite + SP + Al2O3TPU + PES0.120-14.8-[156]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Shiverskii, A.V.; Owais, M.; Mahato, B.; Abaimov, S.G. Electrical Heaters for Anti/De-Icing of Polymer Structures. Polymers 2023, 15, 1573.

AMA Style

Shiverskii AV, Owais M, Mahato B, Abaimov SG. Electrical Heaters for Anti/De-Icing of Polymer Structures. Polymers. 2023; 15(6):1573.

Chicago/Turabian Style

Shiverskii, Aleksei V., Mohammad Owais, Biltu Mahato, and Sergey G. Abaimov. 2023. "Electrical Heaters for Anti/De-Icing of Polymer Structures" Polymers 15, no. 6: 1573.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
