Evaluating the Multifunctional Performance of Structural Composites for Thermal Energy Storage

,
,
and
INSTM Research Unit, Department of Industrial Engineering, University of Trento, Via Sommarive 9, 38123 Trento, Italy
*
Author to whom correspondence should be addressed.

Abstract

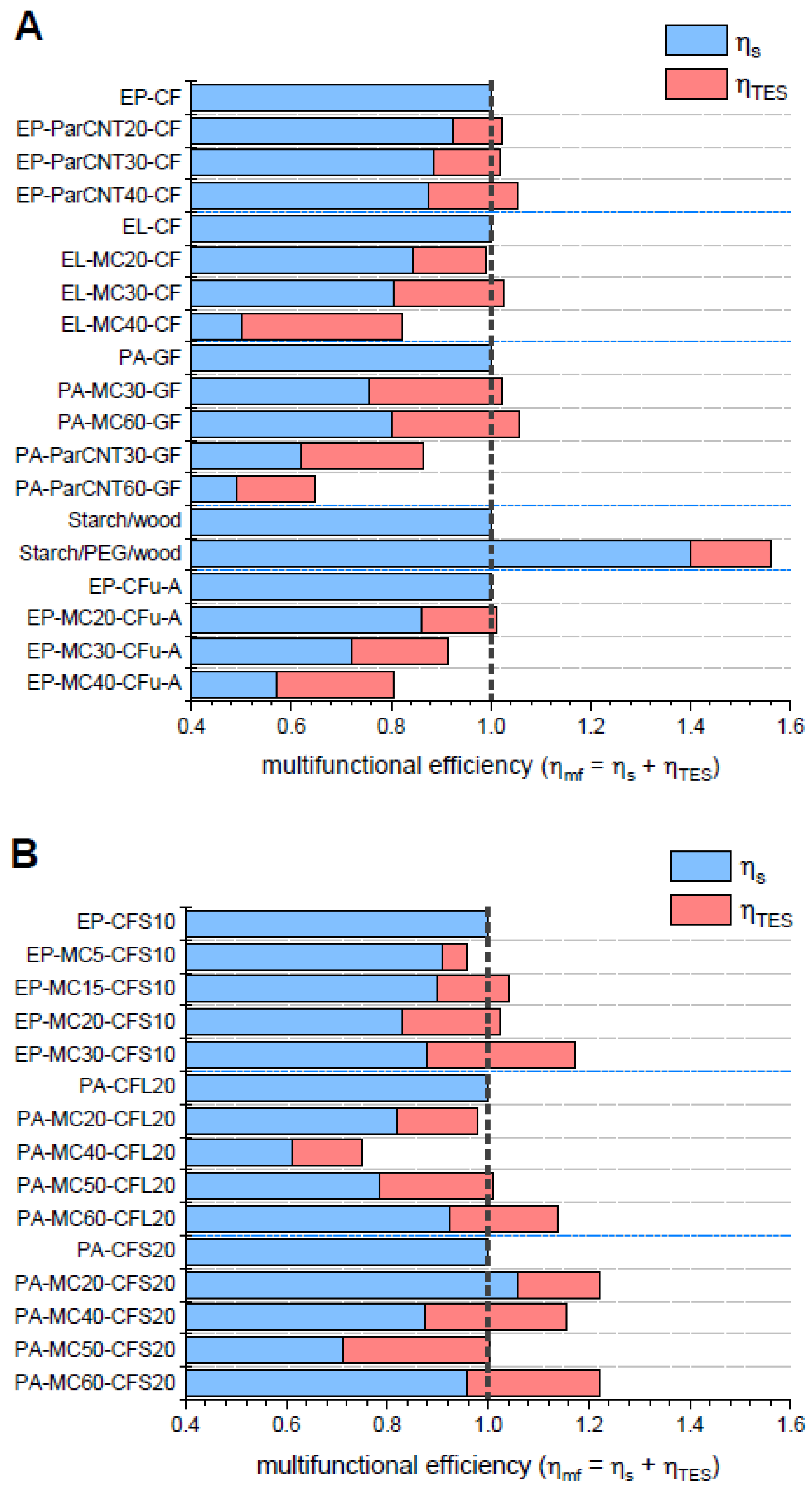

The simultaneous need for high specific mechanical properties and thermal energy storage (TES) function, present in several applications (e.g., electric vehicles), can be effectively addressed by multifunctional polymer-matrix composites containing a reinforcing agent and a phase change material (PCM). The PCMs generally decrease the mechanical properties of the host structural composites, but a multifunctional composite can still be beneficial in terms of mass saving, compared to two monofunctional units performing the structural and heat management functions individually. To quantify any possible advantages, this paper proposes an approach that determines the conditions for an effective mass saving at the system level and ranks the investigated structural TES composites with a parameter called multifunctional efficiency. It is found that the potential mass saving is higher when the volume fraction of the reinforcement is kept constant also when the PCM fraction increases or when the single phases (reinforcement, PCM) are themselves multifunctional.
