Blood Cell Separation Using Polypropylene-Based Microfluidic Devices Based on Deterministic Lateral Displacement

and
1
Department of Bioscience, Faculty of Life Science, Okayama University of Science, Okayama 700-0005, Japan
2
Life Materials Development Section, Human Life Technology Research Institute, Toyama Industrial Technology Research and Development Center, Nanto 939-1503, Japan
*
Author to whom correspondence should be addressed.

Abstract

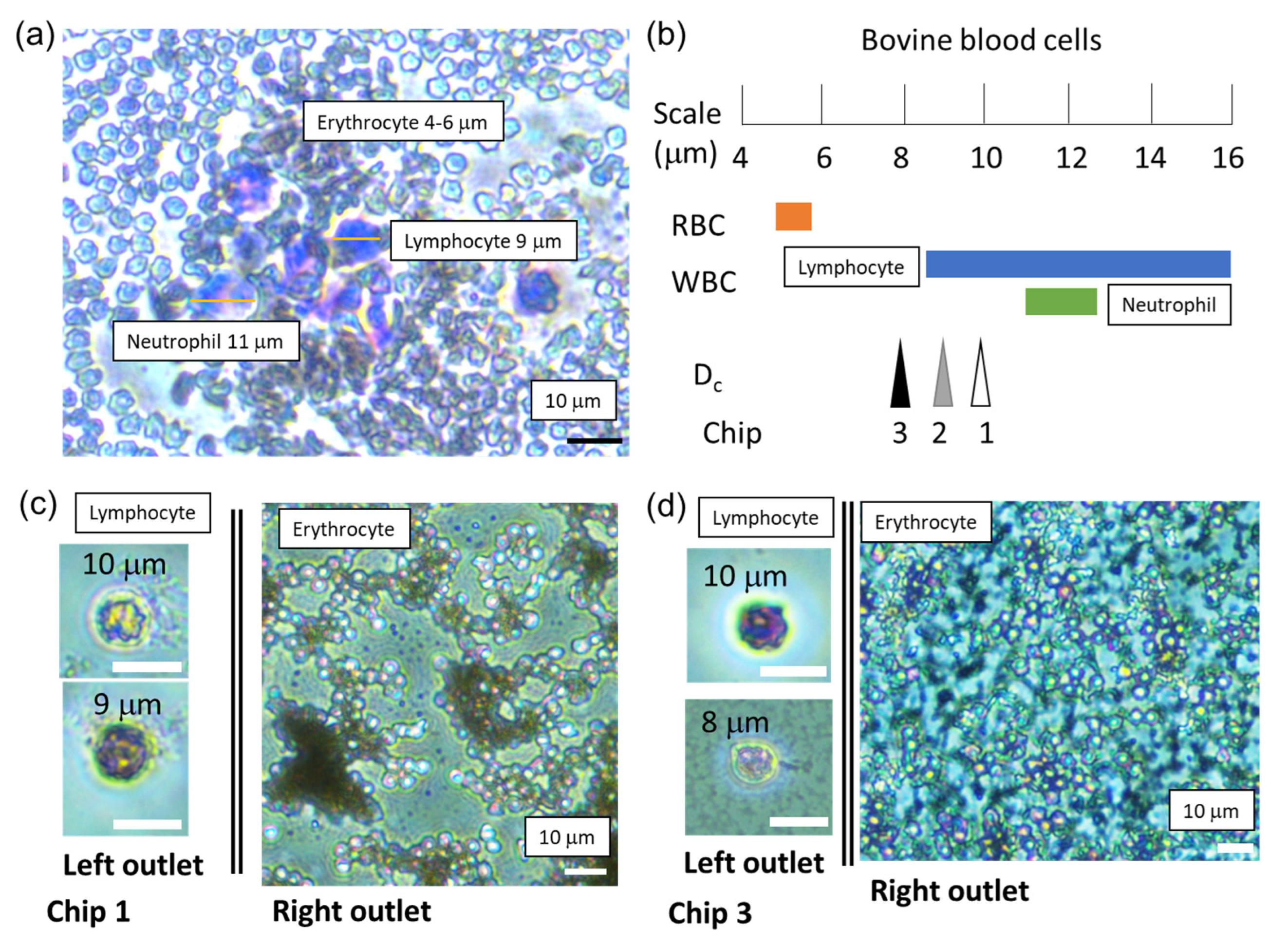

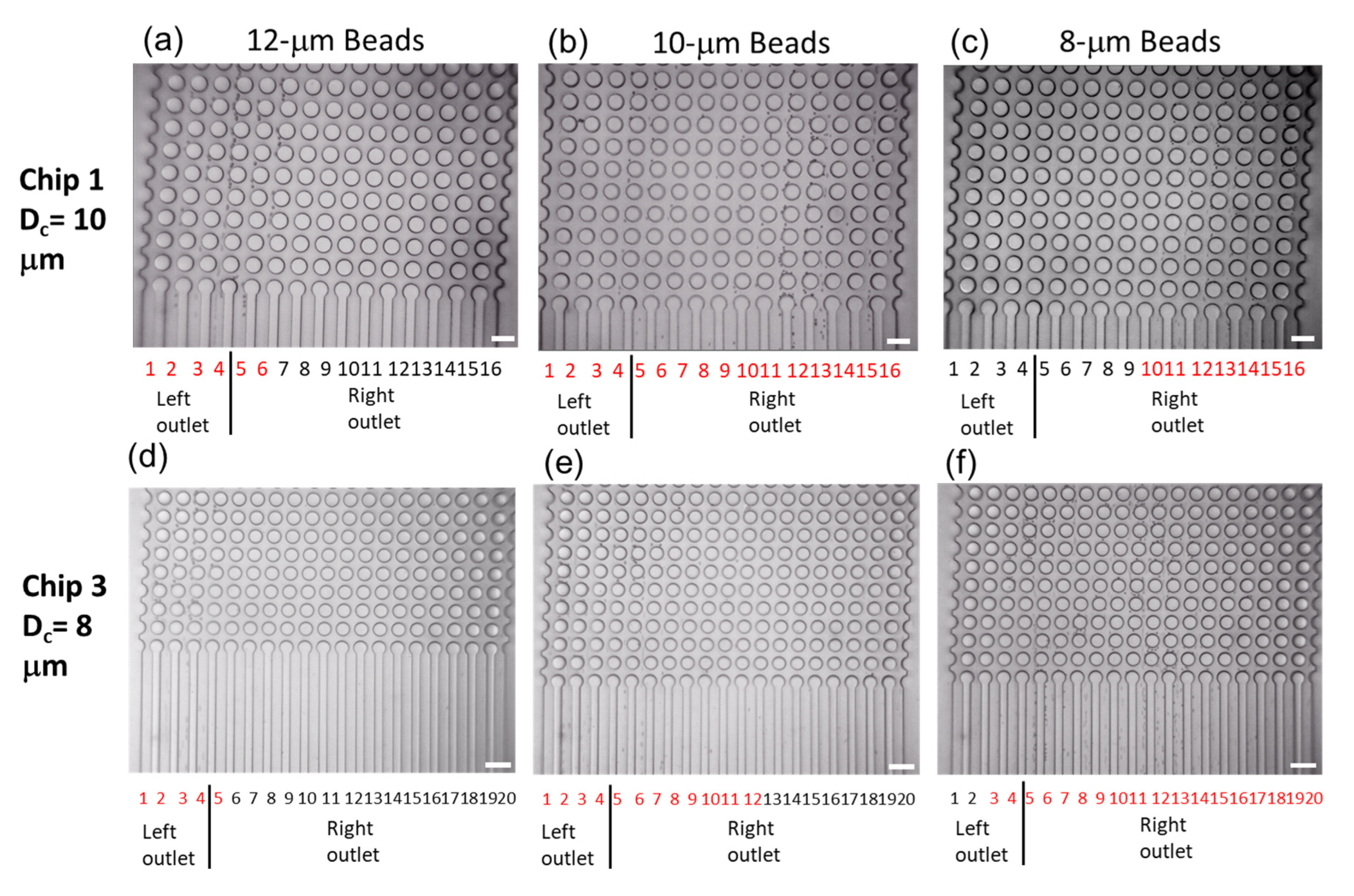

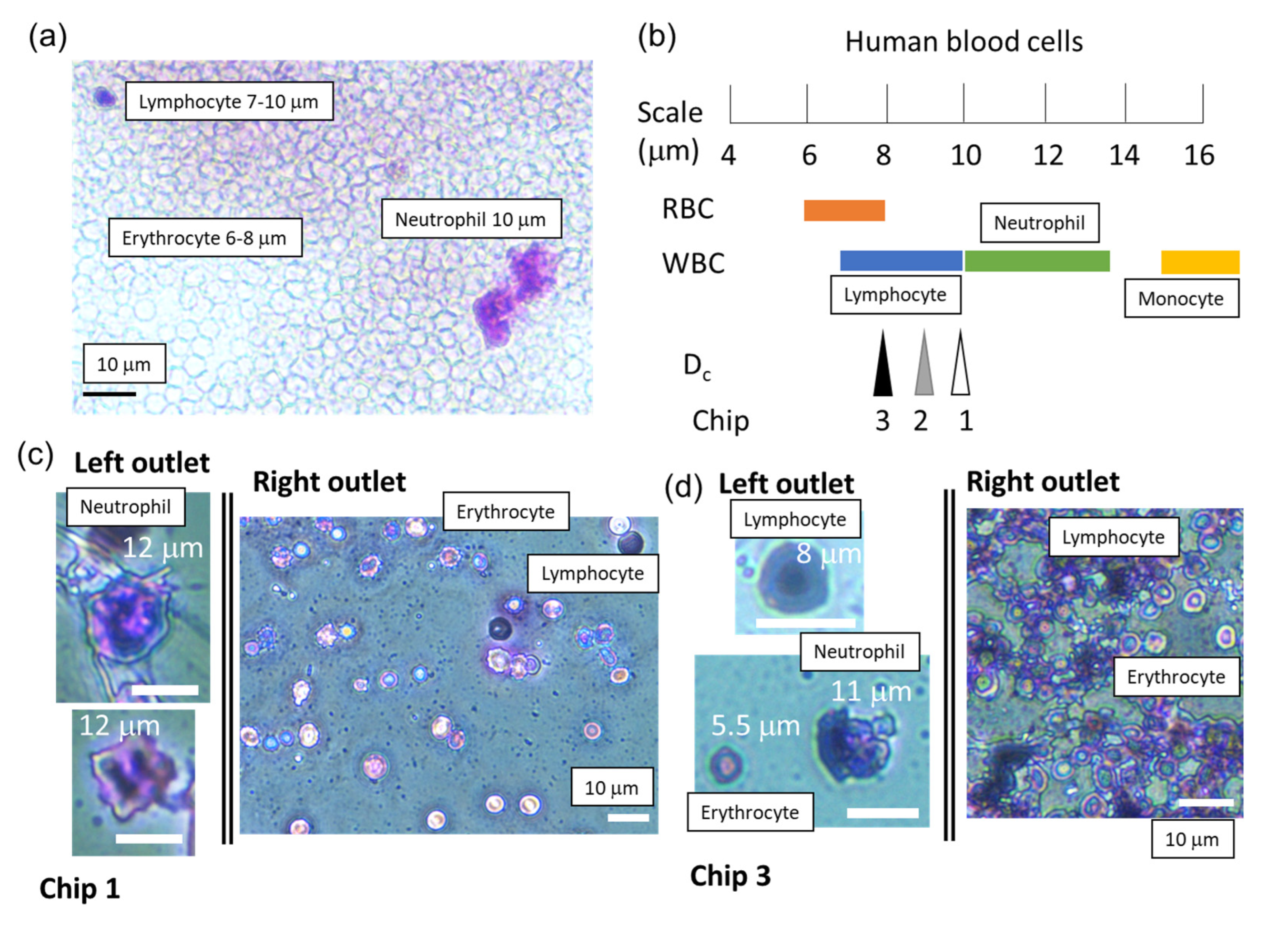

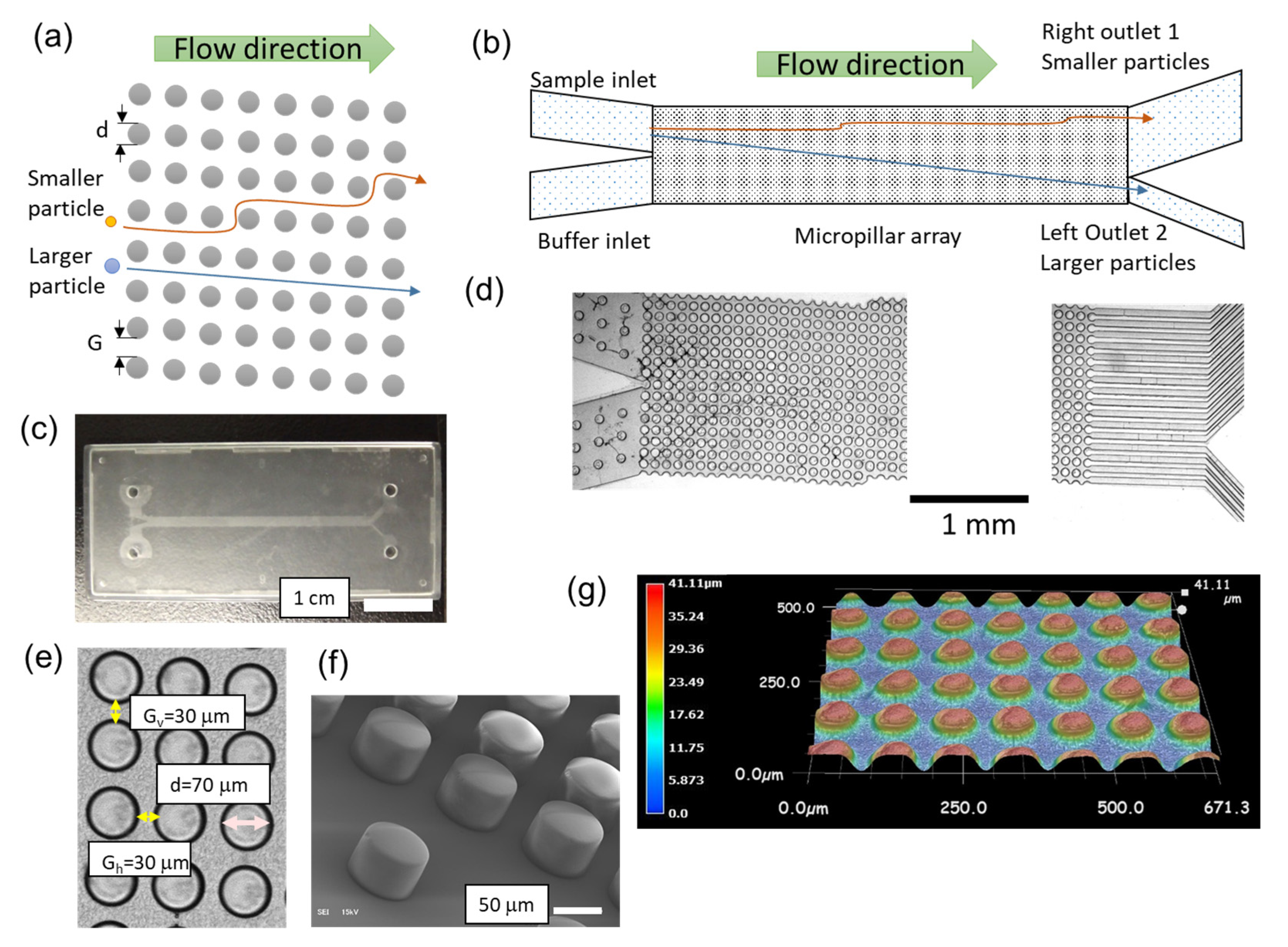

Mammalian blood cell separation methods contribute to improving the diagnosis and treatment of animal and human diseases. Microfluidic deterministic lateral displacement (DLD) devices can sort cells based on their particle diameter. We developed microfluidic DLD devices with poly(propylene)-based resin and used them to separate bovine and human red blood cells (RBCs) and white blood cells (WBCs) without electric devices. To determine the critical cut-off diameter (Dc) of these devices, we used immunobeads with a diameter of 1–20 μm. The Dc values of the microfluidic DLD devices for the immunobeads in the experiments were similar to the calculated Dc values (8–10 μm). Results from bovine blood cell separation experiments suggest that lymphocytes and neutrophils can be separated from diluted, whole blood. Human RBCs were occasionally observed in the left outlet where larger particles with diameters closer to the Dc value were collected. Based on the Dc values, human neutrophils were sorted to the left outlet, whereas lymphocytes were observed in both outlets. Although microfluidic channel optimization is required for the concentration of sorted cells, the microfluidic DLD device prepared with a poly(propylene)-based resin has the potential for clinical use.
