Abstract

Aqueous zinc-ion batteries (AZIBs) have garnered extensive attention owing to their high theoretical capacity, cost-effectiveness, and intrinsic safety. However, the practical deployment of AZIBs is severely hindered by deleterious side reactions, including surface corrosion, hydrogen evolution, and uncontrollable dendrite growth on the metallic Zn anode. In this work, we propose a simple one-step immersion strategy to in situ construct a ZnMoO4 (ZMO) protective coating on the Zn electrode. Mechanistically, the ZMO layer with polar surfaces exhibits a preferential adsorption affinity towards water molecules and Zn2+ ions. This synergistic adsorption behavior serves a dual function: it effectively excludes active water from the electrode surface to suppress hydrogen evolution, and simultaneously, the strong interaction with Zn2+ lowers the desolvation energy barrier, facilitating rapid Zn2+ desolvation at the interface. Furthermore, the resulting ZMO coating promotes a homogenized surface electric field and provides abundant nucleation sites, thereby guiding uniform Zn deposition and effectively mitigating dendrite formation. Consequently, the ZMO-modified Zn anode delivers significantly enhanced electrochemical reversibility and long-term cycling stability. This work provides a cost-effective and industrially viable surface engineering strategy to tackle the fundamental challenges of Zn anodes, paving the way for the commercialization of high-performance AZIBs.

1. Introduction

The continuous growth in energy demand, driven by societal advancement, has underscored the urgent need to address environmental pollution. Consequently, the global search for new clean energy sources has intensified [1,2,3]. The advent of lithium-ion batteries (LIBs) represents a significant milestone in energy storage systems [4]. Despite the successful large-scale application of LIBs, several challenges persist, including limited resources, high costs, and safety concerns about organic electrolytes and metallic lithium. These issues have notably constrained the further development of LIBs [5,6,7]. In contrast, aqueous energy storage devices have emerged as promising alternatives. Various aqueous batteries employing Zn2+, K+, Al3+, Ca2+, and other charge carriers have been developed [8,9,10,11]. Among these, AZIBs have gained attention from the favorable (electro)chemical stability of Zn metal. Additionally, Zn metal provides two-electron transfer with high volume capacity, low electrochemical potential, and plentiful natural abundance [12,13,14]. Thus, AZIBs are poised to become the next generation of secondary batteries.
Nevertheless, the progress of AZIBs faces major obstacles, including dendrite growth, passivation, corrosion, and HER. These reactions result in low CE and poor reversibility, and their interrelated nature can lead to capacity degradation and battery failure, severely impacting the electrochemical stability of AZIBs [15,16,17]. The irreversibility of the Zn anode stems from the unstable interface, which precipitates these side reactions. Therefore, optimizing the Zn/electrolyte interface and regulating the Zn2+ solvation structure plays a key role in boosting the Zn anode’s reversibility. New, numerous approaches have been adopted to tackle these problems, including structural design, interface modification, alloy construction, and electrolyte engineering [18,19,20,21,22]. While these measures can mitigate side effects to some extent, they also present limitations. Among these strategies, the construction of an artificial inorganic interface layer on the Zn anode has proven effective in suppressing dendrite formation and corrosion. For instance, nano-CaCO3, TiO2 nanolayers, and ZrO2 layers have been applied to the Zn surface [23,24,25]. The physical barrier provided by these coatings can effectively guide Zn2+ diffusion, thus extending the cycle life of the Zn anode. Nonetheless, most coatings are applied using slurry blade coating methods, which involve cumbersome processes with toxic organic solvents and may result in weak adhesion, inhomogeneity, and voids between the coating and Zn foil. Therefore, constructing a sustainable interface layer through in situ growth is highly desirable. Li et al. demonstrated the construction of a Zn3(PO4)2·4H2O (ZnPO) layer on the Zn foil surface by a hydrothermal method. As a zinc ion conductor, ZnPO facilitates the uniform deposition of Zn2+ and inhibits creation of Zn dendrites [26]. Similarly, Lu et al. in situ generated a zeolitic imidazolate framework-8 (ZIF-8) on the Zn surface through a hydrothermal process [27]. However, these strategies are complex, costly, and difficult to implement in practical applications. Therefore, identifying simple and cost-effective methods remains essential.
In recent years, ZnMoO4 has been explored as a functional inorganic coating material for Zn anodes. However, the currently reported methods for preparing ZnMoO4 coatings mainly rely on hydrothermal/solvothermal methods or multi-step synthesis processes, which have inherent limitations such as strict reaction conditions, cumbersome steps, high energy consumption, and the fact that they are not conducive to large-scale production. In this study, a layer of ZnMoO4 was in situ constructed onto the Zn anode surface (Zn@ZMO) by a simple soaking process. On this basis, we clearly explained the core innovation of the one-step room-temperature immersion method in this work while maintaining the unity of coating functionality (Figure S1). ZMO effectively keeps the Zn anode physically separated from the electrolyte, reducing the occurrence of parasitic reactions. The hydrophilic nature of the ZMO layer facilitates Zn2+ desolvation, facilitating homogeneous Zn2+ electrodeposition and restraining the evolution of Zn dendrites. Additionally, the ZMO significantly reduces battery polarization voltage, thereby extending battery life. Owing to the protective effect of ZMO, the CE of the Zn@ZMO//Cu half-cell reached 97.0% over 2000 cycles at 5 mA cm−2. The symmetrical Zn@ZMO//Zn@ZMO battery demonstrated a cycle life of 1000 h at 5 mA cm−2 with 1 mAh cm−2, while the Zn@ZMO//I2 battery maintained stability for over 10,000 cycles at 5 A g−1. Offering a fresh perspective, this straightforward and powerful modification method holds promise for the onward evolution of Zn anodes.

2. Results and Discussion

The addition of phosphomolybdate solution to the Zn foil surface rapidly transformed the yellow solution into a deep blue color. After the mixture was left to stand for 30 min and the surface solution was then rinsed away, a distinct film appeared on the Zn foil (Figure S2). X-ray diffraction (XRD) analysis revealed that the three main characteristic peaks of Zn@ZMO corresponded to the (002), (100), and (101) planes of Zn metal, with no other significant peaks (Figure 1a). Scanning electron microscope (SEM) images showed that the pristine Zn had a flat surface (Figure 1b), whereas Zn@ZMO exhibited a dense protective layer (Figure 1c). As illustrated in Figure 1f, a protective layer approximately 10 µm thick was formed on the Zn foil surface, with Zn, Mo, and O elements uniformly distributed. The contact angle of the electrolyte on pristine Zn (92.5°) was significantly larger compared with that on Zn@ZMO (38.7°) (Figure 1d,e), indicating that the ZMO protective layer possesses hydrophilic MoO42−.

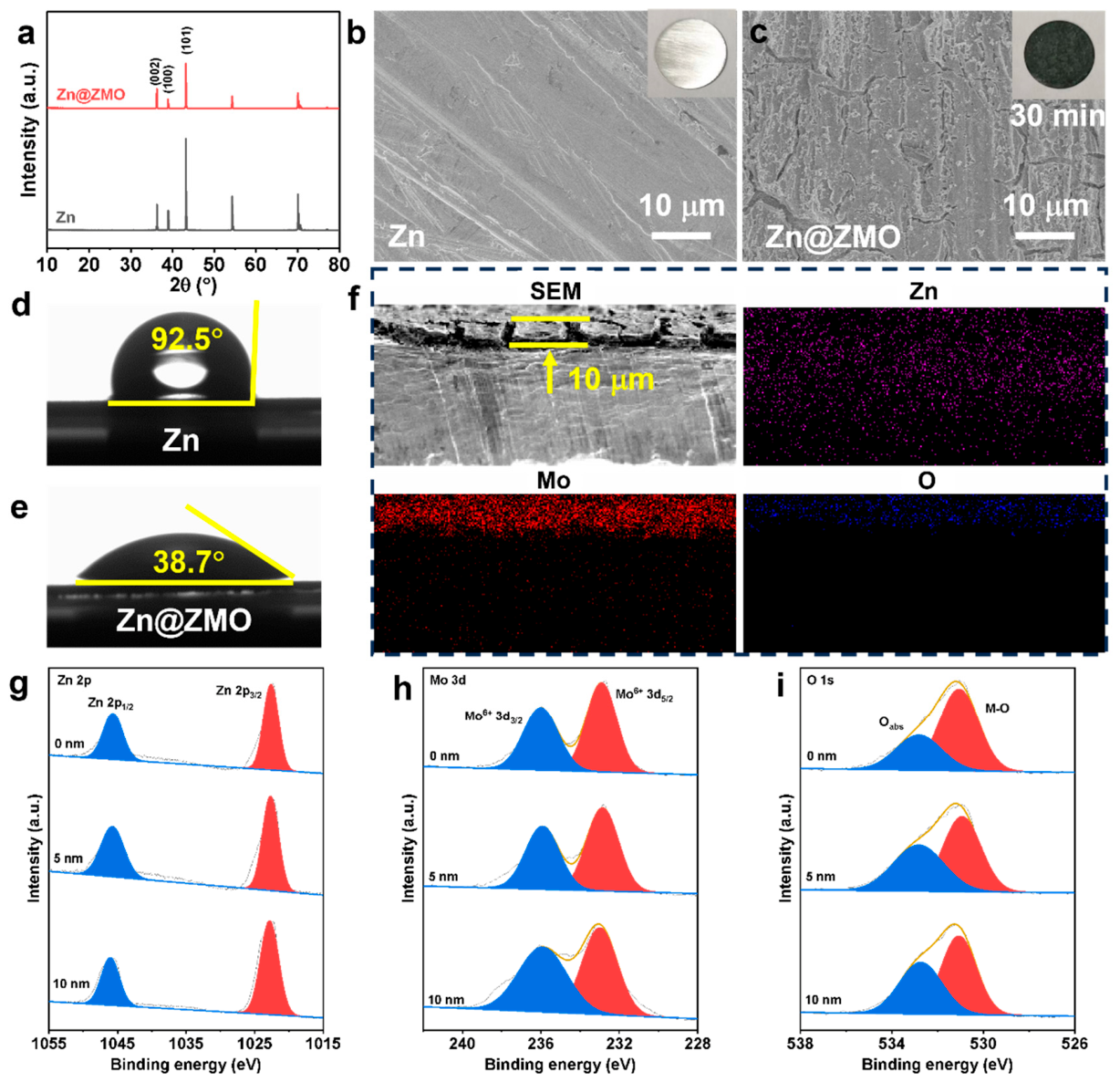

Figure 1. (a) XRD patterns, SEM images, and contact angles with electrolytes of (b,d) Zn and (c,e) Zn@ZMO. (f) Elemental mappings and cross-sectional SEM image of Zn@ZMO. XPS spectral regions for (g) Zn 2p, (h) Mo 3d, and (i) O 1s at distinct Ar sputtering depths on the Zn@ZMO anode. The insets of (b,c) present the optical photographs of Zn and Zn@ZMO, respectively.
Furthermore, the modified Zn anode was subjected to X-ray photoelectron spectroscopy (XPS) etching analysis as a function of sputtering depth, revealing that the surface substances were relatively stable and uniform, consisting mainly of Zn2+, Mo6+, and metal–oxygen bonds. The Zn 2p spectrum displayed four peaks at 1047.0, 1045.2, 1023.6 and 1022.1 eV, corresponding to Zn2+ 2p1/2, Zn0 2p1/2, Zn2+ 2p3/2 and Zn0 2p3/2, respectively (Figure 1g) [28]. In the Mo 3d spectrum, the two peaks were identified as Mo6+ 3d3/2 and 3d5/2 (235.8 and 233.1 eV, respectively) (Figure 1h) [29].
Two peaks at 530.4 eV and 531.8 eV were observed in the O 1s spectrum, corresponding to metal–oxygen bonds and surface-adsorbed oxygen, respectively (Figure 1i) [30]. The Zn foil was soaked in the phosphomolybdate solution for an extended period of 48 h to further investigate the component of the protective layer. The substance formed on the Zn foil surface was identified as ZnMoO4·0.8H2O (PDF#25-1025) (Figure S3). We conducted Raman characterization on Zn foil soaked for 30 min and 48 h. Two types of Zn foils exhibit the same characteristic peaks (MoO4 and ZnO6), but the characteristic peak intensity of the Zn foil soaked for 30 min is weaker, indicating that a ZnMoO4 protective layer can be formed on the surface of the Zn foil soaked for 30 min (Figure S4). A ZnMoO4 protective layer was in situ built on Zn foil upon the addition of phosphomolybdic acid. The absence of detectable ZnMoO4·0.8H2O in the XRD analysis of the Zn sheet soaked for 30 min can be attributed to the thinner protective layer and lower ZnMoO4·0.8H2O content generated during the shorter exposure time. Zn@ZMO with a thinner protective layer as the electrode is more conducive to the transport of Zn2+ ions.
The practical impact of the ZMO interlayer on Zn was evaluated by assembling a coin-type battery. In order to determine the optimal coating preparation time and optimize the reversibility of the Zn anode, we designed and implemented Zn anodes with different soaking times of 10, 30, and 60 min from the beginning (Figure S5). The CE of the Zn@ZMO//Cu half-cell reached 97.0%, as determined using the ‘reservoir half-cell’ method [31], which is superior to the CE of 91.9% observed for the bare Zn//Cu half-cell (Figure 2a). This enhancement indicates that the ZMO layer significantly improves Zn2+ deposition and stripping behavior, thereby enhancing the reversibility of the process. Additionally, the Zn@ZMO//Cu half-cell remained stable for 2000 cycles at 1 mAh cm−2 and 5 mA cm−2, whereas the Zn//Cu half-cell exhibited pronounced fluctuations after 400 cycles. This result demonstrates the ZMO layer’s effectiveness in suppressing side reactions (Figure 2b). Furthermore, Zn@ZMO//Zn@ZMO symmetric batteries were cycled in a stable manner for 1600 h (voltage hysteresis ~38.4 mV) and 1000 h (voltage hysteresis ~39.4 mV) at 1 mA cm−2 and 5 mA cm−2, respectively (Figure 2e and Figure S6).

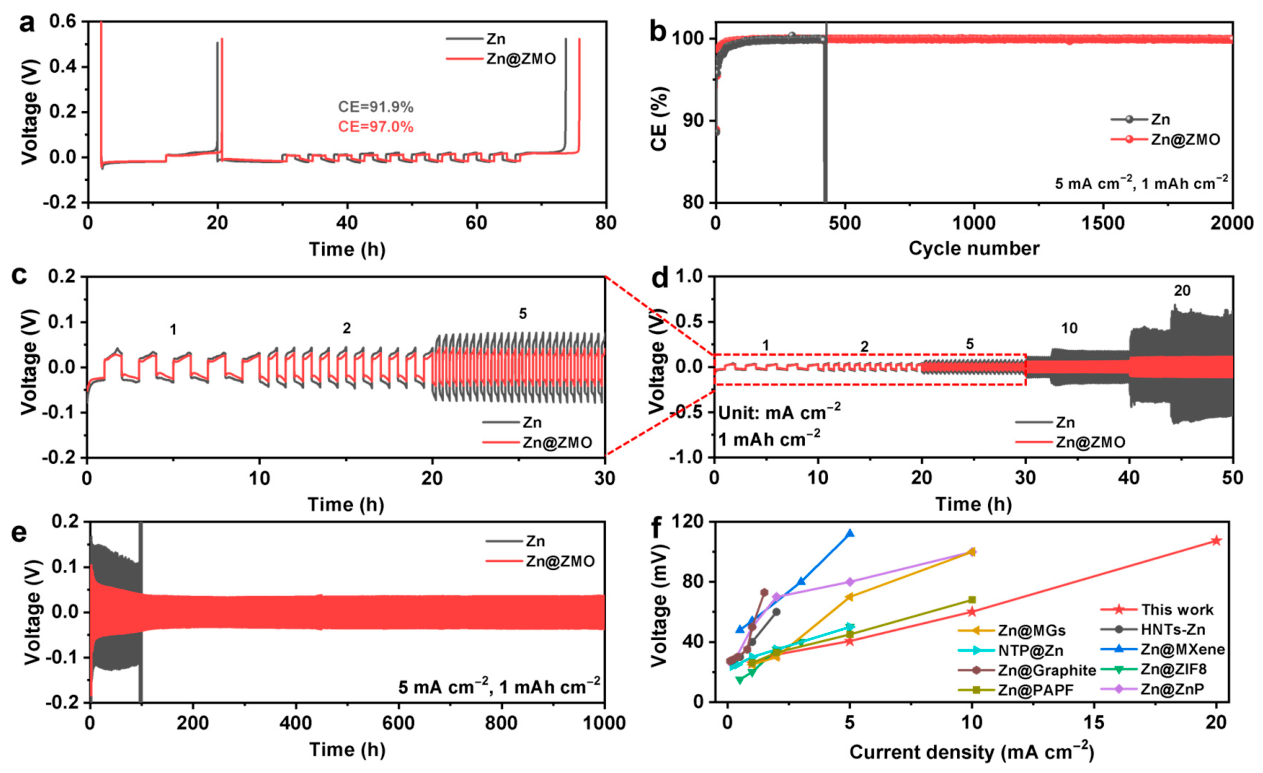

Figure 2. (a) Voltage profile for Zn//Cu and Zn@ZMO//Cu half-cells. (b) CE of Zn//Cu and Zn@ZMO//Cu batteries at 5 mA cm−2 with 1 mAh cm−2. (c,d) Rate performance of the Zn//Zn and Zn@ZMO//Zn@ZMO symmetrical batteries. (e) Cycle life of the Zn//Zn and Zn@ZMO//Zn@ZMO batteries at 5 mA cm−2. (f) Comparison of polarization voltage versus current density for the Zn@ZMO//Zn@ZMO battery and recently reported modified Zn anode.
Conversely, the Zn//Zn battery maintained stability for only 100–200 h, accompanied by a slightly higher voltage hysteresis of approximately 0.19 V (1.0 mA cm−2) and 0.22 V (5.0 mA cm−2). This degradation is attributed to continuous hydrogen generation during cycling, which results in poor electrode contact and eventual cell failure (Figure S6). The ZMO protective layer effectively mitigates hydrogen generation, thereby extending the battery’s lifespan. The Zn@ZMO//Zn@ZMO battery maintained a small voltage hysteresis and stable operation at 1 mAh cm−2 across different current densities, owing to the ZMO protective layer (Figure 2c,d). The polarization voltages for the Zn@ZMO//Zn@ZMO symmetric cell were 25.6, 31.6, 40.6, 60.1, and 107.4 mV at 1, 2, 5, 10, and 20 mA cm−2, respectively. These polarization voltages are lower than those observed for the Zn//Zn symmetric cell (32.6, 44.6, 76.3, 174, and 568 mV), suggesting faster Zn2+ transport kinetics in the ZMO protective layer (Figure S7). Compared with modified Zn anodes reported in other studies, the Zn@ZMO//Zn@ZMO symmetric battery in this work demonstrates superior rate performance as measured by polarization voltage (Figure 2f and Table S1).
The Zn anode readily corrodes when exposed to aqueous electrolytes, leading to hydrogen evolution and dendrite formation (Figure 3a). Therefore, the Zn anode surface was modified in situ with a ZMO protective coating to effectively mitigate these parasitic reactions (Figure 3b). The efficacy of the ZMO protective layer was systematically validated through electrochemical tests. First, the corrosion potential (Ecorr) and corrosion current density (Icorr) of Zn@ZMO, as measured by Tafel curves, were better (Ecorr = −0.967 V and Icorr = 0.0027 mA cm−2) than those of pristine Zn (Ecorr = −0.971 V and Icorr = 0.0037 mA cm−2), indicating the superior corrosion resistance conferred by the ZMO layer (Figure 3c). This superior anti-corrosion performance is attributed to the preferential adsorption of hydrophilic ZMO on the Zn surface, which effectively excludes aggressive H2O molecules and anions from direct contact with the underlying Zn substrate, thereby passivating the surface against corrosive attack. Second, linear sweep voltammetry (LSV) curves demonstrated that Zn@ZMO exhibits a more delayed hydrogen evolution potential (−1.265 V) compared to bare Zn (−1.197 V) at −40 mA cm−2 (Figure 3d). The same results were also observed in the Na2SO4 electrolyte (Figure S8). This suppression originates from the strong interaction between the ZMO and H2O molecules: the polar oxygen-rich surface of the ZMO-protected layer restricts free H2O activity via hydrogen-bonding interactions, while simultaneously, the preferential adsorption of Zn2+ onto the ZMO surface lowers the energy barrier for Zn Zn2+ desolvation, reducing the population of solvated H2O molecules available for reduction at the electrode/electrolyte interface [32].

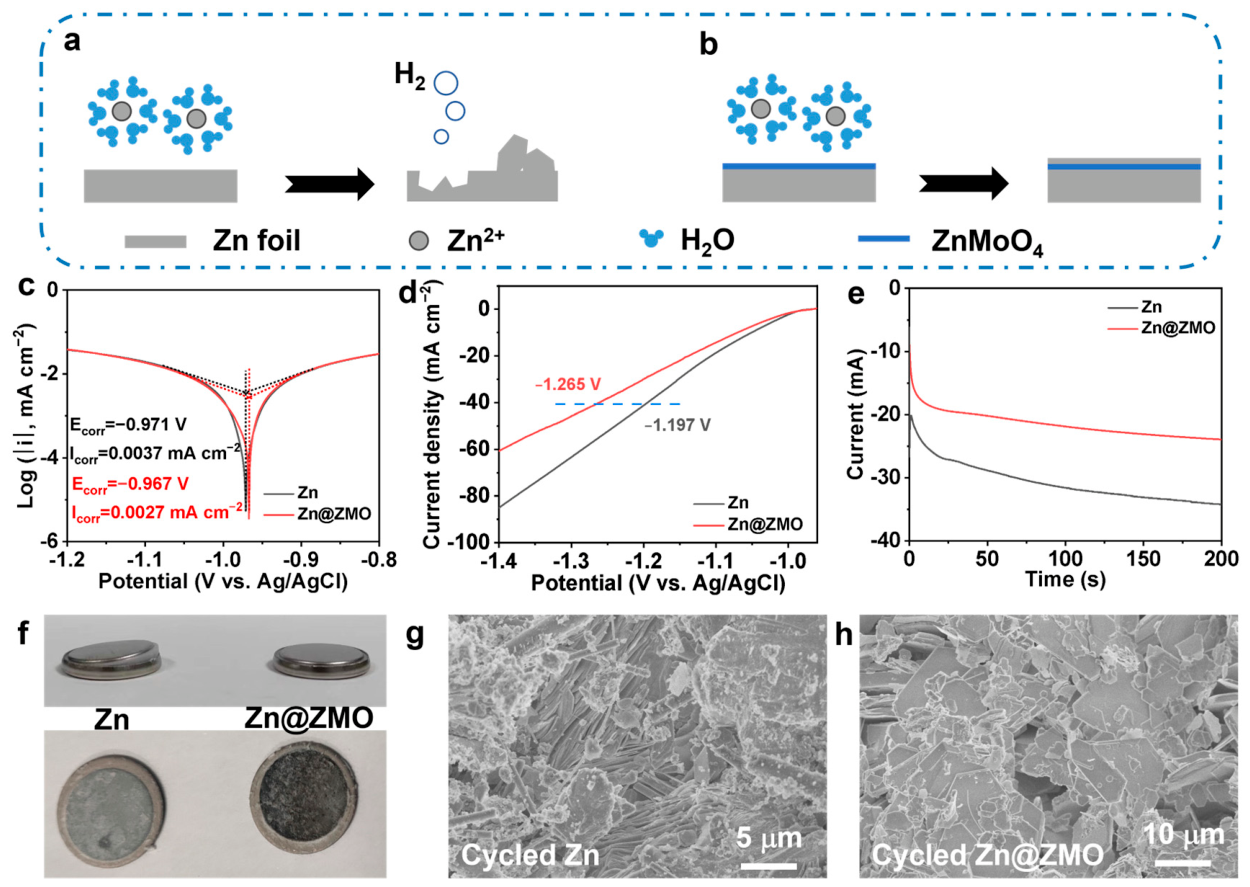

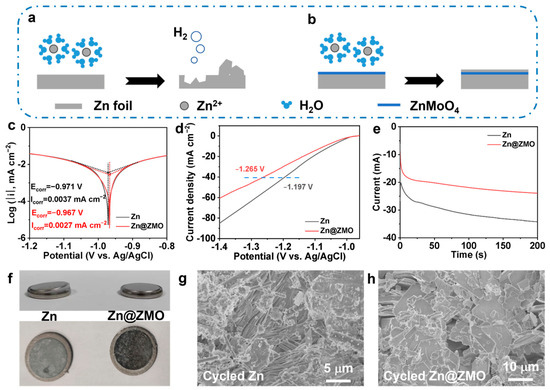

Figure 3. Schematic diagrams for Zn plating changes in (a) pristine Zn and (b) Zn@ZMO anodes. (c) Corrosion, (d) LSV, and (e) CA curves of pristine Zn and Zn@ZMO at 10 mV s−1. (f) Optical photographs of the cycled Zn//Zn and Zn@ZMO//Zn@ZMO symmetrical battery status. The SEM images of the cycled (g) Zn and (h) Zn@ZMO.
These findings indicated that the ZMO layer effectively suppressed the HER. Additionally, chronoamperometry (CA) tests showed that the current fluctuation of Zn@ZMO remains more stable at a fixed overpotential of −150 mV during 200 s, demonstrating that the ZMO protective layer guides a 2D diffusion-controlled deposition mode and promotes lateral growth of Zn deposits, thereby effectively mitigating dendrite formation (Figure 3e). Comparison of the symmetric batteries after cycling revealed significant swelling in the Zn//Zn symmetric battery, attributable to excessive hydrogen production (Figure 3f). The cycled Zn anode shows noticeable corrosion, while the cycled Zn@ZMO anode remained relatively flat. SEM images further illustrated that the cycled Zn anode consisted mainly of irregular flake crystals, whereas the cycled Zn@ZMO anode was covered with flat hexagonal crystals (Figure 3g,h). Zn and Zn@ZMO sheets were deposited at 1 mA cm−2 for 5 h to compare morphological changes. From the XRD analysis of the plated Zn, the relative intensities of the (002) and (101) reflections (R = I(002)/I(101)) were found to vary. The XRD results indicated that Zn2+ preferentially deposited on the (101) plane of pristine Zn (R = 0.28), whereas the ZMO protective layer promoted Zn2+ to be deposited on the (002) plane (R = 0.58) (Figure S9a). SEM images confirmed that pristine Zn surfaces developed vertical dendritic structures (Figure S9b), while the Zn@ZMO surface remained flat (Figure S9c), consistent with the XRD results. Furthermore, soaking the electrodes in electrolyte demonstrated that the ZMO layer effectively inhibited the production of basic zinc salts (Figure S10). These outcomes emphasized how effectively the ZMO protective layer resolves associated issues such as HER and Zn dendrites in Zn anodes.
For a more direct comparison between Zn and Zn@ZMO during the cycling process, a confocal laser scanning microscope (CLSM) was employed to measure the electrode surface flatness. The two-dimensional (2D) and three-dimensional (3D) CLSM images indicated that the cycled Zn surface is uneven, with surface roughness ranging from 5 to 30 µm (Figure 4a). By contrast, the cycled Zn@ZMO exhibits a comparatively smooth surface, with roughness primarily distributed between 5 and 15 µm (Figure 4b). The ZMO protective layer promoted uniform Zn2+ deposition and inhibited the creation of Zn dendrites. Further analysis of the Zn2+ flux distribution on Zn and Zn@ZMO was conducted employing COMSOL Multiphysics software. Zn2+ ions on the bare Zn anode favored accumulation at the tips, giving rise to an uneven ion distribution across the surface. (Figure 4c). These regions with notably enhanced Zn-ion flux accelerated Zn dendrite growth [33].

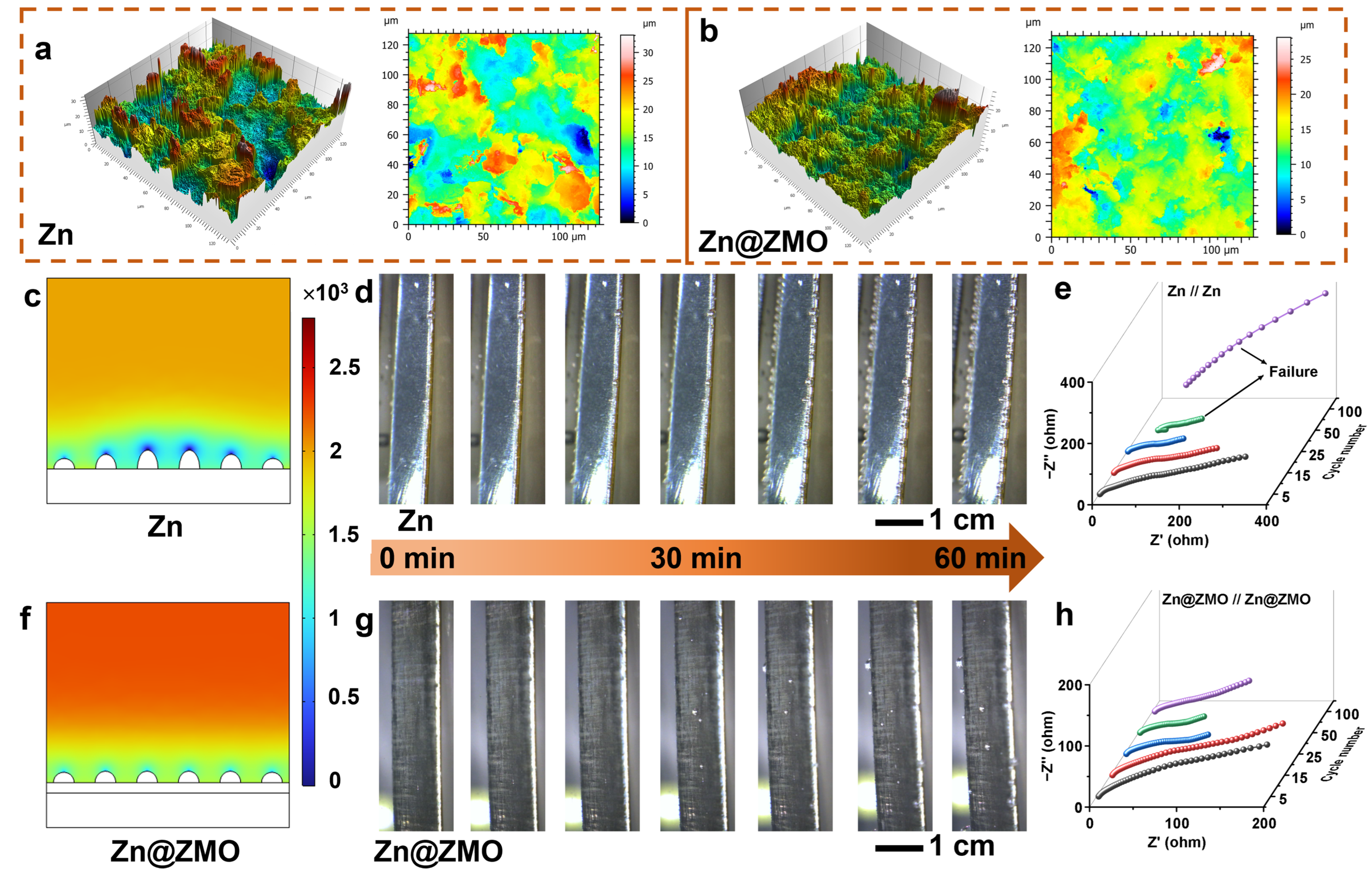

Figure 4. CLSM images of cycled (a) Zn and (b) Zn@ZMO anodes. Simulation results of the Zn2+ flux distribution on (c) pristine Zn and (f) Zn@ZMO. In situ low-resolution optical microscope of deposited Zn at 5 mA cm−2 onto (d) Zn and (g) Zn@ZMO. In situ EIS of (e) Zn//Zn and (h) Zn@ZMO//Zn@ZMO batteries.
By contrast, the ZMO protective layer effectively redistributes and homogenizes Zn2+ ions, contributing to uniform Zn plating (Figure 4f). Additionally, in situ low-resolution optical microscopy was employed to directly observe changes around the Zn anode during charging. With increasing reaction time, a significant number of bubbles appeared on the bare Zn surface, indicating a strong HER (Figure 4d and Movie S1). Conversely, the Zn@ZMO surface showed no noticeable changes (Figure 4g and Movie S2), indicating that Zn@ZMO effectively mitigates HER during charging and discharging. XPS was employed to characterize the Zn@ZMO and verify the stability of the ZMO protective layer after cycling. The cycled Zn@ZMO electrode retained Zn2+, Mo6+, and metal–O species without significant changes in valence state, similar to the initial Zn@ZMO electrode (Figure S11). Furthermore, in situ EIS shows that the Zn//Zn battery exhibits fluctuations and even a significant increase in impedance after 50 cycles, indicating poor internal contact of the battery (Figure 4e). By contrast, the EIS of the Zn@ZMO//Zn@ZMO battery remains relatively stable during cycling (Figure 4h). These results indicate that the ZMO layer remains stable after cycling, thereby optimizing the electrochemical properties of the Zn anode (Figure S12).
The ZMO protective layer not only shielded the Zn foil but also enhanced the transfer of Zn2+ ions. Density functional theory (DFT) was employed to compute the adsorption energies of both H2O molecules and Zn2+ onto the electrode surface. The higher the adsorption energy, the stronger the interfacial force, making it easier to absorb ions or molecules. As illustrated in Figure 5a–c, the adsorption energies of H2O and Zn2+ ions onto the Zn@ZMO surface were −0.708 eV and −4.214 eV, respectively, which were higher than those on the Zn anode (Zn-H2O: −0.330 eV, Zn-Zn2+: −0.802 eV). These findings demonstrated that the ZMO interface promoted the desolvation of Zn2+ ions. The variation in impedance with temperature for both Zn//Zn and Zn@ZMO//Zn@ZMO symmetrical batteries was also measured to determine the ionic conductivity. Fitting analyses of ionic conductivity demonstrated that the desolvation activation energy on the Zn@ZMO surface was 46.3 kJ mol−1, which is less than that observed for Zn (49.2 kJ mol−1) (Figure 5d–f). This further confirmed that the ZMO interfacial layer enhanced Zn2+ desolvation, thereby promoting faster Zn2+ transport. Cyclic voltammetry (CV) along with galvanostatic intermittent titration technique (GITT) analysis also revealed that the ZMO interfacial layer accelerated the diffusion rate of Zn2+ ions (Figure 5g,h and Figure S13). According to Figure 5i, the Zn@ZMO//I2 full battery exhibited a considerably higher Zn2+ ion diffusion coefficient (DZn2+) (D = 5.435 × 10−11 cm2 s−1) compared to that of the Zn//I2 battery (D = 3.607 × 10−11 cm2 s−1). This improvement in electrochemical activity is attributable to the ability of the ZMO layer to promote Zn2+ desolvation.

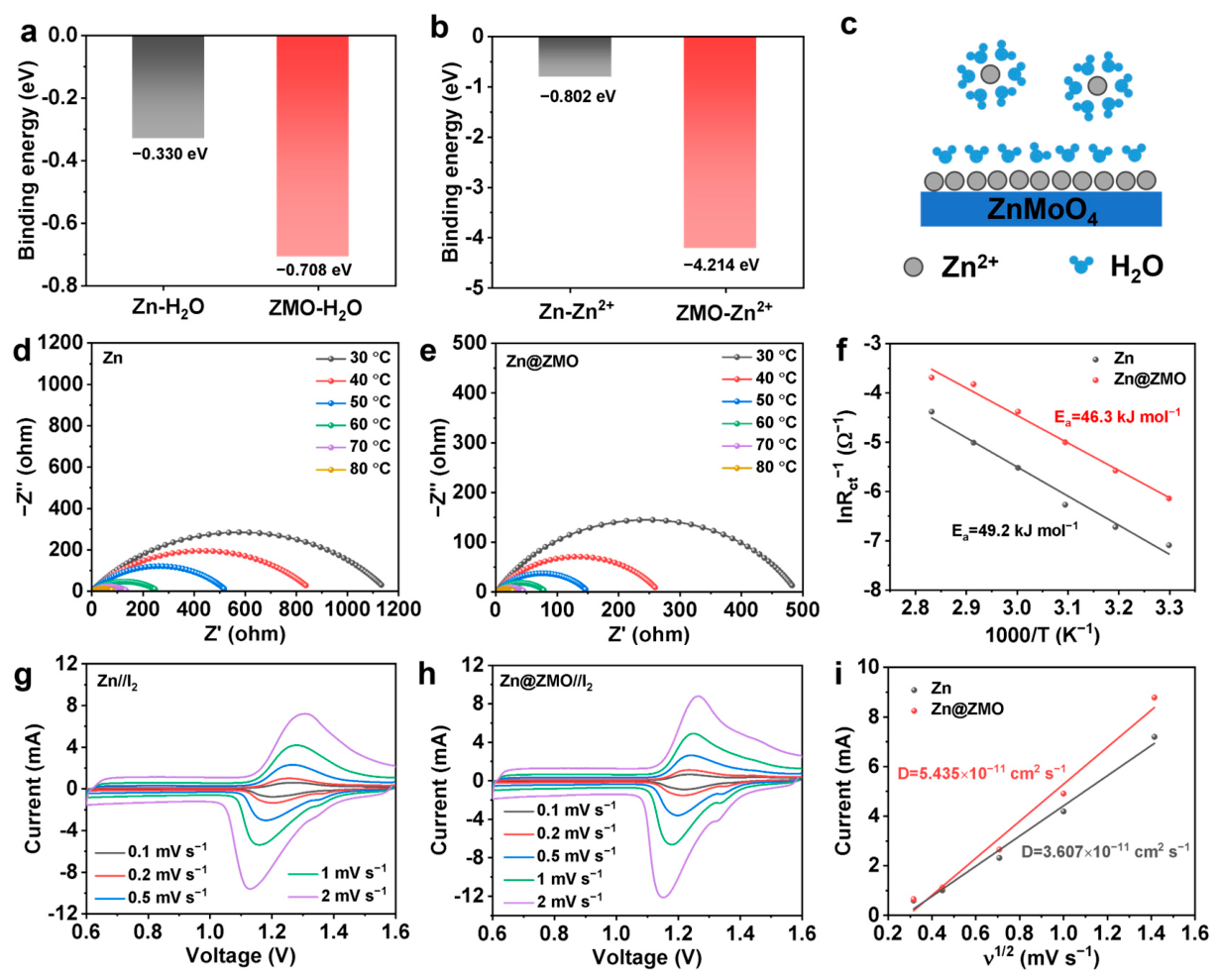

Figure 5. Adsorption energy of (a) the H2O molecule and (b) the Zn2+ ion on the Zn and Zn@ZMO surfaces. (c) Schematic diagram of desolvation at the ZMO interfaces. Nyquist curves of the (d) Zn//Zn and (e) Zn@ZMO//Zn@ZMO batteries from 30 to 80 °C. (f) Desolvation activation energies of the symmetrical batteries. CV curves of (g) Zn//I2 and (h) Zn@ZMO//I2 batteries. (i) The relationship linking the peak current (Ip) to the square root of the scanning rate (ν1/2).
The practical utility of the ZMO protective layer was determined in a Zn@ZMO//I2 full cell. Both the CV curves of the Zn//I2 and Zn@ZMO//I2 full cells exhibited a reduction peak and an oxidation peak at 0.1 mV s−1. The Zn@ZMO//I2 cell (~0.02 V) delivered a lower voltage hysteresis than the Zn//I2 cell (~0.07 V), indicating reduced electrochemical polarization in the Zn@ZMO//I2 full cell (Figure 6a).

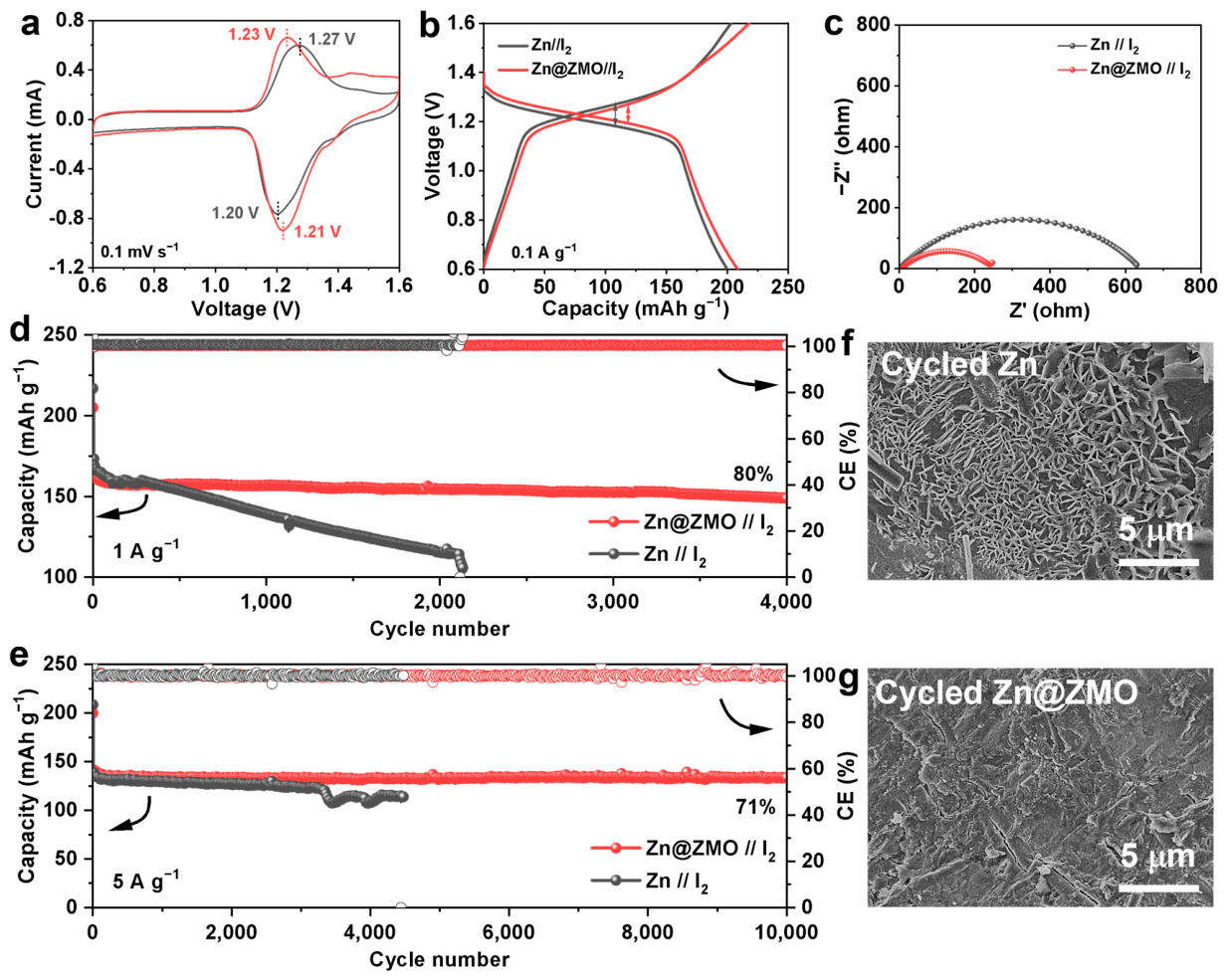

Figure 6. (a) CV curves of the Zn//I2 and Zn@ZMO//I2 batteries at 0.1 mV s−1. (b) Galvanostatic charge/discharge profiles of full batteries at 0.1 A g−1. (c) EIS of the full batteries. Cycling performance of the Zn//I2 and Zn@ZMO//I2 batteries at (d) 1 A g−1 and (e) 5 A g−1. Top-view SEM images of cycled (f) Zn and (g) Zn@ZMO electrodes from post-cycling full cells.
Additionally, the galvanostatic charge/discharge curves of the Zn@ZMO//I2 cell demonstrated lower polarization voltage compared to the Zn/I2 full cell (Figure 6b). Electrochemical polarization is linked to the charge-transfer resistance (Rct), which is manifested as a semicircle in the high- to medium-frequency portion of the Nyquist curve. Because the ZMO layer stabilizes the electrode interface, the Zn@ZMO//I2 battery showed a substantially reduced Rct (241 Ω) compared with Zn//I2 (638 Ω). (Figure 6c). Furthermore, the Zn@ZMO//I2 cell retained a capacity of 149 mAh g−1 with 80% retention after 4000 cycles at 1 A g−1. Even at 5 A g−1, the Zn@ZMO//I2 battery maintained 133 mAh g−1 with 71% retention after 10,000 cycles, considerably outperforming the Zn//I2 battery (Figure 6d,e and Figure S14). After cycling characterization of the Zn and Zn@ZMO foils revealed distinct differences, the cycled Zn anode exhibited prominent sheet-like dendrites (Figure 6f), while the cycled Zn@ZMO anode maintained a relatively flat surface (Figure 6g). These outcomes indicated that the ZMO interlayer effectively protected the Zn foil and enhanced the electrochemical capability.

3. Conclusions

The ZMO protective interlayer, fabricated on Zn foil using a straightforward one-step immersion method, effectively mitigated corrosion, HERs, and Zn dendrite formation in aqueous electrolytes. The ZMO layer exhibited substantial adsorption energy for both H2O molecules and Zn2+ ions, facilitating the desolvation of Zn2+ ions, accelerating their migration, and enhancing their reversibility. Additionally, this protective layer reduced the polarization voltage between electrodes, promoted uniform Zn2+ ion deposition, and extended battery cycle life. As a result, the Zn@ZMO//Zn@ZMO battery achieved a cycle life of 1000 h at 5 mA cm−2 with 1 mAh cm−2 and remained stable even at 20 mA cm−2. This low-cost in situ immersion modification technology aligns with the industry’s core pursuit of process simplification, cost control, and performance improvement, and is considered one of the key paths to drive AZIBs from the laboratory to large-scale applications.
