Semiautomated Detection and Mapping of Vegetation Distribution in the Antarctic Environment Using Spatial-Spectral Characteristics of WorldView-2 Imagery

1
Svalbard Integrated Arctic Earth Observing System (SIOS), SIOS Knowledge Centre, Svalbard Science Centre, P.O. Box 156, N-9171 Longyearbyen, Svalbard, Norway
2
Polar Remote Sensing Section, Earth System Science Organization—National Centre for Polar and Ocean Research, Ministry of Earth Sciences, Headland Sada, Vasco-da-Gama, Goa 403804, India
3
British Antarctic Survey, Natural Environment Research Council, High Cross, Madingley Road, Cambridge CB3 0ET, UK
4
Wildlife Institute of India, Chandrabani, Dehradun, Uttarakhand 248001, India
5
Department of Geography, University of Madras, Chennai, Tamil Nadu 600005, India
*
Author to whom correspondence should be addressed.
Remote Sens. 2019, 11(16), 1909; https://doi.org/10.3390/rs11161909
Received: 7 June 2019 / Revised: 18 July 2019 / Accepted: 23 July 2019 / Published: 15 August 2019
  |
PDF [6683 KB, uploaded 15 August 2019]
  |

Abstract

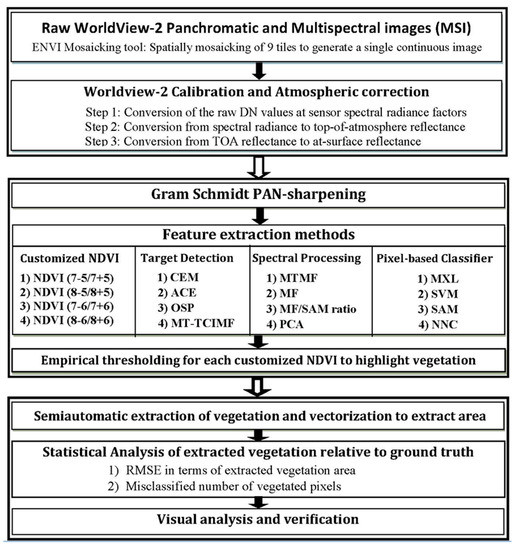

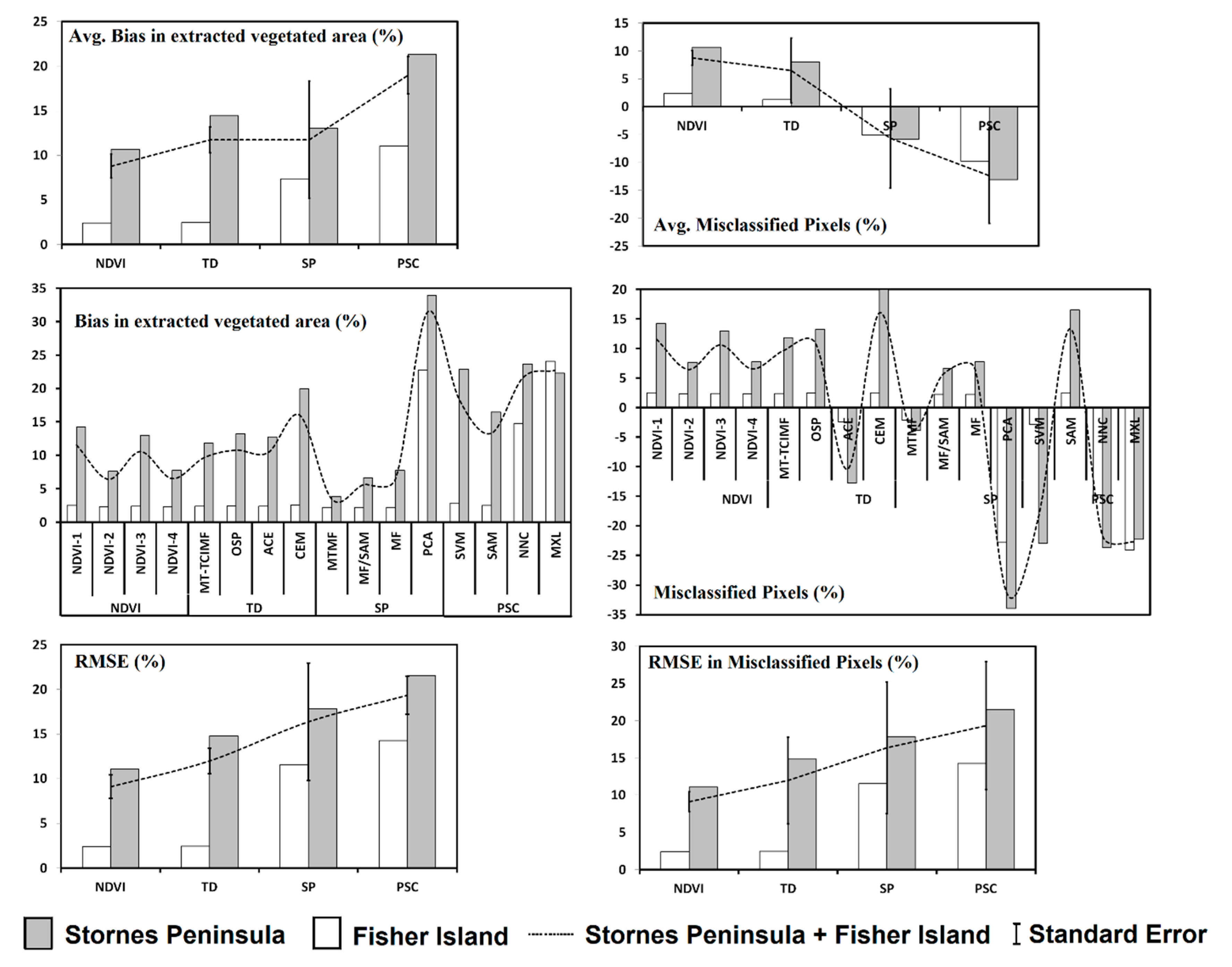

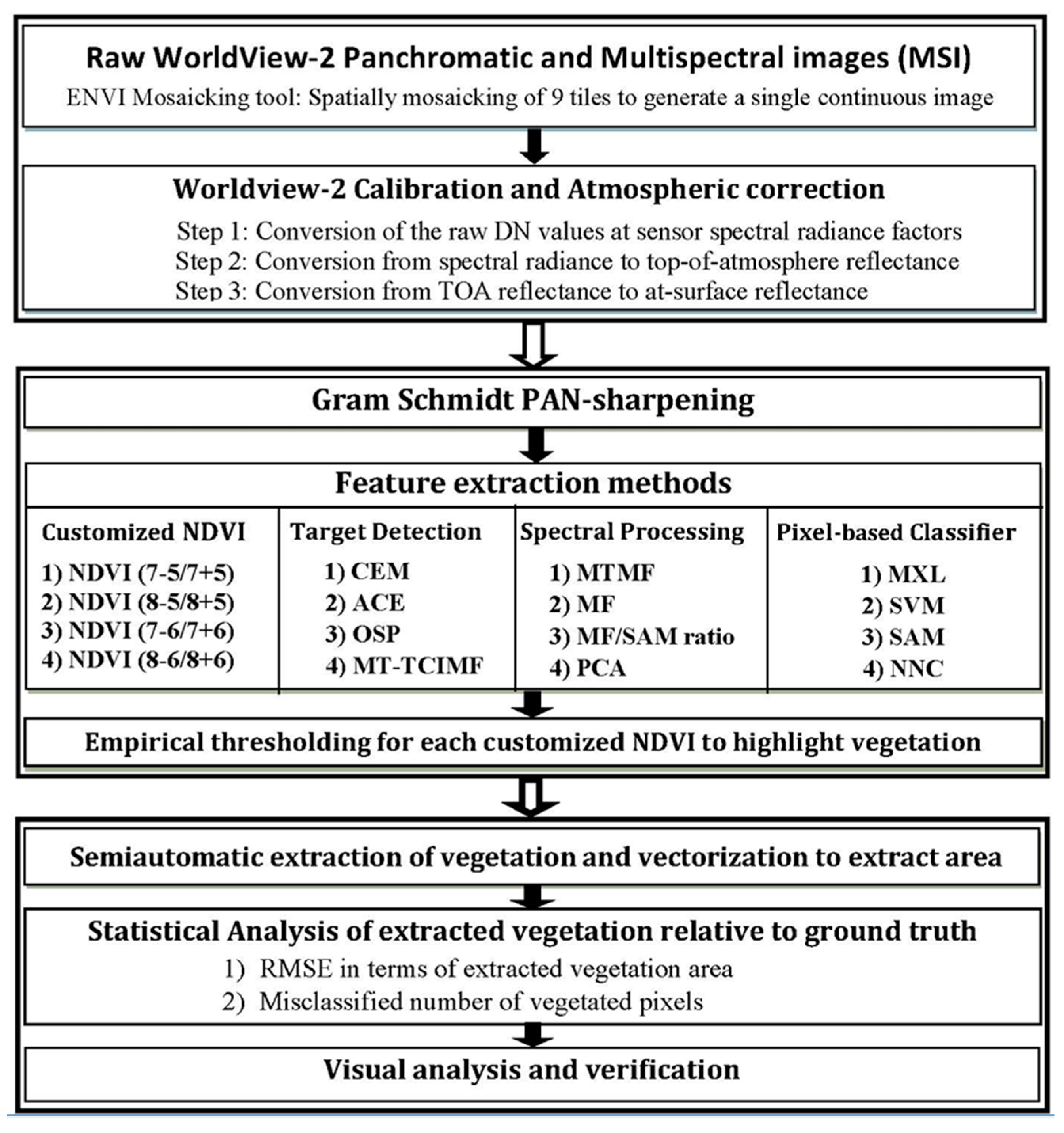

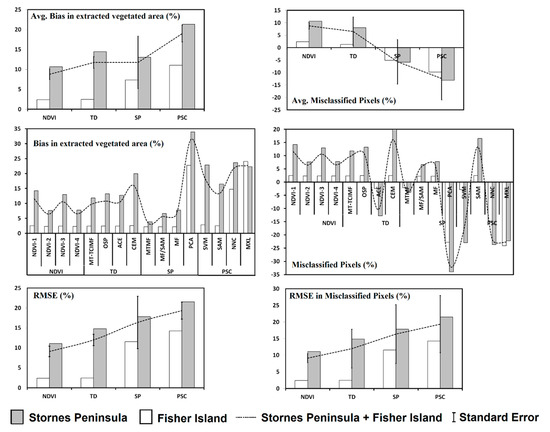

Effective monitoring of changes in the geographic distribution of cryospheric vegetation requires high-resolution and accurate baseline maps. The rationale of the present study is to compare multiple feature extraction approaches to remotely mapping vegetation in Antarctica, assessing which give the greatest accuracy and reproducibility relative to those currently available. This study provides precise, high-resolution, and refined baseline information on vegetation distribution as is required to enable future spatiotemporal change analyses of the vegetation in Antarctica. We designed and implemented a semiautomated customized normalized difference vegetation index (NDVI) approach for extracting cryospheric vegetation by incorporating very high resolution (VHR) 8-band WorldView-2 (WV-2) satellite data. The viability of state-of-the-art target detection, spectral processing/matching, and pixel-wise supervised classification feature extraction techniques are compared with the customized NDVI approach devised in this study. An extensive quantitative and comparative assessment was made by evaluating four semiautomatic feature extraction approaches consisting of 16 feature extraction standalone methods (four customized NDVI plus 12 existing methods) for mapping vegetation on Fisher Island and Stornes Peninsula in the Larsemann Hills, situated on continental east Antarctica. The results indicated that the customized NDVI approach achieved superior performance (average bias error ranged from ~6.44 ± 1.34% to ~11.55 ± 1.34%) and highest statistical stability in terms of performance when compared with existing feature extraction approaches. Overall, the accuracy analysis of the vegetation mapping relative to manually digitized reference data (supplemented by validation with ground truthing) indicated that the 16 semi-automatic mapping methods representing four general feature extraction approaches extracted vegetated area from Fisher Island and Stornes Peninsula totalling between 2.38 and 3.72 km2 (2.85 ± 0.10 km2 on average) with bias values ranging from 3.49 to 31.39% (average 12.81 ± 1.88%) and average root mean square error (RMSE) of 0.41 km2 (14.73 ± 1.88%). Further, the robustness of the analyses and results were endorsed by a cross-validation experiment conducted to map vegetation from the Schirmacher Oasis, East Antarctica. Based on the robust comparative analysis of these 16 methods, vegetation maps of the Larsemann Hills and Schirmacher Oasis were derived by ensemble merging of the five top-performing methods (Mixture Tuned Matched Filtering, Matched Filtering, Matched Filtering/Spectral Angle Mapper Ratio, NDVI-2, and NDVI-4). This study is the first of its kind to detect and map sparse and isolated vegetated patches (with smallest area of 0.25 m2) in East Antarctica using VHR data and to use ensemble merging of feature extraction methods, and provides access to an important indicator for environmental change. View Full-Text
Keywords: semi-automated classification; customized NDVI; Antarctic vegetation; spectral processing; feature extraction; Worldview-2 data semi-automated classification; customized NDVI; Antarctic vegetation; spectral processing; feature extraction; Worldview-2 data
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Supplementary material

SciFeed

Share & Cite This Article

MDPI and ACS Style

Jawak, S.D.; Luis, A.J.; Fretwell, P.T.; Convey, P.; Durairajan, U.A. Semiautomated Detection and Mapping of Vegetation Distribution in the Antarctic Environment Using Spatial-Spectral Characteristics of WorldView-2 Imagery. Remote Sens. 2019, 11, 1909.
