Optimization of the Separation Parameters and Indicators of Separation Efficiency of Buckwheat Seeds
Abstract
:1. Introduction
2. Materials and Methods

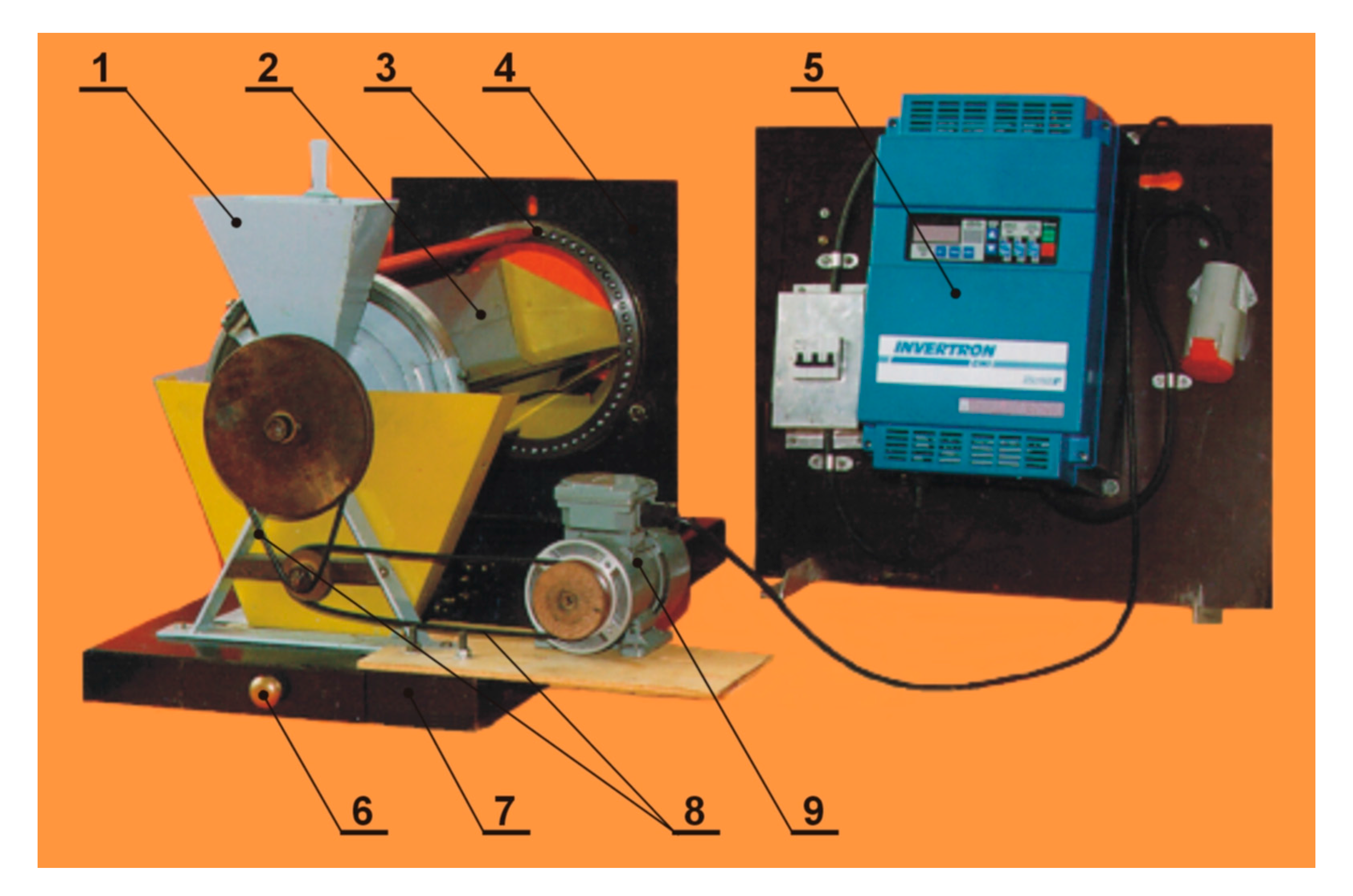

- cylinder working length | 484 mm, |
- external diameter of cylinder rings | 270 mm, |
- distance between the edge of the trough and the cylinder | 10.0 mm, |
- inclination angle of the cylinder axis in the direction of the seed outlet | 3°, |
- motor output | 0.8 kW, |
- frequency converter | INVERTRON GM1-S13. |

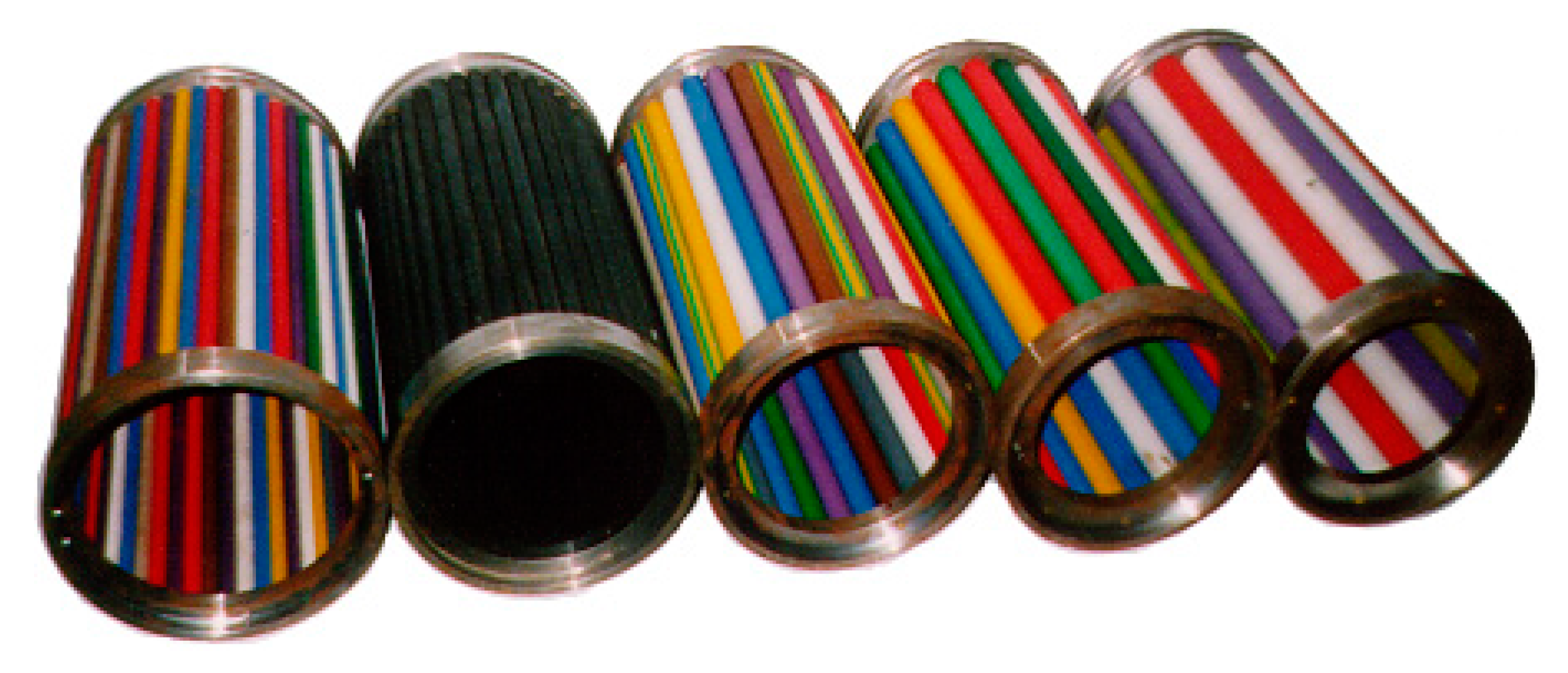

- diameter of grooves with PVC tubing | 13.5 mm, |
- cylinder’s internal diameter | 245 mm, |
- number of bars forming the cylinder’s lateral surface | 48, |
- width of the separating groove | 3.1 mm. |
- -
- angle of the working edge of the trough (αr)—from 95 to 125°, in steps of 5°,
- -
- cylinder’s kinematic index (k)—from 0.15 to 0.55, in steps of 0.1.
- -
- -
- a command interpreter of mathematical expressions based on the Reverse Polish Notation method [18],
- -
- a module for 2D and 3D visualization of the solution space based on the OpenGL low-level graphics library,
- -
- a computing module based on genetic algorithm data.
- -
- the appropriate forms of the objective function (stochastic models) were found,
- -
- the search intervals (range of parameters) for the task were defined at αr <95°; 125°> and k <0.15; 0.55>,
- -
- the direction of the optimization process (minimum or maximum) was selected,
- -
- constraint functions (number of generations or time) were defined.
3. Results and Discussion
4. Conclusions
Author Contributions
Conflicts of Interest
References
- Borzęcki, K. Leksykon Podręczny; Wydawnictwo Księgarnia Publisher: Olsztyn, Poland, 1994; pp. 1–242. ISBN 8390146703. (In Polish) [Google Scholar]
- Konopka, S. Analiza procesu separacji nasion gryki przy wykorzystaniu prętowych powierzchni roboczych tryjerów. Inżynieria Rol. 2006, 8, 1–123. (In Polish) [Google Scholar]
- Choszcz, D.J. Efektywność rozdzielania mieszaniny nasion rzepaku i przytulii czepnej w separatorze z taśmą pętelkową. Inżynieria Rol. 2009, 7, 1–106. (In Polish) [Google Scholar]
- Kisielińska, J. Elementy Teorii Optymalizacji Oraz Metody Rozwiązywania Zadań Optymalizacji Nieliniowej; SGGW: Warszawa, Poland, 2000; pp. 31–41. (In Polish) [Google Scholar]
- Ahmed, S.G. Automatic generation of basis test paths using variable length genetic algorithm. Inf. Process. Lett. 2014, 114, 304–316. [Google Scholar]
- Carrillo-Ureter, G.E.; Roberts, P.A.D.A.; Becerra, V.M. Genetic algorithm for optimal control of beer fermentation. In Proceedings of the IEEE International Symposium on Intelligent Control, Mexico City, Mexico, 5–7 September 2001; pp. 391–396. [Google Scholar]
- Deb, K. Multi-Objective Optimization Using Evolutionary Algorithms; Wiley: Hoboken, NK, USA, 2001. [Google Scholar]
- Harris, S.D.; Elliot, L.; Ingram, D.B.; Pourkashanian, M.; Wilson, C.W. The optimization of reaction rate parameters for chemical kinetic modeling of combustion using genetic algorithms. Comput. Methods Appl. Mech. Eng. 2000, 190, 1065–1090. [Google Scholar] [CrossRef]
- Oduguwa, V.; Tiwari, A.; Roy, R. Evolutionary computing in manufacturing industry: An overview of recent applications. Appl. Soft Comput. 2005, 5, 281–299. [Google Scholar] [CrossRef]
- Peňa-Reyes, C.A.; Sipper, M. Evolutionary computation in medicine: An overview. Artif. Intell. Med. 2000, 19, 1–23. [Google Scholar] [CrossRef]
- Konopka, S. Urządzenie do Czyszczenia Mieszanin Nasiennych, Zwłaszcza Gryki. Patent PL 195961 B1, 30 November 2007. (In Polish). [Google Scholar]
- Konopka, S. Studies on the Choice of Material Used for Making Bars of a Cylindrical Slotted Sieve. Tech. Sci. 2000, 3, 25–32. (In Polish) [Google Scholar]
- Goldberg, D.E. Algorytmy Genetyczne I Ich Zastosowanie; Wydawnictwa Naukowo-Techniczne Publisher: Warszawa, Poland, 1998; pp. 1–303. ISBN 8320429706. (In Polish) [Google Scholar]
- Arabas, J. Wykłady Z Algorytmów Ewolucyjnych; Wydawnictwa Naukowo-Techniczne Publisher: Warszawa, Poland, 2016; pp. 1–303. ISBN 8320429706. (In Polish) [Google Scholar]
- Konopka, S.; Choszcz, D.; Wyrzykowski, P. Aplikacja metody algorytmów genetycznych do optymalizacji wskaźników jakości procesów rozdzielania mieszanin nasiennych. Zesz. Probl. Postęp. Nauk Rol. 2010, 546, 143–148. (In Polish) [Google Scholar]
- Boduch, A. Delphi 7. Kompendium Programisty; Wydawnictwo Helion Publisher: Gliwice, Poland, 2003; pp. 1–686. ISBN 8373610871. (In Polish) [Google Scholar]
- Grażyński, A.; Zarzycki, Z. Delphi 7. Błyskawiczne Tworzenie Aplikacji Dla Windows; Wydawnictwo Helion Publisher: Gliwice, Poland, 2003; ISBN 837361091X. (In Polish) [Google Scholar]
- Cormen, T.H. Algorytmy bez tajemnic; Wydawnictwo Helion Publisher: Gliwice, Poland, 2013; pp. 1–224. ISBN 8373610871. (In Polish) [Google Scholar]
Working Surface in a Separator | Regression Equation |
---|---|
Cylinder with grooves | |

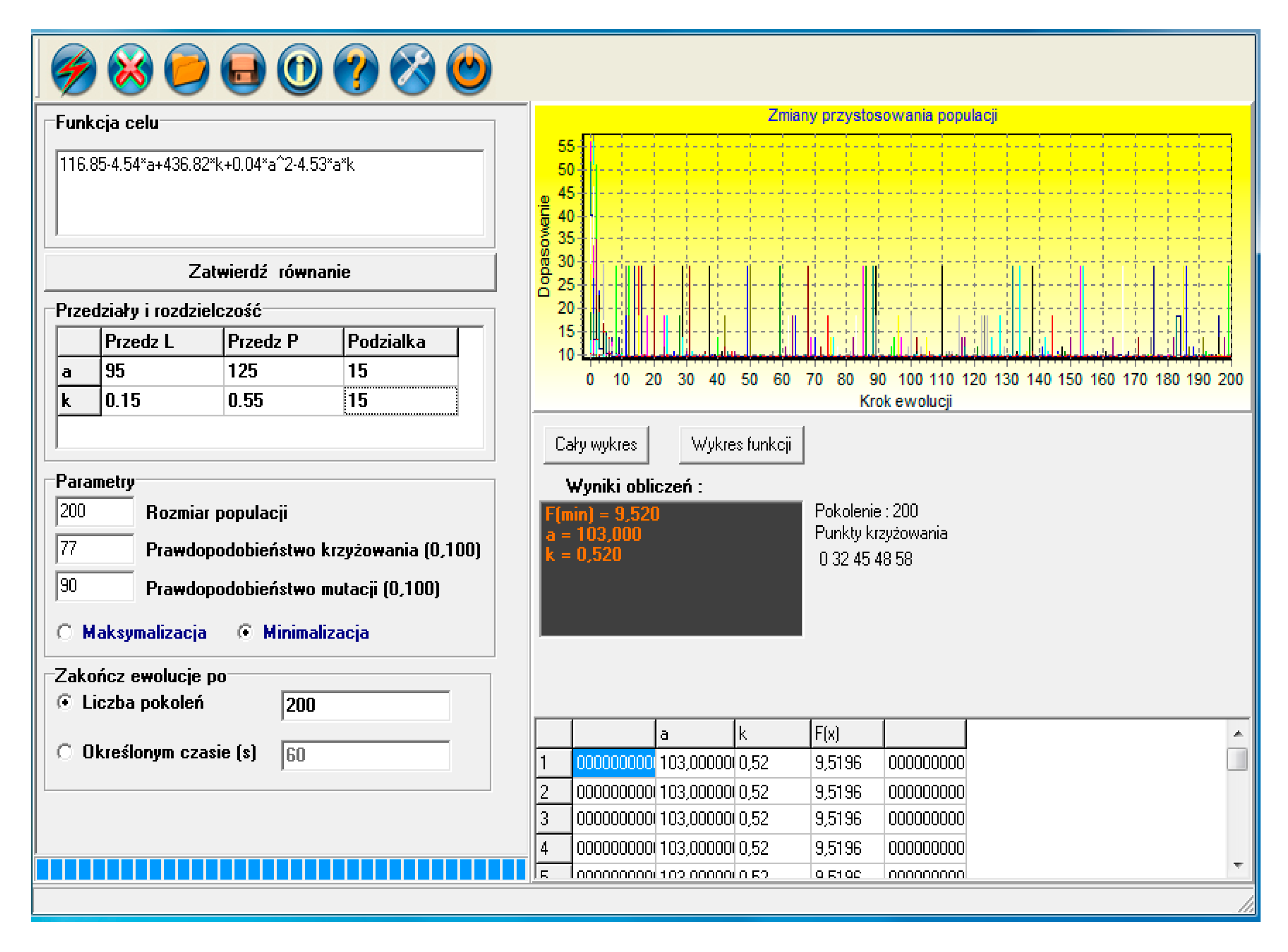

= 116.85 − 4.54·αr + 436.82·k + 0.04·αr2 − 4.53·k·αr | |
Grooveless cylinder | |

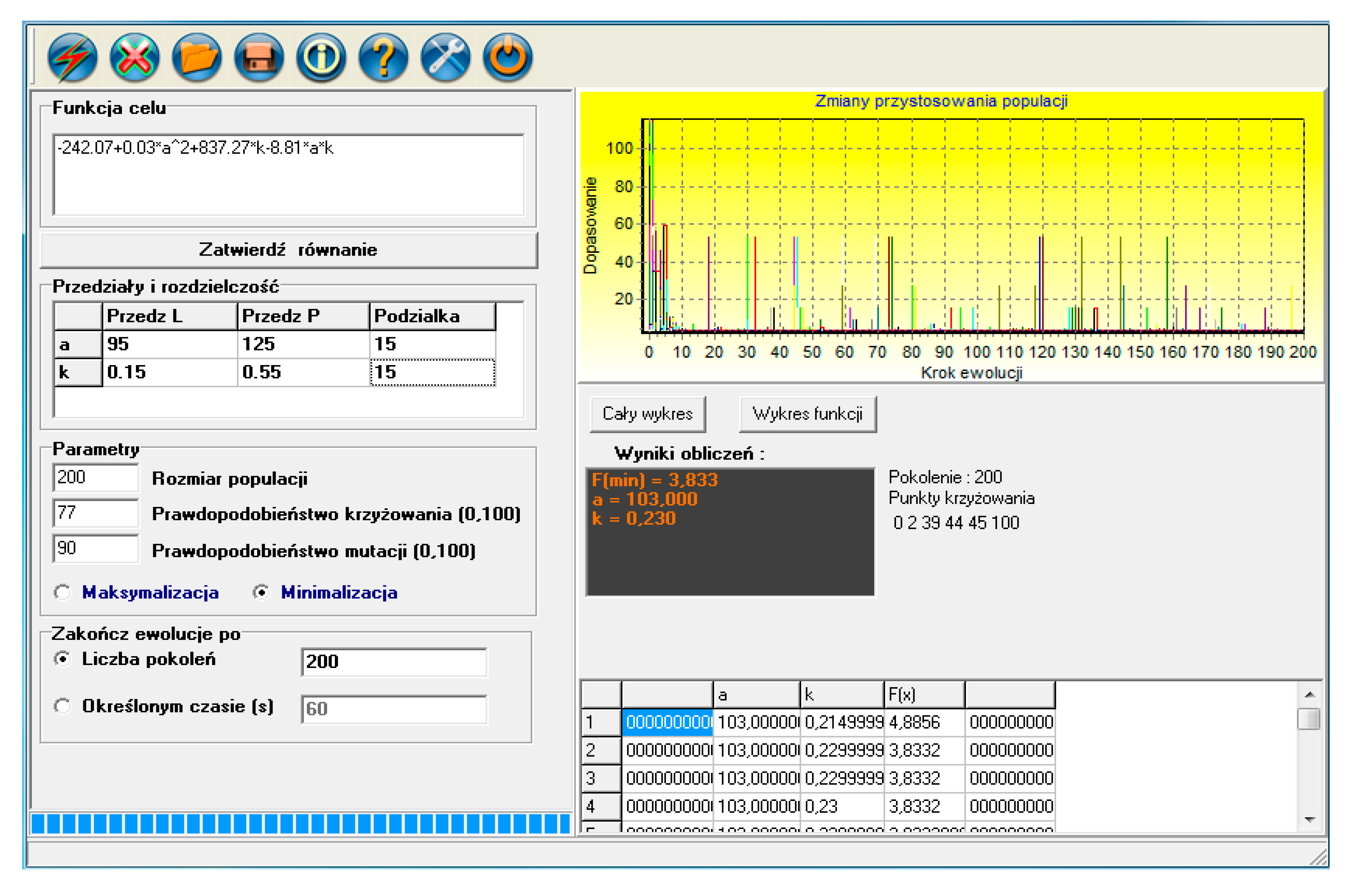

= − 242.07 + 0.03·αr2 + 837.27·k − 8.81·k·αr |
Separator | Suboptimal Values [2] | Values Optimized in Self-Designed Software | ||||
---|---|---|---|---|---|---|
Indicators of Separation Efficiency | Working Parameters | Indicators of Separation Efficiency | Working Parameters | |||
k [−] | αr [°] | k [−] | αr [°] | |||
with a grooved cylinder | εs = 0.63 | 0.35 | 110 | εs = 0.67 | 0.52 | 104 |
Z = 13.96 | Z = 9.52 | 0.52 | 103 | |||
with a grooveless cylinder | εs = 0.92 | 0.25 | 105 | εs = 0.96 | 0.27 | 107 |
Z = 6.41 | Z = 3.83 | 0.23 | 103 |
