Effect of Intercritical Annealing Time on Microstructure Evolution and Mechanical Properties of Low Carbon Medium Manganese Steel Subjected to Multi-Step Heat Treatment Process

,
,
,
,
and
1
State Key Laboratory of New Metal Materials, University of Science and Technology Beijing, Beijing 100083, China
2
State Key Laboratory of Vanadium and Titanium Resources Comprehensive Utilization, Pangang Group Research Institute Co., Ltd., Panzhihua 617000, China
3
School of Metallurgical Engineering, Anhui University of Technology, Maanshan 243002, China
4
Xichang Steel & Vanadium Co., Ltd. Pangang Group, Xichang 615000, China
This article belongs to the Special Issue Advanced Structural Steels and Alloys

Abstract

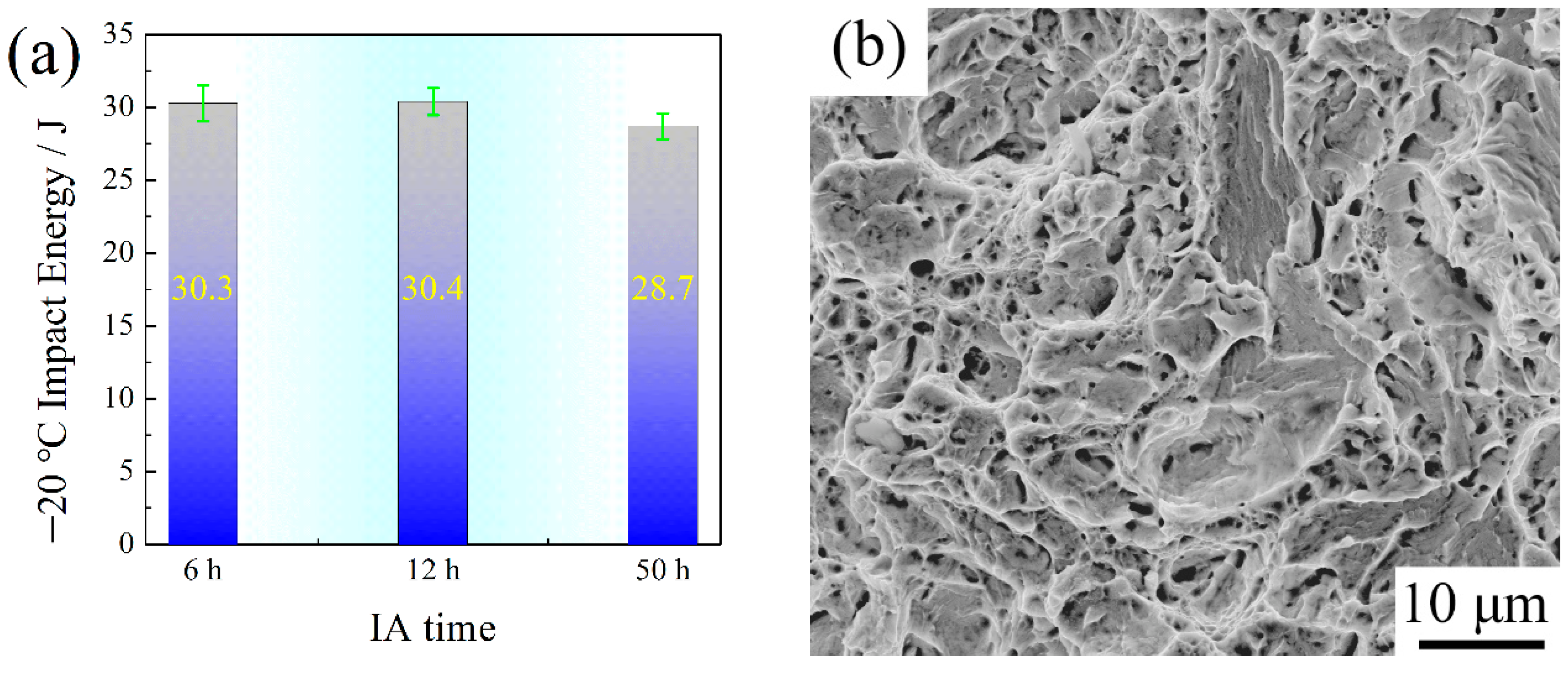

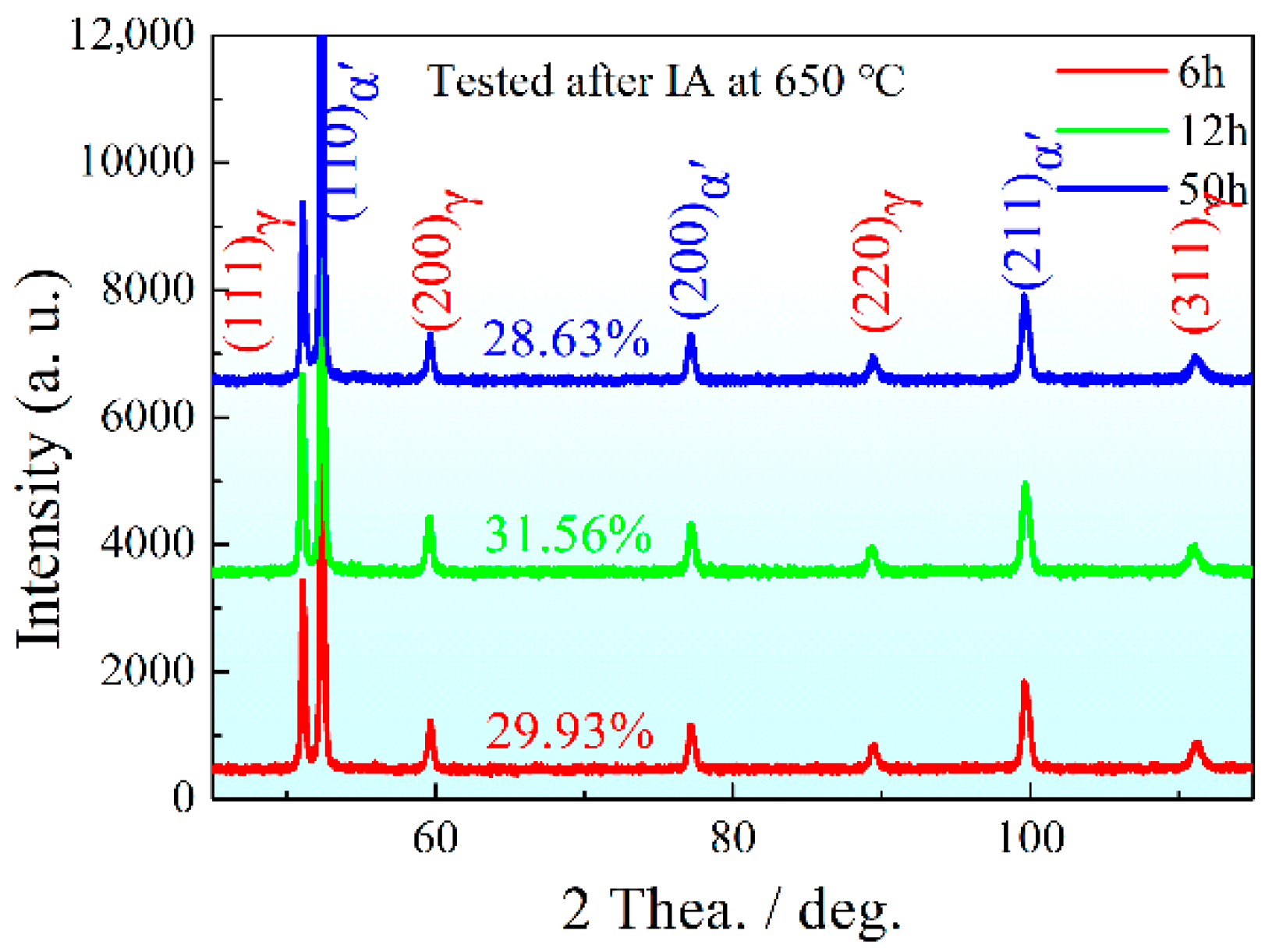

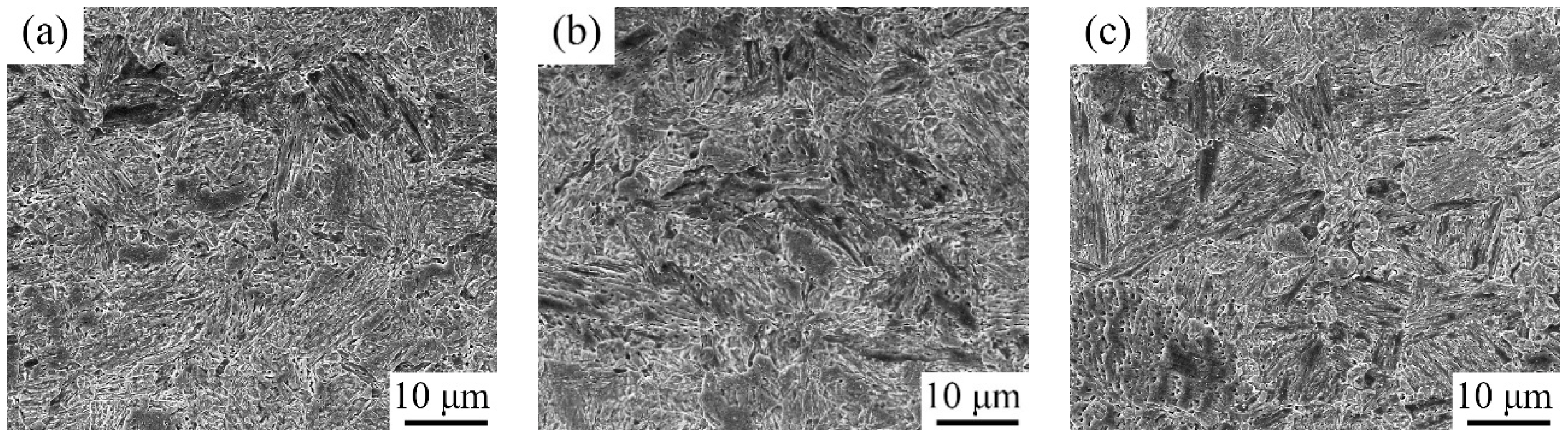

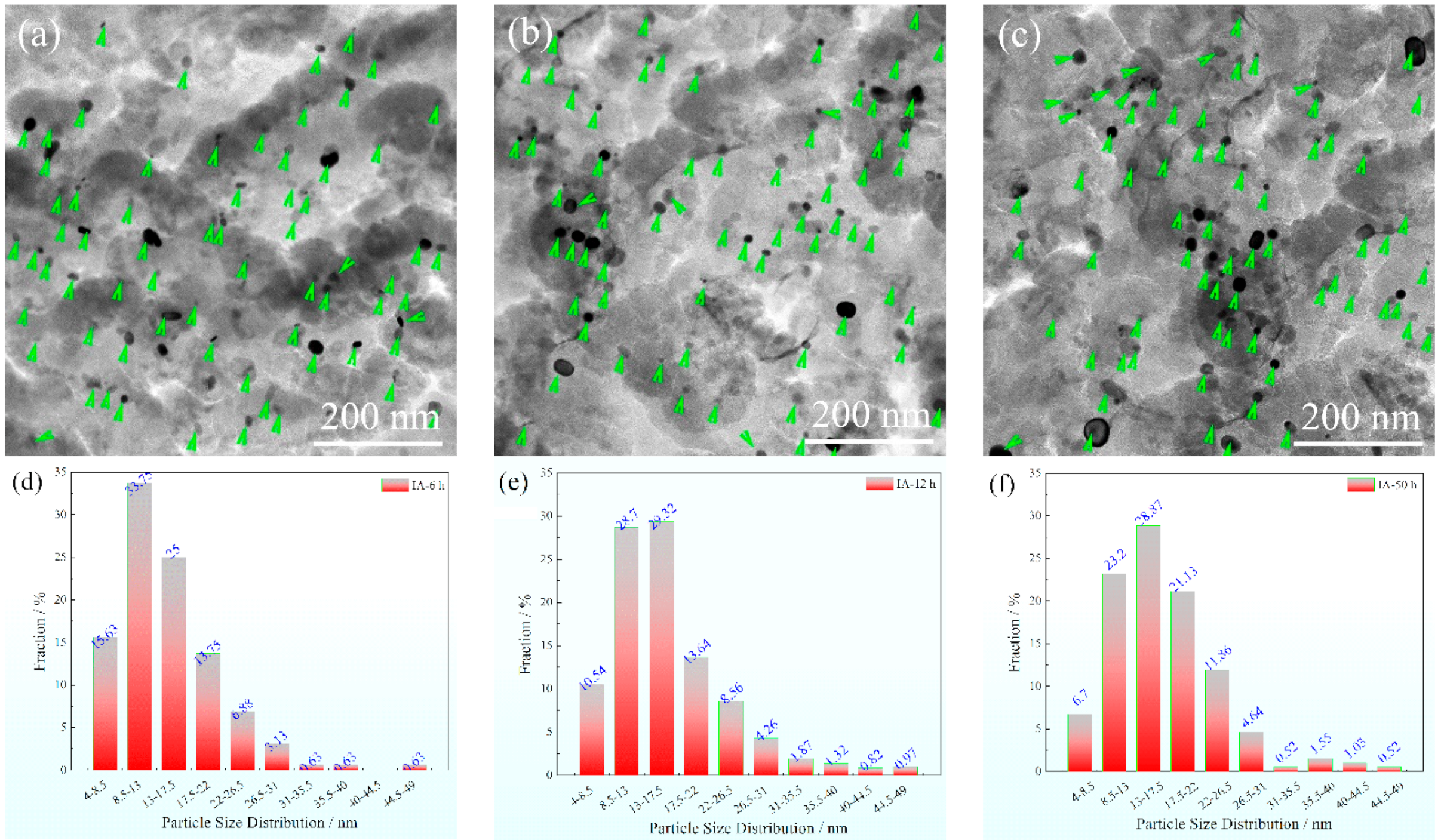

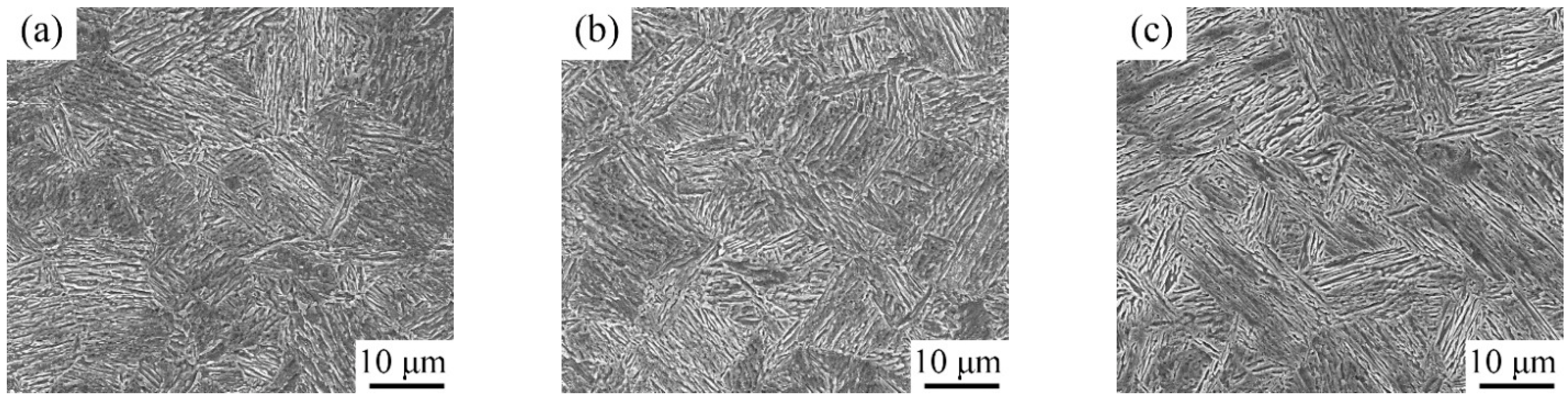

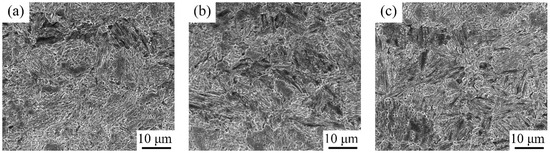

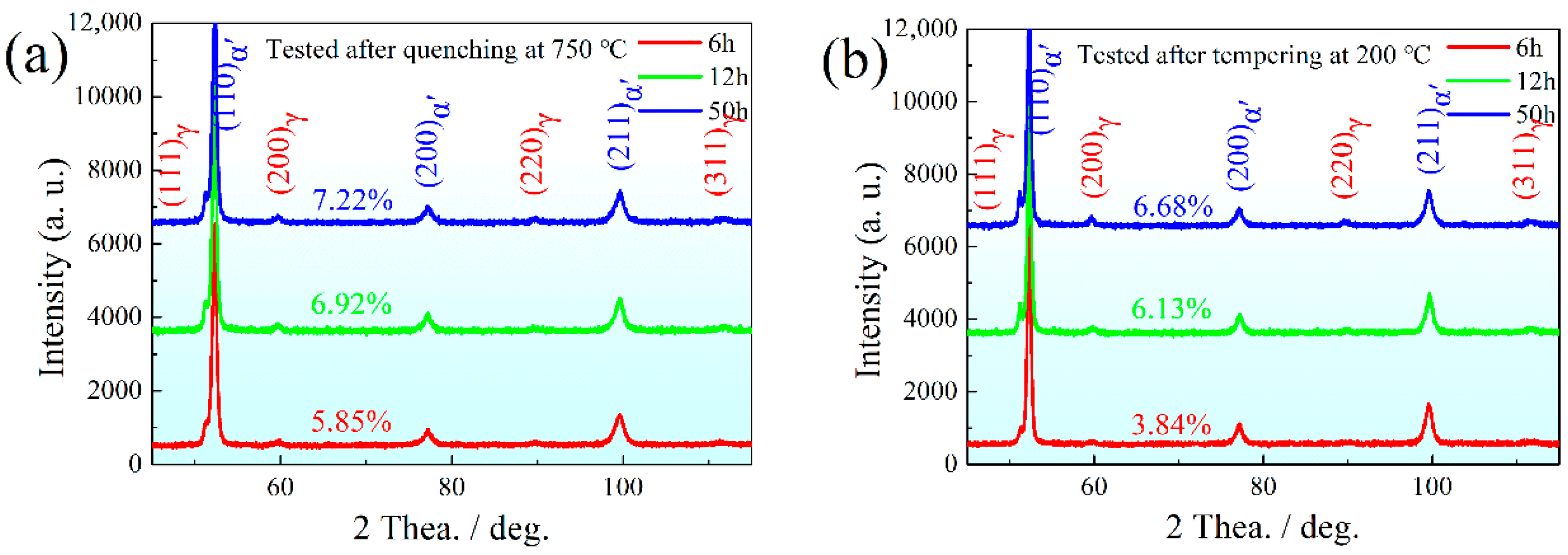

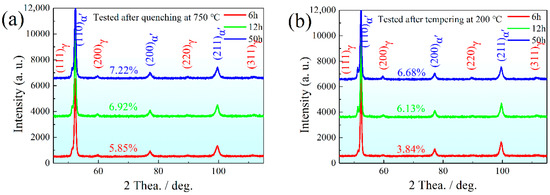

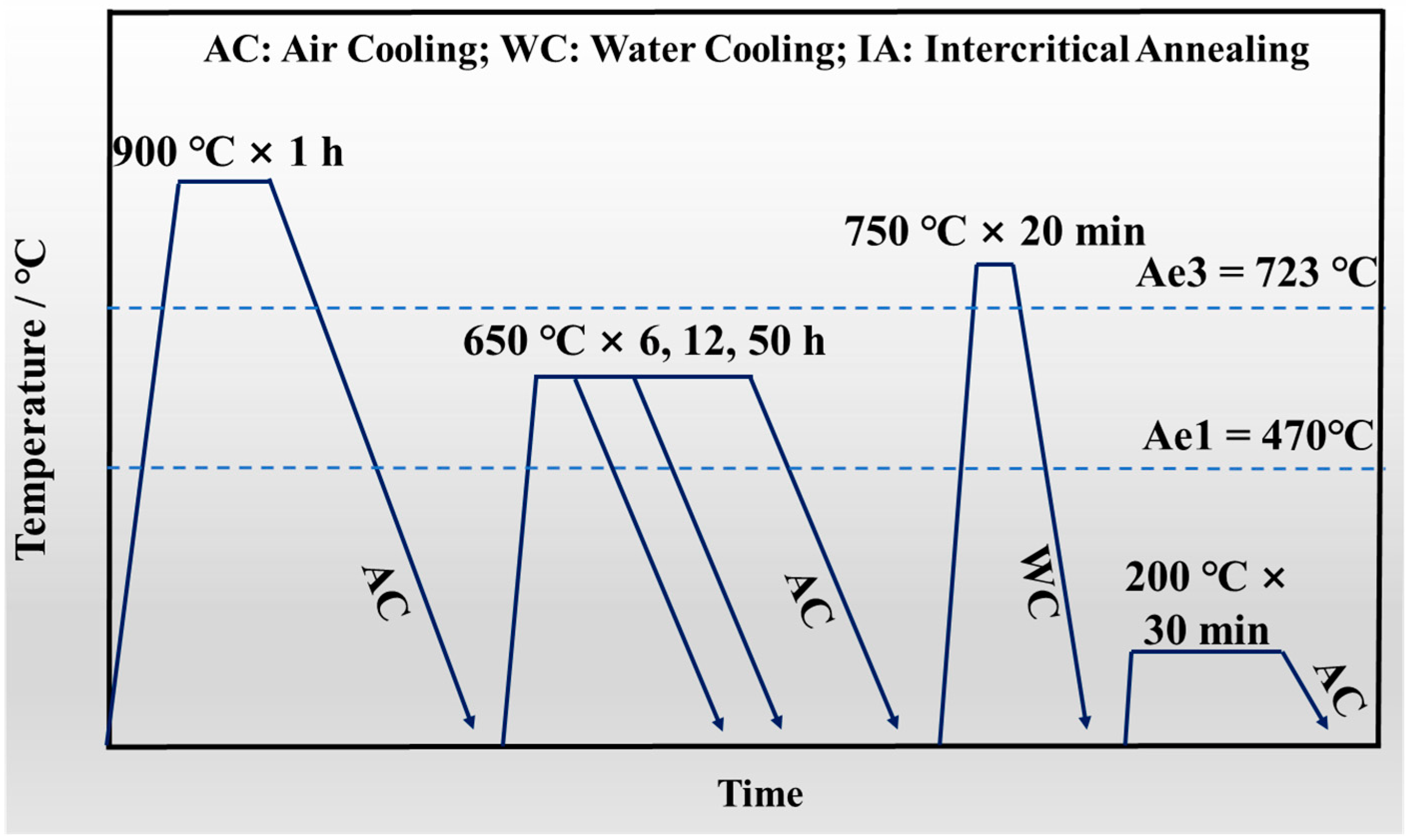

A novel multi-step heat treatment process was performed for 0.2C–5Mn steel, and the effect of intercritical annealing (IA) durations on the microstructure evolution and mechanical properties was studied. The results showed that the content of primary reversed austenite (PRA) hardly changed as the IA time increased from 6 h to 50 h, but only less than 10% of PRA remained after being tempered at 200 °C due to the appearance of secondary martensite (SM). The final microstructure contained SM, the primary martensite (PM), and RA, which was protected by the SM so that the transformation-induced plasticity (TRIP) effect was unlikely to occur. Meanwhile, the (Ti, V, Mo)C particle sizes were 14.27, 14.68 and 15.65 nm for the intermediate processes of IA-6 h, IA-12 h, and IA-50 h, respectively. As the IA time increased from 6 h to 50 h, both the dislocation and precipitation strengthening increment decreased. As a result, the best mechanical properties were obtained from the intermediate process of IA-12 h, with a yield strength of 1115.5 MPa, tensile strength of 1573.5 MPa, and −20 °C impact energy of 30.4 J.
