A Newly Developed Easily Sinterable Low-Alloy Steel Powder
Faculty of Metals Engineering and Industrial Computer Science, AGH University of Science and Technology, 30 Mickiewicz Avenue, 30-059 Krakow, Poland
*
Author to whom correspondence should be addressed.
Materials 2021, 14(2), 406; https://doi.org/10.3390/ma14020406
Received: 5 December 2020
/
Revised: 5 January 2021
/
Accepted: 12 January 2021
/
Published: 15 January 2021

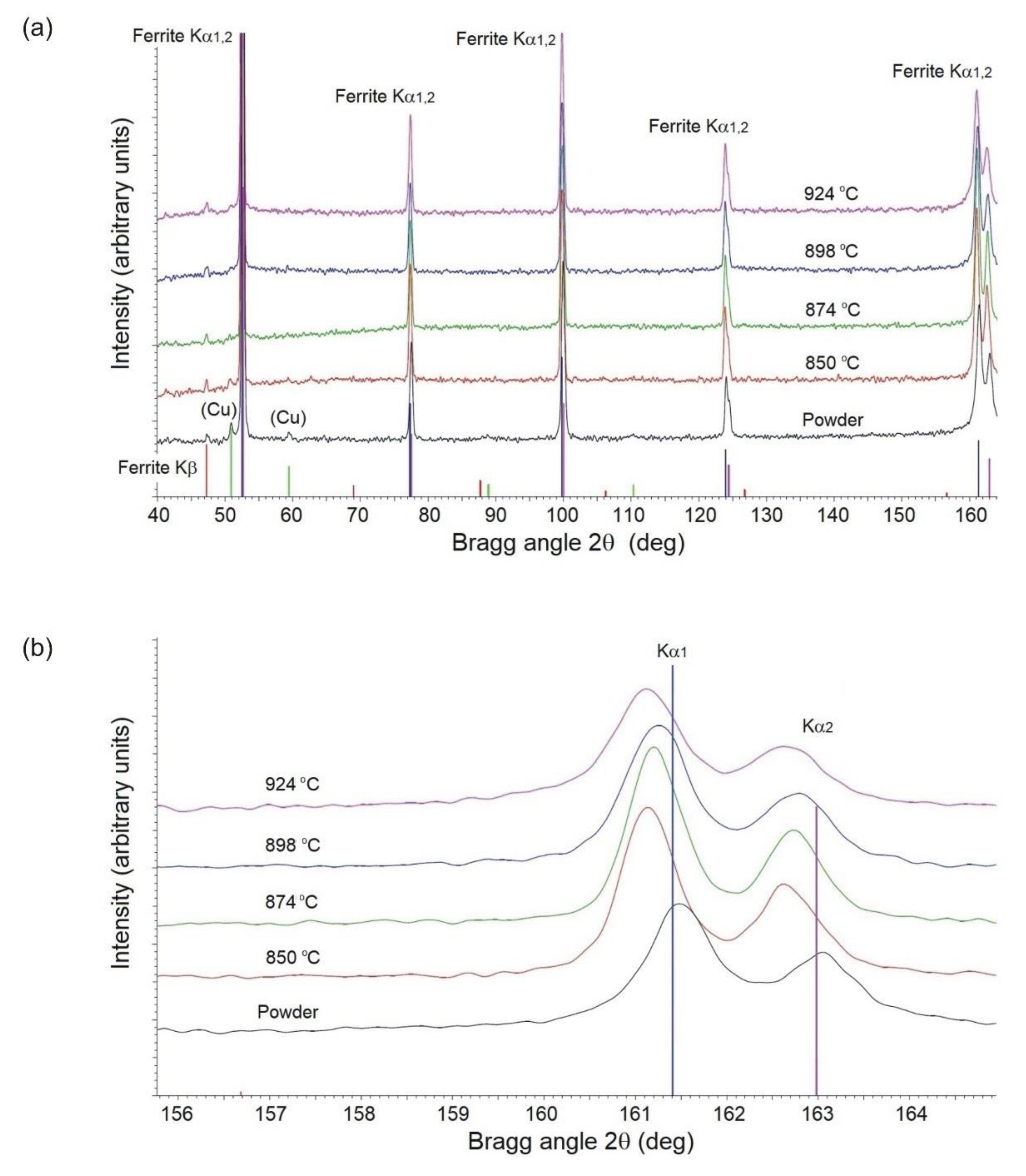

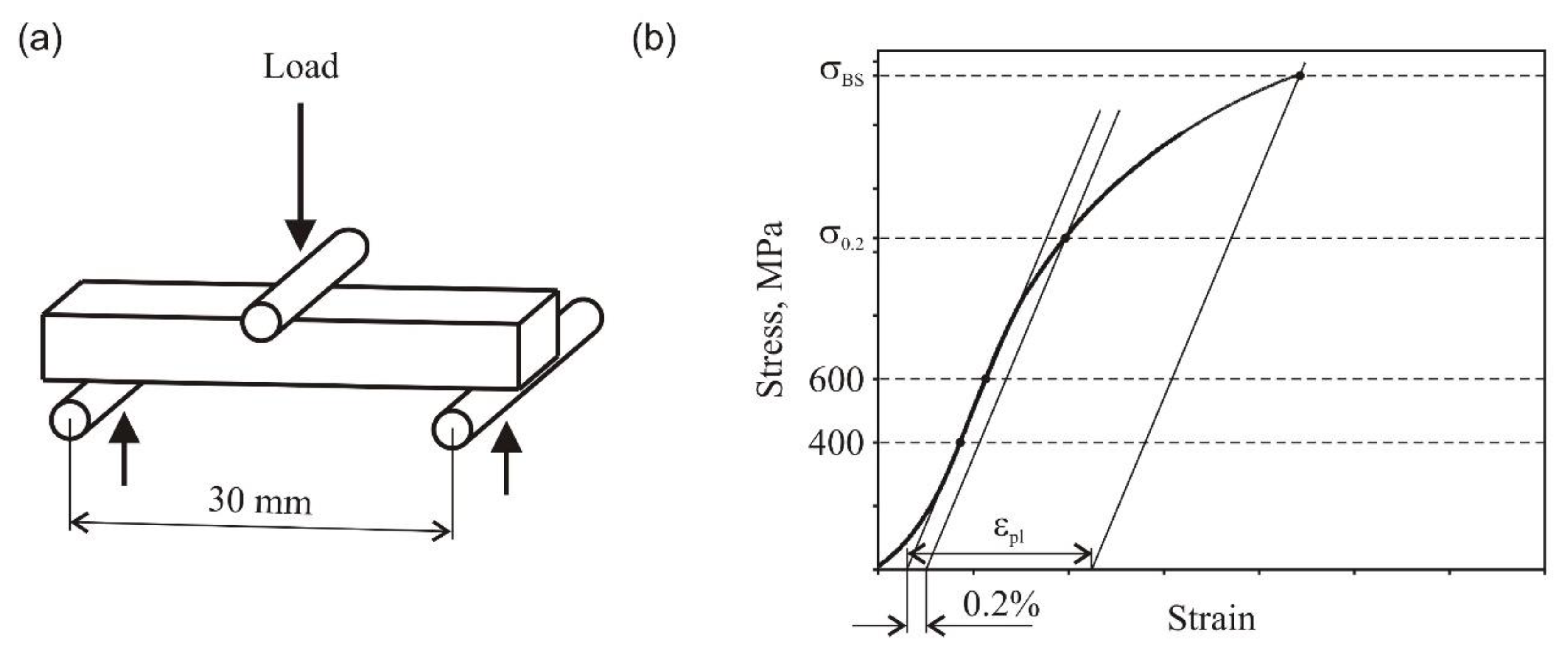

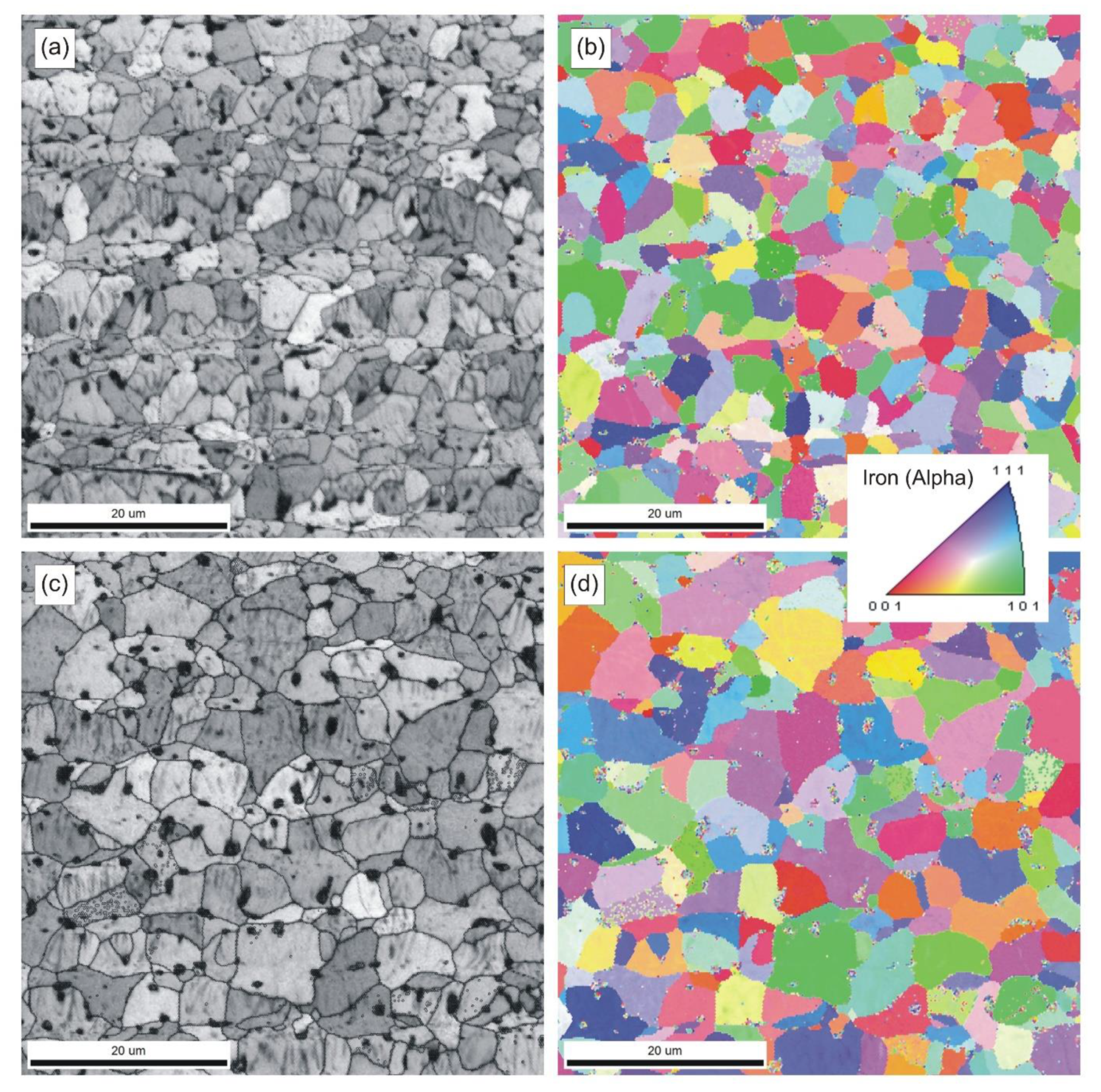

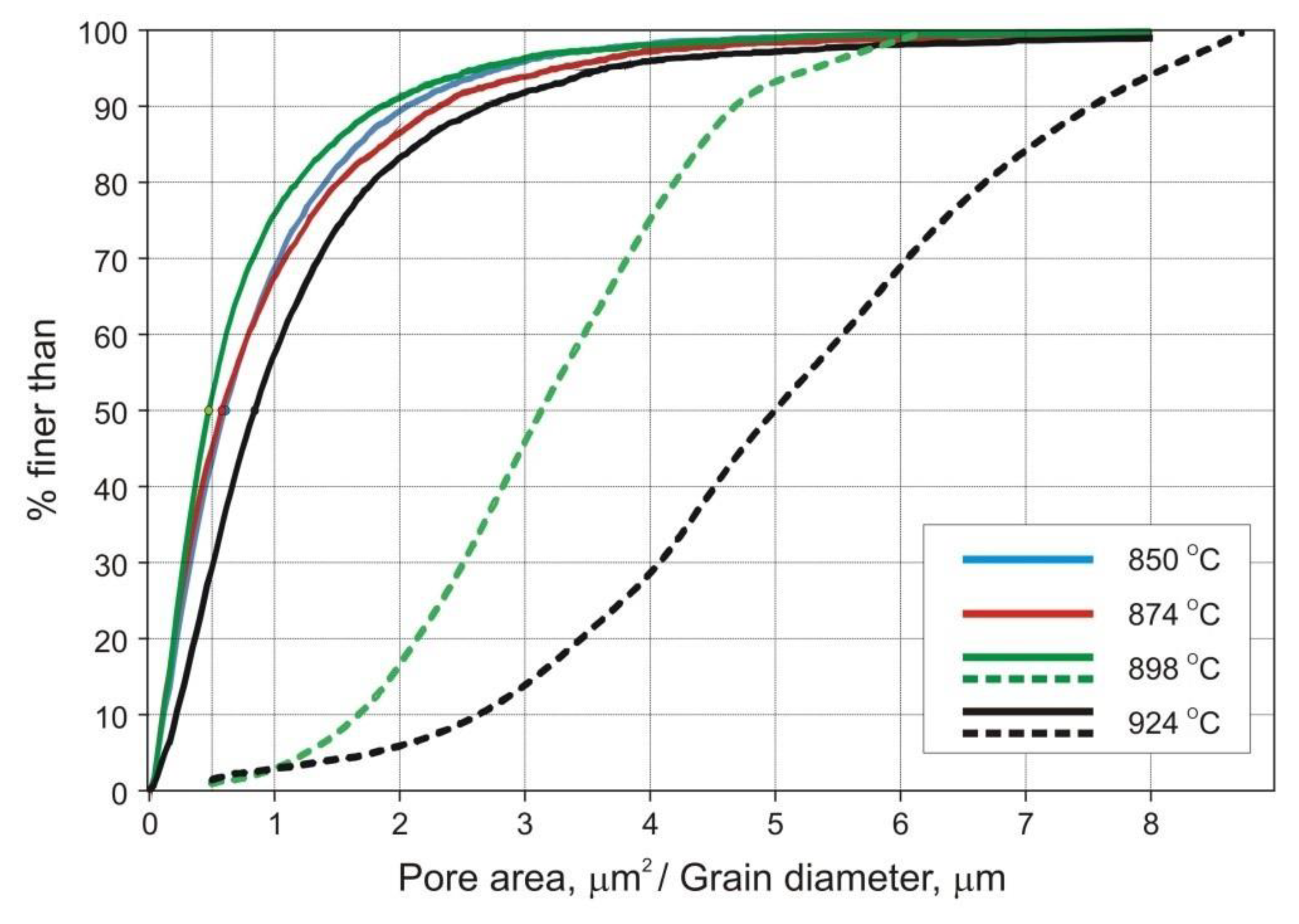

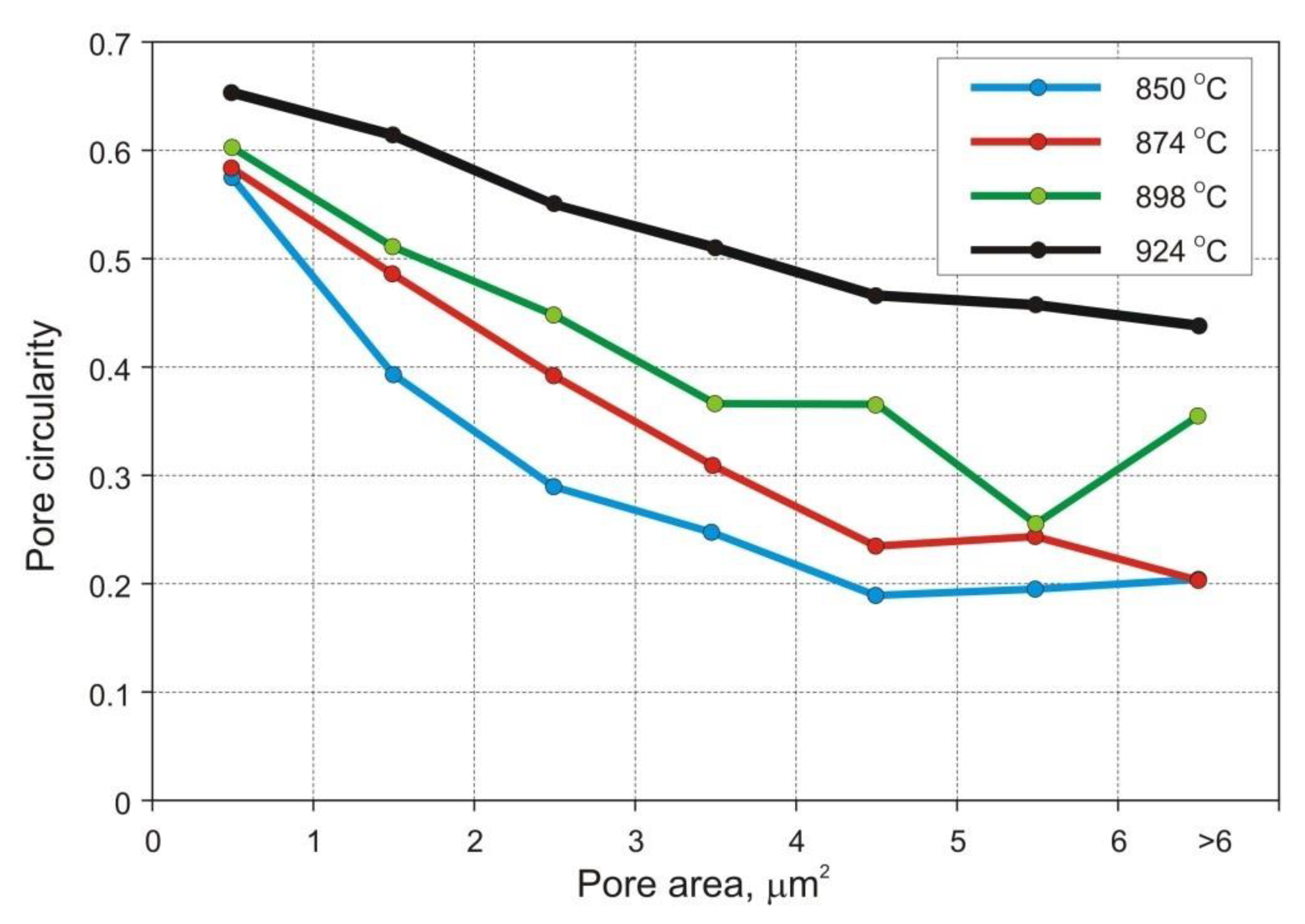

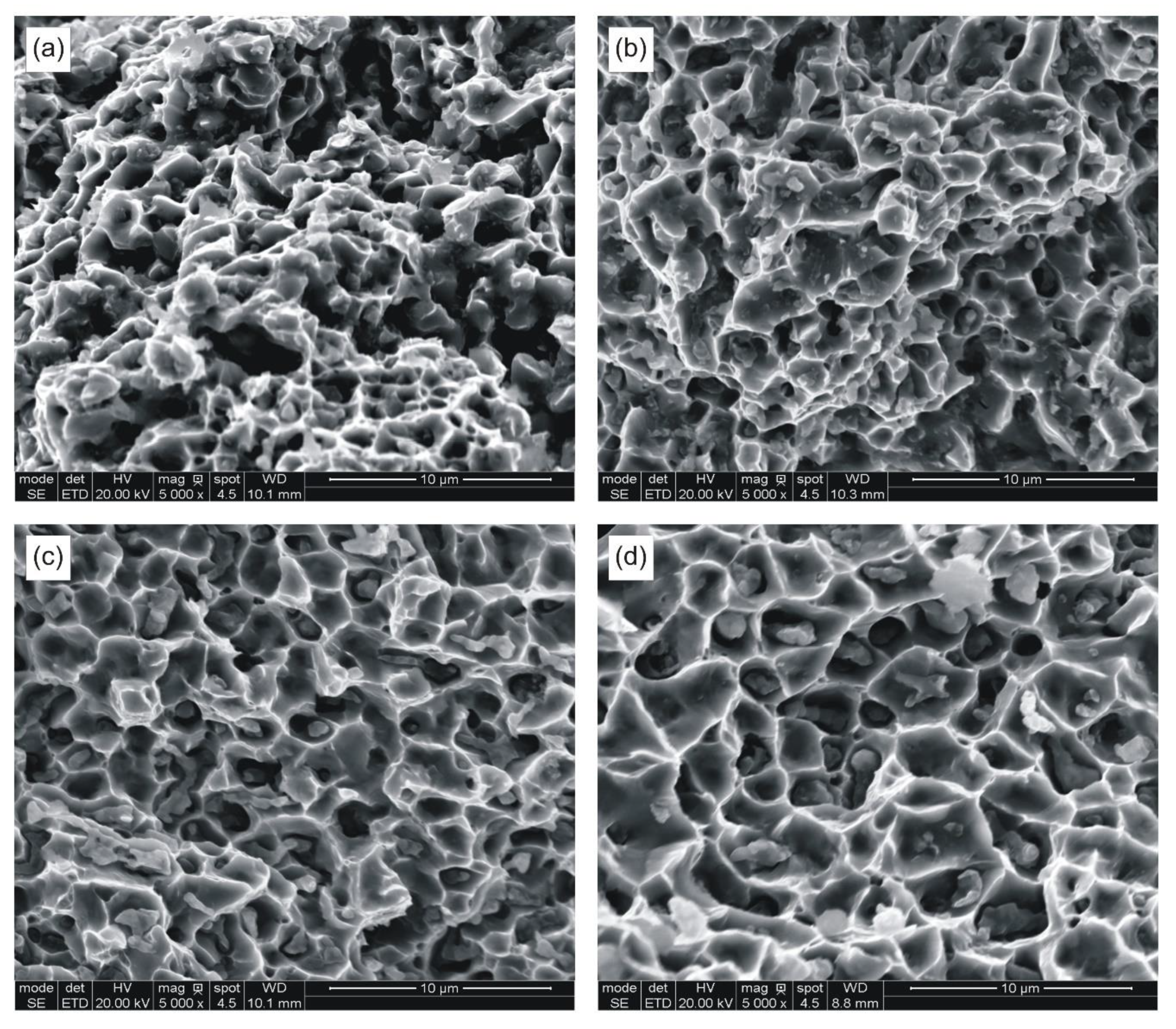

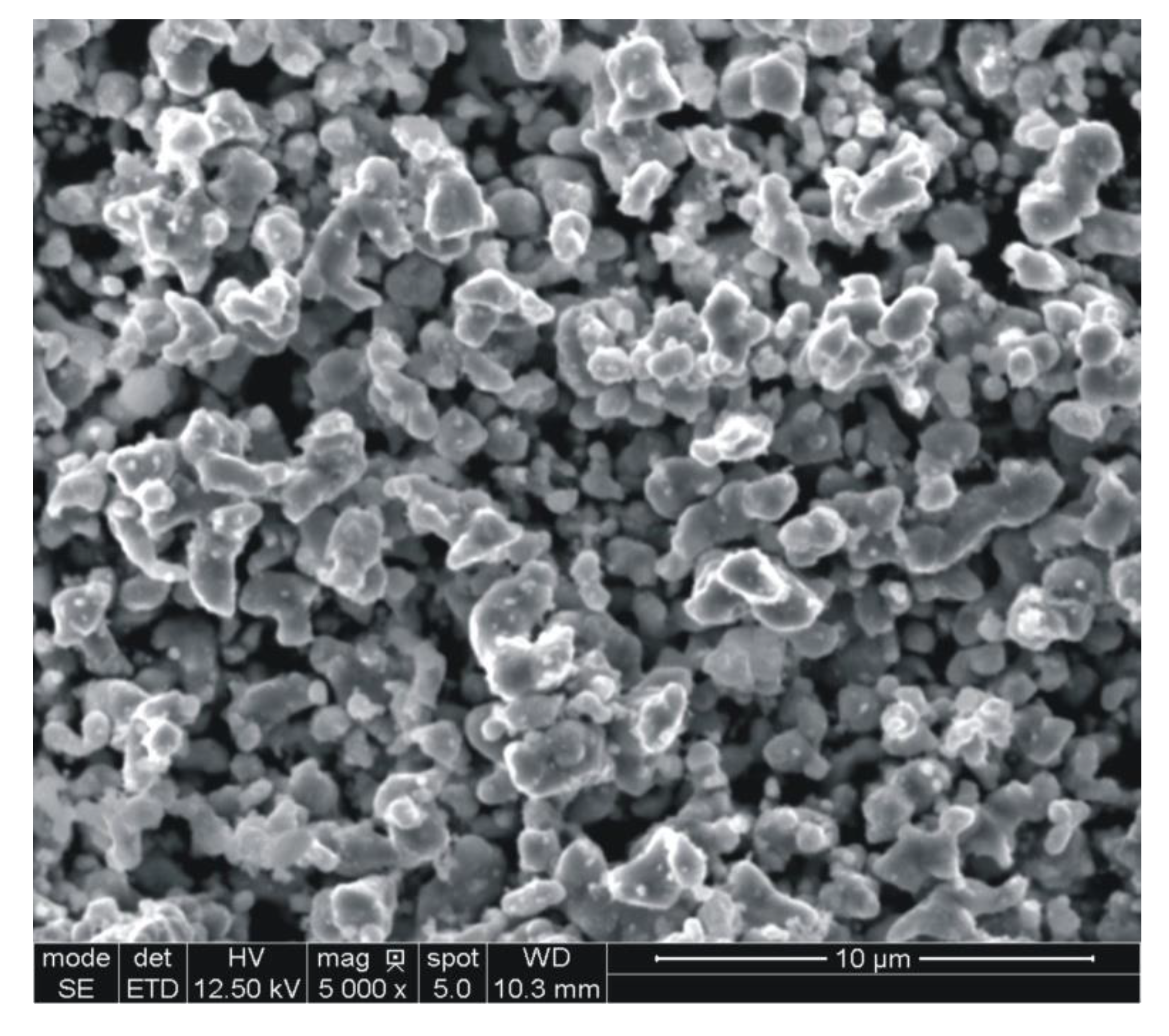

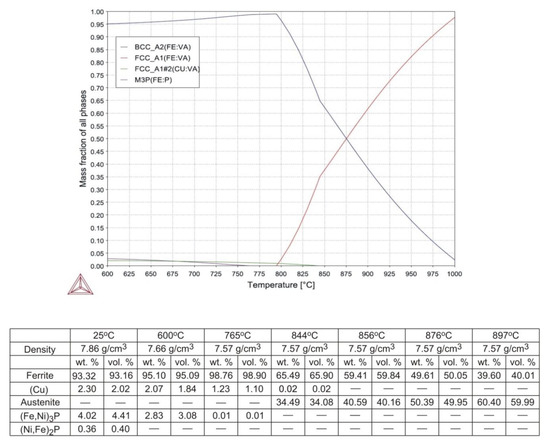

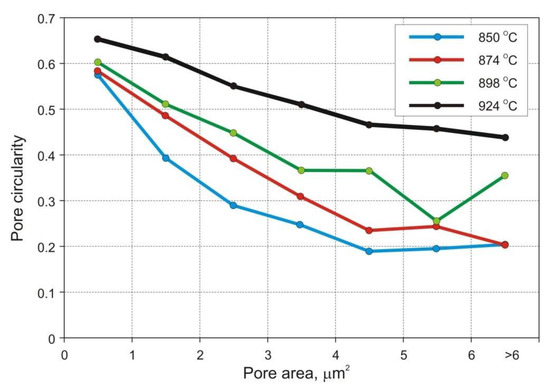

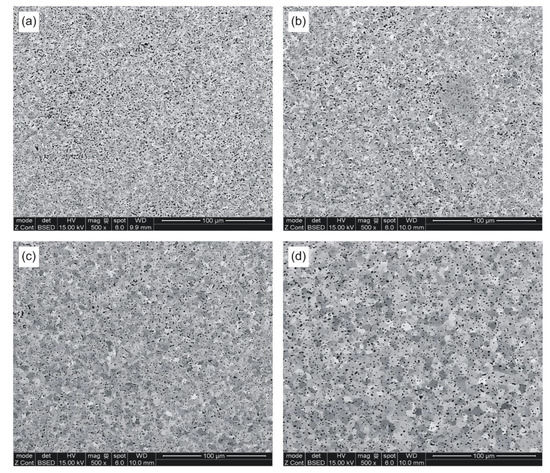

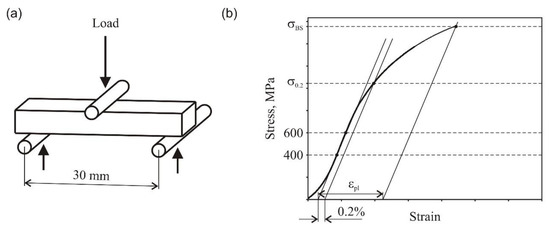

The work presents a possibility of fabrication of inexpensive iron-based powders intended to form the matrix in sintered diamond-impregnated tool components. In this study, a finely dispersed, pre-alloyed steel powder, containing over 95 wt.% Fe, has been designed and fabricated by means of a proprietary process developed at AGH-University of Science & Technology. It has been shown that the experimental powder can be consolidated to a closed porosity condition (>95% theoretical density) by pressure-less sintering at a temperature below 900 °C. The as-consolidated material is characterized by an excellent combination of hardness (~250 HV) and mechanical strength (>1200 MPa in 3-point bending) that meets the diamond tooling requirements. Its properties can be modified to some extent by varying the cold forming pressure and sintering temperature.
View Full-Text
▼
Show Figures
Figure 1
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited
MDPI and ACS Style
Tyrala, D.; Konstanty, J.; Kalemba-Rec, I. A Newly Developed Easily Sinterable Low-Alloy Steel Powder. Materials 2021, 14, 406. https://doi.org/10.3390/ma14020406
AMA Style
Tyrala D, Konstanty J, Kalemba-Rec I. A Newly Developed Easily Sinterable Low-Alloy Steel Powder. Materials. 2021; 14(2):406. https://doi.org/10.3390/ma14020406
Chicago/Turabian StyleTyrala, Dorota, Janusz Konstanty, and Izabela Kalemba-Rec. 2021. "A Newly Developed Easily Sinterable Low-Alloy Steel Powder" Materials 14, no. 2: 406. https://doi.org/10.3390/ma14020406
Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.
