Stress Corrosion Cracking Behavior of Alloy 600 Coupled to Magnetite under High-Temperature Caustic Conditions
Korea Atomic Energy Research Institute, 989-111 Deadeok-daero, Yuseong-gu, Daejeon 34057, Korea
*
Author to whom correspondence should be addressed.
Materials 2019, 12(13), 2091; https://doi.org/10.3390/ma12132091
Received: 9 May 2019
/
Revised: 27 June 2019
/
Accepted: 27 June 2019
/
Published: 28 June 2019

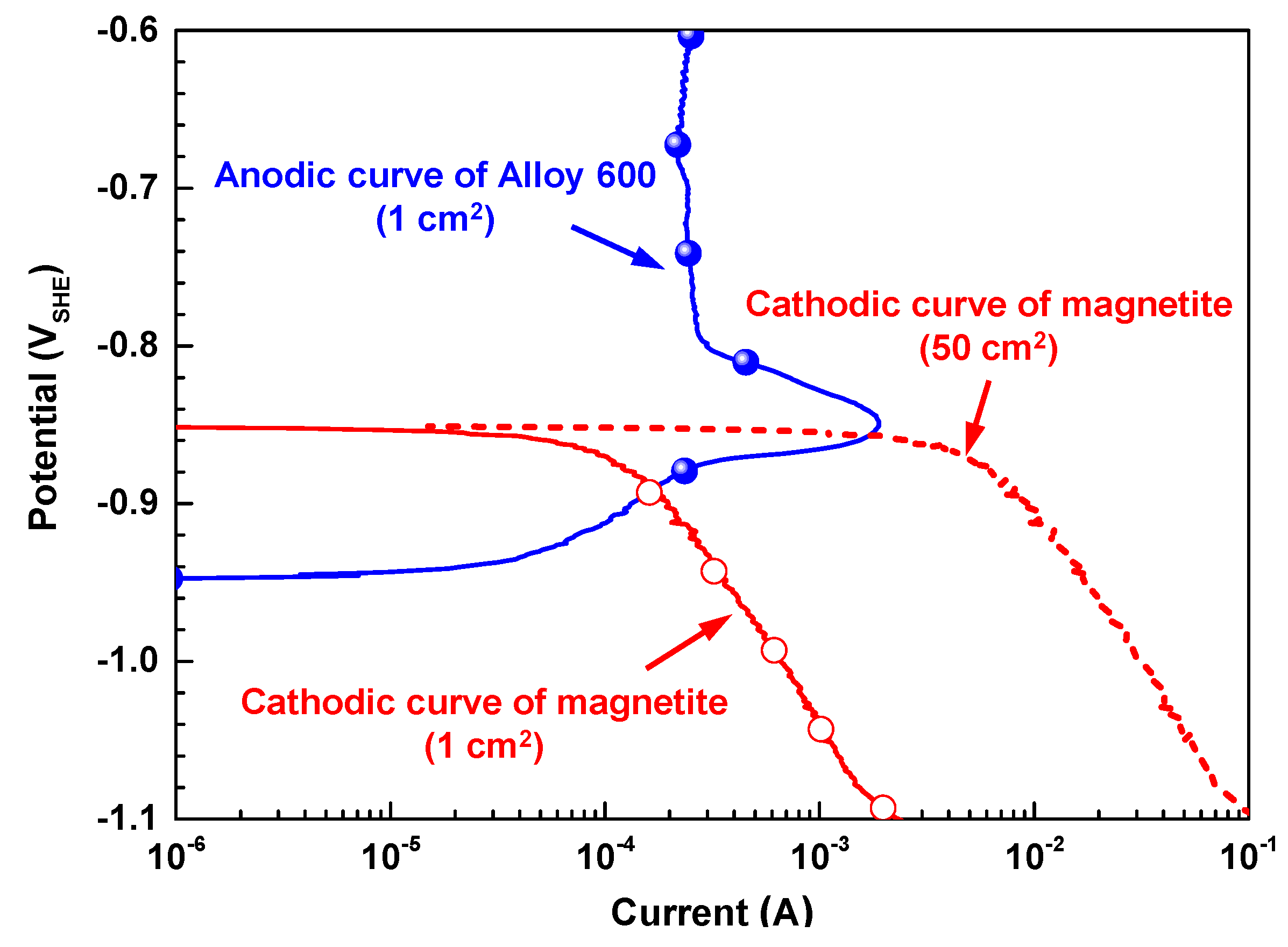

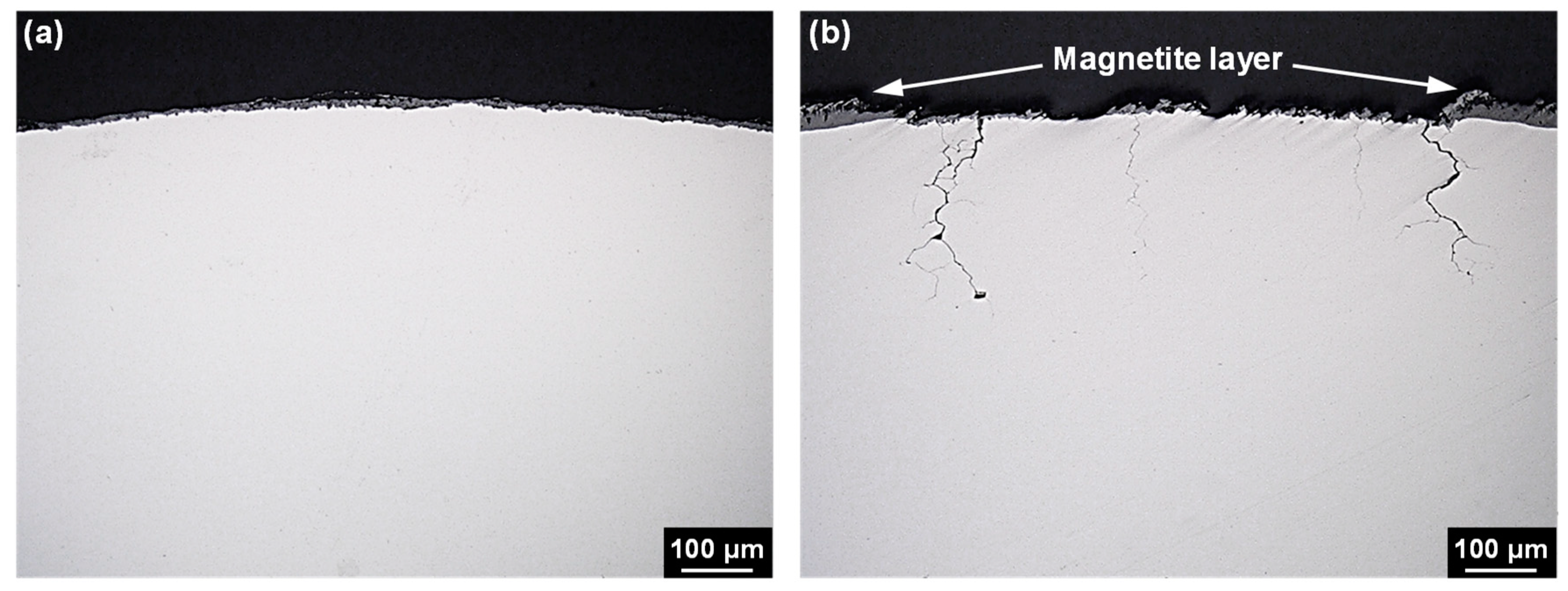

This study aims to investigate and explain the magnetite-accelerated stress corrosion cracking phenomenon of Alloy 600 under caustic conditions, based on the electrochemical behavior. After the SCC test that lasted for 300 h, no cracks were observed in any of the magnetite-free specimens, whereas cracks with a depth of 150 to 280 μm were generated in all the magnetite-deposited specimens. Furthermore, the electrochemical behavior of magnetite and Alloy 600 demonstrated that Alloy 600 behaved as an anode in the coupling system with magnetite. In this coupling system, the electrochemical potential of Alloy 600 can be shifted into the range potentially susceptible to stress corrosion cracking.
View Full-Text
▼
Show Figures

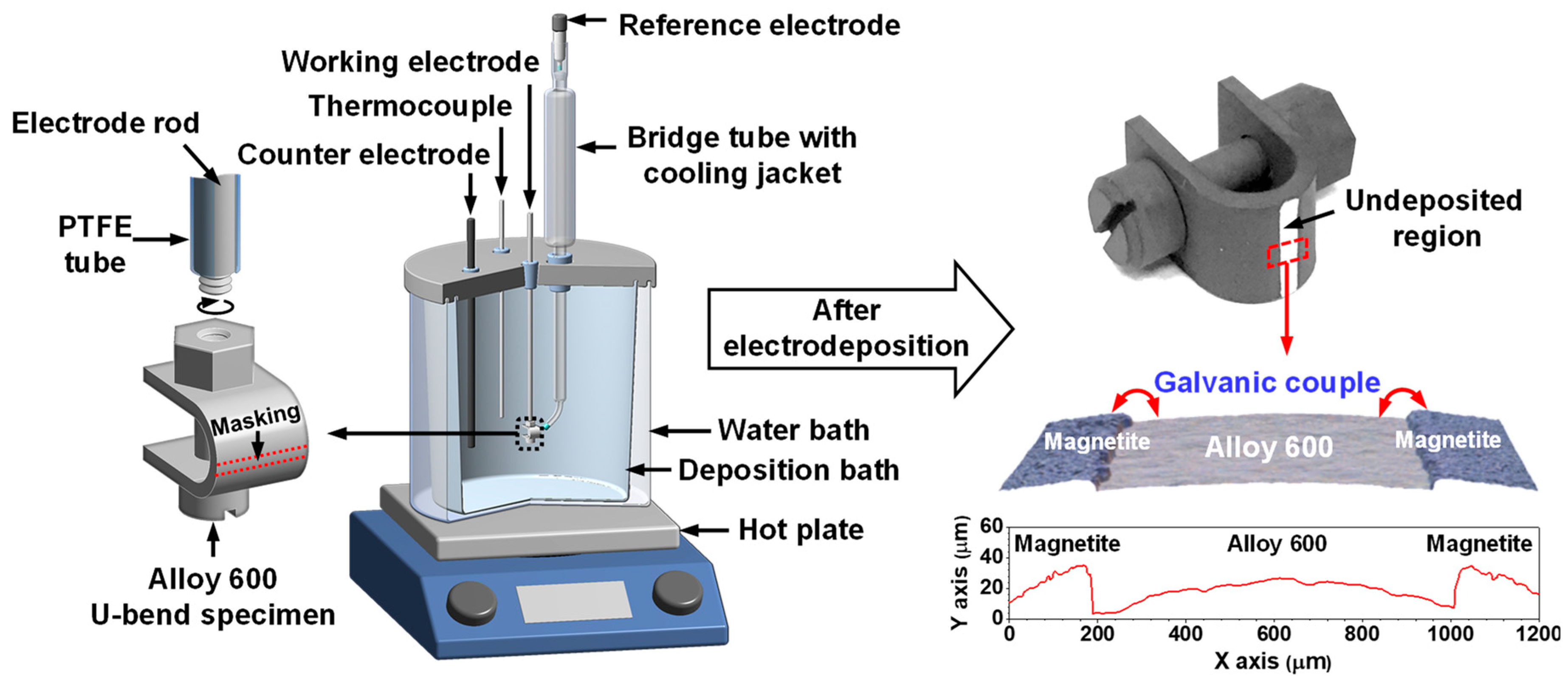

Figure 1
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited
MDPI and ACS Style
Song, G.D.; Han, J.; Jeon, S.-H.; Hur, D.H. Stress Corrosion Cracking Behavior of Alloy 600 Coupled to Magnetite under High-Temperature Caustic Conditions. Materials 2019, 12, 2091. https://doi.org/10.3390/ma12132091
AMA Style
Song GD, Han J, Jeon S-H, Hur DH. Stress Corrosion Cracking Behavior of Alloy 600 Coupled to Magnetite under High-Temperature Caustic Conditions. Materials. 2019; 12(13):2091. https://doi.org/10.3390/ma12132091
Chicago/Turabian StyleSong, Geun D., Jeoh Han, Soon-Hyeok Jeon, and Do H. Hur. 2019. "Stress Corrosion Cracking Behavior of Alloy 600 Coupled to Magnetite under High-Temperature Caustic Conditions" Materials 12, no. 13: 2091. https://doi.org/10.3390/ma12132091
Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.
