Optimizing Green Hydrogen Cost with PV Energy and Storage

Abstract

This work develops a replicable method for designing the optimal renewable hydrogen production facility, applicable to any site and based on technical parameters and actual equipment costs. The solution is based on the integration of photovoltaic (PV) energy with lithium-ion battery storage systems, which maximizes electrolyzer operating hours and significantly reduces the Levelized Cost of Hydrogen (LCOH). This study shows that increasing the inclination of the photovoltaic modules reduces the need for storage, optimizing operation and extending the electrolyzer’s annual operating hours. In the Seville case study, with current costs and efficiencies, a minimum LCOH of €4.43/kg was achieved, a value well below market benchmarks, opening the door to a potentially competitive industrial business. The analysis confirms that electrolyzer efficiency—particularly specific power consumption—is the most important factor in reducing costs, while technological progress in photovoltaics, storage, and equipment promises further reductions in the coming years. Overall, the proposed methodology offers a practical and scalable tool to accelerate the economic viability of green hydrogen in a variety of contexts.

1. Introduction

The energy transition is currently one of the strategic priorities for all of Europe, as well as for most developed countries. Since the signing of the Paris Agreement [1], international commitments have established, as a central objective, limiting the increase in global temperature to well below 2 °C compared to pre-industrial levels, and ideally to 1.5 °C. In parallel, the 2030 Agenda for Sustainable Development set seventeen Sustainable Development Goals (SDGs), among which SDG 7 (affordable and clean energy) and SDG 13 (climate action) are fundamental pillars of the transition towards a low-carbon model [2] At the European level, the report The future of European competitiveness [3] on competitiveness underlines that the future of the Union will depend on its ability to mobilize investment in clean and low-cost technologies, ensure energy sovereignty, and maintain industrial competitiveness against the United States and China [3].

This scenario forces us to analyze energy change not only as a technological process, but also as a systemic transformation in which sustainability, security, and equity converge. The Energy Trilemma, conceptualized by the World Energy Council [4], offers a useful framework for understanding this complexity: any decision about the energy future must simultaneously balance security of supply, environmental sustainability, and economic affordability. While renewable generation technologies such as photovoltaics, wind power, and lithium-ion energy are proving to be more competitive, they also present some limitations [5,6]. Within this framework, green hydrogen has positioned itself as a key vector for decarbonizing sectors that are difficult to electrify, such as heavy industry (steel, cement, and chemicals), fertilizer production, and long-distance transport. However, its viability critically depends on reducing the Levelized Cost of Hydrogen (LCOH), which currently remains well above that of conventional hydrogen.

The recent literature confirms that the main barrier to the mass deployment of green hydrogen is its high production cost. Freire Ordóñez [7] have quantified that the global cost of a reliable supply of green hydrogen is currently between 18 and 22 USD/kg, although it could drop to the range of 8–10 USD/kg through better management of renewable intermittency and monetization of surpluses. Meanwhile, reviews by Wang et al. [8] show that optimizing systems with multiple electrolyzers, dynamically managed to adapt to renewable variability, can significantly improve overall efficiency and extend equipment lifetime, thereby reducing the projected LCOH. Likewise, Huang et al. [9] make a systematic review in which they highlight the importance of modeling alkaline electrolyzers in complex network scenarios, pointing out that the control and configuration of the system are as decisive as the capital or electricity costs.

Other recent studies complement this panorama. For example, van der Spek et al. [10] analyze the competitiveness of green hydrogen in Europe and conclude that reaching parity requires between 7500 and 8500 h of electrolyzer operation per year, a figure consistent with the empirical results presented in this work. [11] in a reference review, place hydrogen at the center of the global energy transition, although without offering detailed economic data. For its part, the JRC report [12] collects information on European hydrogen projects and their regulatory barriers but does not incorporate technical simulations or detailed financial analyses. Finally, several articles published in Nature Energy (e.g., [13,14]) and Joule [15] project significant decreases in the global cost of green hydrogen—even down to 1–3 €/kg in 2050—although these scenarios are often based on macroeconomic assumptions and lack validation in specific cases.

To show more clearly how this study contributes to overcoming the limitations of the previous literature, Table 1 not only summarizes the most relevant approaches and findings, but also identifies how our proposal corrects or complements them.

Table 1. Comparison between the recent literature and the present work [7,8,9,10,11,13,14,15,16].

Source/Magazine	Year	Methodological Approach	Main Results	Limitations	Differences with the Present Research	Corrective Contribution/ Improvement of This Research
[7]	2023	Modeling the global costs of reliable green H2 supply	Current cost 18–22 USD/kg; potential at 8–10 USD/kg	It does not integrate hourly or project modeling finance	Provides a framework for time simulation and financial analysis applied to a real case	It addresses the lack of time granularity and provides a detailed financial framework that translates the transaction into a realistic LCOH.
[8]	2024	Control strategy for multi-electrolyzer systems	Improving efficiency and equipment lifespan	Does not include financial scenarios or explicit LCOH	Quantify the LCOH and compare configurations with and without storage, linking technical and economic feasibility	It adds the missing economic–financial component, evaluating how technical strategies impact the final cost.
[9]	2025	Review of alkaline electrolyzer modeling	Comprehensive review of models and applications	It does not provide empirical validation	Validate the methodology in a real case	It moves from theory and review to practical application, validating hypotheses in a real-life environment (Seville).
[10]	2023	H2 techno-economic scenarios in Europe	Identifies 7500–8500 h/year as a competitive range	Aggregate analysis, without hourly simulation	Provides detailed empirical evidence in the city of Seville	It complements the aggregated scenarios with micro data from a real site, demonstrating that the theory is achievable.
[11]	2022	Global review of the role of hydrogen	Macro analysis of potential and challenges	It does not quantify LCOH in specific cases	Provides microeconomic and local results	Provides concrete figures on LCOH and system design, translating them into useful parameters for investors and developers.
[16]	2024	Analysis of European projects	Identifies regulatory barriers and reported costs	Does not include technical modeling	Adds energy simulation and a replicable financial model	Instead of just describing projects, it proposes a replicable quantitative method for designing new ones.
[13]	2022	Hydrogen cost scenarios to 2050	Projections of €1–3/kg in global markets	Based on macroeconomic assumptions	Validates results at a local scale	Corrects the macro abstraction with a realistic case, showing what costs are achieved today in Southern Europe.
[14]	2023	Sectoral competitiveness assessment	H2 competitive in industry and heavy transport by 2040	Without microeconomic analysis	Integrates hourly and financial modeling	Translates future sector viability into concrete numerical results of a real system.
[15]	2022	Global decarbonization models	Highlights the role of H2 in net-zero scenarios	Macro perspective, without technical details	Provides a framework applicable to specific projects	It grounds global decarbonization scenarios in a concrete case, offering verifiable LCOH figures.

After this comparative review, it is observed that global and macroeconomic studies—such as those published in Nature Energy, Joule, or the JRC report—concur in pointing to the need for green hydrogen as a pillar of the energy transition. However, these studies are typically based on aggregated scenarios and lack both hourly modeling and granular financial analysis. In this sense, this work fills a methodological gap by offering a replicable microeconomic approach, focused on technical simulation and the translation of results into a realistic financial framework.

On the other hand, more technical analyses, such as those by and [8] focus on the development of control strategies to optimize the use of multiple electrolyzers or on the detailed modeling of alkaline electrolyzers in complex energy scenarios. However, these approaches tend to ignore the financial dimension, which limits their practical applicability to investment decision-making. In contrast, the present study brings together both aspects—the technical and the financial—and demonstrates how their integration can lead to a significant reduction in the Levelized Cost of Hydrogen.

In addition, benchmark European studies, such as those by van der [10,7], establish competitiveness thresholds and project future cost trajectories, but typically work with aggregated data that do not capture hourly variability or local conditions. This work, however, provides empirical evidence derived from a specific case in Seville, with hourly simulations and alternative configurations, which allows for the identification of design parameters that can be directly transferred to practice.

Overall, the originality of this study lies in articulating an integrative methodology that combines hourly simulation, analysis of technical configurations, and financial evaluation under project finance criteria. This directly answers the following research questions:

• What is the relationship between energy costs and the electrolyzer’s annual operating hours?
• What is the number of annual operating hours of the electrolyzer that minimizes the total cost of hydrogen production (energy + electrolyzer)?
• What is the optimal configuration for power generation?
• How will the cost of electricity supply evolve?

Throughout this work, answers will be provided to the questions posed, offering results that not only enrich the academic debate but are also applicable to investment practice and the design of green hydrogen projects in real-life contexts.

2. Overview of Green Hydrogen Production

Green hydrogen is produced through water electrolysis powered by renewable energy sources, resulting in near-zero greenhouse gas emissions throughout its life cycle [17,18]. Among the main production technologies—alkaline (AEL), proton exchange membrane (PEM), and solid oxide electrolyzers (SOEC)—PEM systems are the most suitable for coupling with intermittent photovoltaic generation due to their high flexibility and rapid response [19].

In this study, green hydrogen production is analyzed from a techno-economic perspective, focusing on the relationship between energy costs, electrolyzer efficiency, and annual operating hours. The detailed electrochemical and process descriptions, together with the typology of hydrogen sources and cost factor breakdown, are summarized in Appendix A for reference.

3. Financial Model for Estimating the Levelized Cost of Hydrogen (LCOH)

This section presents the financial model developed for estimating the Levelized Cost of Hydrogen (LCOH), following the methodology proposed by Lazard [20]. This approach is based on the logic of project finance, which involves a detailed representation of the cash flows of an actual green hydrogen production project over its lifetime, as opposed to simplified approximations based solely on cost averages.

3.1. Key Parameters of the Model

The calculation is based on two fundamental parameters:

Levelized Cost of Electricity (LCOE): this is defined as the average lifetime cost per unit of renewable electricity consumed by the electrolyzer.

Annual operating hours of the electrolyzer: this determines the volume of hydrogen produced per year and allows the system capacity to be properly sized.

From these two parameters, the annual hydrogen production (kg/year) is calculated, which is then related to the total project costs to obtain the LCOH in €/kg.

The results are normalized to a reference electrolyzer capacity of 1 MW, allowing cost and performance indicators (LCOE and LCOH) to be expressed on a per-megawatt basis.

3.2. Calculation Formulas

The Levelized Cost of Electricity (LCOE) and the Levelized Cost of Hydrogen (LCOH) are calculated using standard discounted cash flow formulations, consistent with methodologies proposed by the International Energy Agency [18], the International Renewable Energy Agency [17,21], and the National Renewable Energy Laboratory [22].

The Levelized Cost of Electricity (LCOE) represents the discounted average cost of producing one megawatt-hour (MWh) of electricity over the system’s lifetime:

$$LCOE= {\displaystyle \frac{\sum _{t=1}^n\frac{I_t+O_t+M_t+F_t}{{(1+r)}^t}}{\sum _{t=1}^b\frac{E_t}{{(1+r)}^t}}}$$

where

• I_t: investment expenditures in year t (CAPEX).
• O_t: operating and maintenance costs (O & M).
• M_t: miscellaneous or replacement costs.
• F_t: fuel or energy input costs (for PV = 0).
• E_t: electricity generated in year t (MWh).
• r: discount rate (WACC).
• n: project lifetime (years).

The Levelized Cost of Hydrogen (LCOH) extends this formulation by considering the total hydrogen produced (in kilograms) and incorporating the cost of electricity supplied to the electrolyzer:

$$LCOH={\displaystyle \frac{\sum _{t=1}^n\frac{I_{el,t}+I_{en,t}+O_t+M_t+C_{en,t}}{{(1+r)}^t}}{\sum _{t=1}^b\frac{H_t}{{(1+r)}^t}}}$$

where

• I_el,t: investment in electrolyzer equipment (CAPEX).
• I__en,t: investment in the renewable energy supply system (PV + storage).
• O_t: operating costs (OPEX).
• M_t: maintenance and replacement costs.
• C__en,t: cost of energy consumed by the electrolyzer.
• H_t: annual hydrogen production (kg).

3.3. Components of the Financial Model

The model integrates the most relevant financial elements of an industrial green hydrogen production project:

Initial investment (CAPEX): this includes the construction of the plant, installation of the electrolyzer and auxiliary systems.

Operating and maintenance costs (OPEX): both fixed and variable, including electricity, water, insurance, and warranties.

Project life: time horizon over which feasibility is assessed.

Financing structure: combination of equity and debt, with interest rate assumptions, amortization terms, and repayment profiles.

Tax aspects: depreciation of assets, taxes on profits, and other applicable taxes.

Replacement of the electrolyzer stack: halfway through its useful life, a one-time additional investment is incorporated to replace it.

Using these elements, the model simulates the project’s annual cash flows, allowing the calculation of free cash flow for shareholders and discounting it at the cost of equity. The LCOH is defined as the minimum hydrogen sales price that ensures investment recovery and a target return on the equity contributed.

3.4. Description of the Financial Model Parameters

The financial evaluation of the proposed models was carried out using a discounted cash flow (DCF) approach, incorporating both investment and operational costs over the system’s lifetime. The main input parameters used in the model—such as capital expenditure (CAPEX), operating expenditure (OPEX), discount rate, and system lifetime—are summarized in Table 2. These parameters were selected based on values reported in the recent literature and industry benchmarks, particularly from Lazard’s Levelized Cost of Energy and Hydrogen analyses and adapted to reflect typical conditions for photovoltaic and electrolyzer systems.

Table 2. Main parameters of the financial model. Prepared by the authors based on Lazard.

Parameter	Description	Units
Stack life	Maximum operating time before replacement	h.
Total electricity demand	Total energy consumed by the plant	MWh
H2 electricity consumption	Energy requirement per kg produced	kWh/kg
Total H2 production	Annual amount of hydrogen generated	t
CAPEX installation	Initial investment in general infrastructure	M€
CAPEX stack	Initial investment in the electrolyzer stack	M€
Total CAPEX	Sum of all initial investments	M€
LCOH	Levelized Cost of Hydrogen production	€/kg
Total income	Annual hydrogen sales	M€
Total cost of energy	Spending on renewable electricity	M€
Cost of water	Expenditure on demineralized water	M€
TOTAL O & M	Total operating and maintenance costs	M€
EBITDA	Earnings before interest, taxes, and depreciation	M€
Level debt service	Constant annual payment (interest + principal)	M€
Depreciation of installation	Annual amortization of the plant	M€
Depreciation stack	Annual amortization of the stack	M€
Profit after tax	Net profit after taxes	M€
Cash flow	Net cash available each year	M€
Internal rate of return (IRR)	Project profitability	%

3.5. LCOH Calculation Procedure

The procedure seeks to estimate the minimum hydrogen sales price that covers costs and generates the target profitability. To do this:

• The technical and economic parameters are defined as follows: unit CAPEX, electricity consumption (kWh/kg of H₂), annual operating hours, and electricity price (LCOE = f(h)).
• Annual revenue is calculated as a product of estimated production and the sales price of hydrogen.
• Operating costs are determined, including energy, water, insurance, and O & M.
• EBITDA is obtained as the difference between income and operating costs.
• The capital structure is incorporated with debt, interest, and amortization.
• Depreciation, especially stack replacement, is considered.
• Gross profit is calculated, followed by net profit after taxes.
• The project’s cash flows are determined as the sum of net profit and amortization.

Since the energy cost will depend on the optimal configuration for each number of hours, as will be seen in the following subsection (LCOE = f(h)), a different value of LCOH will be obtained for each number of operating hours (LCOH = f(h)).

The LCOH is the selling price at which the initial investment can be recovered, and the target return on equity can be achieved. The full model based on the Lazard report [20] is included in Appendix B.

4. Comparative Analysis of PV–Electrolyzer Configurations

This section evaluates three alternative configurations for coupling photovoltaic (PV) generation with electrolytic hydrogen production: Model 1—Base Case, Model 2—Oversizing, and Model 3—PV and Storage. Each model differs in system configuration, operating strategy, and associated costs. The main technical and financial assumptions are summarized in Table 3, while the specific behavior and results for each case are described below.

Table 3. Summary of system configurations and assumptions.

Parameter	Model 1—Base Case	Model 2—Oversizing	Model 3—PV and Storage
PV configuration	Two tilt angles: max annual generation/reduced variability	Same as Model 1	Same as Model 1
Energy management	Direct connection to electrolyzer	PV power increased by 10% steps up to +100%	PV + lithium battery storage
Storage system	None	None	Li-ion battery (sized from SoC)
Electrolyzer operation	Limited to nominal power	Limited to nominal power	Limited to nominal power
Surplus energy	Fed into the grid	Fed into the grid	Stored and later consumed by electrolyzer
Sizing criterion	Inverter = electrolyzer nominal power	PV capacity scaled progressively	Battery sized by energy balance (SoC)
Main cost components	CAPEX (modules, inverters), O & M, WACC	CAPEX (PV expansion), OPEX adjustment	CAPEX (PV + battery), O & M, WACC
Output indicators	Annual H2 production, LCOE	Annual H2 production, LCOE, LCOH	Annual H2 production, LCOE, LCOH

4.1. Model 1—Base Case

In the base configuration, the electrolyzer operates without any storage system, consuming electricity only up to its rated power. This approach prevents surplus generation that would otherwise be injected into the grid.

• Solar configuration: Two panel tilt alternatives are analyzed—one maximizing annual generation and another reducing hourly variability.
• Sizing: The PV plant is dimensioned so that the electrolyzer’s nominal power is not exceeded during peak production; inverter power equals electrolyzer power.
• Operation: The electrolyzer works only when renewable power is available, resulting in partial annual utilization.
• LCOE calculation: The analysis includes annualized CAPEX (modules and inverters), O&M costs, and WACC, with annual production determined by available irradiation and electrolyzer startup limits.

4.2. Model 2—Oversizing

This model seeks to increase the electrolyzer’s annual operating hours by progressively expanding PV capacity in 10% increments up to +100% relative to the base case.

• Rationale: Oversizing the PV plant reduces the frequency and duration of low-generation periods, allowing the electrolyzer to operate near full load more often.
• Operation: The electrolyzer remains limited to its nominal power, with excess generation injected into the grid.
• Economic effects:

  -

  Increased PV capacity raises CAPEX,

  -

  Higher utilization improves annual hydrogen output and affects OPEX (scaled to operating hours),

  -

  LCOE and LCOH are recalculated for each oversizing level, considering these adjustments.

The model quantifies changes in energy use, hydrogen production, and cost performance for each oversizing scenario.

4.3. Model 3—PV and Storage

This model integrates a lithium battery to store surplus PV electricity, eliminating curtailment and extending electrolyzer operation hours.

• Solar configuration: The two tilt angles from previous models are maintained.
• Sizing: Battery capacity is determined based on the maximum observed State of Charge (SoC) in representative generation scenarios.
• Operation: Nearly all generated energy is consumed by the electrolyzer, maximizing utilization.
• LCOE with storage: This includes battery CAPEX, lifetime, and O & M costs, discounted using the same WACC applied to the PV and electrolyzer system.

Despite the higher investment, the improved utilization and higher hydrogen output significantly reduce the LCOE compared with systems without storage.

4.4. Comparison Between Models

The results of the three models enable the construction of an interpolated Levelized Cost of Electricity (LCOE) function as a function of the electrolyzer’s annual operating hours. This function explicitly illustrates the relationship between the integration of energy storage and the reduction in the specific cost of electricity.

For each value of electrolyzer operating hours, the configuration with the lowest cost is selected, thus determining the optimal combination of photovoltaic array size, storage capacity, and module tilt angle.

Based on the corresponding CAPEX and OPEX data for each configuration, the resulting function LCOE = f(h) is obtained, which serves as the input for the LCOH(h) financial model presented in the previous section.

5. Case Study

This section develops a case study applied to the Seville site (37.520, −5.651) characterized by high levels of solar irradiation and proximity to industrial hubs demanding hydrogen.

The objective is to validate the proposed methodology and demonstrate its applicability in a real-world context. The section is organized into four sections: first, the input data considered in the analysis are presented; second, the Levelized Cost of Electricity (LCOE) and Levelized Cost of Hydrogen (LCOH) calculations are presented for each of the models analyzed (Base Case, Oversizing, and Storage); third, a systematic comparison is made between the results of the different models; and finally, a sensitivity analysis is included on the critical parameters that determine the economic viability of the system. This structure aims to illustrate in a practical way how the integration of technical and financial aspects allows for the identification of optimal configurations for the competitive production of green hydrogen.

5.1. Case Study Input Data

Table 4 presents the input data to be applied in the model described in the previous section.

Table 4. Input data for calculating LCOE and LCOH [8,12,13,18,19,22].

Parameter	Worth	Source/Reference
Electrolyzing power (EPP)	20 MW	[8]
Total electrolyzer CAPEX	1519 €/kW	[13,19]
CAPEX stack	601.5 €/kW	[22]
CAPEX PV plant	0.5 M€/MW	[18]
CAPEX storage	0.1 M€/MWh	[22]
PV/Inverter lifespan	25 years	[19]
Shelf-life storage	13.8 years	[22]
Stack lifespan	60,000 h	[8]
WACC	6%	Base hypothesis
Electricity cost	50.98 €/MWh	Own elaboration [12]
Cost of deionized water	0.005 €/kg H2	Technical standard
Specific consumption	61.87 kWh/kg H2	[8]
Calorific value H2	33 kWh/kg	[18]

5.2. Calculation of LCOE and LCOH by Model

5.2.1. Model 1—Base Case

In this model, the PV plant is sized to a 20 MW electrolyzer, avoiding spills. The results show an LCOH of €7.23/kg (35°) and €8.07/kg (58°).

5.2.2. Model 2—Oversizing

The PV power is progressively increased relative to the base case. The minimum LCOH achieved is €5.80/kg (35° with 90% oversizing). Table 5 and Figure 1 present the LCOE and LCOH results for each oversizing level and module inclination analyzed.

Table 5. Results of the oversizing model.

Overdim. %	Hours (35°)	LCOE (€/MWh)	LCOH (€/kg)	Hours (58°)	LCOE (€/MWh)	LCOH (€/kg)
0	1899	30.41	7.23	1679	32.71	8.07
40	2533	31.56	5.94	2312	32.86	6.43
70	2775	34.75	5.80	2588	35.46	5.82
90	2896	37.16	5.80	2713	37.70	6.08
200	3247	51.91	6.34	3099	51.67	6.49

Figure 1. Evolution of LCOH as a function of the percentage of oversizing.

It is observed that the maximum energy inclination (35°) improves the results of the minimum variance inclination in all cases, and that a minimum LCOH value of 6.08 €/kg is obtained, with hours of use exceeding 3000.

5.2.3. Model 3—Incorporating Storage

The integration of lithium batteries allows for maximizing electrolyzer utilization. This approach makes it possible to take advantage of surplus photovoltaic production that cannot be used immediately, storing it for later use when the plant is not producing or is producing below the electrolyzer’s rated power.

Compared with the previous models, where curtailed energy limited utilization, the implementation of storage allows for continuous operation and more efficient use of installed capacity, improving both CAPEX distribution and overall system efficiency.

Thus, it is observed that the cost of energy (LCOE) increases with the number of operating hours, as expected. Figure 2 presents the minimum LCOE values for each number of operating hours, after analyzing the three proposed models.

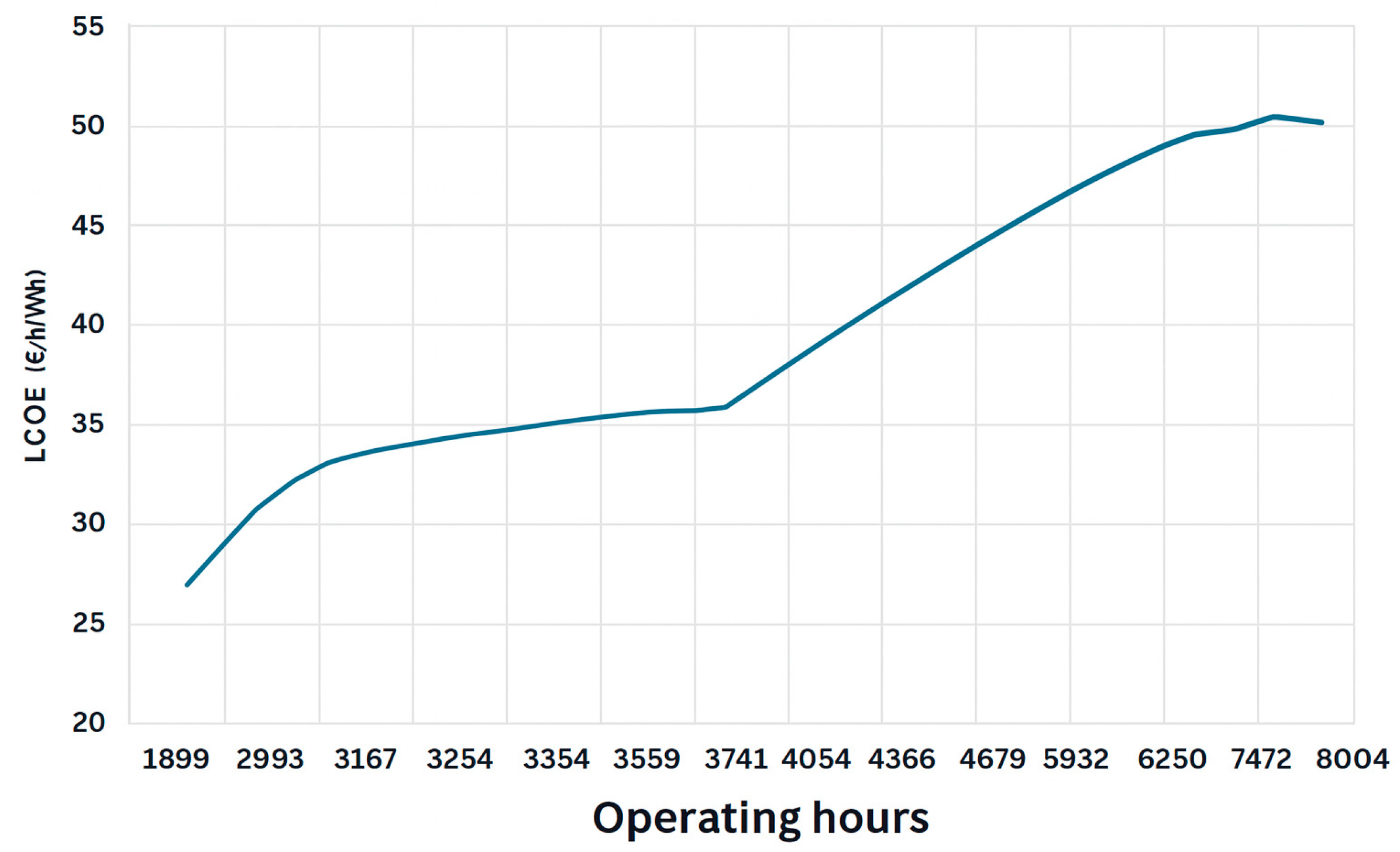

Figure 2. Evolution of LCOE based on hours of use.

Although the function is not linear, to state a “thumb rule”, it can be approximated as the function:

LCOE = 0.00385 · Hours + 23.48

(1)

Which would be equivalent to saying that for every additional 1000 h of operation, the LCOE increases by €3.85/MWh.

Different scenarios were evaluated based on the number of operating hours of the electrolyzer, ranging from 2893 to 8004 h per year, while maintaining a constant inverter power of 20 MW. For each case, the adjusted LCOE was calculated, and from this, the associated LCOH. The results obtained are presented in Figure 3.

Figure 3. Evolution of LCOH based on hours of use.

The LCOH drops to a minimum of €4.43/kg with 8004 operating hours (58 °C). This operating regime ensures virtually continuous production, leaving 10% of the year’s hours for preventive maintenance. This allows for a significant reduction in the amortization cost of the electrolyzer equipment, although the LCOE increases significantly. Figure 4 shows the LCOH components (electricity and electrolyzer CAPEX) as a function of operating hours.

Figure 4. Evolution of LCOH as a function of hours of use, and decomposition into production factors.

5.3. Comparison Between Models

The comparison between the three proposed models—Base Case, Oversizing, and PV and Storage—was carried out based on their respective LCOE and LCOH values, calculated using consistent financial and operational assumptions. Each model represents a different configuration of the PV–electrolyzer system, as summarized in Table 6, which presents the optimal operating point for each case.

Table 6. Summary of optimal points by model.

Model	Configuration	H/Year	LCOE (€/MWh)	LCOH (€/kg)
Base Case	35°	1899	30.41	7.23
Oversizing	35° (90%)	2896	37.16	5.80
Storage	58°	8004	50.98	4.43

The Base Case model, in which the electrolyzer operates without oversizing or storage, yields an LCOH above €7/kg, primarily due to limited annual operating hours (approximately 1900 h/year) and the underutilization of installed equipment.

In the Oversizing scenario, increasing the PV capacity by 90% significantly raises the available energy and extends the electrolyzer’s annual operation to around 2900 h/year, lowering the LCOH to €5.80/kg. However, the system is still affected by energy curtailment during periods of high irradiance, which limits further cost reductions.

The PV and Storage model achieves the most favorable results. By incorporating a lithium-ion battery system, the electrolyzer operates for more than 8000 h/year, nearly quadrupling the utilization time of the base case. This higher operating stability enables an LCOH of €4.43/kg, despite the additional investment in storage.

This value represents a 40% cost reduction compared to the base case and is below the reference market price for green hydrogen reported by MIBGAS (December 2024: €5.85/kg) according to the official bulletin of the Iberian Gas Market Operator [23].

The comparative analysis thus demonstrates that incorporating energy storage not only enhances system utilization and efficiency but also places the LCOH of green hydrogen within a commercially competitive range relative to current market benchmarks. This finding supports the technical and economic viability of PV-powered hydrogen production systems with integrated storage under real operating conditions.

5.4. Sensitivity Analysis

The evolution of photovoltaic (PV) and energy storage costs has been decisive in the competitiveness of green hydrogen. Over the last decade, the cost of solar modules has fallen by more than 80%, reaching values of around €0.5 million/MW in the case study. This reduction has consolidated PV as the most competitive renewable technology, with an LCOE in the range of €30–35/MWh in high-irradiation sites such as Seville. In contrast, storage technologies—mainly lithium-ion batteries—are at a less mature stage but offer greater potential for future improvement, given that there remains significant room for price reduction and technical optimization.

To quantify how these variations affect the Levelized Cost of Hydrogen (LCOH), a sensitivity analysis was performed based on the identified optimal case (LCOH = €4.43/kg with 8004 annual operating hours). Four key parameters were evaluated as follows:

• Specific electrical consumption of the electrolyzer (kWh/kg H₂).
• CAPEX of the photovoltaic plant.
• CAPEX of the electrolyzer.
• CAPEX of the storage system.

In each of them, reductions of 10%, 20%, and 30% were simulated, representing scenarios of technological progress.

The results in Table 7 show that the electrolyzer’s specific power consumption is the variable with the greatest impact on LCOH: a 10% improvement translates into an approximate 7.5% reduction in hydrogen costs. The PV plant’s CAPEX has an intermediate impact, with a 3.4% decrease for every 10% reduction, followed by the electrolyzer’s CAPEX (−2.9%). Finally, storage shows the smallest direct effect (−1.1%), although its strategic importance lies in the increase in electrolyzer operating hours and system stabilization.

Table 7. Results of the sensitivity analysis on the optimal case (LCOH = €4.43/kg).

	Expected Reduction %	LCOH (€/kg)
Electrolyzer CAPEX (M€)	0%	4.43
	10%	4.29
	20%	4.15
	30%	4.02
Specific electricity consumption of H2 (kWh/kg)	0%	4.43
	10%	3.98
	20%	3.54
	30%	3.10
PV Plant CAPEX (M€)	0%	4.43
	10%	4.24
	20%	4.05
	30%	3.86
BESS CAPEX (M€)	0%	4.43
	10%	4.31
	20%	4.19
	30%	4.07

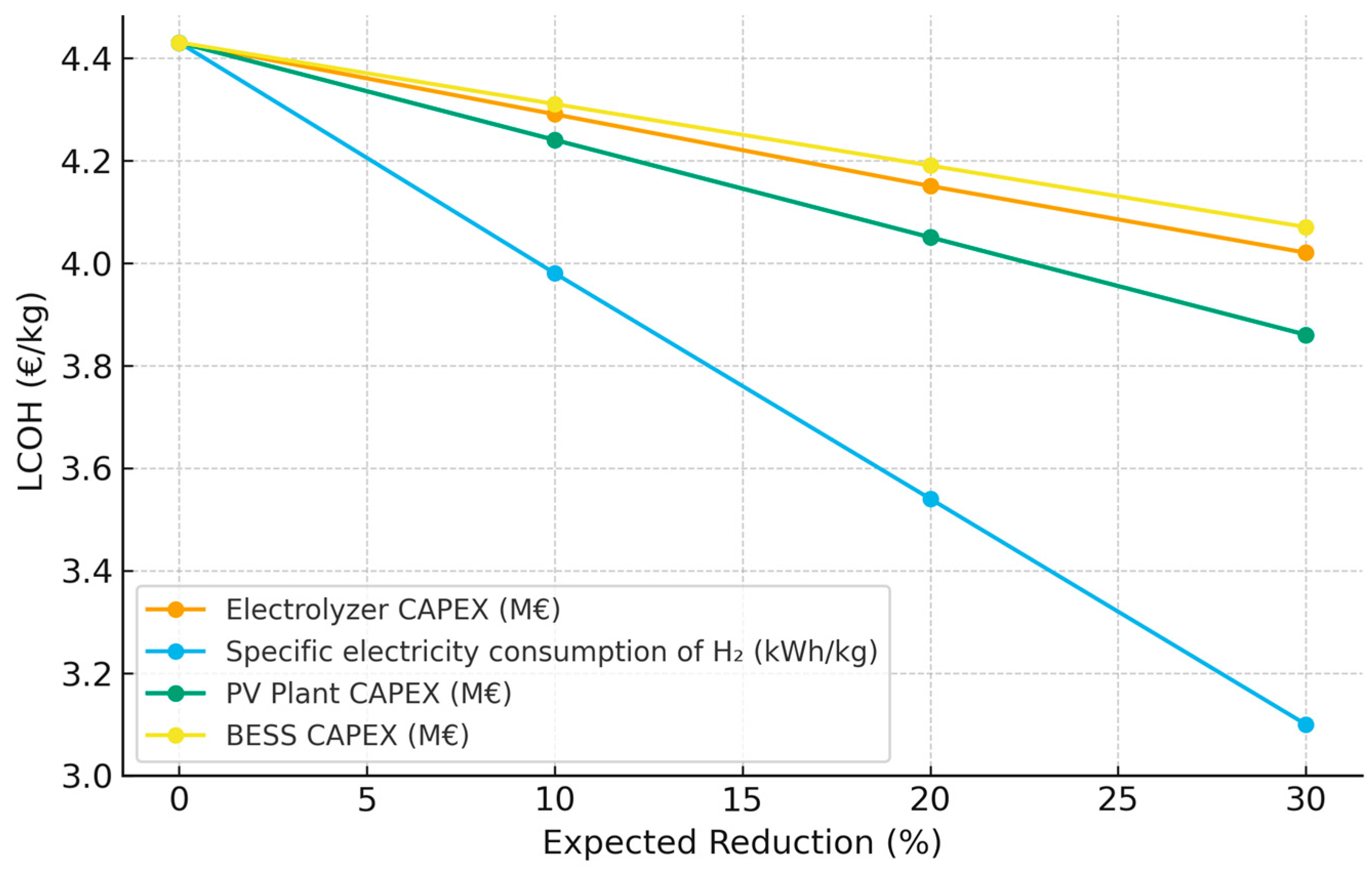

Figure 5 represents the relative variation in LCOH versus successive reductions of 10%, 20%, and 30% in the four parameters considered. The steepest downward slope is observed in the electrolyzer’s specific power consumption, confirming its priority in reducing the final cost of green hydrogen.

Figure 5. Sensitivity analysis of LCOH as a function of critical parameters.

Sensitivity analysis confirms that electricity price is the most critical factor. A ±20% variation in LCOE results in changes of up to ±14% in LCOH. Reducing electrolyzer CAPEX by 25% reduces LCOH by €0.6/kg. Annual operating hours show the greatest impact, drastically reducing LCOH beyond 4000 h of use.

Three main conclusions emerge from this analysis:

• Electrolyzer efficiency as a key lever: Reducing specific power consumption offers the greatest cumulative impact on LCOH, with a direct and sustained effect throughout the project’s lifetime.
• Storage with strategic value: Although its direct impact on costs is limited, storage enables near-continuous operating regimes, making it possible to overcome solar intermittency. Its potential for future improvement makes it a critical element in the medium term.
• Progressive CAPEX reduction: In both photovoltaics and electrolyzers, cost improvements maintain a significant impact on competitiveness, although their relative weight decreases compared to operational efficiency.

Overall, the results show that the path to competitive green hydrogen depends on a delicate balance between technological improvements (more efficient electrolyzers), consolidation of low costs in photovoltaics, and the integration of flexible storage that maximizes asset utilization.

6. Discussion

The comparative analysis of the three proposed models—Base Case, Oversizing, and PV and Storage—demonstrates the strong dependence of the Levelized Cost of Hydrogen (LCOH) on the annual operating hours of the electrolyzer and the stability of the renewable energy supply.

In the Base Case, limited PV capacity and the absence of storage constrain hydrogen production to fewer than 2000 h/year, resulting in a high LCOH of €7.23/kg. This configuration highlights the fundamental challenge of direct PV–electrolyzer coupling underutilization of installed capacity due to intermittency in solar generation.

The Oversizing strategy partially mitigates this problem by increasing available power, extending operation to nearly 2900 h/year and lowering LCOH to €5.80/kg. However, this improvement is achieved at the cost of significant curtailment during peak irradiance, where part of the generated energy must be exported to the grid. While oversizing reduces idle time, it leads to diminishing returns as excess energy becomes increasingly unutilized.

In contrast, the PV and Storage configuration represents the optimal balance between energy availability and system utilization. Integrating a lithium-ion battery allows the electrolyzer to operate for more than 8000 h/year, maintaining close to full-load operation. Although the investment cost (CAPEX) of this configuration is higher due to battery installation, the overall energy utilization efficiency and specific hydrogen output increase substantially. This results in an LCOH of €4.43/kg, the lowest among all cases analyzed.

The selection of this optimal case is therefore not based solely on the minimum cost value, but on its combined technical and economic performance. The PV and Storage configuration achieves

• Higher system utilization and reduced curtailment losses,
• Improved amortization of fixed costs (CAPEX),
• More stable and predictable hydrogen output, and
• Enhanced compatibility with market-oriented operation and grid integration.

The results indicate that the LCOH is inversely correlated with electrolyzer operating hours up to a saturation point, beyond which additional capacity or storage yields limited benefit. This confirms that optimizing renewable supply and utilization is more cost-effective than merely increasing installed capacity.

From a broader perspective, these findings demonstrate that PV-powered hydrogen production can achieve market competitiveness when properly sized and combined with storage. The achieved LCOH value of €4.43/kg is below the current market reference price (€5.85/kg, [23], suggesting near-term feasibility for industrial-scale deployment.

Furthermore, the methodology developed here—based on the integration of hourly simulation, technical optimization, and financial modeling—provides a replicable framework for future studies. It can be applied to other renewable technologies (e.g., wind or hybrid PV–wind systems) and to different locations with varying solar profiles, offering a robust decision-making tool for project developers and policymakers.

Finally, Table 8 shows the findings of this work, as well as the differences with some of the references used.

Table 8. Comparison between findings of this study and the previous literature [9,10,13,23].

Source	Main Focus	Key Results	Limitations Noted	Contribution of This Study
[10]	European techno-economic scenarios	Need for 7500–8500 h/year for competitiveness	Aggregated data, no hourly modeling	Empirical validation with >8000 h/year and LCOH = €4.43/kg in Seville
[9]	Modeling of electrolyzers	Relevance of efficiency in complex scenarios	Lack of validation in real cases	Quantified sensitivity: −7.5% in LCOH for every 10% improvement in specific power consumption
[13]	Macroeconomic projections to 2050	Projected LCOH 1–3 €/kg	Abstract assumptions, no local data	Current microeconomic evidence: LCOH €4.43/kg, below market reference [23]
This Study	Real case in Seville with PV and storage	Storage allows >40% reduction in LCOH	Dependence on initial CAPEX and regulatory risk	Replicable framework that integrates hourly simulation and financial analysis

7. Conclusions

This work has developed and validated a replicable methodology to optimize the cost of producing green hydrogen (LCOH) from solar photovoltaic energy, applying the analysis to a real-life case in Seville. The approach combines hourly generation simulations with a project-type financial model, allowing for an accurate assessment of the relationship between the cost of renewable energy, the annual operating hours of the electrolyzer, and the impact of the technical design on economic viability.

The results confirm that the low cost of renewable electricity, although necessary, is not sufficient to guarantee hydrogen’s competitiveness. The key lies in maximizing electrolyzer utilization, since the LCOH decreases as the number of annual operating hours increases. The comparative analysis of three configurations—Base Case, Oversizing, and Storage—shows that the integration of lithium-ion batteries is the optimal solution, enabling near-continuous operation.

The optimal scenario identified corresponds to the model with storage, with a 58° panel inclination, 8004 h of annual operation, and an LCOH of €4.43/kg. This value represents a 40% reduction compared to the base case and is 24% below the reference price published by MIBGAS in 2024, validating the model’s competitiveness in a real-world market context.

Sensitivity analysis showed that electrolyzer efficiency is the parameter with the greatest impact on LCOH, followed by the CAPEX of the photovoltaic plant and the electrolyzer, while storage has low elasticity but essential strategic value by increasing useful operating hours. These conclusions highlight the need to prioritize technological innovation in electrolyzers and to promote regulatory and financial schemes that reduce uncertainty and support investment in storage.

Ultimately, this study demonstrates that, through optimized technical design and rigorous financial analysis, it is possible to achieve competitive costs for green hydrogen at real-world sites with high solar irradiation. Furthermore, the proposed methodology is scalable and adaptable to other contexts, constituting a useful tool for investors, policymakers, and developers interested in accelerating the transition to a decarbonized energy system.

Appendix A.1. Hydrogen Typologies According to Their Origin

Hydrogen is not classified by its chemical composition, which is always H₂, but by the method and energy source used for its production. A chromatic nomenclature is commonly employed [13,14,18]

• Grey hydrogen: produced from natural gas through steam methane reforming (SMR) without CO₂ capture, representing over 95% of current global production.
• Blue hydrogen: derived from fossil fuels but combined with carbon capture and storage (CCS) technologies to reduce emissions.
• Green hydrogen: generated through the electrolysis of water using electricity from renewable energy sources (solar, wind, and hydroelectric). It is the only category with almost zero emissions throughout its life cycle.

Table A1. Classification of hydrogen by generation source.

Type	Energy Source	Associated Emissions	Technological Maturity
Grey	Natural gas	High	High
Blue	Natural gas + CCS	Moderate	Medium
Green	Renewables (solar, wind, hydro)	None	Growing

Table A1. Classification of hydrogen by generation source.

Type	Energy Source	Associated Emissions	Technological Maturity
Grey	Natural gas	High	High
Blue	Natural gas + CCS	Moderate	Medium
Green	Renewables (solar, wind, hydro)	None	Growing

Appendix A.2. Green Hydrogen Production Process

The fundamental mechanism for producing green hydrogen is water electrolysis, an electrochemical process that separates water molecules (H₂O) into hydrogen (H₂) and oxygen (O₂) using electricity from renewable sources. The electrolyzer—composed of an anode, cathode, and electrolyte or membrane—is the central component of this process [24]

The process is carried out in the following steps:

• Renewable energy supply: the system receives electricity from photovoltaic or wind generation. Given the variability of these resources, the electrolyzer must operate flexibly to adapt to fluctuations in energy availability.
• Water preparation: the water used in the process must be deionized to prevent corrosion and maintain the efficiency and lifetime of the electrolyzer.
• Electrochemical reactions:

  -

  Anode (oxidation): 2 H₂O → O₂ + 4 H⁺ + 4 e⁻

  -

  Cathode (reduction): 4 H⁺ + 4 e⁻ → 2 H₂

The gases are then separated in different chambers and stored for subsequent use.

Three main electrolyzer technologies are currently under development and deployment:

• Alkaline electrolyzers (AEL): the most mature and cost-effective technology, characterized by high durability and low investment costs.
• Proton Exchange Membrane (PEM) electrolyzers: allow for higher current density and operational flexibility, making them suitable for coupling with intermittent renewable generation.
• Solid Oxide Electrolyzer Cells (SOEC): still under development; they can achieve high thermal efficiency but face challenges related to material durability [19].

Figure A1. Simplified diagram of the water electrolysis process for hydrogen production. Source: adapted from [24].

Figure A1. Simplified diagram of the water electrolysis process for hydrogen production. Source: adapted from [24].

Appendix A.3. Required Inputs

The main inputs required for green hydrogen production are as follows [18,25]:

• Renewable electricity: represents between 50% and 70% of the total production cost.
• Demineralized water: approximately 9 L are needed to produce 1 kg of hydrogen.
• Equipment: electrolyzers, compressors, storage tanks, and auxiliary control systems.

Appendix A.4. Cost Factors

The main cost components influencing green hydrogen production are

• Energy cost: increases with higher operating hours, as greater renewable energy availability and management are required.
• Electrolyzer cost: includes the initial investment (CAPEX) and its amortization, which decreases with longer annual operation.
• Efficiency: directly impacts the Levelized Cost of Hydrogen (LCOH).
• CAPEX and OPEX: total investment and operational costs of the plant.
• Electricity price: the most critical factor determining the economic feasibility of hydrogen production.

An optimal design must balance these elements, maximizing electrolyzer utilization while avoiding excessive energy consumption, thereby achieving the lowest possible LCOH.

Appendix B.1. Key Model Parameters

The model is based on two fundamental parameters that determine the technical and economic viability of the project:

• Levelized Cost of Electricity (LCOE): This represents the average cost of the renewable electricity used by the electrolyzer. It is the main input to the process and the most influential factor in the LCOE.
• Annual Operating Hours of the Electrolyzer: This defines the annual hydrogen production volume and allows the system capacity to be correctly sized.

From these, the annual hydrogen production (kg/year) is calculated, which is related to the total project costs to obtain the LCOH in €/kg.

Appendix B.2. Components of the Financial Model

The model integrates the following financial and technical elements:

• Initial Investment (CAPEX):

  ○

  Installation CAPEX: general infrastructure, civil works, auxiliary equipment.

  ○

  CAPEX of the stack of the electrolyzer: main component subject to replacement.

  ○

  Total CAPEX: sum of all initial investments.

• Operating and Maintenance Costs (OPEX):

  ○

  Cost of electricity (LCOE).

  ○

  Cost of demineralized water.

  ○

  Warranty and insurance expenses (1% of annual CAPEX).

  ○

  Operation and maintenance costs (2% of annual CAPEX).

• Financing Structure:

  ○

  Debt: 40% of the total CAPEX, with an annual cost of 4% and differentiated amortization periods (25 years for the installation, 12 years for the stack).

  ○

  Equity: 60% of CAPEX, with an annual cost of 10%.

  ○

  WACC (Weighted Average Cost of Capital): 6.01%.

• Tax and Accounting Aspects:

  ○

  Tax rate: 30%.

  ○

  Straight-line depreciation of assets (25 years for the installation, useful life of the stack during operating hours).

  ○

  Replacement of the stack halfway through the project’s lifespan.

• Cash Flows:

  ○

  Calculation of EBITDA (earnings before interest, taxes, depreciation, and amortization).

  ○

  Debt service: level payments of interest and principal.

  ○

  Net profit after taxes.

  ○

  Free cash flow to the shareholder.

Appendix B.3. LCOH Calculation Procedure

The LCOH is defined as the minimum hydrogen sales price that allows for the recovery of the investment and the target return on equity. The procedure is as follows:

1.

Definition of technical and economic parameters:

○

Electrolyzer power: 20 MW (PEM technology).

○

Specific electricity consumption: 61.87 kWh/kg H₂.

○

Annual operating hours: variable depending on the scenario (from ~1900 to 8000 h).

○

LCOE: function of operating hours, obtained from the optimal configuration of PV generation and storage.

2.

Calculation of annual hydrogen production:

Annual production (kg) = Power (kW) × Annual hours Consumption specific (kWh/kg)

3.

Estimated revenue and operating costs:

○

Revenue: product of annual production and the sales price of hydrogen (variable until the NPV is equal to zero).

○

Operating costs: energy, water, O & M, and insurance.

4.

EBITDA estimation:

EBITDA = Revenue − Operating costs

5.

Incorporation of the financial structure:

○

Payment of interest and amortization of debt.

○

Calculation of profit before taxes.

○

Application of the tax rate (30%).

○

Obtaining net profit.

6.

Cash flow calculation:

Cash flow = Net profit + Depreciation − Investments in replacement Cash flow = Net profit + Depreciation − Investments in replacement

7.

Calculation of LCOH:

○

Hydrogen sales prices are iterated until the Net Present Value (NPV) of the free cash flow discounted at the WACC equals zero.

○

The LCOH corresponds to the price that satisfies this condition.

Appendix B.4. Example of Application in the Case Study

For the identified optimal scenario (8004 h of operation, 58° inclination, with storage), the model yields the following key results:

• LCOE: €50.98/MWh
• Annual H₂ production: ~10,360 kg
• Total CAPEX: €30.8M
• LCOH: €4.43/kg

This value represents the minimum production cost that ensures the profitability of the project under the established financial and technical assumptions.

Appendix B.5. Validation and Replicability

The model has been validated by comparison with industry benchmarks (Lazard, IRENA, and NREL) and by sensitivity analysis on critical parameters. Its modular and parameterized structure allows for adaptation to other locations, technologies, or market conditions, facilitating its use as a tool for evaluating green hydrogen projects in diverse contexts.
