Modified SPWM Technique with Zero-Sequence Voltage Injection for a Five-Phase, Three-Level NPC Inverter

1
Faculty of Electrical Engineering, University of Nigeria, 410001 Nsukka, Nigeria
2
Faculty of Electrical and Control Engineering, Gdańsk University of Technology, 80-233 Gdańsk, Poland
3
Faculty of Electrical Engineering, Czestochowa University of Technology, 42-201 Częstochowa, Poland
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Academic Editor: Davide Barater
Energies 2021, 14(4), 1198; https://doi.org/10.3390/en14041198
Received: 6 February 2021 / Revised: 12 February 2021 / Accepted: 20 February 2021 / Published: 23 February 2021
(This article belongs to the Special Issue Control and Modeling of Power Converters and Inverters)

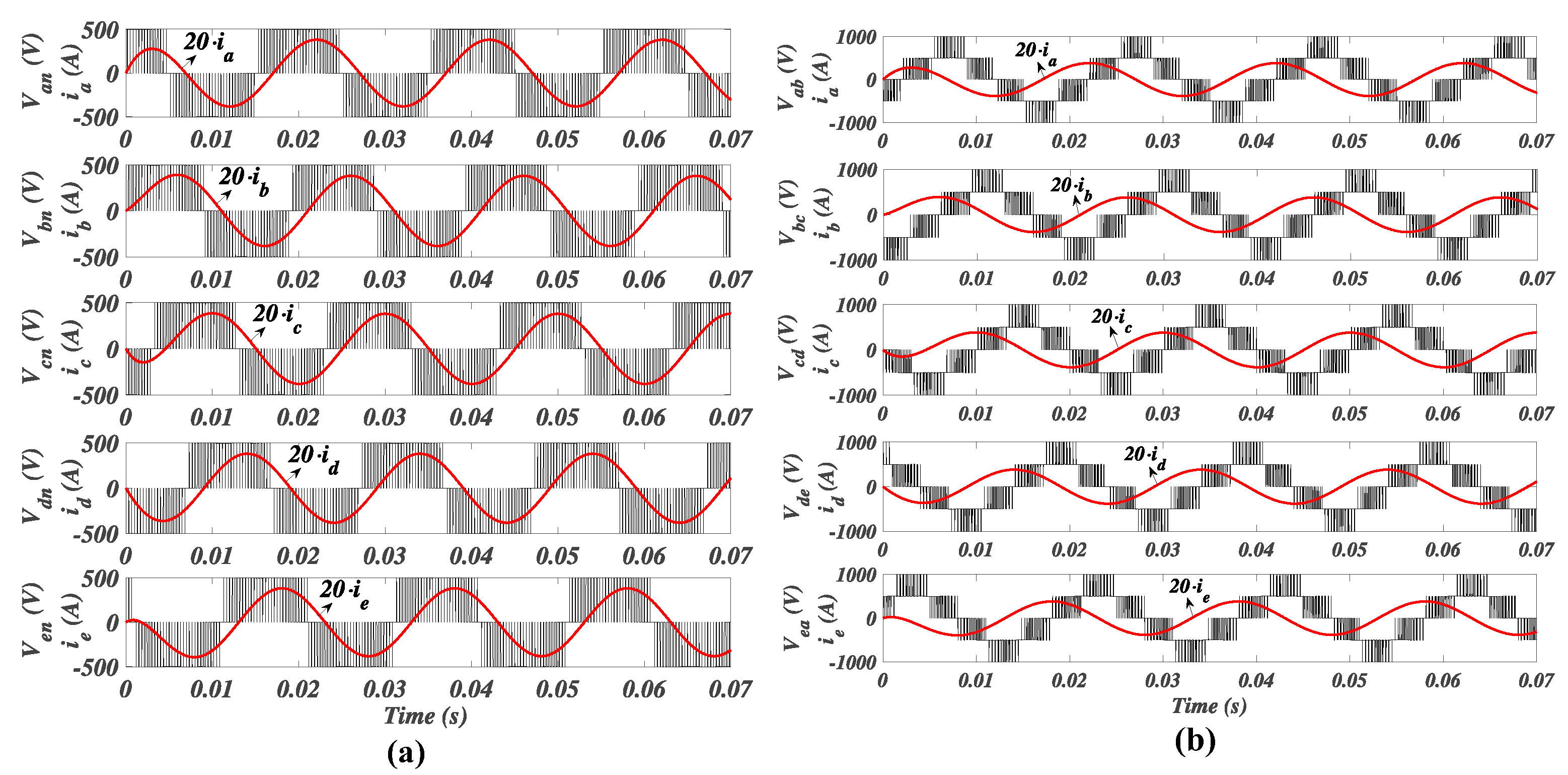

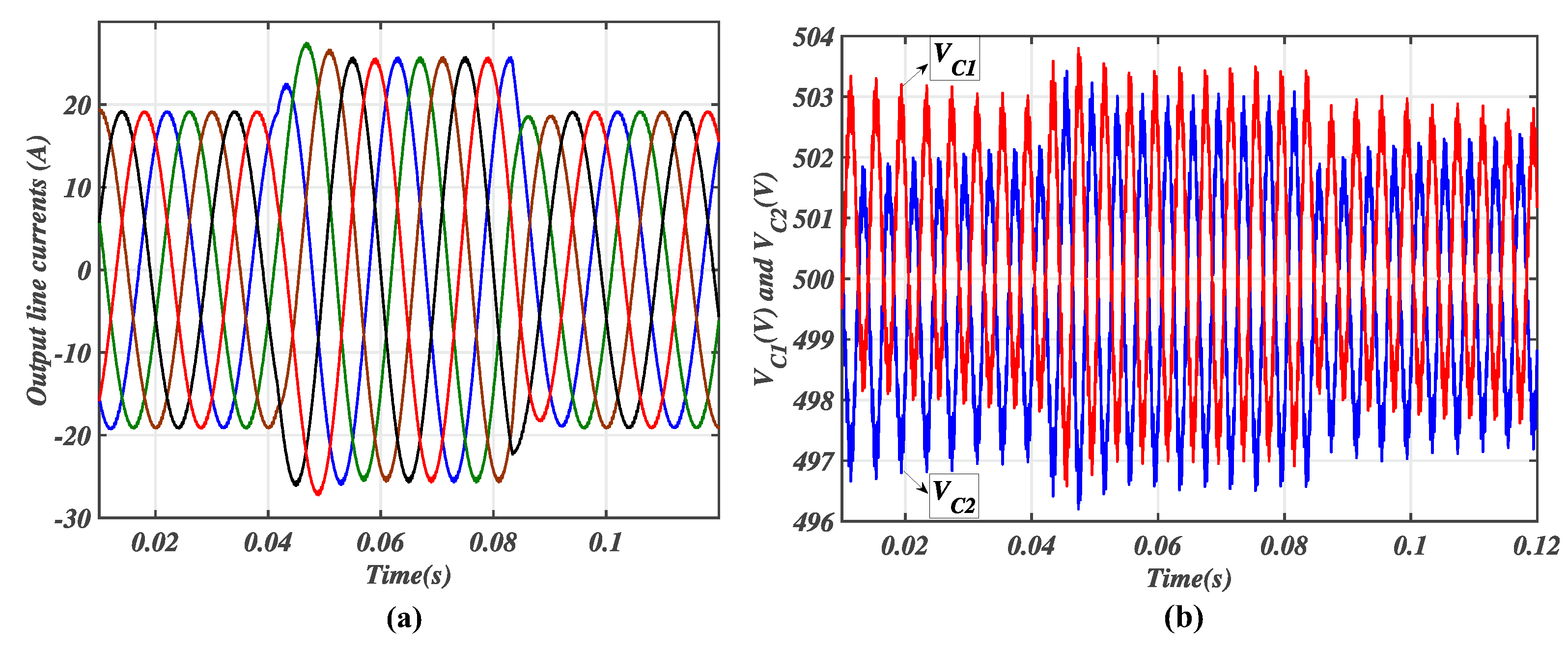

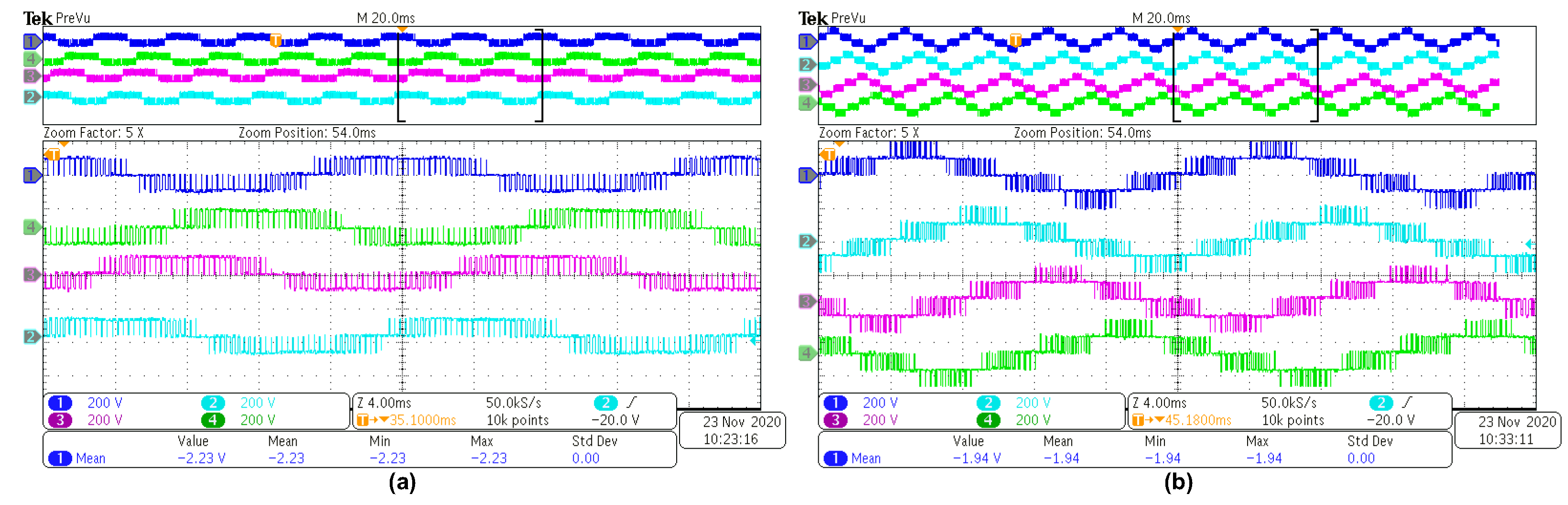

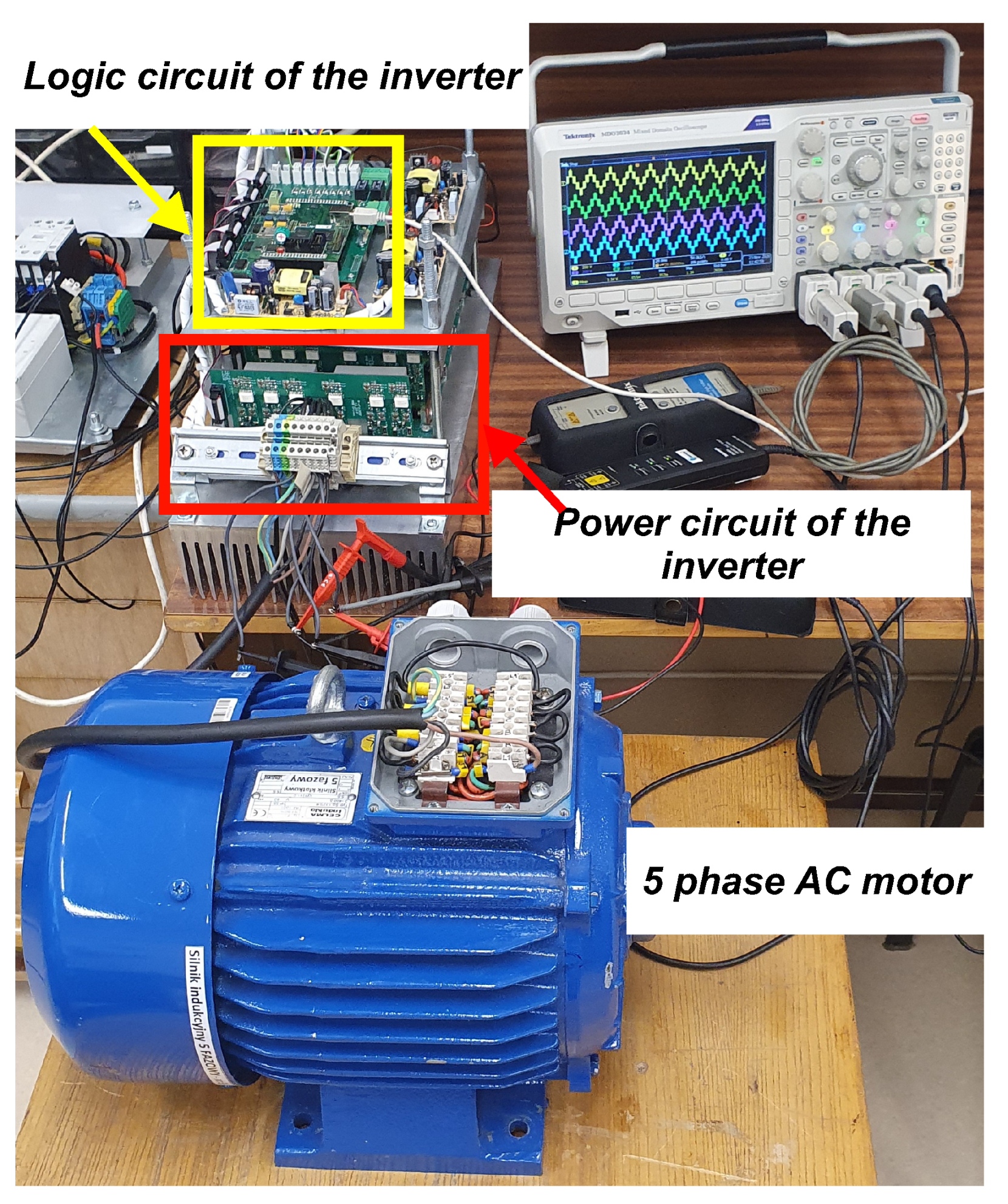

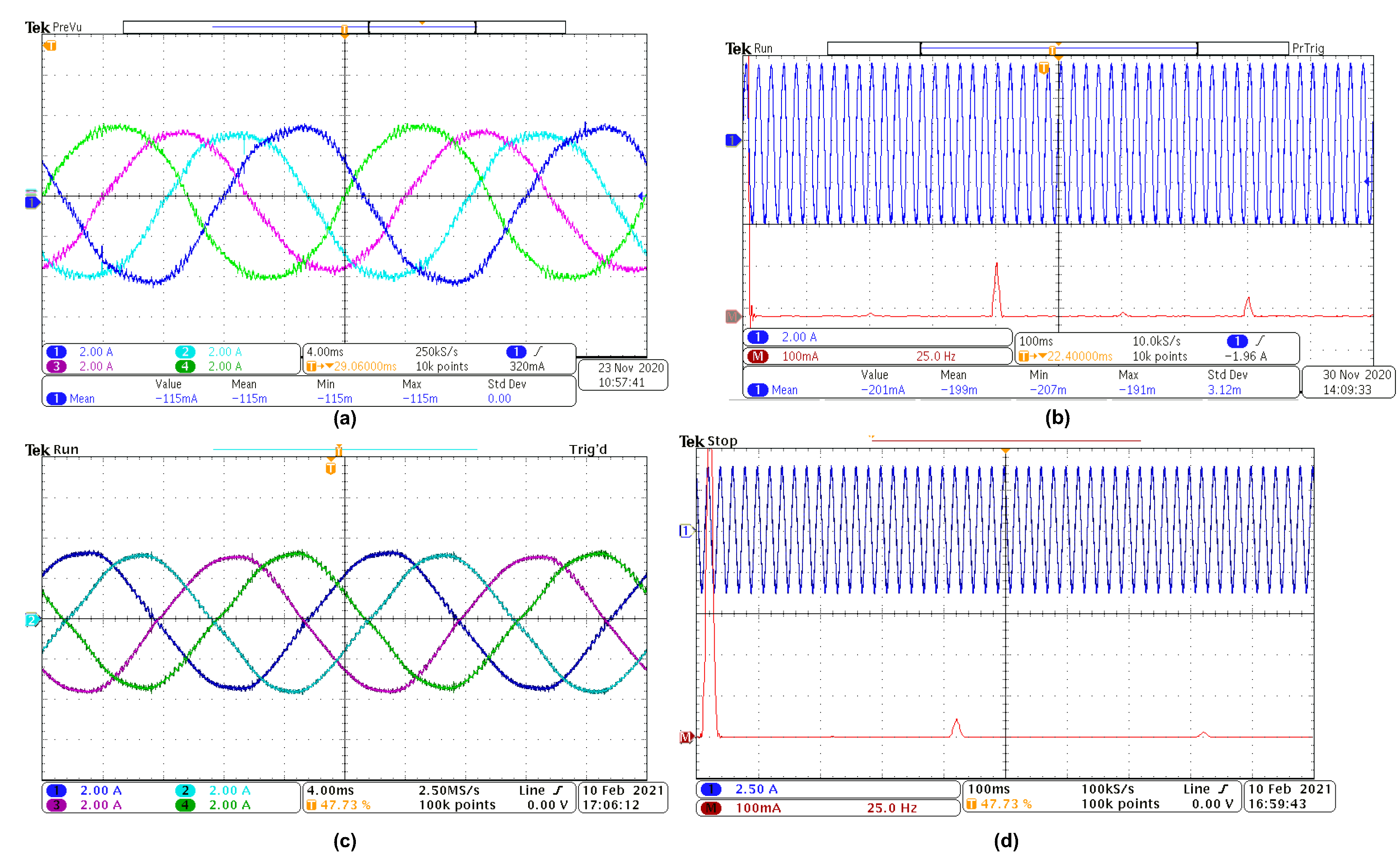

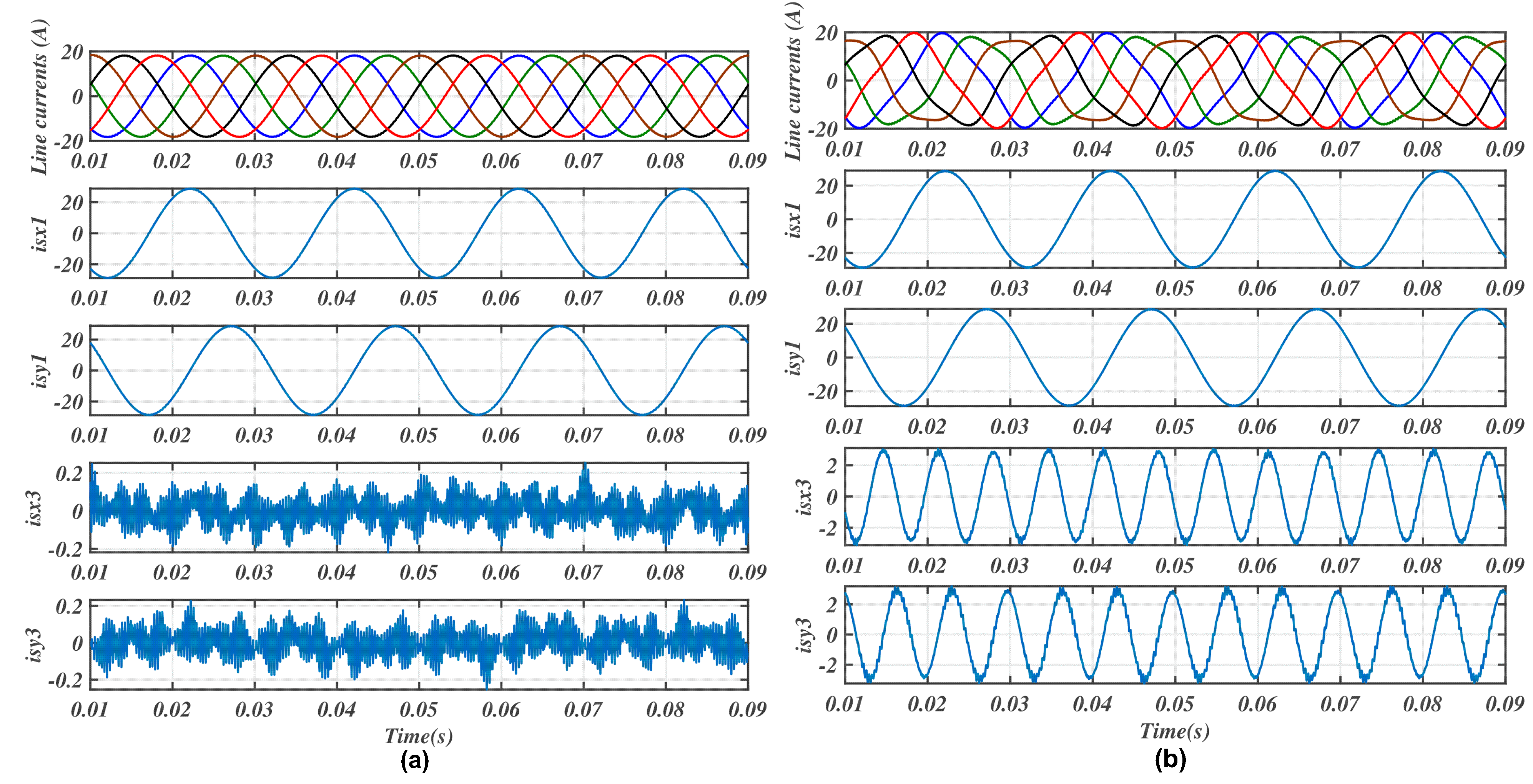

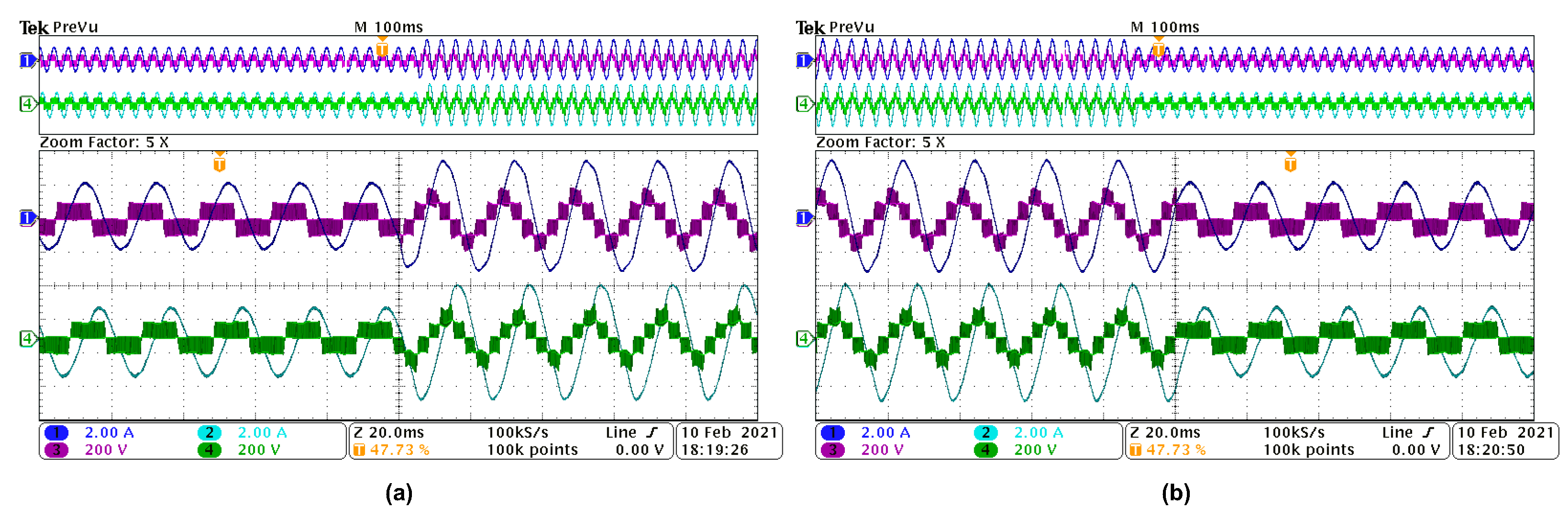

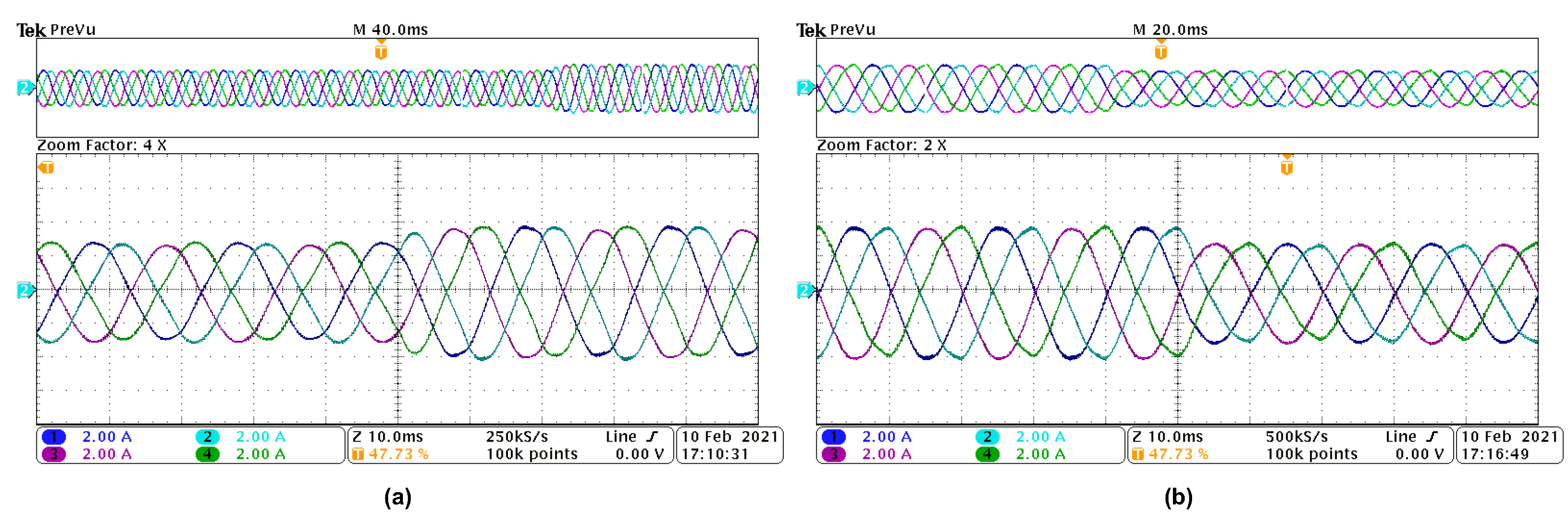

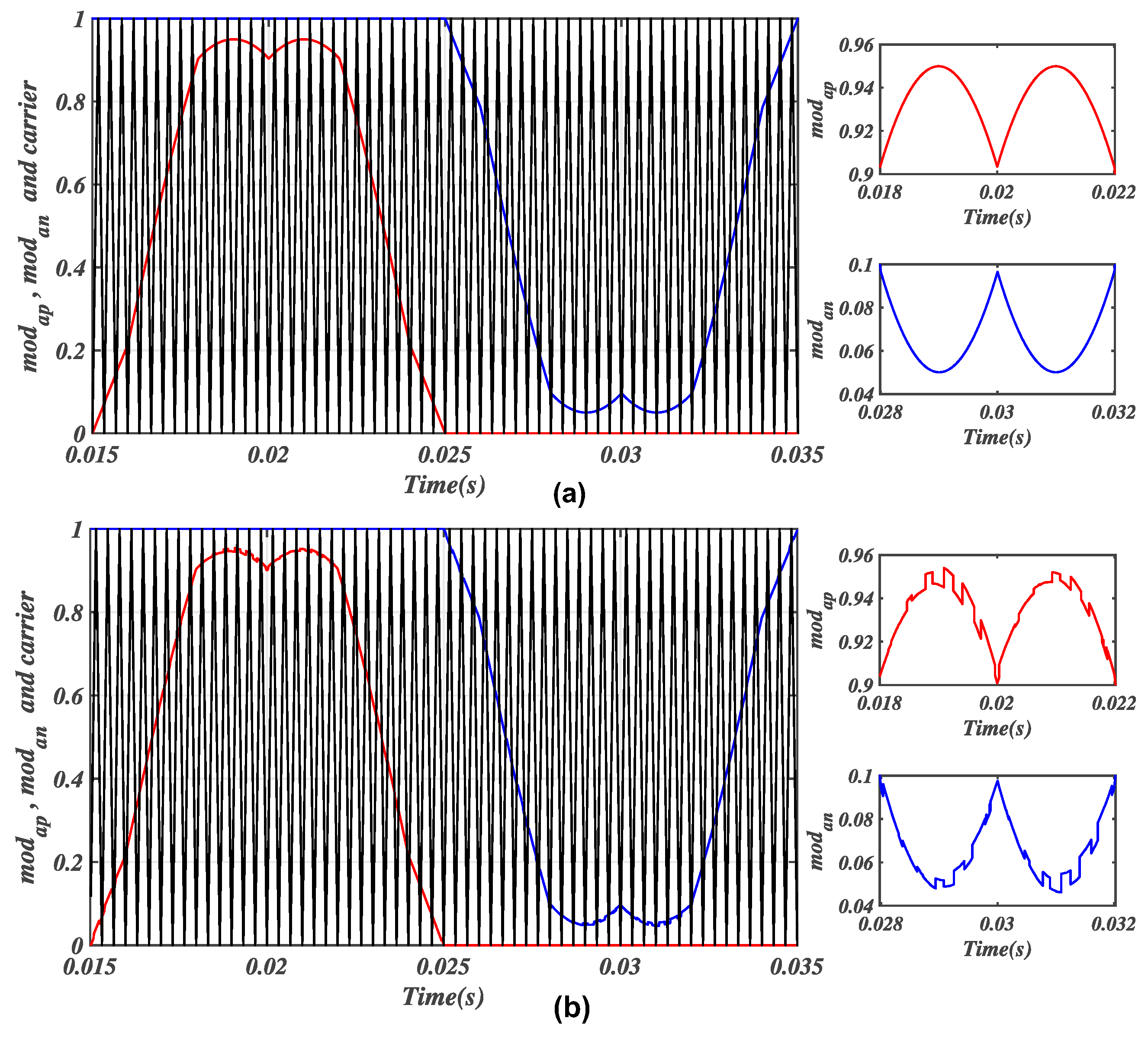

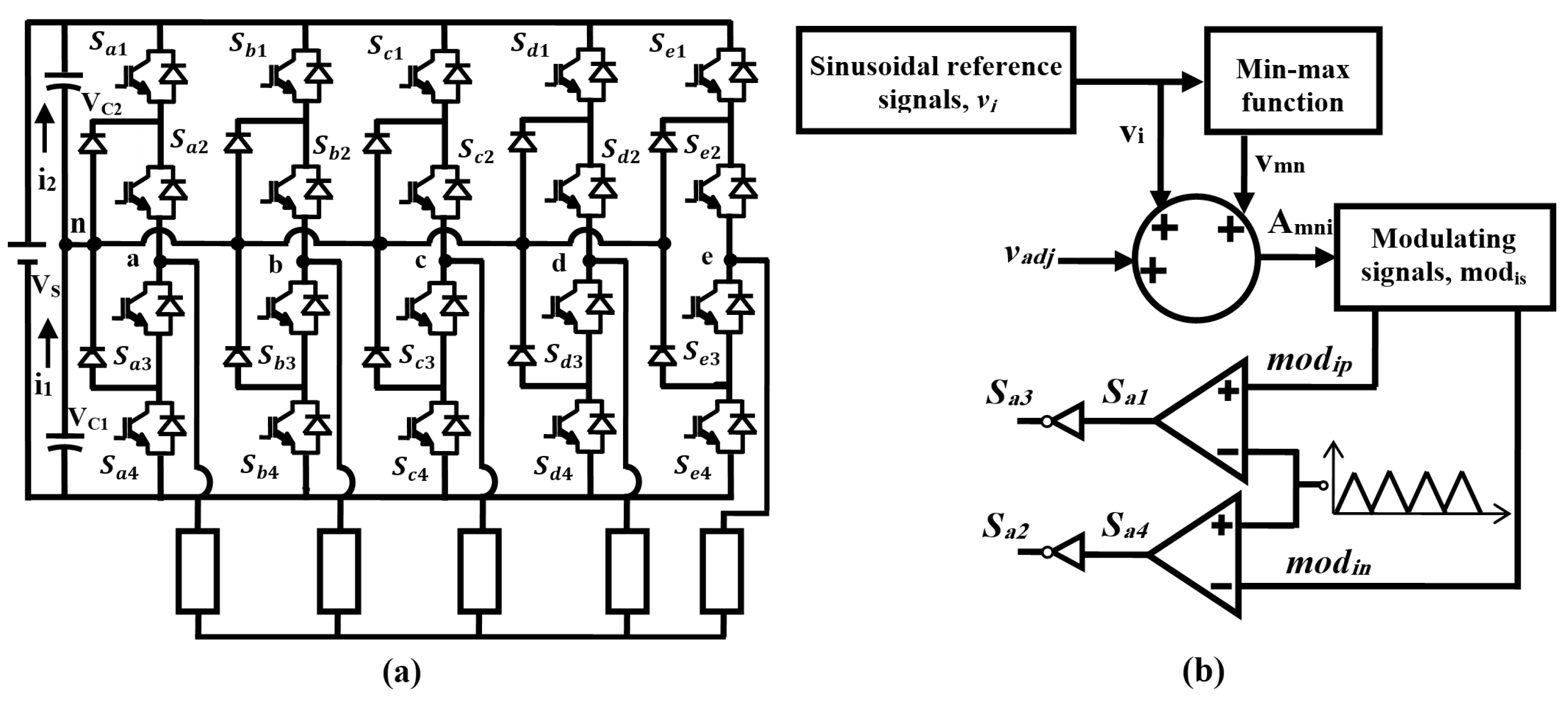

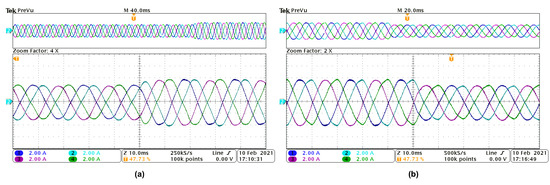

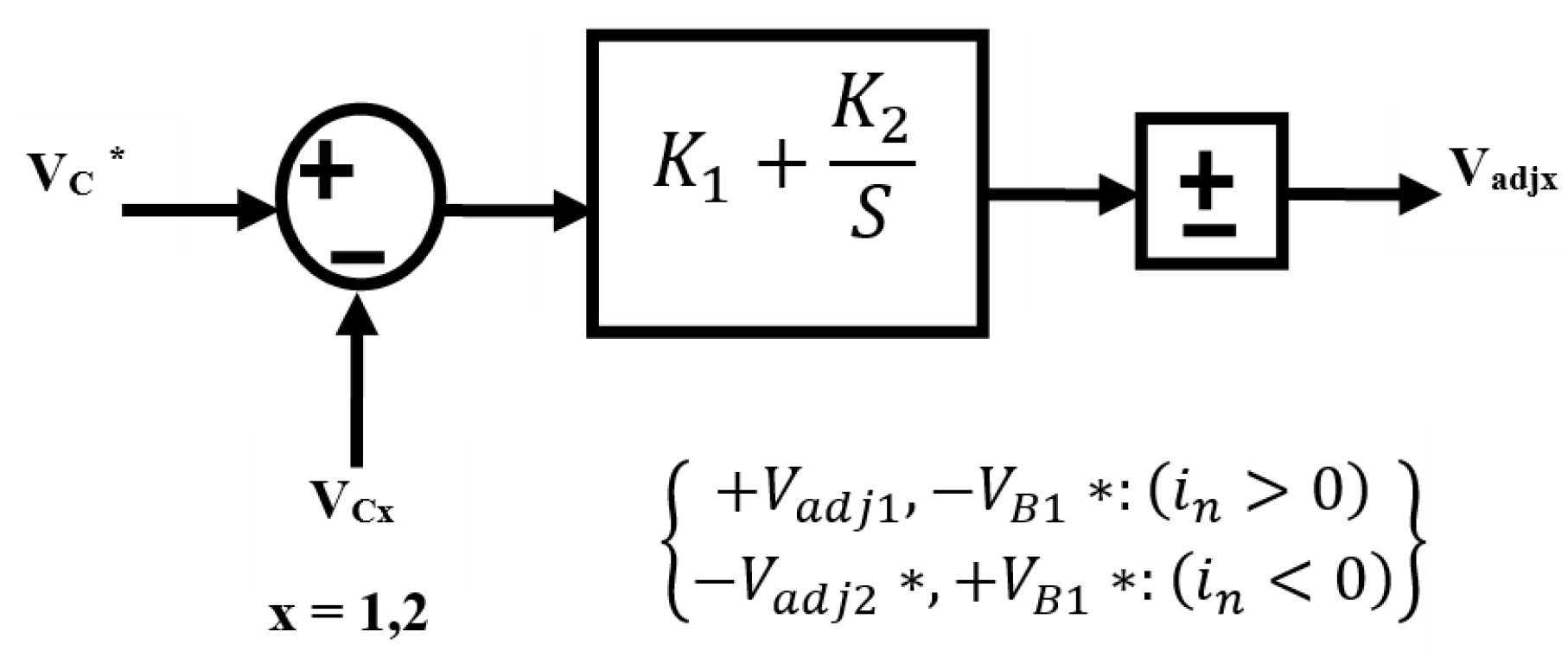

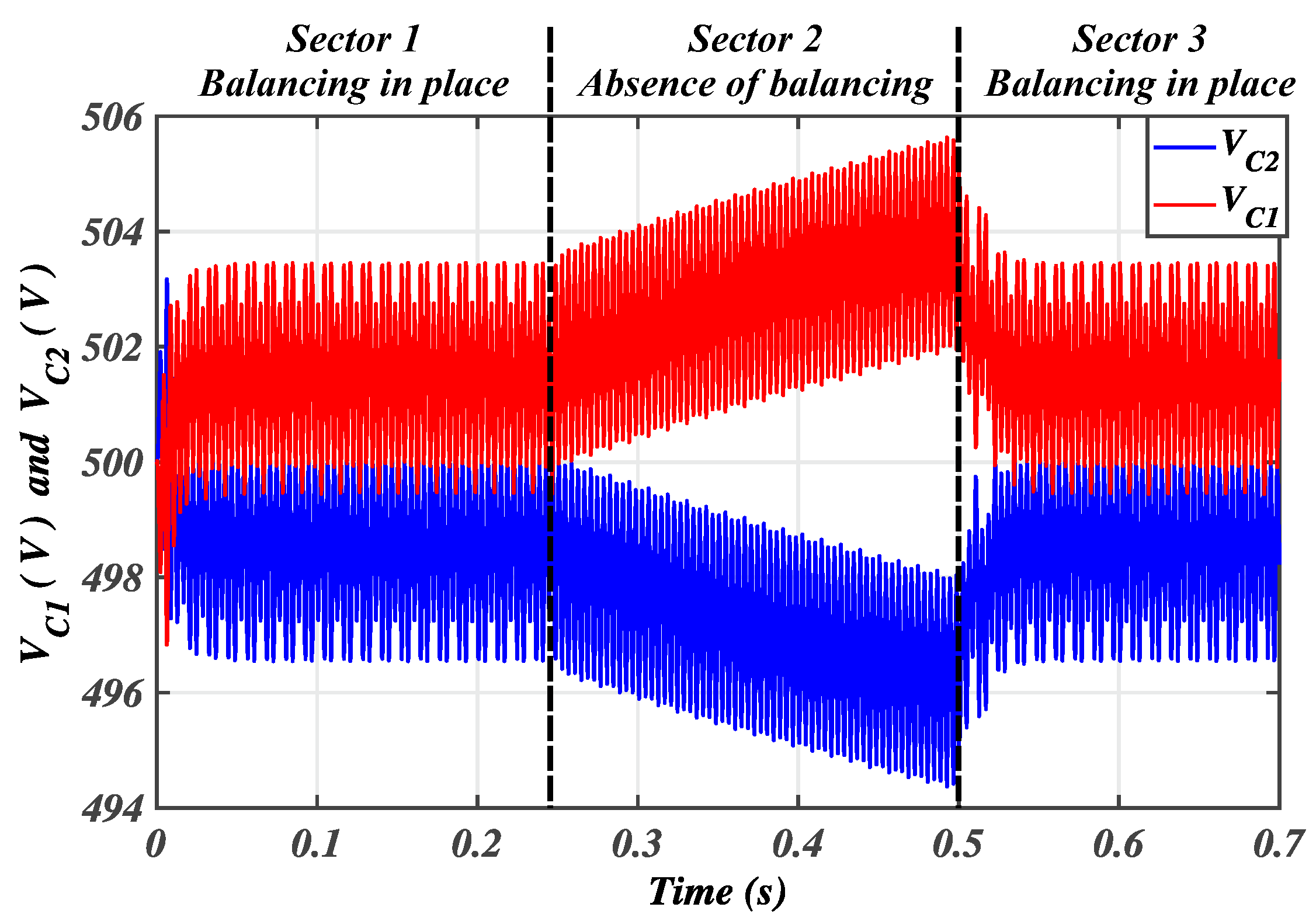

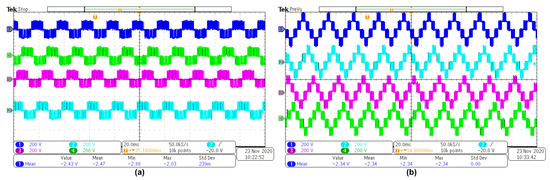

This article presents a modified sinusoidal pulse-width modulation (SPWM) scheme for a five-phase, three-level neutral-point-clamped inverter. The modulation scheme deploys a modified min–max function to inject the zero-sequence components into the reference modulating signals; hence enabling the effective utilization of the DC-link voltage. Balanced split-input DC-link voltages were achieved through further incorporation of adjustable voltage-dependent variables into the reference signals. The dynamic performance of the control approach is demonstrated through simulations and experiments on a laboratory inverter prototype; the results are well presented. View Full-Text
Keywords: SPWM; NPC inverter; multilevel inverter; five-phase induction motor; DC voltage balancing SPWM; NPC inverter; multilevel inverter; five-phase induction motor; DC voltage balancing
