Photovoltaic-Driven SiC MOSFET Circuit Breaker with Latching and Current Limiting Capability

Industrial Electronic Group, Miguel Hernandez University of Elche, 03202 Elche, Spain
*
Author to whom correspondence should be addressed.
Energies 2019, 12(23), 4585; https://doi.org/10.3390/en12234585
Received: 30 October 2019 / Revised: 25 November 2019 / Accepted: 29 November 2019 / Published: 2 December 2019
(This article belongs to the Special Issue Micro Grid Protection)

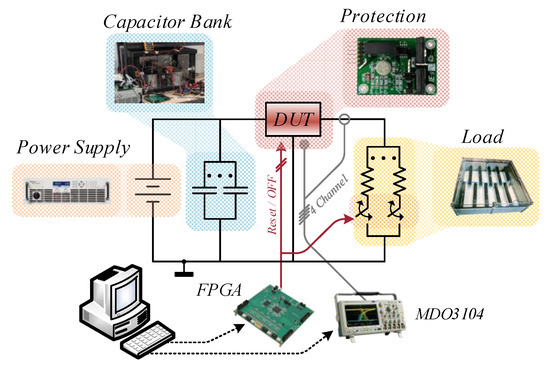

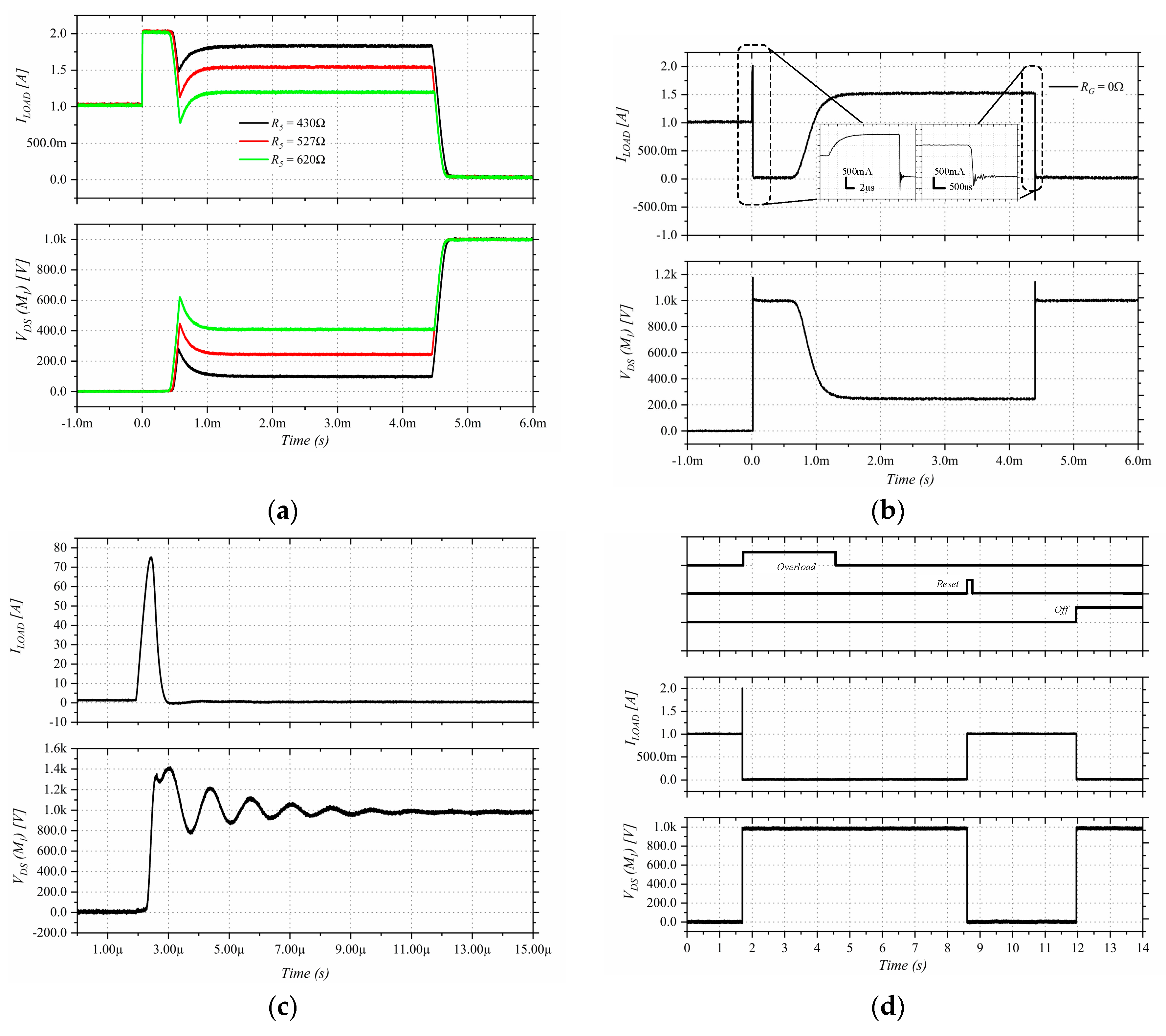

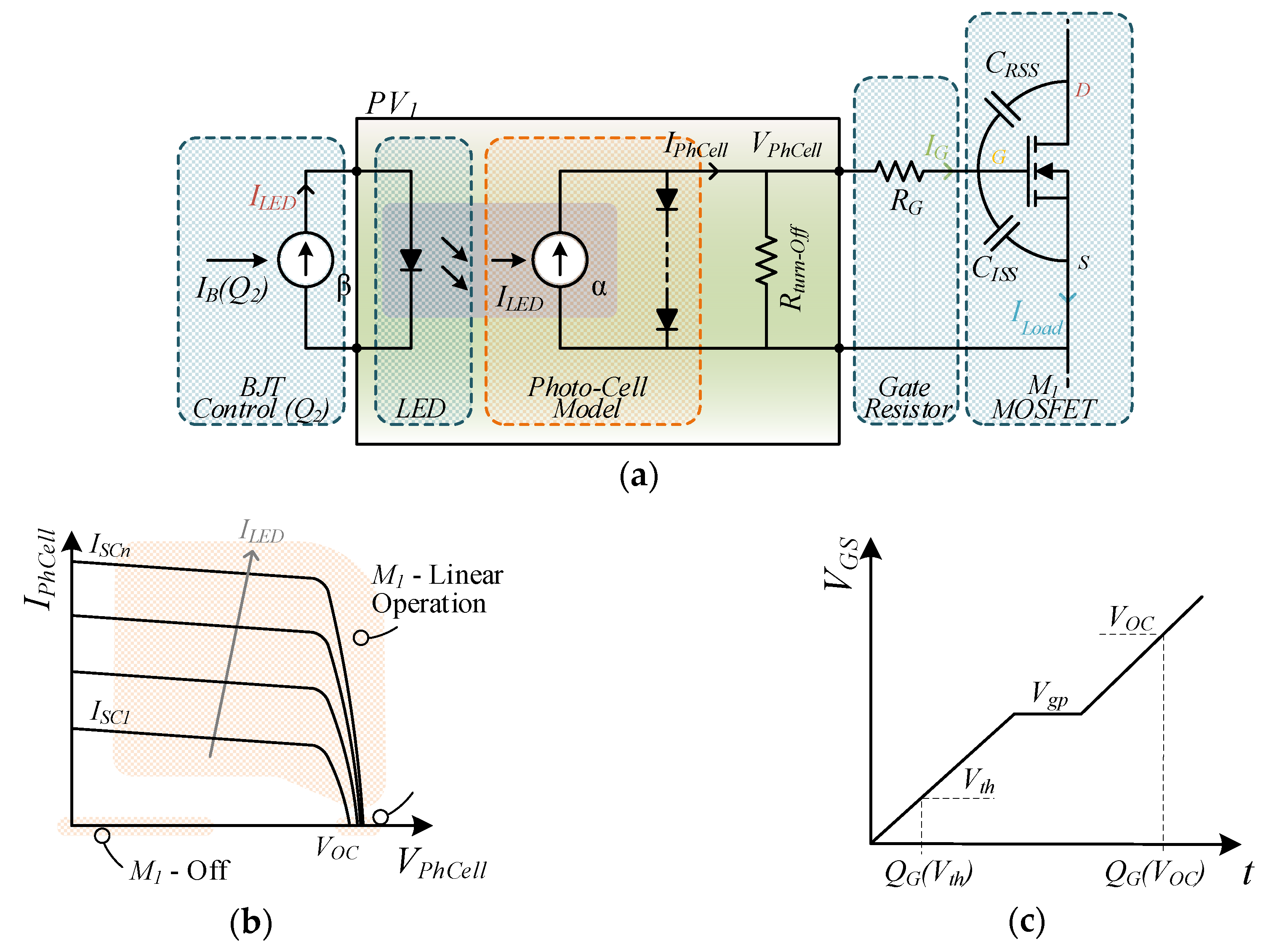

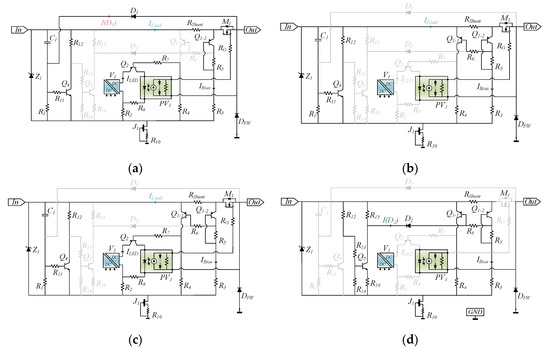

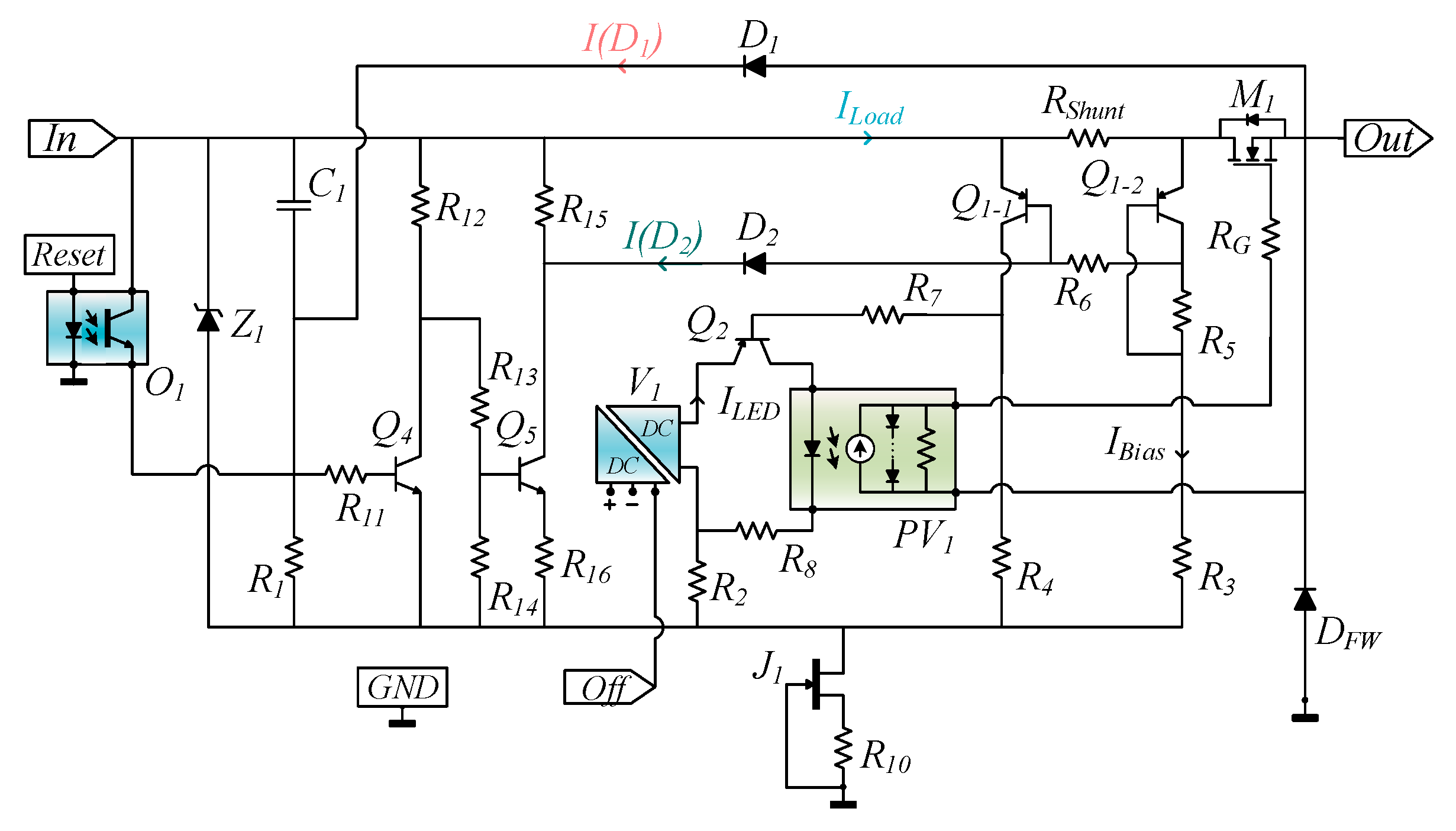

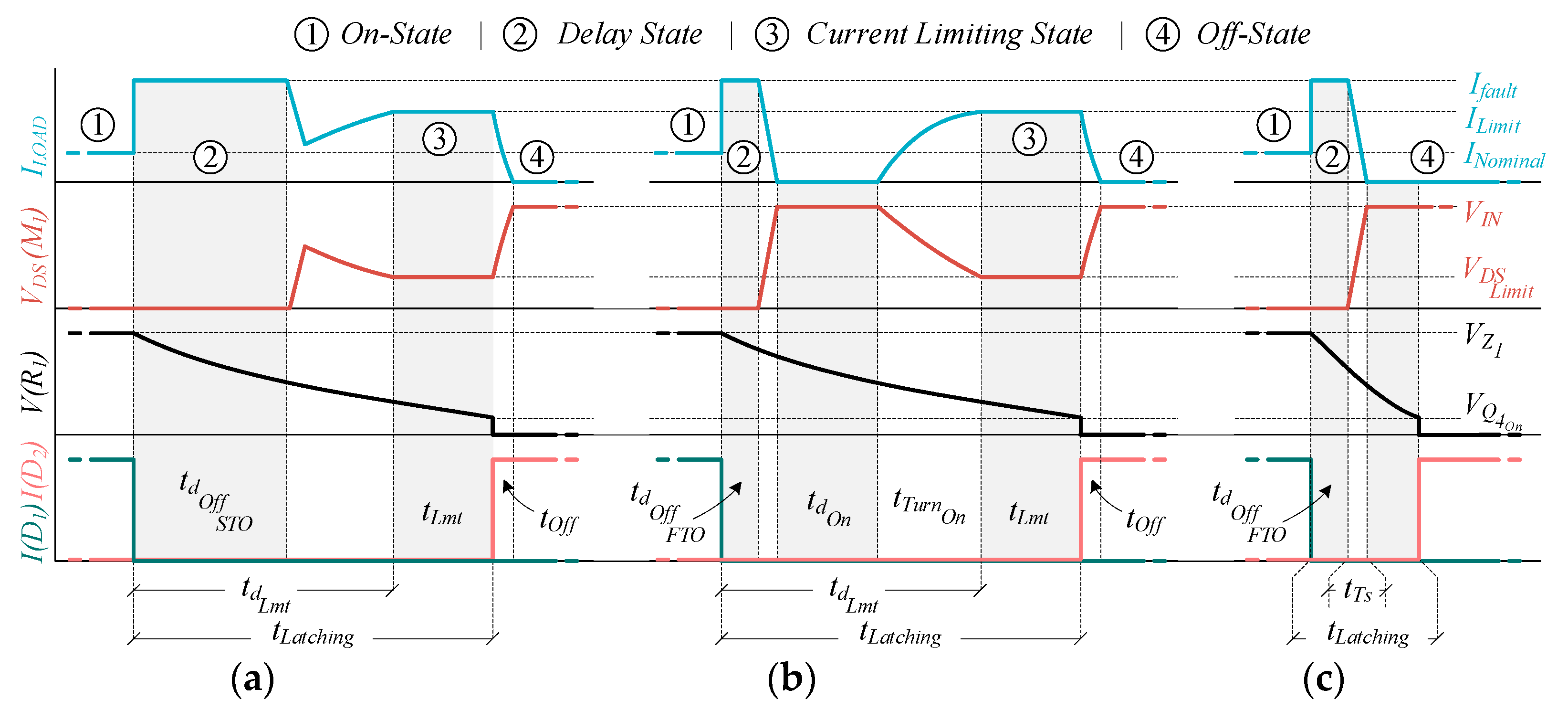

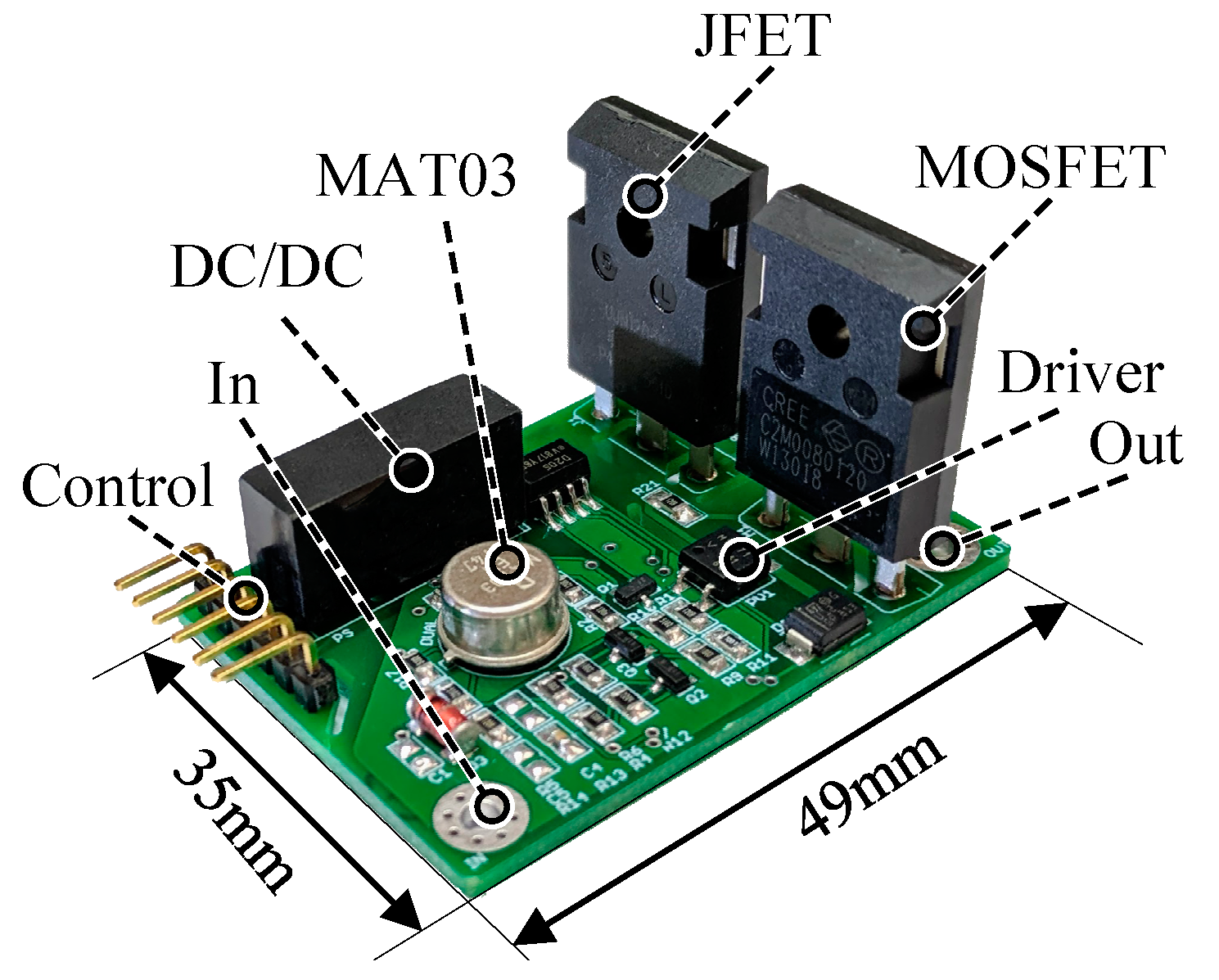

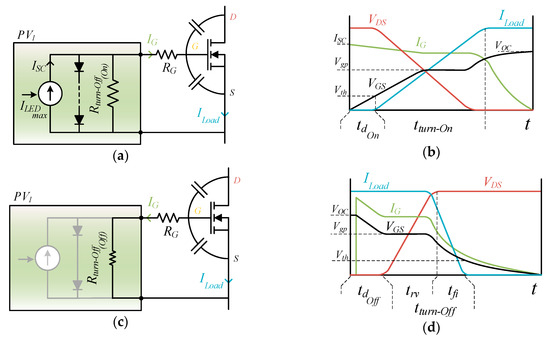

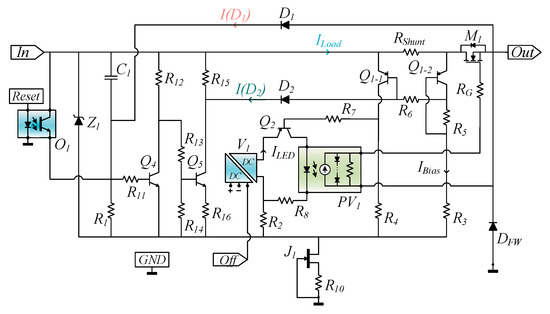

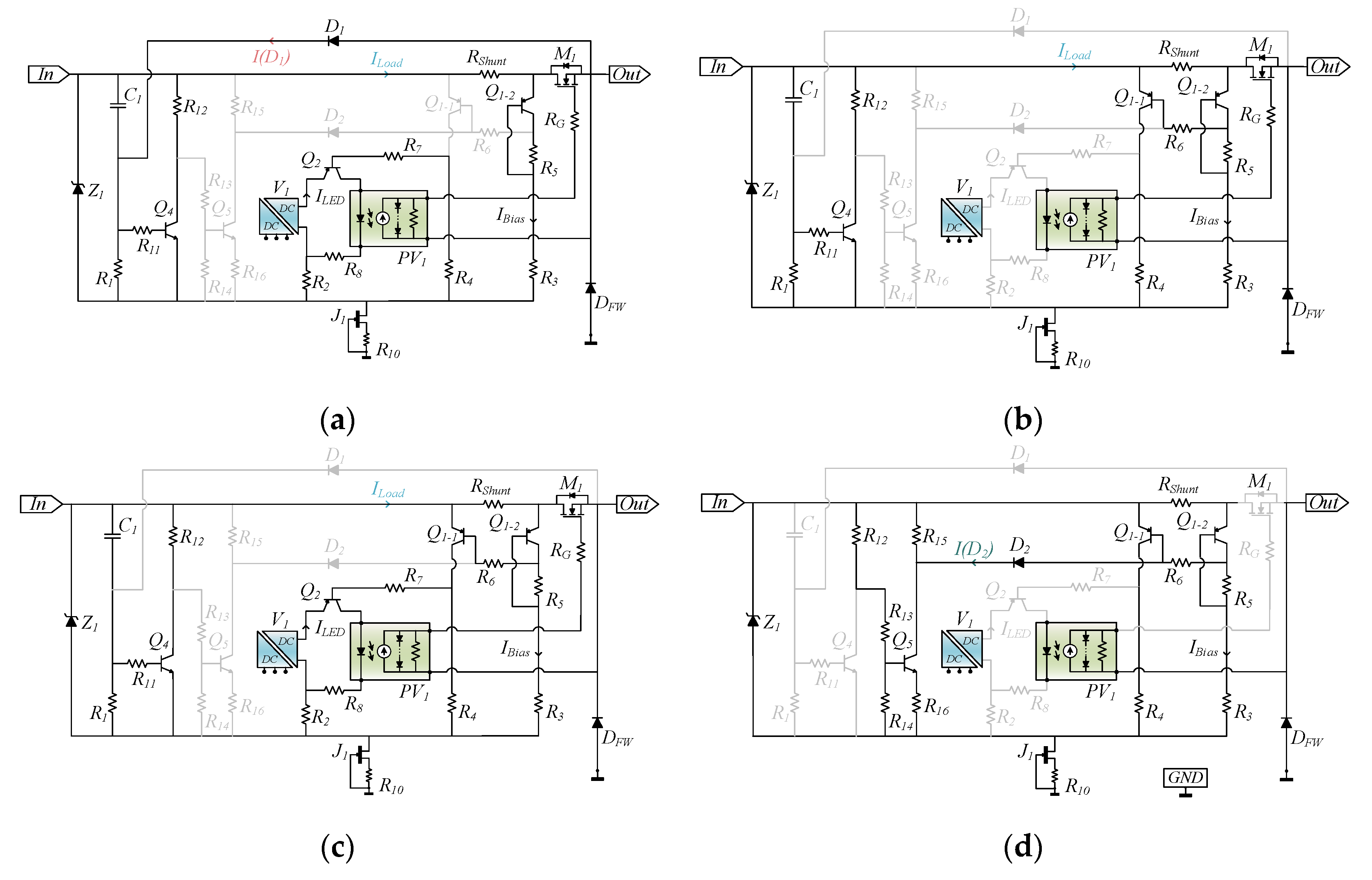

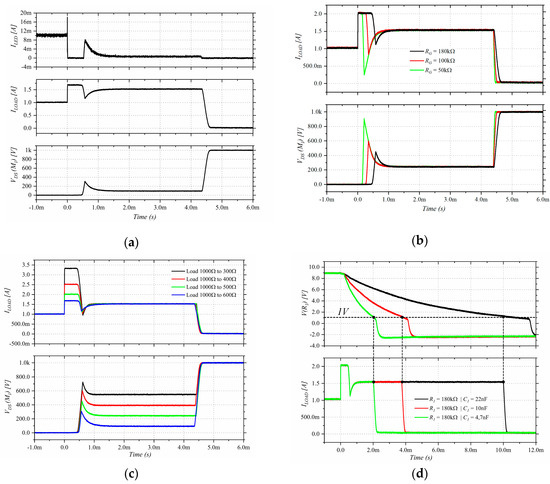

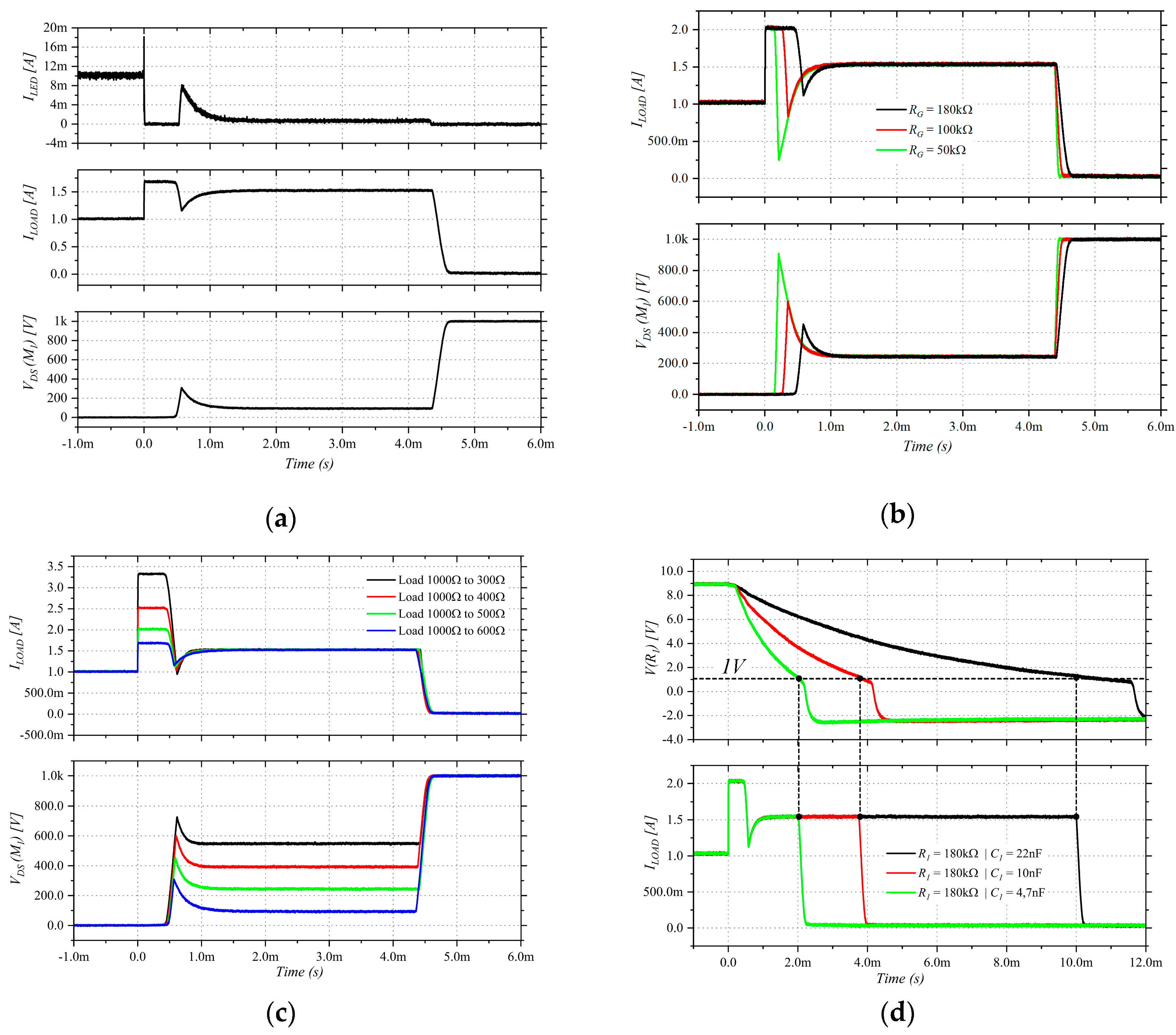

This paper introduces a Solid State Circuit Breaker with Latching and Current Limiting capabilities for DC distribution systems. The proposed circuit uses very few electronic parts and it is fully analog. A SiC N-MOSFET driven by a photovoltaic driver and a maximum current detector circuit are the core elements of the system. This work details circuit operation under different conditions and includes experimental validation at 1 kVdc. Wide versatility, highly configurable, and very fast response, less than 1 µs in the case of short-circuit, are the most remarkable outcomes. View Full-Text
Keywords: Solid State Circuit Breaker (SSCB); fault current limiter; DC power distribution; WBG semiconductors; SiC MOSFET Solid State Circuit Breaker (SSCB); fault current limiter; DC power distribution; WBG semiconductors; SiC MOSFET
