Distinguishing a Drone from Birds Based on Trajectory Movement and Deep Learning

,
,
,
,
and
1
Faculty of Informatics and Computer Engineering, National Technical University of Ukraine “Igor Sikorsky Kyiv Polytechnic Institute”, 37 Peremohy Ave., 03056 Kyiv, Ukraine
2
Faculty of Electrical and Computer Engineering, Cracow University of Technology, Warszawska 24, 31-155 Cracow, Poland
*
Authors to whom correspondence should be addressed.
Sensors2026, 26(3), 755;https://doi.org/10.3390/s26030755
This article belongs to the Section Industrial Sensors
Version Notes
Order Reprints

Abstract

Unmanned aerial vehicles (UAVs) increasingly share low-altitude airspace with birds, making early distinguishing between drones and biological targets critical for safety and security. This work addresses long-range scenarios where objects occupy only a few pixels and appearance-based recognition becomes unreliable. We develop a model-driven simulation pipeline that generates synthetic data with a controlled camera model, atmospheric background and realistic motion of three aerial target types: multicopter, fixed-wing UAV and bird. From these sequences, each track is encoded as a time series of image-plane coordinates and apparent size, and a bidirectional long short-term memory (LSTM) network is trained to classify trajectories as drone-like or bird-like. The model learns characteristic differences in smoothness, turning behavior and velocity fluctuations, and to achieve reliable separation between drone and bird motion patterns on synthetic test data. Motion-trajectory cues alone can support early distinguishing of drones from birds when visual details are scarce, providing a complementary signal to conventional image-based detection. The proposed synthetic data and sequence classification pipeline forms a reproducible testbed that can be extended with real trajectories from radar or video tracking systems and used to prototype and benchmark trajectory-based recognizers for integrated surveillance solutions. The proposed method is designed to generalize naturally to real surveillance systems, as it relies on trajectory-level motion patterns rather than appearance-based features that are sensitive to sensor quality, illumination, or weather conditions.

1. Introduction

Unmanned aerial vehicles (UAVs) have rapidly evolved from niche platforms into widely accessible tools for logistics, inspection, photography and recreation [1]. At the same time, low-cost multirotor drones pose new risks to airports, critical infrastructure and public events, where unauthorized flights can cause safety incidents or be exploited for malicious purposes [2]. Moreover, UAVs are often a cause of problems for civilian infrastructure, due to issues with navigation in obstacle conditions like an urban environment [3]. In these contexts, automatic detection and classification of small UAVs is a key component of modern surveillance architectures, and computer vision (CV) plays an increasingly important role alongside radar, radio frequency (RF) and acoustic sensing [4]. A particularly important task is to reliably distinguish drones from birds, which frequently trigger false alarms and share the same low-altitude airspace [5,6].
However, robust drone–bird distinguishing in real deployments remains challenging. At long ranges a small target may occupy only a few pixels in each frame, making recognition based on appearance, texture or shape unreliable even for deep convolutional networks. Collecting and annotating large video datasets that contain diverse UAV types and bird species under varying weather, backgrounds and viewing geometries is logistically complex and often constrained by regulation. As a result, many CV-based systems are trained on relatively small or biased data, which limits their ability to generalize [7,8]. These difficulties motivate the use of simulation and synthetic data generation to explore algorithmic ideas, study edge cases and rapidly prototype classifiers before expensive field trials.
Previous research has mainly focused on several detection strategies that have been proposed to tackle the drone–bird problem. Some approaches focus on high-resolution imagery and attempt to exploit subtle shape or silhouette differences between drones and birds, which largely disappear at long distances [9]. Others combine CV with radar or RF sensors to improve robustness, but at the cost of system complexity [10]. A complementary line of work uses motion information, e.g., handcrafted trajectory descriptors (such as speed, acceleration, turning rate or wingbeat-induced jitter), or learned temporal features are used to separate biological and mechanical targets [11,12,13]. While promising, such methods often rely on limited proprietary datasets and lack a unified pipeline that ties together realistic motion models, camera geometry and a reproducible classification pipeline.
In operational surveillance, the primary requirement at the earliest stage is fast bird–drone discrimination to suppress false alarms: bird-like tracks can be ignored, while drone-like tracks are forwarded to subsequent response modules outside the scope of this study.
In this work, we investigate whether generated motion trajectories can provide a reliable cue for distinguishing drones from birds in long-range scenarios. To this end, we develop a model-driven simulation environment that generates synthetic data of three representative aerial targets: a multicopter, a fixed-wing UAV and a bird. The simulator incorporates a calibrated pinhole camera model, a parametric sky-and-cloud background and dynamic flight equations for each class, enabling us to control camera placement, field of view, distance to target and motion patterns in a consistent way. For each synthetic sequence, the target is detected and tracked, and its path is encoded as a time series of image plane coordinates and apparent size.
On top of these trajectories, we build a compact deep-learning classifier based on bidirectional long short-term memory (LSTM) units, which is trained to assign each track to a “drone-like” or “bird-like” class. The aim of the research conducted by the authors was to verify whether the model is designed to capture differences in smoothness, maneuverability and local velocity fluctuations without relying on any handcrafted features beyond the raw position-and-size sequence. Additionally, the authors demonstrated that the experimental results on synthetic test data indicate that such a trajectory-based representation is sufficient to achieve clear separation between drone and bird motion patterns, suggesting that motion can serve as an effective early distinguishing signal when visual detail is scarce. The idea of the work principle is shown in Figure 1.

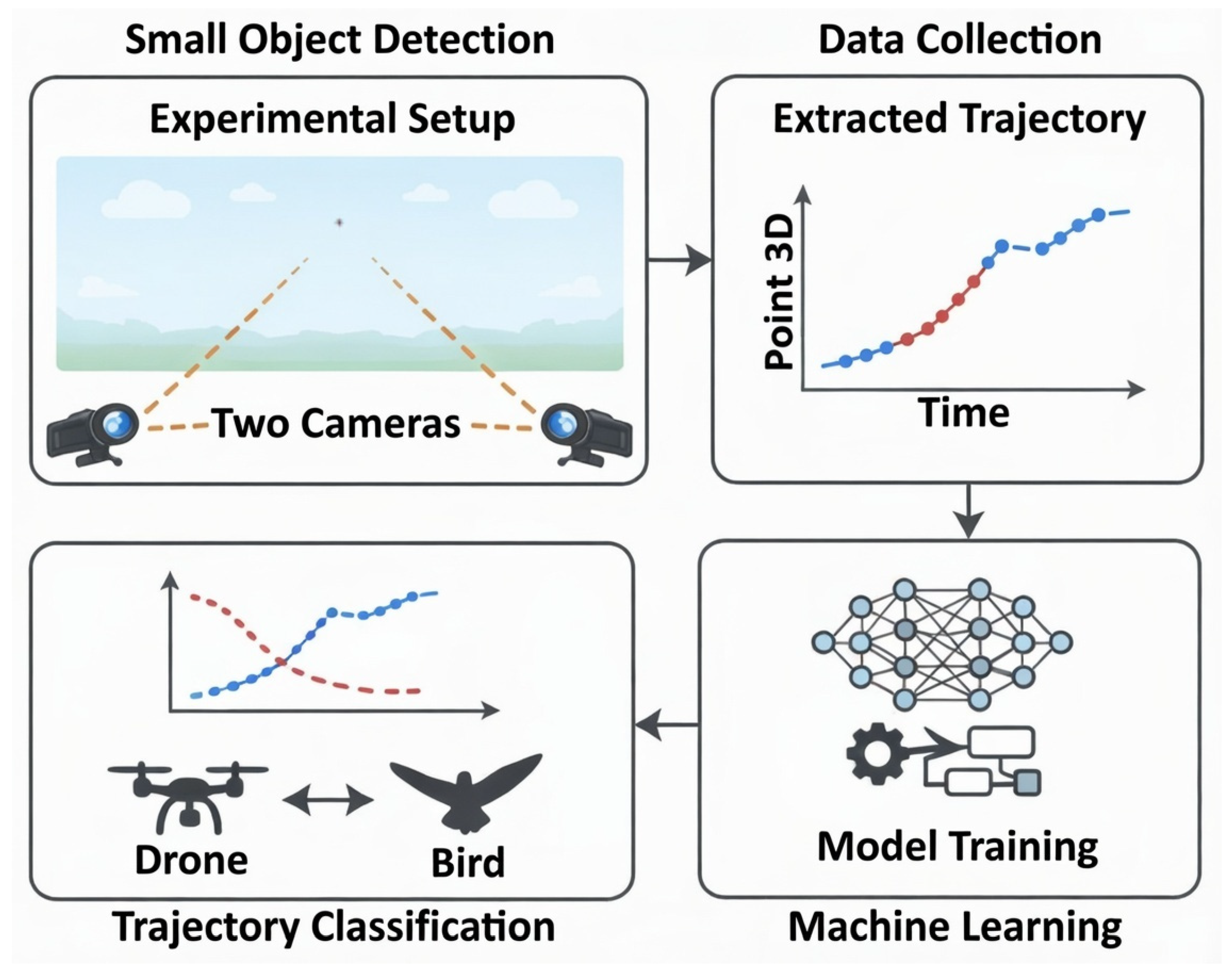

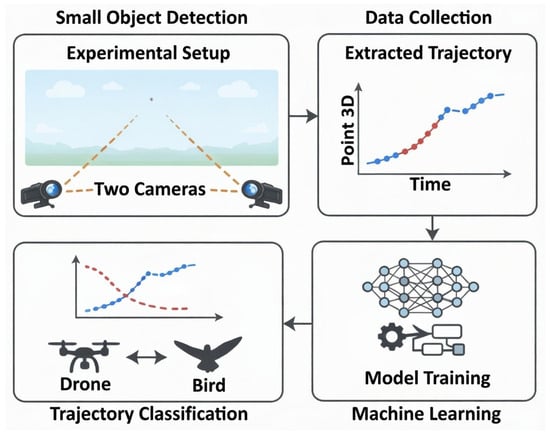

Figure 1. Distinguishing a drone from a bird; working principle.
The contribution of this paper is threefold. First, we formulate bird–drone distinguishing as a trajectory-centric problem, targeting long-range scenarios where objects are observed as small blobs and appearance cues are weak or unavailable. Second, we introduce a physically and behaviorally motivated simulation model that generates annotated three-dimensional trajectories for multiple aerial target classes, enabling controlled and reproducible proof-of-concept evaluation when real 3D bird–drone trajectory datasets are scarce or inaccessible. Third, we demonstrate an end-to-end methodological pipeline from trajectory data extraction to temporal deep learning classification.
The rest of this paper is organized as follows: Section 2 reviews relevant work on drone and bird distinguishing, as well as trajectory-based approaches. Section 3 describes the proposed methodology, including the simulation environment, motion models and a trajectory-based deep learning classifier. Section 4 details the experimental setup and synthetic data generation procedure. Section 5 presents the experimental results. Section 6 discusses the obtained results, limitations and implications for practical surveillance systems. Finally, Section 7 provides conclusions and outlines future work directions.

3. Materials and Methods

This section describes the simulation environment, the flight dynamics models for different aerial targets, the procedure for synthetic data generation and the deep learning pipeline used to classify motion trajectories as “drone-like” or “bird-like”.

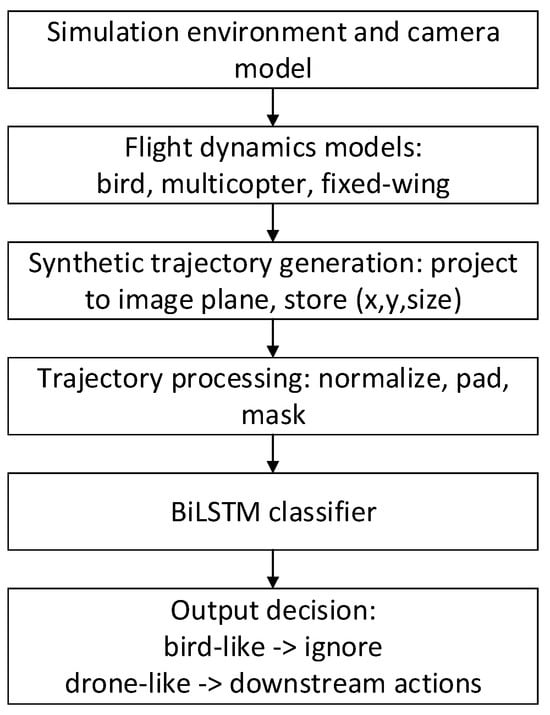

To improve the readability of the proposed multi-stage procedure, Figure 2 summarizes the overall pipeline used in this study. The workflow starts with a physics-based simulation of aerial target motion and scene geometry (Section 3.1 and Section 3.2), followed by synthetic trajectory generation and representation in the image plane (Section 3.3). Next, trajectories are preprocessed (normalization and padding/masking) and passed to the bidirectional LSTM classifier (Section 3.4), which outputs a binary decision (“bird-like” vs. “drone-like”) used as a first-stage filter in surveillance scenarios. Each block in Figure 2 corresponds directly to the subsections of Section 3.

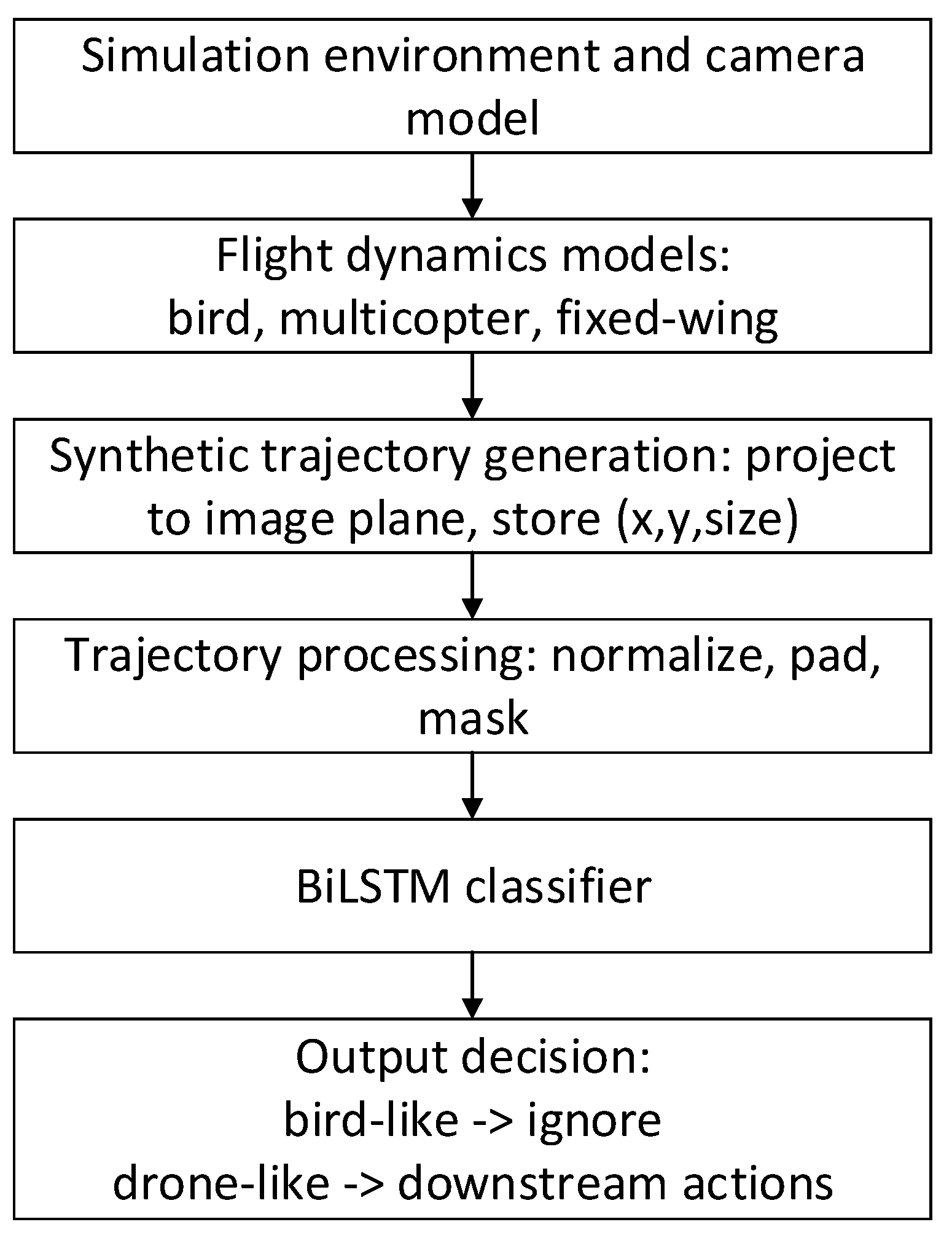

Figure 2. Drone–bird classifier diagram.

3.1. Simulation Environment

3.1.1. Camera Model and Environment Formation

The experiments use a synthetic data environment that mimics a stationary, upward-looking camera observing small flying objects against the sky. The camera is modeled as an ideal pinhole camera without lens distortion or rolling shutter effects. Its projection model maps 3D world points to 2D image coordinates via a standard calibration matrix and rigid transform [50].
K = [[fx, s, cx], [0, fy, cy], [0, 0, 1]],
where fx, fy are the focal lengths in pixels along the horizontal and vertical axes, cx, cy are the principal points (optical center) in pixels, s is the skew factor (typically 0 for square pixels).
The equivalent focal length f (in pixels) used to set fx and fy is derived from the desired field of view (FOV) and image width Npx as [51]:
f = (Npx/2)/tan(FOV/2),
where Npx is the size of the matrix (in pixels) along the corresponding dimension.
With this camera configuration, an object of known physical size at a given distance projects to a predictable number of pixels in the image plane.
Throughout this work the camera is assumed to be rigidly fixed in space and oriented upwards; all apparent motion in the image is therefore due only to the movement of the simulated targets.
The background is modeled as an open sky with a vertical color gradient and slowly drifting semi-transparent clouds [52]. A base sky image is generated as a 2D array of RGB pixels of size H × W. For each row y (with y = 0 at the top and y = H − 1 at the bottom), we linearly interpolate between a zenith color C_top and a near-horizon color C_bottom:
alpha = y/(H − 1),
C_sky(y) = (1 − alpha) ∗ C_top + alpha ∗ C_bottom.
This produces a darker blue at the top of the frame and a lighter, almost white tone near the bottom, imitating atmospheric haze and overexposed horizon.
Clouds are represented by a time-dependent opacity mask M(x, y, t) with values in [0, 1]. At the initial time we generate several Gaussian blobs with random centers and radii, sum them to obtain a base mask, then normalize and attenuate it towards the horizon so that distant clouds appear thinner. To simulate motion, the blob centers are shifted slightly from frame to frame according to slow sinusoidal functions of time (horizontal and vertical drift). At each simulation step, the final image is obtained by alpha blending the sky gradient with a constant cloud color (near white) using the mask [53]:
I(x, y, t) = (1 − alpha_cloud ∗ M(x, y, t)) ∗ C_sky(y) + alpha_cloud ∗ M(x, y, t) ∗ C_cloud,
where alpha_cloud is the maximum cloud opacity (e.g., 0.5–0.6). Because the camera is looking strictly upwards and the ground is not modeled, every frame consists solely of this dynamic sky background with superimposed flying objects rendered at their projected positions and apparent sizes. This environment provides a controlled but visually plausible setting for studying long-range trajectories of drones and birds.

3.1.2. Multicopter

A quadcopter is a multirotor aircraft with four propellers generating thrust and torques for control. We define a body-fixed frame at the vehicle’s center of mass, with axes aligned such that the thrust from each rotor points along the body’s z-axis (upward). The orientation can be described by Euler angles: roll φ, pitch θ and yaw ψ. The transformation from body rates (p, q, r) to Euler angle rates ( φ ˙ , θ ˙ , ψ ˙ ) is given by a matrix W(φ, θ), ensuring we can relate angular velocity in the body frame to the time derivatives of φ, θ and ψ.
The total thrust T produced by the four rotors acts along the body’s z-axis and opposes gravity. In the inertial (world) frame, the quadcopter’s acceleration x″ = (x″, y″, z″) is governed by the balance of thrust and weight. Using the rotation matrix R(φ, θ, ψ) from body to inertial frame (so that R[0, 0, 1]T is the body’s up-axis in world coordinates), we have:
mx″ = R(φ, θ, ψ) [0, 0, T] − mg [0, 0, 1],
which indicates that the thrust contributes to acceleration in the direction of the body’s z-axis and gravity mg acts downward. Here g is gravitational acceleration, m is mass of quadcopter and T is the total thrust force equal to the sum of forces fMi from each motor i in Equation (12).
Each rotor i produces an upward force fMi approximately proportional to the square of its angular speed ω. We can write the thrust model for each rotor as:
fMi = ktωi,
where kt is a thrust coefficient relating motor speed to generated force. The total thrust is then:
T = sum_{i = 1…4} fMi = kt ∗ (ω12 + ω22 + ω32 + ω42),
This net thrust T appears in the translational equation above and is the primary control for altitude and vertical acceleration [54].
The rotational motion is described by Euler’s equations for a rigid body. In vector form, the angular velocity of the quadcopter in body frame is ω = (p, q, r) and it evolves according to:
I ω′ + ω × (I ω) = τ,
where τ = (τφ, τθ, τψ) is the vector of total moments about the body’s x, y and z axes. Expanding this equation in components yields the set of nonlinear equations:
Ixx p′ = (Iyy − Izz)qr + τφ,
Iyy q′ = (Izz − Ixx)pr + τθ,
Izz r′ = (Ixx − Iyy)pq + τψ.
These equations show how the gyroscopic coupling arises from the inertia asymmetry. For a symmetric quadrotor with Ixx = Iyy, note that two of the coupling terms above simplify to zero.
Each rotor not only generates an upward thrust fMi but also a reaction torque Mi on the body due to drag on the spinning blade. This motor torque Mi is proportional to the same ωi2 (with a drag coefficient km) and acts about the rotor’s axis. By design, quadcopters have two pairs of counter-rotating propellers to ensure that in hover the reaction torques cancel out. Their diagonally opposite motors 1 and 3 spin clockwise (CW), while 2 and 4 spin counter-clockwise (CCW), or vice versa.
In hover (all ωi equal), this sum is zero, but by speeding up the CW rotors while slowing the CCW ones (or vice versa), a net yaw torque is produced to rotate the drone [55]. These relations can be summarized in the moment vector:
τ = (τφ, τθ, τψ) = (l(f4 − f2), l(f3 − f1), (M1 + M2 + M3 + M4)).
In summary, τφ and τθ are controlled by differential thrust between opposite rotors, and τψ is controlled by the difference in reaction torques between the counter-rotating rotor pairs. By adjusting the individual rotor speeds ωi (the control inputs), a quadcopter can thus modulate T, τφ, τθ, τψ to achieve full 6-DOF motion. Each parameter plays a clear role: the total thrust T primarily affects altitude (vertical acceleration), the roll torque τφ induces banking/rolling motion, the pitch torque τθ induces nose-up/nose-down pitching and the yaw torque τψ controls the heading angle [54,55,56].

3.1.3. Fixed-Wing UAV

A fixed-wing UAV flies by generating lift on its wings to counteract weight and thrust from its engine to overcome drag. The aircraft’s state is typically described by its position, velocity and orientation (often using roll φ, pitch θ and yaw ψ angles similar to the quadcopter). The forces on the airplane include weight W = mg acting downward, lift L generated by the wings (perpendicular to the flight path through the wings), drag D opposing the motion and thrust T from the propeller or jet engine in the forward direction. The basic steady-flight equilibrium is L = W and T = D in straight-and-level flight. To maneuver the airplane, the following control surfaces are used: ailerons (on the wings) control roll φ, the elevator (tail horizontal flap) controls pitch θ (and thus indirectly the lift) and the rudder (tail vertical flap) controls yaw ψ (heading).
When a fixed-wing aircraft executes a level turn (constant altitude turn), it must bank (roll) into the turn. Banking the aircraft by an angle φ tilts the lift force vector, giving it a horizontal component that provides the centripetal force for the turn. Meanwhile, the vertical component of lift is reduced. The rudder is used in coordination to yaw the nose into the turn, preventing the aircraft from skidding or slipping sideways. In a properly coordinated turn, the aircraft’s longitudinal axis is aligned with the flight path, and there is no sideslip (the fuselage points into the turn) [57].
The forces in a coordinated level turn satisfy the following relations. The horizontal component of lift L sin(φ) provides the centripetal force Fc required for the turn of radius R at speed V:
L sin(φ) = WV2/gR,
where W/g is the mass of the aircraft. The vertical component of lift must balance weight in level flight:
L cos(φ) = W.
From these two equations, one can derive the relationship between bank angle and turn radius. Dividing the first equation by the second eliminates L, giving:
tan(φ) = V2/gR,
This is the fundamental equation linking the roll (bank) angle φ to the turning radius R (for a given true airspeed V). A higher φ or higher speed V yields a tighter turn (smaller R). Equivalently, the yaw rate ψ′ is related to φ and V. For a level coordinated turn, the aircraft’s heading change rate ψ′ equals the angular velocity of the turn, ωturn = V/R (assuming negligible wind). Using the relation above, this can be written as:
ψ′ = V/R = (g tan(φ))/V,
This formula shows that at a given speed, a larger bank angle yields a higher yaw rate. For example, at 60° bank (tan(φ) = sqrt(3)), the turn radius is R = V2/(g × tan(60°)) = V2/(g × sqrt(3)) and ψ′ = (g × sqrt(3))/V, implying a very quick turn for moderate V.
To achieve a coordinated turn, the autopilot system must use a combination of aileron, rudder and elevator inputs. Initiating a turn, the ailerons are deflected to roll the aircraft to the desired bank angle φ. As the aircraft banks, the rudder is used to yaw the nose into the turn, aligning the plane with its curved flight path (preventing adverse yaw or slip). The elevator is pulled to increase the wing’s angle of attack, raising the lift L so that L × cos(φ) continues to equal W despite the tilt in lift. Thrust may also be increased to counteract the extra drag that results from increased lift in the turn. In steady coordinated turning flight, the aircraft will have a constant bank angle and turn rate, with the forces balanced as per the above equations. The roll angle φ thus primarily controls the turn tightness (radius R or rate ψ′) for a given speed, while the pitch controls altitude (via L) and the rudder ensures the turn is coordinated (maintaining a zero sideslip angle). The relationship tan(φ) = V2/gR is a key outcome: it quantitatively links the geometric turn radius to the bank angle and is analogous to the requirement that birds and airplanes must bank into a turn to generate centripetal force. This derivation and these principles are supported by standard flight dynamics analyses [58].

3.1.4. Bird Flight Specifics

In soaring mode, the bird’s silhouette resembles a glider, with a wide base near the body, a gradual taper towards the tip and a slight twist (washout) that reduces the risk of flow disruption at the tips. The primary feathers form fingers at the wing tips, creating an effect similar to winglets that reduces inductive drag [59]. In addition, the bird can partially fold its wings or unfold its tail, changing the effective area and aerodynamic properties. This mechanism works similarly to the use of flaps or air brakes in aircraft [60].
In flight, a bird can be considered as a rigid body with fixed wings. The basic equations of motion—the balance of forces in straight-line flight, the relationship between bank and turn radius and the change of course during a coordinated turn—are similar to the fixed-wing model. At the same time, in real flight, small fluctuations in yaw and roll are observed due to micro-corrections by the feathers and tail, which gives the silhouette instability and distinguishes it from fixed wing.
For example, if a bird moves at a constant speed, the Kalman filter can predict its new position even if it momentarily disappears behind an obstacle, and when the object reappears, the measurement helps to refine the prediction.
Mathematical differences from fixed wing:
  • The area S and the coefficients CL, CD vary depending on the position of the feather or tail, while in fixed wing they are constant [59];
  • A bird can move from a stable to a less stable mode by changing the position of its wings or tail. This makes the neutral point movable, unlike in fixed wing where it is structurally fixed [60].

3.2. Flight Dynamics Modeling

In this work, we model three representative bird types in order to capture the diversity of avian flight behaviors and to avoid relying on a single “generic bird” trajectory. Specifically, we simulate a pigeon, a gull and a peregrine falcon. These species were selected because they differ markedly in typical cruising speed, agility and maneuver intensity, which directly affects the temporal structure of their trajectories. In the model, each bird type uses the same unified kinematic formulation introduced below, but with species-specific parameter ranges (e.g., preferred speed, maximum bank angle and noise and perturbation levels), allowing the generated synthetic trajectories to reflect distinct flight signatures while remaining comparable within a common mathematical framework.
We define motion in a fixed Earth reference frame:
FE = {x = [x, y, z]T},
At time t: x(t) ∈ R3 is position of the agent (bird or drone); v(t) = x’(t) is velocity in the Earth frame; u(t) = v(t)/‖v(t)‖ is unit forward direction; s(t) = ‖v(t)‖ is speed magnitude.
The agent is subject to deterministic and stochastic accelerations determined by control, aerodynamics and environment.
The bird’s equations are a kinematic model derived from turn–bank relations, with lateral acceleration proportional to the tangent of the bank angle:
x, u, s, ϕ,
where x is the position; u is the flight direction (unit vector); s is the airspeed magnitude; ϕ is the bank angle (controls turning curvature).
The model of the bird is a point mass moving with orientation vector u(t) (the direction of forward flight), scalar speed s(t) and position x(t).

3.2.1. Translational Kinematics

The object’s translational motion is modeled in the Earth fixed frame by combining its airspeed along the forward direction with the local wind velocity at its position. This yields the following relationship for the position derivative:
x′ = s × u + w(x),
where x = [x, y, z]T is the 3D position in the Earth reference frame; s is the scalar airspeed of the bird (relative to air); u is the unit heading vector, ‖u‖ = 1; w(x) is the local wind velocity field, which adds drift relative to the ground.
This means the bird’s ground relative velocity equals the sum of:
  • Its self-propulsion s u;
  • The environmental wind at its position.

3.2.2. Direction Kinematics

The forward direction is represented by the unit vector u(t) and is assumed to rotate with angular velocity ω(t). Its kinematic evolution is therefore described by:
u′ = ω × u, ‖u‖ = 1,
where ω is the angular velocity vector describing how the bird’s forward direction rotates in space.
Because u is always a unit vector, its derivative must be orthogonal to itself. The cross-product form guarantees that u·u’ = 0. The direction of ω is along the axis of rotation (perpendicular to the flight plane), and its magnitude is the turn rate (radians per second).

3.2.3. Speed Dynamics

This is a first-order relaxation model toward a preferred airspeed, with environmental coupling and random fluctuations:
s′ = ks (s* + βtw (u⋅w) − s) + σsξs(t),
where s* is the nominal or species-specific cruise speed (e.g., 12 m/s for pigeon); ks is the rate constant controlling how quickly speed adapts; βtw is the sensitivity to tailwind—if flying with wind (u·w > 0), speed increases slightly, against wind, decreases; σs is the amplitude of random variation (e.g., turbulence, small energy fluctuations); ξs(t) is the zero-mean white Gaussian noise.

3.2.4. Bank Angle Dynamics

ϕ′ = kϕ (ϕ* − ϕ) + σϕ ξϕ(t),
where ϕ is the current bank angle (roll), which determines lateral acceleration; ϕ* is the desired bank computed from guidance behavior (goal attraction, wind compensation, obstacle avoidance); kϕ is the roll control rate (how fast the bird changes bank); σϕ is the scalar constant (noise strength, amplitude); ξϕ(t) is the random white noise process.

3.2.5. Coupling via Lateral Acceleration

The angular velocity ω is determined by the lateral acceleration the bird experiences:
ω = (u × aL)/s,
and the lateral acceleration magnitude is limited by lift:
‖aL‖ = g tan(ϕ),
where g = 9.81 m/s2.
This means that small ϕ is gentle turning (large radius); large ϕ is sharp turning (small radius).
In the proposed bird flight simulator, stochastic parameters are used to reproduce the natural, non-deterministic variability of biological motion while preserving kinematic continuity and physical plausibility. Speed noise (σs) introduces realistic short-term fluctuations around the nominal cruise speed, reflecting intermittent flapping, effort changes and energy management, whereas turning-related perturbations (σa, σu, σφ) add small random variations in lateral acceleration, heading and bank angle dynamics, preventing unrealistically smooth trajectories and producing curvature irregularities consistent with wing asymmetries, neuromuscular control noise and gust responses. In addition, environmental stochasticity is modeled via a temporally correlated wind gust process, which creates sustained disturbances that lead to drift correction behavior typical for real flight rather than frame-to-frame jitter. Importantly, all stochastic terms are constrained (bounded by limits such as maximum bank angle and gravitational acceleration and applied in a physically consistent direction), so increased variability yields diverse trajectories without violating biomechanical feasibility.
Parameters that are used in calculations can be checked in Table 1.
Table 1. Summary of parameters.

3.3. Neural Network Model

The classifier is formulated as a binary decision (“bird-like” vs. “drone-like”), reflecting the first-stage requirement of a hierarchical surveillance pipeline. Here, “drone-like” denotes artificial UAV motion to be further processed by downstream tracking/response modules, whereas “bird-like” denotes biological motion that can be filtered out to reduce false alarms.
The classification model can be a bidirectional long short-term memory (LSTM) network. This type of model is well-suited for sequential data because it can learn temporal dependencies between frames. A bidirectional LSTM processes the sequence both forward and backward, enabling it to consider both past and future context when making predictions for each frame.
The model architecture has properties as shown in Table 2.
Table 2. Model architecture.
Each sequence produces an output of the same length as the input—one probability per frame. The average of these probabilities is used as the overall prediction for the entire trajectory.
The loss is computed using binary cross-entropy (BCE) between the predicted probabilities and the true labels. Because sequences are padded to equal length for batch processing, a mask is applied to ensure that padding did not affect the training loss.
The masked BCE loss is defined as:
Loss = (Σi maski·BCE(pi, yi))/(Σi maski),
This ensures that only valid frames contribute to the loss. The model is trained using the Adam optimizer, with a learning rate of 1 × 10−3. Training is performed for 35 epochs, and the model with the highest AUC score on the validation set is saved as the best performing version.

3.4. Training Strategy

An algorithm to train the drone–bird classifier has steps shown in Figure 3.

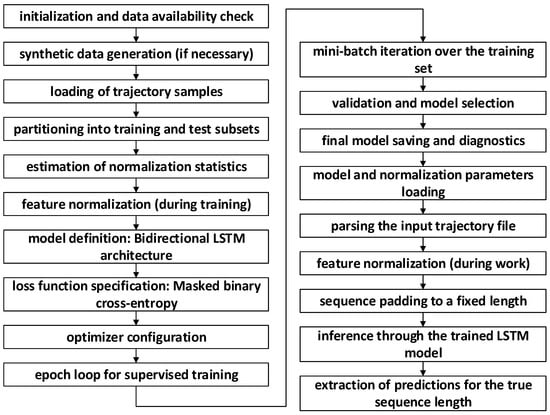

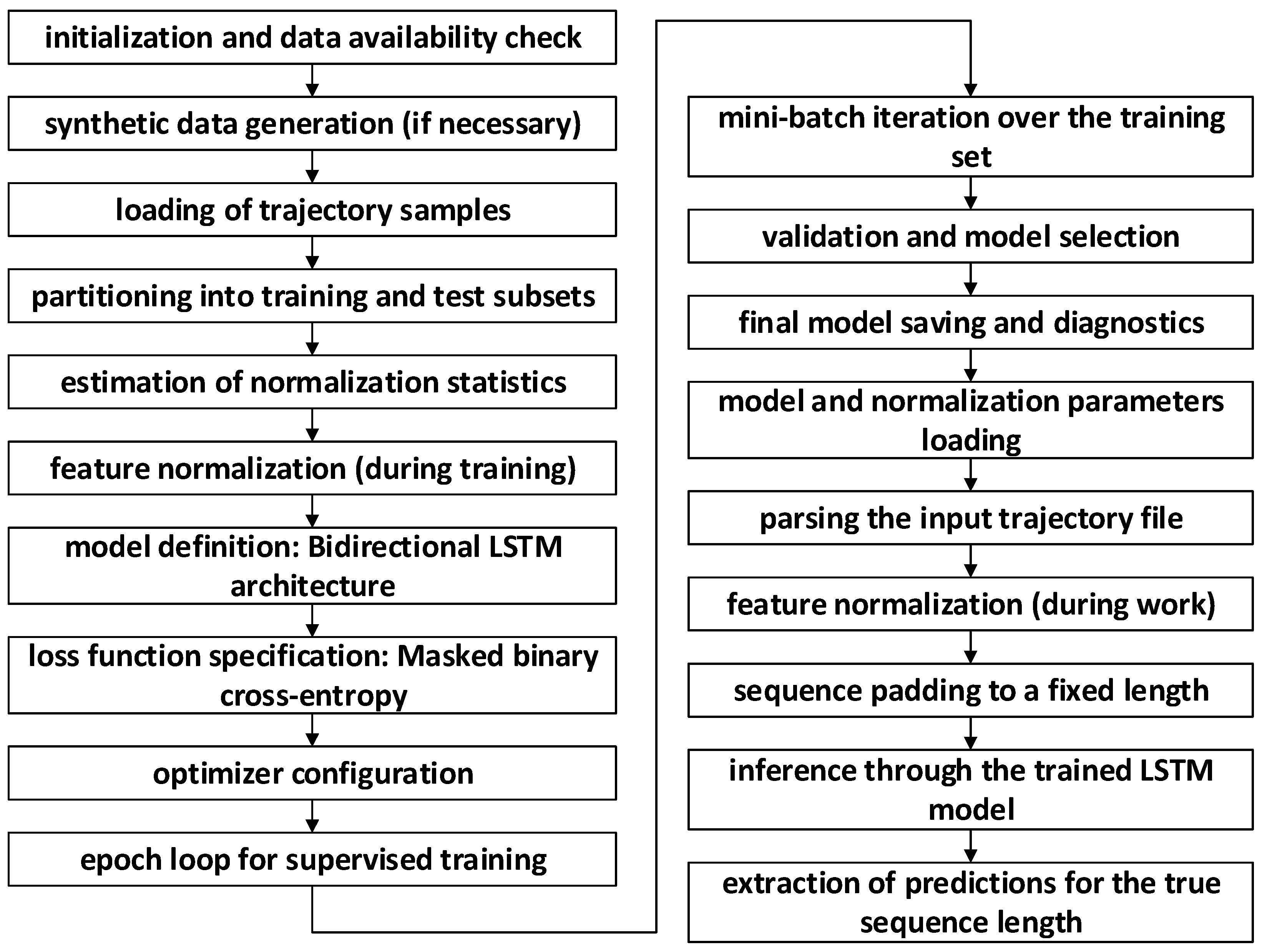

Figure 3. Steps of drone-bird classifier training.
The algorithm first verifies whether the trajectory dataset folder contains any samples. This check ensures that subsequent steps operate on a non-empty collection of trajectory sequences.
If the dataset folder is found to be empty, the procedure to generate synthetic dataset is invoked. This routine programmatically generates labeled trajectory samples that mimic the motion characteristics of birds and drones. The resulting synthetic data are stored in the dataset folder in a consistent JSON format, ensuring that the subsequent loading stage can proceed without manual data collection.
All available JSON samples in the dataset folder are loaded into memory. Each JSON file is parsed into numerical tensors representing the sequence of 3D positions (x, y, z) over time, together with a corresponding class label y ∈ {0, 1}, where 0 denotes “bird-like” and 1 denotes “drone-like”. The sequence lengths may vary across samples; this variability is handled later via masking in the loss function.
The full set of loaded trajectories is partitioned into two disjoint subsets: train set and test set. The training subset is used for parameter optimization of the LSTM model, while the test subset is reserved exclusively for performance evaluation (validation AUC), thereby preventing information leakage. The splitting strategy may be random or stratified, but it must preserve the class distribution as much as possible to avoid bias.
For all trajectories in the training subset, the algorithm computes the empirical mean vector μ and standard deviation vector σ across the three input features (x, y, z). These statistics are computed solely on the training data to avoid contaminating the model with information from the held-out test set.
Each trajectory sample, in both the train set and test set, is normalized feature-wise using the affine transformation:
Xnorm = (X − μ)/σ,
where the subtraction and division are performed per feature dimension.
This standardization centers the data around zero and scales it to unit variance, which is known to improve the stability and convergence properties of gradient-based training for recurrent neural networks.
The classifier is instantiated as a bidirectional long short-term memory (LSTM) network with the following configuration:
  • Input dimension: 3 (corresponding to the three input channels (x, y, z) per time step);
  • Hidden dimension: 64 (indicating that each LSTM direction maintains a 64-dimensional hidden state);
  • Layers: two (implying a two-layer stacked LSTM, which allows the model to learn hierarchical temporal representations).
Bidirectionality enables the model to exploit both past and future context within each trajectory sequence, which is particularly beneficial when discriminating motion patterns that may depend on global shape rather than purely causal dynamics.
The LSTM outputs a sequence of hidden states that is then aggregated (e.g., via pooling or final time step selection) into logits representing the predicted probability of the “drone-like” class.
The training objective is defined, a variant of binary cross-entropy adapted for variable-length sequences. Each batch contains sequences that may have been padded to a common maximum length; the associated mask tensor indicates which time steps correspond to valid data and which correspond to padding. The masked BCE loss computes the element-wise cross-entropy between predicted logits and ground truth labels only on valid positions, ignoring padded elements in both the forward and backward passes. This design enables efficient mini-batch training while maintaining a correct loss signal for unequal sequence lengths.
Optimization is performed using the Adam optimizer with a learning rate of 0.001, updating all trainable parameters of the LSTM model. Adam combines adaptive learning rate scaling with momentum-like estimates of first and second-order moments of the gradients, which typically yields robust convergence across a range of deep learning tasks. The optimizer is configured to update all trainable parameters of the LSTM model.
The algorithm performs an outer loop over epoch from 1 to 35 (inclusive), corresponding to a fixed training schedule of 35 epochs. At the beginning of each epoch, the model is set to training mode, which enables certain behaviors such as dropout (if present) and ensures that any internal layers behave appropriately for training rather than evaluation. A scalar accumulator total loss is reset to zero to record the sum of mini-batch losses over the epoch.
The training data are accessed through a train loader iterator, which yields batches of trajectories. For each batch, the algorithm unpacks three tensors:
  • X: a batch of normalized trajectory sequences;
  • y: the corresponding batch of binary labels (0 for bird, 1 for drone);
  • mask: a binary mask identifying valid time steps in each sequence.
The model computes the output, where we get unnormalized scores for class membership at the sequence level. The loss value for the batch is then evaluated, which applies the masked binary cross-entropy objective. Before performing backpropagation, accumulated gradients are cleared by invoking the optimizer’s special function. The gradient of the loss with respect to all model parameters is calculated. The optimizer then updates the parameters using the special function, applying the Adam update rule. The total loss accumulator is updated by adding the current batch loss, optionally scaled by batch size, to enable later reporting or plotting of training loss trends.
After all training batches for the current epoch have been processed, the model’s performance is evaluated on the held-out test set. The primary validation metric is the area under the ROC curve (AUC), which measures the model’s ability to discriminate between bird and drone trajectories across all classification thresholds. The validation AUC is computed by running the model in evaluation mode over the test set and aggregating predicted probabilities and true labels. If the current epoch’s validation AUC exceeds the best previously recorded value, the current model parameters are saved as the “best” model. This implements an early model selection strategy based on validation performance, mitigating overfitting.
After completion of all epochs, the algorithm saves the final trained model parameters to disk, ensuring that the classifier can be reused for inference or further fine-tuning. In addition, the history of training loss values (and optional validation AUC per epoch) is saved and used to generate a training loss plot. This plot provides a visual diagnostic of convergence behavior, enabling inspection for signs of underfitting, overfitting or learning rate mismatch. An algorithm makes a prediction on a new trajectory.
The prediction pipeline begins by loading the previously trained LSTM classifier from the disk. Along with the model, the algorithm loads the feature normalization statistics—specifically, the mean vector μ and standard deviation vector σ—that were computed from the described previous algorithm. Using the same normalization parameters ensures consistency between training and inference, preventing distributional mismatch and preserving classifier reliability.
The algorithm reads the JSON input file supplied before running. From this file, it extracts the movement history field, which contains the sequence of 3D positions representing the new, unlabeled trajectory. The trajectory is converted into a numerical tensor of shape (T,3), where T denotes the actual sequence length. Any auxiliary metadata in the JSON file are ignored at this stage, as prediction is based exclusively on positional information.
Each time step of the trajectory is normalized using the affine transform:
Xnorm = (X − μ)/σ,
where μ and σ are applied feature-wise.
This transformation ensures that the new trajectory is brought into the same feature space as the data used to train the LSTM, thereby guaranteeing numerical compatibility and stable model behavior.
The trained LSTM expects batches of sequences with a uniform maximum length, typically set to a maximum length equaling 100. If the input trajectory length T < 100, the algorithm pads the normalized sequence with zeros until the required maximum length is reached. A corresponding binary mask is constructed internally to distinguish valid positions from padded time steps during the forward pass, although this mask may not be explicitly returned to the user. If T > 100, the sequence may be truncated or handled according to the implementation detail, but by design the padding step ensures that the LSTM receives a tensor of consistent dimensionality.
The padded, normalized trajectory is passed through the bidirectional LSTM classifier. The LSTM processes the sequence to produce logits, i.e., unnormalized outputs corresponding to the probability that each frame originates from a drone rather than a bird. These logits are transformed via the logistic sigmoid function producing probabilities in the interval [0, 1] for each time step. Since bidirectional LSTMs incorporate both past and future context, each probability reflects a global assessment of the movement characteristics at that frame.
The model produces a sequence of maximum lengths, but only the first T entries correspond to actual observed data. The algorithm removes predictions associated with padded time steps, which yields a one-dimensional array of per-frame drone probabilities for the original, unpadded trajectory. These values constitute the final output, enabling downstream systems to interpret the likelihood of drone-like behavior at each observed time step.
Having defined the simulation environment, trajectory encoding and LSTM-based classifier, we now define how these components are generated in our experiments. Section 4 (Experimental Setup) details the software implementation, parameter settings and synthetic data generation protocol used to generate the training and test sets. This ensures that the results obtained are reproducible and that differences in performance can be explained by controlled experimental factors.

4. Experimental Setup

4.1. Used Libraries

For the experimental setup, we used Python (3.13.5). The following libraries were used: json (2.0.9), numpy (2.3.3), torch (2.8.0), sklearn (1.7.2), matplotlib (3.10.6), opencv-python (4.12.0.88), pandas (2.3.2) and pillow (11.3.0).
Inside the code there are five different classes: Viewer3D, Environment, BirdDyn, DroneDyn and Agent. You can see the members for every class in Figure 4.

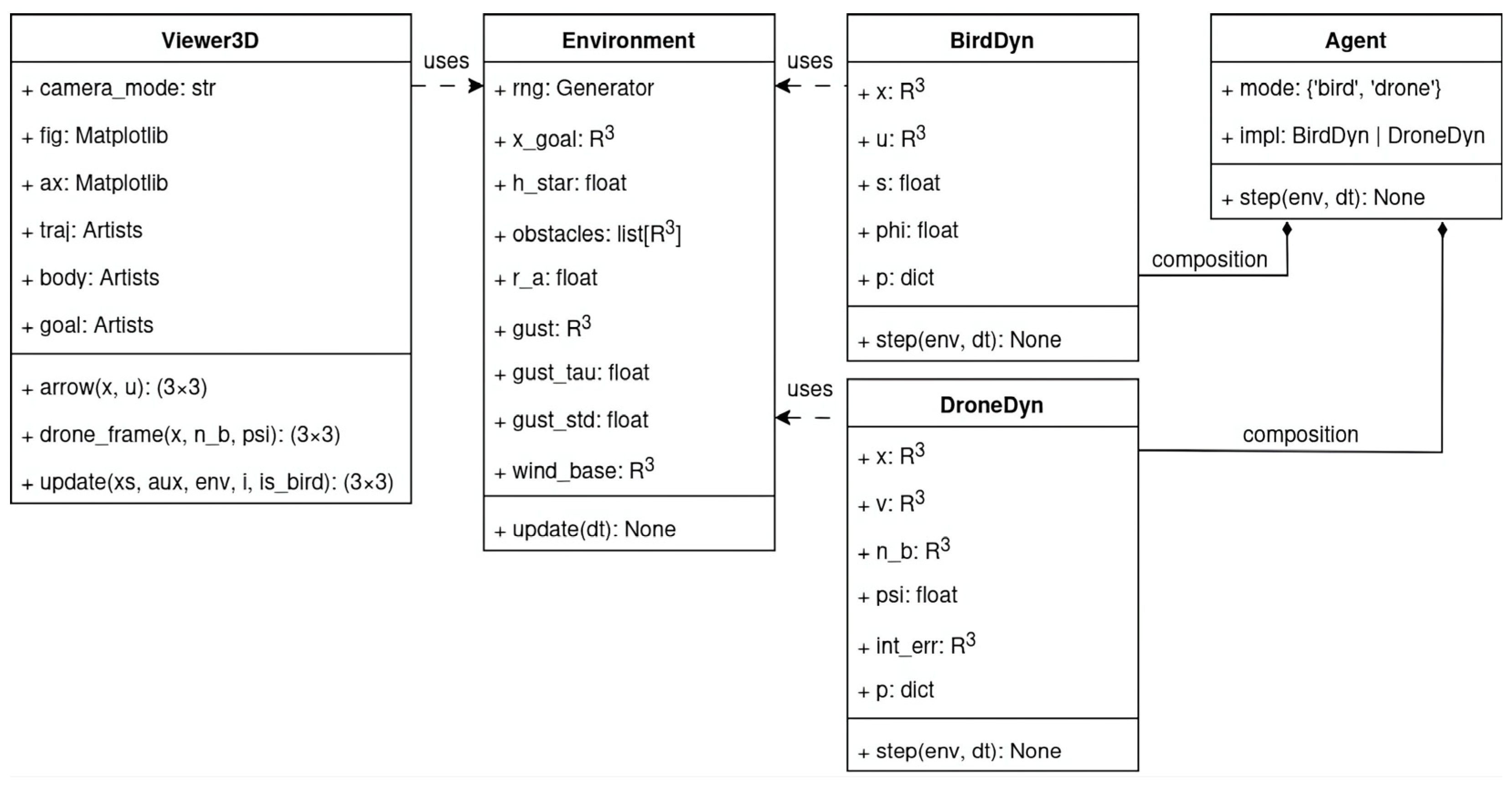

Figure 4. Class diagram.

4.2. Generation of Synthetic Trajectories for Flying Objects

The code implements a unified stochastic simulation pipeline for modeling three-dimensional trajectories of flying birds and a quadrotor-type drone. It integrates dynamical models, an environmental wind field, numerical integration, data export and 3D visualization into a single pipeline, controlled through a simple interface.
The environment class encapsulates external conditions:
  • A fixed 3D waypoint that both birds and drone tend to approach;
  • A preferred flight altitude used by the bird for altitude regulation;
  • A list of obstacle positions, used for repulsive avoidance;
  • A constant background wind vector; parameters of a stochastic gust model.
The environment maintains a 3D gust vector that evolves according to an Ornstein–Uhlenbeck (OU) process. This process generates temporally correlated random wind perturbations with finite variance rather than uncorrelated white noise. The responsible method then returns the total wind as the sum of the base component, the OU gust term and a simple “thermal” vertical component that depends on the horizontal distance from a fixed center. This yields a three-dimensional, time-varying wind field that influences both birds and drone.
The BirdDyn class implements a kinematic stochastic model of a fixed-wing bird:
  • State variables: position, unit forward direction, speed and bank angle;
  • Special parameters encode species-specific behavior (cruise speed, maneuverability, noise intensities, etc.).
At each time step dt, computes several behavioral acceleration components:
  • Lateral attraction toward the goal position, projected perpendicular to the current heading;
  • Altitude control, driving the bird toward the preferred flight height;
  • Cross-wind compensation, turning into the wind to reduce drift;
  • Repulsive acceleration away from obstacles, decaying with distance;
  • Lateral random acceleration, drawn from a Gaussian distribution and projected perpendicular to the unit vector.
The sum converts into a desired bank angle by relating lateral acceleration magnitude to gravitational acceleration via an arc tangent to the gravitation, with saturation at a species-specific maximum. The actual bank angle follows via a first-order stochastic differential equation, which introduces both finite responsiveness and noise. The resulting lateral acceleration is then capped to respect physical limits.
The orientation vector is updated using Rodrigues rotations about an axis defined by the cross product, which implements curvature in a geometrically consistent way. Additional heading noise is then injected orthogonally into the unit vector. Speed s is updated via relaxation toward a reference speed s* modulated by wind alignment and perturbed by Gaussian noise. Finally, the position x is advanced using the sum of airspeed and the local wind w.
Species-specific parameters are constants that yield distinct parameter sets for pigeons, gulls and peregrine falcons, thereby inducing qualitatively different trajectory styles (e.g., slower, more meandering gull flight versus fast, agile peregrine motion).
The DroneDyn class models a simplified quadrotor as a point mass with:
  • Position x and velocity v;
  • Body thrust direction (a unit vector), initially vertical;
  • Yaw angle ψ;
  • An integral error term for position control.
At each step, the drone computes:
  • Position error relative to x goal and altitude error relative to h*;
  • A PID-style desired acceleration combining proportional, derivative and integral terms for position, plus altitude and wind compensation contributions;
  • An obstacle avoidance term, analogous to that used for birds.
  • An additive Gaussian noise term on acceleration, modeling imperfect control.
Acceleration is then saturated separately in the horizontal and vertical components. A desired thrust direction is obtained by adding gravity and normalizing. The actual thrust direction is rotated toward the desired thrust direction with a finite maximum tilt rate and capped by a maximal tilt angle. This enforces realistic rotational constraints for the drone.
The required thrust magnitude is computed by projecting the desired force along actual thrust direction and saturating it at a specified maximum. Yaw is controlled to approximately align either with the velocity vector or with the goal direction, again with saturation and small noise. Finally, the translational dynamics are updated with a simple ground constraint ensuring that the drone does not pass below (z = 0).

4.3. Trajectory Simulation

To evaluate the proposed trajectory-based drone–bird classifier under controlled conditions, we generated a synthetic dataset of three-dimensional movement trajectories. The dataset was produced by a custom stochastic simulator that models the kinematics of flying birds and a quadrotor-type drone within a shared 3D environment.
Each simulation instance produces a single trajectory with multiple points that is stored in a JSON file. The JSON structure contains a Boolean flag indicating whether the agent is a bird or a drone and an ordered list of positions as shown in Figure 5.

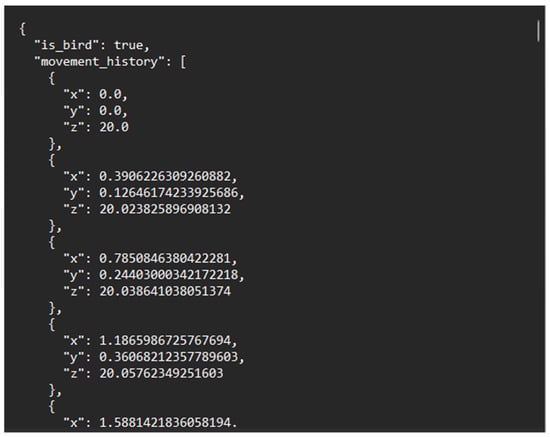

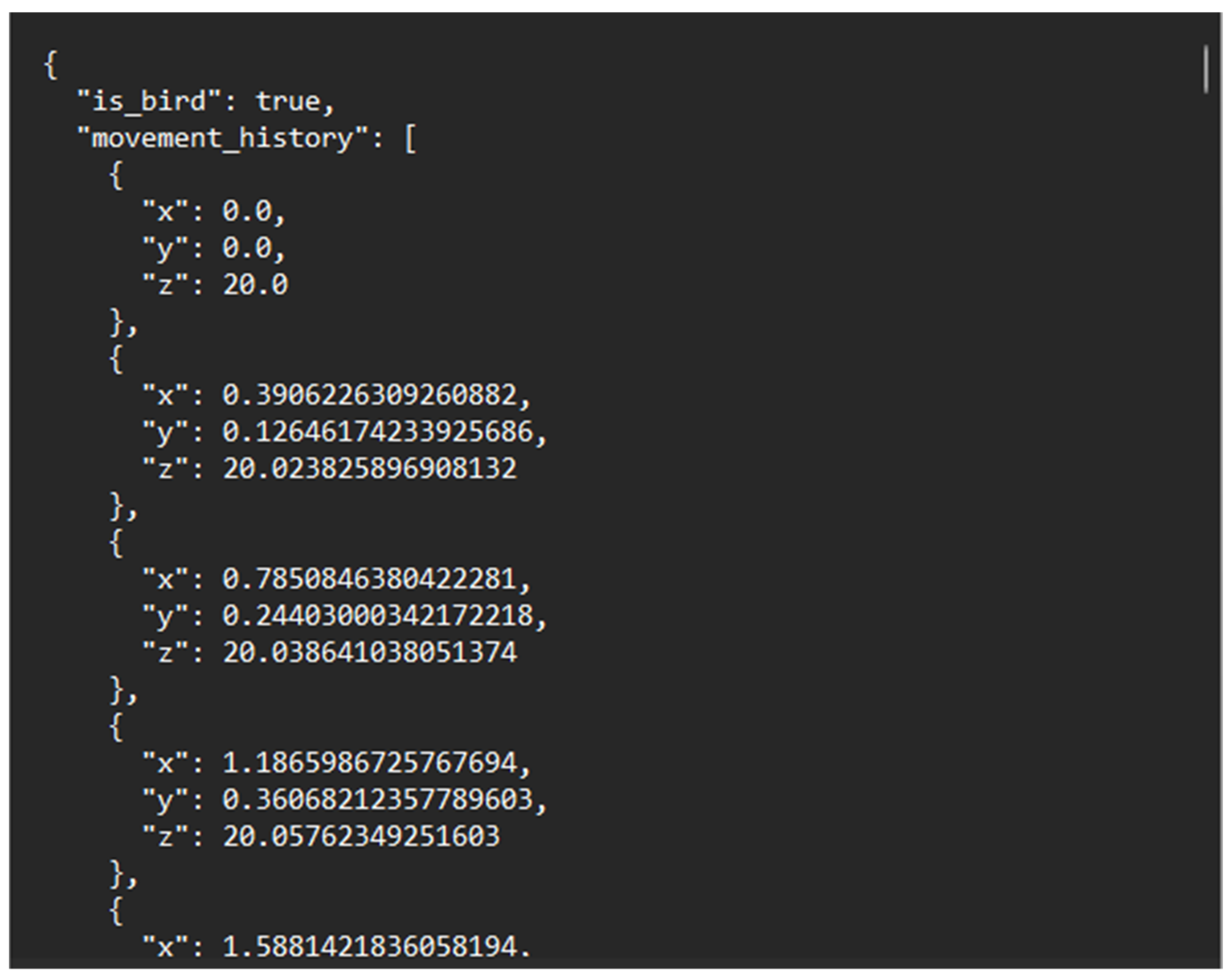

Figure 5. Example of pigeon trajectory in JSON file.
The special Viewer3D class wraps Matplotlib’s 3D plotting tools to provide an animated visualization of the trajectory. The constructor sets up:
  • A 3D axes object with labeled axes and fixed limits;
  • A ground surface (greenish plane at z = 0) and a sky surface (bluish plane at high altitude) to give spatial context;
  • Line artists for the trajectory (self.traj) and the current body representation (self.body), and a scatter point for the goal.
For birds, a special function constructs a small triangular “arrow” aligned with the heading vector. For the drone, a responsible function constructs a simple shape aligned with the thrust direction and yaw. The update method updates these artists for a given time index and optionally adjusts axis limits to keep the agent approximately centered in a “follow” camera mode.
For bird trajectories, three species presets are used: pigeon (Figure 6), gull (Figure 7) and peregrine (Figure 8). They differ in nominal cruise speed, bank angle limits and sensitivity to wind, altitude and goal attraction. For drone trajectories (Figure 9), a simplified quadrotor model is employed with PID-style position control, wind compensation, obstacle avoidance and additive control noise. In all cases the environment provides a time-varying wind field with Ornstein–Uhlenbeck gusts and fixed obstacles, and all simulations are run in discrete time with step size dt = 0.03 s over a chosen horizon T (e.g., 100 s).

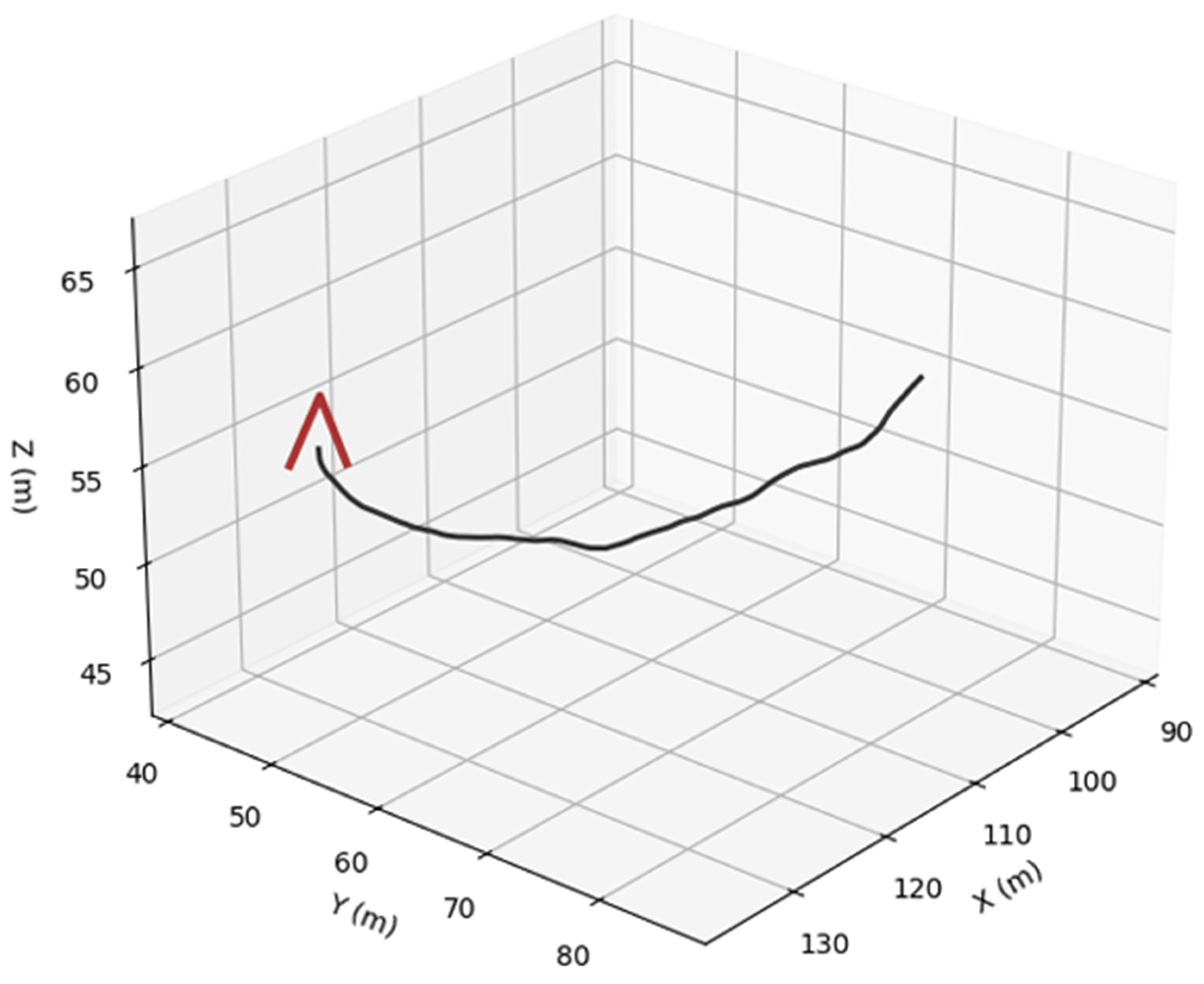

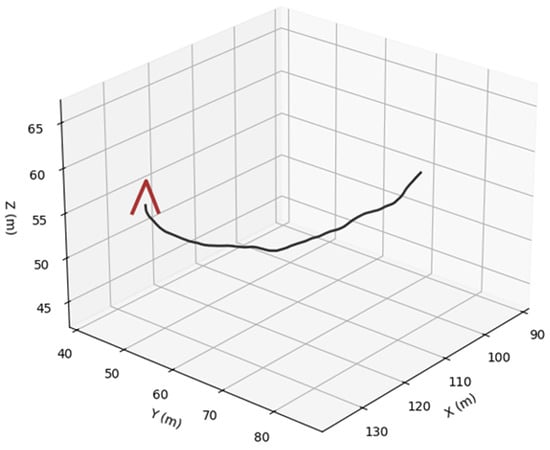

Figure 6. Pigeon simulation.

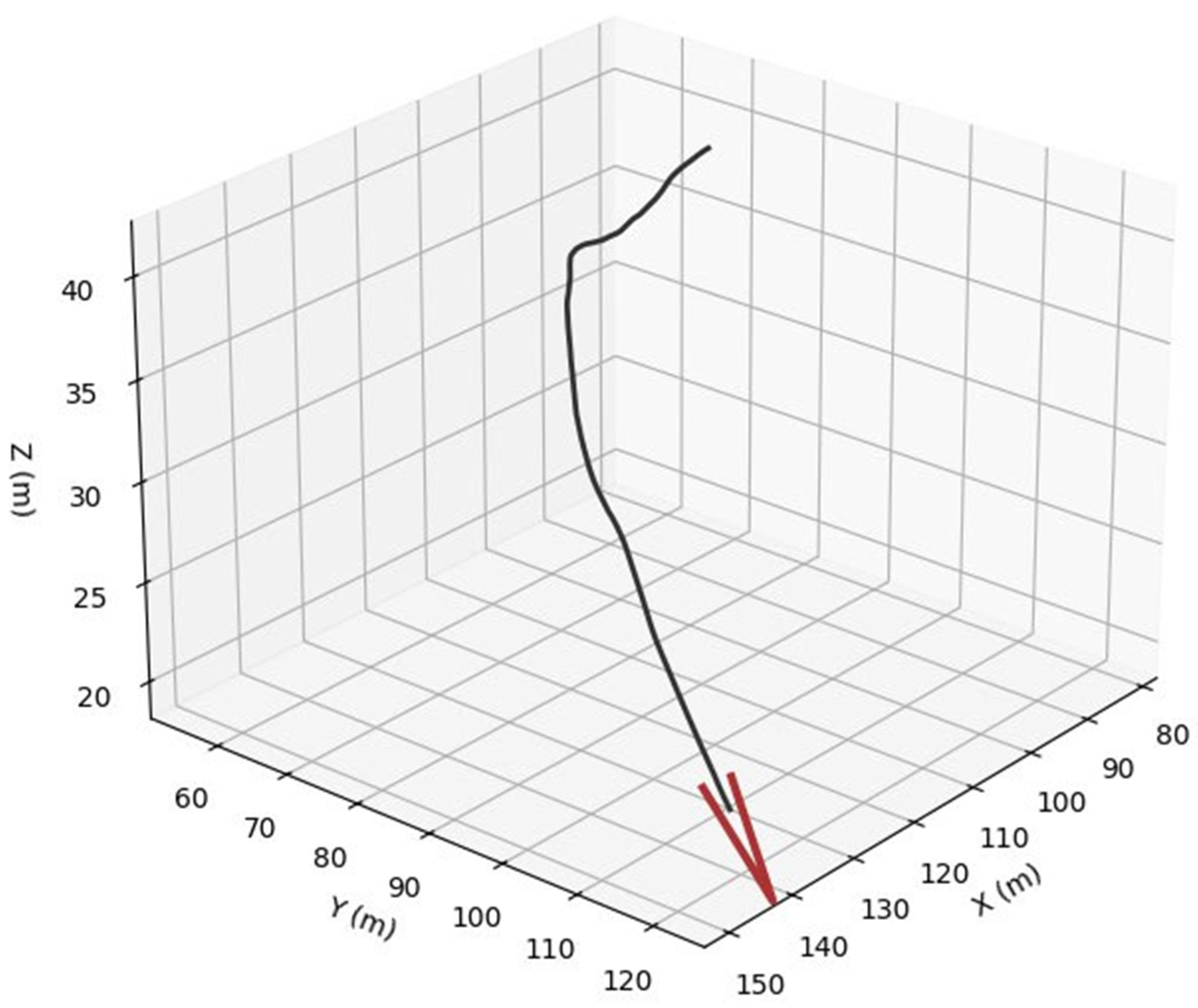

Figure 7. Gull simulation.

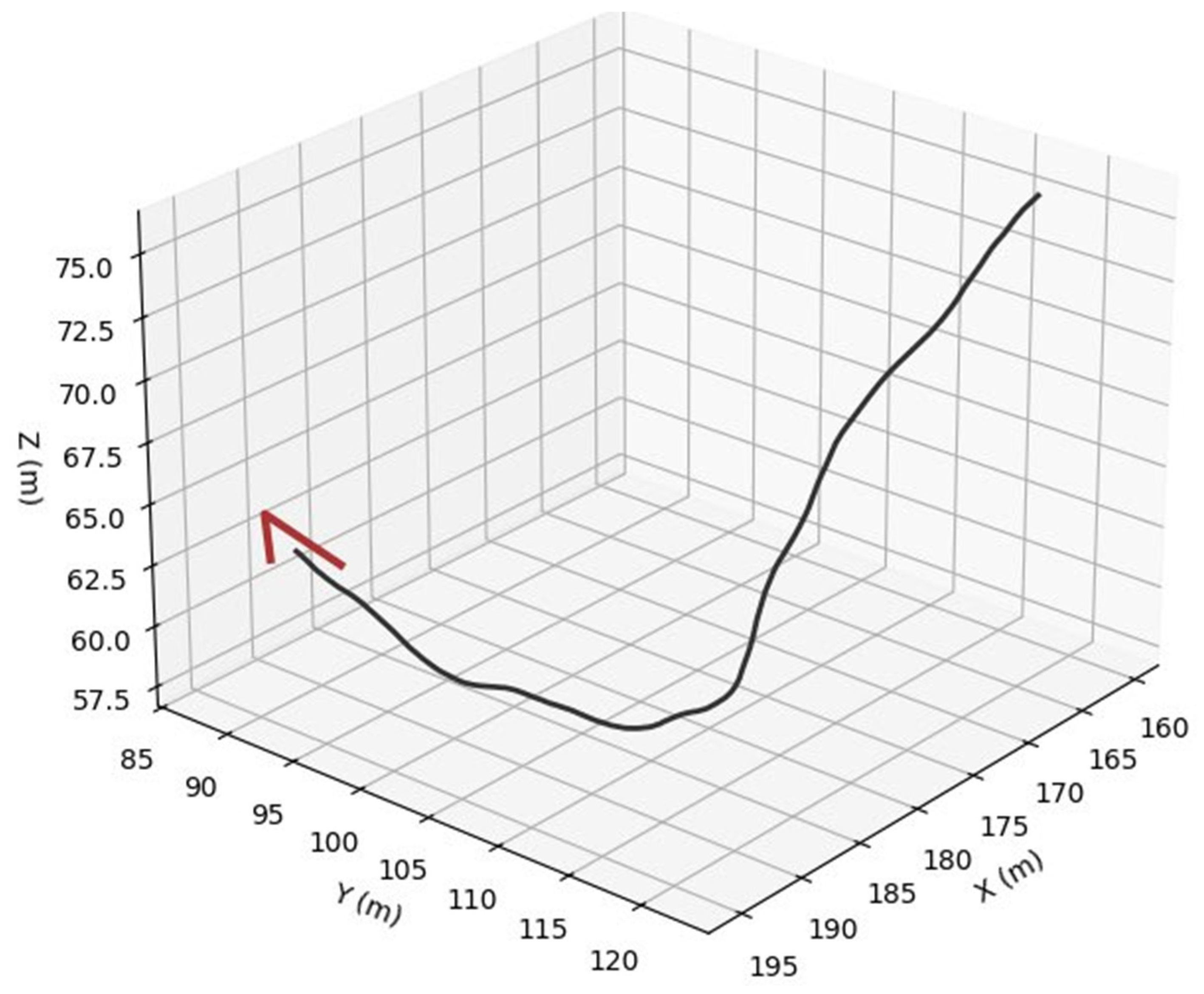

Figure 8. Peregrine simulation.

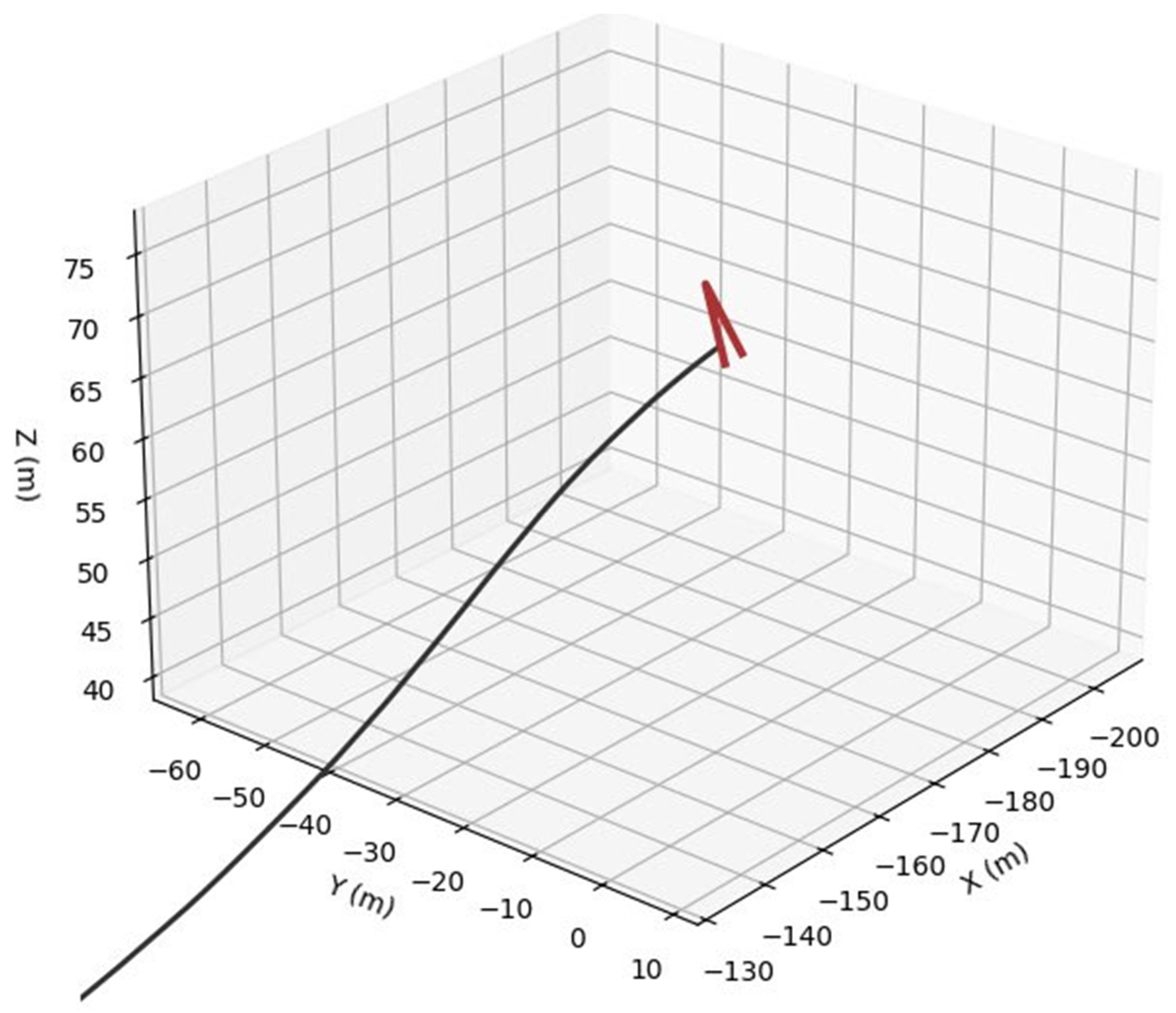

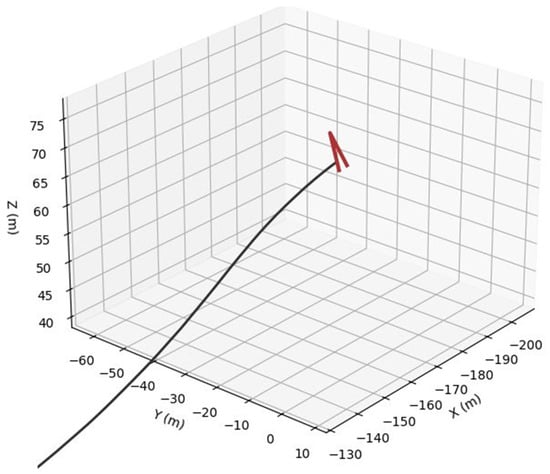

Figure 9. Drone simulation.
The data generation pipeline is integrated with the training code as follows. The special function runs the simulator multiple times with random seeds and parameter draws, producing a balanced set of bird and drone trajectories. The resulting JSON files form the raw dataset used for training and evaluation.
All JSON files in the dataset directory are parsed and converted into numerical tensors. For each trajectory, the 3D coordinates are stacked into a sequence X ∈ RT × 3 with features (x, y, z) per frame, and a binary label y ∈ {0, 1} is assigned, with 0 corresponding to “bird-like” and 1 to “drone-like”.
The classifier is implemented as a bidirectional long short-term memory (LSTM) network. At each time step, the network receives a three-dimensional input vector (normalized (x, y, z)). The model uses an input dimensionality of 3, a hidden state size of 64 units per direction, and two stacked LSTM layers, yielding a deep recurrent architecture capable of capturing temporal dependencies across the full trajectory. Bidirectionality enables the network to exploit both past and future context along the sequence, which is appropriate in this setting as the entire trajectory is available at inference time. The reliability of LSTM network is shown in Figure 10.

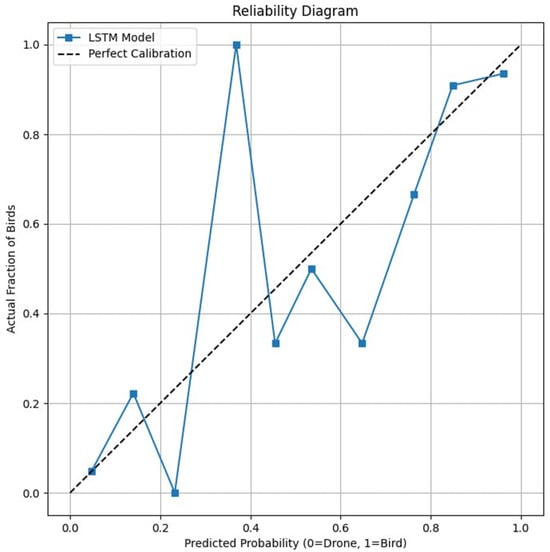

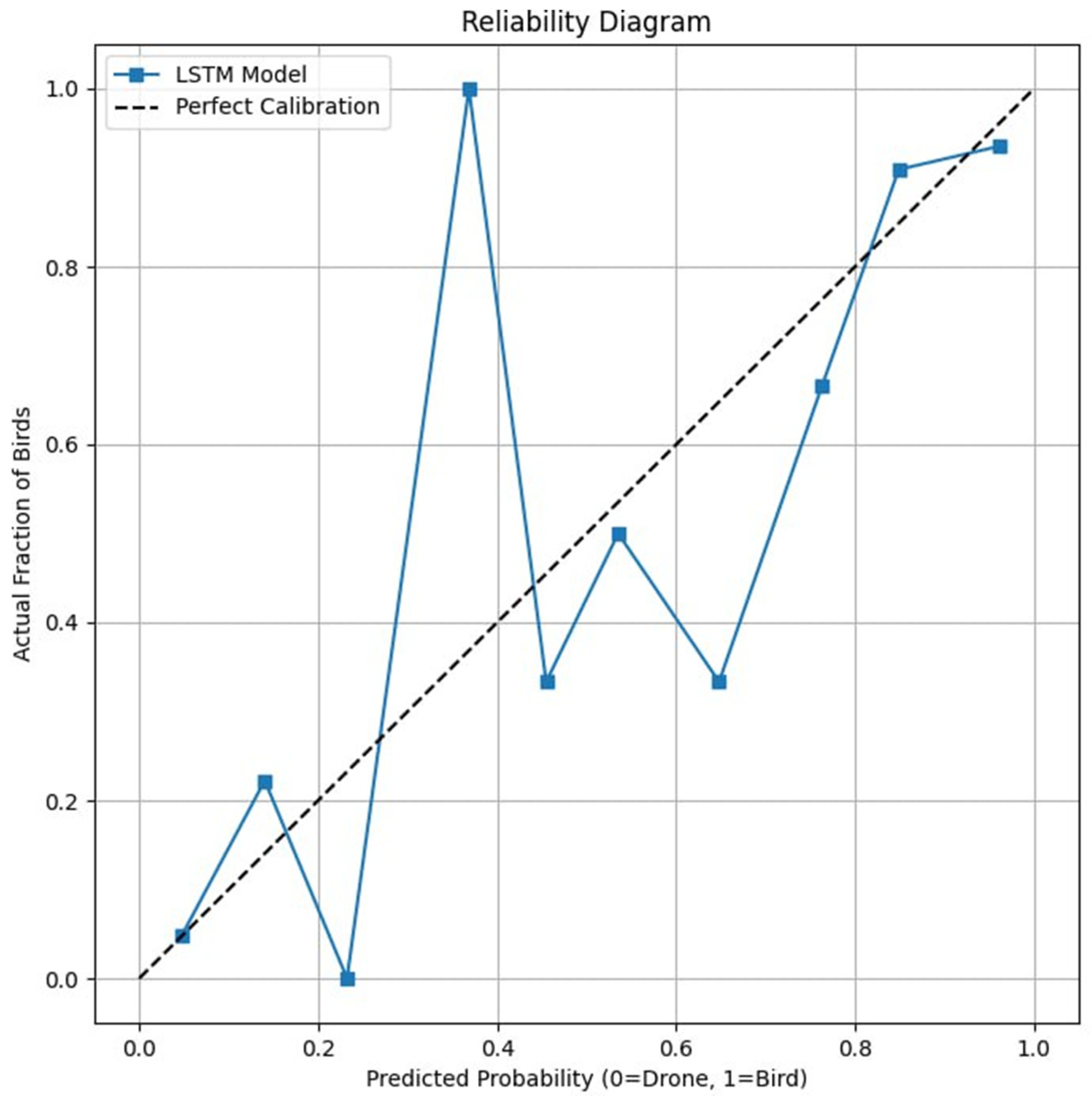

Figure 10. The reliability diagram of LSTM network.
Given the experimental protocol and parameter settings defined in Section 4, we now evaluate the proposed pipeline from modeling to classification. Section 5 (“Results”) reports the quantitative performance of the trajectory-based LSTM classifier and analyzes how motion-derived cues support the discrimination of drones and birds under long-range appearance constraints. We also summarize key observations from synthetic data validation to confirm the robustness of the generated trajectories.

5. Results

5.1. LSTM Model Training

To assess the realism and internal consistency of the simulated bird and drone trajectories, we conducted a validation study focused on the physical plausibility, behavioral diversity and statistical properties of the generated motion patterns shown in Figure 11. Because no real trajectory dataset was available for quantitative comparison, we evaluated the synthetic trajectories against (i) known biomechanical and aeronautical constraints reported in the literature and (ii) qualitative expectations of flight dynamics.

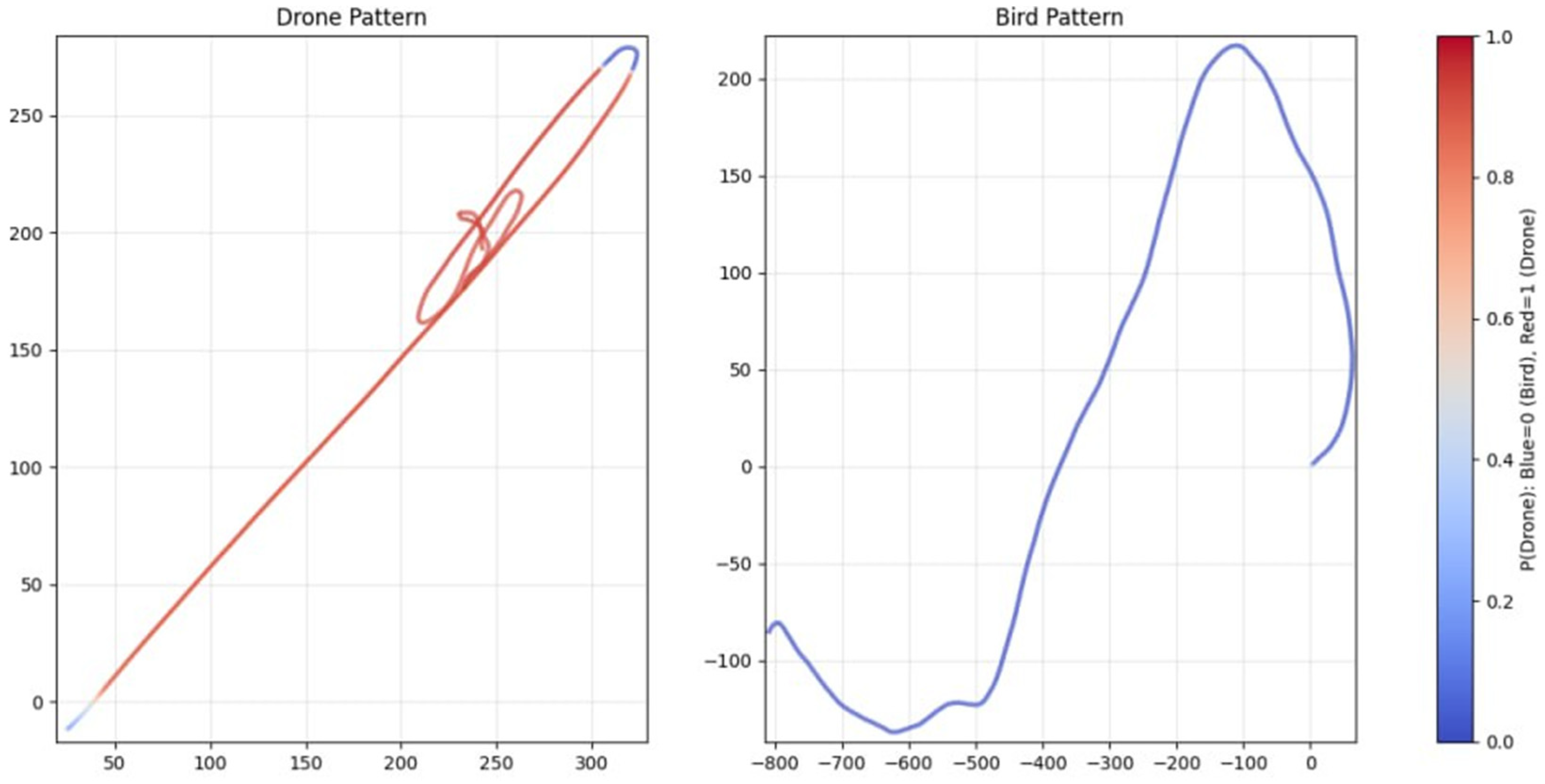

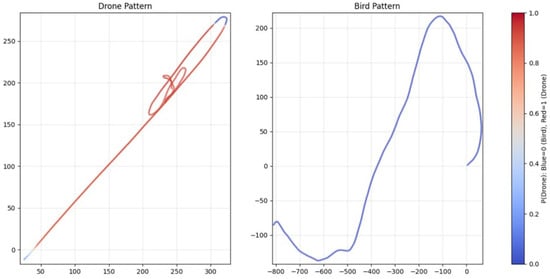

Figure 11. Trajectory movement patterns for bird and drone.

5.1.1. Physical Plausibility of Motion

The bird model is based on lateral acceleration constraints derived from bank angles, the gravitational constant and biomechanically plausible speed limits. We verified that all simulated trajectories obeyed these constraints:
  • No lateral acceleration exceeded g tan(ϕmax);
  • Speeds remained within the expected species-specific ranges;
  • Altitude changes were smooth and continuous;
  • Trajectories avoided kinematic discontinuities.

5.1.2. Behavior Consistency with Species Flight Dynamics

Simulated species exhibited characteristic motion patterns commonly described in avian biology:
  • Pigeons showed moderate speed and relatively direct goal-oriented flight;
  • Gulls displayed smoother, more drifting motion with pronounced wind interaction;
  • Peregrine trajectories exhibited higher speeds and sharper curvature.
These qualitative patterns matched established observations reported in the biomechanics literature, providing evidence that the parameterization effectively captures inter-species variability.

5.1.3. Statistical Analysis of Trajectory Properties

For each synthetic dataset, we computed descriptive statistics such as:
  • Distribution of instantaneous speed;
  • Distribution of turning curvature;
  • Histogram of altitude changes;
  • Autocorrelation of velocity vectors;
  • Variance introduced by the wind gust model.
All observed distributions were smooth, non-degenerate and consistent with the expected behavior of stochastic flight models. Trajectories exhibited natural variability due to the Ornstein–Uhlenbeck wind field and random acceleration perturbations.

5.1.4. Diversity and Non-Determinism

Using different random seeds yielded trajectories with significantly different spatial paths, curvature profiles and timing characteristics. This confirms that the simulator does not produce artificially repetitive motion and is capable of generating a diverse dataset suitable for training machine-learning models.

5.1.5. Classification Performance

Training was conducted on a CPU (12th Gen Intel(R) Core(TM) i5-12600KF) for demonstration purposes, though the code supports GPU (NVIDIA GeForce RTX 3070ti) acceleration. The model converged steadily, as shown in Figure 12.

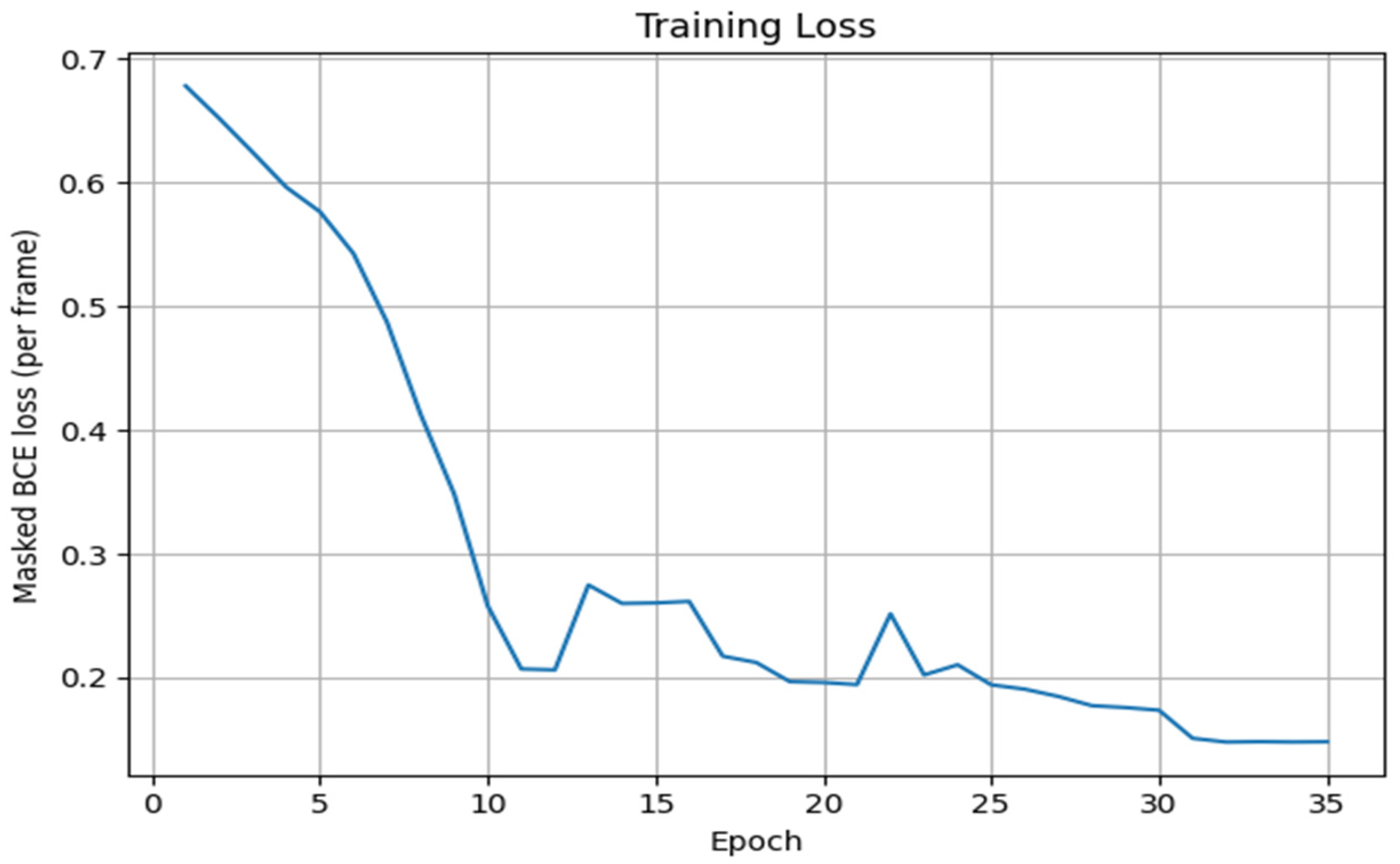

Figure 12. Training loss over epochs.
This plot shows the masked binary cross-entropy loss computed per frame during training. The loss decreases rapidly during the first 10 epochs and stabilizes around 0.15 after 30 epochs, indicating that the model has effectively learned to distinguish the classes. The steady decline and stabilization of the loss function suggest that the model generalized well without severe overfitting.
To ensure the model is chosen correctly for this task, a different model was tested. For this purpose, a gated recurrent unit architecture was selected and trained on the same dataset (Figure 13).

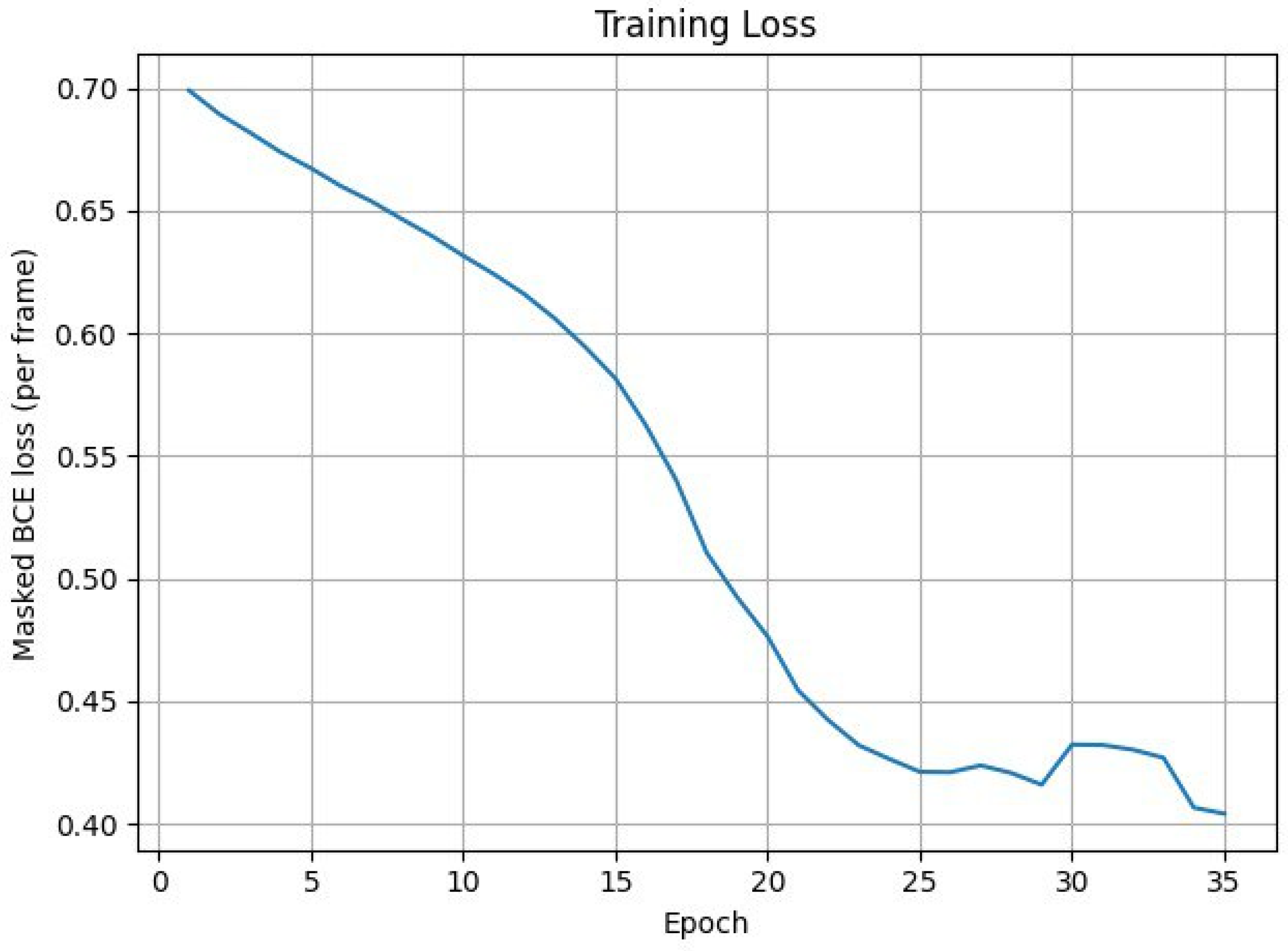

Figure 13. Training loss over epochs for gated recurrent unit model.
The plot also shows steady decline and stabilization of loss function, with some differences. In comparison with the LSTM model, usage of a gated recurrent unit in training slows down the training process and the loss function stabilization happens at a 0.4 rate in comparison with the LSTM model where this happens around 0.15. Based on this comparison it is possible to state that the LSTM model is preferred in this classification task before the gated recurrent unit.
After training, the model was tested on previously unseen sequences. Each test sample was fed into the network, which output the probability P(drone) for each frame. An example of a correctly classified drone trajectory is shown in Figure 14.

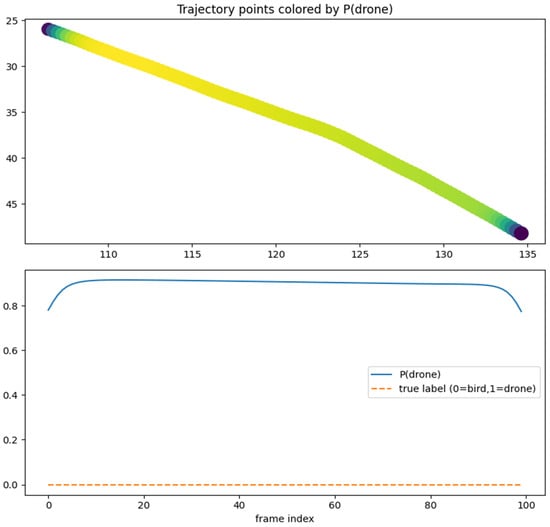

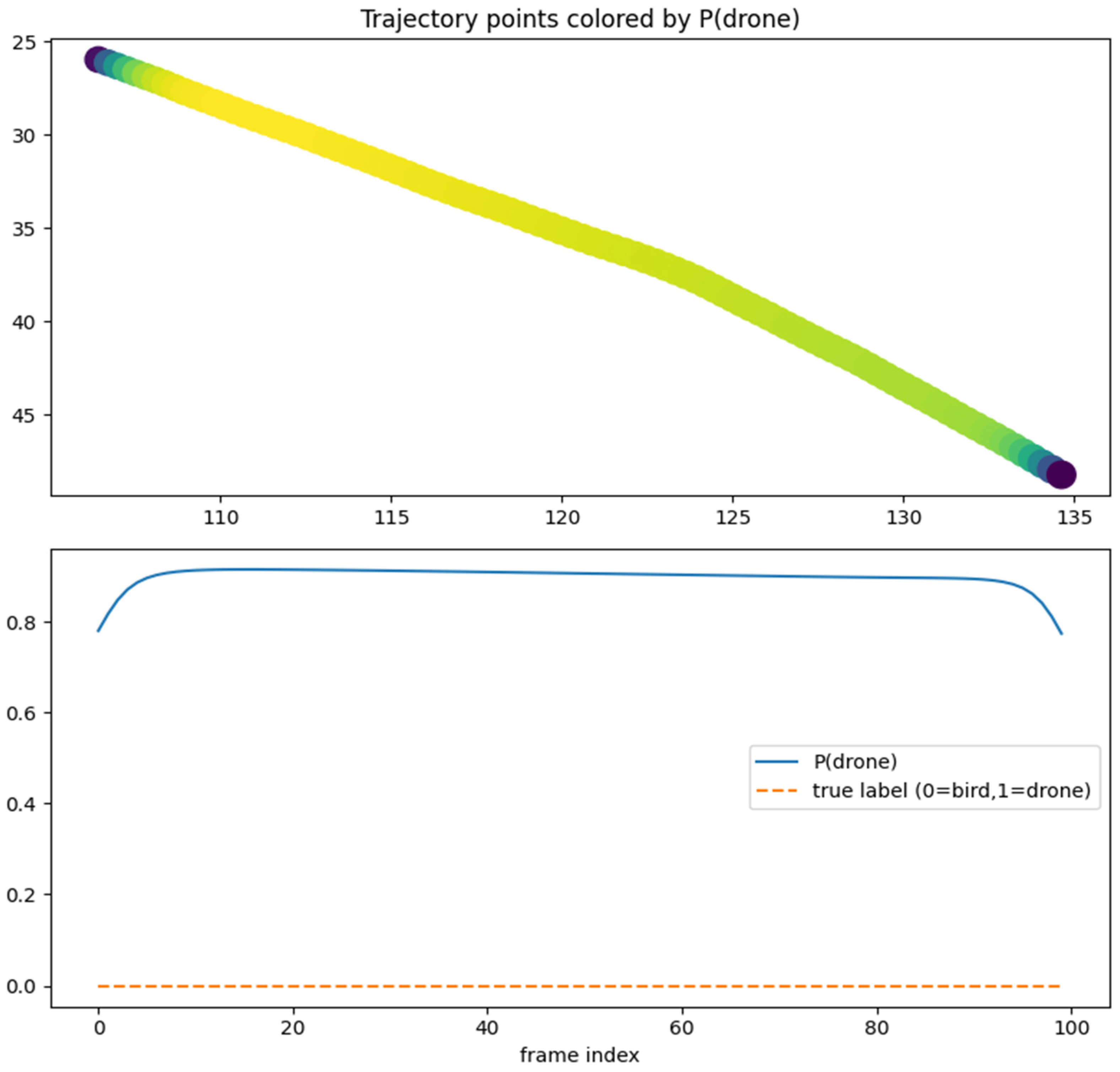

Figure 14. Example prediction visualization.
The upper plot displays the trajectory of a moving object, with color intensity representing the predicted probability of being a drone. The lower plot shows the probability curve P(drone) across frames compared with the true label. The model consistently assigns high confidence to drone frames (around 0.9), demonstrating reliable temporal predictions.
The visualization helps to verify that the model not only produces correct overall classifications but also maintains stable per-frame predictions across the entire sequence.
The demonstration stage, which loads the PyTorch v.2.8.0 trained model, computes per-frame drone probabilities for a new trajectory. The user provides a path to a JSON file as an argument. The results are shown in Table 3.
Table 3. Probabilities per step.
The demonstration confirms that the model can accurately classify new, unseen motion sequences by analyzing only their spatial and temporal behavior, without visual information. This approach could be particularly useful in scenarios where video resolution is low or where objects are too distant for clear identification.

5.2. Comprehensive Tracking Pipeline

A complex tracking system with a multi-camera and a multi-level approach allows to detect an object that is barely noticeable at first (from 5 pixels), and then gradually becomes larger. In this paper, we present the necessary technologies that allow such analysis. To sum up, the entire technology forms a coherent workflow consisting of stages presented below.

5.2.1. Working with a Very Small Object (5–10 Pixels)

At a large distance, the object occupies only a few pixels, so using classic CNNs or transformers is inefficient here as they need enough information in the image to learn to distinguish shapes. In this case, simpler algorithms that work with blobs and brightness features are more appropriate.
LoG (Laplacian of Gaussian), DoG (difference of Gaussians), DoH (determinant of Hessian) and MSER can be used as detection methods.
Since one camera only provides 2D coordinates, we use multiple cameras. Based on the positions of the blob in 2D images, we can use triangulation to reconstruct the approximate position in 3D as shown in Figure 15. This allows us to work directly with spatial coordinates (X, Y, Z).

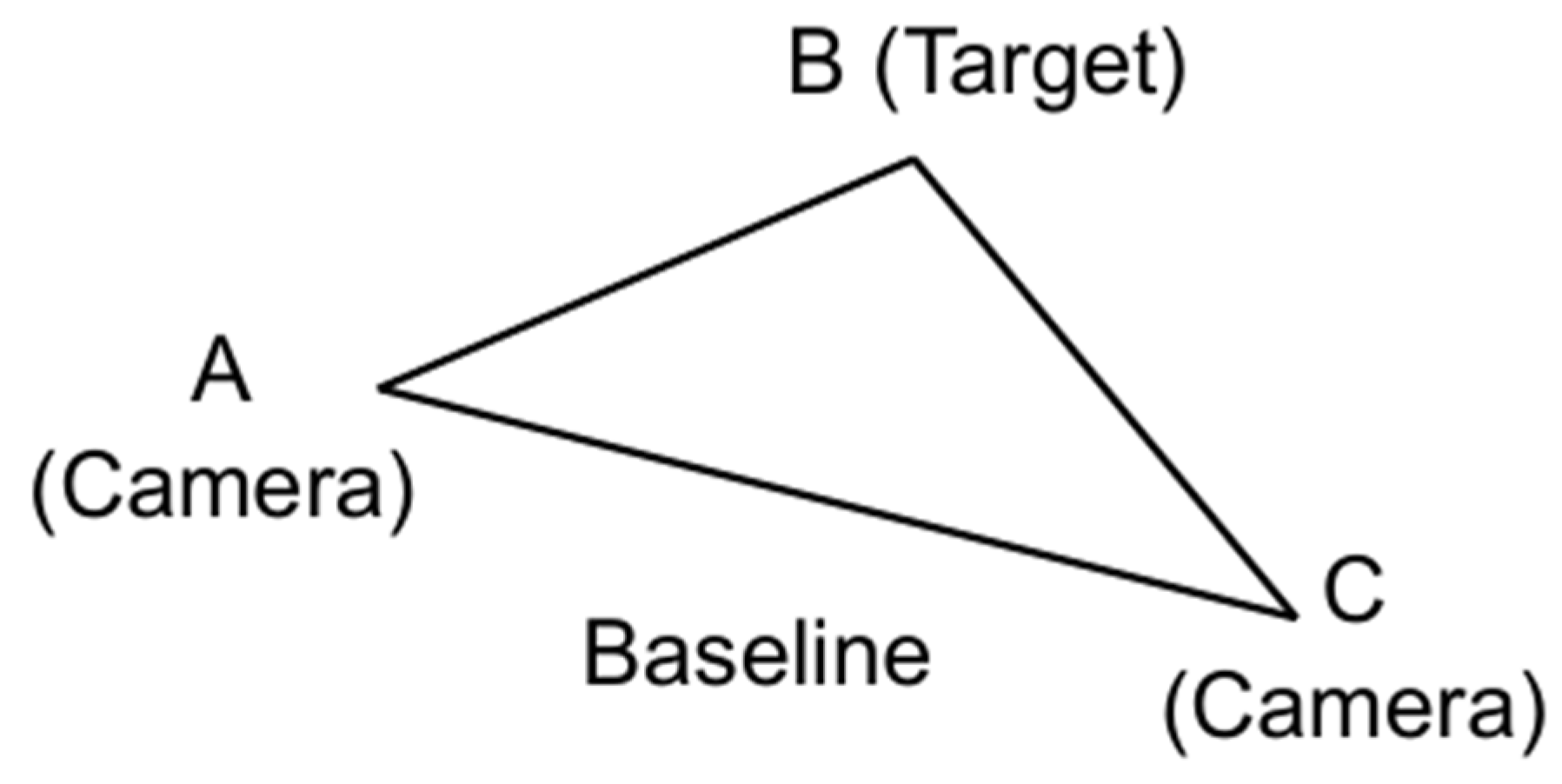

Figure 15. Triangulation work principle.
At this stage, the Kalman filter in 3D (or particle filter) is important. It helps smooth the trajectory and makes the system resistant to noise (after all, a small object can easily be confused with noise or pixels in the background).

5.2.2. Association and Tracking Between Frames

When an object is identified in multiple cameras, the task is to understand that this point in frame t corresponds to the same point in frame t + 1. For data association, nearest neighbor, Hungarian algorithm, JPDA or MHT can be used.
Tracking between frames is based on a prediction (Kalman or particle filter) and association with new detections. This allows the object ID to be maintained even when it disappears from view for several frames.

5.2.3. Moving to More Complex Methods (The Object Becomes Larger)

When an object approaches or flies closer to the camera, its projection already takes up tens or hundreds of pixels. Now you can use neural networks for detection.
CNN detectors (YOLO, Faster R-CNN, RetinaNet, Deep SORT) and tracking transformers (TrackFormer, TransTrack) can be used here [61].
Here, a classification aspect is already possible as a neural network can determine whether the object in the frame is a drone or a bird. This is critically important, because at a long distance along the trajectory they are similar, but as the size increases, information about the shape and structure appears.

5.2.4. Integration of All Subsystems

As a result, we obtain a complex pipeline (Figure 16): At a long distance, when the object is small, simple blob detectors and triangulation from several cameras work. Here, the geometry of the cameras and state filtering play a key role.

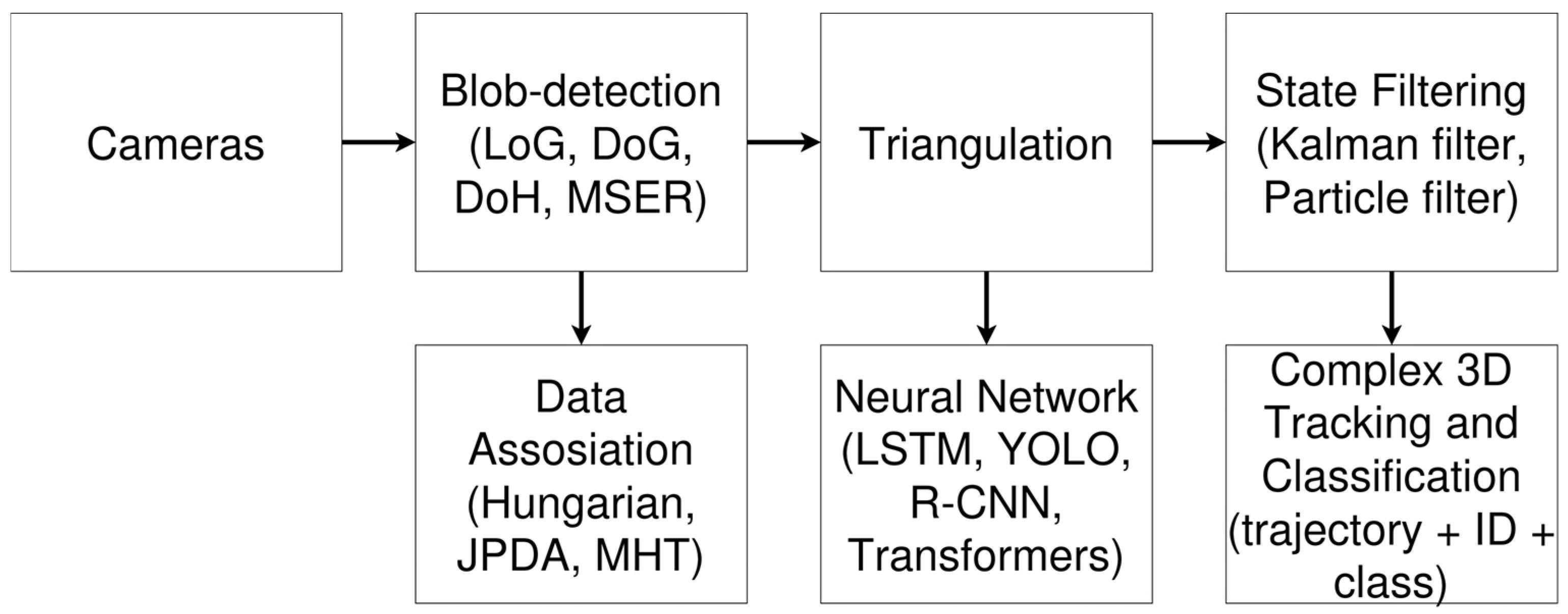

Figure 16. Classification pipeline.
When the object enters the zone of better visibility, a more powerful system is connected to the work—CNN or transformer—that is able to identify the object and track it. At the level of data association, methods like Hungarian or Deep SORT always work, as they connect trajectories in time and maintain the correct ID. The output is a continuous 3D trajectory of the object in space with its classification (bird or drone).

5.3. Calculated Metrics

For the classification job two metrics were calculated: inference time and memory occupancy. The task was performed on five sets of new data, each containing 100 steps, and the results are shown in Figure 17.

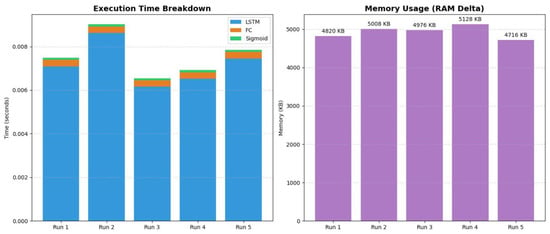

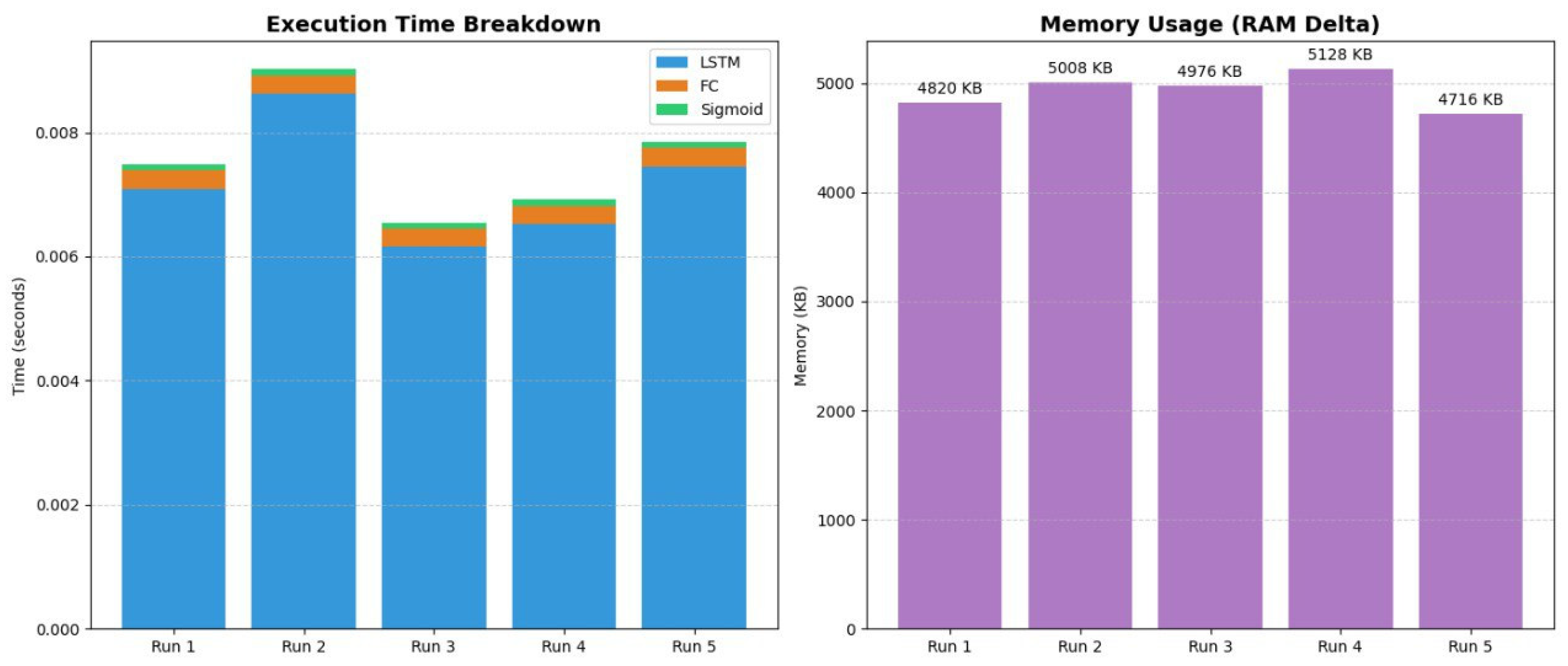

Figure 17. Classification metrics.
As it is shown in the diagram, the average time for the tasks does not exceed 7 milliseconds. Also calculations of the linear layer (FC) and the sigmoid take the same amount of time per run, as both of these methods contain one formula that takes constant time for calculation. Average memory usage does not exceed 5 megabytes.

6. Discussion

The results obtained in this study demonstrate that simulated trajectories can serve as an effective proxy for training early-stage deep learning models aimed at distinguishing drone and bird flight behavior. Despite the absence of real-world trajectory data, the proposed simulation pipeline produced diverse, physically plausible flight paths that capture essential differences between biological and mechanical flight. The neural network trained on these synthetic sequences exhibited stable convergence and a clear ability to discriminate between the two classes, suggesting that the temporal dynamics encoded in the synthetic data are sufficiently expressive for machine-learning purposes.
Nevertheless, several limitations must be acknowledged. First, although the simulation incorporates biologically informed parameters (e.g., bank-angle constraints, species-specific speed ranges, wind compensation), it cannot fully reproduce the complexity and variability of real avian motion. Similarly, the drone model simplifies aerodynamic and control-system dynamics, omitting noise sources such as sensor uncertainty or communication delays. These simplifications may introduce discrepancies between simulated and real trajectories that could affect generalization performance once real data become available. Second, because no real dataset was available for validation, the realism of the simulated trajectories was assessed only in terms of biomechanical plausibility and consistency with the literature, rather than direct empirical comparison.
Future work should focus on collecting and integrating real-world flight recordings, using radar, optical tracking or telemetry data. Such datasets would allow a more rigorous evaluation of simulation fidelity and would enable fine-tuning of the classifier for practical deployment. Additionally, incorporating more complex environmental factors such as obstacle-rich terrains, stronger turbulence models or multi-agent interactions could further improve the realism and diversity of synthetic trajectories.

7. Conclusions

This work introduces a complete pipeline for generating synthetic 3D flight trajectories of birds and drones, and for training a recurrent neural classifier capable of distinguishing between the two classes based on their motion patterns. The simulation pipeline integrates biologically motivated flight dynamics, stochastic wind fields and species-specific behavioral parameters, enabling the generation of physically coherent and diverse trajectories without reliance on real-world data. The classification model, implemented as a bidirectional LSTM network, demonstrates strong learning behavior when trained on the generated dataset.
Although the study relies exclusively on synthetic data, the physics-based simulation pipeline allowed us to test the central hypothesis that motion trajectories alone can discriminate drones from birds in long-range scenarios. The results on synthetic test sequences indicate that trajectory-based classification is a promising complement to appearance-based methods for drone detection and avian behavior analysis. In future work, this hypothesis will be validated on real-world trajectories and operational surveillance data to quantify the domain gap between synthetic and real scenes and to refine the model using transfer-learning or hybrid real–synthetic training regimes. The modular design of the simulator will also facilitate extending the framework to additional species, environmental conditions and drone types.
Consequently, the proposed framework is compatible with real surveillance pipelines and is intended to be integrated with existing detection and tracking modules in future work.

Author Contributions

Conceptualization, A.N., V.N., Y.A., Ł.Ś., D.G. and P.K.; methodology, A.N., V.N., Y.A., Ł.Ś., D.G. and P.K.; formal analysis, A.N., V.N., Y.A., Ł.Ś., D.G. and P.K.; investigation, A.N., V.N., Y.A., Ł.Ś., D.G. and P.K.; resources, Ł.Ś., D.G. and P.K.; data curation, A.N., V.N., Y.A., Ł.Ś., D.G. and P.K.; writing—original draft preparation, A.N., V.N., Y.A., Ł.Ś., D.G. and P.K.; writing—review and editing, Ł.Ś., D.G. and P.K.; visualization, A.N., V.N. and Y.A.; supervision, Ł.Ś., D.G. and P.K.; project administration, Ł.Ś.; funding acquisition, Ł.Ś. All authors have read and agreed to the published version of the manuscript.

Funding

This research was made possible through the scholarship fund managed by the Conference of Rectors of Academic Schools in Poland (KRASP) for Ukrainian researchers.

Institutional Review Board Statement

Not applicable.

Data Availability Statement

The original contributions presented in this study are included in the article. Further inquiries can be directed to the corresponding author.

Acknowledgments

The authors would like to express their sincere gratitude to the Cracow University of Technology and the National Technical University of Ukraine “Igor Sikorsky Kyiv Polytechnic Institute” authorities for supporting the scientific internship during which this work was conducted. The authors gratefully acknowledge this support.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Melnychenko, O.; Scislo, L.; Savenko, O.; Sachenko, A.; Radiuk, P. Intelligent Integrated System for Fruit Detection Using Multi-UAV Imaging and Deep Learning. Sensors 2024, 24, 1913. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  2. Kootala, A.; Mousa, A.; Pong, P.W.T. Drones Are Endangering Energy Critical Infrastructure, and How We Can Deal with This. Energies 2023, 16, 5521. [Google Scholar] [CrossRef] [Scilit]
  3. Fesenko, H.; Illiashenko, O.; Kharchenko, V.; Leichenko, K.; Sachenko, A.; Scislo, L. Methods and Software Tools for Reliable Operation of Flying LiFi Networks in Destruction Conditions. Sensors 2024, 24, 5707. [Google Scholar] [CrossRef] [Scilit]
  4. Rakshit, H.; Bagheri Zadeh, P. A Novel Approach to Detect Drones Using Deep Convolutional Neural Network Architecture. Sensors 2024, 24, 4550. [Google Scholar] [CrossRef] [Scilit]
  5. Zhu, J.; Rong, J.; Kou, W.; Zhou, Q.; Suo, P. Robust Real-Time Recognition of Drones and Birds in Complex Scenarios: A Multimodal Data Fusion Recognize Approach. Complex Intell. Syst. 2026, 12, 8. [Google Scholar] [CrossRef] [Scilit]
  6. Wojtanowski, J.; Zygmunt, M.; Drozd, T.; Jakubaszek, M.; Życzkowski, M.; Muzal, M. Distinguishing Drones from Birds in a UAV Searching Laser Scanner Based on Echo Depolarization Measurement. Sensors 2021, 21, 5597. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  7. Hua, W.; Chen, Q. A Survey of Small Object Detection Based on Deep Learning in Aerial Images. Artif. Intell. Rev. 2025, 58, 162. [Google Scholar] [CrossRef] [Scilit]
  8. Coluccia, A.; Fascista, A.; Schumann, A.; Sommer, L.; Dimou, A.; Zarpalas, D.; Méndez, M.; de la Iglesia, D.; González, I.; Mercier, J.-P.; et al. Drone vs. Bird Detection: Deep Learning Algorithms and Results from a Grand Challenge. Sensors 2021, 21, 2824. [Google Scholar] [CrossRef] [Scilit]
  9. Al Dawasari, H.J.; Bilal, M.; Moinuddin, M.; Arshad, K.; Assaleh, K. DeepVision: Enhanced Drone Detection and Recognition in Visible Imagery through Deep Learning Networks. Sensors 2023, 23, 8711. [Google Scholar] [CrossRef] [Scilit]
  10. Dudczyk, J.; Czyba, R.; Skrzypczyk, K. Multi-Sensory Data Fusion in Terms of UAV Detection in 3D Space. Sensors 2022, 22, 4323. [Google Scholar] [CrossRef] [Scilit]
  11. Duan, J.; Zhang, L.; Wu, Y.; Zhang, Y.; Zhao, Z.; Guo, X. Classification of Birds and Drones by Exploiting Periodical Motions in Doppler Spectrum Series. J. Syst. Eng. Electron. 2023, 34, 19–27. [Google Scholar] [CrossRef] [Scilit]
  12. Chen, X.; Zhang, H.; Song, J.; Guan, J.; Li, J.; He, Z. Micro-Motion Classification of Flying Bird and Rotor Drones via Data Augmentation and Modified Multi-Scale CNN. Remote Sens. 2022, 14, 1107. [Google Scholar] [CrossRef] [Scilit]
  13. Rahman, S.; Robertson, D.A. Radar Micro-Doppler Signatures of Drones and Birds at K-Band and W-Band. Sci. Rep. 2018, 8, 17396. [Google Scholar] [CrossRef] [Scilit]
  14. Gong, J.; Yan, J.; Li, D.; Kong, D.; Hu, H. Interference of Radar Detection of Drones by Birds. Prog. Electromagn. Res. M 2019, 81, 1–12. [Google Scholar] [CrossRef] [Scilit]
  15. Han, Y.; Yu, X.; Luan, H.; Suo, J. Event-Assisted Object Tracking on High-Speed Drones in Harsh Illumination Environment. Drones 2024, 8, 22. [Google Scholar] [CrossRef] [Scilit]
  16. Dale, H.; Jahangir, M.; Baker, C.J.; Antoniou, M.; Harman, S.; Ahmad, B.I. Convolutional Neural Networks for Robust Classification of Drones. In Proceedings of the 2022 IEEE Radar Conference (RadarConf22), New York, NY, USA, 21 March 2022; pp. 1–6. [Google Scholar]
  17. Al-Emadi, S.; Al-Senaid, F. Drone Detection Approach Based on Radio-Frequency Using Convolutional Neural Network. In Proceedings of the 2020 IEEE International Conference on Informatics, IoT, and Enabling Technologies (ICIoT), Doha, Qatar, 2–5 February 2020; pp. 29–34. [Google Scholar]
  18. Mahdavi, F.; Rajabi, R. Drone Detection Using Convolutional Neural Networks. In Proceedings of the 2020 6th Iranian Conference on Signal Processing and Intelligent Systems (ICSPIS), Mashhad, Iran, 23 December 2020; pp. 1–5. [Google Scholar]
  19. Petrizze, D.; Koorehdavoudi, K.; Xue, M.; Roy, S. Distinguishing Aerial Intruders from Trajectory Data: A Model-Based Hypothesis-Testing Approach. In Proceedings of the 2021 American Control Conference (ACC), New Orleans, LA, USA, 25 May 2021; pp. 3951–3956. [Google Scholar]
  20. Srigrarom, S.; Hoe Chew, K.; Meng Da Lee, D.; Ratsamee, P. Drone versus Bird Flights: Classification by Trajectories Characterization. In Proceedings of the 2020 59th Annual Conference of the Society of Instrument and Control Engineers of Japan (SICE), Chiang Mai, Thailand, 23 September 2020; pp. 343–348. [Google Scholar]
  21. Nuhel, A.K.; Sheham, M.N.H.; Mohibullah Sazid, M.; Babu, R.M.; Arif Shah, H.M.; Saha, B.; Bhatia, D. Modeling and Performance Analysis of a Model Predictive and Feedback Linearization Controlled UAV Autonomous Quadcopter Drone in 3D Dynamics. In Recent Developments in Control, Automation and Power Engineering; Springer Nature: Singapore, 2025; pp. 343–355. [Google Scholar]
  22. Amarasooriya, P.M.D.S.; Sandaruwan, K.D. AI-Based 3D Simulation for Drone Flight Dynamics. Int. J. Adv. ICT Emerg. Reg. (ICTer) 2025, 18, 19–31. [Google Scholar] [CrossRef] [Scilit]
  23. Krawczyk, Z.; Vuppala, R.K.S.S.; Paul, R.; Kara, K. Urban Wind Field Effects on the Flight Dynamics of Fixed-Wing Drones. Drones 2025, 9, 362. [Google Scholar] [CrossRef] [Scilit]
  24. Fatima, S.K.; Abbas, S.M.; Mir, I.; Gul, F.; Forestiero, A. Flight Dynamics Modeling with Multi-Model Estimation Techniques: A Consolidated Pipeline. J. Electr. Eng. Technol. 2023, 18, 2371–2381. [Google Scholar] [CrossRef] [Scilit]
  25. Özben, Y.; Demir, S.E.; Yılmaz, H.B. Digital Twin of Multi-Model Drone Detection System on Airsim for RF and Vision Modalities. Turk. J. Eng. 2024, 8, 572–582. [Google Scholar] [CrossRef] [Scilit]
  26. Last, M. Early Detection of Small- and Medium-Sized Drones in Complex Environments. Drone Syst. Appl. 2025, 13, 1–10. [Google Scholar] [CrossRef] [Scilit]
  27. Yoo, J.; Cho, J. Enhanced Detection of Small Unmanned Aerial System Using Noise Suppression Super-Resolution Detector for Effective Airspace Surveillance. Appl. Sci. 2025, 15, 3076. [Google Scholar] [CrossRef] [Scilit]
  28. Wasala, M.; Kryjak, T. Real-Time HOG+SVM Based Object Detection Using SoC FPGA for a UHD Video Stream. In Proceedings of the 2022 11th Mediterranean Conference on Embedded Computing (MECO), Budva, Montenegro, 7 June 2022; pp. 1–6. [Google Scholar]
  29. Chaudhari, M.N.; Deshmukh, M.; Ramrakhiani, G.; Parvatikar, R. Face Detection Using Viola Jones Algorithm and Neural Networks. In Proceedings of the 2018 Fourth International Conference on Computing Communication Control and Automation (ICCUBEA), Pune, India, 16–18 August 2018; pp. 1–6. [Google Scholar]
  30. Xu, Y.; Wu, T.; Gao, F.; Charlton, J.R.; Bennett, K.M. Improved Small Blob Detection in 3D Images Using Jointly Constrained Deep Learning and Hessian Analysis. Sci. Rep. 2020, 10, 326. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  31. Zhang, M.; Wu, T.; Beeman, S.C.; Cullen-McEwen, L.; Bertram, J.F.; Charlton, J.R.; Baldelomar, E.; Bennett, K.M. Efficient Small Blob Detection Based on Local Convexity, Intensity and Shape Information. IEEE Trans. Med. Imaging 2016, 35, 1127–1137. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  32. Guiming, S.; Jidong, S. Multi-Scale Harris Corner Detection Algorithm Based on Canny Edge-Detection. In Proceedings of the 2018 IEEE International Conference on Computer and Communication Engineering Technology (CCET), Beijing, China, 18–20 August 2018; pp. 305–309. [Google Scholar]
  33. Mu, Z.; Li, Z. A Novel Shi-Tomasi Corner Detection Algorithm Based on Progressive Probabilistic Hough Transform. In Proceedings of the 2018 Chinese Automation Congress (CAC), Xi’an, China, 30 November–2 December 2018; pp. 2918–2922. [Google Scholar]
  34. Rosten, E.; Drummond, T. Machine Learning for High-Speed Corner Detection. In Proceedings of the 9th European Conference on Computer Vision, Graz, Austria, 7–13 May 2006; Volume 3951, pp. 430–443. [Google Scholar] [CrossRef] [Scilit]
  35. Matas, J.; Chum, O.; Urban, M.; Pajdla, T. Robust Wide Baseline Stereo from Maximally Stable Extremal Regions. In Proceedings of the British Machine Vision Conference (BMVC), Wales, UK, 2–5 September 2002; pp. 384–393. [Google Scholar] [CrossRef] [Scilit]
  36. Lowe, D.G. Distinctive Image Features from Scale-Invariant Keypoints. Int. J. Comput. Vis. 2004, 60, 91–110. [Google Scholar] [CrossRef] [Scilit]
  37. Bay, H.; Tuytelaars, T.; Van Gool, L. SURF: Speeded Up Robust Features. In Proceedings of the 9th European Conference on Computer Vision, Graz, Austria, 7–13 May 2006; Volume 3951, pp. 404–417. [Google Scholar] [CrossRef] [Scilit]
  38. Guo, J.; Zhu, C. Dynamic Displacement Measurement of Large-Scale Structures Based on the Lucas–Kanade Template Tracking Algorithm. Mech. Syst. Signal Process 2016, 66–67, 425–436. [Google Scholar] [CrossRef] [Scilit]
  39. Daraei, M.H. Optical Flow Computation in the Presence of Spatially-Varying Motion Blur. In Advances in Visual Computing, Proceedings of the 10th International Symposium, ISVC 2014, Las Vegas, NV, USA, 8–10 December 2014; Springer International Publishing: Cham, Switzerland, 2014; Volume 8887, pp. 140–150. [Google Scholar] [CrossRef] [Scilit]
  40. Farnebäck, G. Two-Frame Motion Estimation Based on Polynomial Expansion. In Image Analysis, Proceedings of the 13th Scandinavian Conference on Image Analysis (SCIA 2003), Halmstad, Sweden, 29 June–2 July 2003; Springer: Berlin/Heidelberg, Germany, 2003; pp. 363–370. ISBN 978-3-540-45103-7. [Google Scholar]
  41. Dosovitskiy, A.; Fischer, P.; Ilg, E.; Hausser, P.; Hazirbas, C.; Golkov, V.; Van Der Smagt, P.; Cremers, D.; Brox, T. FlowNet: Learning Optical Flow with Convolutional Networks. In Proceedings of the 2015 IEEE International Conference on Computer Vision (ICCV), Santiago, Chile, 7–13 December 2015; pp. 2758–2766. [Google Scholar]
  42. Sun, D.; Yang, X.; Liu, M.-Y.; Kautz, J. PWC-Net: CNNs for Optical Flow Using Pyramid, Warping, and Cost Volume. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Salt Lake City, UT, USA, 18–23 June 2018. [Google Scholar]
  43. Teed, Z.; Deng, J. RAFT: Recurrent All-Pairs Field Transforms for Optical Flow. In Proceedings of the European Conference on Computer Vision (ECCV), Glasgow, UK, 23–28 August 2020. [Google Scholar]
  44. Kalman, R.E. A New Approach to Linear Filtering and Prediction Problems. J. Basic Eng. 1960, 82, 35–45. [Google Scholar] [CrossRef] [Scilit]
  45. Isard, M.; Blake, A. CONDENSATION—Conditional Density Propagation for Visual Tracking. Int. J. Comput. Vis. 1998, 29, 5–28. [Google Scholar] [CrossRef] [Scilit]
  46. Kuhn, H.W. The Hungarian Method for the Assignment Problem. Nav. Res. Logist. Q. 1955, 2, 83–97. [Google Scholar] [CrossRef] [Scilit]
  47. Fortmann, T.; Bar-Shalom, Y.; Scheffe, M. Sonar Tracking of Multiple Targets Using Joint Probabilistic Data Association. IEEE J. Ocean. Eng. 1983, 8, 173–184. [Google Scholar] [CrossRef] [Scilit]
  48. Reid, D.B. An Algorithm for Tracking Multiple Targets. IEEE Trans. Autom. Control 1979, 24, 843–854. [Google Scholar] [CrossRef] [Scilit]
  49. Wojke, N.; Bewley, A.; Paulus, D. Simple Online and Realtime Tracking with a Deep Association Metric (Deep SORT). IEEE International Conference on Image Processing (ICIP), Beijing, China, 17–20 September 2017; pp. 3645–3649. [Google Scholar] [CrossRef] [Scilit]
  50. Zhang, Z. A Flexible New Technique for Camera Calibration. IEEE Trans. Pattern Anal. Mach. Intell. 2000, 22, 1330–1334. [Google Scholar] [CrossRef] [Scilit]
  51. Hartley, R.; Zisserman, A. Multiple View Geometry in Computer Vision; Cambridge University Press: Cambridge, UK, 2003; 655p. [Google Scholar]
  52. Goswami, P. A survey of modeling, rendering and animation of clouds in computer graphics. Vis. Comput. 2021, 37, 1931–1948. [Google Scholar] [CrossRef] [Scilit]
  53. Hasan, M.M.; Karim, M.S.; Ahmed, E. Generating and Rendering Procedural Clouds in Real Time on Programmable 3D Graphics Hardware. In Proceedings of the 9th International Multitopic Conference (INMIC 2005), Karachi, Pakistan, 24–25 December 2005; pp. 1–6. [Google Scholar] [CrossRef] [Scilit]
  54. Luukkonen, T. Modelling and Control of Quadcopter; Independent Research Project in Applied Mathematics, Mat-2.4108; Aalto University: Espoo, Finland, 2011. [Google Scholar]
  55. Saif, E.; Eminoğlu, I. Modelling of quad-rotor dynamics and Hardware-in-the-Loop simulation. J. Eng. 2022, 2022, 937–950. [Google Scholar] [CrossRef] [Scilit]
  56. Young, L.A. Conceptual Design Aspects of Three General Sub-Classes of Multi-Rotor Configurations: Distributed, Modular, and Heterogeneous. In Proceedings of the AHS International Specialists Meeting on Unmanned Rotorcraft Systems, Scottsdale, AZ, USA, 20–22 January 2015. [Google Scholar]
  57. Bassolillo, S.R.; Raspaolo, G.; Blasi, L.; D’Amato, E.; Notaro, I. Path Planning for Fixed-Wing Unmanned Aerial Vehicles: An Integrated Approach with Theta and Clothoids. Drones 2024, 8, 62. [Google Scholar] [CrossRef] [Scilit]
  58. Stevens, B.L.; Lewis, F.L.; Johnson, E.N. Aircraft Control and Simulation: Dynamics, Controls Design, and Autonomous Systems, 3rd ed.; Wiley: Hoboken, NJ, USA, 2016; 768p. [Google Scholar]
  59. Liu, T.; Kuykendoll, K.; Rhew, R.; Jones, S. Avian Wing Geometry and Kinematics. AIAA J. 2006, 44, 954–963. [Google Scholar] [CrossRef] [Scilit]
  60. Ros, I.G.; Badger, M.A.; Pierson, A.N.; Bassman, L.C.; Biewener, A.A. Pigeons produce aerodynamic torques through changes in wing trajectory during low speed aerial turns. J. Exp. Biol. 2015, 218, 480–490. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  61. Meinhardt, T.; Kirillov, A.; Leal-Taixe, L.; Feichtenhofer, C. TrackFormer: Multi-Object Tracking with Transformers. In Proceedings of the 2022 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), New Orleans, LA, USA, 18–24 June 2022; pp. 8844–8854. [Google Scholar] [CrossRef] [Scilit]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Article Metrics

Citations

Article Access Statistics

Journal Statistics
Multiple requests from the same IP address are counted as one view.
LESSDD-Net: A Lightweight and Efficient Steel Surface Defect Detection Network Based on Feature Segmentation and Partially Connected Structures
Previous
Post-Quantum Revocable Linkable Ring Signature Scheme Based on SPHINCS+ for V2G Scenarios
Next
