Multi-Level Optimization for Data-Driven Camera–LiDAR Calibration in Data Collection Vehicles

,
,
and
School of Resource and Environmental Sciences, Wuhan University, Wuhan 430079, China
*
Author to whom correspondence should be addressed.

Abstract

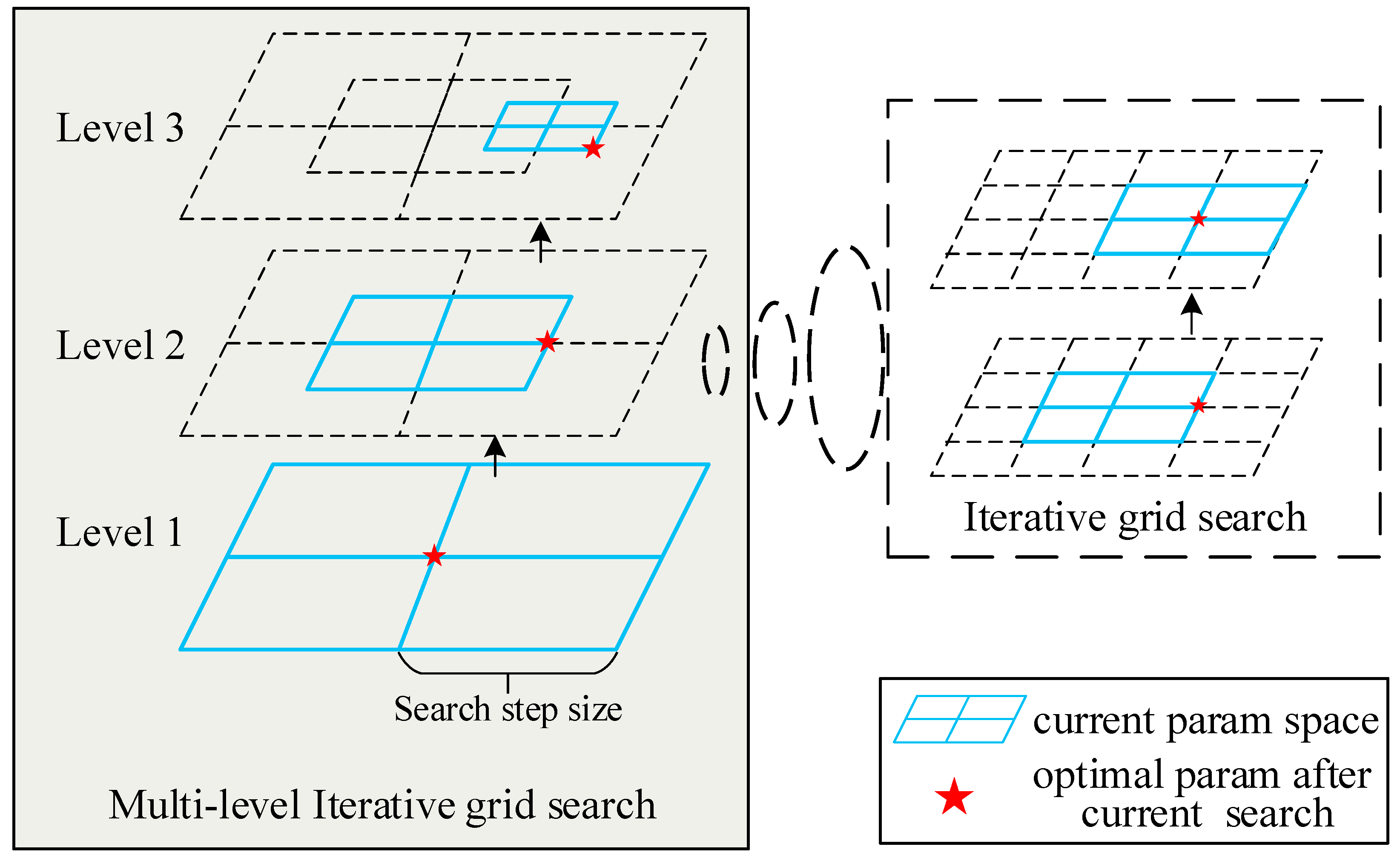

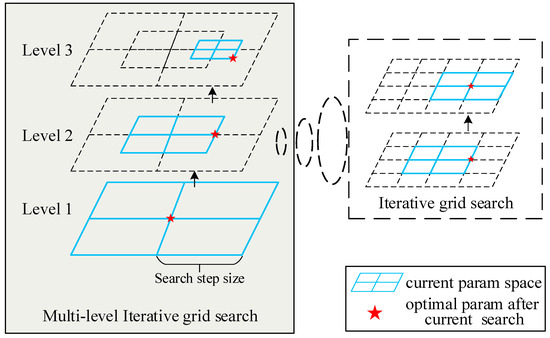

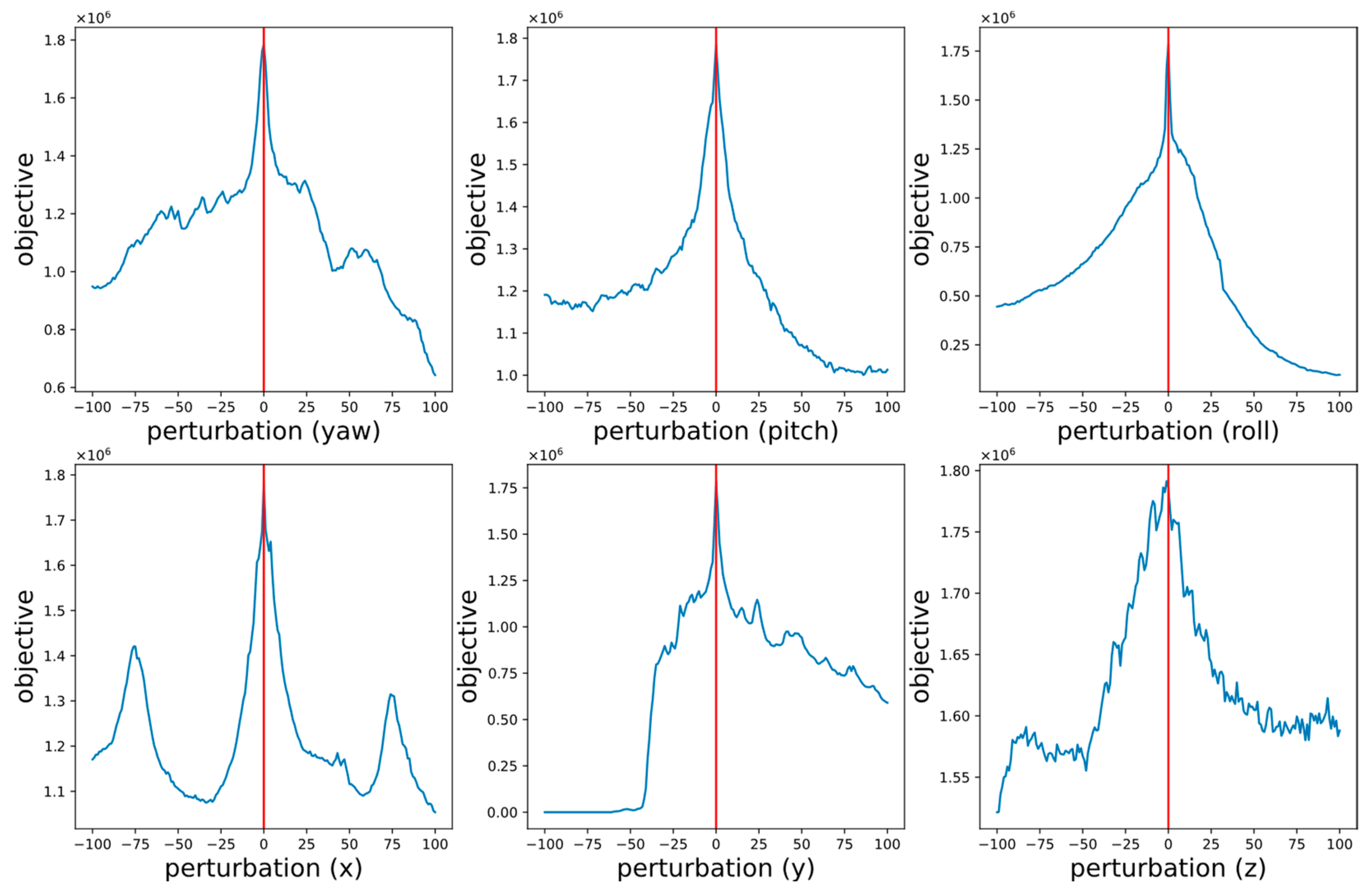

Accurately calibrating camera–LiDAR systems is crucial for achieving effective data fusion, particularly in data collection vehicles. Data-driven calibration methods have gained prominence over target-based methods due to their superior adaptability to diverse environments. However, current data-driven calibration methods are susceptible to suboptimal initialization parameters, which can significantly impact the accuracy and efficiency of the calibration process. In response to these challenges, this paper proposes a novel general model for the camera–LiDAR calibration that abstracts away the technical details in existing methods, introduces an improved objective function that effectively mitigates the issue of suboptimal parameter initialization, and develops a multi-level parameter optimization algorithm that strikes a balance between accuracy and efficiency during iterative optimization. The experimental results demonstrate that the proposed method effectively mitigates the effects of suboptimal initial calibration parameters, achieving highly accurate and efficient calibration results. The suggested technique exhibits versatility and adaptability to accommodate various sensor configurations, making it a notable advancement in the field of camera–LiDAR calibration, with potential applications in diverse fields including autonomous driving, robotics, and computer vision.
