13 January 2023

19 Pages

Implementation of Parameter Observer for Capacitors

,
,
and
Department of Automation and Applied Informatics, Politehnica University Timișoara, Bulevardul Vasile Pârvan, nr. 2, 300223 Timișoara, Romania
*
Author to whom correspondence should be addressed.

Abstract

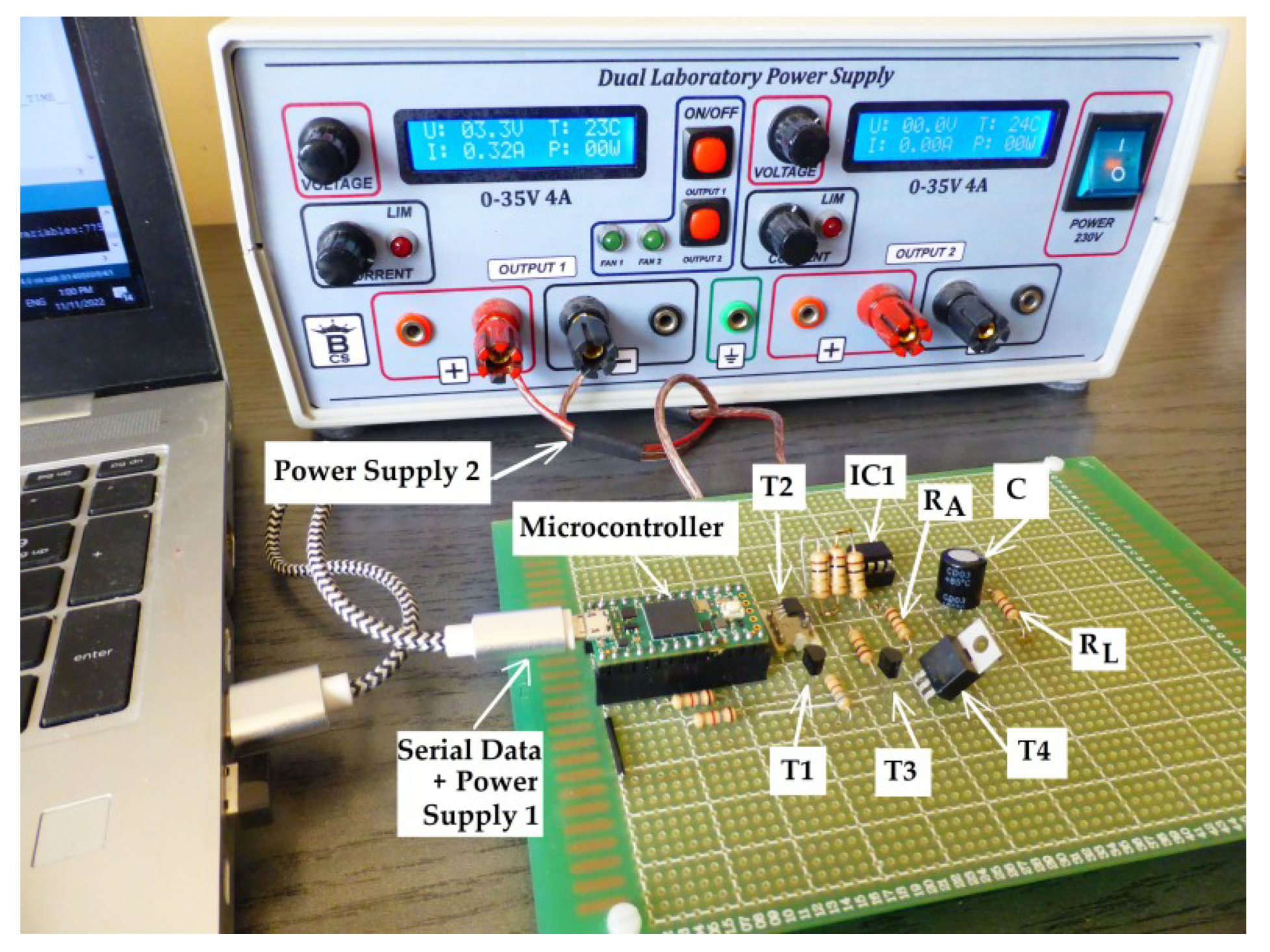

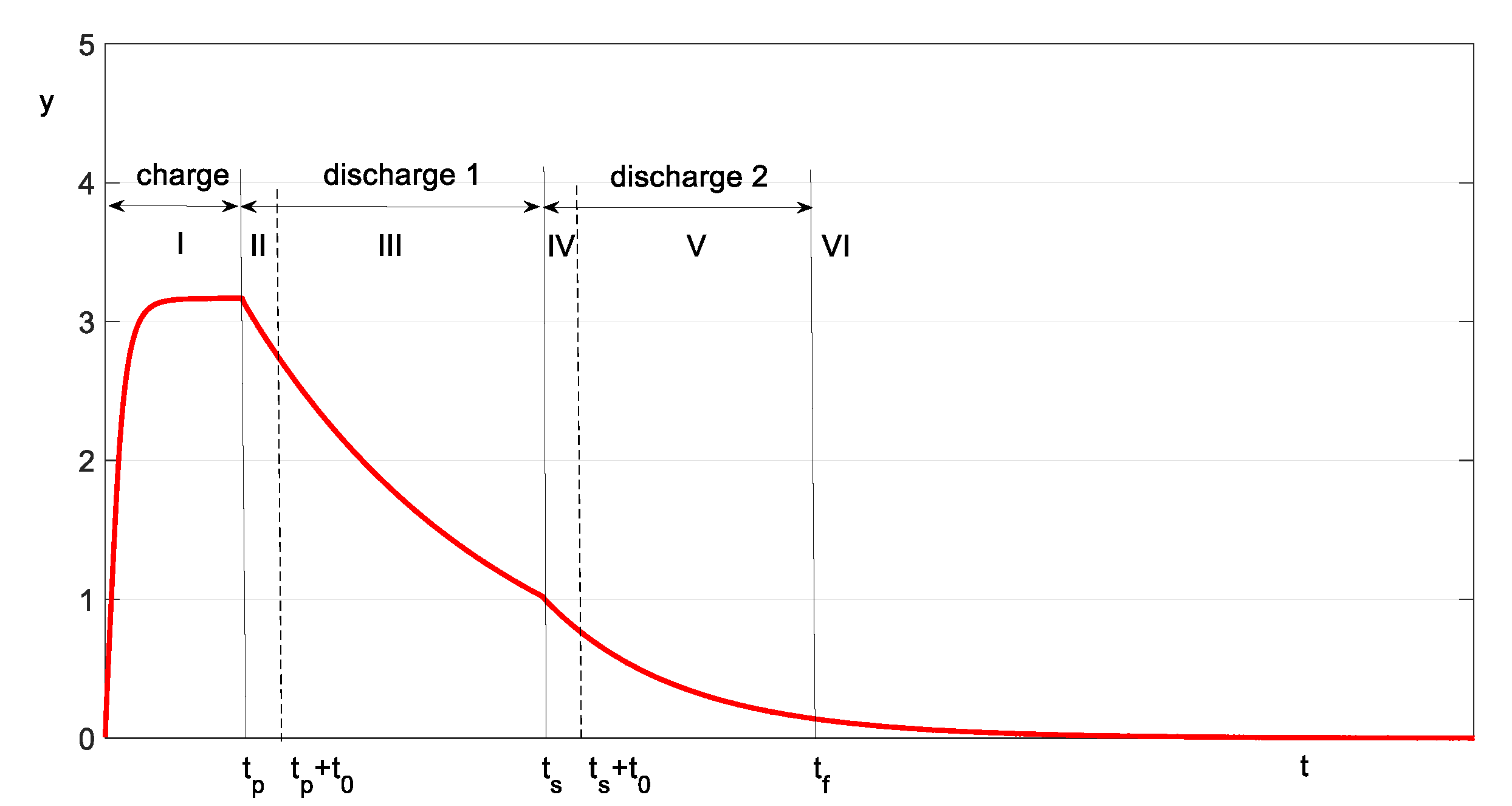

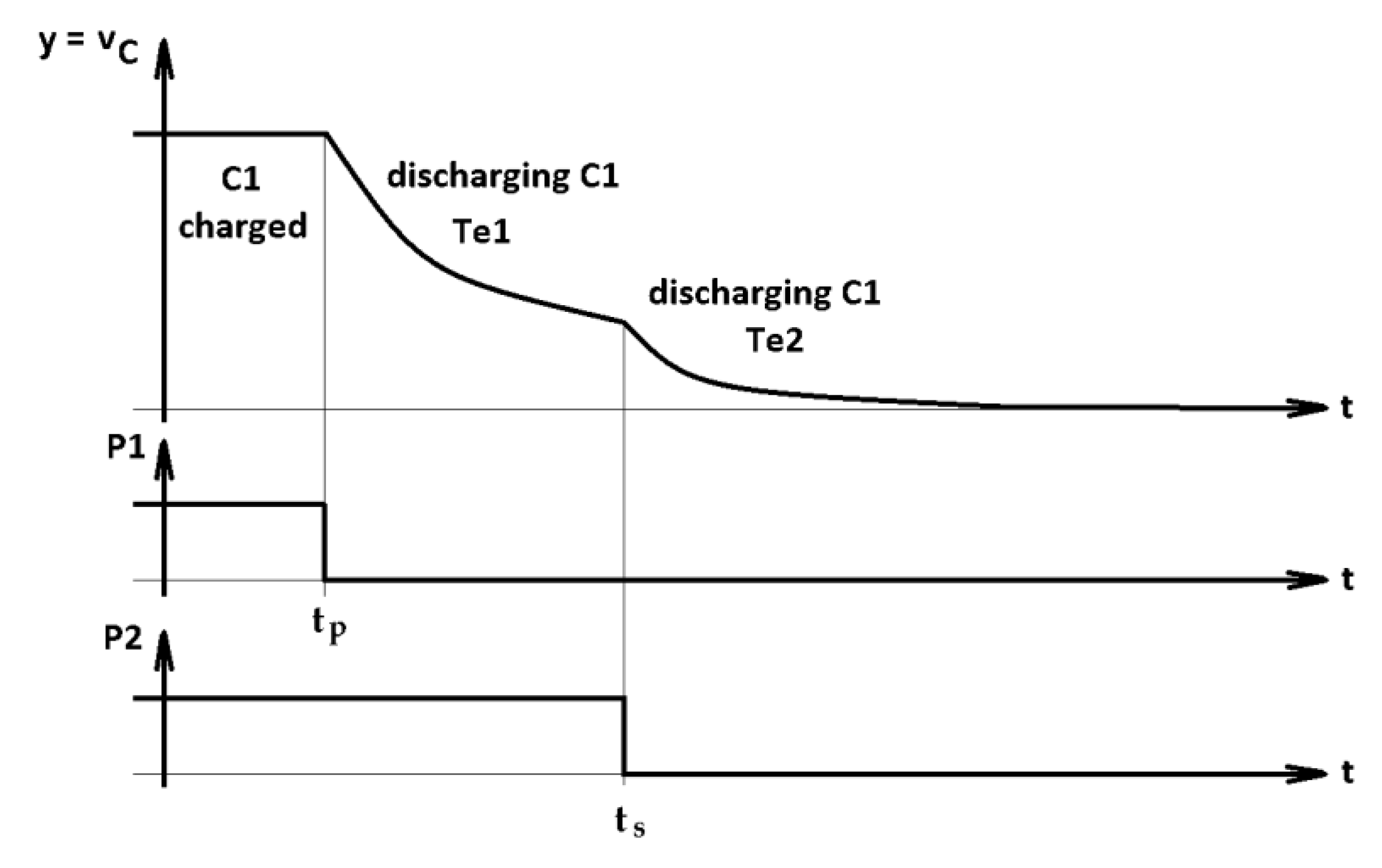

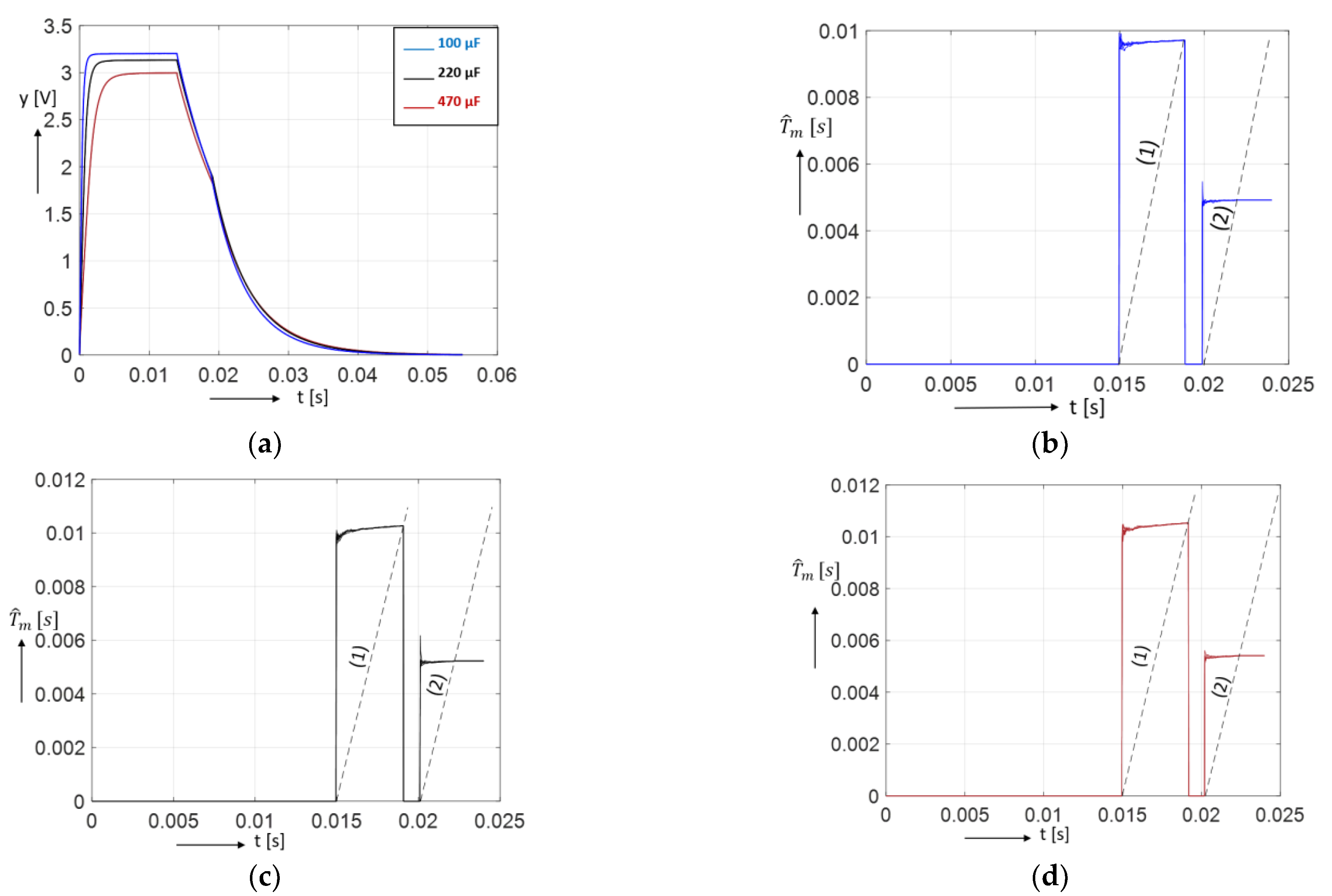

This paper describes the implementation of a parameter observer (PO) intended to estimate the capacitance and equivalent serial resistance of a capacitor (ESR). The implemented observer consists of a dynamic second-order discrete-time system. The input signal of the observer is the voltage at the terminals of the capacitor measured during its discharge across a variable resistance in two steps. The implemented observer can be used in quasi-online or offline mode. The theoretical and experimental supporting materials provide a comprehensive picture of the implementation and conditions of use of the PO. The experimental verification was carried out with a microcontroller with Cortex®-M7 core architecture. The sampling time of the PO was 20 μs, and the estimation of the parameters was obtained before the end of the discharge of the capacitor. In the cases described in the paper, this means approximately 25 ms. Due to the PO’s capabilities (estimation speed, reduced computational complexity and precision)—proved by the experiments carried out on three electrolytic capacitors of 100 μF, 220 μF and 440 μF—the implementation is of interest for several applications, primarily in the field of power electronic applications.
