A Method for Simultaneously Measuring 6DOF Geometric Motion Errors of Linear and Rotary Axes Using Lasers

Key Lab of Luminescence and Optical Information, Ministry of Education, Beijing Jiaotong University, Beijing 100044, China
*
Author to whom correspondence should be addressed.
Received: 7 March 2019 / Revised: 4 April 2019 / Accepted: 11 April 2019 / Published: 12 April 2019
  |
PDF [3034 KB, uploaded 23 April 2019]
  |

Abstract

A novel method for simultaneously directly measuring six-degrees-of-freedom (6DOF) geometric motion errors of CNC machine tools was proposed, and a corresponding measurement system was developed. This method can not only be applied for measuring a linear axis, but also for a rotary axis. A single-mode fiber was used to separate the measuring unit from the laser source in order to ensure system thermal stability and measurement accuracy. The method has the advantages of high efficiency and good accuracy, and requires no complicated decoupling calculation. The positioning error of the linear axis and radial motion error of the rotary axis are measured by laser interferometry and other 5DOF geometric motion errors by laser collimation. A series of experiments were performed to verify the feasibility and effectiveness of the developed measurement system. View Full-Text
Keywords: 6DOF geometric motion errors; measurement; linear axis; rotary axis; CNC machine tools 6DOF geometric motion errors; measurement; linear axis; rotary axis; CNC machine tools
Figures

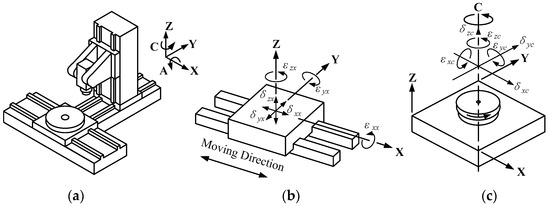

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Zheng, F.; Feng, Q.; Zhang, B.; Li, J. A Method for Simultaneously Measuring 6DOF Geometric Motion Errors of Linear and Rotary Axes Using Lasers. Sensors 2019, 19, 1764.
