Validation of a CFD Model by Using 3D Sonic Anemometers to Analyse the Air Velocity Generated by an Air-Assisted Sprayer Equipped with Two Axial Fans

Superior Polytechnic School, University of Zaragoza, 22071 Huesca, Spain
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Sensors 2015, 15(2), 2399-2418;
Received: 9 November 2014 / Accepted: 14 January 2015 / Published: 22 January 2015
(This article belongs to the Special Issue Sensors in Agriculture and Forestry)
PDF [1777 KB, uploaded 22 January 2015]

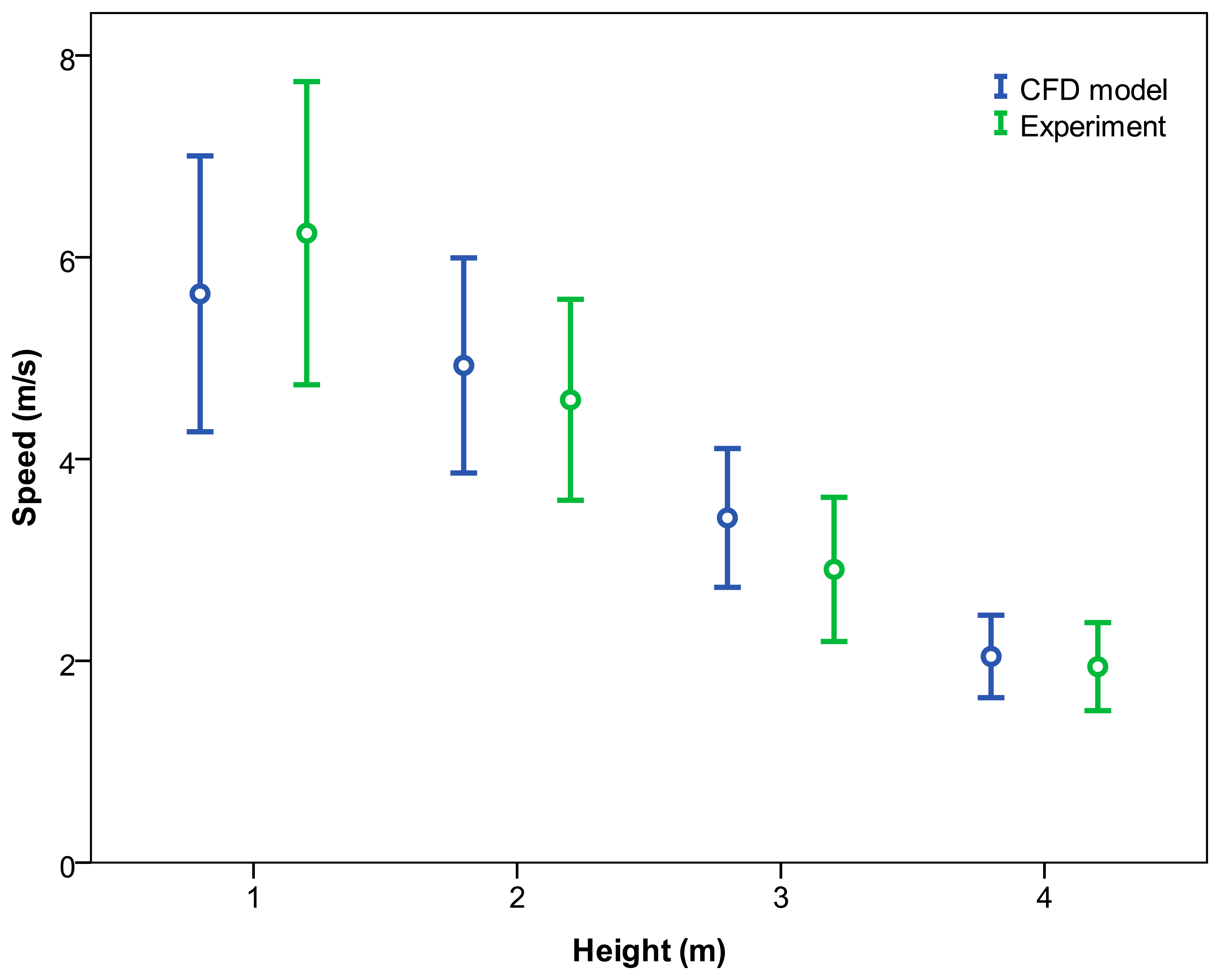

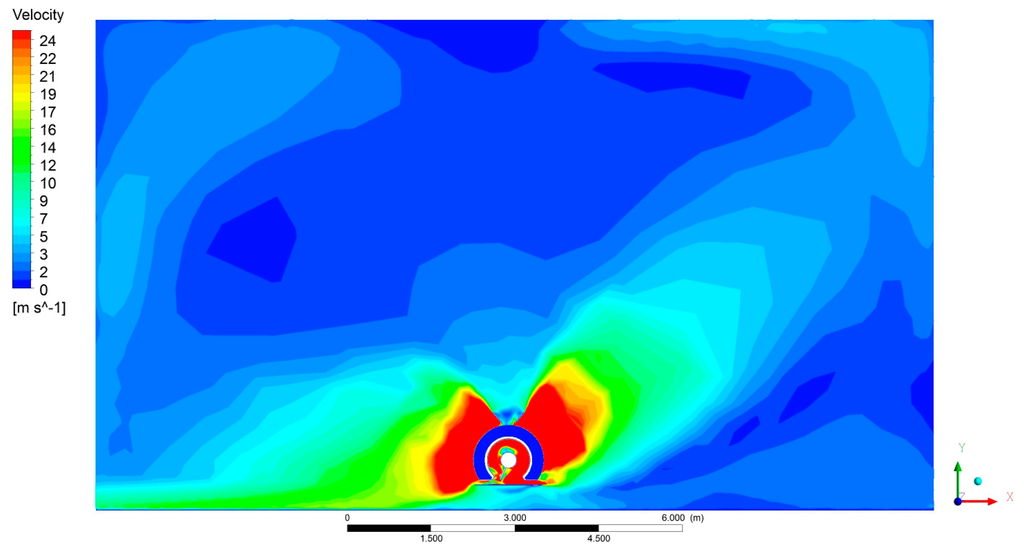

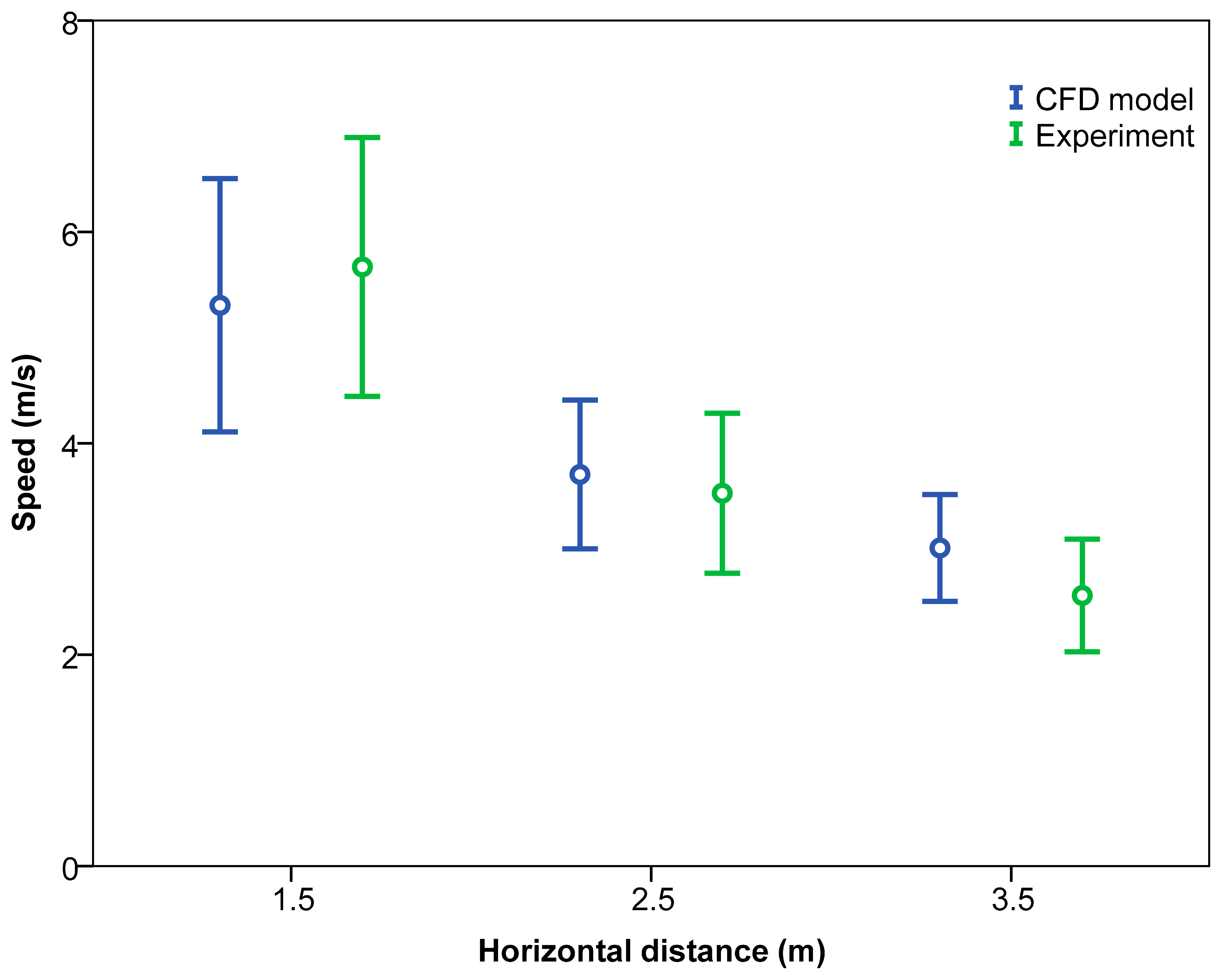

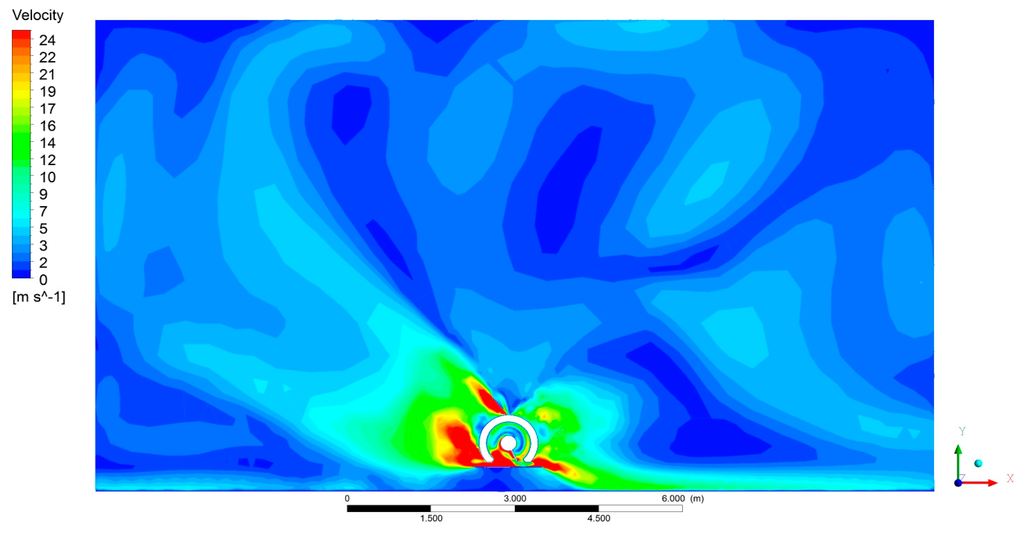

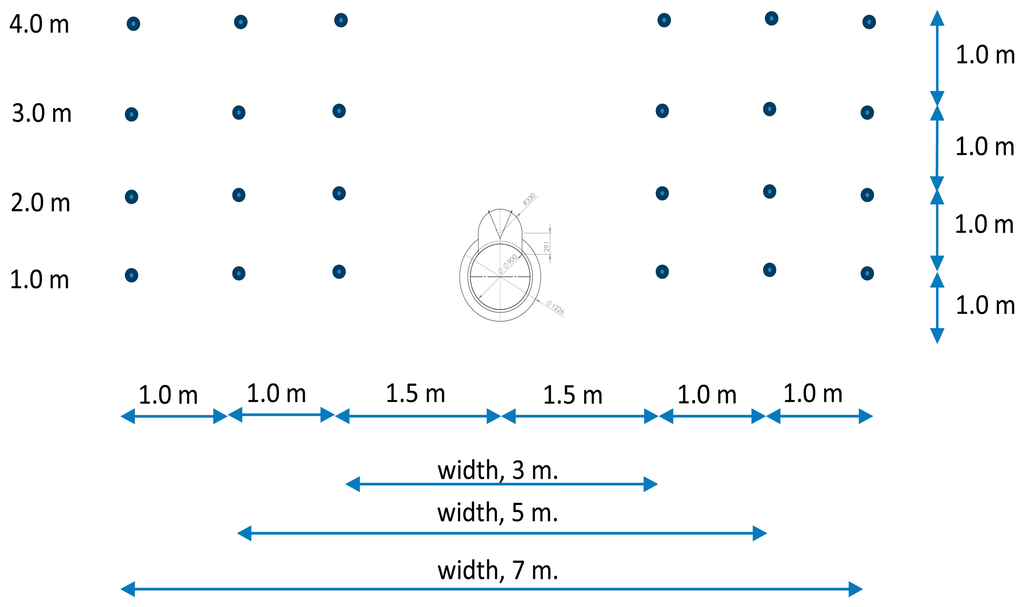

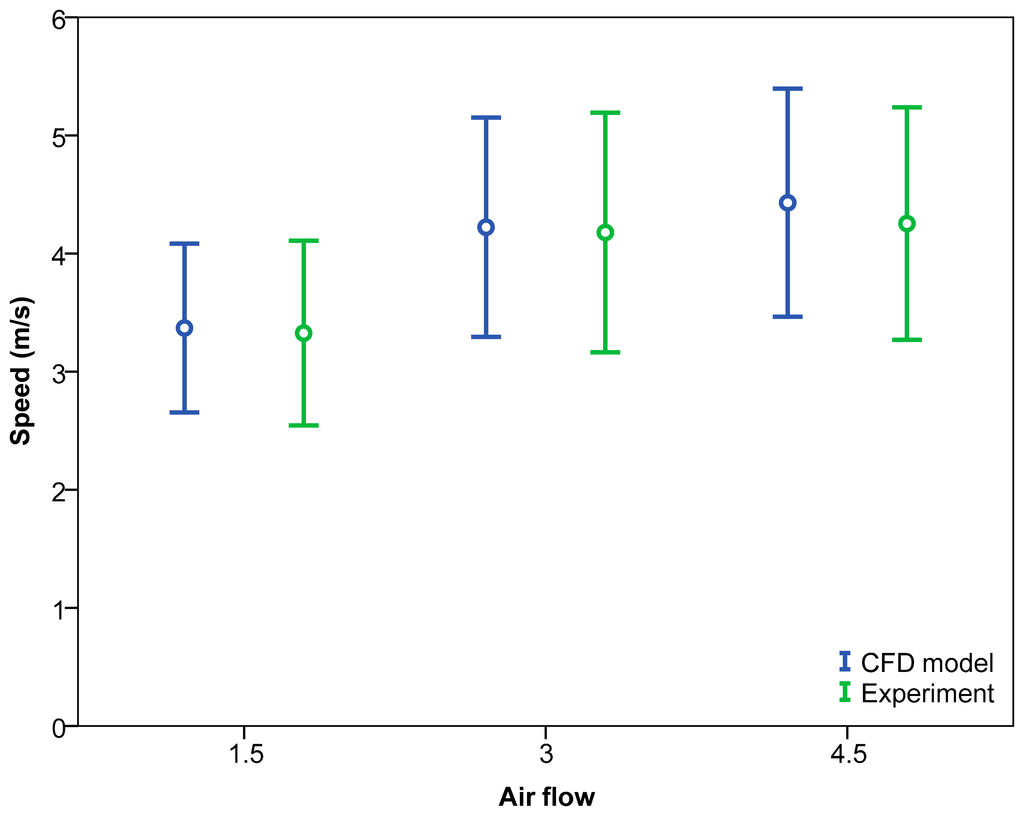

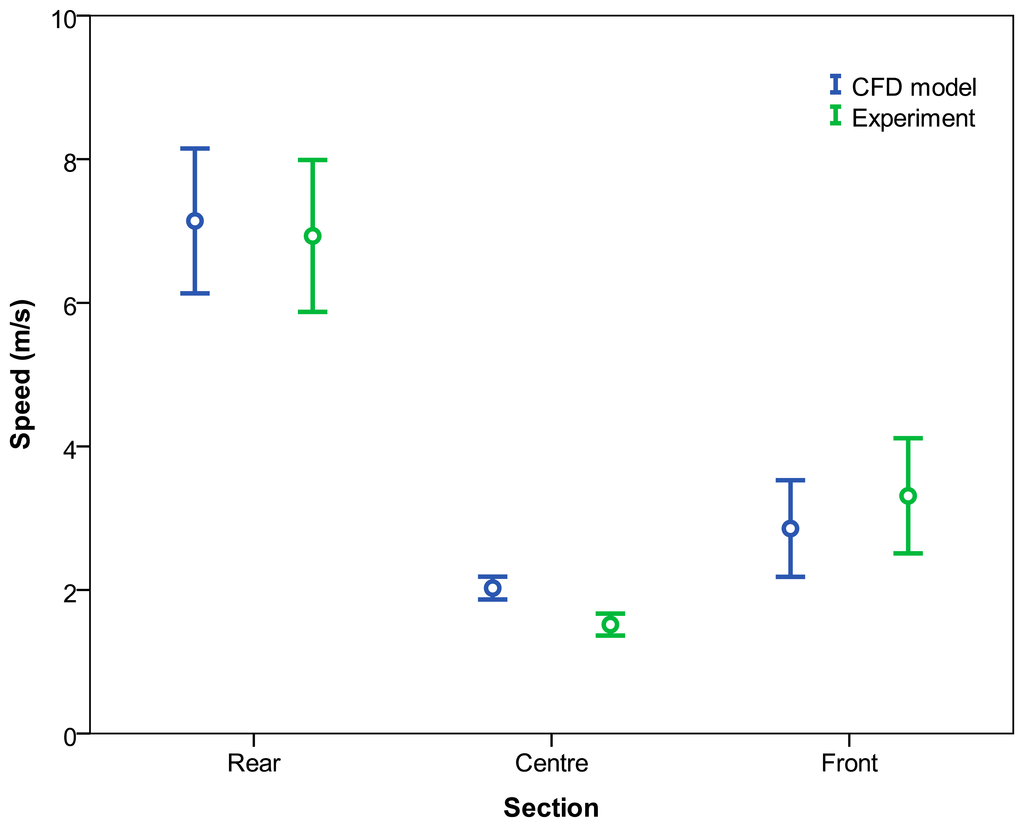

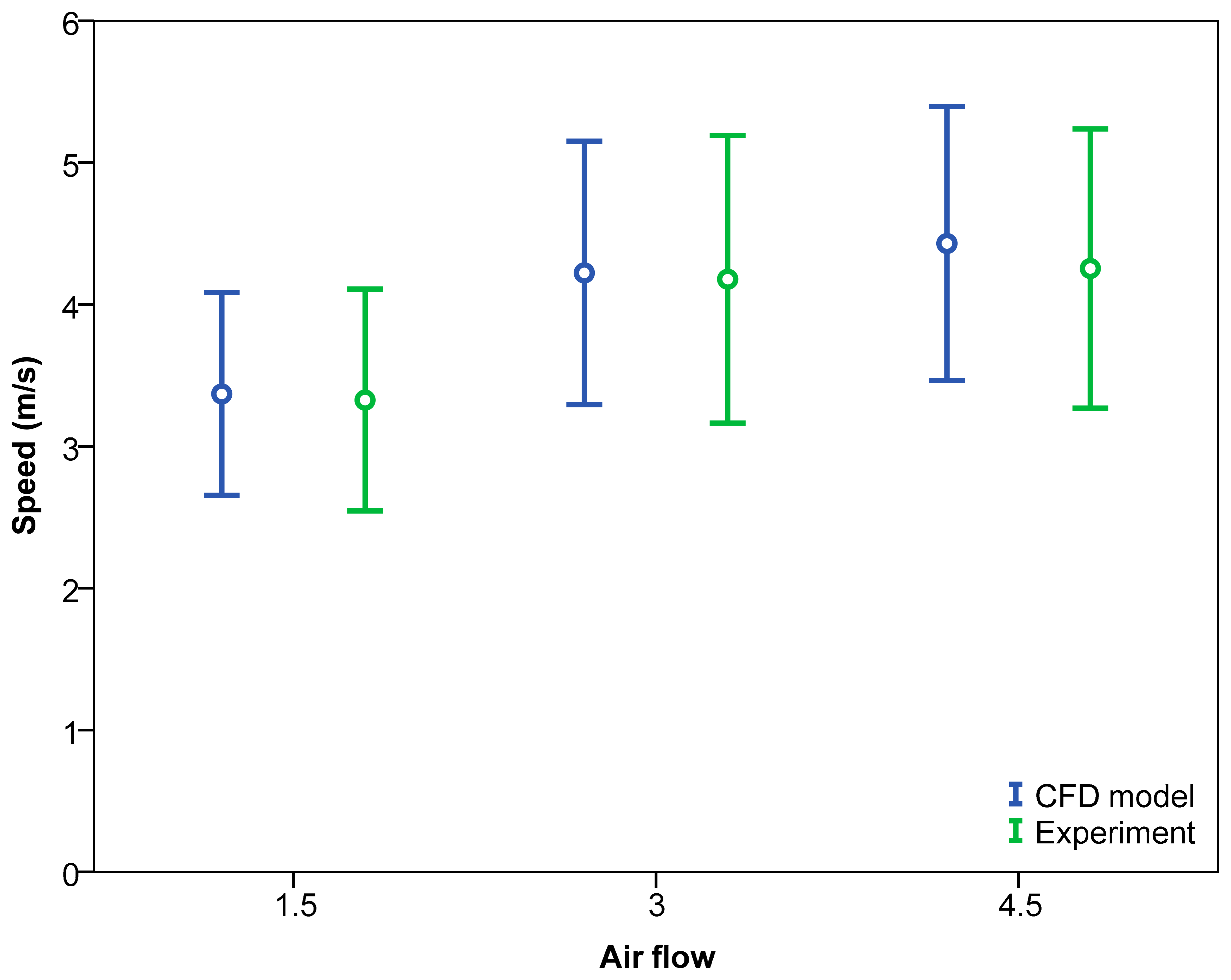

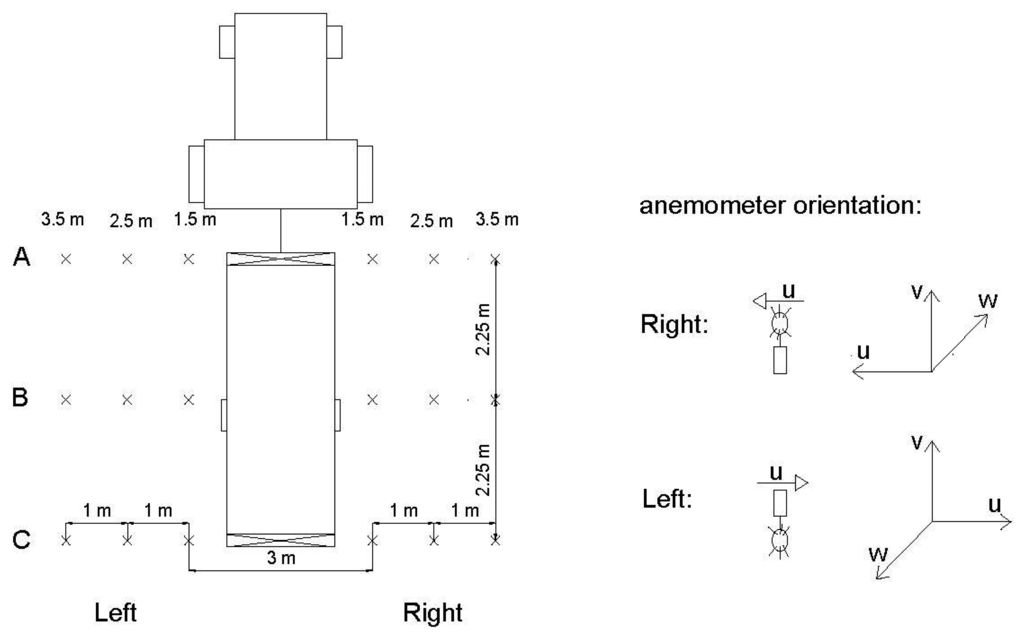

A computational fluid dynamics (CFD) model of the air flow generated by an air-assisted sprayer equipped with two axial fans was developed and validated by practical experiments in the laboratory. The CFD model was developed by considering the total air flow supplied by the sprayer fan to be the main parameter, rather than the outlet air velocity. The model was developed for three air flows corresponding to three fan blade settings and assuming that the sprayer is stationary. Actual measurements of the air velocity near the sprayer were taken using 3D sonic anemometers. The workspace sprayer was divided into three sections, and the air velocity was measured in each section on both sides of the machine at a horizontal distance of 1.5, 2.5, and 3.5 m from the machine, and at heights of 1, 2, 3, and 4 m above the ground The coefficient of determination (R2) between the simulated and measured values was 0.859, which demonstrates a good correlation between the simulated and measured data. Considering the overall data, the air velocity values produced by the CFD model were not significantly different from the measured values. View Full-Text
Keywords: air flow; air velocity; correlation; pesticide air flow; air velocity; correlation; pesticide
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
