Differences in the Structure of the Gut Bacteria Communities in Development Stages of the Chinese White Pine Beetle (Dendroctonus armandi)

by
Xia Hu
,
Chunyan Wang
,
Hui Chen
* and
Junning Ma
College of Forestry, Northwest A&F University, Yangling 712100, Shaanxi, China
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2013, 14(10), 21006-21020; https://doi.org/10.3390/ijms141021006
Submission received: 10 September 2013 / Revised: 12 October 2013 / Accepted: 14 October 2013 / Published: 18 October 2013
(This article belongs to the Section Biochemistry)
Browse Figures
Versions Notes

Abstract

:
The Chinese white pine beetle Dendroctonus armandi Tsai and Li, is arguably the most destructive forest insect in the Qinling Mountains in Northern China. Little is known about the structure of the bacterial communities associated with D. armandi even though this wood-boring insect plays important roles in ecosystem and biological invasion processes that result in huge economic losses in pine forests. The aim of this study was to investigate the composition of the bacterial communities present in the guts of D. armandi at different developmental stages using a culture-independent method involving PCR-denaturing gradient gel electrophoresis (DGGE). Analysis of PCR-amplified 16S rRNA gene fragments of bacteria from the guts of larvae, pupae, and male and female adults revealed bacterial communities of low complexity that differed according to the developmental stage. Citrobacter spp. and Pantoea spp. predominated in larvae and adults, whereas Methylobacterium was the dominant genus at the pupal stage. The main difference between the guts of male and female adults was the greater dominance of Citrobacter in females. Previous studies suggest that the bacterial community associated with D. armandi guts may influence insect development. The data obtained in this study regarding the phylogenetic relationships and the community structure of intestinal bacteria at different developmental stages of the D. armandi life cycle contribute to our understanding of D. armandi and could aid the development of new pest control strategies.

1. Introduction

Bark beetles, especially Dendroctonus species, are considered to be serious pests in coniferous forests [1]. They cause extensive damage to coniferous trees, which results in huge economic losses, and represent a major disturbance factor for the ecosystem [2]. Bark beetles can harbor gut microbial communities that range from simple to complex [3,4]. In a few systems that have been studied in more detail, important contributions to the host insect physiology and life history have been attributed to the gut-associated microbes [5,6]. The relationship between the nutrient-poor substrate on which the wood-boring insects feed and the cellulolytic and nitrogen-fixing microbes that are associated with these insects has also been investigated [7,8].
Chinese white pine beetle (Dendroctonus armandi Tsai and Li, Scolytidae), an important pest in the Qinling and Bashan Mountains in Northern China, is able to kill living Pinus armandi and has caused serious damage to P. armandi forests since 1954 [9]. Owing to the importance of D. armandi, various aspects of its biology and physiology have been studied, such as its niche within the P. armandi ecosystem [9], its life cycle [10] and symbiotic fungi [11]. However, little is known about its symbiotic intestinal bacterial communities.
Bacterial communities are known to play important roles in the life histories of bark beetles, contributing to their reproductive success, community interactions and niche diversification [12], as well as their development and survival in harsh environments by metabolizing toxins and providing protection against natural enemies [13]. Bacteria can also contribute to the fitness of bark beetles, particularly insects that rely on a nutrient-poor food source, by providing nutritional supplements that are absent from the diet of the insect, such as amino acids [14], essential vitamins [15] and nitrogen and carbon compounds [16,17]. Such relationships seem to be especially prevalent among insects that exploit woody substrates, which are relatively nutrient poor, heavily chemically defended, and available to competitors once the defenses of the woody substrate are depleted [18–20]. Host insects that are deprived of their symbiont show retarded growth, increased mortality and sterility [21]. Some endosymbionts have shown spatial and geographic variation [22,23]; however, it is poorly understood whether the composition of endosymbionts varies among the different developmental stages and between sexes. Hosokawa et al. first reported such a case in stinkbugs of the family Plataspidae, wherein specific gut bacteria were vertically transmitted via a “symbiont capsule” [24]. We hypothesized that beetles from all samples in our study would share a small number of bacterial species. We further hypothesized that there would be some relationships between bacterial community structure and the stage of development. The first step toward understanding the roles of endosymbiont community members in bark beetle biology and in the functioning of the community itself is to define the members of the community [25].
In our study, gut-associated bacterial communities of D. armandi in the larval, pupal and adult stages were investigated using a culture-independent method. We quantified the variability of bacterial communities and determined the frequency of specific bacterial phylotypes associated with the three developmental stages. Components of the bacterial community profiles were excised and sequenced to determine the identity of the taxa using PCR-denaturing gradient gel electrophoresis (DGGE) [26].

2. Results and Discussion

2.1. Bacterial Diversity Analysis

The number, density and composition of bacterial DGGE bands were different in each sample (Figure 1). Based on the peak density of bands in the DGGE profile, the bacterial diversity indices were analyzed as a way of estimating the diversity of microbial communities, which showed that the value of the Shannon–Wiener index (H′) was positively related to the diversity of the bacterial community. The richness and H′ value (2.367476) of bacteria in the guts of D. armandi larvae (S1) were the highest with 16 visible bands in the DGGE profile, whereas the pupal stage (S2) was the lowest with only 10 visible bands (Table 1). There was no significant difference between the bacterial diversity of the larval and adult stages (p > 0.05), or that of the male and female adults (p > 0.05). The H′ value of gut bacteria found in the pupal stage was significantly different compared with those of the larval and adult stages (p < 0.05).

2.2. Phylogenetic Analyses and Dominant Taxa

Each of the distinguishable bands in the separation pattern represented an individual bacterial species [27]. In total, 25 different bands were successfully sequenced and two phylogenetic trees were constructed for the larvae and pupae (Figure 2A), and male and female adults (Figure 2B). Sequence identification revealed that the majority of species were Proteobacteria (γ-Proteobacteria, labeled P1–P18 and α-Proteobacteria, labeled P19–P22 in Figure 1) and a few species were Firmicutes (labeled F1–F3 in Figure 1).
Citrobacter spp. and Pantoea spp. (γ-Proteobacteria, Enterobacteriaceae) were the predominant bacteria in the guts of larval D. armandi, and Methylobacterium (α-Proteobacteria) predominated in the pupal guts. Both female and male adults contained a high proportion of Citrobacter. P2, P6, P7 and P10, which all belong to the Citrobacter genus, were the most distinct bands in the DGGE profile of bacteria from the guts of adult females (Figure 1). Band P3, which was identified as Pantoea, was the second most common bacteria in the guts of male adults (Figure 1).

2.3. OTUs

According to distance matrices of the sequences, 13 OTUs0.03 clusters were obtained (R1–R13). R1 and R5 OTUs0.03 clusters were observed in the gut bacteria of all the samples (Figure 2). Sequences belonging to the R1 and R5 clusters grouped together on the same phylogenetic branch, and were closely related to Citrobacter and Serratia, respectively. In addition, cluster R1 was the most dominant group in all the samples except those from pupae, which were dominated by the R10 cluster, which comprised Methylobacterium spp.
The Chao index was used to better characterize the relative bacterial species richness of the different developmental stages and sexes of D. armandi. The OTU and richness estimation data revealed that the bacterial community structure was simplest in the pupal guts (Figure 3), with five OTUs0.03 clusters (R1, R2, R5, R6, R10) belonging to γ-Proteobacteria and α-Proteobacteria (Figure 2A). Bacterial species richness was highest in larval guts, with nine OTUs0.03 (R1, R3, R5, R7, R8, R9, R10, R12, R13) belonging to γ-Proteobacteria, α-Proteobacteria and Firmicutes (Figure 2A). Seven OTUs0.03 clusters (Figure 2B), all belonging to Enterobacteriaceae (γ-Proteobacteria), were found in the guts of female adults (R1, R3, R4, R5, R7, R10, R13) and male adults (R1, R2, R3, R4, R5, R7, R10).

2.4. Bacterial Community Structure

This study has provided new insight into the gut bacterial diversity of D. armandi at different developmental stages and in the different sexes. Overall, the results of the bacterial diversity indices were consistent with the OTU richness estimation. The predominant species found in the intestinal bacterial communities of D. armandi formed a group of low complexity; however, the structure of the bacterial community differed depending on the developmental stage. A low level of bacterial community complexity in insect guts seems to be the norm [28–32], although there are some exceptions, for example, termite guts [33]. As we hypothesized, the gut-associated bacteria from all samples comprised only a few bacterial species. Citrobacter (R1) and Serratia (R5), which belong to the Enterobacteriaceae (γ-Proteobacteria), were present in all samples from D. armandi guts. These conserved bacterial communities of shared bacterial taxa should be well adapted to their host. Members of the Enterobacteriaceae are commonly found in the gut communities of a wide range of animals, including humans and insects, and can aid in vitamin biosynthesis, pheromone production and degradation of plant compounds [34,35].
Citrobacter and Pantoea were the most abundant taxa in the guts of larvae and adults. The highest levels of Citrobacter were found in the guts of female adults. A range of different bacterial communities have been reported to be associated with bark beetles (Dendroctonus spp.), including Citrobacter spp. and Pantoea spp. [20,36–38]. Previous studies have reported that Citrobacter spp. and Pantoea spp. are associated with nitrogen fixation in the guts of termites and fruit flies (Ceratitis capitata) [39–41]. The abundance of Citrobacter in our study suggested that the nitrogen-fixing process could be an important dietary supplement of assimilable nitrogen for the bark beetle. In addition, Citrobacter sp. has also been shown to affect insect oviposition and larval development [42,43], which might explain why the guts of adult females contained the highest levels of Citrobacter. To clarify the Citrobacter-Dendroctonus relationship, more studies are necessary to determine the nutritional status of this nitrogen-fixing bacterium in bark beetles.
Among the developmental stages investigated in this study, the pupal stage showed the simplest bacterial structure according to both the diversity indices and the Chao index. These results support previous findings of low bacterial diversity in the pupal guts of bark beetles [44].
Interestingly, Methylobacterium was the dominant taxa in the pupal stage. Species in the Methylobacterium genus are facultatively methylotrophic bacteria, and are mostly found in soil, as well as in the xylem and in other parts of plants [45,46]. They can use a variety of organic substrates with carbon-carbon bonds as sources of carbon and energy [47]. Most studies of the bacteria in this genus have focused on their roles in methane oxidization and the serine cycle. The role of gut-associated Methylobacterium spp. in D. armandi might be similar to that reported in studies of leafhopper and weevil, which feed on a complex carbon source [45,46]. Energy is required to achieve metamorphosis through the activation of several metabolic processes and morphological changes even though pupae do not feed. Therefore, the decline of bacterial diversity and the dominance of Methylobacterium spp. in pupae in this study could be associated with the absence of feeding activity and the necessity for pupae to extract the remaining energy from undigested food through the action of Methylobacterium spp. Methylobacterium spp. play an important role in the utilization of organic carbon sources and conversion of amino acids to support physiological activities in the pupal development stage. To clarify the Methylobacterium-Dendroctonus relationship, further studies are necessary to determine the role of this methane-oxidizing bacterial genus in the bark beetle life cycle.
The bacterial community structures found in the guts of adult males and females were similar, which supports similar findings in an earlier study [47], suggesting that the bacterial community structure in D. armandi adults is conserved. The bacterial communities in the adult guts belonged to the γ-Proteobacteria and Bacilli. Citrobacter was a dominant genus in both sexes, particularly in female adults. Our data suggest that although some of the bacteria found in the guts of adult bark beetles might relate to their sexual roles, most of the bacteria played similar roles in both sexes.
The information about bacterial community structure collected in this study will provide the basis for subsequent studies on the roles of these intestinal bacteria in bark beetle development, ecology and management. A study of the bacterial flora in the guts of Dendroctonus rhizophagus proposed that most of the bacterial genera present could be implicated in nitrogen fixation and cellulose breakdown, which are important roles associated with insect development and fitness, particularly given the challenging environment inhabited by the bark beetles [44].
Gut bacteria have been proposed as a means of achieving pest biocontrol. For example, Enterobacter gergoviae, a gut bacterium of the pink bollworm (Pectinophora gossypiella), was transformed to express Cyt1A, an insecticidal protein lethal to mosquitoes and black fly larvae [48]. plant surface bacteria have also been considered as biopesticide vectors to deliver insecticidal proteins to phytophagous insects [49]. The possibility of using the gut bacterium E. cloacae to control the mulberry pyralid (Glyphodes pyloalis) has also been successfully demonstrated by transforming the ice nucleation gene. An increased supercooling point was observed in G. pyloalis that had been colonized by the transformed gut bacteria, leading to an increased mortality rate [50]. Transgenic gut bacteria have even been used for the control of insect-borne human diseases, for example, transgenic Rhodococcus rhodnii has been used to control the triatomine bug Rhodnius prolixus, the vector of the medically important parasite Trypanosoma cruzi. [51]. Although there are scarcely any reports about using gut bacteria to control bark beetles, gut bacteria are a potential contender for pest biocontrol strategies in the future. Detailed knowledge about the dynamic variation, colonization and modes of transmission of intestinal bacteria is required before such a strategy could be successfully implemented.

3. Experimental Section

3.1. Insect Collection and Dissection

Larvae, pupae, and female and male adults of D. armandi were collected from the bark of infested P. armandi at the Huoditang Experimental Forest Station of the Northwest A&F University in August 2012. The collection site was located on the southern slope of the middle Qinling Mountains (33°18′–33°28′N, 108°21′–108°39′E), Shaanxi, China.
All the D. armandi samples were collected manually using fine forceps to extract the insects directly from the galleries of infested pine trees. The samples were transported to the laboratory in sterile vials containing sterile moist paper. To investigate the influence of sex on gut-associated bacteria, female and male adults were separated according to their reproductive organs.
Insect samples were rinsed in sterile water, surface sterilized with 70% ethanol for 3 min, and then rinsed twice in sterile water. After being placed in 10 mM sterilized phosphate-buffered saline (138 mM NaCl and 2.7 mM KCl, pH7.4), the insects were dissected under the stereomicroscope with the aid of insect pins to excise the mid-guts and hindguts [8]. Forty guts were excised from each of the developmental stages. Guts from the same development stage were transferred to a 1.5-mL microcentrifuge tube, ground several times with a plastic pestle in liquid nitrogen, and then vortexed with 500 μL of Tris-EDTA (10 mM Tris-HCl (pH 8.0), 1 mM EDTA) for 3 min at maximum speed (2500 r/min) and then centrifuged at low speed (4000 r/min) for 15 s to separate microbial cells from the gut wall tissues and undigested food. The supernatant (containing bacteria) was transferred to new tubes for DNA extraction. All the procedures were performed in a sterile environment.

3.2. Extraction of Bacterial DNA

Bacterial DNA was extracted using the E.Z.N.A. Bacteria DNA Kit (Omega Biotech, Doraville, GA, USA) according to the manufacturer’s directions, and then stored at −20 °C until needed.

3.3. Nested PCR

Nested PCR was used to increase the resolution yield of DGGE [52]. The highly variable V3 region of the bacterial 16S rRNA gene was amplified using primer pairs fD1 (5′-AGAGTTTGATCCTGG CTCAG-3′) and rP1 (5′-ACGGTTACCTTGTTACGACTT-3′) in the first round of PCR, and 341F-GC (5′-CGCCCGCCGCGCGCGGCGGGCGGGGCGGGGGCACGGGGGGCCTACGGGAGG CAGCAG-3′) and 534R (5′-ATTACCGCGGCTGCTGG-3′) in the second round of PCR [53]. All PCR amplifications were performed with a S1000™ Thermal Cycler (Bio-Rad, Hercules, CA, USA) in a final mixture volume of 50 μL, containing 25 μL 2× Taq Master Mix (CoWin Biotech, Beijing, China), 0.8 μL of each primer (10 μM, Invitrogen Trading, Beijing, China), 1 μL template and 22 μL RNase-free water.
The bacterial DNA was diluted to 30 ng μL−1 and used as the template for the first round of PCR, which was carried out using the following program: 94 °C for 3 min, followed by 30 cycles, each at 94 °C for 1 min, 55 °C for 1 min, 72 °C for 1.5 min and a final extension at 72 °C for 5 min. The product of the first round of PCR was diluted 1/200 with ddH2O, and used as the template for the second PCR reaction, which was carried out using the following procedure: 94 °C for 3 min, followed by 30 cycles of 94 °C for 30 s, 56 °C for 30 s, 72 °C for 30 s and a final step at 72 °C for 5 min. The PCR products obtained and the primer specificity were analyzed by 1.2% (w/v) agarose gel electrophoresis and ethidium bromide staining in the presence of a DL2000 DNA marker (Takara Biotechnology, Dalian, China). The obtained PCR products were stored at −20 °C until DGGE analysis.

3.4. Denaturing Gradient Gel Electrophoresis (DGGE)

The DCode™ Universal Mutation Detection System (Bio-Rad) was used for the DGGE analysis. 35 μL of bacterial nested-PCR products from each sample were loaded onto an 8% (w/v) poly-acrylamide (37.5:1 acrylamide/bio-acrylamide) gel containing a linear denaturing gradient of 40% to 70%, where 100% denaturing acrylamide was defined as containing 7 M urea and 40% formamide [54]. The gel was run at 120 V initially for 10 min, and then 70 V for an additional 11 h at 58 °C in 1× TAE buffer (40 mM Tris-acetate (pH 7.4), 20 mM sodium acetate, 1 mM disodium EDTA). After being stained with ethidium bromide solution for 10 min, the gel was eluted in deionized water for 10 min, and then photographed under UV light by using the Gel Doc™ XR System (Bio-Rad).

3.5. DGGE Band Identification

Dominant DGGE bands were excised from the poly-acrylamide gel and the DNA was eluted out using an E.Z.N.A. Mag-Bind Poly-Gel DNA Extraction Kit (Omega). The eluted DNA (1 μL) was re-amplified with primer pair 534R and 341F without a GC clamp at the 5′ end. The PCR products were purified using a Gel Extraction Kit (Baitaike Biological Technology, Xi’an, China), and connected to the plasmid pMD18-T vector (pMD18-T Cloning Kit, Takara Biotechnology, Dalian, China). The recombinant plasmids were transformed into Escherichia coli (strain DH5α) and the positive colonies were identified based on the blue-white screening. Five positive colonies were selected randomly from each transformation to further confirm the presence of correct inserts via PCR with the primer pair M13-47 and M13-48. The confirmed clones were sequenced (Jinsirui Biotechnology, Nanjing, China).
In order to determine the classification status of the intestinal bacteria, the sequences were matched with sequences in the RDP II database [55], and blasted in the NCBI database [56] and the EzTaxon-e database [57] to select and download the sequences that were reliable and that had a high sequence similarity. All the sequences obtained in this study have been submitted to the NCBI database (accession numbers KF501441–KF501471). Phylogenetic relationships among the intestinal bacteria were analyzed using molecular phylogeny techniques. Sequences were aligned using MUSCLE [58], available in the software MEGA 5, which computed the best model. The phylogenetic trees were constructed using Maximum Likelihood and Neighbor-joining methods [59]. To calculate the support for each clade, bootstrap analysis was performed with 1000 replications.

3.6. DGGE Band Profile Analysis

The following procedure was used to analyze the DGGE band profiles using Quantity One software (Bio-Rad). First the auto frame lanes were selected and the rolling disk size was adjusted to five to minimize the influence of background. Second, the bands were detected and the parameters adjusted to acquire the most reliable band pattern, and then the Gauss-model was applied to all the lanes. Third, the lane with the most bands was selected using auto-match and the tolerance was set at 4.00%; the other lanes were matched manually. Fourth, the peak density of all the lanes was reported for further analysis.
Each band was digitized via auto detection of peak density. Based on the transferred data, the diversity indices were calculated to investigate the dominant bacterial communities and to determine how they changed in the larvae, pupae, and adult females and males. Various indices of biodiversity, such as the Shannon–Wiener index (H′), Richness (S) and Evenness (EH), were calculated from the DGGE patterns according to the following equations:
H ′ = - ∑ i = 1 S p i   ln  p i = - ∑ i = 1 S ( N i / N )   ln ( N i / N )
E H = H / H max = H / ln  S
where S is the number of bands in a lane, Ni is the peak density of the ith band and N is the total peak density of all bands in a lane [60,61]. The significant differences between means were analyzed by t-test in SPSS Version 18.0 (SPSS Inc., Chicago, IL, USA).

3.7. Operational Taxonomic Units and Richness Estimation

Sequences in each phylogenetic tree were formatted to FASTA files and used to construct distance matrices for each library with MOTHUR Version 1.29.0 (Patrick Schloss, The University of Michigan, Ann Arbor, MI, USA). The distance matrices were used as the input files to define the OTUs on the basis of a similarity distance cutoff of 0.03. OTUs defined by distances of 0.03 were generally corresponded to a species [62]. Sequences belonging to the same cluster based on the reference of OTUs0.03 were grouped together in the phylogenic trees and labeled R1–R13 for the purpose of clarity (Figure 2). The Chao index [63] was calculated to measure the absolute value of species richness. Rarefaction curve methodology was used [64,65] to estimate the relationship between the expected OTU richness and sampling depth. Finally, the rarefaction curves were generated using SigmaPlot Version 10.1 (Systat Software, Inc., San Jose, CA, USA).

4. Conclusions

This study revealed the structure of the gut-associated bacterial communities in the different developmental stages of D. armandi collected from the southern slope of the middle Qinling Mountains in August 2012. The predominant bacterial species varied during the life cycle of D. armandi. Several important bacteria were identified, including nitrogen-fixing and carbon transformation bacteria (Citrobacter, Pantoea and Methylobacterium), which are likely to play important roles at different developmental stages of the bark beetle. We propose that gut-associated bacteria could interfere with the development of D. armandi and, hence, may have potential as a vector for a biocontrol agent.
Ijms 14 21006f1 1024
Figure 1. Denaturing gradient gel electrophoresis (DGGE) profiles of nested PCR-amplified 16Sr RNA gene fragments of bacteria from the guts of Dendroctonus armandi larvae (lane S1), pupae (S2), adult females (S3), and adult males (S4). Bands P1–P22 and F1–F3 represent 16S rRNA gene regions of different bacteria.
Figure 1. Denaturing gradient gel electrophoresis (DGGE) profiles of nested PCR-amplified 16Sr RNA gene fragments of bacteria from the guts of Dendroctonus armandi larvae (lane S1), pupae (S2), adult females (S3), and adult males (S4). Bands P1–P22 and F1–F3 represent 16S rRNA gene regions of different bacteria.
Ijms 14 21006f1
Ijms 14 21006f2a 1024Ijms 14 21006f2b 1024

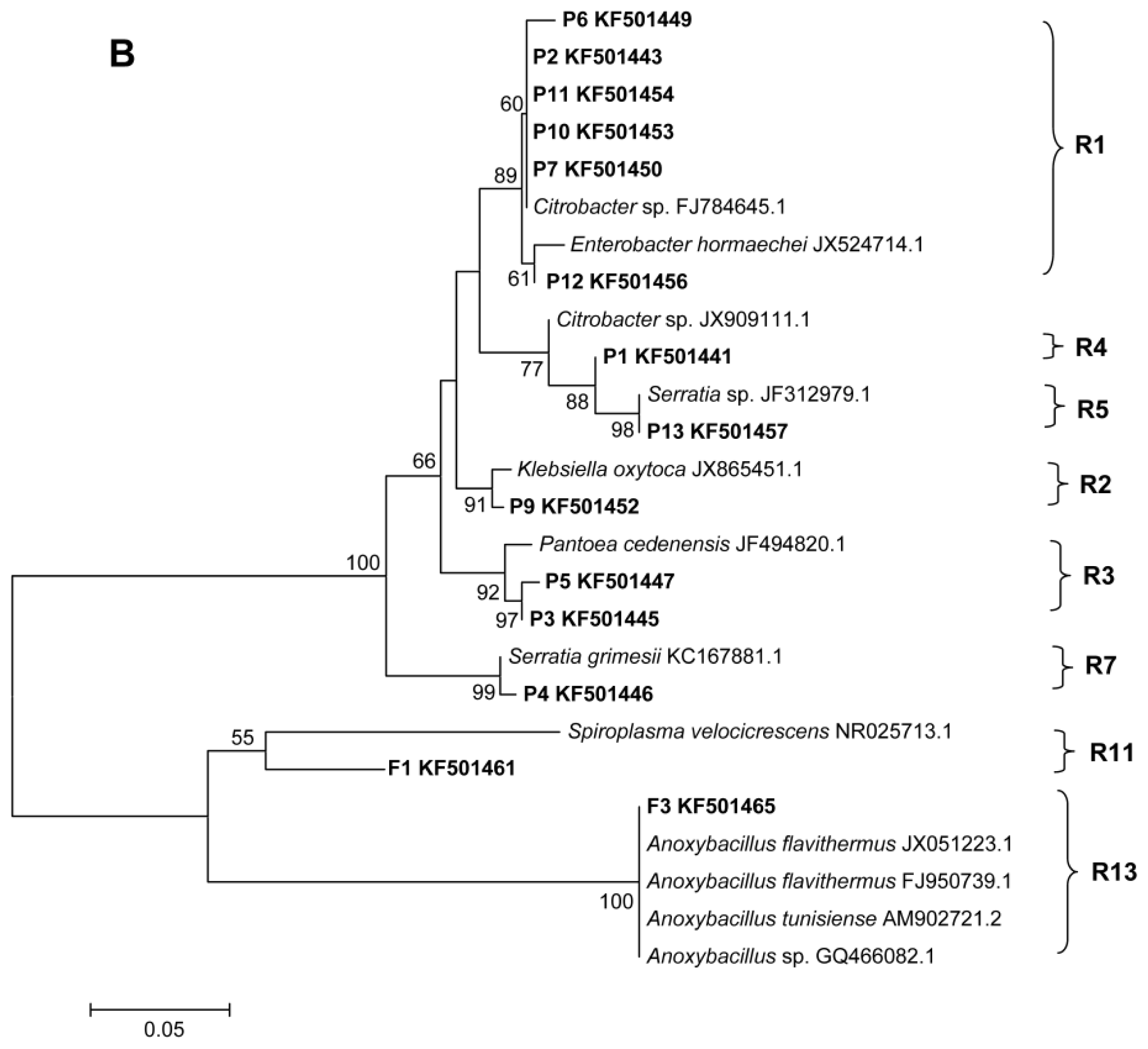

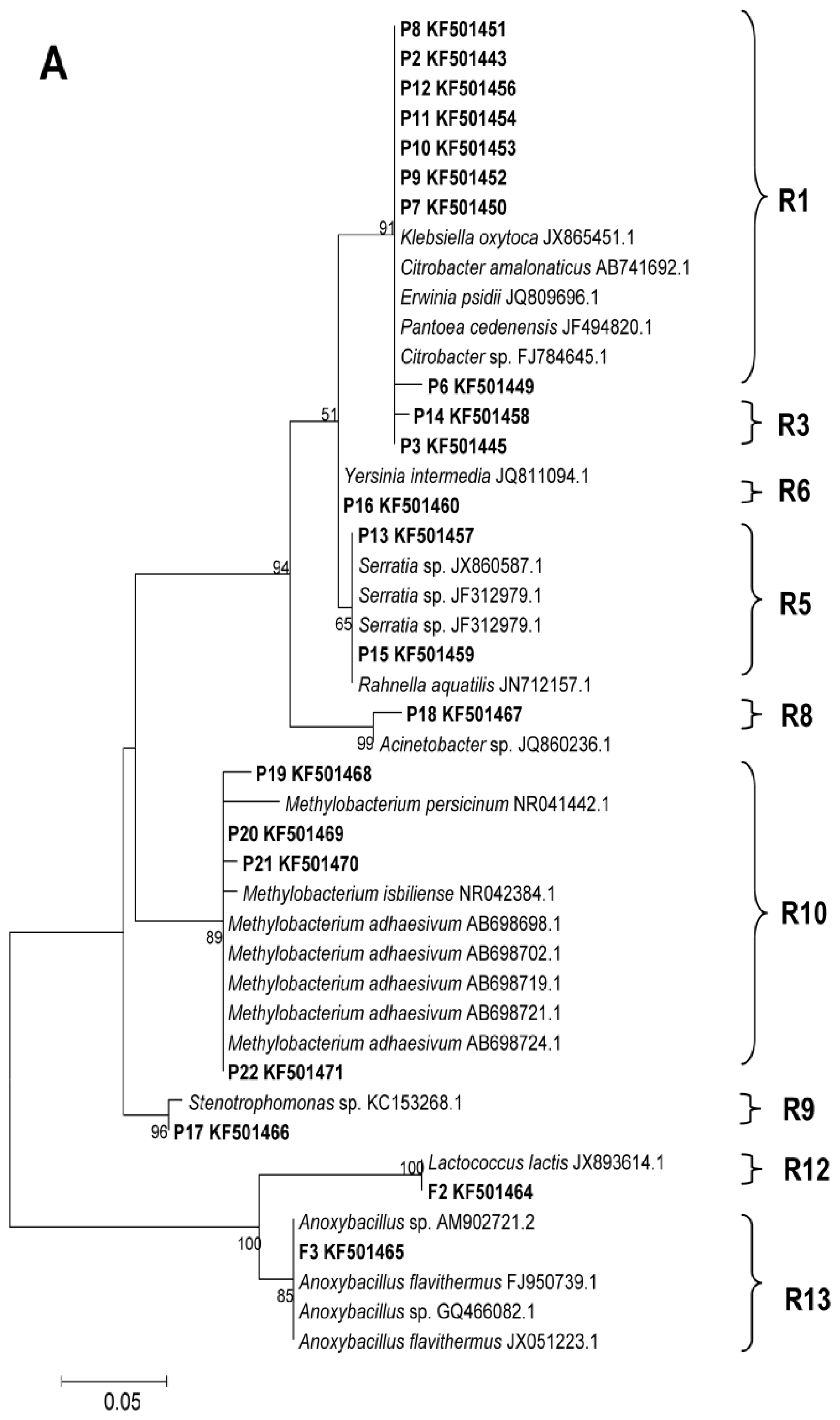

Figure 2. Phylogenetic trees of the bacterial communities in the gut of Dendroctonus armandi based on the 16S rRNA gene fragments. (A) Maximum likelihood phylogenetic tree of the bacterial community in the guts of larvae and pupae using the model Jukes-Cantor + I model; (B) Neighbor-joining phylogenetic tree of the bacterial community in the guts of female and male adults using the Kimura 2-parameter + G model. R1–R13 represent different operational taxonomic units with a 3% sequence dissimilarity cut-off (OTUs0.03) cluster obtained with MOTHUR.
Figure 2. Phylogenetic trees of the bacterial communities in the gut of Dendroctonus armandi based on the 16S rRNA gene fragments. (A) Maximum likelihood phylogenetic tree of the bacterial community in the guts of larvae and pupae using the model Jukes-Cantor + I model; (B) Neighbor-joining phylogenetic tree of the bacterial community in the guts of female and male adults using the Kimura 2-parameter + G model. R1–R13 represent different operational taxonomic units with a 3% sequence dissimilarity cut-off (OTUs0.03) cluster obtained with MOTHUR.
Ijms 14 21006f2aIjms 14 21006f2b
Ijms 14 21006f3 1024

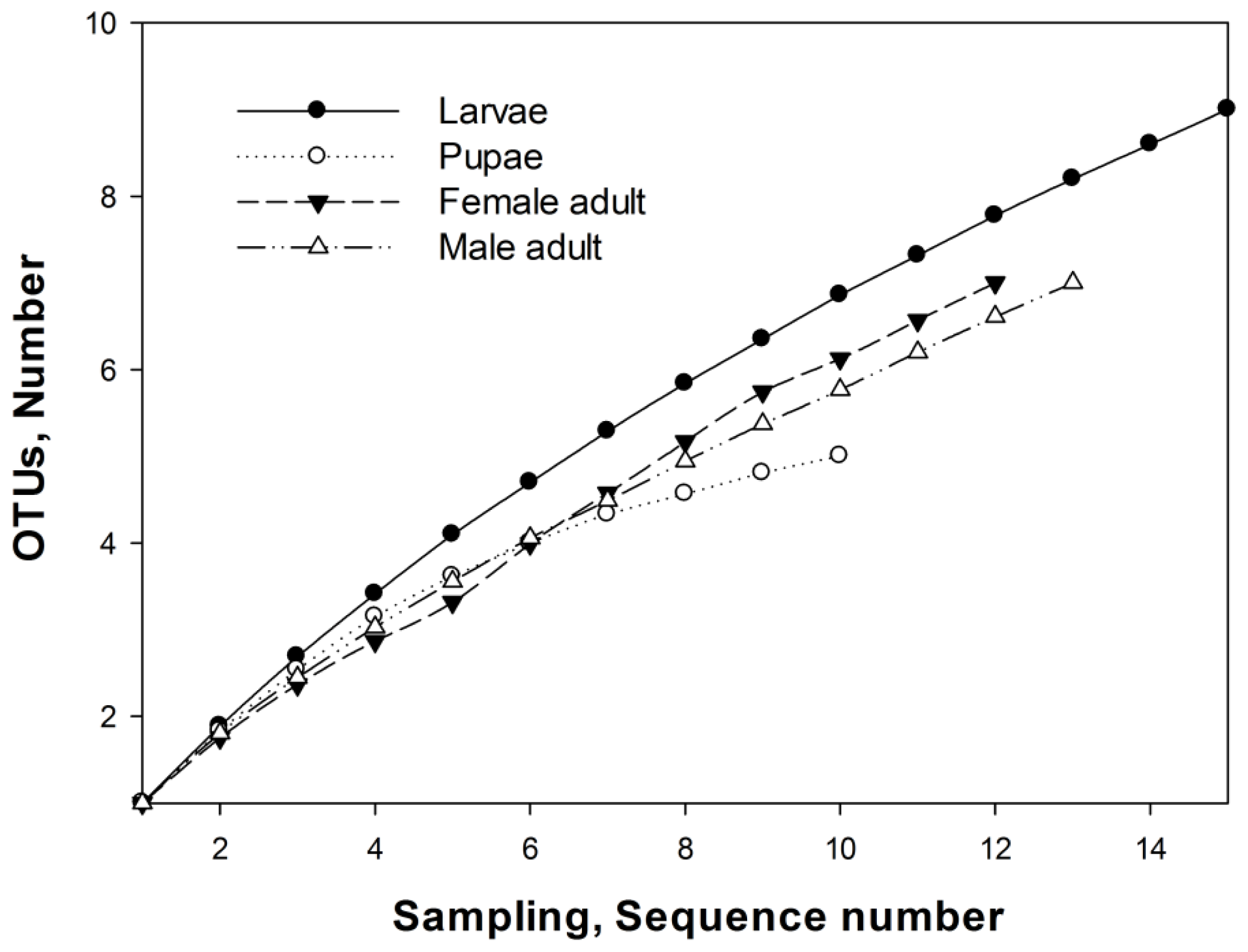

Figure 3. Rarefaction curves of bacterial 16S rRNA sequences in the gut of Dendroctonus armandi larvae, pupae, adult females and males, calculated using MOTHUR OUTs0.03. The plot showed the number of new bacterial species as a function of the number of clones sequenced.
Figure 3. Rarefaction curves of bacterial 16S rRNA sequences in the gut of Dendroctonus armandi larvae, pupae, adult females and males, calculated using MOTHUR OUTs0.03. The plot showed the number of new bacterial species as a function of the number of clones sequenced.
Ijms 14 21006f3
Table
Table 1. Richness (S), Evenness (EH) and Shannon-Wiener index (H′) of intestinal symbiotic bacteria identified in samples of Dendroctonus armandi at different developmental stages.
Table 1. Richness (S), Evenness (EH) and Shannon-Wiener index (H′) of intestinal symbiotic bacteria identified in samples of Dendroctonus armandi at different developmental stages.
LaneD. armandi sampleSEHH′
S1Larvae160.8538862.367476
S2Pupae100.6493921.49528
S3Female adult120.8542552.122745
S4Male adult140.8853122.336389

Acknowledgments

We acknowledge the financial support of the National Natural Science Foundation of China (31170607, 31170567), the Program for Changjiang Scholars and Innovative Research Team in University of China (IRT1035).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Haack, R.A.; Slansky, F., Jr. Nutritional Ecology of Wood-Feeding Coleoptera, Lepidoptera, and Hymenoptera. In Nutritional Ecology of Insects, Mites, Spiders, and Related Invertebrates; Slansky, F., Jr., Rodriguez, J., Eds.; Wiley: New York, NY, USA, 1987; pp. 449–486. [Google Scholar]
  2. Coulson, R.N.; Stark, R.W. Integrated Pest Management of Bark Beetles. In Bark Beetles in North American Conifers: A System for the Study of Evolutionary Biology; Mitton, J.B., Sturgeon, K.B., Eds.; University of Texas Press: Austin, TX, USA, 1982; pp. 315–349. [Google Scholar]
  3. Cruden, D.L.; Markovetz, A.J. Microbial ecology of the cockroach gut. Annu. Rev. Microbiol 1987, 41, 617–643. [Google Scholar]
  4. Handelsman, J.; Robinson, C.J.; Raffa, K.F. Microbial Communities in Lepidopteran Guts: From Models to Metagenomics. In The Influence of Cooperative Bacteria on Animal Host Biology; McFall-Ngai, M.J., Henderson, B., Ruby, E.G., Eds.; Cambridge University Press: Cambridge, UK, 2005; pp. 143–145. [Google Scholar]
  5. Dillon, R.J.; Vennard, C.T.; Charnley, A.K. Pheromones: Exploitation of gut bacteria in the locust. Nature 2000, 403, 851–851. [Google Scholar]
  6. Moran, N.A.; Tran, P.; Gerardo, N.M. Symbiosis and insect diversification: An ancient symbiont of sap-feeding insects from the bacterial phylum Bacteroidetes. Appl. Environ. Microbiol 2005, 71, 8802–8810. [Google Scholar]
  7. Bridges, J.R. Nitrogen-fixing bacteria associated with bark beetles. Microb. Ecol 1981, 7, 131–137. [Google Scholar]
  8. Delalibera, I.; Handelsman, J., Jr.; Raffa, K.F. Contrasts in cellulolytic activities of gut microorganisms between the wood borer, Saperda vestita (Coleoptera: Cerambycidae), and the bark beetles, Ips pini and Dendroctonus frontalis (Coleoptera: Curculionidae). Environ. Entomol 2005, 34, 541–547. [Google Scholar]
  9. Chen, H.; Tang, M. Spatial and temporal dynamics of bark beetles in Chinese white pine in Qinling Mountains of Shaanxi Province, China. Environ. Entomol 2007, 36, 1124–1130. [Google Scholar]
  10. Yin, H.F.; Li, Z.L. Economic insect fauna of China. Coleopt. Scolyt 1984, 29, 26–35. [Google Scholar]
  11. Tang, M.; Chen, H. Effect of symbiotic fungi of Dendroctonus armandi on host trees. Sci. Silvae Sin 1999, 35, 63–66. [Google Scholar]
  12. Douglas, A.E. The microbial dimension in insect nutritional ecology. Funct. Ecol 2009, 23, 38–47. [Google Scholar]
  13. Adams, A.S.; Adams, S.M.; Currie, C.R.; Gillette, N.E.; Raffa, K.F. Geographic variation in bacterial communities associated with the Red Turpentine Beetle (Coleoptera: Curculionidae). Environ. Entomol 2010, 39, 406–414. [Google Scholar]
  14. Nogge, G. Significance of symbionts for the maintenance of an optimal nutritional state for successful reproduction in hematophagous arthropods. Parasitology 1981, 82, 101–104. [Google Scholar]
  15. Douglas, A.E. Nutritional interactions in insect-microbial symbioses: Aphids and their symbiotic bacteria. Buchnera. Annu. Rev. Entomol 1998, 43, 17–37. [Google Scholar]
  16. Benemann, J.R. Nitrogen fixation in termites. Science 1973, 181, 164–165. [Google Scholar]
  17. Dillon, R.J.; Dillon, V.M. The gut bacteria of insects: Nonpathogenic interactions. Annu. Rev. Entomol 2004, 49, 71–92. [Google Scholar]
  18. Cardoza, Y.J.; Klepzig, K.D.; Raffa, K.F. Bacteria in oral secretions of an endophytic insect inhibit antagonistic fungi. Ecol. Entomol 2006, 31, 636–645. [Google Scholar]
  19. Geib, S.M.; Filley, T.R.; Hatcher, P.G.; Hoover, K.; Carlson, J.E.; Del Mar Jimenez-Gasco, M.; Nakagawa-Izumi, A.; Sleighter, R.L.; Tien, M. Lignin degradation in wood-feeding insects. Proc. Natl. Acad. Sci. USA 2008, 105, 12932–12937. [Google Scholar]
  20. Morales-Jiménez, J.; Zúñiga, G.; Villa-Tanaca, L.; Hernández-Rodríguez, C. Bacterial community and nitrogen fixation in the red turpentine beetle, Dendroctonus valens LeConte (Coleoptera: Curculionidae: Scolytinae). Microb. Ecol 2009, 58, 879–891. [Google Scholar]
  21. Fukatsu, T.; Hosokawa, T. Capsule-transmitted gut symbiotic bacterium of the Japanese common plataspid stinkbug Megacopta punctatissima. Appl. Environ. Microbiol 2002, 68, 389–396. [Google Scholar]
  22. Funk, D.J.; Bernays, E.A. Geographic variation in host specificity reveals host range evolution in Uroleucon ambrosiae aphids. Ecology 2001, 82, 726–739. [Google Scholar]
  23. Tsuchida, T.; Koga, R.; Shibao, H.; Matsumoto, T.; Fukatsu, T. Diversity and geographic distribution of secondary endosymbiotic bacteria in natural populations of the pea aphid Acyrthosiphon pisum. Mol. Ecol 2002, 11, 2123–2135. [Google Scholar]
  24. Hosokawa, T.; Kikuchi, Y.; Meng, X.Y.; Fukatsu, T. The making of symbiont capsule in the plataspid stinkbug Megacopta punctatissima. FEMS Microbiol. Ecol 2005, 54, 471–477. [Google Scholar]
  25. Broderick, N.A.; Raffa, K.F.; Goodman, R.M.; Handelsman, J. Census of the bacterial community of the gypsy moth larval midgut by using culturing and culture-independent methods. Appl. Environ. Microbiol 2004, 70, 293–300. [Google Scholar]
  26. Nocker, A.; Burr, M.; Camper, A.K. Genotypic microbial community profiling: A critical technical review. Microb. Ecol 2007, 54, 276–289. [Google Scholar]
  27. Cocolin, L.; Aggio, D.; Manzano, M.; Cantoni, C.; Comi, G. An application of PCR-DGGE analysis to profile the yeast populations in raw milk. Int. Dairy J 2002, 12, 407–411. [Google Scholar]
  28. Kuechler, S.M.; Dettner, K.; Kehl, S. Characterization of an obligate intracellular bacterium in the midgut epithelium of the bulrush bug Chilacis typhae (Heteroptera, Lygaeidae, Artheneinae). Appl. Environ. Microbiol 2011, 77, 2869–2876. [Google Scholar]
  29. Dillon, R.J.; Webster, G.; Weightman, A.J.; Charnley, A.K. Diversity of gut microbiota increases with aging and starvation in the desert locust. Anton. Leeuw. Int. J. G 2010, 97, 69–77. [Google Scholar]
  30. Lindh, J.M.; Terenius, O.; Faye, I. 16S rRNA gene-based identification of midgut bacteria from field-caught Anopheles gambiae sensu lato and A. funestus mosquitoes reveals new species related to known insect symbionts. Appl. Environ. Microbiol 2005, 71, 7217–7223. [Google Scholar]
  31. Lindh, J.M.; Lehane, M.J. The tsetse fly Glossina fuscipes fuscipes (Diptera: Glossina) harbours a surprising diversity of bacteria other than symbionts. Anton. Leeuw. Int. J. G 2011, 99, 711–720. [Google Scholar]
  32. Weiss, B.; Aksoy, S. Microbiome influences on insect host vector competence. Trends Parasitol 2011, 27, 514–522. [Google Scholar]
  33. Hongoh, Y. Diversity and genomes of uncultured microbial symbionts in the termite gut. Biosci. Biotechnol. Biochem 2010, 74, 1145–1151. [Google Scholar]
  34. Breznak, J.A. Intestinal microbiota of termites and other xylophagous insects. Annu. Rev. Microbiol 1982, 36, 323–323. [Google Scholar]
  35. Xu, J.; Gordon, J.I. Honor thy symbionts. Proc. Natl. Acad. Sci. USA 2003, 100, 10452–10459. [Google Scholar]
  36. Delalibera, I., Jr.; Vasanthakumar, A.; Burwitz, B.J.; Schloss, P.D.; Klepzig, K.D.; Handelsman, J.; Raffa, K.F. Composition of the bacterial community in the gut of the pine engraver, Ips pini (Say) (Coleoptera) colonizing red pine. Symbiosis 2007, 43, 97–104. [Google Scholar]
  37. Winder, R.S.; Macey, D.E.; Cortese, J. Dominant bacteria associated with broods of mountain pine beetle, Dendroctonus ponderosae (Coleoptera: Curculionidae, Scolytinae). J. Entomol. Soc. Brit. Columbia 2010, 107, 43–56. [Google Scholar]
  38. Morales-Jiménez, J.; de León, A.V.P.; García-Domínguez, A.; Martínez-Romero, E.; Zúñiga, G.; Hernández-Rodríguez, C. Nitrogen-fixing and uricolytic bacteria associated with the gut of Dendroctonus rhizophagus and Dendroctonus valens (Curculionidae: Scolytinae). Microb. Ecol 2013, 66, 200–210. [Google Scholar]
  39. French, J.R.J.; Turner, G.L.; Bradbury, J.F. Nitrogen fixation by bacteria from the hindgut of termites. Microbiology 1976, 95, 202–206. [Google Scholar]
  40. Behar, A.; Yuval, B.; Jurkevitch, E. Enterobacteria-mediated nitrogen fixation in natural populations of the fruit fly Ceratitis capitata. Mol. Ecol 2005, 14, 2637–2643. [Google Scholar]
  41. Lilburn, T.G.; Kim, K.S.; Ostrom, N.E.; Byzek, K.R.; Leadbetter, J.R.; Breznak, J.A. Nitrogen fixation by symbiotic and free-living spirochetes. Science 2001, 292, 2495–2498. [Google Scholar]
  42. Leroy, P.D.; Sabri, A.; Verheggen, F.J.; Francis, F.; Thonart, P.; Haubruge, E. The semiochemically mediated interactions between bacteria and insects. Chemoecology 2011, 21, 113–122. [Google Scholar]
  43. Peterkova-Koci, K.; Robles-Murguia, M.; Ramalho-Ortigao, M.; Zurek, L. Significance of bacteria in oviposition and larval development of the sand fly Lutzomyia longipalpis. Parasit Vectors 2012, 5, 145. [Google Scholar]
  44. Morales-Jiménez, J.; Zúñiga, G.; Ramírez-Saad, H.C.; Hernández-Rodríguez, C. Gut-associated bacteria throughout the life cycle of the bark beetle Dendroctonus rhizophagus Thomas and Bright (Curculionidae: Scolytinae) and their cellulolytic activities. Microb. Ecol 2012, 64, 268–278. [Google Scholar]
  45. Yamoah, E.; Jones, E.E.; Weld, R.J.; Suckling, D.M.; Waipara, N.; Bourdôt, G.W.; Hee, A.K.; Stewart, A. Microbial population and diversity on the exoskeletons of four insect species associated with gorse (Ulex europaeus L.). Aust. J. Entomol 2008, 47, 370–379. [Google Scholar]
  46. Gai, C.S.; Lacava, P.T.; Quecine, M.C.; Auriac, M.C.; Lopes, J.R.S.; Araújo, W.L.; Miller, T.A.; Azevedo, J.L. Transmission of Methylobacterium mesophilicum by Bucephalogonia xanthophis for paratransgenic control strategy of Citrus Variegated Chlorosis. Microbiology 2009, 47, 448–454. [Google Scholar]
  47. Patt, T.; Cole, G.; Hanson, R. Methylobacterium, a new genus of facultatively methylotrophic bacteria. Int. J. Syst. Bacteriol 1976, 26, 226–229. [Google Scholar]
  48. Kuzina, L.W.; Miller, E.D.; Ge, B.; Miller, T.A. Transformation of Enterobacter gergoviae isolated from pink bollworm (Lepidoptera: Gelechiidae) gut with Bacillus thuringiensis toxin. Curr. Microbiol 2002, 44, 1–4. [Google Scholar]
  49. Lilley, A.K.; Hails, R.S.; Cory, J.S.; Bailey, M.J. The dispersal and establishment of pseudomonas populations in the phyllosphere of sugar beet by phytophagous caterpillars. FEMS Microbiol. Ecol. 1997, 24, 151–157. [Google Scholar]
  50. Watanabe, K.; Abe, K.; Sato, M. Biological control of an insect pest by gut-colonizing Enterobacter cloacae transformed with ice nucleation gene. J. Appl. Microbiol 2000, 88, 90–97. [Google Scholar]
  51. Beard, B.C.; Cordon-Rosales, C.; Durvasula, R.V. Bacterial symbionts of the Triatominae and their potential use in control of Chagas disease transmission. Annu. Rev. Entomol 2002, 47, 123–141. [Google Scholar]
  52. Xu, Z.; Tang, M.; Chen, H.; Ban, Y.; Zhang, H. Microbial community structure in the rhizosphere of Sophora viciifolia grown at a lead and zinc mine of northwest China. Sci. Total Environ 2012, 435, 453–464. [Google Scholar]
  53. Muyzer, G.; Hottenträger, S.; Teske, A.; Wawer, C. Denaturing Gradient Gel Electrophoresis of PCR-Amplified 16S rDNA—A New Molecular Approach to Analyse the Genetic Diversity of Mixed Microbial Communities. In Molecular Microbial Ecology Manual; Akkermans, A.D.L., Van Elsas, J.D., De Bruijn, F.J., Eds.; Kluwer Academic Publishers: Dordrecht, The Netherlands, 1996; pp. 1–23. [Google Scholar]
  54. Muyzer, G.; De Waal, E.C.; Uitterlinden, A.G. Profiling of complex microbial populations by denaturing gradient gel electrophoresis analysis of polymerase chain reaction-amplified genes coding for 16S rRNA. Appl. Environ. Microbiol 1993, 59, 695–700. [Google Scholar]
  55. Cole, J.R.; Wang, Q.; Cardenas, E.; Fish, J.; Chai, B.; Farris, R.; Kulam-Syed-Mohideen, A.; McGarrell, D.; Marsh, T.; Garrity, G. The Ribosomal Database Project: Improved alignments and new tools for rRNA analysis. Nucleic Acids Res 2009, 37, 141–145. [Google Scholar]
  56. Wheeler, D.L.; Barrett, T.; Benson, D.A.; Bryant, S.H.; Canese, K.; Chetvernin, V.; Church, D.M.; DiCuccio, M.; Edgar, R.; Federhen, S.; et al. Database resources of the national center for biotechnology information. Nucleic Acids Res 2007, 35, 5–12. [Google Scholar]
  57. Chun, J.; Lee, J.H.; Jung, Y.; Kim, M.; Kim, S.; Kim, B.K.; Lim, Y.W. EzTaxon: A web-based tool for the identification of prokaryotes based on 16S ribosomal RNA gene sequences. Int. J. Syst. Evol. Microbiol 2007, 57, 2259–2261. [Google Scholar]
  58. Edgar, R.C. MUSCLE: Multiple sequence alignment with high accuracy and high throughput. Nucleic Acids Res 2004, 32, 1792–1797. [Google Scholar]
  59. Tamura, K.; Peterson, D.; Peterson, N.; Stecher, G.; Nei, M.; Kumar, S. MEGA5: Molecular evolutionary genetics analysis using maximum likelihood, evolutionary distance, and maximum parsimony methods. Mol. Biol. Evol 2011, 28, 2731–2739. [Google Scholar]
  60. Galand, P.E.; Fritze, H.; Yrjälä, K. Microsite-dependent changes in methanogenic populations in a boreal oligotrophic fen. Environ. Microbiol 2003, 5, 1133–1143. [Google Scholar]
  61. Lü, D.; Li, Z.; Qin, S.; Ma, H.; Liu, G. Bacterial community structure in the Cerasus sachalinensis Kom. rhizosphere based on the polymerase chain reaction-denaturing gradient gel electrophoresis (PCR-DGGE) method. Afr. J. Biotechnol 2011, 10, 13430–13438. [Google Scholar]
  62. Schloss, P.D.; Handelsman, J. Introducing DOTUR, a computer program for defining operational taxonomic units and estimating species richness. Appl. Environ. Microb 2005, 71, 1501–1506. [Google Scholar]
  63. Chao, A.; Shen, T.J. Nonparametric estimation of Shannon’s index of diversity when there are unseen species in sample. Environ. Ecol. Stat 2003, 10, 429–443. [Google Scholar]
  64. Gotelli, N.J.; Colwell, R.K. Quantifying biodiversity: Procedures and pitfalls in the measurement and comparison of species richness. Ecol. Lett 2001, 4, 379–391. [Google Scholar]
  65. Colwell, R.K.; Mao, C.X.; Chang, J. Interpolating, extrapolating, and comparing incidence-based species accumulation curves. Ecology 2004, 85, 2717–2727. [Google Scholar]
