Vanadyl Phthalocyanine as a Low-Temperature/Low-Pressure Catalyst for the Conversion of Fructose to Methyl Levulinate

,
,
,
and
1
School of Integrative Biological and Chemical Sciences, University of Texas Rio Grande Valley, 1 West University Blvd, Brownsville, TX 78521, USA
2
Department of Mechanical Engineering, University of Texas Rio Grande Valley, 1201 W University Drive, Edinburg, TX 78539, USA
3
School of Earth Environmental and Marine Sciences, University of Texas Rio Grande Valley, 1 W University Blvd, Brownsville, TX 78521, USA
*
Authors to whom correspondence should be addressed.

Abstract

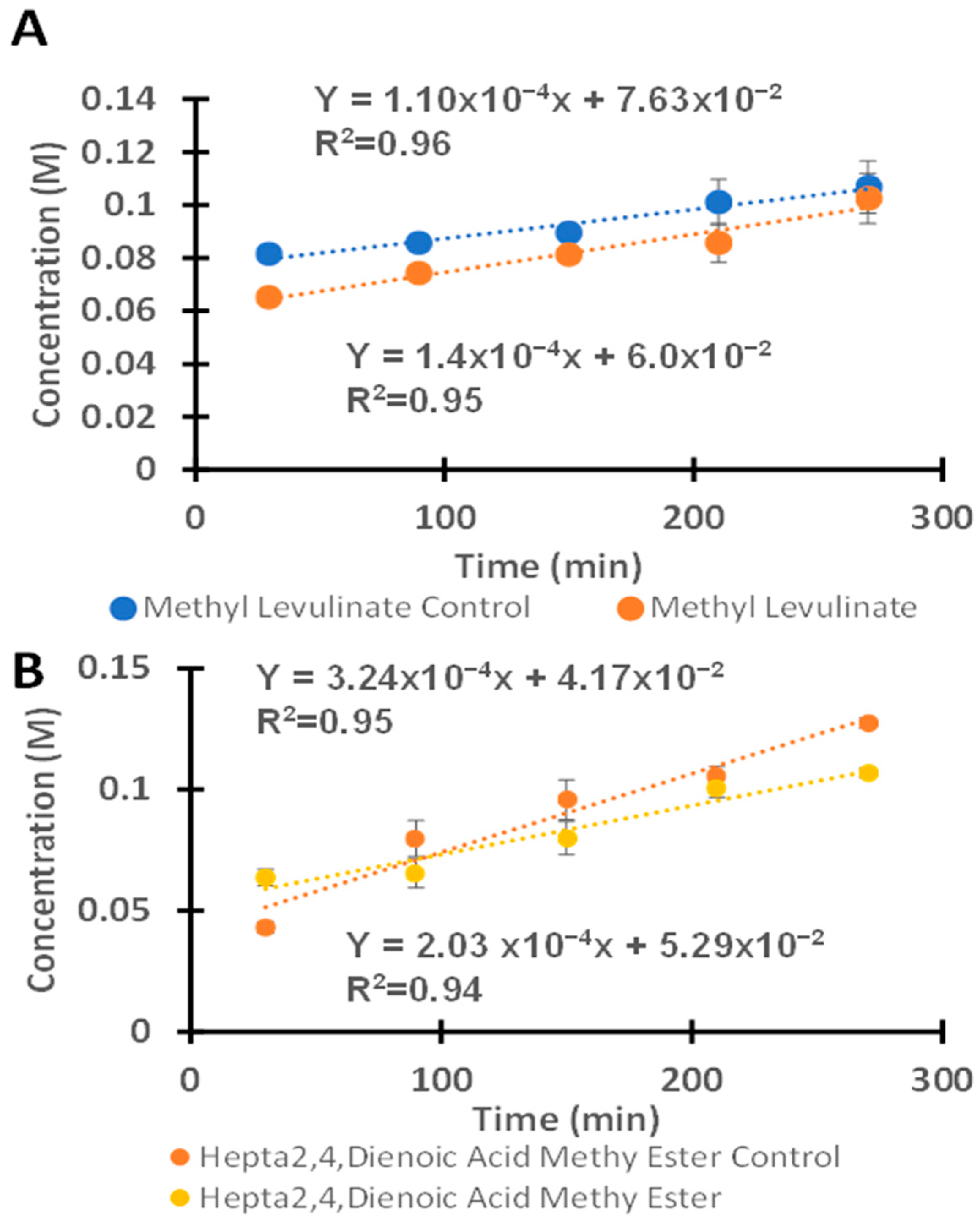

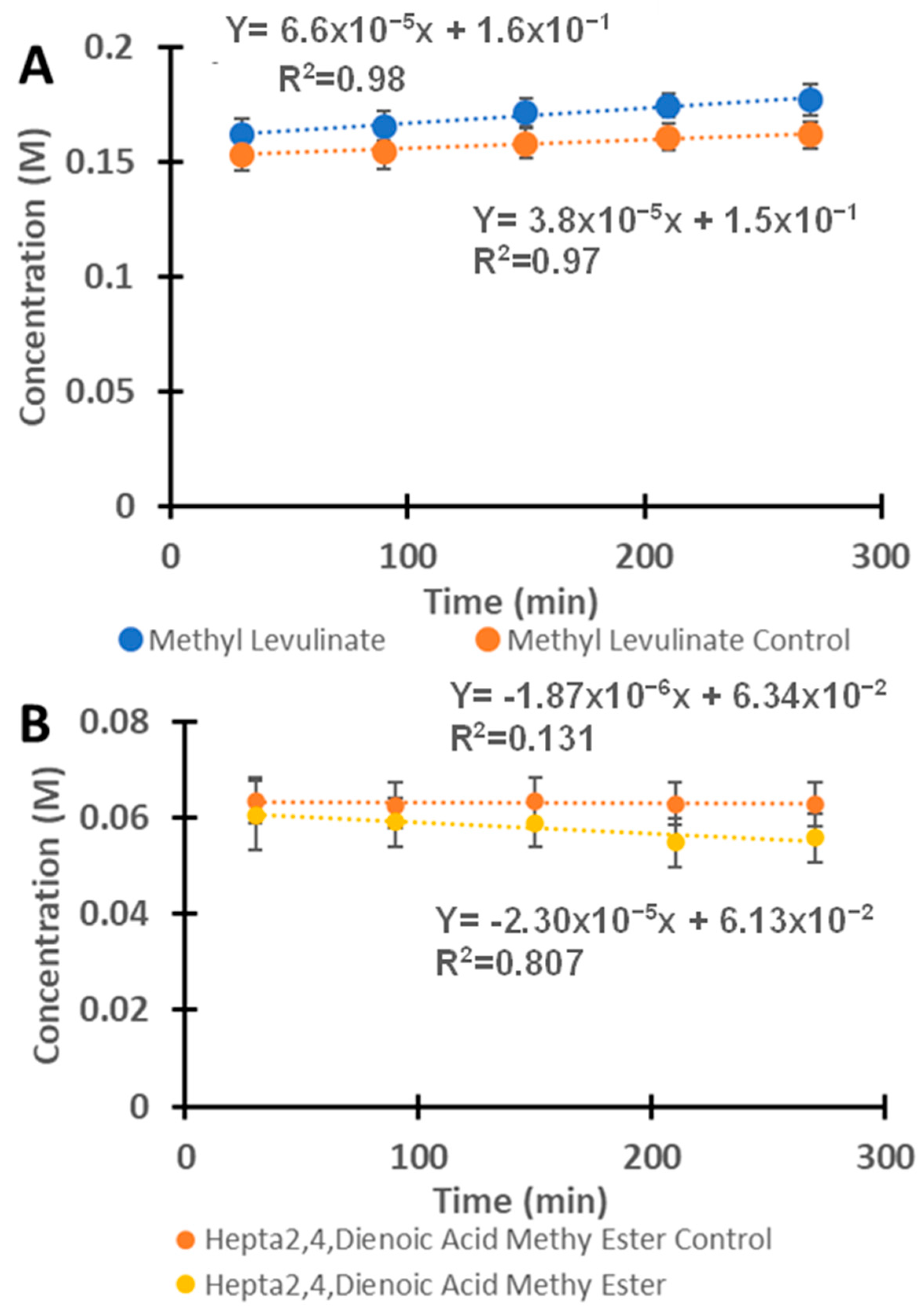

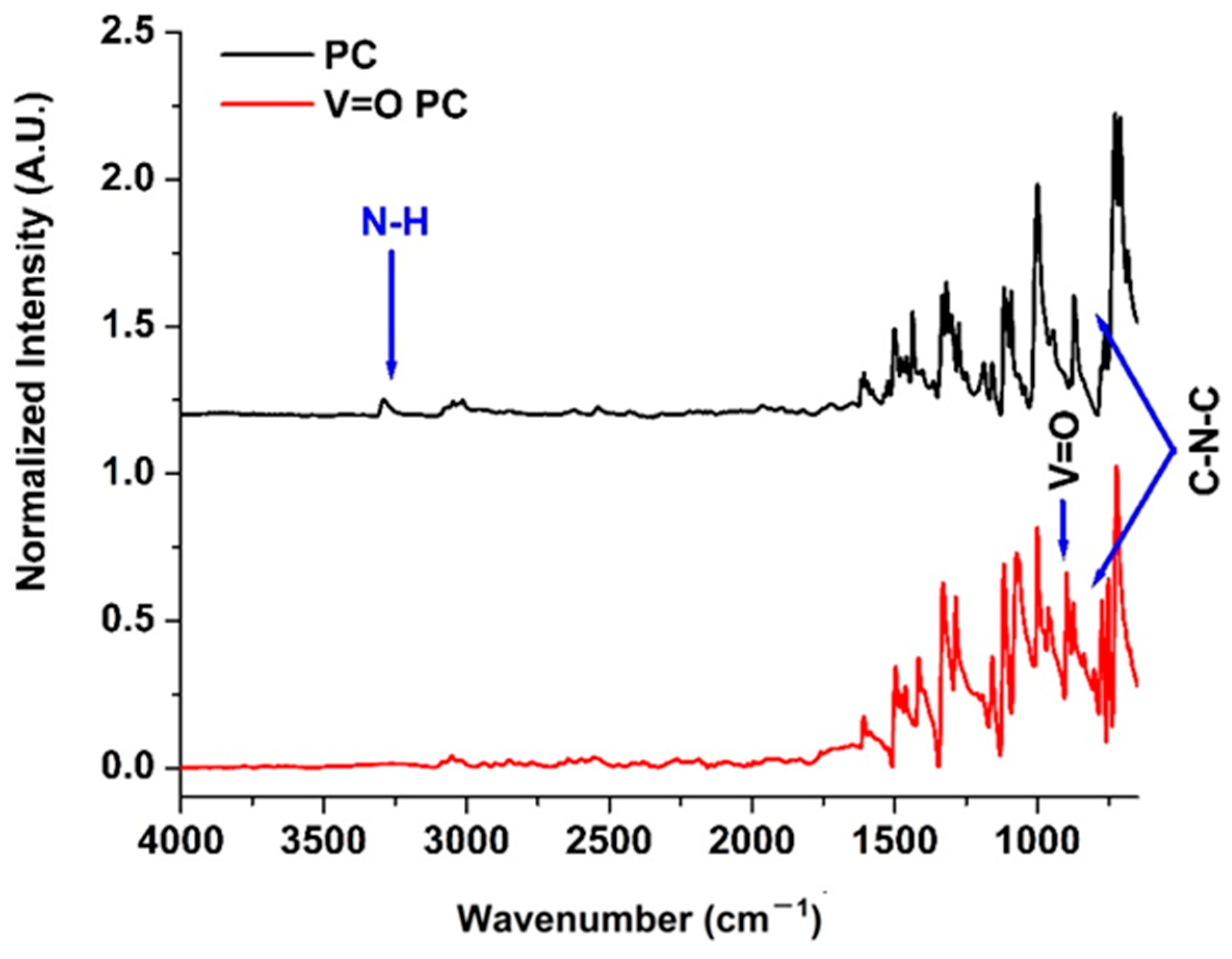

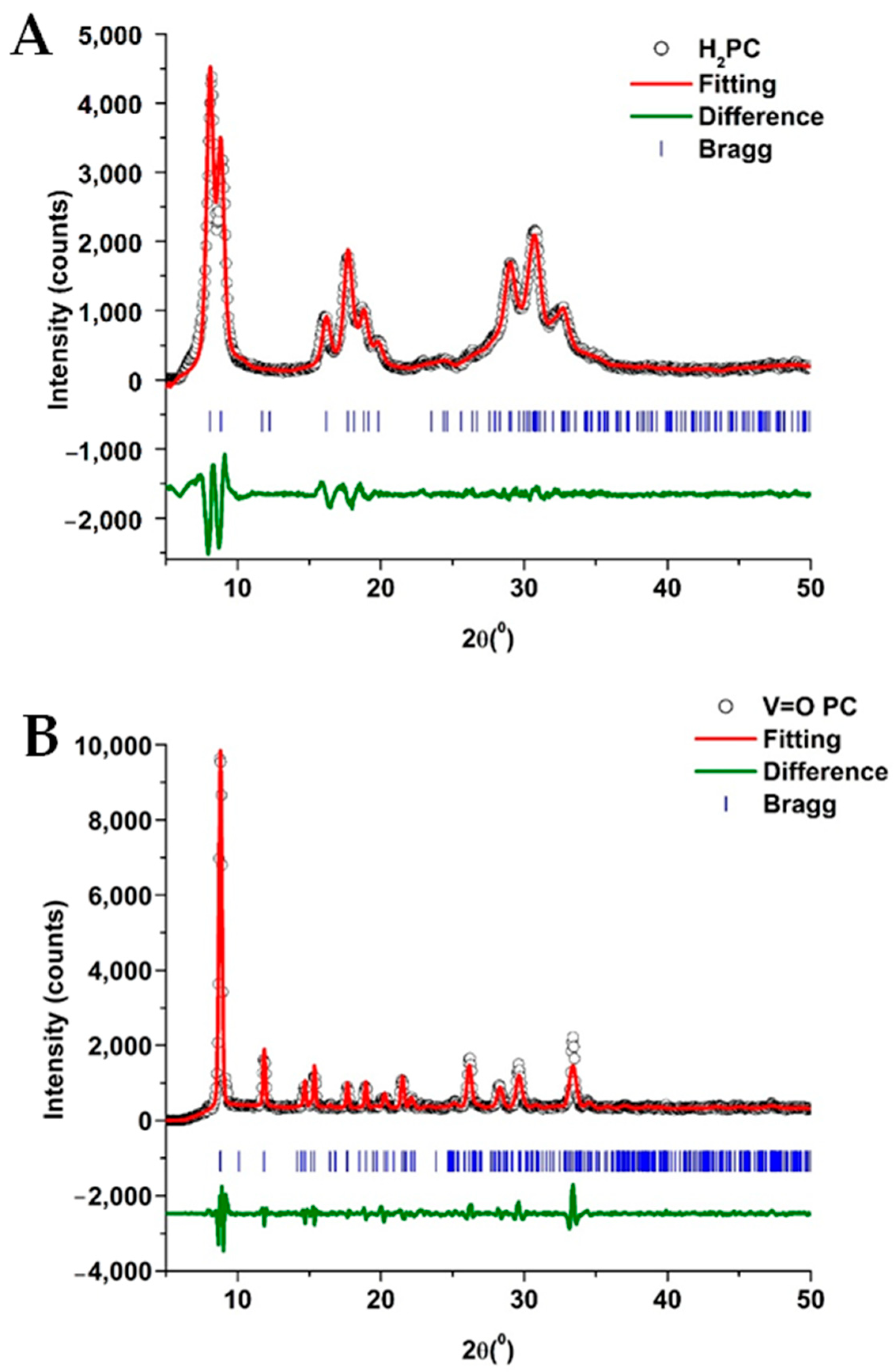

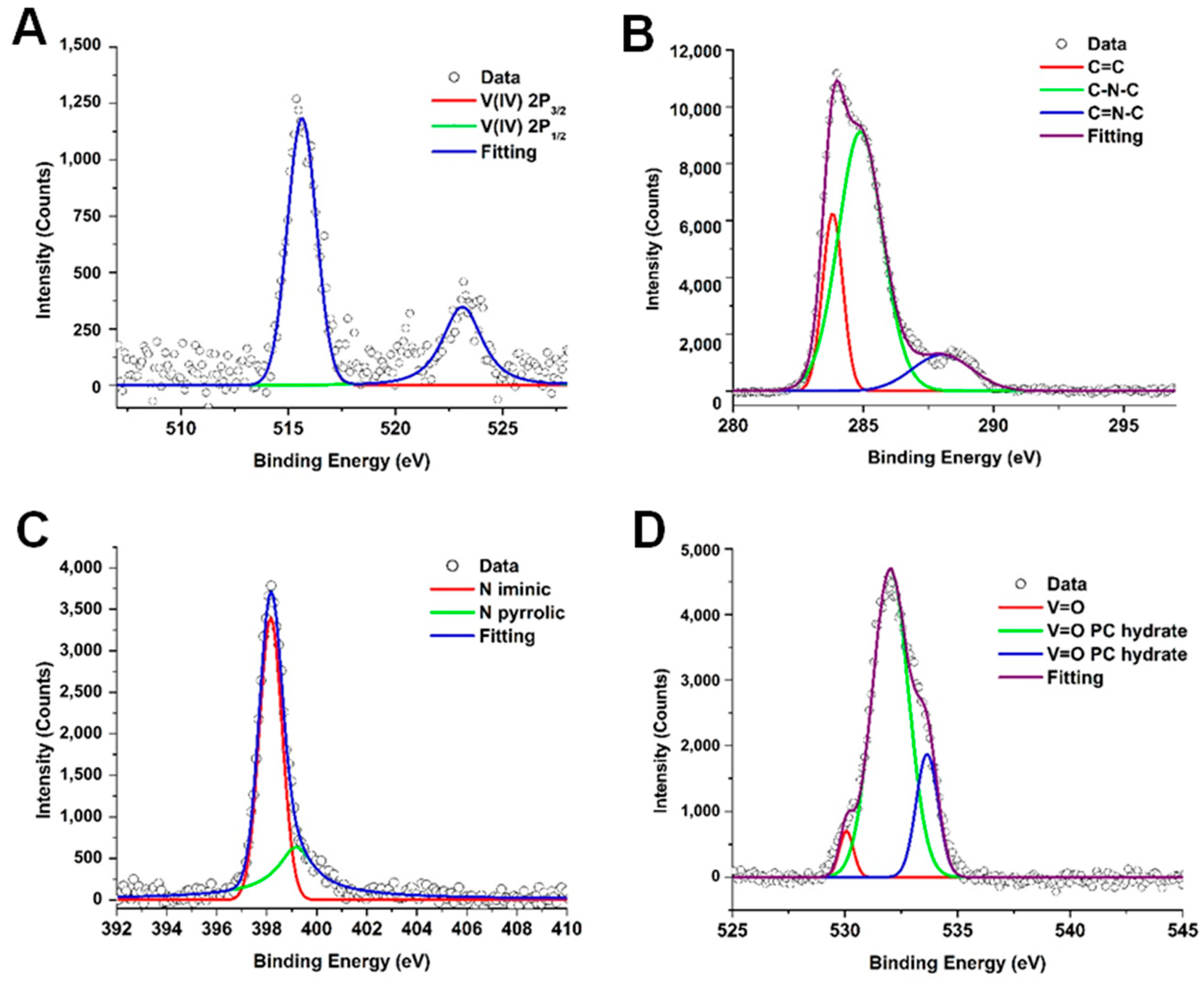

In this study, a vanadyl phthalocyanine was synthesized and characterized using XRD, FTIR, and XPS, confirming the successful metalation of the phthalocyanine ring. XRD analysis showed the vanadyl phthalocyanine crystallized in the P-1 crystal lattice, with unit cell parameters a = 12.058 Å, b = 12.598 Å, and c = 8.719 Å, and the lattice angels were 96.203°, 94.941°, and 68.204°. FTIR spectroscopy supported the metalation by the disappearance of the N-H stretch of the non-metalated phthalocyanine. The vanadyl phthalocyanine was tested as a heterogenous catalyst for the conversion of fructose into methyl levulinate in H2SO4–methanol and HCl–methanol systems. The H2SO4–methanol reaction system catalyzed with the vanadyl phthalocyanine, and a zeroth-order rate constant of 1.10 × 10−6 M/s was observed, which was 1.74 times faster than sulfuric acid alone. The HCl–methanol system showed a zeroth-order of reaction with a rate constant of 2.33 × 10−6 M/s, which was 1.3 times faster than the HCl–methanol alone. While the HCl–methanol system showed a faster reaction rate, product distribution favored methyl levulinate formation in the H2SO4–methanol system. The main products identified were methyl levulinate and hepta-2,4-dienoic acid methyl ester, with a minor amount of hydroxymethylfurfural formed. These results suggest that vanadyl phthalocyanine can be effectively used as a catalyst to increase the rate of fructose conversion to methyl levulinate in either H2SO4 or HCl–methanol.
