Construction Materials: Corrosion, Prevention and Protection

Abstract submission deadline

1 March 2026

Manuscript submission deadline

1 May 2026

Viewed by

3372

Topic Information

Dear Colleagues,

Nowadays, construction materials are facing a revolution triggered by eco-sustainability paradigms and supported by design effectiveness, cost saving, esthetic, and functional impacts. Such an approach has driven both research and industry towards the development of innovative, high-performance, and durable engineering materials, paving the way for effective material selection strategies and the appropriate design of protection or prevention systems to ensure the prolonged service life of construction materials. Materials degradation and corrosion are time-dependent phenomena, which are capable of strongly affecting the service life of materials, compromising the functionality and performances. This may lead, in the case of wrong material selection or on-filed execution, to the need for premature maintenance or component replacement to prevent dramatic failures, dramatically affecting two pillars of construction materials: safety and sustainability. The Special Issue purpose aims to give a complete overview of innovative and traditional construction materials and of prevention or protection systems, such as coatings, inhibitors and cathodic protection, with a specific focus on corrosion and durability. Papers related to corrosion protection, prevention, repair strategies, life cycle assessment, and design practices as well as modeling are welcome. We look forward to your contributions.

Dr. Sergio Lorenzi
Prof. Dr. Marco Ormellese
Topic Editors

Keywords

Participating Journals

Journal Name	Impact Factor	CiteScore	Launched Year	First Decision (median)	APC
Applied Sciences applsci	2.5	5.5	2011	16 Days	CHF 2400	Submit
Buildings buildings	3.1	4.4	2011	15.1 Days	CHF 2600	Submit
Construction Materials constrmater	-	3.1	2021	20.9 Days	CHF 1200	Submit
Corrosion and Materials Degradation cmd	2.4	5.2	2020	19.2 Days	CHF 1200	Submit
Materials materials	3.2	6.4	2008	15.5 Days	CHF 2600	Submit
Metals metals	2.5	5.3	2011	18.7 Days	CHF 2600	Submit

Preprints.org is a multidisciplinary platform offering a preprint service designed to facilitate the early sharing of your research. It supports and empowers your research journey from the very beginning.

MDPI Topics is collaborating with Preprints.org and has established a direct connection between MDPI journals and the platform. Authors are encouraged to take advantage of this opportunity by posting their preprints at Preprints.org prior to publication:

1. Share your research immediately: disseminate your ideas prior to publication and establish priority for your work.
2. Safeguard your intellectual contribution: Protect your ideas with a time-stamped preprint that serves as proof of your research timeline.
3. Boost visibility and impact: Increase the reach and influence of your research by making it accessible to a global audience.
4. Gain early feedback: Receive valuable input and insights from peers before submitting to a journal.
5. Ensure broad indexing: Web of Science (Preprint Citation Index), Google Scholar, Crossref, SHARE, PrePubMed, Scilit and Europe PMC.

Published Papers (5 papers)

Order results

Content type Publication Date

Result details

Normal Extended Compact

Journals

All Applied Sciences Buildings Construction Materials CMD Materials Metals

Show export options expand_more Show export options expand_less

Select all

Export citation of selected articles as:

Plain Text BibTeX BibTeX (without abstracts) Endnote Endnote (without abstracts) Tab-delimited RIS

Error

Oops... you haven't selected anything for export.

Ok

clear

28 pages, 2891 KB

Open AccessArticle

Electrical Resistivity-Based Prediction of Corrosion-Affected Areas in Reinforced Concrete

by Vince Evan T. Agbayani, Seong-Hoon Kee, Cris Edward F. Monjardin and Kevin Paolo V. Robles

Buildings 2026, 16(4), 886; https://doi.org/10.3390/buildings16040886 - 23 Feb 2026

Abstract

This study investigates the development of a predictive model in simulations for assessing steel corrosion in determining corrosion-affected zones in reinforced concrete. A series of reinforced concrete cubes with varying degrees of corrosion were tested using a four-probe Wenner configuration. The experimental data [...] Read more.

This study investigates the development of a predictive model in simulations for assessing steel corrosion in determining corrosion-affected zones in reinforced concrete. A series of reinforced concrete cubes with varying degrees of corrosion were tested using a four-probe Wenner configuration. The experimental data showed a clear inverse relationship between ER and steel mass loss, with a strong negative correlation, highlighting the potential of ER as a corrosion indicator. A third-degree polynomial model was developed to predict the diameter of the corrosion-affected region based on steel mass loss and concrete cover, achieving high predictive accuracy. This model was validated using numerical simulation conducted in COMSOL Multiphysics, which replicated the experimental setup under steady-state conditions. Parametric studies further examined the effects of electrical conductivity ($\sigma$) and electrode spacing on the simulated results. The findings confirm that while $\sigma$ has a moderate impact, electrode spacing significantly influences the measured ER values. The study underscores the importance of incorporating variable parameters into simulation models to improve the accuracy and field applicability of ER-based corrosion assessments. Furthermore, the simulation framework developed in this study demonstrates how numerical modeling can enhance the interpretive value of ER measurements, supporting the advancement of non-destructive testing techniques aimed at improving corrosion monitoring and maintenance strategies. Full article

(This article belongs to the Topic Construction Materials: Corrosion, Prevention and Protection)

►▼ Show Figures

Figure 1

18 pages, 5767 KB

Open AccessArticle

Temperature-Dependent Tensile Degradation of HDPE Sheaths for Bridge Cables Considering UV–Chloride Exposure

by Jing Wang, Haochen Duan, Quanming Zhao, Qingling Meng and Ke Zhang

Buildings 2026, 16(4), 736; https://doi.org/10.3390/buildings16040736 - 11 Feb 2026

Viewed by 206

Abstract

As the principal load-bearing components of cable-supported bridges, cables are critical to structural safety, and their durability is strongly governed by the integrity of high-density polyethylene (HDPE) sheaths. Prolonged exposure to ultraviolet (UV) radiation and chloride-rich environments can significantly degrade the mechanical performance [...] Read more.

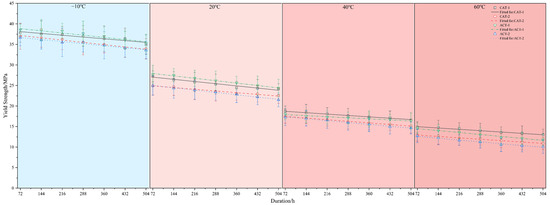

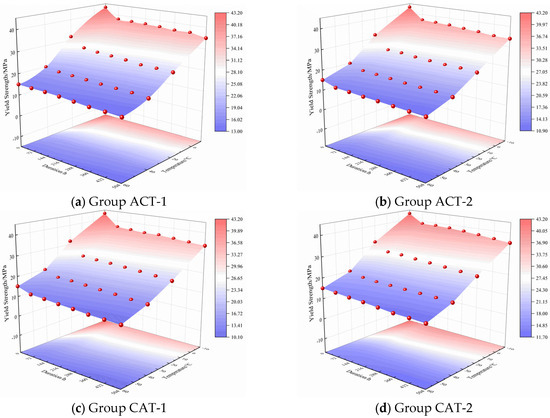

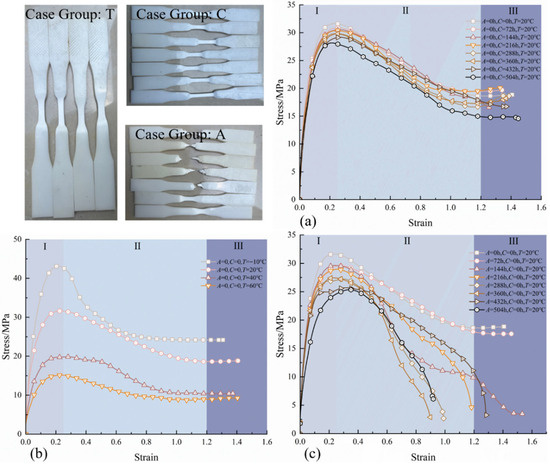

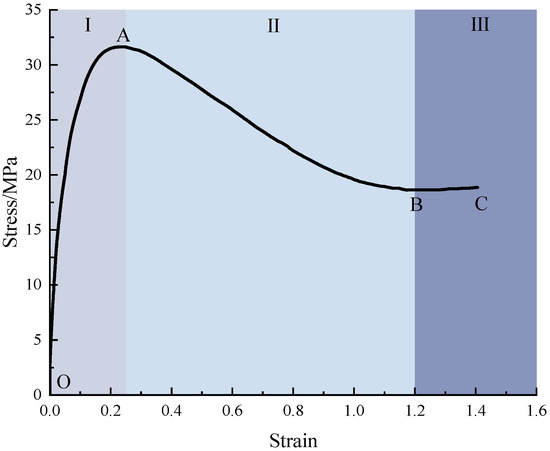

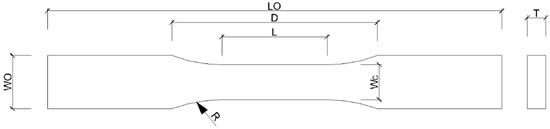

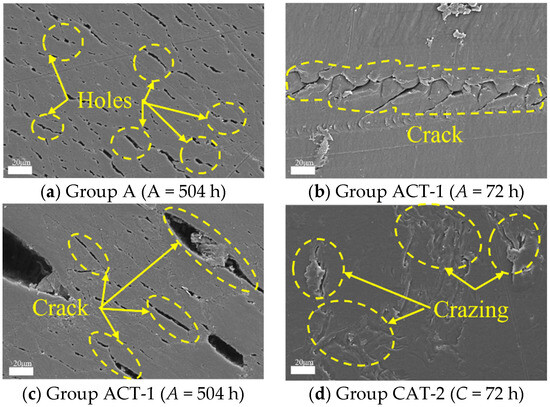

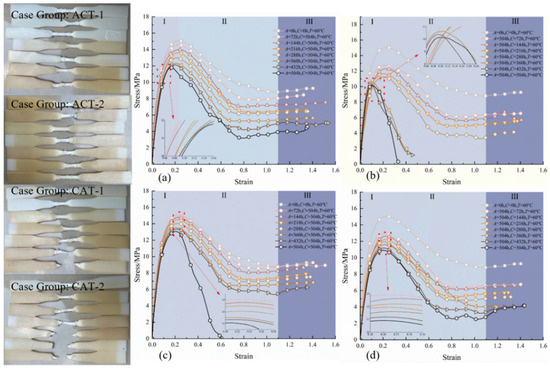

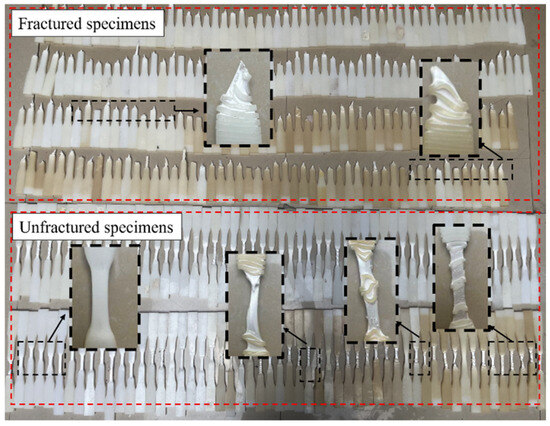

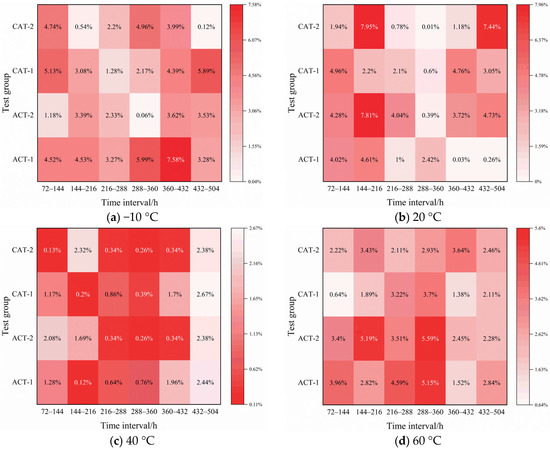

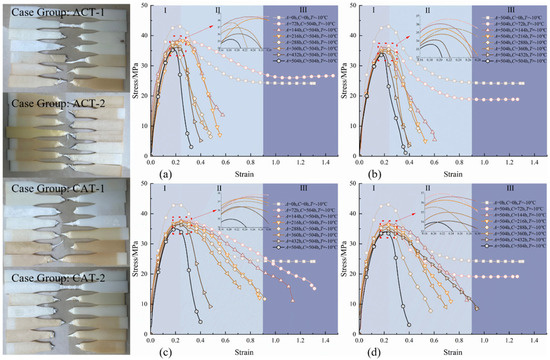

As the principal load-bearing components of cable-supported bridges, cables are critical to structural safety, and their durability is strongly governed by the integrity of high-density polyethylene (HDPE) sheaths. Prolonged exposure to ultraviolet (UV) radiation and chloride-rich environments can significantly degrade the mechanical performance of HDPE sheaths. To clarify the degradation behavior, HDPE sheaths were pre-exposed to UV alone, chloride alone, or a sequential two-stage UV–chloride protocol (with a single switch). Subsequently, uniaxial tensile tests were performed at different loading temperatures. The yield strength and O–A secant modulus decreased monotonically with increasing pre-exposure duration. A pronounced sequence effect was observed, with UV pre-exposure followed by chloride exposure causing greater deterioration than the reverse order. Under UV alone, the maximum reductions in yield strength and O–A secant modulus were 19.81% and 46.21%, respectively; under chloride alone, they were 10.97% and 22.00%; and under the sequential UV–chloride exposure, they were 31.97% and 26.24%. Moreover, the tensile response showed strong temperature sensitivity: under otherwise identical pre-exposure conditions, the yield strength measured at 60 °C was 64.89% lower than that measured at −10 °C, representing the maximum reduction within the investigated temperature range. Full article

(This article belongs to the Topic Construction Materials: Corrosion, Prevention and Protection)

►▼ Show Figures

Figure 1

27 pages, 6287 KB

Open AccessArticle

Fatigue Life of Long-Distance Natural Gas Pipelines with Internal Corrosion Defects Under Random Pressure Fluctuations

by Zilong Nan, Liqiong Chen, Xingyu Zhou and Chuan Cheng

Buildings 2026, 16(2), 442; https://doi.org/10.3390/buildings16020442 - 21 Jan 2026

Viewed by 231

Abstract

Long-distance natural gas pipelines with internal corrosion defects are susceptible to fatigue failure under operational pressure fluctuations, posing significant risks to infrastructure integrity and safety. To address this, the present study employs a finite element methodology, utilizing Ansys Workbench to model pipelines of [...] Read more.

Long-distance natural gas pipelines with internal corrosion defects are susceptible to fatigue failure under operational pressure fluctuations, posing significant risks to infrastructure integrity and safety. To address this, the present study employs a finite element methodology, utilizing Ansys Workbench to model pipelines of various specifications with parametrically defined corrosion defects, and nCode DesignLife to predict fatigue life based on Miner’s linear cumulative damage theory. The S-N curve for X70 steel was directly adopted, while a power-function model was fitted for X80 steel based on standards. A cleaned real-world pressure-time history was used as the load spectrum. Parametric analysis reveals that defect depth is the most influential factor, with a depth coefficient increase from 0.05 to 0.25, reducing fatigue life by up to 67.5%, while the influence of defect width is minimal. An empirical formula for fatigue life prediction was subsequently developed via multiple linear regression, demonstrating good agreement with simulation results and providing a practical tool for the residual life assessment and maintenance planning of in-service pipelines. Full article

(This article belongs to the Topic Construction Materials: Corrosion, Prevention and Protection)

►▼ Show Figures

Figure 1

16 pages, 2026 KB

Open AccessArticle

Eco-Friendly Enhancement of Silicate Coatings for Steel Using Lawsonia inermis Extract as a Dual-Function Dispersant and Corrosion Inhibitor

by Le Thi Nhung, Nguyen Hoang, Truong Anh Khoa, Phan Minh Phuong and Thanh-Danh Nguyen

Constr. Mater. 2025, 5(4), 87; https://doi.org/10.3390/constrmater5040087 - 5 Dec 2025

Viewed by 433

Abstract

Corrosion of steel structures remains a persistent challenge in construction, particularly in coastal and industrial environments where chloride-induced degradation accelerates structural failure. This study presents an eco-friendly approach to improve the corrosion protection of the steel by incorporating Lawsonia inermis (henna) leaf extract [...] Read more.

Corrosion of steel structures remains a persistent challenge in construction, particularly in coastal and industrial environments where chloride-induced degradation accelerates structural failure. This study presents an eco-friendly approach to improve the corrosion protection of the steel by incorporating Lawsonia inermis (henna) leaf extract into zinc–aluminum silicate coatings. The henna extract was added at varying concentrations (0–12 wt%) to evaluate its influence on structure, adhesion, and electrochemical performance of the coating. Physicochemical characterizations including FTIR, XRD, XRF, and SEM revealed that a 5 wt% addition optimized pigment dispersion, resulting in a denser and more homogeneous coating microstructure. Electrochemical impedance spectroscopy (EIS) and potentiodynamic polarization tests after 35 days of immersion in 3.5 wt% NaCl solution demonstrated that this formulation achieved the highest impedance and polarization resistance, confirming enhanced corrosion resistance. The improvement was attributed to the dual action of the henna extract: (i) as a dispersant, promoting uniform Zn–Al pigment distribution and reducing porosity, and (ii) as a green corrosion inhibitor, forming an adsorbed protective film on the steel surface. This work highlights the potential of bio-derived additives to enhance the long-term durability of steel infrastructure and supports the development of sustainable protective materials for construction applications. Full article

(This article belongs to the Topic Construction Materials: Corrosion, Prevention and Protection)

►▼ Show Figures

Figure 1

23 pages, 3762 KB

Open AccessReview

Dose–Response Functions for Assessing Corrosion Risks to Urban Heritage Materials from Air Pollution Under Climate Change: Insights from Europe and China

by Zhe Bai and Yu Yan

Buildings 2025, 15(13), 2271; https://doi.org/10.3390/buildings15132271 - 27 Jun 2025

Cited by 1 | Viewed by 1311

Abstract

Urban heritage materials face accelerated decay due to the synergistic effects of air pollution and climate change. Dose–response functions (DRFs) have emerged as a key tool to quantify and predict these risks. This review synthesizes the scientific development of DRFs, their application in [...] Read more.

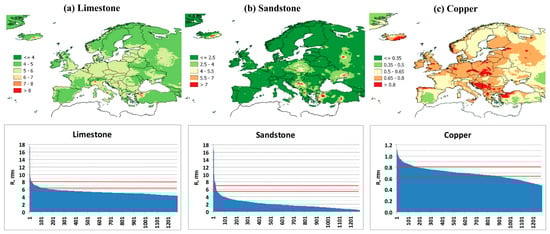

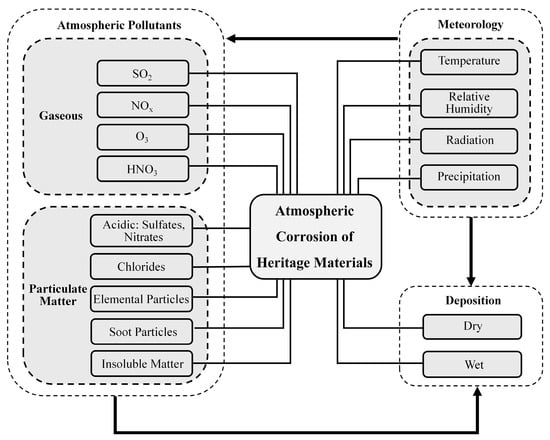

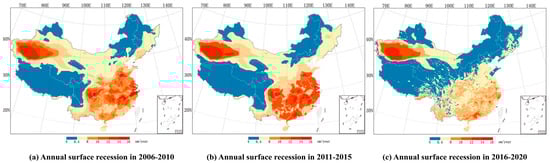

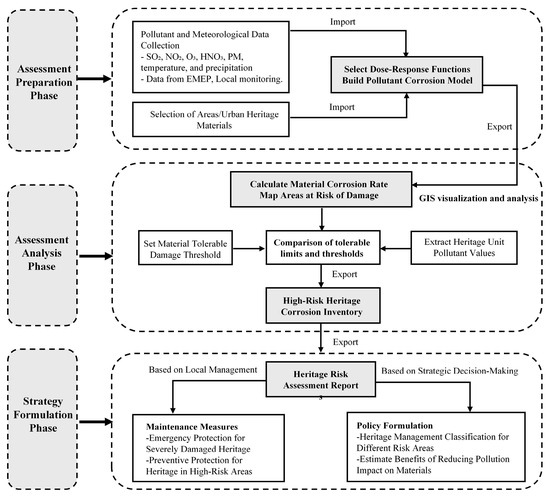

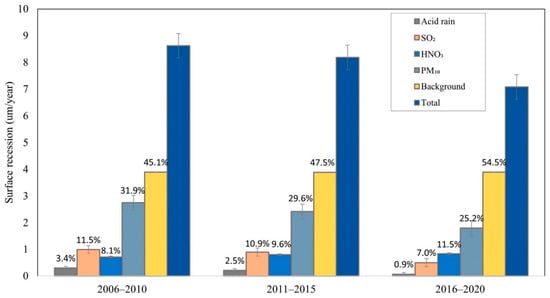

Urban heritage materials face accelerated decay due to the synergistic effects of air pollution and climate change. Dose–response functions (DRFs) have emerged as a key tool to quantify and predict these risks. This review synthesizes the scientific development of DRFs, their application in Europe and China, and their role in policy and heritage management. European initiatives have refined DRFs to incorporate multi-pollutant and climate interactions, providing spatial risk maps and informing pollution control measures. In China, recent applications adapt European insights to local contexts, revealing strong influences of particulate matter. While DRFs offer clear quantitative estimates, their empirical nature and simplified assumptions necessitate complementary methods, including sensor networks, remote sensing, and machine learning models. Future research should integrate multivariate modelling, expand empirical data, and couple DRFs with real-time monitoring to better protect urban heritage materials amid environmental change. Full article

(This article belongs to the Topic Construction Materials: Corrosion, Prevention and Protection)

►▼ Show Figures

Figure 1

Show export options expand_more Show export options expand_less

Select all

Export citation of selected articles as:

Plain Text BibTeX BibTeX (without abstracts) Endnote Endnote (without abstracts) Tab-delimited RIS



Error

Oops... you haven't selected anything for export.

Ok

clear

Displaying articles 1-5
