Search Results (498)

Thin wall composite fan blades in aircraft engines demand designs that ensure structural integrity under operational loads while resisting foreign object damage and bird strikes. This study presents a finite element investigation of thin wall composite blades with metal leading edge caps, modeled through parametric coupon analyses under static flexure loading using ANSYS APDL. Three metallic leading edge caps, Ti-6Al-4V, Inconel 718, and 15-5 PH stainless steel, were combined with IM7/8551-7 carbon fiber composites. Parametric variations included changes in metal cap material, geometric designs of the joint, and other things. Performance was evaluated in terms of failure stress, interlaminar shear strains, interface integrity, and failure margins. Results reveal that cap design and cap material critically govern structural response, with distinct interchanges between strength-to-weight efficiency, interface stresses, and interlaminar shear strain. Optimal designs reduced interlaminar shear strain levels in thin wall composite blades, while retaining adequate stiffness and strength. The results underscore the importance of interface design for effective load transfer and provide design guidelines for lightweight, damage-tolerant thin wall composite fan blade structures. Full article

This study aimed to investigate the influence of the synthesis parameters on the corrosion resistance of 3D-printed Inconel 718 components. Samples were fabricated using laser powder bed fusion (PBF-LB/M) with different angles of inclination. Corrosion tests were conducted by immersion for 1000 h in a 3.5% aqueous NaCl solution at 20 °C and 45 °C, and by the potentiodynamic polarization measurements. Detailed analysis of changes in morphology, chemical composition, and roughness of 3D prints was performed using scanning electron microscopy, combined with energy-dispersive X-ray spectroscopy, and optical profilometry. To quantify the dissolution of alloy components during the long-term measurements, the post-corrosion solutions were analyzed using microwave plasma–atomic emission spectroscopy. The obtained results demonstrate that inclination angle significantly affects corrosion rate and electrochemical kinetics, with measurable differences in mass loss, Icorr values, and surface degradation morphology observed between orientations. The findings indicate that build orientation governs microstructural anisotropy and surface characteristics, which in turn influence corrosion susceptibility. The novelty of this work lies in the systematic and multi-method evaluation of inclination angle as an independent structural parameter controlling corrosion kinetics in PBF-LB/M-fabricated Inconel 718, providing new insight into structure–corrosion relationships in additively manufactured nickel-based superalloys. Full article

Thermal barrier coatings (TBCs) are an effective means of providing thermal insulation and protecting the hot-section components of gas turbine engines. Their quality and performance characteristics largely depend on the microstructural features and the bond strength between the bonding layer and the substrate. The present study aims to determine the optimal plasma spraying parameters that ensure the formation of NiCrAlY coatings with superior microstructural integrity and adhesion strength. The objective of the study is a thermally sprayed nickel–chromium–aluminum–yttrium (NiCrAlY) bond coat deposited onto an Inconel 718 nickel-based superalloy, which is widely used in aircraft gas turbine engines due to its high strength and excellent oxidation resistance at elevated temperatures. It was found that the coating produced under the optimized conditions exhibited a significantly higher adhesion strength compared with the samples obtained under other spraying regimes. The results confirm that a precise adjustment of the atmospheric plasma spraying (APS) process parameters, taking into account the equipment configuration, allows for a substantial improvement in coating quality and performance. Full article

In view of the potential fretting wear issues of Laser Metal Deposition (LMD) In718 in engineering applications, this paper investigates the fretting wear behavior of LMD In718 alloy subjected to two different heat treatment processes: homogenized Solution-Treated and Aged (STA) and direct-aged only. This was conducted utilizing a newly designed fretting wear apparatus to enable real-time dynamic monitoring of the contact interface and maintain uniform normal force distribution. Furthermore, to provide a more comprehensive understanding of how different heat treatments influence the fretting wear performance of LMD In718, this study systematically evaluates their distinct tribological responses and underlying wear mechanisms. The wear resistance of the material was predicted by analyzing the proportion of the main strengthening phase γ″ in samples with different heat treatments using microstructural characterization methods. Wear resistance tests were conducted under ambient conditions. The results show that the homogenized STA sample has a specific wear rate of 1.375 × 10⁻⁷ mm³/(N∙m), while the direct-aged sample has a wear rate of 1.550 × 10⁻⁷ mm³/(N∙m). The direct-aged sample exhibited severe fatigue spalling accompanied by adhesive and abrasive wear, with numerous subsurface cracks. The homogenized STA sample demonstrated a combined mechanism of oxidative wear and localized abrasive wear. Full article

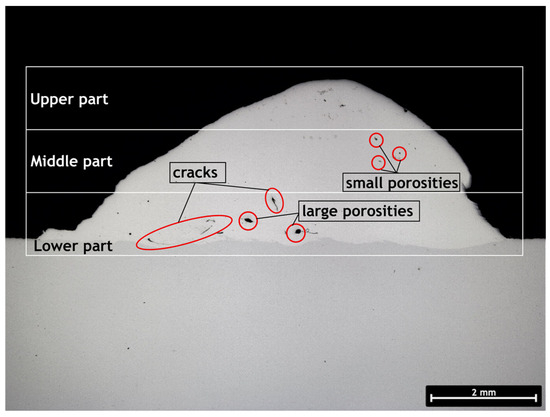

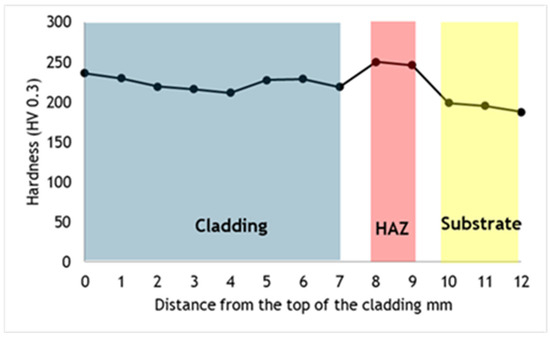

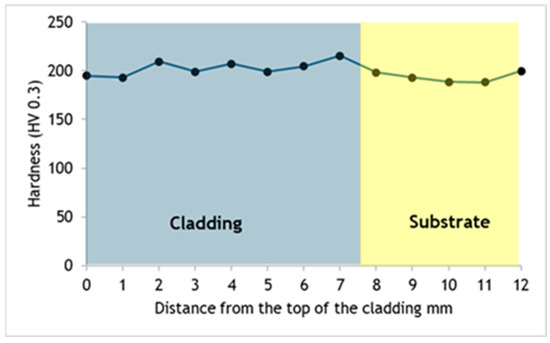

Wire–Laser Additive Manufacturing (WLAM) is a promising directed energy deposition technique for producing and repairing high-performance components with high material efficiency and strong metallurgical bonding. This study optimizes single-track Inconel 718 claddings deposited by WLAM on AISI 304L stainless steel and S355 structural steel substrates, focusing on the relationships between processing parameters, microstructure, post-deposition heat treatment, and mechanical performance. A systematic parametric assessment evaluated the influence of laser power, laser speed, wire feed rate, and shielding gas pressure on key quality metrics, including dilution, wettability, porosity, and cracking. Distinct optimal processing windows were identified for each substrate, reflecting their different thermal responses: for 304L, 8.5 kW laser power, 0.55 m/min laser speed, 5 m/min wire feed rate, and 2 bar argon; for S355, 9.6 kW laser power, 0.6 m/min laser speed, 4.9 m/min wire feed rate, and 4 bar argon. Post-deposition heat treatment markedly enhanced performance by dissolving Nb-rich interdendritic Laves phase and promoting γ′/γ″ precipitation. As a result, clad hardness increased from ≈225 HV 0.3 (as-built) to ≈412 H V0.3 after heat treatment (+84%). Tensile testing confirmed substantial strengthening, with yield strength increasing from 447 to 853 MPa (horizontal build) and from 488 to 960 MPa (vertical), while ultimate tensile strength rose from 824 to 1057 MPa (horizontal) and from 836 to 1090 MPa (vertical). Mechanical anisotropy remained significant, linked to columnar grain morphology and build orientation. Overall, the results provide practical process window and heat treatment guidelines for reliable industrial implementation of high-quality Inconel 718 claddings on steel substrates for demanding applications. Full article

While extensive research on laser powder bed fusion has focused on optimizing process parameters to improve the performance of manufactured parts, the critical role of effective spatter particle removal in mitigating defects during manufacturing has not received commensurate attention. To address these issues, this study investigates the influence of a key parameter in the atmosphere protection system, namely, airflow velocity, on part performance. Methodologically, a combined approach of numerical simulation and experimental methods was employed to examine in detail the effect of airflow velocity on spatter removal efficiency and its corresponding contribution to the enhancement of formed Inconel 718 part quality. First, Computational Fluid Dynamics–Discrete Phase Model simulations identified an optimal airflow velocity of 0.57 m/s. Subsequently, experimental observations using a high-speed camera system revealed that velocities below 0.6 m/s led to spatter redeposition, resulting in pore and defect formation, whereas velocities exceeding 0.6 m/s increased spatter size and reduced molten-pool stability. The simulation and experimental results are consistent, demonstrating that an appropriate airflow velocity can effectively suppress defects and thereby improve the quality of the fabricated components. This research provides a viable pathway for significantly enhancing the mechanical properties of laser powder bed-fused Inconel 718. Full article

In metal additive manufacturing, the molten pool directly influences the performance of the fabricated components. Therefore, a comprehensive understanding of the molten pool behavior is essential for improving the quality of the parts and mitigating the formation of defects. Selective arc melting (SAM) is a promising additive manufacturing method for fabricating metal matrix composites. However, the melting and solidification process of the powder layer under the arc heat source remains unrevealed. This study aims to elucidate the formation mechanisms of surface morphology during SAM processing and the influence of carbide addition on the melting and solidification behavior of Inconel 718 powder. In this study, thin-walled parts of Inconel 718 and TiC/Inconel 718 composite were fabricated and their microstructures were studied. The melting and solidification behavior of Inconel 718 and TiC/Inconel 718 composite during single-track single-layer deposition was investigated using high-speed photography. Focusing on the differences in the sidewall surface morphology of the Inconel 718 and TiC/Inconel 718 composite parts, the edge feature formation of the deposition track of both materials was studied. Furthermore, the formation mechanism of the differences in forming height at different positions of the deposition track was explored. The results indicate that the melted material in the molten pool of Inconel 718 mainly comes from the mass transport of the beads generated around the molten pool, while the liquid material in the molten pool of TiC/Inconel 718 composite mainly comes from the in situ powder melted under the arc center. During the melting process of Inconel 718 powder, beads at the edge of the heating area come into contact with the boundary of the molten pool and solidify in situ, forming protrusion features. The randomness in the bead size leads to different volumes of molten material at different positions within the same time, thereby causing variations in building height. Full article

To investigate the effect of surface roughness on the fretting wear behavior of the Inconel 718 alloy, specimens fabricated by selective laser melting (SLM) were polished using SiC abrasive papers to obtain different surface roughness levels. Ball-on-flat tangential fretting tests were conducted under a normal load of 50 N, displacement amplitudes of 50 and 100 µm, and a total of 10⁴ cycles. The results reveal that all test conditions fall within the gross slip regime (GSR). The coefficient of friction was not significantly affected by surface roughness, while the energy dissipation per cycle exhibited a decreasing trend with decreasing roughness. The high-roughness surface (R_a = 0.80 µm) exhibited severe stress concentration, leading to asperity fracture and fatigue delamination. The medium-roughness specimen (R_a = 0.43 µm) developed a dense third-body layer, showing a synergistic mechanism of abrasive and fatigue wear. The low-roughness specimen (R_a = 0.07 µm) maintained a stable contact interface with sufficient debris evacuation, dominated by adhesive and abrasive wear. At a displacement amplitude of D = 100 µm, the wear depth reached −6 µm, indicating the largest material removal and the most severe damage. Full article

In this study, 3 wt.% Re/Inconel 718 composite was fabricated by laser powder bed fusion (LPBF), and the effects of aging treatments on the microstructure and properties of the Re/Inconel 718 composite were systematically investigated. This study aims to elucidate the synergistic optimization of microstructure and properties in LPBF Inconel 718, achieved through Re alloying and subsequent heat treatment. Results demonstrated that the samples undergo recrystallization and precipitate numerous fine strengthening phases after heat treatment. Concurrently, heat treatment promotes the diffusion of Re within the material, leading to a significant reduction in its concentration in locally enriched regions. The addition of Re improves the mechanical properties and corrosion resistance of the Inconel 718 alloy through synergistic strengthening mechanisms, including dispersion strengthening, solid solution strengthening, and dislocation strengthening. When the two-stage aging is 720 °C × 8 h (FC × 2 h) + 620 °C × 8 h (AC), the optimum mechanical properties are observed. The dissolution of Laves phases, simultaneous precipitation of both γ″ and γ′ phases, and homogenization of microstructure are responsible for the enhancement of the material’s mechanical properties. However, the extensive precipitation of strengthening phases also promotes the formation of numerous microscopic corrosion cells, which accelerates the corrosion rate and leads to a marked reduction in corrosion resistance of the material. This study provides new insights into the laser additive manufacturing of high-performance nickel-based composites. Full article

Multi-laser powder bed fusion is an emerging additive manufacturing technology that enables the production of high-performance components with intricate geometries and large aspect ratios. These tall, slender structures are highly susceptible to steep thermal gradients and residual stress, leading to deformation that compromises dimensional accuracy and structural integrity. This study investigates how geometric compensation, support structure design, and part scaling influence thermal deformation in Inconel 718 components fabricated via multi-laser powder bed fusion. Using pre-compensation, iterative support refinements, and scaled experimental builds, the deformation response across multiple geometries and print strategies is evaluated. Both compensated and original designs are printed on a commercial system equipped with three simultaneously operating lasers. Results show that printing high-angle surfaces without support structures is infeasible, as thermally induced warping and delamination lead to catastrophic failures. Conical support structures spanning critical regions reduce deformation by more than 50% compared to unsupported builds. Reduced-scale parts, however, do not reliably replicate full-scale deformation behavior due to altered boundary conditions and thermal pathways. These findings highlight the need for integrated design-for-AM workflows where compensation, support design, and scale effects are addressed jointly. The study demonstrates that deformation mechanisms do not scale linearly, emphasizing the limitations of small-scale proxies and the necessity of full-scale validation when developing reliable, deformation-aware design strategies for multi-laser powder bed fusion. Full article

Ultrasonic-assisted laser-directed energy deposition (UA-DED) is a promising combined technology for manufacturing high-value thin-walled Inconel 718 components in aerospace. Nevertheless, the optimal ultrasonic frequency—a key parameter for achieving desirable performance in thin-walled Inconel 718 alloys—remains to be determined. In this study, we systematically investigated the influence of ultrasonic frequency (12–20 kHz) on the microstructure and mechanical properties of thin-walled Inconel 718 fabricated by UA-DED. The results revealed that an ultrasonic frequency of 20 kHz was optimal and can yield significant improvements in the microstructures of the as-deposited sample coordinate planes, manifested by the complete suppression of large pores, three-dimensional refinement of the γ matrix grains, alleviation of Nb and Mo segregation, the reduction of fragmented Laves particles, a decrease in residual macroscopic stresses, and homogeneous distributions of γ′/γ″ phases and γ-grain orientation. Meanwhile, the application of a 20 kHz ultrasonic frequency endows the manufactured thin-walled 718 parts with superior mechanical properties, including a tensile strength of 899 MPa in the laser scanning direction and 877 MPa in the build direction, along with the corresponding elongations of 34.8% and 38.9%. This work demonstrates the potential of modulating ultrasonic frequency to tailor microstructures and produce high-performance thin-walled Inconel 718 aerospace components. Full article

This paper reviews the fracture mechanics parameters associated with the variability in the crack growth curves associated with forty-two different tests that range from additively manufactured (AM) steels to cold spray additively manufactured (CSAM) 316L steel. As a result of this review, it is found that, to a first approximation, the effects of different building processes and R-ratios on the relationship between ΔK and the crack growth rate (da/dN) can be captured by allowing for changes in the fatigue threshold and the apparent cyclic toughness in the Schwalbe crack driving force (Δκ). Whilst this observation, when taken in conjunction with similar findings for AM Ti-6Al-4V, Inconel 718, Inconel 625, and Boeing Space Intelligence and Weapon Systems (BSI&WS) laser powder bed (LPBF)-built Scalmalloy^®, as well as for a range of CSAM pure metals, go a long way in making a point; it is NOT a mathematical proof. It is merely empirical evidence. As a result, this review highlights that for AM and CSAM materials, it is advisable to plot the crack growth rate (da/dN) against both ΔK and Δκ. The observation that, for the AM and CSAM steels examined in this study, the da/dN versus Δκ curves are similar, when coupled with similar observation for a range of other AM materials, supports a prior study that suggested using fracture toughness measurements in conjunction with the flight load spectrum and the operational life requirement to guide the choice of the building process for AM Ti-6Al-4V parts. The observations outlined in this study, when taken together with related findings given in the open literature for AM Ti-6Al-4V, AM Inconel 718, AM Inconel 625, and BSI&WS LPFB-built Scalmalloy^®, as well as for a range of CSAM-built pure metals, have implications for the implementation and certification of limited-life AM parts. Full article

This study investigates the microstructure and mechanical properties of a dissimilar joint formed by rotary friction welding, which joins TC4 titanium alloy to 304 stainless steel using an Inconel 718 interlayer. The welding parameters were as follows: a friction time of 9 s, a friction pressure of 160 MPa, an upset time of 2 s, a forging pressure of 250 MPa, and a rotational speed of 1400 rpm. Microstructural analysis revealed the formation of intermetallic compounds (IMCs), including Fe₂Ti, Ni₃Ti, NiCrFe, FeNi₃, Ti₂Ni, and FeNi, at the TC4/Inconel 718 interface, while Ni₃Ti and FeNi₃ IMCs were identified at the Inconel 718/304SS interface. The tensile tests demonstrated that the joint with the Inconel 718 interlayer (TC4/Inconel 718/304SS) achieved an ultimate tensile strength (UTS) of 717.73 MPa and an elongation of 13.05%. In contrast, the direct joint without the interlayer (TC4/304SS) exhibited a lower UTS of 631.58 MPa and a reduced elongation of 7.39%. Therefore, the introduction of the Inconel 718 interlayer significantly improved joint quality, increasing tensile strength by 13.64% and elongation by 76.59%. More importantly, the interlayer effectively inhibited the formation of brittle Ti-Fe intermetallic compounds, which are typically detrimental to joint performance. Full article

Inconel 718 is widely utilized in critical engineering sectors, particularly aerospace, owing to its exceptional creep resistance, corrosion resistance, and retention of mechanical strength at elevated temperatures. However, its high hardness, low thermal conductivity, and strong work-hardening tendency make it extremely difficult to machine using conventional techniques. Ultrasonic Vibration-Assisted Machining (UVAM) has emerged as an effective strategy to overcome these limitations by superimposing high-frequency, low-amplitude vibrations onto the cutting process. Depending on the vibration direction, UVAM can significantly change chip formation, tool–workpiece interaction, and surface integrity. In this study, the influence of three UVAM modes—longitudinal (Z-UVAM), feed-directional (X-UVAM), and multi-axial (XZ-UVAM)—on the machining behavior of Inconel 718 was systematically investigated. The findings reveal that XZ-UVAM provides the most advantageous outcomes, primarily due to its intermittent cutting mechanism. Compared with Conventional Machining (CM), XZ-UVAM reduced cutting forces by up to 43% and areal surface roughness by 37%, while generating surfaces with more uniform topographies and smaller peak-to-valley variations. Furthermore, UVAM enhanced subsurface microhardness as a result of the surface hammering effect, which may improve fatigue performance. XZ-UVAM also effectively minimized burr formation, demonstrating its potential for high-quality, sustainable, and efficient machining of Inconel 718. Full article

Inter-pass forging with different degrees of deformation during WAAM of Inconel 718 specimens (single-stage, three passes; two-stage, six passes) was investigated. Macrostructural analysis of the specimens showed that inter-pass forging led to a recrystallized structure. Alternation of layers with different grain shapes (columnar and equiaxed) is observed throughout the height of the specimens. Increasing the number of passes improves the mechanical properties of the material (tensile strength, yield strength, microhardness). A finite element model of inter-pass forging was developed to determine the effect of inter-pass surface deformation during WAAM on the residual stress–strain state. The non-stationary formulation was replaced with a quasi-static one. Johnson–Cook material constants were obtained for the deposited Inconel 718 material, including the effect of forging. Verification of the mathematical model was performed using a wall (specimen 2) deposited with single-stage forging. The deviation between the simulation results and the experiment did not exceed 15%. It was found that the sequence and number of passes significantly affect residual strain and displacements but have little effect on residual stress. Numerical modeling showed that the depth of plastic deformation exceeds the melting depth when depositing the subsequent layer, ensuring the preservation and accumulation of the inter-pass forging effect throughout the deposition process. Full article
