Structure, DFT Calculations, and Magnetic Characterization of Coordination Polymers of Bridged Dicyanamido-Metal(II) Complexes

1
Institut für Physikalische and Theoretische Chemie, Technische Universität Graz, A-8010 Graz, Austria
2
Institut für Anorganische Chemie, Technische Universität Graz, Stremayrgasse 9/V, A-8010 Graz, Austria
3
Departament de Quimica Inorganica I Organica, Universitat de Barcelona, Marti I Franques 1-11, E-31321 Barcelona, Spain
4
Department of Chemistry, University of Louisiana at Lafayette, P.O. Box 43700, Lafayette, LA 70504, USA
*
Authors to whom correspondence should be addressed.
Magnetochemistry 2019, 5(3), 41; https://doi.org/10.3390/magnetochemistry5030041
Received: 23 April 2019 / Revised: 8 June 2019 / Accepted: 21 June 2019 / Published: 2 July 2019
  |
PDF [4511 KB, uploaded 2 July 2019]
  |     |

Abstract

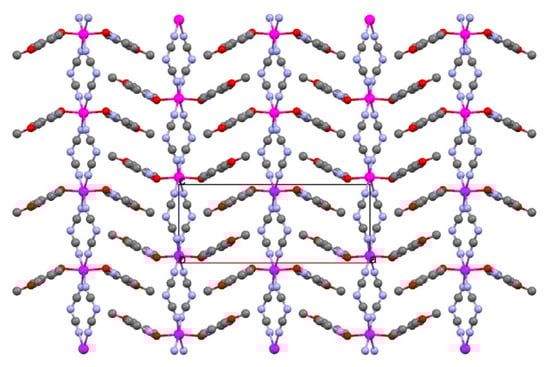

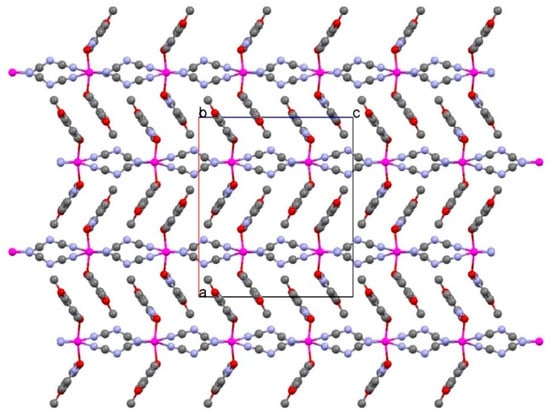

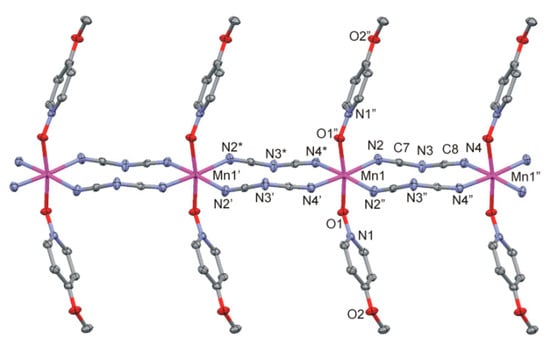

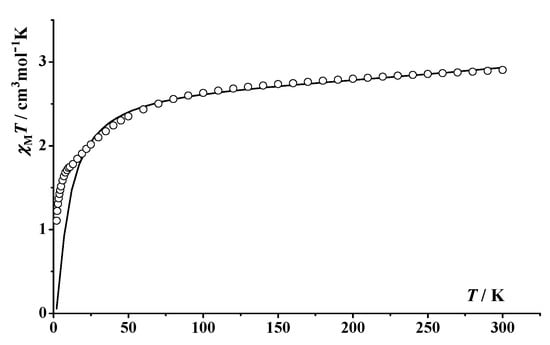

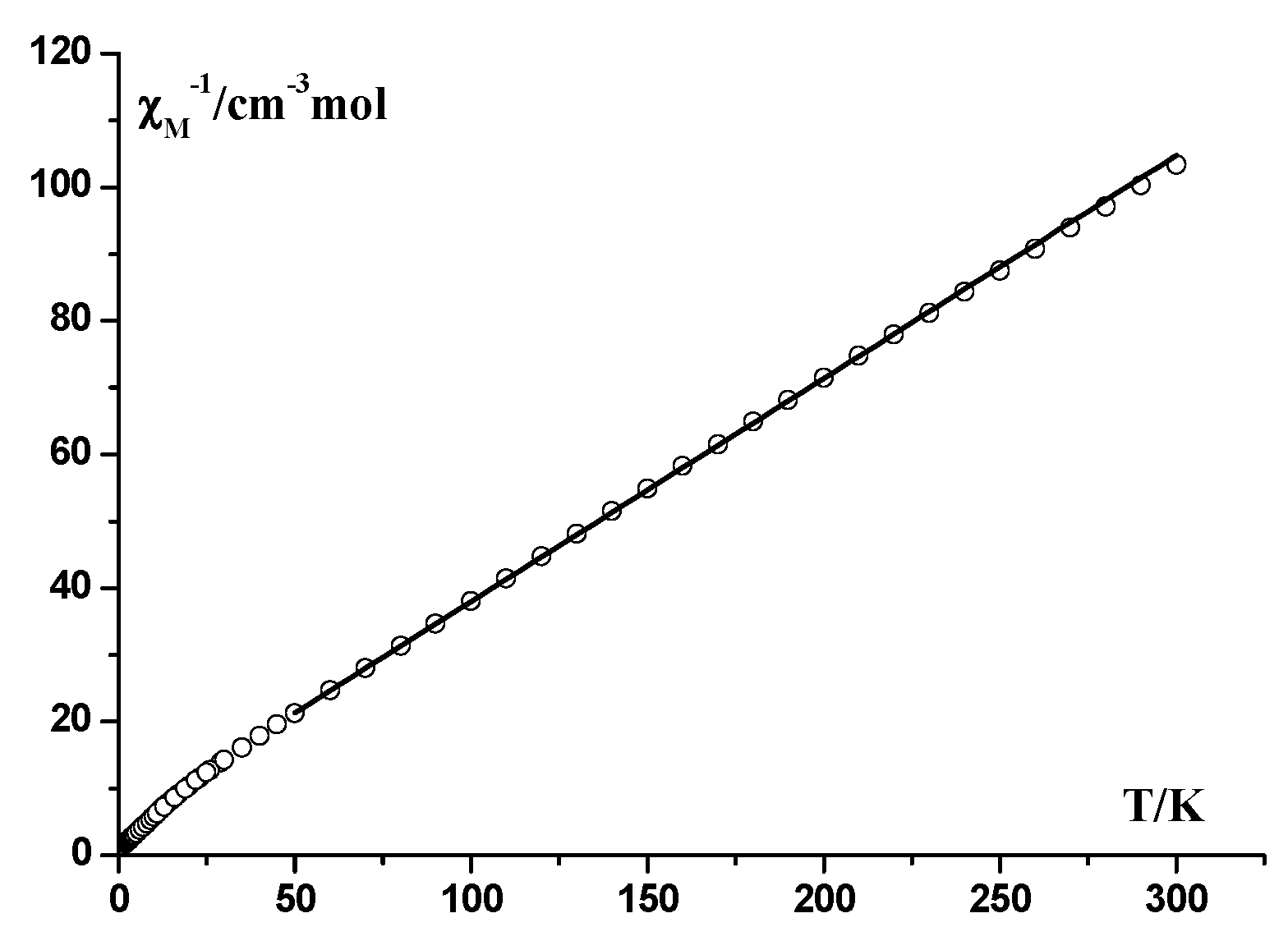

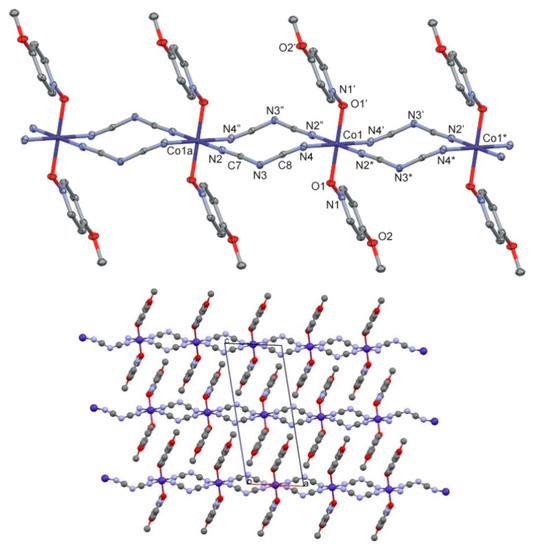

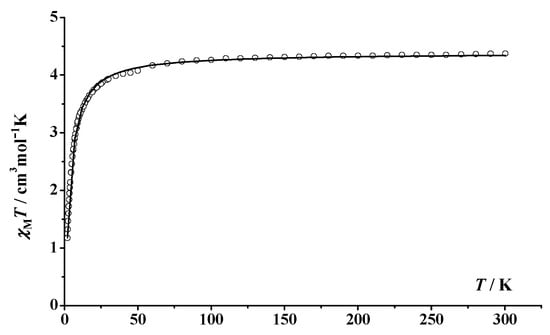

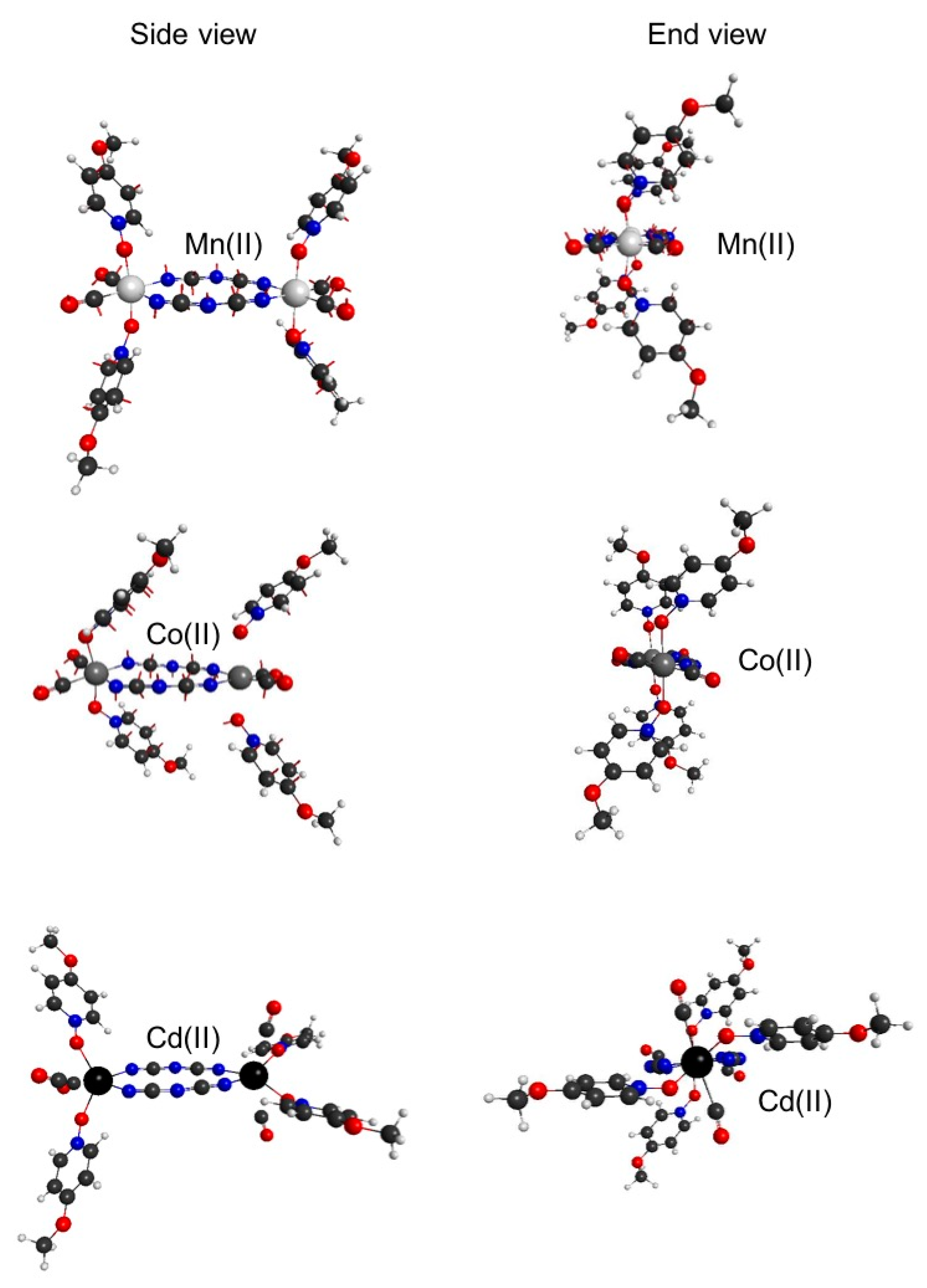

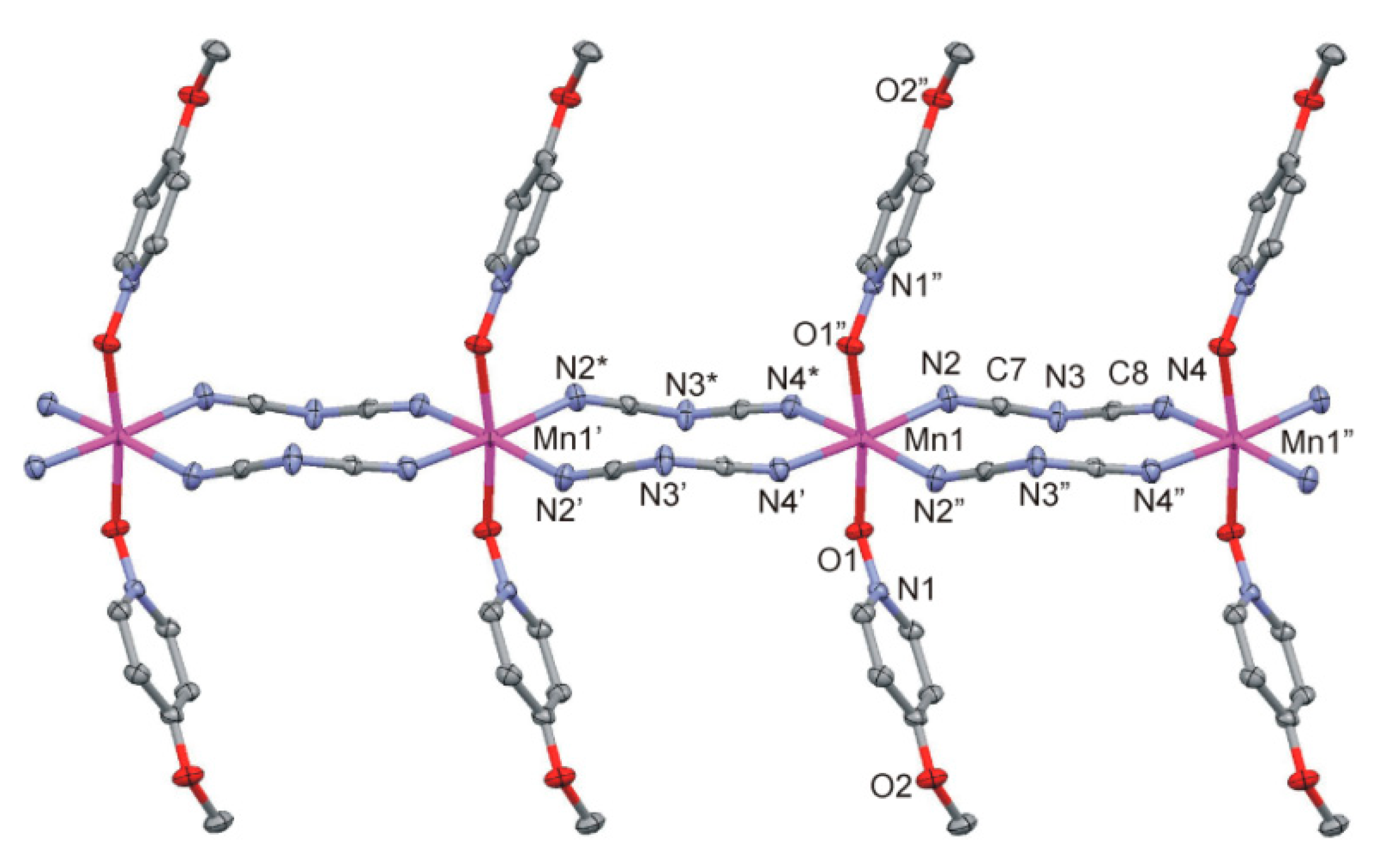

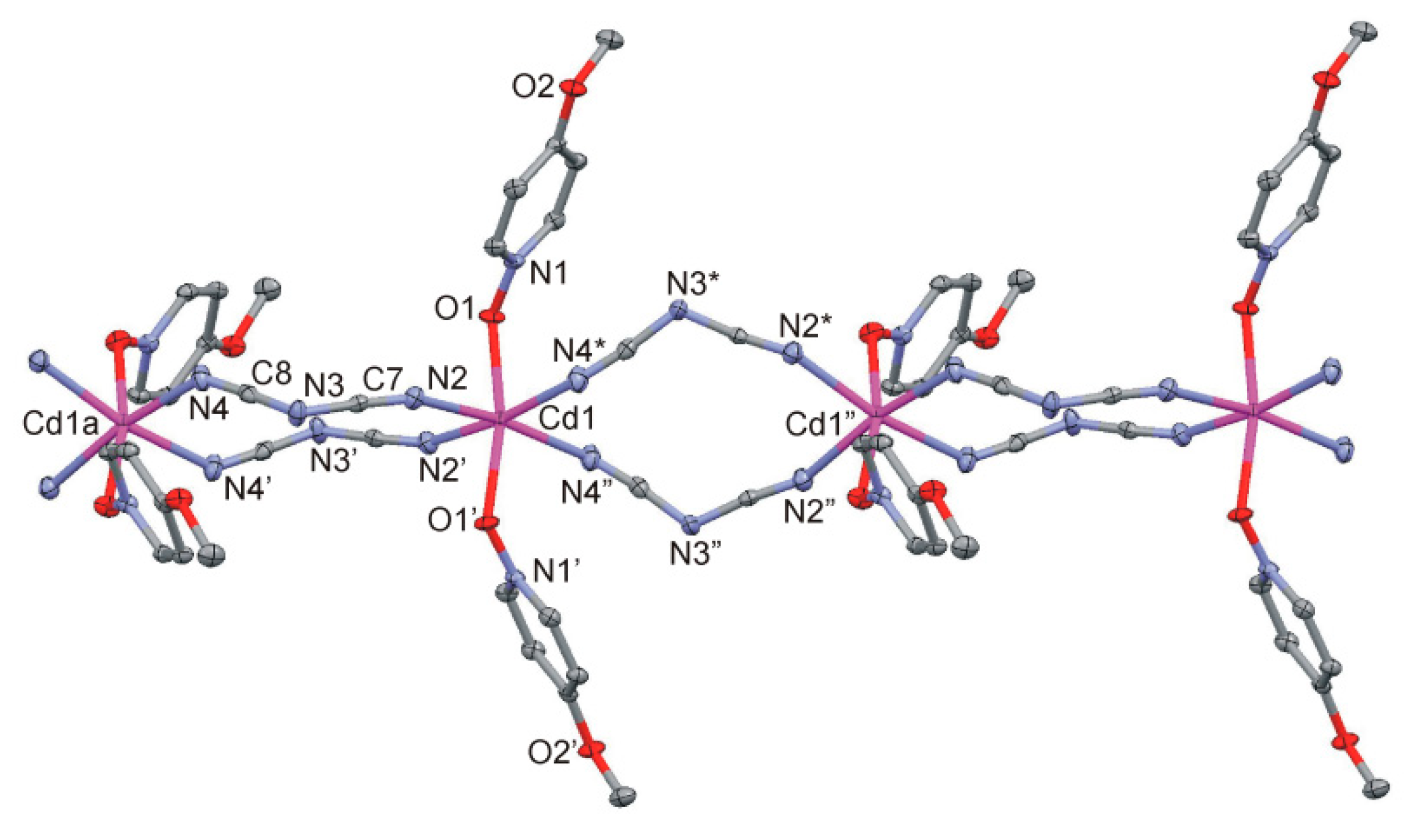

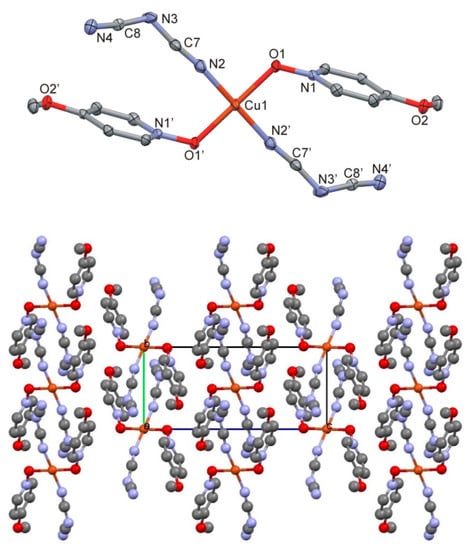

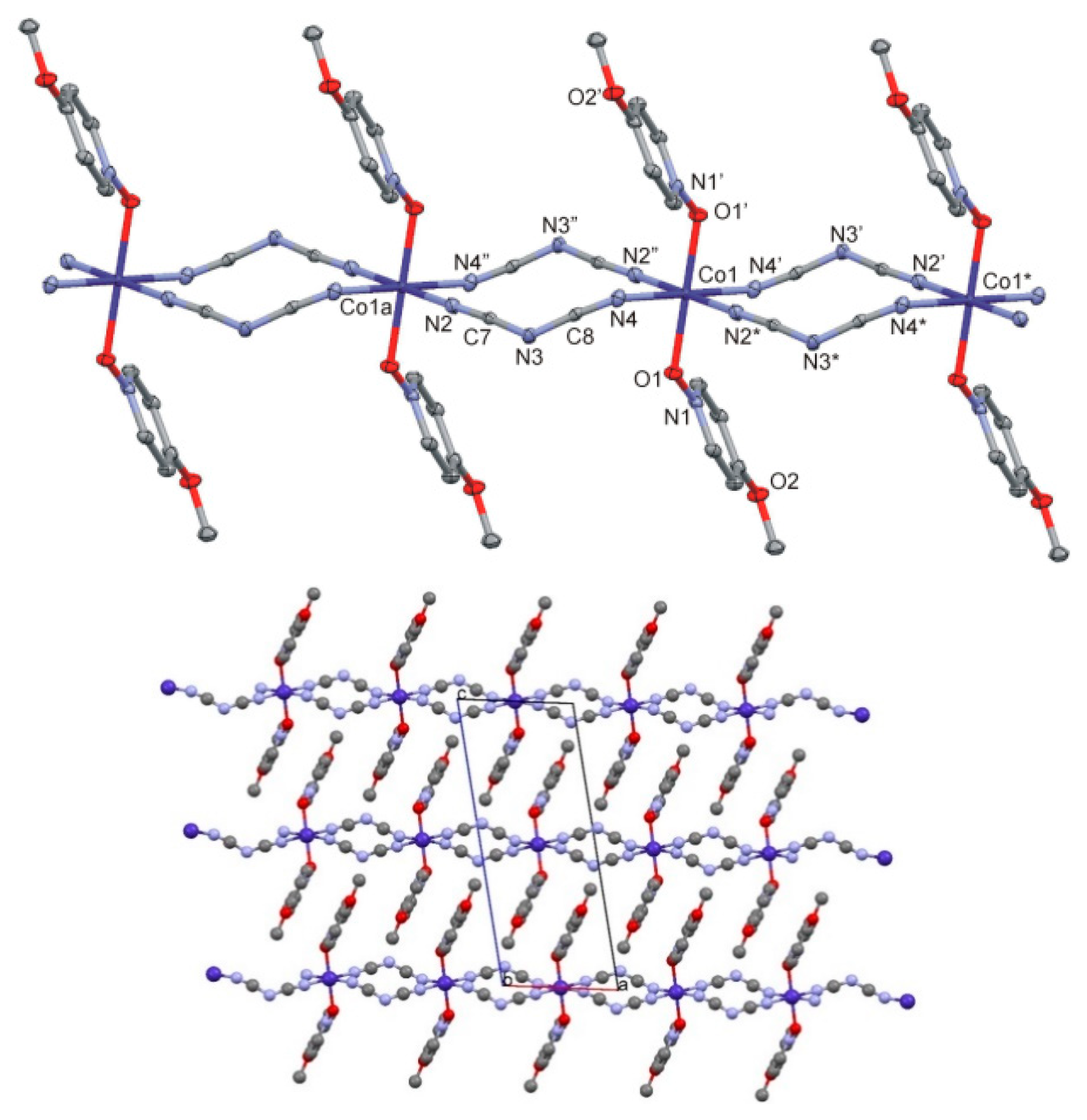

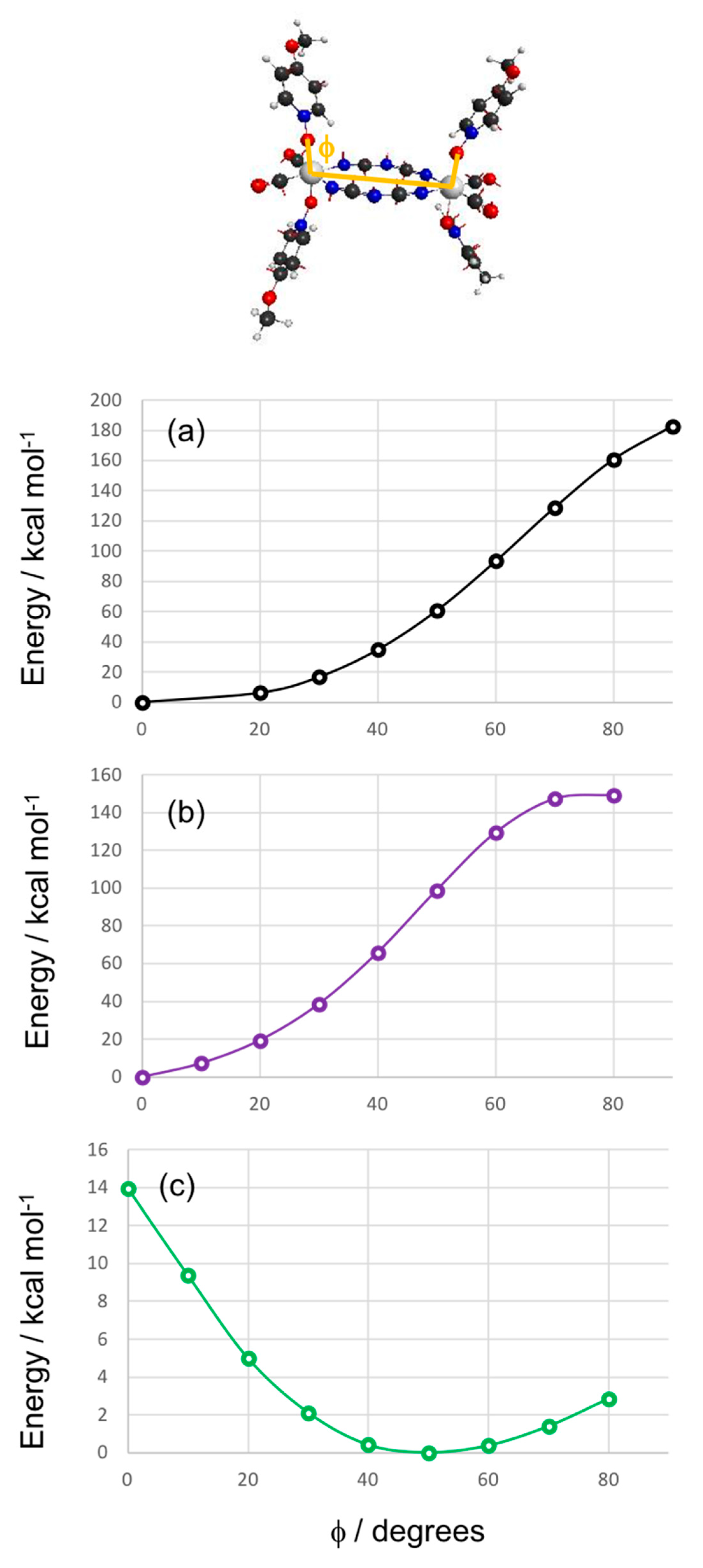

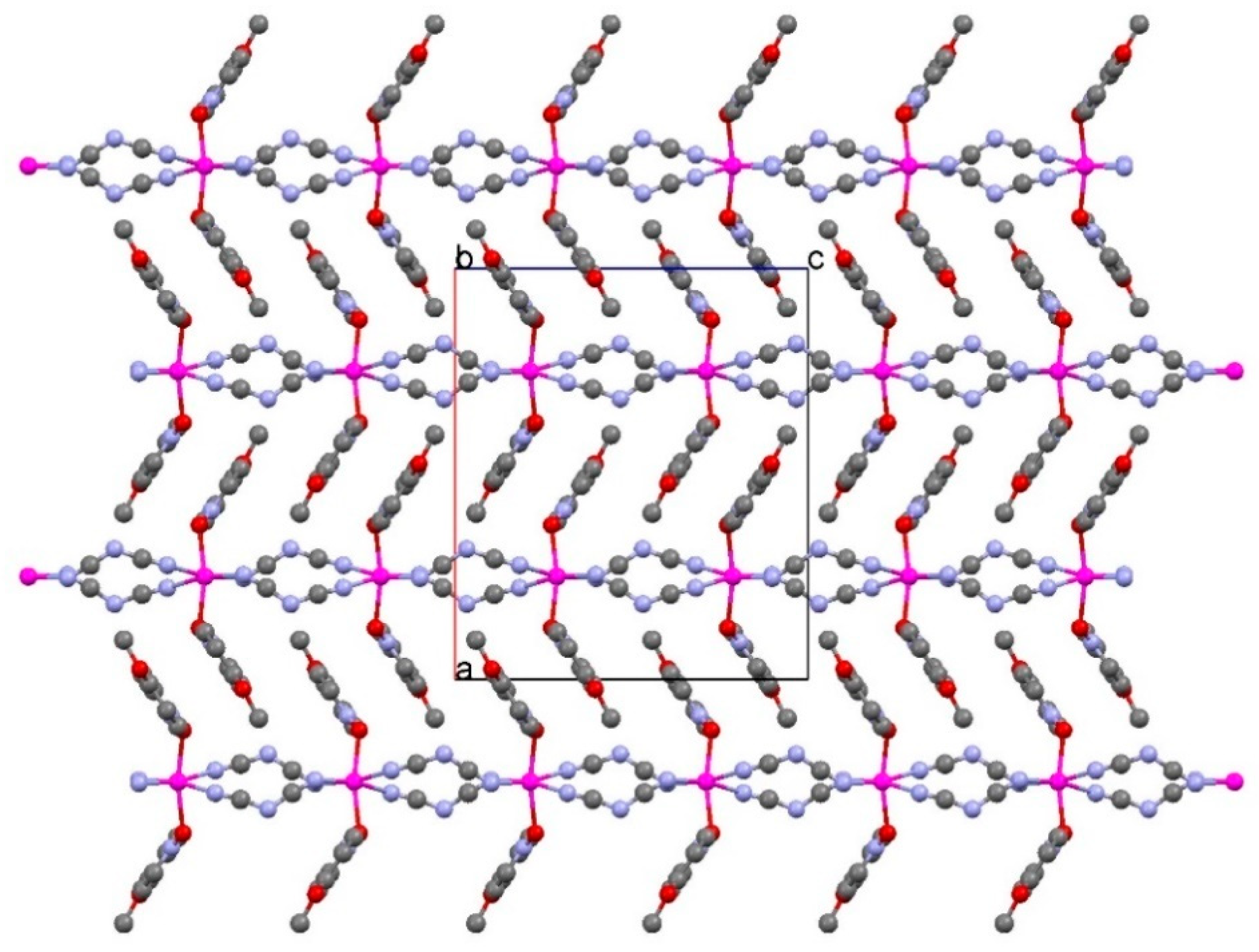

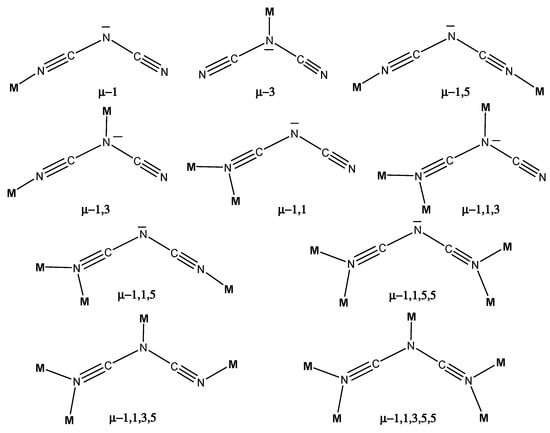

Three coordination polymers of metal(II)-dicyanamido (dca) complexes with 4-methoxypyridine-N-oxide (4-MOP-NO); namely, catena-[Co(µ1,5-dca)2(4-MOP-NO)2] (1), catena-[Mn(µ1,5-dca)2(4-MOP-NO)2] (2), catena-[Cd(µ1,5-dca)2(4-MOP-NO)2] (3), and the mononuclear [Cu(κ1dca)2(4-MOP-NO)2] (4), were synthesized in this research. The complexes were analyzed by single crystal X-ray diffraction as well as spectroscopic methods (UV/vis, IR). The polymeric 1-D chains in complexes 13 were achieved by the doubly µ1,5-bridging dca ligands and the O-donor atoms of two axial 4-MOP-NO molecules in trans configuration around the distorted M(II) octahedral. On the other hand, the two “trans-axial” pyridine-N-oxide molecules in complexes 2 and 3 display opposite orientation (s-trans). The DFT (density functional theory) computational studies on the complexes 13 were consistent with the experimentally observed crystal structures. Compounds 1 and 2 display weak antiferromagnetic coupling between metal ions (J = −10.8 for 1 and −0.35 for 2). View Full-Text
Keywords: cobalt; manganese; cadmium; dicyanamide; coordination polymer; crystal structure; magnetic properties cobalt; manganese; cadmium; dicyanamide; coordination polymer; crystal structure; magnetic properties
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
