Effects of Various Sorghum Flour Particle Sizes on the Properties of Sorghum–Wheat Composite Dough Sheets and Noodles

Abstract

Sorghum flour was milled and fractionated into three particle-size classes, 215–181 µm, 181–96 µm, and <96 µm, then blended with wheat flour at a 30:70 (sorghum:wheat) ratio. The composite flours were evaluated to determine the effects of sorghum particle size on dough-sheet properties and the quality of the resulting noodles. Reducing particle size increased pasting and farinograph parameters, and dough rheological properties improved. The findings indicate that replacing wheat flour with sorghum flour fractions increased gelatinization temperature and gelatinization enthalpy. In addition, the moisture distribution of the dough showed that with the addition of sorghum flour fractions, the closely bound water content of the dough increased. A reduction in particle size led to a significant increase (p < 0.05) in glutenin macropolymer (GMP) content and induced changes in the protein secondary structure of the dough sheets. Noodle quality improved as sorghum particle size decreased, as confirmed by scanning electron microscopy (SEM). Finer particle sizes were associated with lower cooking loss and higher water absorption. Furthermore, the ultra-fine sorghum–wheat composite noodle (WC) attained the highest sensory acceptance after the wheat control (W). Overall, reducing the particle size of sorghum flour markedly improved the functional quality of sorghum–wheat composites. Finer fractions enhanced dough microstructure and gluten network stability, increased thermal stability and pasting robustness, and the resulting noodles exhibited improved cooking performance and sensory scores while retaining favorable texture.

1. Introduction

Nowadays, consumer preferences have shifted towards food products that not only taste good but also offer nutritional benefits and additional health advantages [1]. Local food commodities have a high potential for optimization, as they often possess abundant resources and contain functional compounds beneficial to health. For instance, incorporating moringa leaves and Chinese tea into bread [1] and noodle [2] formulations can significantly enhance their nutritional profiles by increasing antioxidant compounds, minerals, proteins, insoluble fibers, and soluble dietary fiber contents. Additionally, the alterations induced by these components can enhance flavor quality, thereby contributing to greater consumer acceptability.

Noodles are a widely favored staple food across numerous countries and represent a popular carbohydrate choice with favorable sensory attributes and convenient preparation methods, contributing to their widespread popularity globally. Traditionally developed from wheat, noodles are known for their velvety, tender, and flexible texture [3]. However, research has delved into alternative noodle ingredients beyond wheat, incorporating indigenous resources such as pumpkin and breadfruit [4], rice flour, Jabuticaba peel flour, and chickpeas to enhance their functional properties [5,6]. A prior research study examined the sensory and physical characteristics of noodles produced using sorghum, mung bean, and sago starch. The study revealed that these food materials contributed to enhanced functional properties due to their elevated fiber and resistant starch levels. Notably, the noodle with a composition ratio of 20% sorghum, 30% mung bean, and 50% sago exhibited texture characteristics like those of wheat noodles and demonstrated the highest texture quality among the tested variants [7]. In addition, several studies have examined the impact of starch composition and cross-linking agents on the structural and textural properties of noodles. For instance, the use of various cross-linkers has been shown to enhance the stability of the starch–protein matrix and improve the cooking and textural quality of noodles. In addition, Lida et al. [8] investigated the effects of amylose content in corn starch and microbial transglutaminase (MTGase) on the textural and structural properties of wheat flour composite gels, demonstrating that amylose plays a crucial role in determining the gel network strength and elasticity of wheat-based products. This finding provides additional support for the importance of starch structure in defining noodle quality.

The coarse nature of sorghum flour, antinutritional factors, and high fiber content can negatively impact the end product’s structure and sensory appeal, leading to reduced customer acceptance [9]. The production of foods enriched with sorghum flour remains challenging, and further research is needed to enhance their quality. Owing to the absence of gluten, sorghum-based products often exhibit poor appearance and lack structural integrity. Therefore, it is important to enhance the pre-treatment of sorghum flour. Previous studies have underscored the critical role of flour particle size in modulating dough rheology, influencing physicochemical characteristics and ultimately determining the overall quality of the final product [10,11]. Numerous studies have focused on the relationship between particle size and its influence on the quality of wheat flour dough [11,12,13]. Some of these studies have concentrated on ultrafine bran grinding and its implications on dough characteristics and the excellence of steamed bread [10]. Moreover, studies have established that flour particle size exerts a significant impact on the baking performance of bread formulated from pulse flours. The findings revealed that breads produced using finer pulse flours received higher quality ratings and exhibited a more compact and uniform crumb structure [14]. This finding is consistent with a substantial body of research demonstrating the beneficial influences of particle size reduction on the quality attributes of various food products, including Asian noodles, crackers, and flatbreads. The accumulated evidence underscores the critical role of particle size control in improving overall product quality and textural characteristics in a wide range of cereal- and flour-based food applications [15,16]. The influence of whole wheat flour particle size has been extensively examined both within China and internationally [17]. Evidence suggests that reducing the particle size of whole wheat flour can enhance the quality of steamed bread [18]. Additionally, Wang et al. [19] observed that while a finer median diameter of bran particles (ranging from 90 to 96 μm) had little impact on gluten development, it led to a highly favorable quality in whole wheat crackers produced using this flour.

The existing knowledge of how sorghum flour particle size influences product quality is limited, with only a few studies exploring this aspect. Therefore, progress in developing sorghum flour products has been constrained. To bridge this knowledge gap, sorghum flour with three distinct particle sizes was combined with wheat flour. The findings provide valuable insights that can be leveraged to enhance the quality of functional foods containing sorghum flour. This study contributes to broadening comprehension of the connection between particle size of sorghum flour and product attributes, thereby aiding the advancement of sorghum-based food products.

2. Materials and Methods

2.1. Raw Material and Preparation of Sorghum Flour

Wheat and red sorghum flours were procured from Zhengzhou Wantian Biotechnology Co., Ltd., Zhengzhou, China. All other chemicals employed in this study were of analytical grade or the highest available purity. To obtain sorghum flour with distinct particle sizes, the following methodology was adopted: an experimental mill (MLU-202, Wuxi Buhler Machinery Manufacturing Co., Ltd., Wuxi, China) was used. According to Belorio et al.’s [20] methods with minor modifications, different sieves were used to obtain three sorghum flour fractions: A (215–181 µm), B (181–96 µm), and C (<96 µm). A laser particle size analyzer (Mastersizer 2000, Malvern Panalytical, Worcester, UK) was used to estimate the particle size distribution and comparable diameters at cumulative volumes of 10% (D₁₀), 50% (D₅₀), and 97% (D₉₇). To make the composite sorghum–wheat flour, 30% of the wheat flour was replaced with sorghum flour (g sorghum flour/100 g combined flour). The combined flours made from sorghum flour with the A fraction, B fraction, and C fraction particle sizes were named as WA, WB, and WC, respectively; the flour sample without sorghum flour was the control group, which was indicated as W.

2.2. Chemical Composition and Determination of Damaged Starch (DS)

The starch, moisture, protein, and fat contents in sorghum and wheat flours were determined by following the AACC 76–13, 44-16, 46-10.01, and 44-19 standards, respectively [21]. Damaged starch (DS) was carried out in accordance with our prior study [22].

2.3. Pasting Properties

Pasting profile measurements were conducted using a Rapid Visco-analyzer (Perten, Stockholm, Sweden). A 3.5 g flour sample, adjusted for its moisture content, was dispersed in 25.00 g of deionized water. The mixture was manually agitated by moving a paddle up and down 7 times. Subsequently, it was subjected to a standardized heating–cooling cycle: held at 50 °C for 1 min, heated to 95 °C in 3.7 min, maintained at 95 °C for 2.5 min, cooled to 50 °C in 3.8 min, and held at 50 °C for 2 min.

2.4. Thermal Property

The thermal characteristics of the specimens were analyzed using a differential scanning calorimeter (DSC 1, Mettler-Toledo, Schwerzenbach, Switzerland) following the methodology outlined by Bodjrenou et al. [23] with slight changes. For calibration, indium was used as the standard. Each product sample (approximately 3 mg, db) along with 6 mg of distilled water was deposited into a stainless-steel pan, sealed hermetically, and stored at 4 °C for 24 h. T_o detect any remaining enthalpy gelatinization peaks, the samples were heated from 20 °C to 120 °C at a rate of 10 °C/min. Subsequently, the endothermic enthalpy (ΔH), onset temperature (T_o), peak temperature (T_p), and conclusion temperature (T_c) were computed.

2.5. Farinograph Test

The dough’s mixing characteristics were analyzed using a farinograph instrument (Brabender, Duisburg, Germany) with a 50 g stainless-steel vessel. The flour samples were precisely weighed and placed into the designated mixing bowls of the farinograph. Water was methodically added from a burette to the flour, and the mixture was kneaded to form dough. At the same time, the farinograph meticulously recorded a graph. The farinograph simultaneously charted a graphical curve on the computer monitor connected to the device throughout the mixing process. Key parameters assessed in this study included stability, water absorption, softening degree, and dough development time.

2.6. Preparation of Dough Sheet and Noodle

Dough sheets were made following the methodology outlined in prior research [24] with slight adaptations. In summary, the dough was created by blending 100 g of composite flour, 1 g of salt, and water in a pin mixer HMZ200 (East Fude Technology Development Center, Beijing, China), followed by a period of resting. The dough was hand-pressed into a wooden mold to reduce the likelihood of dropping and then passed through the laboratory noodle machine (JMTD-168/140, Dongfang Fude Technology Development Center, Beijing, China) with gradually narrowing gaps. The noodle strands, measuring 3 mm in width and 60 cm in length, were cut using specialized blades and subsequently placed in a drying chamber (Tengwei Co., Ltd., Beijing, China) to produce dried noodles for subsequent analytical evaluations. Some dough sheets were examined for rheological and water distribution characteristics, while others were prepared for remaining tests after undergoing freezing, drying, grinding, and sieving.

2.7. Scanning Electron Microscopy (SEM) of Dough Sheet

The specimens destined for scanning electron microscopy (SEM) examination underwent preparation by affixing the lyophilized dough sheets onto a circular sample stub. Following this, a gold sputter coating was applied to the specimen, enabling the observation of the fracture surface using a Quanta 250 FEG scanning electron microscope (FEI, Hillsboro, OR, USA) at an acceleration voltage of 3.0 kV. Detailed micrographs were captured at a magnification of 15,000×.

2.8. Determination of Viscoelasticity of Dough

The dynamic rheological characteristics of the dough sheets were evaluated using a Haake RS6000 Rheometer (Thermo Fisher Haake, Rheinfelden, Germany) equipped with a parallel plate geometry of 35 mm diameter at a plate gap of 1.0 mm. Following a 5 min relaxation period to alleviate any residual stress, measurements were conducted while safeguarding the dough’s edge with Vaseline oil. Dynamic frequency sweep tests were carried out at 0.1% strain, ranging from 10 to 0.1 Hz at 25 °C to determine the elastic modulus (G′), viscous modulus (G″), and loss tangent (Tan δ = G′/G″). The power-law model was utilized to analyze the relationship between G′ and frequency, aiding in the assessment of inter- or intramolecular interaction strengths:

$$G^{\prime }=k^{\prime }\left(f\right)z^{\prime }$$

(1)

Here, f represents the frequency, while the parameters z′ and k′ denote the nature and intensity, respectively, of the molecular interactions within the dough [24].

2.9. Glutenin Macropolymer (GMP) of Dough Sheet

The determination of GMP contents in the composite dough sheets was conducted according to the procedure outlined by M. Song et al. [25] with adjustments. A 1.0 g dough specimen was immersed in a 1.5% sodium dodecyl sulfate (SDS) solution (20 mL) and subjected to agitation for an hour at room temperature, followed by centrifugation at 13,164 rpm for 15 min. The supernatant was removed by decantation, and the pellet was reconstituted in SDS solution. The resuspended material was then processed by extraction and centrifugation following the procedure described previously. The remaining residue was collected for protein content assessment utilizing the Kjeldahl method, representing the GMP content.

2.10. Low-Field Nuclear Magnetic Resonance (LF-NMR) of Dough Sheet

Water distribution within fresh dough sheets was quantified utilizing LF-NMR (VTMR20-010V-T, Suzhou Niumai Analytical Instrument Co., Ltd., Suzhou, China) featuring a 0.5T permanent magnet corresponding to a proton resonance frequency of 21 MHz at 35 °C. Transverse relaxation times (T₂) were examined employing the Carr–Purcell–Meiboom–Gill (CPMG) pulse sequence with specific parameters: spectral width (SW) of 200 kHz, echo time (TE) of 0.100 ms, waiting time (TW) of 1500 ms, scanning number (NS) of 64, and echo count (NECH) of 3000. Each sample underwent triplicate measurements.

2.11. Secondary Structure Analysis of Dough Sheet

The freeze-dried specimen (1 mg) was mixed with potassium bromide and ground. Fourier transform infrared spectroscopy was used for determining the secondary structures (Bruker, Saarbrucken, Germany). A total of 64 scans were performed at a resolution of 4 cm⁻¹ within the range of 400–4000 cm⁻¹. The spectra were analyzed utilizing OMNIC 9.2 software [24].

2.12. Cooking Properties of Noodles

The optimum cooking time (OCT) for a 10 g, 20 cm noodle sample was determined by boiling it in 400 mL of water until the central white core vanished upon being pressed between glass plates. Based on the method of F. Xu et al. [26], cooking yield was quantified by boiling a 10-strand noodle sample in 400 mL of water for its optimum cooking time, followed by rinsing and draining. The yield was then calculated from the weight gained after cooking via Equation (2). Cooking loss was measured by boiling a 20 g noodle sample and collecting the combined cooking and rinsing water, which was then volumetrically adjusted to 500 mL. A precise 100 mL aliquot of this solution was evaporated and dried to a constant weight at 105 °C to isolate the leached solids. The mass of this residue was used to calculate the rate of dry matter loss during the cooking process via Equation (3).

$$Cooking Yield \left(\%\right)=\left({\displaystyle \frac{W_A}{W_B}}\right)\times 100$$

(2)

where W_A and W_B represent the weight (g) of the noodles after and before cooking, respectively.

$$CookingLoss\left(\%\right)=\left[{(W}_R-W_B)/W_S\right]\times 100$$

(3)

where W_R is the final mass of the beaker with residue (g), W_B is the tare mass of the beaker (g), and W_S is the initial noodle mass (g).

2.13. Texture Properties of Noodles

Textural evaluation of cooked noodles was performed using a TA-XT texture analyzer (Stable Micro Systems, Godalming, UK) in accordance with the protocol established by F. Xu et al. [26]. In brief, individual cooked noodle strands, trimmed to 20 cm, were affixed to a platform for Texture Profile Analysis (TPA). The test involved a two-bite compression cycle to 75% strain, using a test speed of 1.0 mm/s. The pre- and post-test speeds were set at 2.0 mm/s with a 1 s pause between compressions. A trigger force of 0.1 N and a 25 kg load cell were utilized for the measurement.

2.14. Morphology Property of Cooked Noodle

The SEM of cooked noodles was performed as described in Section 2.7. Representative micrographs were acquired at a nominal magnification of 2000×.

2.15. Sensory Evaluation of Noodles

For sensory evaluation, 20 cooked noodle strips (20 cm long) were selected after a 5 min resting period, following a slightly modified method adapted from Zainab et al. [27]. The assessment was conducted in a standardized sensory laboratory at the College of Food Science and Engineering, Henan University of Technology, Zhengzhou, China. Twenty panelists, comprising an equal ratio of male and female teachers and students, were chosen based on their sensory evaluation knowledge and ability to differentiate samples through sensory attributes. Participants, who signed informed consent forms for anonymous use of results, were trained according to ISO 8586:2023 standards [28]. They evaluated odor (0–15), appearance (0–25), palatability (0–35), and taste (0–25) on a 100-point scale, rinsing their mouths between samples and completing assessments within 10 min. No ethical approval was required, as the study involved no additives or health risks.

2.16. Data Analysis

Statistical analysis involved the use of analysis of variance with Duncan’s multiple comparison tests in SPSS Statistics 25.0 (SPSS Inc., Chicago, IL, USA) software to detect significant differences (p < 0.05). Plots in the article were generated using Origin software (version 2022, OriginLab, USA). All experiments were performed in triplicate, and the data was presented as the mean ± standard deviation.

3. Results and Discussion

3.1. Particle Size and Chemical Composition of the Flours

Table 1. Particle size distribution, chemical composition, and damaged starch (DS) of sorghum and wheat flour.

Sample	D10 (µm)	D50 (µm)	D97 (µm)	Protein (%)	Moisture (%)	Starch (%)	Fat (%)	DS (%)
Coarse sorghum flour	54.18 ± 0.45 a	110.41 ± 0.35 a	215.79 ± 4.90 a	12.47 ± 0.23 a	12.51 ± 0.12 b	71.49 ±0.12 c	4.09 ± 0.09 b	20.88 ± 0.05 d
Fine sorghum flour	42.91 ± 0.07 b	86.49 ± 0.25 b	181.45 ± 0.39 b	12.07 ± 0.04 b	12.09 ± 0.03 c	86.18 ± 0.14 a	4.35 ± 0.06 a	24.25 ± 0.05 c
Very fine sorghum flour	14.58 ± 0.06 d	34.03 ± 0.24 d	95.21 ± 0.30 d	12.35 ±0.12 ab	12.22 ± 0.06 c	87.47 ± 0.16 b	2.69 ± 0.01 c	27.74 ± 0.10 a
wheat flour	33.11 ± 0.25 c	76.21 ± 0.32 c	162.03 ± 0.3 c	9.71 ± 0.19 c	13.38 ± 0.07 a	66.34 ± 0.09 d	0.93 ± 0.01 d	25.17 ± 0.10 b

Values in the same columns with different letters indicate significant differences, p < 0.05. D10 (µm), D50 (µm), and D97 (µm) represent the 10th percentile, median or 50th percentile, and 97th percentile, respectively, and they represent the particle size distribution of flour.

shows the particle size distribution of size and average particle diameters for sorghum flours. This study’s findings should be interpreted with caution due to the relatively small sample size. The coarse, fine, and very fine sorghum flour and wheat flour particle size differences were assessed in terms of D (10 µm), D (50 µm), and D (97 µm). The D (97 μm) value for coarse sorghum flour was approximately 215.45 μm, significantly surpassing that of wheat flour (164.55 μm), fine sorghum flour (181.07 μm), and very fine sorghum flour (96.20 μm). Table 1 also provides the impact of particle size on the physiochemical characteristics of sorghum flour.

Protein, starch, and fat values in sorghum and wheat flour samples differed significantly. Naturally, the values of starch 66.34%, fat 0.93%, and protein 9.71% for white wheat flour were the lowest compared to the sorghum flours samples, which recorded higher values. The refining process of wheat flour can strip away most of the beneficial nutrients. Several studies have reported similar findings, indicating that whole sorghum flour contains higher levels of key nutritional components, such as fat and starch compared to wheat flour [9,26,29]. Significant variations were observed in DS values. As particle size decreased, the degree of DS increased markedly by 20.88%, 24.25%, and 27.74% for coarse, fine, and very fine sorghum flour, respectively. The WC sample, which had a higher DS level, demonstrated superior adhesive properties compared to the other samples. Consistent with these findings, previous studies have shown that a high DS content can be particularly beneficial in flour-based products such as bread and may also enhance the quality of noodles. Specifically, an optimal level of DS can enhance hydration capacity and farinograph properties while simultaneously promoting fermentation activity. These improvements collectively contribute to enhanced quality characteristics in bread-making processes [30]. However, an excessively elevated DS level may lead to disproportionate water absorption in the dough and accelerate enzymatic activity. This results in a softer, more viscous dough with diminished structural integrity, ultimately impairing the volume retention of steamed bread or conventional bread [11]. Therefore, the DS content of flour is a critical factor influencing the quality of both the dough and the final wheat-based products. Overall, reducing sorghum particle size improved key functional attributes of sorghum–wheat noodles; particle size altered water absorption and starch gelatinization behavior, influenced glutenin-based protein network formation, and thereby modified the final texture and cooking quality. Flour with smaller particle sizes exhibits a higher water absorption rate, resulting in more uniform hydration and the formation of a firm dough, thereby yielding noodles of superior quality. Conversely, larger particles typically lead to inferior results. Particle size is also particularly important in gluten-free food manufacturing; for instance, finely milled sorghum flour with a particle size of approximately 80 µm can closely replicate the textural properties of wheat flour [31].

3.2. Pasting Characteristics of Sorghum–Wheat Composite Flour

In the food industry, the examination of pasting attributes holds significant importance, as it impacts the ultimate qualities of starch-based food items like noodles. A previous study has shown that the gelatinization degree of most sorghum varieties is higher than that of wheat flour [32].

Table 2. Pasting properties of sorghum–wheat composite flours.

Sample	Peak Viscosity (BU)	Trough Viscosity (BU)	Breakdown (BU)	Final (BU)	Setback (BU)	Peak Time (min)	Pasting Temp (°C)
W	2882.00 ± 41.01 a	2205.50 ± 61.51 a	676.50 ± 20.0 c	3522.00 ± 32.52 a	1316.50 ± 28.99 c	6.49 ± 0.04 a	69.75 ± 0.63 b
WA	2092.00 ± 7.07 d	1390.00 ± 9.89 b	702.00 ± 16.97 bc	2799.00 ± 24.04 d	1409.00 ± 33.94 b	6.20 ± 0.00 c	88.70 ± 0.28 a
WB	2277.50 ± 7.77 c	1526.00 ± 5.65 c	736.50 ± 19.09 ba	2989.00 ± 26.87 c	1463.00 ± 21.21 b	6.28 ± 0.02 bc	88.47 ± 0.60 a
WC	2429.00 ± 63.63 b	1634.00 ± 74.95 c	777.00 ± 14.14 a	3214.50 ± 86.97 b	1580.50 ± 12.02 a	6.35 ± 0.07 b	89.60 ± 0.00 a

Note: All experiments were carried out in triplicate according to independent replicate experiments, and the results were reported as mean value ± standard deviation. Values with the same superscript letters in a column are not significantly different at p < 0.05. (W, WA, WB, and WC represent wheat flour, wheat–coarse sorghum composite flour, wheat–fine sorghum composite flour, and wheat–very fine sorghum composite flour, respectively).

presents the pasting properties of each sample. Peak, trough, final, breakdown, setback, and peak time viscosities all exhibited significant increases as particle size decreased, whereas the pasting temperature remained relatively unchanged. The peak viscosity was 2882 BU, 2092 BU, 2277.50 BU, and 2429 BU of W, WA, WB, and WC, respectively. The finer grinding of sorghum flour particles can indeed enhance the dough’s resistance to mixing stress by modifying its water absorption capacity and starch gelatinization behavior. Here is a detailed discussion of these effects: (1) Increased water absorption: finer particles have a larger surface area per unit volume, which allows for greater interaction with water molecules. (2) Higher hydration capacity: more water is bound to the flour particles, increasing dough consistency and rigidity. (3) Enhanced starch gelatinization: finer particles influence starch behavior in two key ways: (1) Faster heat transfer: smaller granules gelatinize more uniformly due to efficient heat penetration during mixing or baking. (2) Increased starch damage: mechanical grinding can disrupt starch granules, increasing damaged starch content. Damaged starch absorbs more water and is more susceptible to enzymatic hydrolysis, which can alter dough rheology and gas retention. This finding is consistent with the study by Yang et al. [33], which examined the effect of black soybean flour particle size when blended with wheat flour. The improved dough mixing stability observed in formulations containing finely ground sorghum flour can be attributed to the reduced interference of smaller particles with gluten network formation. Similarly, these findings align with the study by Liu et al. [30], which suggests that the increase in flour viscosity is primarily attributed to the water absorption and swelling behavior of damaged starch. Moreover, as the particle size of sorghum flour decreases, its crystalline structure becomes increasingly disrupted, thereby facilitating greater water penetration and enhancing pasting potential [34]. A substantial reduction in the breakdown viscosity of wheat flour was observed, recorded at 676.50 BU, while the WC sample exhibited the highest value at 777 BU. This decrease can be attributed to factors such as incomplete starch structure and diminished swelling volume in wheat flour. Incomplete starch structure refers to starch molecules which have been partially damaged, resulting in shorter or less branched polymers compared to normal starch. These characteristics potentially hinder the process of amylose exudation, ultimately leading to a decrease in the value of breakdown [35].

3.3. Thermal Properties of Sorghum–Wheat Flour

The thermal characteristics of composite sorghum–wheat flour are presented in

Table 3. Farinograph and thermal properties of sorghum–wheat composite flour.

Sample	Farinograph Properties				Thermal Properties
	WA (%)	DDT (min)	Stability (min)	DS (BU)	To (°C)	Tp (°C)	Tc (°C)	Tc–To (°C)	ΔH (J/g)
W	63.50 ± 0.14 c	3.90 ± 0.52 a	6.26 ± 0.20 a	72.00 ± 0.00 c	57.05 ± 0.12 b	63.10 ± 0.14 b	68.39 ± 0.23 b	11.34 ± 0.36 a	6.62 ± 0.06 a
WA	64.05 ± 0.07 b	1.11 ± 0.00 b	4.06 ± 0.02 b	109.00 ± 1.41 b	58.68 ± 0.14 a	64.42 ± 0.08 a	69.08 ± 0.12 ab	10.39 ± 0.02 b	5.39 ± 0.07 b
WB	64.15 ± 0.07 b	1.14 ± 0.01 b	2.40 ± 0.02 d	112.00 ± 1.41 a	58.57 ± 0.05 a	64.37 ± 0.16 a	68.82 ± 0.38 ab	10.25 ± 0.32 b	5.37 ± 0.23 b
WC	64.45 ± 0.07 a	1.15 ± 0.01 b	3.13 ± 0.15 c	110.00 ± 0.00 ab	58.84 ± 0.00 a	64.52 ± 0.10 a	69.38 ± 0.36 a	10.53 ± 0.36 ba	5.74 ± 0.32 b

Note: All experiments were carried out in triplicate according to independent replicate experiments, and the results were reported as mean value ± standard deviation. Values with the same superscript letters in a column are not significantly different at p < 0.05. DDT: dough development time (min), T_o: onset temperature, T_p: peak temperature, T_c: conclusion temperature, and ΔH: gelatinization enthalpy change. W, WA, WB, and WC represent wheat flour, wheat–coarse sorghum composite flour, wheat–fine sorghum composite flour, and wheat–very fine sorghum composite flour, respectively.

. There was no difference between the values of T_o, T_p, and T_c for sorghum–wheat composite flour, However, all three values were notably higher than those recorded for the pure wheat flour. Additionally, the T_c–T_o and ∆H values for wheat flour were greater compared to those of sorghum–wheat combined flour. The peak temperature (T_p) of WC (58.84 °C) was higher than WA and WB (58.68 °C, 58.57 °C), respectively; however, the wheat flour sample was the lowest (57.05 °C) of the composite samples (62.68 °C). This indicates that the extent of starch damage did not notably influence the gelatinization temperature. Regardless of the levels of starch damage, the samples exhibited similar gelatinization behavior in terms of temperature. In this investigation, the denaturation peak temperature (T_p) of wheat flour was identified as the lowest at 63.10 °C compared to the composite samples. This phenomenon indicates that the existence of gluten protein in wheat flour impedes the expansion of starch granules through gelatinization. A comparable result has been recorded in a previous study [36]. The closing of sorghum flour surface channels as a result of denatured proteins may be the cause of the observed increase in T_p values.

3.4. Farinograph Properties of Sorghum–Wheat Flours

As indicated in Table 3, wheat flour had the lowest water absorption of 63.50%, and there were no significant differences for the combined flours. The findings reveal a notable increase (p < 0.05) in the sorghum–wheat combination dough, in contrast to that of wheat flour. This difference can be linked to the presence of bran in sorghum flour, as the bran can increase the flour’s water absorption because of its high hydroxyl group content, which forms hydrogen bonds with the flour molecules to compete for water [9,37]. There was no significant alteration (p < 0.05) in dough development time (DDT) across varying particle sizes; nevertheless, a slight reduction was observed for the flour containing smaller particles, at 1.14 min, which was similar to results reported by Coda et al. [38]. The stability time of the sorghum–wheat composite samples exhibited a notable disparity (p < 0.05) from the W value, with durations recorded at 6.26 min, 4.06 min, 2.40 min, and 3.13 min for W, WA, WB, and WC, respectively. This is due to the reduced strength of gluten when mixed with sorghum flour, especially flour containing a small particle size of sorghum flour. Significantly lower softening values may indicate that the dough is capable of withstanding extended mechanical treatment. Additionally, the softening degrees across the samples varied, measuring 72, 109, 112, and 110 BU for W, WA, WB, and WC, respectively, indicating that increasing the degree of softening indicates weak mixture quality [33].

3.5. Scanning Electron Microscopy (SEM)

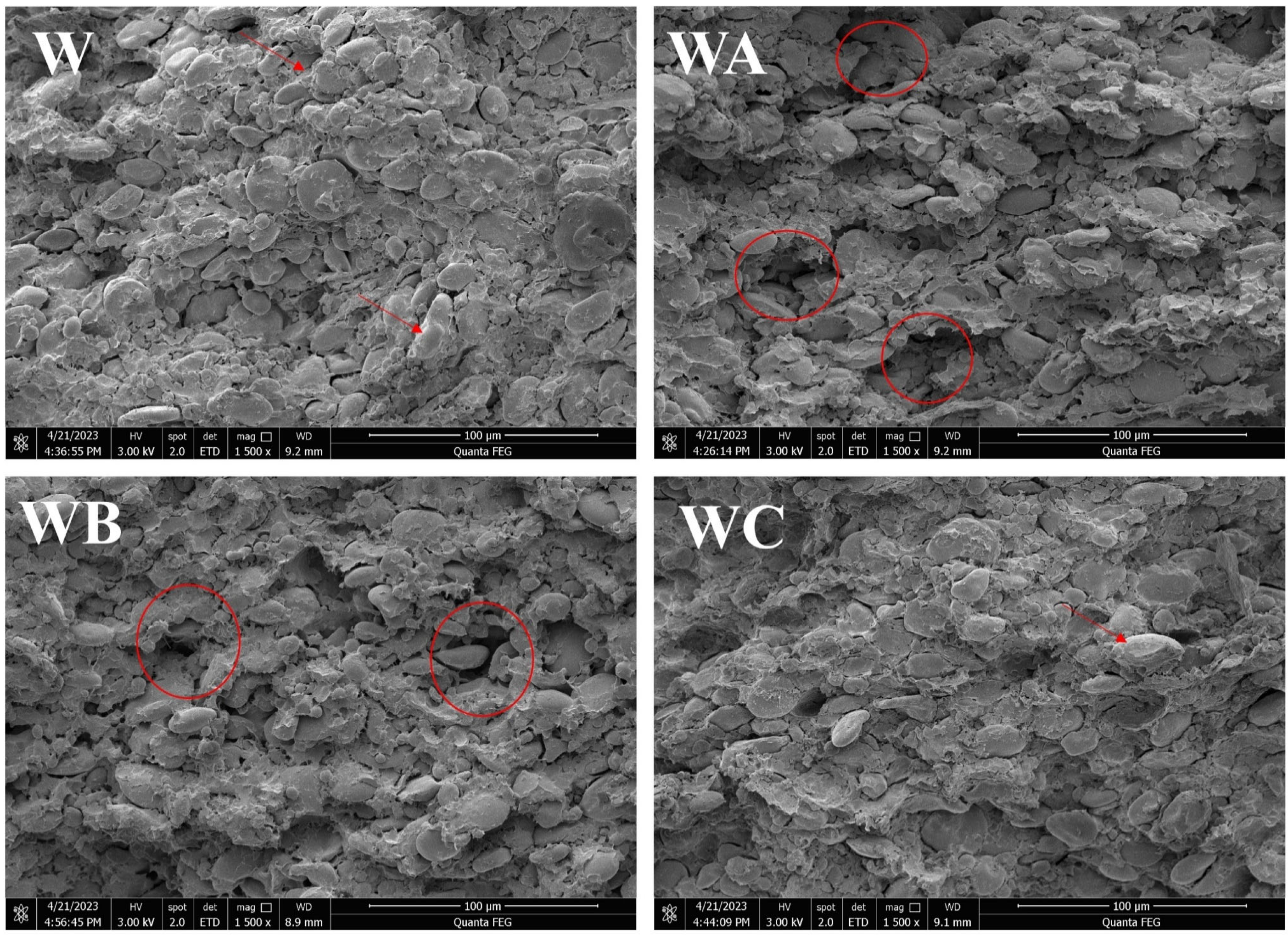

Figure 1 depicts scanning electron microscope (SEM) images of a dough sheet produced from a blend of sorghum flour with different particle sizes and wheat flour. The wheat dough exhibited a denser gluten network with a significant portion of wheat starch granules deeply integrated, contrasting with the structure observed in dough derived from the combined flours. The sorghum–wheat composite dough exhibited numerous fissures and a discontinuous gluten network, with loosely dispersed starch granules and an elevated density of voids among the protein matrix, starch granules, and other constituents (highlighted by red circles in the SEM image). These microstructural defects were particularly pronounced in doughs containing the coarse particle-size fraction, indicating poorer matrix continuity at larger granulations. This behavior likely reflects the elevated phenolic content of sorghum, particularly in the coarse particle-size fraction, which is richer in bran-derived phenolics. These compounds can interact with gluten proteins (e.g., via hydrogen bonding, hydrophobic interactions, and oxidative cross-linking), thereby disrupting the continuity of the starch–protein matrix. In addition, some free starch granules were found in WC dough (highlighted by the red arrow in the SEM image), and a few areas exhibited a lack of cohesion between gluten matrix and starch. This observation was consistent with research showing that dough made with fine wheat flour lacked adequate starch–gluten network interaction [12].

3.6. Rheology Property

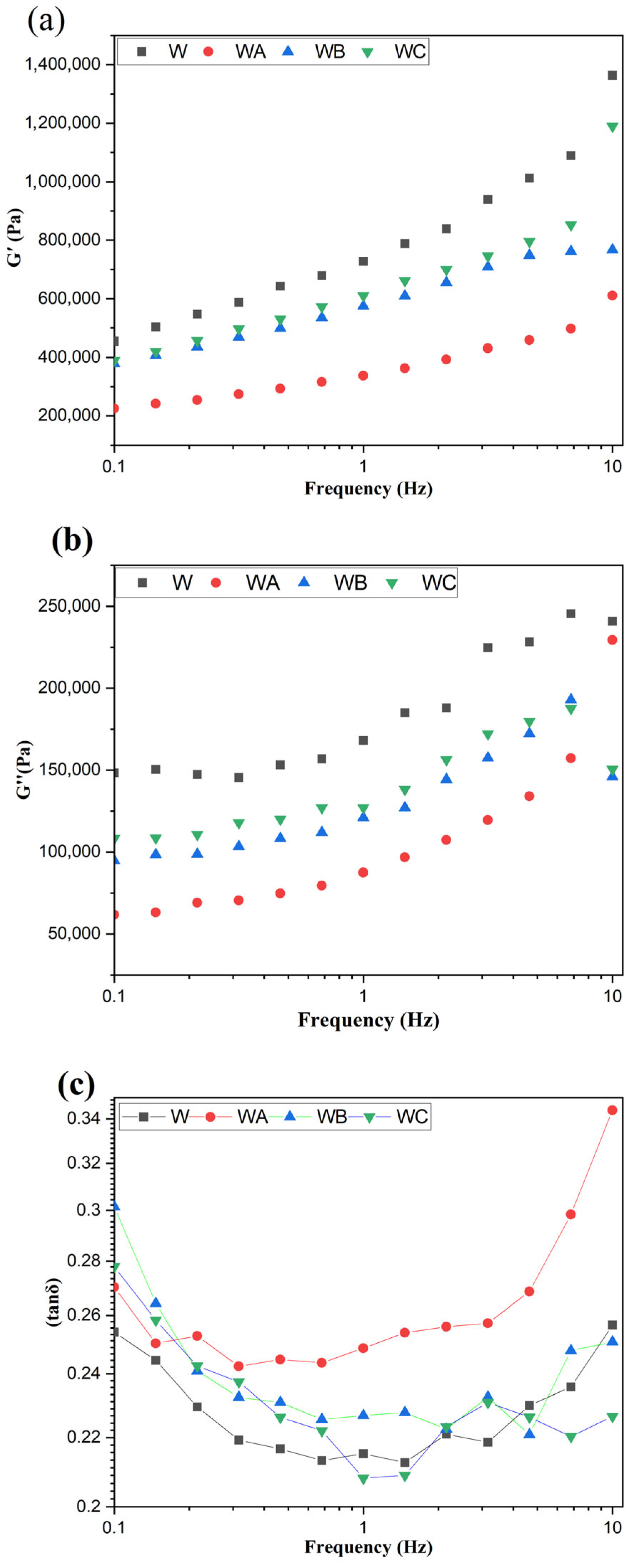

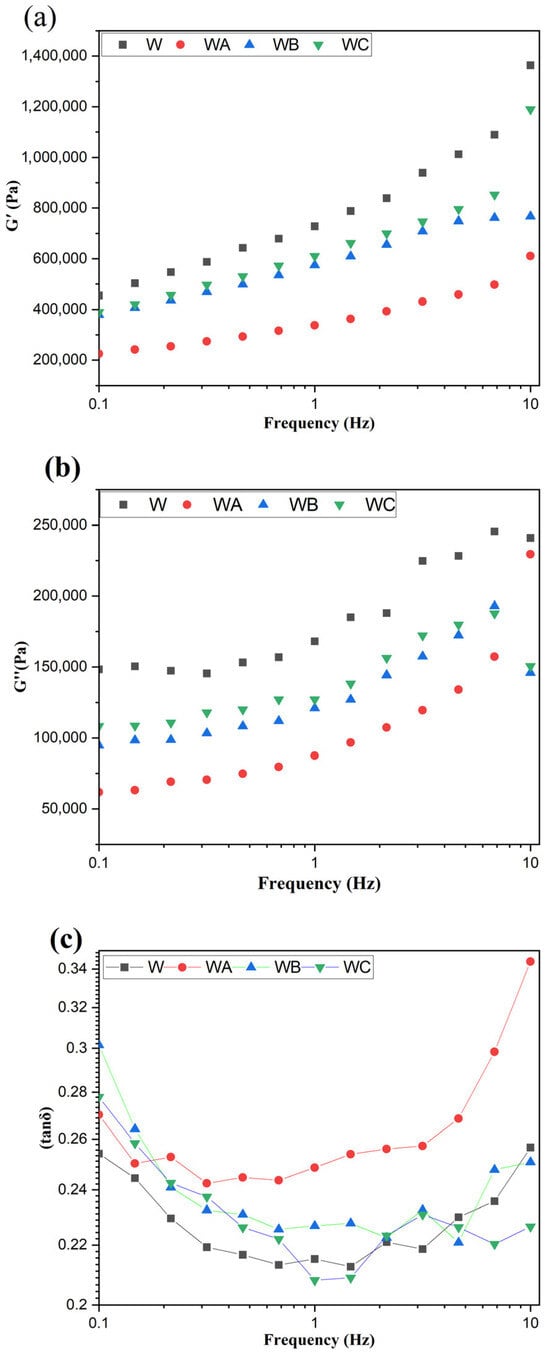

The assessment of product quality heavily depends on dough rheology, where elasticity is indicated by the elastic modulus G′ and viscosity by the viscous modulus G″ [33]. Frequency-dependent graphs of G′, G″, and tan δ were produced for the dough samples (Figure 2).

Regardless of the scanning frequency, the G′ values of the dough samples consistently exceeded the G″ values, indicating a predominance of elasticity over viscosity (Figure 2a,b). In each specimen, the loss tangent (tan δ) remained below 1, while G′ and G″ exhibited gradual increases, indicating a characteristic dynamic rheological profile of a delicate gel. The addition of sorghum flour, especially the very fine type, to the dough significantly elevated G′ and G″, suggesting an enhanced gluten network and increased dough elasticity. Furthermore, the incorporation of fine sorghum flour in wheat-based systems demonstrates functional properties analogous to dough-strengthening agents (e.g., hydrocolloids), facilitating both structural stability and network development [39]. The decreased G′ and G″ values in W and WC samples were affected by the increase in damaged starch content and reduced particle size. The enhanced water absorption capacity noted in the dough can be linked to the augmented surface area of the bran fraction post-milling. The finer particle size of the bran enables quicker water absorption during the mixing phase [40]. Moreover, a previous study has similarly indicated a rise in dough water absorption following the reduction in bran particle size, which allows for faster water absorption during the mixing period [41]. Tan δ, the ratio of G″ to G′, remained below 1 for all frequencies. Adding sorghum flour with its various particles sizes decreased tan δ, indicating changes in dough strength and a low elastic ratio [32,33]. These results are influenced by both the sorghum variety and the treatment method applied.

3.7. Glutenin Macropolymer (GMP)

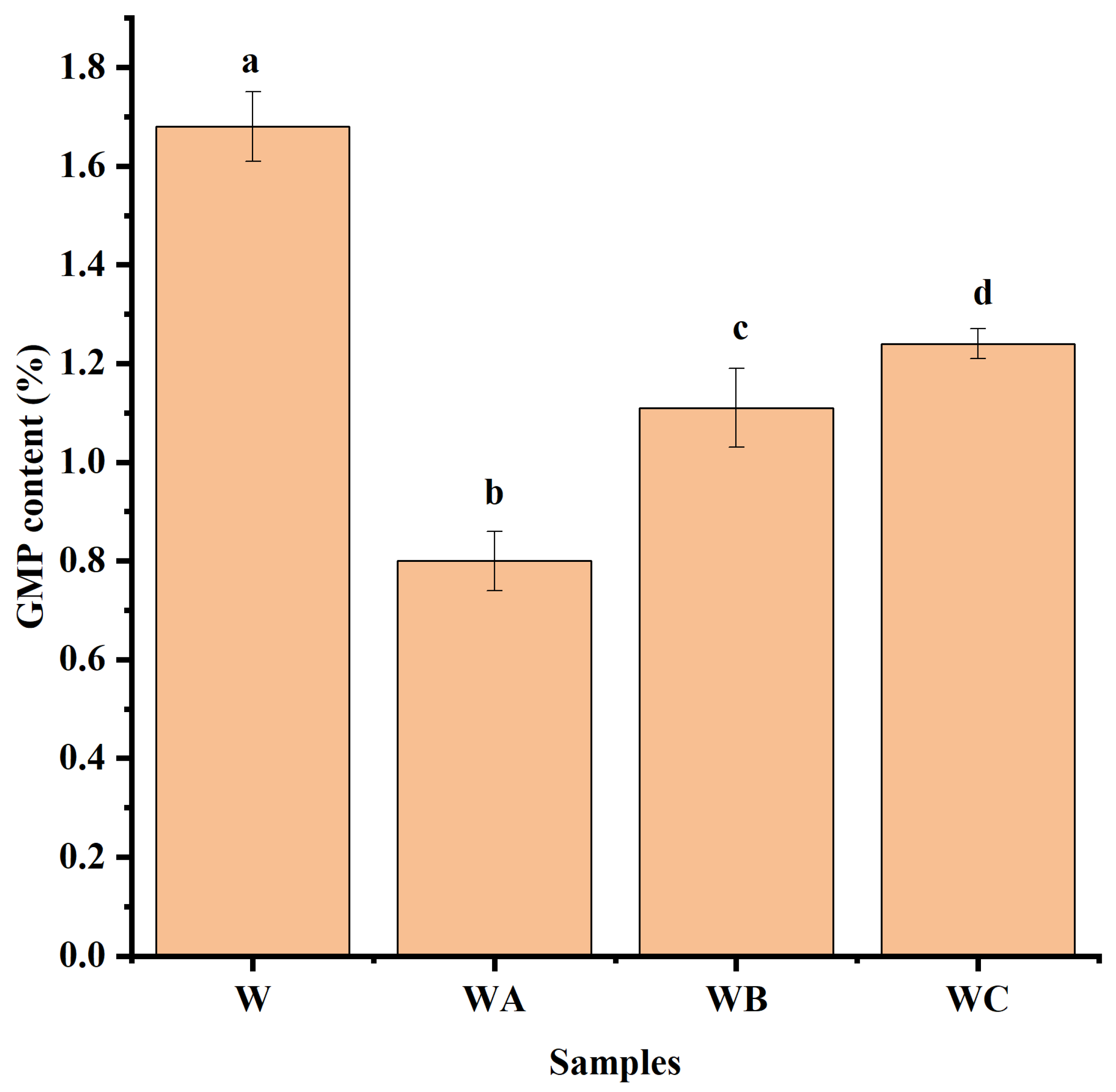

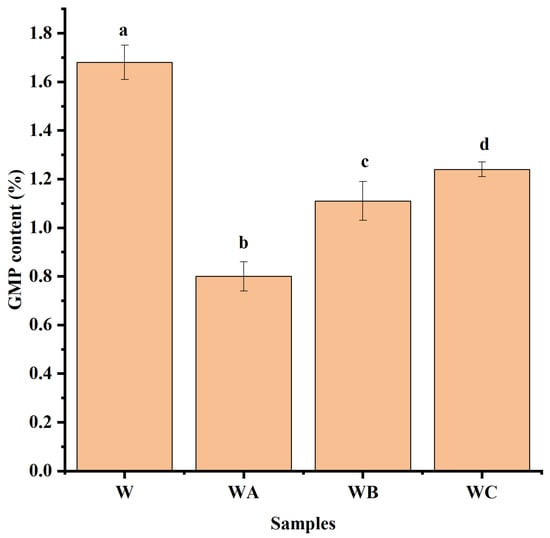

Highly polymerized glutenin polymer, or GMP, is insoluble in SDS and plays a major role in the physical characteristics of dough. It is composed of low and high molecular weight glutenin connected by disulfide bonds [42]. Incorporation of sorghum flour into wheat resulted in a significant reduction in GMP content (Figure 3). This reduction was particle size-dependent: larger sorghum particle sizes were associated with progressively lower GMP values.

This effect arises from the gluten-free nature of sorghum, which disrupts the formation of a continuous gluten network, especially when using coarse fractions of sorghum flour. Additionally, sorghum exhibits different water absorption characteristics compared to wheat, often requiring higher hydration levels without contributing to gluten development. Moreover, coarse sorghum flour contains a higher amount of polyphenols and tannins, which interact with proteins and inhibit the formation of disulfide (S–S) bonds essential for gluten strength. Collectively, these factors compromise the quality of noodle products, resulting in denser texture and reduced chewiness, as reflected in the noodle texture analysis discussed in Section 3.10) [42]. In other words, a higher GMP content is indicative of a more stable and well-structured dough matrix, which in turn contributes to improved noodle texture [43].

3.8. Water Distribution Properties of Sorghum–Wheat Dough Sheet

Water distribution can affect the interactions between dough ingredients, as well as the chemical and physical responses that occur throughout the processing of noodles, and thus the final quality [24]. Transverse relaxation time (T₂) indicates the ability for water binding, with shorter T₂ reflecting a tighter conjunction of water and material. T₂₁, T₂₂, and T₂₃ represent the peak position times, which are also referred to as tightly bound water, weakly bound water, and free water, respectively. The corresponding peak area proportion, denoted by A (A₂₁, A₂₂, and A₂₃), shows the amounts of various status water in specimens. The greater the peak proportion, the bigger the relative content of water in that stage [24].

The results of water distribution are shown in

Table 4. Water distribution and FTIR spectra analysis parameters of sorghum–wheat composite dough.

Sample	Water Distribution						FTIR
	T21 (ms)	T22 (ms)	T23 (ms)	A21%	A22%	A23%	R1048/1022	R995/1022
W	0.151 ± 0.006 a	6.515 ± 0.004 b	135.782 ± 4.905 a	19.02 ± 0.84 a	79.91 ± 0.98 b	0.42 ± 0.03 c	1.887 ± 0.061 a	0.891 ± 0.011 b
WA	0.136 ± 0.003 a	5.254 ± 0.247 a	97.032 ± 4.596 b	18.15 ± 0.58 ab	80.19 ± 0.59 ab	1.62 ± 0.08 a	1.859 ± 0.010 a	0.892 ± 0.001 ab
WB	0.137 ± 0.014 a	5.378 ± 0.030 a	106.764 ± 4.533 c	17.28 ± 0.91 b	81.50 ± 0.96 a	1.16 ± 0.08 b	1.817 ± 0.007 a	0.912 ± 0.012 ab
WC	0.142 ± 0.007 a	5.737 ± 0.142 c	112.435 ± 1.504 c	16.99 ± 0.25 b	81.60 ± 0.20 a	1.23 ± 0.04 b	1.869 ± 0.008 a	0.914 ± 0.004 a

Note: All experiments were carried out in triplicate according to independent replicate experiments, and the results were reported as mean value ± standard deviation. Values with the same superscript letters in a column are not significantly different at p < 0.05. W, WA, WB, and WC represent wheat flour, wheat–coarse sorghum composite flour, wheat–fine sorghum composite flour, and wheat–very fine sorghum composite flour, respectively. T₂₁ represents bound water closely bound to starch and gluten proteins. T₂₂ represents weakly bound water bound to macromolecules such as starch and protein. T₂₃ represents free water. A₂₁ represents the peak area percentage of bound water. A₂₂ represents the peak area percentage of weakly bound water. A₂₃ represents the peak area percentage of free water. ms represents milliseconds.

. The percentage of closely bound water A₂₁ decreased significantly in the sorghum–wheat composite dough samples from the wheat dough sample, and this decrease was descending, that is, starting from WA to WC, the values were 18.15%, 17.28%, and 16.99%. In contrast, it could be found that an increase in the percentage of weakly bound water A₂₂ for samples containing smaller particle sizes was as follows: 80.19%, 81.50%, and 81.60% for WA, WB, and WC, respectively, and the lowest was wheat flour dough (79.91%). It should be noted that the higher the percentage of A₂₁, the greater the water content associated with the dough. As a result, improved water retention capacity in the dough is closely associated with greater structural stability [44]. The highest percentage of free water A₂₃ was for WA (1.62), and the lowest percentage was for W, which was 0.42. This implies that a slightly larger particle size of sorghum flour may augment the quantity of unbound water in the dough while diminishing the capacity of water molecules to bind. In addition, T₂₂ showed a declining trend, while there was a clear discrepancy in the data for T₂₃, and there were no significant differences (p < 0.05) in T₂₁ between all samples. This suggests that the sorghum fraction in the sorghum–wheat composite dough played a role in the water-binding ability of weakly bound water and free water in dough sheets.

3.9. Secondary Structure

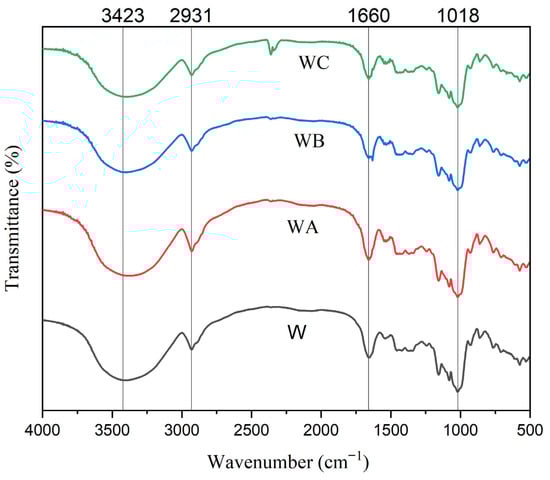

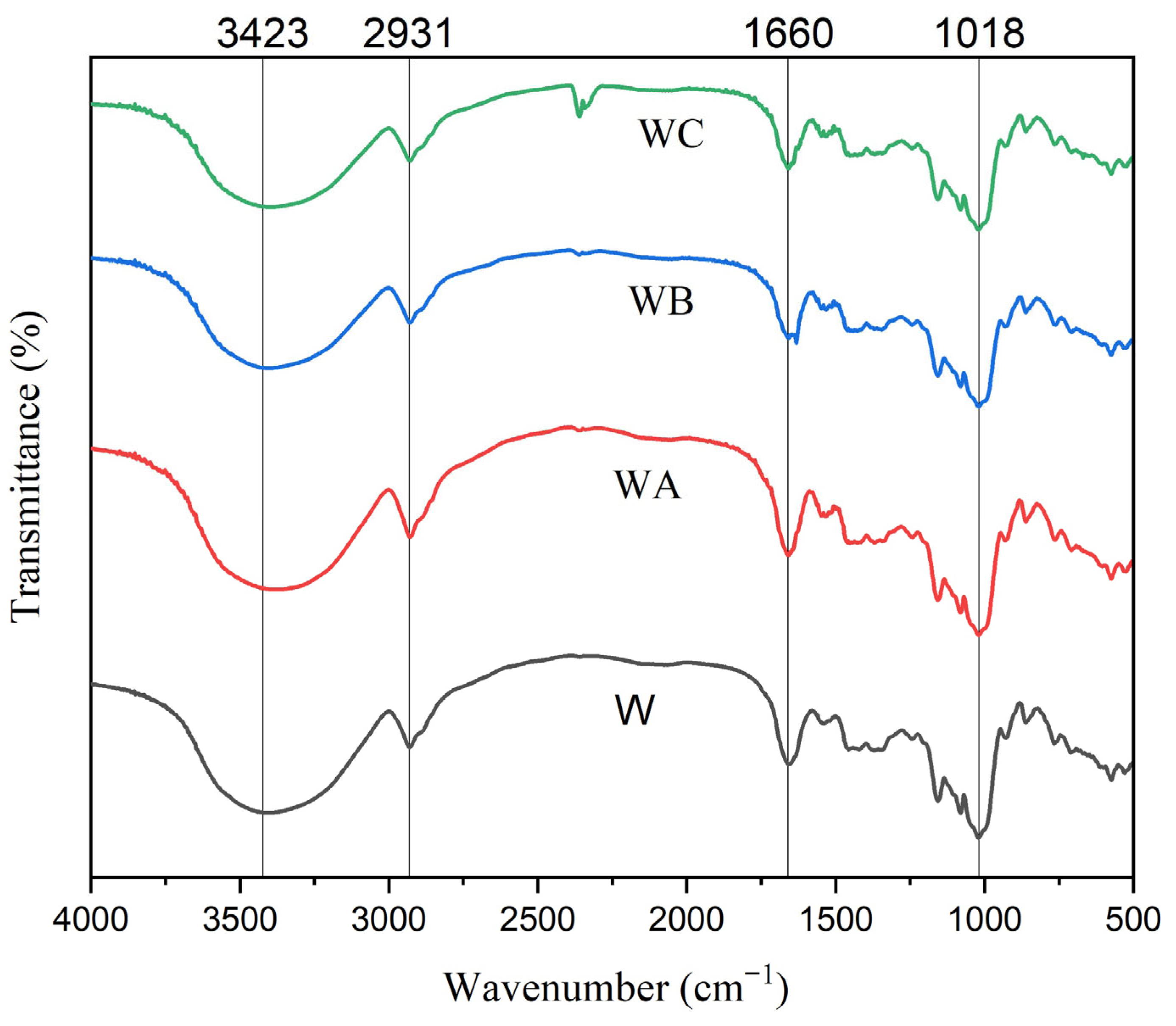

Fourier-transform infrared spectroscopy (FTIR) is a commonly employed analytical method that offers significant insights into the structural attributes of protein biomolecules. As depicted in Figure 4, the FTIR spectra of the flour samples exhibited analogous characteristic peaks at 3423 cm⁻¹, 2931 cm⁻¹, 1660 cm⁻¹, and 1018 cm⁻¹, representing stretching vibrations of O–H, glucose C–H deformation vibrations, bending vibrations of O–H in water molecules, and amorphous characteristics, respectively. The baseline of all samples corresponds to the propagation of sound waves at 3423 cm⁻¹, signifying O–H stretching vibrations. The absorbance bands around 2931 cm⁻¹ are linked to the asymmetric stretching of the C–H bond. The H–O–H bending vibrations at 1660 cm⁻¹ in the amorphous segments of the flour are connected with the internal forces of intra-molecular hydrogen bonds [23,45,46].

The peak’s intensity within the 1300–1475 cm⁻¹ range was more pronounced in WB and WC in contrast to WA and W, denoting the stretching vibrations of CH2 and CH3. WA led to an increase in the intensity of the 1550 cm⁻¹ band, indicating a decrease in the structured nature of the flours. Typically, the P = O group’s infrared absorption peak is expected to lie between 1400 and 1150 cm⁻¹; however, because of its weak absorption, it is often not clearly apparent in the infrared spectrum [45]. According to previous studies, the absorption peak at 1022 cm⁻¹ is indicative of amorphous structural characteristics, whereas the peaks at 1048 cm⁻¹ and 995 cm⁻¹ are specifically associated with the crystalline structure of materials such as flour and starch [33,47]. In this study, the short-range structure and double-helix structure were obtained by analyzing the degrees of 1048/1022 cm⁻¹ (R_1048/1022) and 995/1022 cm⁻¹ (R_995/1022), respectively, according to Gu Y et al. [47], and this is shown in Table 4. The absorption of R_1048/1022 was for wheat flour dough by 1.887, while the absorption of mixed flour was 1.859, 1.817, and 1.869 for WA, WB, and WC, respectively. Meanwhile, R_995/1022 absorption ranged between 0.891, 0.892, 0.912, and 0.914 for W, WA, WB, and WC, respectively. This indicates the quality of the short-range crystalline structure for WB and WC. However, the small particle size led to the regulated the internal hydrogen bonds of molecules, potentially promoting the good connection of the double helices. This is consistent with the results of Yang L’s study [33].

3.10. Cooking Properties of Noodles

The cooking and texture properties of noodles were shown in

Table 5. Cooking and texture characteristics of sorghum–wheat composite dried noodles.

Parameters	W	WA	WB	WC
Optimal cooking time (min)	6.54 ± 0.00 a	6.21 ± 0.01 b	6.04 ± 0.04 c	5.15 ± 0.04 d
Water absorption (%)	206.89 ± 3.35 a	166.21 ± 1.05 b	177.24 ± 1.01 c	181.96 ± 1.52 d
Cooking loss (%)	6.30 ± 0.28 a	10.31 ± 0.07 b	9.65 ± 0.06 c	8.44 ± 0.11 d
Hardness (gf)	7169.30 ± 33.49 a	6096.39 ± 12.69 d	6234.52 ± 32.35 c	6455.27 ± 33.24 b
Adhesiveness	−115.30 ± 0.10 a	−91.00 ± 0.11 d	−92.90 ± 0.18 c	−94.93 ± 0.11 b
Springiness (gf)	0.93 ± 0.00 a	0.76 ± 0.00 d	0.77 ± 0.01 c	0.78 ± 0.00 b
Cohesiveness	0.74 ± 0.01 a	0.58 ± 0.00 d	0.59 ± 0.00 c	0.62 ± 0.00 b
Chewiness (gf)	4910.93 ± 13.38 a	3538.40 ± 20.15 d	3615.23 ± 9.65 c	3712.33 ± 6.03 b
Resilience	0.54 ± 0.01 a	0.35 ± 0.01 d	0.38 ± 0.00 c	0.40 ± 0.00 b

Note: For each index, no marked difference existed between samples if the same letter occurred behind the value (p < 0.05). W, WA, WB, and WC represent wheat flour noodle, wheat–coarse sorghum composite noodle, wheat–fine sorghum composite noodle, and wheat–very fine sorghum composite noodle, respectively. Gf: gram-force.

. The duration of cooking plays a crucial role in determining the preferred sensory characteristics and overall quality of noodles. A reduced cooking time is considered a desirable attribute in noodle manufacturing [48]. In this study, it was observed that the cooking times of sorghum–wheat composite noodles were reduced compared to wheat noodle. This may be due to the weakened protein network; the structural integrity of the noodles is compromised during cooking, leading to increased surface disruption. This promotes rapid starch water absorption, thereby significantly shortening noodle cooking time [49]. Additionally, the highest water absorption values were observed in the W and WC samples, attaining 206.89% and 181.96%, respectively. This enhancement can be ascribed to a greater proportion of damaged starch, which promotes water uptake by augmenting granule porosity and facilitating granule swelling. Increased porosity notably expands the available surface area for hydration, thus directly enhancing their ability to retain water [50]. Cooking losses were comparatively greater in noodles formulated with coarse and fine sorghum flours than those made from very fine sorghum flour and wheat flour. This phenomenon can be attributed to inadequate dough characteristics, which impair water retention within noodles, thereby diminishing their structural integrity during cooking. The compromised dough structure negatively influences hydration capacity, ultimately leading to increased cooking loss [51].

3.11. Texture Profile of Noodles

Texture profile analysis (TPA) is a fundamental, objective method for evaluating noodle eating quality by simulating mastication [52]. Typically, the textural attributes of noodles correlate closely with their cooking characteristics. As indicated in Table 5, a reduction in the particle size of sorghum flour within sorghum–wheat composite noodles resulted in a significant increase (p < 0.05) in both hardness and chewiness parameters. This increment can be ascribed to the diminished presence of fiber as particle size decreases, since dietary fiber interferes with the starch–gluten network, consequently causing reductions in noodle hardness and chewiness [52]. The firmness and chewiness of noodles are primarily influenced by the structural network formed between gluten proteins and starch. When fiber content is reduced, gluten–starch interactions are enhanced through several mechanisms, thereby improving noodle texture.

The key contributing factors include the following: (1) reduced physical interference from fiber insoluble fibers, such as bran particles, act as physical barriers that disrupt the formation of a cohesive gluten network; lower fiber content minimizes this interference, enabling the development of a more continuous gluten matrix that effectively entraps starch granules; (2) improved hydration and gluten development—soluble fibers (e.g., β-glucans, arabinoxylans) compete for water, limiting the hydration of gluten and starch; reducing fiber allows more water to be available for proper gluten formation; (3) a stronger gluten–starch matrix in the absence of fiber allows gluten proteins to form a more uninterrupted network, enhancing starch encapsulation and overall structural integrity [52]. The reduced fiber content enhances structural coherence by minimizing disruptions within the gluten–starch matrix, thereby increasing noodle firmness.

3.12. Microstructure of Cooked Noodles

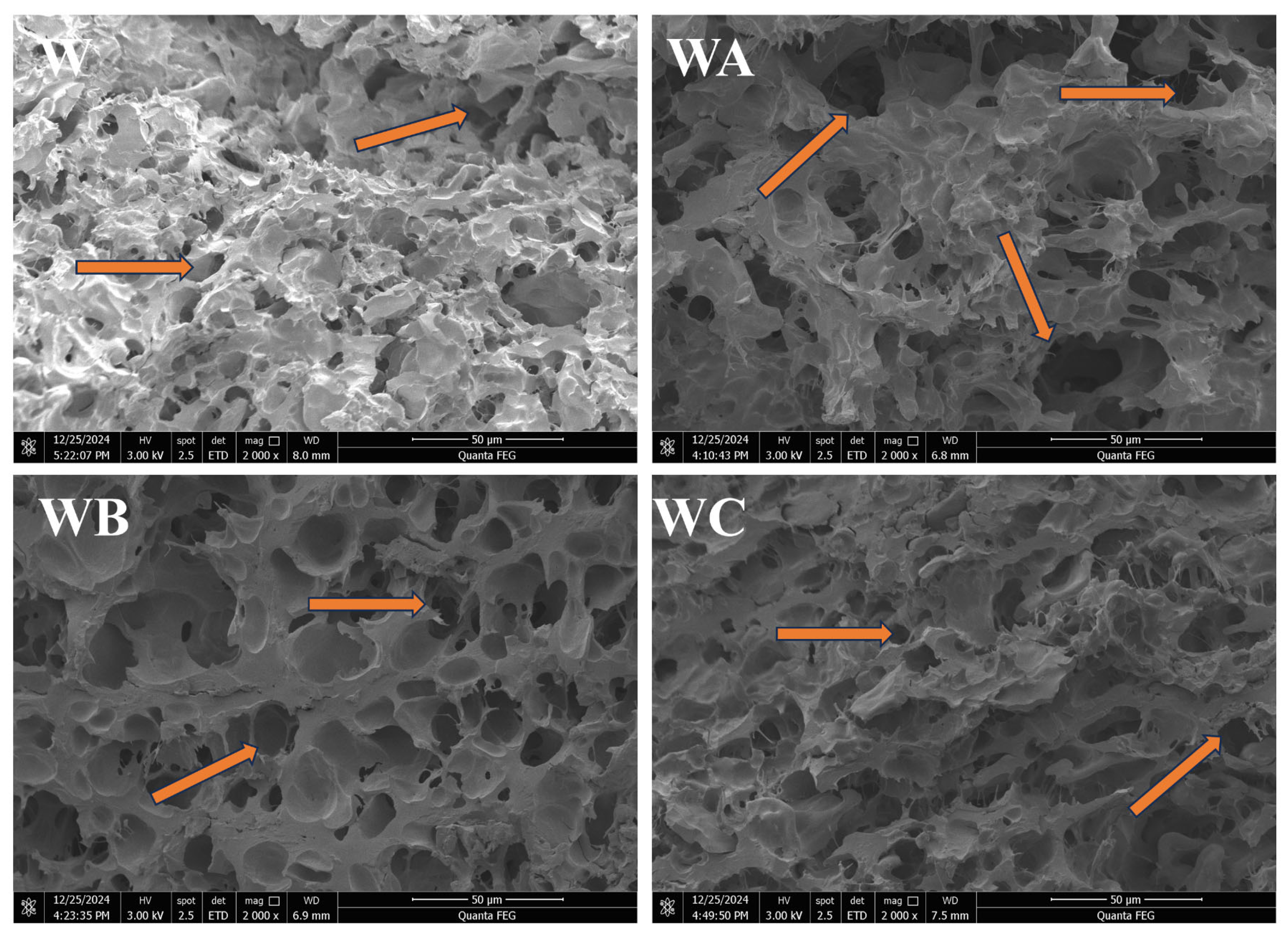

The microstructure of cooked sorghum–wheat composite noodles, as observed by SEM in Figure 5, reveals notable differences depending on the particle size of the sorghum flour used in the formulation. In the control wheat noodles (W), a smooth and continuous internal structure was observed, typical of well-developed gluten matrices supporting gelatinized starch. By contrast, the incorporation of coarse sorghum flour (WA) disrupted this structure. The internal matrix of WA noodles exhibited large, irregular voids (red arrows) and disrupted continuity, suggesting weakened gluten development. However, the gaps progressively diminish as particle size decreases. Coarse particles may have physically interfered with gluten network formation and contributed to heterogeneous water distribution, leading to partial gelatinization. Similar microstructural disruptions were reported by Yu et al. [53], who found that coarse particles impede water migration and reduce matrix cohesiveness in multigrain noodles.

A marked improvement was noted in noodles enriched with fine sorghum flour (WB). The microstructure of WB noodles displayed a more integrated and uniform starch–protein matrix compared to WA, with fewer voids and more cohesive interfaces. The most compact and homogenous structure was evident in the noodles made with very fine sorghum flour (WC) because it was close to wheat noodles. Here, starch granules were fully swollen and fused, forming dense, gel-like matrices with fewer detectable voids. The SEM images revealed near-complete gelatinization, indicative of efficient water uptake and strong integration between gluten and starch phases.

3.13. Sensory Evaluation of Sorghum–Wheat Composite Noodles

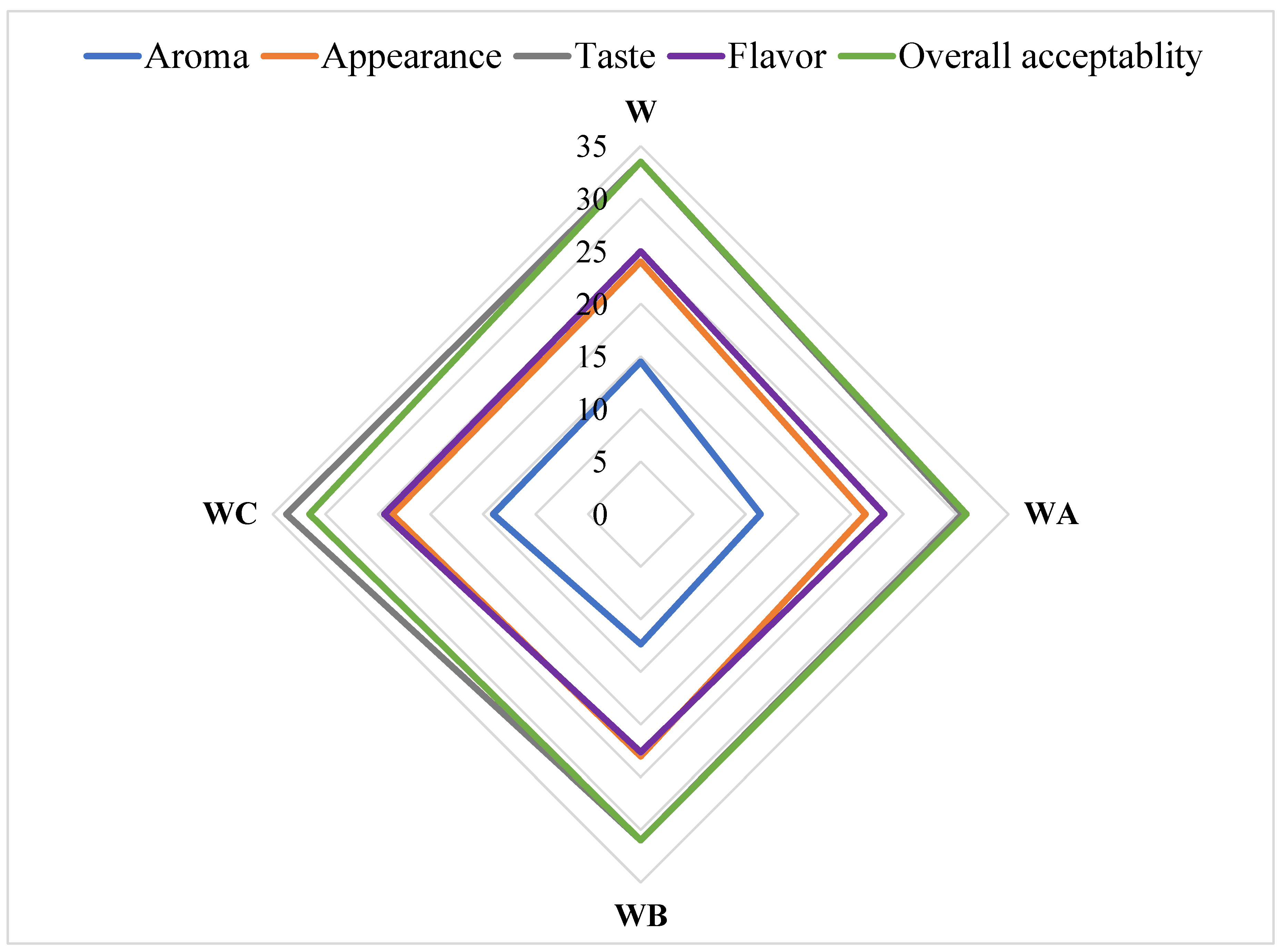

Figure 6 demonstrates that noodles formulated from wheat flour and those containing very fine sorghum flour blends achieved the highest scores in the sensory evaluation. The samples designated as W 33.5 points and WC 31.5 points received the highest comprehensive sensory scores, whereas samples WA and WB obtained scores of 31 points and 31 points, respectively. The superior sensory ratings of these noodle variants may be linked to their lake of anthocyanins, although their content was not directly measured in this study. Anthocyanins, belonging to the flavonoid subclass found within sorghum grains, have been recognized as promising natural food colorants [26]. Therefore, the incorporation of coarser sorghum flour may have contributed to a darker noodle color, possibly associated with higher anthocyanin pigment content. In addition, it can be considered that the incorporation of very fine sorghum flour resulted in noodles with sensory scores closely approximating those of the control wheat noodles, especially in attributes such as appearance and texture. The improvement in texture might be due to reduced particle interference with gluten network formation. However, the slightly lower scores for WA samples could be due to coarse particles disrupting the noodle matrix and negatively affecting mouthfeel. Despite these differences, all sorghum-containing noodles remained within an acceptable sensory range, suggesting that sorghum flour, particularly in finer particle sizes, can be effectively incorporated into noodle formulations to enhance nutritional content without compromising consumer acceptability.

4. Conclusions

The properties of sorghum–wheat composite flour dough were notably impacted by the particle size of sorghum flour. The thermal, pasting, mixing, and viscoelastic properties of combined dough were found to be affected by particle size distribution, as demonstrated through farinograph, pasting, DSC measurements, and rheology analysis. Dough with fine sorghum flour had the highest GMP content after wheat flour dough. The research findings demonstrated that the dough containing smaller particle size of sorghum flour enhanced the stability of the gluten structure within the dough. Increases in extension resistance and dough firmness were found compared with wheat flour. This study’s results indicated that diminishing the particle size of sorghum flour could improve the structural stability of the blended flour and dough sheet. In addition, noodles made from fine sorghum flour have better water absorption, reduced cooking losses, and, in turn, superior performance in analyzing texture properties and sensory priority. However, particle-size engineering offers a practical industry strategy for improving sorghum incorporation in wheat products without compromising dough handling or quality. The results support the development of sorghum-enriched food products with higher nutritional density, especially in markets seeking fiber-rich or functional grain-based foods. Further research should explore sorghum particle-size effects in other wheat-based products such as pasta, bakery items, and gluten-reduced or gluten-free formulations. Expanding the scope to include different sorghum varieties, milling technologies, and hydrothermal treatments would deepen the understanding of structure–function relationships and support broader industrial applications. Larger-scale and multi-product trials are recommended to validate these results and enhance their commercial relevance.
