Abstract

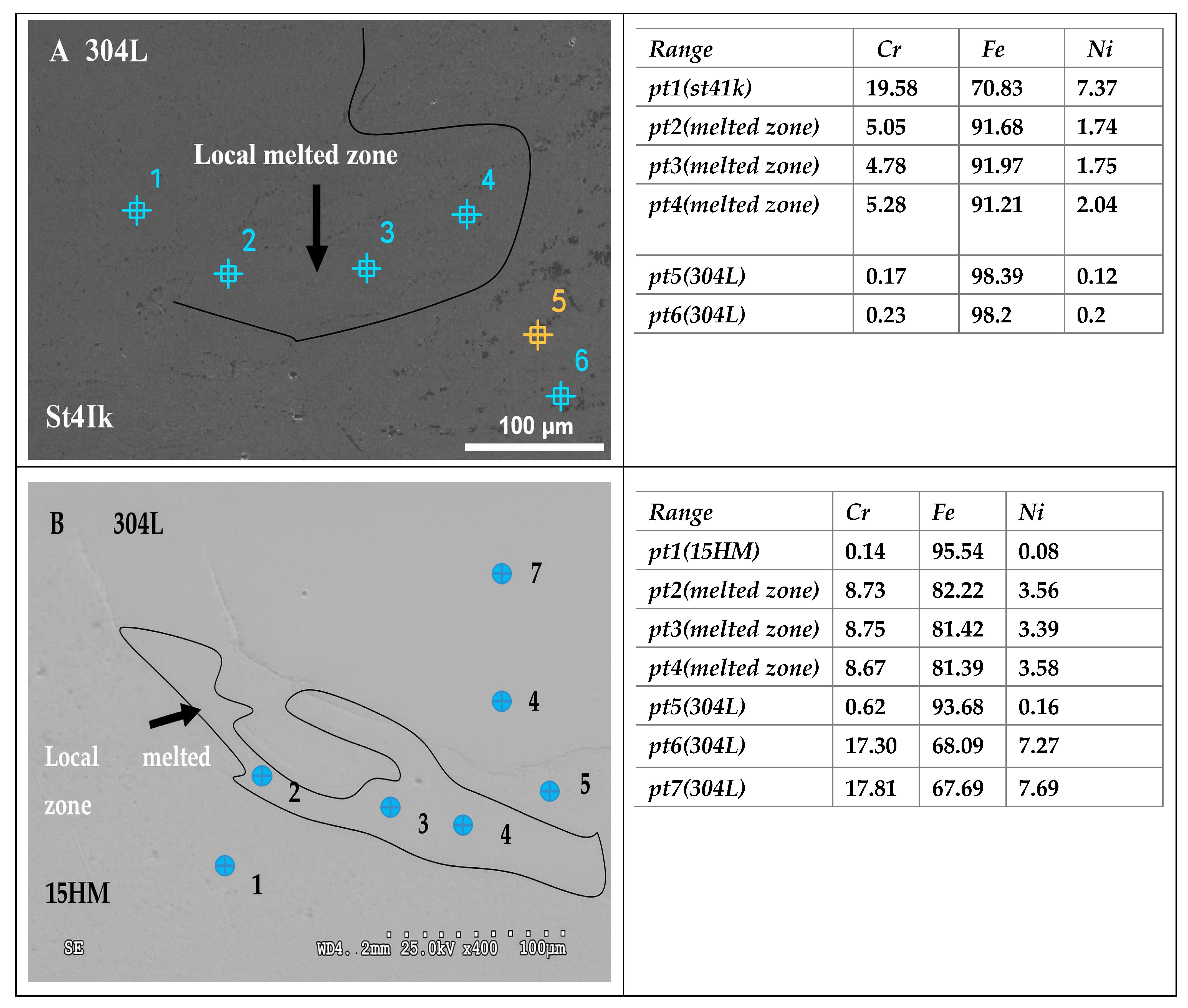

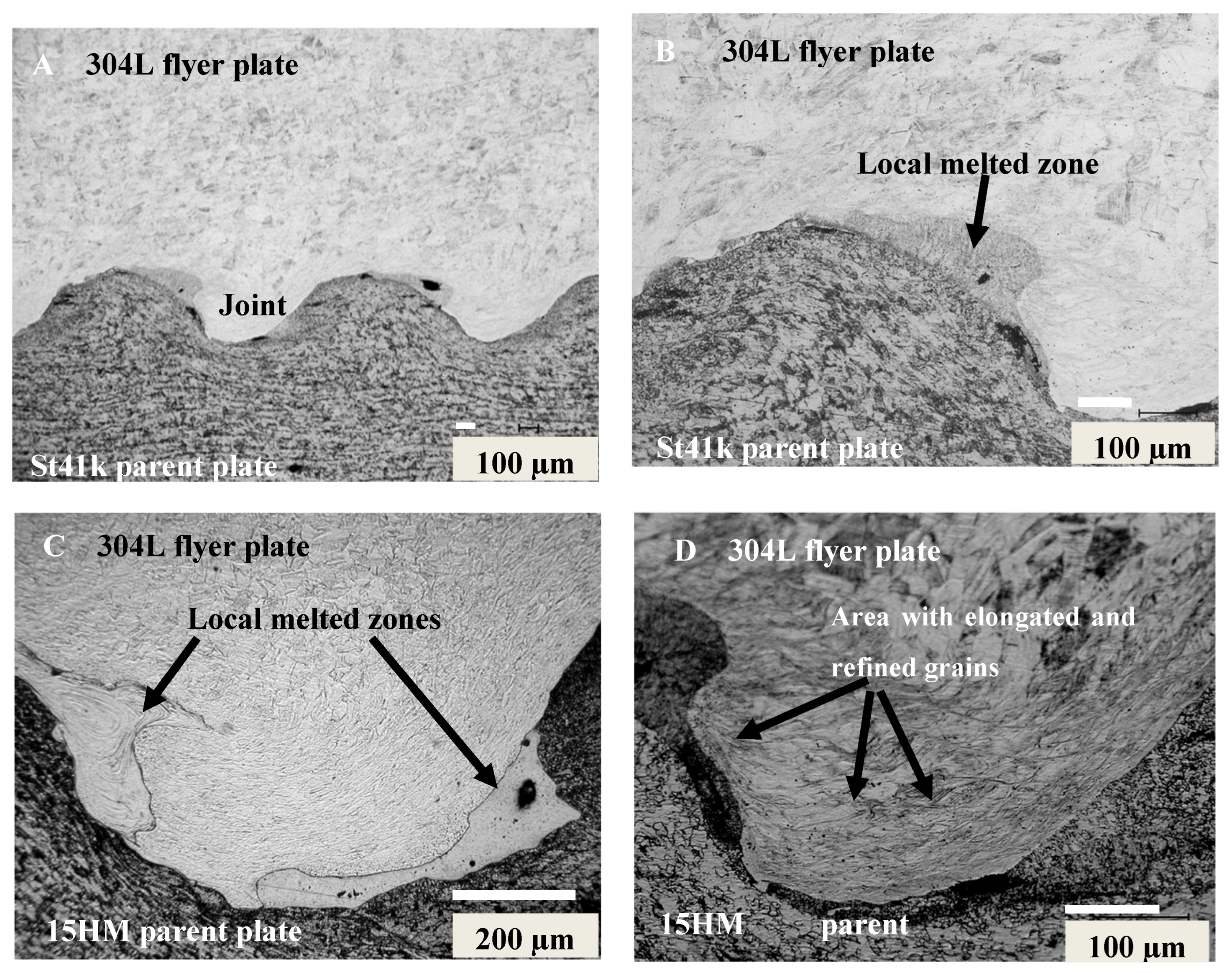

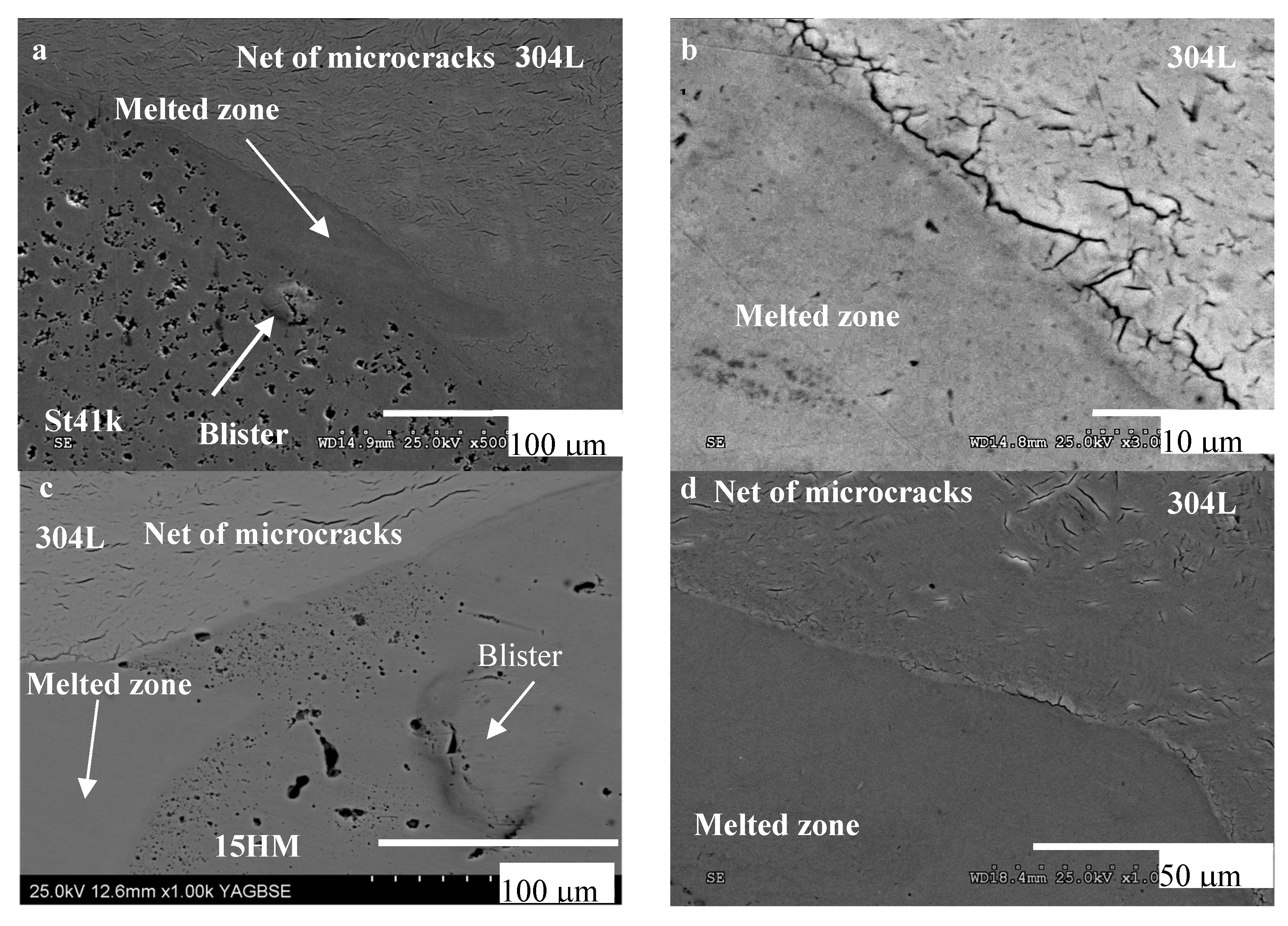

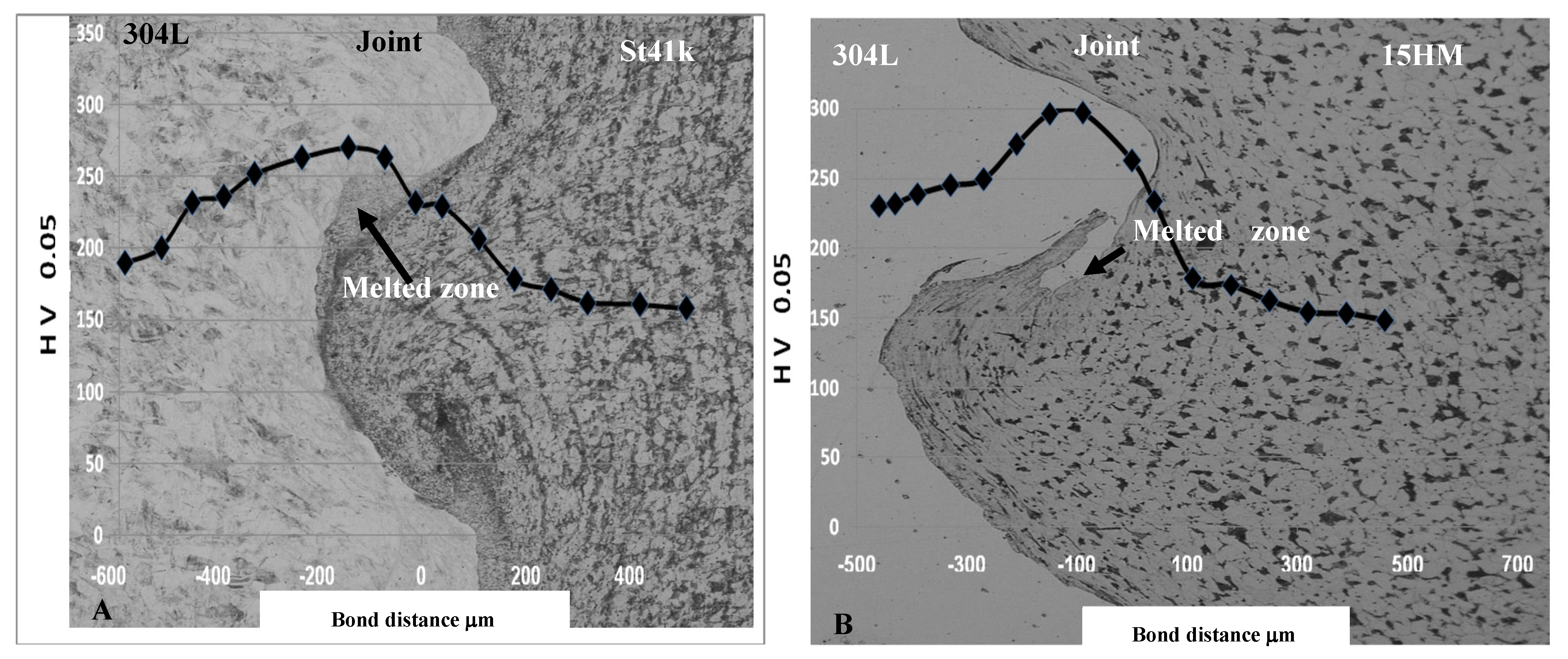

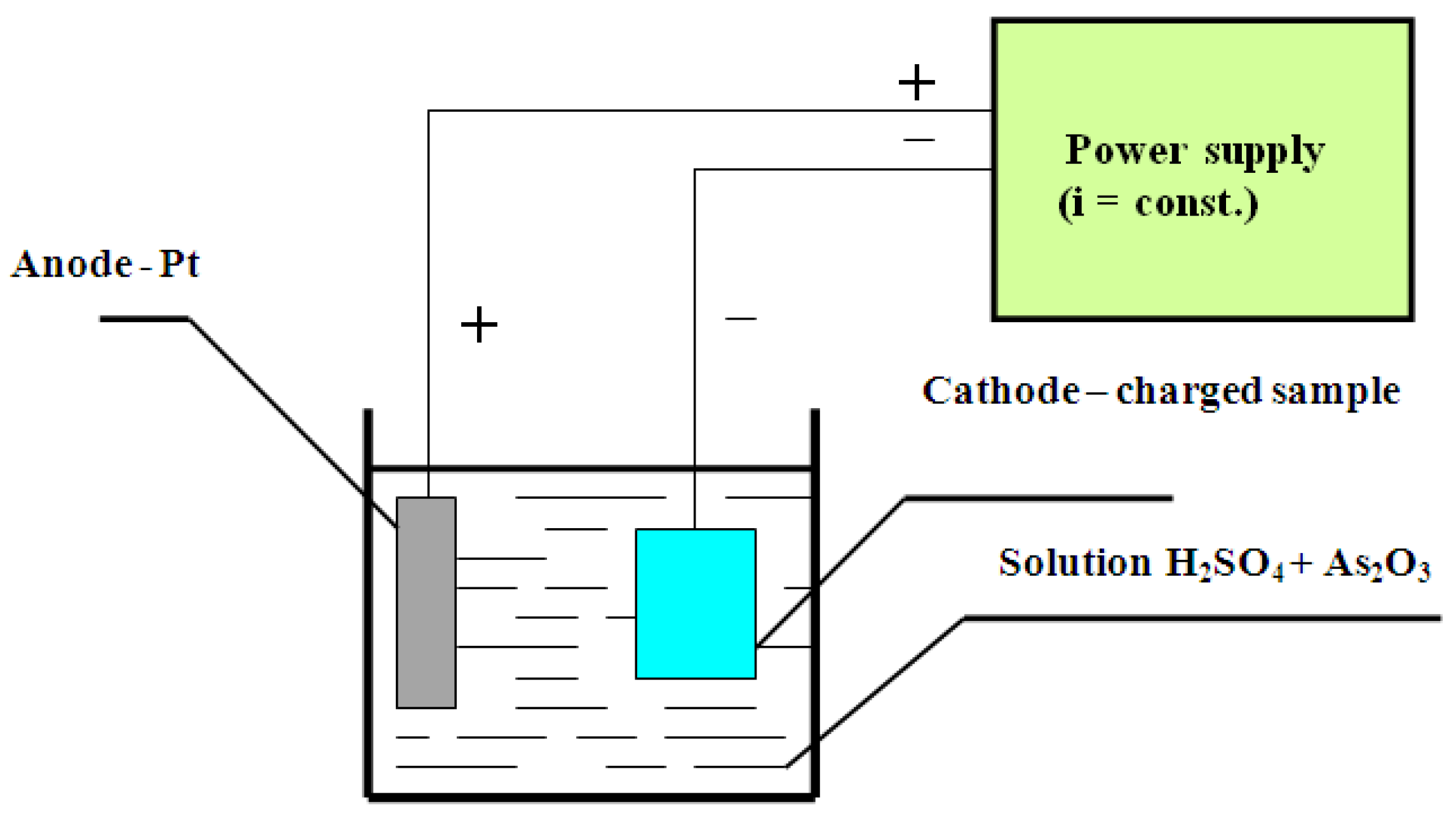

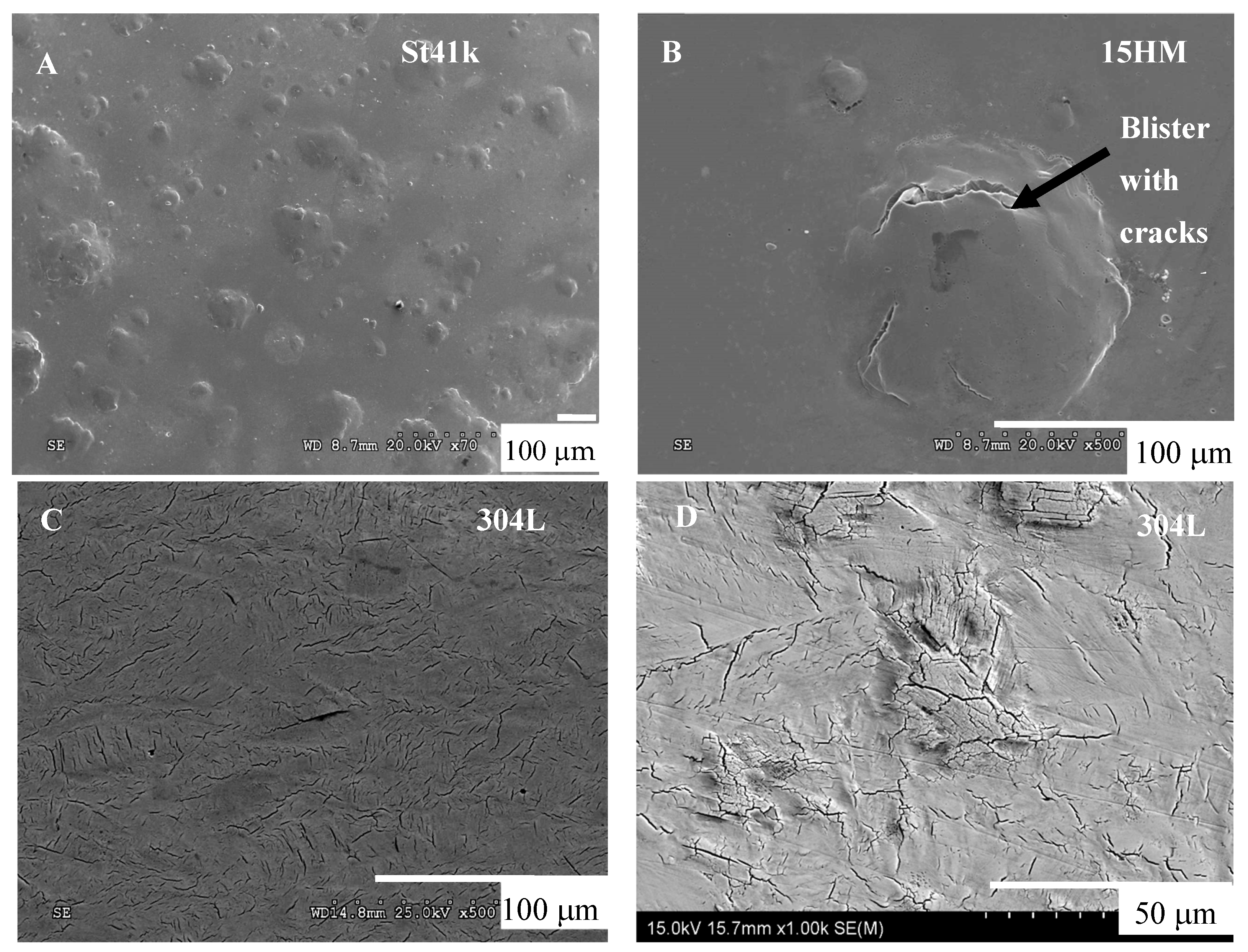

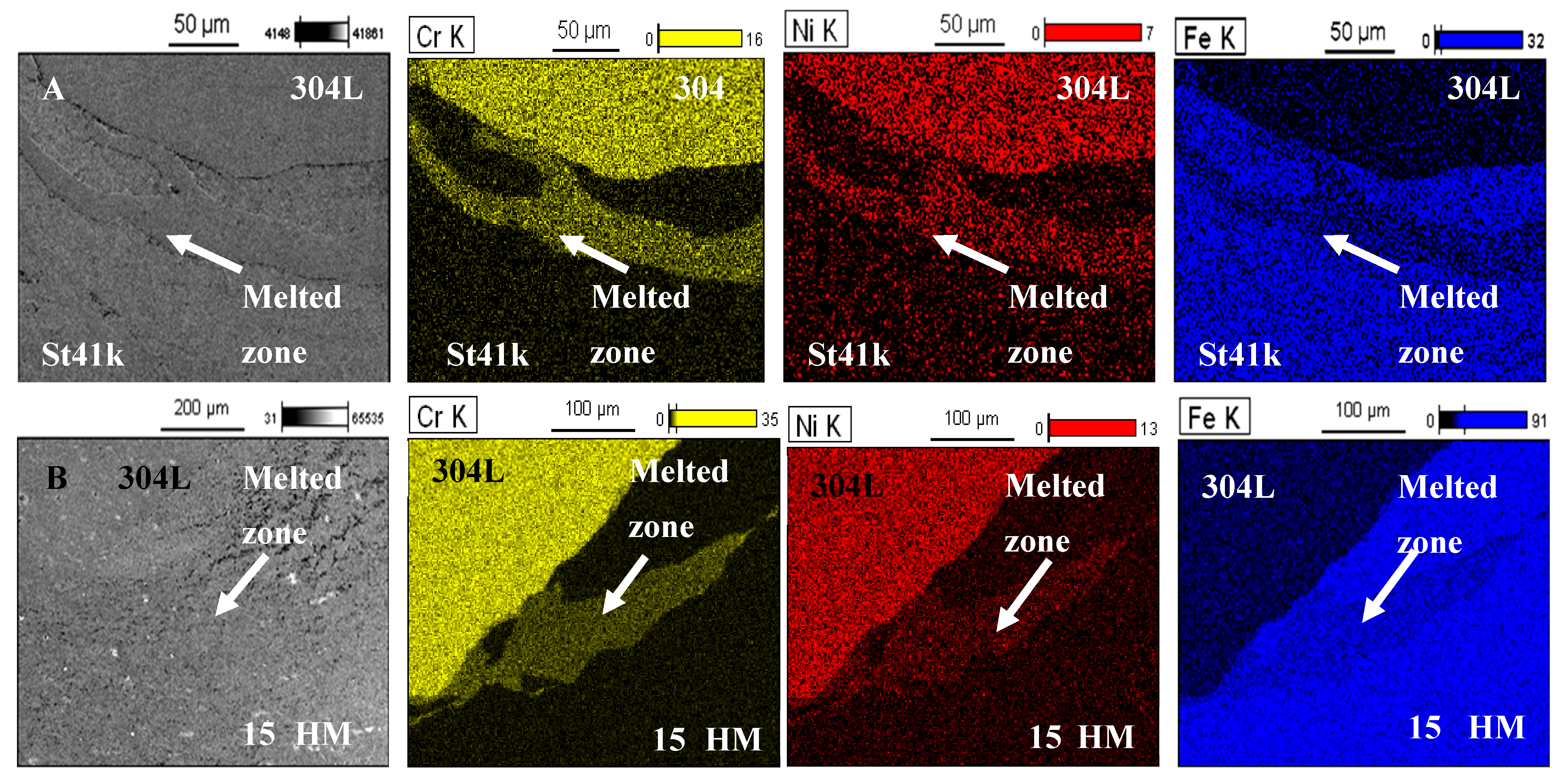

This study investigates hydrogen embrittlement mechanisms at the interfaces of explosively welded joints between 304L austenitic stainless steel and carbon/low-alloy steels (St41k, 15HM), focusing on the unique properties of local melting zones (LMZs) formed during joining. Advanced microstructural characterization, including scanning electron microscopy (SEM), energy-dispersive X-ray spectroscopy (EDS), and microhardness testing, was combined with controlled electrochemical hydrogen charging. Results demonstrate that while base materials suffered substantial hydrogen-induced degradation—blistering in carbon steels and microcracking in stainless steel—the LMZ exhibited exceptional resistance to hydrogen damage. Compositional analyses revealed that the LMZ possessed intermediate chromium (4.8–8.8 wt.%) and nickel (1.7–3.6 wt.%) contents, reflecting mixing from both plates, and significantly higher microhardness compared to adjacent zones. The superior hydrogen resistance of the LMZ is attributed to their refined microstructure, increased density of hydrogen trapping sites, and non-equilibrium phase composition resulting from rapid solidification. These findings indicate that tailoring the process of the LMZ in clad steel joints can be an effective strategy to mitigate hydrogen embrittlement risks in critical hydrogen infrastructure.
