Influence of Surface Finishing on the Corrosion and Wear Behaviour of AISI 304 and AISI 436 Stainless Steels

Abstract

The pitting corrosion resistance and the tribological behaviour of a ferritic stainless steel with high Mo content (AISI 436) and a commonly employed austenitic stainless steel (AISI 304) are compared. Special attention was paid to the role of Mo in improving corrosion resistance of ferritic stainless steels. Since the surface condition is an important parameter related to the onset of pitting corrosion in the presence of chlorides, three different surface finishes were tested for both steels. Two commercial finishing grades and laboratory polishing down to 1 µm were compared. Moreover, the influence of surface condition on the tribological properties for both steels was also evaluated. The study demonstrates that surface finishing plays a decisive role in both the electrochemical and mechanical response of stainless steels. A comprehensive microstructural and tribological analysis reveals not only how commercial finishing treatments modify passive film behaviour, but also how they affect friction stability and wear mechanisms. Special emphasis is placed on the synergistic effect between molybdenum content, passive film integrity and manufacturing processes. The obtained results provide valuable insight for industrial applications where durability against chloride exposure and abrasion is critical.

1. Introduction

Austenitic stainless steels are the most popular corrosion resistant materials used in many applications due to their excellent corrosion resistance and good mechanical properties. These materials derive their corrosion resistance from the formation of a thin passive film on the surface in several environments [1,2,3]. So, because of their high corrosion resistance, stainless steels also often have applications as architectural materials such as roofs and walls of buildings [4,5,6,7]. In those applications, the evaluation of stainless steels from an aesthetic point of view is important because a large loss in appearance or aesthetic degradation may occur due to “cosmetic corrosion” [8,9,10].

In aggressive chloride-containing environments, such as marine or industrial atmospheres, carbon steels exhibit poor durability due to rapid corrosion, making stainless steels the preferred choice. Among them, austenitic grades such as AISI 316L are widely used because of their excellent resistance to chloride-induced corrosion; however, they present an important drawback, namely the relatively high cost associated with their nickel content [11,12,13]. Ni is one of the alloying elements that significantly increases the cost of austenitic stainless steels, more than other alloying elements such as Mo [14,15,16,17]. The use of ferritic stainless steels with high Mo content is becoming a good alternative as a replacement for austenitic stainless steels, due to their excellent corrosion resistance and relatively low cost. The presence of Mo is widely recognised for its beneficial effect on the corrosion resistance of stainless steels and has been studied extensively in the literature [18,19,20,21]. However, the sole presence of Mo is not sufficient to prevent pitting, and the surface condition is a key parameter related to the onset of pitting corrosion in the presence of chlorides [22,23,24,25,26].

Although the comparison between AISI 304 and AISI 436 does not isolate molybdenum as a single variable, published studies on ferritic stainless steels with different Mo contents provide a consistent basis for interpretation. Previous work on low-Mo and Mo-free AISI 436 grades shows that increasing Mo content markedly improves pitting resistance by enhancing passive film stability in chloride environments. These trends support the present comparative approach and allow the role of molybdenum to be discussed within an established corrosion framework [27,28,29].

In this work, the corrosion and tribological behaviour of a ferritic stainless steel with high Mo content (AISI 436) was studied and compared with a highly employed austenitic stainless steel (AISI 304). Moreover, the influence of the surface condition on the corrosion resistance was analysed using three different surface finishing degrees [30,31,32,33]: commercial finishing 2B and BA (ASTM 480 A), and polished down to 1 µm. Prior studies have demonstrated that the surface finishing significantly affects the pitting resistance and tribological/tribocorrosion behaviour in both ferritic and austenitic stainless steels [34,35].

The 2B surface condition is obtained when the cold-rolled steel sheet is subjected to annealing in an oxidising atmosphere, during which a thin but adherent oxide scale forms on the surface. After annealing, the sheet undergoes acid pickling, typically using mixtures based on nitric and hydrofluoric acids, to remove the scale and restore the metallic surface. This treatment is followed by water rinsing, during which a new passive film spontaneously forms. The resulting 2B finish is smooth, matte, and uniform, making it one of the most common commercial finishes for stainless steels due to its balance between good corrosion resistance, low roughness, and relatively low cost. The microstructure and morphology of the passive film formed after pickling are strongly influenced by the chemical composition of the alloy and the details of the pickling process, which in turn affects the pitting behaviour.

The BA (Bright Annealed) surface condition is achieved when the cold-rolled steel sheet is annealed in a controlled, reducing atmosphere, typically rich in hydrogen. In this environment, oxidation is suppressed and no scale is formed, so the characteristic metallic brightness of the steel is preserved. Because of this, no pickling step is required. The surface remains highly reflective and smoother than 2B, with lower roughness values. However, even in reducing atmospheres, small amounts of residual water vapour can lead to the formation of an ultra-thin oxide film which resembles a passive film and contributes to the corrosion behaviour of the BA surface. This finish is widely used in applications where aesthetic appearance is important, such as architectural cladding or household appliances, and is known to provide improved resistance to initiation of pitting due to its lower defect density.

2. Materials and Methods

2.1. Materials

Samples of AISI 304 and AISI 436 steels were cut from industrial stainless steel sheets, 0.8 mm thick, with two different surface finishes, 2B and BA, as above mentioned. The sheets were supplied by ACELOR METAL S.A. (Madrid, Spain) and produced according to the harmonised standard UNE-EN 10088-2 [36], which defines the surface finishes and associated industrial processing routes for flat stainless steel products. The chemical composition of both steels is given in

Table 1. Chemical composition in wt.% of the Stainless Steels used in this study.

	Element	Fe	C	Cr	Ni	Si	Mn	Mo
AISI 304	Wt.%	Bal.	0.05	18.20	8.05	0.05	1.10	-
AISI 436			0.04	17.50	-	0.04	0.50	1.25

.

Square coupons (2 mm × 2 mm) were cut from the industrial sheets for the electrochemical and mechanical studies. Part of those samples were mechanically polished down to 1 μm with colloidal silica. This finishing (P) was used as reference. Prior to each experiment, all the samples were degreased in an ultrasonic bath with acetone/ethanol mix, rinsed with distilled water, and dried.

2.2. Corrosion Measurements

Corrosion experiments were performed at room temperature in a conventional three electrode, all glass cell, where the working electrode was the corresponding stainless steel (0.28 cm² exposed area). A Pt mesh was used as an auxiliary electrode, and a saturated calomel electrode, SCE (SCE, 0 mV SCE = +242 mV vs. H₂), as a reference one. The employed medium was a 3.5% NaCl solution, whose pH was adjusted at 7.9 by adding NaOH solution (Scharlab, Barcelona, Spain). Electrochemical tests were performed using cyclic voltammetry (cyclic potentiodynamic polarisation) with a potentiostat Autolab PGSTAT 30 (Ecochemie, Utrecht, The Netherlands). The GPES software (Nova 2.1.8) was used to register the voltammetric curves. The cyclic voltammograms started in the cathodic potential region, E = −600 mV, and the potential was increased in the anodic direction at 1 mV·s⁻¹ until the current density reached 10⁴ μA cm⁻². Then, the potential scan was reversed until reaching the starting value. To check the reproducibility of the results, the tests were carried out on two samples of each type, obtaining fully equivalent curves. Each electrochemical test was repeated four times for each material and surface condition (two independent coupons, two measurements per coupon), yielding highly reproducible responses.

2.3. Surface Analysis

To analyse the surface condition of the specimens and the possible existence of impression defects, a morphological analysis was performed using a JEOL JSM-6510 scanning electron microscope (JEOL Ltd., Tokyo, Japan) equipped with an energy dispersion spectrometer (EDS) and INCA Energy software (Version 4.13). Thus, the study was carried out before and after mechanical testing to assess the integrity of the joint between struts and spheres, and to characterise the fracture surfaces of 3D printed specimens. Secondary electron images were taken with a voltage of 20 kV, and the specimens were coated with a thin layer of Au using ion sputtering to improve the conductivity and minimise the charging effects.

2.4. Tribological Behaviour

The pin on disc wear testing machine Microtest MC4002 tribometer (Microtest S.A., Madrid, Spain) was employed to evaluate the wear resistance of the tested samples [13,14]. Wear tests were conducted at room temperature, humidity of 35–45%, and a velocity of 0.1 ms⁻¹. Alumina pins, diameter = 6.5 mm, were employed as counter face. The tests were carried out using 5 N load. After 1100 m, the samples were taken out of the wear machine and characterised. After wear testing, the surfaces were examined by SEM to observe whether any changes in the wear behaviour mechanism occurred as a result of different final finishes.

3. Results and Discussion

3.1. Surface Analysis and Corrosion Tests

Given the strong influence of surface condition on the electrochemical stability of stainless steels, a detailed characterisation of the initial surface state is essential to properly assess their corrosion response. Variations in surface morphology, roughness, defect density, and passive film structure arising from different finishing processes can significantly alter pit nucleation sites and determine the onset of localised corrosion in chloride-containing environments. In this context, surface analysis provides critical insight into the topographic and microstructural features introduced by the 2B, BA and polished finishes, enabling the identification of processing-induced irregularities that may compromise passive film integrity. Complementary corrosion tests were subsequently performed to evaluate the breakdown and repassivation behaviour of the passive layers formed on each surface condition. The combined approach allows establishing a direct correlation between the characteristics of each industrial finish and the resulting pitting susceptibility of both stainless steels.

3.1.1. Polished Finish to 1 μm (P Condition)

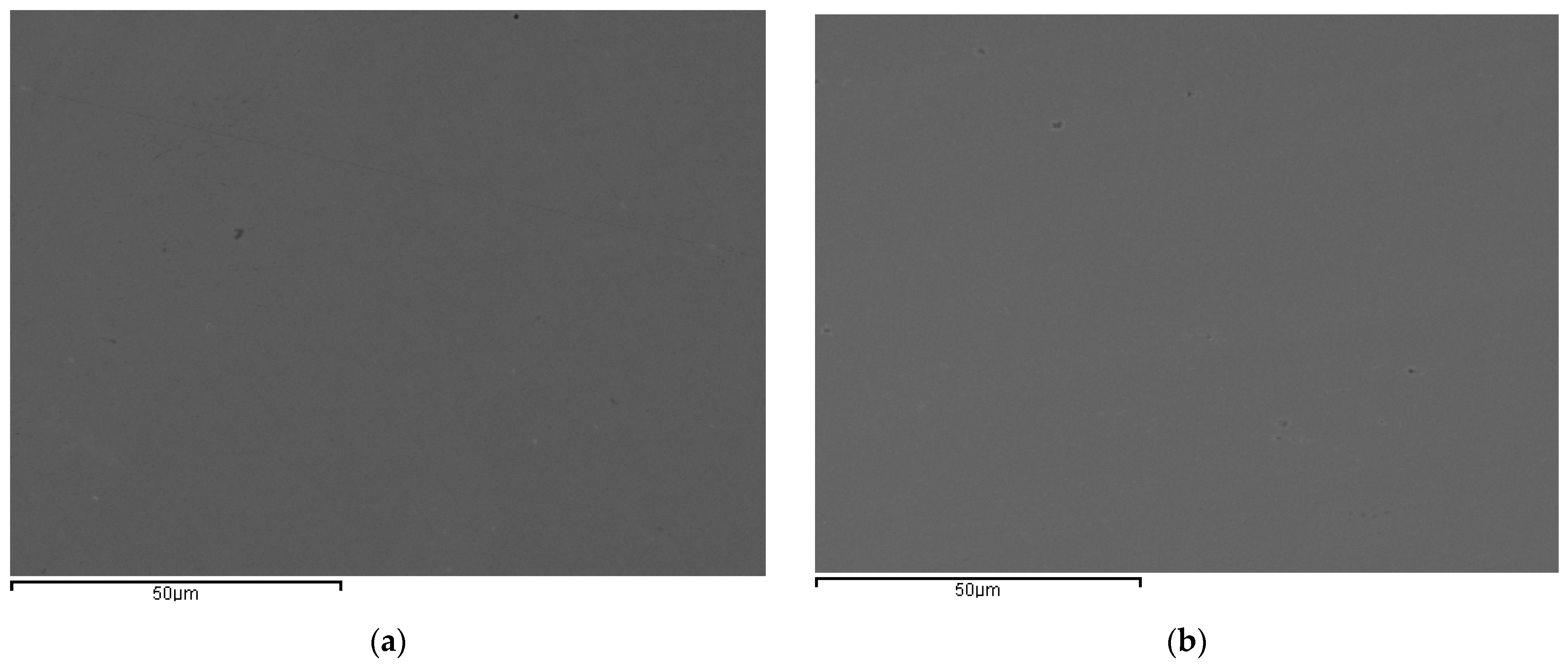

The surfaces of both steels with a 1 µm polished finish were examined before and after the corrosion tests. Figure 1 shows the micrographs obtained for both materials prior to the electrochemical measurements. In both cases, the surface appears uniform, free of visible discontinuities or defects, and exhibiting a comparable morphology. This confirms that the polishing process produced similarly smooth and homogeneous surfaces for the two steels, ensuring that any differences observed during corrosion testing can be attributed primarily to their intrinsic material properties rather than to initial surface irregularities.

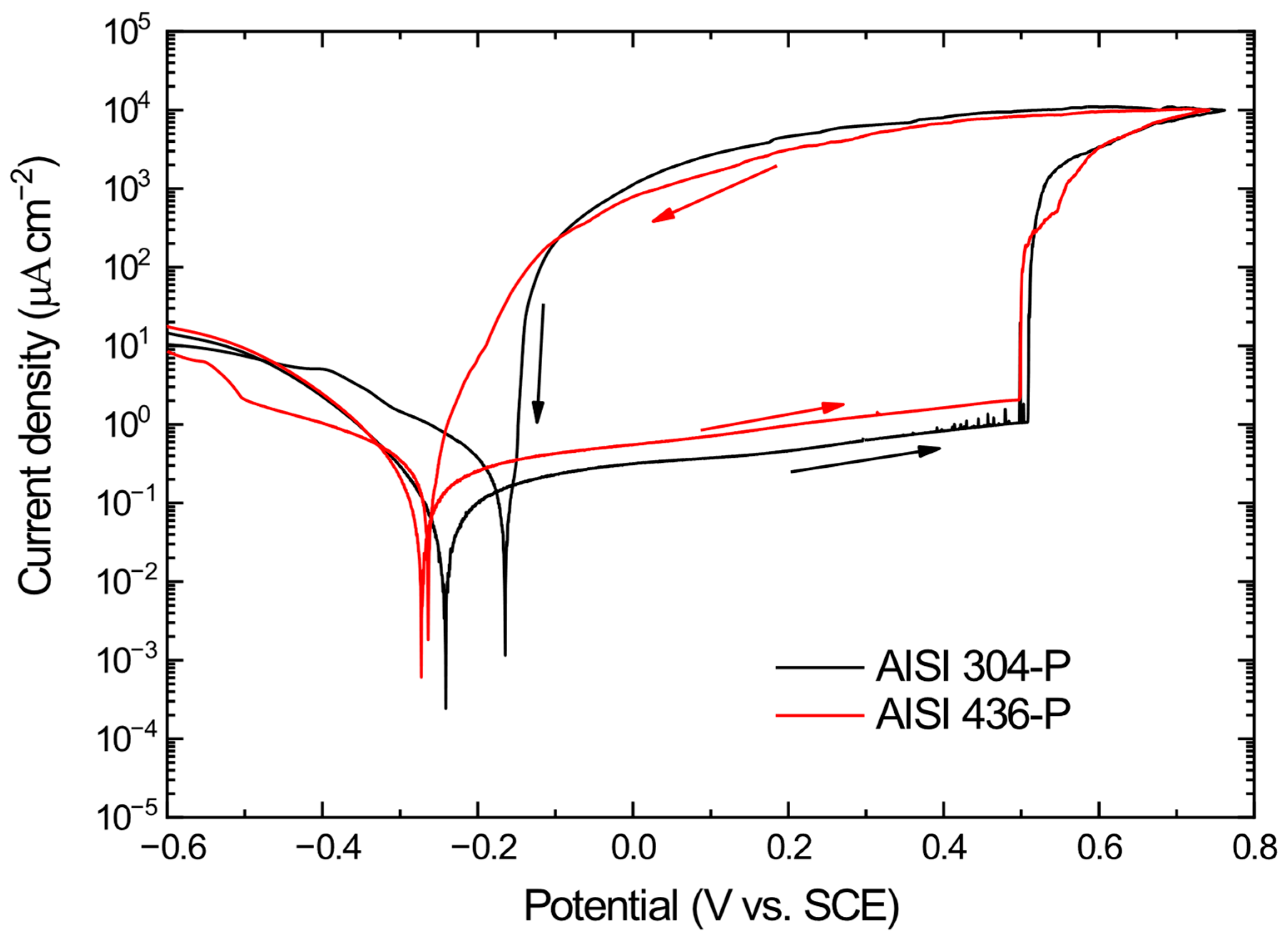

Figure 2 presents the polarisation curves obtained in a 3.5% NaCl solution for AISI 304 and AISI 436 steels, polished to 1 µm. In both materials, a well-defined passive region is observed up to a critical potential, at which the current density rises sharply, without any indication of oxygen evolution. This abrupt increase corresponds to the pitting potential, E_p, marking the onset of pitting corrosion. Once a pit is nucleated at E_p, its growth and propagation proceed through an active dissolution mechanism, which continues even during the reverse scan. The reverse scan begins when the current density reaches 10⁴ µA cm⁻², and pit repassivation is identified at the potential where the reverse curve intersects the forward scan.

As shown in Figure 2, cyclic voltamograms for both steels with the 1 µm finish exhibit a very similar morphology. Although AISI 304 shows slightly superior performance (reflected in its lower passive current density and higher repassivation potential) the overall protective efficiency of the native passive films formed on AISI 304 and AISI 436 in this chloride-containing medium can be considered comparable. In fact, the pitting potential for both steels is approximately 0.5 V, indicating a similar susceptibility to pit initiation.

This behaviour is consistent with recent studies reporting that the presence of Mo in the ferritic phase enhances the corrosion resistance of ferritic stainless steels, thereby approaching the performance observed in austenitic steel. The current density measured throughout the analysed potential range is lower for the austenitic steel, a trend attributed to the role of Ni in the formation and stabilisation of the passive film. Nickel promotes the development of a more protective, less reactive passive layer, which explains the reduced anodic currents observed for AISI 304.

After both steels were subjected to the cyclic voltammetric measurements, the surfaces of AISI 304 and AISI 436 exhibited several pits, with no significant differences observed between both materials in terms of pit density or general appearance. Figure 3a,b show representative images of individual pits formed on AISI 304 and AISI 436, respectively. These images illustrate that, despite their different microstructures, both steels display comparable pitting morphologies under the tested chloride-containing conditions.

The pits observed on both steels, in terms of their number and morphology, are consistent with the similar current values recorded during the reverse scan. This correlation highlights that both materials exhibit a similar corrosion behaviour in chloride-containing environments. The close agreement between pit characteristics and electrochemical responses indicates that the mechanisms governing pit initiation and propagation are essentially equivalent for AISI 304 and AISI 436 under the tested conditions.

3.1.2. AISI 304 and AISI 436 Steels with ASTM 2B Finish

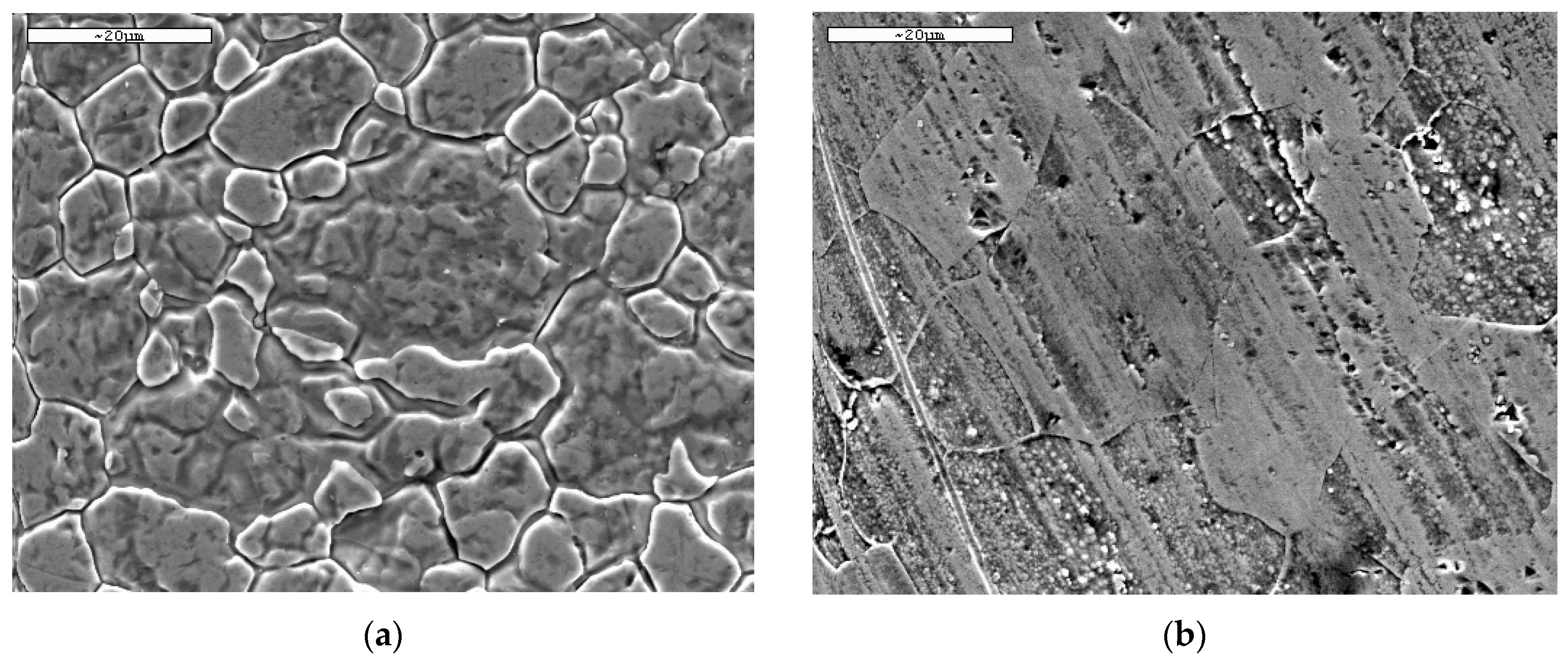

The surfaces of both steels with an ASTM 2B finish were examined by SEM. The micrographs depicted in Figure 4, show the aspect of the surfaces before cyclic voltammetry measurements for AISI 304 and AISI 436.

As can be seen, the surface appearance resulting from the ASTM 2B finish on both steels is very different.

In the case of AISI 304 steel, it is possible to see areas with relief, clearly delimited by well-defined boundaries. However, the same industrial finish on AISI 436 steel exhibits a different appearance: instead of areas with relief, the surface shows regions separated by parallel lines, between which numerous particles can be observed. This suggests that the same surface finish alters the surface of stainless steel in different ways.

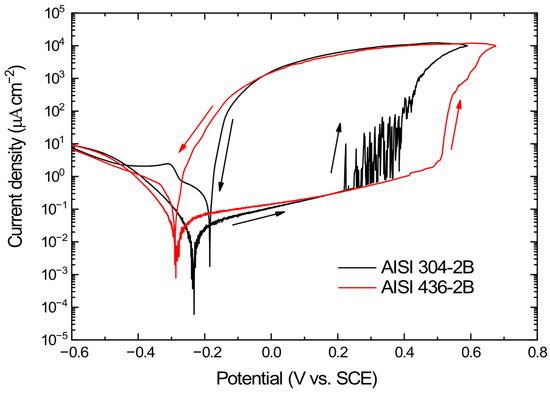

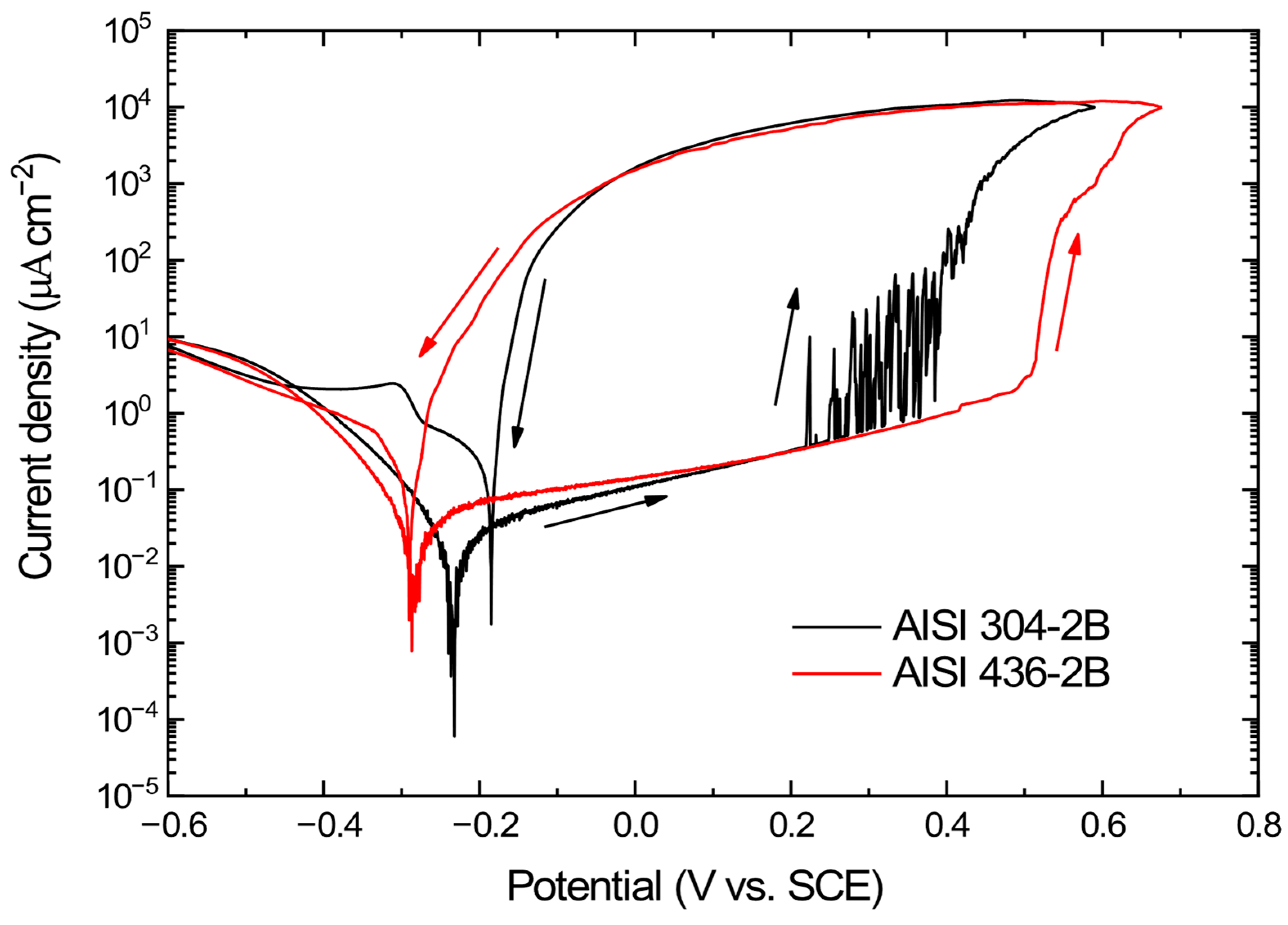

The cyclic voltammograms obtained for AISI 304 and AISI 436 with ASTM 2B surface condition are depicted in Figure 5.

Cyclic voltammetry measurements indicate that AISI 436 exhibits a more anodic passive breakdown potential compared with AISI 304, confirming its slightly higher resistance to passive film rupture under the tested conditions.

The curve obtained for AISI 304 with the 2B finish shows noticeable current fluctuations beginning at approximately 0.286 V, behaviour that is not observed in the corresponding curve recorded for AISI 436–2B. From E = 0.38 V onwards, a continuous increase in current density is detected, allowing this potential to be identified as the pitting potential. These fluctuations reflect successive breakdown events of the passive film and the nucleation of multiple pits on the surface. In contrast, the ferritic steel displays a response similar to that shown previously in Figure 2, with stable passivity maintained until approximately E = 0.5 V, at which point passive film breakdown occurs.

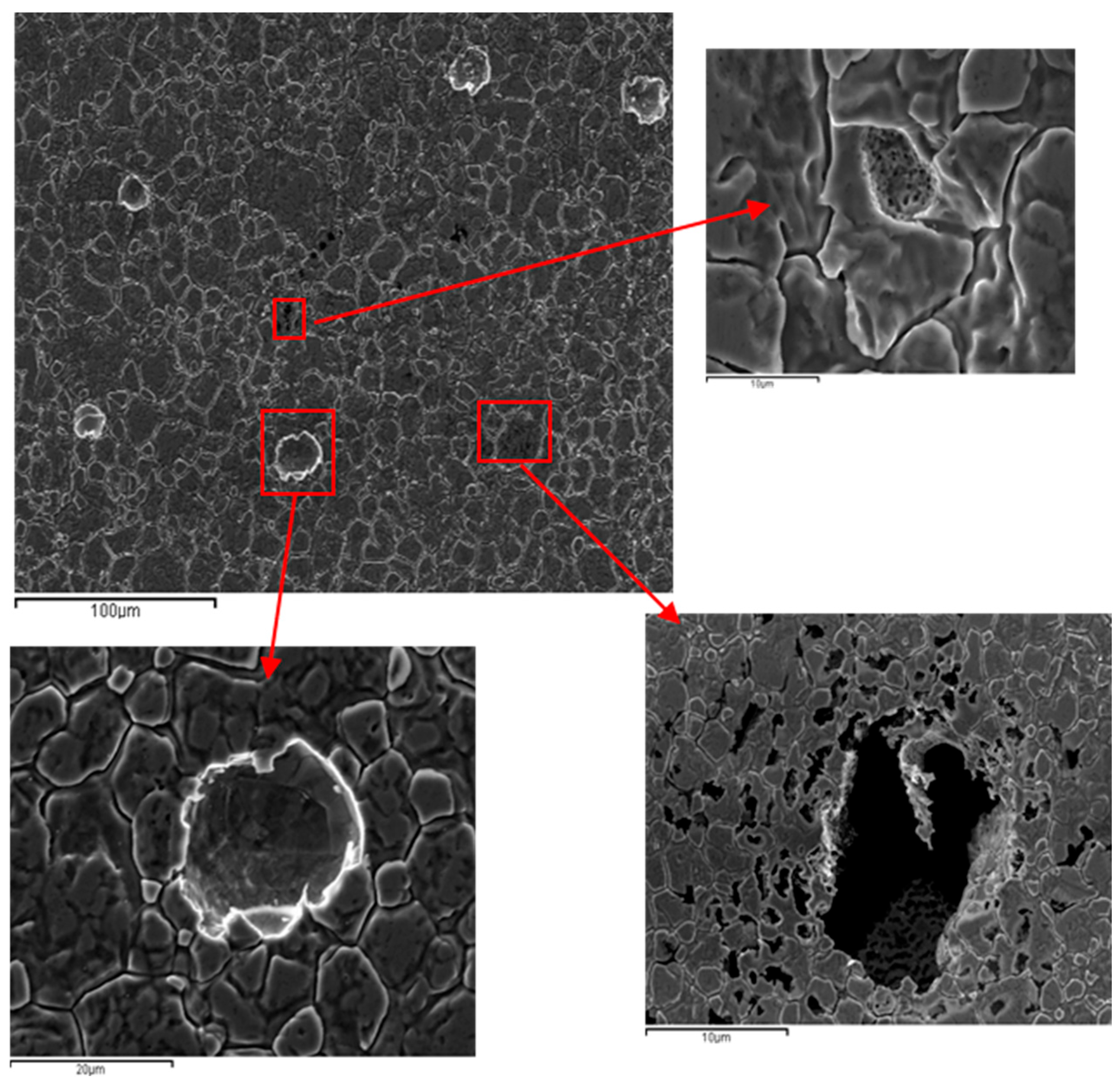

After the electrochemical experiments, the surfaces of both steels were examined using SEM. Figure 6 and Figure 7 show the surface after polarisation tests corresponding to AISI 304 and AISI 436, respectively.

As shown in Figure 6, the surface appearance of AISI 304-2B before and after polarisation is largely similar. The main difference lies in the presence of numerous corrosion pits. These pits exhibit a consistent morphology, typically showing a circular geometry, which is characteristic of chloride-induced pitting in austenitic stainless steels.

When comparing the polarisation curves presented in Figure 2 and Figure 5, it becomes evident that the ASTM 2B surface condition has a pronounced influence on the electrochemical behaviour of AISI 304-2B. The pitting potential decreases by approximately 100 mV relative to the reference (AISI 304-P condition), and metastable pit activity is observed within the 0.2–0.4 V potential range. In contrast, the AISI 436–2B sample shows no significant deviation from the behaviour reported for the polished condition in Figure 2.

For the austenitic steel, the industrial processing associated with the 2B finish appears to induce sensitization of the grain boundaries or to generate a higher density of micro-defects on the surface. These features act as preferential active sites where pit nucleation can readily initiate under chloride exposure. In contrast such sensitization effects are not observed in the ferritic stainless steel, whose microstructure is intrinsically less prone to boundary-related activation in chloride media. These differences in surface condition and microstructural susceptibility explain the divergent electrochemical responses described above.

The AISI 436–2B sample exhibited a similar number of pits, with comparable morphology, to those observed in the laboratory-polished condition, reinforcing the conclusion that the 2B finish does not significantly alter the pitting behaviour of the ferritic steel.

3.1.3. AISI 304 and AISI 436 Steels with ASTM BA Finish

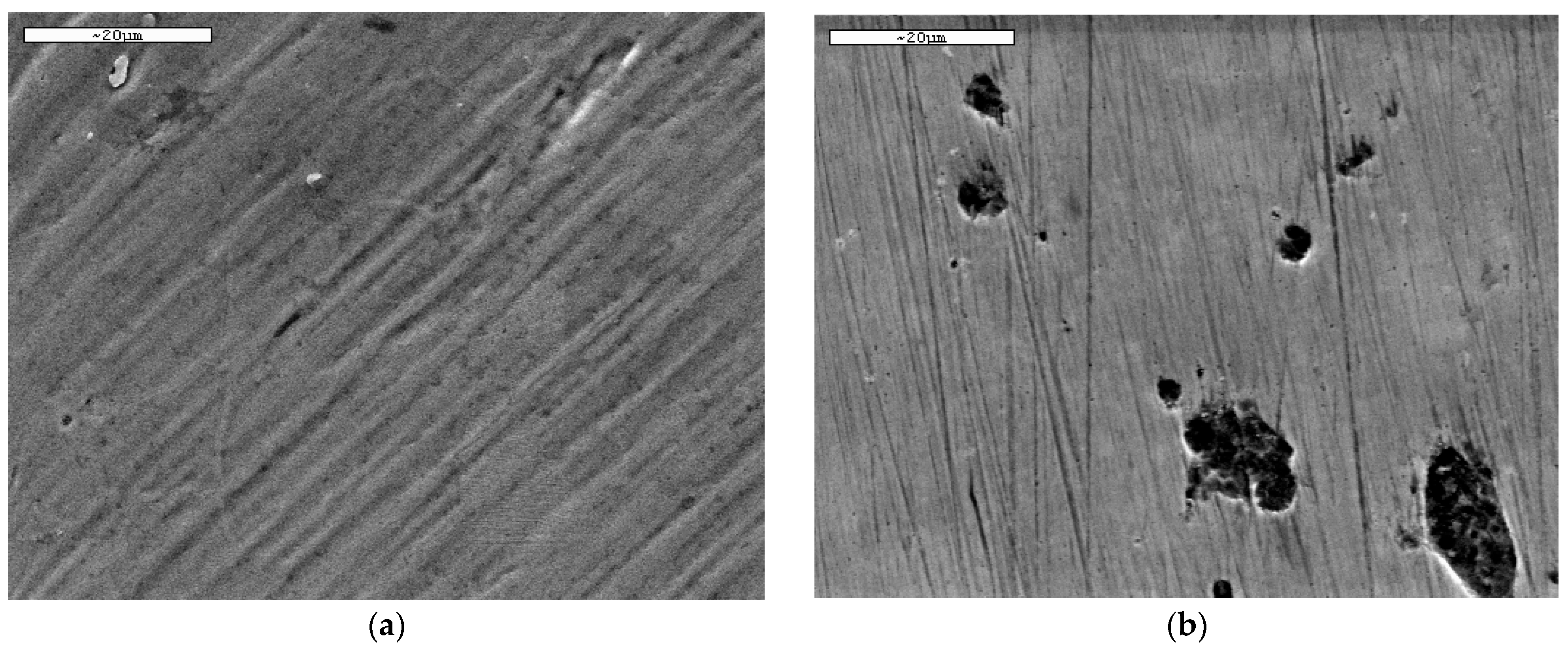

The surfaces of both steels with ASTM BA finish were examined by SEM before cyclic voltammetry tests. The micrographs, depicted in Figure 8, show the aspect of the surfaces for AISI 304 and AISI 436, respectively, with BA finish before corrosion tests.

Dark areas are observed in Figure 8b, corresponding to AISI 436-BA steel, which are not visible in AISI 304-BA steel with the same finish. An EDS analysis was performed to obtain more information about these imperfections. The results of the analysis are shown in Figure 9.

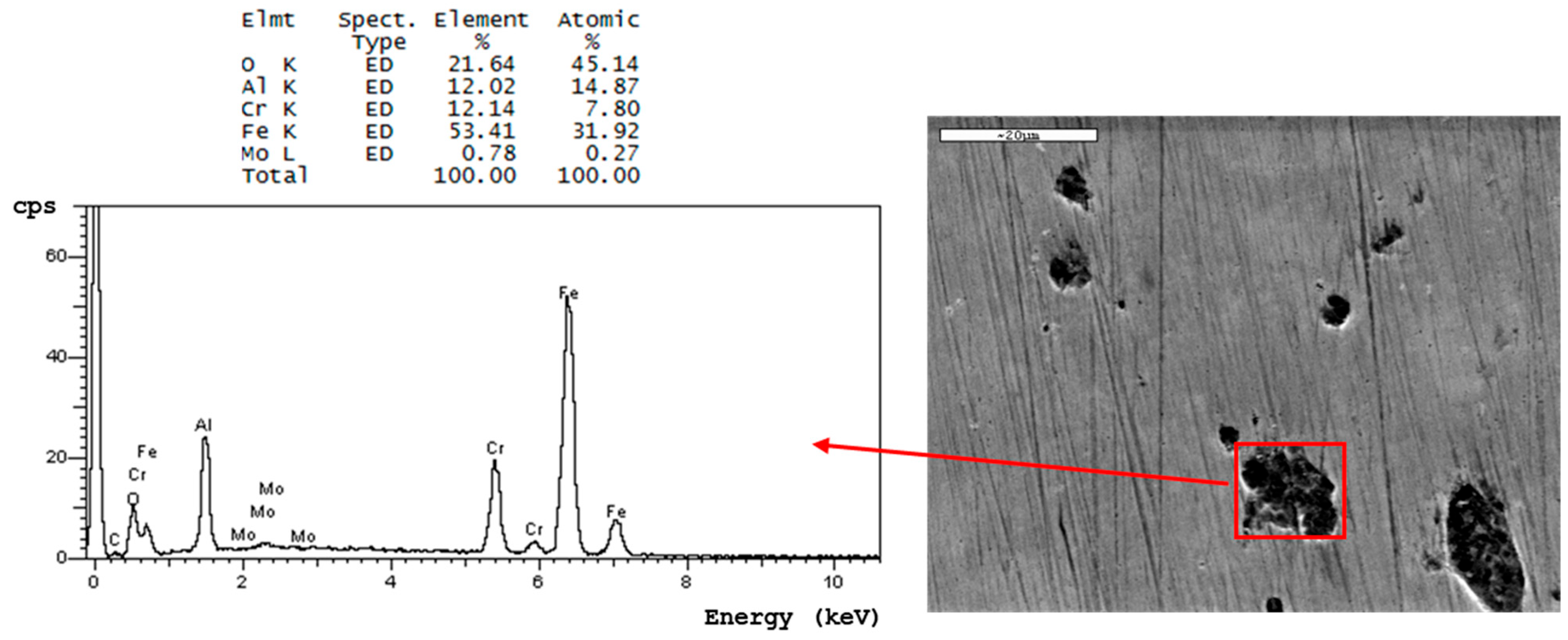

The EDS analysis on these areas revealed the presence of aluminium and oxygen in percentages close to 12% and 21%, respectively, which suggests Al oxide inclusions. These particles come from the final stages of surface processing. Such inclusions were not observed in the austenitic steel, probably because of the mechanical properties of the austenite phase that hinder the inclusion.

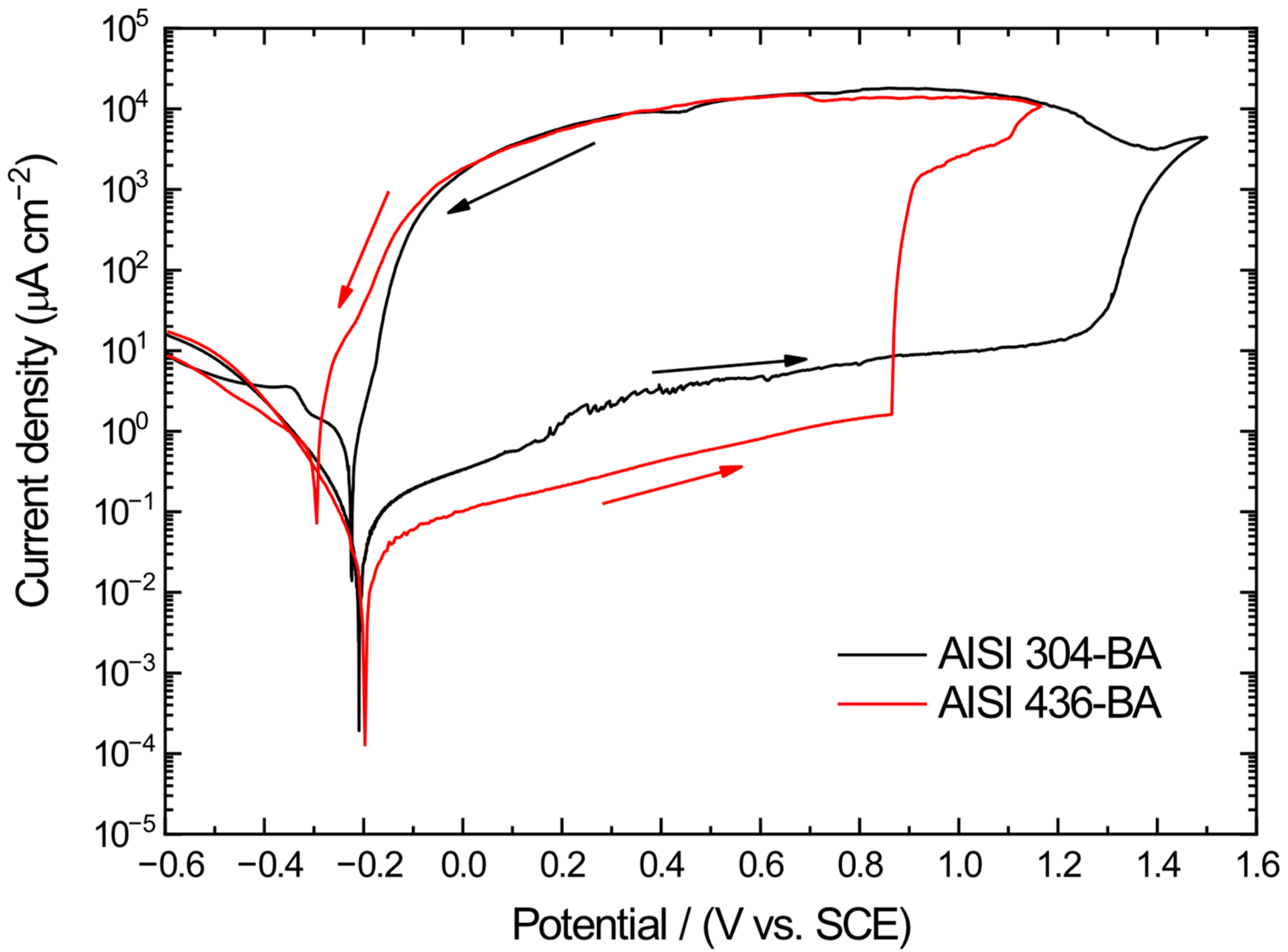

Figure 10 shows cyclic voltammograms obtained for austenitic and ferritic stainless steels with BA surface conditions.

The polarisation scans show that the BA finish substantially enhances the corrosion resistance of both steels, shifting the pitting potentials toward more anodic values. This indicates that the smoother and more homogeneous surface produced by the BA finishing process promotes the formation of a more protective passive film.

When comparing the two steels, the pitting potential is markedly more noble for AISI 304–BA (1.25 V) than for AISI 436–BA (0.86 V). This difference reflects the greater intrinsic stability of the passive film formed on the austenitic grade, which benefits from the presence of Ni and its associated enhancement of film compactness and chromium enrichment.

Within the passive region, the ferritic steel exhibits lower current density values than the austenitic steel. This behaviour is associated with reduced ionic mobility through the passive film formed on the BA-finished ferritic steel, suggesting the development of a more resistive layer. Consequently, although AISI 304–BA displays a higher pitting potential, AISI 436–BA film demonstrates superior stability within the passive domain, due to its more insulating passive film.

After the cyclic voltammetry test, the surfaces were examined. In Figure 11, the surface subjected to electrochemical attack belonging to AISI 304 with BA finish is shown.

The tested surface shows signs of corrosion distributed across different areas; however, no pits with the typical morphology expected for this type of material were observed. This suggests that the BA finish limits pit formation, thereby enhancing the corrosion resistance. The smoother and more uniform surface associated with the BA finish likely promotes the development of a more stable and protective passive film, preventing the localised breakdown events.

The surface appearance of AISI 436–BA after the corrosion tests is shown in Figure 12.

No pitting was observed on the surface of this steel. The dark regions, corresponding to inclusions present in the material, are the areas where corrosion attack is most pronounced. The presence of aluminium oxide inclusions in the ferritic steel accounts for the lower pitting potential recorded in Figure 10, as such inclusions locally disrupt the passive film and act as preferential sites for corrosion initiation.

Thus, the surface analysis of both steels, together with the observed shift in the pitting potential toward more noble values, strongly suggests that the BA finish provides enhanced corrosion resistance for both materials. The improved smoothness and homogeneity of the BA-treated surface promote the formation of a more stable passive film, reducing the likelihood of localised breakdown and increasing resistance to pitting corrosion.

3.2. Friction and Wear Behaviour

To analyse the influence of the surface finish, the data obtained from the wear tests can be clearly divided into two distinct regions when industrial finishes are considered. The first region corresponds to the initial metres of the test and is strongly governed by the characteristics of the surface finish. During this stage, the roughness, texture, and microdefects inherent to each industrial finish determine the real contact area, the ease of oxide film formation, and the initial evolution of the friction coefficient. As a result, the tribological response is highly sensitive to the topographic features introduced by the finishing process.

The second region reflects the intrinsic behaviour of the steel, once the initial surface effects have diminished and the system transitions into a more stable sliding regime. In this stage, the influence of the industrial finish becomes secondary, and the dominant factors are the material’s microstructure, its tendency to form stable tribolayers, and the prevailing wear mechanisms (oxidative, abrasive, or adhesive). Consequently, differences in friction or wear rate observed in this second region provide insight into the fundamental tribological behaviour of the steel, independent of the initial surface topography.

3.2.1. AISI 304 with 2B and BA Condition

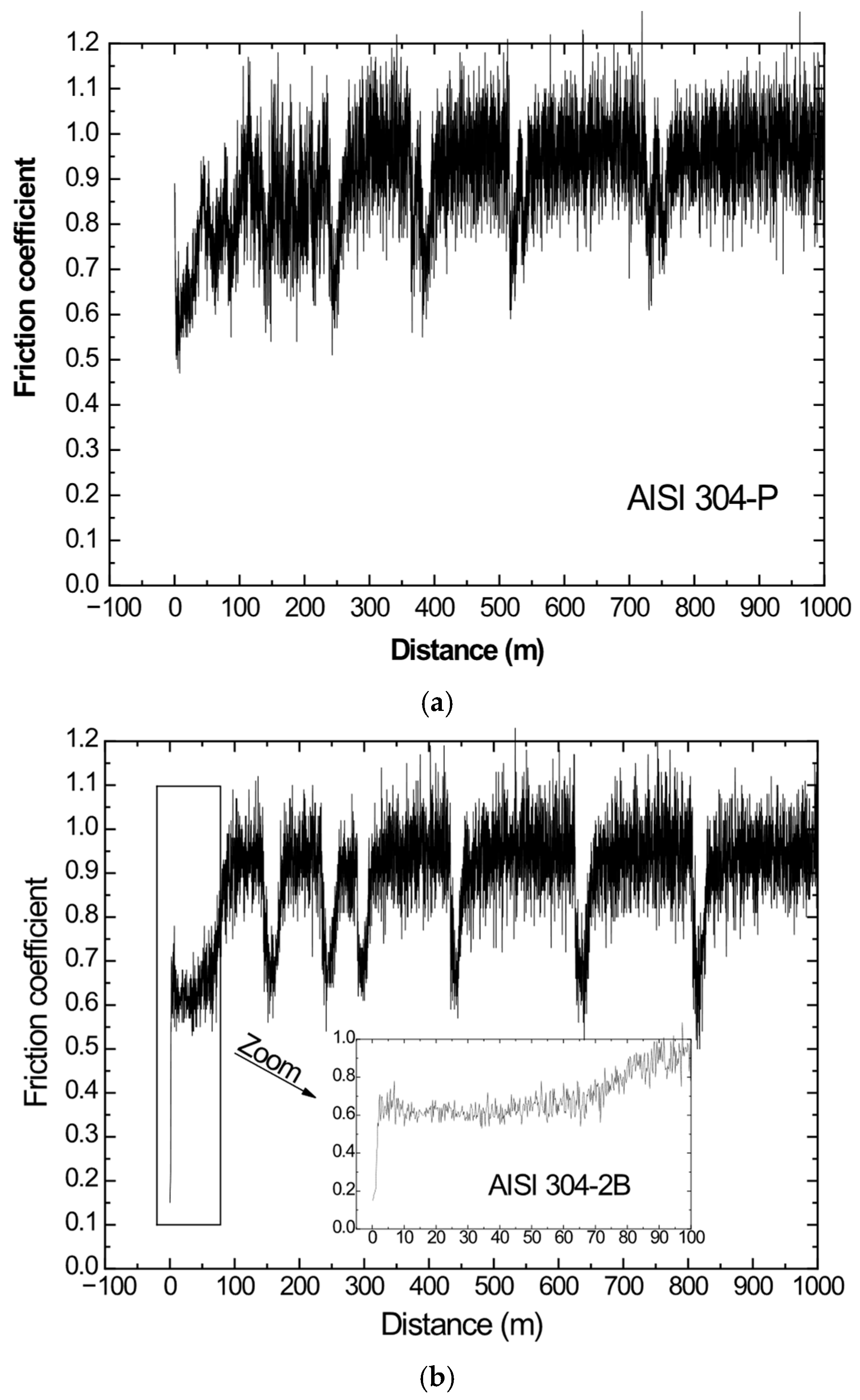

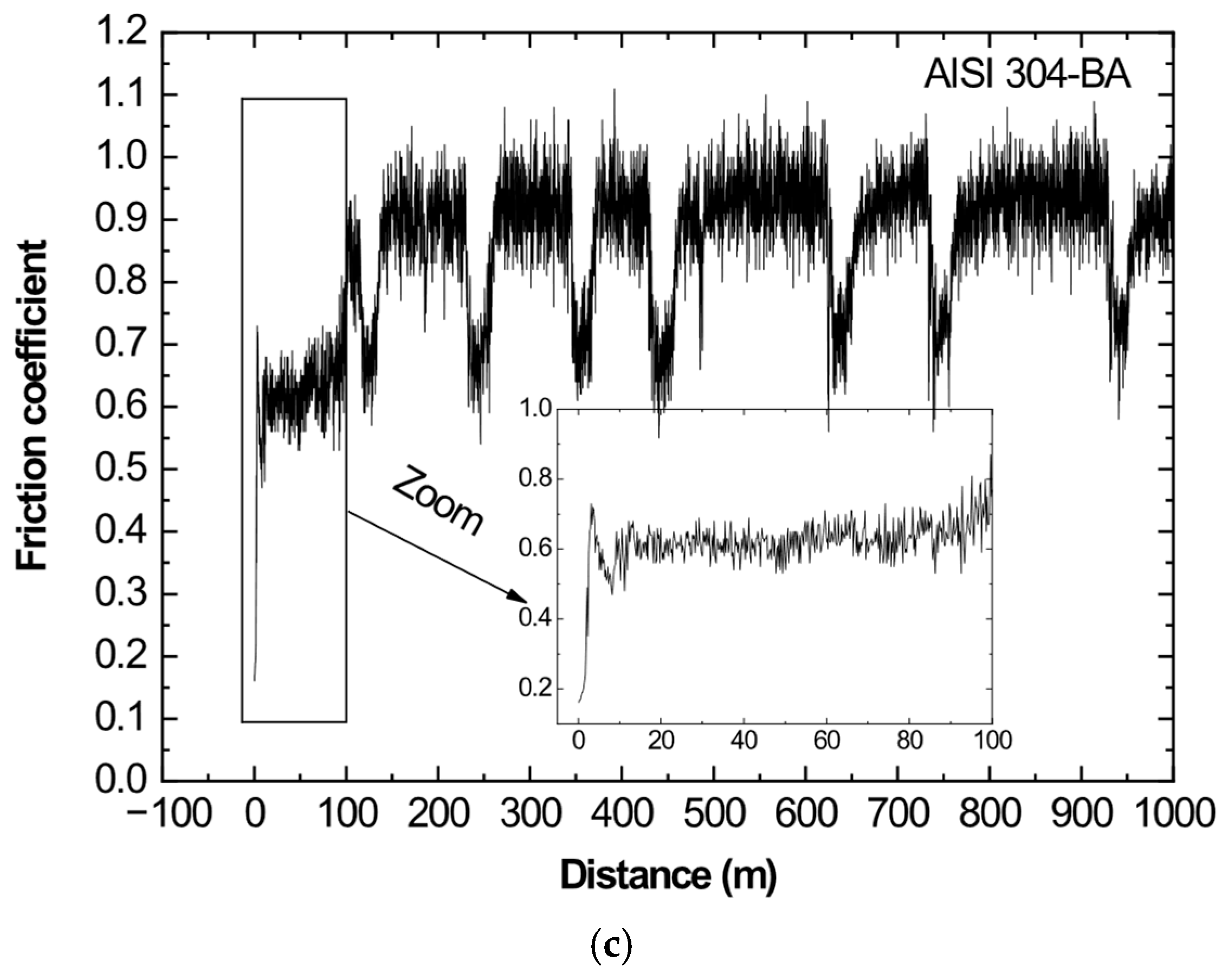

The results of the wear test for AISI 304 are shown in Figure 13. No steady state is reached, and the coefficient of friction fluctuates between 0.6 and 1.1. During the initial stages of the test, the influence of surface condition on the friction coefficient appears to be relatively minor for the austenitic steel. The maximum coefficient of friction is reached after the first 8 m for the ASTM BA finish, whereas in the case of the 2B finish, it is reached after only 2 m.

In Figure 13a, corresponding to AISI 304 without industrial finishing, the evolution of the friction coefficient is unstable throughout the entire test. Once the pin contacts the base material, the coefficient stabilises around 0.6 until a distance of approximately 90–100 m. Beyond this point, the coefficient progressively increases until reaching values close to 0.95. However, the curves do not remain stable around this upper value, since, after certain intervals, the friction coefficient periodically drops back to 0.6, maintains this level for a short distance, and then increases again toward 0.95.

The initial increase in the coefficient of friction from low values, observed in samples with ASTM 2B and BA finishes, can be attributed to surface roughness. The initial roughness—resulting from cold rolling—reduces effective contact between the pin and the sample, producing a smaller real contact area than the apparent one and leading to low initial friction. As the test progresses, surface roughness is gradually reduced, increasing the number of contact points and, therefore, the friction coefficient.

In contrast, samples with a P condition exhibit higher initial roughness, which increases the real contact area from the onset of the test. As a consequence, higher friction coefficient values are observed during the first metres of sliding.

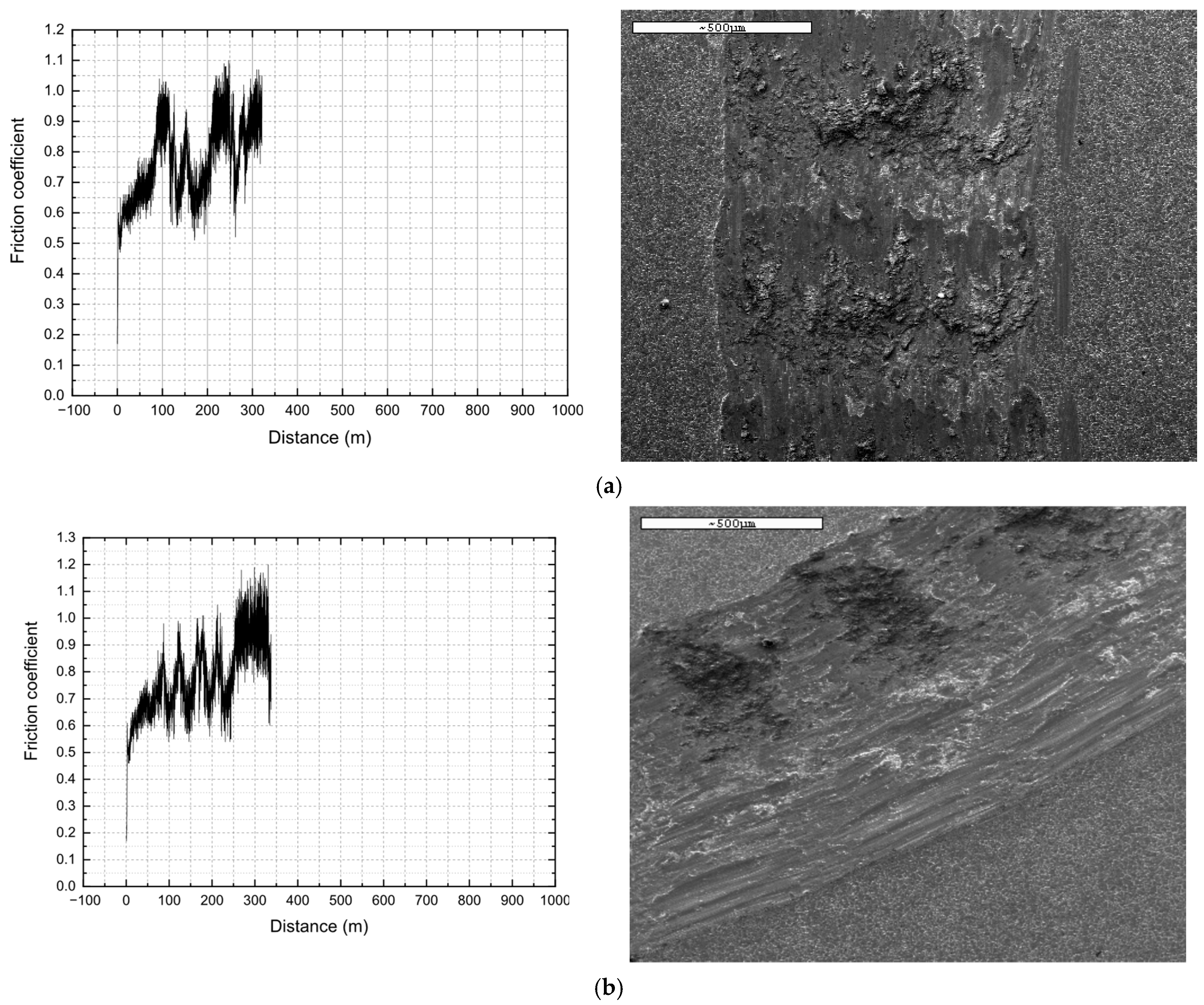

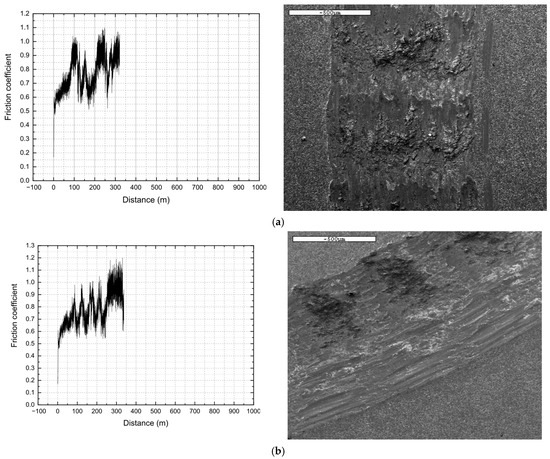

To better understand the origin of the oscillations observed in the distance–friction curves of AISI 304 steel, two complementary tests were conducted under controlled stopping conditions. Each test was interrupted manually at the precise moment when the friction coefficient reached either the upper limit (approximately 1.1) or the lower limit (approximately 0.6). This procedure allowed a direct comparison between the morphology of the wear track under high-friction and low-friction states, providing valuable insight into the mechanisms underlying the periodic variation in the coefficient of friction.

Figure 14a illustrates the condition associated with the higher friction value. Under this state, the worn surface is uniformly coated with clusters of amorphous particles. These agglomerates are distributed densely across the wear path and tend to align perpendicular to the sliding direction, suggesting that they originate from repeated micro-adhesion and subsequent plastic deformation during the test. The complete coverage of the wear track by these clusters indicates a predominance of adhesive phenomena, where material transfer and accumulation foster increased resistance to sliding, thereby elevating the friction coefficient.

Figure 14b corresponds to the moment when the test was stopped at the minimum friction value. In this case, the morphology of the wear track differs significantly. The inner region of the track still exhibits a surface morphology comparable to that observed under high-friction conditions, indicating that particle accumulation had previously occurred there. However, the outer region is markedly different: the particle clusters are partially or completely absent. This absence reveals that, in the low-friction state, a detachment process has taken place, removing the previously accumulated clusters from the outermost areas of the wear track. This detachment exposes a smoother surface, reducing the real contact area and consequently lowering the coefficient of friction.

These observations support the conclusion that the wear behaviour of AISI 304 steel is governed by a cyclic or mixed adhesion, detachment mechanism involving clusters of wear particles. When adhesion dominates, particle clusters accumulate and spread across the wear track, increasing the friction coefficient. When detachment processes prevail, these clusters are locally removed, particularly from the outer zones of the track, resulting in a transient reduction in friction. The periodic alternation between these two states explains the oscillatory pattern observed in the friction–distance curves, in which the coefficient repeatedly rises due to cluster accumulation, and subsequently drops as these clusters detach.

3.2.2. AISI 436 with 2B and BA Condition

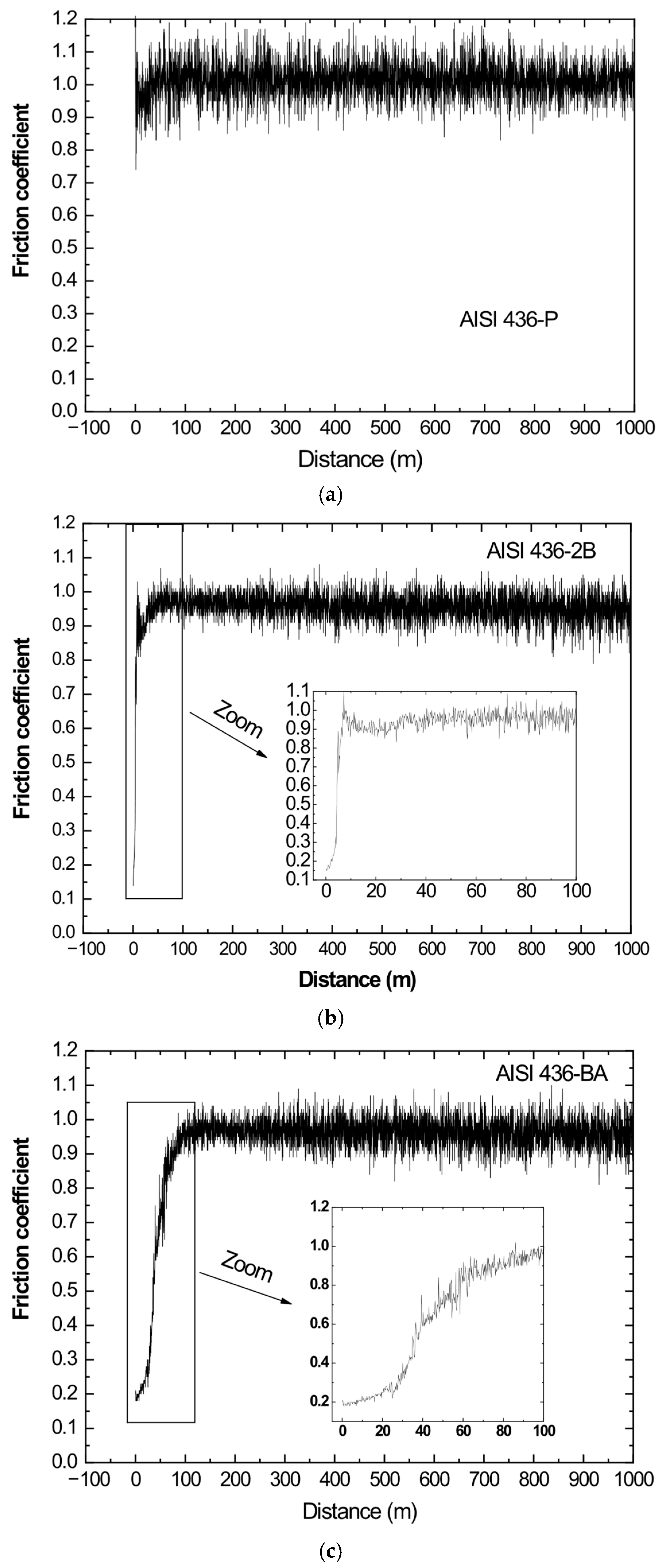

The data collected from the wear tests for AISI 436 steel are presented in Figure 15. It is noteworthy that, in contrast to the behaviour observed for the austenitic AISI 304, all friction coefficient values for the ferritic steel remained remarkably stable throughout the entire test, regardless of the surface condition examined. The coefficient of friction exhibited minimal fluctuations and maintained an average value close to 0.95 under all tested finishes. This marked difference can be directly linked to the wear mechanisms typically observed in ferritic stainless steels. Due to their body-centred cubic (BCC) structure, ferritic steels generally exhibit lower work-hardening capacity and more limited plastic deformation capability compared with austenitic steels. As a consequence, their wear response is dominated by mechanisms such as mild oxidative wear and abrasion, rather than severe adhesive wear or the cyclic adhesion–detachment phenomena observed in austenitic steels.

However, the influence of the surface condition becomes evident during the initial stages of the test, prior to the stabilisation of the friction coefficient. In these early phases, all AISI 436 samples exhibited a gradual increase in friction as the sliding distance progressed. The duration of this transient regime varied significantly depending on the surface finish. For the ASTM 2B finish, the coefficient of friction reached its steady-state value after approximately 8 m of sliding. In contrast, the BA finish required an order of magnitude more distance (around 90 m) before stabilisation was achieved.

This marked difference indicates that the tribological film formed on the BA-finished surface develops more slowly but exhibits greater adhesion once established. The longer transition period suggests that the initial surface morphology of the BA finish favours the formation of a more persistent and coherent tribolayer, whereas the 2B finish allows a faster accommodation of the surface but results in a less adherent film. Consequently, even though both surfaces eventually converge to a similar steady-state friction value, the kinetics of tribolayer formation appear to be strongly dependent on the initial surface condition. SEM micrographs of the worn surface for the AISI 436-P are shown in Figure 16.

The wear tracks exhibit alternating regions of smooth surface and large agglomerates of particles. These clumps are composed of a mixture of base material and oxide debris. Oxidation is a characteristic process in this type of tribological test, as the wear mechanisms inevitably involve the detachment of small fragments from the surface. Once detached, these particles oxidise rapidly due to the temperature rise and continuous exposure to the surrounding environment during sliding.

As the test progresses, the oxidised debris tends to accumulate preferentially in the rougher areas generated by the interaction between the pin and the sample. These asperities act as anchoring points that favour particle retention and promote the formation of compacted agglomerates. In contrast, smoother zones of the wear track hinder such accumulation, resulting in a heterogeneous morphology where highly oxidised particle clusters coexist with relatively smooth regions shaped by the sliding process.

Thus, the influence of surface condition on the early friction evolution in AISI 436 can be interpreted in the context of ferritic wear mechanisms: rapid oxidative film formation in rougher surfaces (2B), versus slower but more adherent film development in smoother surfaces (BA). In both cases, the predominance of oxidative wear leads to the highly stable steady-state friction behaviour that distinguishes ferritic steels from austenitic steels.

The results obtained in this study are in good agreement with previous works reporting the beneficial role of molybdenum in enhancing the pitting corrosion resistance of stainless steels, particularly in chloride-containing environments [17,18,19,20,21,26]. Likewise, the strong influence of surface finishing on passive film stability and wear behaviour observed here is consistent with earlier studies addressing the role of surface integrity and defect density on localised corrosion and tribological response [22,23,24,33,34,35].

However, unlike most published works, which typically focus on either corrosion or wear behaviour separately, or analyse a single surface condition or alloy family, the present study provides a combined and systematic comparison between a high-Mo ferritic stainless steel (AISI 436) and a conventional austenitic grade (AISI 304) under identical experimental conditions, simultaneously considering three representative industrial and laboratory surface finishes (2B, BA and polished). This integrated approach allows direct assessment of the synergistic effects between alloy composition, surface condition and passive film stability on both pitting corrosion and sliding wear behaviour.

From an industrial perspective, the results demonstrate that, when an appropriate surface finish is employed, particularly the BA condition, the ferritic AISI 436 steel can achieve corrosion and tribological performance comparable to, or in some aspects exceeding, that of AISI 304, supporting its viability as a cost-effective alternative in applications where both durability and aesthetics are critical. Future work will focus on extending this analysis to tribocorrosion conditions, longer exposure times, and additional ferritic grades with varying Mo contents, as well as on advanced surface characterisation techniques to further elucidate passive film chemistry and degradation mechanisms.

4. Conclusions

In this investigation, it was demonstrated that the BA surface condition significantly improves the corrosion resistance of both steels. Furthermore, it is noteworthy that no substantial differences were observed between the pitting corrosion resistance of AISI 436 and AISI 304 when the surface finish was polished. This result highlights the beneficial role of Mo in ferritic stainless steels, which enhances their corrosion resistance to levels comparable to AISI 304 austenitic steel.

• For the polished condition (1 µm), AISI 436 exhibits resistance comparable to AISI 304, confirming the beneficial effect of Mo in stabilising the passive film in chloride-containing environments.
• The 2B finish penalises the pitting resistance of AISI 304, showing increased metastable activity and a lower Ep, whereas AISI 436 remains unaffected, indicating reduced sensitivity to surface defects.
• In AISI 436–BA, Al₂O₃ inclusions act as preferential sites for attack and account for its lower E_p compared to AISI 304–BA.
• In AISI 304–2B, microstructural defects and a higher density of surface imperfections promote early pit nucleation.

Regarding wear behaviour, as expected, differences associated with surface finish were only evident during the initial metres of sliding. In this transient stage, the surface condition strongly influenced friction evolution and tribolayer formation. Once steady-state conditions were reached, the effect of surface finish diminished. Overall, superior wear performance was observed for the ASTM BA surface condition, which provided more stable friction values and improved resistance to surface damage.

• Differences in surface finishing influence only the initial sliding regime, without affecting the steady-state behaviour.
• AISI 304 exhibits a cyclic adhesion–detachment mechanism, responsible for pronounced oscillations in the friction coefficient.
• AISI 436 shows stable tribological performance with a COF ≈ 0.95, dominated by mild oxidative and abrasive wear without abrupt transitions.
• The BA finish produces more stable tribolayers and yields superior overall sliding performance for both alloys.
• The Mo content in AISI 436 enables its pitting resistance to match or surpass that of AISI 304 under properly controlled surface conditions, positioning it as a cost-effective and viable alternative.

Overall, the results confirm that both corrosion and wear behaviour are strongly governed by the interaction between alloy composition, surface integrity and passive film stability, with the BA finish consistently offering the best balance between corrosion resistance and tribological performance. From a broader perspective, the originality of this work lies in the combined and systematic evaluation of alloy composition (ferritic high-Mo AISI 436 versus austenitic AISI 304), surface finishing (2B, BA and polished to 1 µm) and functional performance under identical experimental conditions. While previous studies have typically addressed the influence of molybdenum alloying, surface condition or tribological behaviour separately, the present work integrates pitting corrosion and tribological response within a unified experimental framework. This approach enables a direct and meaningful comparison between ferritic and austenitic grades, demonstrating that AISI 436, when properly finished, can perform comparably to AISI 304 while offering potential cost advantages, thereby supporting its potential as a viable and cost-effective alternative in demanding applications.
