Search Results (5,867)

6061 aluminum alloy is lightweight and has good thermal conductivity, while 304 stainless steel possesses excellent mechanical properties and corrosion resistance; both have broad application prospects in cooling circuits. Propylene glycol coolant shows great potential in liquid cooling systems due to its low toxicity and good antifreeze properties. However, during operation, galvanic corrosion may occur when the two metals come into direct contact within the coolant, thereby threatening system safety and service life. This study focuses on 6061 aluminum alloy, 304 stainless steel, and their galvanic couples. Electrochemical testing, SEM, 3D confocal microscopy, and XPS were used to systematically investigate their self-corrosion and galvanic corrosion behavior in propylene glycol coolant at pH values of 4.8, 6.8, and 8.8. The results indicate that 6061 aluminum alloy is more sensitive to pH changes; its corrosion resistance first increases and then decreases as pH rises, with the least corrosion occurring at pH = 6.8 and the most severe at pH = 4.8. 304 stainless steel exhibited lower corrosion rates at pH 6.8 and 8.8, but corrosion significantly worsened at pH 4.8. For the 6061 aluminum alloy/304 stainless steel couple, the galvanic current first decreased and then increased with rising pH, while the galvanic potential first increased and then decreased. The 6061 aluminum alloy consistently acted as the anode, and the 304 stainless steel consistently acted as the cathode, with the highest sensitivity to galvanic corrosion observed at pH 4.8. XPS analysis shows that under different pH conditions, the corrosion products of 6061 aluminum alloy are Al(OH)₃ and Al₂O₃, while the main components of the passivation film on 304 stainless steel remain unchanged. Full article

The corrosion behavior of ferritic–martensitic 17Cr stainless steel in CO₂-saturated brine was investigated using static autoclave immersion tests in 4.12 wt% NaCl solution at 230 °C under CO₂ partial pressures of 6.36, 18.28, and 24.57 MPa. The calculated in situ pH values obtained using the OLI System were 3.79, 3.55, and 3.49, respectively. Corrosion morphology, microstructural evolution, and corrosion products were characterized by SEM, EDS, EBSD, and Raman spectroscopy. The average mass-loss corrosion rate increased from 0.138 ± 0.0221 mm/year at 6.36 MPa pCO₂ to 0.326 ± 0.0142 mm/year at 24.57 MPa pCO₂. Although the specimens did not show severe macroscopic pitting, localized attack preferentially occurred in fine-grained martensitic banded regions. EBSD analysis revealed that these regions exhibited higher local misorientation and defect density, which may reduce the stability of Cr-rich surface films. Raman spectra identified Cr(OH)₃ in the corrosion products, and the Cr(OH)₃ signal became more evident with increasing CO₂ partial pressure. The results indicate that, under fixed temperature and salinity, the corrosion behavior of 17Cr stainless steel is governed by CO₂ partial pressure and microstructural heterogeneity. Full article

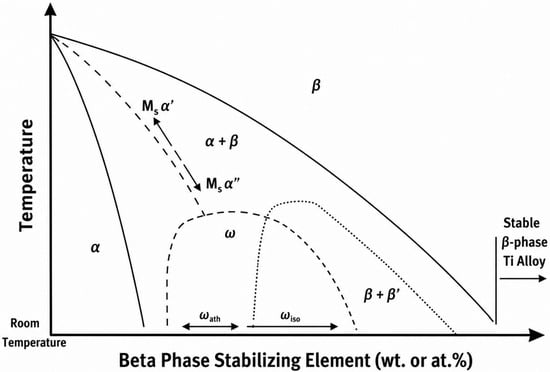

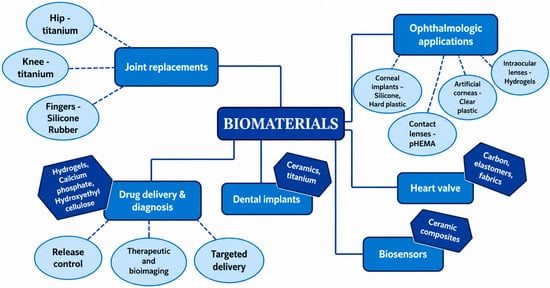

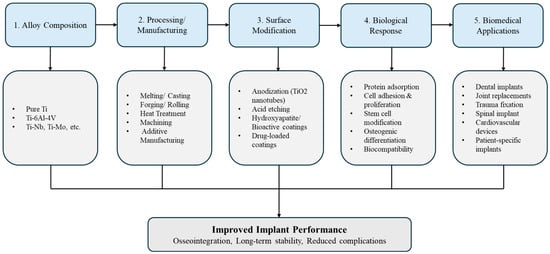

Titanium and its alloys are cornerstone biomaterials due to their high strength-to-weight ratio, excellent fatigue and corrosion resistance, biocompatibility, and ability to osseointegrate with bone. Their relatively low elastic modulus compared to stainless steels and Co–Cr alloys further enhances their suitability for biomedical applications. Performance is continually improved through alloy design (tailoring α and β phases), advanced manufacturing methods such as CNC machining and additive manufacturing, and surface engineering approaches. In particular, the formation of a stable TiO₂ layer promotes corrosion resistance and cell attachment, while coatings and nanotexturing enhance osseointegration and provide antibacterial functionality. These attributes enable widespread use in orthopedic, dental, and cardiovascular implants. Emerging developments include smart implants with embedded sensors, multifunctional surfaces, and data-driven alloy design, aiming to further optimize mechanical performance, biological response, and long-term reliability. This review summarizes the processing techniques, properties, applications, and recent advances in titanium-based biomaterials. Full article

The corrosion resistance of metallic materials is closely related to their service environment. In ammonia-based desulfurization post-treatment systems, 316L stainless steel, 2507 duplex stainless steel, and TA2 commercially pure titanium are widely used as candidate materials for key components such as desulfurization heat exchangers. In this study, the pitting corrosion behavior of 316L, 2507, and TA2 was investigated in simulated ammonia desulfurization post-treatment solutions with different pH. The results show that increasing solution acidity leads to a decrease in the capacitive arc radius and polarization resistance, while the donor concentration and pitting susceptibility of the three materials increase. Under the same pH condition, TA2 exhibits the highest stability and corrosion resistance, followed by 2507, whereas 316L shows the poorest corrosion resistance. The composition of the TA2 passivation film (TiO₂) does not change as the pH of the simulated solution is modified. With increasing solution acidity, the relative XPS peak-area fraction of TiO₂ in TA2 increases, indicating that TiO₂ remains the dominant component of the passive film. In contrast, the relative contents of Cr- and Mo-containing oxides/hydroxides in 316L and 2507 decrease, and MoO₃ is replaced by MoO₂ under acidic conditions. These changes suggest weakened passive-film stability and reduced protection of the substrate. Full article

This study aims to investigate the effects of heterogeneous microstructure and strain rate on the microstructural evolution and mechanical properties of ultrafine-grained (UFG) austenitic stainless steel during elevated-temperature tension. In this research, 17Cr-10Ni austenitic stainless steel was rolled to a 60% reduction in thickness at room temperature and 200 °C, followed by annealing at 1000 °C and 500 °C, respectively. The microstructural evolution of the annealed samples and high-temperature tensile specimens was characterized using optical microscopy, transmission electron microscopy, scanning electron microscopy equipped with electron backscatter diffraction, and X-ray diffraction. Results show that at room temperature, the heterogeneous twinned UFG (TW-UFG) sample, influenced by hetero-deformation-induced stress strengthening, maintains good ductility while exhibiting higher strength than the uniform UFG sample. During tensile deformation at 600 °C, grain refinement still contributes to strengthening, and the dominant deformation mechanism in the uniform UFG sample is dislocation dynamic recovery, whereas in the TW-UFG sample is detwinning combined with dynamic dislocation recovery. At low strain rates (10⁻⁴ s⁻¹), sufficient dynamic recovery and detwinning in the TW-UFG sample delay plastic instability and improve elongation. Full article

This study investigates titanium oxynitride (TiO_xN_y) coatings deposited by reactive magnetron sputtering on 316L stainless steel substrates in an Ar–N₂–O₂ gas mixture at a fixed N:O ratio of 1.6. The coatings were deposited under three reactive magnetron sputtering regimes with Ar flow rates of 33, 28, and 26 sccm and corresponding substrate biases of −50, −100, and −150 V, respectively, while the N₂ and O₂ flow rates were kept constant at 10 and 6 sccm. The coatings exhibited a dense microstructure, with thicknesses ranging from 2.13 to 5.51 μm. X-ray diffraction analysis revealed the formation of a multiphase structure comprising TiN, TiO_xN_y, and TiO. The deposition regime had a significant influence on the functional properties of the coatings. The lowest friction coefficients (µ ≈ 0.26–0.28) and stable tribological behavior were characteristic of the Ar26 sample. The highest corrosion resistance was observed for the Ar28 sample, with a corrosion current density of i_corr = 2.82 × 10⁻⁷ A/cm² and a corrosion rate of v_corr = 0.00573 mm/year. All coatings exhibited hydrophilic surface behavior, with contact angles of 50–57°, which may be relevant for further evaluation in biomedical surface applications. Thus, the structure and functional properties of TiO_xN_y coatings can be regulated by selecting an appropriate deposition regime, including the Ar flow rate, relative reactive gas fraction, and substrate bias. However, additional biological tests, including cytotoxicity, hemocompatibility, endothelialization, and platelet adhesion studies, are required before conclusions about vascular implant applicability can be made. Full article

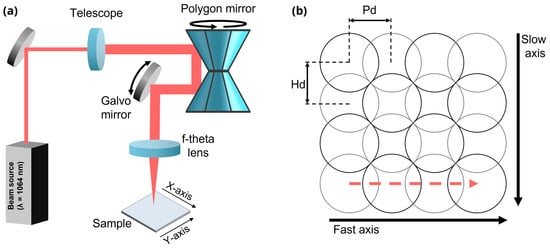

Aiming at non-uniformity in the vertical direction in the polishing effect on stainless steel after plasma electrolytic polishing (PEP), this paper took 304 L stainless steel as the research object. Under an ammonium sulfate electrolyte system with a mass fraction of 2.5 wt%, PEP was carried out utilizing different placement methods for the anode and electrolyte temperatures, and the causes of non-uniformity in the polishing process were explored. Experimental results demonstrate that the vertical polishing inhomogeneity originates from the upward movement of unruptured bubbles at the sample bottom. Under the combined effects of electrolyte internal pressure and bubble buoyancy, a vapor-gas envelope (VGE) featuring a thick upper part and thin lower part forms near the sample surface. This enhances plasma-related physicochemical reactions at the sample bottom and consequently raises the polishing rate. The vertical polishing unevenness can be alleviated by adjusting the electrolyte temperature. Non-uniformity could be improved by controlling the temperature of the electrolyte. Compared with the result at 95 °C, the maximum dimensional variation in each region on the sample at 75 °C was reduced by 36% because a VGE with more uniform thickness was formed, and a properly oxidized sparse layer helped protect the substrate from ablation and over-polishing. In addition, the removal rate of elements on the surface of stainless steel is affected by its activity due to the oxidation reaction. The high removal amount in the bottom region caused a trend of increasing Cr and decreasing Fe content percentages from the top to the bottom on the stainless-steel surface. However, the oxidation removal rate of elements is extremely fast due to the high temperature of the ionization center and strong electric field; therefore, the content percentage of each element on the surface is little changed after polishing. Full article

The increasing demand for materials with enhanced properties and high-performance devices has driven substantial research into nanomanufacturing, particularly using carbon nanotubes (CNTs), because of their exceptional properties and high sensitivity to chemical doping. In this way, this work summarizes nanomanufacturing methods for CNT-based devices developed in Brazil, covering the complete cycle from nanocomposite production to functional device assembly across cellulosic, polymeric, and metallic matrix systems. For cellulosic matrices, vacuum filtration enables the production of buckypaper, which is subsequently assembled into chemiresistive, thermoresistive, and thermoelectric devices. For polymeric matrices, 3D printing combined with surface functionalization techniques (spray coating, inverted immersion, and direct immersion) produces piezoresistive robotic sensors, metal-free thermal sensors, and biomedical scaffolds for tissue engineering. For metallic matrices, electrodeposition can produce Cu-CNT-coated aluminum comparable to traditional copper power transmission cables, while arc welding produces stainless steel composites with properties comparable to commercial high-grade steels. These devices have commercial and industrial applications, with low-cost and scalable production methods in comparison with conventional materials. Characterization results demonstrate that CNT integration into diverse matrices successfully bridges nanoscale properties to macroscopic functional devices. Current challenges include uniform CNT dispersion and structural defect control, laboratory to industry scale transition, and long-term device stability under environmental conditions. Future perspectives encompass lab-on-chip systems, wearable devices, 3D-printed smart structures, Internet of Things integration, and machine learning-enhanced analytics. Full article

Piezoelectric pressure sensors for dynamic monitoring face a trade-off between charge output and measurement range, and existing high-sensitivity designs are largely confined to narrow ranges. This study presents a composite layered piezoelectric pressure sensor in which a 316L stainless-steel diaphragm drives a centrally suspended PZT-5H wafer supported by a perforated alumina gasket, with the wafer thickness and cavity radius optimized under a 10 MPa full-scale stress constraint. Over 0–10 MPa, quasi-static calibration gave a highly repeatable quadratic pressure–charge relationship ($R^2=0.99995$) with a maximum residual below 1% FS. The sensitivity is pressure-dependent: the secant sensitivity increased monotonically from 3.16 pC/kPa at 1 MPa to 5.36 pC/kPa at 10 MPa, reflecting a stress-stiffening response rather than a measurement tolerance band. The output deviation remained within 3% from 25 °C to 150 °C. Shock-tube testing yielded a resonance of ∼50 kHz and a mutually consistent 10–90% leading-edge interval of 10.12 $\mathsf{\mu }$s. Combining high charge sensitivity over a wide 0–10 MPa range with a fast transient response and stable operation up to 150 °C, the proposed sensor is suited to dynamic pressure-pulsation monitoring in fluid-power and thermal and power-plant fluid systems. Full article

Stainless steels are increasingly explored as low-cost electrodes for seawater electrolysis, yet their role in hydrogen production remains insufficiently defined due to fragmented data on reaction mechanisms, corrosion behavior, and system-level performance. This review addresses these knowledge gaps by integrating mechanistic insights into HER/OER/ClER in chloride-rich media with a critical assessment of stainless-steel stability under artificial seawater conditions. Literature evidence is combined with experimental results to clarify performance limits, passive-film breakdown, and degradation pathways. The analysis further links electrode behavior with energy efficiency, material durability, techno-economic constraints, and environmental impacts. By connecting fundamental electrochemistry with practical engineering considerations, this review outlines the conditions under which stainless steels can realistically support robust and sustainable seawater-based hydrogen production. Full article

Hot cracking in welding is a very complex phenomenon. It can happen in the weld metal zone during solidification but also in the heat-affected zone (HAZ). Hot cracking defects are material decohesion that occur at high temperatures along grain boundaries when the strain and strain rate exceed a certain level. The cracks can be internal or open to the surface in the weld bead. During a welding operation, different types of hot cracks can appear, such as hot cracking due to solidification, hot cracking due to liquation, hot cracking due to loss of ductility. The main factors favoring hot solidification cracking include the presence of residual elements and impurities, leading to the formation of a low-melting eutectic; the solidification mode; and mechanical restraints. This review paper gives an introduction to solidification cracking in stainless-steel welds, the weldability of the austenite grades, and the causes of solidification cracking occurrence. The main methods with which to detect and inspect cracks are investigated. Particular focus is placed on TIG (tungsten inert gas), also known as Gas Tungsten Arc Welding (GTAW). A review of the literature reveals that considerable progress has been made in terms of the improvement in the properties of the weld joint through the application of mitigation means and strategies. The effort made by researchers in understanding solidification cracking phenomena has been key to enhancing cracking resistance and ensuring the integrity of structures. Full article

The high-voltage spinel ${\mathrm{LiNi}}_{0.5}{\mathrm{Mn}}_{1.5}{\mathrm{O}}_4$ (LNMO) is a promising cobalt-free cathode material for lithium-ion batteries, yet its integration as a binder-free thin film on metallic current collectors via simple solution routes remains underexplored. Here, LNMO films were synthesized on 304 stainless steel (SS304) by metal–organic decomposition (MOD) from metal–acetate precursors in ethanol, followed by spin-coating and annealing at 500, 600, and 700 °C under flowing ${\mathrm{O}}_2$. The films were characterized by XRD, FESEM–FIB cross-sectioning, EDS, and XPS, and tested as binder-free cathodes by cyclic voltammetry and galvanostatic charge/discharge. All samples are dense, approximately 1.9 μm thick, and crystallize in the disordered spinel phase. The LNMO crystallite size increases from 21.9 to 43.8 nm between 500 and 700 °C, while the grain size also shows a temperature dependence, increasing the average size from 25 up to 56 nm in diameter. XPS confirms ${\mathrm{Mn}}^{4+}$ as the dominant manganese surface species (45–49%) across all samples. The films deliver reversible discharge capacities of 92, 92, and 70 mAh ${\mathrm{g}}^{-1}$ at 0.1 C for LNMO500, LNMO600, and LNMO700, respectively, with well-defined ${\mathrm{Ni}}^{2+}{\mathrm{/Ni}}^{3+}$ and ${\mathrm{Ni}}^{3+}{\mathrm{/Ni}}^{4+}$ redox peaks at 4.7 and 4.8 V. DFT calculations independently predict a voltage plateau at ∼4.7 V for $0.2\le x\le 1$, in agreement with the experimental profiles. These findings establish MOD as a viable, vacuum-free route to the synthesis of nanostructured LNMO cathodes. Full article

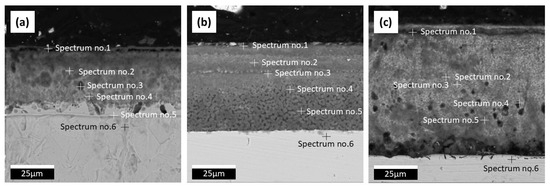

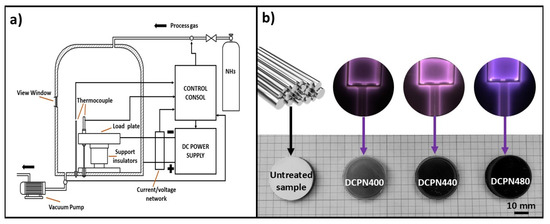

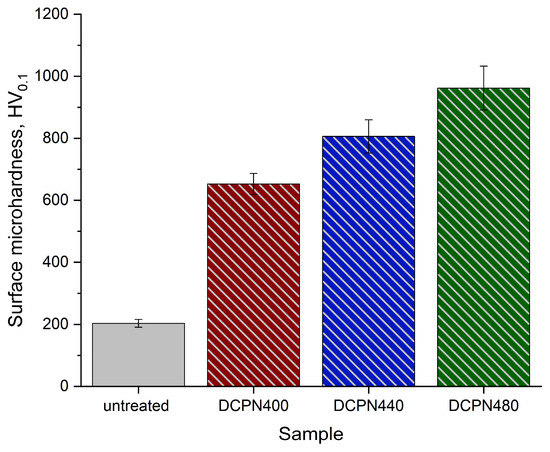

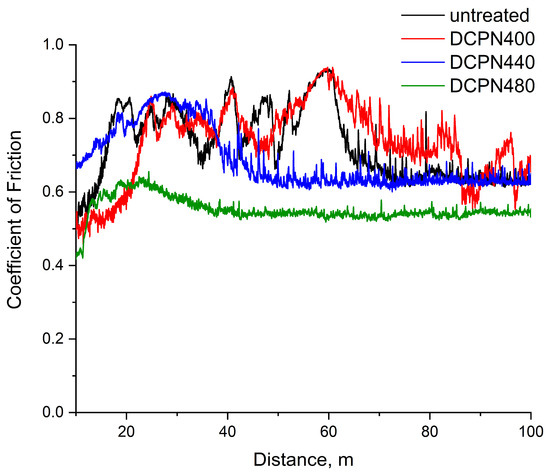

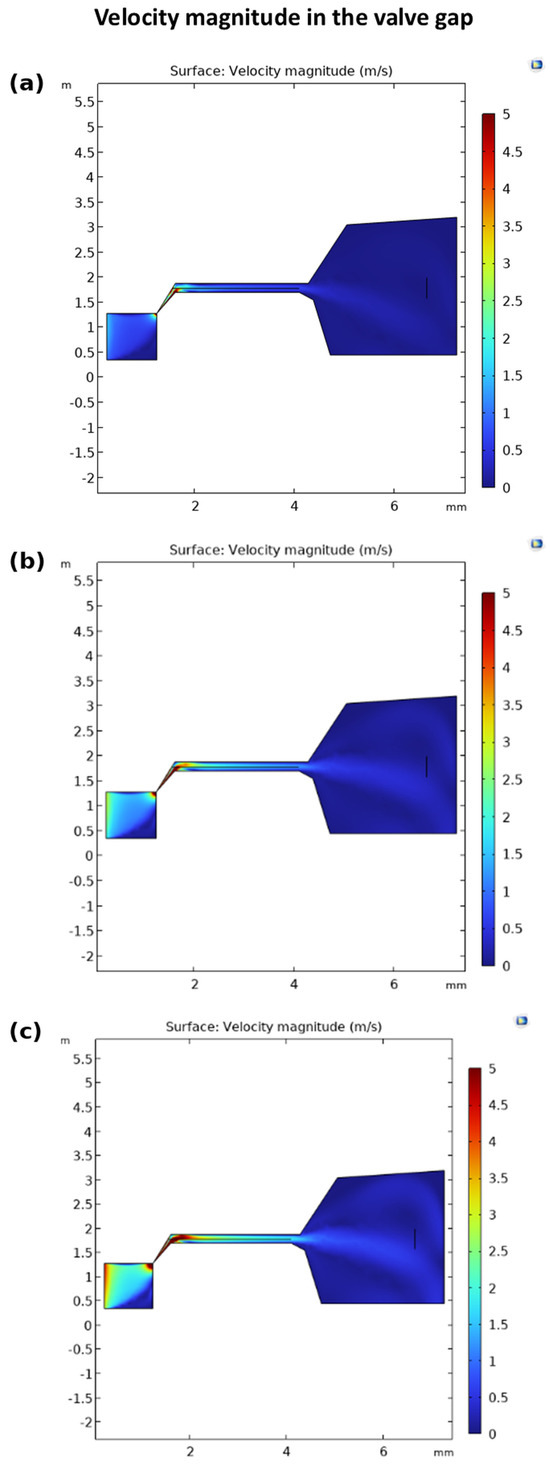

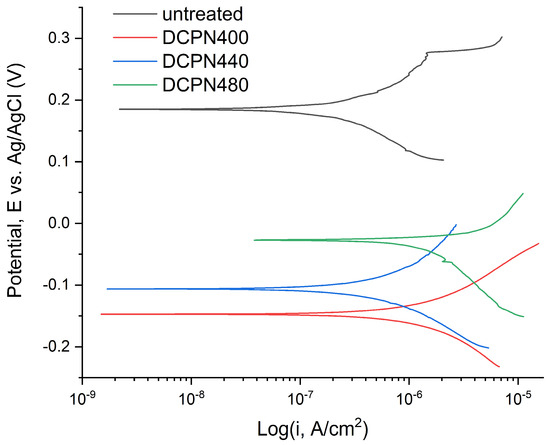

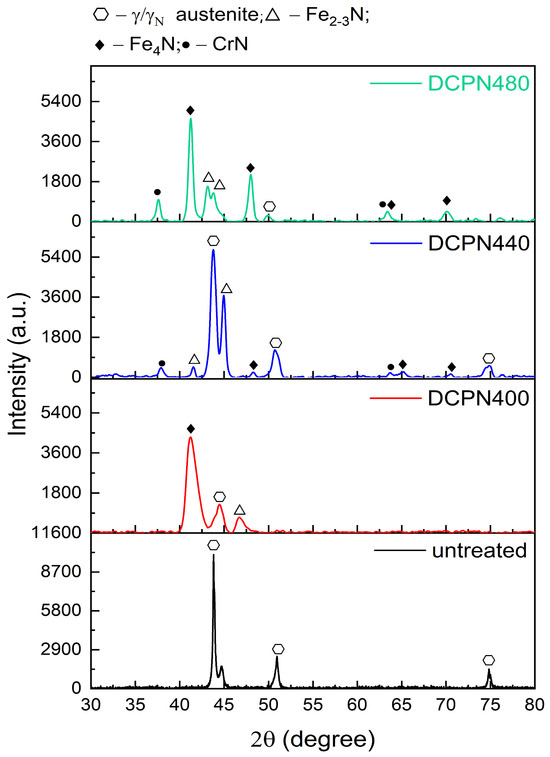

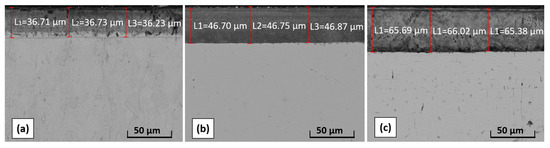

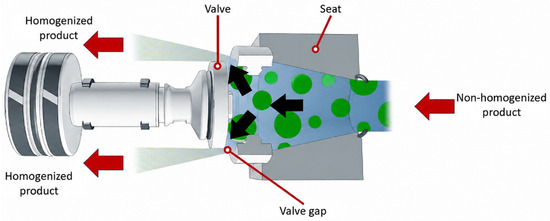

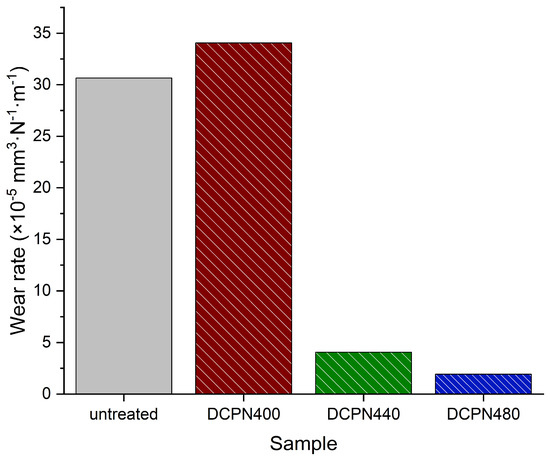

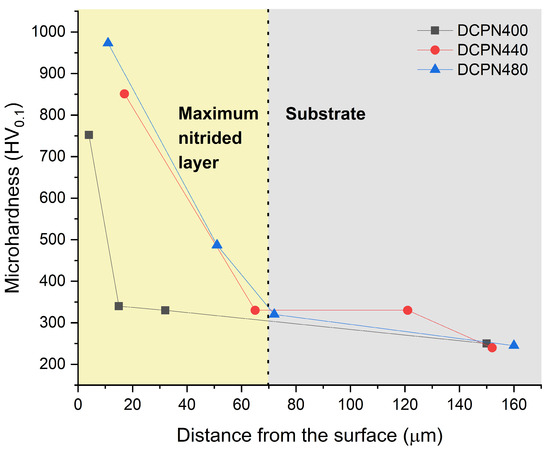

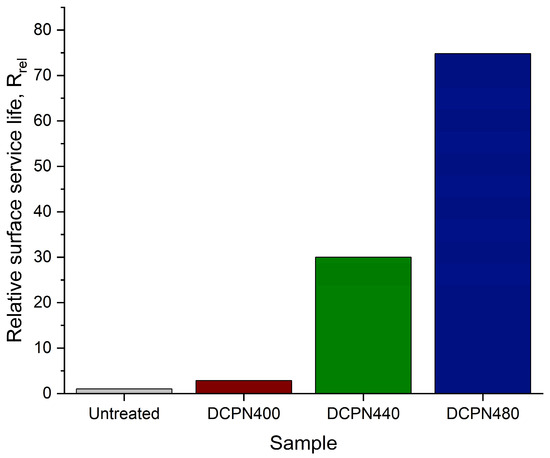

This study investigates the effect of low-temperature pulsed DC plasma nitriding on the surface properties of AISI 304 stainless steel for homogenizer valve-seat components. Plasma nitriding was performed in an ammonia atmosphere at 400, 440 and 480 °C for 8 h. The treatment led to the formation of expanded austenite at 400 °C, while higher temperatures promoted the formation of Fe-N and CrN-containing phases. The thickness of the modified layer increased from approximately 36 μm at 400 °C to 65 μm at 480 °C. Surface microhardness increased from 203 HV0.1 for the untreated steel to 652.6, 806.0 and 961.8 HV0.1 after nitriding at 400, 440 and 480 °C, respectively. The wear rate decreased markedly, reaching 1.92 × 10⁻⁵ mm³/(N·m) for DCPN480 compared with 30.65 × 10⁻⁵ mm³/(N·m) for the untreated sample. Among the nitrided samples, DCPN440 showed the most favorable corrosion behavior in 3.5 wt.% NaCl solution, indicating a balance between surface hardening and preservation of corrosion resistance. Numerical modeling confirmed that the strengthened surface layer can withstand equivalent homogenizer valve-seat loading without local plastic deformation. The results demonstrate that pulsed DC plasma nitriding can significantly improve the hardness and wear resistance of AISI 304 stainless steel while maintaining acceptable corrosion performance under optimized treatment conditions. Full article

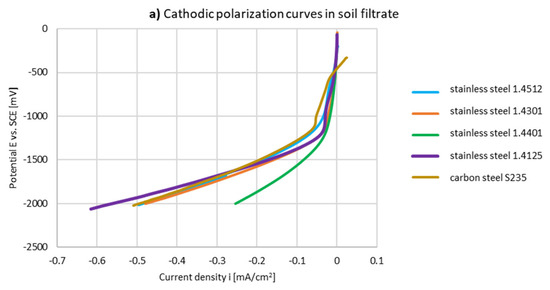

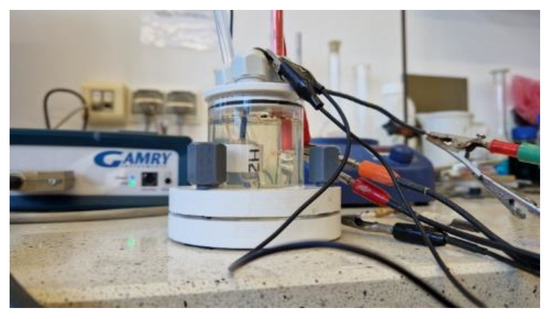

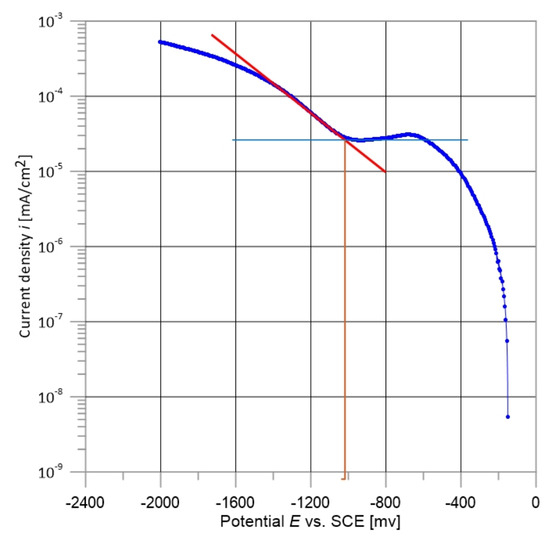

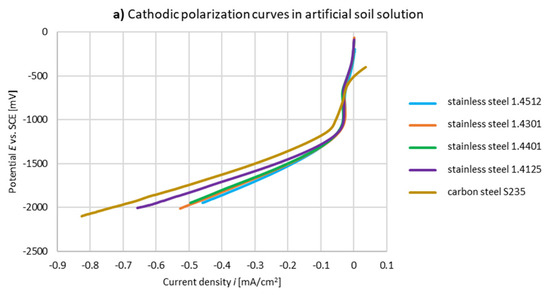

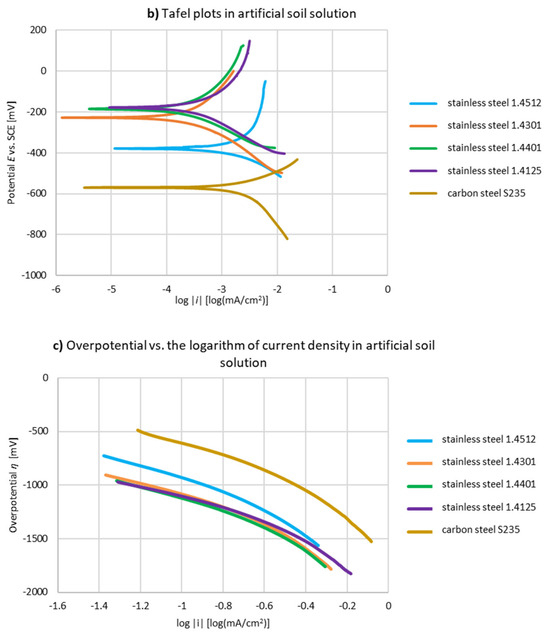

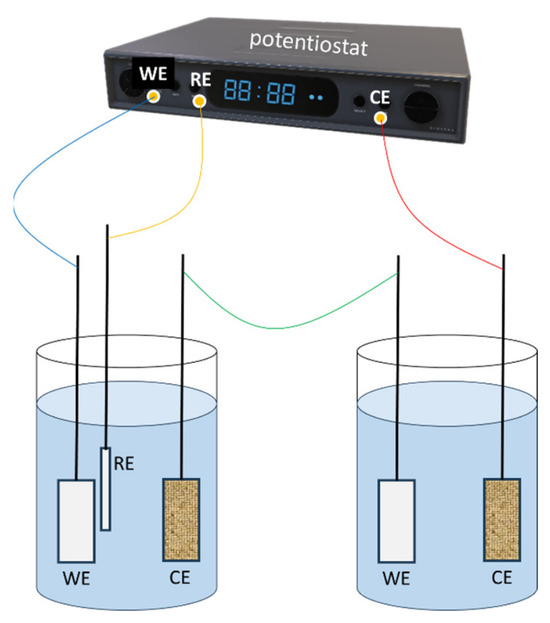

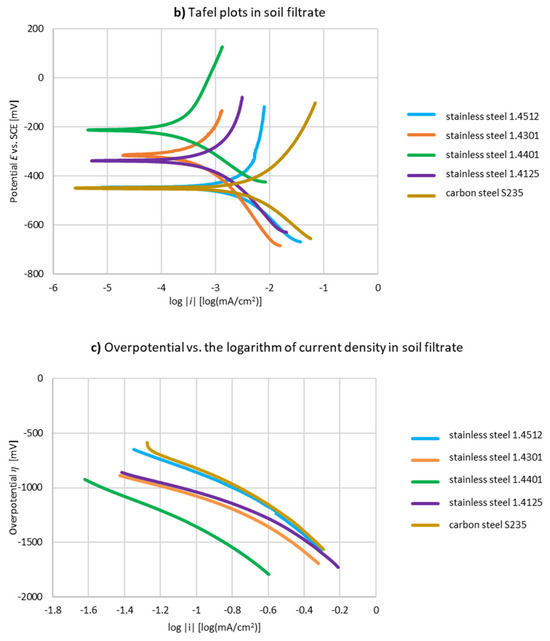

Excessive cathodic polarization of underground stainless steel structures results in hydrogen evolution, increasing the risk of hydrogen embrittlement and the disbonding of protective coatings from the structure’s surface. This study was conducted to determine the critical potential and critical cathodic protection current density at which hydrogen evolution occurs on the surfaces of stainless steel grades 1.4301, 1.4401, 1.4125, and 1.4512, and, for comparison, on carbon steel S235. The tests were carried out in an aqueous solution of synthetic (artificial) soil and in a soil filtrate prepared from a soil sample taken in the vicinity of an existing underground gas pipeline connection with stainless steel fittings. The tests showed that the higher the chromium content in the stainless steel was, the lower (more negative) the hydrogen evolution potential was. In an artificial soil environment, the values of this potential ranged from −1105 mV to −1175 mV vs. copper sulphate electrode (CSE) for steels 1.4301, 1.4401, and 1.4125, which contain more than 16% of chromium. For steel 1.4512, containing 12% of chromium, the hydrogen evolution potential was −1050 mV. For comparison, for S235 carbon steel, the hydrogen evolution potential was −1135 mV. The critical cathodic protection current density ranged from 0.30 A/m² to 0.38 A/m² for all tested stainless steels, whilst for S235 steel, this value was higher, equal to 0.65 A/m². The results obtained indicate that applying the commonly accepted potential criterion for cathodic protection for carbon steels (i.e., polarization to a potential in the range from −0.85 V to −1.1 V vs. CSE) poses no risk of causing excessive cathodic polarization of stainless steel. This is important for the design and operation of cathodic protection systems for complex structures containing galvanically connected carbon steel and stainless steel components. Full article

Background: Vitamin D deficiency rickets is a metabolic bone disorder caused by impaired calcium and phosphate homeostasis resulting from insufficient vitamin D. In children, severe vitamin D deficiency can disturb the mineralization of growing bones and teeth. Although the skeletal manifestations are well recognized, reports describing generalized developmental enamel defects affecting nearly all permanent teeth remain limited. Methods: A 6-year-9-month-old Japanese boy with a history of vitamin D deficiency rickets diagnosed at 2 years 5 months of age was referred to our department for evaluation of generalized discoloration and morphological abnormalities affecting multiple permanent teeth. Clinical, radiographic, and medical findings were reviewed. Results: Laboratory examination at diagnosis revealed severe vitamin D deficiency with elevated intact parathyroid hormone levels. Possible contributing factors included exclusive breastfeeding, delayed weaning, avoidance of fish and dairy products, and limited outdoor activity. Following oral alfacalcidol supplementation, skeletal and biochemical findings gradually normalized. However, clinical examination revealed generalized enamel hypoplasia affecting the permanent incisors and first molars, characterized by yellow-brown discoloration, rough enamel surfaces, morphological irregularities, and attrition, whereas the primary dentition showed no obvious abnormalities. Panoramic radiography demonstrated generalized crown malformation involving both erupted and unerupted permanent teeth, particularly the permanent incisors, first molars, and canines, while premolars and second molars were relatively unaffected. Based on the developmental timing of the affected teeth and the patient’s medical history, the enamel defects were considered to be associated with systemic mineralization disturbance during early childhood. Restorative treatment, including composite resin restorations and stainless steel crowns, was performed to improve aesthetics and occlusal function. Preventive surgical exposure followed by composite resin restoration was also performed for the permanent canines at the onset of eruption. Conclusions: Severe vitamin D deficiency during critical stages of tooth development may be associated with irreversible developmental enamel defects in the permanent dentition, even after apparent systemic recovery from rickets. Early dental assessment, long-term dental follow-up, and multidisciplinary management should be considered in children with a history of nutritional rickets. Full article
