Next Article in Journal
Preparation and Properties of Special Vehicle Cover via a Novel Squeeze Casting Quantitative Feeding System of Molten Metal
Next Article in Special Issue
Ambivalent Role of Annealing in Tensile Properties of Step-Rolled Ti-6Al-4V with Ultrafine-Grained Structure
Previous Article in Journal
Beneficial Effects of Vanadium Additions on the Corrosion of Ti6AlxV Alloys in Chloride Solutions
Previous Article in Special Issue
Grain Refinement of Ti-15Mo-3Al-2.7Nb-0.2Si Alloy with the Rotation of TiB Whiskers by Powder Metallurgy and Canned Hot Extrusion
Open AccessArticle

Reaction Layer Analysis of In Situ Reinforced Titanium Composites: Influence of the Starting Material Composition on the Mechanical Properties

1
Escuela Politécnica Superior, Universidad de Sevilla, Calle Virgen de África, 7, 41011 Sevilla, Spain
2
RHP Technology GmbH, 2444 Seibersdorf, Austria
*
Author to whom correspondence should be addressed.
Metals 2020, 10(2), 265; https://doi.org/10.3390/met10020265
Received: 30 January 2020 / Revised: 14 February 2020 / Accepted: 15 February 2020 / Published: 18 February 2020
(This article belongs to the Special Issue Titanium Alloys and Titanium-Based Matrix Composites)

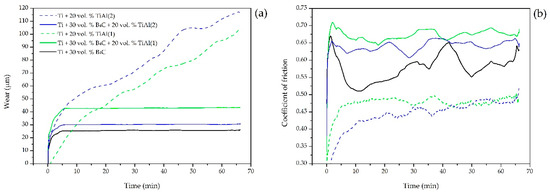

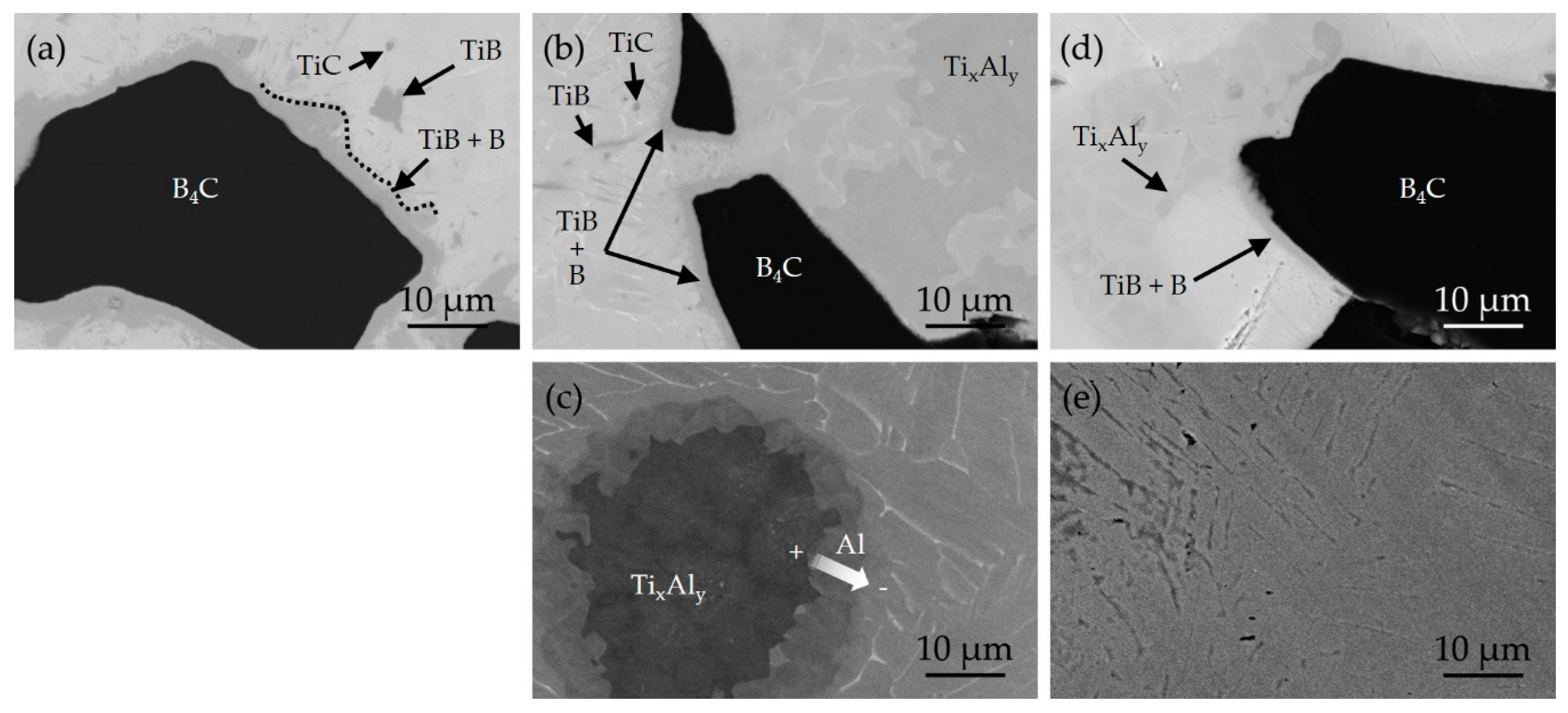

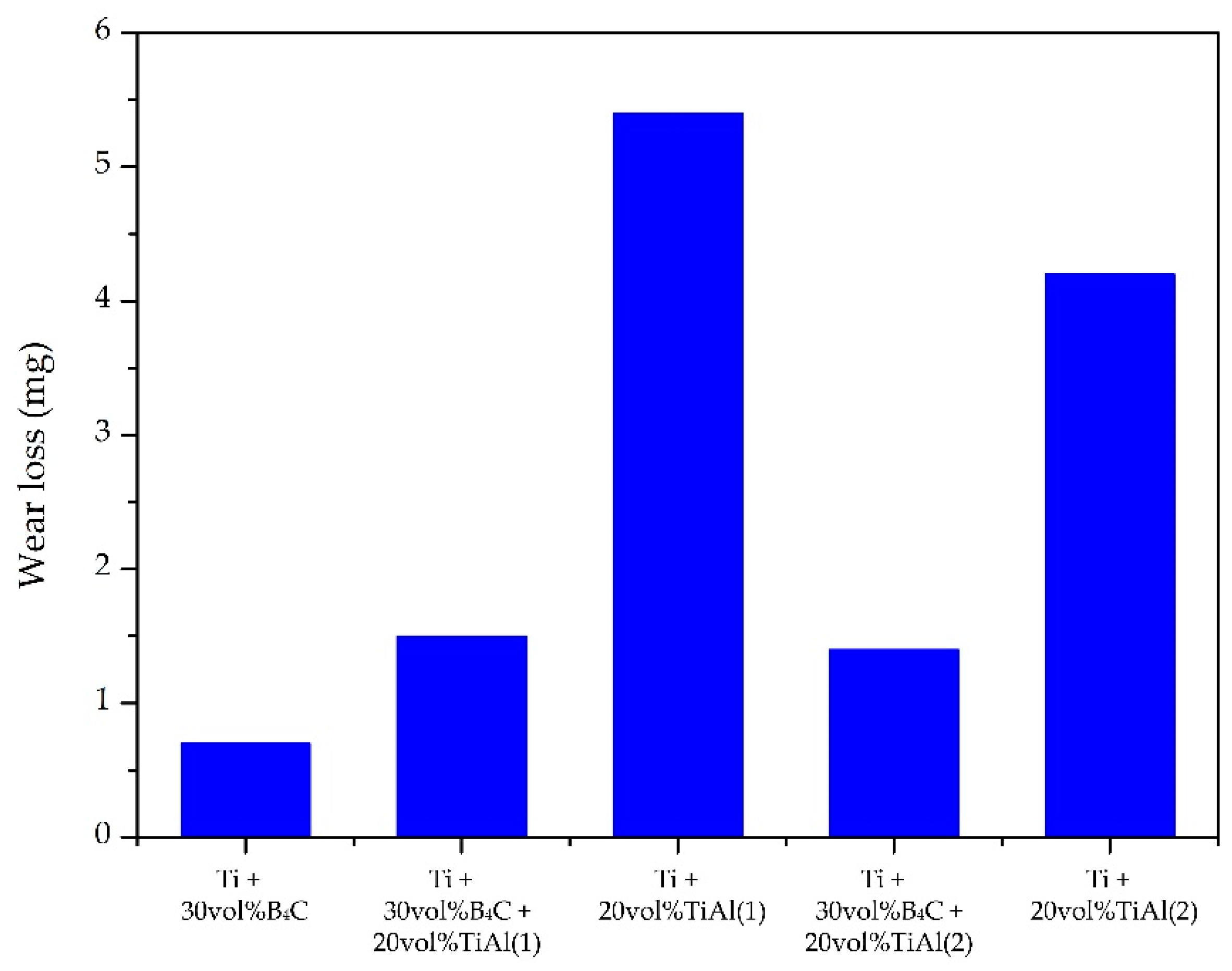

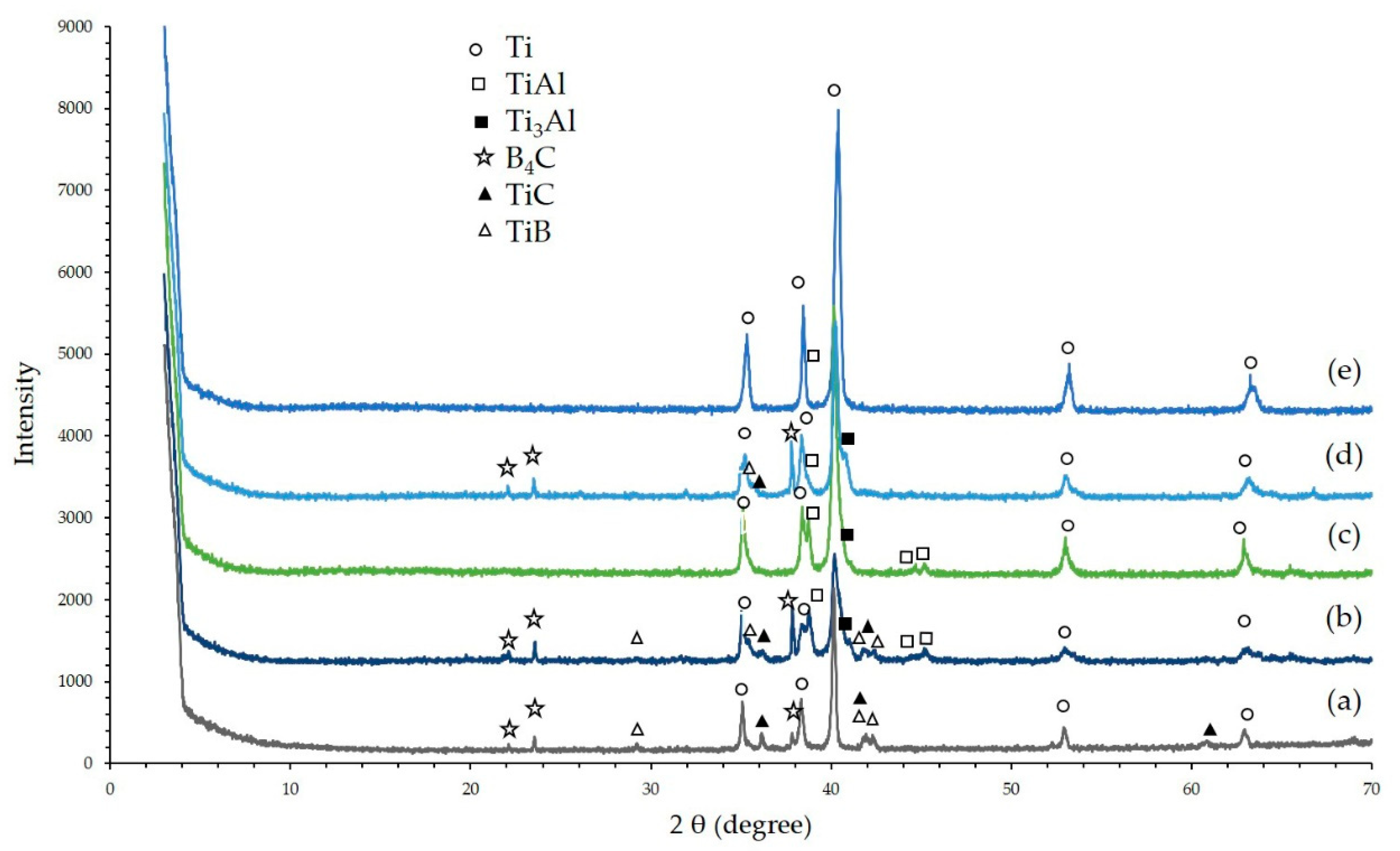

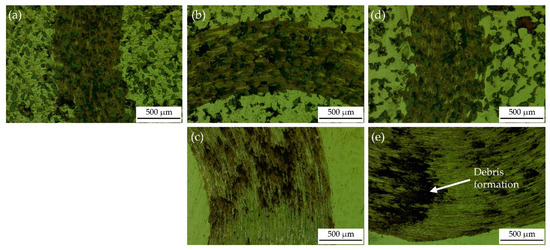

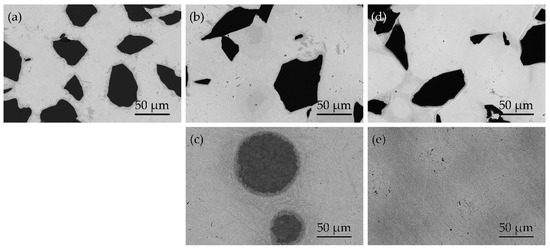

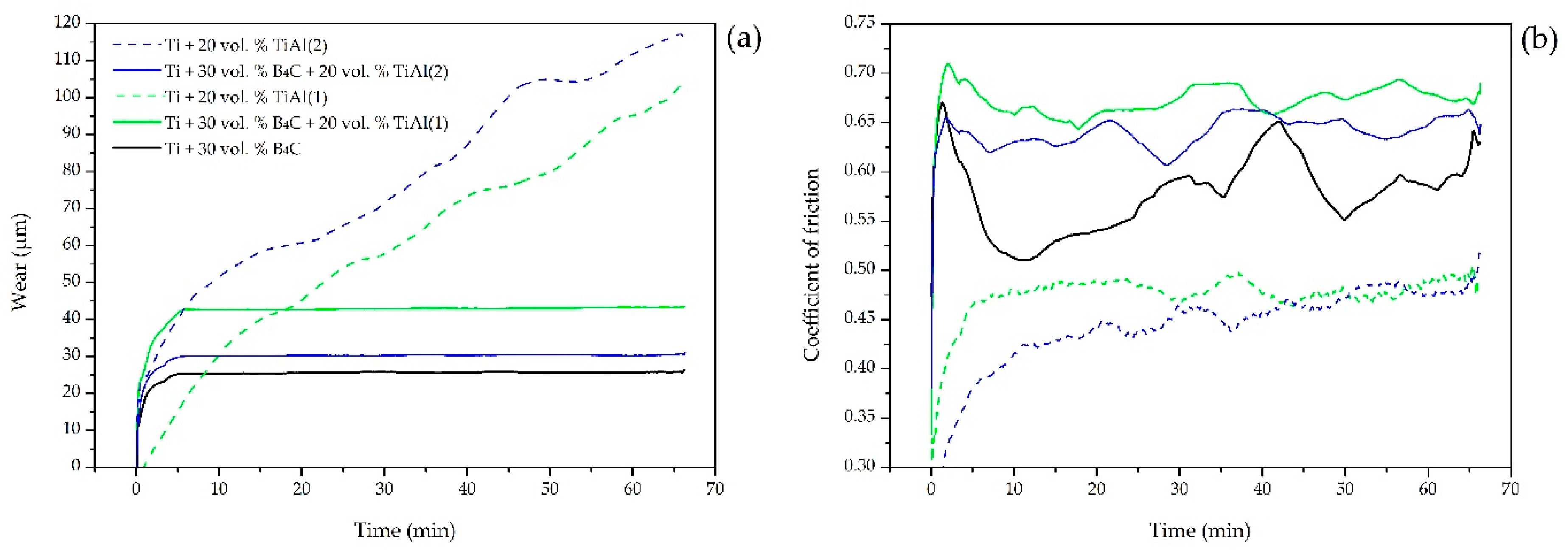

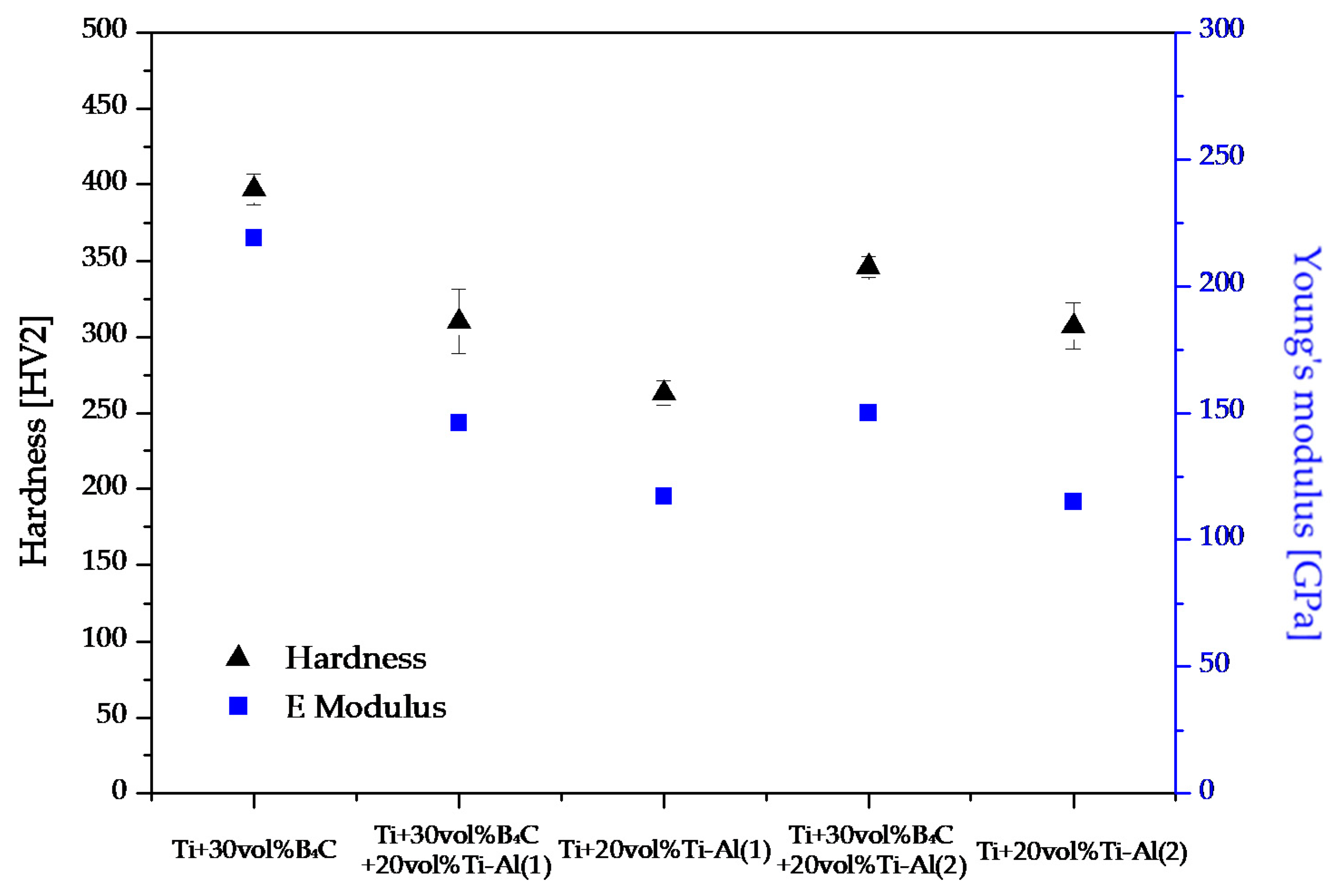

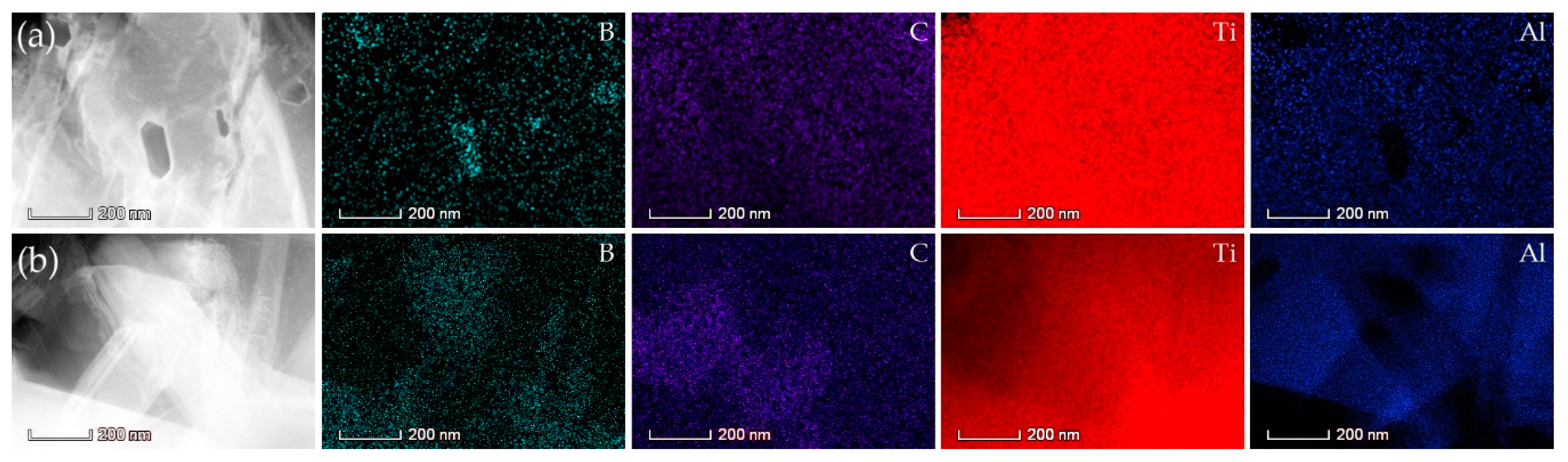

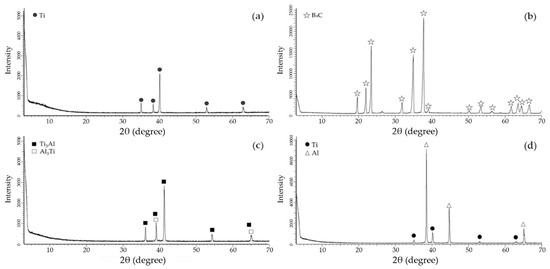

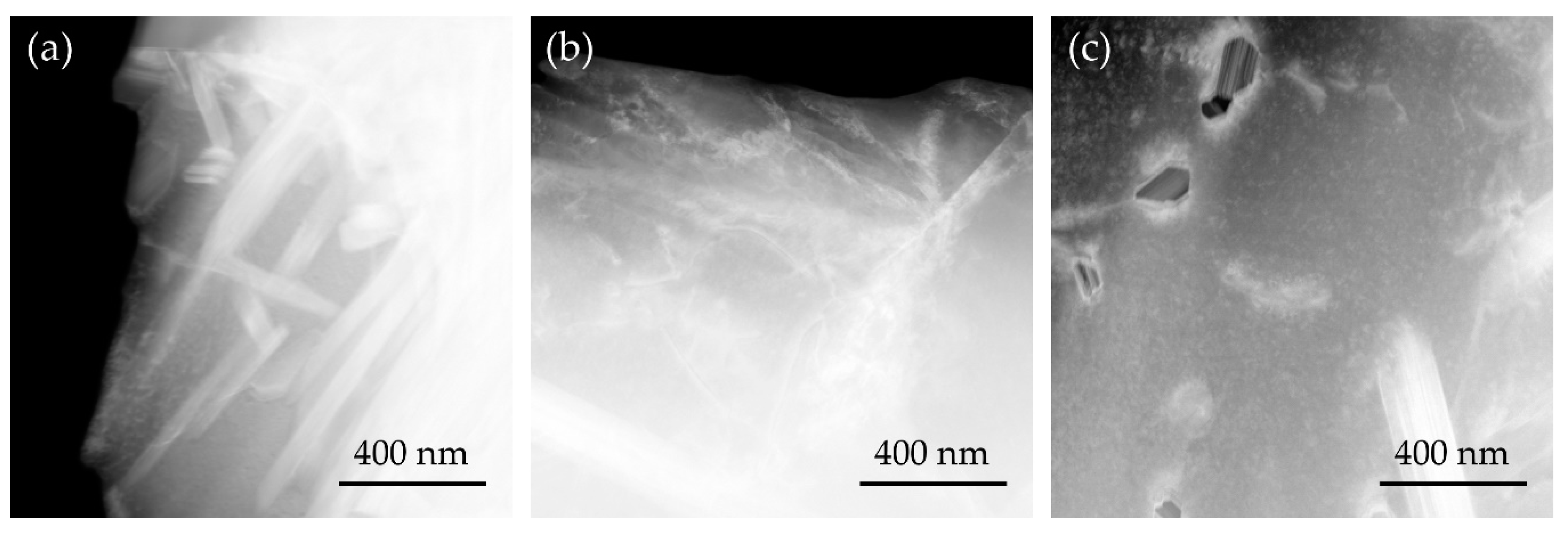

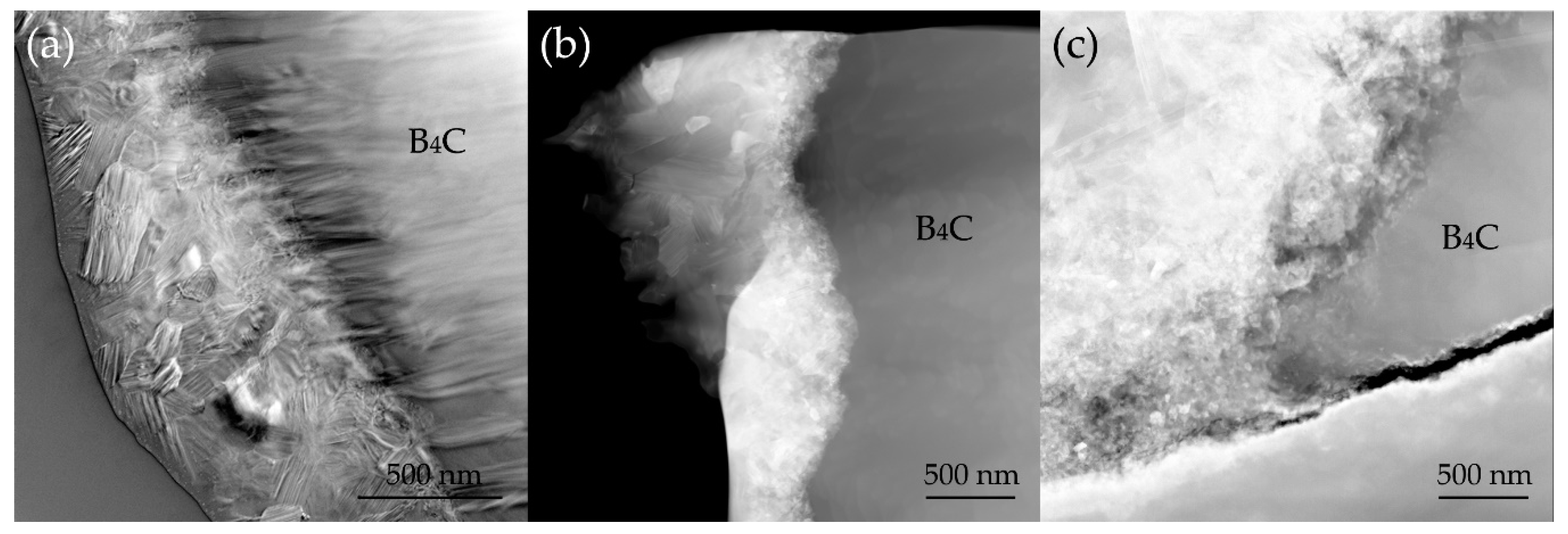

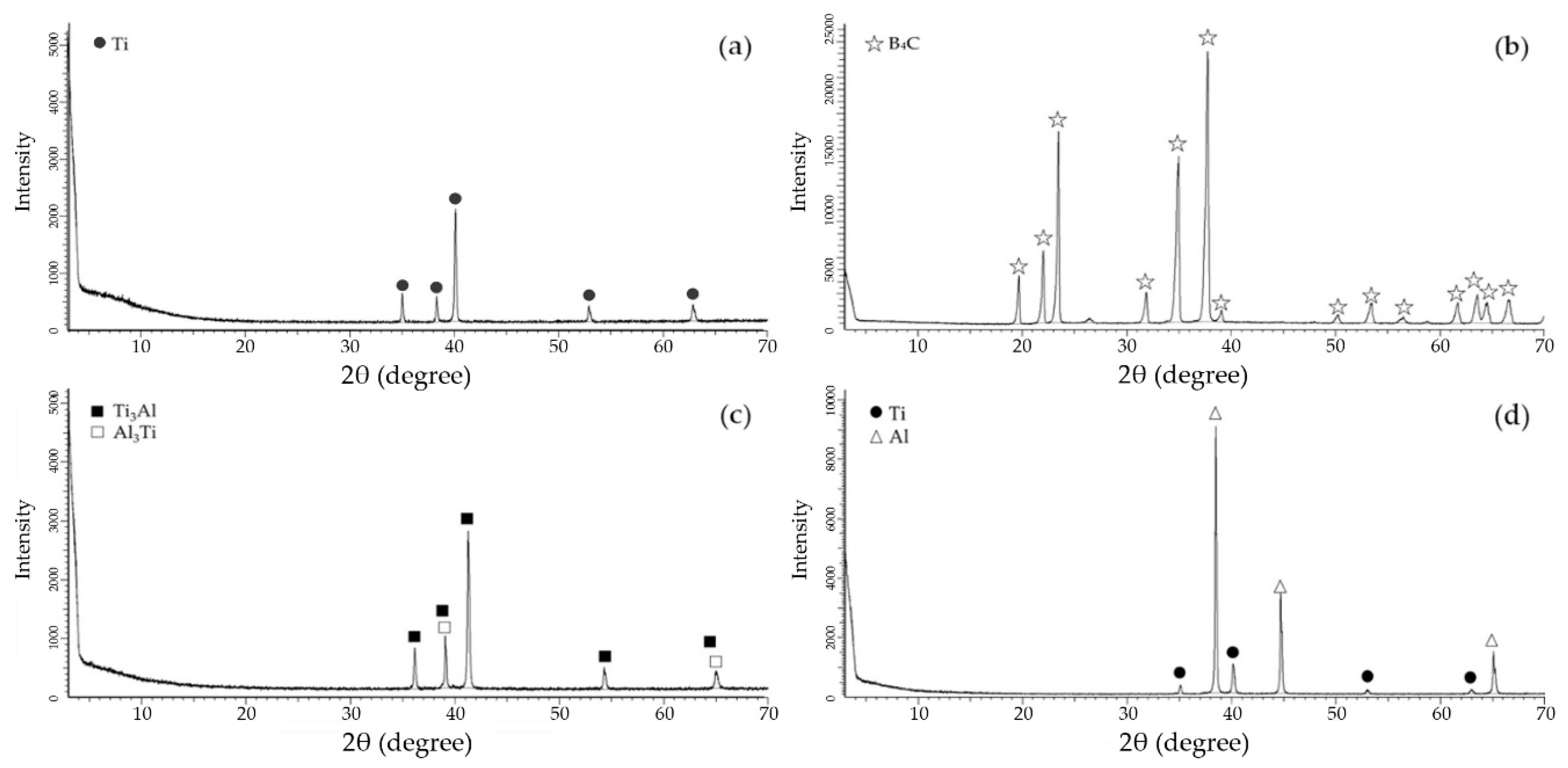

This study aims at the analysis of the reaction layer between titanium matrices and reinforcements: B4C particles and/or intermetallic TixAly. Likewise, the importance of these reactions was observed; this was particularly noteworthy as regard coherence with the obtained results and the parameters tested. Accordingly, five starting material compositions were studied under identical processing parameters via inductive hot pressing at 1100 °C for 5 min in vacuum conditions. The results revealed how the intermetallics limited the formation of secondary phases (TiC and TiB) created from the B and C source. In this respect, the percentages of TiB and TiC slightly varied when the intermetallic was included in the matrix as prealloyed particles. On the contrary, if the intermetallics appeared in situ by the addition of Ti-Al powder in the starting blend, their content was lesser. The mechanical properties values and the tribology behaviour might deviate, depending on the percentage of the secondary phases formed and its distribution in the matrix. View Full-Text
Keywords: in situ composites; inductive hot pressing; tribology; titanium composites; reaction layer; intermetallics in situ composites; inductive hot pressing; tribology; titanium composites; reaction layer; intermetallics
Show Figures

Graphical abstract

MDPI and ACS Style

Montealegre-Meléndez, I.; Arévalo, C.; Beltrán, A.M.; Kitzmantel, M.; Neubauer, E.; Pérez Soriano, E.M. Reaction Layer Analysis of In Situ Reinforced Titanium Composites: Influence of the Starting Material Composition on the Mechanical Properties. Metals 2020, 10, 265.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Search more from Scilit

Search
Back to TopTop
