Next Article in Journal
Reaction Layer Analysis of In Situ Reinforced Titanium Composites: Influence of the Starting Material Composition on the Mechanical Properties
Previous Article in Journal
Hot Extrusion Enhanced Homogenization of Microstructure in a Spray Deposition Aluminum Alloy
Open AccessArticle

Beneficial Effects of Vanadium Additions on the Corrosion of Ti6AlxV Alloys in Chloride Solutions

1
Center of Excellence for Research in Engineering Materials (CEREM), King Saud University, P.O. Box 800, Al-Riyadh 11421, Saudi Arabia
2
Electrochemistry and Corrosion Laboratory, Department of Physical Chemistry, National Research Centre, El-Behoth St. 33, Dokki, 12622 Cairo, Egypt
3
Mechanical Design and Materials Department, Faculty of Energy Engineering, Aswan University, Aswan 81521, Egypt
4
Mechanical Engineering Department, King Saud University, P.O. Box 800, Al-Riyadh 11421, Saudi Arabia
*
Author to whom correspondence should be addressed.
Metals 2020, 10(2), 264; https://doi.org/10.3390/met10020264
Received: 7 January 2020 / Revised: 11 February 2020 / Accepted: 14 February 2020 / Published: 18 February 2020

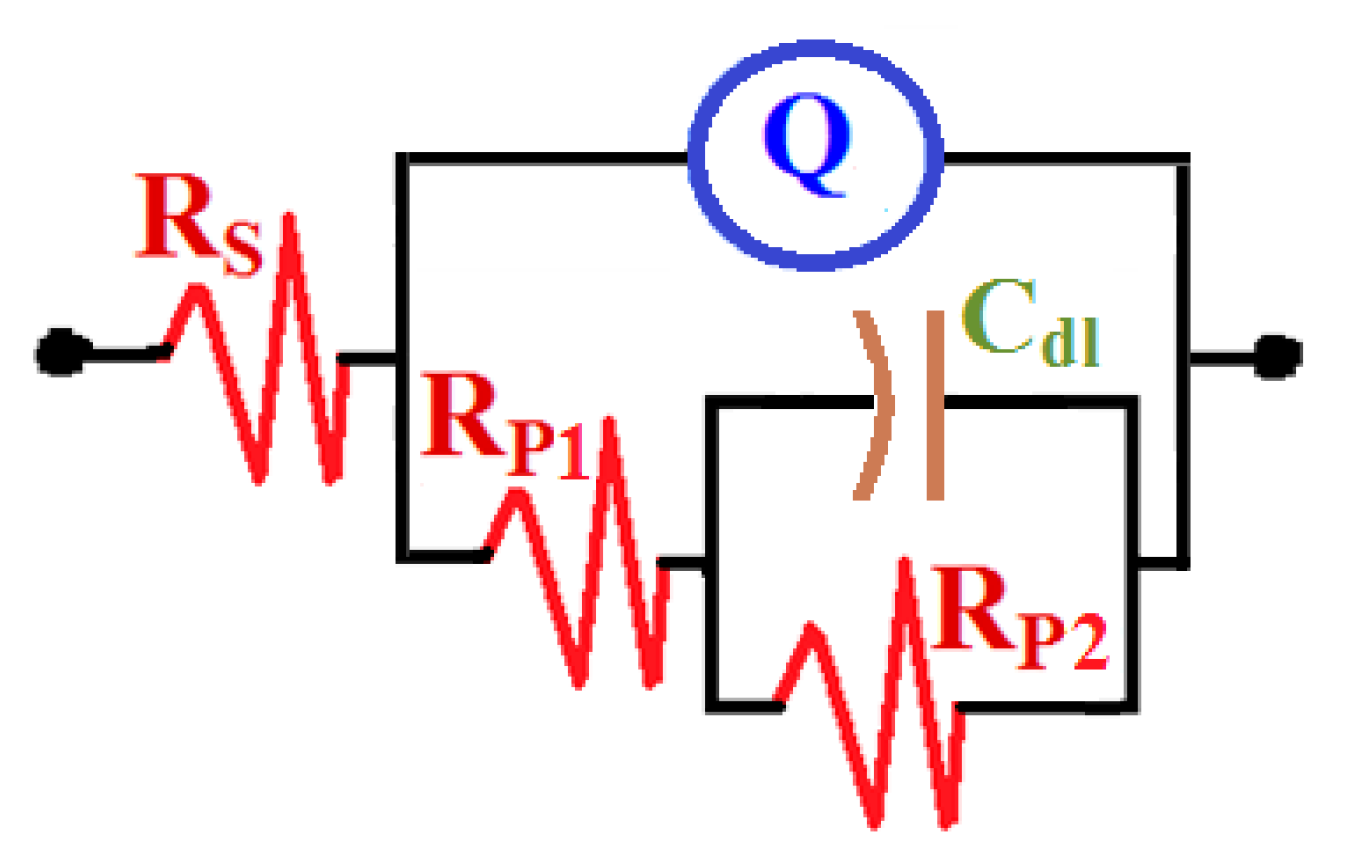

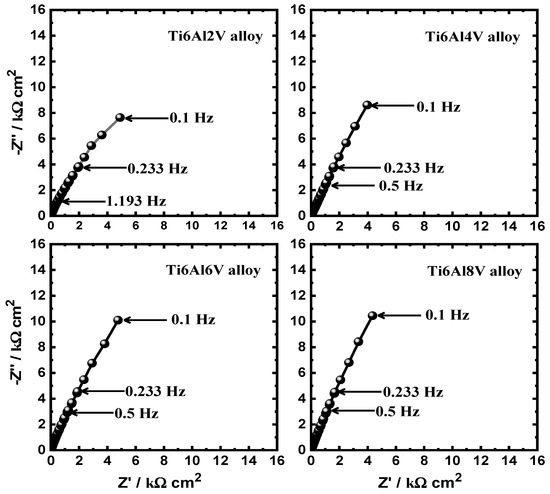

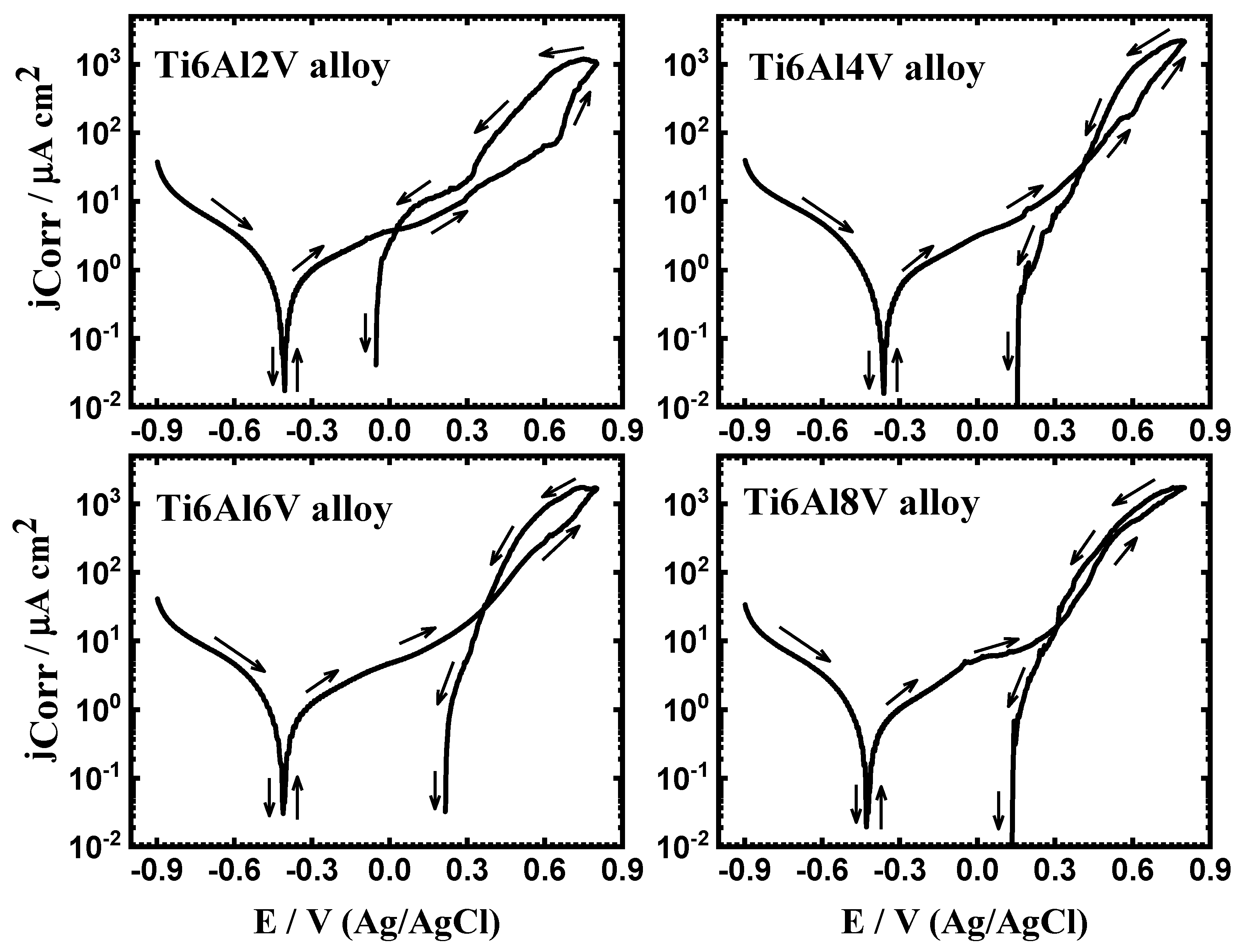

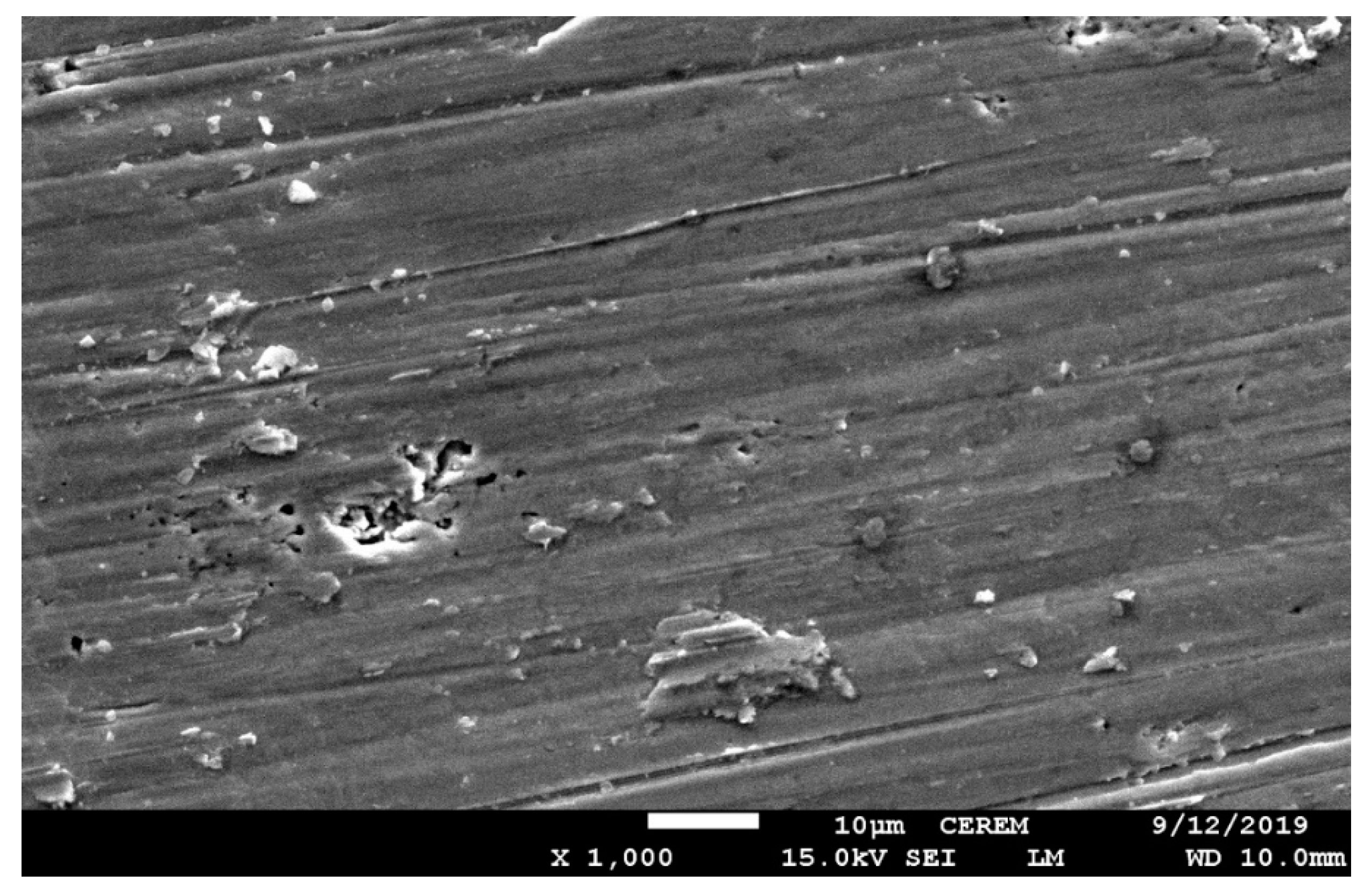

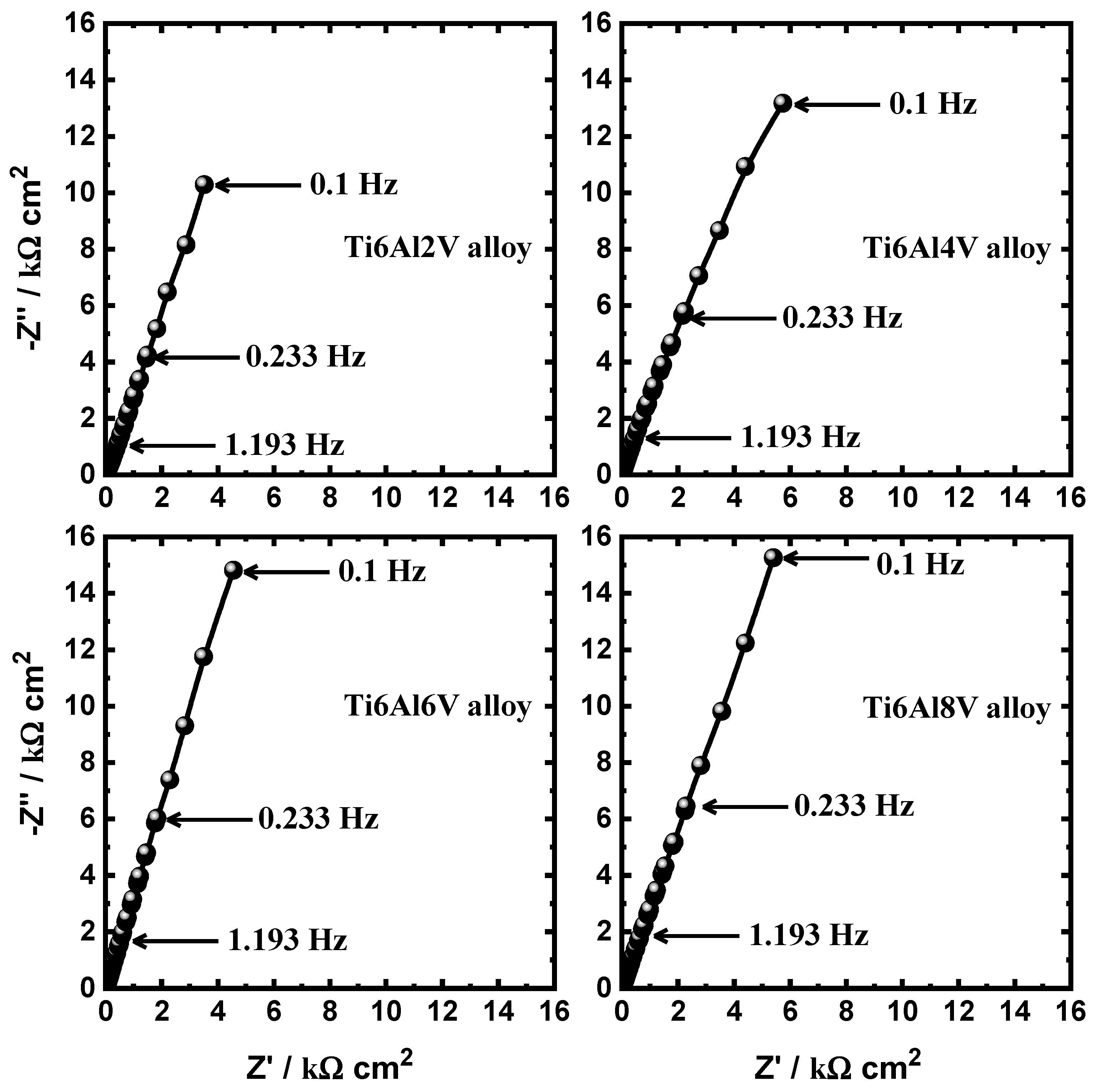

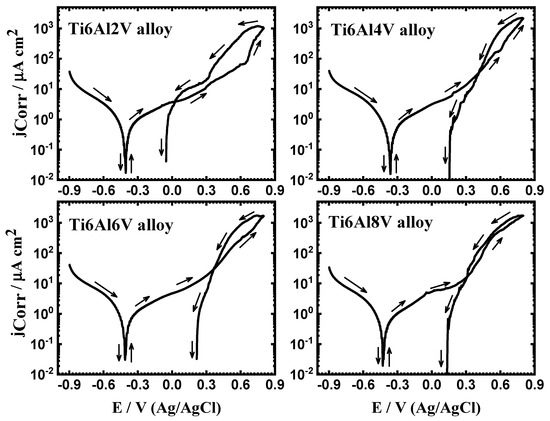

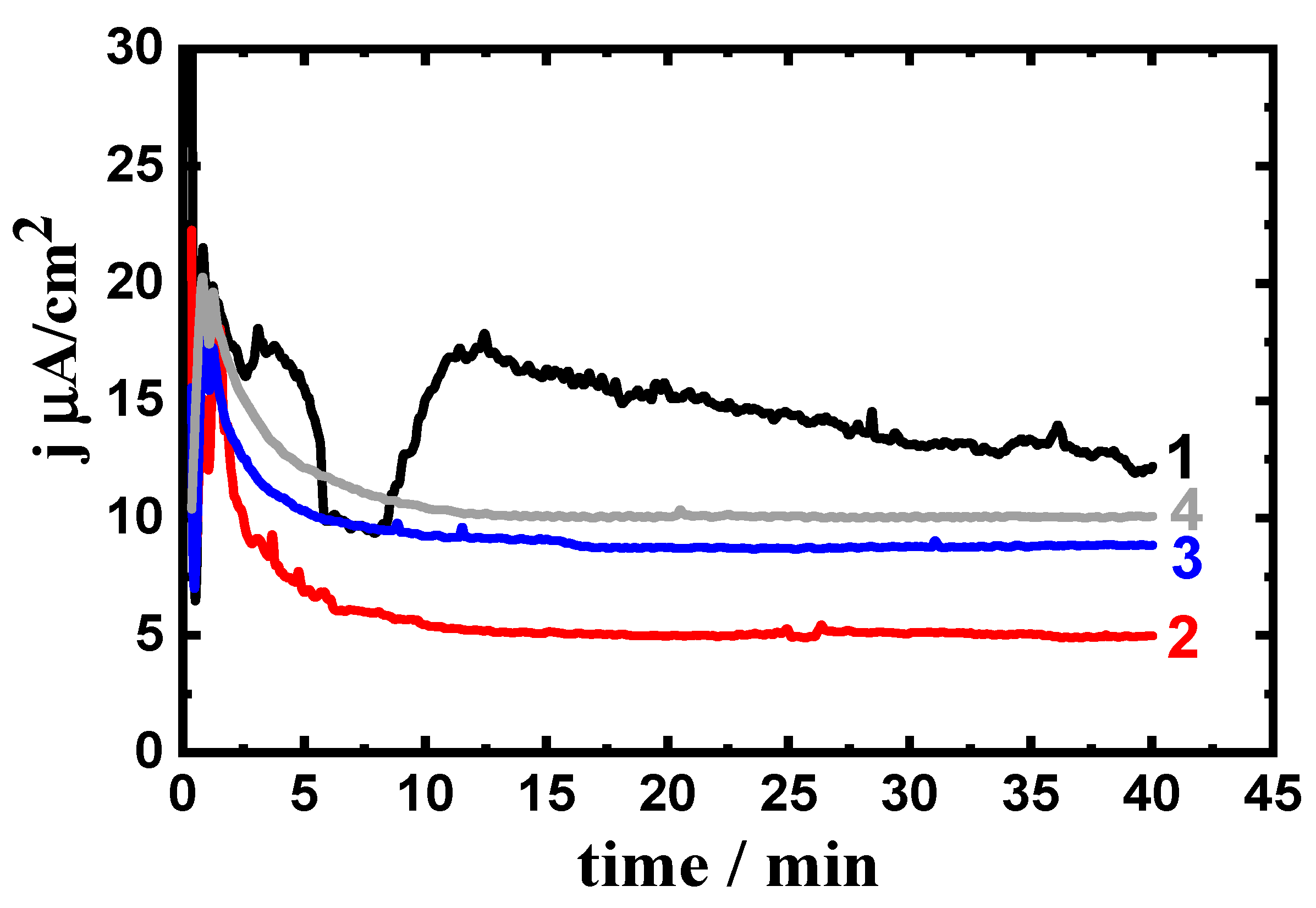

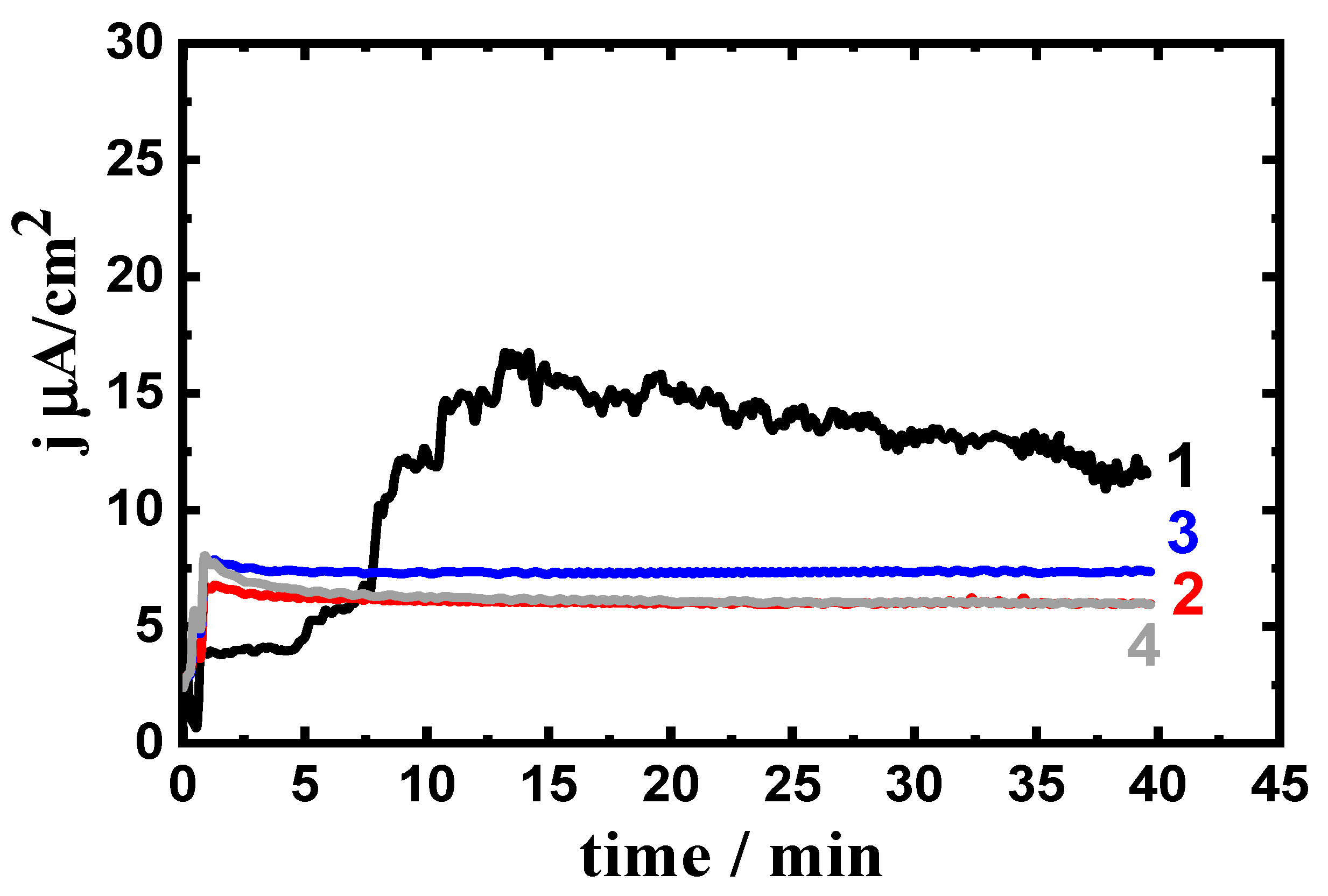

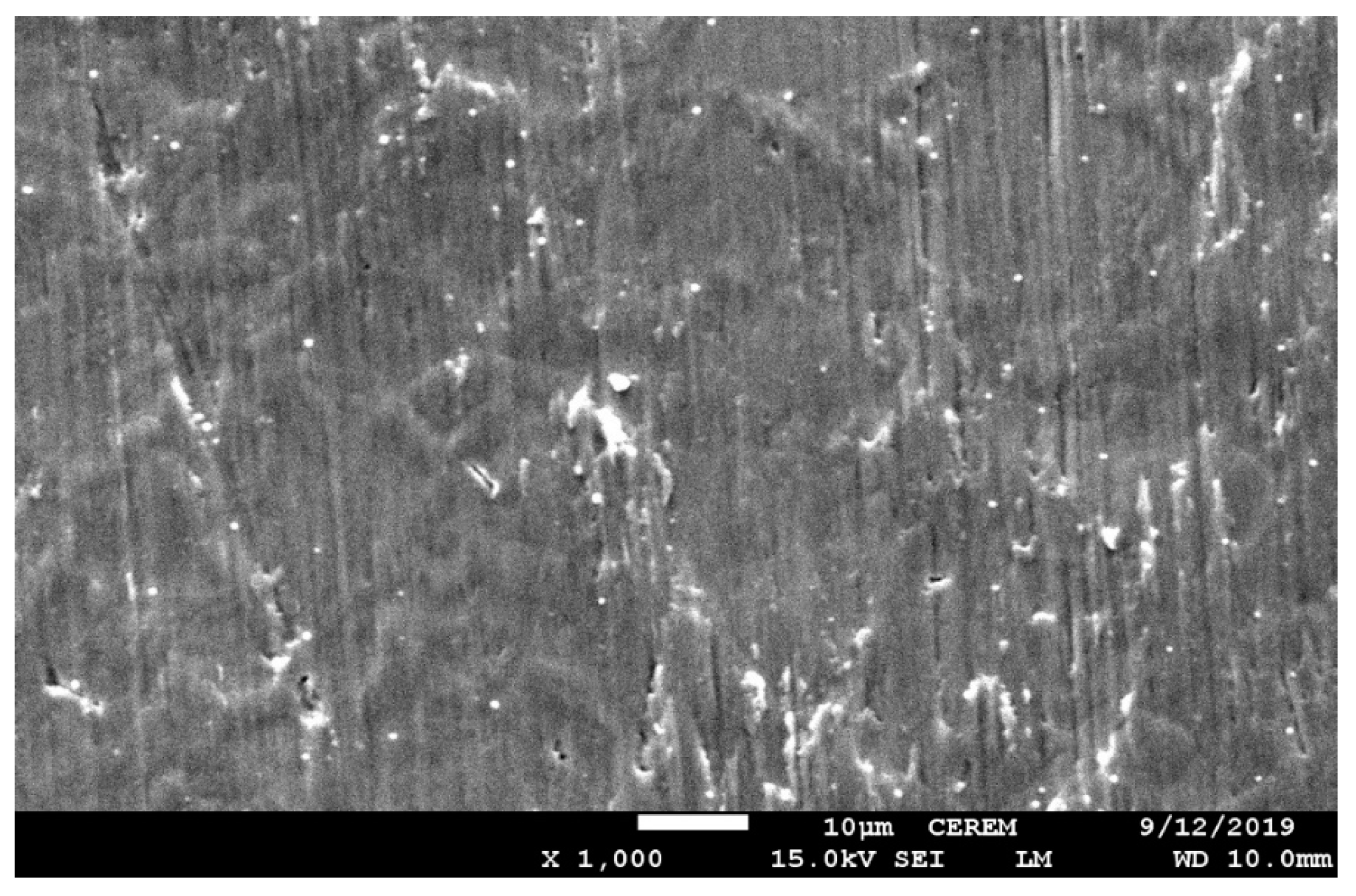

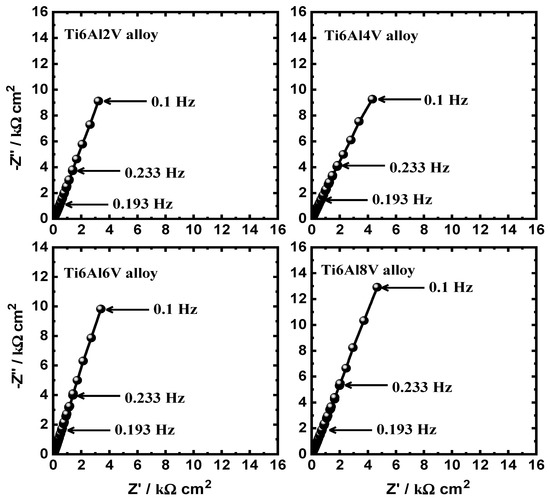

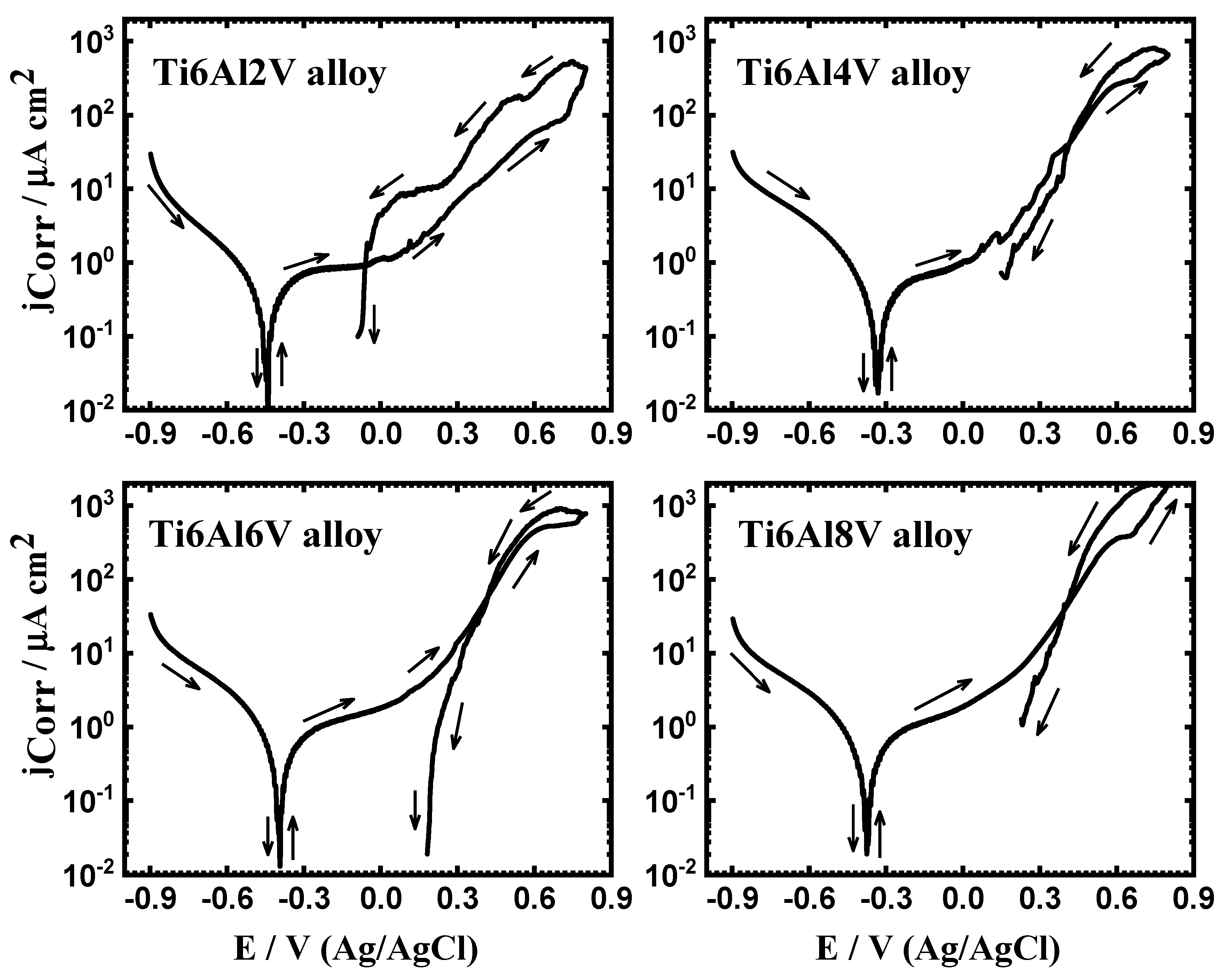

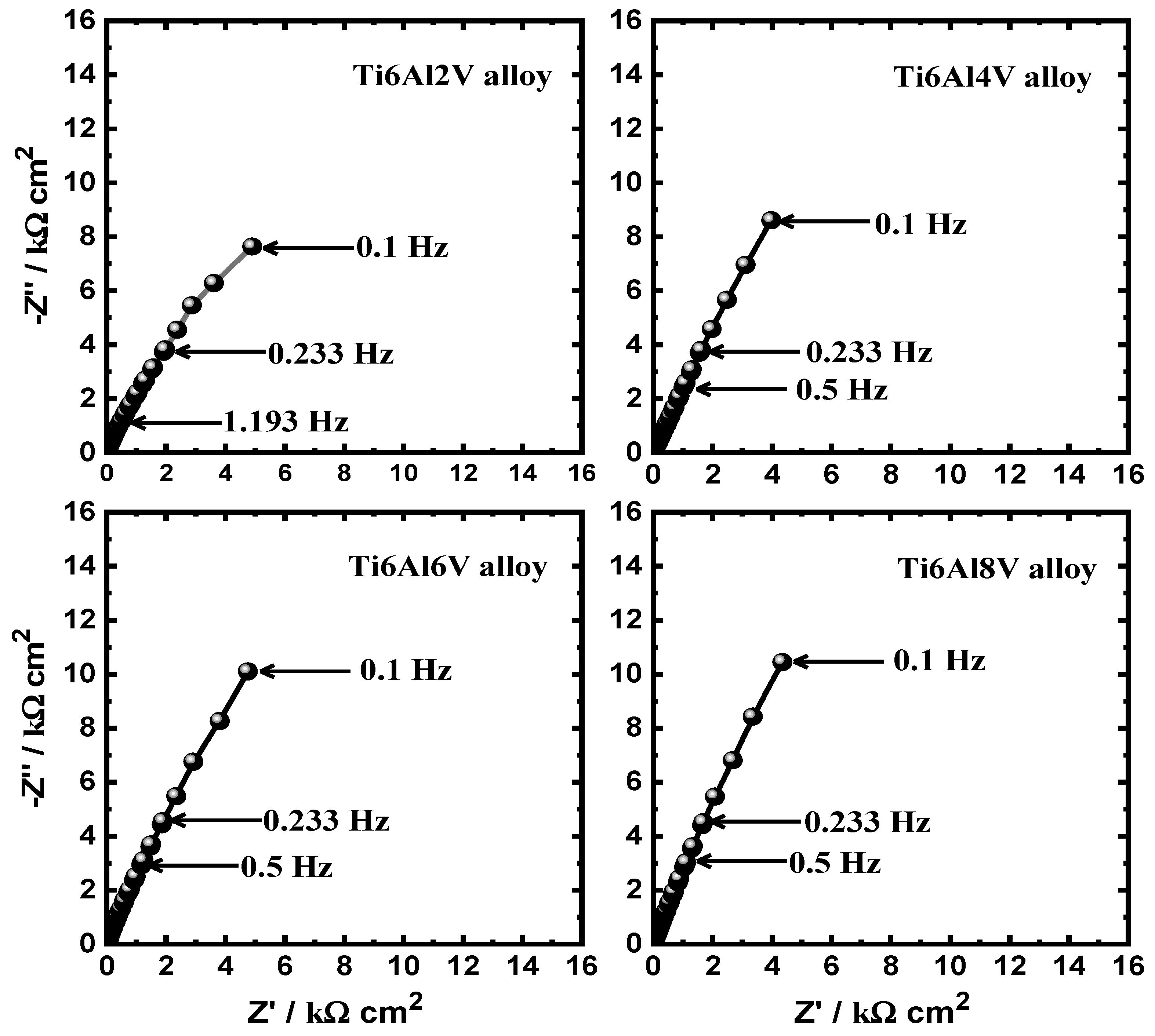

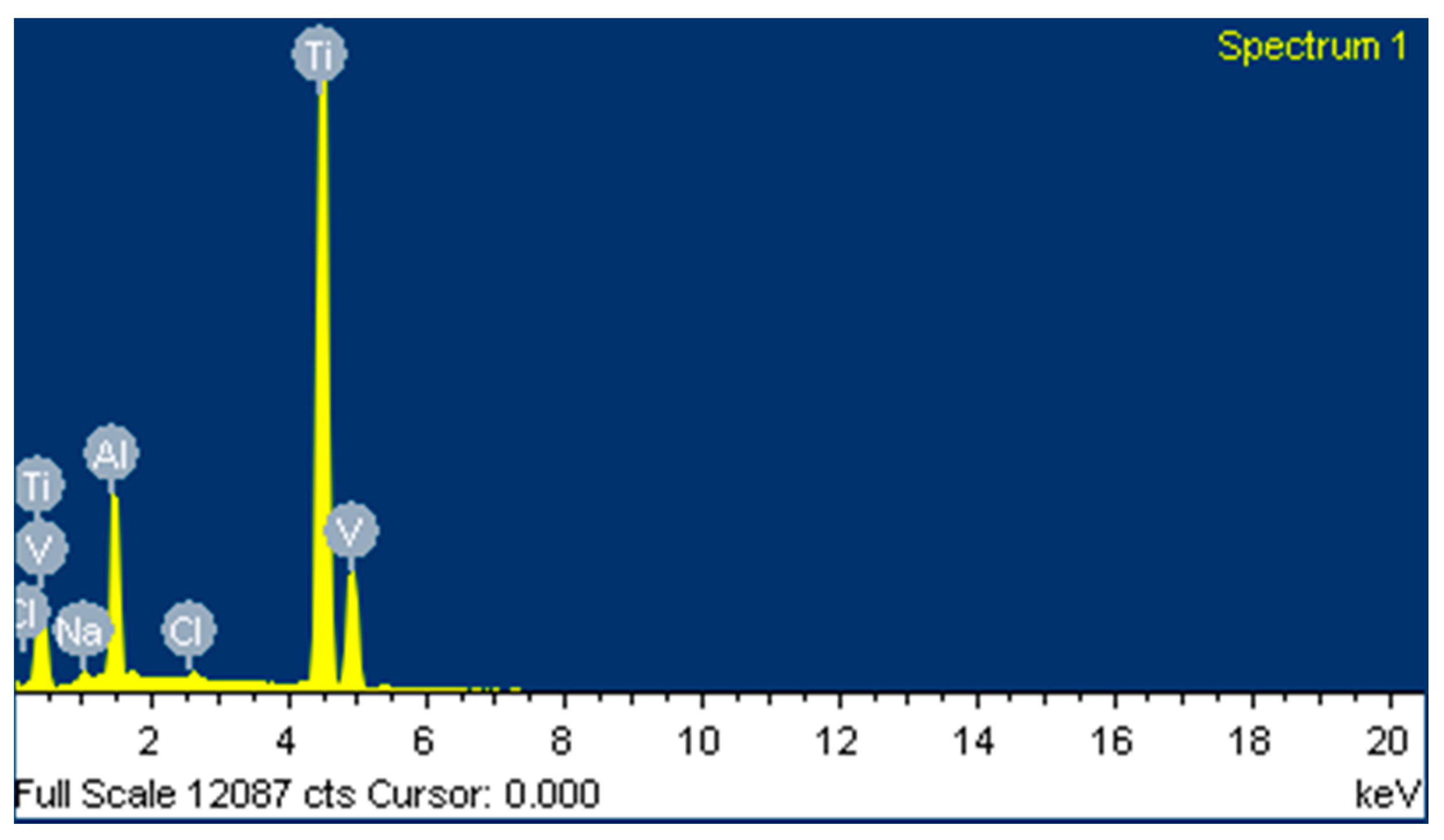

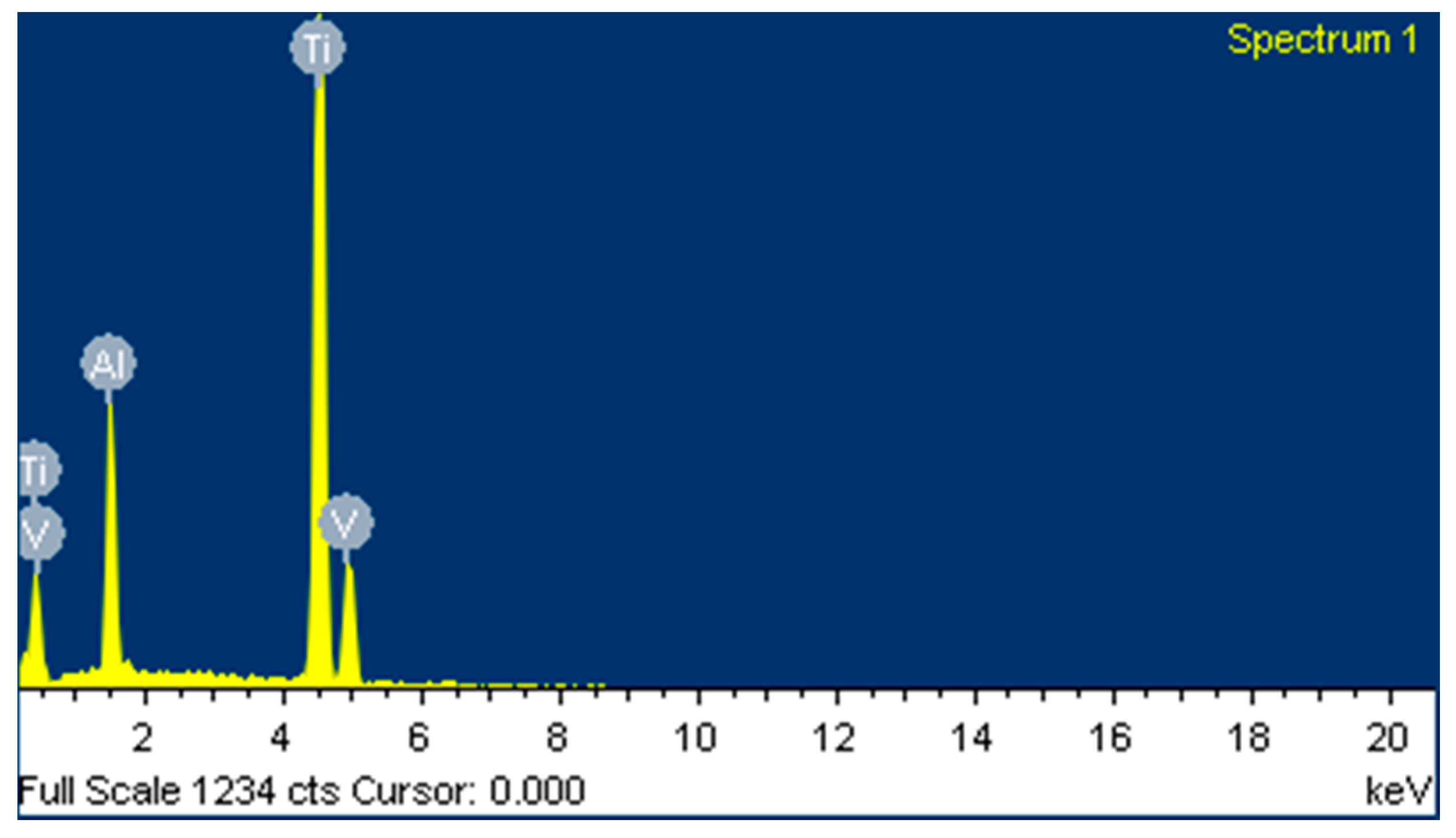

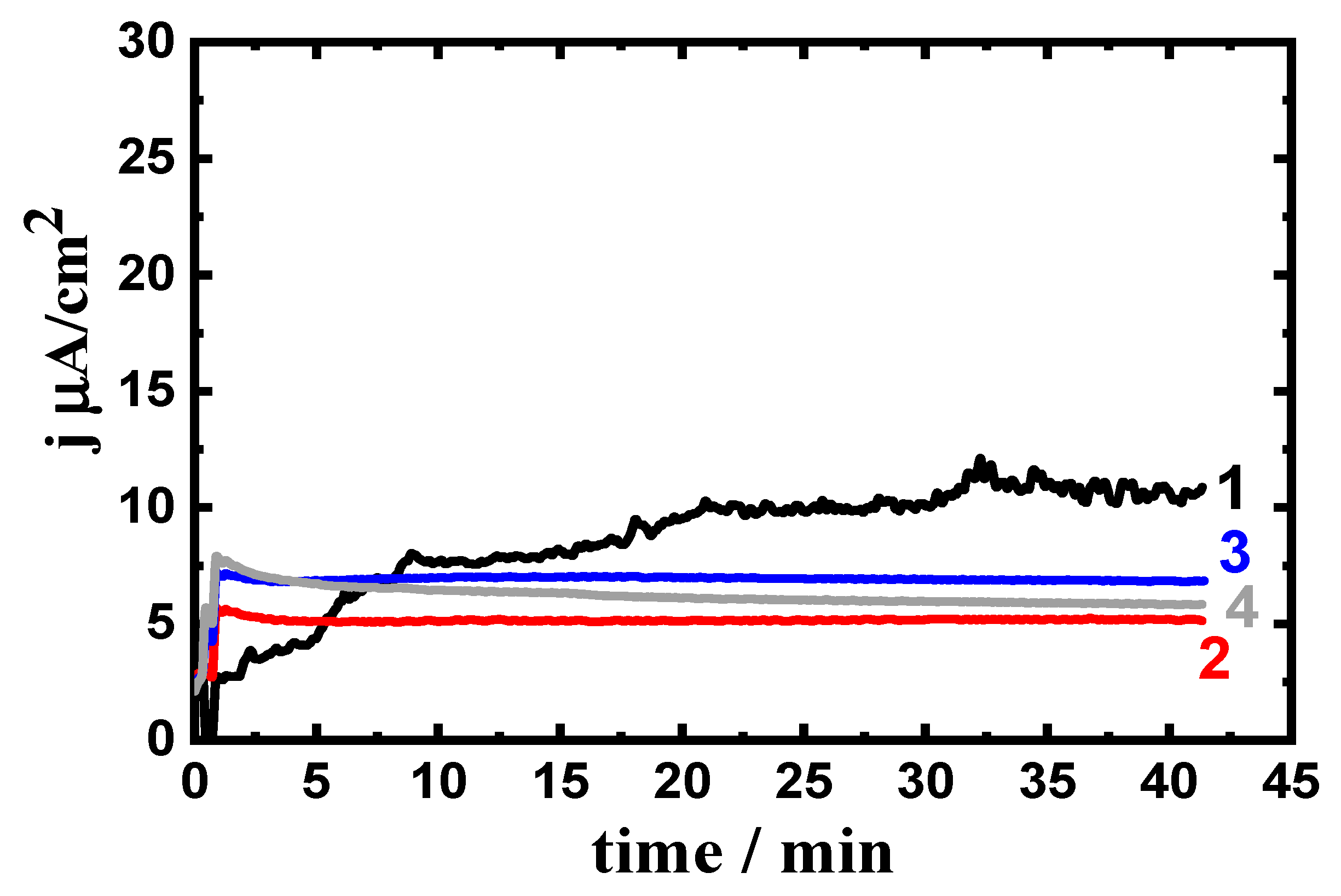

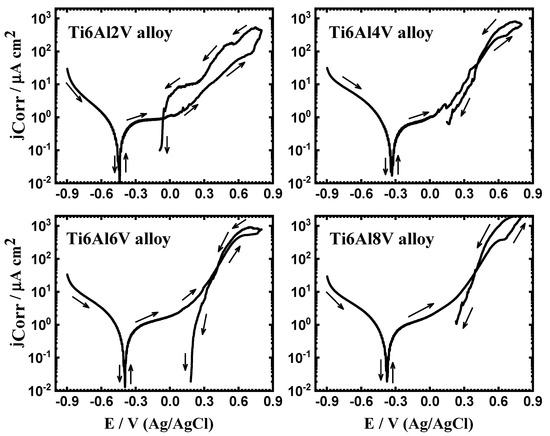

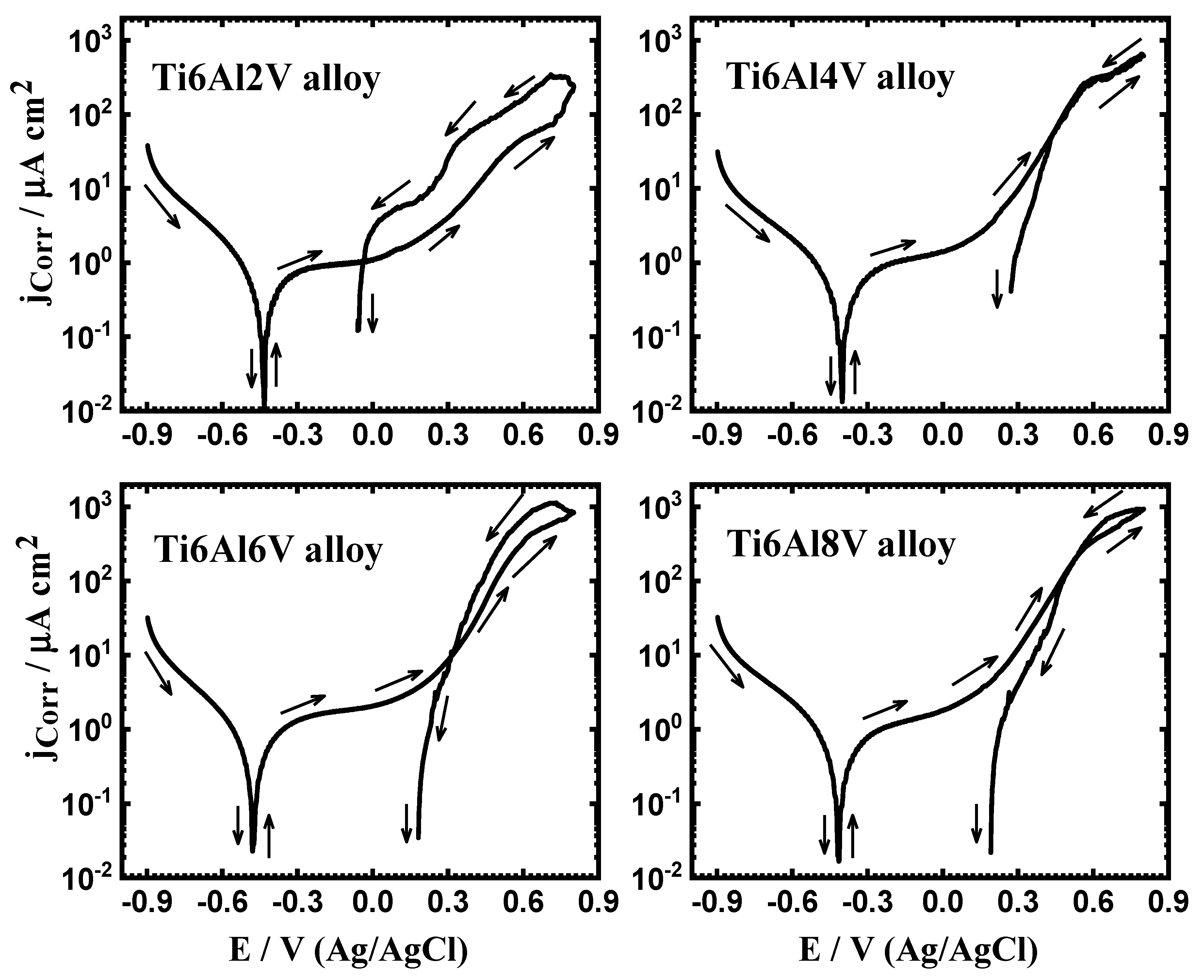

The beneficial effects of V addition on the corrosion of a newly manufactured Ti6AlxV (x = 2 wt %, 4 wt %, 6 wt %, and 8 wt %) alloys after various exposure periods in 3.5% NaCl solutions were reported. The Ti6AlxV were produced from their raw powders using mechanical alloying. Several electrochemical techniques such as electrochemical impedance spectroscopy, cyclic potentiodynamic polarization, and potentiodynamic current versus time at 300 mV experiments were conducted. The surface morphology and the elemental analysis were performed using scanning electron microscopy and energy dispersive X-ray analyses. All results were consistent with each other revealing that the increase of V content increases the resistance of the alloys against corrosion. The increase of corrosion resistance was achieved by the role of V in decreasing the rate of corrosion as a result of the formation of oxide films on the surface of the alloys. This effect was found to increase with prolonging the immersion time of the Ti6AlxV alloys in the test medium from 1 h to 24 h and further to 48 h. View Full-Text
Keywords: TiAlV alloys; corrosion resistance; cyclic polarization; electrochemical impedance spectroscopy; mechanical alloying TiAlV alloys; corrosion resistance; cyclic polarization; electrochemical impedance spectroscopy; mechanical alloying
Show Figures

Graphical abstract

MDPI and ACS Style

Sherif, E.-S.M.; Abdo, H.S.; Alharthi, N.H. Beneficial Effects of Vanadium Additions on the Corrosion of Ti6AlxV Alloys in Chloride Solutions. Metals 2020, 10, 264.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Search more from Scilit

Search
Back to TopTop
