Open AccessFeature PaperArticle
Minerals 2019, 9(2), 92; https://doi.org/10.3390/min9020092

Controls on the Distribution of Invisible and Visible Gold in the Orogenic Gold Deposits of the Yangshan Gold Belt, West Qinling Orogen, China

1
,
1,*
,
1,2
and
1,3,4,5
1
State Key Laboratory of Geological Processes and Mineral Resources, China University of Geosciences, Beijing 100083, China
2
Centre for Exploration Targeting, University of Western Australia, Crawley 6009 WA, Australia
3
Key Laboratory of Mineral Resources, Institute of Geology and Geophysics, Chinese Academy of Sciences, Beijing 100029, China
4
Institutions of Earth Science, Chinese Academy of Sciences, Beijing 100864, China
5
University of Chinese Academy of Sciences, Beijing 100049, China
*
Author to whom correspondence should be addressed.
Received: 11 December 2018 / Revised: 29 January 2019 / Accepted: 1 February 2019 / Published: 4 February 2019
(This article belongs to the Special Issue Polymetallic Metallogenic System)
Full-Text   |   PDF [5972 KB, uploaded 12 February 2019]   |

Abstract

Six orogenic gold deposits constitute the Yangshan gold belt in the West Qinling Orogen. Gold is mostly invisible in solid solution or in the sulfide lattice, with minor visible gold associated with stibnite and in quartz-calcite veins. Detailed textural and trace-element analysis of sulfides in terms of a newly-erected paragenetic sequence for these deposits, together with previously published data, demonstrate that early magmatic-hydrothermal pyrite in granitic dike host-rocks has much higher Au contents than diagenetic pyrite in metasedimentary host rocks, but lower contents of As, Au, and Cu than ore-stage pyrite. Combined with sulfur isotope data, replacement textures in the gold ores indicate that the auriferous ore-fluids post-dated the granitic dikes and were not magmatic-hydrothermal in origin. There is a strong correlation between the relative activities of S and As and their total abundances in the ore fluid and the siting of gold in the Yangshan gold ores. Mass balance calculations indicate that there is no necessity to invoke remobilization processes to explain the occurrence of gold in the ores. The only exception is the Py1-2 replacement of Py1m, where fluid-mediated coupled dissolution-reprecipitation reactions may have occurred to exchange Au between the two pyrite phases. View Full-Text
Keywords: invisible gold; visible gold; LA-ICP-MS; Yangshan gold belt; West Qinling invisible gold; visible gold; LA-ICP-MS; Yangshan gold belt; West Qinling
Figures

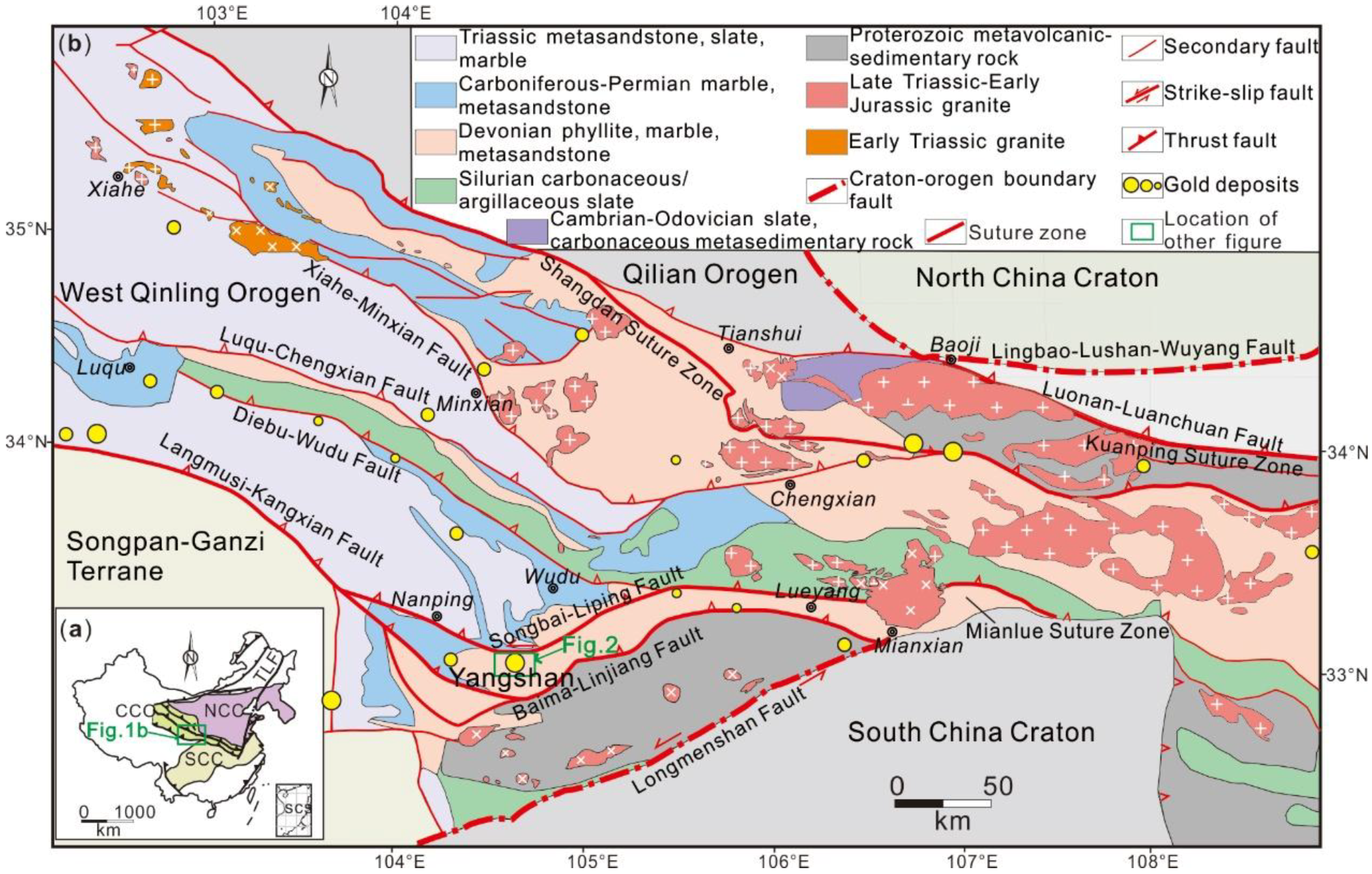

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Supplementary material

SciFeed

Share & Cite This Article

MDPI and ACS Style

Li, N.; Deng, J.; Groves, D.I.; Han, R. Controls on the Distribution of Invisible and Visible Gold in the Orogenic Gold Deposits of the Yangshan Gold Belt, West Qinling Orogen, China. Minerals 2019, 9, 92.
