Open AccessArticle
Minerals 2019, 9(1), 44; https://doi.org/10.3390/min9010044

Influence of High Conductive Magnetite Impurity on the Electrical Conductivity of Dry Olivine Aggregates at High Temperature and High Pressure

1
Key Laboratory of High-temperature and High-pressure Study of the Earth’s Interior, Institute of Geochemistry, Chinese Academy of Sciences, Guiyang, Guizhou 550002, China
2
University of Chinese Academy of Sciences, Beijing 100039, China
*
Authors to whom correspondence should be addressed.
Received: 27 December 2018 / Revised: 7 January 2019 / Accepted: 11 January 2019 / Published: 13 January 2019
Full-Text   |   PDF [4342 KB, uploaded 13 January 2019]   |

Abstract

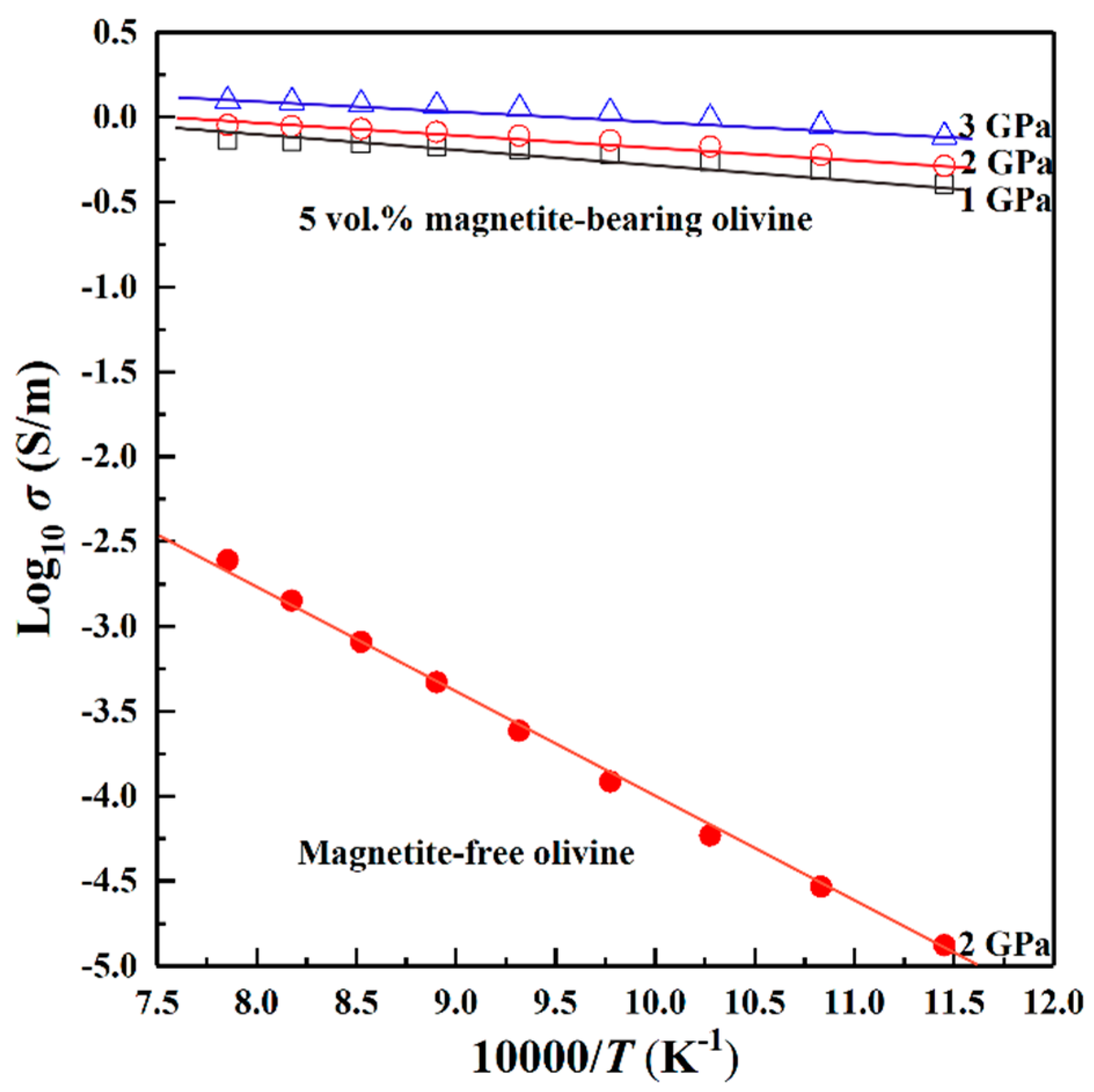

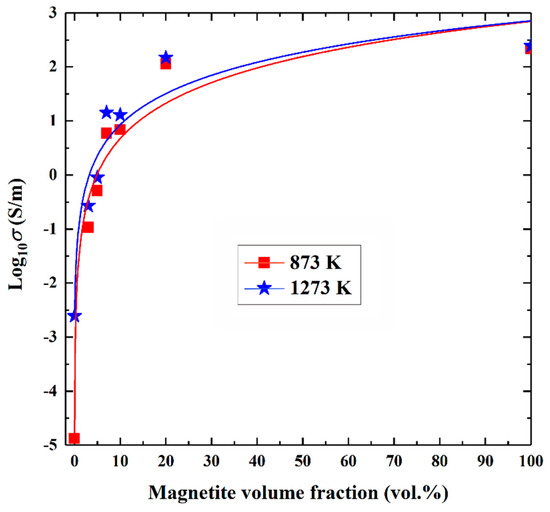

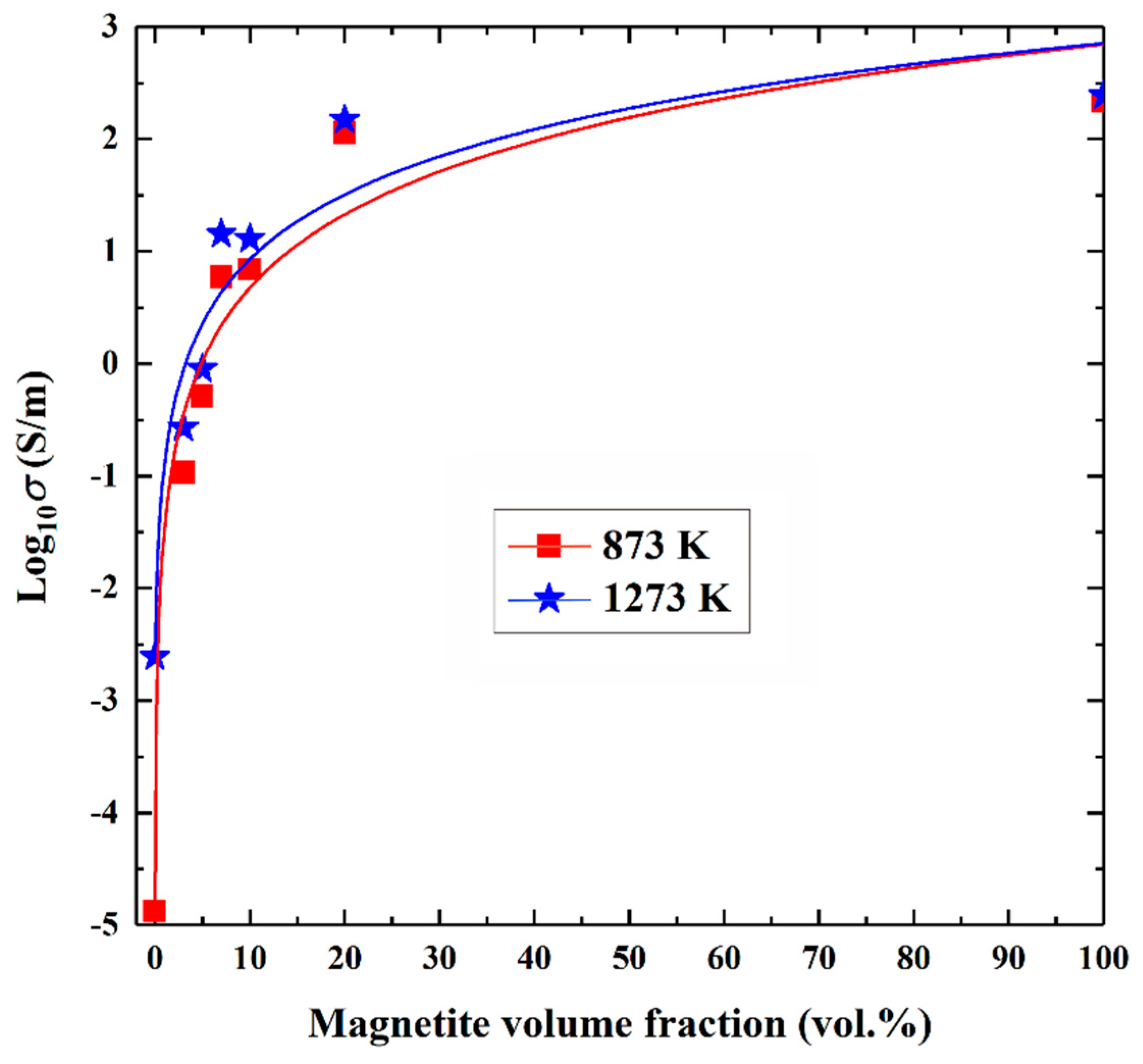

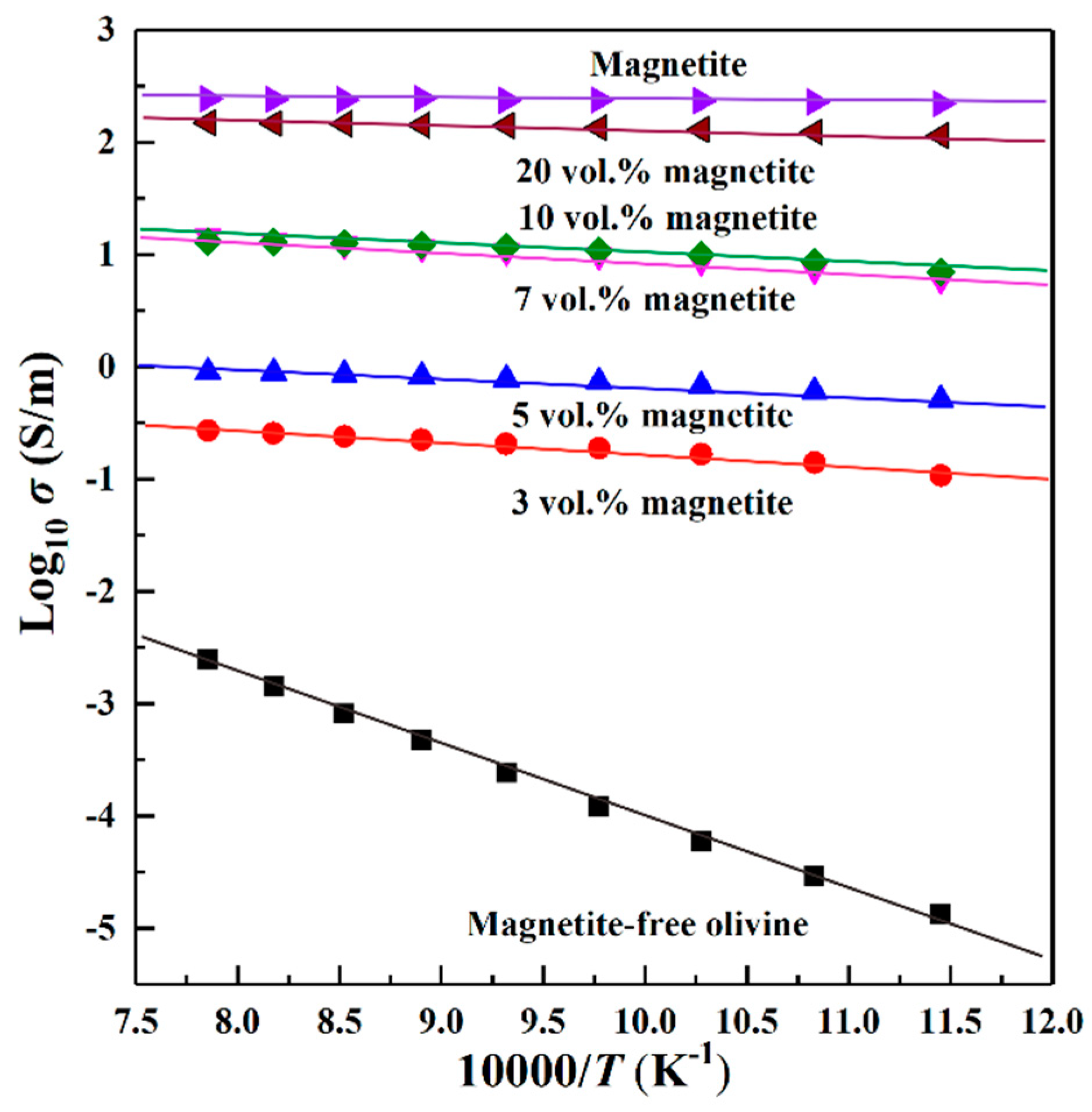

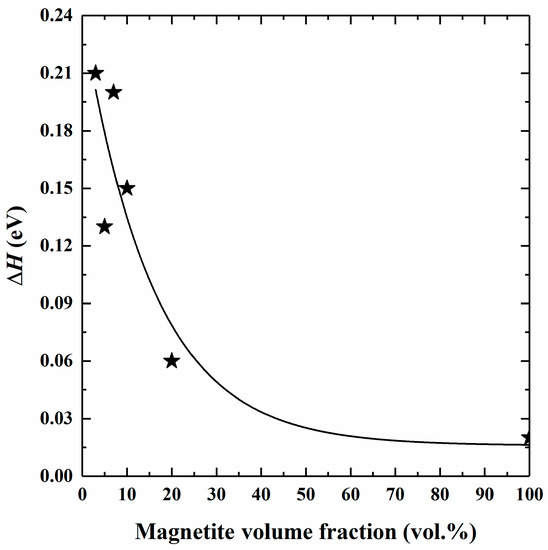

The electrical conductivity of dry sintered olivine aggregates with various contents of magnetite (0, 3, 5, 7, 10, 20, and 100 vol. %) was measured at temperatures of 873–1273 K and a pressure of 2.0 GPa within a frequency range of 0.1–106 Hz. The changes of the electrical conductivity of the samples with temperature followed an Arrhenius relation. The electrical conductivity of the sintered olivine aggregates increased as the magnetite-bearing content increased, and the activation enthalpy decreased, accordingly. When the content of interconnected magnetite was higher than the percolation threshold (~5 vol. %), the electrical conductivity of the samples was markedly enhanced. As the pressure increased from 1.0 to 3.0 GPa, the electrical conductivity of the magnetite-free olivine aggregates decreased, whereas the electrical conductivity of the 5 vol. % magnetite-bearing sample increased. Furthermore, the activation energy and activation volume of the 5 vol. % magnetite-bearing sintered olivine aggregates at atmospheric pressure were calculated to be 0.16 ± 0.04 eV and −1.50 ± 0.04 cm3/mole respectively. Due to the high value of percolation threshold (~5 vol. %) in the magnetite impurity sample, our present results suggest that regional high conductivity anomalies in the deep Earth’s interior cannot be explained by the presence of the interconnected magnetite-bearing olivine aggregates. View Full-Text
Keywords: electrical conductivity; magnetite; olivine aggregates; percolation threshold; high temperature and high pressure electrical conductivity; magnetite; olivine aggregates; percolation threshold; high temperature and high pressure
Figures

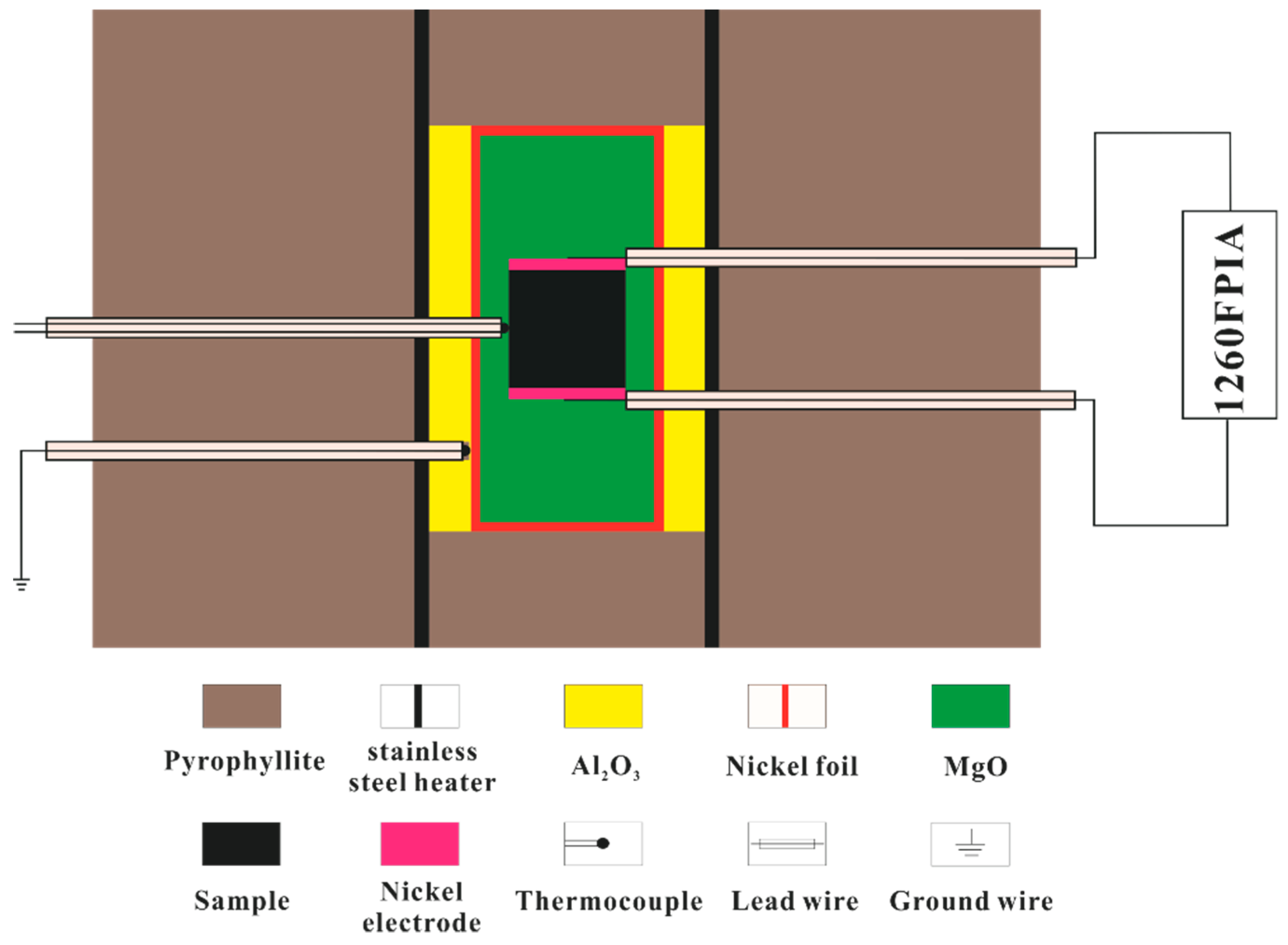

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
