Basin Evolution and Massive Sulfide Deposition at Rammelsberg (Germany): Updating the Subsidence Analysis
Abstract
:1. Introduction

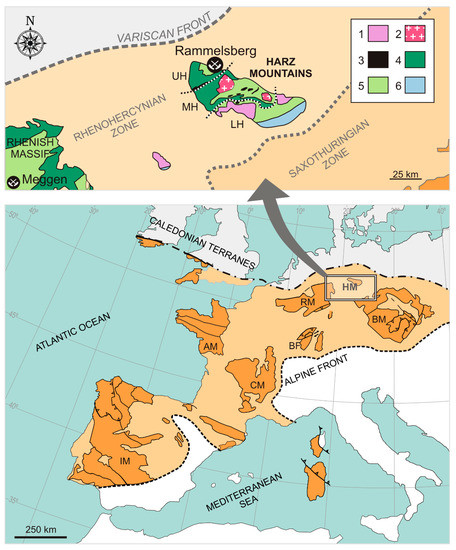

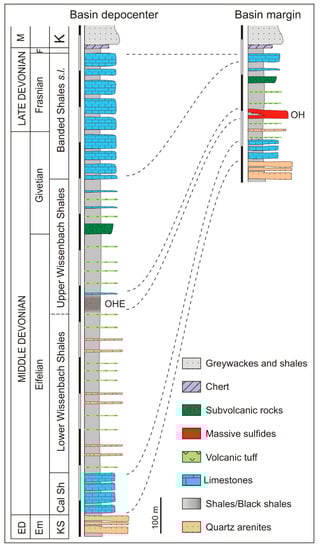

2. Geological Setting

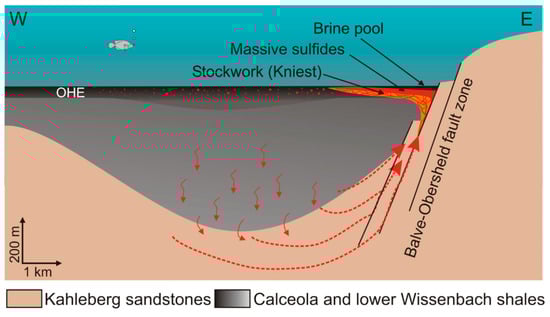

3. Rammelsberg Deposit
4. Methodology

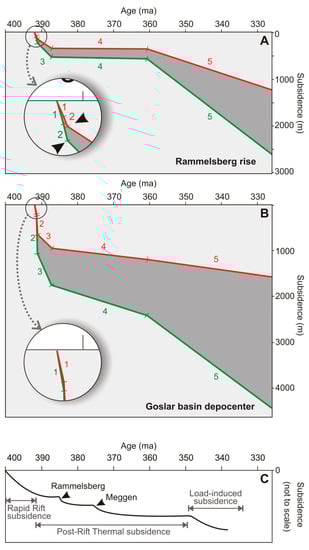

5. Subsidence Analysis
6. Conclusions
- (1)
- The subsidence analysis of the Goslar basin here presented was performed using data from two different paleogeographic scenarios: the depocenter and the basin margin (Rammelsberg location). A detailed revision of the sedimentological, biostratigraphic, and paleogeographic characteristics of the basin were essential for the accurate construction of the curves in both localities.
- (2)
- The two subsidence curves contain initial short and steep stages that become moderately steep and longer at the end. In detail, both curves are composed of five stages that embrace the entire geodynamic and depositional history of the Goslar basin. Stage 1 represents a rapid tectonic subsidence event linked to the basin break-up. Stage 2 defines a second, more rapid subsidence event that promoted the disparate geodynamic behavior between depocenter and basin margin. At the depocenter, the subsidence was caused by the combined effects of tectonic and sediment load. At the basin margin, the subsidence was tectonic and thermal in origin. Stage 3 is characterized by the deceleration of the tectonic effect in the generation of accommodation space. The main subsidence mechanism in the Goslar depocenter was the sediment load. In the Rammelsberg rise, the subsidence was caused by tectonic and thermal mechanisms, with very scarce participation of the sediment load. Stage 4 represents a quiescent tectonic period. At the basin margin the accommodation was virtually negligible, while at the depocenter the very slow subsidence was mostly caused by sediment load. Finally, during stage 5 the accommodation rate increased in response to deposition of the vast Culm flysch sequence.
- (3)
- The Rammelsberg massive sulfide deposit is located at the boundary between stage 2 and 3, exactly at the inflexion point of the basin margin curve. Its origin is associated with the second and more drastic subsidence event located in stage 2.
- (4)
- This is the first time that a rapid subsidence event is proposed as a trigger mechanism for the activation of the hydrothermal system and for the seismic pumping that transported metal-enriched fluids from reservoir to the seafloor.
- (5)
- Taking apart the environmental conditions of the Goslar basin, the most critical parameter in the generation of the ore deposit was the relation between mineralizing fluid supply and accommodation rate. At the Rammelsberg shoulder, the sedimentation rate favored the generation and preservation of massive sulfides, whereas at the depocenter, the accumulation rate was so high, and the fluid supply so low, that the sulfides were disseminated.
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Ruffell, A.H.; Moles, N.R.; Parnell, J. Characterisation and prediction of sediment-hosted ore deposits using sequence stratigraphy. Ore Geol. Rev. 1998, 12, 207–223. [Google Scholar] [CrossRef]
- Maynard, J.B.; Klein, G.D. Tectonic subsidence analysis in the characterization of sedimentary ore deposits: Examples from the Witwatersrand (Au), White Pine (Cu), and Molango (Mn). Econ. Geol. 1995, 90, 37–50. [Google Scholar] [CrossRef]
- Large, D.E. The Palaeotectonic setting of Rammelsberg and Meggen, Germany—A basin analysis study. In The Genesis of Stratiform Sediment-Hosted Lead and Zinc Deposits: Conference Proceedings; Turner, R.J.W., Einaudi, M.T., Eds.; Stanford University Publications, Geological Sciences: Stanford, CA, USA, 1986; Volume 20, pp. 109–113. [Google Scholar]
- Van Wagoner, J.C.; Posamentier, H.W.; Mitchum, R.M., Jr.; Vail, P.R.; Sarg, J.F.; Loutit, T.S.; Hardenbol, J. An overview of the fundamentals of Sequence Stratigraphy and key definitions. In Sea-Level Changes: An Integrated Approach; Wilgus, C.K., Hastings, B.S., Kendall, C.G.S.C., Posamentier, H.W., Ross, C.A., Van Wagoner, J.C., Eds.; Special Publications of SEPM: Tulsa, OK, USA, 1988; Volume 42, pp. 39–46. ISBN 0-918985-74-9. [Google Scholar]
- Jervey, M.T. Quantitative geological modeling of siliciclastic rock sequences and their seismic expression. In Sea-Level Changes—An Integrated Approach; Wilgus, C.K., Hastings, B.S., Kendall, C.G.S.C., Posamentier, H.W., Ross, C.A., Van Wagoner, J.C., Eds.; Special Publications of SEPM: Tulsa, OK, USA, 1988; Volume 42, pp. 47–69. [Google Scholar]
- Einsele, G. Sedimentary Basins. Evolution, Facies and Sediment Budget, 2nd ed.; Springer: Berlin/Heidelberg, Germany, 2000; ISBN 978-3-642-08544-4. [Google Scholar]
- Naylor, M.; Sinclair, H.D. Pro-versus retro-foreland Basins. Basin Res. 2008, 20, 285–303. [Google Scholar] [CrossRef]
- Xie, X.; Heller, P. Plate tectonics and basin subsidence history. Geol. Soc. Am. Bull. 2009, 121, 55–64. [Google Scholar] [CrossRef]
- Heine, C.; Müller, D.; Steinberger, B.; Torsvik, T.H. Subsidence in intracratonic basins due to dynamic topography. Phys. Earth Planet. Int. 2008, 171, 252–264. [Google Scholar] [CrossRef]
- Perrodon, A.; Masse, P. Subsidence, sedimentation and petroleum systems. J. Petrol. Geol. 1984, 7, 5–26. [Google Scholar] [CrossRef]
- Ramos, A.; Sopeña, A.; Sánchez-Moya, Y.; Muñoz, A. Subsidence analysis, maturity modeling, and hydrocarbon generation of the Alpine sedimentary sequence in the NW of the Iberian Ranges, Central Spain. Cuad. Geol. Iber. 1996, 21, 23–53. [Google Scholar]
- Escalona, A.; Mann, P. Sequence stratigraphic analysis of Eocene clastic foreland basin deposits in central Lake Maracaibo using high-resolution well correlation and 3D seismic data. AAPG Bull. 2006, 90, 581–624. [Google Scholar] [CrossRef]
- Bjorlykke, K. Petroleum Geoscience. From Sedimentary Environments to Rock Physics, 2nd ed.; Springer: Berlin/Heidelberg, Germany, 2015; ISBN 978-3-642-34131-1. [Google Scholar]
- Wood, A.M.; Paton, D.A.; Collier, R.E.L. The missing complexity in seismically imaged normal faults: What are the implications for geometry and production response. In Industrial Structural Geology: Principles, Techniques and Integration; Richards, F.L., Richardson, N.J., Rippington, S.J., Wilson, R.W., Bond, C.E., Eds.; The Geological Society Publishing House: Bath, UK, 2015; Volume 421, pp. 213–230. ISBN 978-1-86239-730-9. [Google Scholar]
- Hawkes, A.D.; Scott, D.B.; Lipps, J.; Combellick, R. Evidence for possible precursor events of megathrust earthquakes on the west coast of North America. Geol. Soc. Am. Bull. 2005, 117, 996–1008. [Google Scholar] [CrossRef]
- Brodsky, E.E.; Lajoie, L.J. Anthropogenic seismicity rates and operational parameters at the Salton Sea geothermal field. Science 2013, 341, 543–546. [Google Scholar] [CrossRef]
- Suresh Krishnan, P.V.; Duk-Jim, K.; Jungkyo, J. Subsidence in the Kathmandu Basin, before and after the 2015 Mw 7.8 Gorkha Earthquake, Nepal Revealed from Small Baseline Subset-DInSAR Analysis. GISci. Remote Sens. 2018, 55, 604–621. [Google Scholar]
- Cui, Z.D. Land Subsidence Induced by the Engineering-Environmental Effect; Springer Nature Singapore Private Limited: Singapore, 2018; ISBN 978-981-10-8040-1. [Google Scholar]
- Leach, D.L.; Sangster, D.F.; Kelley, K.D.; Large, R.R.; Garven, G.; Allen, C.R.; Gutzmer, J.; Walters, S. Sediment-Hosted Lead-Zinc Deposits: A Global Perspective. Econ. Geol. 2005, 100, 561–609. [Google Scholar]
- Clout, J.M.F.; Simonson, B.M. Precambrian Iron Formation and Iron Formation-Hosted Iron Ore Deposits. In Economic Geology 100th Anniversary Volume; Hedenquist, J.W., Thompson, J.F.H., Goldfarb, R.J., Richards, J.P., Eds.; Economic Geology: New Haven, CT, USA, 2005; pp. 643–679. [Google Scholar]
- Altermann, W.; Nelson, D.R. Sedimentation rates, basin analysis and regional correlations of three Neoarchaean and Palaeoproterozoic sub-basins of the Kaapvaal Craton, Northern Cape Province, South Africa. Sediment. Geol. 1998, 120, 225–256. [Google Scholar] [CrossRef]
- Large, D.E. The evaluation of sedimentary basins for massive sulfide mineralization. In Base Metal Sulfide Deposits; Friedrich, G.H., Herzig, P.M., Eds.; Springer: Berlin/Heidelberg, Germany, 1988; pp. 2–11. [Google Scholar]
- McKenzie, D. Some remarks on the development of sedimentary basins. Earth Planet. Sci. Lett. 1978, 40, 25–32. [Google Scholar] [CrossRef] [Green Version]
- Paola, C. Quantitative models of sedimentary basin filling. Sedimentology 2000, 47, 121–178. [Google Scholar] [CrossRef]
- Vilas, L.; Martín-Chivelet, J.; Arias, C. Integration of subsidence and sequence stratigraphic analyses in the Cretaceous carbonate platforms of the Prebetic (Jumilla-Yecla Region), Spain. Palaeogeogr. Palaeoclimatol. Palaeoecol. 2003, 200, 107–129. [Google Scholar] [CrossRef]
- Cacace, M.; Bayer, U.; Marotta, A.M.; Lempp, C. Driving mechanisms for basin formationand evolution. In Dynamics of Complex Sedimentary Basins. The Example of the Central European Basin System; Littke, R., Bayer, U., Gajewsky, D., Nelskamp, S., Eds.; Springer: Berlin/Heidelberg, Germany, 2008; pp. 35–66. ISBN 978-3-540-85085-4. [Google Scholar]
- Berra, F.; Carminati, E. Subsidence history from backstripping analysis of the Permo-Mesozoic succession of the Central Southern Alps (Northern Italy). Basin Res. 2010, 22, 952–975. [Google Scholar] [CrossRef]
- Angevine, C.L.; Heller, P.L.; Paola, C. Quantitative Sedimentary Basin Modeling; AAPG Continuing Education Course Note; American Association of Petroleum Geologists: Tulsa, OK, USA, 1990; Volume 32. [Google Scholar] [CrossRef]
- Mueller, A.G. The Rammelsberg Shale-Hosted Cu-Zn-Pb Sulfide and Barite Deposits, Germany: Linking Sedex and Kuroko-Type Massive Sulfides; Slide Presentation and Explanatory Notes. Available online: https://www.e-sga.org/fileadmin/sga/Mineral_Deposit_Archive/Rammelsberg/Rammelsberg_SGA_ MDA.pdf (accessed on 24 December 2018).
- Tanner, D.C.; Krawczyk, C.M. Restoration of the Cretaceous uplift of the Harz Mountains, North Germany: Evidence for the geometry of a thick-skinned thrust. Int. J. Earth Sci. 2017, 106, 2963–2972. [Google Scholar] [CrossRef]
- Quinn, D.; Meere, P.A.; Wartho, J.A. A chronology of foreland deformation: Ultra-violet laser 40Ar/39Ar dating of syn/late-orogenic intrusions from the Variscides of southwest Ireland. J. Struct. Geol. 2005, 27, 1413–1425. [Google Scholar] [CrossRef]
- Kroner, U.; Mansy, J.L.; Mazur, S.; Aleksandrowski, P.; Hann, H.P.; Huckriede, H.; Lacquement, F.; Lamarche, J.; Ledru, P.; Pharao, T.C.; et al. Variscan tectonics. In The Geology of Central Europe. Volume 1: Precambrian and Palaeozoic; McCann, T., Ed.; Geological Society: London, UK, 2008; pp. 559–664. ISBN 9781862392465. [Google Scholar]
- Werner, W. Synsedimentary faulting and sediment-hosted submarine-hydrothermal mineralization in the late paleozoic Rhenish Basin (Germany). Geotechnol. Res. 1989, 71, 309. [Google Scholar]
- Sawkins, F.J. Extensional tectonics and mid-Paleozoic massive sulfide occurrences in Europe. Geol. Rundsch. 1980, 69, 849–860. [Google Scholar] [CrossRef]
- Muchez, P.; Heijlen, W.; Banks, D.; Blundell, D. Extensional tectonics and the timing and formation of basin-hosted deposits in Europe. Ore Geol. Rev. 2005, 27, 241–267. [Google Scholar] [CrossRef]
- Franke, W. The Mid-European Segment of the Variscides: Tectonostratigraphic Units, Terrane Boundaries and Plate Tectonic Evolution; Geological Society, Special Publications: London, UK, 2000; Volume 179, pp. 35–61. [Google Scholar]
- Matte, P. Tectonics and plate tectonics model of the Variscan belt of Europe. Tectonophysics 1986, 126, 329–374. [Google Scholar] [CrossRef]
- Sáez, R.; Moreno, C.; González, F.; Almodóvar, G.R. Black shales and massive sulfide deposits: Causal or casual relationships? Insights from Rammelsberg, Tharsis and Draa Sfar. Miner. Depos. 2011, 46, 585–614. [Google Scholar]
- Large, D.E.; Walcher, E. The Rammelsberg massive sulphide Cu–Zn–Pb–Ba-deposit, Germany: An example of sediment-hosted, massive sulphide mineralisation. Miner. Depos. 1999, 34, 522–538. [Google Scholar] [CrossRef]
- Buchholz, P.; Luppold, F.W. Litho-und Biostratigrafie des älteren Mitteldevons im Oberharz. Z. Ges. Geowiss. 2008, 159, 263–281. [Google Scholar]
- Hannak, W.W. Genesis of the Rammelsberg ore deposit near Goslar/Upper Harz, Federal Republic of Germany. In Handbook of Stratabound and Stratiform Ore Deposits; Wolf, K.H., Ed.; Elsevier: Amsterdam, The Nederland, 1981; Volume 9, pp. 551–642. ISBN 10 0444414045. [Google Scholar]
- Sperling, H. Das Neue Lager der Blei-Zink-Erzlagerstätte Rammelsberg. Geol. Jahrb. 1986, 85, 5–177. [Google Scholar]
- Abt, W. Ein Beitrag Zur Kenntnis Der Erzlagerstatte Des Rammelsberges Aufgrund von Spezialuntersuchungen Der Tuffe Und Der Tektonik. Z. Geol. Ges. 1958, 110, 152–204. [Google Scholar]
- Sperling, H.; Walcher, E. Die Blei-Zink-Erzlagerstätte Rammelsberg. Geol. Jahrb. 1990, D91, 1–153. [Google Scholar]
- Sangster, D.F. The role of dense brines in the formation of vent-distal sedimentary-exhalative (SEDEX) lead-zinc deposits: Field and laboratory evidence. Miner. Depos. 2002, 37, 149–157. [Google Scholar] [CrossRef]
- Sangster, D.F. Mississippi Valley-type and sedex lead-zinc deposits: A comparative examination. Trans. Inst. Min. Metall. B 1990, 99, B21–B42. [Google Scholar]
- Anger, G.; Nielsen, H.; Puchelt, H.; Ricke, W. Sulfur isotopes in the Rammelsberg ore deposit. Econ. Geol. 1966, 61, 511–536. [Google Scholar] [CrossRef]
- Eldridge, C.S.; Compston, W.; Williams, I.S.; Both, R.A.; Walshe, J.L.; Ohmoto, H. Sulfur isotope variability in sediment-hosted massive sulfide deposits as determined using the ion microprobe Shrimp: I. An example from the Rammelsberg orebody. Econ. Geol. 1988, 83, 443–449. [Google Scholar] [CrossRef]
- Nielsen, H. Sulfur isotope ratios in stratabound mineralizations in central Europe. Geol. Jahrb. 1985, D70, 225–262. [Google Scholar]
- Lévêque, J.; Haack, U. Pb isotopes of hydrothermal ores in the Harz. SGA Monogr. Ser. Miner. Depos. 1993, 30, 197–210. [Google Scholar]
- Meier, H. Über die Bedeutung der Os-187 Anomalie des Rammelsberger Erzes für die Bildung der Rammelsberger Lagerstätte. Erzmetall 1974, 27, 482–485. [Google Scholar]
- Steckler, M.S.; Watts, A.B. Subsidence of the Atlantic-type Continental Margin off New York. Earth Planet. Sci. Lett. 1978, 41, 1–13. [Google Scholar] [CrossRef]
- Van Hinte, J.E. Geohistory Analysis—Application of Micropaleontology in exploration geology. AAPG Bull. 1978, 62, 201–222. [Google Scholar]
- Sclater, J.G.; Christie, P. Continental stretching: An explanation of the Post-Mid-Cretaceous Subsidence of the Central North Sea Basin. J. Geophys. Res. Atmos. 1980, 85, 3711–3739. [Google Scholar] [CrossRef]
- Bond, G.C.; Kominz, M.A. Construction of tectonic subsidence curves for the early Paleozoic miogeosyncline, southern Canadian Rocky Mountains: Implications for subsidence mechanisms, age of breakup and crustal thinning. Geol. Soc. Am. Bull. 1984, 95, 155–173. [Google Scholar] [CrossRef]
- Allen, P.A.; Allen, J.R. Basin Analysis: Principles and Application to Petroleum Play Assessment; Wiley-Blackwell: Hoboken, NJ, USA, 2009; ISBN 978-1-444-30920-1. [Google Scholar]
- Hölzel, M.; Wagreich, M.; Faber, R.; Strauss, P. Regional subsidence analysis in the Vienna Basin (Austria). Aust. J. Earth Sci. 2008, 101, 88–98. [Google Scholar]
- Weddige, K. (Ed.) Devon-Korrelationstabelle. In Senckenbergiana Lethaea; Springer-Verlag: Berlin, Germany, 1996; Volume 76, pp. 267–286. [Google Scholar]
- Weddige, K. Nomenclatorical note. Rev. Esp. Micropalentol. 2003, 35, 383. [Google Scholar]
- Kaufmann, B. Calibrating the Devonian Time Scale: A synthesis of U–Pb ID–TIMS ages and conodont stratigraphy. Earth Sci. Rev. 2006, 76, 175–190. [Google Scholar] [CrossRef]
- Menning, M.; Alekseev, A.S.; Chuvashov, B.I.; Davydov, V.I.; Devuyst, F.-X.; Forke, H.C.; Grunt, T.A.; Hance, L.; Heckel, P.H.; Izokh, N.G.; et al. Global time scale and regional stratigraphic reference scales of Central and West Europe, East Europe, Tethys, South China, and North America as used in the Devonian–Carboniferous–Permian Correlation Chart 2003 (DCP 2003). Palaeogeogr. Palaeoclimatol. Palaeoecol. 2006, 240, 318–372. [Google Scholar] [CrossRef]
- Dallmeyer, R.D.; Franke, W.; Weber, K. (Eds.) Pre-Permian Geology of Central and Eastern Europe; Springer: Berlin/Heidelberg, Germany, 1995; ISBN 978-3-642-77518-5. [Google Scholar]
- Vannucchi, P.; Sak, P.B.; Morgan, J.P.; Ohkushi, K.; Ujiie, K. The IODP Expedition 334 Shipboard Scientists; Rapid pulses of uplift, subsidence, and subduction erosion offshore Central America: Implications for building the rock record of convergent margins. Geology 2013, 41, 995–998. [Google Scholar] [CrossRef]
- Muchez, P.; Heijlen, W. Origin and migration of fluids during the evolution of sedimentary basins and the origin of Zn-Pb deposits in Western and Central Europe. J. Geochem. Explor. 2003, 78–79, 553–557. [Google Scholar] [CrossRef]
- Werner, W. Examples of structural control of hydrothermal mineralization: Fault zones in epicontinental sedimentary basins—A review. Geol. Rundsch. 1990, 79, 279–290. [Google Scholar] [CrossRef]
Stages | Time Span (ma) | Stratigraphic Units | Rammelsberg Ridge | Goslar Depocenter | ||||
---|---|---|---|---|---|---|---|---|
AC (cm/ka) | Accommodation Mechanisms | Tec. (%) | AC (cm/ka) | Accommodation Mechanisms | Tec. (%) | |||
5 | 34.7 | Culm related units | 5.9 | Sediment load and tectonic | 43 | 5.9 | Sediment load and tectonic | 19 |
4 | 26.5 | Banded Shales s.l. | 0.1 | Sediment load + tectonic (minimal) | 45 | 2.5 | Sediment load and tectonic | 37 |
3 | 3.9 | Upper Wissenbach Shales | 7.7 | Tectonic and thermal flux | 63 | 17.4 | Sediment load and tectonic | 43 |
2 | 0.3 | Lower Wissenbach Shales | 34.1 | Tectonic and thermal flux | 62 | 271.5 | Tectonic and Sediment load | 58 |
1 | 0.6 | Calceola Shales | 24.5 | Mainly tectonic | 70 | 53.9 | Mainly tectonic | 70 |
