Next Article in Journal
Control of Organic Superconducting Field-Effect Transistor by Cooling Rate
Previous Article in Journal
A Fundamental Reason for the Need of Two Different Semiconductor Technologies for Complementary Thin-Film Transistor Operations
Open AccessArticle

Evolution of Microstructure, Texture and Topography during Cold Rolling and Recrystallization of Ni–5at.%W Alloy Substrate for Coated Conductors

1
Key Laboratory of Advanced Functional Materials, Ministry of Education, College of Materials Science and Engineering, Beijing University of Technology, 100 Pingleyuan, Chaoyang District, Beijing 100124, China
2
Institute of Electrical Engineering, Chinese Academy of Sciences, Beijing 100190, China
*
Author to whom correspondence should be addressed.
Crystals 2019, 9(11), 604; https://doi.org/10.3390/cryst9110604
Received: 2 October 2019 / Revised: 14 November 2019 / Accepted: 15 November 2019 / Published: 18 November 2019

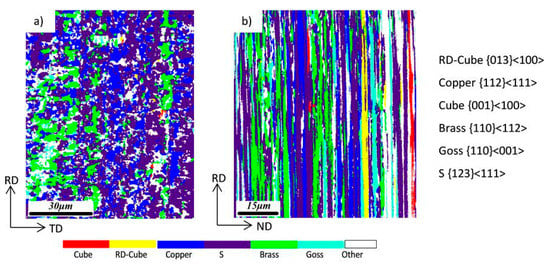

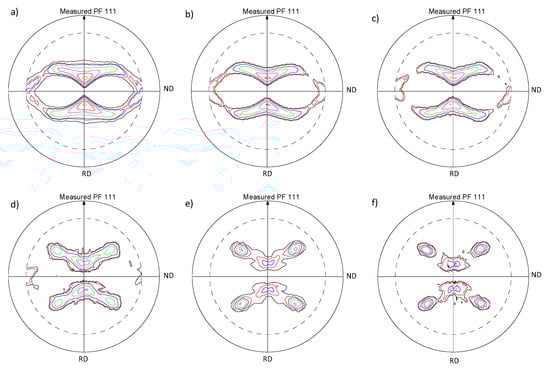

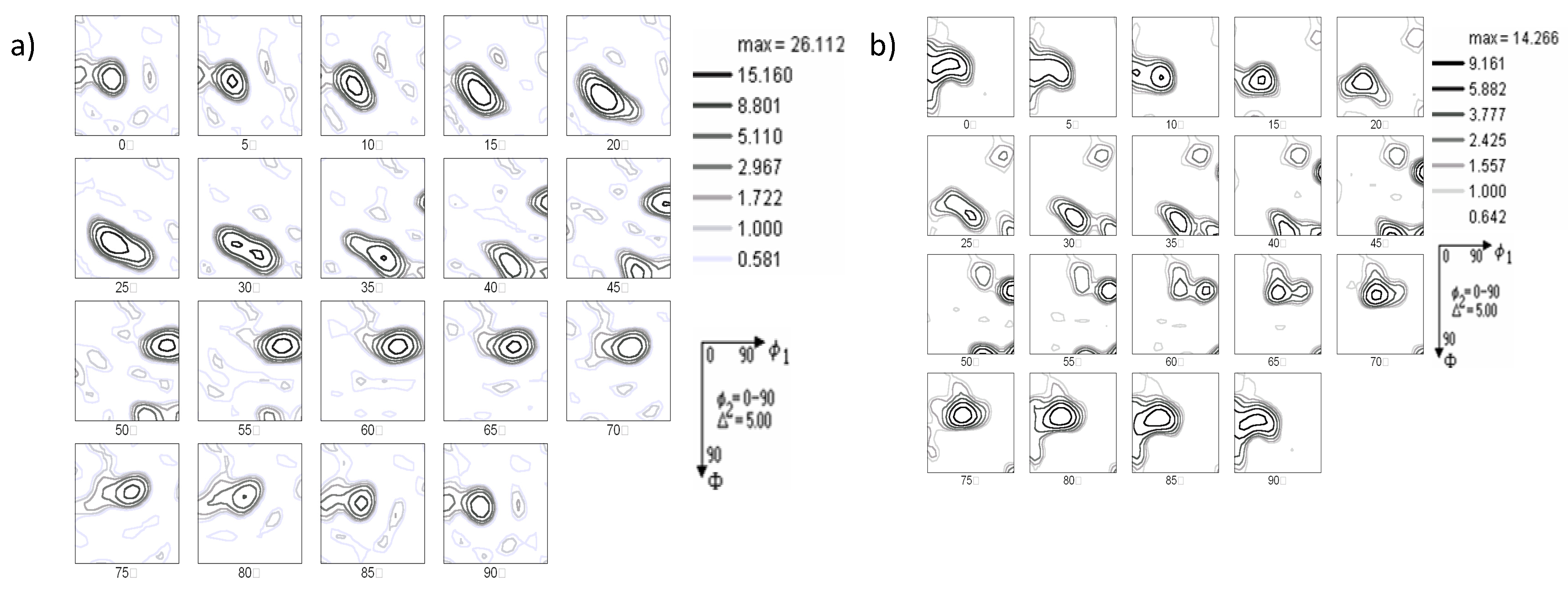

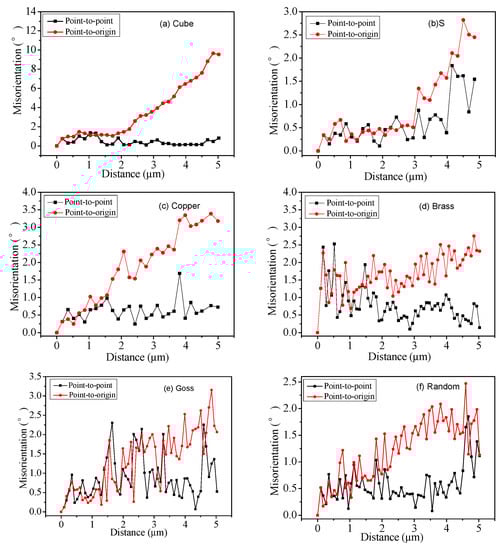

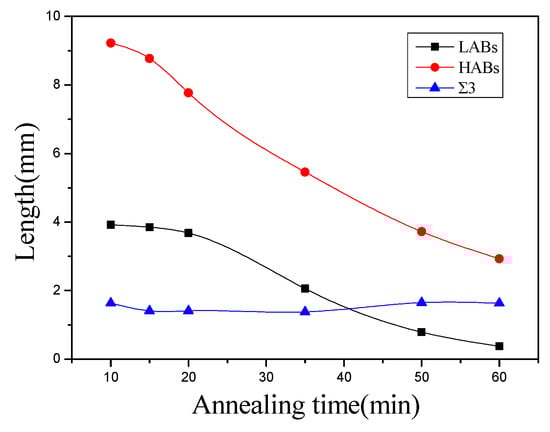

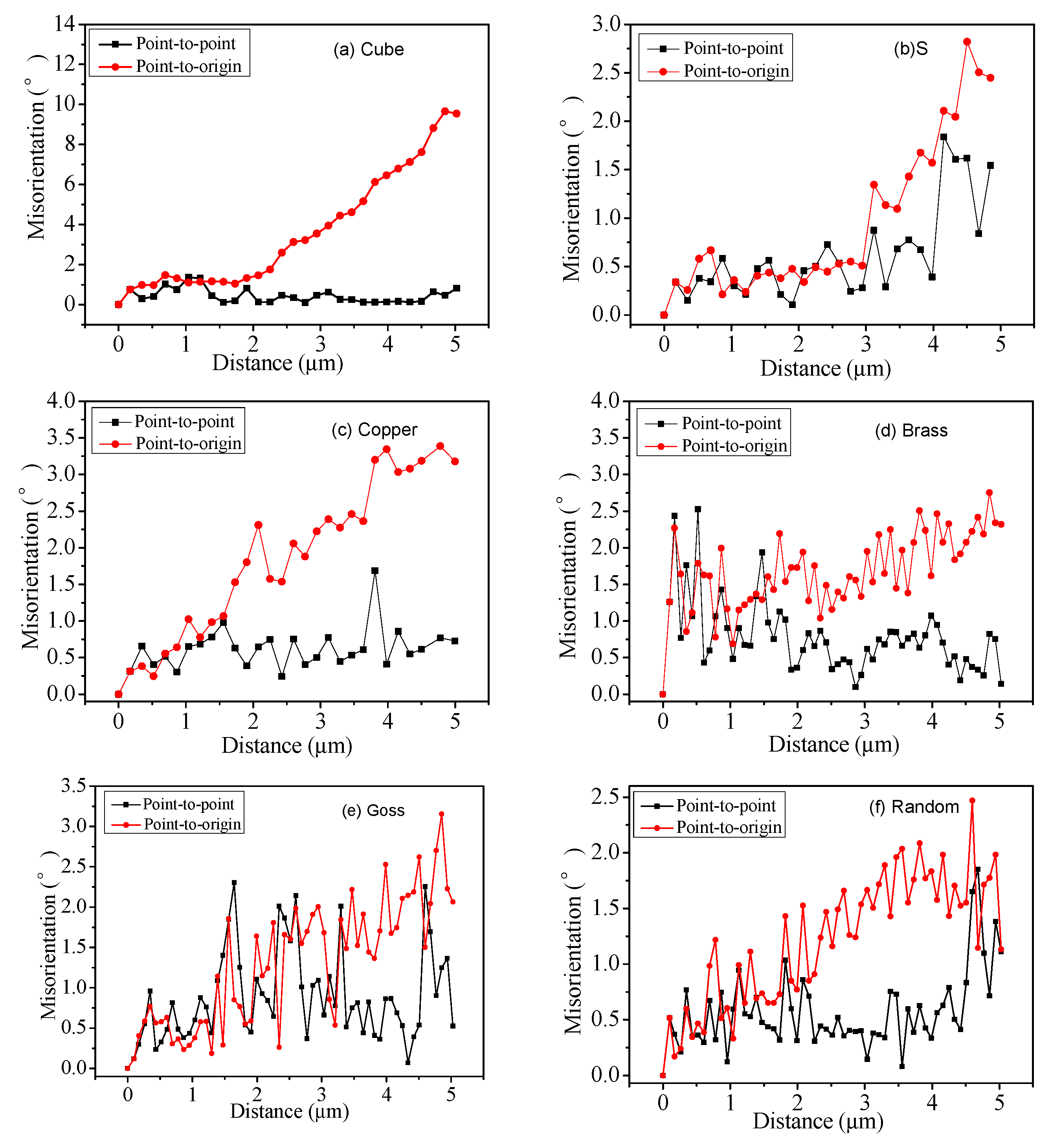

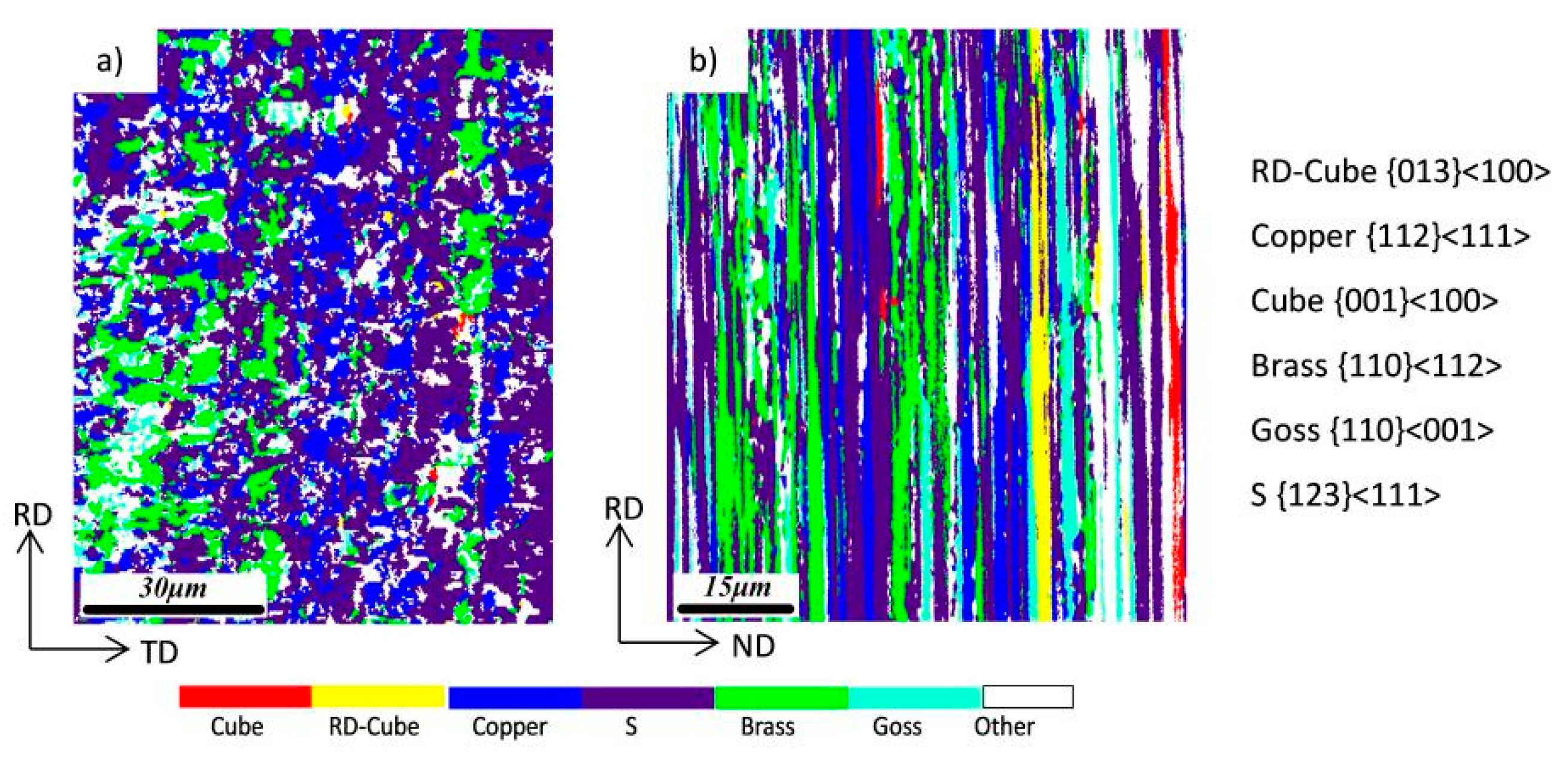

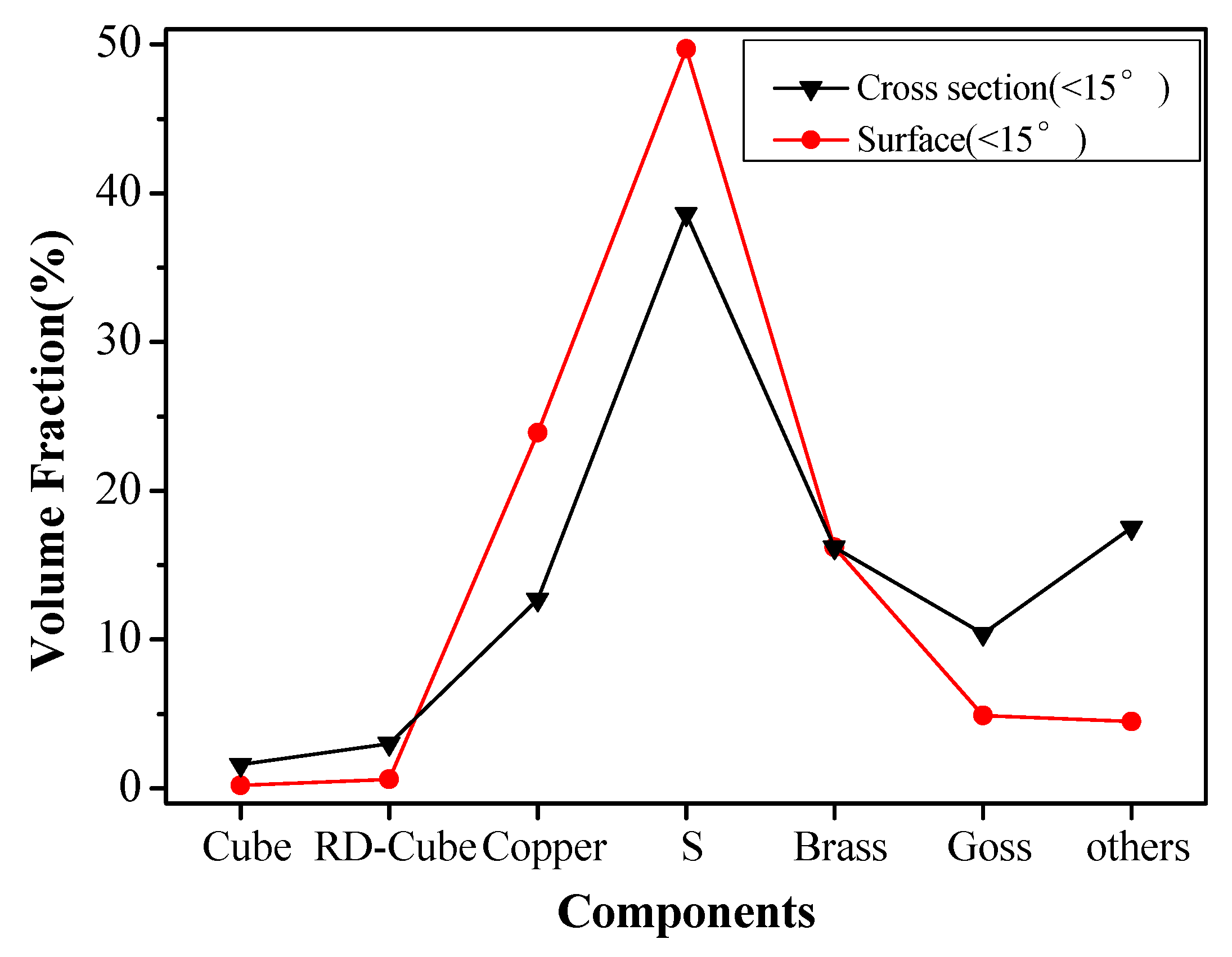

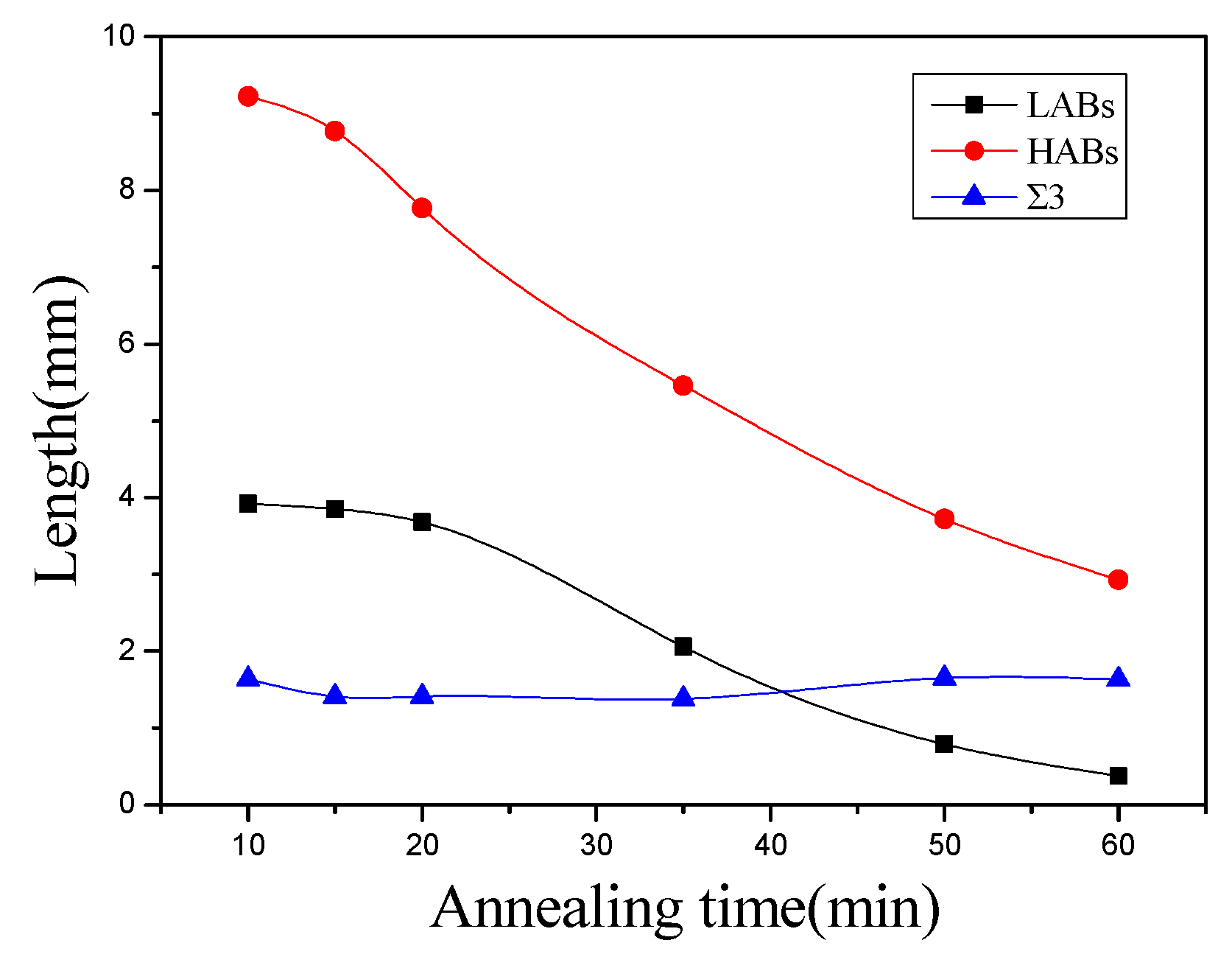

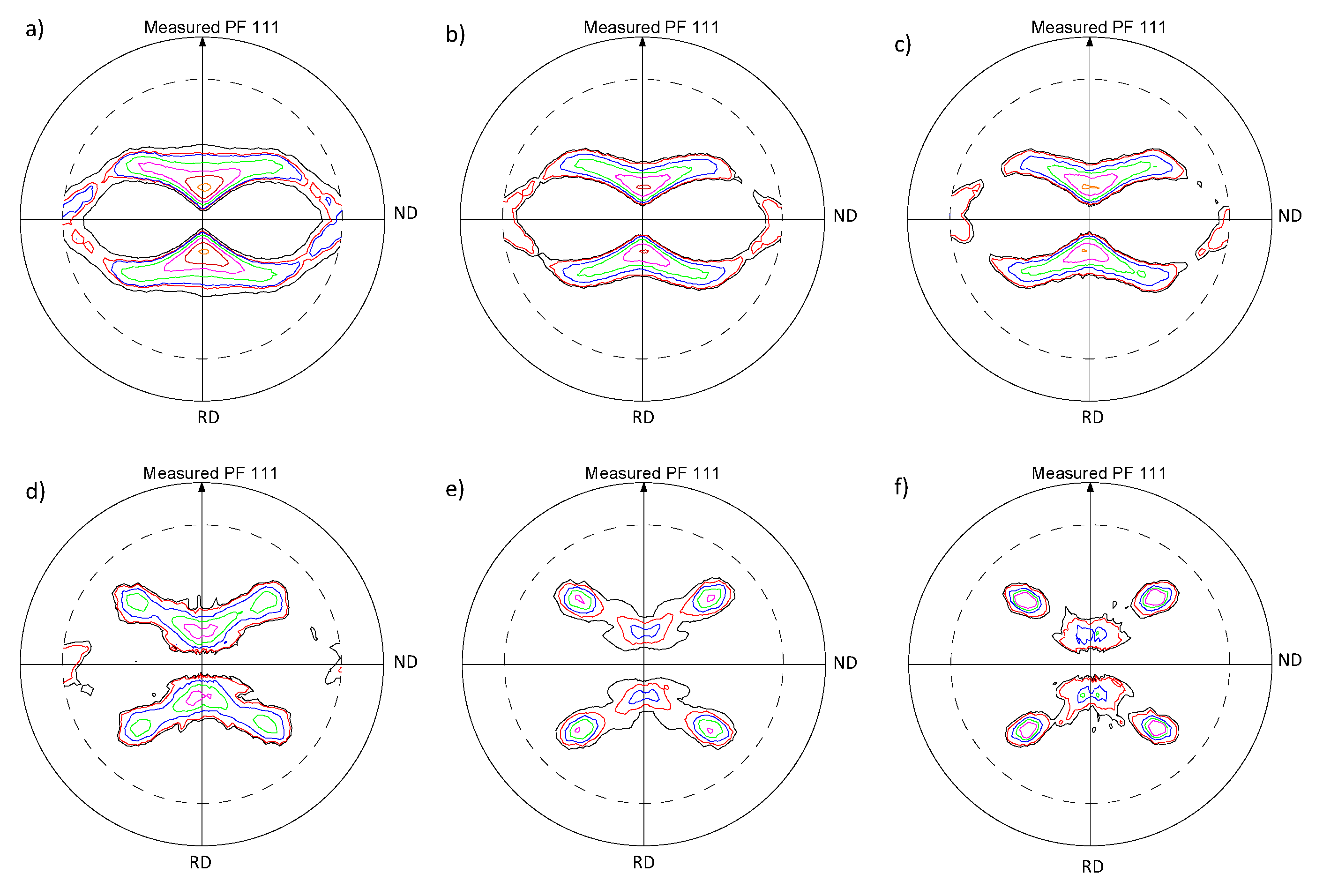

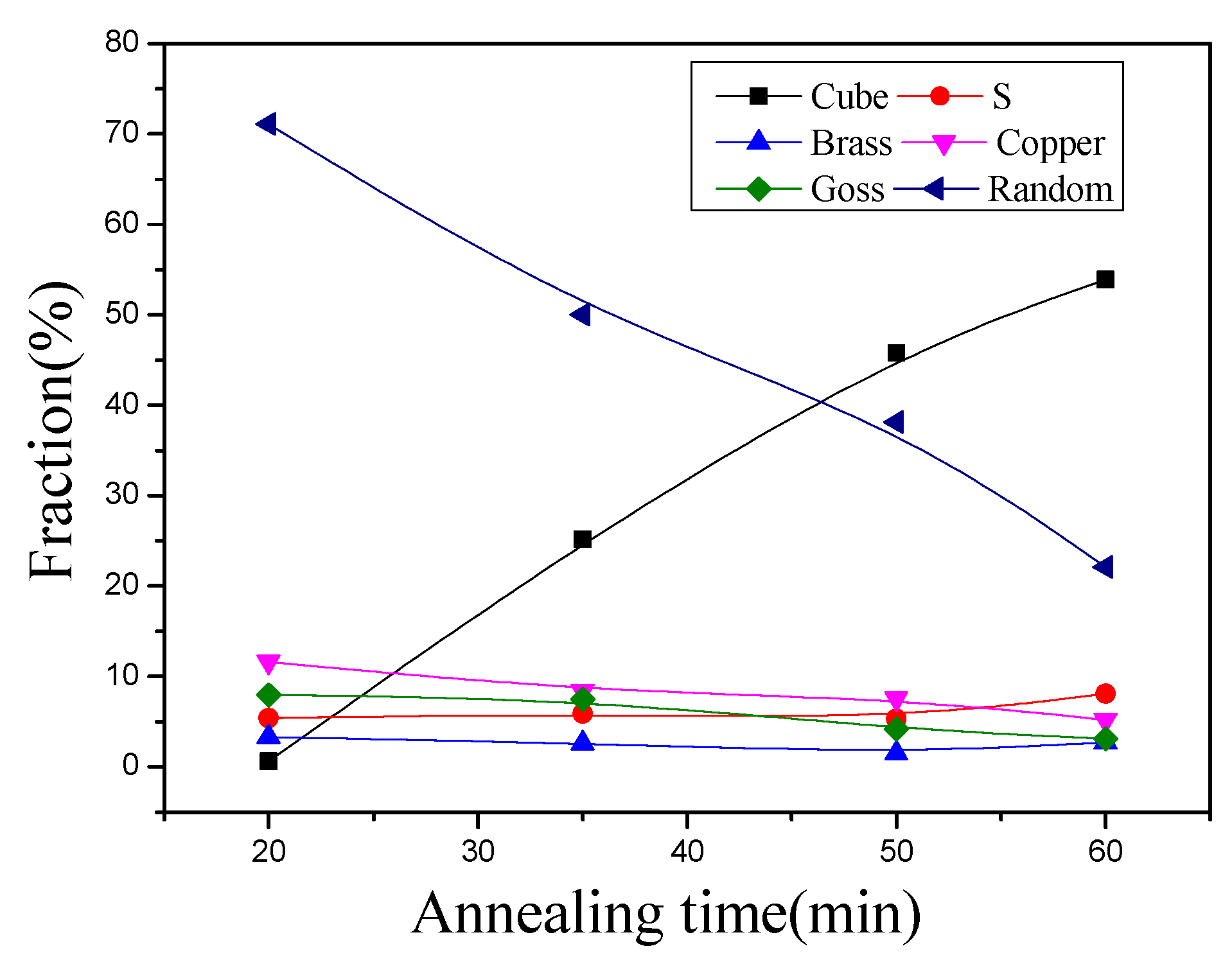

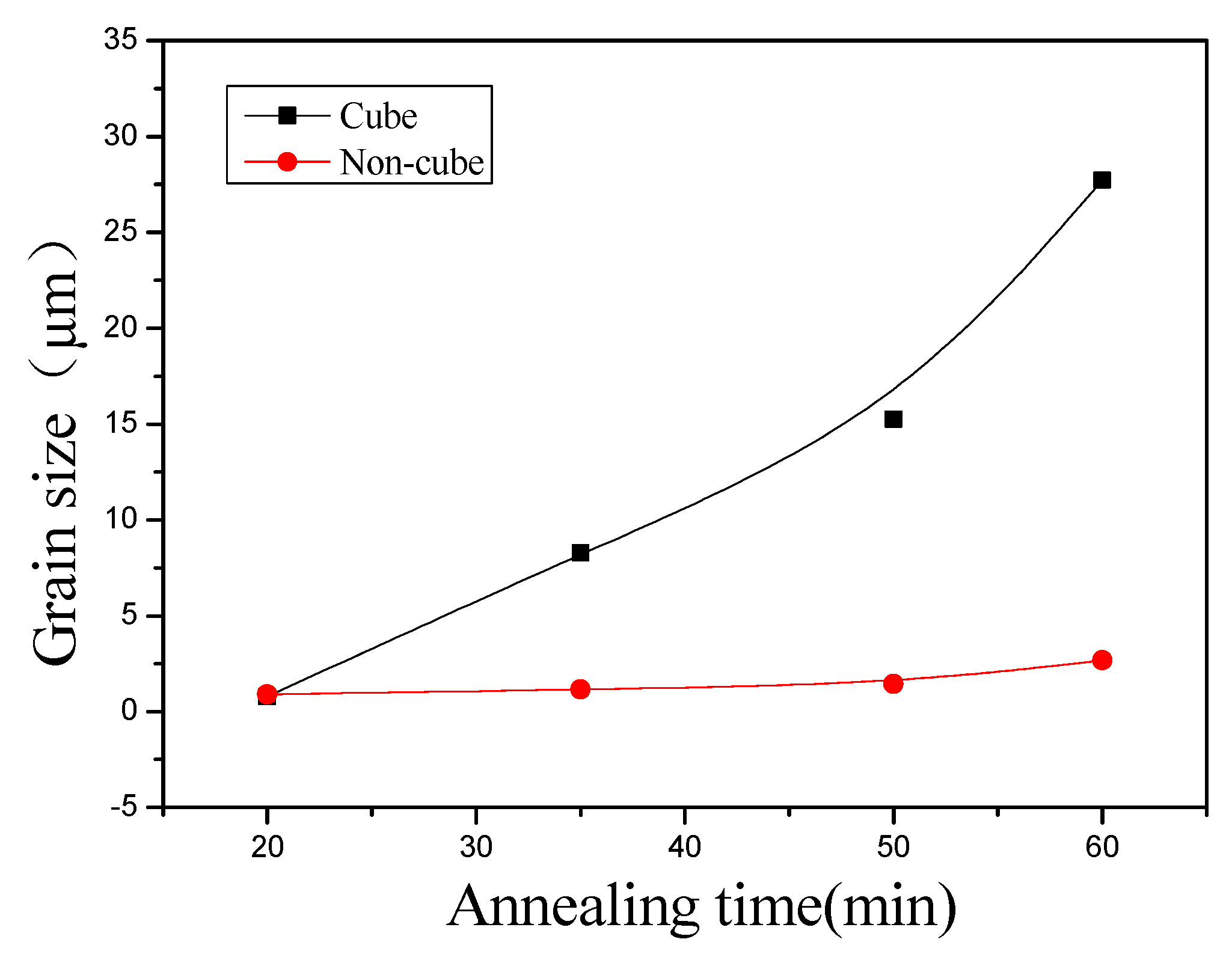

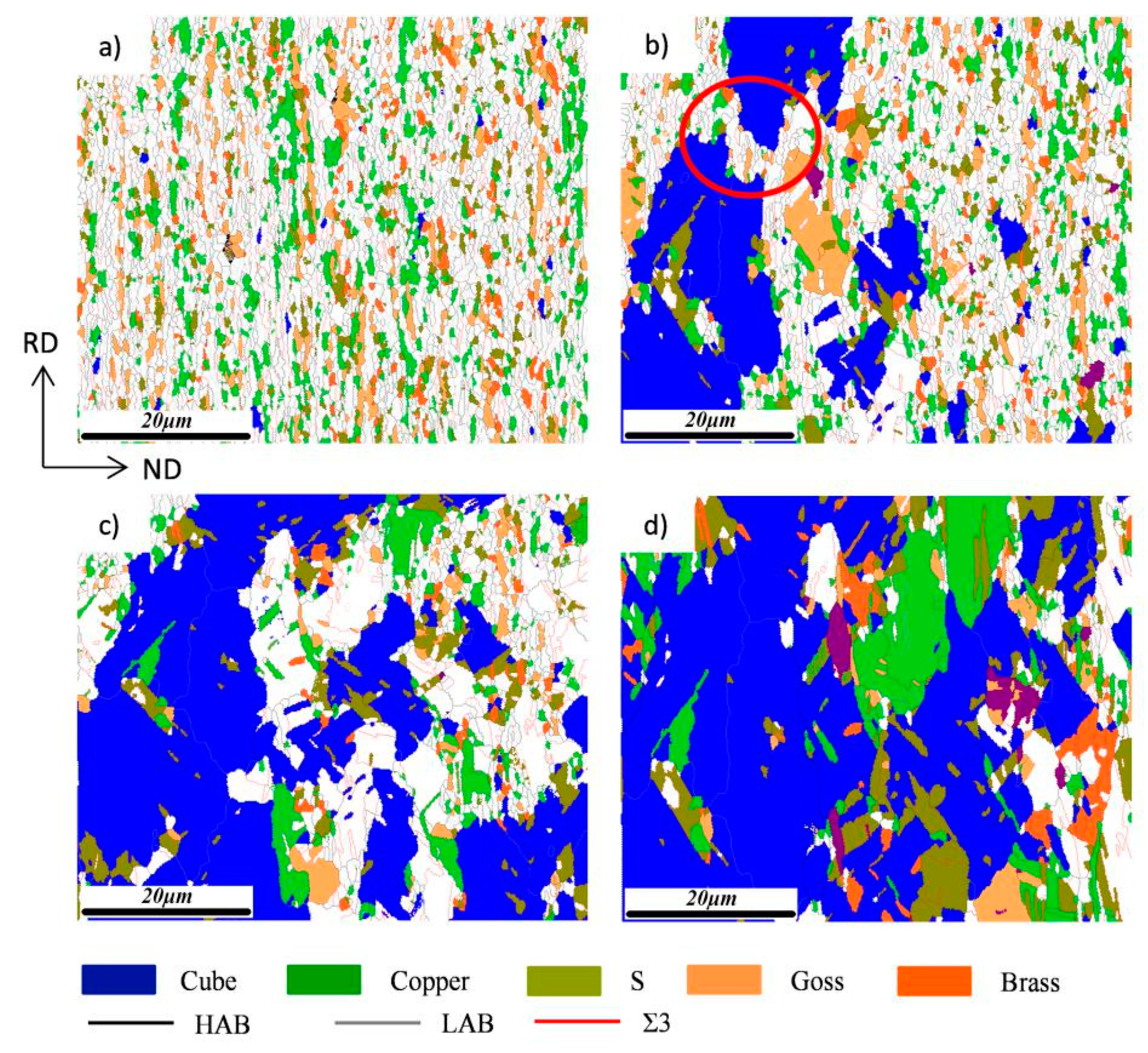

In this work, the effect of cold rolling and heat treatment upon the microstructure and texture of the surface layer and cross-section of Ni5W alloy substrate was analyzed via the EBSD technique. A typical copper deformation texture was shown by the cold-rolled Ni5W alloy substrate. The cube-oriented nuclei were attributed to the rolling direction–transverse direction (RD-TD) plane due to the presence of copper and S rolling textures. Typical large-shape cold-rolled microstructure was presented by the RD-ND surface in the cube-oriented area. During the recrystallization process, the cube-oriented grains did not have a nucleation quantity advantage, but they did have an obvious growth advantage compared with other orientation grains. They can form a strong cube texture by absorbing the random orientation and rolling orientation through the migration of large-angle grain boundaries. View Full-Text
Keywords: Ni5W alloy substrate; crystal orientation; EBSD; rolling; recrystallization Ni5W alloy substrate; crystal orientation; EBSD; rolling; recrystallization
Show Figures

Figure 1

MDPI and ACS Style

Zhang, C.; Suo, H.; Zhang, Z.; Wang, Q.; Wang, Y.; Ma, L.; Liu, M.; Ji, Y.; Li, J. Evolution of Microstructure, Texture and Topography during Cold Rolling and Recrystallization of Ni–5at.%W Alloy Substrate for Coated Conductors. Crystals 2019, 9, 604.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
