Design and Optimization of Proton Exchanged Integrated Electro-Optic Modulators in X-Cut Lithium Niobate Thin Film

1
College of Electric and Electronic Engineering, Zibo Vocational Institute, Zibo 255314, China
2
School of Physics, Shandong University, Jinan 250100, China
3
College of New Materials and New Energies, Shenzhen Technology University, Shenzhen 518118, China
*
Author to whom correspondence should be addressed.
Crystals 2019, 9(11), 549; https://doi.org/10.3390/cryst9110549
Received: 29 September 2019 / Revised: 19 October 2019 / Accepted: 22 October 2019 / Published: 24 October 2019
(This article belongs to the Special Issue Recent Progress in Lithium Niobate)

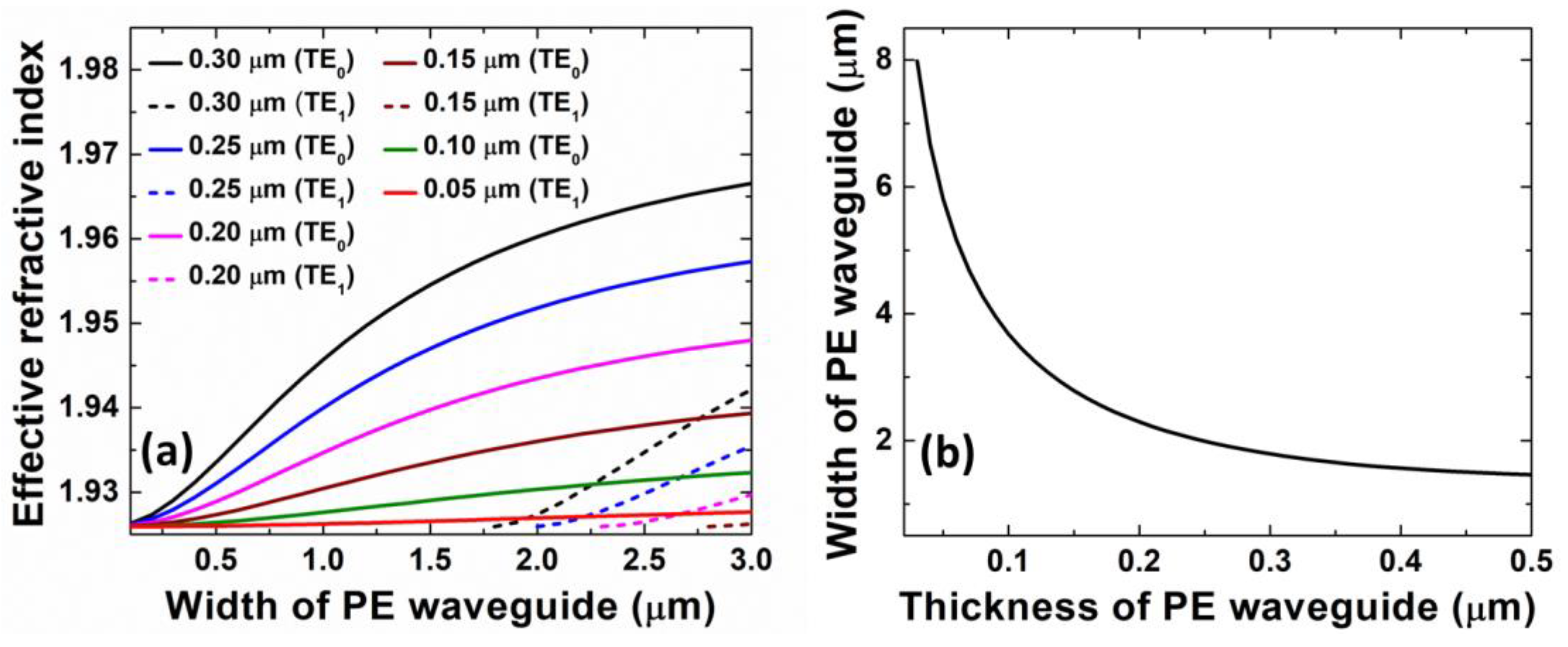

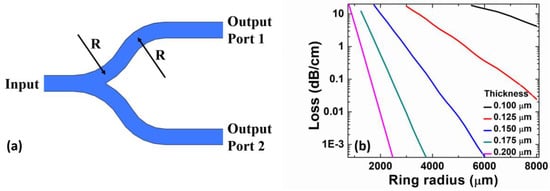

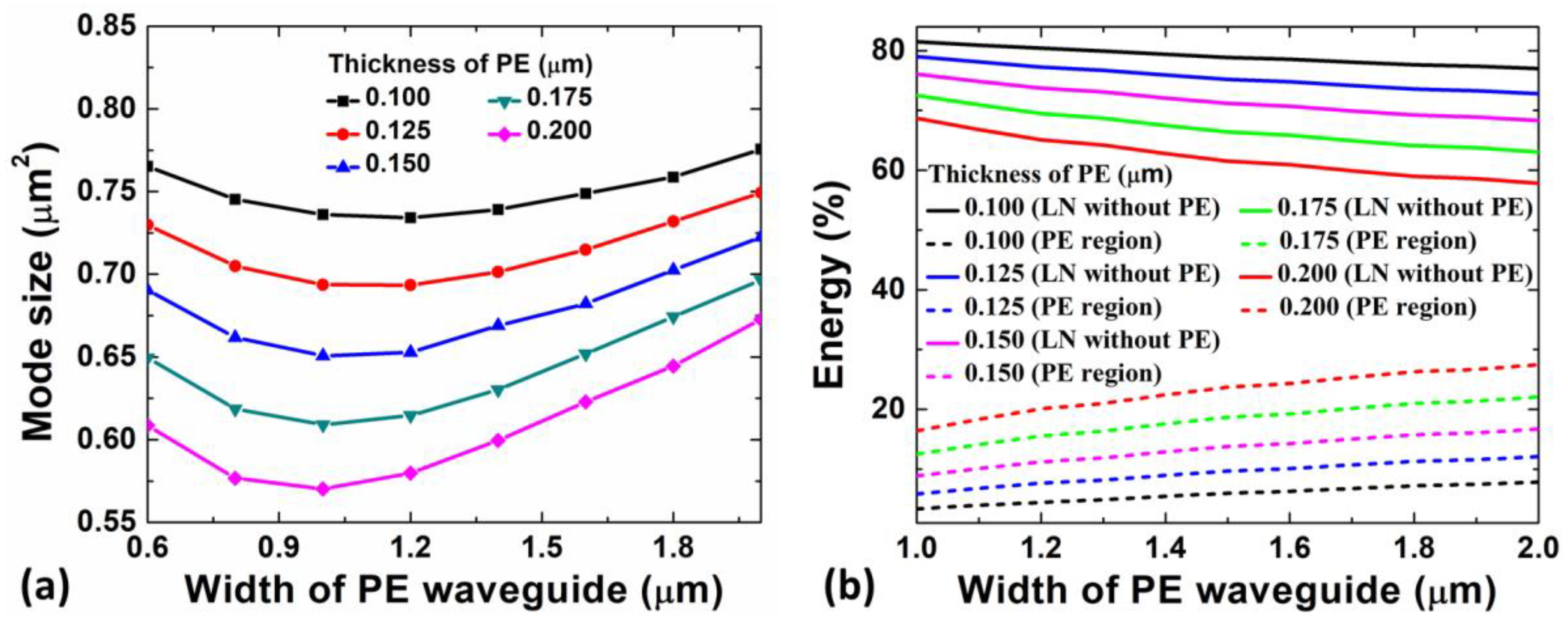

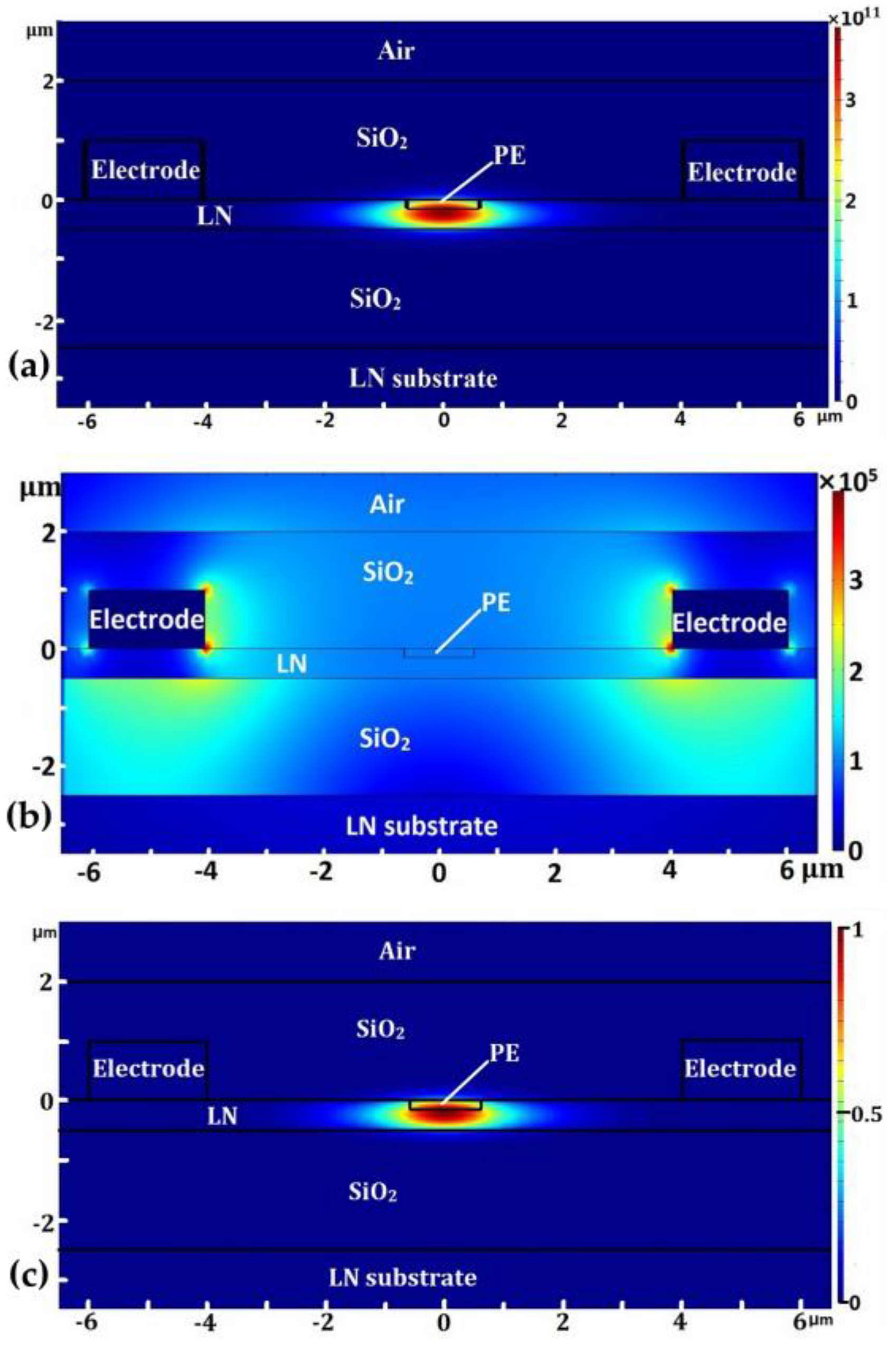

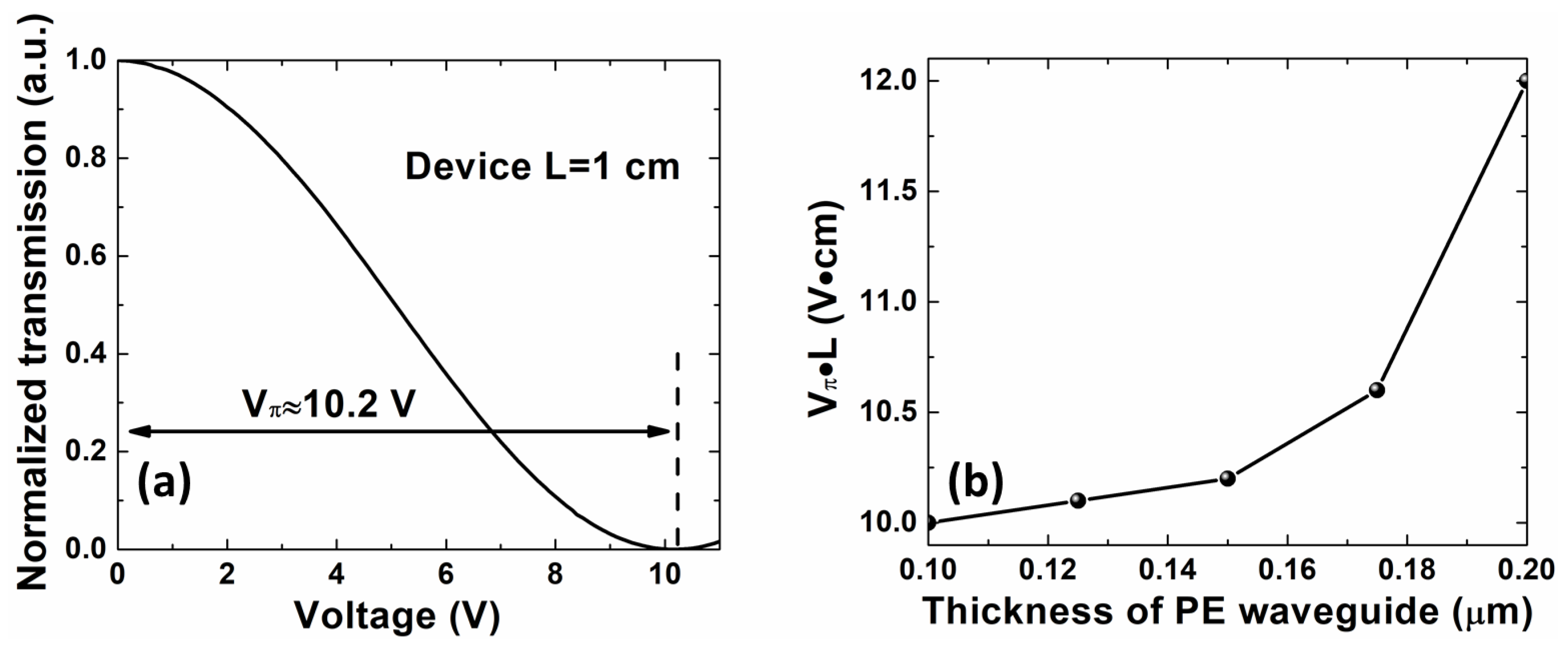

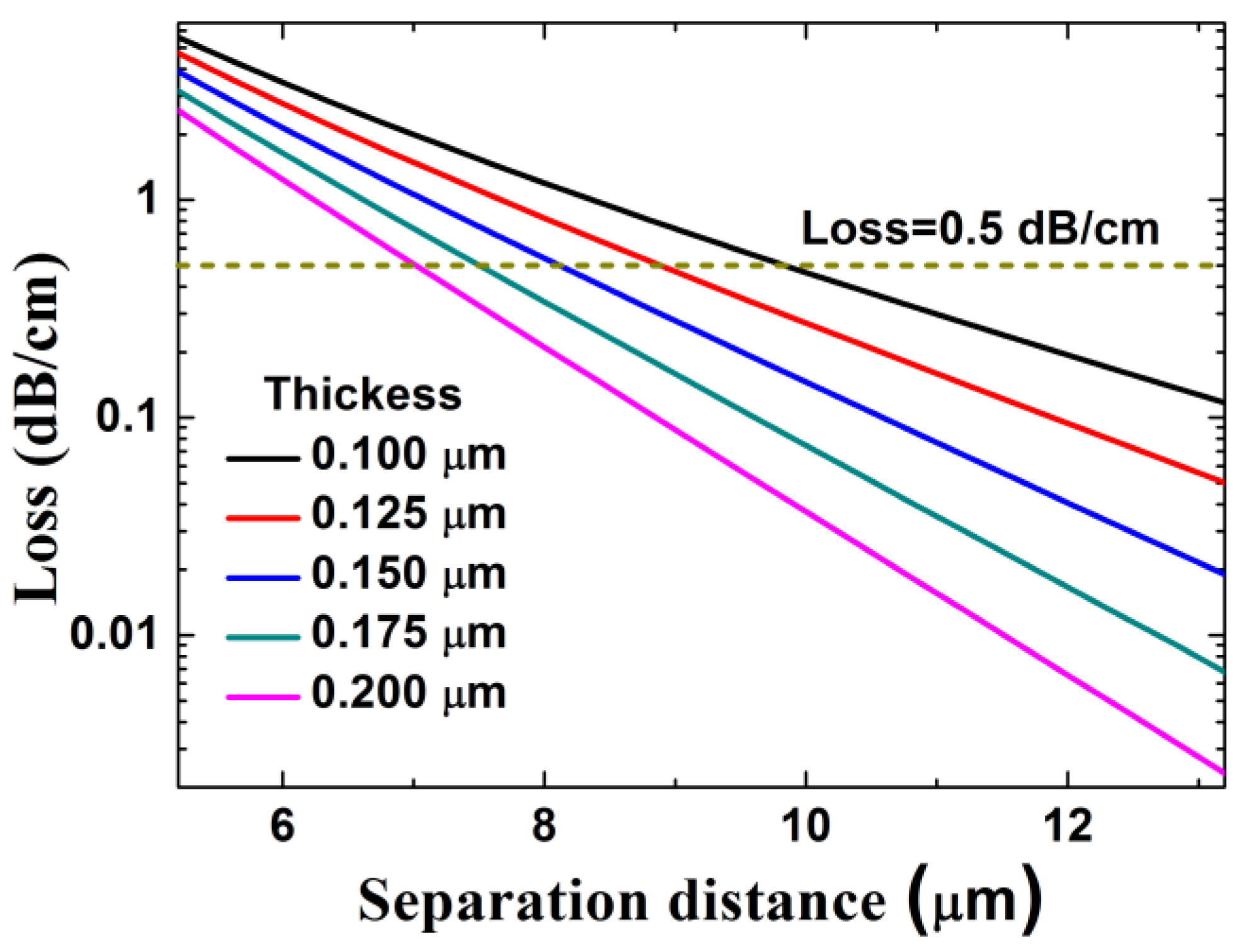

In this study, we designed, simulated, and optimized proton exchanged integrated Mach-Zehnder modulators in a 0.5-μm-thick x-cut lithium niobate thin film. The single-mode conditions, the mode distributions, and the optical power distribution of the lithium niobate channel waveguides are discussed and compared in this study. The design parameters of the Y-branch and the separation distances between the electrodes were optimized. The relationship between the half-wave voltage length production of the electro-optic modulators and the thickness of the proton exchanged region was studied. View Full-Text
Keywords: electro-optic modulator; lithium niobate thin film; proton exchange; Mach-Zehnder; integrated optics devices electro-optic modulator; lithium niobate thin film; proton exchange; Mach-Zehnder; integrated optics devices
Show Figures

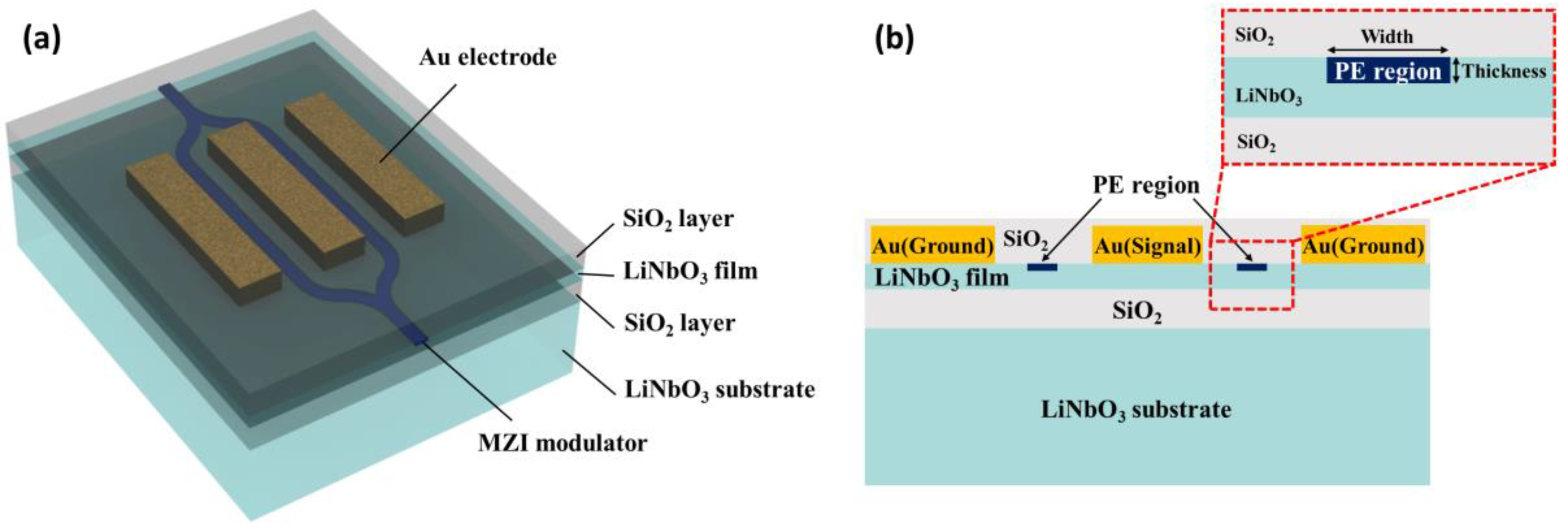

Figure 1
