Effect of Electrode Material on the Crystallization of GeTe Grown by Atomic Layer Deposition for Phase Change Random Access Memory

1
Department of Materials Science and Engineering, Seoul National University of Science and Technology (Seoultech), Seoul 01811, Korea
2
Department of Materials Science and Engineering, and Inter-University Semiconductor Research Center, Seoul National University, Seoul 08826, Korea
3
Division of Advanced Materials, Korea Research Institute of Chemical Technology (KRICT), 141 Gajeong-Ro, Yuseong-Gu, Daejeon 34114, Korea
*
Author to whom correspondence should be addressed.
Micromachines 2019, 10(5), 281; https://doi.org/10.3390/mi10050281
Received: 25 March 2019 / Revised: 18 April 2019 / Accepted: 25 April 2019 / Published: 27 April 2019
(This article belongs to the Special Issue Nanoscale Switches)
  |
PDF [2166 KB, uploaded 27 April 2019]
  |

Abstract

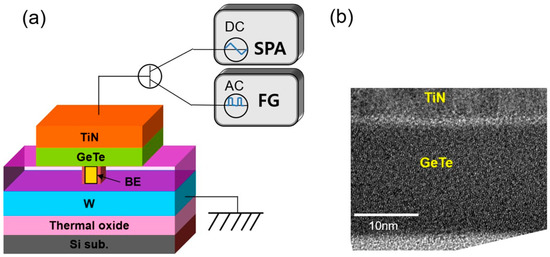

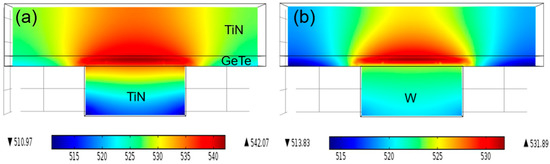

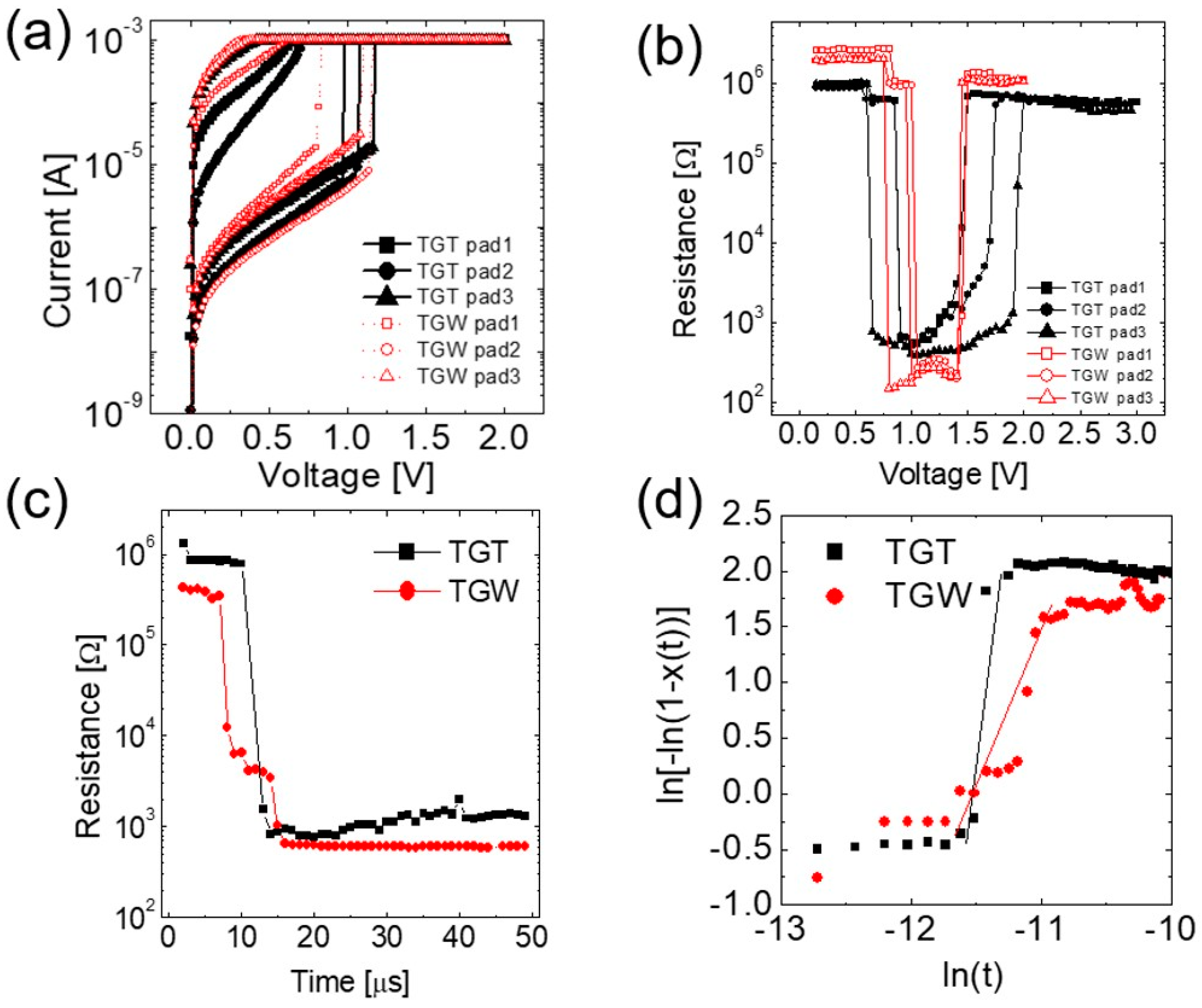

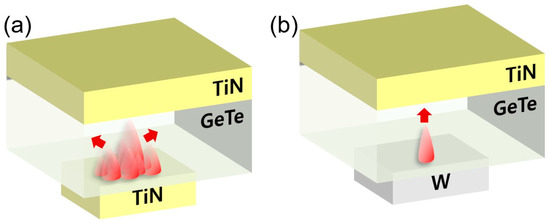

The electrical switching behavior of the GeTe phase-changing material grown by atomic layer deposition is characterized for the phase change random access memory (PCRAM) application. Planar-type PCRAM devices are fabricated with a TiN or W bottom electrode (BE). The crystallization behavior is characterized by applying an electrical pulse train and analyzed by applying the Johnson–Mehl–Avrami kinetics model. The device with TiN BE shows a high Avrami coefficient (>4), meaning that continuous and multiple nucleations occur during crystallization (set switching). Meanwhile, the device with W BE shows a smaller Avrami coefficient (~3), representing retarded nucleation during the crystallization. In addition, larger voltage and power are necessary for crystallization in case of the device with W BE. It is believed that the thermal conductivity of the BE material affects the temperature distribution in the device, resulting in different crystallization kinetics and set switching behavior. View Full-Text
Keywords: phase change random access memory; crystallization behavior; Johnson–Mehl–Avrami kinetics; electrode interfacial layer effect phase change random access memory; crystallization behavior; Johnson–Mehl–Avrami kinetics; electrode interfacial layer effect
Figures

Figure 1
