Next Article in Journal
Interlaminar Shear Behavior of Laminated Carbon Fiber Reinforced Plastic from Microscale Strain Distributions Measured by Sampling Moiré Technique
Previous Article in Journal
Experimental Study on Shear Behavior of Steel Fiber Reinforced Concrete Beams with High-Strength Reinforcement


Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Review

A Short Review on the Microstructure, Transformation Behavior and Functional Properties of NiTi Shape Memory Alloys Fabricated by Selective Laser Melting

1
Key Laboratory for Liquid-Solid Structural Evolution and Processing of Materials (Ministry of Education), Shandong University, Jingshi Road 17923, Jinan 250061, China
2
School of Materials Science and Engineering, Shandong University, Jingshi Road 17923, Jinan 250061, China
3
Departament de Física, Universitat de les Illes Balears, Cra Valldemossa km 7.5, E07122 Palma de Mallorca, Spain
4
ITMO University, Kronverkskiy av. 49, 197101 St. Petersburg, Russia
5
Department of Materials Engineering, KU Leuven, Kasteelpark Arenberg 44, B3001 Heverlee, Belgium
*
Author to whom correspondence should be addressed.
Materials 2018, 11(9), 1683; https://doi.org/10.3390/ma11091683
Submission received: 27 July 2018 / Revised: 6 September 2018 / Accepted: 7 September 2018 / Published: 11 September 2018
(This article belongs to the Section Smart Materials)

Abstract

:
Due to unique functional and mechanical properties, NiTi shape memory alloys are one of the most promising metallic functional materials. However, the poor workability limits the extensive utilization of NiTi alloys as components of complex shapes. The emerging additive manufacturing techniques provide high degrees of freedom to fabricate complex structures. A freeform fabrication of complex structures by additive manufacturing combined with the unique functional properties (e.g., shape memory effect and superelasticity) provide great potential for material and structure design, and thus should lead to numerous applications. In this review, the unique microstructure that is generated by selective laser melting (SLM) is discussed first. Afterwards, the previously reported transformation behavior and mechanical properties of NiTi alloys produced under various SLM conditions are summarized.

1. Introduction

Near equiatomic NiTi shape memory alloys (SMAs) could appear in a B2 structured austenite (A), a B19’ structured martensite (M) or a rhombohedral R-phase, depending on the thermal or mechanical conditions [1]. The thermoelastic martensitic transformation between the abovementioned phases gives rise to the shape memory effect and superelasticity, which makes NiTi SMAs able to recover large deformations of up to 10% [2,3,4]. Due to the unique functional properties, together with the good biocompatibility [5], low stiffness [6,7], excellent corrosion resistance [8], high damping properties [9,10], and the excellent strength and ductility (tensile elongation >30% [11,12]), NiTi SMAs are the most promising functional metallic materials for practical applications in both medical (e.g., stents, guide wires) [13,14,15] and non-medical fields [16,17,18].
The demand for complex or customized NiTi SMA devices will increase remarkably in the future with the development of technologies in such fields as aviation and aerospace, personalized medical care, etc. However, fabrication of complex NiTi structures via conventional processing techniques (e.g., machining and welding) is difficult [19,20,21,22,23]. This difficulty is mainly caused by the high work hardening, high toughness, high strength, and high ductility (total tensile strain up to 70% [12]) of NiTi SMAs [24].
Unlike the conventional processing techniques, additive manufacturing (AM), which fabricates certain components by adding layers of materials progressively, provides great potential to produce complex or customized parts [25]. Various metal AM techniques, e.g., Selective Laser Melting (SLM), Laser Powder Deposition, and Wire Arc Additive Manufacturing, have been developed in the past decades [26,27,28]. Among the AM techniques, SLM generally provides a better surface finish and geometrical accuracy [25,28], which are the main features required for NiTi devices (e.g., stents, actuators). As a result, the fabricating of NiTi parts by SLM has frequently been addressed.
The work on additively fabricating the NiTi parts by SLM starts from producing dense and porous-free parts by optimizing the SLM process. The input laser energy density, which is determined by the SLM process parameters, is normally used as a guide to produce dense parts. The energy density (volumetric energy density, EV, and linear energy density, EL) can be simply estimated by:
EV = P/(v × h × t)
EL = P/v
where, P, v, h, and t represent the laser power, scanning velocity, hatch spacing, and layer thickness, respectively. The relative density of SLM fabricated NiTi parts benefits from the increase of energy density [29], like reported in other metallic materials [27,30,31,32,33,34,35], and a minimum energy density is required to produce fully dense (relative density > 99%) parts. As discussed in the work conducted by Haberland et al. [29], fully dense parts could be obtained when the energy density is higher than 200 J/mm3. The density of SLM produced parts will decrease slightly with an extra high energy density, due to the entrapping of gases, spatter, or improper closure of keyholes [33,36,37,38,39,40,41]. The optimization of SLM process to fabricate fully dense NiTi parts can refer to Ref. [24,29]. It is worth mentioning that various optimized energy densities for NiTi alloys have been reported in literature, from 55 to 300 J/mm3 [24,29,42,43,44,45,46,47,48,49]. An even higher energy density of 595 J/mm3 was used by Ma et al. [42], by reducing the hatch spacing. This indicates that many other factors have to be considered in order to optimize the SLM process, for instance, particle size, laser type, and spot size, as well as different combinations of SLM process parameters [50].
As compared with the samples that are produced via conventional approaches, the SLM fabricated parts show unique microstructure. On the other hand, the phase transformation behavior and functional properties, which are key factors affecting the practical applications of NiTi SMAs, are very sensitive to the change of microstructure [1,2]. Therefore, it is essential to understand the interrelation between SLM process and the resulted microstructure, and thus the phase transformation behavior and functional properties of the produced NiTi parts. In this review, the unique microstructure that is caused by SLM is discussed first. Afterwards, the previous works on explaining the phase transformation behavior, as well as improving the tensile properties of SLM fabricated NiTi parts, are summarized.

2. Microstructure

NiTi alloy powders are exposed to the laser beams with high energy density during SLM. The powders are heated up rapidly to a temperature above melting or even boiling points. When the laser beam moves away, the melt solidifies quickly due to the very high cooling rate (up to 106 K·s−1 [51,52], depending on SLM process parameters and materials). This complex process, as shown schematically in Figure 1, repeats during SLM, and the previously solidified materials undergo a cyclic heating/cooling process. The unique thermal history leads to complex microstructural evolution during SLM, which affects remarkably both the transformation behavior and functional properties of the NiTi parts. The possible microstructural variation that is caused by SLM could be summarized, as follows:
(1)
Ni loss by evaporation. Due to the high energy input from the laser, the evaporation of alloying elements from the melt pool will occur during SLM [42,53,54]. As shown in Figure 2, at elevated temperatures, the equilibrium vapor pressure of Ni is much higher than that of Ti, since Ni has a lower boiling point (3186 K) as compared with Ti (3560 K). As a result, the loss of Ni, i.e., decreasing of Ni/Ti ratio, will occur during SLM [55,56]. Moreover, an increase of Ni loss is expected with the increase of energy density [57]. It is well known that the transformation temperature of NiTi alloy depends highly on the Ni content [1,58]. Therefore, the Ni evaporation during SLM may lead to a remarkable increase of martensite transformation temperatures (MTTs). The melt pool behavior significantly affects the element evaporation, as discussed in the model that was developed by Klassen et al. [59]. Therefore, dedicated experiments or simulation work are highly required to study the Ni evaporation under different SLM conditions.
(2)
Oxygen pickup. Since Ti is very active, pickup of oxygen will occur during SLM of NiTi alloys [45,47,60]. The oxygen pickup will lead to the following two effects: (1) binding with Ti (e.g., forming Ti4Ni2O [60,61,62]), resulting in an increase of effective Ni/Ti ratio and thus leading to the decrease of MTTs; (2) influencing significantly the mechanical properties of SLM fabricated NiTi parts. The latter effect depends on the size, morphology, and distribution of the oxides. Walker et al. [47] reported an increase of oxygen impurities with increasing energy density, as shown in Figure 3a. Therefore, it is essential to control the oxygen level in the building chamber to improve the repeatability in both the transformation behaviour and functional properties of SLM fabricated NiTi alloys. Many studies have shown that with proper process control (e.g., using the constant fresh argon flow during SLM [63]), the SLM fabricated NiTi parts show low oxygen content and meet the requirements (<500 ppm) prescribed in the ASTM F 2063 standard (ASTM International, Standard Specification for Wrought Nickel-Titanium Shape Memory Alloys for Medical Devices and Surgical Implants) [24,60,63,64]. The pickup of carbon and nitrogen also occurs during SLM, as shown in Figure 3b,c [47].
(3)
Precipitation. During SLM, the fabricating parts are heated up due to the heat transferred from the melt pool and heat affected zone. In Ni-rich NiTi alloys, the precipitation of Ni4Ti3 phase may occur at a temperature as low as 473 K [65,66]. As a result, during fabricating Ni-rich NiTi parts, the formation of Ni4Ti3 precipitates may occur, which will significantly affect both the phase transformation behavior and mechanical performance of NiTi alloys. The Ni4Ti3 precipitation in SLM fabricated Ni-rich NiTi parts have been proposed in many studies [42,43,56,63,67]. Ni4Ti3 precipitates with the size <2 nm have been observed by means of high-resolution transmission electron microscopy [42,56]. As the presence of N4Ti3 particles significantly influences the performance of NiTi alloys [1], it is essential to study the size and distribution of Ni4Ti3 particles under different SLM process conditions. The formation of other precipitates e.g., Ti2Ni, was also reported [42,57,68,69].
(4)
Strong texture. During SLM, the grains grow along the direction of the maximum temperature gradient, which is normally the same direction as the build direction (BD) [28]. The easy growth direction of the body centered cubic (BCC) crystals is <100> [28]. At elevated temperatures, near equiatomic NiTi alloys are in a B2 ordered austenite phase with BCC crystal structure [1]. Therefore, a strong <100>B2//BD (build direction) can be developed in SLM fabricated NiTi parts [43,67,70]. The strong texture will significantly influence the functional properties of NiTi alloys, as the transformation strain depends strongly on the crystallographic orientation [1]. It has been frequently reported that the texture characteristics (e.g., intensity or type of texture) depends highly on the SLM process conditions [28,71]. Therefore, it is suggested that future work is required to study the effect of the SLM process conditions on the texture characteristic of NiTi alloys and its influence on the functional properties.
(5)
High density of dislocations. High density of dislocations could be introduced by SLM, due to the rapid cooling [42,72,73,74]. It has recently been reported that the dislocation network introduced by SLM could improve both the strength and ductility of the 316 L stainless steels, i.e., breaking the strength-ductility trade-off [72,73]. High density of dislocations has been reported in the SLM fabricated NiTi parts [42,56]. Moreover, the density of dislocations depends highly on the SLM process. For instance, Ma et al. [42] reported that the density of dislocations decreases with the decrease of hatch spacing from 35 to 120 μm, which probably is due to the recovery of dislocations that is caused by more re-melting and re-heating cycles when producing with smaller hatch spacing.
(6)
Residual stresses. The locally melted metal is deposited on a relatively cold substrate (or previously consolidated layers), leading to a steep thermal gradient, which can surpass 107 K·s−1 and 107 K·m−1 [75]. As a result, the residual stress could be built up inside the SLM fabricated parts [28,76,77,78]. The accumulated residual stress can cause distortion, geometric failure, delamination of layers, deterioration of fatigue and fracture resistance, as well as the increase of anisotropy of the mechanical properties of SLM fabricated parts [28,76,77]. According to the Clausius-Clapeyron type dependence of MTTs on stress [79], the accumulation of residual stresses will assist the martensite transformation.
(7)
Inhomogeneous grain size distribution. Due to the complex thermal history, the microstructure with inhomogeneous grain size distribution is normally observed in the SLM fabricated parts [57,71,80,81]. The mechanical performance will be affected remarkably by the inhomogeneous microstructure [81,82,83].
(8)
Microstructural heterogeneity. The materials at different position of SLM fabricated parts will experience a different thermal history. For instance, the first deposited layers will experience a fast cooling due to the cold substrate, as well as more reheating cycles, as compared with the top layers. Therefore, the heterogeneous microstructure (e.g., inhomogeneous Ni distribution, thermal stress state, grain size) is developed in the SLM fabricated parts [24,84]. The microstructural heterogeneities will significantly affect the transformation behavior and mechanical properties of SLM that are produced NiTi parts [84].

3. Phase Transformation Behavior

The “Martensitic Transformation Temperatures (MTTs)” are critical factors affecting practical applications of NiTi alloys, as they determine the temperature range on which shape recovery occurs. The transformation behavior of NiTi alloys is very sensitive to microstructural changes (e.g., presence of dislocations or precipitates). SLM process gives rise to a unique microstructure, being strongly affected by SLM process parameters. Therefore, it is essential to understand how the transformation behavior of NiTi parts reacts to the variations of the SLM process parameters.
As compared with starting NiTi powders, the SLM fabricated parts normally show higher transformation temperatures [29,49,62,85,86], an example could be found in Figure 6 of Ref. [29]. The increase of transformation temperatures is likely due to the Ni evaporation during the SLM process [29,47,56,87,88]. It seems that with a high Ni-rich starting powder (e.g., Ti-50.7 at % Ni), the shift of transformation temperatures is more obvious than that with a less Ni-rich powder (e.g., Ti-50.2 at % Ni) [29,63]. Therefore, it is important to carefully select the composition of the starting powders, in order to produce NiTi parts with the desired functional properties at the envisaged temperature range.
It has frequently been reported that MTTs increase with the increase of energy density [24,29,42,48,56,57,63,87,89]. Moreover, this increase of MTTs is more obvious in the Ni-rich samples than in the Ti-rich samples [63]. The precipitation of Ni-rich Ni4Ti3 particles is also a possible reason for the increase of MTTs [42], because the formation of Ni4Ti3 particles leads to Ni-depletion from the matrix [1,2]. However, the Ni4Ti3 precipitates are normally very small in SLM fabricated NiTi alloys [42,56], and nano-sized Ni4Ti3 precipitates indeed suppress martensite transformation (MT), instead of promoting MT, due to the intense lattice distortion that is caused by the coherency between Ni4Ti3 and B2 matrix [90,91,92].
Therefore, the Ni loss that is caused by evaporation is likely the main reason for the increase of MTTs. It is suggested that more Ni is evaporated with the increase of energy density, leading to the decrease of Ni/Ti ratio and thus the increase of MTTs. Similar results have been reported in laser welding of NiTi alloys [20,93,94]. Zamani et al. [93] found that the MTTs increase with the increase of laser power, indicating the increase of Ni loss with the increase of input energy. Oliveira et al. [94] reported that the MTTs increase gradually from base materials to the weld centreline, which can be attributed to the increase of Ni loss with the increase of laser energy, as the laser energy increases from heat affected zone to the center of the melt pool.
However, it was frequently observed that the MTTs differ largely between samples fabricated under similar energy density, but with different SLM process parameters [43,45,46,49], indicating that the physics behind the observed phenomenon in SLM fabricated NiTi alloy is rather complex. Moreover, it was also reported that the samples, which were produced with very low energy density, show a lower transformation temperature than the MTTs of the powders [29,63]. Therefore, the Ni loss by evaporation is not the only reason for the variation of MTTs with respect to the change of energy density (or SLM process parameters).
In our previous work [45,46], the variation of MTTs was also observed in the samples produced with the same energy density (100 J·mm−3) but different process parameters, as shown in Figure 4a. The MTTs, which are defined as the temperature of the transformation peaks (Mp), change from 205 to 277 K under different SLM process conditions. Solution treatment (1273 K for 2 h) reduces the transformation interval for all the samples, but the temperatures of the transformation peaks remain essentially unaffected. This indicates that the variation of MTTs is mainly due to the modification of Ni/Ti ratio, instead of the presence of precipitates, internal stress, or dislocations, because the solution treatment could dissolve the Ni4Ti3 precipitates, annihilate dislocations, as well as eliminate largely the internal stresses.
Figure 4b shows another set of samples, which were produced with the same SLM process parameters as the samples in Figure 4a, but under a lower oxygen level. As compared with the samples produced under high oxygen level (Figure 4a), a much narrower variation of MTTs (between 233 and 261 K) was observed [45]. This indicates that the oxygen pickup remarkably influences the transformation behavior of the SLM fabricated NiTi parts. Therefore, it is essential to control the oxygen level of the chamber during the SLM process.
By comparing the transformation behaviour of the samples before and after solution treatment (1273 K, 2 h), we could conclude that the variation of MTTs of NiTi samples that were produced under different SLM conditions is mainly due to the modification of effective Ni/Ti ratio. Feasible reasons for the modification of Ni/Ti ratio are: (i) Ni evaporation, which decreases the Ni/Ti ratio; (ii) oxygen pickup, which binds Ti and thus results in an increase of the effective Ni/Ti ratio; and, (iii) formation of Ni4Ti3 precipitates changing the Ni/Ti ratio of the matrix. The competition between the above effects determines the variation of MTTs.
It is rather difficult to quantify the Ni loss or oxygen pickup in experiments, because these characteristics are influenced by many factors, e.g., melt pool size, the maximum temperature of melt pool, the exposure time of the melts to atmosphere, and the oxygen content of the chamber. Therefore, simulation work, e.g., the model proposed by Khairallah et al. [37], is highly relevant to reveal the relation between SLM process and the loss of Ni or Ti.
The precipitation of Ni4Ti3 particles, presence of dislocations and residual stresses, as well as the microstructural heterogeneity also affect the transformation behavior (e.g., multiple transformation peaks, broadening transformation peaks) of as-fabricated NiTi parts. Thus, the effect of solution treatment and subsequent aging treatment on the transformation behavior and the mechanical properties of SLM fabricated NiTi parts are also worth studying.

4. Tensile Properties

One of the most challenging tasks in SLM of NiTi SMAs is to produce NiTi parts with good functional and mechanical properties. This is currently the main issue that hampers the practical application of SLM fabricated NiTi parts.
Many studies, which were mainly focused on the compression mode, have been conducted to investigate the mechanical properties of SLM fabricated NiTi parts [24,29,43,47,49,60,62,67,68,70,85,95,96,97,98,99]. The effect of SLM process conditions on the functional properties of NiTi alloys under compression mode has been well studied and summarized, for example in Ref. [24,43,100]. The SLM fabricated NiTi parts normally show good mechanical properties under compression. The total compressive strain over 25% [60,63,98] and recoverable strain of up to 6% [43] have been reported, which are comparable to the conventionally fabricated NiTi samples. It was also found that the compressive properties of SLM fabricated NiTi alloys also benefit from aging treatment [24,70,101], the effect that is similar to that in NiTi produced by conventional techniques [65,90].
Besides compression, the tensile properties of NiTi parts are also important, because many NiTi devices work under tension or tension-distortion conditions. However, only very few studies tested the performance of SLM fabricated NiTi parts under tension [56,57,100,102] or bending [42,103]. Tensile properties are more sensitive to the defects generated by SLM (e.g., porosity, microcracks), leading to the low fracture strains and stresses under tension.
Recently, Sam et al. [56] investigated the tensile properties of NiTi samples fabricated with different energy densities by modifying the hatch spacing. A recoverable strain of around 5% has been obtained in the samples that were produced with certain SLM parameters (Figure 5a) [56]. It was also found that the sample fabricated with low energy density (with the hatch spacing of 120 μm) shows a larger recoverable strain than that fabricated with high energy density (with the hatch spacing of 35 μm) [56]. The detailed reason for the improvement of the tensile performance with a larger hatch spacing is not clear yet. It is suggested that future work is highly required to study the influence of SLM process conditions on the microstructure and thus the mechanical properties of NiTi alloys. Khoo et al. [100] reported a NiTi ribbon with transformation strain (under tension) of 4.6% (Figure 5b). The ribbon was fabricated by repetitive laser scanning, i.e., (partially) re-melting the previously deposited layer. It seems that re-melting could eliminate the defects (e.g., cracks, pores) and thus improve the tensile properties. However, only one layer was fabricated in this study. Future studies are required to investigate the effect of re-melting on the performance of SLM fabricated bulk parts.
In the work conducted by Hayat et al. [104], NiTi parts were fabricated while using Selective Electron Beam Melting (EBM), which offers a high vacuum circumstance during processing, and thus leads to low pick-up of O2 and other impurities. Moreover, a preheating temperature of 750 °C kept during processing. However, the EBM fabricated sample shows only the tensile strain of 3.9%. This indicates that the contamination of O2 may be not the main reason for deteriorating the tensile properties of NiTi alloys fabricated by SLM. Therefore, detailed research (e.g., in-situ TEM work) on finding the origin of the brittleness of SLM fabricated NiTi alloy is highly required, especially to compare the microstructure with the NiTi alloys that were fabricated via conventional approaches.
SLM gives rise to a unique microstructure, which will significantly affect the functional performance of NiTi parts. For instance, the strong texture leads to high anisotropy in the functional properties in different directions (with reference to the build direction). This has to be considered especially for the NiTi devices, which are designed for deforming at different directions. The pickup of oxygen and other impurities, and the presence of pores and micro-cracks will undermine the functional performance of NiTi parts, especially under tension. The inhomogeneous microstructure that is caused by SLM may lead to unpredictable mechanical behavior, as compared with the conventionally fabricated NiTi parts. It is suggested that future work is required to understand how the unique microstructure affects the functional performance of SLM fabricated NiTi parts.

5. Conclusions

In this brief review, previous studies on fabricating NiTi parts by SLM were summarized. SLM provides great potential for fabricating geometrically complex NiTi devices, which will significantly promote the practical applications of NiTi SMAs. SLM gives rise to a unique microstructure, which is highly sensitive to the change of SLM process parameters. The transformation behavior and functional properties of NiTi alloys are, in turn, very sensitive to the microstructural changes. Therefore, more systematic studies are necessary to establish the relation between the SLM process and resulting microstructure, as well as the functional performance of NiTi parts.
(1)
SLM is a complex physical metallurgical process, which leads to the complex microstructural changes, including the variation of composition, formation of precipitations and dislocations, development of strong texture and residual stresses, and the microstructural heterogeneity. Systematic work is required to study the interrelationship between SLM process and resulted microstructure and related functional properties.
(2)
The phase transformation behavior are very sensitive to the SLM process conditions, even when fabricating under similar energy density level. Although the interrelationship between the SLM process and the transformation behavior of NiTi alloys is not clear yet, it may provide an effective way to tailoring the transformation temperature of NiTi alloys by tuning the SLM process parameters.
(3)
The compression properties of SLM fabricated NiTi alloys are comparable with the NiTi alloys produced via conventional approaches. However, the SLM fabricated NiTi alloys normally show a total elongation < 6% under tension. The origin of the brittleness of SLM fabricated NiTi alloy is not clear yet. Future work is highly required to study the formation of defects (e.g., voids, micro-cracks) under different SLM process conditions, and their influence on the functional performance of SLM fabricated NiTi alloys.

Funding

This work was funded by the National Key R&D Program of China (Grant No.: 2018YFB1105100), Shandong Provincial Natural Science Foundation, China (Grant No.: ZR201709180018), China Postdoctoral Science Foundation (Grant No.: 2017M622195), the Fundamental Research Funds of Shandong University, and the Research Foundation Flanders (FWO, Grant No.: G.0366.15N). The financial support from the Spanish Ministerio de Economía y Competitividad, Project MAT2014-56116-C04-01-R and by the Ministry of Education and Science of the Russian Federation, goszadanie No. 3.1421.2017/4.6 is also acknowledged.

Acknowledgments

We could like to thank Jean-Pierre Kruth, M.; Speirs, S. Dadbakhsh (KU Leuven, Belgium), Xiaopeng Li (The University of New South Wales, Australia), Bey Vrancken (Lawrence Livermore National Laboratory, USA) and Zuocheng Wang (Shandong University, China) for discussions.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Otsuka, K.; Ren, X. Physical metallurgy of Ti-Ni-based shape memory alloys. Prog. Mater. Sci. 2005, 50, 511–678. [Google Scholar] [CrossRef]
  2. Miyazaki, S. My experience with Ti-Ni-based and Ti-based shape memory alloys. Shape Mem. Superelast. 2017, 3, 279–314. [Google Scholar] [CrossRef]
  3. Miyazaki, S.; Kimura, S.; Otsuka, K.; Suzuki, Y. The habit plane and transformation strains associated with the martensitic transformation in Ti-Ni single crystals. Scr. Metall. 1984, 18, 883–888. [Google Scholar] [CrossRef]
  4. Saburi, T.; Yoshida, M.; Nenno, S. Deformation behavior of shape memory Ti-Ni alloy crystals. Scr. Metall. 1984, 18, 363–366. [Google Scholar] [CrossRef]
  5. Es-Souni, M.; Es-Souni, M.; Fischer-Brandies, H. Assessing the biocompatibility of NiTi shape memory alloys used for the medical applications. Anal. Bioanal. Chem. 2005, 381, 557–567. [Google Scholar] [CrossRef] [PubMed]
  6. Wang, J.; Sehitoglu, H. Martensite modulus dilemma in monoclinic NiTi-theory and experiments. Int. J. Plast. 2014, 61, 17–31. [Google Scholar] [CrossRef]
  7. Liu, Y.; Xiang, H. Apparent modulus of elasticity of near-equiatomic NiTi. J. Alloys Compd. 1998, 270, 154–159. [Google Scholar] [CrossRef]
  8. Rondelli, G. Corrosion resistance tests on NiTi shape memory alloy. Biomaterials 1996, 17, 2003–2008. [Google Scholar] [CrossRef]
  9. Van Humbeeck, J. Damping capacity of thermoelastic martensite in shape memory alloys. J. Alloys Compd. 2003, 355, 58–64. [Google Scholar] [CrossRef]
  10. Van Humbeeck, J.; Kustov, S. Active and passive damping of noise and vibrations through shape memory alloys: Applications and mechanisms. Smart Mater. Struct. 2005, 14, S1711–S185. [Google Scholar] [CrossRef]
  11. Kato, H.; Sasaki, K. Transformation-induced plasticity as the origin of serrated flow in an NiTi shape memory alloy. Int. J. Plast. 2013, 50, 37–48. [Google Scholar] [CrossRef]
  12. Miyazaki, S.; Kohiyama, Y.; Otsuka, K.; Duerig, T.W. Effects of several factors on the ductility of the Ti-Ni alloys. Mater. Sci. Forum 1990, 56–58, 765–770. [Google Scholar] [CrossRef]
  13. Yoneyama, T.; Miyazaki, S. Shape Memory Alloys for Biomedical Applications; Woodhead Publishing: Cambridge, UK, 2009; ISBN 978-1-84569-344-2. [Google Scholar]
  14. Yahia, L. Shape Memory Implants; Springer: Berlin/Heidelberg, Germany, 2000; ISBN 978-3-642-64118-3. [Google Scholar]
  15. Elahinia, M.H.; Hashemi, M.; Tabesh, M.; Bhaduri, S.B. Manufacturing and processing of NiTi implants: A review. Prog. Mater. Sci. 2012, 57, 911–946. [Google Scholar] [CrossRef]
  16. Yamauchi, K.; Ohkata, I.; Tsuchiya, K.; Miyazaki, S. Shape Memory and Superelastic Alloys: Technologies and Applications; Woodhead Publishing: Cambridge, UK, 2011; ISBN 978-1-84569-707-5. [Google Scholar]
  17. Lecce, L.; Concilio, A. Shape Memory Alloy Engineering for Aerospace, Structural and Biomedical Applications; Butterworth-Heinemann: Oxford, UK, 2015; ISBN 978-0-08-099920-3. [Google Scholar]
  18. Czechowicz, A.; Langbein, S. Shape Memory Alloy Valves-Basics, Potentials, Design; Springer: Berlin/Heidelberg, Germany, 2015; ISBN 978-3-319-19080-8. [Google Scholar]
  19. Weinert, K.; Petzoldt, V. Machining of NiTi based shape memory alloys. Mater. Sci. Eng. A 2004, 378, 180–184. [Google Scholar] [CrossRef]
  20. Oliveira, J.P.; Miranda, R.M.; Braz Fernandes, F.M. Welding and joining of NiTi shape memory alloys: A review. Prog. Mater. Sci. 2017, 88, 412–466. [Google Scholar] [CrossRef]
  21. Kaynak, Y.; Tobe, H.; Noebe, R.D.; Karaca, H.E.; Jawahir, I.S. The effects of machining on the microstructure and transformation behavior of NiTi alloy. Scr. Mater. 2014, 74, 60–63. [Google Scholar] [CrossRef]
  22. Hassan, M.R.; Mehrpouya, M.; Dawood, S. Review of the machining difficulties of nickel-titanium based shape memory alloys. Appl. Mech. Mater. 2014, 564, 533–537. [Google Scholar] [CrossRef]
  23. Mehrpouya, M.; Gisario, A.; Elahinia, M. Laser welding of NiTi shape memory alloy: A review. J. Manuf. Process. 2018, 31, 162–186. [Google Scholar] [CrossRef]
  24. Elahinia, M.; Moghaddam, N.S.; Andani, M.T.; Amerinatanzi, A.; Bimber, B.A.; Hamilton, R.F. Fabrication of NiTi through additive manufacturing: A review. Prog. Mater. Sci. 2016, 83, 630–663. [Google Scholar] [CrossRef] [Green Version]
  25. Gibson, I.; Rosen, D.; Stucker, B. Additive Manufacturing Technologies: 3D Printing, Rapid Prototyping, and Direct Digital Manufacturing; Springer: New York, NY, USA, 2010; ISBN 978-1-4939-2112-6. [Google Scholar]
  26. Herzog, D.; Seyda, V.; Wycisk, E.; Emmelmann, C. Additive manufacturing of metals. Acta Mater. 2016, 117, 371–392. [Google Scholar] [CrossRef]
  27. Gu, D.; Meiners, W.; Wissenbach, K.; Poprawe, R. Laser additive manufacturing of metallic components: Materials, processes and mechanisms. Int. Mater. Rev. 2012, 57, 133–164. [Google Scholar] [CrossRef]
  28. DebRoy, T.; Wei, H.L.; Zuback, J.S.; Mukherjee, T.; Elmer, J.W.; Milewski, J.O.; Beese, A.M.; Wilson-Heid, A.; De, A.; Zhang, W. Additive manufacturing of metallic components-Process, structure and properties. Prog. Mater. Sci. 2018, 92, 112–224. [Google Scholar] [CrossRef]
  29. Haberland, C.; Elahinia, M.; Walker, J.M.; Meier, H.; Frenzel, J. On the development of high quality NiTi shape memory and pseudoelastic parts by additive manufacturing. Smart Mater. Struct. 2014, 23, 104002. [Google Scholar] [CrossRef]
  30. Li, X.P.; Ji, G.; Chen, Z.; Addad, A.; Wu, Y.; Wang, H.W.; Vleugels, J.; Van Humbeeck, J.; Kruth, J.-P. Selective laser melting of nano-TiB2 decorated AlSi10Mg alloy with high fracture strength and ductility. Acta Mater. 2017, 129, 183–193. [Google Scholar] [CrossRef]
  31. Kasperovich, G.; Haubrich, J.; Gussone, J.; Requena, G. Correlation between porosity and processing parameters in TiAl6V4 produced by selective laser melting. Mater. Des. 2016, 105, 160–170. [Google Scholar] [CrossRef]
  32. Carter, L.N.; Wang, X.; Read, N.; Khan, R.; Aristizabal, M.; Essa, K.; Attallah, M.M. Process optimisation of selective laser melting using energy density model for nickel based superalloys. Mater. Sci. Technol. 2016, 32, 657–661. [Google Scholar] [CrossRef]
  33. Choi, J.P.; Shin, G.H.; Brochu, M.; Kim, Y.J.; Yang, S.S.; Kim, K.T.; Yang, D.Y.; Lee, C.W.; Yu, J.H. Densification behaviour of 316 L stainless steel parts fabricated by selective laser melting by variation in laser energy density. Mater. Trans. 2016, 57, 1952–1959. [Google Scholar] [CrossRef]
  34. Scipioni Bertoli, U.; Wolfer, A.J.; Matthews, M.J.; Delplanque, J.-P.R.; Schoenung, J.M. On the limitations of volumetric energy density as a design parameter for selective laser melting. Mater. Des. 2017, 113, 331–340. [Google Scholar] [CrossRef]
  35. Do, D.K.; Li, P. The effect of laser energy input on the microstructure, physical and mechanical properties of Ti-6Al-4V alloys by selective laser melting. Virtual Phys. Prototyp. 2016, 11, 41–47. [Google Scholar] [CrossRef]
  36. Gong, H.; Rafi, K.; Gu, H.; Janaki Ram, G.D.; Starr, T.; Stucker, B. Influence of defects on mechanical properties of Ti-6Al-4V components produced by selective laser melting and electron beam melting. Mater. Des. 2015, 86, 545–554. [Google Scholar] [CrossRef]
  37. Khairallah, S.A.; Anderson, A.T.; Rubenchik, A.; King, W.E. Laser powder-bed fusion additive manufacturing: Physics of complex melt flow and formation mechanisms of pores, spatter, and denudation zones. Acta Mater. 2016, 108, 36–45. [Google Scholar] [CrossRef] [Green Version]
  38. Li, R.; Liu, J.; Shi, Y.; Wang, L.; Jiang, W. Balling behaviour of stainless steel and nickel powder during selective laser melting process. Int. J. Adv. Manuf. Technol. 2012, 59, 1025–1035. [Google Scholar] [CrossRef]
  39. Zhang, B.; Li, Y.; Bai, Q. Defect formation mechanisms in selective laser melting: A review. Chin. J. Mech. Eng. 2017, 30, 515–527. [Google Scholar] [CrossRef]
  40. Andani, M.T.; Dehghani, R.; Karamooz-Ravari, M.R.; Mirzaeifar, R.; Ni, J. Spatter formation in selective laser melting process using multi-laser technology. Mater. Des. 2017, 131, 460–469. [Google Scholar] [CrossRef]
  41. Liu, Y.; Yang, Y.; Mai, S.; Wang, D.; Song, C. Investigation into spatter behaviour during selective laser melting of AISI 316L stainless steel powder. Mater. Des. 2015, 87, 797–806. [Google Scholar] [CrossRef]
  42. Ma, J.; Franco, B.; Tapia, G.; Karayagiz, K.; Johnson, L.; Liu, J.; Arroyave, R.; Karaman, I.; Elwany, A. Spatial control of functional response in 4D-printed active metallic structures. Sci. Rep. 2017, 7, 46707. [Google Scholar] [CrossRef] [PubMed]
  43. Saedi, S.; Moghaddam, N.S.; Amerinatanzi, A.; Elahinia, M.; Karaca, H.E. On the effects of selective laser melting process parameters on microstructure and thermomechanical response of Ni-rich NiTi. Acta Mater. 2018, 144, 552–560. [Google Scholar] [CrossRef]
  44. Franco, B.E.; Ma, J.; Loveall, B.; Tapia, G.A.; Karayagiz, K.; Liu, J.; Elwany, A.; Arroyave, R.; Karaman, I. A sensory material approach for reducing variability in additively manufactured metal parts. Sci. Rep. 2017, 7, 3604. [Google Scholar] [CrossRef] [PubMed]
  45. Speirs, M.; Wang, X.; Van Baelen, S.; Ahadi, A.; Dadbakhsh, S.; Kruth, J.-P.; Van Humbeeck, J. On the transformation behaviour of NiTi shape-memory alloy produced by SLM. Shape Mem. Superelast. 2016, 2, 310–316. [Google Scholar] [CrossRef]
  46. Wang, X.; Speris, M.; Kustov, S.; Vrancken, B.; Li, X.; Kruth, J.-P.; Van Humbeeck, J. Selective laser melting produced layer-structured NiTi shape memory alloys with high damping properties and Elinvar effect. Scr. Mater. 2018, 146, 246–250. [Google Scholar] [CrossRef]
  47. Walker, J.M.; Haberland, C.; Andani, M.T.; Karaca, H.E.; Dean, D.; Elahinia, M. Process development and characterization of additively manufactured nickel-titanium shape memory parts. J. Intell. Mater. Syst. Struct. 2016, 27, 2653–2660. [Google Scholar] [CrossRef]
  48. Bormann, T.; Muller, B.; Schinhammer, M.; Kessler, A.; Thalmann, P.; de Wild, M. Microstructure of selective laser melted nickel-titanium. Mater. Charact. 2014, 94, 189–202. [Google Scholar] [CrossRef]
  49. Dadbakhsh, S.; Speirs, M.; Kruth, J.-P.; Schrooten, J.; Luyten, J.; Van Humbeeck, J. Effect of SLM parameters on transformation temperatures of shape memory nickel titanium parts. Adv. Eng. Mater. 2014, 16, 1140–1146. [Google Scholar] [CrossRef]
  50. Prashanth, K.G.; Scudino, S.; Maity, T.; Das, J.; Eckert, J. Is the energy density a reliable parameter for materials synthesis by selective laser melting? Mater. Res. Lett. 2017, 5, 386–390. [Google Scholar] [CrossRef] [Green Version]
  51. Li, Y.; Gu, D. Parametric analysis of thermal behaviour during selective laser melting additive manufacturing of aluminium alloy powder. Mater. Des. 2014, 63, 856–867. [Google Scholar] [CrossRef]
  52. Pauly, S.; Lober, L.; Petters, R.; Stoica, M.; Scudino, S.; Kuhn, U.; Eckert, J. Processing metallic glasses by selective laser melting. Mater. Today 2013, 16, 37–41. [Google Scholar] [CrossRef]
  53. Das, S. Physical aspects of process control in selective laser sintering of metals. Adv. Eng. Mater. 2003, 5, 701–711. [Google Scholar] [CrossRef]
  54. Mukherjee, T.; Zuback, J.S.; De, A.; DebRoy, T. Printability of alloys for additive manufacturing. Sci. Rep. 2016, 6, 19717. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Khoo, Z.; Teoh, J.E.M.; Liu, Y.; Chua, C.K. 3D printing of smart materials: A review on recent progresses in 4D printing. Virtual Phys. Prototyp. 2015, 10, 103–122. [Google Scholar] [CrossRef]
  56. Sam, J.; Franco, B.; Ma, J.; Karaman, I.; Elwany, A.; Mabe, J.H. Tensile actuation response of additively manufactured nickel-titanium shape memory alloys. Scr. Mater. 2018, 146, 164–168. [Google Scholar] [CrossRef]
  57. Bormann, T.; Schumacher, R.; Muller, B.; Mertmann, M.; de Wild, M. Tailoring selective laser melting process parameters for NiTi implants. J. Mater. Eng. Perform. 2012, 21, 2519–2524. [Google Scholar] [CrossRef]
  58. Frenzel, J.; George, E.P.; Dlouhy, A.; Somsen, C.; Wagner, M.F.-X.; Eggeler, G. Influence of Ni on martensitic phase transformations in NiTi shape memory alloys. Acta Mater. 2010, 58, 3444–3458. [Google Scholar] [CrossRef]
  59. Klassen, A.; Scharowsky, T.; Korner, C. Evaporation model for beam based additive manufacturing using free surface lattice Boltzmann methods. J. Phys. D 2014, 47, 275303. [Google Scholar] [CrossRef]
  60. Andani, M.T.; Saedi, S.; Turabi, A.S.; Karamooz, M.R.; Haberland, C.; Karaca, H.E.; Elahinia, M. Mechanical and shape memory properties of porous Ni50.1Ti49.9 alloys manufactured by selective laser melting. J. Mech. Behav. Biomed. Mater. 2017, 68, 224–231. [Google Scholar] [CrossRef] [PubMed]
  61. Khalil-Allafi, J.; Dlouhy, A.; Eggeler, G. Ni4Ti3-precipitation during aging of NiTi shape memory alloys and its influence on martensitic phase transformation. Acta Mater. 2002, 50, 4255–4274. [Google Scholar] [CrossRef]
  62. Elahinia, M.; Moghaddam, N.S.; Amerinatanzi, A.; Saedi, S.; Toker, G.P.; Karaca, H.; Bigelow, G.S.; Benafan, O. Additive manufacturing of NiTiHf high temperature shape memory alloy. Scr. Mater. 2018, 145, 90–94. [Google Scholar] [CrossRef]
  63. Haberland, C.; Elahinia, M.; Walker, J.; Meier, H.; Frenzel, J. Additive manufacturing of shape memory device and pseudoelastic components. In Proceedings of the Smart Materials, Adaptive Structures and Intelligent Systems (SMASIS-2013), Snowbird, UT, USA, 16–18 September 2013; The American Society of Mechanical Engineers: Snowbird, UT, USA, 2013; p. 3070. [Google Scholar]
  64. Meier, H.; Haberland, C.; Frenzel, J.; Zarnetta, R. Selective laser melting of NiTi shape memory components. In Innovative Developments in Design and Manufacturing: Advanced Research in Virtual and Rapid Prototyping; Da Silva Bartolo, P.J., de Lemos, A.C.S., Pereira, A.M.H., dos Santos Mateus, A.J., Mendes, A.L.A., de Moura, C.S.M., Capela, C.A.B., da Silva, C.S.G., Domingues, F.A.C., da Rocha Terreiro Galha Bartolo, H.M.C., et al., Eds.; CRC Press: London, UK, 2010; pp. 233–238. ISBN 978-0-415-87307-9. [Google Scholar]
  65. Kim, J.; Miyazaki, S. Effect of nano-scaled precipitates on shape memory behavior of Ti-50.9 at.% Ni alloy. Acta Mater. 2005, 53, 4545–4554. [Google Scholar] [CrossRef]
  66. Kim, J.; Liu, Y.; Miyazaki, S. Ageing-induced two-stage R-phase transformation in Ti-50.9 at.% Ni. Acta Mater. 2004, 52, 487–499. [Google Scholar] [CrossRef]
  67. Dadbakhsh, S.; Vrancken, B.; Kruth, J.-P.; Luyten, J.; Van Humbeeck, J. Texture and anisotropy in selective laser melting of NiTi alloy. Mater. Sci. Eng. A 2016, 650, 225–232. [Google Scholar] [CrossRef]
  68. Hou, H.; Simsek, E.; Stasak, D.; Hasan, N.A.; Qian, S.; Ott, R.; Cui, J.; Takeuchi, I. Elastocaloric cooling of additive manufactured shape memory alloys with large latent heat. J. Phys. D 2017, 50, 404001. [Google Scholar] [CrossRef] [Green Version]
  69. Li, S.; Hassanin, H.; Attallah, M.M.; Adkins, N.J.E.; Essa, K. The development of TiNi-based negative Poisson’s ratio structure using selective laser melting. Acta Mater. 2016, 105, 75–83. [Google Scholar] [CrossRef]
  70. Saedi, S.; Turabi, A.S.; Andani, M.T.; Moghaddam, N.S.; Elahinia, M.; Karack, H.E. Texture, aging, and superelasticity of selective laser melting fabricated Ni-rich NiTi alloys. Mater. Sci. Eng. A 2017, 686, 1–10. [Google Scholar] [CrossRef]
  71. Thijs, L.; Kempen, K.; Kruth, J.-P.; Van Humbeeck, J. Fine-structured aluminium products with controllable texture by selective laser melting of pre-alloyed AlSi10Mg powder. Acta Mater. 2013, 61, 1809–1819. [Google Scholar] [CrossRef] [Green Version]
  72. Wang, Y.M.; Voisin, T.; McKeown, J.T.; Ye, J.; Calta, N.P.; Li, Z.; Zeng, Z.; Zhang, Y.; Chen, W.; Roehling, T.T.; et al. Additively manufactured hierarchical stainless steels with high strength and ductility. Nat. Mater. 2017, 17, 63–71. [Google Scholar] [CrossRef] [PubMed]
  73. Liu, L.; Ding, Q.; Zhong, Y.; Zou, J.; Wu, J.; Chiu, Y.-L.; Li, J.; Zhang, Z.; Yu, Q.; Shen, Z. Dislocation network in additive manufactured steel breaks strength-ductility trade-off. Mater. Today 2017, 21, 354–361. [Google Scholar] [CrossRef]
  74. Sun, Z.; Tan, X.; Tor, S.B.; Yeong, W.Y. Selective laser melting of stainless steel 316L with low porosity and high build rates. Mater. Des. 2016, 104, 197–204. [Google Scholar] [CrossRef]
  75. Thijs, L.; Montero Sistiaga, M.L.; Wauthle, R.; Xie, Q.; Kruth, J.-P.; Van Humbeeck, J. Strong morphological and crystallographic texture and resulting yield strength anisotropy in selective laser melted tantalum. Acta Mater. 2013, 61, 4657–4668. [Google Scholar] [CrossRef]
  76. Vrancken, B. Study of Residual Stresses in Selective Laser Melting. Ph.D. Thesis, University of Leuven (KU Leuven), Leuven, Belgium, 2016. [Google Scholar]
  77. Kalentics, N.; Boillat, E.; Peyre, P.; Ciric-Kostic, S.; Bogojevic, N.; Loge, R.E. Tailoring residual stress profile of selective laser melted parts by laser shock peening. Addit. Manuf. 2017, 16, 90–97. [Google Scholar] [CrossRef]
  78. Kruth, J.-P.; Deckers, J.; Yasa, E.; Wauthle, R. Assessing and comparing influencing factors of residual stresses in selective laser melting using a novel analysis method. J. Eng. Manuf. 2012, 226, 980–991. [Google Scholar] [CrossRef]
  79. Wollants, P.; Roos, J.R.; Delaey, L. Thermally- and stress-induced thermoelastic martensitic transformations in the reference frame of equilibrium thermodynamics. Prog. Mater. Sci. 1993, 37, 227–288. [Google Scholar] [CrossRef]
  80. Montero Sistiaga, M.L.; Mertens, R.; Vrancken, B.; Wang, X.; Van Hooreweder, B.; Kruth, J.-P.; Van Humbeeck, J. Changing the alloy composition of Al7075 for better processability by selective laser melting. J. Mater. Process. Technol. 2016, 238, 437–445. [Google Scholar] [CrossRef]
  81. Kok, Y.; Tan, X.P.; Wang, P.; Nai, M.L.S.; Loh, N.H.; Liu, E.; Tor, S.B. Anisotropy and heterogeneity of microstructure and mechanical properties in metal additive manufacturing: A critical review. Mater. Des. 2018, 139, 565–586. [Google Scholar] [CrossRef]
  82. Wu, X.; Zhu, Y. Heterogeneous materials: A new class of materials with unprecedented mechanical properties. Mater. Res. Lett. 2017, 5, 527–532. [Google Scholar] [CrossRef]
  83. Berbenni, S.; Favier, V.; Berveiller, M. Impact of the grain size distribution on the yield stress of heterogeneous materials. Int. J. Plast. 2007, 23, 114–142. [Google Scholar] [CrossRef]
  84. Hamilton, R.F.; Palmer, T.A.; Bimber, B.A. Spatial characterization of the thermal-induced phase transformation throughout as-deposited additive manufactured NiTi bulk builds. Scr. Mater. 2015, 101, 56–59. [Google Scholar] [CrossRef]
  85. Walker, J.; Andani, M.T.; Haberland, C.; Elahinia, M. Additive manufacturing o fNitinol shape memory alloys to overcome challenges in conventional Nitinol fabrication. In Proceedings of the 2014 International Mechanical Engineering Congress and Exposition (IMECE-2014), Montreal, QC, Canada, 14–20 November 2014; The American Society of Mechancial Engineers: Montreal, QC, Canada, 2014; p. 40432. [Google Scholar]
  86. Benafan, O.; Bigelow, G.S.; Elahinia, M.; Moghaddam, N.S.; Amerinatanzi, A.; Saedi, S.; Toker, G.P.; Karaca, H. Additive Manufacturing of Nitihf High Temperature Shape Memory Alloy; NASA Technical Memorandum; NASA Glenn Research Center: Cleveland, OH, USA, 2017; p. 219523. [Google Scholar]
  87. Vamsi Krishna, B.; Bose, S.; Bandyopadhyay, A. Laser processing of net-shape NiTi shape memory alloy. Metall. Mater. Trans. A 2007, 38, 1096–1103. [Google Scholar] [CrossRef]
  88. Scheitler, C.; Hentschel, O.; Krebs, T.; Nagulin, K.Y.; Schmidt, M. Laser metal deposition of NiTi shape memory alloy on Ti sheet metal: Influence of preheating on dissimilar build-up. J. Laser Appl. 2017, 29, 022309. [Google Scholar] [CrossRef] [Green Version]
  89. Dadbakhsh, S.; Speirs, M.; Van Humbeeck, J.; Kruth, J.-P. Laser additive manufacturing of bulk and porous shape-memory NiTi alloys: From processes to potential biomedical applications. MRS Bull. 2016, 41, 765–774. [Google Scholar] [CrossRef]
  90. Wang, X.; Kustov, S.; Li, K.; Schryvers, D.; Verlinden, B.; Van Humbeeck, J. Effect of nanoprecipitates on the transformation behavior and functional properties of a Ti-50.8 at.% Ni alloy with micron-sized grains. Acta Mater. 2015, 82, 224–233. [Google Scholar] [CrossRef]
  91. Wang, X.; Li, K.; Schryvers, D.; Verlinden, B.; Van Humbeeck, J. R-phase transition and related mechanical properties controlled by low-temperature aging treatment in a Ti-50.8 at.% Ni thin wire. Scr. Mater. 2014, 72–73, 21–24. [Google Scholar] [CrossRef]
  92. Wang, X.; Kustov, S.; Verlinden, B.; Van Humbeeck, J. Fundamental development on utilizing the R-phase transformation in NiTi shape memory alloys. Shape Mem. Superelast. 2015, 1, 231–239. [Google Scholar] [CrossRef]
  93. Zamani, N.; Khamesee, M.B.; Khan, M.I. Novel laser processed shape memory alloy actuator design with an embedded strain gauge sensor using dual resistance measurements. Part I: Fabrication and model-based position estimation. Sens. Actuators A Phys. 2017, 263, 234–245. [Google Scholar] [CrossRef]
  94. Oliveira, J.P.; Cavaleiro, A.J.; Schell, N.; Stark, A.; Miranda, R.M.; Ocana, J.L.; Braz Fernandes, F.M. Effects of laser processing on the transformation characteristics of NiTi: A contribute to additive manufacturing. Scr. Mater. 2018, 152, 122–126. [Google Scholar] [CrossRef]
  95. Andani, M.T.; Haberland, C.; Walker, J.M.; Karamooz, M.; Sadi Turabi, A.; Saedi, S.; Rahmanian, R.; Karaca, H.; Dean, D.; Kadkhodaei, M.; et al. Achieving biocompatible stiffness in NiTi through additive manufacturing. J. Intell. Mater. Syst. Struct. 2016, 27, 2661–2671. [Google Scholar] [CrossRef]
  96. Hamilton, R.F.; Bimber, B.A.; Andani, M.T.; Elahinia, M. Multi-scale shape memory effect recovery in NiTi alloys additive manufactured by selective laser melting and laser directed energy deposition. J. Mater. Process. Technol. 2017, 250, 55–64. [Google Scholar] [CrossRef]
  97. Hamilton, R.F.; Bimber, B.A.; Palmer, T.A. Correlating microstructure and superelasticity of directed energy deposition additive manufactured Ni-rich NiTi alloys. J. Alloys Compd. 2017, 739, 712–722. [Google Scholar] [CrossRef]
  98. Meier, H.; Haberland, C. Structural and functional properties of NiTi shape memory alloys produced by selective laser melting. In Proceedings of the 5th International Conference on Advanced Research in Virtual and Rapid Prototyping, Leiria, Portugal, 28 September–1 October 2012; de Silva Bartolo, P.J., Ed.; CRC Press: Leiria, Portugal, 2012; pp. 291–296, ISBN 978-0-415-68418-7. [Google Scholar]
  99. Saedi, S. Shape Memory Behavior of Dense and Porous NiTi Alloys Fabricated by Selective Laser Melting. Ph.D. Thesis, University of Kentucky, Lexington, KY, USA, 2017. [Google Scholar]
  100. Khoo, Z.X.; Liu, Y.; Low, Z.H.; An, J.; Chua, C.K.; Leong, K.F. Fabrication of SLM NiTi shape memory alloy via repetitive laser scanning. Shape Mem. Superelast. 2018, 4, 112–120. [Google Scholar] [CrossRef]
  101. Saedi, S.; Turabi, A.S.; Andani, M.T.; Haberland, C.; Karaca, H.; Elahinia, M. The influence of heat treatment on the thermomechanical response of Ni-rich NiTi alloys manufactured by selective laser melting. J. Alloys Compd. 2016, 677, 204–210. [Google Scholar] [CrossRef]
  102. Shiva, S.; Palani, I.A.; Mishra, S.K.; Paul, C.P.; Kukreja, L.M. Investigations on the influence of composition in the development of Ni-Ti shape memory alloy using laser based additive manufacturing. Opt. Laser Technol. 2015, 69, 44–51. [Google Scholar] [CrossRef]
  103. Clare, A.T.; Chalker, P.R.; Davies, S.; Sutcliffe, C.J.; Tsopanos, S. Selective laser melting of high aspect ratio 3D nickel-titanium structures two way trained for MEMS applications. Int. J. Mech. Mater. Des. 2018, 4, 181–187. [Google Scholar] [CrossRef]
  104. Hayat, M.D.; Chen, G.; Liu, N.; Khan, S.; Tang, H.P.; Cao, P. Physical and tensile properties of the NiTi alloy by selective electron beam melting. Key Eng. Mater. 2018, 770, 148–154. [Google Scholar] [CrossRef]

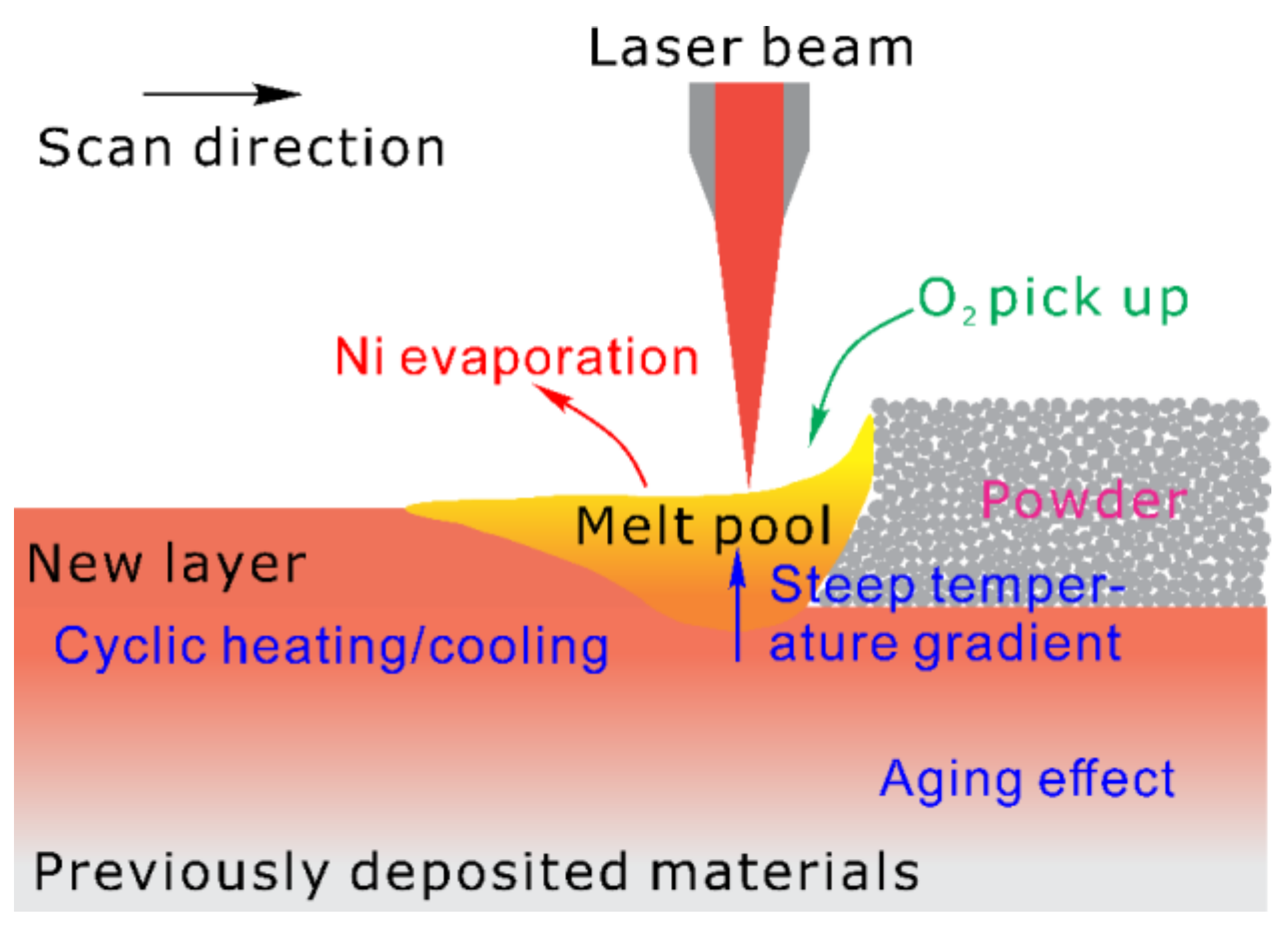

Figure 1. Schematic of the melt pool behavior of the selective laser melting process.
Figure 1. Schematic of the melt pool behavior of the selective laser melting process.
Materials 11 01683 g001

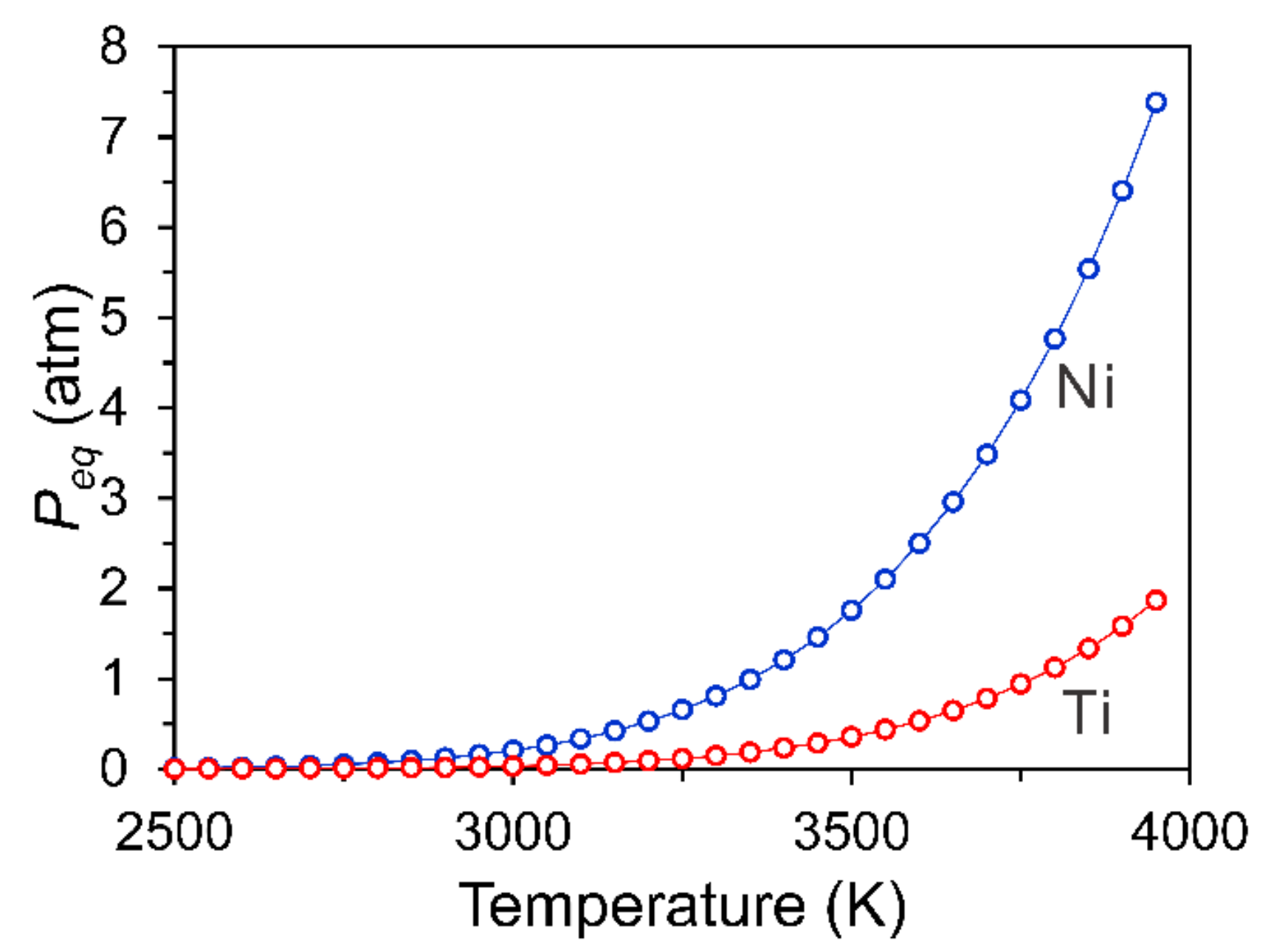

Figure 2. Equilibrium vapor pressures (Peq) of Ni and Ti over the liquid alloy for Ti-50.0 at % Ni alloy, which were calculated according to Ref. [54].
Figure 2. Equilibrium vapor pressures (Peq) of Ni and Ti over the liquid alloy for Ti-50.0 at % Ni alloy, which were calculated according to Ref. [54].
Materials 11 01683 g002
Figure 3. Oxygen, carbon, and nitrogen pickup in SLM fabricated NiTi parts [47] (with permission from SAGE Publications).
Figure 3. Oxygen, carbon, and nitrogen pickup in SLM fabricated NiTi parts [47] (with permission from SAGE Publications).
Materials 11 01683 g003

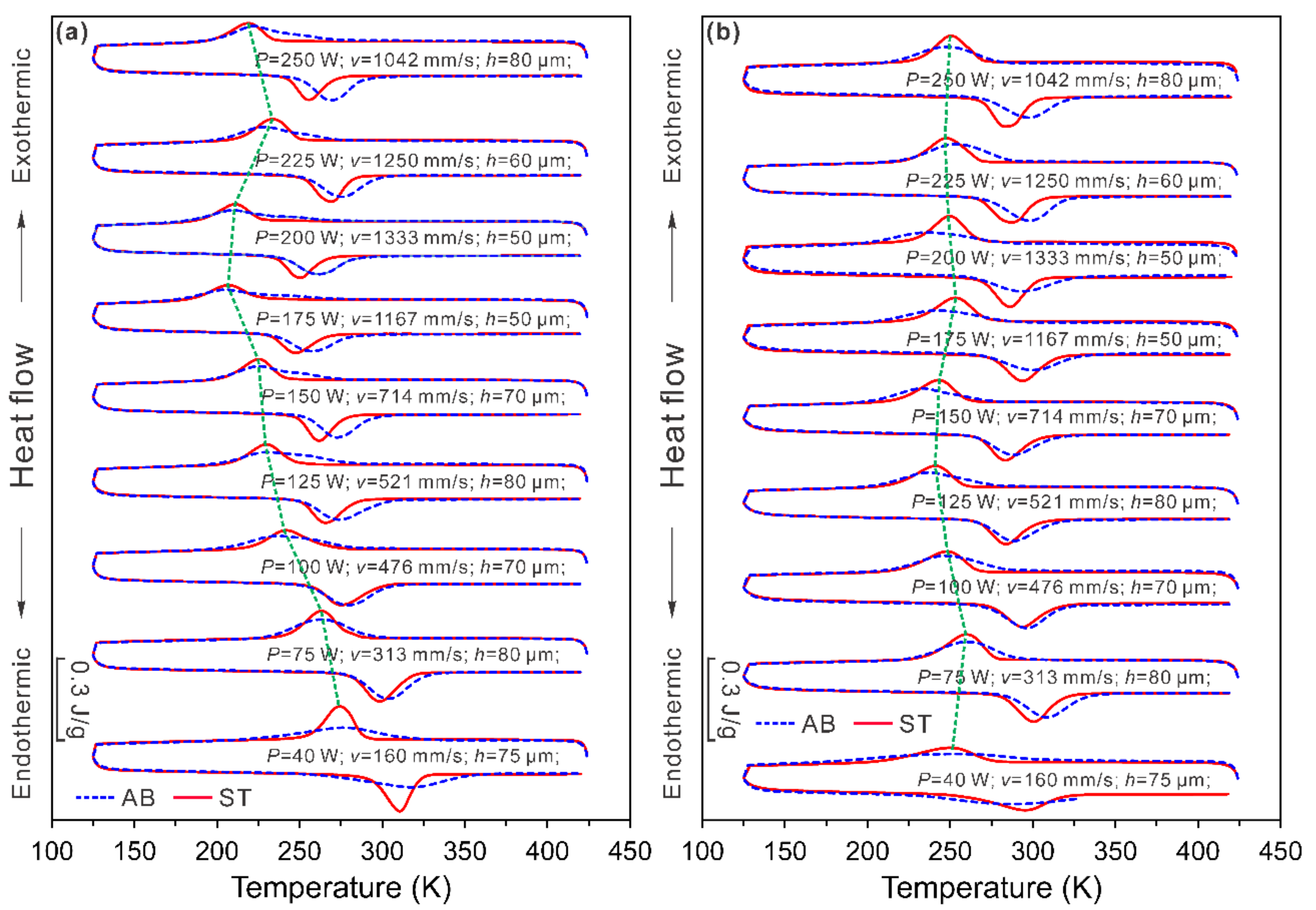

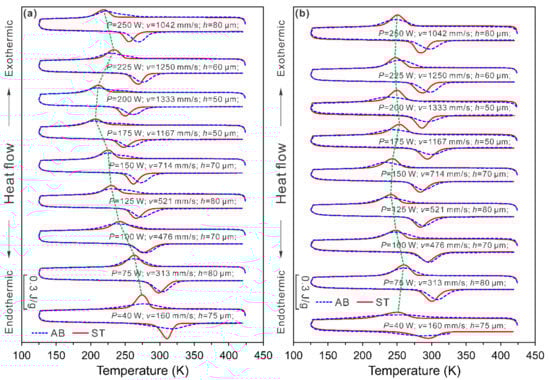

Figure 4. DSC (Differential Scanning Calorimetry) curves of the as-built (AB) and solution treated (ST, 1273 K for 2 h) NiTi samples produced by various SLM processes under (a) high O2 and (b) low O2 conditions. The green dash line guides the transformation peaks of the solution treated samples. P, v, and h represent the laser power, scanning velocity, and hatch spacing, respectively. (Modified after [45]).
Figure 4. DSC (Differential Scanning Calorimetry) curves of the as-built (AB) and solution treated (ST, 1273 K for 2 h) NiTi samples produced by various SLM processes under (a) high O2 and (b) low O2 conditions. The green dash line guides the transformation peaks of the solution treated samples. P, v, and h represent the laser power, scanning velocity, and hatch spacing, respectively. (Modified after [45]).
Materials 11 01683 g004

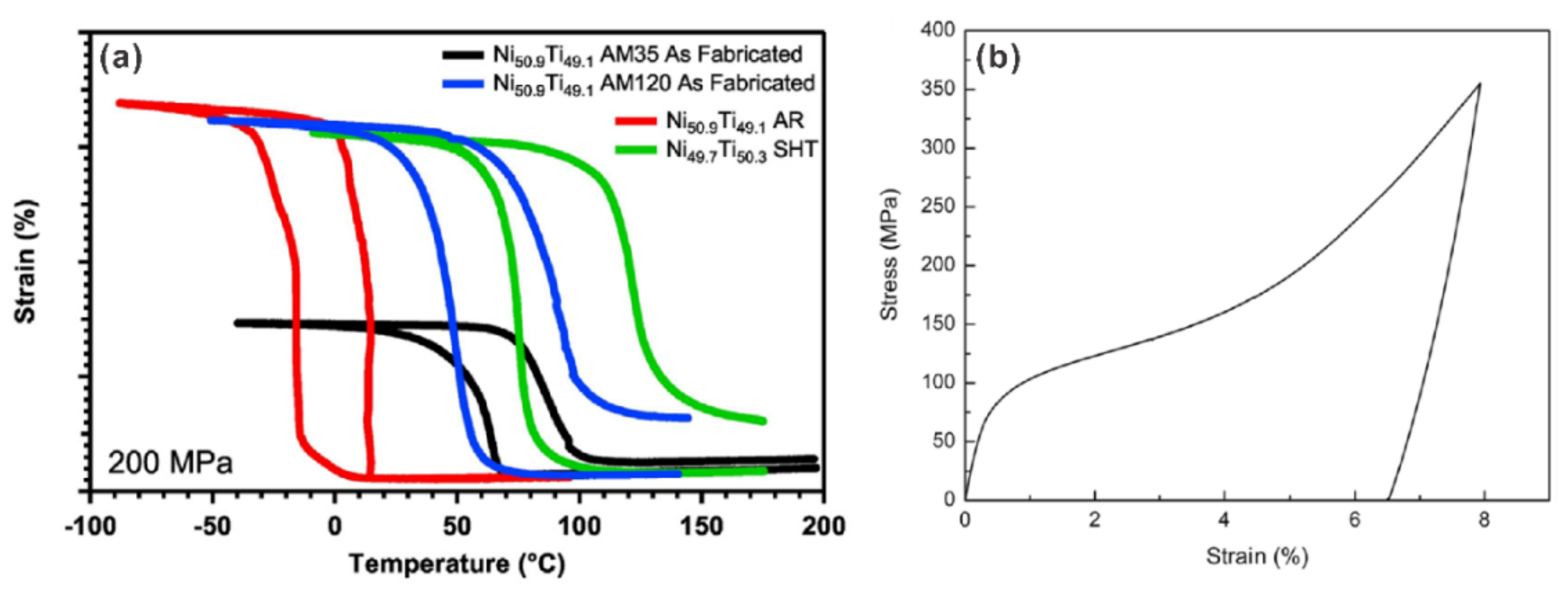

Figure 5. (a) Isobaric heating-cooling curves of a Ni50.9Ti49.1 alloy fabricated with a small hatch spacing of 35 μm (black curve), and a large hatch spacing of 120 μm (blue curve). For both samples, the laser power (50 W), scanning sapped (80 mm s−1), and layer thickness (30 μm) were the same. The results of the conventionally fabricated Ni50.9Ti49.1 (red curve) and a Ni49.7Ti50.3 alloy after solution treatment (900 °C, 1 h, green curve) are also shown [56] (with permission from Elsevier Publisher); (b) Stress-strain curve of a NiTi ribbon fabricated by repetitive laser scan. A laser power of 25 W was used for the first scan, and the laser power of 60 W was used for the second scan [100] (with permission from Springer Nature).
Figure 5. (a) Isobaric heating-cooling curves of a Ni50.9Ti49.1 alloy fabricated with a small hatch spacing of 35 μm (black curve), and a large hatch spacing of 120 μm (blue curve). For both samples, the laser power (50 W), scanning sapped (80 mm s−1), and layer thickness (30 μm) were the same. The results of the conventionally fabricated Ni50.9Ti49.1 (red curve) and a Ni49.7Ti50.3 alloy after solution treatment (900 °C, 1 h, green curve) are also shown [56] (with permission from Elsevier Publisher); (b) Stress-strain curve of a NiTi ribbon fabricated by repetitive laser scan. A laser power of 25 W was used for the first scan, and the laser power of 60 W was used for the second scan [100] (with permission from Springer Nature).
Materials 11 01683 g005

Share and Cite

MDPI and ACS Style

Wang, X.; Kustov, S.; Van Humbeeck, J. A Short Review on the Microstructure, Transformation Behavior and Functional Properties of NiTi Shape Memory Alloys Fabricated by Selective Laser Melting. Materials 2018, 11, 1683. https://doi.org/10.3390/ma11091683

AMA Style

Wang X, Kustov S, Van Humbeeck J. A Short Review on the Microstructure, Transformation Behavior and Functional Properties of NiTi Shape Memory Alloys Fabricated by Selective Laser Melting. Materials. 2018; 11(9):1683. https://doi.org/10.3390/ma11091683

Chicago/Turabian Style

Wang, Xiebin, Sergey Kustov, and Jan Van Humbeeck. 2018. "A Short Review on the Microstructure, Transformation Behavior and Functional Properties of NiTi Shape Memory Alloys Fabricated by Selective Laser Melting" Materials 11, no. 9: 1683. https://doi.org/10.3390/ma11091683

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
