Energies 2019, 12(3), 554; https://doi.org/10.3390/en12030554

Development Processes of Surface Trucking and Partial Discharge of Pressboards Immersed in Mineral Oil: Effect of Tip Curvatures

School of Electrical Engineering, Southwest Jiaotong University, Chengdu 611756, China
*
Author to whom correspondence should be addressed.
Received: 7 January 2019 / Revised: 2 February 2019 / Accepted: 4 February 2019 / Published: 11 February 2019
(This article belongs to the Section Electrical Power and Energy System)
Full-Text   |   PDF [6737 KB, uploaded 11 February 2019]   |

Abstract

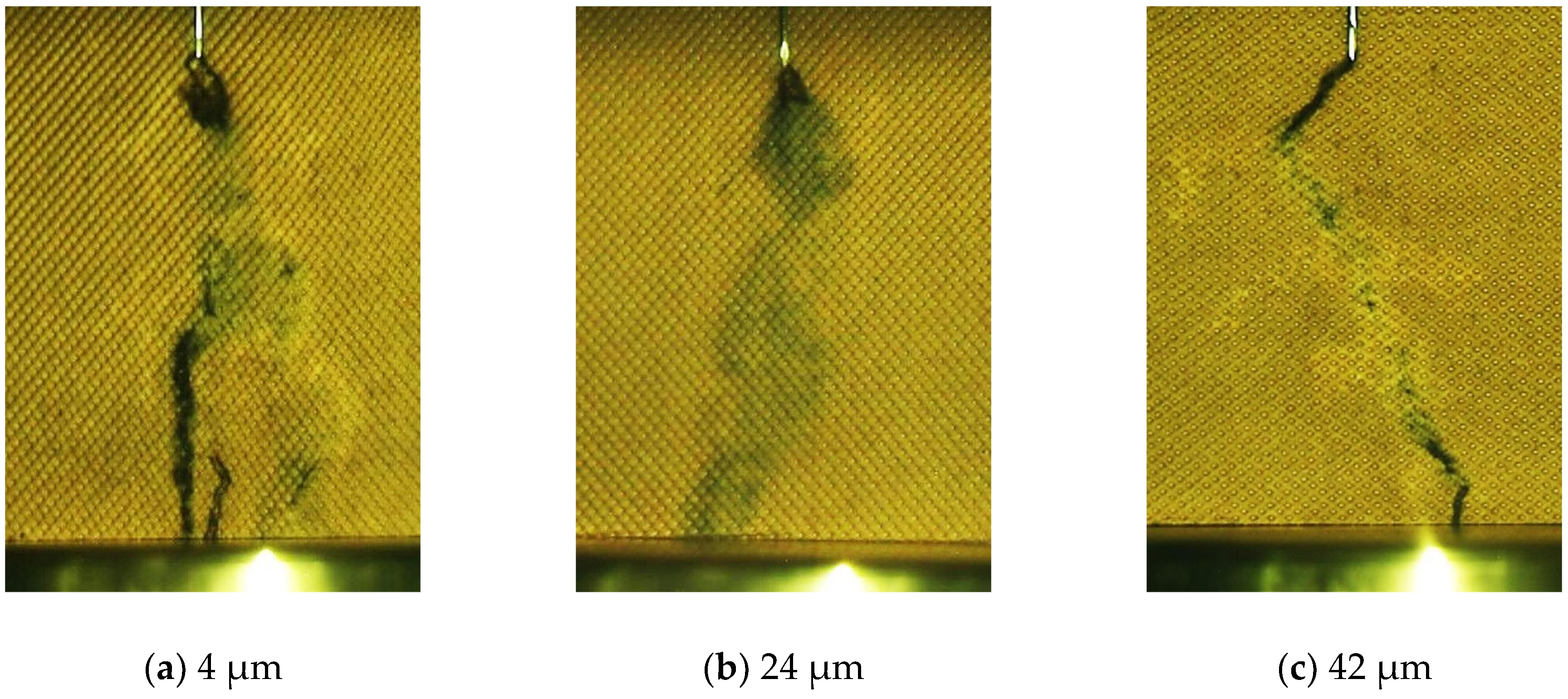

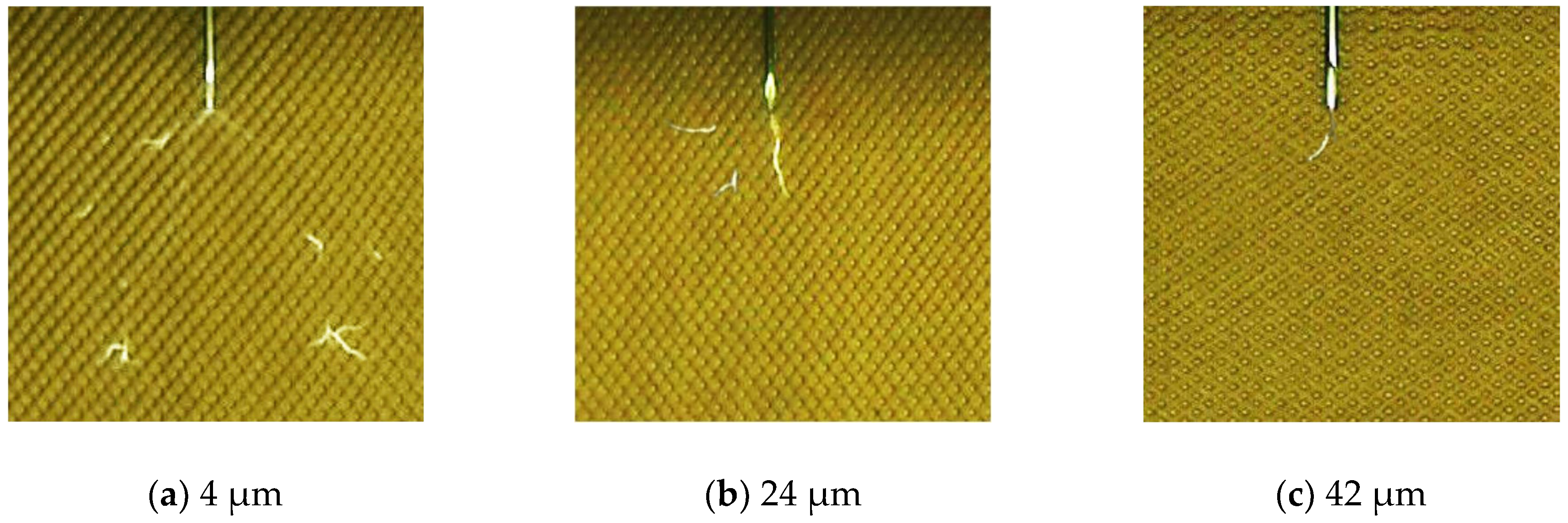

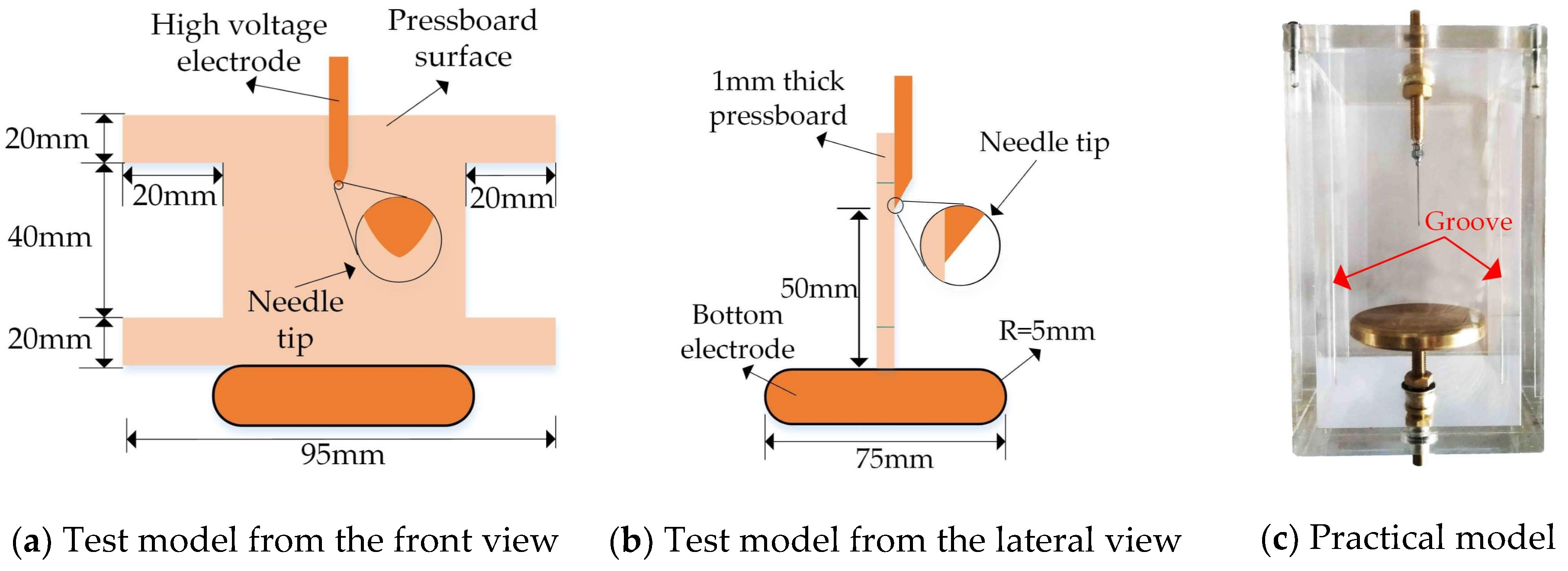

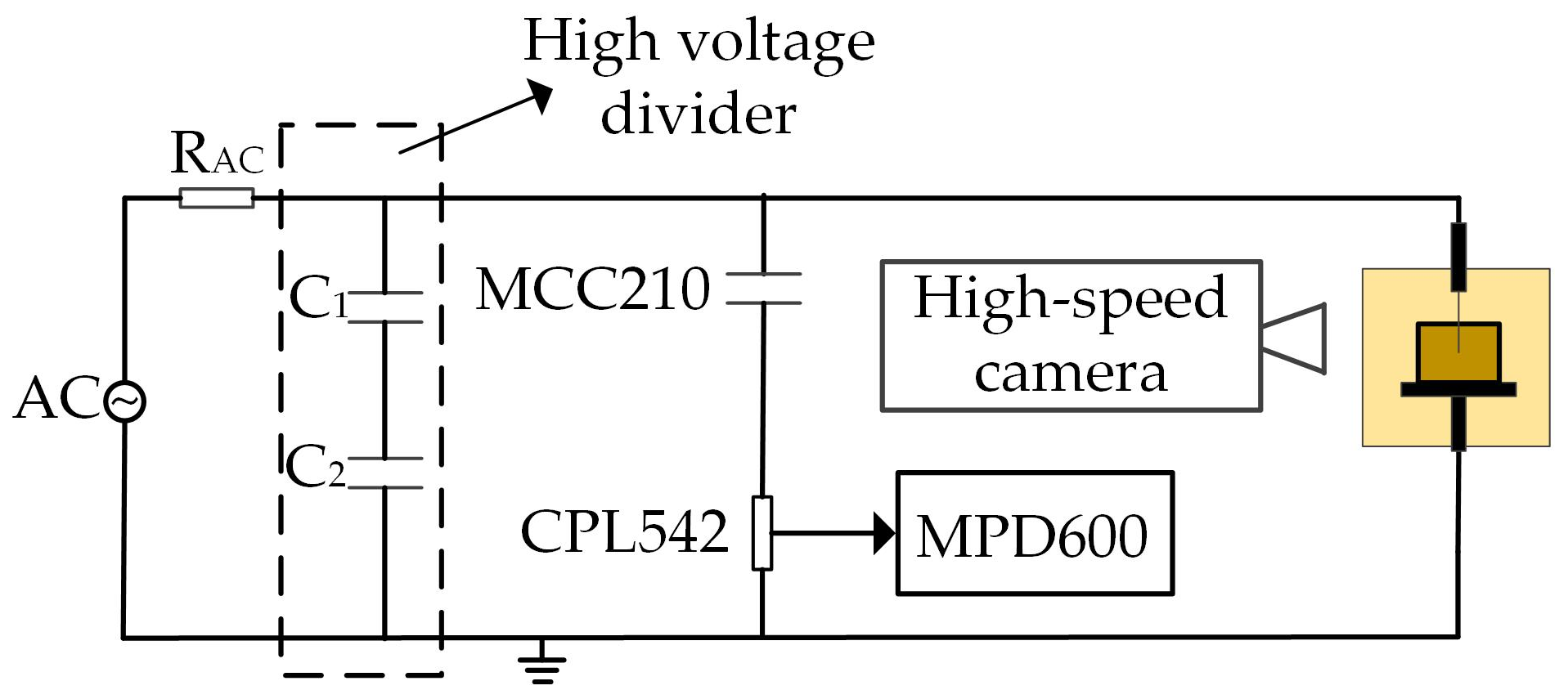

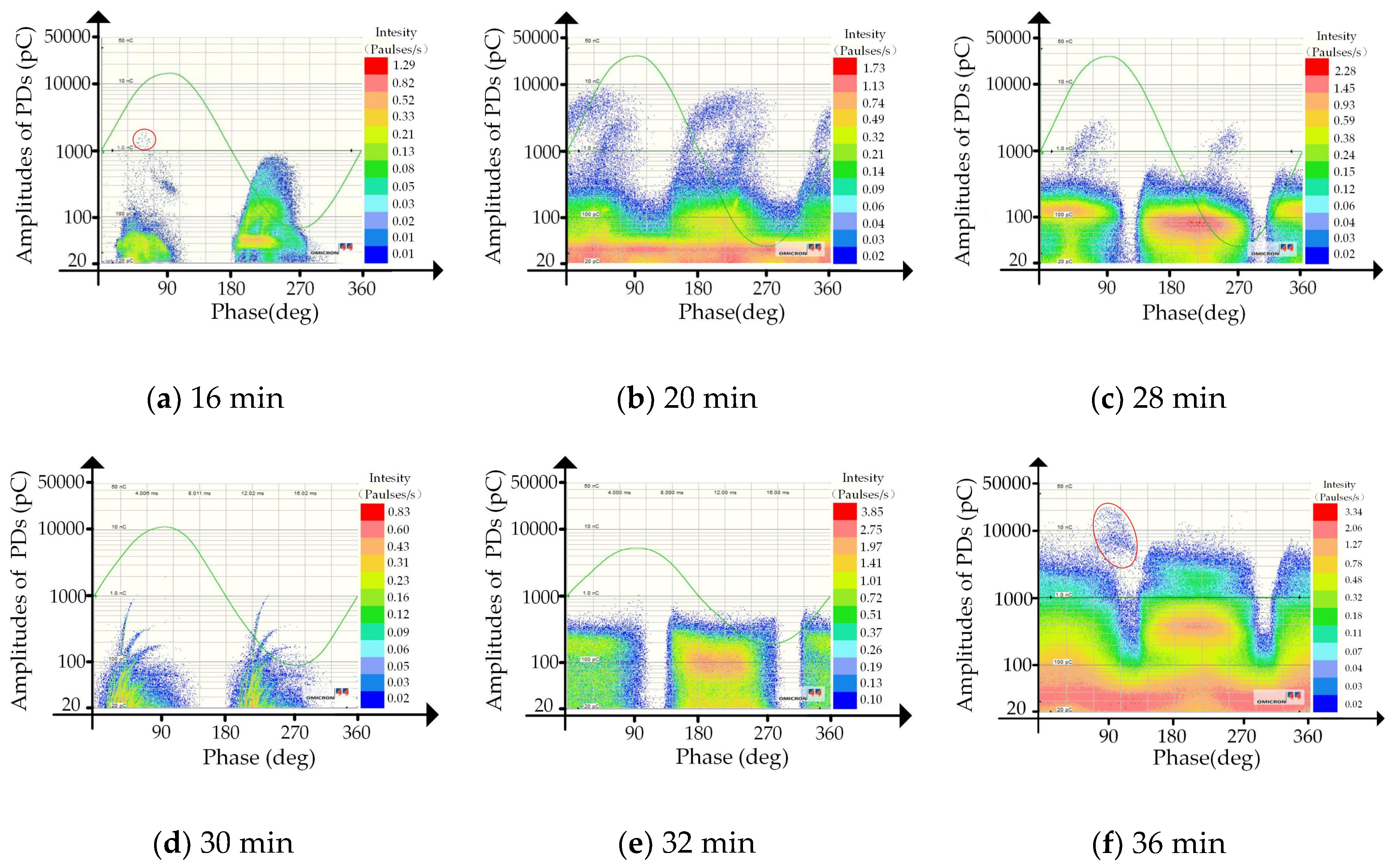

The pressboard surface is the electric weak link of the oil-paper insulation in transformers, and long-term partial discharge (PD) erosion is the dominant cause of degradation in pressboard. To explore the development processes of surface tracking under the effect of tip curvature, the typical needle-plate model was selected to initiate an electric field with a high tangential component on pressboard surface under needle tip curvature of 4~42 μm. With the help of a high-speed camera and a PD detecting system, the development processes of surface tracking and PD were recorded under a sustained AC voltage. A profound difference between surface tracking under different curvatures was discussed. Pressboard surfaces after tests were observed under a scanning electron microscope (SEM), and the damage degree of cellulose fibers was dependent on the tip curvature. View Full-Text
Keywords: surface tracking; PD; mineral oil; needle tip curvature; AC surface tracking; PD; mineral oil; needle tip curvature; AC
Figures

Figure 1
