Next Article in Journal
Molecular Dynamics Simulation of Distribution and Diffusion Behaviour of Oil–Water Interfaces
Previous Article in Journal
Chemical Composition and Biological Activities of Oregano Essential Oil and Its Fractions Obtained by Vacuum Distillation
Previous Article in Special Issue
Synthesis and Acid-Responsiveness of an Insulated π-Conjugated Polymer Containing Spiropyrans in Its Backbone
Article Menu
Issue 10 (May-2) cover image

Export Article

Open AccessArticle

Fabrication and Characterisation of Stimuli Responsive Piezoelectric PVDF and Hydroxyapatite-Filled PVDF Fibrous Membranes

1
School of Materials, MSS Tower, The University of Manchester, Manchester M13 9PL, UK
2
Bio-Active Materials Group, School of Materials, MSS Tower, The University of Manchester, Manchester M13 9PL, UK
3
Department of Fibre and Polymer Technology, School of Chemical Science and Engineering, KTH Royal Institute of Technology, Teknikringen 56, SE-10044 Stockholm, Sweden
*
Authors to whom correspondence should be addressed.
Academic Editor: Il Kim
Molecules 2019, 24(10), 1903; https://doi.org/10.3390/molecules24101903
Received: 2 April 2019 / Revised: 13 May 2019 / Accepted: 14 May 2019 / Published: 17 May 2019
(This article belongs to the Special Issue Stimuli-Responsive Polymeric Materials)
  |
PDF [3241 KB, uploaded 21 May 2019]
  |

Abstract

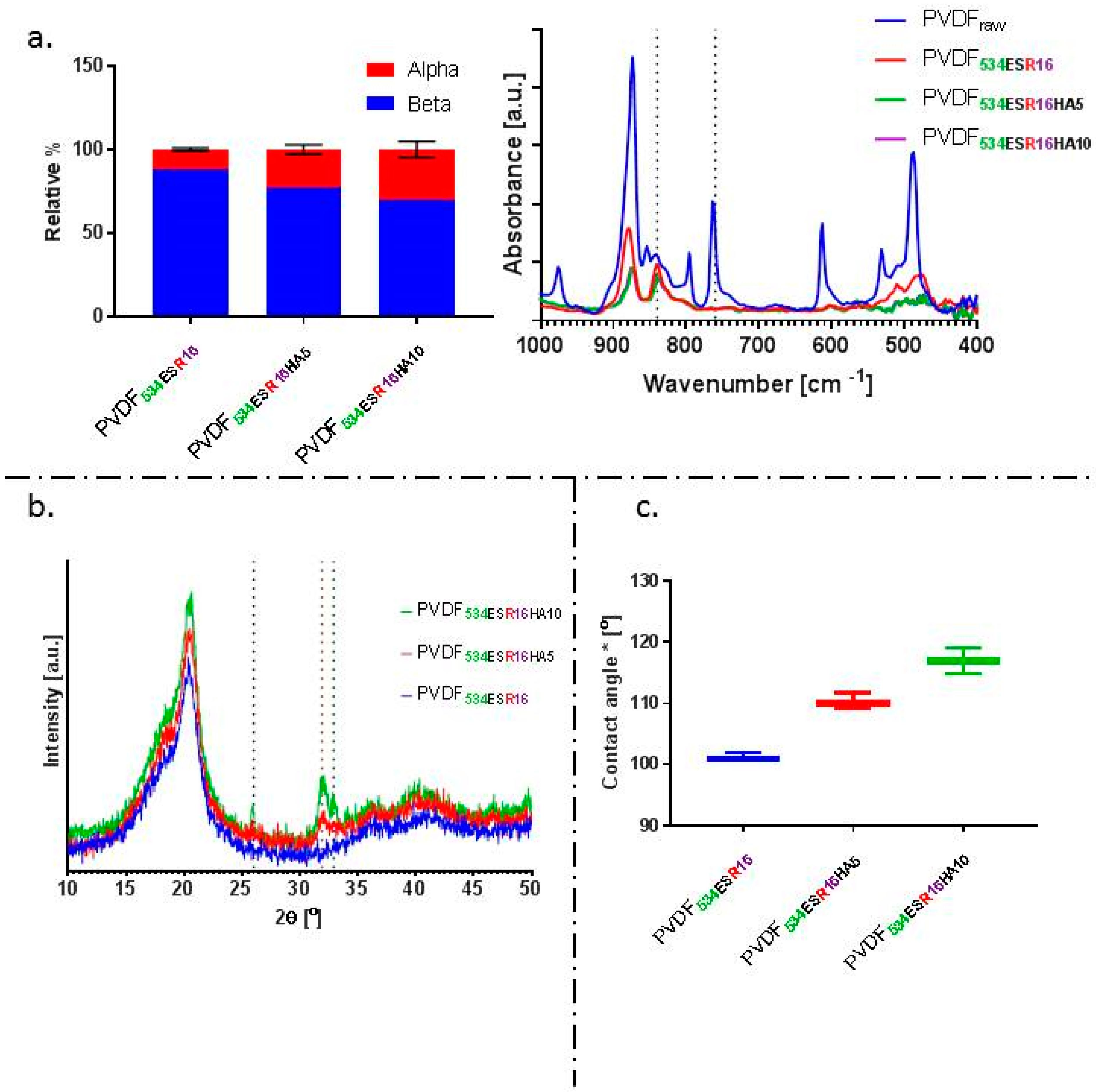

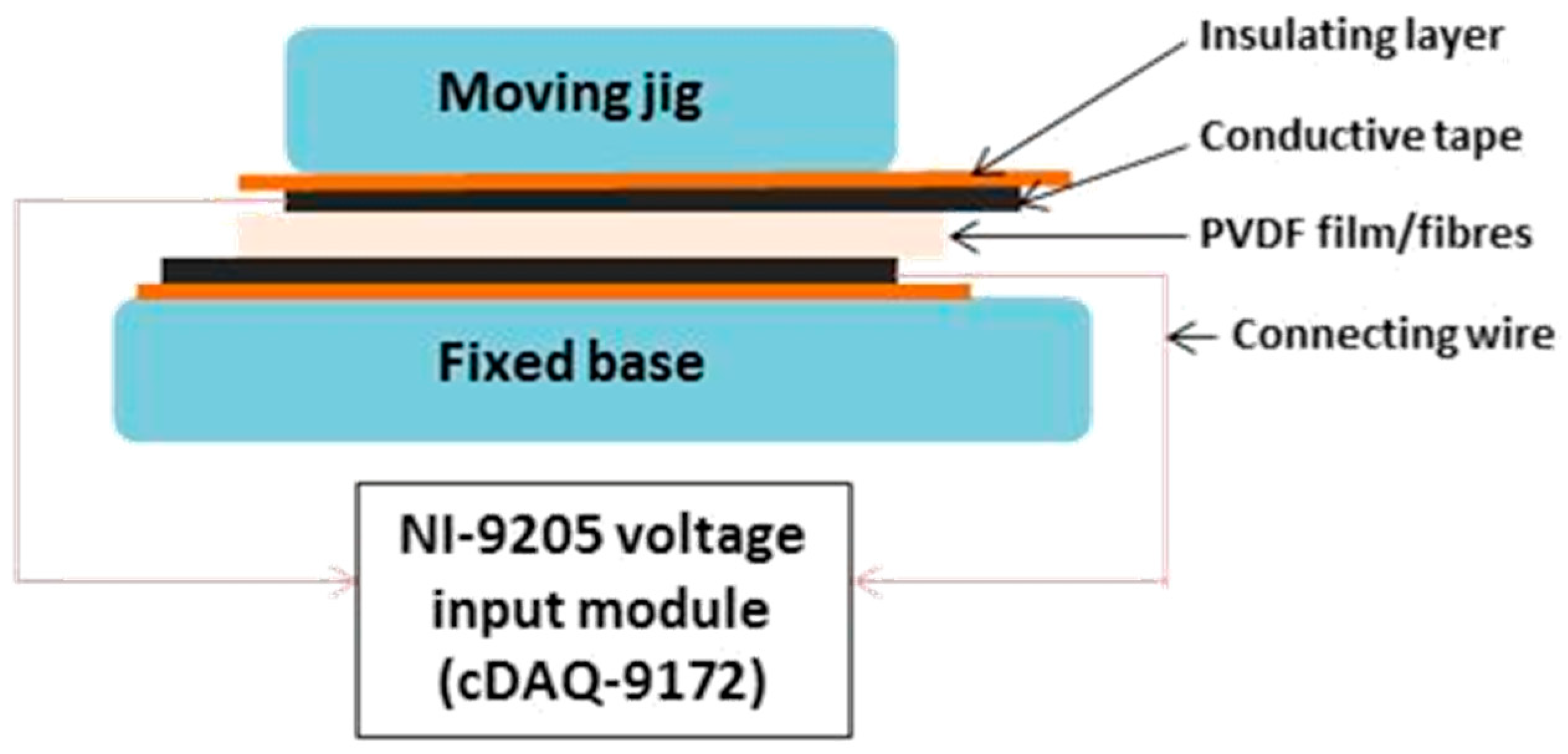

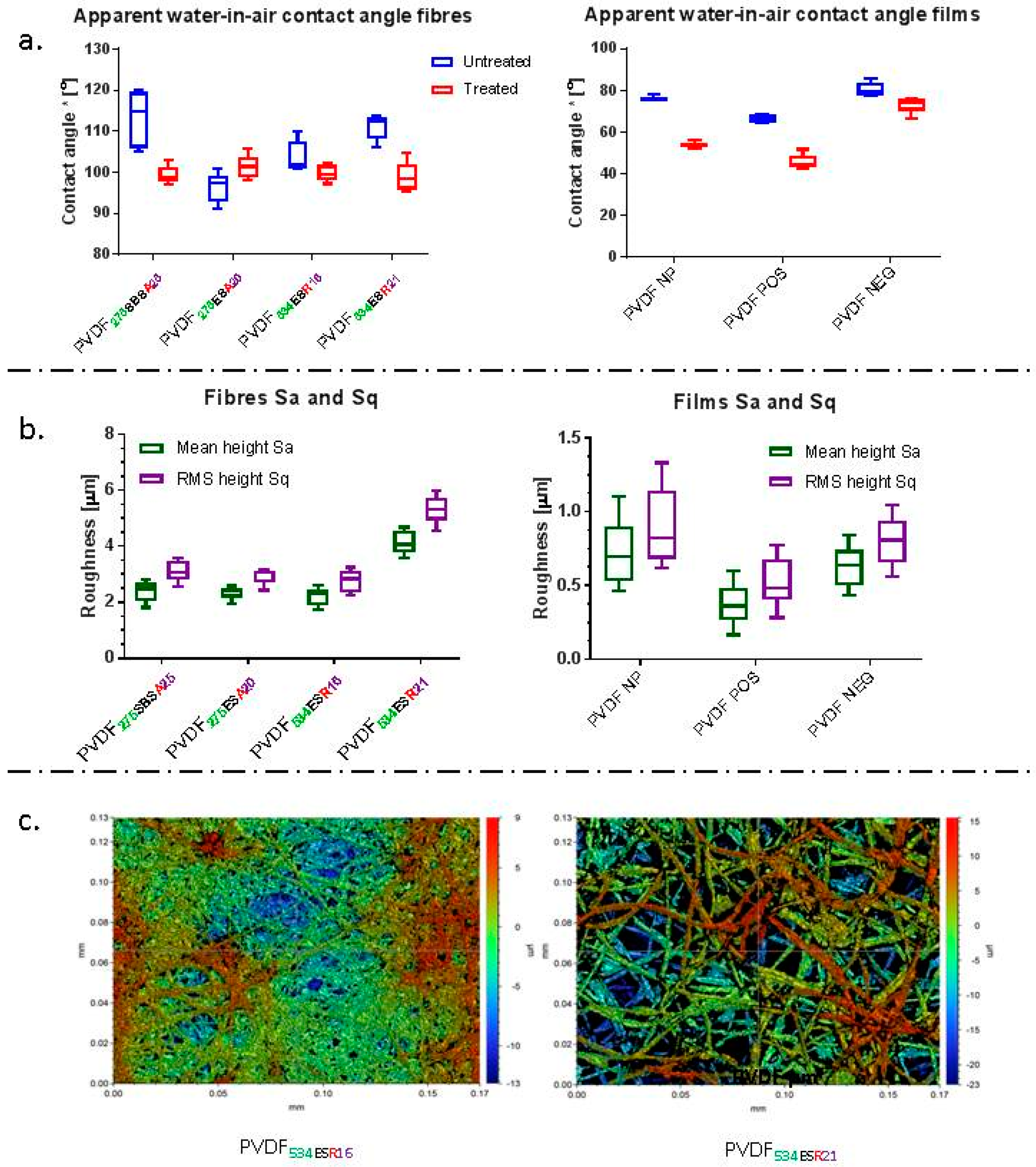

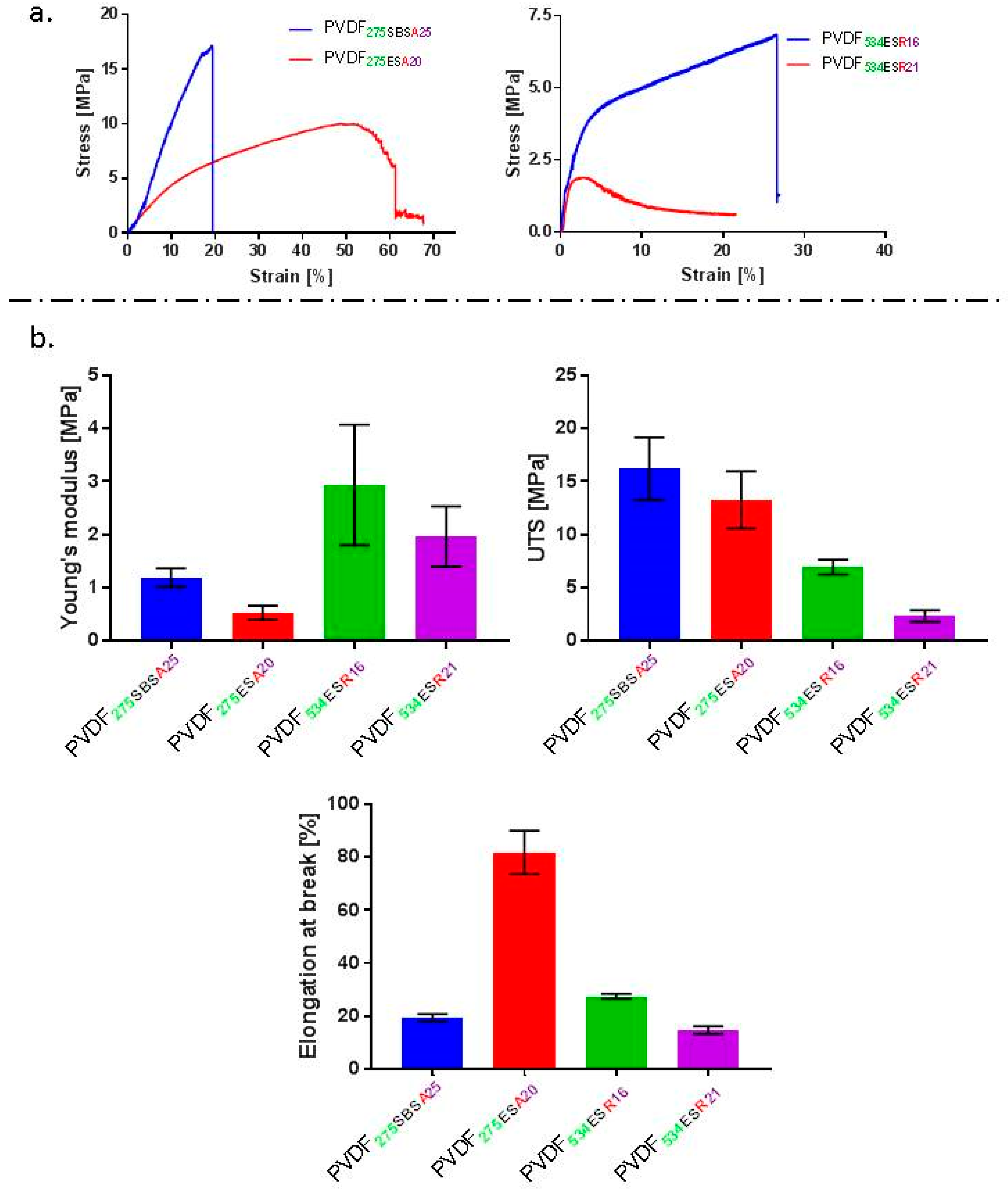

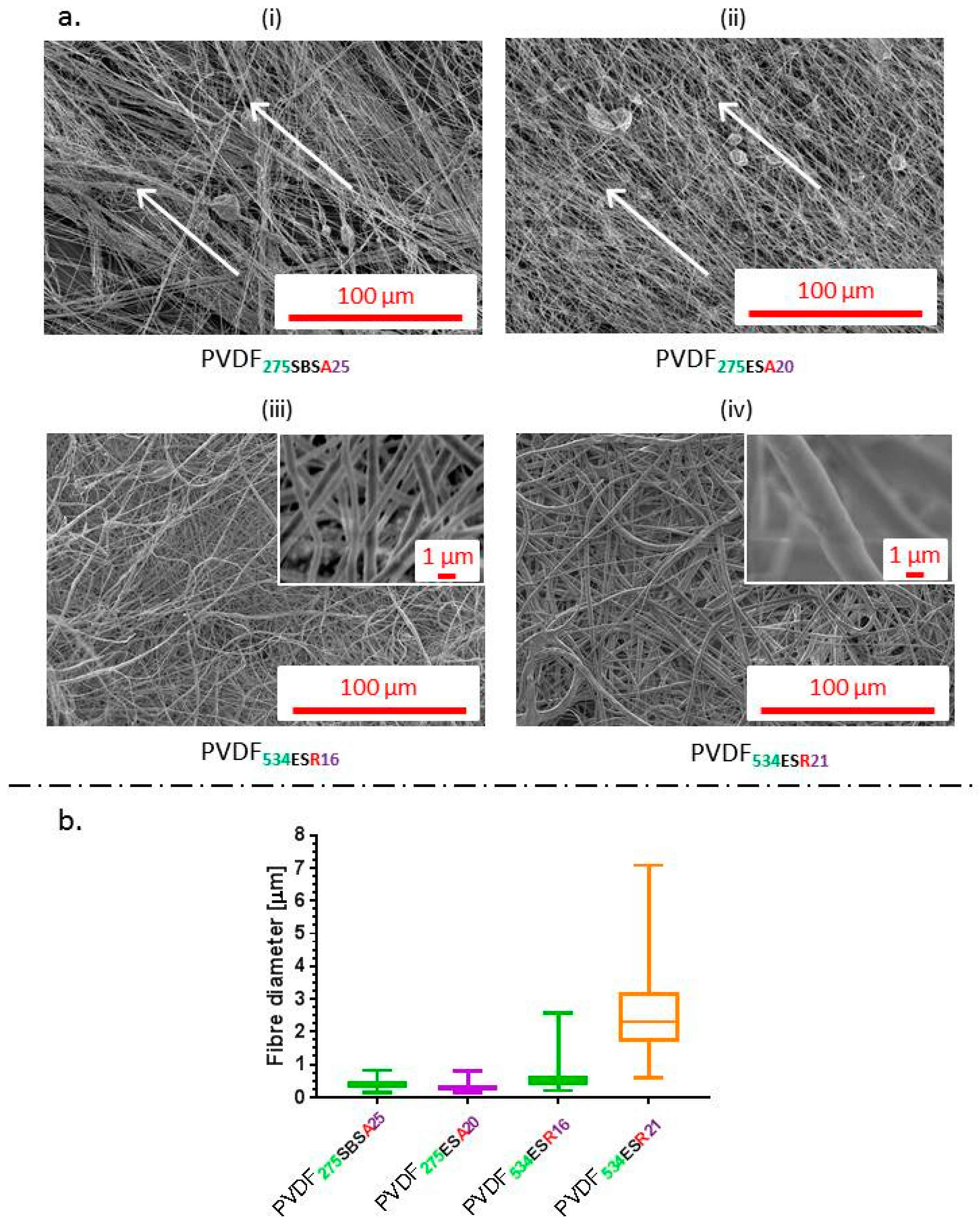

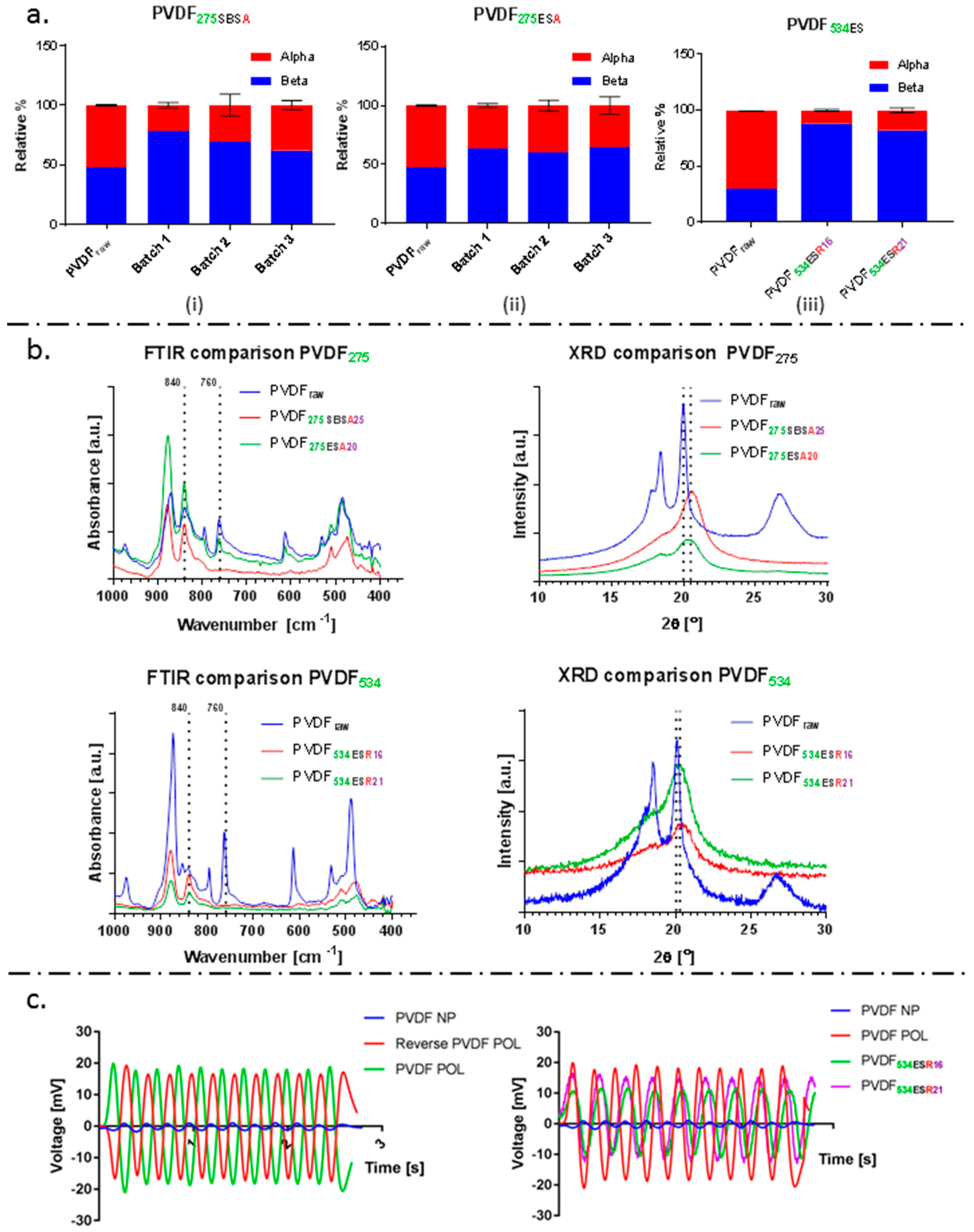

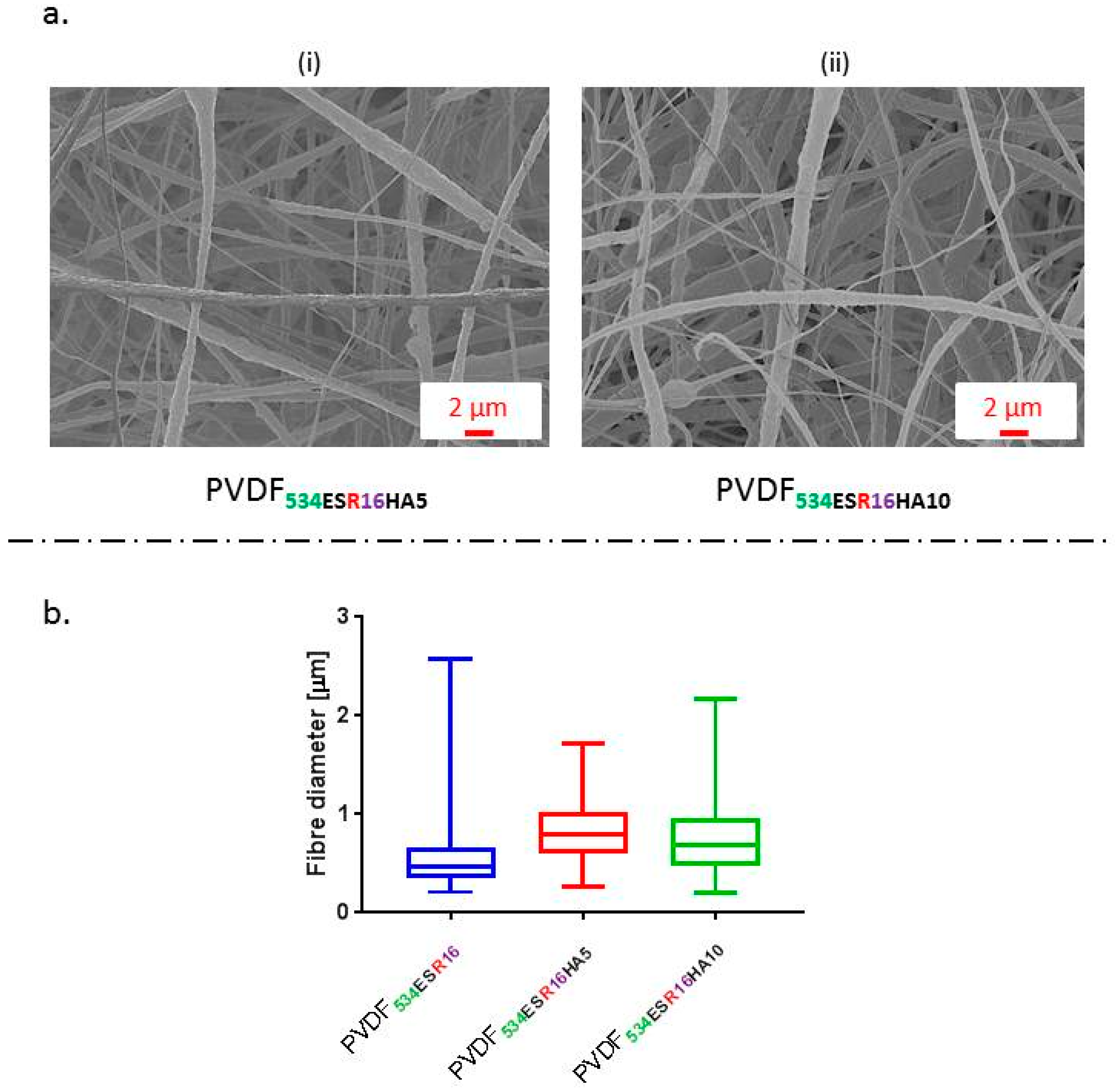

Poly(vinylidene fluoride) has attracted interest from the biomaterials community owing to its stimuli responsive piezoelectric property and promising results for application in the field of tissue engineering. Here, solution blow spinning and electrospinning were employed to fabricate PVDF fibres and the variation in resultant fibre properties assessed. The proportion of piezoelectric β-phase in the solution blow spun fibres was higher than electrospun fibres. Fibre production rate was circa three times higher for solution blow spinning compared to electrospinning for the conditions explored. However, the solution blow spinning method resulted in higher fibre variability between fabricated batches. Fibrous membranes are capable of generating different cellular response depending on fibre diameter. For this reason, electrospun fibres with micron and sub-micron diameters were fabricated, along with successful inclusion of hydroxyapatite particles to fabricate stimuli responsive bioactive fibres. View Full-Text
Keywords: electrospinning; solution blow spinning; piezoelectric; poly(vinylidene fluoride); wettability; surface roughness; tissue repair electrospinning; solution blow spinning; piezoelectric; poly(vinylidene fluoride); wettability; surface roughness; tissue repair
Figures

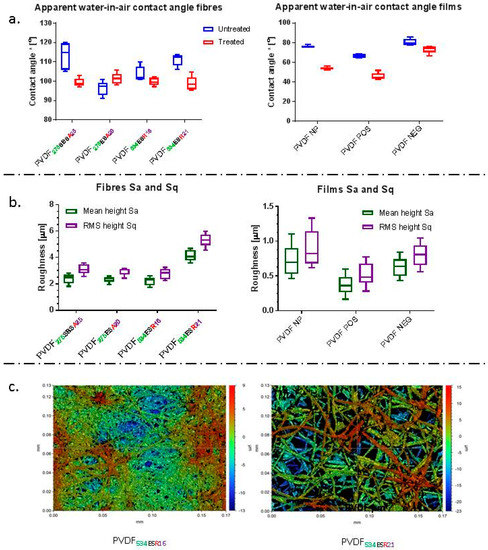

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Supplementary material

SciFeed

Share & Cite This Article

MDPI and ACS Style

Tandon, B.; Kamble, P.; Olsson, R.T.; Blaker, J.J.; Cartmell, S.H. Fabrication and Characterisation of Stimuli Responsive Piezoelectric PVDF and Hydroxyapatite-Filled PVDF Fibrous Membranes. Molecules 2019, 24, 1903.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Molecules EISSN 1420-3049 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
