Search Results (23)

Particle accelerators are powerful tools in fundamental research, medicine, and industry that provide high-energy beams that can be used to study matter and to enable advanced applications. The state-of-the-art particle accelerators are fundamentally constructed from superconducting radio-frequency (SRF) cavities, which act as resonant structures for the acceleration of charged particles. The performance of such cavities is governed by inherent superconducting material properties such as the transition temperature, critical fields, penetration depth, and other related parameters and material quality. For the last few decades, bulk niobium has been the preferred material for SRF cavities, enabling accelerating gradients on the order of ~50 MV/m; however, its intrinsic limitations, high cost, and complicated manufacturing have motivated the search for alternative strategies. Among these, sputter-deposited superconducting thin films offer a promising route to address these challenges by reducing costs, improving thermal stability, and providing access to numerous high-T_c superconductors. This review focuses on progress in sputtered superconducting materials for SRF applications, in particular Nb, NbN, NbTiN, Nb₃Sn, Nb₃Al, V₃Si, Mo–Re, and MgB₂. We review how deposition process parameters such as deposition pressure, substrate temperature, substrate bias, duty cycle, and reactive gas flow influence film microstructure, stoichiometry, and superconducting properties, and link these to RF performance. High-energy deposition techniques, such as HiPIMS, have enabled the deposition of dense Nb and nitride films with high transition temperatures and low surface resistance. In contrast, sputtering of Nb₃Sn offers tunable stoichiometry when compared to vapour diffusion. Relatively new material systems, such as Nb₃Al, V₃Si, Mo-Re, and MgB₂, are just a few of the possibilities offered, but challenges with impurity control, interface engineering, and cavity-scale uniformity will remain. We believe that future progress will depend upon energetic sputtering, multilayer architectures, and systematic demonstrations at the cavity scale. Full article

In this paper, silver oxide (AgO) and copper oxide (CuO) coatings are placed on a single sputtering target with the direct-current magnetron sputtering (DCMS) and high-power impulse magnetron sputtering (HIPIMS) methods. All the tested coatings are obtained in a reactive process using a metallic target made by the Kurt Lesker company. The investigated coatings are deposited at room temperature on substrates made of pure iron (ARMCO) and polypropylene (PP) without substrate polarization. The deposition time for all the coatings is the same. The results of SEM and TEM investigations clearly show that using the HIPIMS method for the deposition of AgO and CuO coatings reduces their thickness and increases their structure density. Coatings produced with the HIPIMS method are characterized by a higher hardness and Young’s modulus. The value of hardness for AgO and CuO coatings deposited by the HIPIMS method is around 50% higher for AgO coatings and around 24% higher for CuO coatings compared to the coatings obtained by the DC method. This is also true of Young’s modulus values, which are around 30% higher for AgO coatings and 15% higher for CuO coatings produced by the HIPIMS method compared to those of coatings obtained with the DC method. AgO and CuO coatings deposited with both the methods (HIPIMS and DCMS) showed 100% reduction in the viability of two reference laboratory bacteria strains—Escherichia coli (Gram−) and Staphylococcus aureus (Gram+)—on both types of substrates. Additionally, these coatings are characterized by their hydrophobic properties, which means that they can create a protective barrier, making it difficult for bacteria to stick to the surface, limiting their development and preventing the phenomenon of biofouling. The HIPIMS technology allows for the deposition of coatings with better mechanical properties than those produced with the DCMS method, which means that they are more resistant to brittle fractures and wear and have very good antimicrobial properties. Full article

In this study, SiO₂ thin films were sputtered from a Si target using reactive HiPIMS (high-power impulse magnetron sputtering) in an argon–oxygen process gas. In order to understand the behavior of HiPIMS, the deposition process was studied by systematically varying the sputtering parameters and monitoring the current waveforms. A decaying transient was observed at the leading edge of the pulse, caused by the L-C term of the HiPIMS generator, the cable, and the target. To investigate the periodic transient, we used, to the best of our knowledge, for the first time, a standing wave ratio meter (SWR). In order to be able to deposit films with the desired properties, the target voltage and its associated current characteristics were also investigated. The formation of a distinct step-like shape in the current–voltage characteristics is observed during reactive sputtering. A simple physical model was used to determine the position and length of the plateau. The appearance of hysteresis, which is typical of reactive sputtering, was also observed. These findings may help us to better understand the mechanism of reactive HiPIMS deposition of SiO₂. Full article

Graphene/h-BN/Si heterostructures show considerable potential for future use in infrared detection and photovoltaic technologies due to their adjustable electrical behavior and well-matched interfacial structure. The near-lattice match between graphene and hexagonal boron nitride (h-BN) enables the deposition of low-defect-density graphene on h-BN surfaces. This study presents a thorough exploration of the low-frequency electrical noise behavior of graphene/h-BN/Si heterojunctions under both forward and reverse bias conditions at room temperature. Graphene nanolayers were directly grown on h-BN films using microwave plasma-enhanced CVD. The h-BN layers were formed by reactive high-power impulse magnetron sputtering (HIPIMS). Four h-BN thicknesses were examined: 1 nm, 3 nm, 5 nm, and 15 nm. A reference graphene/Si junction (without h-BN) prepared under identical synthesis conditions was also studied for comparison. Low-frequency noise analysis enabled the identification of dominant charge transport mechanisms in the different device structures. Our results demonstrate that grain boundaries act as dominant defects contributing to increased noise intensity under high forward bias. Statistical analysis of voltage noise spectral density across multiple samples, supported by Raman spectroscopy, reveals that hydrogen-related defects significantly contribute to 1/f noise in the linear region of the junction’s current–voltage characteristics. This study provides the first in-depth insight into the impact of h-BN interlayers on low-frequency noise in graphene/Si heterojunctions. Full article

Daily exposure to contaminated environments and surfaces leads to serious health issues, increasing healthcare costs. Active materials that act against pathogens can effectively prevent their proliferation and contribute to increased protection against infections. In this contribution, nanostructured thin films containing silver are investigated, using SiO₂ and TiO₂ as transparent matrices to embed the Ag atoms. The thin transparent films were obtained via magnetron sputtering, using HiPIMS for Ag deposition and RF sputtering for oxides, in either an Ar or Ar/O₂ environment. Atomic Force Microscopy provided information on coating topography and the thin films’ preferential growth on the textured polymer foil, X-Ray Diffraction highlighted the structural difference between different versions, Ultraviolet–Visible–Near-Infrared spectroscopy proved the thin films’ optical quality and their transparency and Energy-Dispersive X-ray Spectroscopy revealed the composition changes for different processes. The effect of O₂ addition is analyzed and compared in terms of changes induced on the properties of the thin films. Following 24 h of incubation in a media containing 10⁴ CFU/mL Escherichia coli, the TiO₂+Ag sample with O₂ addition showed the highest antibacterial effectiveness, as indicated by the largest inhibition zone. Experiments on selective media showed a hierarchy of efficiency, namely, TiO₂+Ag+O₂ > TiO₂+Ag > SiO₂+Ag. Full article

In the present research, hexagonal boron nitride (h-BN) films were deposited by reactive high-power impulse magnetron sputtering (HiPIMS) of the pure boron target. Nitrogen was used as both a sputtering gas and a reactive gas. It was shown that, using only nitrogen gas, hexagonal-boron-phase thin films were synthesized successfully. The deposition temperature, time, and nitrogen gas flow effects were studied. It was found that an increase in deposition temperature resulted in hydrogen desorption, less intensive hydrogen-bond-related luminescence features in the Raman spectra of the films, and increased h-BN crystallite size. Increases in deposition time affect crystallites, which form larger conglomerates, with size decreases. The conglomerates’ size and surface roughness increase with increases in both time and temperature. An increase in the nitrogen flow was beneficial for a significant reduction in the carbon amount in the h-BN films and the appearance of the h-BN-related features in the lateral force microscopy images. Full article

Proton Exchange Membrane Fuel Cells (PEMFCs) are promising technology to convert chemical energy from dihydrogen in electrical energy. HT-PEMFCs are working at high temperatures (above 120 °C) and with doped orthophosphoric acid H₃PO₄ PBI membranes. In such devices, bipolar metallic plates are used to provide reactive gas inside the fuel cell and collect the electrical current. The metallic elements used as bipolar plates, end plates, and interconnectors in acid electrolyte and gaseous fuel cells are severely damaged by a combination of oxidation (due in particular to the use of oxygen, whether pure or contained in the air) and corrosion (due in particular to acid effluents from the electrolyte). This degradation rapidly leads to the loss of the electrical conductivity of the metallic elements and today requires the use of very specific alloys, possibly coated with pure gold. The solution investigated in the present study is the use of a protective coating based on single-phase nitrides obtained by reactive magnetron sputtering or reactive HiPIMS (High-Power Impulse Magnetron Sputtering). The influence of the microstructure on the physical–chemical properties was studied. The electrochemical properties were quantified following two approaches. First, the corrosion current of the developed coatings was measured at room temperature and at higher temperatures using the Linear Sweep Voltammetry (LSV) technique. Then, Electrochemical Impedance Spectroscopy (EIS) measurements were performed to better identify and evaluate their corrosion-resistance performances. Full article

This paper aims to investigate the quality of thin alumina films deposited on glass samples using magnetron sputtering in the reactive modulated pulsed power mode (MPPMS) and evaluate the process productivity. The aluminum target was sputtered in Ar/O₂ gas mixtures with different fractions of oxygen in the total gas flow, in the fixed pulsed voltage mode. The pulse-on duration was varied between 5 and 10 ms, while the pulse-off time was 100 or 200 ms. The dependences of mass deposition rate and discharge current on the oxygen flow were measured, and the specific deposition rate values were calculated. Prepared coatings had a thicknesses of 100–400 nm. Their quality was assessed by scratch testing and by measuring density, refractory index, and extinction coefficient for different power management strategies. The strong influence of pulse parameters on the coating properties was observed, resulting in a maximum density of 3.6 g/cm³ and a refractive index of 1.68 for deposition modes with higher duty cycle values. Therefore, adjusting the pulse-on and pulse-off periods in MPPMS can be used not only to optimize the deposition rate but also as a tool to tune the optical characteristics of the films. The performance of the studied deposition method was evaluated by comparing the specific growth rates of alumina coatings with the relevant data for other magnetron discharge modes. In MPPMS, a specific deposition rate of 200 nm/min/kW was obtained for highly transparent Al₂O₃, without using any dedicated feedback loop system for oxygen pressure stabilization, which makes MPPMS superior to short-pulse high-power impulse magnetron sputtering (HiPIMS) modes. Full article

Multi-component high-entropy (TiCrAl_0.5NbCu)C_xN_y coatings targeting applications requiring medium-to-high friction and wear-resistant surfaces were fabricated through the co-sputtering of elemental targets in an Ar + CH₄ + N₂ reactive atmosphere using a hybrid HiPIMS/DCMS technique. Two sets of samples were fabricated: (a) (TiCrAl_0.5NbCu)C_x high-entropy carbides (HEC) and (b) (TiCrAl_0.5NbCu)C_xN_0.13 high-entropy carbonitrides (HECN), 0 ≤ x ≤ 0.48. The structural, mechanical, tribological, and corrosion resistance properties were thoroughly investigated. The metallic sample exhibits a single BCC structure that changes to FCC via an intermediary amorphous phase through the addition of C or N to the content of the films. The crystallinity of the FCC phases is enhanced and the density of the films decreases down to 5.5 g/cm³ through increasing the carbon fraction up to 48%. The highest hardness of about 16.9 GPa and the lowest wear rate of about 5.5 × 10⁻⁶ mm³/Nm are presented by the samples with the largest carbon content, x = 0.48. We found a very good agreement between the evolution of H/E and H³/E² parameters with carbon content and the tribological behavior of the coatings. The best corrosion resistance was presented by the low-carbon carbonitride samples, showing a charge transfer resistivity of about 3 × 10⁸ Ω∙cm, which is more than three times larger than that of the metallic HEA. The best tribological characteristics for envisioned application were presented by (TiCrAl_0.5NbCu)C_0.3N_0.13, showing a coefficient of friction of 0.43 and a wear rate of about 7.7 × 10⁻⁶ mm³/Nm. Full article

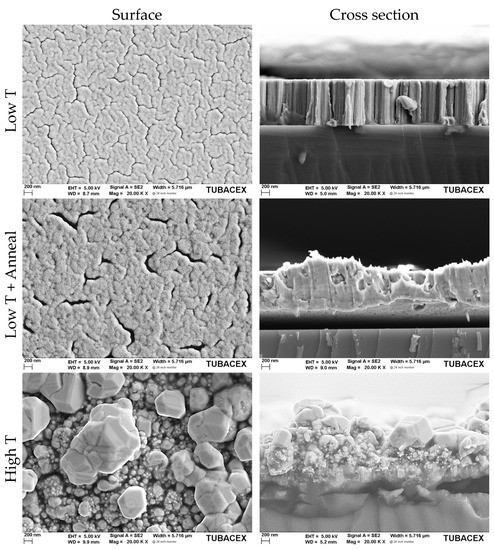

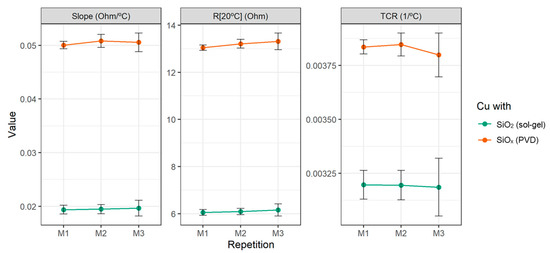

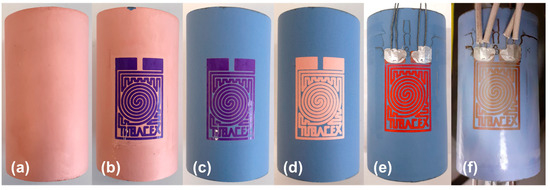

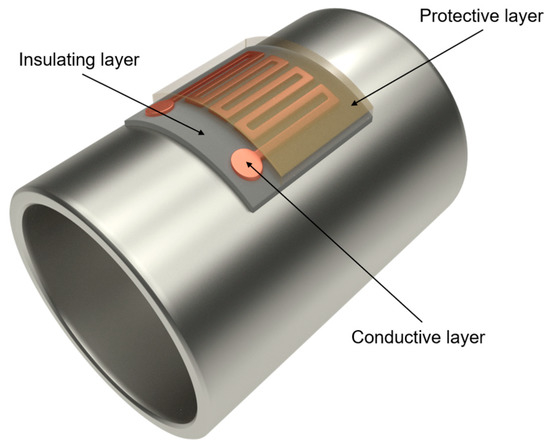

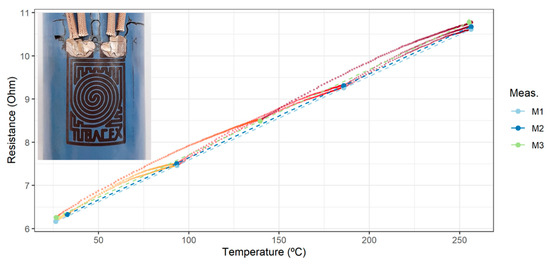

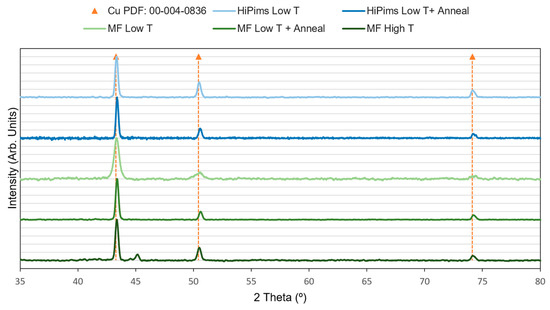

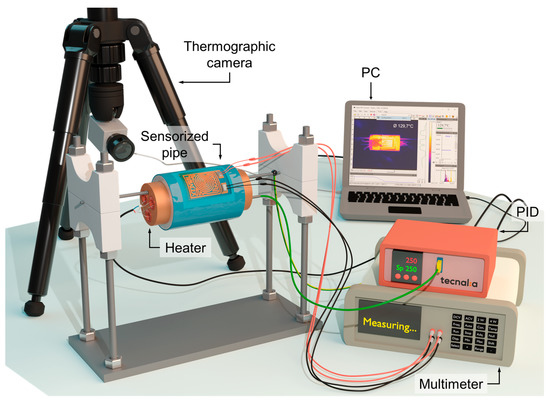

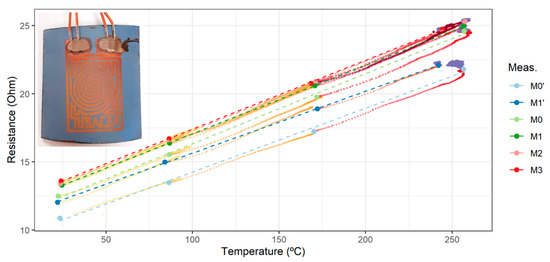

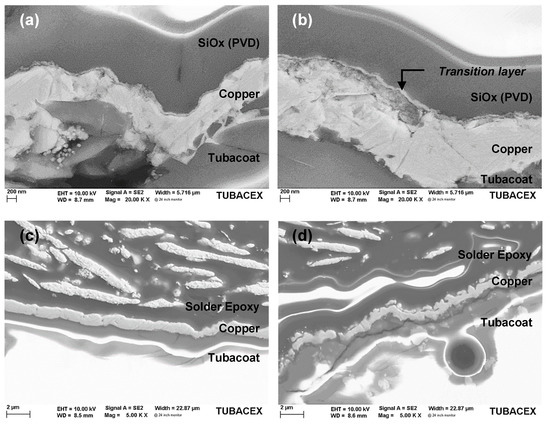

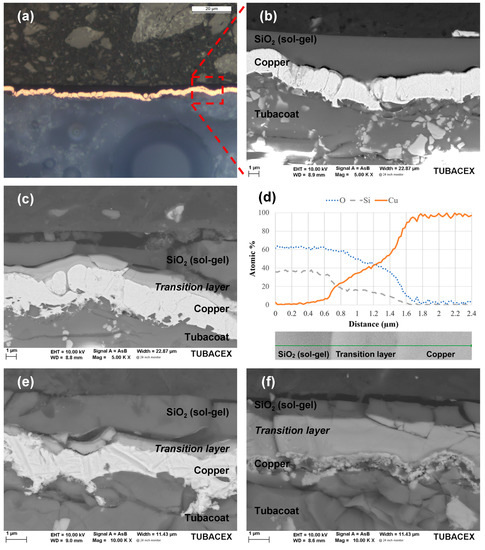

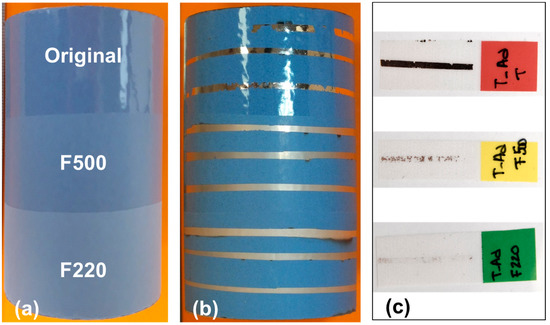

Reducing the economic and environmental impact of industrial process may be achieved by the smartisation of different components. In this work, tube smartisation is presented via direct fabrication of a copper (Cu)-based resistive temperature detector (RTD) on their outer surfaces. The testing was carried out between room temperature and 250 °C. For this purpose, copper depositions were studied using mid-frequency (MF) and high-power impulse magnetron sputtering (HiPIMS). Stainless steel tubes with an outside inert ceramic coating were used after giving them a shot blasting treatment. The Cu deposition was performed at around 425 °C to improve adhesion as well as the electrical properties of the sensor. To generate the pattern of the Cu RTD, a photolithography process was carried out. The RTD was then protected from external degradation by a silicon oxide film deposited over it by means of two different techniques: sol–gel dipping technique and reactive magnetron sputtering. For the electrical characterisation of the sensor, an ad hoc test bench was used, based on the internal heating and the external temperature measurement with a thermographic camera. The results confirm the linearity (R² > 0.999) and repeatability in the electrical properties of the copper RTD (confidence interval < 0.0005). Full article

This work demonstrated the optimization of HiPIMS reactive magnetron sputtering of hafnium oxynitride (HfO_xN_y) thin films. During the optimization procedure, employing Taguchi orthogonal tables, the parameters of examined dielectric films were explored, utilizing optical methods (spectroscopic ellipsometry and refractometry), electrical characterization (C-V, I-V measurements of MOS structures), and structural investigation (AFM, XRD, XPS). The thermal stability of fabricated HfO_xN_y layers, up to 800 °C, was also investigated. The presented results demonstrated the correctness of the optimization methodology. The results also demonstrated the significant stability of hafnia-based layers at up to 800 °C. No electrical parameters or surface morphology deteriorations were demonstrated. The structural analysis revealed comparable electrical properties and significantly greater immunity to high-temperature treatment in HfO_xN_y layers formed using HiPIMS, as compared to those formed using the standard pulsed magnetron sputtering technique. The results presented in this study confirmed that the investigated hafnium oxynitride films, fabricated through the HiPIMS process, could potentially be used as a thermally-stable gate dielectric in self-aligned MOS structures and devices. Full article

This paper describes a physical vapor deposition (PVD) coating equipment, as well as the according deposition parameters suitable to provide hard nitride coatings on broaches up to a length of 2.2 m. The octagonal-shaped vacuum chamber reached a height of 4.5 m and a diameter of 1.2 m. To explore a sufficient and reproducible film, an adhesion test sample and tools were subjected to a pretreatment in a Cr²⁺ Ar⁺ high-power impulse magnetron sputtering (HIPIMS) plasma prior to the actual film deposition. Two deposition methods were applied: reactive unbalanced magnetron (UBM) sputtering was introduced to deposit TiAlN-based coatings from Ti50Al50 2.5 m long targets. Alternatively, multilayer coatings were generated by reactive simultaneous UBM sputtering from Ti50Al50 and TiAl6V4 targets, respectively, and chromium targets utilizing high-power impulse magnetron sputtering (HIPIMS) technology. In the latter case, three cathodes were furnished with 0.9 m long targets lined up upon each other. A segmented UBM cathode design was described to meet economic deposition if varying tool sample lots in the deferring workpiece lengths have to be handled in industrial practice. The resulting (TiAl/Cr)N multilayer coatings attained typical hardness values of HV 2800 and an adhesion measured by critical load up to 50 N. The cutting performance of this coating was evaluated by simulated shaping tests over a test length of 210 m on C 45 steel. The (TiAlV/Cr)N showed an improved wear behavior by factor of 2 to 3 compared to TiN deposited by cathodic arc operated in an industrial PVD coater. A real comparison was undertaken, applied to a 1.3 m long model broach. (TiAl/Cr)N showed a prolongation in industrial lifetime by 150% compared to TiN. Full article

A pure Ti target in Ar/O₂ gas mixture was used to synthesize Ti₃O_x thin film on a glass substrate by Reactive High-Power Impulse Magnetron Sputtering (HiPIMS) under different sputtering power (2 and 2.5 kW). The influence of HiPIMS parameters on thin films’ structural, morphological, chemical composition, optical and photocatalytic, and antibacterial properties was investigated. In this study, Ti₃O_x thin films can be synthesized using the HiPIMS method without the post-annealing process. Two co-existence phases (hexagonal Ti₃O and base-centered monoclinic Ti₃O₅ phases) existed on the Ti₃O_x films. It is found that the peak intensity of (006) Ti₃O hexagonal slightly increased as the sputtering power increased from 2 to 2.5 kW. The Ti₃O_x thin-film bandgap values were 3.36 and 3.50 eV for 2 and 2.5 kW, respectively. The Ti₃O_x films deposited at 2.5 kW showed good photocatalytic activity under UV light irradiation, with a higher methylene blue dye degradation rate than TiO₂ thin films. The antibacterial study on Ti₃O_x thin films exhibited a high inhibition percentage against E. coli and S. aureus. This study demonstrates that Ti₃O_x thin films can promote high photocatalytic and antibacterial activity. Full article

In this study, we demonstrate the advantages of two advanced sputtering techniques for the preparation of a thin-film conductometric gas sensor. We combined tungsten oxide (WO₃) thin films with other materials to achieve enhanced sensorial behavior towards hydrogen. Thin films of WO₃ were prepared using the DC and HiPIMS technique, which allowed us to tune the phase composition and crystallinity of the oxide by changing the deposition parameters. The second material was then added on-top of these films. We used the copper tungstate CuWO₄ in the form of nano-islands deposited by reactive rf sputtering and Pd particles formed during conventional dc sputtering. The specimens were tested for their response to a time-varied hydrogen concentration in synthetic air at various temperatures. The sensitivity and response time were evaluated. The performance of the individual films is presented as well as the details of the synthesis. Advanced magnetron techniques (such as HiPIMS) allowed us to tune the property of the film to improve its sensorial behavior. The method is compatible with the silicon electronics industry and consists of a few steps that do not require any wet technique, and the films can be used in an as-deposited state. Therefore, sensorial nanostructured materials prepared using magnetron sputtering are very suitable for use in miniaturized electronic devices. Full article

Tungsten carbide (WC) and Tungsten carbonitride (WCN) coatings are deposited by reactive high-power impulse magnetron sputtering (HiPIMS) with various nitrogen gas flow rates. The characteristics of discharge current and plasma optical emission of HiPIMS are recorded by oscilloscope (OSC) and optical emission spectroscopy (OES). The results exhibit that the peak discharge currents and the intensities of optical emission spectra lines are significantly influenced by the addition of nitrogen. The elemental concentration, microstructure, mechanical and tribological properties in ambient temperature and high temperature of deposited coatings are investigated by a wide variety of techniques such as energy dispersive spectroscopy (EDS), X-ray diffraction (XRD), nano-indentation measurement, scanning electron microscope (SEM), atomic force microscopy (AFM), X-ray photoelectron spectroscopy (XPS), and ball-on-disk tribometer. The results show that WC/WCN coatings with different microstructures, mechanical properties and tribological properties have been produced by controlling the flow rate of N₂. Meanwhile, with the N₂ flow rate increasing from 0 sccm to 24 sccm, (101) diffraction peak shifts to low angle. Moreover, (102) and (110) peaks’ intensities and the angle of (101) peak of β-W₂C phase of the deposited WCN coatings decrease and disappear, and the average grain size decreases from 8.9 nm to 6.4 nm. XPS results show that the intensities of C=N, W–N, W–C–N, and N–O peaks increase while the intensity of C–W peak decreases. The deposited coatings change from slight columnar type to a typically dense and featureless structure, and the surface roughness decreases from Ra 11.6 nm at 0 sccm to Ra 5.7 nm at 24 sccm. The variation of nitrogen flow also plays a role in the mechanical properties of the coatings. It is found that the maximum hardness and elastic modulus of 35.6 GPa and 476.5 GPa appear at 16 sccm N₂ flow rate. The results of wear tests demonstrate the addition of nitrogen slightly deteriorates tribological properties at room temperature (25 °C), but can remarkably improve tribological properties at high temperature (400 °C) of WC/WCN coatings deposited with an appropriate flow rate of nitrogen. Full article
