Search Results (368)

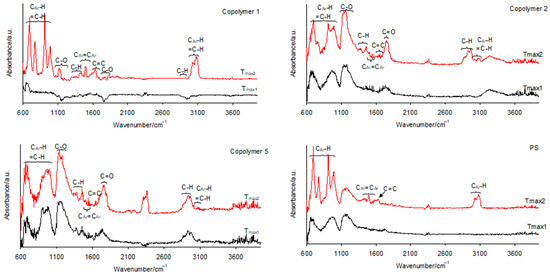

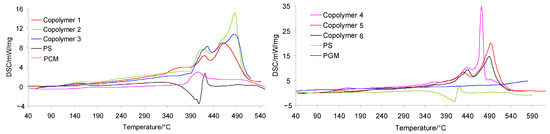

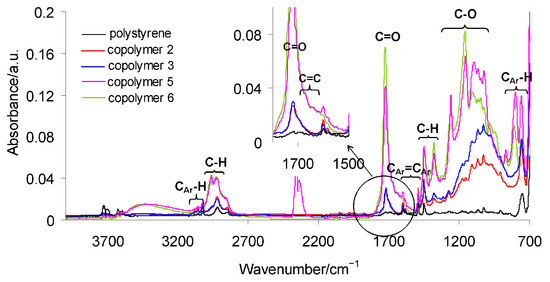

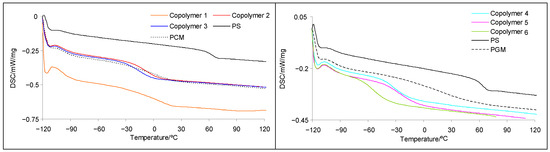

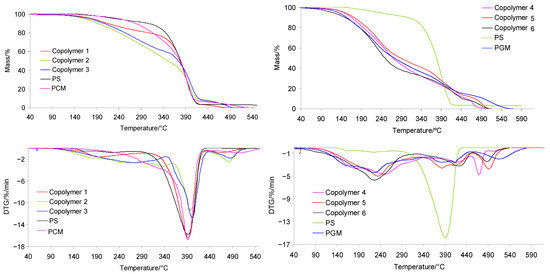

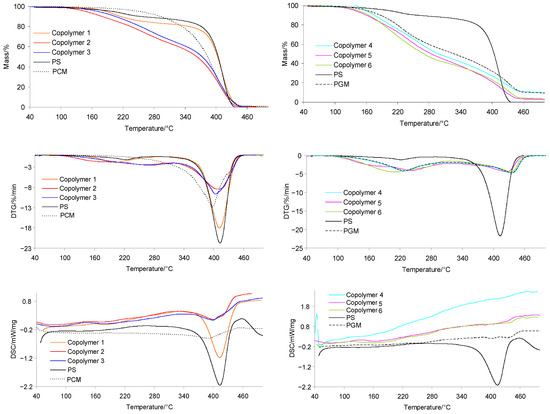

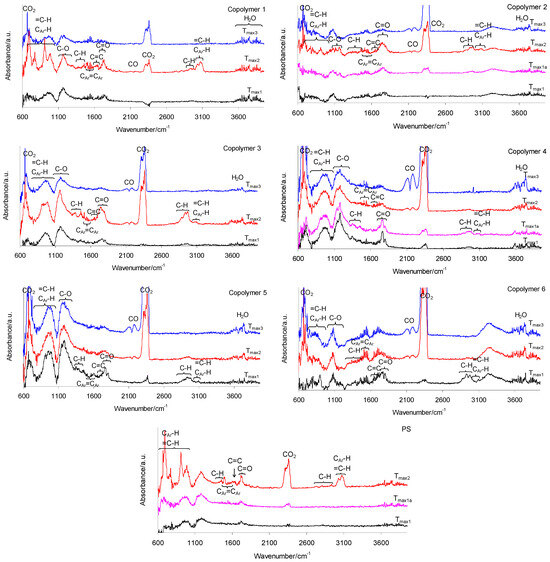

The ultraviolet (UV) copolymers of two monomers, one methacrylic and the other vinyl monomer (styrene, S) were prepared. As methacrylic monomers, citronellyl methacrylate (CM) or geranyl methacrylate (GM) were used. The preparation was proven to contain high solvent- and chemical-resistant copolymers due to their cross-linked structure with the conversion degree of the double bonds above 0.92 for poly(citronellyl methacrylate)/polystyrene (PCM/PS) and above 0.85 for poly(geranyl methacrylate)/polystyrene (PGM/PS) copolymers. The obtained copolymers showed only one glass transition temperature (T_g). Depending on the structure and amount of the used methacrylic monomer, the T_g values were from 0.4 °C to −15.2 °C for PCM/PS copolymers and from −23.2 °C to −50.5 °C for PGM/PS copolymers. The thermogravimetric analysis (TG/DTG) showed a higher thermal stability for PCM/PS (148–187 °C) than for PGM/PS copolymers (119–159 °C) in inert and oxidative atmospheres. The simultaneous thermogravimetric analysis coupled with Fourier Transform Infrared spectroscopy (TG/FTIR) showed that the pyrolysis and oxidative decomposition of the tested copolymers took place according to the radical mechanism. This led to receiving a mixture of low molecular mass organic molecules containing saturated and unsaturated fragments, carbonyl groups, aromatic fragments as well as to CO, CO₂ and H₂O. This indicated the depolymerization process (inert) and further oxidation processes of the initially formed volatiles and/or residues in oxidative conditions. Full article

In recent years, sustainability and the concept of a circular economy have grown in importance within almost all industrial sectors. Especially in the chemical industry, recycling of polymer waste streams has become an important pathway to avoid plastic waste being landfilled or incinerated. Additionally, traditional carbon sources, such as fossil fuels, can be substituted with streams of recycled polymer. For example, polyethylene terephthalate (PET), which is utilized in plastic bottles and textiles, may be recycled via glycolysis. This depolymerization yields the monomer bis(2-hydroxyethyl) terephthalate (BHET). This study focuses on the thermal behavior and stability of BHET, both in pure form as well as in the presence of ethylene glycol (EG), as it results from PET glycolysis. For this, differential scanning calorimetry (DSC), Fourier transform infrared spectroscopy (FTIR), high-performance liquid chromatography (HPLC), powder X-ray diffraction (PXRD), and thermogravimetry (TG) were utilized. The results exhibited pure BHET polymerizing to PET at temperatures above 120 °C, while further increasing temperatures increased the reaction kinetics. Additionally, no reaction was observed in BHET/EG mixtures at any temperature investigated, which can be attributed to the presence of EG shifting the equilibrium of the reaction towards the BHET, thus inhibiting polymerization. Based on these results and the determined BHET/EG (solubility) phase diagram, potential purification strategies based on crystallization are proposed. Full article

Near-critical and supercritical carbon dioxide (SC-CO₂) is extensively utilized in high-pressure separation, extraction, polymer processing, and carbon capture and utilization (CCU) technologies owing to its tunable density, low viscosity, high diffusivity, and environmentally benign nature. Reliable phase equilibrium data are indispensable for process design and optimization, especially in the near-critical region characterized by pronounced non-idealities, high compressibility, and density fluctuations. This review synthesizes experimental phase behaviour studies for binary mixtures of CO₂ with diverse components, including hydrocarbons, alcohols, ethers, esters, ketones, water, monomers/polymers, ionic liquids (ILs), and deep eutectic solvents (DESs), compiling extensive vapour–liquid equilibrium (VLE), liquid–liquid equilibrium (LLE), and critical data across industrially relevant pressure (up to 40 MPa) and temperature (up to 400 K) ranges. It critically evaluates analytical (sampling and non-sampling) and synthetic methodologies, addressing challenges in CO₂-rich phase handling, depressurization artefacts, and near-critical phenomena, while assessing data consistency against established reliability criteria. Key trends emerge, such as enhanced solubility with increasing pressure and CO₂ density, chain-length dependencies in hydrocarbons and alcohols, and Lewis acid–base interactions driving solvation in polar systems. The review highlights gaps in multicomponent data and proposes integrating high-quality experiments with advanced thermodynamic modelling to enhance predictive accuracy. Future directions emphasize high-precision in situ techniques, expanded datasets for complex mixtures, and novel CO₂-philic solvents to advance sustainable SC-CO₂ applications. Full article

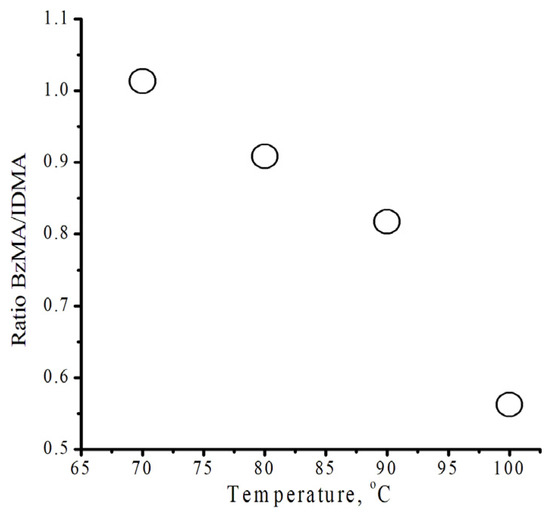

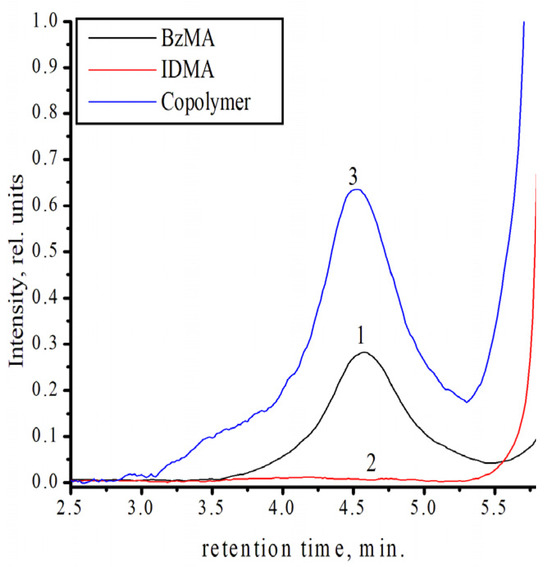

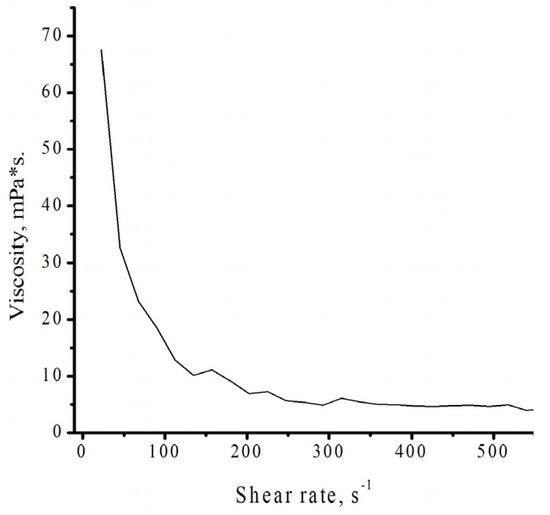

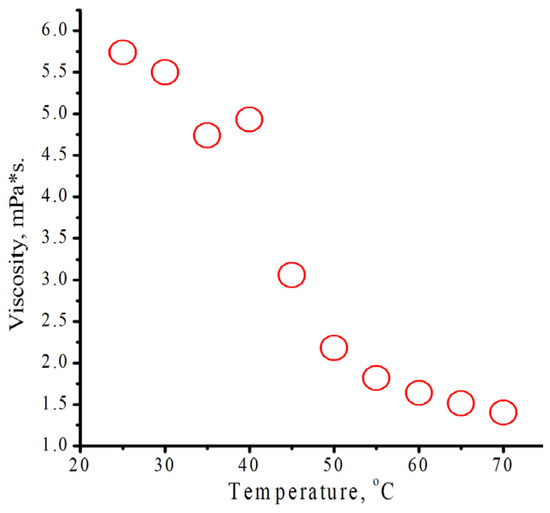

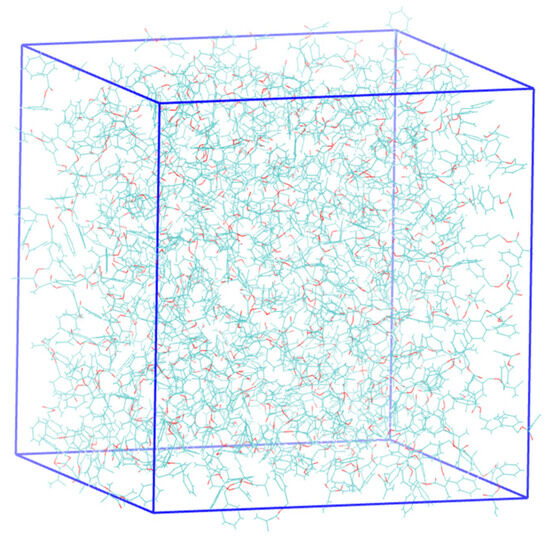

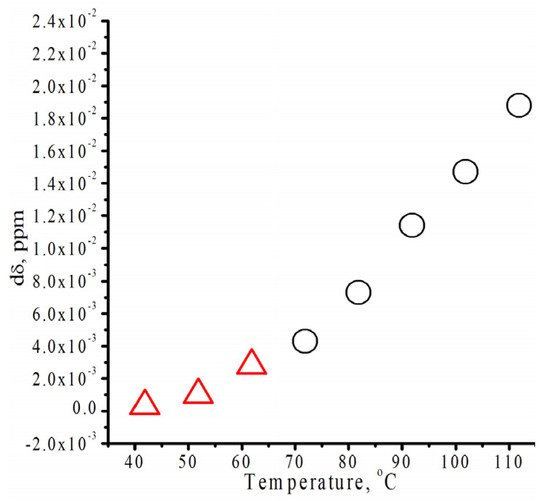

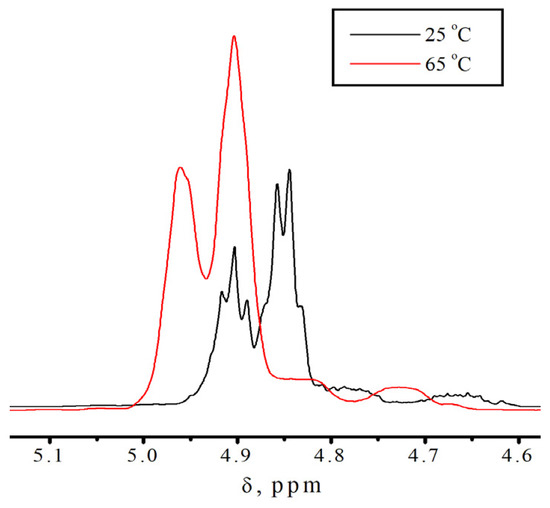

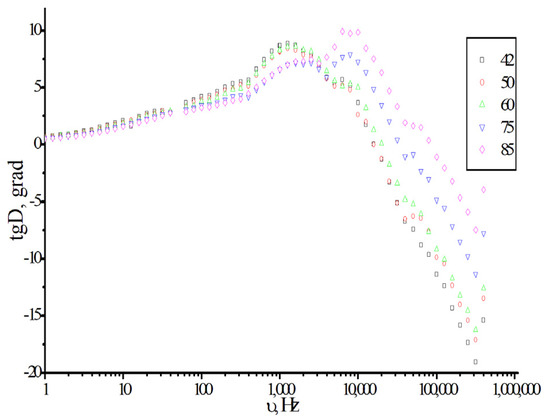

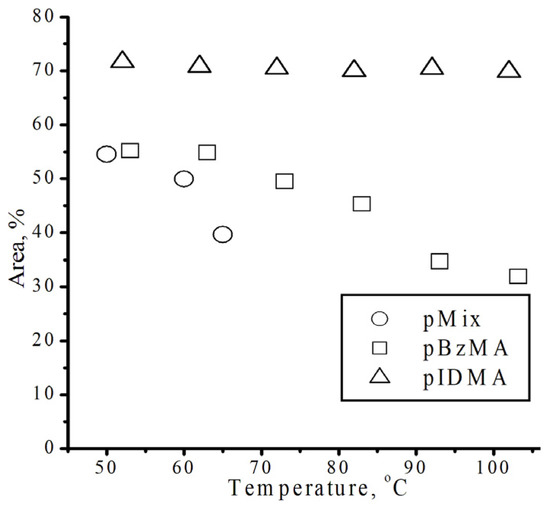

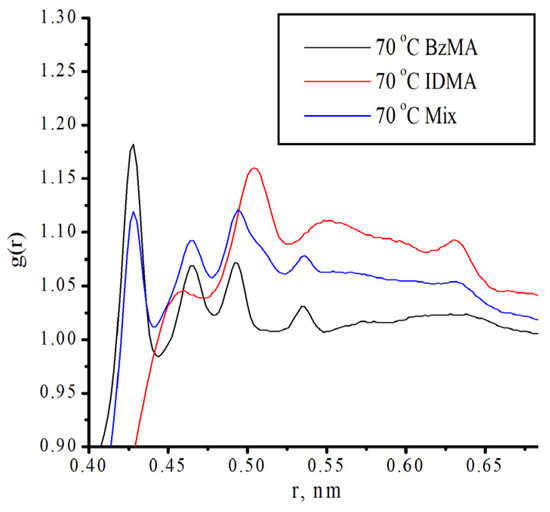

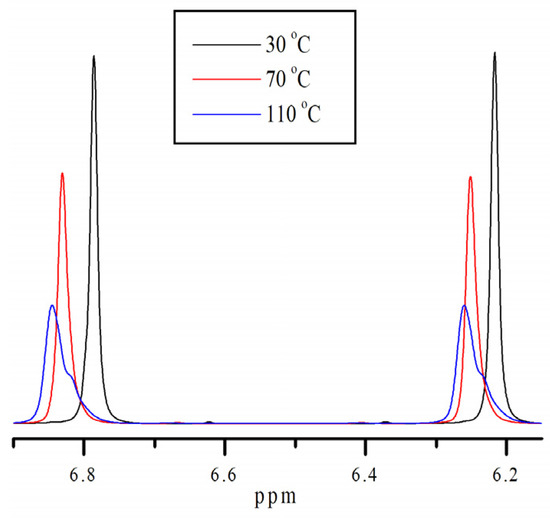

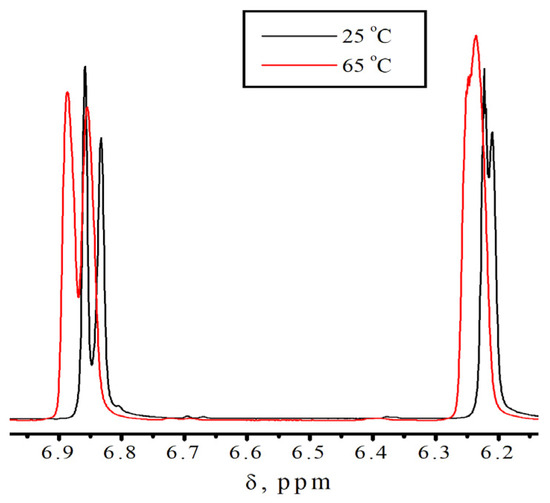

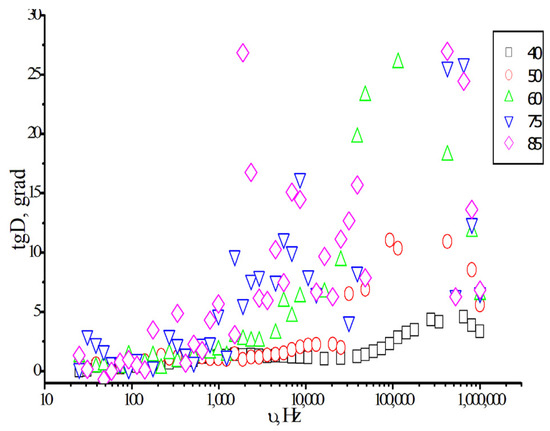

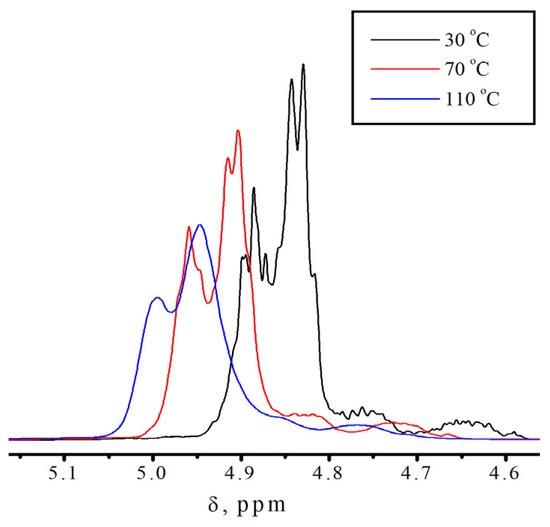

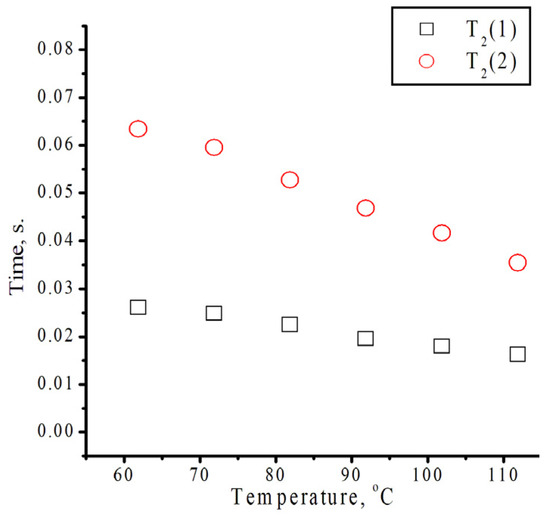

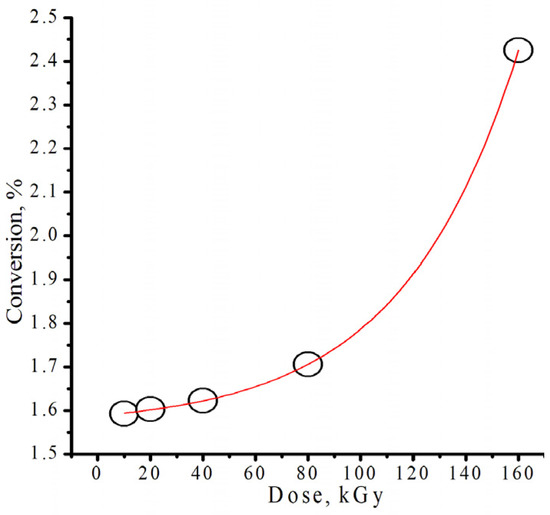

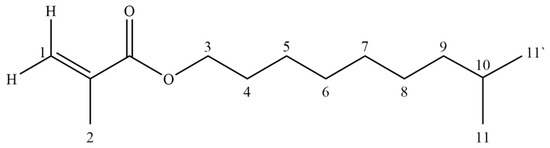

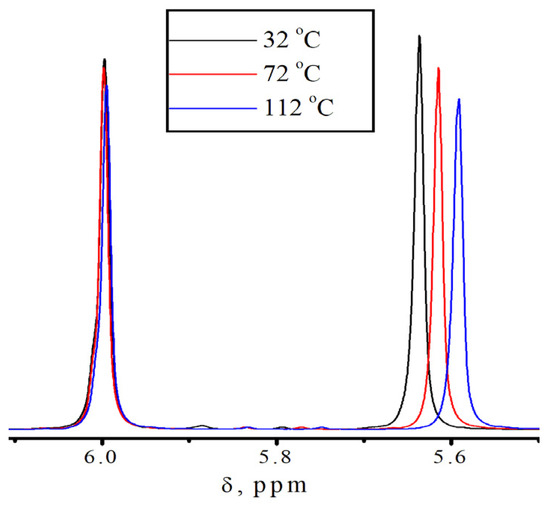

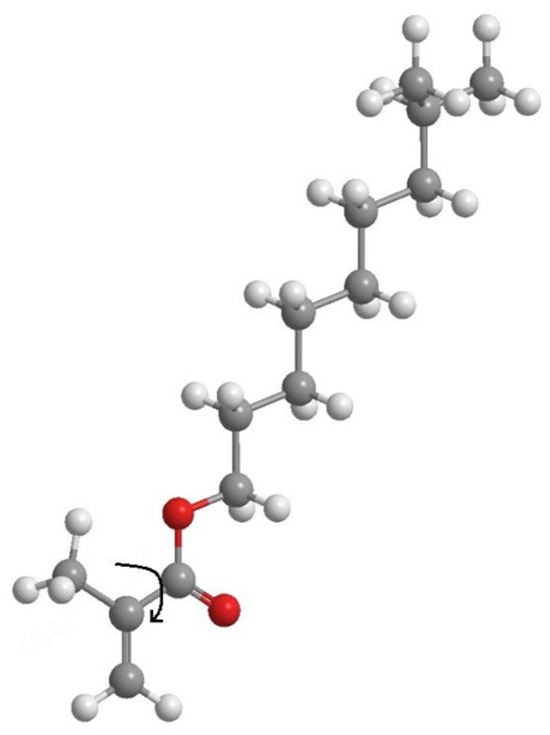

The study examined the polymerization of methacrylic acid derivatives with bulky substituents (isodecyl-, benzyl-), as well as the synthesis of their copolymer through radiation initiation followed by thermal treatment. It has been discovered that the polymerization rate in equimolar monomer mixtures substantially surpasses the rate in pure monomers. We hypothesize that the substantial degree of association with the liquid monomer hinders structural rearrangements preceding polymerization. We tested this hypothesis by employing various analytical methods. Full article

This work was inspired by quercetin, a natural bioflavonoid with well-known neuroprotective properties. We synthesized a new functional monomer, 3-acryloxy-3′,4′,5,7-tetramethylquercetin 1, and used it to prepare, for the first time, a molecularly imprinted polymer (MIP) selective for donepezil, the main drug used in Alzheimer’s disease therapy. The polymer was designed to be fluorescent and responsive to pH changes, aiming for controlled drug release. The optimized MIP-4, produced from a 1:1 mixture of the monomer 1 and acrylic acid, was characterized by FTIR-ATR, fluorescence spectroscopy, SEM, and DLS, confirming its chemical composition, morphology, particle size distribution and zeta potential. Adsorption studies showed higher donepezil binding capacity for MIP than for NIP, highlighting the polymer’s selective recognition. In vitro release experiments at pH 3, 5.5, and 7 revealed a pH-dependent behaviour, with nearly 98% cumulative donepezil release at pH 7. The polymer was non-cytotoxic and successfully released donepezil in in vitro assays, enabling effective inhibition of eeAChE. These results provide a proof of concept supporting the potential of quercetin-derived fluorescent molecularly imprinted polymers as selective and stimuli-responsive platforms for donepezil delivery. Full article

Reversible addition-fragmentation chain transfer mediated polymerization-induced self-assembly (RAFT-PISA) offers an efficient approach for the preparation of polymeric nanomaterials, giving access not only to common structures such as spheres, worm-like micelles and vesicles, but also to much more complex meso-objects. However, when the core forming block polymer possesses a high glass transition temperature (Tg), like poly(methyl methacrylate) or polystyrene (PS), high-order morphologies are particularly difficult to achieve since the glassy core can prevent polymer chain reorganization during PISA. To overcome this issue, we chose to perform visible light-initiated RAFT-PISA of poly(tert-butyl acrylate)-block-polystyrene (PtBA-b-PS) in solvent systems with varying degrees of polarity. More specifically, we prepared different mixtures of diisopropyl ether and ethanol and chose PtBA as macro-CTA due to its broad range of solubility. By varying the ratio between ethanol and diisopropyl ether, we could observe a transition from spherical micelles to vesicles via intermediate structures (e.g., necklace-like micelles, network-like micellar aggregates and wedding rings). This result was particularly remarkable since the experiments were performed near room temperature. We believe that these multiple morphologies were induced by the interactions between the solvent and the corona and the change in swelling of the polystyrene core with styrene monomer that facilitated its rearrangement. We anticipate that this approach could be applied to other polymeric systems with high Tgs. Full article

Denture base resins are susceptible to microbial colonization, and current antibacterial additives often lose effectiveness and may weaken material properties. This study evaluated whether immersion in a quaternary ammonium methacryloxy silane (QAMS)-containing monomer can enhance antibacterial activity without compromising the mechanical properties of digital light processing–printed urethane dimethacrylate denture base resin. Specimens of printed denture base resin were immersed in mixtures of denture base resin and a QAMS-containing monomer at ratios of 10:0 (Control), 7:3 (K3), 5:5 (K5), 3:7 (K7), and 0:10 (K10), followed by post-curing. Flexural strength and modulus were measured by three-point bending, and surface hardness was assessed by Vickers microhardness testing. Antibacterial activity against Streptococcus mutans was assessed by inhibition-zone and colony-counting assays. All QAMS-treated groups preserved flexural strength, with a slight reduction in modulus in K5 (p < 0.05), while hardness remained unchanged. Antibacterial activity improved in all QAMS-treated groups; K5 and K7 showed the strongest results. Surface analyses using scanning electron microscopy and energy-dispersive X-ray spectroscopy verified formation of a Si-rich modified layer. QAMS immersion followed by post-curing produced a stable, contact-active antibacterial surface without reducing mechanical properties. Among the formulations, K7 (~21 wt% QAMS) provided the most favorable balance of antibacterial activity and mechanical performance. Full article

Chemical recycling is one of the most prominent techniques that enables monomer recovery for plastics like polyethylene terephthalate (PET), which ultimately reduces the dependency on virgin material inputs. In this study, 40 deep eutectic solvents (DESs) were pre-screened using COSMO-RS to identify the best solvent for chemical recycling of PET. Quantitative evaluation was performed based on activity coefficients (γ) to assess solute–solvent interactions. Qualitatively, the sigma profile and sigma potential were analyzed to understand the polarity and affinity of each DES component. This study experimentally validated the two top-performing DESs based on COSMO-RS output. The DES formed by combining thymol with phenol (Thy/Phe (1:2)) achieved 100% PET degradation and 94.5% terephthalic acid (TPA) recovery from post-consumer PET in just 25 min. The rapid dissolution of PET into molten state accelerated the hydrolysis reaction, leading to efficient monomer recovery. The second DES, tetrabutylammonium bromide/sulfolane (TBABr/Sulf (1:7)), attained 93.7% PET degradation and 94% TPA recovery. The PET-to-solvent ratio used in this study was 0.75, while the PET-to-DES ratio in the mixture was only 0.15, the lowest reported for DES-assisted hydrolysis to date. Characterization of the recycled TPA confirmed a purity level comparable to its virgin grade, as verified by FT−IR analysis. This study presents two important outcomes. First, the use of COSMO-RS for DES selection provides a strong rationale for solvent choice in targeted reactions and processes. Second, the use of appropriate DES in this study helps reduce key parameters associated with depolymerisation process, including reaction time, temperature, and catalyst consumption. Full article

This study aimed to assess how different resin matrix formulations affect the fatigue resistance of resin dental composites. Model dental composites were formulated using six distinct monomer mixtures: two Bis-GMA (bisphenol A-glycidyl methacrylate):TEGDMA (triethylene glycol dimethacrylate) (60:40 and 80:20 mole%), two UDMA (urethane dimethacrylate):TEGDMA (60:40 and 80:20 mole%), one Bis-GMA:UDMA:TEGDMA (35:35:30 mole%), and one Fit852:UDMA:TEGDMA (35:35:30 mole%). Cyclic fatigue resistance (CFR) of the resin composites was measured in a biaxial test mode using staircase analysis. Additional evaluations included biaxial flexural strength (BFS), degree of conversion (DC), water sorption (WS), and viscoelastic properties of the unfilled resins, such as the storage modulus (E′), loss modulus (E″), tan δ (E″/E′), and stiffness (k′). Data were subjected to one-way ANOVA with Tukey post hoc analyses. Pearson correlation and stepwise regression analyses were conducted to examine the relationships among variables. The UT6040 model composite exhibited the highest CFR (82.61 ± 8.83 MPa), significantly outperforming other formulations. Tan δ of the resin matrix showed the strongest correlation with CFR (r = 0.974), and was also shown to be the most influential predictor for the CFR of the particulate composites. The composition of the resin matrix has a significant impact on the CFR of dental composites. Among the properties evaluated, the viscoelastic parameter tan δ emerged as a strong and reliable predictor of CFR, emphasizing the importance of targeting viscoelastic behavior in the design of dental composite formulations. Full article

Choline salts represent sustainable and safe electrolyte systems. In this study, an aqueous 1 M choline nitrate solution was employed to prepare hydrogel polymer electrolytes (HPE) via in situ photopolymerization. To enhance compatibility between the electrolyte and polymer matrix, choline methacrylate was synthesized and used as a functional monomer alongside HEMA and PEGDA. The photocurable formulation contained 70 wt.% electrolyte and 30 wt.% monomer mixture. Subsequent electrolyte uptake increased the electrolyte fraction in the HPE to 87 wt.%. The use of choline methacrylate enabled the formation of transparent HPE with favorable mechanical performance, showing puncture resistance of 0.33 N and 0.28 N at elongations of 7.9 mm and 4.4 mm for samples with 70 and 87 wt.% electrolyte, respectively. High ionic conductivity was achieved, reaching ~18 mS/cm and ~34 mS/cm for HPE with 70 and 87 wt.% electrolyte. Finally, a capacitor assembled with HPE containing 87 wt.% electrolyte demonstrated good operational parameters, confirming the applicability of this system in energy storage devices. This work highlights the potential of choline-based electrolytes and polymerizable choline derivatives as functional components for the design of efficient, safe, and environmentally friendly gel polymer electrolytes. Full article

Graft copolymers of polysaccharides with side chains of carbon-chain monomers have significant potential for a variety of practical applications. In this work, the effect of the N,N-methylenebisacrylamide (MBA) introduction stage and acrylamide concentration in microwave-assisted radical copolymerization with xanthan gum on the structure and sorption properties of the cross-linked graft copolymer was studied. It has been found that the spatial network density and average molecular weight of interstitial fragments can be controlled by varying these factors. Moderate crystallinity (<50%) and a highly developed surface of our synthesized samples were revealed using XRD and SEM. The graft copolymer exhibits the Schroeder effect; its liquid water sorption obeys Fick’s law and increases with MBA introduction at later stages and with increasing grafting degree, reaching 17.2 g/g. Studying the methylene blue sorption kinetics using pseudo-first/pseudo-second order models, a combined model and an average pseudo-order model have shown that the lower the monomer concentration in the reaction mixture and the earlier (from the onset of the reaction) the cross-linking agent is introduced, the higher the equilibrium sorption. The observed “equilibrium degree of sorption on xanthan gum vs. pseudo-order” relationship, which passes through a minimum, is explained by chemisorption and the sorbate consumption effect. An assumption is made about the prospects of using our synthesized copolymers for designing selective sorbents and ion-exchange membranes. Full article

Ultraviolet light-emitting diode (UV LED) technology offers advantages over conventional UV mercury (UV Hg) lamps, including precise wavelength control, high energy efficiency and rapid curing. While UV LED is widely applied in sectors like dentistry, printing, and electronics, its application in contact lens manufacturing remains relatively low. This study evaluates the feasibility of integrating UV LED technology curing as a replacement for UV Hg lamps to produce silicone hydrogel contact lenses. Many manufacturers utilizing UV Hg systems encounter challenges such as extended curing times and increased cosmetic defect rates. In this study, lenses were formulated using a mixture of hydrophobic macro-monomer, silicone monomer, and hydrophilic monomer. The formulations were cured using both UV LED and UV Hg lamps systems under controlled intensities, and two curing configurations were assessed: single-sided (SC) and double-sided (DC). The UV Hg light intensity was maintained between 1.1 and 3.1 mW/cm², reflecting standard production values, while the UV LED intensity was set at 32 mW/cm² to ensure uniform light distribution in the mold. The findings showed an improved degree of conversion (DOC) for UV LED cured lenses (86–88%) compared to UV Hg (79.5–82.3%), along with increased water content (ranging between 34 and 36.8%) and ion permeability (7.1–8.3 mm²/min). The optical properties of the cured lenses remained consistent across both methods. Notably, UV LED curing reduced cosmetic defects by up to 50% and shortened curing time by 3 to 4 times. These enhancements support UV LED as a superior alternative for contact lens curing, enabling scalable, efficient, and high-quality manufacturing. Full article

In winter, some roads face the problems of severe rain accumulation and ice formation, which pose major risks to traffic safety and result in substantial economic losses. With the development of hydrophobic materials, hydrophobic coatings have gradually gained attention as a novel anti-icing technology. In this study, utilizing vinyl triethoxysilane (VTES) as the monomer and benzoyl peroxide (BPO) as the initiator, a hydrophobic anti-icing coating for highway pavements was prepared through the free radical polymerization method. Through designing the icing rate test and ice–pavement interface adhesion strength test, combining the contact angle test technology, wet wheel abrasion test, and pendulum friction coefficient test, the anti-icing performance, durability, and skid resistance performance of the hydrophobic anti-icing coating under the three types of mixtures of asphalt concrete (AC-13), Portland cement concrete (PCC), and porous asphalt concrete (PAC-13) were evaluated. The results indicate that when the surface layer of the pavement was sprayed with anti-icing coating, the water was dispersed in a semi-spherical shape and easily rolled off the road surface. Compared to uncoated substrates, the anti-icing coating reduced the icing rate on the surface by approximately 25%. Comparing with the uncoated pavements mixtures, for AC-13, PCC, and PAC-13 pavements, the ice–pavement interface adhesion strength after the application of hydrophobic anti-icing coating reduced by 30%, 79% and 34%, respectively. Both cement pavements and asphalt pavements, after the application of hydrophobic anti-icing coating, expressed hydrophobic properties (contact angle of 131.3° and 107.6°, respectively). After wet wheel abrasion tests, the skid resistance performance of pavement surfaces coated with the hydrophobic anti-icing coating met the specification requirements. This study has great significance for the promotion and application of hydrophobic anti-icing technology on highway pavements. Full article

An experimental investigation was conducted to study the effect of initiator content and polymerization temperature on the mechanical and bonding properties of polyacrylate mortar. Initiator content was controlled in 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9 and 1.0% and polymerization temperature was set at −20, 0, 20, 40, and 60 °C in aggregation process, respectively. The mixture of butyl methacrylate (BMA), benzoyl peroxide (BPO) and N, N-dimethylaniline (DMA) was added to the aggregate composed of quartz sand and silica fume (SF) according to the ratio of monomer to aggregate of 1:4. Results showed that compressive, flexural, tensile, and bonding strengths of polyacrylate mortar decreased with increasing temperature but increased with higher initiator content. The optimal initiator content was 0.6%. Although the highest strength was observed at −20 °C, this curing condition is not easy to achieve in practice and should be considered as laboratory optimization. According to the room temperature, 20 °C can be selected as the best polymerization temperature. SEM observations indicated that the polyacrylate cementitious material cross-linked to form a film, with a dense polymer distribution at the interface that improved interfacial continuity. These findings provide mechanistic insight for optimizing initiator content and curing conditions to enhance the mechanical and bonding performance of polyacrylate-based cementitious composites. Full article

Although transition metal catalysts have been used extensively for the polymerization of hydrocarbon monomers, several cationic aluminum catalysts have been also known to promote polymerization of ethylene and 1,3-butadiene. Transition-metal catalyzed polymerization generally proceeds via coordination and insertion of the monomer on one metal center. In contrast, in ethylene polymerization using aluminum catalysts, a bimolecular chain growth mechanism, including the reaction between neutral aluminum species and the monomer activated by cationic aluminum species, is proposed. Although previously reported aluminum catalysts are based on a monoaluminum complex, a dialuminum complex is expected to catalyze the polymerization more efficiently, considering the proposed mechanism. In this work, we found that a combination of diphosphines and MAO promotes polymerization of ethylene and 1,3-butadiene. The 1,4-bis(diphenylphosphino)butane (DPPB)/methylaluminoxane (MAO) system showed a much higher activity toward ethylene polymerization than other monophosphine or diphosphine/MAO systems. NMR analysis of a mixture of diphosphine and MAO indicates the formation of cationic dialuminum species in the presence of DPPB, whereas the formation of cationic monoaluminum species occurs in the presence of other diphosphines. The 2,2′-bis(diphenylphosphino)-1,1′-biphenyl (BIPHEP)/MAO system promoted 1,3-butadiene polymerization to give polybutadiene having a cis-1,4 selectivity of up to 93.8%. Full article
