Search Results (1,144)

Models can help to obtain the desired properties of steel by predicting when different microstructures form during phase transformations in manufacturing processes. One prominent model for low-alloy steel is the Kirkaldy–Venugopalan model but it has not been evaluated for wear-resistant ultra-high-strength steels (UHSS). A modified Kirkaldy-type model was developed in this work for the phase transformation kinetics in a wear-resistant UHSS. A modified incremental Koistinen–Marburger model was used for the martensite transformation which considers the gradual start of the transformation. The framework was validated by simulating the dilatometry experiments in a finite element model. Good agreement was obtained for the low cooling rates 2.5 to $15$ °C/s yielding ferrite, pearlite, and bainite, as well as for the high cooling rates 20 to $50$ °C/s yielding bainite and martensite. The model was also applied to the steel Hardox 450 where it predicted the formation of 99.7% martensite at the experimental critical cooling rate for full martensite formation of $12$ °C/s found in the literature, which demonstrates the model’s capability to be used more generally on wear-resistant UHSS. The predicted hardness also captured the general trend seen in the hardness measurements. Full article

Melt-spun Fe_70−xPd₃₀Ga_x ribbons (x = 1 and 3 at.% Ga) were heat-treated at 1223 K for 1 h and 2 h and characterized by X-ray diffraction, scanning electron microscopy, differential scanning calorimetry, magnetometry, and magnetoelastic measurements. Increasing Ga content decreases thermodynamic equilibrium temperature from 292.0 K (1 at.% Ga) to 283.5 K (3 at.% Ga) in as-prepared ribbons. Extended heat treatment then shifts it to 288.0 K and 264.5 K, respectively, and promotes Fe-rich precipitation. Fine precipitates at 1 h preserve a large transformable matrix fraction and introduce microstructural heterogeneity that governs variant mobility and domain-wall pinning; prolonged annealing triggers coalescence, depleting the matrix and reducing both the transformation heat and the magnetoelastic response. Kissinger analysis yields apparent activation energies of 338 kJmol⁻¹ (1 at.% Ga) and 228 kJmol⁻¹ (3 at.% Ga), confirming that higher Ga content lowers the transformation energy barrier. The magnetostrictive response depends on annealing: 1 h-annealed samples exhibit field-induced variant reorientation and saturation magnetostriction of ~60 ppm at 200 K, whereas 2 h-annealed samples approach volume-conserving behavior. Coercivity scales with precipitate density, with Ga3-2h showing anomalously soft magnetic behavior following coalescence. Thermally induced precipitation thus emerges as a route to simultaneously control microstructure, transformation kinetics, magnetoelastic response, and magnetic behavior in ferromagnetic shape memory alloys. Full article

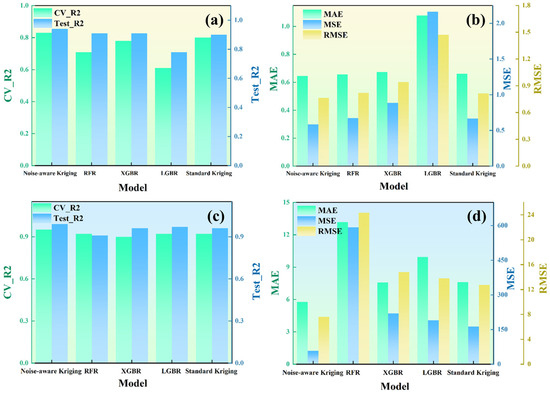

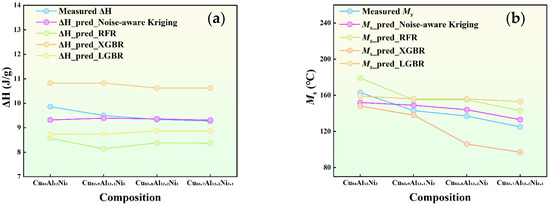

Cu-Al-Ni shape memory alloys (SMAs) are promising solid–solid phase-change materials (PCMs) for transient thermal management. Data-driven screening for high-latent-heat (ΔH) Cu-Al-Ni PCMs across the vast compositional space is efficient, but predictive accuracy and screening reliability degrade when noisy experimental data are used. A noise-aware machine learning strategy was applied to accelerate the discovery of high-ΔH Cu-Al-Ni alloys with martensite start temperature (M_s) within the 100–200 °C range from noisy experimental datasets. The optimal noise level was estimated by minimizing the prediction error of the noise-aware Kriging model. The application of this strategy led to the discovery of four Cu-Al-Ni alloys with M_s ranging from 125 to 163 °C and ΔH ranging from 9.27 to 9.86 J/g. The best-performing Cu₈₄Al₁₃Ni₃ (wt.%) alloy achieved M_s = 163 °C, ΔH = 9.86 J/g, thermal conductivity of 102 W·m⁻¹·K⁻¹ and figure of merit of 7272 × 10⁶ J² K⁻¹ s⁻¹ m⁻⁴. Its ΔH exceeds the previous highest Cu-Al-Ni ΔH in the 100–200 °C window by 11.8%, while its FOM exceeds the previous highest Cu-Al-Ni FOM by 33.75% and represents the highest value among the surveyed PCMs within the 100–200 °C range. After 100 thermal cycles, ΔH decreased by 0.158 J/g and M_s shifted by 0.9 °C, demonstrating good thermal cycling stability. Full article

TA15 titanium alloy fabricated by Laser Powder Bed Fusion (L-PBF) exhibits high strength but poor ductility due to its fine acicular α′ martensitic microstructure. This study systematically investigates the effects of post-annealing treatments (800–950 °C for 0.5–4 h) on the microstructural evolution and mechanical performance of L-PBF-built TA15. Results show that with increasing temperature and time, the metastable α′ martensite decomposes into a progressively coarser lamellar (α + β) structure. This transformation leads to a decrease in strength and hardness but a significant improvement in ductility, with elongation increasing from (8.5 ± 0.5)% (as-built) to (19.4 ± 1.1)% (900 °C/2 h) as the ultimate tensile strength (UTS) decreased from (1100 ± 29) to (895 ± 37) MPa. However, annealing at 950 °C, which approaches the β-transus temperature, induces a coarse Widmanstätten structure in the alloy. Although this structure yields a relatively high elongation (23.8 ± 3)%, it also leads to excessive strength loss, with an ultimate tensile strength of only (833 ± 23) MPa, rendering it less desirable for structural applications requiring high load-bearing capacity. Moreover, such coarse lamellar structures are generally associated with poor fatigue resistance, as cracks tend to propagate along prior β grain boundaries. An optimal strength-ductility synergy is achieved by annealing at 900 °C for 0.5 h, yielding an ultimate tensile strength of (951 ± 13) MPa and an elongation of (18.8 ± 1.7)%. These findings provide crucial guidance for tailoring the mechanical properties of L-PBF-fabricated TA15 alloy through post-processing heat treatments. Full article

Despite its excellent impact toughness and work-hardening capacity, high-manganese steel (HMS) suffers from low initial hardness, limiting its wear resistance under low-stress conditions. Conventional surface hardening methods for HMS involve high cost and intensive energy consumption and produce only shallow hardened layers; moreover, the understanding of laser transformation hardening in HMS remains insufficient. To address these gaps, this study employs a high-energy-density laser for rapid and precise surface modification of Mn13 HMS. The studied Mn13 steel contains 1.98 wt.% Cr, which contributes to solid-solution strengthening and influences the phase transformation behavior during laser transformation hardening. By optimizing the laser power, a well-defined laser-quenched layer with a gradient microstructure along the thickness direction is obtained. Microhardness at the surface treated by laser transformation hardening at 1.5 kW improved significantly, primarily due to grain refinement and a dense dislocation network. The small fraction of martensite contributes indirectly by generating geometrically necessary dislocations and acting as local barriers to dislocation glide. Along the depth direction, the microhardness varies with the gradient microstructure: coarse columnar grains at intermediate depths cause a slight decrease in microhardness, while the substrate restores it. Correspondingly, the laser-quenched surface exhibits improved wear resistance, as indicated by reduced friction coefficient, wear depth, and wear volume, and the dominant wear mechanism shifts from adhesive to abrasive wear. Importantly, this gradient configuration maintains a mechanically compatible transition between the quenched layer and the substrate, preserving impact toughness comparable to that of the untreated material. Full article

To reveal the controlling mechanism of cooling rate on the continuous cooling transformation, microstructure evolution and mechanical performances of Q580R low-temperature pressure vessel steel, this study took industrial-scale Q580R steel as the research object. The JMatPro thermodynamic software was utilized for simulating and calculating its equilibrium phase diagram, TTT diagram, CCT diagram and mechanical property evolution. Continuous cooling experiments with a wide range of cooling rates between 0.1 and 50 °C/s were executed on a Gleeble-3500 thermal simulator. Combined with optical microscopy, scanning electron microscopy and Vickers hardness tester for microstructure characterization and property testing, the measured CCT diagram was constructed and contrasted with the simulation results for verification. Experimentally, the phase composition of Q580R steel evolves at regular intervals with cooling rate. As the cooling rate rises, the ferrite content constantly decreases, the bainite content first increases and subsequently decreases, and the martensite content constantly increases. When the cooling rate reaches 30 °C/s, the martensite proportion can exceed 90%, and the microstructure is significantly refined. The hardness of the material first increases rapidly and subsequently trends to be steady as the cooling rate rises, reaching 308 HV₁₀ at 50 °C/s. The measured transformation law, microstructure evolution and hardness change exceedingly corresponds to the JMatPro simulation results. This validates the credibility of the simulation prediction. This study clarifies the quantitative relationship among “cooling rate-microstructure-properties” of Q580R steel, which can provide theoretical basis and data support for the precise design of heat treatment process and the optimization of strength and toughness. The established relationship can directly guide the formulation of controlled cooling parameters during hot rolling and off-line quenching and tempering production of Q580R pressure vessel plates, helping manufacturers optimize industrial heat-treatment procedures to satisfy low-temperature toughness requirements for petrochemical and cryogenic pressure vessel service. Full article

A multiphase high-strength steel austempered at 260 °C for 24 h was investigated by quasi-in-situ tensile characterization and EBSD-based crystal plasticity finite element modeling. The experimental observations reveal that local plastic deformation is strongly heterogeneous: von Mises strain concentrates preferentially near bainitic-ferrite packets, phase boundaries, and retained-austenite/martensite–austenite regions, whereas blocky retained austenite contributes to strain accommodation at the early deformation stage. To quantify the underlying stress–strain partitioning, a quasi-two-dimensional representative volume element was reconstructed from EBSD data and implemented in ABAQUS through a user-defined material subroutine. The model contained the real grain morphology, phase distribution, and crystal orientation information of the 24 h austempered specimen. A rate-dependent crystal plasticity constitutive framework with BCC matrix, FCC retained austenite, and transformed martensite branches was calibrated against the macroscopic tensile curve. The simulated tensile response agrees well with the experimental curve before macroscopic instability, and the predicted local fields are consistent with the quasi-in-situ strain maps. The results show that local plastic strain first accumulates in M/A-related regions and phase-boundary-neighboring zones, while high Mises stress migrates dynamically with slip activity and stress-induced martensitic transformation. Retained-austenite transformation increases the local load-bearing capacity, modifies interphase load transfer, and delays the direct linkage of strain-localization bands. The present work clarifies the coupling among retained-austenite stability, TRIP-assisted load redistribution, and microstructural strain partitioning in multiphase high-strength steel, providing a mesoscale basis for microstructure-guided strength–ductility optimization. Full article

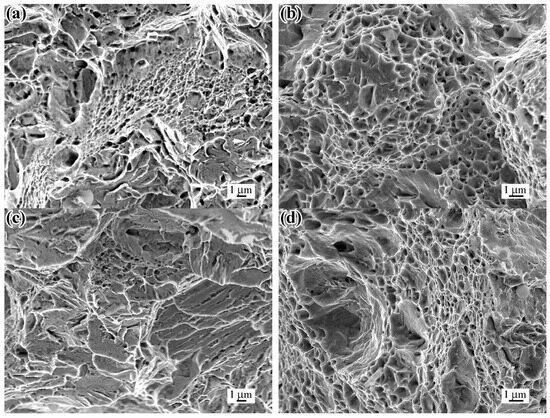

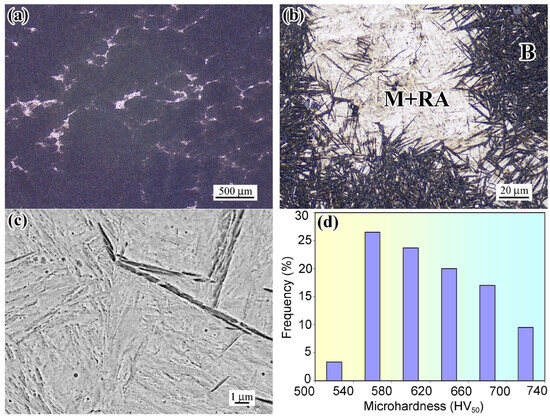

In this study, manual welding electrodes with varying niobium (Nb) contents (0, 0.05, and 0.1 wt%) were developed for 960 MPa grade low-alloy high-strength steel, and deposited metals were produced through multilayer multipass welding. Microstructural characterization and mechanical testing were performed using scanning electron microscopy (SEM), transmission electron microscopy (TEM), X-ray diffraction (XRD), electron backscatter diffraction (EBSD), and a universal testing machine to investigate the influence of Nb content and elucidate the strengthening mechanisms. The results demonstrate that under identical welding conditions, multipass thermal cycles induced a primary microstructural transformation from martensite to tempered martensite in all deposited metals, which predominantly comprised tempered martensite with minor fractions of bainite and second-phase particles. Increasing Nb content led to significant grain refinement. The second-phase particles exhibited sizes of 0.158 μm, 0.176 μm, and 0.168 μm, respectively, with volume fractions of 5.69%, 5.82%, and 5.90%. Nb addition substantially enhanced hardness and strength while causing a noticeable reduction in low-temperature impact toughness, though the values remained within acceptable limits. The deposited metal containing 0.05 wt% Nb exhibited optimal comprehensive mechanical properties, with a hardness of 386.7 HV, tensile strength of 1060 MPa, yield strength of 962 MPa, and Charpy impact energies of 41.95 J and 33.17 J at −40 °C and −60 °C, respectively. Theoretical calculations revealed that the dislocation strengthening contribution in martensite increased from 526 MPa to 600 MPa with increasing Nb content, representing the dominant strengthening mechanism, while grain refinement strengthening increased from 135.5 MPa to 157.6 MPa. Full article

$\mathrm{T}{\mathrm{i}}_{70}\mathrm{Z}{\mathrm{r}}_{20}\mathrm{T}{\mathrm{a}}_{10}$ alloy is a $\beta$-titanium based shape memory alloy with a high martensitic transformation temperature and large recoverable strain. It is thought to be to develop into a new generation of high-performance high-temperature shape memory alloy materials. By partially replacing the Ta element in the $\mathrm{T}{\mathrm{i}}_{70}\mathrm{Z}{\mathrm{r}}_{20}\mathrm{T}{\mathrm{a}}_{10}$ alloy with Al, Ti-Zr-Ta-Al alloys with different Al contents were prepared. In this study, isothermal oxidation tests at 900 °C were conducted on Ti-Zr-Ta-Al alloys with different Al contents to investigate the effect of Al content on the high-temperature oxidation behavior of the $\mathrm{T}{\mathrm{i}}_{70}\mathrm{Z}{\mathrm{r}}_{20}\mathrm{T}{\mathrm{a}}_{10}$ alloy. The results show that the isothermal oxidation kinetics curves of $\mathrm{T}{\mathrm{i}}_{70}\mathrm{Z}{\mathrm{r}}_{20}\mathrm{T}{\mathrm{a}}_{10-\mathrm{x}}\mathrm{A}{\mathrm{l}}_{\mathrm{x}}$ (x = 0, 0.5, 1, 3 at.%) at 900 °C all follow a parabolic law. The oxide films formed on the alloy surface are mainly composed of $\mathrm{Ti}{\mathrm{O}}_2$, $\mathrm{T}{\mathrm{a}}_2{\mathrm{O}}_5$ and $(\mathrm{Ti},\mathrm{Zr}){\mathrm{O}}_2$. However, the surface of the oxide films is relatively rough. The films are not dense and there are pores and cracks, leading to spallation during the oxidation process. After the addition of Al, the high-temperature oxidation resistance of the Ti-Zr-Ta alloy is improved. When the Al content is 1 at.%, $\mathrm{T}{\mathrm{i}}_{70}\mathrm{Z}{\mathrm{r}}_{20}\mathrm{T}{\mathrm{a}}_9\mathrm{A}{\mathrm{l}}_1$ exhibits the best high-temperature oxidation resistance. Full article

This study investigated the relationship between the surface microstructure of pearlite steel wheels and the formation of fatigue cracks during the braking process by using a full-size wheel braking test rig. After fatigue failure, the surface microstructural evolution and fatigue crack initiation and propagation of the wheel sample were systematically analyzed by optical microscope (OM), scanning electron microscope (SEM), and transmission electron microscope (TEM). The results showed that after braking of 1572 cycles, a large number of fatigue cracks formed at the wheel tread, which caused the wheel to break. After fatigue failure, some dark areas formed at the wheel tread, which were composed of Fe₃O₄ compounds. This indicates that severe oxidation was produced at the wheel tread during braking due to the high temperature. After fatigue failure, a continuous thermal white etching layer (T-WEL) was formed in some areas of the wheel tread, while crescent-shaped T-WEL was found in other areas. The microstructure of the T-WEL was composed of martensite phase. The rapid increase and decrease in temperature at the wheel tread during the braking process caused martensitic transformation at the wheel tread. The hardness of the sample reached to about 900 HV in WEL and it reduced with the increase in distance from the surface. The cracks were initiated from the surface and gradually propagated into the matrix. However, the crack propagation mode in the continuous T-WEL and crescent-shaped T-WEL was different. In the continuous T-WEL, the continuous T-WEL of the wheel can be peeled off during the braking wear process, and then the crack was gradually propagated into the matrix in the T-WEL peeled area. As for the crescent-shaped T-WEL, due to the large hardness difference between T-WEL and pearlite, the crack initiated at the interface between the T-WEL and pearlite and gradually propagated into the matrix. Full article

Marine transportation and storage of liquid hydrogen (LH2) has gained increasing interest, while potential LH2 membrane-type tanks could utilize 316L corrugated austenitic stainless-steel sheets. The corrugation process results in a strain-induced martensitic transformation in the material, introducing rapid diffusion pathways for hydrogen atoms and promoting the formation of hydrogen-trapping sites that alter hydrogen transport and reduce the material’s resistance to hydrogen embrittlement. In this study, 316L sheets were subjected to different levels of uniaxial pre-strain (10, 20, 30, and 40%) with two different strain-rates, to replicate the varying degrees of pre-deformation caused by the corrugation. Microstructural analysis using Electron Backscatter Diffraction (EBSD) (Thermo Fisher Scientific, Waltham, MA, USA) and X-Ray Diffraction (XRD) (Bruker, Billerica, MA, USA) combined with quantitative phase analysis using the Rietveld Method on XRD data, provided valuable insights into the induced phase transformations. Cathodic hydrogen charging method was implemented on as-received and pre-strained material, followed by slow strain rate tensile testing (SSRT) and thermal desorption spectroscopy (TDS) to examine the hydrogen effect on each condition. Experimental results indicated that although 316L exhibits considerable phase stability, it undergoes strain-induced phase transformation resulting in a significant amount of martensite, reaching 5% in the 40% pre-strained condition. Pre-deformation increased hydrogen embrittlement, as evidenced by fractographic analysis which indicated a Relative Reduction of Area (RRA) of 0.83, and by increased hydrogen uptake. These findings contribute to a better understanding of phase transformations and the role of hydrogen in austenitic stainless steels. Full article

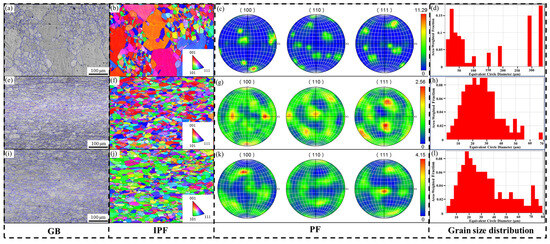

This work systematically investigates the effects of various heat treatment regimes, including solution treatment, solution treatment followed by aging at 623 K, 723 K and 823 K, and direct aging at the same temperatures, on the solidified microstructure, phase transformation behavior, and nanoindentation properties of thin NiTi samples fabricated by laser powder bed fusion (LPBF). The as-fabricated sample exhibits a strong {100}_B2<001>_B2 Cube texture (maximum texture index 25.77), a high dislocation density (2.70 × 10¹⁸ m⁻²), a single-step B19′↔B2 reversible transformation with A_f = 308.17 ± 3.08 K, and a recovery ratio of 0.46 ± 0.02. Subsequently, solution treatment homogenizes the microstructure, resulting in a lower dislocation density and a partial transformation from the Cube texture to the Goss texture. Further aging at 623 K after solution treatment achieves the highest recovery of 0.52 ± 0.03 by introducing fine and inferred-coherent Ni₄Ti₃ precipitates while maintaining a higher fraction of B2 phase at room temperature. However, aging at 723 K after solution treatment leads to a Goss-dominated texture, mixed austenite/martensite phases, and the lowest recovery (0.34 ± 0.01). In contrast, direct aging at 623 K or 723 K also yields lower recovery ratios (0.40 ± 0.06 and 0.35 ± 0.01, respectively), due to retained compositional inhomogeneity and higher dislocation densities. For direct aging at 823 K, however, the recovery ratio significantly increases to 0.49 ± 0.06. It is therefore suggested that the enhanced recovery performance can be achieved by combining solution treatment with low-temperature aging, which synergistically combines coherent precipitates, a fully austenitic matrix, and a favorable texture. Full article

This study focuses on a 155 mm 32CrNi3MoV steel barrel and presents a thermochemically coupled phase transformation and diffusion dynamics model. The model leverages the significant disparity between radial and axial temperature gradients to simplify the heat conduction problem to a one-dimensional transient formulation. The temperature field distribution during firing sequences is solved analytically, accounting for the dynamic shift in critical phase transformation temperatures under high heating rates. The evolution of the martensitic layer thickness under repeated thermal shock is subsequently calculated. A numerical model for the pulsed diffusion of C and N is established based on Fick’s second law, incorporating the competitive diffusion–phase transformation mechanisms that govern martensite/austenite interface migration. To quantitatively evaluate the synergistic contribution of C and N to austenite stabilization, a carbon equivalent (Ceq) model is introduced, with the weight coefficient of N relative to C determined to be 0.68 and the critical Ceq required to lower the martensite start temperature below 25 °C calculated as 1.15 wt%. Concurrently, the microstructure and elemental distribution within the austenite layer of the retired barrel are systematically characterized using multi-scale techniques. The results indicate that the austenite layer on the inner bore surface arises from the synergistic effects of cyclic thermal-shock-induced phase transformation and elemental diffusion. Based on the Ceq criterion, the austenite layer thickness increases rapidly during the initial ~100 firing cycles, after which the growth rate slows significantly: it reaches approximately 1.27 μm after the first cycle and 2.94 μm after 1000 cycles, with only 0.2 μm of additional thickening between 100 and 1000 cycles—consistent with the experimentally observed range of 1.52–4.16 μm. The martensitic layer formed during the first firing cycle exhibits low thermal conductivity, which impedes subsequent heat transfer and leads to stabilization of its thickness at a characteristic depth. Grain refinement induced by repeated thermal shock provide short-circuit diffusion paths for elemental diffusion, accelerating compositional homogenization within the austenite layer and resulting in a stepped concentration profile at the interface. This study provides a representative example of non-equilibrium coupled phase transformation–diffusion phenomena under extreme transient loading. The established thickness prediction model can provide guidance for service life assessment of large-caliber barrels, offering both theoretical foundations and practical engineering guidance for their material design and performance optimization. Full article

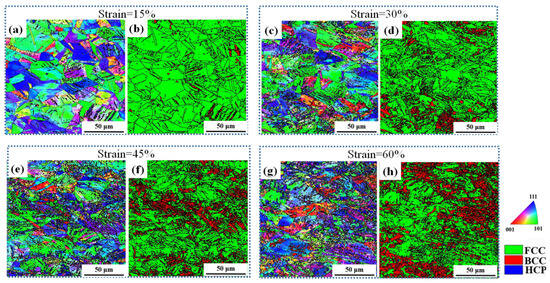

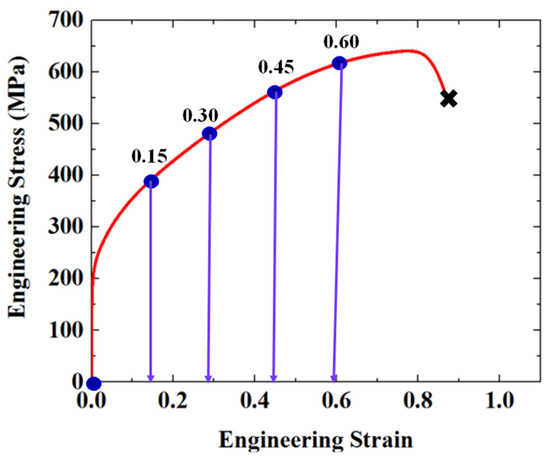

Wire drawing is a key processing method for producing ultrahigh-strength stainless steel wires. In metastable austenitic steels, the strain-induced martensitic transformation is known to govern strain hardening. However, the transformation mechanism and kinetics behavior under wire drawing remain unclear due to the distinct deformation conditions compared to those of conventional loading modes. In this work, the microstructural evolution, transformation kinetics and strengthening behavior of the 304 stainless steel during cold wire drawing are systematically analyzed. The results show that the transformation is dominated by the austenite → twin→ α′-martensite pathway, with the ε-martensite effectively suppressed. The martensite fraction follows a sigmoidal evolution with the equivalent drawing strain and could be well described by the Olson–Cohen model. The yield strength is increased from 320 MPa to 2 GPa and exhibits a linear relationship with the martensite fraction, indicating a dominant composite strengthening mechanism. These findings clarify the deformation-mode-dependent transformation mechanism and its role in governing mechanical properties during wire drawing. Full article

To address uneven surface hardness distribution in 65Mn external tooth friction plates after furnace quenching and disc mold tempering, we adopted an integrated quenching and forming process, using an internal-circulation mold. By simultaneously implementing pressure forming and quenching within the internal-circulation mold, the hardness uniformity of the friction plate during forming was improved, effectively suppressing warping deformation. A multi-field coupled model of the friction plate quenching in the internal-circulation mold was established to simulate the dynamic evolution of the temperature field, the microstructural transformation, and the stress field, thus obtaining the complete heat treatment response of the martensitic transformation. The experimentally observed microstructure agreed well with the simulation results. Data analysis showed that after quenching in the internal-circulation mold, the surface hardness difference of a single friction plate was reduced from 3 HRC to 0.9 HRC, and the end face runout decreased from 0.1–0.15 mm to no more than 0.06 mm, significantly improving the product’s dimensional accuracy and performance consistency. Full article
