Search Results (17)

Dynamic behavior is prevalent in biological and condensed matter systems at the nano- and mesoscopic scales. Typically, we capture images as “snapshots” to demonstrate the evolution of a system, and coherent X-ray diffraction imaging (CDI), as a lensless imaging technique, provides a nanoscale resolution, allowing us to clearly observe these microscopic phenomena. This paper presents a new dynamic CDI method based on zone-plate optics aiming to overcome the limitations of existing techniques in imaging fast dynamic processes by integrating the spatio-temporal dual constraint with a probe constraint. In this method, the modulus-enforced probe constraint and the temporal correlation of the dynamic sample low-frequency information are exploited and combined with an empty static region constraint in the dynamic sample. Using this method, we achieved a temporal resolution of 20 Hz and a spatial resolution of 13.2 nm, which were verified by visualized experimental results. Further comparisons showed that the reconstructed images were consistent with the ptychography reconstruction results, confirming the accuracy and feasibility of the method. This work is expected to provide a new tool for materials science and mesoscopic life sciences, promoting a deeper understanding of complex dynamic processes. Full article

There is a growing field that is devoted to developing inexpensive microscopes and measurement devices by leveraging low-cost commercial parts that can be controlled using smartphones or embedded devices, such as Arduino and Raspbery Pi. Examples include the use of Blu-ray optical heads like the PHR-803T to perform cytometry, spinning disc microscopy, and lensless holographic microscopy. The modular or disposable nature of these devices means that they can also be used in contaminating and degrading environments, including radioactive environments, where replacement of device elements can be expensive. This paper presents the development and operation of a confocal microscope that uses the PHR-803T optical device in a Blu-ray reader for both imaging and detection of temperature variations with between 1.5 and 15 µm resolution. The benefits of using a PHR-803T confocal system include its relatively inexpensive design and the accessibility of the components that are used in its construction. The design of this scanning confocal thermal microscope (SCoT) was optimized based on cost, modularity, portability, spatial resolution, and ease of manufacturability using common tools (e.g., drill press, 3D printer). This paper demonstrated the ability to resolve microscale features such as synthetic spider silk and measure thermal waves in stainless steel using a system requiring <USD 1000 in material costs. Full article

Permanent engravings on contact lenses provide information about the manufacturing process and lens positioning when they are placed on the eye. The inspection of their morphological characteristics is important, since they can affect the user’s comfort and deposit adhesion. Therefore, an inverted wavefront holoscope (a lensless microscope based on Gabor’s principle of in-line digital holography) is explored for the characterization of the permanent marks of soft contact lenses. The device, based on an in-line transmission configuration, uses a partially coherent laser source to illuminate the soft contact lens placed in a cuvette filled with a saline solution for lens preservation. Holograms were recorded on a digital sensor and reconstructed by back propagation to the image plane based on the angular spectrum method. In addition, a phase-retrieval algorithm was used to enhance the quality of the recovered images. The instrument was experimentally validated through a calibration process in terms of spatial resolution and thickness estimation, showing values that perfectly agree with those that were theoretically expected. Finally, phase maps of different engravings for three commercial soft contact lenses were successfully reconstructed, validating the inverted wavefront holoscope as a potential instrument for the characterization of the permanent marks of soft contact lenses. To improve the final image quality of reconstructions, the geometry of lenses should be considered to avoid induced aberration effects. Full article

Lensless holographic microscopy (LHM) comes out as a promising label-free technique since it supplies high-quality imaging and adaptive magnification in a lens-free, compact and cost-effective way. Compact sizes and reduced prices of LHMs make them a perfect instrument for point-of-care diagnosis and increase their usability in limited-resource laboratories, remote areas, and poor countries. LHM can provide excellent intensity and phase imaging when the twin image is removed. In that sense, multi-illumination single-holographic-exposure lensless Fresnel (MISHELF) microscopy appears as a single-shot and phase-retrieved imaging technique employing multiple illumination/detection channels and a fast-iterative phase-retrieval algorithm. In this contribution, we review MISHELF microscopy through the description of the principles, the analysis of the performance, the presentation of the microscope prototypes and the inclusion of the main biomedical applications reported so far. Full article

For decades, terahertz (THz) microscopic imaging has been limited by the resolution of the system due to the larger wavelength, the power of the source, and the equivalent noise power of the detector, so a lot of research has focused on single-point scanning imaging. With the development of hardware, full-field THz imaging based on high-power continuous-wave THz sources have been developed such as the direct intensity imaging method and lensless coherent imaging. In particular, the THz direct intensity imaging method requires no complicated computational reconstruction, while the high resolution, as a key issue, still needs to be improved. In this paper, the rotating coherent scattering microscopy was applied to THz imaging for the first time. Here, we designed and fabricated a hemisphere lens with high-resistance silicon. The tilted hemisphere lens transformed the incident divergent beam into a plane wave, and the total internal reflection occurred in the planar surface within the hemispherical lens, and generated evanescent waves in the rare medium. At the same time, the sample was placed very close to the plane of the hemispherical lens, so that the sample was illuminated by the evanescent waves. The scattered waves carried high frequency information to the far field, and thus through an objective, the super-resolution imaging was achieved along a single direction. Then, the hemispherical lens was rotated to obtain coherent scattering microscopic images under different evanescent wave illumination angles. Finally, the full-field super-resolution imaging results were obtained through incoherent superposition. Full article

Empowered by pixel super-resolution (PSR) and phase retrieval techniques, lensless on-chip microscopy opens up new possibilities for high-throughput biomedical imaging. However, the current PSR phase retrieval approaches are time consuming in terms of both the measurement and reconstruction procedures. In this work, we present a novel computational framework for PSR phase retrieval to address these concerns. Specifically, a sparsity-promoting regularizer is introduced to enhance the well posedness of the nonconvex problem under limited measurements, and Nesterov’s momentum is used to accelerate the iterations. The resulting algorithm, termed accelerated Wirtinger flow (AWF), achieves at least an order of magnitude faster rate of convergence and allows a twofold reduction in the measurement number while maintaining competitive reconstruction quality. Furthermore, we provide general guidance for step size selection based on theoretical analyses, facilitating simple implementation without the need for complicated parameter tuning. The proposed AWF algorithm is compatible with most of the existing lensless on-chip microscopes and could help achieve label-free rapid whole slide imaging of dynamic biological activities at subpixel resolution. Full article

Lensless holographic microscope (LHM) is an emerging very promising technology that provides high-quality imaging and analysis of biological samples without utilizing any lens for imaging. Due to its small size and reduced price, LHM can be a very useful tool for the point-of-care diagnosis of diseases, sperm assessment, or microfluidics, among others, not only employed in advanced laboratories but also in poor and/or remote areas. Recently, several LHMs have been reported in the literature. However, complete characterization of their optical parameters remains not much presented yet. Hence, we present a complete analysis of the performance of a compact, reduced cost, and high-resolution LHM. In particular, optical parameters such as lateral and axial resolutions, lateral magnification, and field of view are discussed into detail, comparing the experimental results with the expected theoretical values for different layout configurations. We use high-resolution amplitude and phase test targets and several microbeads to characterize the proposed microscope. This characterization is used to define a balanced and matched setup showing a good compromise between the involved parameters. Finally, such a microscope is utilized for visualization of static, as well as dynamic biosamples. Full article

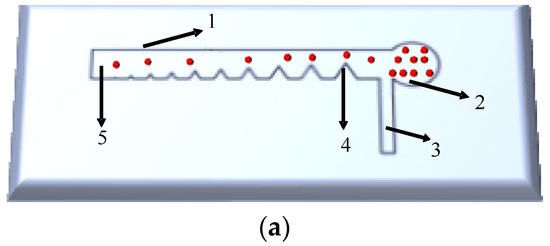

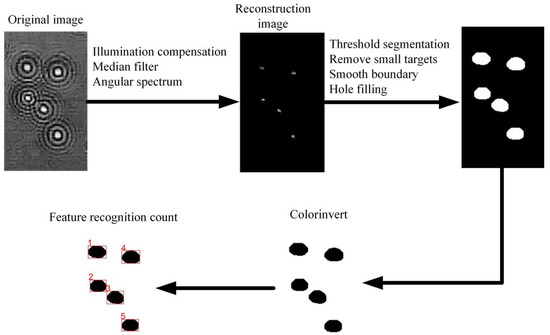

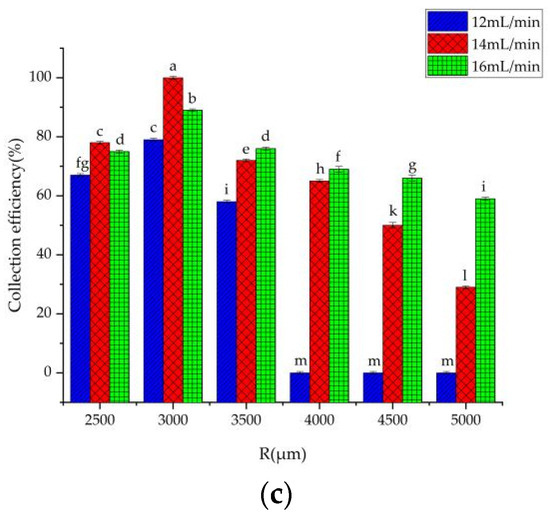

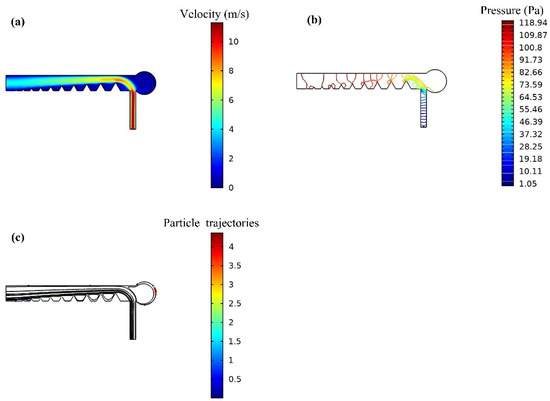

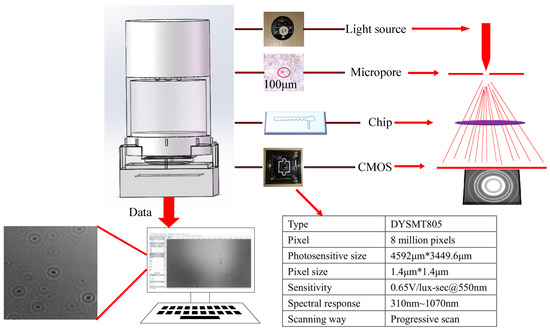

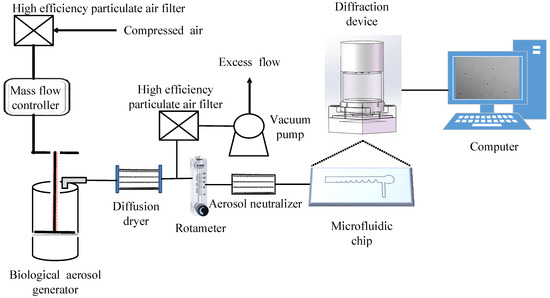

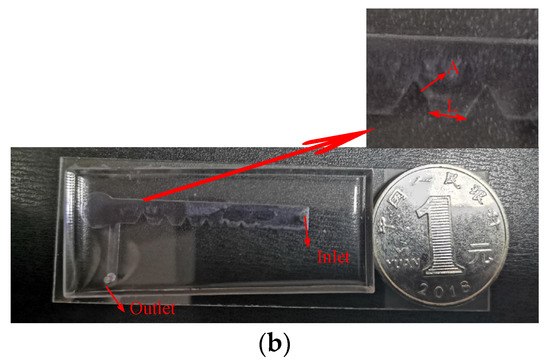

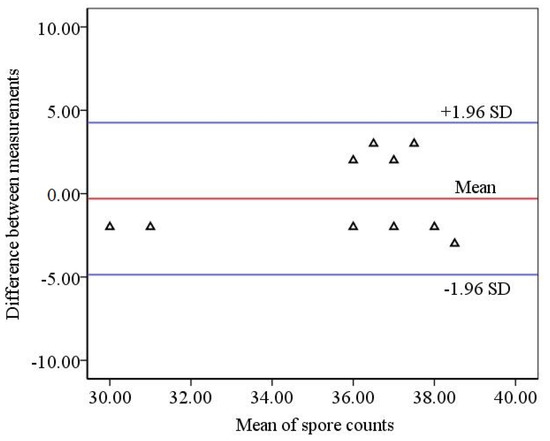

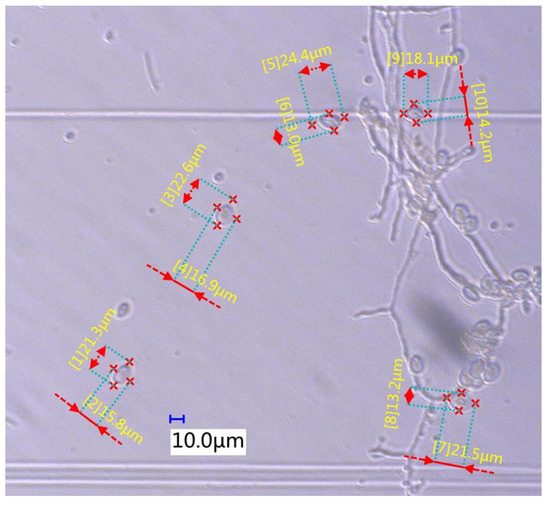

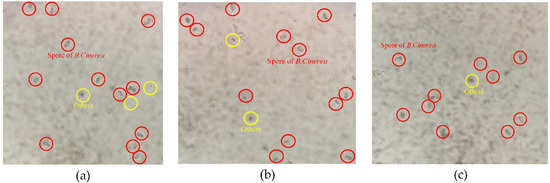

It is of great significance to find tomato gray mold in time and take corresponding control measures to ensure the production of tomato crops. This study proposed a rapid detection method for spores of Botrytis cinerea in green-house based on microfluidic chip enrichment and lens-free diffraction image processing. Microfluidic chip with a regular triangular inner rib structure was designed to achieve the enrichment of Botrytis cinerea spores. In order to obtain the diffraction image of the diseased spores, a lens-less diffraction imaging system was built. Furthermore, the collected spore diffraction images were processed and counted. The simulation results showed that the collection efficiency of 16 μm particles was 79%, 100%, and 89% at the inlet flow rate of 12, 14 and 16 mL/min, respectively. The experimental verification results were observed under a microscope. The results showed that when the flow rate of the microfluidic chip was 12, 14 and 16 mL/min, the collection efficiency of Botrytis cinerea spores was 70.65%, 87.52% and 77.96%, respectively. The Botrytis cinerea spores collected in the experiment were placed under a microscope for manual counting and compared with the automatic counting results based on diffraction image processing. A total of 10 sets of experiments were carried out, with an error range of the experiment was 5.13~8.57%, and the average error of the experiment was 6.42%. The Bland–Altman method was used to analyze two methods based on diffraction image processing and manual counting under a microscope. All points are within the 95% consistency interval. Therefore, this study can provide a basis for the research on the real-time monitoring technology of tomato gray mold spores in the greenhouse. Full article

Lensless microscopy requires the simplest possible configuration, as it uses only a light source, the sample and an image sensor. The smallest practical microscope is demonstrated here. In contrast to standard lensless microscopy, the object is located near the lighting source. Raster optical microscopy is applied by using a single-pixel detector and a microdisplay. Maximum resolution relies on reduced LED size and the position of the sample respect the microdisplay. Contrarily to other sort of digital lensless holographic microscopes, light backpropagation is not required to reconstruct the images of the sample. In a mm-high microscope, resolutions down to 800 nm have been demonstrated even when measuring with detectors as large as 138 μm × 138 μm, with field of view given by the display size. Dedicated technology would shorten measuring time. Full article

The recent advances in chip-size microscopy based on optical scanning with spatially resolved nano-illumination light sources are presented. This new straightforward technique takes advantage of the currently achieved miniaturization of LEDs in fully addressable arrays. These nano-LEDs are used to scan the sample with a resolution comparable to the LED sizes, giving rise to chip-sized scanning optical microscopes without mechanical parts or optical accessories. The operation principle and the potential of this new kind of microscope are analyzed through three different implementations of decreasing LED dimensions from 20 µm down to 200 nm. Full article

The lensless on-chip microscope is an emerging technology in the recent decade that can realize the imaging and analysis of biological samples with a wide field-of-view without huge optical devices and any lenses. Because of its small size, low cost, and being easy to hold and operate, it can be used as an alternative tool for large microscopes in resource-poor or remote areas, which is of great significance for the diagnosis, treatment, and prevention of diseases. To improve the low-resolution characteristics of the existing lensless shadow imaging systems and to meet the high-resolution needs of point-of-care testing, here, we propose a high-precision on-chip microscope based on in-line holographic technology. We demonstrated the ability of the iterative phase recovery algorithm to recover sample information and evaluated it with image quality evaluation algorithms with or without reference. The results showed that the resolution of the holographic image after iterative phase recovery is 1.41 times that of traditional shadow imaging. Moreover, we used machine learning tools to identify and count the mixed samples of mouse ascites tumor cells and micro-particles that were iterative phase recovered. The results showed that the on-chip cell counter had high-precision counting characteristics as compared with manual counting of the microscope reference image. Therefore, the proposed high-precision lensless microscope on a chip based on in-line holographic imaging provides one promising solution for future point-of-care testing (POCT). Full article

The lensless imaging technique, which integrates a microscope into a complementary metal oxide semiconductor (CMOS) digital image sensor, has become increasingly important for the miniaturization of biological microscope and cell detection equipment. However, limited by the pixel size of the CMOS image sensor (CIS), the resolution of a cell image without optical amplification is low. This is also a key defect with the lensless imaging technique, which has been studied by a many scholars. In this manuscript, we propose a method to improve the resolution of the cell images using the Brownian motion of living cells in liquid. A two-step algorithm of motion estimation for image registration is proposed. Then, the raw holographic images are reconstructed using normalized convolution super-resolution algorithm. The result shows that the effect of the collected cell image under the lensless imaging system is close to the effect of a 10× objective lens. Full article

Crop diseases cause great harm to food security, 90% of these are caused by fungal spores. This paper proposes a crop diseases spore detection method, based on the lensfree diffraction fingerprint and microfluidic chip. The spore diffraction images are obtained by a designed large field of view lensless diffraction detection platform which contains the spore enrichment microfluidic chip and lensless imaging module. By using the microfluidic chip to enrich and isolate spores in advance, the required particles can be captured in the chip enrichment area, and other impurities can be filtered to reduce the interference of impurities on spore detection. The light source emits partially coherent light and irradiates the target to generate diffraction fingerprints, which can be used to distinguish spores and impurities. According to the theoretical analysis, two parameters, Peak to Center ratio (PCR) and Peak to Valley ratio (PVR), are found to quantify these spores. The correlation coefficient between the detection results of rice blast spores by the constructed device and the results of microscopic artificial identification was up to 0.99, and the average error rate of the proposed device was only 5.91%. The size of the device is only 4 cm × 4 cm × 5 cm, and the cost is less than $150, which is one thousandth of the existing equipment. Therefore, it may be widely used as an early detection method for crop disease caused by spores. Full article

A compact lensless microscope comprising a custom-made LED engine and a CMOS imaging sensor has been developed for live-cell culture imaging inside a cell incubator environment. The imaging technique is based on digital inline-holographic microscopy, while the image reconstruction is carried out by angular spectrum approach with a custom written software. The system was tested with various biological samples including immortalized mouse astrocyte cells inside a petri dish. Besides the imaging possibility, the capability of automated cell counting and tracking could be demonstrated. By using image sensors capable of video frame rate, time series of cell movement can be captured. Full article

Cell registration by artificial neural networks (ANNs) in combination with principal component analysis (PCA) has been demonstrated for cell images acquired by light emitting diode (LED)-based compact holographic microscopy. In this approach, principal component analysis was used to find the feature values from cells and background, which would be subsequently employed as neural inputs into the artificial neural networks. Image datasets were acquired from multiple cell cultures using a lensless microscope, where the reference data was generated by a manually analyzed recording. To evaluate the developed automatic cell counter, the trained system was assessed on different data sets to detect immortalized mouse astrocytes, exhibiting a detection accuracy of ~81% compared with manual analysis. The results show that the feature values from principal component analysis and feature learning by artificial neural networks are able to provide an automatic approach on the cell detection and registration in lensless holographic imaging. Full article
