Search Results (157)

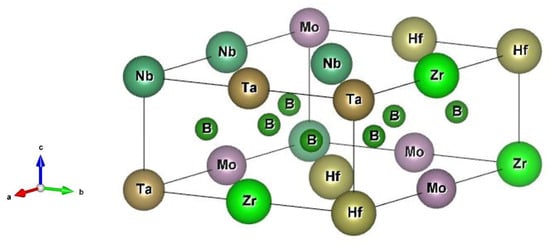

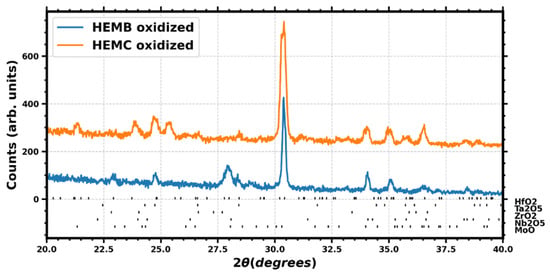

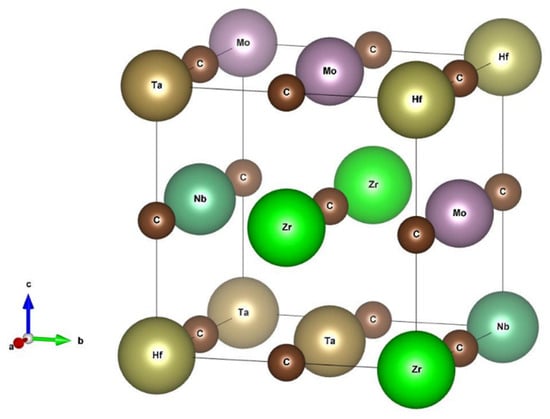

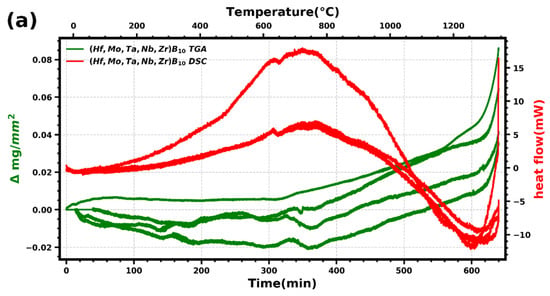

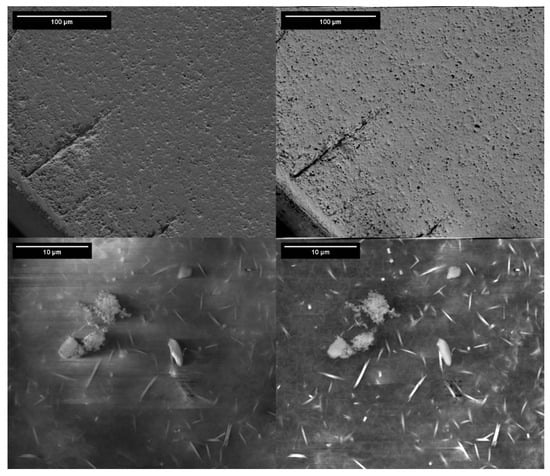

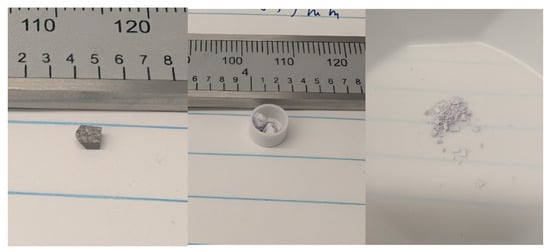

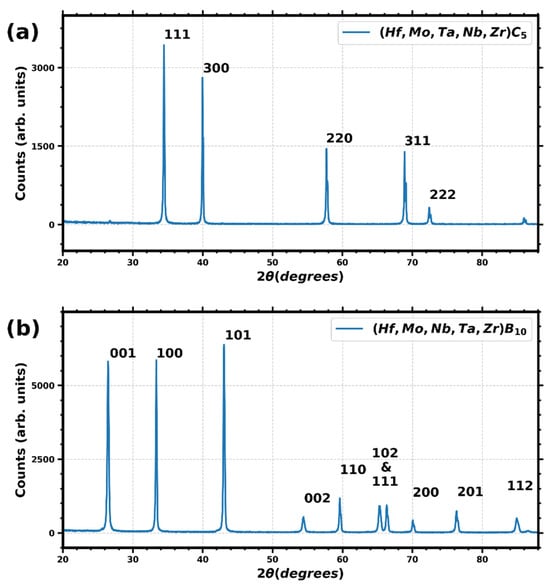

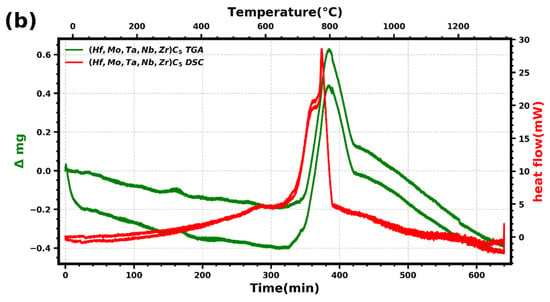

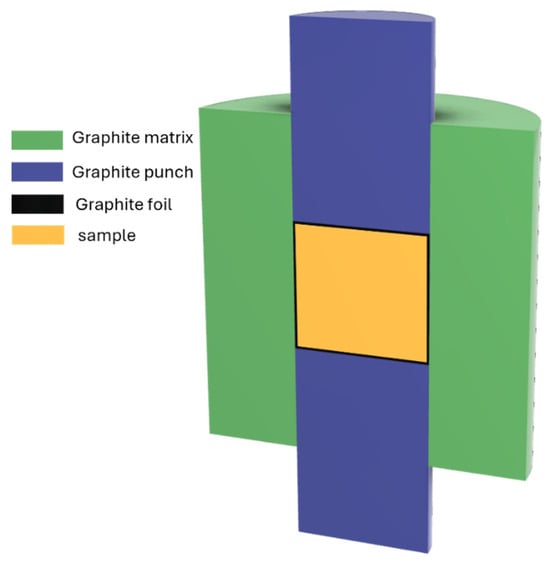

We present a systematic study of thermal oxidation resistance of transition metal borides and carbides up to 1300 °C in a dry air environment. A High-Entropy Metal Boride (HEMB), of composition (Hf_0.2, Mo_0.2, Nb_0.2, Ta_0.2, Zr_0.2)B₂, and a similar High-Entropy Metal Carbide (HEMC) (Hf, Mo, Nb, Ta, Zr)C₅ were synthesized from precursor mixtures, under 30 MPa of pressure at a temperature of 1800 °C using a Spark Plasma Sintering Device. The synthesized phases were confirmed via X-ray Diffraction analysis, which showed a pure hexagonal AlB₂-type structure for HEMB and a face-centered cubic (FCC) structure for HEMC, with lattice parameters, a = 3.10 Å and c = 3.37 Å for HEMB and a = 4.524 Å for HEMC. Oxidation resistance was evaluated using a simultaneous thermogravimetric analysis and differential scanning calorimetry (TGA/DSC) stage in which HEMB and HEMC were heated up to 1300 °C at a rate of 2 °C/min in a dry air environment. Scanning electron microscopy (SEM) was used to analyze the resulting oxidized material. Our study demonstrates that HEMB shows better thermal oxidation resistance as compared to a similar metal composition HEMC at high temperatures. Full article

Poor consolidations and the strength–conductivity trade-off limit the performance of copper alloys fabricated by laser powder bed fusion (LPBF). To address this, this study developed a strategy combining the response surface methodology (RSM) with direct ageing treatment (DAT) to achieve a favorable strength–conductivity synergy. The results showed that under the optimal process parameters, a high relative density of 99.25% (8.95 g/cm³ for theoretical density) was obtained. After direct ageing treatment at 490 °C for 60 min, the CuCrZr exhibited an ultimate tensile strength of 399.31 MPa and a thermal conductivity of 326.53 W/(m·K). To reveal the underlying mechanisms, this study employed a combination of systematic characterization via high-resolution transmission electron microscopy (HRTEM) and quantitative modeling. HRTEM characterized the uniformly dispersed nanoscale body-centered cubic (BCC) Cr precipitates that form semi-coherent interfaces with the face-centered cubic (FCC) Cu matrix, showing a crystallographic misorientation of approximately 10.5° intermediate between the classic Nishiyama–Wassermann and Kurdjumov–Sachs orientation relationships. Quantitative modeling indicates that the high strength arises from a synergistic effect: coherent strain fields exerted by the precipitates effectively pin retained dislocations, coupling Orowan and dislocation strengthening. Meanwhile, solute precipitation reduces lattice distortion, restoring notable thermal conductivity. Full article

This study provides a rigorous analysis of the phase stability, mechanical behavior, and surface integrity of a non-equiatomic (FeCoNiCr)₈₅Ga₁₅ high-entropy alloy (HEA). By transitioning from the conventional equiatomic design to a gallium-doped 3d-transition metal matrix, we explore the interplay between lattice distortion and phase separation. Synthesized via vacuum arc melting, the as-cast alloy exhibits a non-homogeneous dendritic morphology consisting of a Cr-Fe-Co rich face-centered cubic (FCC) matrix and Ni-Ga rich body-centered cubic (BCC) interdendritic regions. While global thermodynamic criteria (δ = 3.65, ΔH_mix = −9.28 kJ/mol, and Ω = 2.23) favor single-phase solid solution stability, the Valence Electron Concentration (VEC = 7.46) precisely forecasts this dual-phase structure. Following low-temperature annealing at 250 °C for 24 h, high lattice strain energy drives a significant morphological transformation where the continuous interdendritic network resolves into discrete, phase-separated B2/BCC “islands”. Mechanical and tribological characterizations reveal that this low-temperature thermal activation triggers precipitate hardening; the macro-hardness increases from 146 ± 11 HB to 153 ± 7.5 HB and the micro-hardness rises from 186 ± 4 HV_0.5 to 206 ± 17.5 HV_0.5, yielding enhanced resistance to oxidation-delamination wear. However, electrochemical evaluation in a 3.5 wt.% NaCl solution highlights a fundamental trade-off: the formation of localized galvanic micro-cells between the phase-separated islands and the matrix causes the corrosion current density (i_corr) to increase from ≈10⁻⁹ A/cm² in the as-cast state to ≈10⁻⁶ A/cm² post-heat treatment, accompanied by a heightened susceptibility to localized pitting. These findings elucidate the primary role of electronic structure and minor p-block additions in regulating the lifecycle performance of transition metal HEAs under extreme conditions. Full article

While macroscopic stress significantly impacts the performance of metallic components, the underlying atom–electron coupling mechanisms governed by distinct crystal symmetries remain insufficiently understood. To address this gap, this work systematically investigates the structural and electronic evolution of representative metallic materials under applied stress. Experimentally, X-ray diffraction (XRD) revealed complex macroscopic residual stress distributions in cold rolled titanium alloy and silicon steel. Motivated by these engineering observations, first-principles density functional theory (DFT) calculations were conducted to uncover the underlying physical mechanisms. Specifically, the responses of face-centered cubic (FCC) aluminum and copper, body-centered cubic (BCC) iron, and hexagonal close-packed (HCP) titanium crystals were investigated under tension and compression using the RPBE functional. Stress-dependent elastic properties, density of states (DOS), band structures, and phonon spectra were calculated. Results show that tension softens all metals (Al becomes mechanically unstable), whereas compression stiffens their lattices. Electronically, tensile loading sharpens DOS peaks near the Fermi level and shifts conduction bands closer to it, whereas compression smooths DOS peaks and shifts bands away. Phonon analysis indicates Cu and Ti remain dynamically stable, while Al and Fe exhibit phonon mode softening under high tension. These stress-induced changes highlight crucial atom–electron coupling mechanisms, providing a theoretical basis for tailoring metallic performance via stress engineering. Full article

The trade-off between strength and ductility remains a pivotal challenge in the development of multi-principal element alloys (MPEAs) for structural applications. Here, we report a dual-scale ordering strategy to achieve triple strengthening in a Ni-26.6Co-18.4Cr-5.4Nb-4.1Mo-2.3Al-0.3Ti-0.05Y (wt.%) MPEA through the synergistic interplay of L1₂ nanoprecipitates and local chemical order (LCO). The alloy was processed via cold rolling followed by aging at 750 °C for 8 h, resulting in a high density of coherent L1₂ precipitates (average size 47 ± 1 nm, volume fraction ~27%) with an ultra-low lattice misfit of 0.5%. Additionally, sub-nanoscale LCO domains with an average diameter of 0.62 nm were identified within the face-centered cubic matrix. This hierarchical microstructure yields an exceptional combination of mechanical properties at room temperature: yield strength of 1480 ± 6 MPa, ultimate tensile strength of 1678 ± 10 MPa, and a total elongation of 13.9 ± 0.2%. Quantitative strengthening analysis reveals that precipitation strengthening (697 MPa) is the dominant contributor, followed by dislocation strengthening (397 MPa). Transmission electron microscopy characterization of deformed samples reveals that the low stacking fault energy, promoted by LCO, facilitates the dissociation of perfect dislocations and the formation of extensive stacking faults. The intersection of stacking faults on different {111} planes generates a large number of Lomer–Cottrell locks, which significantly enhance work hardening and delay plastic instability. The findings demonstrate that engineering dual-scale ordered structures offers a promising pathway for developing MPEAs with a superior strength-ductility combination. Full article

This study investigates the role of silicon (Si) addition in governing the evolution of phase symmetry and microstructural stability in a high-entropy alloy (HEA) synthesized via powder metallurgy. Mechanically alloyed powders were consolidated through conventional sintering, followed by systematic heat treatment to examine symmetry-driven phase transformations. Particular attention is given to the symmetry relationship between body-centered cubic (BCC) and face-centered cubic (FCC) crystal structures and their compositional stabilization mechanisms. X-ray diffraction and microstructural analyses reveal that Si incorporation modifies lattice symmetry, promotes controlled phase transformation, and influences the balance between competing crystallographic phases. The addition of Si contributes to symmetry stabilization by reducing heterogeneity in lattice distortion and suppressing grain coarsening during thermal exposure. These findings demonstrate that compositional tuning can regulate structural symmetry and phase equilibrium in multicomponent alloy systems. The work provides insight into symmetry-controlled material design strategies for enhancing the thermal robustness and structural reliability of HEAs for high-temperature applications. Full article

Biocompatible nanocomposite hydrogels are emerging as versatile platforms in nanomedicine, particularly when natural proteins are used as both structural and chemical components. In this work, we report a green, simple, and rapid in situ synthesis of ultrasmall silver nanoparticles (uAgNPs) within a bovine serum albumin (BSA) hydrogel, in which albumin simultaneously acts as the reducing agent and three-dimensional scaffold. The confined reaction environment generated uniformly dispersed Ag nanostructures with diameters in the 4–40 nm range, as confirmed by DLS and TEM. High-resolution TEM revealed clear Face-Centered Cubic (FCC, 111) lattice fringes, demonstrating the crystalline nature of the embedded uAgNPs. Quantitative image analysis showed narrow size distributions and high circularities, consistent with cluster stabilization through protein–metal interactions. Rheological measurements further indicated that the incorporation of uAgNPs enhanced hydrogel stiffness and delayed yielding, reflecting a reinforcement effect mediated by the nanoparticles acting as additional cross-linking points. Moreover, when very small embedded uAgNPs are formed, the presence of emissive silver nanoclusters was found using fluorescence emission spectroscopy. Overall, our results show that BSA hydrogels provide an effective matrix for directing green uAgNP nucleation, ensuring high stability, controlled growth in less than 2 min, and improved mechanical properties. The resulting protein–nanoparticle composite constitutes a promising soft material for imaging, sensing, and other biomedical applications requiring stable, biocompatible nanoscale architectures. Full article

Periodic supercell lattice structures with elements of random polydispersity disorder were created to simulate the effect of randomization on photonic crystals using finite-difference time domain (FDTD) methods. As a key exemplar system, a three-dimensional “inverse opal” structure of a face-centered cubic lattice with air spheres in a silicon dielectric was simulated, with sphere radii within supercells following a randomized Gaussian distribution, with characteristic standard deviation and mean. A corresponding ordered lattice with a bandgap with magnitude 3.5% of the normalized frequency range was used as a direct control, with sphere radius 0.34 times the lattice constant a. For a range of standard deviations, up to 5.9% of the 0.34a mean, a Monte Carlo-style approach was adopted, with photonic band properties analyzed over a large number of repeat simulations to ensure statistical significance. The corresponding Gaussian distribution in the resultant photonic bandgap magnitudes is broadened with increasing polydispersity such that an evolving fraction of simulations no longer exhibits a non-zero bandgap. A characteristic pseudo-transition occurs at a standard deviation of approximately 4.1% of the 0.34a mean, above where the frequency of simulations still returning a finite bandgap rapidly diminishes. Some isolated configurations, with a high degree of uniqueness, can exhibit enhanced bandgap properties (greater than the 3.5% benchmark) despite considerable polydisperse disordering; we envisage that these findings point towards the use of engineered randomness in supercell systems to create desired photonic crystal properties and functionality, such as localization and photonic bandgaps. Full article

Substitutional elements are introduced to face-centered cubic (FCC) multi-principal element alloys (MPEAs) to effectively enhance the mechanical performance by solid solution strengthening and second-phase strengthening. Commonly, relatively large atomic radius elements introduced into the alloy matrix result in lattice distortion and hinder grain boundary migration, thus achieving matrix strengthening. However, owing to the complex compositions of MPEAs, different substitutional elements introduced affect the microstructure evolution behavior and corresponding strengthening effects. In this work, an abnormal grain growth behavior of Ni-Co-Cr-based MPEAs based on Al alloying was observed. Systematic annealing experiments combined with quantitative grain growth analysis were conducted to clarify the effects of Al, W, and Mo on grain boundary migration. The results show that substitutional Al reduces the apparent activation energy for grain growth, resulting in both a lower grain growth component (n = 2) and a lower activation energy for grain growth of 219 kJ/mol, thereby enhancing grain boundary mobility. On the contrary, minor additions of high-melting-point W and Mo effectively inhibited the Al-induced rapid grain growth by increasing the activation energy and resulting in a higher grain growth component and a lower activation energy for grain growth of 251 kJ/mol. These findings provide new insights into the role of substitutional solutes in controlling grain growth kinetics in multi-principal element alloys. Full article

CoCrNi medium-entropy alloys (MEAs) have emerged as a promising class of structural materials due to their exceptional strength–ductility synergy. However, the lack of composition-dependent predictive models severely hinders rational alloy design, forcing reliance on costly trial-and-error experimentation. This study develops a comprehensive theoretical model to predict the yield strength of single-phase face-centered-cubic (FCC) Co_(1-x-y)Cr_yNi_x MEAs by quantitatively evaluating the contributions of grain boundary and solid solution strengthening. The model demonstrates that increasing Cr content significantly enhances grain boundary strengthening through elevated shear modulus and Peierls stress, whereas Ni has a minimal effect. Solid solution strengthening, determined by the minimum resistance among Co–Cr, Co–Ni, and Cr–Ni atomic pairs, peaks at 1726.21 MPa for the composition Co₁₇Cr₆₄Ni₁₉. For equiatomic CoCrNi, theoretical yield strengths range from 1287.8 to 1575.4 MPa across grain sizes of 0.5–50 µm, showing excellent agreement with experimental results. This work provides a reliable, composition-dependent predictive framework that surpasses traditional trial-and-error methods, enabling efficient design of high-strength MEAs through targeted control of lattice distortion and elemental interactions. Full article

FeCoCrNiNb_xN (x = 0, 0.25, 0.5, 0.75, 1 molar) high-entropy nitride (HEN) films were fabricated on 304 stainless steel and Si wafers using magnetron sputtering to investigate the influence of Nb content on the microstructure, mechanical properties, and tribological performance. X-ray diffraction (XRD) analysis reveals a face-centered cubic (FCC) structure with a preferred orientation in the (200) plane, which transfers to the (111) plane as the Nb content increases. The lattice distortion induced by Nb incorporation enhanced crystallinity, with the Nb_0.5N film exhibiting the highest diffraction peak intensity and interplanar distance. Cross-sectional SEM images displayed columnar crystal structures, while the surface morphology evolved from “cauliflower-like” to smoother clusters with increasing Nb content, reducing average roughness from 7.54 nm (Nb₀) to 4.89 nm (Nb₁). The hardness and elastic modulus initially decrease, then peak at 25.56 GPa and 265.36 GPa, respectively, for the Nb₁ film, attributed to solid solution strengthening and high-entropy effects. Tribological tests demonstrated that Nb₁ achieved the lowest coefficient of friction (0.46), wear volume (1.23 × 10⁻³ mm³), and wear rate (5.11 × 10⁻⁸ mm³·N⁻¹·m⁻¹), owing to NbN phase formation, refined grains, and reduced surface roughness. The wear mechanisms are abrasive and oxidative wear. Full article

Direct Numerical Simulations (DNS) are widely employed to simulate thermo-fluid dynamics in packed bed reactors, offering high-fidelity insights into complex flow and heat transfer phenomena. However, recent studies have revealed notable differences in isothermal turbulent flow results across different DNS frameworks, leaving open the question of how conjugate heat transfer is affected. This study presents a comparison between DNS based on a finite volume method (FVM) and a lattice Boltzmann method (LBM) for predicting turbulent heat transfer in a low porosity face-centered cubic (FCC) packed unit. First, the methods are compared with respect to the required resolution and computational cost. Subsequently, global parameters for drag, heat transfer, and spatial as well as temporal variances are evaluated. The flow topology is further analyzed by examining the mean and fluctuating components of hydrodynamic and thermal fields. While good agreement between the methods is shown regarding time-averaged velocity and temperature profiles, more pronounced differences are observed when comparing the respective temporal variances between the two methods. Additionally, the FVM, which relies on a surface-fitted mesh, requires more degrees of freedom to obtain a grid-converged solution but delivers results of higher certainty than the LBM. These findings highlight important methodological considerations when selecting DNS approaches for resolving turbulent heat transfer in complex porous geometries. Full article

This study explores the application of lattice structures as internal support architectures in the fabrication of Inconel 718 components via Laser Powder Bed Fusion (L-PBF), building upon previous research on beam-based FCCZ supports. Two representative lattice typologies were investigated: the node and beam-based FCCZ (face centered cubic with Z direction reinforcement struts) structure and the triply periodic minimal surface (TPMS) Schoen Gyroid cell. The aim was to assess how the transition from a discrete beam-node architecture to a continuous surface topology influences manufacturability, thermal stability, and mechanical performance. Finite Element Method (FEM) simulations in Ansys accurately predicted distortions and residual stresses during the L-PBF process, showing strong agreement with stereomicroscope measurements. Specifically, the maximum directional deformation reached 0.32 mm for the FCCZ sample versus 0.17 mm for the Gyroid, with corresponding peak residual stresses of 1328 MPa and 940 MPa, respectively. After fabrication, the samples underwent solution treatment and double aging according to AMS 2774 and AMS 5662 standards. Vickers microhardness increased from about 320 HV0.3 in the as-built condition to 500 HV0.3 after heat treatment (+55%), with overall porosity remaining below 1%. Microstructural analysis using optical microscopy (OM), scanning electron microscopy (SEM), and transmission electron microscopy (TEM) revealed that heat treatment partially homogenized the microstructure but did not achieve complete recrystallization, leaving localized dendritic regions and undissolved Laves phases, particularly near the lattice. The precipitation of γ′ and δ phases enhanced hardness and mechanical uniformity, as confirmed by Vickers microhardness testing. Quantitatively, the Gyroid topology exhibited approximately 40% lower deformation and defect density than the FCCZ structure, confirming its superior manufacturability and thermal stability. These findings provide practical guidance for selecting lattice topologies for support architectures in L-PBF Inconel 718 components where thermal stability and shape preservation during build are critical. Full article

Aiming at the drawbacks of the classic CoCrFeNi high-entropy alloy (HEA)—low room-temperature strength and softening above 600 °C, which fail to meet strict material requirements in high-end fields like aerospace—this study used the vacuum hot-pressing sintering process to prepare CoCrFeNiTa_x HEAs (x = 0, 0.5, 1.0, 1.5, 2.0 atom, designated as H4, Ta_0.5, Ta_1.0, Ta_1.5, Ta_2.0, respectively). This process effectively inhibits Ta segregation (a key issue in casting) and facilitates the presence uniform microstructures with relative density ≥ 96%, while this study systematically investigates a broader Ta content range (x = 0–2.0 atom) to quantify phase–property evolution, differing from prior works focusing on limited Ta content or casting/spark plasma sintering (SPS). Via X-ray diffraction (XRD), scanning electron microscopy–energy-dispersive spectroscopy (SEM-EDS), microhardness testing, and room-temperature compression experiments, Ta’s regulatory effect on the alloy’s microstructure and mechanical properties was systematically explored. Results show all alloys have a relative density ≥ 96%, verifying the preparation process’s effectiveness. H4 exhibits a single face-centered cubic (FCC) phase. Ta addition transforms it into a “FCC + hexagonal close-packed (HCP) Laves phase” dual-phase system. Mechanically, the alloy’s inner hardness (reflecting the intrinsic property of the material) increases from 280 HV to 1080 HV, the yield strength from 760 MPa to 1750 MPa, and maximum fracture strength reaches 2280 MPa, while plasticity drops to 12%. Its strengthening mainly comes from the combined action of Ta’s solid-solution strengthening (via lattice distortion hindering dislocation motion) and the Laves phase’s second-phase strengthening (further inhibiting dislocation slip). Full article

Additive manufacturing via stereolithography (SLA) enables the fabrication of highly customized lattice structures, yet the interplay between geometry and graded density in defining mechanical behavior remains underexplored. This research investigates the mechanical behavior and failure mechanisms of cylindrical lattice structures considering uniform, linear, and quadratic density variations. Various configurations, including IsoTruss, face-centered cubic (FCC)-type cells, Kelvin structures, and Tet oct vertex centroid, were examined under a complete factorial design that allowed a thorough exploration of the interactions between lattice geometry and density variation. A 3D printer working with SLA was used to fabricate the models. For the analysis, a universal testing machine, following ASTM D638-22 Type I and ASTM D1621-16 standards, was used for tension and compression tests. For microstructural analysis and surface inspection, a scanning electron microscope and a digital microscope were used, respectively. Results indicate that the IsoTruss configuration with linear density excelled remarkably, achieving an impressive energy absorption of approximately 15 MJ/m³ before a 44% strain, in addition to presenting the most outstanding mechanical properties, with a modulus of elasticity of 613.97 MPa, a yield stress of 22.646 MPa, and a maximum stress of 49.193 MPa. On the other hand, the FCC configuration exhibited the lowest properties, indicating lower stiffness and mechanical strength in compression, with an average modulus of elasticity of 156.42 MPa, a yield stress of 5.991 MPa, and the lowest maximum stress of 14.476 MPa. The failure modes, which vary significantly among configurations, demonstrate the substantial influence of the lattice structure and density distribution on structural integrity, ranging from localized bending in IsoTruss to spalling in FCC and shear patterns in Kelvin. This study emphasizes the importance of selecting fabrication parameters and structural design accurately. This not only optimizes the mechanical properties of additively manufactured parts but also provides essential insights for the development of new advanced materials. Overall, the study demonstrates that both lattice geometry and density distribution play a crucial role in determining the structural integrity of additively manufactured materials. Full article
